Identification of Key Events and Emissions during Thermal Abuse Testing on NCA 18650 Cells
Abstract
:1. Introduction
2. Materials and Methods

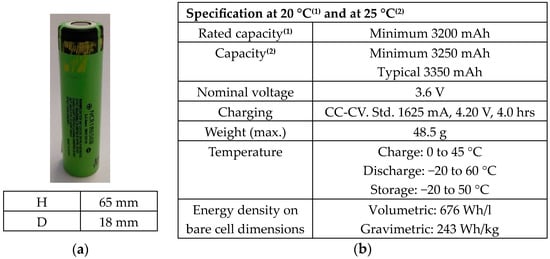

2.1. Materials

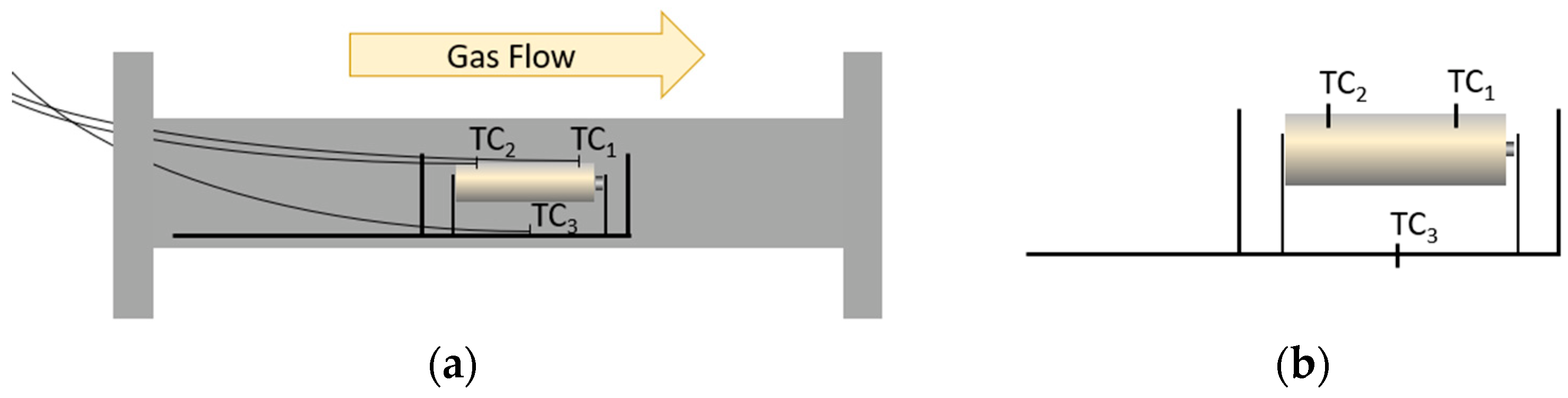

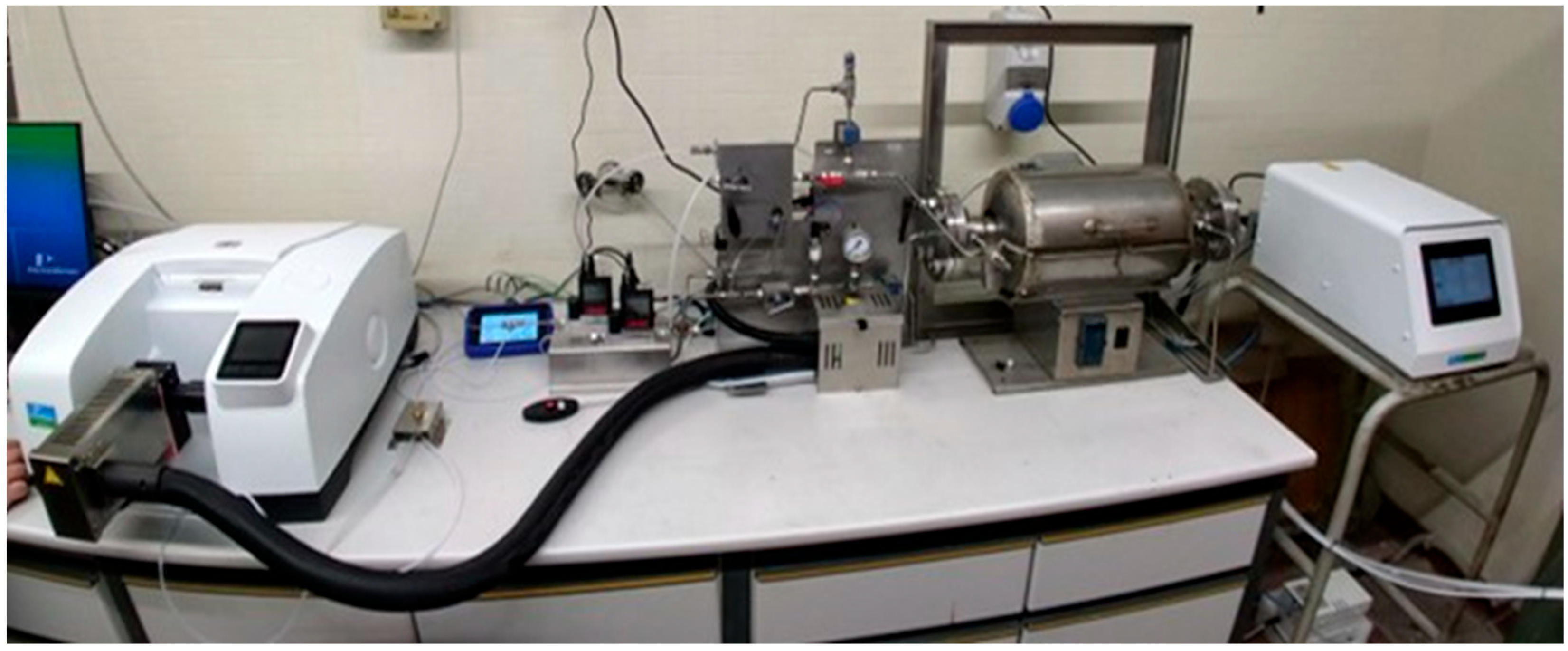

2.2. Lab-Scale Setup: Reactor, Transfer Line, and FT-IR Spectroscopy
2.3. Methods
2.3.1. Thermal Stability Test Conditions
2.3.2. Thermal Abuse Test Conditions
2.3.3. FT-IR
2.3.4. ATR-FT-IR
2.3.5. SEM-EDS
2.3.6. ICP-OES and AAS
3. Results

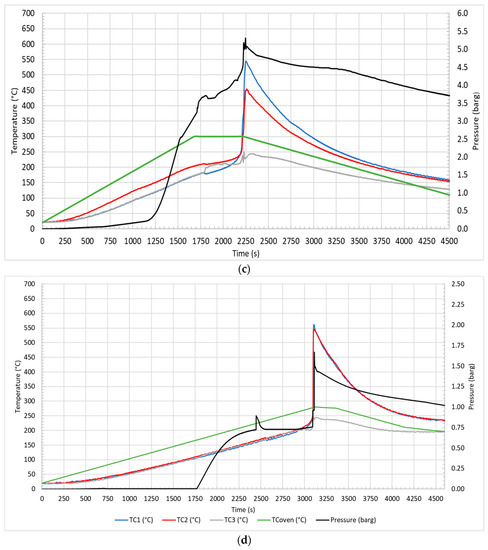

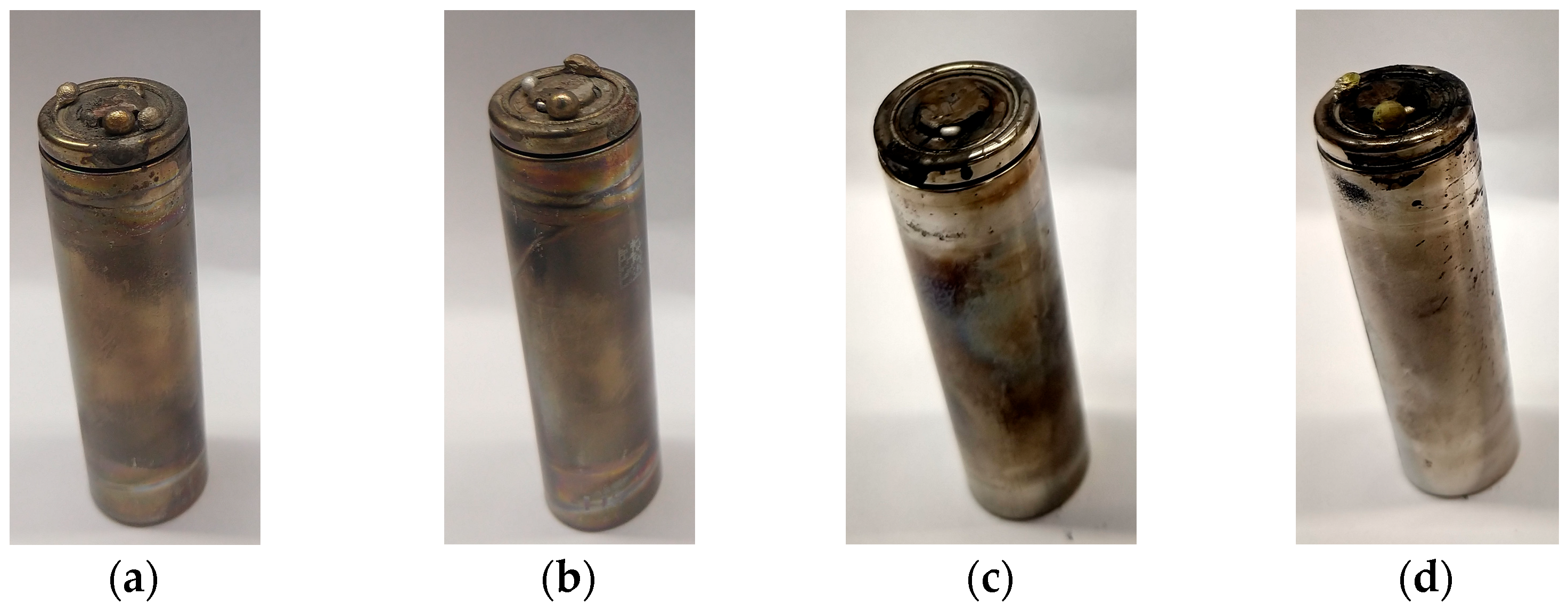

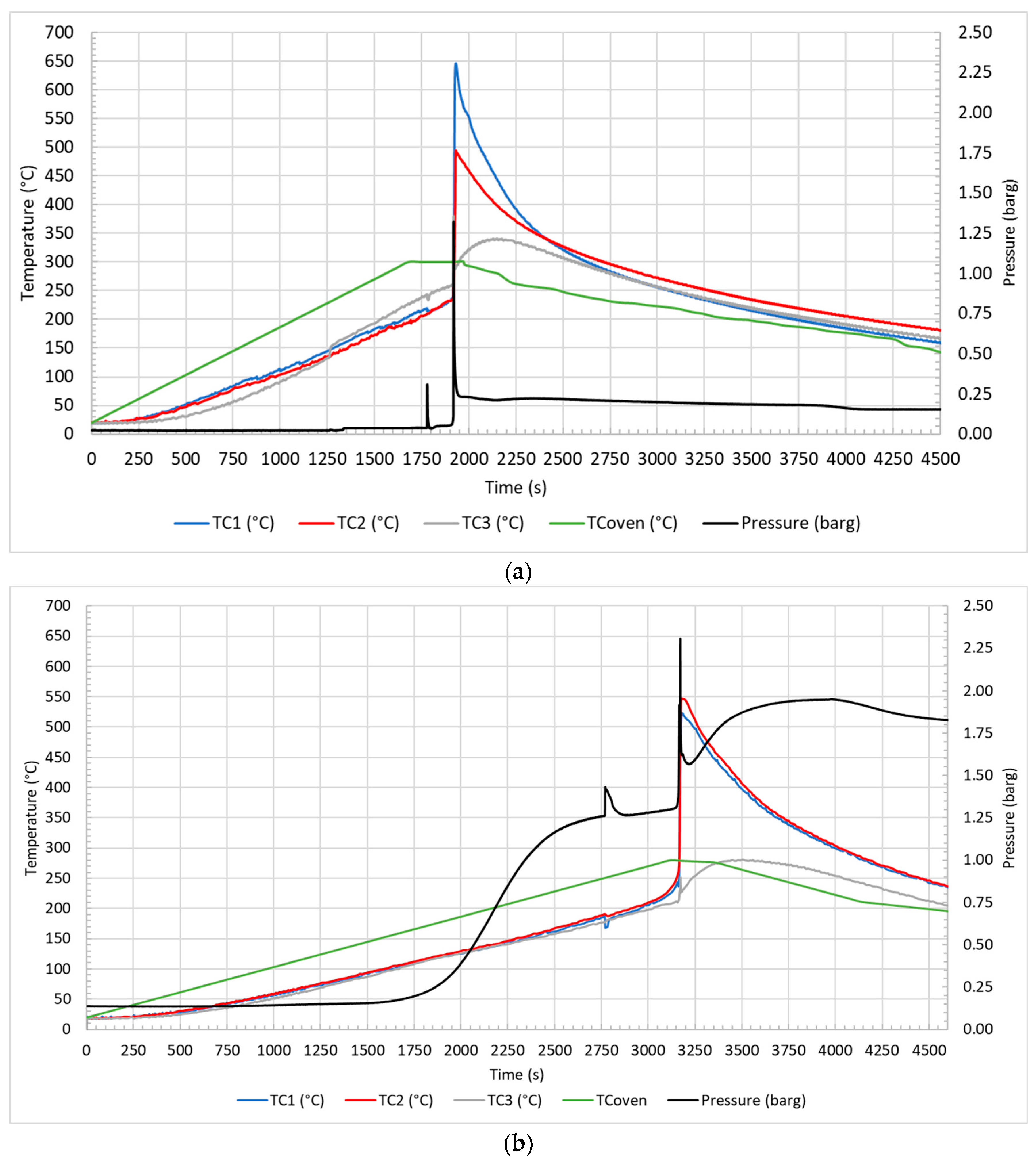

3.1. Thermal Abuse Tests: Temperature and Pressure Profile

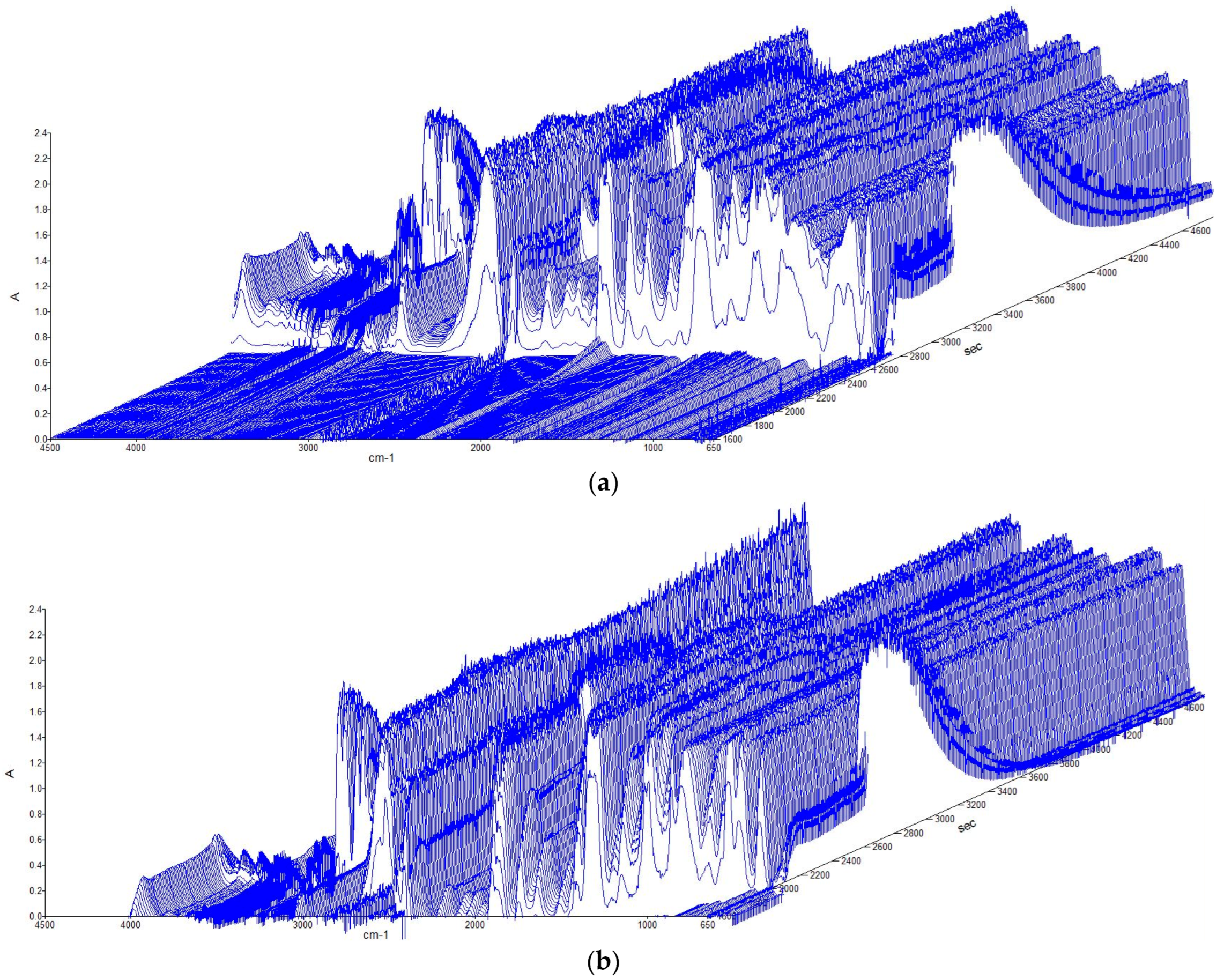

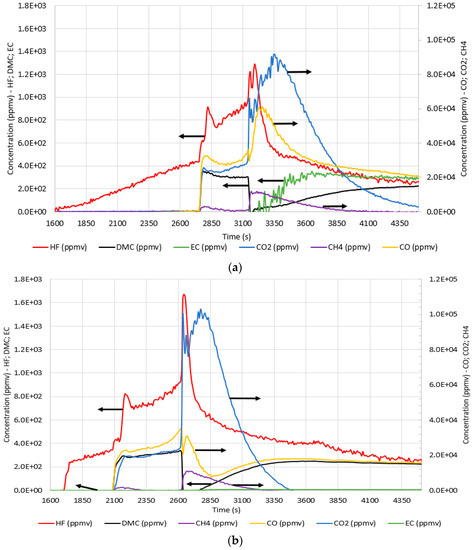

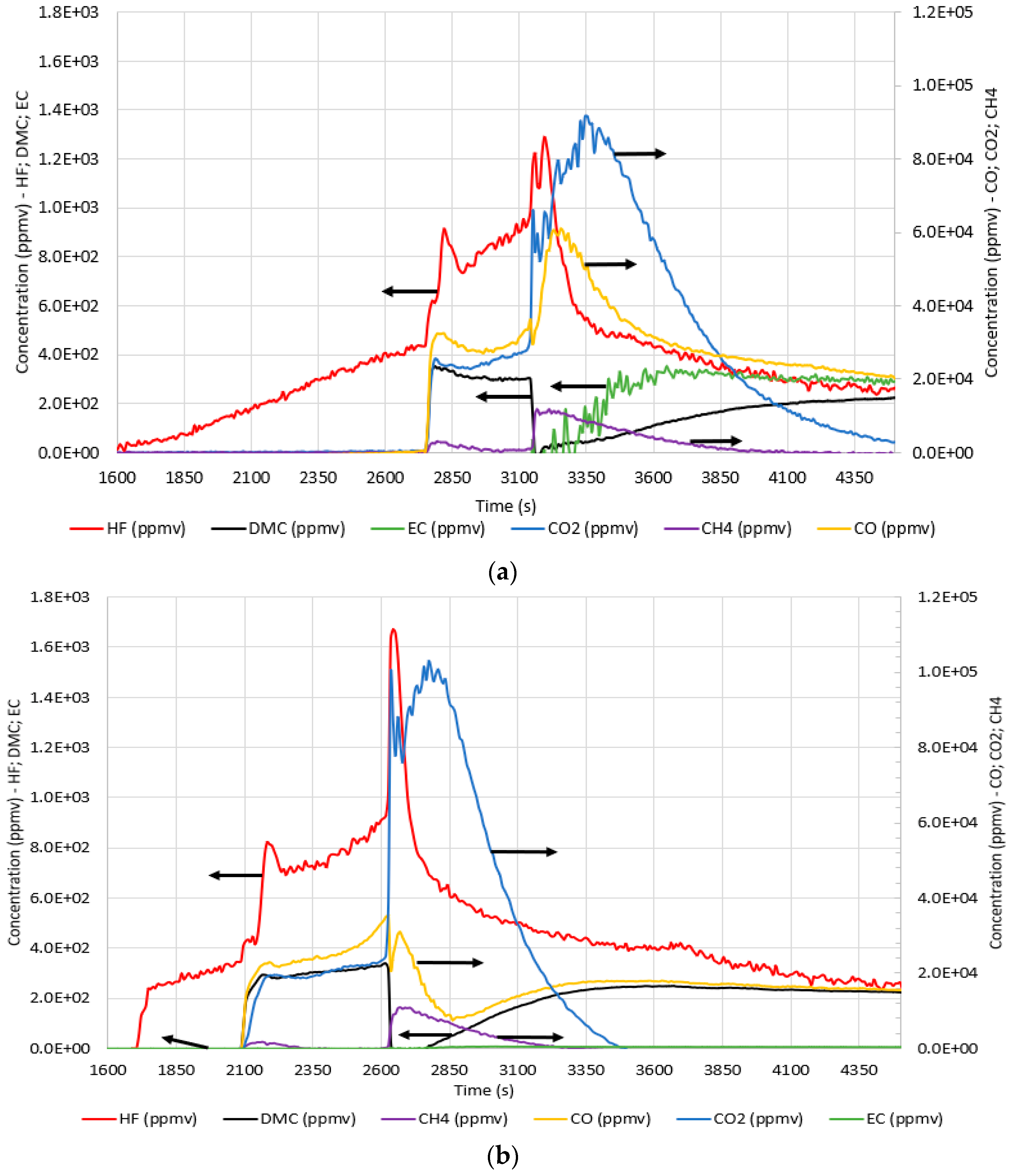

3.2. Thermal Abuse Tests: Gas Profile and Quantification

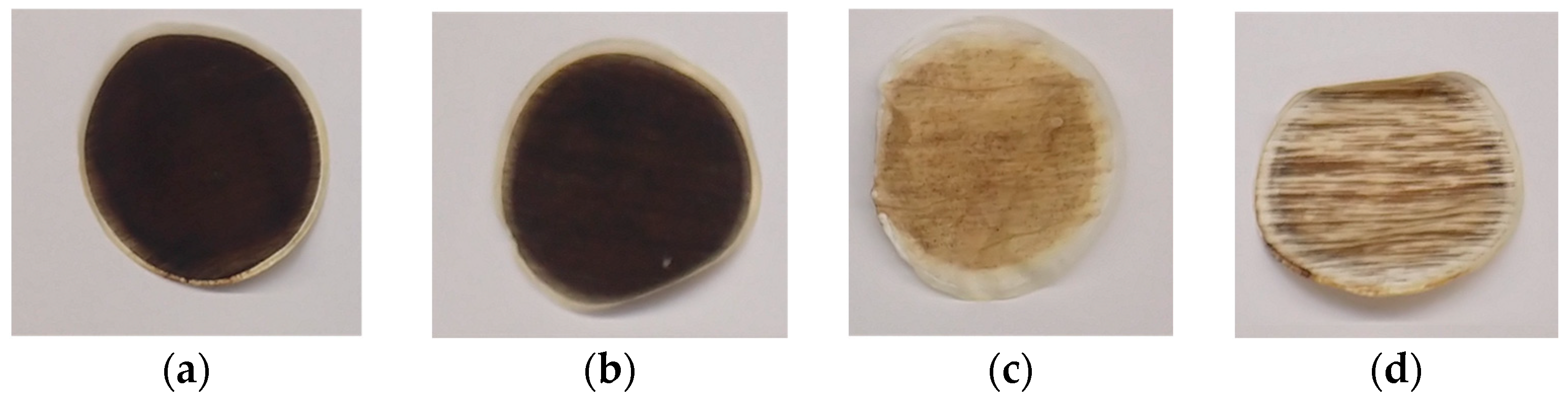

3.3. Thermal Abuse Tests: Condensed-Phase Emissions

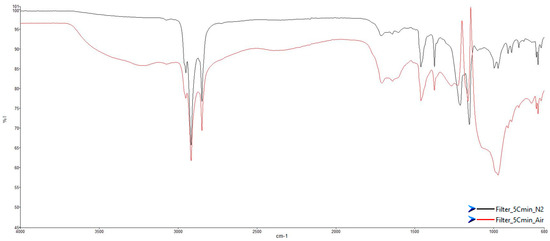

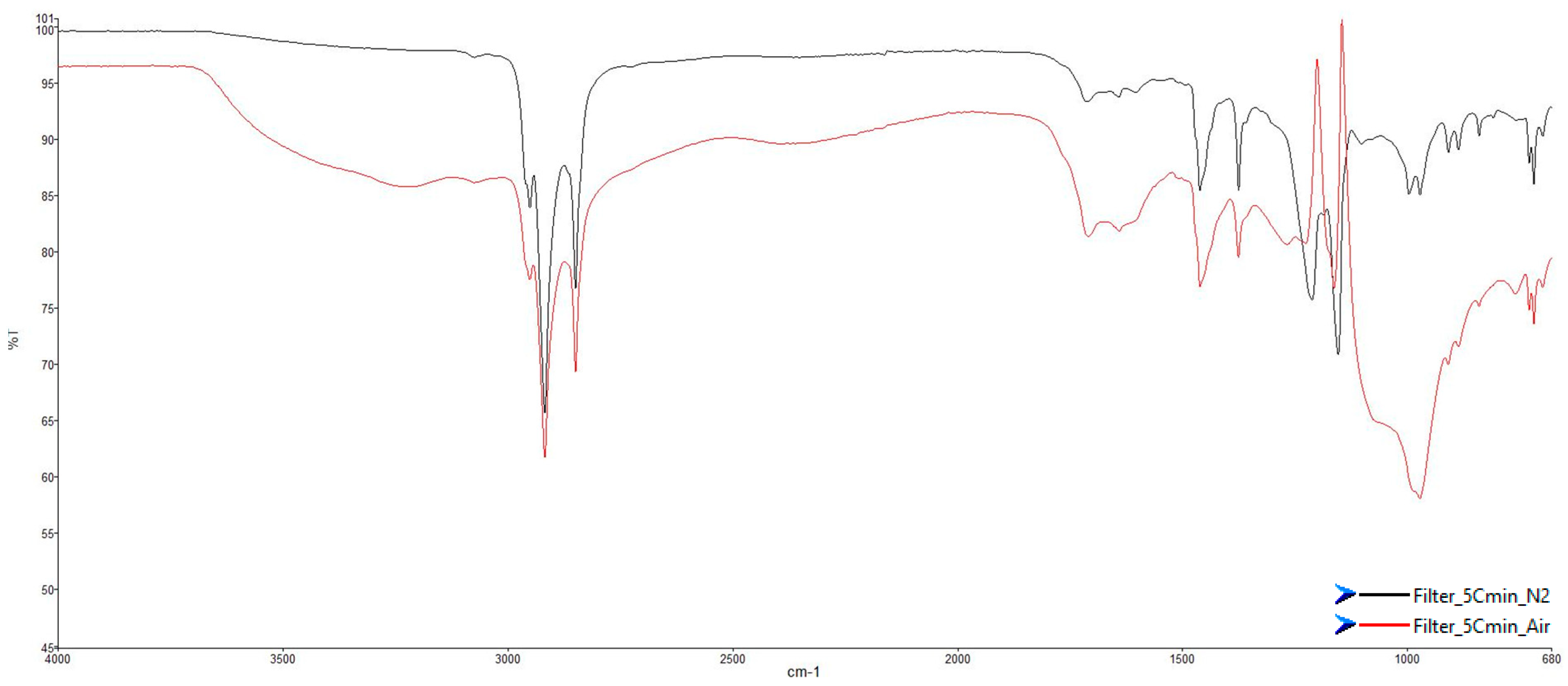

3.3.1. Condensed-Phase Characterization: ATR-FT-IR Spectroscopy

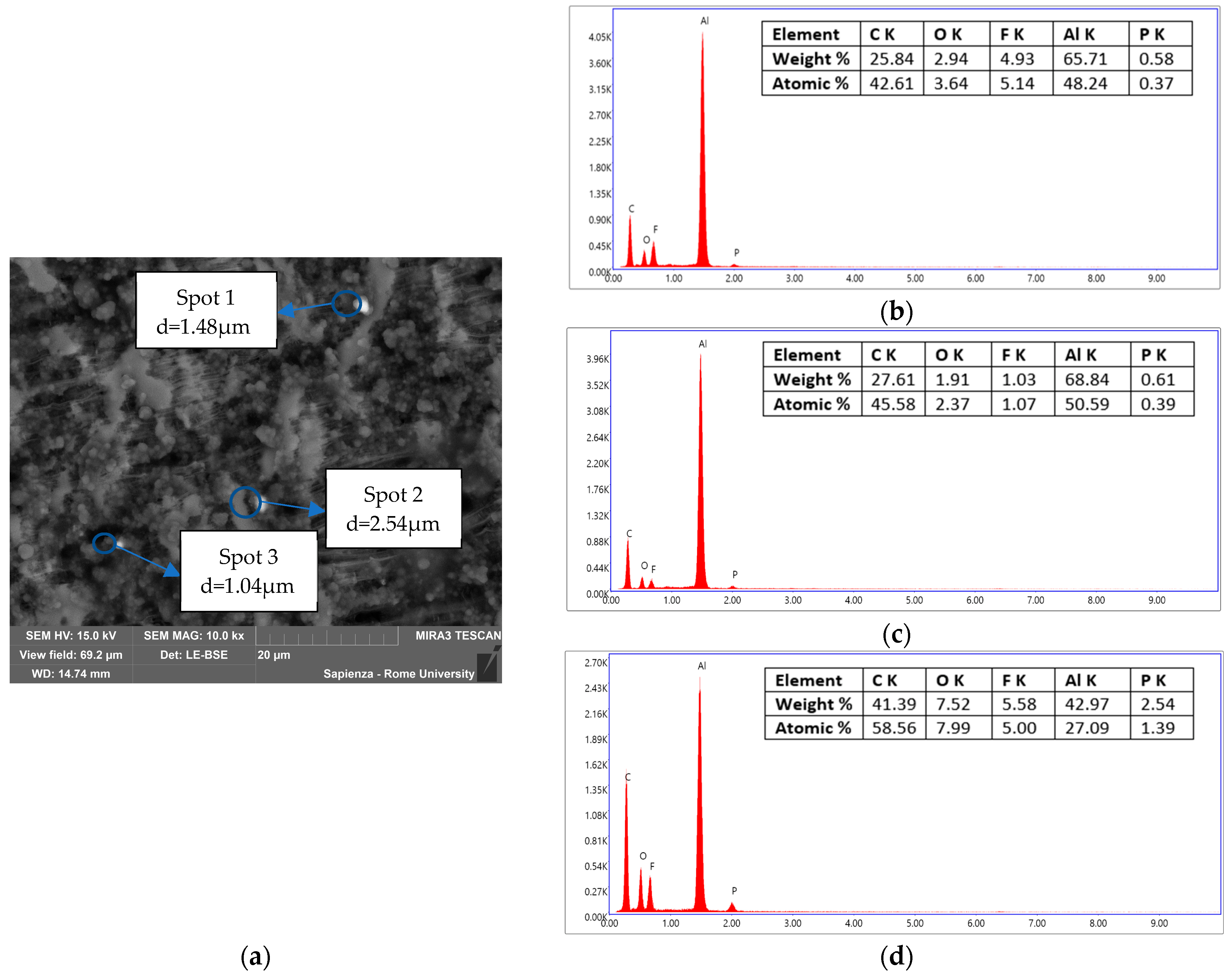

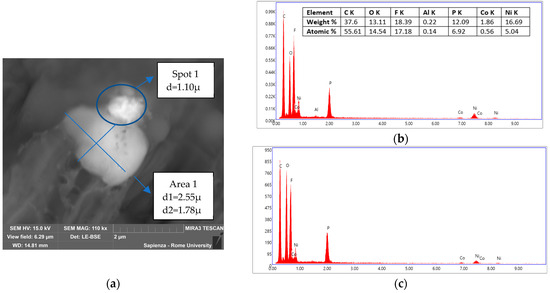

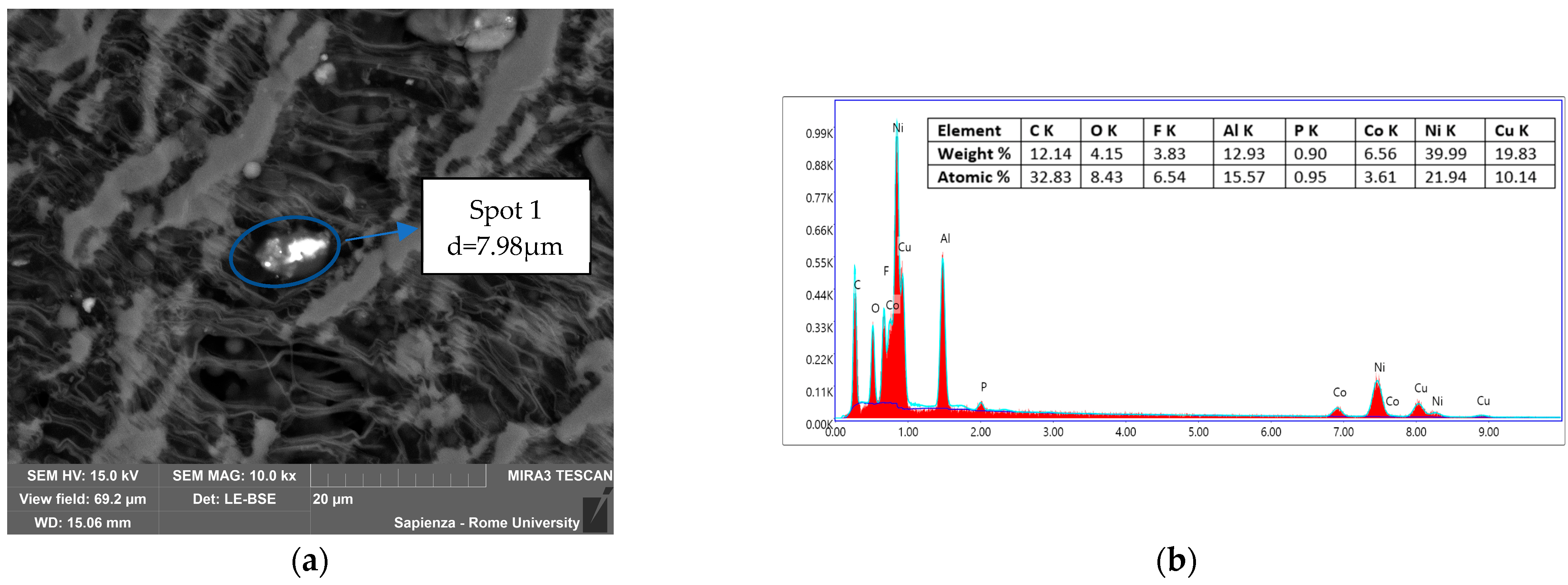

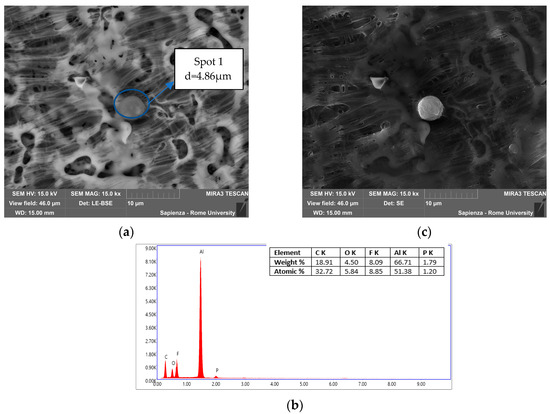

3.3.2. Condensed-Phase Characterization: SEM-EDS
3.3.3. Condensed-Phase Characterization: ICP-OES and AAS

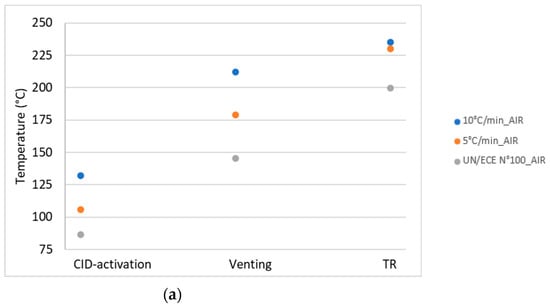

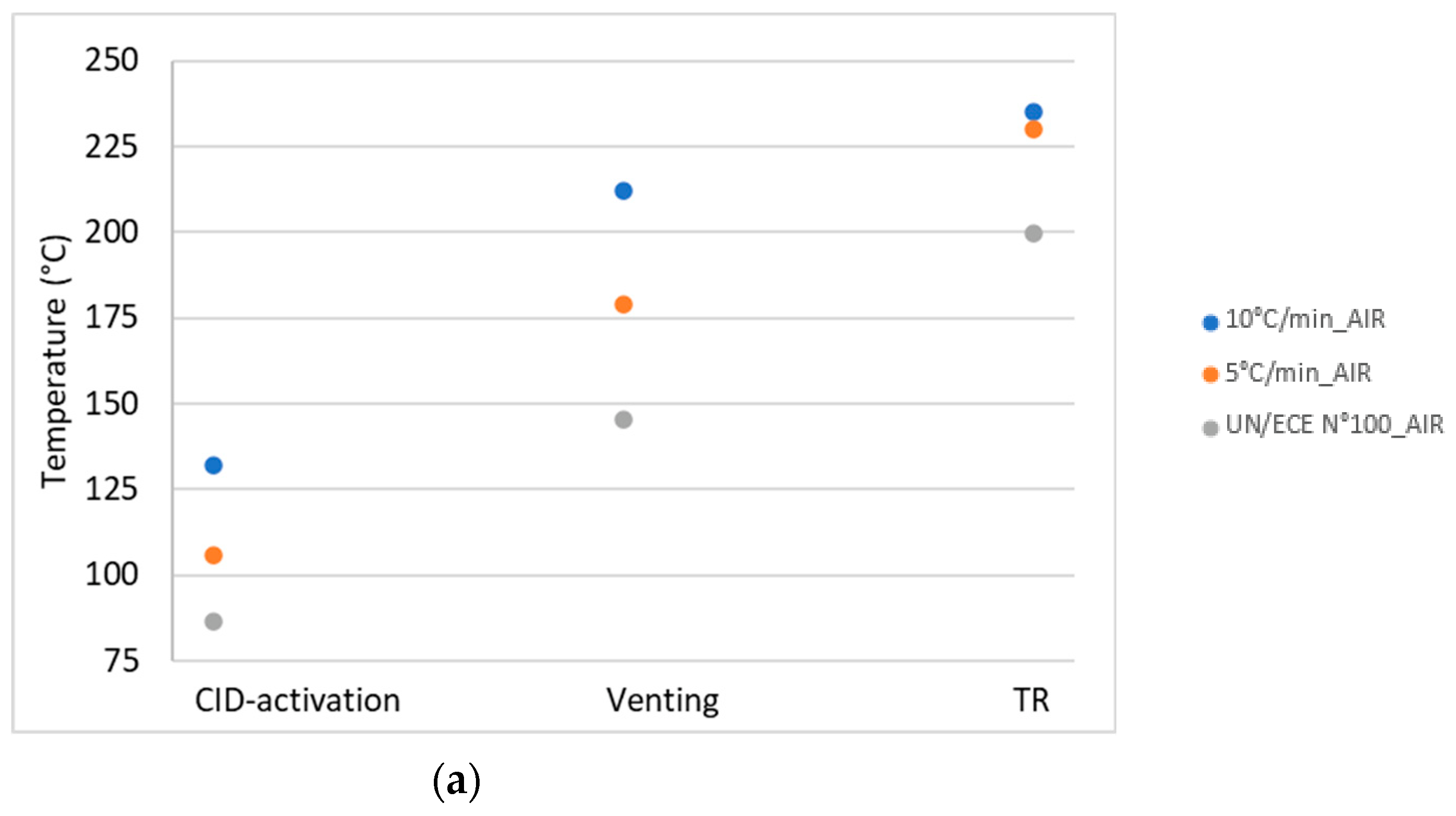

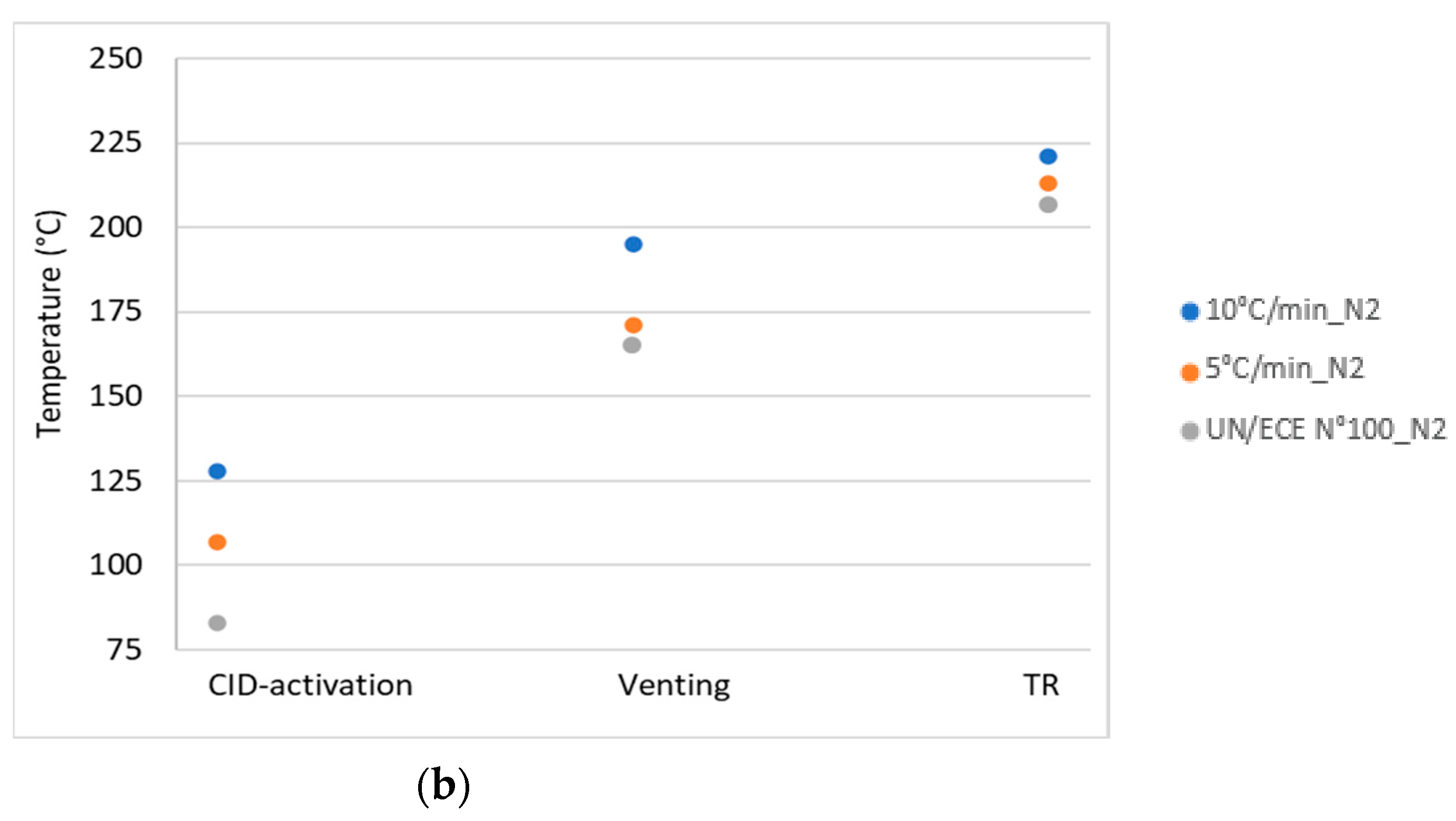

4. Discussion
5. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
