# Investigating the Influence of Groundwater Flow and Charge Cycle Duration on Deep Borehole Heat Exchangers for Heat Extraction and Borehole Thermal Energy Storage

^{*}

## Abstract

**:**

## 1. Introduction

^{−10}m s

^{−1}) was inferred from the lack of appreciable fluid yield from the borehole [19]. Nevertheless, groundwater was identified during well drilling at higher stratigraphic levels in the well [19]. Therefore, the influence of groundwater movement on extraction and BTES was tested in this study using a modelling approach. OGS software uses the finite-element method for spatial discretisation and has been verified/validated against a series of solutions for shallow and DBHE examples (e.g., [10,12,22,23,24,25]). Further benchmarking was also undertaken in this study in comparison to T2Well-EOS1/TOUGH2. The ‘Dual Continuum’ method is used to model the wellbore, with components of the DBHE (grout, fluid, casing) treated as a 1D line source, integrated within a 3D medium for the subsurface rocks.

## 2. Methods

#### 2.1. Governing Equations

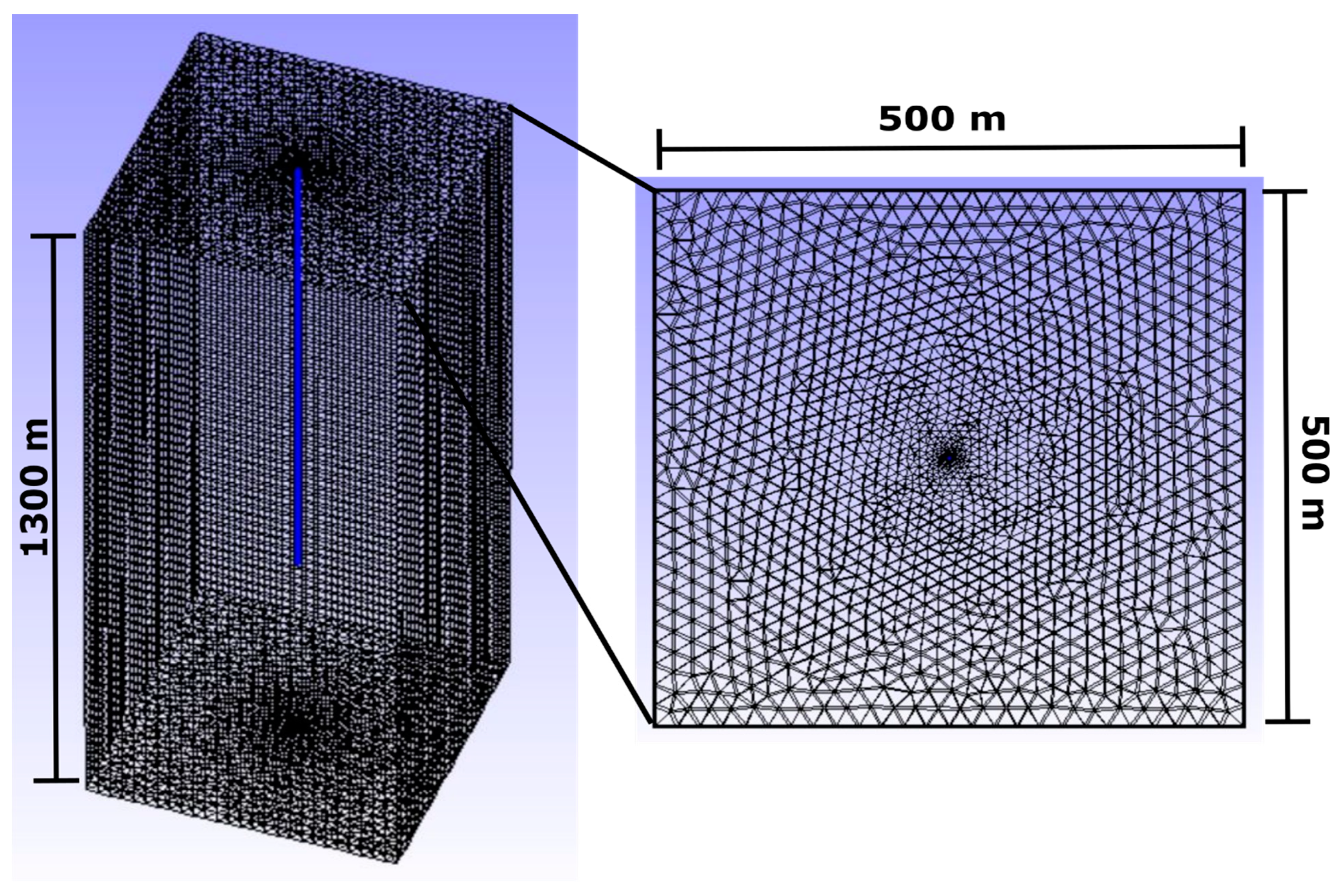

#### 2.2. Model Set Up, Initial Conditions and Parameterisation

#### 2.3. Evaluation Metrics

^{12}joules). The storage efficiency or recovery of heat is essential to understanding the performance of BTES. While different methods are used for calculating this value, in this study the method by Brown et al. [11] was used. Storage efficiency ($S{E}_{new})$ was defined as the difference in energy extracted with and without charge with respect to the total energy injected:

#### 2.4. Benchmarking

## 3. Results

#### 3.1. Extraction Only

#### 3.2. Borehole Thermal Energy Storage

#### 3.2.1. Influence of Inlet Temperature during Charge

#### 3.2.2. Influence of Inlet Temperature during Extraction

#### 3.2.3. Influence of the Deep Borehole Heat Exchanger Internal Flow Rate

#### 3.2.4. Influence of Varying Charge Periods

#### 3.2.5. Long Term Simulations

## 4. Discussion

#### 4.1. Implications of an Active Groundwater Flow on Heat Extraction Only

#### 4.2. Implications of an Active Groundwater Flow on Borehole Thermal Energy Storage

#### 4.3. Implications to Prospective Areas within the UK

#### 4.4. Comparison with Previous Studies for Shallow BTES

## 5. Conclusions

- Groundwater flow from thick aquifers with a Darcy velocity around or greater than 1e-6 m/s has a positive impact on heat extraction using DBHEs and will likely increase the longevity of such systems. The impact of this reduces with increased extraction inlet temperature whilst it significantly improves the achievable thermal power with increased flow rates.
- In contrast, increasing groundwater flow (approaching or above 1e-6 m/s) for BTES in single well DBHEs negatively impacts the storage efficiency (<5%).
- Increasing the internal DBHE fluid flow rate in lower Darcy velocity conditions did improve the performance for BTES by over 5%.
- Reducing the charge period significantly increases the recovery of heat, with charge periods of 1 and 3 months (followed by 11 months and 9 months discharge) resulting in storage efficiencies of up to 34 and 23%, respectively. Therefore, it may be more beneficial for DBHEs used for thermal energy storage to apply short, intense charge periods, followed by longer discharge periods.
- Simulation over a longer (5 year) series of charge-discharge cycles only has a minor impact on the recovery of heat, at least in the “fixed inlet temperature” mode of simulation that has been adopted in this paper.
- To maximize the storage efficiencies in single well BTES systems, specific to the modelled parameters in this paper at 920 m depth, it appears that it is best to have lower charge temperatures (of 65 °C), higher circulation flow rates (of 7 L/s), lower charge periods (of 1 month of less) and target subsurface systems with aquifer Darcy velocity of 1e-7 m/s or less.

## Author Contributions

## Funding

## Data Availability Statement

## Acknowledgments

## Conflicts of Interest

## References

- Brown, C.S.; Cassidy, N.J.; Egan, S.S.; Griffiths, D. Numerical modelling of deep coaxial borehole heat exchangers in the Cheshire Basin, UK. Comput. Geosci.
**2021**, 152, 104752. [Google Scholar] [CrossRef] - Falcone, G.; Liu, X.; Okech, R.R.; Seyidov, F.; Teodoriu, C. Assessment of deep geothermal energy exploitation methods: The need for novel single-well solutions. Energy
**2018**, 160, 54–63. [Google Scholar] [CrossRef] [Green Version] - Doran, H.R.; Renaud, T.; Falcone, G.; Pan, L.; Verdin, P.G. Modelling an unconventional closed-loop deep borehole heat exchanger (DBHE): Sensitivity analysis on the Newberry volcanic setting. Geotherm. Energy
**2021**, 9, 4. [Google Scholar] [CrossRef] - Cai, W.; Wang, F.; Jiang, J.; Wang, Z.; Liu, J.; Chen, C. Long-term performance evaluation and economic analysis for deep borehole heat exchanger heating system in Weihe basin. Front. Earth Sci.
**2022**, 10, 806416. [Google Scholar] [CrossRef] - Gascuel, V.; Raymond, J.; Rivard, C.; Marcil, J.S.; Comeau, F.A. Design and optimization of deep coaxial borehole heat exchangers for cold sedimentary basins. Geothermics
**2022**, 105, 102504. [Google Scholar] [CrossRef] - Kolo, I.; Brown, C.S.; Falcone, G. Thermal Power from a Notional 6 km Deep Borehole Heat Exchanger in Glasgow. In Proceedings of the 48th Workshop on Geothermal Reservoir Engineering, Stanford, CA, USA, 6–8 February 2023. [Google Scholar]
- Alimonti, C.; Soldo, E. Study of geothermal power generation from a very deep oil well with a wellbore heat exchanger. Renew. Energy
**2016**, 86, 292–301. [Google Scholar] [CrossRef] - Nian, Y.L.; Cheng, W.L.; Yang, X.Y.; Xie, K. Simulation of a novel deep ground source heat pump system using abandoned oil wells with coaxial BHE. Int. J. Heat Mass Transf.
**2019**, 137, 400–412. [Google Scholar] [CrossRef] - Hu, X.; Banks, J.; Wu, L.; Liu, W.V. Numerical modeling of a coaxial borehole heat exchanger to exploit geothermal energy from abandoned petroleum wells in Hinton, Alberta. Renew. Energy
**2020**, 148, 1110–1123. [Google Scholar] [CrossRef] - Kolo, I.; Brown, C.S.; Falcone, G.; Banks, D. Closed-loop Deep Borehole Heat Exchanger: Newcastle Science Central Deep Geothermal Borehole. In Proceedings of the European Geothermal Congress, Berlin, Germany, 17–21 October 2022. [Google Scholar]
- Brown, C.S.; Kolo, I.; Falcone, G.; Banks, D. Repurposing a Deep Geothermal Exploration Well for Borehole Thermal Energy Storage: Implications from Statistical Modelling and Sensitivity Analysis. Appl. Therm. Eng.
**2023**, 220, 119701. [Google Scholar] [CrossRef] - Brown, C.S.; Kolo, I.; Falcone, G.; Banks, D. Investigating scalability of deep borehole heat exchangers: Numerical modelling of arrays with varied modes of operation. Renew. Energy
**2023**, 202, 442–452. [Google Scholar] [CrossRef] - Kolo, I.; Brown, C.S.; Falcone, G.; Banks, D. Repurposing a Geothermal Exploration Well as a Deep Borehole Heat Exchanger: Understanding Long-Term Effects of Lithological Layering, Flow Direction, and Circulation Flow Rate. Sustainability
**2023**, 15, 4140. [Google Scholar] [CrossRef] - Skarphagen, H.; Banks, D.; Frengstad, B.S.; Gether, H. Design considerations for borehole thermal energy storage (BTES): A review with emphasis on convective heat transfer. Geofluids
**2019**, 2019, 4961781. [Google Scholar] [CrossRef] - Welsch, B.; Ruehaak, W.; Schulte, D.O.; Baer, K.; Sass, I. Characteristics of medium deep borehole thermal energy storage. Int. J. Energy Res.
**2016**, 40, 1855–1868. [Google Scholar] [CrossRef] - Medici, G.; West, L.; Mountney, N.P.; Welch, M. Permeability of rock discontinuities and faults in the Triassic Sherwood Sandstone Group (UK): Insights for management of fluvio-aeolian aquifers worldwide. Hydrogeol. J.
**2019**, 27, 2835–2855. [Google Scholar] [CrossRef] [Green Version] - Brown, C.S.; Cassidy, N.J.; Egan, S.S.; Griffiths, D. A sensitivity analysis of a single extraction well from deep geothermal aquifers in the Cheshire Basin, UK. Q. J. Eng. Geol. Hydrogeol.
**2022**, 55. [Google Scholar] [CrossRef] - Xie, K.; Nian, Y.L.; Cheng, W.L. Analysis and optimization of underground thermal energy storage using depleted oil wells. Energy
**2018**, 163, 1006–1016. [Google Scholar] [CrossRef] - Younger, P.L.; Manning, D.A.; Millward, D.; Busby, J.P.; Jones, C.R.; Gluyas, J.G. Geothermal exploration in the Fell Sandstone Formation (Mississippian) beneath the city centre of Newcastle upon Tyne, UK: The Newcastle Science Central deep geothermal borehole. Q. J. Eng. Geol. Hydrogeol.
**2016**, 49, 350–363. [Google Scholar] [CrossRef] [Green Version] - Howell, L.; Brown, C.S.; Egan, S.S. Deep geothermal energy in northern England: Insights from 3D finite difference temperature modelling. Comput. Geosci.
**2021**, 147, 104661. [Google Scholar] [CrossRef] - Brown, C.S. Regional geothermal resource assessment of hot dry rocks in Northern England using 3D geological and thermal models. Geothermics
**2022**, 105, 102503. [Google Scholar] [CrossRef] - Shao, H.; Hein, P.; Sachse, A.; Kolditz, O. Geoenergy Modeling II: Shallow Geothermal Systems; Springer International Publishing: Berlin/Heidelberg, Germany, 2016. [Google Scholar]
- Chen, C.; Shao, H.; Naumov, D.; Kong, Y.; Tu, K.; Kolditz, O. Numerical investigation on the performance, sustainability, and efficiency of the deep borehole heat exchanger system for building heating. Geotherm. Energy
**2019**, 7, 18. [Google Scholar] [CrossRef] [Green Version] - Cai, W.; Wang, F.; Chen, S.; Chen, C.; Liu, J.; Deng, J.; Kolditz, O.; Shao, H. Analysis of heat extraction performance and long-term sustainability for multiple deep borehole heat exchanger array: A project-based study. Appl. Energy
**2021**, 289, 116590. [Google Scholar] [CrossRef] - Chen, S.; Cai, W.; Witte, F.; Wang, X.; Wang, F.; Kolditz, O.; Shao, H. Long-term thermal imbalance in large borehole heat exchangers array–A numerical study based on the Leicester project. Energy Build.
**2021**, 231, 110518. [Google Scholar] [CrossRef] - Wight, A. Knutsford NO.1. Well Completion Report. 631. 1974. Available online: http://scans.bgs.ac.uk/sobi_scans/boreholes/749082/images/12269805.html (accessed on 27 October 2022).
- Downing, R.A.; Gray, D.A. (Eds.) Geothermal Energy–The Potential in the 495 United Kingdom; HMSO: London, UK, 1986. [Google Scholar]
- Rollin, K.E.; Kirby, G.A.; Rowley, W.J.; Buckley, D.K. Atlas of Geothermal Resources in Europe: UK Revision; Technical Report WK/95/07; British Geological Survey: Keyworth, UK, 1995.
- Jackson, T. Geothermal Potential in Great Britain and Northern Ireland; Sinclair Knight Merz: Sydney, NSW, Australia, 2012. [Google Scholar]
- Busby, J. Geothermal energy in sedimentary basins in the UK. Hydrogeol. J.
**2014**, 22, 129–141. [Google Scholar] [CrossRef] [Green Version] - Brown, C.S. Revisiting the Deep Geothermal Potential of the Cheshire Basin, UK. Energies
**2023**, 16, 1410. [Google Scholar] [CrossRef] - Watson, S.M.; Falcone, G.; Westaway, R. Repurposing hydrocarbon wells for geothermal use in the UK: The onshore fields with the greatest potential. Energies
**2020**, 13, 3541. [Google Scholar] [CrossRef] - Watson, S.M.; Falcone, G.; Westaway, R. Repurposing hydrocarbon wells for geothermal use in the UK: A preliminary resource assessment. In Proceedings of the World Geothermal Conference, Reykjavik, Iceland, 24–27 October 2021. [Google Scholar]
- Medici, G.; West, L.J. Review of groundwater flow and contaminant transport modelling approaches for the Sherwood Sandstone aquifer, UK; insights from analogous successions worldwide. Q. J. Eng. Geol. Hydrogeol.
**2022**, 55, qjegh2021-176. [Google Scholar] [CrossRef] - Emad Dehkordi, S.; Schincariol, R.A.; Olofsson, B. Impact of groundwater flow and energy load on multiple borehole heat exchangers. Groundwater
**2015**, 53, 558–571. [Google Scholar] [CrossRef] [Green Version] - Nguyen, A.; Pasquier, P.; Marcotte, D. Borehole thermal energy storage systems under the influence of groundwater flow and time-varying surface temperature. Geothermics
**2017**, 66, 110–118. [Google Scholar] [CrossRef] - Al-Khoury, R.; Kölbel, T.; Schramedei, R. Efficient numerical modeling of borehole heat exchangers. Comput. Geosci.
**2010**, 36, 1301–1315. [Google Scholar] [CrossRef] - Diersch, H.J.; Bauer, D.; Heidemann, W.; Rühaak, W.; Schätzl, P. Finite element modeling of borehole heat exchanger systems: Part 1. Fundamentals. Comput. Geosci.
**2011**, 37, 1122–1135. [Google Scholar] [CrossRef] - Busby, J.; Terrington, R. Assessment of the resource base for engineered geothermal systems in Great Britain. Geotherm. Energy
**2017**, 5, 7. [Google Scholar] [CrossRef] - Gluyas, J.G.; Adams, C.A.; Busby, J.P.; Craig, J.; Hirst, C.; Manning, D.A.C.; McCay, A.; Narayan, N.S.; Robinson, H.L.; Watson, S.M.; et al. Keeping warm: A review of deep geothermal potential of the UK. Proc. Inst. Mech. Eng. Part A J. Power Energy
**2018**, 232, 115–126. [Google Scholar] [CrossRef] [Green Version] - Siena, M.; Hyman, J.D.; Riva, M.; Guadagnini, A.; Winter, C.L.; Smolarkiewicz, P.K.; Gouze, P.; Sadhukhan, S.; Inzoli, F.; Guédon, G.; et al. Direct numerical simulation of fully saturated flow in natural porous media at the pore scale: A comparison of three computational systems. Comput. Geosci.
**2015**, 19, 423–437. [Google Scholar] [CrossRef] - Westaway, R. Rock thermal properties for Newcastle Helix site. In Internal University of Glasgow report for NetZero GeoRDIE Project; University of Glasgow: Glasgow, UK, 2020; unpublished. [Google Scholar]
- Banks, D. Thermal properties of well construction materials—Newcastle Science Central borehole. In Internal University of Glasgow Report for NetZero GeoRDIE Project; University of Glasgow: Glasgow, UK, 2021; unpublished. [Google Scholar]
- Kimbell, G.S.; Carruthers, R.M.; Walker, A.S.D.; Williamson, J.P. Regional geophysics of southern Scotland and northern England. Version 1.0 on CD-ROM. British Geological Survey, Keyworth. 2006. Available online: https://shop.bgs.ac.uk/Bookshop/product.cfm?p_id=KRGSCD (accessed on 20 October 2020).
- Gebski, J.S.; Wheildon, J.; Thomas-Betts, A. Investigations of the UK Heat Flow Field (1984–1987); Report WJ/GE/87/6; British Geological Survey: Nottingham, UK, 1987; Volume 60.
- Bott, M.H.P.; Johnson, G.A.L.; Mansfield, J.; Wheilden, J. Terrestrial heat flow in north-east England. Geophys. J. R. Astron. Soc.
**1972**, 27, 277–288. [Google Scholar] [CrossRef] [Green Version] - England, P.C.; Oxburgh, E.R.; Richardson, S.W. Heat refraction and heat production in and around granite plutons in north–east England. Geophys. J. Int.
**1980**, 62, 439–455. [Google Scholar] [CrossRef] [Green Version] - Westaway, R.; Younger, P.L. Unravelling the relative contributions of climate change and ground disturbance to subsurface temperature perturbations: Case studies from Tyneside, UK. Geothermics
**2016**, 64, 490–515. [Google Scholar] [CrossRef] [Green Version] - Lesniak, B.; Słupik, Ł.; Jakubina, G. The determination of the specific heat capacity of coal based on literature data. Chemik
**2013**, 67, 560–571. [Google Scholar] - Dijkshoorn, L.; Speer, S.; Pechnig, R. Measurements and design calculations for a deep coaxial borehole heat exchanger in Aachen, Germany. Int. J. Geophys.
**2013**, 2013, 916541. [Google Scholar] [CrossRef] [Green Version] - Liu, J.; Wang, F.; Cai, W.; Wang, Z.; Wei, Q.; Deng, J. Numerical study on the effects of design parameters on the heat transfer performance of coaxial deep borehole heat exchanger. Int. J. Energy Res.
**2019**, 43, 6337–6352. [Google Scholar] [CrossRef] - Beier, R.A. Thermal response tests on deep borehole heat exchangers with geothermal gradient. Appl. Therm. Eng.
**2020**, 178, 115447. [Google Scholar] [CrossRef] - Pan, L.; Oldenburg, C.M. T2Well—An integrated wellbore–reservoir simulator. Comput. Geosci.
**2014**, 65, 46–55. [Google Scholar] [CrossRef] - Kallesøe, A.J.; Vangkilde-Pedersen, T.; Guglielmetti, L. HEATSTORE Underground Thermal Energy Storage (UTES)–State-of-the-Art, Example Cases and Lessons Learned. 2019. Available online: https://archive-ouverte.unige.ch/unige:157363 (accessed on 1 March 2023).
- Allen, D.J.; Brewerton, L.J.; Coleby, L.M.; Gibbs, B.R.; Lewis, M.A.; MacDonald, A.M.; Wagstaff, S.J.; Williams, A.T. The Physical Properties of Major Aquifers in England and Wales; British Geological Survey: Nottingham, UK, 1997.
- Ingersoll, L.R.; Zabel, O.J.; Ingersoll, A.C. Heat conduction with engineering, geological, and other applications. Phys. Today
**1955**, 8, 17. [Google Scholar] [CrossRef] - Van Meurs, G. Seasonal Heat Storage in the Soil. Ph.D. Thesis, University of Technology Delft, Delft, The Netherlands, 1985. [Google Scholar]
- Nordell, B. Borehole heat store design optimization. Ph.D. Thesis, Luleå Tekniska Universitet, Luleå, Sweden, 1994. [Google Scholar]
- Banks, D. A review of the importance of regional groundwater advection for ground heat exchange. Environ. Earth Sci.
**2015**, 73, 2555–2565. [Google Scholar] [CrossRef] - Brown, C.S.; Desguers, T.; Lyden, A.; Kolo, I.; Friedrich, D.; Falcone, G. Modelling Borehole Thermal Energy Storage using Curtailed Wind Energy as a Fluctuating Source of Charge. In Proceedings of the 48th Workshop on Geothermal Reservoir Engineering, Stanford, CA, USA, 6–8 February 2023. [Google Scholar]

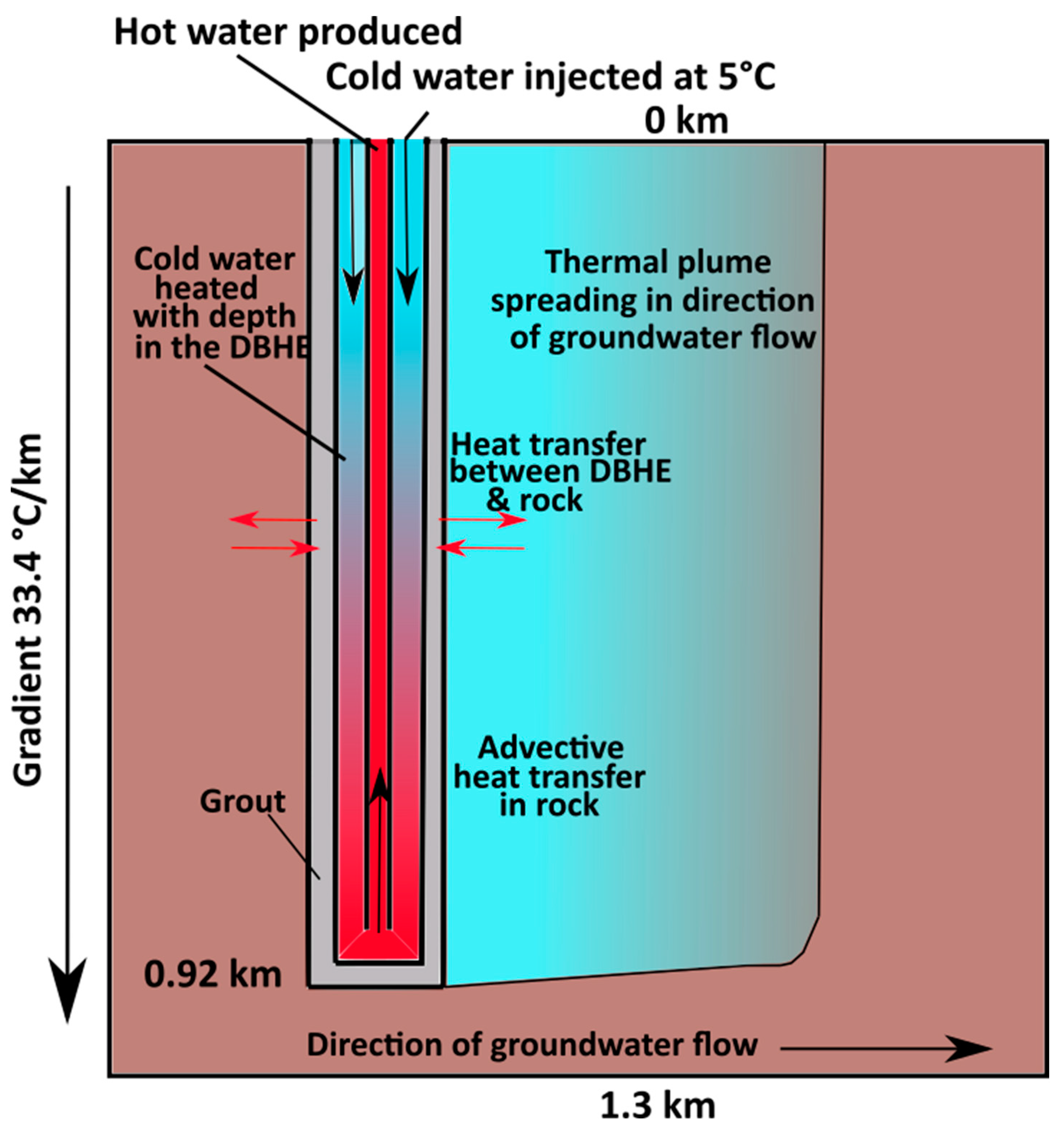

**Figure 1.**DBHE schematic with cold plume created during extraction (modified from [1]).

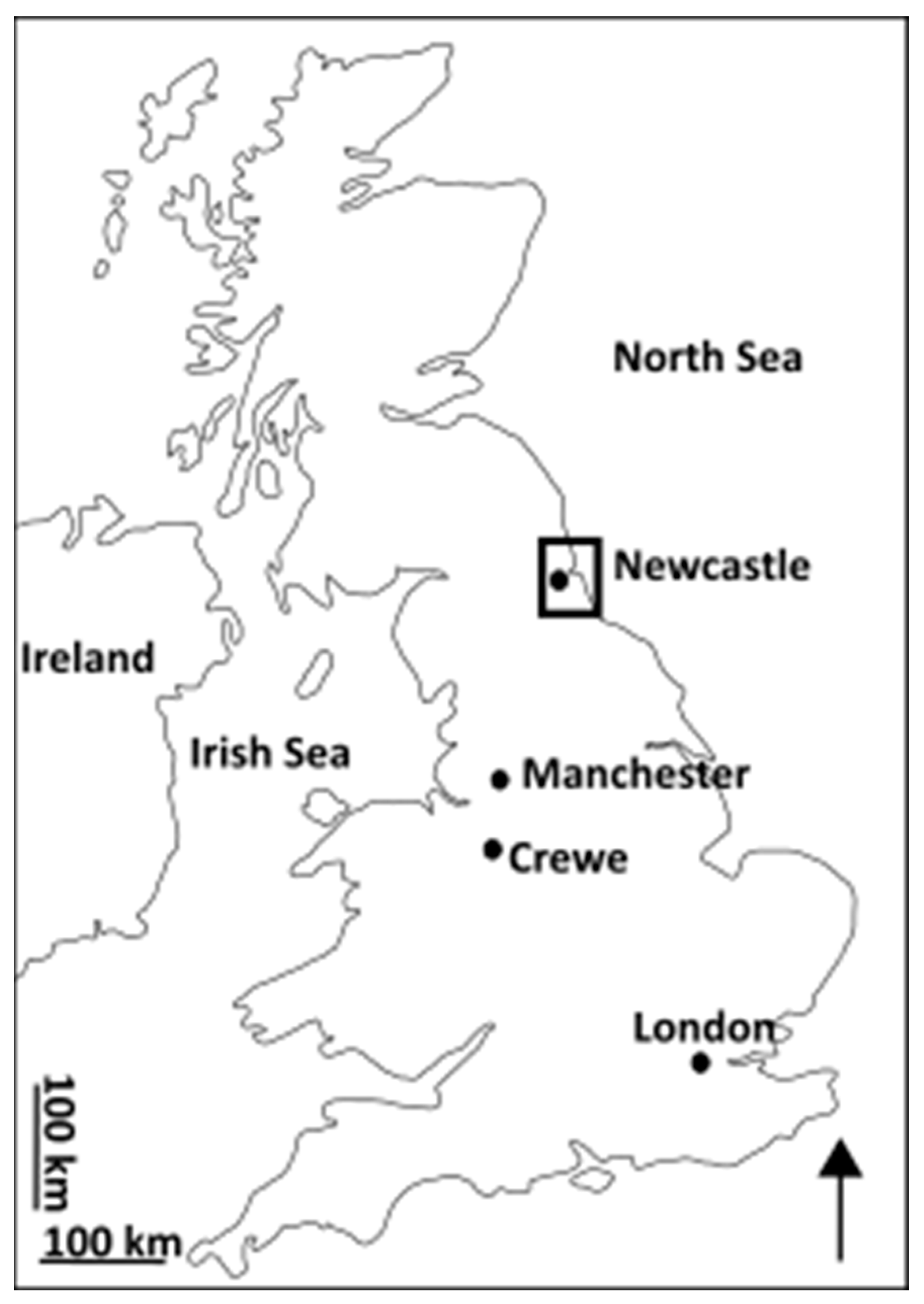

**Figure 2.**Map of the UK and approximate location of the study area (from [11]).

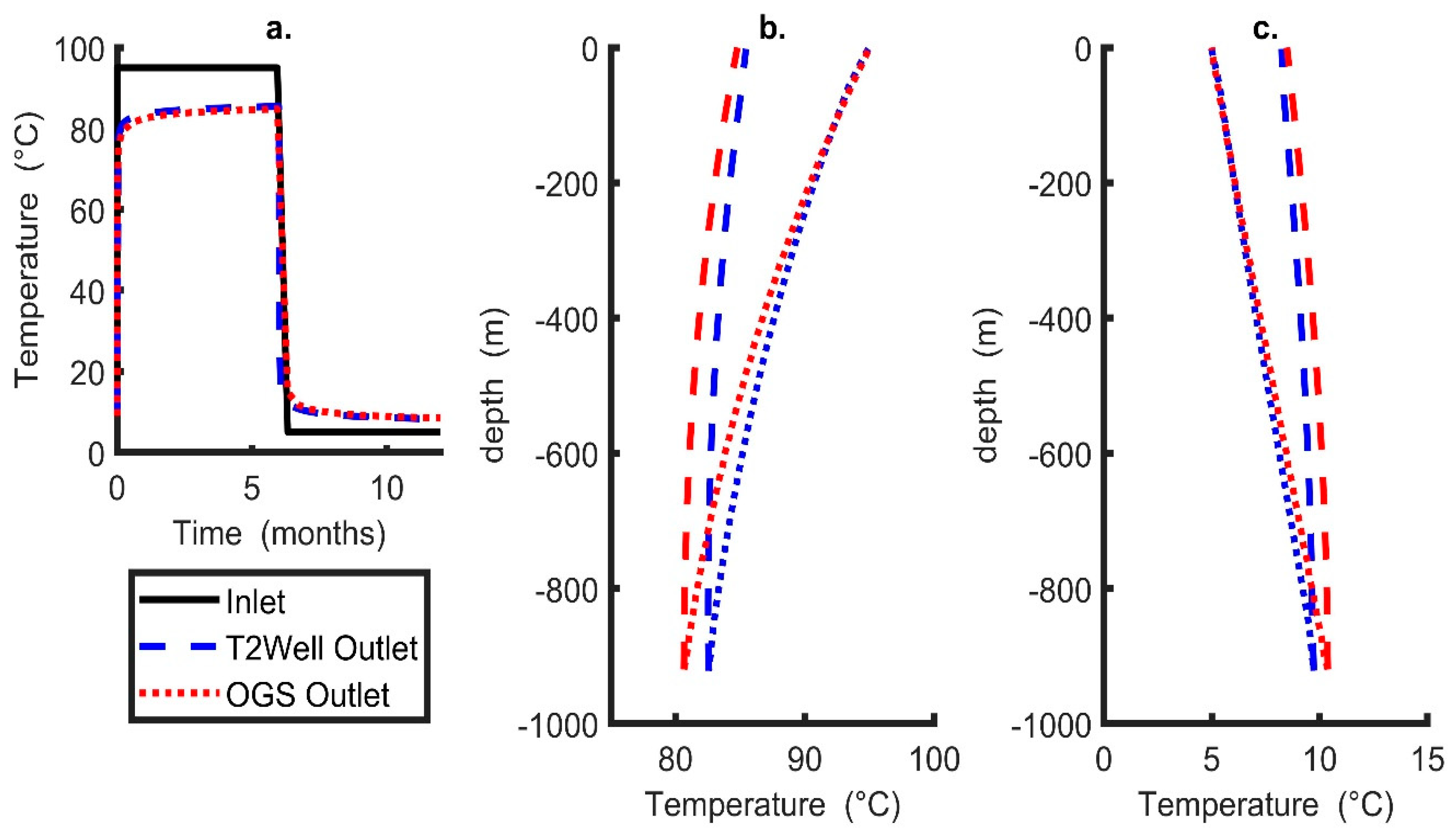

**Figure 4.**Comparison between OpenGeoSys (OGS) and T2Well-EOS1/TOUGH2 for the initial charge scenario. (

**a**) Inlet and outlet temperatures for the different software, (

**b**) comparison of the vertical profile with depth at the end of charge and (

**c**) comparison of the vertical profile at the end of the extraction period. Note that the dashed line in (

**b**,

**c**) is the central pipe, whilst the dotted line is for the annular space. For the first 6 months of charge a constant inlet temperature of 95 °C was applied and for the subsequent 6 months of discharge an inlet temperature of 5 °C was used.

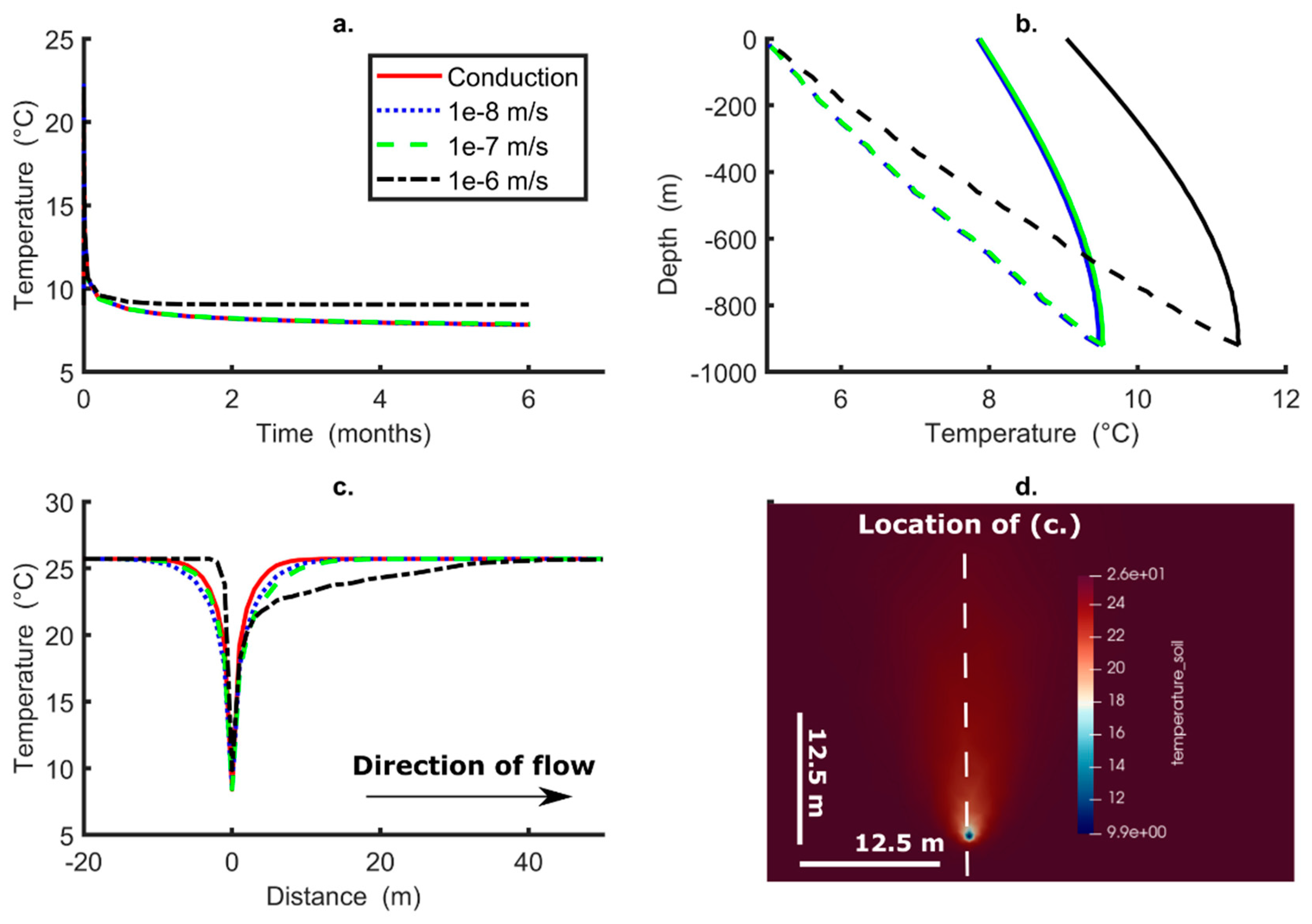

**Figure 5.**Varying groundwater flows plotted for extraction operation only for 6 months. (

**a**) is the evolution of outlet temperature with time (note inlet is set equal to 5 °C), (

**b**) is the change in the temperature within the central pipe (solid line) and annulus (dashed line) at the end of the simulation (note that when groundwater flow is set to zero the red line is directly underneath that for the velocity set at 1e-8 m/s), (

**c**) is the thermal propagation around the BHE at 500 m depth (BHE is at point zero) and (

**d**) is the thermal plume at 500 m depth for a flow velocity of 1e-6 m/s.

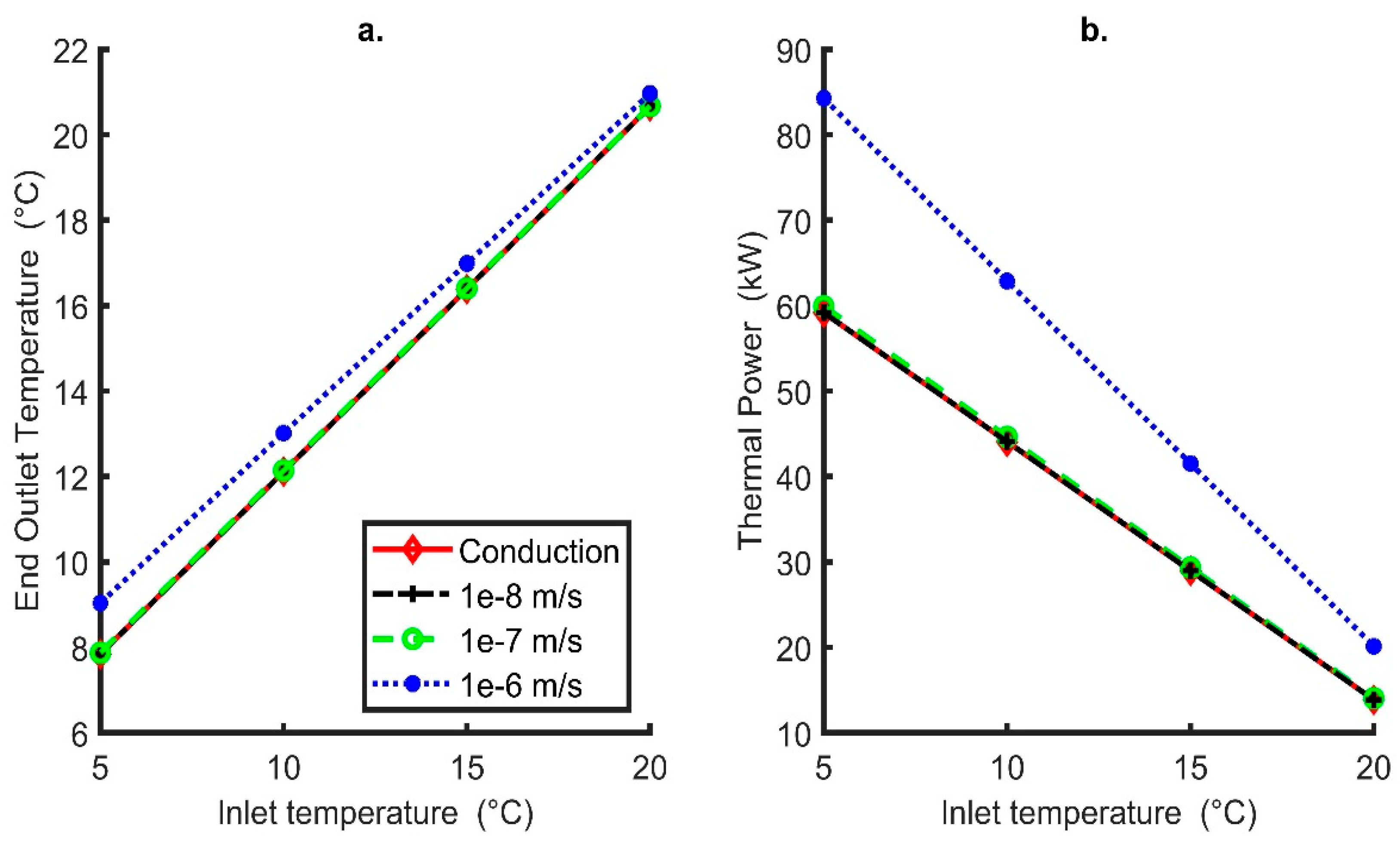

**Figure 6.**Six-month simulation of heat extraction only from DBHE, with constant inlet temperature and internal fluid flow rate of 5 L/s. (

**a**) shows the impact of varying DBHE constant inlet temperature and groundwater Darcy velocity on DBHE outlet temperature; (

**b**) shows the impact on final thermal output from DBHE after 6 months. Groundwater Darcy velocity is varied between 0 m/s (conduction only) and 1e-6 m/s. Outlet temperatures and thermal powers were recorded at the end of the simulation.

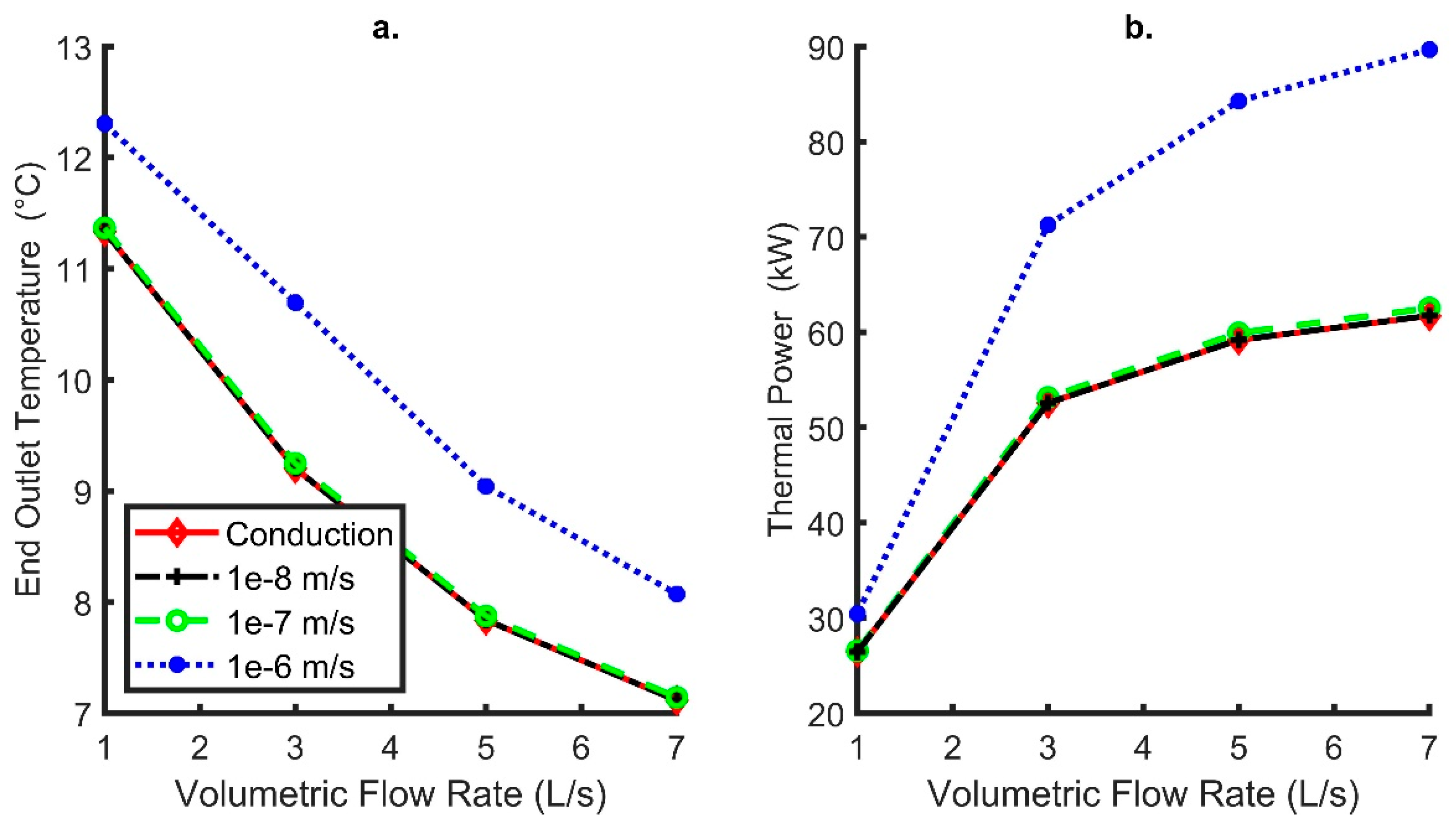

**Figure 7.**Six-month simulation of heat extraction only from DBHE, with constant inlet temperature of 5 °C and varying the constant heat transfer fluid flow rate. (

**a**) shows the impact of varying DBHE internal fluid flow rate and groundwater Darcy velocity on DBHE outlet temperature; (

**b**) shows the impact on final thermal output from DBHE after 6 months. Groundwater Darcy velocity is varied between 0 (conduction only) and 1e-6 m/s. Outlet temperatures and thermal powers were recorded at the end of the simulation.

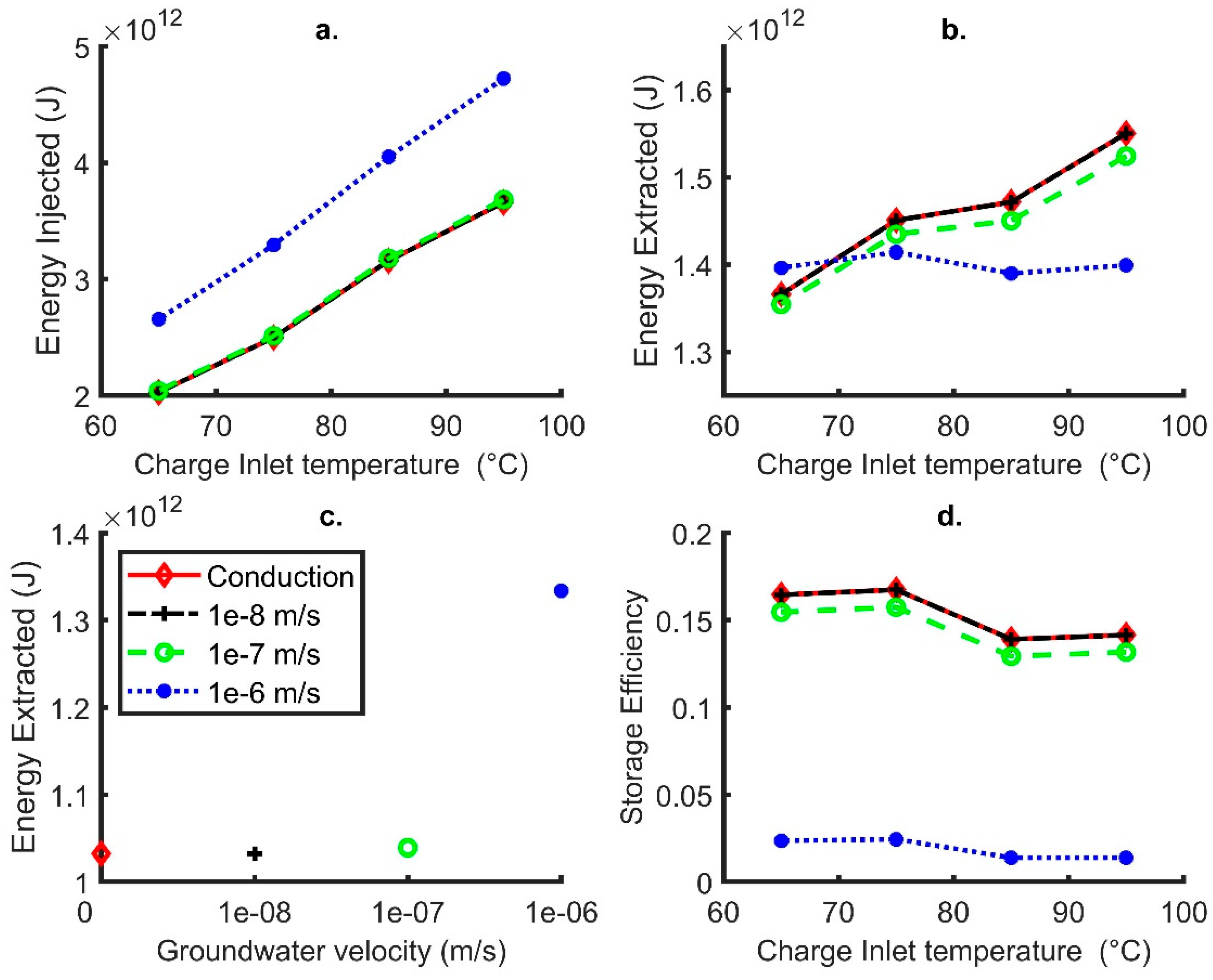

**Figure 8.**The impact of varying the constant DBHE input temperature during a 6 month heat charge cycle, followed by a 6 month discharge cycle. DBHE internal flow rate = 5 L/s and discharge inlet temperature was maintained constant at 5 °C. (

**a**) energy injected during charge, (

**b**) energy extracted during discharge cycle following charge, (

**c**) energy extracted during a 6 month discharge period without preceding charge and (

**d**) storage efficiency calculated according to Equation (10).

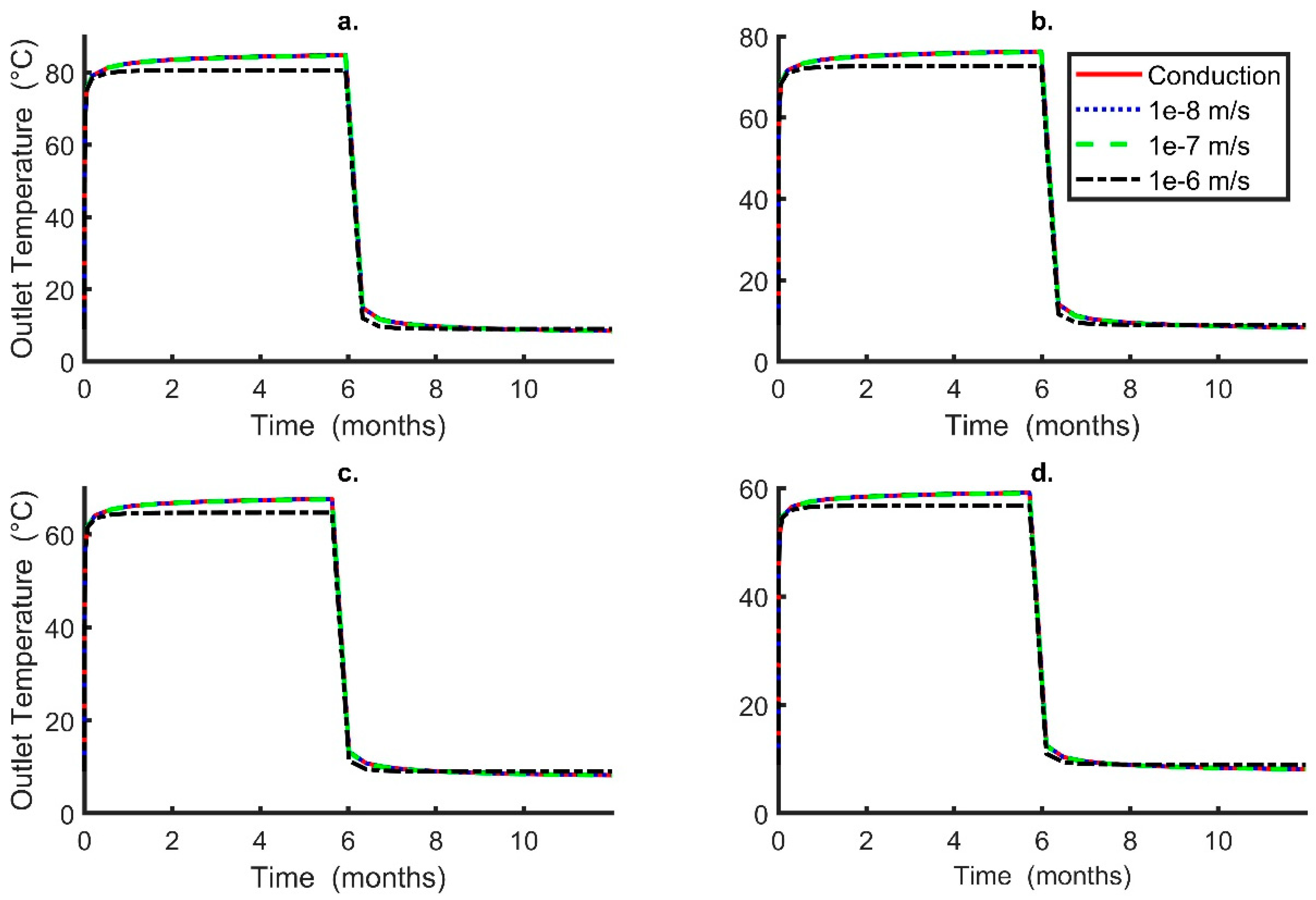

**Figure 9.**Impact of groundwater Darcy velocity on DBHE outlet temperature for a 6 month charge followed by 6 month discharge period. DBHE internal flow rate = 5 L/s and constant inlet temperature during discharge is 5 °C. (

**a**) is for constant 95 °C inlet temperature, (

**b**) is for 85 °C inlet temperature, (

**c**) is for 75 °C inlet temperature and (

**d**) is for 65 °C inlet temperature.

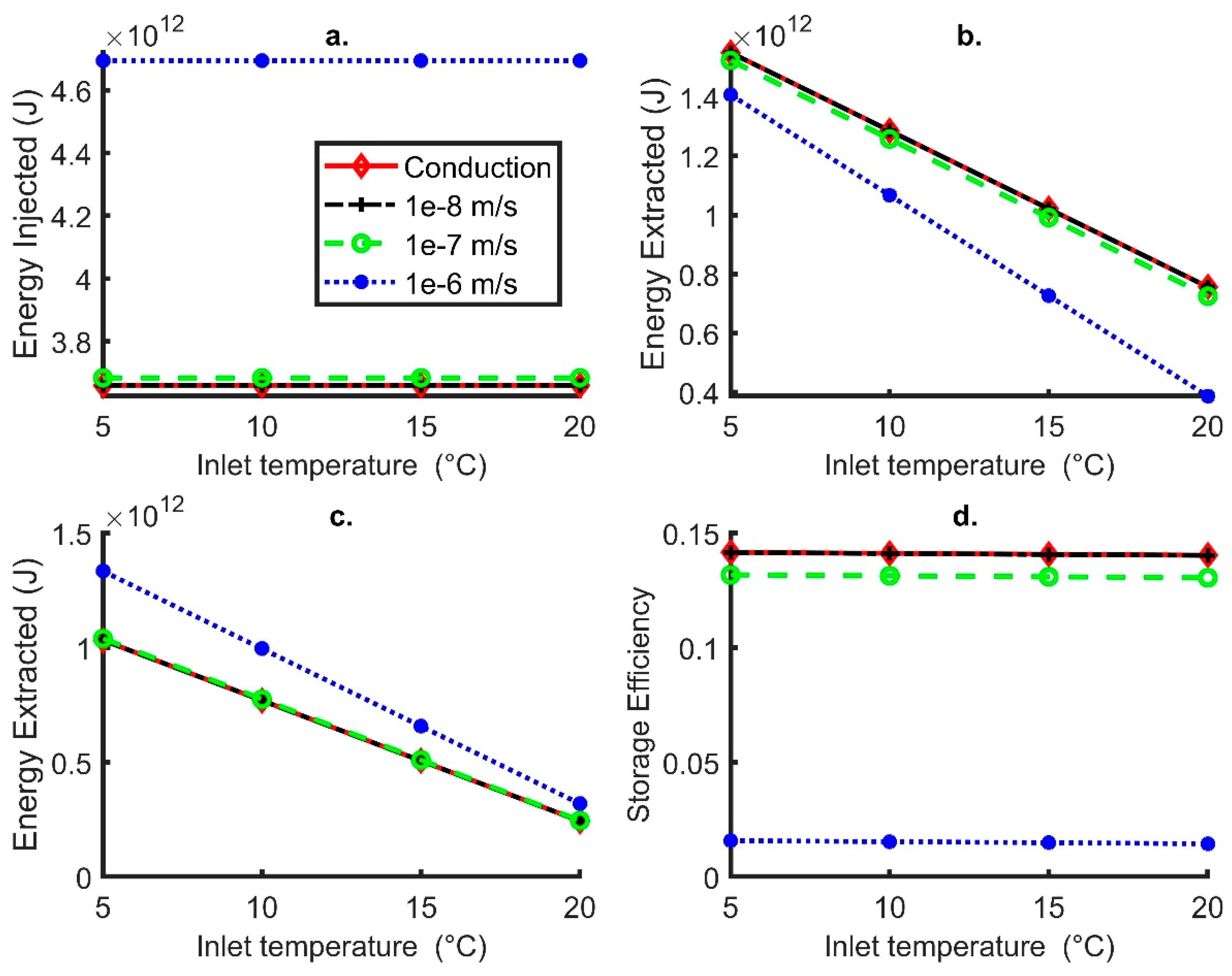

**Figure 10.**The impact of varying the constant DBHE input temperature during a 6 month heat discharge cycle, following a 6 month charge cycle. DBHE internal flow rate = 5 L/s and inlet temperature during charge was maintained constant at 95 °C. (

**a**) energy injected during charge, (

**b**) energy extracted during discharge cycle following charge, (

**c**) energy extracted during 6 month discharge period without preceding charge and (

**d**) storage efficiency calculated according to Equation (10).

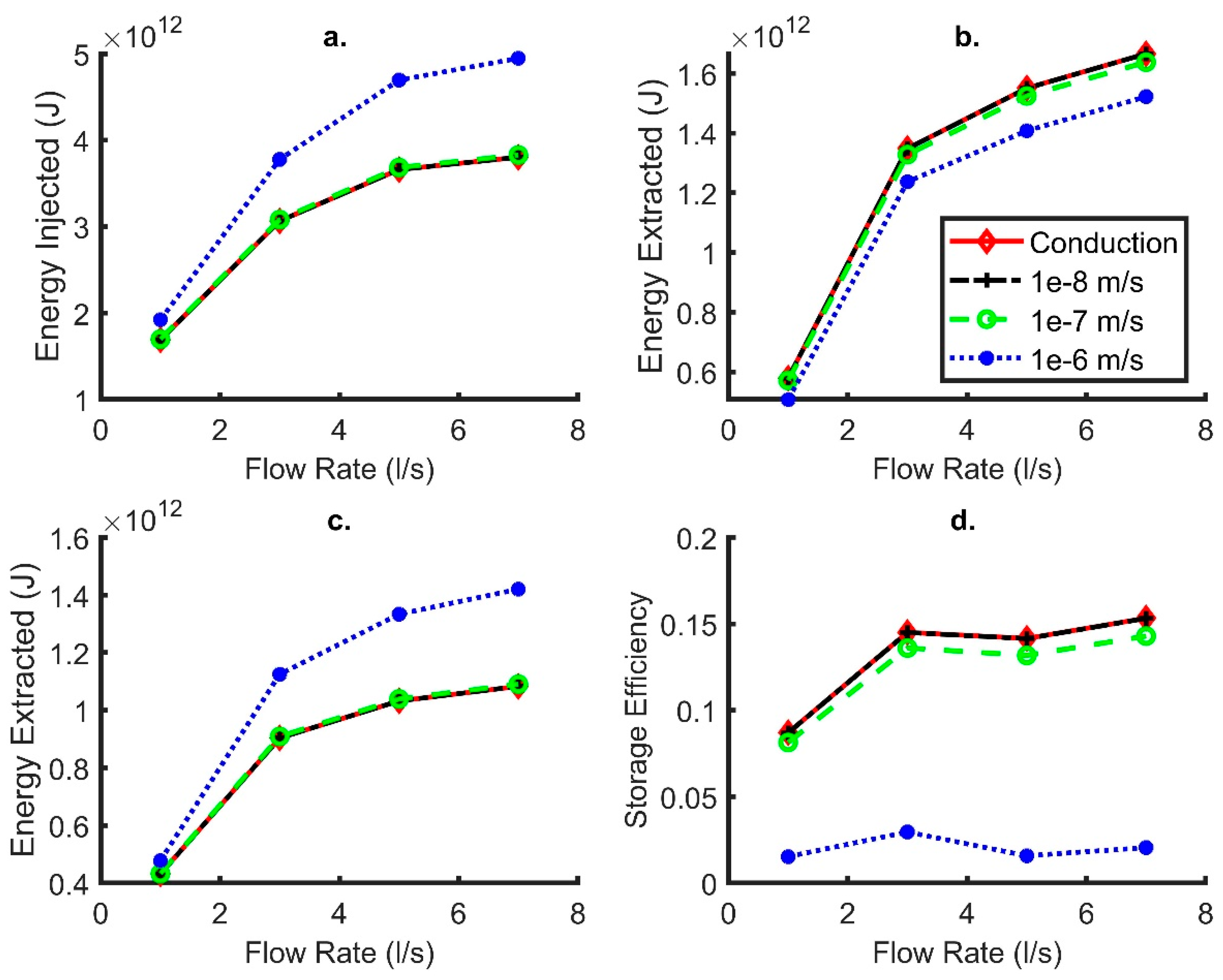

**Figure 11.**The impact of varying the DBHE internal fluid circulation rate during a 6 month heat charge cycle, followed by a 6 month discharge cycle. Inlet temperature during charge was maintained constant at 95 °C during charge and 5 °C during discharge. (

**a**) energy injected during charge, (

**b**) energy extracted during discharge cycle following charge, (

**c**) energy extracted during 6 month discharge period without preceding charge and (

**d**) storage efficiency calculated according to Equation (10).

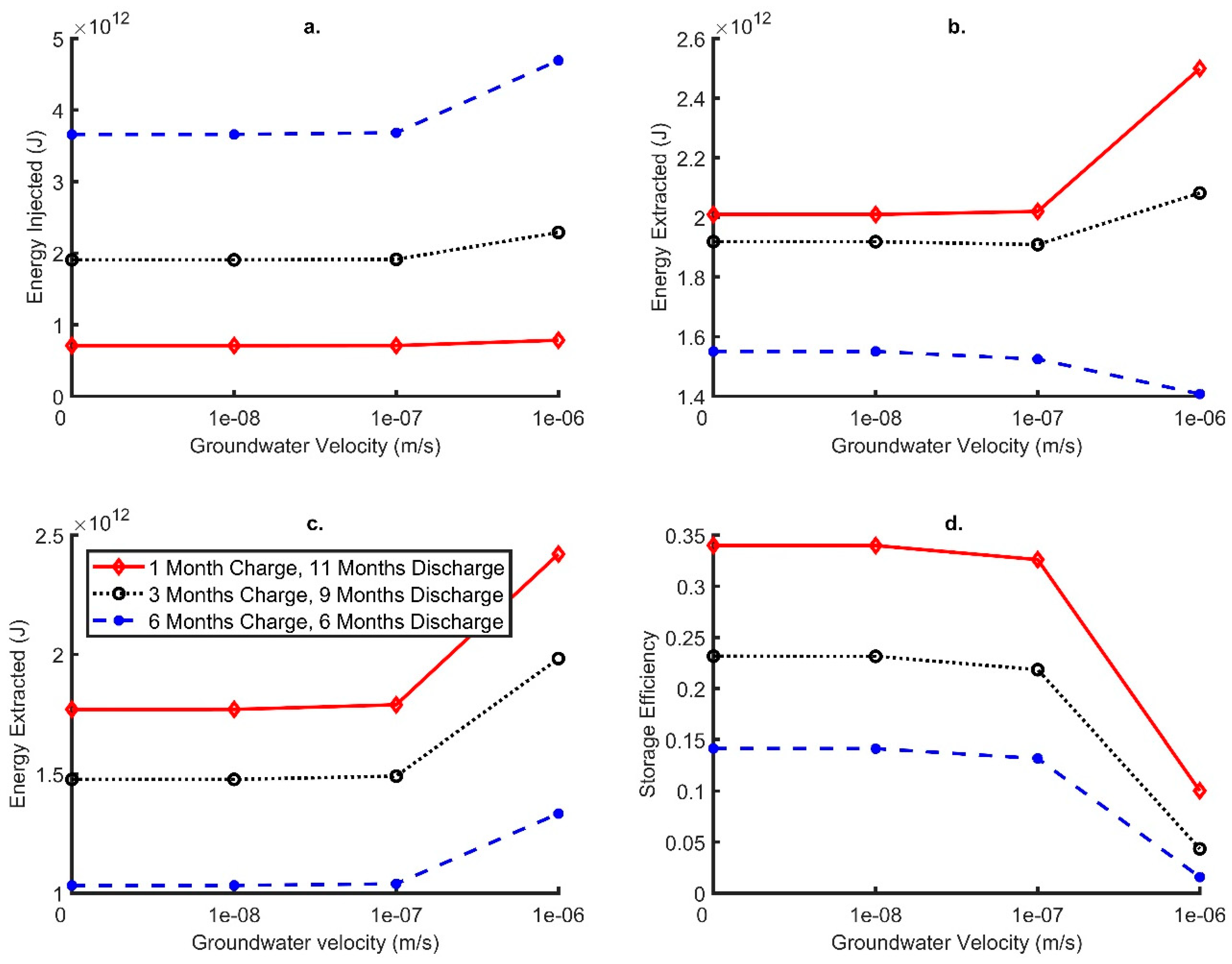

**Figure 12.**The impact of varying the DBHE charge-discharge cycle duration. Inlet temperature during charge was maintained constant at 95 °C during charge and 5 °C during discharge, with an internal DBHE fluid flow rate of 5 L/s. (

**a**) energy injected during charge, (

**b**) energy extracted during discharge cycle following charge (respectively 11, 9 and 6 months for 1, 3 and 6 months charge), (

**c**) energy extracted without preceding charge during 11, 9 and 6 month periods and (

**d**) storage efficiency calculated according to Equation (10).

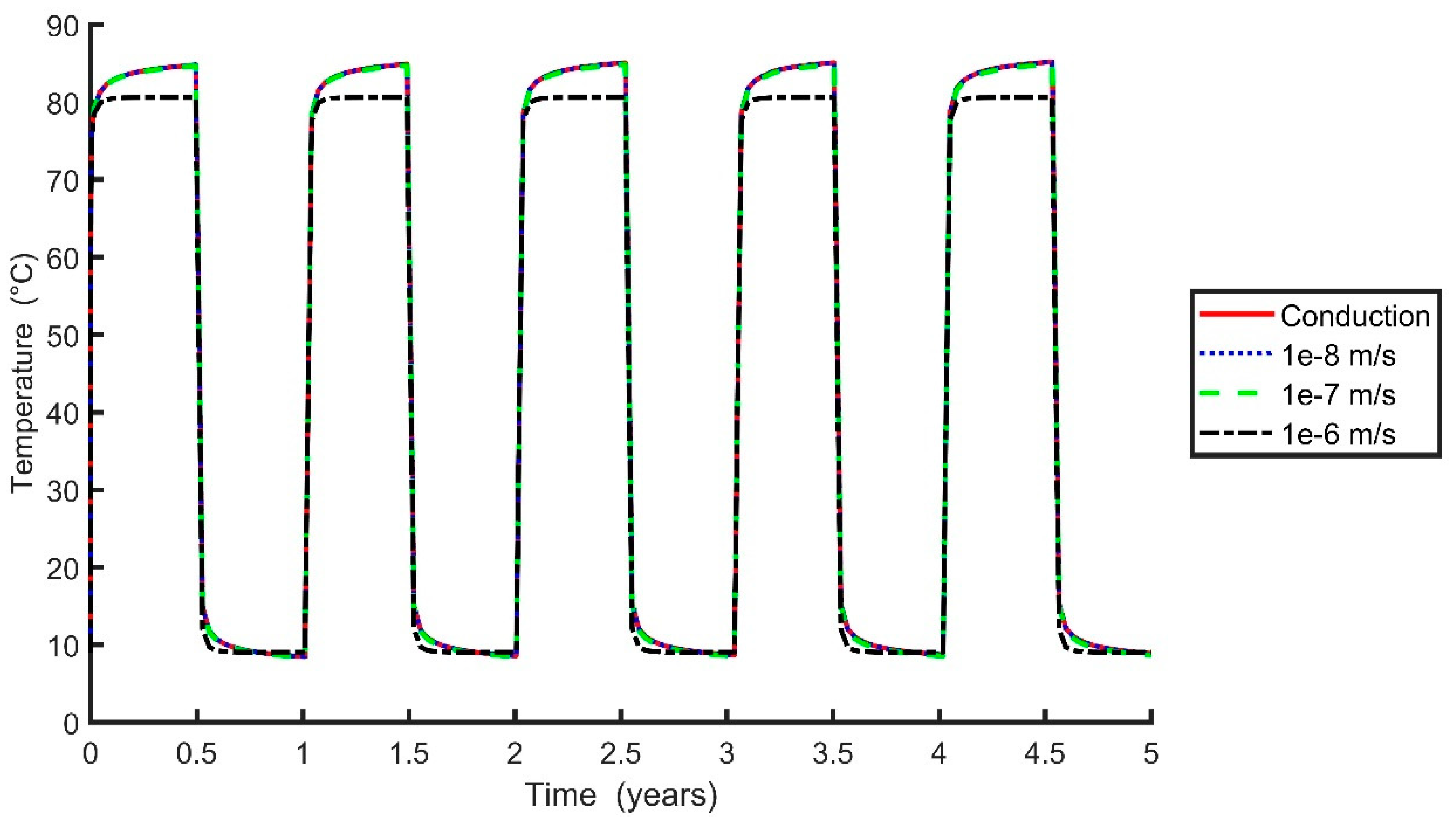

**Figure 13.**Simulated outlet fluid temperature over multiple charge-extraction cycles. Inlet is fixed at 95 °C during charge and 5 °C during extraction.

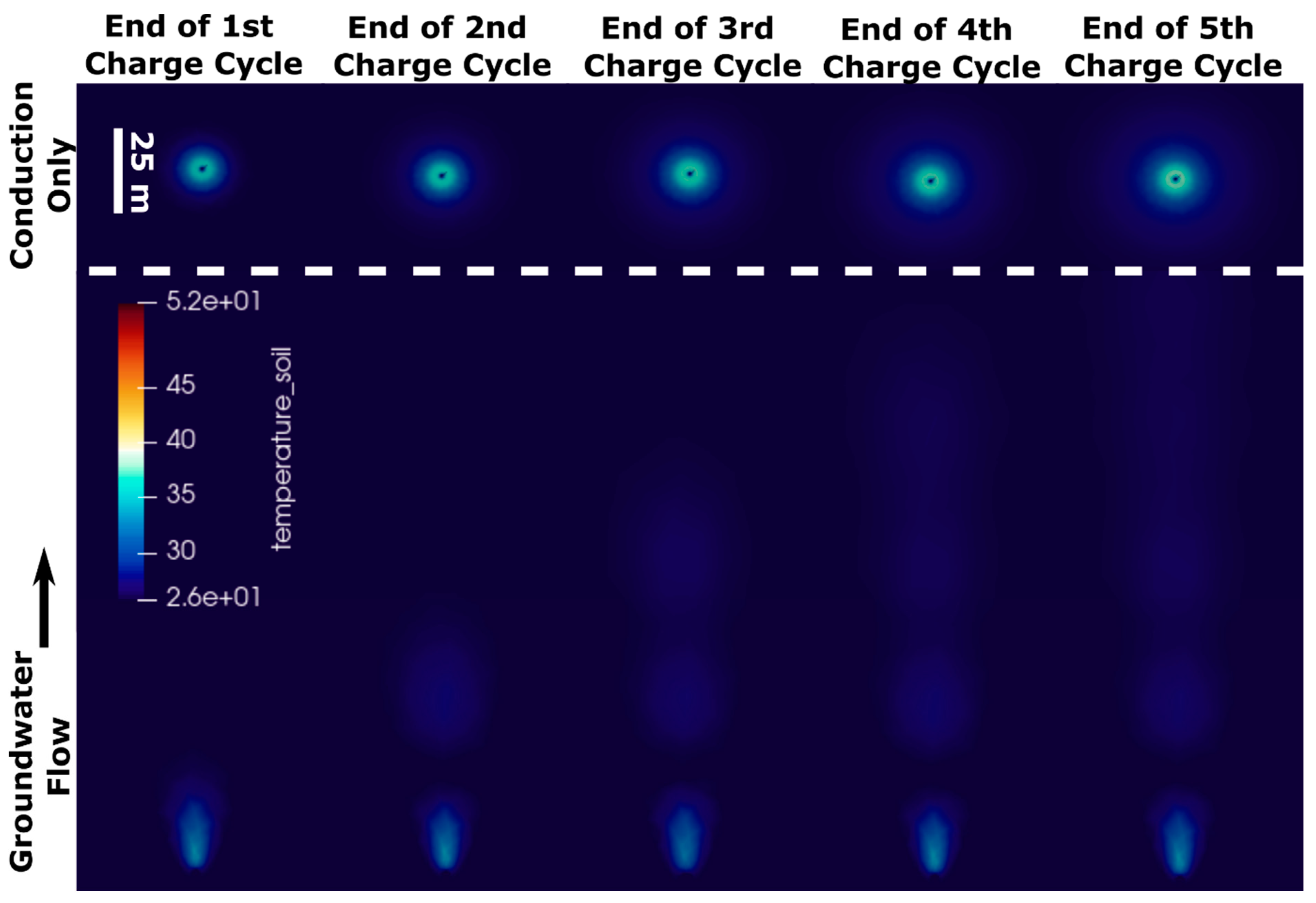

**Figure 14.**Cross sections in plan view at 500 m depth at the end of the charge period after 5 annual cycles of 6 months charge and discharge. Image shows conductive heat transfer only in the subsurface and with the influence of groundwater flow (Darcy velocity of 1e-6 m/s).

**Table 1.**Thermo-physical parameters of the model. Model parameters are either taken from the literature, assumed unpublished values (compiled by [42,43]), calculated values or given as the most likely value. Note the inner pipe is the coaxial pipe and the outer pipe is the casing. The real nature of the casing situation is notably more complex than that modelled. The thermal properties of the rock in the subsurface are taken as the weighted average from Kolo et al. [10].

Parameter | Value | Units | Symbol |
---|---|---|---|

Borehole Depth [19] | 920 | m | $L$ |

Borehole Diameter [19] | 0.216 | m | ${D}_{b}$ |

Outer Diameter of Inner Pipe | 0.1005 | m | - |

Thickness of Inner Pipe | 0.00688 | m | - |

Thickness of Outer Pipe | 0.0081 | m | - |

Thickness of Grout | 0.01905 | m | - |

Thermal Conductivity of Polyethylene Inner Pipe | 0.45 | W/(m·K) | - |

Thermal Conductivity of Steel Outer Pipe | 52.7 | W/(m·K) | - |

Density of Rock [10,44] | 2480 | kg/m^{3} | ${\rho}_{r}$ |

Thermal Conductivity of Rock [10,19,45,46,47] | 2.55 | W/(mK) | ${\lambda}_{r}$ |

Specific Heat Capacity of Rock [10,48,49] | 950 | J/(kg·K) | ${C}_{r}$ |

Volumetric heat capacity of rock | 2.356 | MJ/(m^{3}·K) | - |

Density of Grout | 995 | kg/m^{3} | ${\rho}_{g}$ |

Thermal Conductivity of Grout | 1.05 | W/(m·K) | ${\lambda}_{g}$ |

Specific Heat Capacity of Grout | 1200 | J/kgK | ${C}_{g}$ |

Density of Fluid [1] | 998 | kg/m^{3} | ${\rho}_{f}$ |

Thermal Conductivity of Fluid | 0.59 | W/(m·K) | ${\lambda}_{f}$ |

Specific Heat Capacity of Fluid | 4179 | J/kg·K | ${C}_{f}$ |

Surface Temperature [45] | 9 | °C | - |

Geothermal Gradient [19,45] | 33.4 | °C/km | - |

Porosity | 20 | % | $\varphi $ |

Volumetric Flow Rate | 0.005 | m^{3}/s | $Q$ |

Parameter | Minimum | Maximum | Units |
---|---|---|---|

Groundwater Velocity (Darcy velocity) | None (conduction only) | 1e-6 | m/s |

Inlet Temperature (charge) | 65 | 95 | °C |

Inlet Temperature (extraction) | 5 | 20 | °C |

Internal Fluid Flow Rate | 1 | 7 | L/s |
