# Induced Navier’s Slip with CNTS on a Stretching/Shrinking Sheet under the Combined Effect of Inclined MHD and Radiation

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. The Theoretical Models and Solutions

#### 2.1. The Expression and Thermo-Physical Properties of the CNTs

#### 2.2. Similarity Variables

#### 2.3. Exact Solution for Velocity Equation

#### 2.4. Solution for the Temperature Equation

## 3. Results and Discussion

- In Figure 10a,b the thermal boundary layer thickness of SWCNT and MWCNT is increased with increasing the magnetic field M. Further, it is observed that SWCNT has more energy compeer to the MWCNT for both stretching and shrinking cases;
- By increasing the solid volume fraction, the thermal boundary layer thickness of SWCNT and MWCNT increases in both cases. Furthermore, it is observed that 10c SWCNT have more heat energy compered with MWCNT, and in Figure 10d SWCNT and MWCNT have some energy;
- The increasing values of ${N}_{r}$ result in greater thickness in thermal boundary as show in Figure 10e,f. Further, it is observed that SWCNT have more thermal energy compered with MWCNT.

## 4. Summary and Conclusions

- When fluid is injected into the SWCNT and MWCNT the flow of the fluid is along the direction of the motion of the surface and in the suction case the direction of the flow is changed due to the prances of mass transfer-induced slip, which has an impact on the convection process that transfers heat;
- For both stretching and shrinking cases, the impact of induced slip with mass suction significantly extend the unique and dual solution region of SWCNT and MWCNT;
- In the presence of the mass-injection slip, the velocity of fluid in SWCNT and MWCNT is increased which increases the speed of the flow along the sheet;
- By increasing the value of the ${\Gamma}_{1}$ and $\varphi $, both transverse and axial velocity increases both cases of stretching and shrinking;
- By increasing the value of the M the transverse velocity decreases and axial velocity increases both cases of stretching and shrinking;
- The thermal boundary layer thickness is increased while increasing physical parameters such as radiation $\left({N}_{r}\right)$, volume fraction, $\left(\varphi \right)$ and magnetic field $\left(M\right)$ for both cases of stretching and shrinking.

## Author Contributions

## Funding

## Data Availability Statement

## Conflicts of Interest

## Nomenclature

Symbol | Explanations | S.I Unit |

Latin symbols | ||

${A}_{1},\hspace{0.17em}{A}_{2},\hspace{0.17em}{A}_{3},\hspace{0.17em}{A}_{4},\hspace{0.17em}{A}_{5}$ | Constant | $\left[-\right]$ |

${B}_{0}$ | Applied magnetic field | $\left[{\mathrm{wm}}^{-2}\right]$ |

${C}_{P}$ | Specific heat at constant pressure | $\left[{\mathrm{JKg}}^{-1}{\mathrm{K}}^{-1}\right]$ |

${k}^{*}$ | Mean absorption coefficient | $\left[{\mathrm{m}}^{-2}\right]$ |

M | Magnetic field | $\left[-\right]$ |

${N}_{r}$ | Radiation parameter | $\left[-\right]$ |

Pr | Prandtl number | $\left[-\right]$ |

${q}_{r}$ | Radiative heat flux | $\left[{\mathrm{Wm}}^{-2}\right]$ |

${q}_{w}$ | Local heat flux at the wall | $\left[-\right]$ |

T | Temperature | $\left[\mathrm{K}\right]$ |

${V}_{c}$ | Mass transformation | $\left[-\right]$ |

$\left(x,y\right)$ | Co-ordinate axes | $\left[\mathrm{m}\right]$ |

$\left(u,\mathrm{v}\right)$ | Velocities along x- and y- directions | $\left[{\mathrm{ms}}^{-1}\right]$ |

Greek symbols | ||

$\kappa $ | Thermal conductivity of fluid | $\left[{\mathrm{WKg}}^{-1}{\mathrm{K}}^{-1}\right]$ |

η | Similarity variable | $\left[-\right]$ |

${\mu}_{f}$ | Dynamic viscosity of fluid | $\left[-\right]$ |

$\nu $ | Kinematic viscosity | $\left[-\right]$ |

$\rho $ | Density | $\left[{\mathrm{Kgm}}^{-3}\right]$ |

${\sigma}^{*}$ | Stefan–Boltzmann constant | $\left[-\right]$ |

$\Gamma $ | Gamma function | $\left[-\right]$ |

$\varphi $ | Nanoparticle volume fraction | $\left[-\right]$ |

$\psi $ | Stream function | $\left[-\right]$ |

$\tau $ | Angle of inclination of magnetic field | $\left[-\right]$ |

Subscripts | ||

$f$ | Base fluid | $\left[-\right]$ |

$nf$ | Nanofluid | $\left[-\right]$ |

Abbreviations | ||

MHD | Magnetohydrodynamics | $\left[-\right]$ |

CNT | Carbon nanotubes | $\left[-\right]$ |

HNF | Hybrid nanofluid | $\left[-\right]$ |

SWCNT | Signal wall carbon nanotube | $\left[-\right]$ |

MWCNT | Multi-wall carbon nanotubes | $\left[-\right]$ |

## Appendix A. Roots of the Fourth Order Polynomials

## References

- Iijima, S. Helical microtubules of graphitic carbon. Nature
**1991**, 354, 56–58. [Google Scholar] [CrossRef] - Mahabaleshwar, U.S.; Sneha, K.N.; Huang, H.-N. An effect of MHD and radiation on CNTS-Water– based nanofluids due to a stretching sheet in a Newtonian fluid. Case Stud. Therm. Eng.
**2021**, 8, 101462. [Google Scholar] [CrossRef] - Meyer, J.P.; McKrell, T.J.; Grote, K. The influence of multi-walled carbon nanotubes on single-phase heat transfer and pressure drop characteristics in the transitional flow regime of smooth tubes. Int. J. Heat Mass Transf.
**2013**, 58, 597–609. [Google Scholar] [CrossRef] [Green Version] - Li, Q.; Xuan, Y. Convective heat transfer and flow characteristics of Cu–water nanofluid. Sci. China Ser. E Technolgical Sci.
**2002**, 45, 408–416. [Google Scholar] - Pak, B.; Cho, Y. Hydrodynamic and heat transfer study of dispersed fluids with submicron metallic oxide particles. Exp. Heat Transf.
**1998**, 11, 151–170. [Google Scholar] [CrossRef] - Wen, D.; Ding, Y. Experimental investigation into convective heat transfer ofnanofluids at the entrance region under laminar flow conditions. Int. J. Heat Mass Transf.
**2004**, 47, 5181–5188. [Google Scholar] [CrossRef] - Yang, Y.; Zhang, Z.; Grulke, E.; Anderson, W.; Wu, G. Heat transfer properties of nanoparticles-in-fluid dispersions (nanofluids) in laminar flow. Int. J. Heat Mass Transf.
**2005**, 48, 1107–1116. [Google Scholar] [CrossRef] - Xie, H.; Lee, H.; Youn, W.; Choi, M. Nanofluids containing multiwalled carbon nanotubes and their enhanced thermal conductivities. J. Appl. Phys.
**2003**, 94, 4967–4971. [Google Scholar] [CrossRef] - Khan, M.R.; Pan, K.; Khan, A.U.; Naeem, U. Comparative study on heat transfer in CNTs-water nanofluid over a curved surface. Int. Commun. Heat Mass Transf.
**2020**, 116, 104707. [Google Scholar] [CrossRef] - Sneha, K.N.; Mahabaleshwar, U.S.; Chan, A.; Hatami, M. Investigation of radiation and MHD on non-Newtonian fluid flow over a stretching/shrinking sheet with CNTs and mass transpiration. Waves Random Complex Media
**2022**, 1–20. [Google Scholar] [CrossRef] - Nadeem, S.; Khan, A.U.; Hussain, S.T. Model based study of SWCNT and MWCNT thermal conductivities effect on the heat transfer due to the oscillating wall conditions. Int. J. Hydrog. Energy
**2017**, 42, 28945–28957. [Google Scholar] [CrossRef] - Mahabaleshwar, U.S.; Sneha, K.N.; Chan, A.; Zeidan, D. An effect of MHD fluid flow heat transfer using CNTs with thermal radiation and heat source/sink across a stretching/shrinking sheet. Int. Commun. Heat Mass Transf.
**2022**, 135, 106080. [Google Scholar] [CrossRef] - Hayat, T.; Nawaz, M.; Sajid, M.; Asghar, S. The effect of thermal radiation on the flow of a second grade fluid. Comput. Math. Appl.
**2009**, 58, 369–379. [Google Scholar] [CrossRef] [Green Version] - Devi, S.S.U.; Devi, S.P.A. Numerical Investigation on Three Dimensional Hybrid Cu−Al
_{2}O_{3}/Water Nanofluid Flow Over a Stretching Sheet with Effecting Lorentz Force Subject to Newtonian Heating. Can. J. Phys.**2016**, 94, 490–496. [Google Scholar] [CrossRef] - Bhattacharyya, K.; Layek, G.C. Effects of suction/blowing on steady boundary layer stagnation-point flow and heat transfer towards a shrinking sheet with thermal radiation. Int. J. Heat Mass Transf.
**2011**, 54, 302–307. [Google Scholar] [CrossRef] - Bhattacharyya, K.; Mukhopadhyay, S.; Layek, G.C.; Pop, I. Effects of thermal radiation on micropolar fluid flow and heat transfer over a porous shrinking sheet. Int. J. Heat Mass Transf.
**2022**, 55, 2945–2952. [Google Scholar] [CrossRef] - Miklavcic, M.; Wang, C.Y. Viscous flow due to a shrinking sheet. Q. Appl. Math.
**2006**, 64, 283–290. [Google Scholar] [CrossRef] [Green Version] - Fang, T. Boundary layer flow over a shrinking sheet with power-law velocity. Int. J. Heat Mass Transf.
**2008**, 51, 5838–5843. [Google Scholar] [CrossRef] - Wu, L. A slip model for rarefied gas flows at arbitrary Knudsen number. Appl. Phys. Lett.
**2008**, 93, 253103. [Google Scholar] [CrossRef] [Green Version] - Wang, C.Y. Analysis of viscous flow due to a stretching sheet with surface slip and suction. Nonlinear Anal. Real World Appl.
**2009**, 10, 375–380. [Google Scholar] [CrossRef] - Fang, T.; Yao, S.; Zhang, J.; Aziz, A. Viscous flow over a shrinking sheet with a second order slip flow model. Commun. Nonlinear Sci. Numer. Simul.
**2010**, 15, 1831–1842. [Google Scholar] [CrossRef] - Fang, T.; Aziz, A. Viscous Flow with Second-Order Slip Velocity over a Stretching Sheet. Z. Für Nat. A
**2010**, 65, 1087–1092. [Google Scholar] [CrossRef] [Green Version] - Wu, L. Mass transfer induced slip effect on viscous gas flows above a shrinking/stretching sheet. Int. J. Heat Mass Transf.
**2016**, 93, 17–22. [Google Scholar] [CrossRef] - Wu, L. Effect of mass transfer induced velocity slip on heat transfer of viscous gas flows over stretching/shrinking sheets. Int. J. Therm. Sci.
**2017**, 112, 65–173. [Google Scholar] [CrossRef] - Crane, L.J. Flow past a Stretching Plate. J. Appl. Math. Phys. (ZAMP)
**1970**, 21, 645–647. [Google Scholar] [CrossRef] - Cortell, R. Flow and heat transfer of a fluid through a porous medium over a stretching surface with internal heat generation/absorption and suction/blowing. Fluid Dyn. Res.
**2005**, 37, 231–245. [Google Scholar] [CrossRef] - Bataller, R.C. Similarity solutions for flow and heat transfer of a quiescent fluid over a nonlinearly stretching surface. J. Mater. Process. Technol.
**2008**, 203, 176–183. [Google Scholar] [CrossRef] - Mahantesh, M.; Nandeppanavar, K.; Vajravelu, M.; Abel, S.; Ng, C.-O. Heat transfer over a nonlinearly stretching sheet with non-uniform heat source and variable wall temperature. Int. J. Heat Mass Transf.
**2011**, 54, 4960–4965. [Google Scholar] [CrossRef] [Green Version] - Mahabaleshwar, U.S.; Aly, E.H.; Vishalakshi, A.B. MHD and Thermal Radiation Flow of Graphene Casson Nanofluid Stretching/Shrinking Sheet. Int. J. Appl. Comput. Math
**2022**, 8, 113. [Google Scholar] [CrossRef] - Anusha, T.; Mahabaleshwar, U.S.; Sheikhnejad, Y. An MHD of Nanofluid Flow over a Porous Stretching/Shrinking Plate with Mass Transpiration and Brinkman Ratio. Transp. Porous Med.
**2022**, 142, 333–352. [Google Scholar] [CrossRef] - Vishalakshi, A.B.; Mahabaleshwar, U.S.; Sarris, I.E. An MHD Fluid Flow over a Porous Stretching/Shrinking Sheet with Slips and Mass Transpiration. Micromachines
**2022**, 13, 116. [Google Scholar] [CrossRef] [PubMed] - Sneha, K.N.; Mahabaleshwar, U.S.; Sharifpur, M.; Ahmadi, M.H.; Al-Bahrani, M. Entropy Analysis in MHD CNTS Flow Due to a Stretching Surface with Thermal Radiation and Heat Source/Sink. Mathematics
**2022**, 10, 3404. [Google Scholar] [CrossRef] - Areekara, S.; Sabu, A.S.; Kumar, R.; Mathew, A. Triple stratification effects on bioconvective stagnation point flow pertaining carbon nanotubes due to induced magnetic field. ZAMM-J. Appl. Math. Mech./Z. Für Angew. Math. Und Mech.
**2021**, 101, e202000375. [Google Scholar] [CrossRef] - Reddy, Y.R.O.; Reddy, M.S.; Reddy, P.S. MHD boundary layer flow of SWCNT-water and MWCNT-water nanofluid over a vertical cone with heat generation/absorption. Heat Transf.-Asian Res.
**2019**, 48, 539–555. [Google Scholar] [CrossRef] - Samantaray, S.S.; Shaw, S.; Misra, A.; Nayak, M.K.; Prakash, J. Darcy–Forchheimer up/downflow of entropy optimized radiative nanofluids with second-order slip, nonuniform source/sink, and shape effects. Heat Transf.
**2022**, 51, 2318–2342. [Google Scholar] [CrossRef] - Muhammad, T.; Waqas, H.; Farooq, U.; Alqarni, M.S. Numerical simulation for melting heat transport in nanofluids due to quadratic stretching plate with nonlinear thermal radiation. Case Stud. Therm. Eng.
**2021**, 27, 101300. [Google Scholar] [CrossRef] - Mathew, A.; Areekara, S.; Sabu, A.S.; Saleem, S. Significance of multiple slip and nanoparticle shape on stagnation point flow of silver-blood nanofluid in the presence of induced magnetic field. Surf. Interfaces
**2021**, 25, 101267. [Google Scholar] [CrossRef] - Ullah, K.W.; Awais, M.; Parveen, N.; Ali, A.; Awan, S.E.; Malik, M.Y.; He, Y. Analytical Assessment of (Al
_{2}O_{3}–Ag/H_{2}O) Hybrid Nanofluid Influenced by Induced Magnetic Field for Second Law Analysis with Mixed Convection, Viscous Dissipation and Heat Generation. Coatings**2021**, 11, 498. [Google Scholar] [CrossRef] - Khan, U.; Zaib, A.; Ishak, A.; Bakar, S.A. Time-dependent Blasius–Rayleigh–Stokes flow conveying hybrid nanofluid and heat transfer induced by non-Fourier heat flux and transitive magnetic field. Case Stud. Therm. Eng.
**2021**, 26, 101151. [Google Scholar] [CrossRef] - Panigrahi, L.; Panda, J.; Sahoo, S.S. Unsteady Heat Transfer and Entropy Generation Study on Viscoelastic Fluid Flow Coupled with Induced Magnetic Field. Iran. J. Sci. Technol. Trans. Sci.
**2021**, 45, 1699–1710. [Google Scholar] [CrossRef] - Schlichting, H. Boundary-Layer Theory; Springer: Berlin/Heidelberg, Germany, 2004; ISBN 978-3-540-66270-9. [Google Scholar]
- Khan, W.A.; Khan, Z.H.; Rahi, M. Fluid flow and heat transfer of carbon nanotubes along a flat plate with Navier slip boundary. Appl. Nanosci.
**2014**, 4, 633–641. [Google Scholar] [CrossRef] [Green Version] - Alexander, B.; Michael, N. Einstein’s viscosity equation and nanolubricated friction. Langmuir
**2018**, 34, 12968–12973. [Google Scholar] [CrossRef] - Xue, Q.Z. Model for thermal conductivity of carbon nanotube-based composites. Phys. B Condens. Matter
**2005**, 368, 302–307. [Google Scholar] [CrossRef] - Chereches, E.I.; Minea, A.A. Electrical Conductivity of New Nanoparticle Enhanced Fluids: An Experimental Study. Nanomaterials
**2019**, 9, 1228. [Google Scholar] [CrossRef] [Green Version]

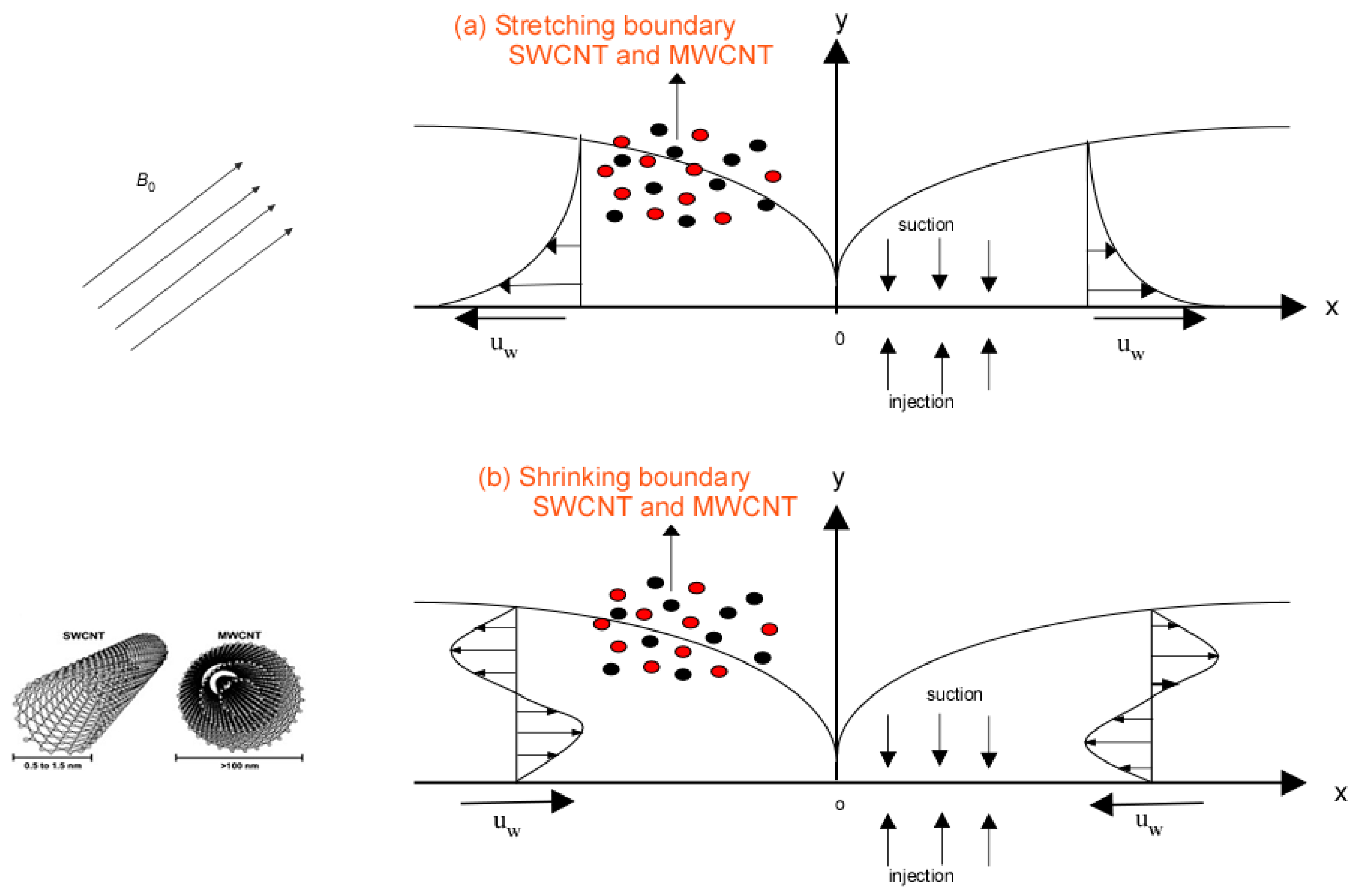

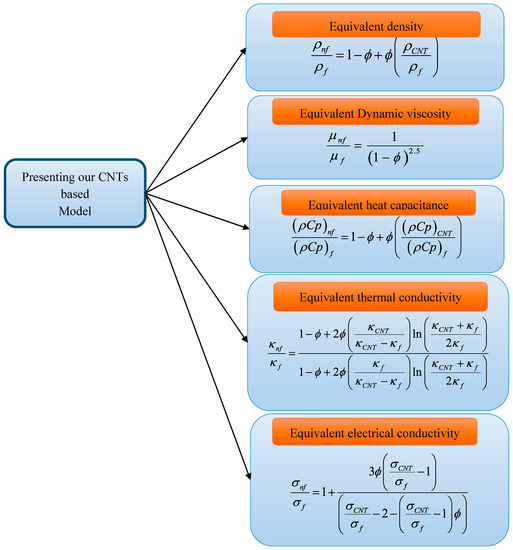

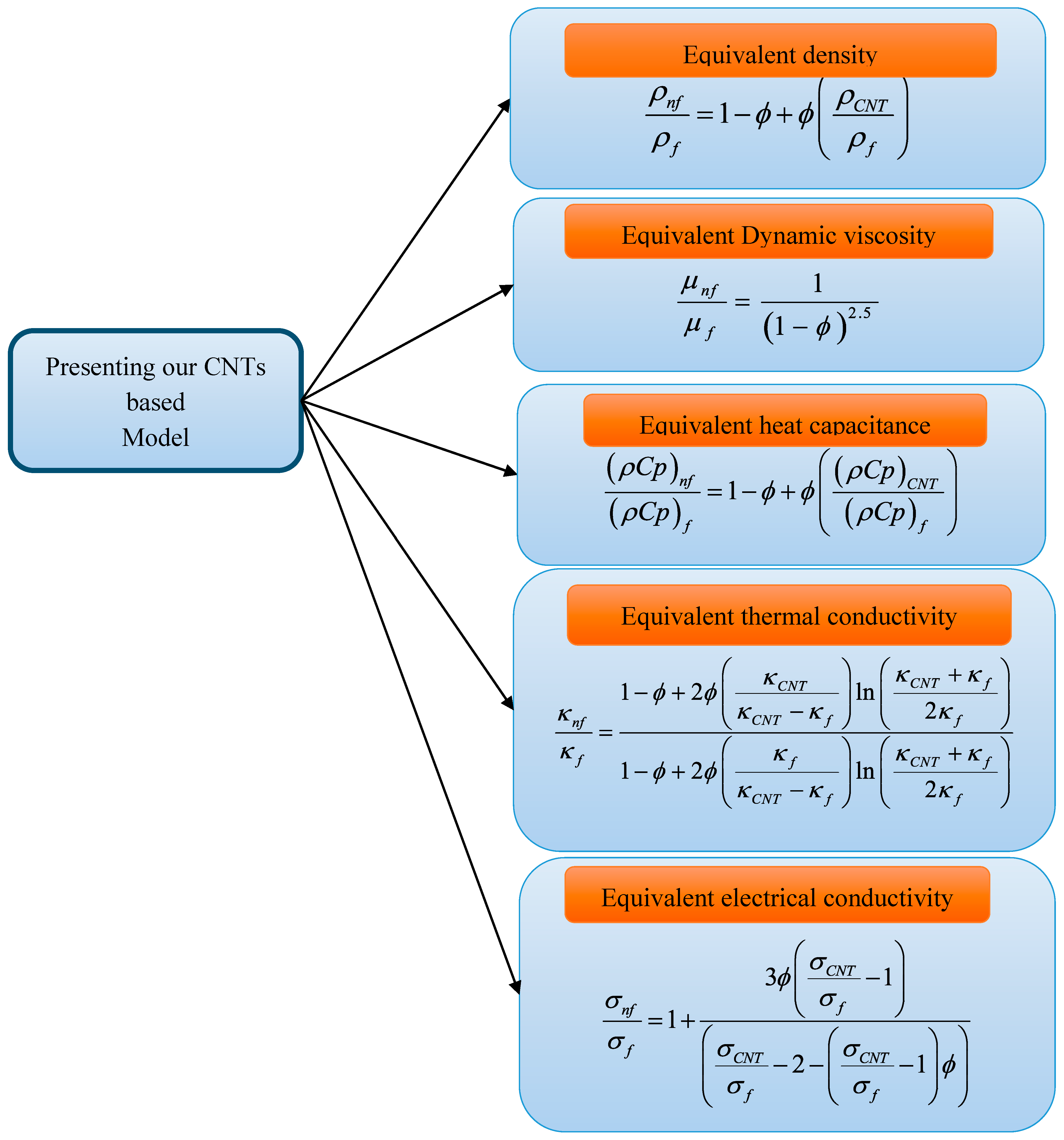

**Figure 2.**Summary of the CNTs based model.from [32].

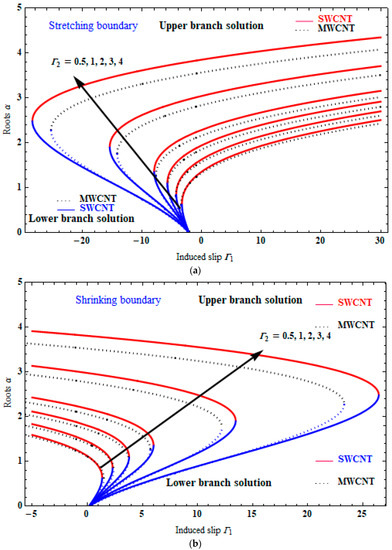

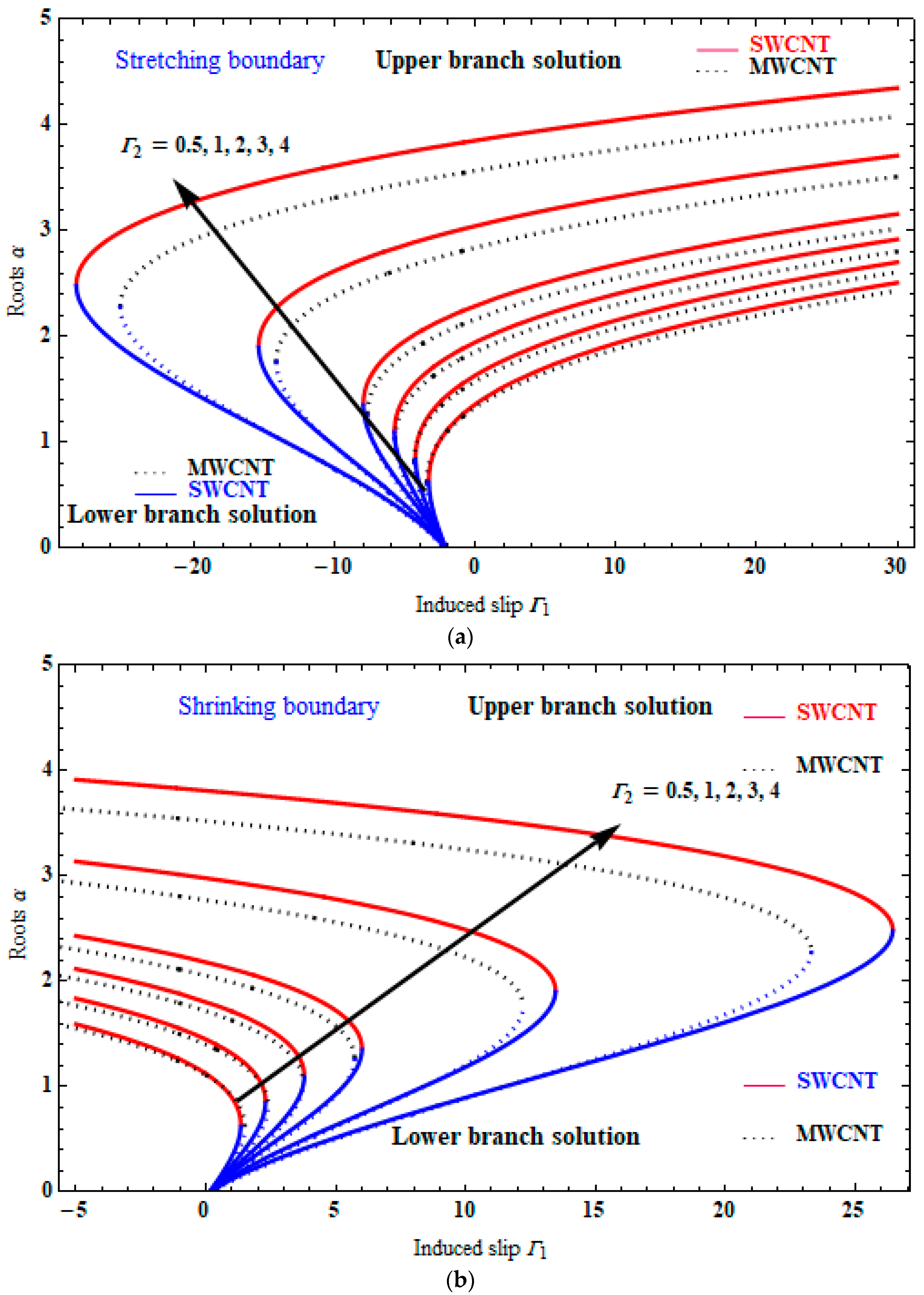

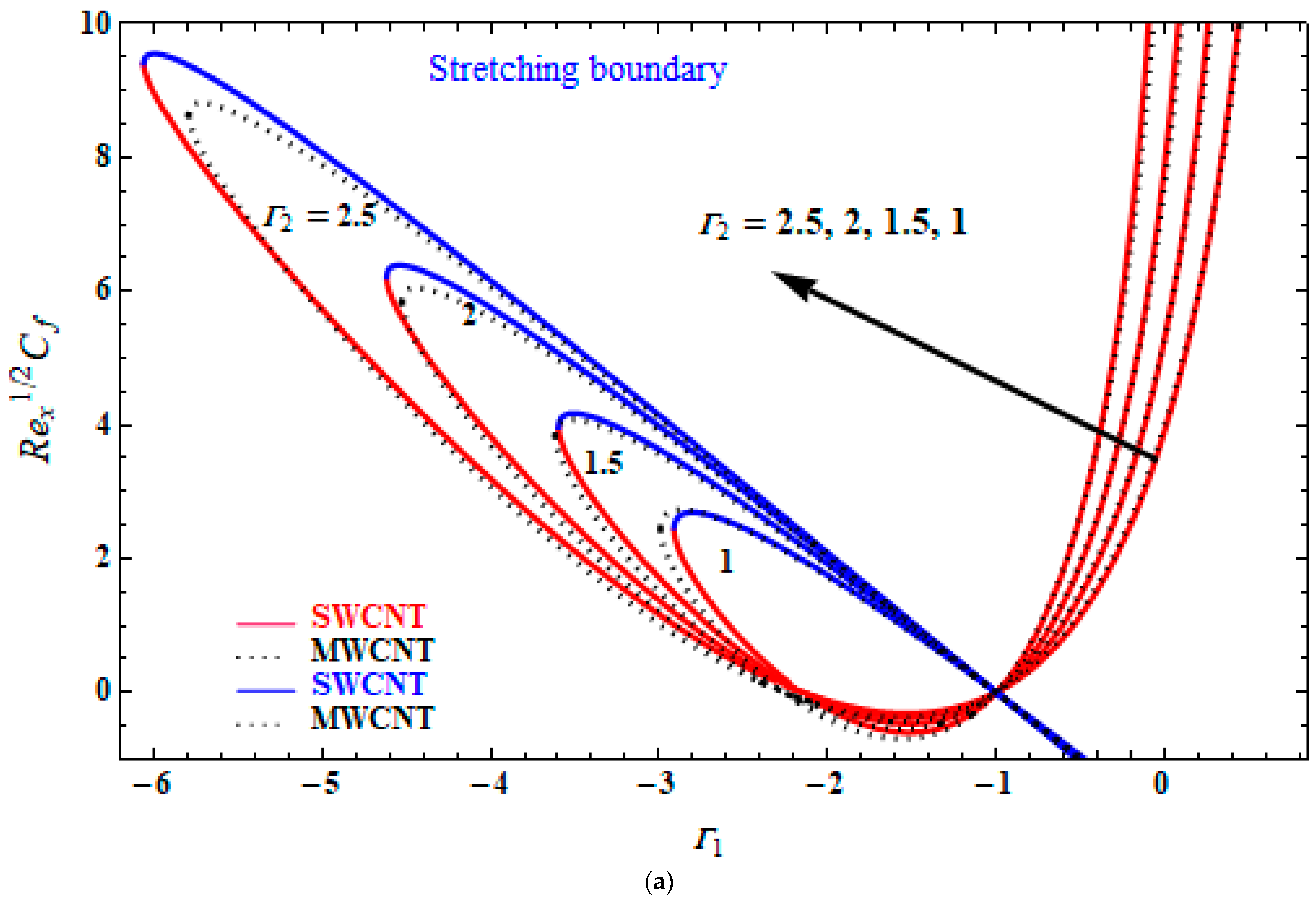

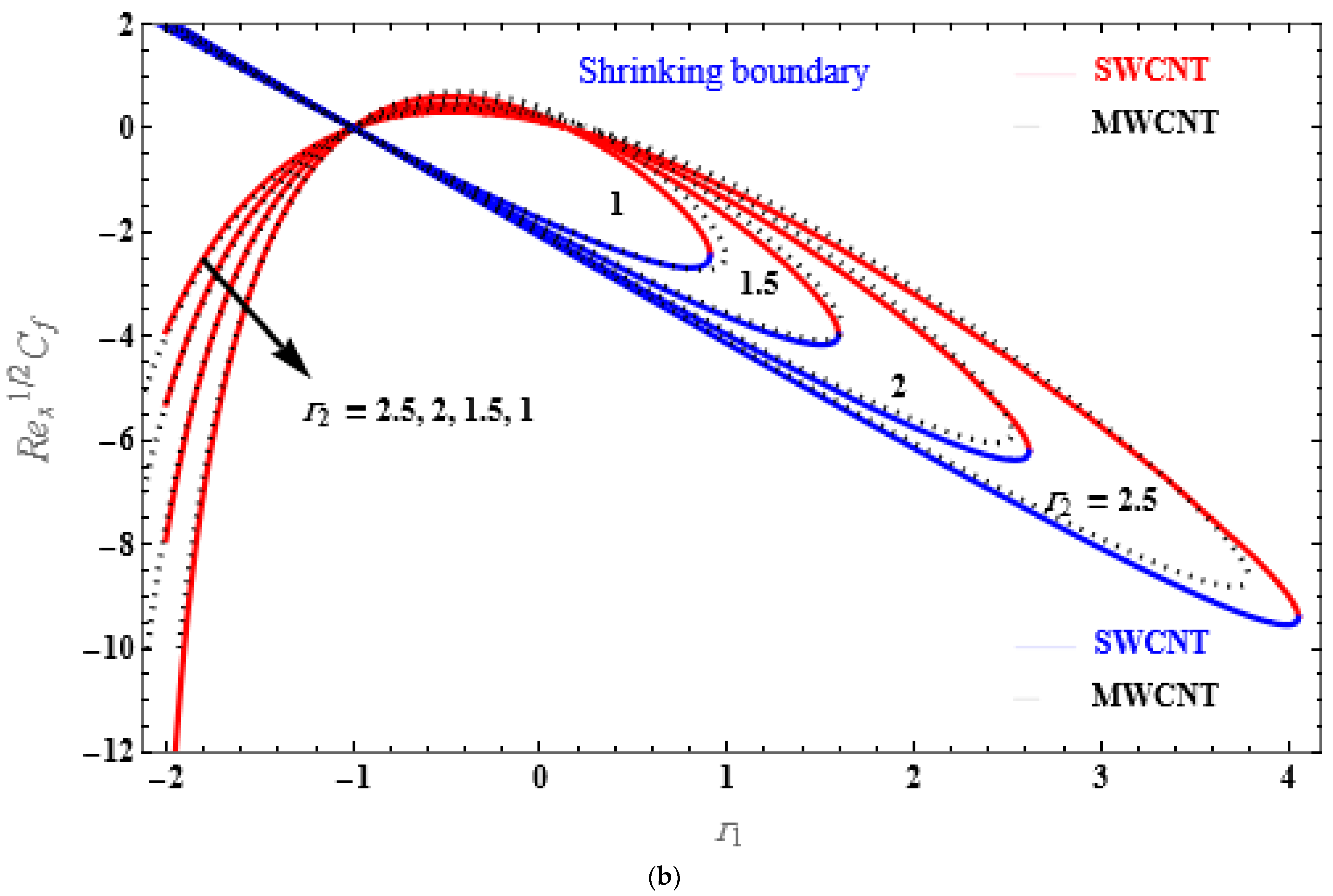

**Figure 4.**Plot ${\mathrm{Re}}_{{}_{x}}^{1/2}{C}_{f}$ verses ${\Gamma}_{1}$, (

**a**) stretching case (

**b**) shrinking case.

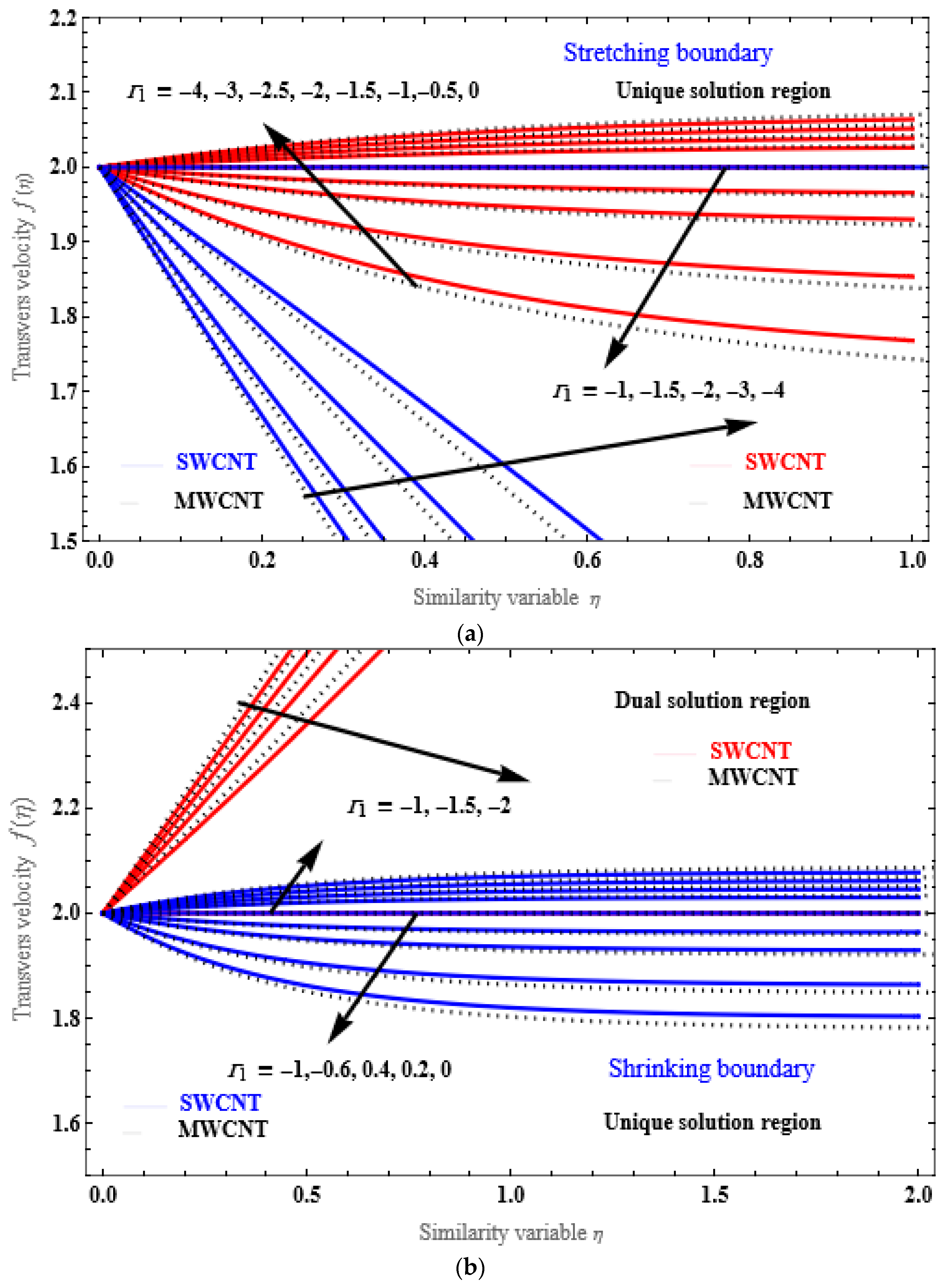

**Figure 5.**Plots of fluid velocity verses $\eta $ with effect of ${\Gamma}_{1}$. (

**a**) Transvers velocity (Stretching boundary), (

**b**) Transvers velocity (Shrinking boundary), (

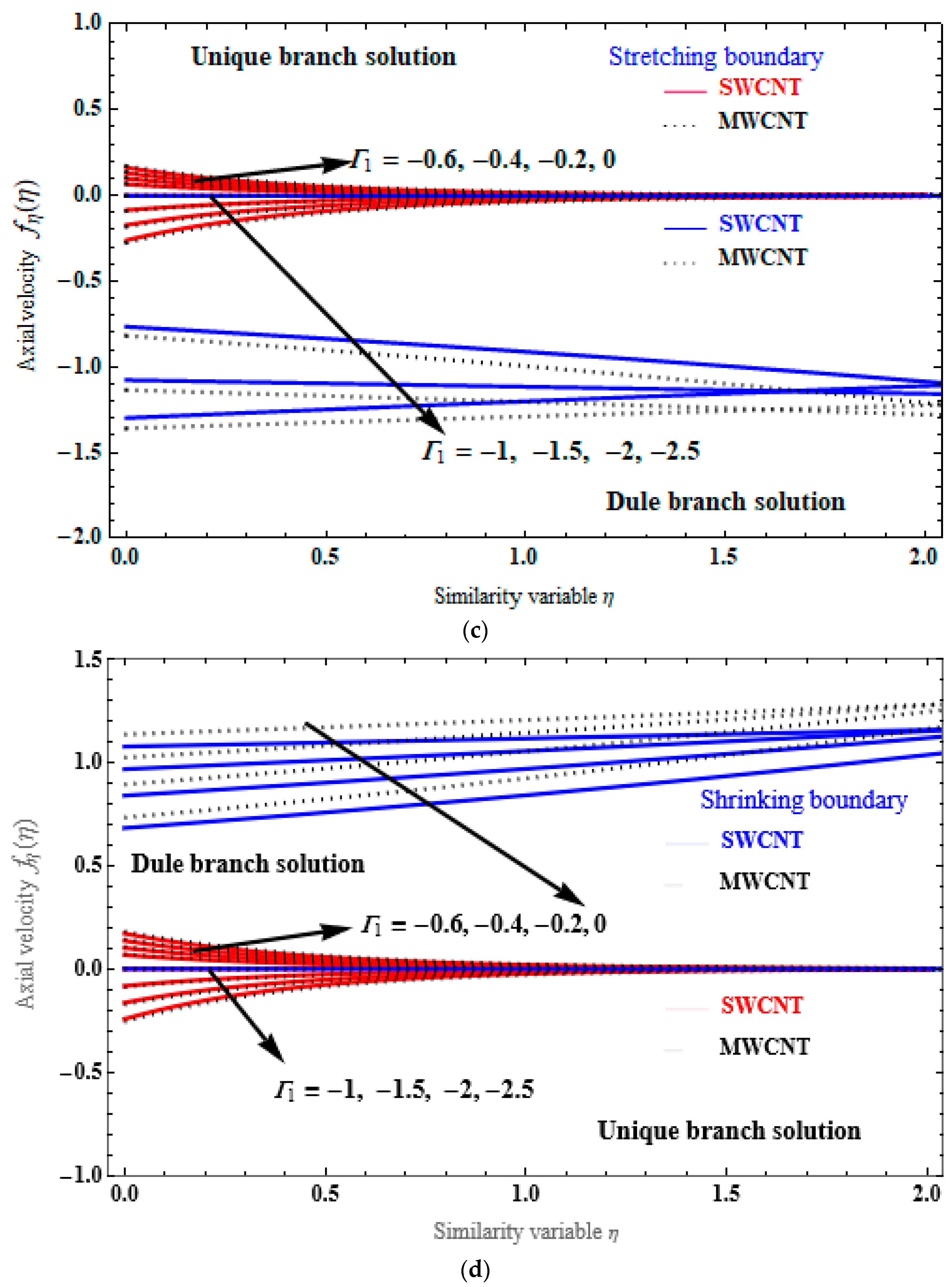

**c**) Axial velocity (Stretching boundary) and (

**d**) Axial velocity (Shrinking boundary).

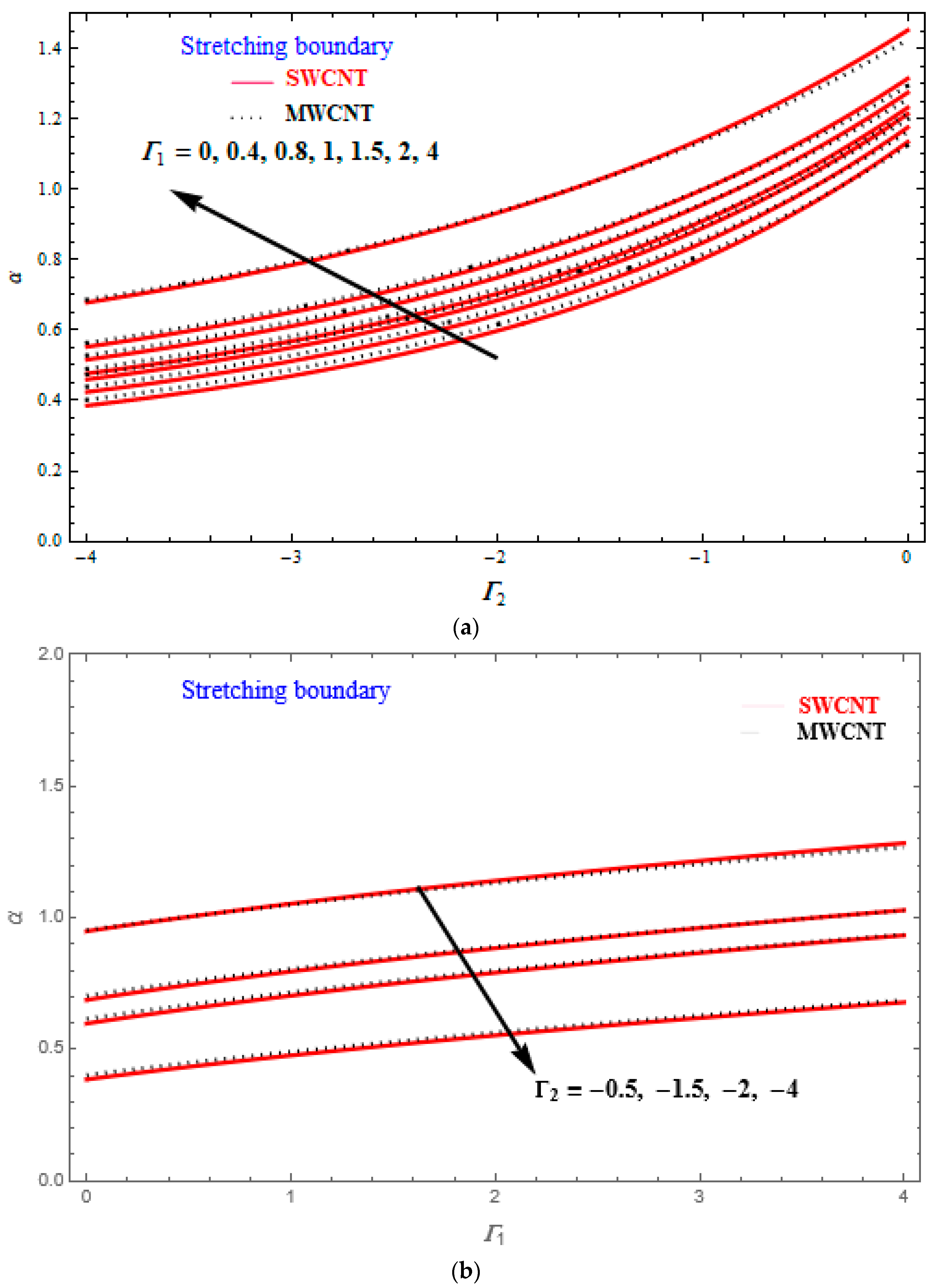

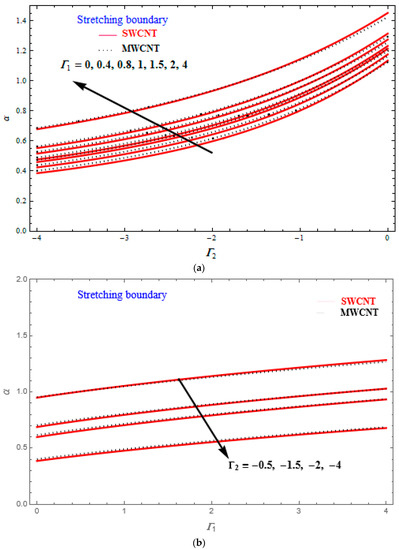

**Figure 6.**(

**a**) Plot $\alpha $ verses ${\Gamma}_{2}$, and (

**b**). (

**a**) Plot $\alpha $ verses ${\Gamma}_{1}$, on stretching case.

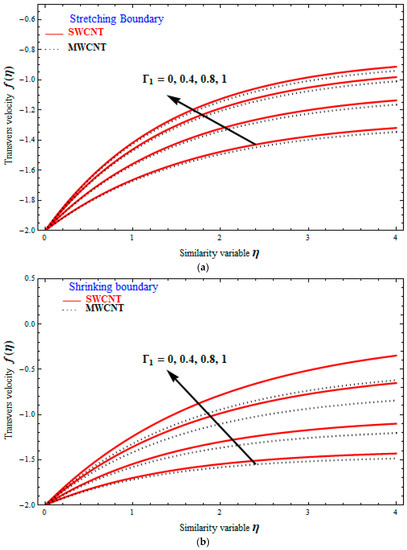

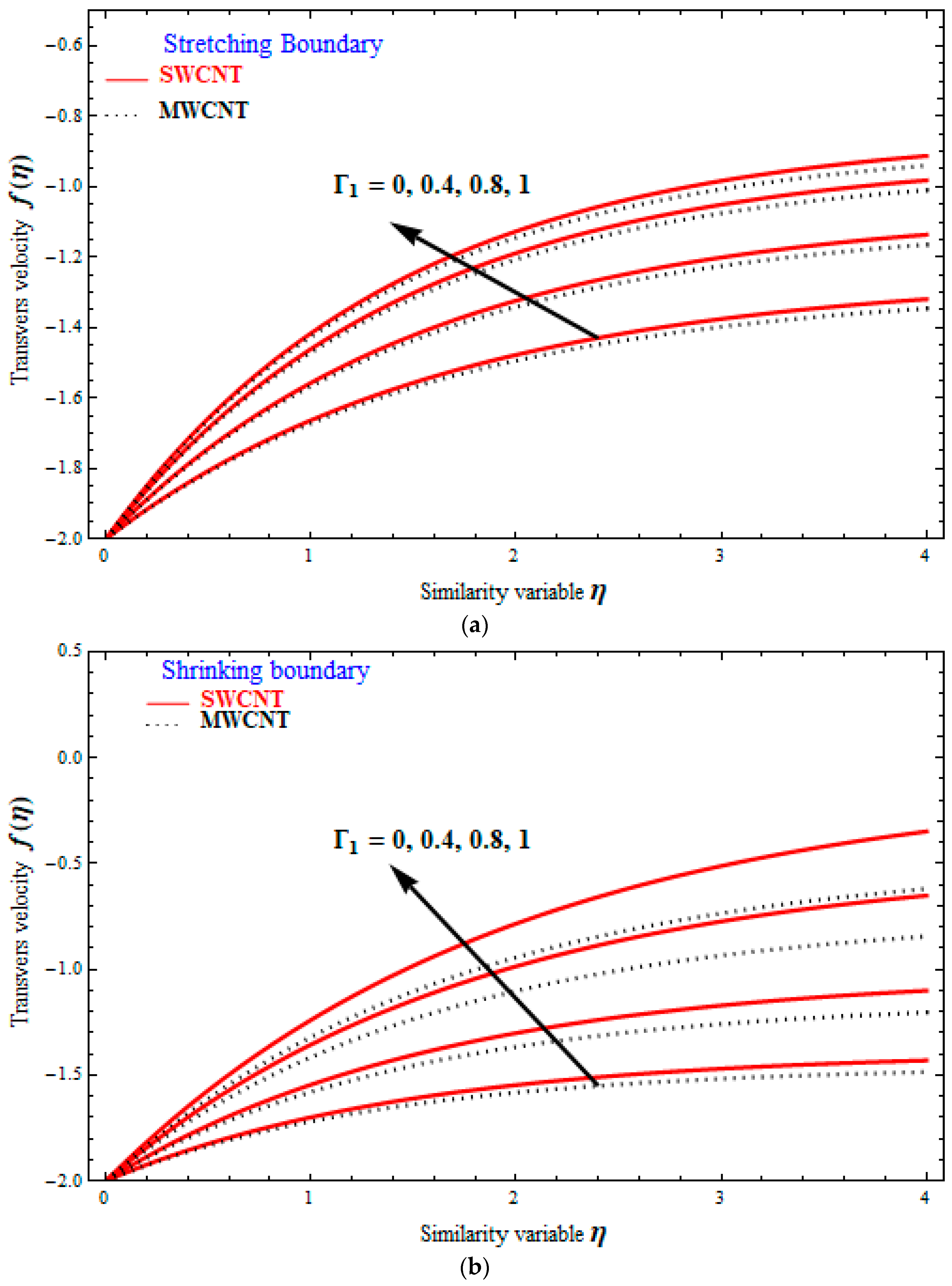

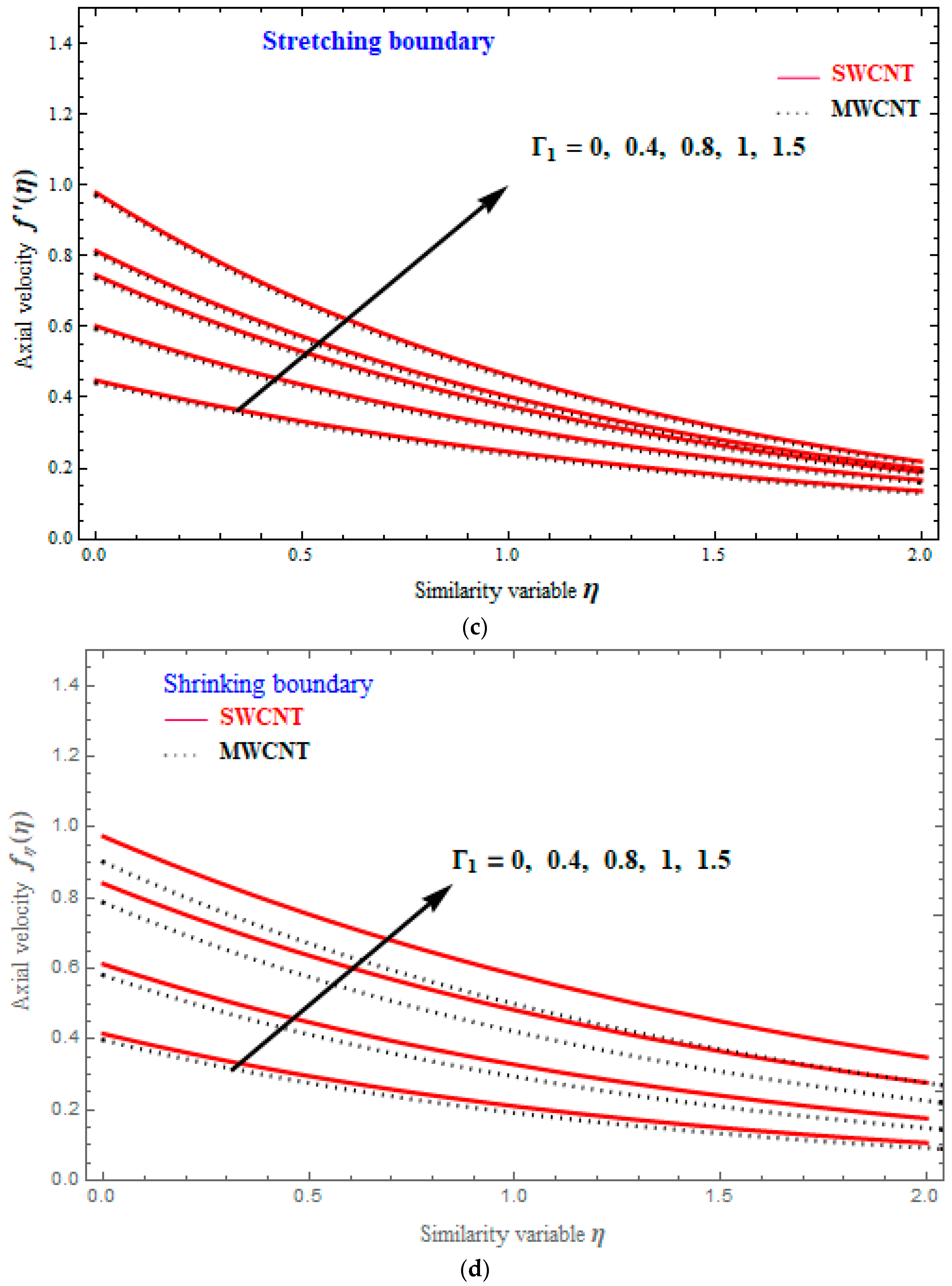

**Figure 7.**Plot of $f\left(\eta \right)$ and ${f}_{\eta}\left(\eta \right)$ with similarity variable $\eta $ with effect of ${\Gamma}_{1}$. (

**a**,

**c**) Stretching case, (

**b**,

**d**) shrinking case.

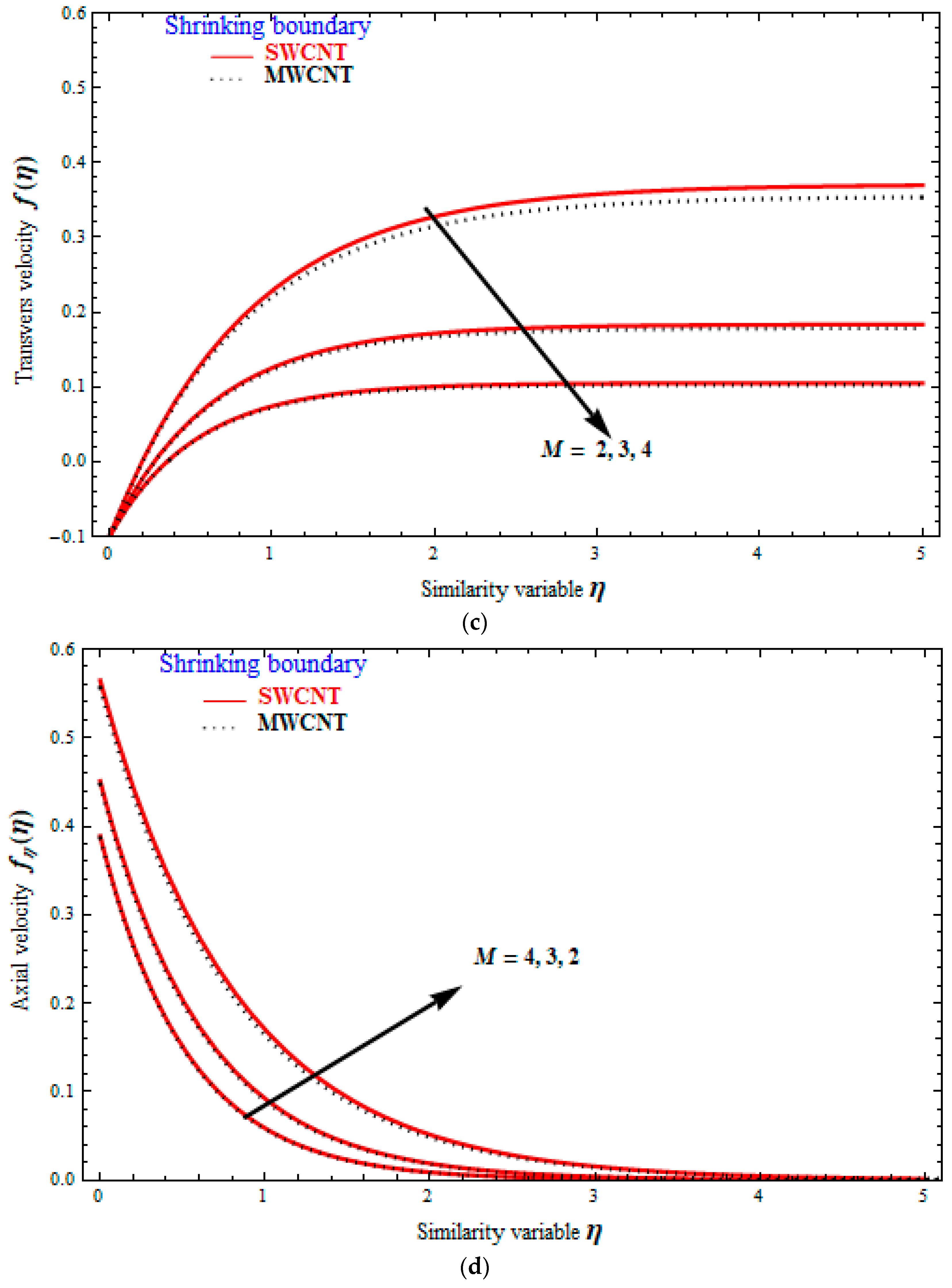

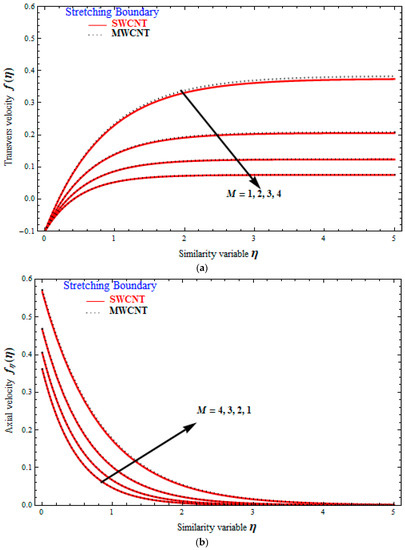

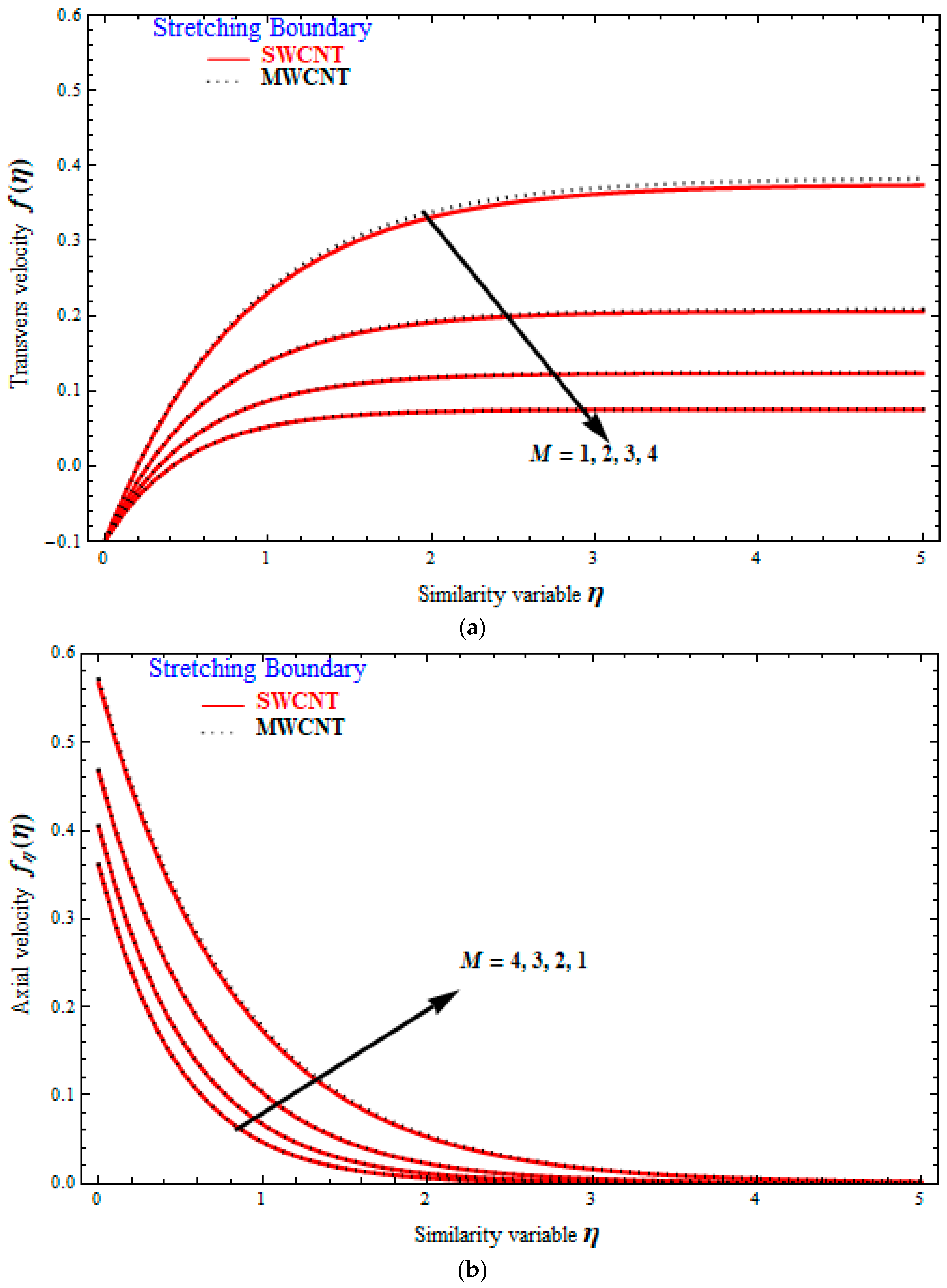

**Figure 8.**Plot of $f\left(\eta \right)$ and ${f}_{\eta}\left(\eta \right)$ with similarity variable $\eta $ with effect of $M$. (

**a**,

**b**) Stretching case, (

**c**,

**d**) shrinking case.

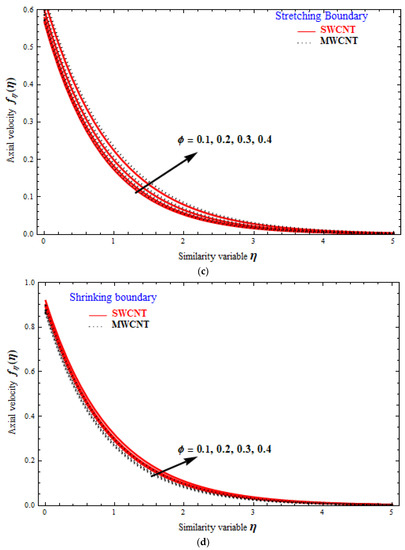

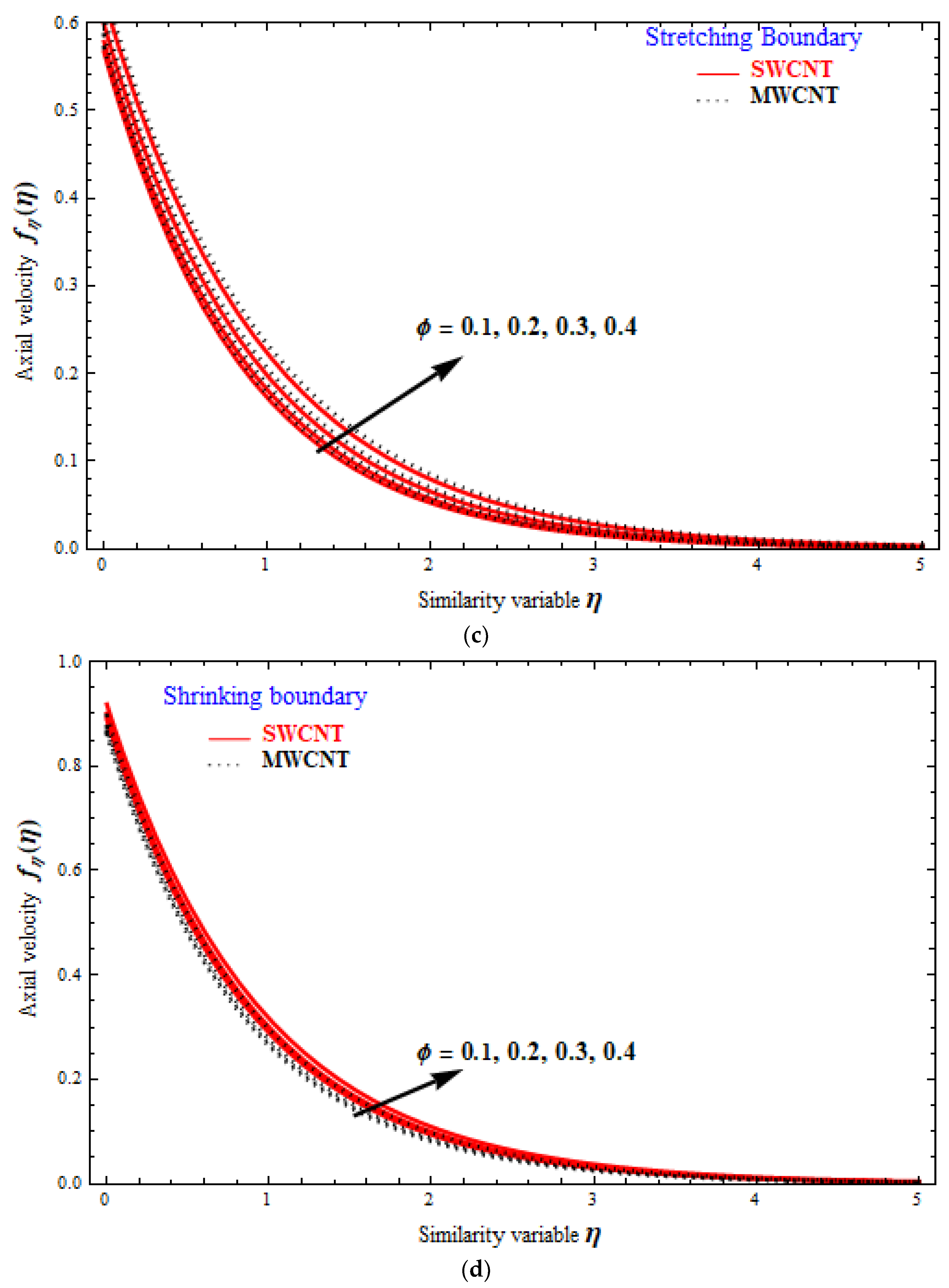

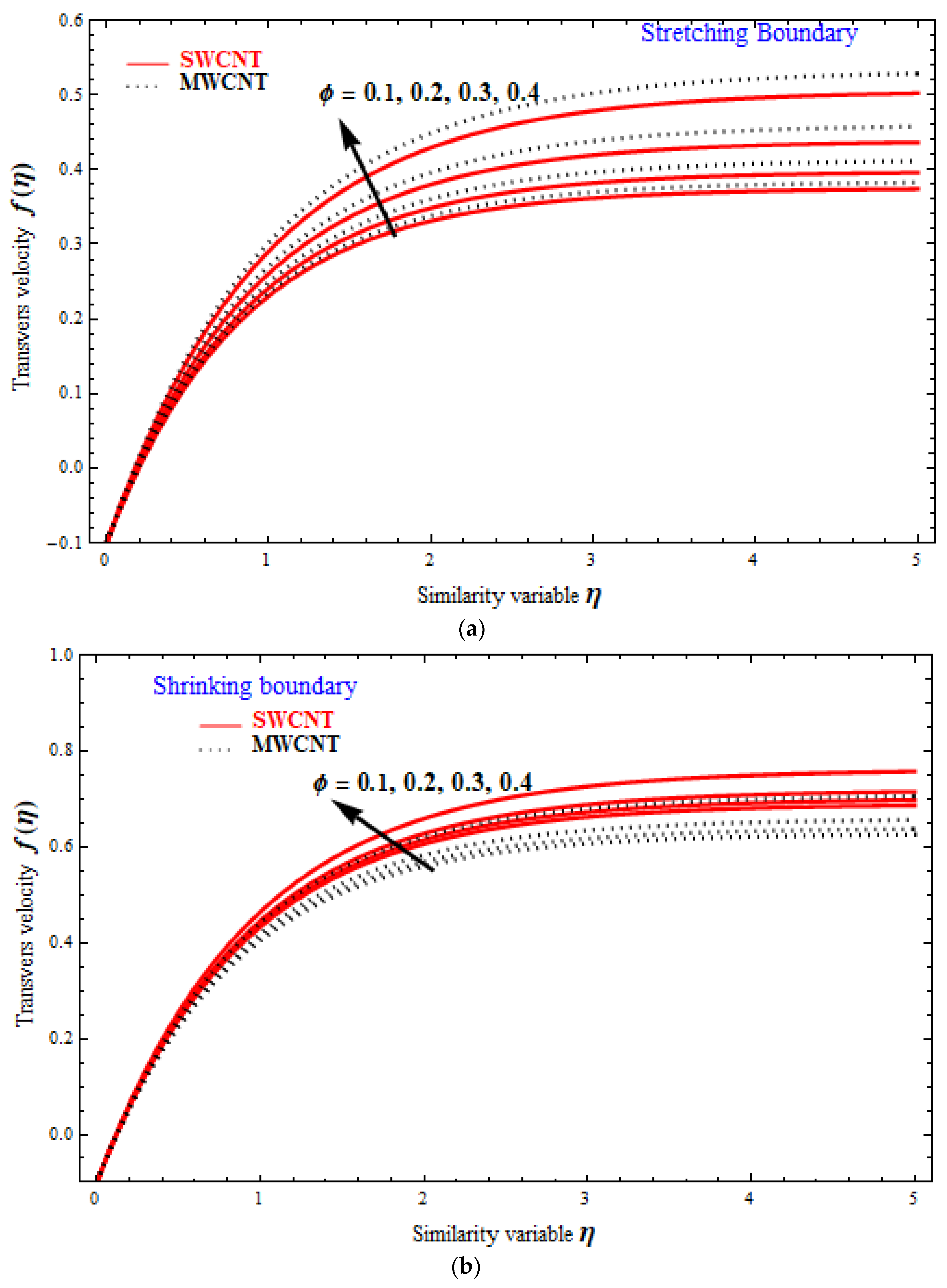

**Figure 9.**Plot of $f\left(\eta \right)$ and ${f}_{\eta}\left(\eta \right)$ with similarity variable $\eta $ with effect of $\varphi $. (

**a**,

**b**) Stretching case, (

**c**,

**d**) shrinking case.

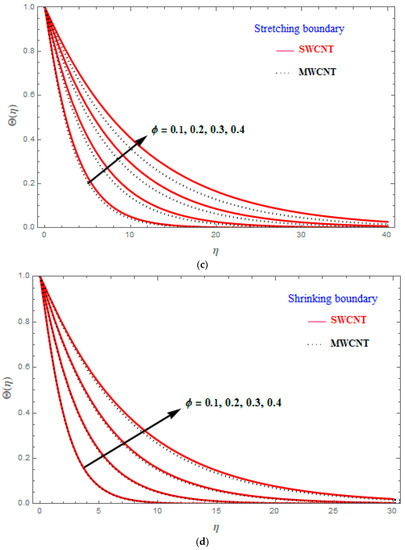

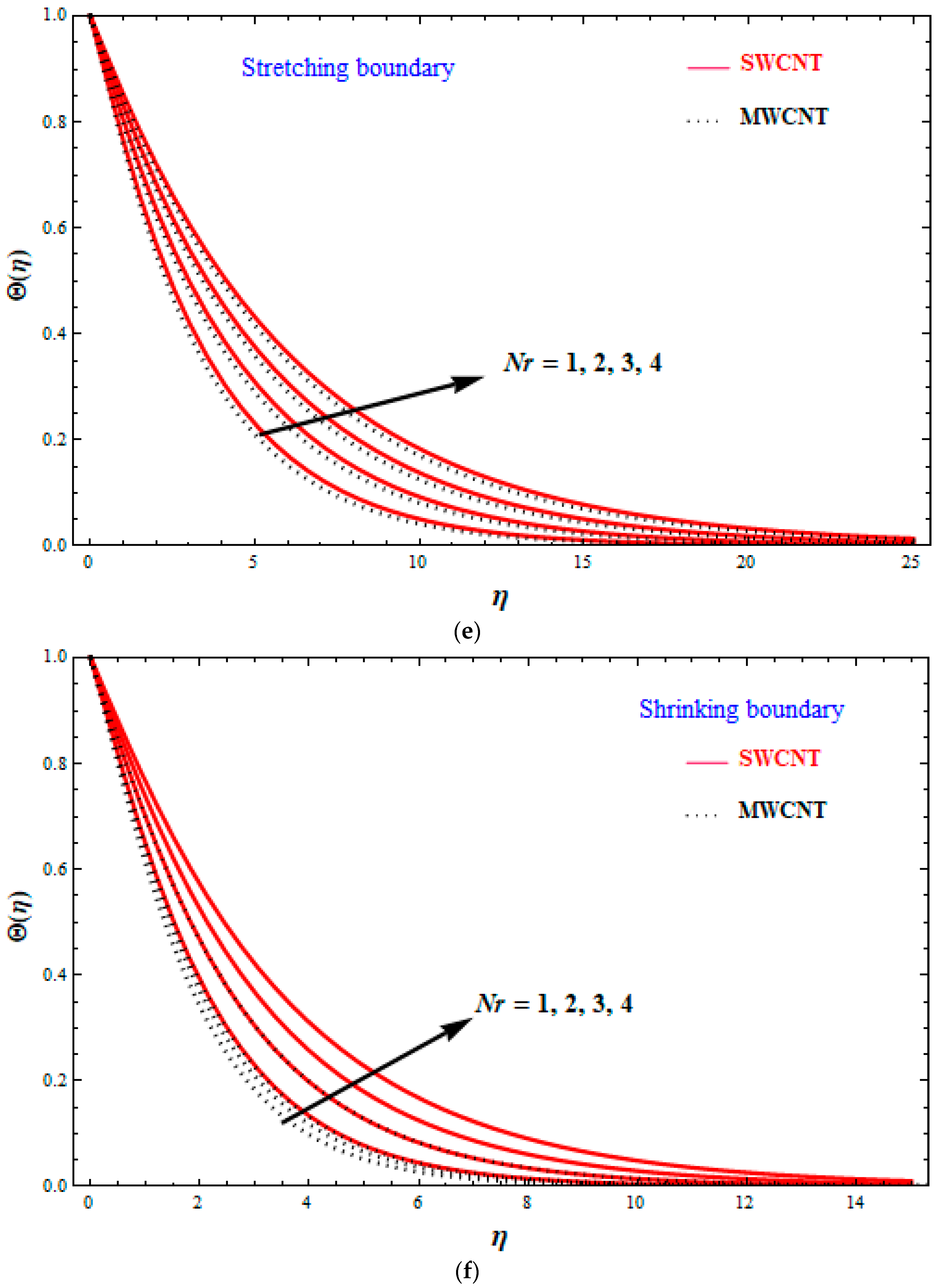

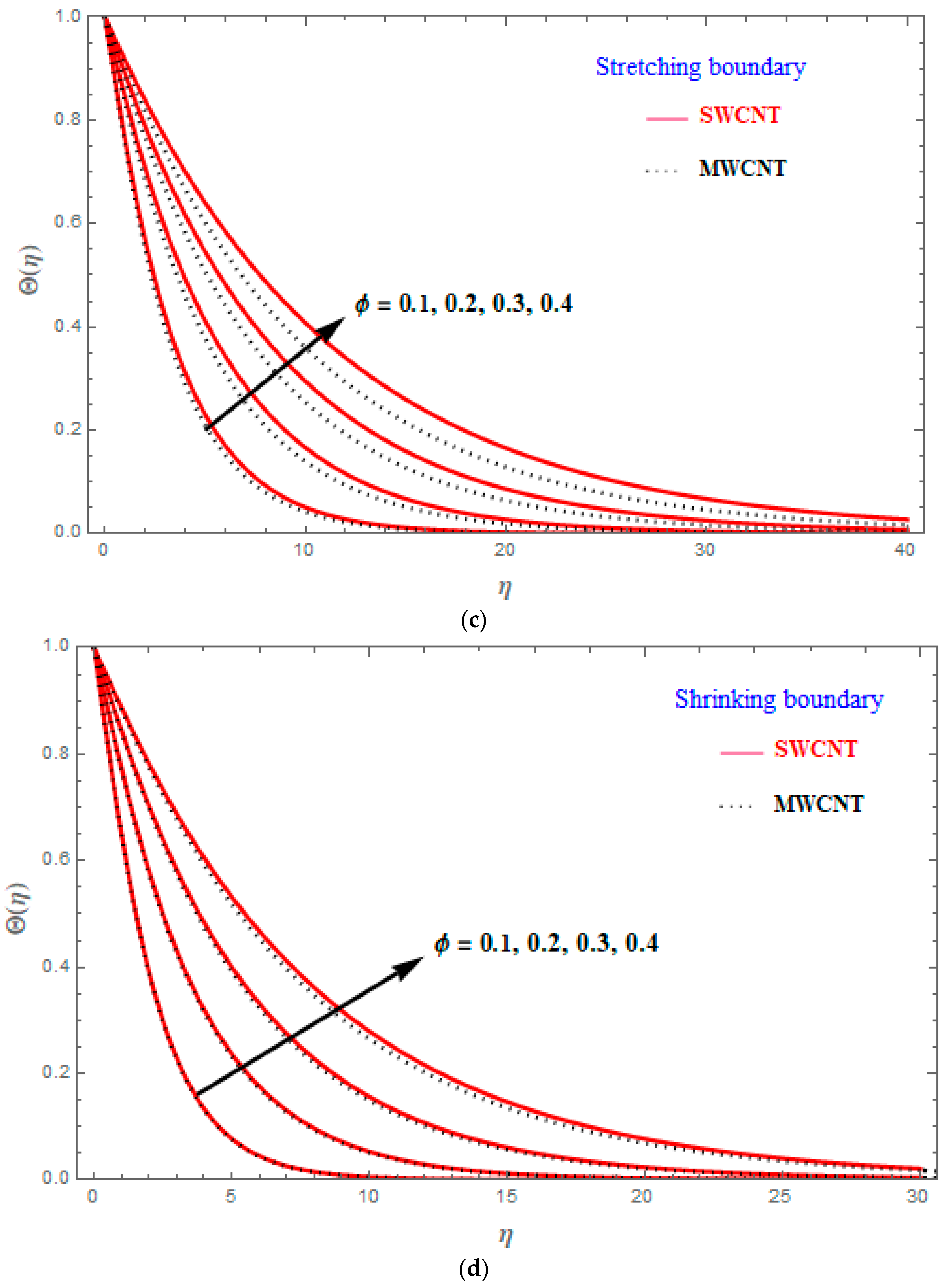

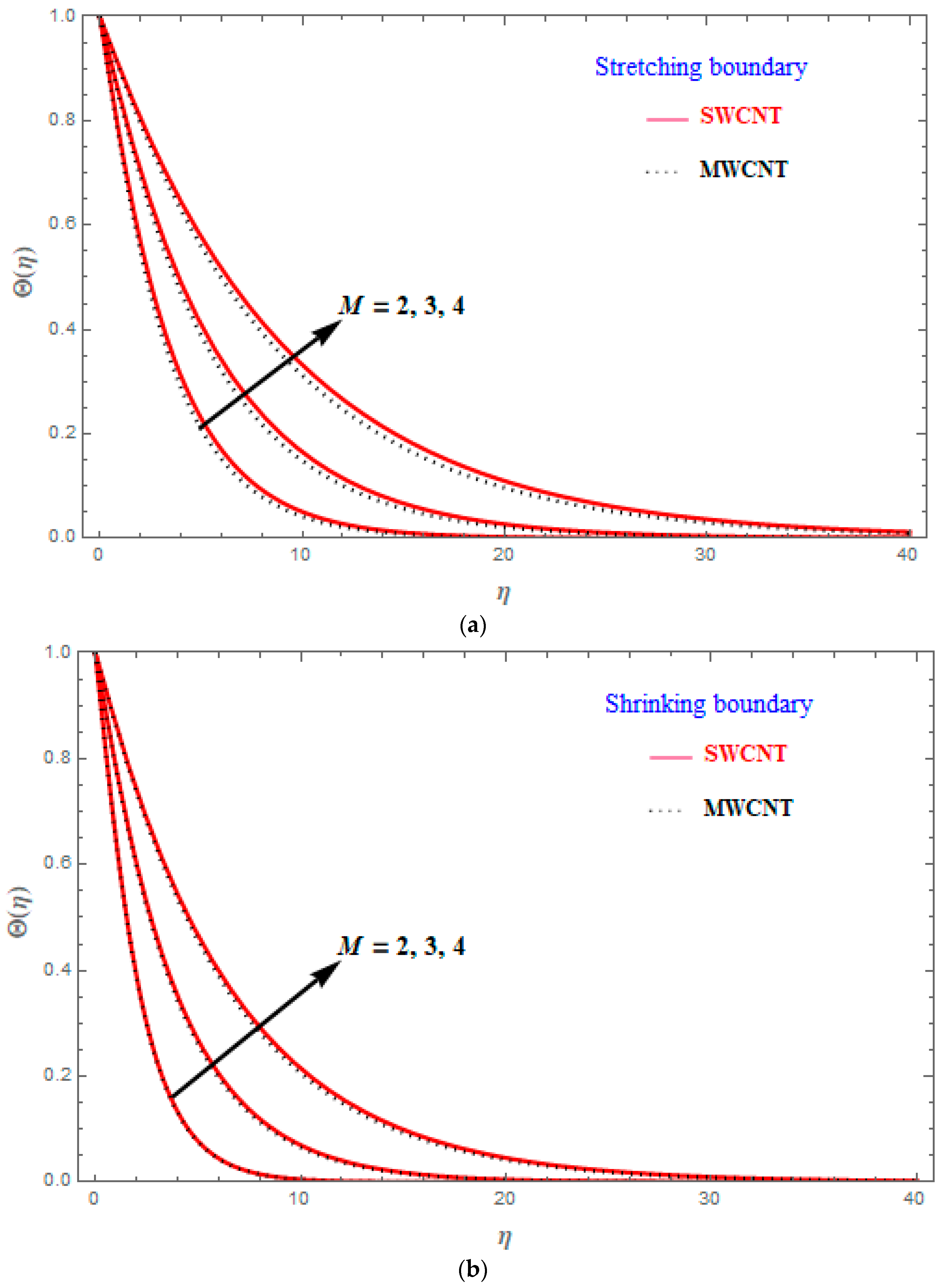

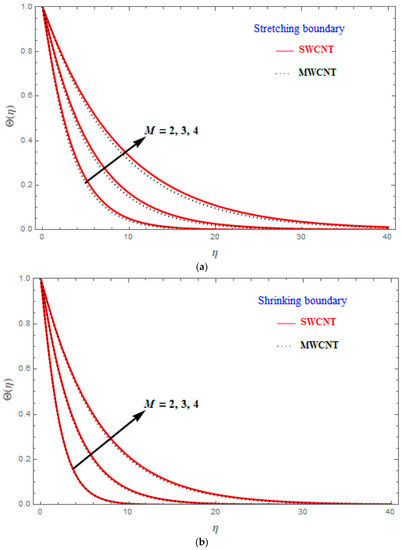

**Figure 10.**(

**a**–

**f**) plot of $\Theta \left(\eta \right)$ with similarity variable $\eta $ with effect (

**a**) $M$ on stretching case, (

**b**) $M$ on shrinking case, (

**c**) $\varphi $ on stretching case, (

**d**) $\varphi $ on shrinking case, (

**e**) $Nr$ on stretching case, (

**f**) $Nr$ on shrinking case.

Physical Properties | Fluid Phase (Water) | SWCNT | MWCNT |
---|---|---|---|

${C}_{p}\left(\mathrm{J}/\mathrm{kgK}\right)$ | 4179 | 425 | 796 |

$\rho \left({\mathrm{Kg}/\mathrm{m}}^{3}\right)$ | 997.1 | 2600 | 1600 |

$\kappa \left(\mathrm{W}/\mathrm{mK}\right)$ | 0.613 | 6600 | 3000 |

$\sigma {\left(\mathsf{\Omega}/\mathrm{m}\right)}^{-1}$ | 0.05 | 48,000,000 | 38,000,000 |

SWCNT | $\mathit{\varphi}$ | ${\mathit{\mu}}_{\mathit{n}\mathit{f}}$ | ${\mathit{\rho}}_{\mathit{n}\mathit{f}}$ | ${\left(\mathit{\rho}\mathit{C}\mathit{p}\right)}_{\mathit{n}\mathit{f}}$ | ${\mathit{\kappa}}_{\mathit{n}\mathit{f}}$ | ${\mathit{\sigma}}_{\mathit{n}\mathsf{f}}$ |
---|---|---|---|---|---|---|

0.1 | 1.30135 | 1.16076 | 0.926519 | 2.90881 | 1.33333 | |

0.2 | 1.74695 | 1.32151 | 0.853037 | 5.29387 | 1.75000 | |

0.3 | 2.43924 | 1.48227 | 0.779556 | 0.35882 | 2.28571 | |

MWCNT | ||||||

0.1 | 1.30135 | 1.06047 | 0.926517 | 2.73334 | 1.33333 | |

0.2 | 1.74693 | 1.12093 | 0.853037 | 4.89830 | 1.75000 | |

0.3 | 2.43924 | 1.8114 | 0.779556 | 7.67900 | 2.28571 |

Authors | Fluids | The Governing Equation |
---|---|---|

Wu [23] | Newtonian | $u\frac{\partial u}{\partial x}+v\frac{\partial u}{\partial y}=-\frac{1}{\rho}\frac{\partial p}{\partial x}+{\upsilon}_{nf}\left[\frac{{\partial}^{2}u}{\partial {x}^{2}}+\frac{{\partial}^{2}u}{\partial {y}^{2}}\right],$$u\frac{\partial v}{\partial x}+v\frac{\partial v}{\partial y}=-\frac{1}{\rho}\frac{\partial p}{\partial x}+{\upsilon}_{nf}\left[\frac{{\partial}^{2}v}{\partial {x}^{2}}+\frac{{\partial}^{2}v}{\partial {y}^{2}}\right],$ |

Wu [24] | Newtonian | $u\frac{\partial T}{\partial x}+v\frac{\partial T}{\partial y}={\alpha}_{nf}\frac{{\partial}^{2}T}{\partial {y}^{2}},$ |

Present work | Newtonian | $u\frac{\partial u}{\partial x}+v\frac{\partial u}{\partial y}=-\frac{1}{\rho}\frac{\partial p}{\partial x}+{\upsilon}_{nf}\left[\frac{{\partial}^{2}u}{\partial {x}^{2}}+\frac{{\partial}^{2}u}{\partial {y}^{2}}\right]-\frac{{\sigma}_{nf}{B}_{0}{}^{2}}{{\rho}_{nf}}{\mathrm{sin}}^{2}\left(\tau \right)u,$$u\frac{\partial v}{\partial x}+v\frac{\partial v}{\partial y}=-\frac{1}{\rho}\frac{\partial p}{\partial x}+{\upsilon}_{nf}\left[\frac{{\partial}^{2}v}{\partial {x}^{2}}+\frac{{\partial}^{2}v}{\partial {y}^{2}}\right]-\frac{{\sigma}_{nf}{B}_{0}{}^{2}}{{\rho}_{nf}}{\mathrm{sin}}^{2}\left(\tau \right)v,$$u\frac{\partial T}{\partial x}+v\frac{\partial T}{\partial y}={\alpha}_{nf}\frac{{\partial}^{2}T}{\partial {y}^{2}}-\frac{1}{{\left(\rho Cp\right)}_{nf}}\frac{\partial {q}_{r}}{\partial y}.$ |
