Environmentally Friendly Diesel Fuel Obtained from Vegetable Raw Materials and Hydrocarbon Crude

by
Anzhelika M. Eremeeva
1,*,
Natalia K. Kondrasheva
2,
Artyom F. Khasanov
3 and
Ivan L. Oleynik
4
1
Geoecology Department, Saint Petersburg Mining University, 199106 Saint Petersburg, Russia
2
Saint Petersburg Mining University, 199106 Saint Petersburg, Russia
3
Chemical Technologies and Energy Processing Department, Saint Petersburg Mining University, 199106 Saint Petersburg, Russia
4
Department for Publication Activities, Saint Petersburg Mining University, 199106 Saint Petersburg, Russia
*
Author to whom correspondence should be addressed.
Energies 2023, 16(5), 2121; https://doi.org/10.3390/en16052121
Submission received: 9 February 2023 / Revised: 17 February 2023 / Accepted: 21 February 2023 / Published: 22 February 2023
(This article belongs to the Section I1: Fuel)
Browse Figures
Versions Notes

Abstract

:
Currently, the global issue for countries is the search for raw materials and the production of bioenergy within their country; bioenergy also includes biodiesel fuels. One of the most promising biodiesel fuels is the green diesel fuel produced by the hydrogenation of vegetable oils. Three methods have been proposed to obtain high-quality biodiesel and environmentally friendly diesel fuel: compounding green diesel with hydro-treated diesel fuel, compositions of the improved fuel «green diesel» with bio-additives, and two-component mixtures of environmentally friendly diesel fuel with bio-additives. Using these methods, it is possible to produce fuel for diesel engines with improved lubricating properties, the wear scar diameter is reduced to 232 microns, according to EN 590: 2009, this value standard is up to 460 microns. The optimal quantitative composition of three-component environmentally friendly diesel fuel with improved lubricity was established. The dependence of the change in the lubricating properties of environmentally friendly diesel fuel on the quantitative and qualitative composition are established. A mathematical equation describing the dependence of the change in the corrected wear spot on the amount of anti-wear additive in the green diesel fuel is derived. Three-component compositions of environmentally friendly diesel fuel make it possible to obtain fuel that meets the requirements of the EN 590: 2009 standard and to expand the resources for obtaining fuel, as well as to improve the environmental and operational characteristics of the fuel.

1. Introduction

All over the world, one of the most urgent issues is air pollution and the reduction in the concentration of harmful emissions in the atmosphere to the minimum values. Carbon monoxide, nitrogen oxides, and hydrocarbon vapors, as part of exhaust gases, have the greatest impact on human health and nature [1,2,3]. Carbon monoxide enters the human body and builds up in the bloodstream, where gas molecules bind with hemoglobin molecules. This bond is stronger than the bond of oxygen molecules with hemoglobin molecules, therefore, the more carbon monoxide that is in the air of the working area, the less oxygen that can be retained in the blood of a person, as a result of which, oxygen deficiency can occur [4]. Nitrogen oxides are poisonous, irritate mucous membranes, and can cause pulmonary edema [5].
Not forgetting about the issue of greenhouse gases, programs are being developed around the world to decarbonize and reduce CO2 gases to a minimum [6,7].
Another popular issue for many countries is the lack of oil resources for fuel production. Due to the lack of oil reserves and the low level of its processing (85%), European countries [8,9] need to create technologies for the production of alternative fuels [10,11,12]. Since most of the transport in these countries is equipped with diesel engines, the type of biofuel that can be used in them is the most in demand [13]. Biodiesel does not affect plants and animals when it contacts water. In addition, it undergoes almost complete biodegradation: in soil or in water, it allows microorganisms to process 99% of biodiesel in 28 days [14,15,16], which means the mitigation of the pollution of water-ways [17]. This fuel is 75% cleaner than petroleum diesel fuel [18,19].
The amount of biodiesel has been on the rise in recent years. Over the past decade, biodiesel production has increased approximately two times (Figure 1) [20].
Recently, diesel vehicles gained popularity in Russia and Europe [21] due to the obvious advantages of renewable biodiesel, such as improved environmental properties (reduced emission of particulate matter and volatile organic compounds during combustion) [22,23], improved lubricity, and high cetane number.

2. The Overview of the Research Subject

In November 2022, the United Nations announced that the world’s population had crossed the threshold of 8 billion people [24]. Constantly growing market needs are forcing manufacturers to increase production volumes, which leads to an increase in cargo transportations and, consequentially, to a higher level of consumption of petroleum products [25]. However, the reserves of easily recoverable oil are almost exhausted. The extraction of hard-to-recover oil (paraffin-based oil) is complicated both technologically and economically [26,27]. That is the reason why the search for alternative fuels has been a significant point of interest for a long time. For example, in [28,29], the authors considered the general principles for obtaining biodiesel from rapeseed raw materials. In [30], the authors analyzed the synthetic fuel market for the period 2020–2023 inclusive. The book [31] analyzes the technological process of obtaining biodiesel fuels. Their comparative characteristics and assessments of prospects are given. It is important to note that the technological process of obtaining biodiesel fuel is technologically very complicated. For example, the rapeseed drying must take place in a very limited temperature range, since over-drying or transportation errors can lead to a decrease in the percentage of oil in the grains, which can lead to a significant deterioration in the volume of fuel received. For such an adjustment, as a rule, numerical methods of distributed control systems [32,33] or analytical methods [34,35] are used. Using the methods above [36], it is possible to implement a complete technological chain for the production of biodiesel fuels [37,38]. A fairly small number of works are devoted to improving the quality of biodiesel fuels. A great number of publications are aimed at the one component of improving the fuel. However, they do not see the full picture. Many scientists [39,40] tend to believe that this has an economic basis: the unprofitability of fuel on the market is the main reason for the lack of the necessary improvement. Others [41,42] tend to consider the low level of the chemical industry in developing countries as the main problem for the lack of demand. The countries leading in the production of biodiesel fuels are shown in Figure 2 [14,17,20].
The lubricity of biodiesel fuels is discussed in [43,44,45]. It is important to note that lubricity cannot be obtained analytically. It can only be obtained experimentally. Therefore, to obtain it, numerous experiments are carried out in these works. However, neither these or other analyzed works provide a search for patterns of lubricity. Within the framework of this study, the task of assessing biodiesels lubricity and finding patterns has been considered.

3. Materials and Methods

There are several methods for obtaining environmentally friendly diesel fuel components, such as deep hydrotreating of the straight-run diesel fraction, transesterification of vegetable oils with alcohols, esterification of fatty acids with alcohols, hydrotreating of vegetable oils over a catalyst, catalytic cracking of vegetable oils, and applying of vegetable oils in pure form. It is most rational to use only a few of them to obtain high-quality products, specifically transesterification of vegetable oils with alcohols, and hydrotreating of vegetable oils over a catalyst. In the first case, a mixture of carboxylic acid esters is obtained, the advantages of which are an increased cetane number, an increased flash point in a closed crucible, and improved lubricity. The serious disadvantages of this type of fuel include increased oxidative stability of the fuel due to the fact that the composition contains oxygen-containing compounds. In the second case, a mixture of paraffins of normal and iso-structure is obtained. The advantage of this composition is the high cetane number and similitude in physico-chemical properties to diesel fuel, however, the process itself is expensive, and the low-temperature and lubricating properties do not meet the requirements of standards and require improvements. On the economic side, it is most profitable to use vegetable oil in its pure form, there is no need to attract additional capital and manufacturing investments for raw materials, equipment, etc., but due to high viscosity and the formation of a large amount of soot and solid particles, incomplete combustion of oils occurs, which quickly clogs and disables the engine.
Thus, in the later part of the study, biodiesel fuel obtained by hydrotreating and also transesterification of vegetable oil was investigated.

Experimental Section

Green diesel was obtained using the process of hydro-processing vegetable oils [46,47]. The formation of a mixture of C15–C18 liquid hydrocarbons boiling off within the diesel fractions is realized due to the occurrence of decarboxylation, hydrodecarbonylation, and “reduction” reactions, and is accompanied by the release of carbon oxides (CO2, CO) and water [48,49]. Under hydrocracking conditions, other light alkanes (methane, ethane, butanes) are formed as a result of the breaking of C–C bonds along with propane. In this case, liquid hydrocarbon products are enriched with C5+ alkanes with boiling points within the boiling range of gasoline and jet fuels.
Using a gas chromatography–mass spectrometer GCMS-QP2010 SE Shimadzu [50], a quantitative and qualitative composition of biofuels was obtained. The green diesel sample contains only 88 compounds.
Biofuel consists mainly of n-alkanes and iso-alkanes (Figure 3). This composition explains the higher pour point of the fuel compared to HTDF. The difference in pour points is explained by the fact that the solidification temperature of diesel fuel depends on the content of paraffin hydrocarbons, which are mainly contained in green diesel fuel and have a high melting point. The HTDF contains a mixture of various hydrocarbons and the proportion of paraffin is significantly less than that of green diesel fuel. Also, this composition has poor lubricity, as there are no heteroatomic compounds in the composition that can reduce friction in engine parts [51]. However, this composition causes a high cetane number of fuel and environmental safety—the minimum amount of harmful emissions from fuel combustion in engines. The cetane number is one of the most important operational characteristics of diesel fuel, which is determined primarily by the composition and shows the time interval from fuel injection into the cylinder to the combustion initiation. The higher the cetane number, the lower the delay and the more calmly and smoothly the fuel mixture burns, while a higher cetane number also ensures complete combustion of the fuel mixture, rapid ignition, and the formation of a small amount of soot. The largest cetane number is possessed by paraffin hydrocarbons, which are contained in large quantities in green diesel fuel.
The basic physicochemical and operational properties of biodiesel were also identified, as presented in Table 1.
Based on the physicochemical characteristics of the green diesel fuel (Table 2), it can be concluded that in order to use this type of fuel in a diesel engine, it is necessary to improve, primarily, the lubricating properties of the fuel.
One of the main tasks of the research was to improve the lubricating properties of the green diesel fuel. There are several ways to improve the lubricity of diesel fuels [52], the main of which are:
  • − Compounding with components with better lubricity;
  • − The use of bio-additives with improved lubricating properties [53,54].
A second way to improve the lubricating properties of the fuel is the introduction of anti-wear bio-additives in the fuel.
As the main components designed to improve the lubricity of the fuel, carboxylic acids and their derivatives (esters and amides) are most often used. The composition depends on the nature of the processed raw materials. Fatty acids are a mixture of normal saturated and predominantly unsaturated acids with the C16–C24 carbon chain (oleic, linolenic, linoleic, etc.).
To improve the lubricating properties, a bio-additive based on sunflower oil and dihydric alcohol was developed [55,56]. In the process of obtaining additives, various vegetable oils (both edible and non-edible) can be used as raw materials, because triglycerides mainly contain linoleic, linolenic, and oleic acids in various proportional ratios. The choice of the authors was due to the availability of raw materials and low cost. As the alcohol, monohydric alcohols, dihydric alcohols, and trihydric alcohols can also be used. Our final choice was due to the maximum degree of conversion of raw materials, as well as economic feasibility.
In the world, the main types of anti-wear additives are Kerokorr LA 99C and Dodilube 4940 [57,58,59]. As can be seen, the main components of these additives are tall oils, which significantly reduces the cost of technology and the cost of the finished product and glycerol esters [21,60,61,62,63,64]. However, acids, even in small amounts, adversely affect the oxidizing ability of the fuel [65,66,67] (Table 2).
The main components of the additive we obtained are fatty acid esters contained in vegetable oil. Using a chromatography-mass spectrometer Agilent 5973 in a non-polar DB-Petro column with a length of 100 m, a quantitative and qualitative composition of the synthesized compounds was obtained (Table 3). The number of esters amounts to 77.78% of the mass.
According to Table 3, it is seen that the main acids that enter into the esterification reaction are oleic (or its isomer) and linoleic.

4. Results and Discussion

To create compositions of environmentally friendly diesel fuel with improved lubricating properties, green diesel fuel was compounded with other components.

4.1. Compounding Green Diesel with Hydrotreated Diesel Fuel

As mentioned earlier, one of the ways to reduce the diameter of a fuel wear spot is to compound a green diesel fuel with hydrotreated diesel fuel (HTDF) [55], which has better lubricating properties (595 microns versus 443 microns, respectively). The characteristics of the hydrotreated diesel fuel used are presented in Table 1.
The following compositions of blended environmentally friendly diesel fuel were compiled and their adjusted diameter of the wear spot was determined (Table 4).
Based on the results obtained (Table 2), we can conclude that not a single mixture of HTDF with the green diesel sample as a fuel component passes according to the requirements of EN 590: 2009 “Diesel fuel EURO. Technical conditions”, therefore, the introduction of anti-wear bio-additives is necessary for the use of this type of fuel in diesel engines. Most authors in their articles [28,38,39,40] suggest using green diesel fuel as the main fuel or component. Most often, hydrotreated diesel fuel, which is the second component in a mixture with green diesel fuel, has a lubricity index above the maximum value specified in the requirements of the standards, therefore, the use of anti-wear additives is necessary for such mixtures. In our case, the lubricity index of hydro-treated diesel fuel satisfies the requirements of the standard and is slightly below the specified maximum value, therefore, this method can be used to improve lubricity, however, as the results show, it is insufficient to achieve the desired result.
The dependence of lubricity on the quantitative content of hydro-treated diesel fuel in a mixture with green diesel fuel is described by a power function of the fifth degree, presented below (1). The value of the reliability of the result is 99.93%.
y = 1 ⋅ 10 − 6 ⋅ x 5 − 0.0003 ⋅ x 4 + 0.026 ⋅ x 3 − 0.9223 ⋅ x 2 + 13.25 ⋅ x + 526.58

4.2. Compositions of the Improved Fuel Containing «Green Diesel» and Bio-Additives

Bio-additives to the green diesel fuel were introduced in an amount of 5 to 50%, and the results were compared with the standard for diesel fuel EN 590: 2009 (Table 5).
The best results are shown in formulations containing 5 and 50% bio-additives (232 and 238 microns, respectively). Nevertheless, it is most effective to use a sample with a dietary supplement content of 5%, since the SDPI is almost at the same level, and the amount of dietary supplement in the mixture is an order of magnitude lower. In addition, for the normal operation of a diesel engine without significant changes in its design, it is recommended to use a bio-additive in fuel in a small amount not exceeding 5%. This dependence cannot be described by a power function with a sufficient degree of reliability of the results. Graphically, the dependence of the lubricity of the fuel on the amount of bio-additives in the green diesel fuel is shown in Figure 4. Most authors believe that this dependence is either hyperbolic in nature with an increase in the amount of bio-additives, the corrected diameter of the wear scar decreases [68,69,70], or an extreme nature with one minimum [71]. In most cases, it does not matter what raw materials are used to obtain bio-additives [72,73].
Thus, the graphof the dependence of the lubricating ability of environmentally friendly diesel fuel “Green diesel” on the content of bio-additives in it is extreme (Figure 4), with a minimum in the range from 5 to 50% content of bio-additives, since with increasing concentration of biofuel up to 5% in a mixture with green diesel, adsorption of heteroatoms (oxygen molecules with unpaired electrons) takes place on the metal surface of the rubbing pair of a metal ball—a plate immersed in the test fuel, and is strengthened by the intermolecular interaction at the metal–liquid phase boundary. With an increase in the biofuel concentration in the mixture over 50%, the metal–liquid phase interface is supersaturated with heteroatoms, there is a coagulation (coarsening) and desorption of larger molecules into the solution volume, and, consequently, a decrease in the intensity of intermolecular interaction of the fuel with the metal and an increase in the CWSD.

4.3. Two-Component Mixtures of Environmentally Friendly Diesel Fuel with Bio-additives

After that, to improve other fuel characteristics (pour point, kinematic viscosity, etc.) at the same time, it was decided to compile environmentally friendly diesel fuel (EFDF) mixtures consisting of two basic components (green diesel and HTDF) and synthesized bio-additives.
To present the results of experimental studies, several graphical dependences of the lubricity of various fuel compounds with bio-additives were constructed, in which the amount of one or two components remained unchanged.
Compositions of environmentally friendly diesel fuel with bio-additives were developed, containing 5% and 10% bio-additive, and the amount of green diesel sample varied from 25 to 45%, while the remaining fuel was HTDF.
As can be seen from Table 6, all the mixtures obtained satisfy the requirements of the standard EN 590: 2009 (no more than 460 microns) in terms of lubricity, but the best result for a two-component composition with bio-additive in the amount of 10% is shown by the fuel composition consisting of 30% of the green diesel and 60% HTDF, as well as clean starting components of the base fuel with 5% bio-additive and HTDF (95%)—113 microns.
Thus, with an increase in the amount of the green diesel component (that is, with a decrease in the amount of HTDF) in the composition of EFDF (with a bio-additive content of 5 wt%), there is a general tendency for the lubricity of mixed fuels (i.e., an increase in CWSD) to deteriorate with a small extremum in the concentration range of 50–70% HTDF in mixed fuel.

5. Conclusions

In a rapidly growing economy, the issue of obtaining alternative, environmentally friendly fuels is acute. This paper considers the solution of an important scientific and technical problem—improving the quality of biodiesel fuel. Lubricity was chosen as the object of a study.
From the obtained data, it can be concluded that the green diesel sample cannot be used without anti-wear bio-additives, both in pure form and as a component of environmentally friendly fuel mixed with hydrotreated diesel fuel, because the lubricity of the mixtures obtained does not meet the requirements of EN 590: 2009, since with an increase in the amount of green diesel fuel the lubricity of the fuel deteriorates, and the diameter of the fuel wear spot increases.
With introduction of anti-wear additives and an increase in their concentration in the green diesel fuel and in mixed environmentally friendly diesel fuel (hydro-treated diesel fuel with green diesel fuel), the lubricity of the samples improves (the wear spot diameter decreases from 595 to 233 microns)
The best composition of green diesel fuel and bio-additive contains 95 and 5%, respectively. The diameter of the wear spot in this case is 232 microns. The best composition of mixed environmentally friendly diesel fuel with bio-additive contains 60% HTDF, 30% green diesel fuel, and 10% bio-additive, and the diameter of the wear spot is 233 microns.
The developed technology for the production of environmentally friendly diesel fuel from vegetable and petroleum raw materials with improved lubricating properties will expand the scope of fuel resources for production of motor fuels for diesel engines, as well as give an opportunity to produce biodiesel and environmentally friendly diesel fuels that meet international standards. Production of high-quality environmentally friendly diesel fuel will reduce the dependence between countries on the level and quantity of oil production.
The article presented possible solutions to the problem of the extension of diesel engines lifetime.

Author Contributions

Conceptualization, A.M.E.; methodology, A.M.E. and I.L.O.; investigation, A.M.E.; writing—original draft preparation, review and editing, A.M.E., N.K.K. and A.F.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

All data are available in the main text.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Arteconi, A.; Mazzarini, A.; Nicola, G.D. Emissions from ethers and organic carbonate fuel additives: A review. Water Air Soil Pollut. 2011, 221, 405–423. [Google Scholar] [CrossRef]
  2. Strizhenok, A.V.; Korelskiy, D.S. Estimation and reduction of methane emissions at the scheduled and repair outages of gas-compressor units. J. Ecol. Eng. 2019, 20, 46–51. [Google Scholar] [CrossRef]
  3. Cherepovitsyn, A.; Lebedev, A. Drill Cuttings Disposal Efficiency in Offshore Oil Drilling. J. Mar. Sci. Eng. 2023, 11, 317. [Google Scholar] [CrossRef]
  4. Baj, J.; Buszewicz, G.; Przygodzka, D.; Forma, A.; Flieger, J.; Teresiński, G. Diffusion of Carbon Monoxide and Hydrogen Cyanide to Muscles and Blood—An Experimental Study. Toxics 2022, 10, 707. [Google Scholar] [CrossRef]
  5. Matijošius, J.; Orynycz, O.; Kovbasenko, S.; Simonenko, V.; Shuba, Y.; Moroz, V.; Gutarevych, S.; Wasiak, A.; Tucki, K. Testing the Indicators of Diesel Vehicles Operating on Diesel Oil and Diesel Biofuel. Energies 2022, 15, 9263. [Google Scholar] [CrossRef]
  6. Dzhevaga, N.V.; Borisova, D.D. Analysis of Air Monitoring System in Megacity on the Example of St. Petersburg. J. Ecol. Eng. 2021, 22, 175–185. [Google Scholar] [CrossRef]
  7. Kazamia, E.; Smith, A.G. Assessing the environmental sustainability of biofuels. Trends Plant Sci. 2014, 19, 615–618. [Google Scholar] [CrossRef] [Green Version]
  8. Litvinenko, V. The Role of Hydrocarbons in the Global Energy Agenda: The Focus on Liquefied Natural Gas. Resources 2020, 9, 59. [Google Scholar] [CrossRef]
  9. Dvoynikov, M.V.; Leusheva, E.L. Modern trends in hydrocarbon resources development. J. Min. Inst. 2022, 258, 879–880. [Google Scholar]
  10. Bezergianni, S.; Dimitriadis, A. Comparison between different types of renewable diesel. Renew. Sustain. Energy Rev. 2013, 21, 110–116. [Google Scholar] [CrossRef]
  11. Belyaev, A.I.; Semenyutina, A.V.; Khuzhakhmetova, A.S.; Semenyutina, V.A. Analysis of Bioresource Collections on Climatic Rhythms and Phenological Processes. Ecol. Eng. Environ. Technol. 2022, 23, 87–94. [Google Scholar] [CrossRef]
  12. Al-Ezzi, A.; Chaichan, M.; Majdi, H.; Al-Waeli, A.; Kazem, H.A.; Sopian, K.; Fayad, M.; Dhahad, H.; Yusaf, T. Nano-Iron Oxide-Ethylene Glycol-Water Nanofluid Based Photovoltaic Thermal (PV/T) System with Spiral Flow Absorber: An Energy and Exergy Analysis. Energies 2022, 15, 3870. [Google Scholar] [CrossRef]
  13. Aghbashlo, M.; Tabatabaei, M.; Khalife, E.; Shojaei, T.R.; Dadak, A. Exergoeconomic analysis of a DI diesel engine fueled with diesel/biodiesel (B5) emulsions containing aqueous nano cerium oxide. Energy 2018, 149, 967–978. [Google Scholar] [CrossRef]
  14. Brady, S.; Tam, K.; Leung, G.; Salam, C. Zero waste biodiesel: Using glycerin and biomass to create renewable energy. UCR Undergrad. Res. J. 2008, 2, 5–11. [Google Scholar]
  15. Halim, R.; Danquah, M.K.; Webley, P.A. Extraction of oil from microalgae for biodiesel production: A review. Biotechnol. Adv. 2012, 30, 709–732. [Google Scholar] [CrossRef]
  16. Petrova, T.A.; Rudzisha, E.; Alekseenko, A.V.; Bech, J.; Pashkevich, M.A. Rehabilitation of Disturbed Lands with Industrial Wastewater Sludge. Minerals 2022, 12, 376. [Google Scholar] [CrossRef]
  17. Hajjari, M.; Tabatabaei, M.; Aghbashlo, M.; Ghanavati, H.J.R. A review on the prospects of sustainable biodiesel production: A global scenario with an emphasis on waste-oil biodiesel utilization. Renew. Sustain. Energy Rev. 2017, 72, 445–464. [Google Scholar] [CrossRef]
  18. Eremeeva, A.M.; Ilyashenko, I.S.; Korshunov, G.I. The possibility of application of bioadditives to diesel fuel at mining enterprises. MIAB 2022, 10, 39–49. [Google Scholar] [CrossRef]
  19. Kobylkin, S.S.; Kharisov, A.R. Design features of coal mines ventilation using a room-and-pillar development system. J. Min. Inst. 2020, 245, 531–538. [Google Scholar] [CrossRef]
  20. Mirniy, M. Motor fuel in Russia and the world was discussed at an industry conference in Moscow. Summing up 2017, Mplast. Available online: https://mplast.by/novosti/analitika/2017-04-25-motornoe-toplivo-v-rossii-i-mire-obsudili-na-otraslevoy-konferentsii-v-moskve-podvodim-itogi/ (accessed on 7 February 2023).
  21. Caliskan, H.; Yildiz, I.; Mori, K. Production and Assessment of New Biofuels from Waste Cooking Oils as Sustainable Bioenergy Sources. Energies 2023, 16, 463. [Google Scholar] [CrossRef]
  22. Fakas, S.; Papanikolaou, S.; Galiotou-Panayotou, M.; Komaitis, M.; Aggelis, G. Biochemistry and biotechnology of single cell oil. In New Horizons in Biotechnology; Asiatech Publishers: New Delhi, India, 2009; pp. 38–60. [Google Scholar]
  23. Mattson, J.; Burnete, N.V.; Depcik, C.; Moldovanu, D.; Burnete, N. Second law analysis of waste cooking oil biodiesel versus ULSD during operation of a CI engine. Fuel 2019, 255, 115753. [Google Scholar] [CrossRef]
  24. World Population to Reach 8 Billion on 15 November 2022. Available online: https://www.un.org/en/desa/world-population-reach-8-billion-15-november-2022 (accessed on 7 February 2023).
  25. Oil Consumption by Country 2023. Available online: https://worldpopulationreview.com/country-rankings/oil-consumption-by-country (accessed on 7 February 2023).
  26. Litvinenko, V.; Bowbrick, I.; Naumov, I.; Zaitseva, Z. Global guidelines and requirements for professional competencies of natural resource extraction engineers: Implications for ESG principles and sustainable development goals. J. Clean. Prod. 2022, 338, 130530. [Google Scholar] [CrossRef]
  27. Litvinenko, V.S.; Dvoynikov, M.V.; Trushko, V.L. Elaboration of a conceptual solution for the development of the Arctic shelf from seasonally flooded coastal areas. Int. J. Min. Sci. Technol. 2022, 32, 113–119. [Google Scholar] [CrossRef]
  28. Tirumareddy, P.; Esmi, F.; Masoumi, S.; Borugadda, V.B.; Dalai, A.K. Introduction to Green Diesel. In Green Diesel: An Alternative to Biodiesel and Petrodiesel; Aslam, M., Shivaji Maktedar, S., Sarma, A.K., Eds.; Advances in Sustainability Science and Technology; Springer: Singapore, 2022. [Google Scholar] [CrossRef]
  29. Esmi, F.; Masoumi, S.; Dalai, A.K. Comparative Catalytic Performance Study of 12-Tungstophosphoric Heteropoly Acid Supported on Mesoporous Supports for Biodiesel Production from Unrefined Green Seed Canola Oil. Catalysts 2022, 12, 658. [Google Scholar] [CrossRef]
  30. Tuli, D.; Kasture, S. Chapter 5—Biodiesel and green diesel. In Advanced Biofuel Technologies; Tuli, D., Kasture, S., Kuila, A., Eds.; Elsevier: Amsterdam, The Netherlands, 2022; pp. 119–133. [Google Scholar] [CrossRef]
  31. Kumar, H.; Aslam, M.; Sarma, A.; Kushwaha, P. Current status of the green diesel industry. In Green Diesel: An Alternative to Biodiesel and Petrodiesel; Springer: Cham, Switzerland, 2022. [Google Scholar] [CrossRef]
  32. Ilyushin, Y.V.; Afanasieva, O.V. Synthesis of a distributed control system. Int. J. Control Theory Appl. 2016, 9, 41–60. [Google Scholar]
  33. Ilyushin, Y.; Mokeev, A. Technical realization of the task of controlling the temperature field of a tunnel furnace of a conveyor type. Int. J. Appl. Eng. Res. 2017, 12, 1500–1510. [Google Scholar]
  34. Kukharova, T.V.; Pershin, I.M. Conditions of Application of Distributed Systems Synthesis Methods to Multidimensional Object. In Proceedings of the International Multi-Conference on Industrial Engineering and Modern Technologies (FarEastCon), Vladivostok, Russia, 3–4 October 2018; p. 8602749. [Google Scholar] [CrossRef]
  35. Martirosyan, K.V.; Chernyshev, A.B.; Martirosyan, A.V.; Tatyana, K.V. Formation of the Anterior Heating Function under the Action of Uniformly Distributed Sources. In Proceedings of the IEEE Conference of Russian Young Researchers in Electrical and Electronic Engineering (EIConRus), Saint Petersburg/Moscow, Russia, 27–30 January 2020; pp. 755–760. [Google Scholar] [CrossRef]
  36. Yenumala, S.R.; Sarkhel, B.; Maity, S.K. Technological advancements in the production of green diesel from biomass BT. In Green Diesel: An Alternative to Biodiesel and Petrodiesel; Aslam, M., Shivaji Maktedar, S., Sarma, A.K., Eds.; Springer Nature: Singapore, 2022; pp. 219–248. [Google Scholar] [CrossRef]
  37. Cavalcanti, J.; Ravagnani, M.; Stragevitch, L.; Carvalho, F.; Pimentel, M. Simulation of the soybean oil hydrotreating process for green diesel production. Clean. Chem. Eng. 2022, 1, 100004. [Google Scholar] [CrossRef]
  38. Shamsuddin, M.R.; Khalit, W.N.A.W.; Mahmud, S.; Safa-Gamal, M.; Ujai, T.I.A.; Lahuri, A.H.; Marliza, T.S. Biodiesel, green diesel and petrodiesel: A comparison BT. In Green Diesel: An Alternative to Biodiesel and Petrodiesel; Aslam, M., Shivaji Maktedar, S., Sarma, A.K., Eds.; Springer Nature: Singapore, 2022; pp. 285–307. [Google Scholar] [CrossRef]
  39. Ansari, K.B.; Hassan, S.Z.; Farooqui, S.A.; Hasib, R.; Khan, P.; Rahman, A.R.S.; Khan, M.S.; Trinh, Q.T. Policies, techno-economic analysis and future perspective of green diesel BT. In Green Diesel: An Alternative to Biodiesel and Petrodiesel; Aslam, M., Shivaji Maktedar, S., Sarma, A.K., Eds.; Springer Nature: Singapore, 2022; pp. 351–375. [Google Scholar] [CrossRef]
  40. Mansyur, Y.; Aprianingsih, A. Proposed Development Strategy for Green Diesel Product in Industrial Fuel Market. Eur. J. Bus. Manag. Res. 2022, 7, 148–153. [Google Scholar] [CrossRef]
  41. Upadhyay, P.R.; Das, P. Catalytic materials for green diesel production BT. In Green Diesel: An Alternative to Biodiesel and Petrodiesel; Aslam, M., Shivaji Maktedar, S., Sarma, A.K., Eds.; Springer Nature: Singapore, 2022; pp. 55–108. [Google Scholar] [CrossRef]
  42. Al-Dawody, M.F.; Rajak, U.; Jazie, A.; Al-Farhany, K.; Saini, G.; Verma, T.; Nashine, P. Production and performance of biodiesel from Cladophora and Fucus green diesel. Sustain. Energy Technol. Assess. 2022, 53, 102761. [Google Scholar] [CrossRef]
  43. Saxena, V.; Kumar, N.; Gautam, R. Comparative assessment of unmodified diesel engine characteristics with commercial diesels BT. In Recent Trends in Thermal and Fluid Sciences; Mishra, D.P., Dewangan, A.K., Singh, A., Eds.; Springer Nature: Singapore, 2023; pp. 209–217. [Google Scholar]
  44. Wadumesthrige, K.; Ng, S.; Salley, S. Properties of Butanol-Biodiesel-ULSD Ternary Mixtures. SAE Int. J. Fuels Lubr. 2010, 3, 660–670. [Google Scholar] [CrossRef]
  45. Araujo, M.; Pasa, V.; Corgozinho, C. Simultaneous optimization on biolubricants obtained through a quaternary mixture of vegetable oils: Application of the desirability function. J. Eng. Exact Sci. 2022, 8, 13798–01e. [Google Scholar] [CrossRef]
  46. Bartoccia, P.; Pergolarib, M.; Beatricec, C.; Frusterid, F.; Bidinia, G.; Fantozzia, F. Batch pyrolisis of pellet made of biomass and crude glycerol: Mass and energy balances. Renew. Energy 2018, 124, 172–179. [Google Scholar] [CrossRef]
  47. Raza, M.; Ali, L.; Inayat, A.; Rocha-Meneses, L.; Ahmed, S.F.; Mofijur, M.; Jamil, F.; Azimoh, C.L. Sustainability of biodiesel production using immobilized enzymes: A strategy to meet future bio-economy challenges. Int. J. Energy Res. 2022, 46, 19090–19108. [Google Scholar] [CrossRef]
  48. Mohammad, M.; Hari, T.K.; Yaakob, Z.; Sharma, Y.C.; Sopian, K. Overview on the production of paraffin based-biofuels via catalytic hydrodeoxygenation. Renew. Sustain. Energy Rev. 2013, 22, 121–132. [Google Scholar] [CrossRef]
  49. Dubovikov, O.; Beloglazov, I.; Alekseev, A. Specific features of the use of pulverized coal fuel in combined chemical processing. Obogashchenie Rud 2022, 6, 32–38. [Google Scholar] [CrossRef]
  50. Sultanbekov, R.; Schipachev, A. Manifestation of incompatibility of marine residual fuels: A method for determining compatibility, studying composition of fuels and sediment. J. Min. Inst. 2022, 257, 843–852. [Google Scholar] [CrossRef]
  51. Orjuela Abril, S.; Fonseca-Vigoya, M.D.S.; García, C.P. Study of the Cylinder Deactivation on Tribological Parameters and Emissions in an Internal Combustion Engine. Lubricants 2022, 10, 60. [Google Scholar] [CrossRef]
  52. Rathore, D.; Sevda, S.; Prasad, S.; Venkatramanan, V.; Chandel, A.K.; Kataki, R.; Bhadra, S.; Channashettar, V.; Bora, N.; Singh, A. Bioengineering to Accelerate Biodiesel Production for a Sustainable Biorefinery. Bioengineering 2022, 9, 618. [Google Scholar] [CrossRef]
  53. Kim, G.; Ha, G.; Kurade, M.B.; Saha, S.; Khan, M.A.; Park, Y.-K.; Chung, W.; Chang, S.W.; Yadav, K.K.; Jeon, B.-H. Integrating fermentation of Chlamydomonas mexicana by oleaginous Lipomyces starkeyi and switchable ionic liquid extraction for enhanced biodiesel production. Chem. Eng. J. 2022, 446, 137285. [Google Scholar] [CrossRef]
  54. Dabbagh, H.; Ghobadi, F.; Ehsani, M.; Moradmand, M. The influence of ester additives on the properties of gasoline. Fuel 2013, 104, 216–223. [Google Scholar] [CrossRef]
  55. Gómez-Cuenca, F.; Gómez-Marín, M.; Folgueras-Díaz, M.B. Effects of ethylene glycol ethers on diesel fuel properties and emissions in a diesel engine. Energy Convers. Manag. 2011, 52, 3027–3033. [Google Scholar] [CrossRef]
  56. Eremeeva, A.M.; Korshunov, G.I.; Kondrasheva, N.K. Method to reduce harmful emissions when diesel locomotives operate in coal mines. In Topical Issues of Rational Use of Natural Resources; CRC Press: Boca Raton, FL, USA, 2019; Volume 1, pp. 10–16. [Google Scholar] [CrossRef]
  57. Athar, M.; Imdad, S.; Zaidi, S.; Yusuf, M.; Kamyab, H.; Klemeš, J.; Chelliapan, S. Biodiesel production by single-step acid-catalysed transesterification of Jatropha oil under microwave heating with modelling and optimisation using response surface methodology. Fuel 2022, 322, 124205. [Google Scholar] [CrossRef]
  58. Saengarun, C.; Petsom, A.; Tungasmita, D.N. Etherification of Glycerol with Propylene or 1-Butene for Fuel Additives. Sci. World J. 2017, 2017, 4089036. [Google Scholar] [CrossRef] [Green Version]
  59. De Torres, M.; Jimenez-Oses, G.; Mayoral, J.A.; Pires, E.; Santos, M. Glycerol ketals: Synthesis and profits in biodiesel blends. Fuel 2012, 94, 614–616. [Google Scholar] [CrossRef]
  60. Ulanov, V.; Skorobogatko, O. Impact of EU carbon border adjustment mechanism on the economic efficiency of Russian oil refining. J. Min. Inst. 2022, 257, 865–876. [Google Scholar] [CrossRef]
  61. Lapuerta, M.; Rodríguez-Fernández, J.; García-Contreras, R. Effect of a glycerol-derived advanced biofuel–FAGE (fatty acid formal glycerol ester)–on the emissions of a diesel engine tested under the New European Driving Cycle. Energy 2015, 93, 568–579. [Google Scholar] [CrossRef]
  62. Fernando, S.; Adhikari, S.; Kota, K.; Bandi, R. Glycerol based automotive fuels from future biorefineries. Fuel 2007, 86, 2806–2809. [Google Scholar] [CrossRef]
  63. Quispe, C.A.; Coronado, C.J.; Carvalho, J.A. Glycerol: Production, consumption, prices, characterization and new trends in combustion. Renew. Sustain. Energy Rev. 2013, 27, 475–493. [Google Scholar] [CrossRef]
  64. Decarpigny, C.; Aljawish, A.; His, C.; Fertin, B.; Bigan, M.; Dhulster, P.; Millares, M.; Froidevaux, R. Bioprocesses for the Biodiesel Production from Waste Oils and Valorization of Glycerol. Energies 2022, 15, 3381. [Google Scholar] [CrossRef]
  65. Nibin, T.; Sathiyagnanam, A.; Sivaprakasam, S.; Saravanan, C. Investigation on emission characteristics of a diesel engine using oxygenated fuel additive. J. Inst. Eng. Part MC Mech. Eng. Div. 2005, 86, 51–54. [Google Scholar]
  66. Ben Bacha, A.; Alonazi, M.; Alharbi, M.G.; Horchani, H.; Ben Abdelmalek, I. Biodiesel Production by Single and Mixed Immobilized Lipases Using Waste Cooking Oil. Molecules 2022, 27, 8736. [Google Scholar] [CrossRef]
  67. Ronzhin, A.L.; Savel’ev, A.I. Artificial Intelligence Systems for Solving Problems of Agro-Industrial Complex Digitalization and Robotization. Agric. Mach. Technol. 2022, 16, 22–29. [Google Scholar] [CrossRef]
  68. ElAhmadi, M.Y.; Maiz, S.; Muhammad, A.K.; Abd, Z.A.; Sawalha, A.; Sleiman, A.G.; Omar, A.I.; Hassan, J.B. Effects of palm oil biodiesel on the lubricity of Cummins 4BTA diesel engine. Energies 2021, 14, 1742. [Google Scholar]
  69. Stanaite, D.I.; Vreciauskas, E. Combustion and lubrication characteristics of spark ignition diesel engine fuelled with treated waste cooking oil biodiesel and its blends with diesel. Fuel 2020, 259, 117068. [Google Scholar]
  70. Asadulagi, M.M.; Ioskov, G.V. Simulation of the control system for hydrodynamic process with random disturbances. In Topical Issues of Rational Use of Natural Resources, Proceedings of The International Forum-Contest of Young Researchers, Saint Petersburg, 18–20 April 2018; CRC Press: Boca Raton, FL, USA, 2019; pp. 399–405. [Google Scholar]
  71. Maiz, S.; ElAhmadi, M.Y.; Muhammad, A.K.; Sleiman, A.G.; Sawalha, A.; Abd, Z.A.; Omar, A.I.; Hassan, J.B. The evaluation of lubricity characteristics of vegetable biodiesel-diesel blends in a four-cylinder diesel engine. Energy Sources Part A Recovery Util. Environ. Eff. 2020, 42, 1227–1237. [Google Scholar]
  72. Kulkarni, V.N.; Saidutta, R.K.; Changappa, R.S.; Mahadik, K.G. Experimental investigations on lubricity characteristics of waste frying oil and its blends with diesel in a direct injection diesel engine. Fuel 2018, 233, 92–101. [Google Scholar]
  73. Yadav, V.; Asthana, A. Effect of engine operating conditions on lubrication-related fuel components of biodiesel-diesel blends. Fuel 2018, 216, 248–257. [Google Scholar]
Energies 16 02121 g001 550

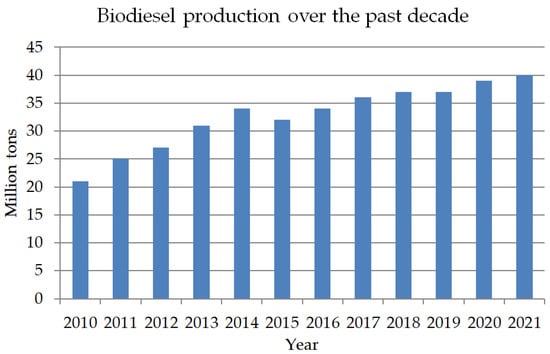

Figure 1. Biodiesel production over the past decade.
Figure 1. Biodiesel production over the past decade.
Energies 16 02121 g001
Energies 16 02121 g002 550

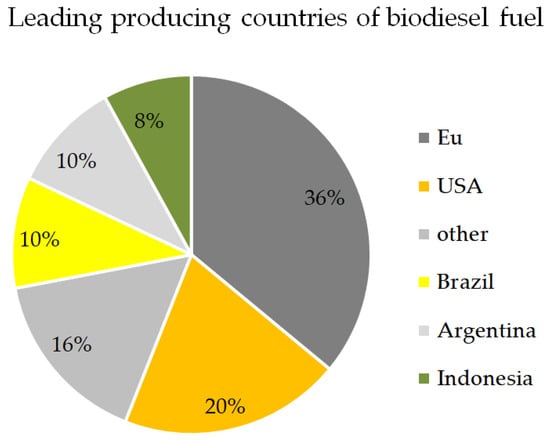

Figure 2. Leading producing countries of biodiesel fuel.
Figure 2. Leading producing countries of biodiesel fuel.
Energies 16 02121 g002
Energies 16 02121 g003 550

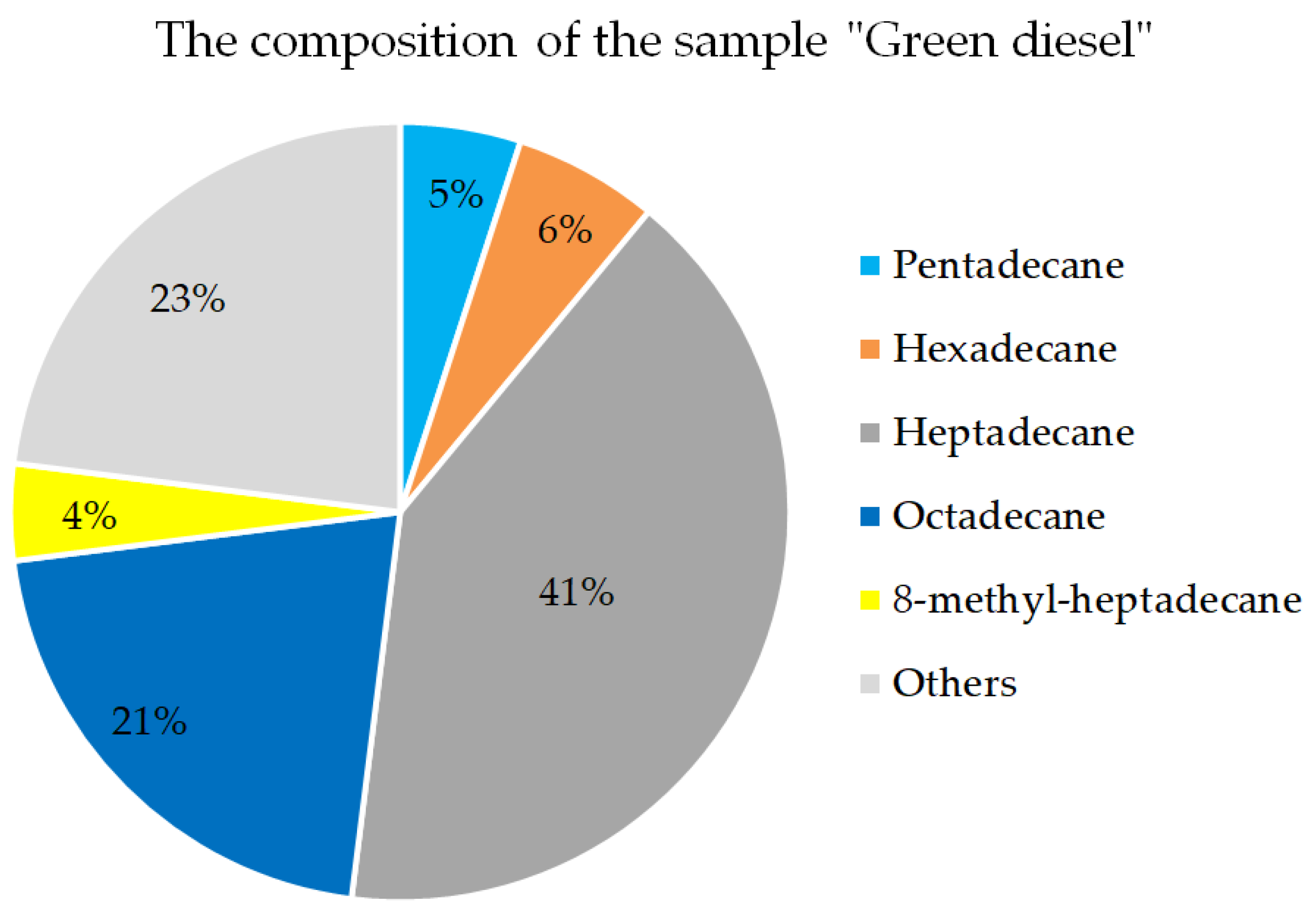

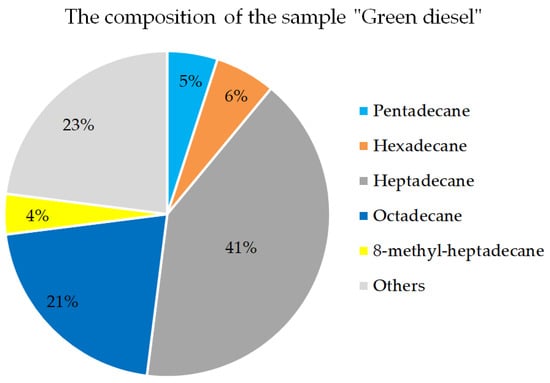

Figure 3. Qualitative and quantitative composition of green diesel.
Figure 3. Qualitative and quantitative composition of green diesel.
Energies 16 02121 g003
Energies 16 02121 g004 550

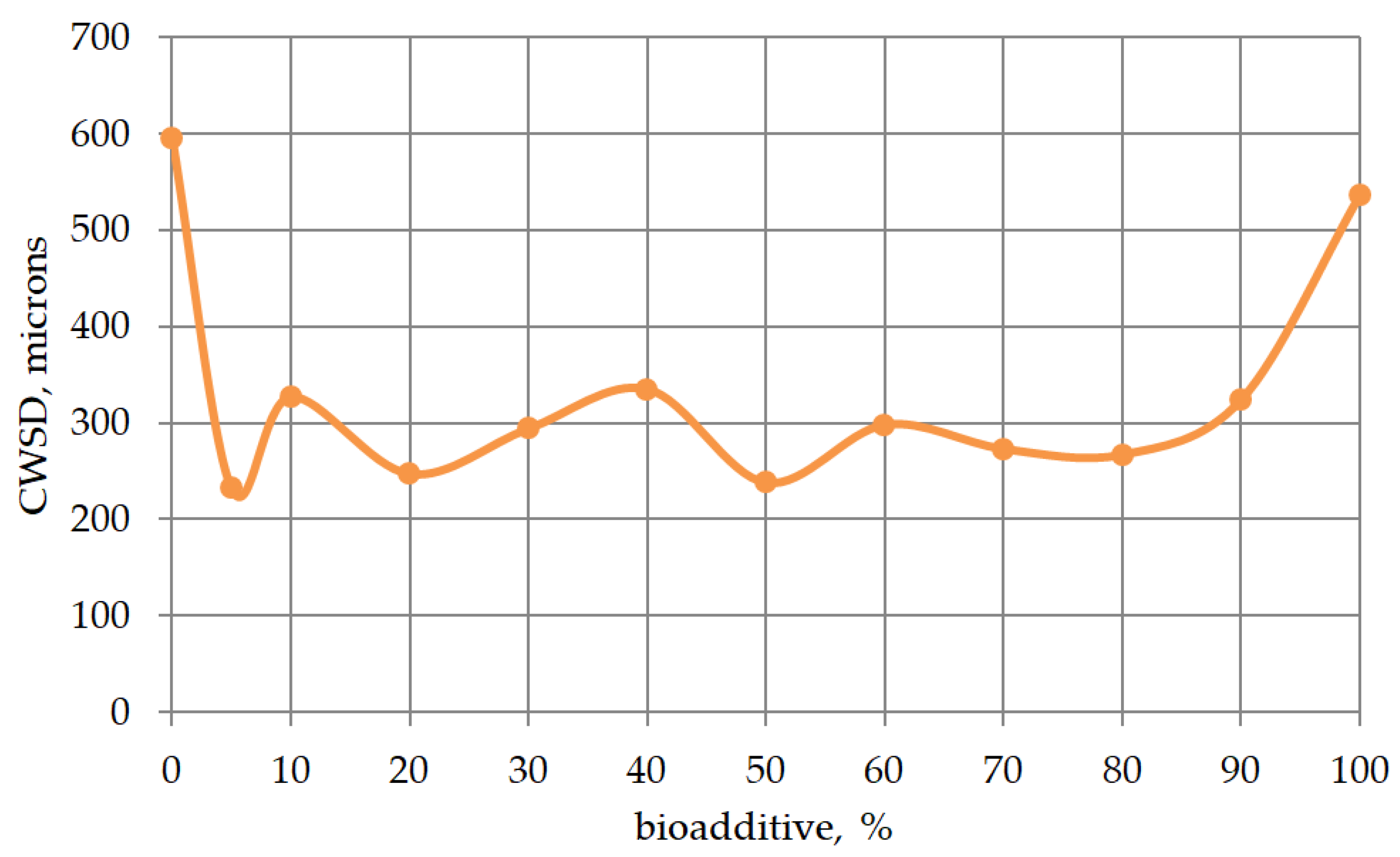

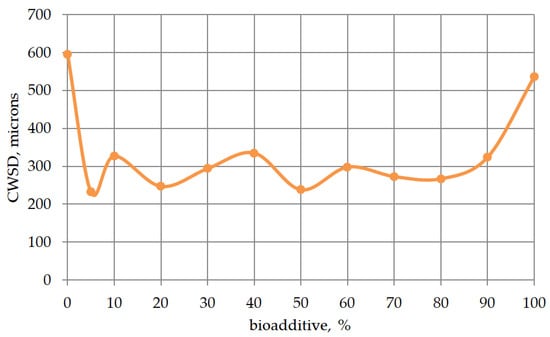

Figure 4. Dependence of lubricity on the content of bio-additives in the green diesel fuel.
Figure 4. Dependence of lubricity on the content of bio-additives in the green diesel fuel.
Energies 16 02121 g004
Table
Table 1. Physicochemical characteristics of HTDF and the green diesel sample.
Table 1. Physicochemical characteristics of HTDF and the green diesel sample.
№Name of IndicatorGreen DieselHTDF
1Density at 15 °C, kg/m3777.1854.8
2Sulfur content, mg/kg368
3Flash point in a closed crucible, °C9080
4Lubricity: adjusted diameter of the wear spot at 60 °C, microns595443
5Kinematic viscosity at 40 °C, mm2/s3.482.79
6Fractional composition:
- at a temperature of 250 °C, % (by volume)
- at a temperature of 350 °C, % (by volume),
- 95% (by volume) is distilled at a temperature, °C
4123
94213
298330
7Cetane number
calculation method		7051
8Pour point, °C18−17
9The content of methyl esters of fatty acids, % (by volume)--
10Ash content, % by weight0.008-
11Water content, mg/kg--
12Total contamination, mg/kg--
13Copper strip corrosion, rating11
14Oxidation stability, g/m31116
Table
Table 2. Anti-wear additives abroad.
Table 2. Anti-wear additives abroad.
DFHTDFAnti-Wear AdditivesOur Sample
Kerokorr LA 99CDodilube 4940PC 32Hitec 4140AR690
Manufacturer BASFClariantTotalAfton Chemical CorporationInfineum
Sulfur content, ppm2205129157210
CWSD, microns300650400307330382201113
Compound Talic Acids Glycerol esters
Table
Table 3. The composition of the ester part of bio-additive.
Table 3. The composition of the ester part of bio-additive.
№Ester NameContent, %
1Linoleic acid methyl ester1.21
2Oleic acid methyl ester0.49
3Linoleic acid ethyl ester1.05
4Linoleic acid 2,3-dihydroxypropyl ester38.75
5Elaidic acid hydroxyethyl ester24.48
6Glycerin ester of elaidic acid6.53
7Stearic acid hydroxyethyl ester2.75
8Linoleic acid 2,3-dihydroxypropyl ester1.37
9Tranexamic acid cetyl ether0.73
10Linoleic acid ethyl ester0.42
Table
Table 4. Two-component superior diesel formulations.
Table 4. Two-component superior diesel formulations.
ComponentAmount of Component, %
Green diesel, %1009080706050403020100
HTDF, %0102030405060708090100
CWSD *, microns595590583572568563550492420370443
CWSD, EN 590: 2009, microns460
* CWSD—corrected wear spot diameter, microns.
Table
Table 5. Dependence of lubricity on the content of bio-additives in the green diesel fuel.
Table 5. Dependence of lubricity on the content of bio-additives in the green diesel fuel.
ComponentContent, %
Green diesel100959080706050403020100
Bio-additive05102030405060708090100
CWSD, microns595232327247294335238298273267324536
CWSD, EN 590: 2009, microns460
Table
Table 6. Dependence of lubricity on changes in the component composition of mixed fuel with the amount of bio-additive 5% and 10%.
Table 6. Dependence of lubricity on changes in the component composition of mixed fuel with the amount of bio-additive 5% and 10%.
Green Diesel, %HTDF, %CWSD, MicronsCWSD, EN 590: 2009, Microns
Amount of bio-additive 5%
950232460
4550326
3560267
2570279
095113
Amount of bio-additive 10%
900327460
4050270
3060233
090133
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Eremeeva, A.M.; Kondrasheva, N.K.; Khasanov, A.F.; Oleynik, I.L. Environmentally Friendly Diesel Fuel Obtained from Vegetable Raw Materials and Hydrocarbon Crude. Energies 2023, 16, 2121. https://doi.org/10.3390/en16052121

AMA Style

Eremeeva AM, Kondrasheva NK, Khasanov AF, Oleynik IL. Environmentally Friendly Diesel Fuel Obtained from Vegetable Raw Materials and Hydrocarbon Crude. Energies. 2023; 16(5):2121. https://doi.org/10.3390/en16052121

Chicago/Turabian Style

Eremeeva, Anzhelika M., Natalia K. Kondrasheva, Artyom F. Khasanov, and Ivan L. Oleynik. 2023. "Environmentally Friendly Diesel Fuel Obtained from Vegetable Raw Materials and Hydrocarbon Crude" Energies 16, no. 5: 2121. https://doi.org/10.3390/en16052121

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
