How Acid Washing Nickel Foam Substrates Improves the Efficiency of the Alkaline Hydrogen Evolution Reaction

Abstract

Nickel foam substrates are frequently utilised as porous 3D substrates for renewable energy applications. The preparation of these substrates usually includes an acid-washing step, but the degree to which this step affects the final electrochemical performance after spray-coating a catalyst ink is unreported. Herein, we report the effects of acid washing through physicochemical and electrochemical characterisation. The electrochemical performance was determined through repeated measurements of catalyst-coated nickel foam substrates both with and without the initial step of acid washing. It was found that acid washing increased the current density by 17.9% for the acid-treated MoS₂-coated nickel foam electrode. This increment was affiliated with an electrochemically active surface area that increased by 11.2%, and a Tafel analysis indicated that the acid-treated MoS₂-coated electrodes facilitated the initial water dissociation step of the hydrogen evolution reaction with greater ease. Similar effects were also discovered for acid-treated PtIr(1:3)/C-coated nickel foam substrates. The stability was also improved; the degradation rate was reduced by 18.9% for the acid-treated MoS₂-coated electrodes. This demonstrates the utility of acid washing nickel foam electrodes.

1. Introduction

The ongoing renewable energy transition includes new energy carriers, such as hydrogen [1,2,3,4], where production through water electrolysis yields green hydrogen. The key to this process is the hydrogen evolution reaction (HER), which is one of the two half-cell reactions in water electrolysis [5]. The advent of the novel anion exchange membrane (AEM) [1,2,3,4] has caused a shift within water electrolysis resulting in a greater emphasis on alkaline water electrolysis through AEM technology. The alkaline HER is currently under profound scrutiny, as there is considerable difficulty in finding stable catalyst materials that are capable of replacing platinum group metals (PGMs) [5]. As such, methods of improving the performance of non-PGM catalyst materials are subject to ample R&D efforts.

Chief among such methods is acid washing which is commonly featured in technologies related to water electrolysis, batteries, and general electrochemistry for electrode preparation [6,7,8,9,10,11,12,13,14,15,16,17,18,19]. The utility of acid washing is great with respect to decreasing the influence of organic contaminants and reducing the surface oxide layer. This results in a notable reduction in series resistance, thus enabling greater performances. However, there is a large disparity in the manner in which this step is carried out with respect to both acid type and concentration.

There are reports of the use of hydrochloric acid, sulphuric acid, perchloric acid, nitric acid [6,7,8,9,10,11,12,13,14,15,16,17,18,19], and likely several other options. Moreover, the concentrations vary from weak, dilute acids around 0.05 M [6,7] to undiluted acids [8,9,10,11,12] and everything in between [13,14,15,16,17,18,19]. The influence of acid washing has been characterised for use in batteries and supercapacitors [20,21,22], medical implants [23], and the alkaline oxygen evolution reaction [24]. The influence of the catalyst support during hydrothermal processes for direct catalyst growth on a nickel foam support was investigated [25]. It was determined that nickel foam may indeed supply nickel ions, which may alter the catalyst composition, thus proving that the catalytic influence of the support cannot be neglected during processes such as electrodeposition. Furthermore, it follows that chemical treatments such as acid washing may affect the catalytic properties of the nickel foam support and therefore cannot be neglected.

However, the effects of acid washing nickel foam supports for the alkaline hydrogen evolution reaction remain largely unreported. Previous work displayed a notable improvement in both the series resistance and charge transfer resistance in bare nickel foam substrates that were used as alkaline HER electrodes by utilising both hydrochloric and sulphuric acid, where the latter outperformed the former [26]. Moreover, peak performance was achieved by acid washing with 0.50 M sulphuric acid, yielding a notable decline in the series resistance. However, additional physicochemical measurements detailing the changes elicited by these chemical treatments are necessary. It is highly common to apply a catalyst ink to a substrate through spray-coating, though the degree to which the aforementioned benefits of acid washing persist after spray-coating is currently unknown, and the same applies to the lifetime of such benefits. Herein, we seek to fill this void in the literature by testing multiple catalyst-coated nickel foam substrates in an efficient three-electrode setup both with and without the initial step of acid washing.

2. Experimental Procedure

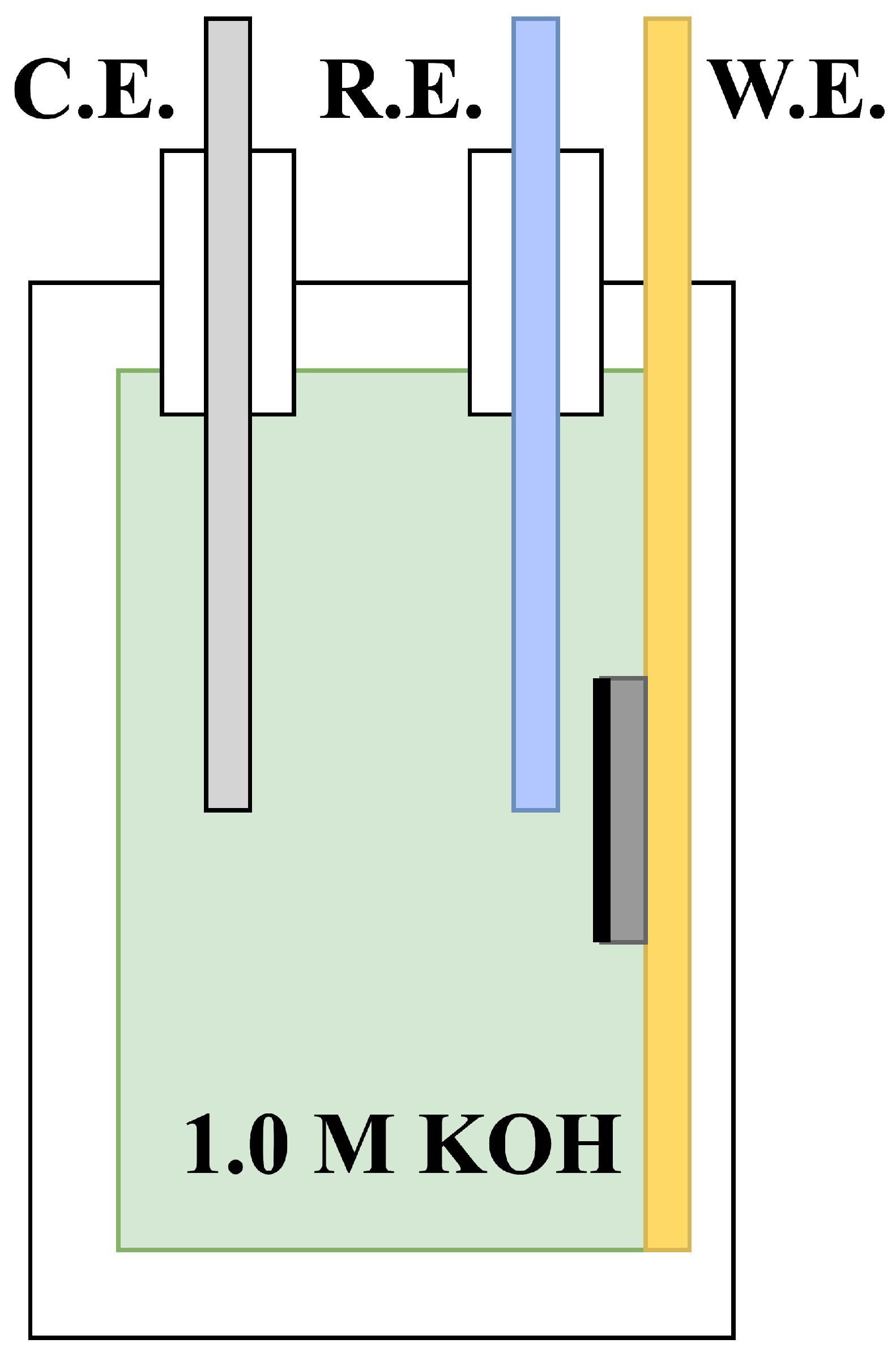

A three-electrode setup was utilised, consisting of a nickel foam working electrode, a platinum wire counter electrode, and an extended Luggin probe (an agar salt bridge) connected to a Ag/AgCl reference electrode. The nickel foam electrode was pressed against a gold current collector to reduce the ohmic resistance, as shown in Figure 1. The small-scale setup with a fixed distance between the three electrodes allowed for a high degree of reproducibility.

The use of ionic bridges (extended Luggin probes) was essential in order to allow the reference electrodes to fit into the half-cell shown in Figure 1. These ionic bridges were produced by mixing 22.37 g of KCl (Sigma Aldrich) into 100 mL of deionised water and heating until the boiling point was reached. From here, 1.5 g (1.5 wt.%) of Difco agar (Fischer Scientific) was carefully added, thereby creating a 3.0 M KCl solution suspended in agar gel in liquid form. While the mixture was boiling, a tube attached to a syringe was employed to suck the solution into the tubing, thus filling the entire volume of both the tubing and the syringe. This was left overnight to settle, creating an ionic bridge that was ready for the insertion of Ag/AgCl (3.0 M KCl) reference electrodes the next day.

Deionised water and an appropriate quantity of potassium hydroxide (powder) for synthesis (Sigma Aldrich) were combined to create the 1.0 M KOH electrolyte, which was thoroughly hand-stirred to ensure a homogeneous concentration. The three-electrode setup was left to settle to establish a steady state by allowing the electrolyte to completely permeate all cavities of the nickel foam electrode.

The non-PGM inks were created by mixing 11 mg of MoS₂ powder (US Nano) with 1.5 mL of deionised water, 0.5 mL of isopropanol, and 22 mg of Sustainion^® XB-7 alkaline ionomer (DiOxide Materials). This resulted in a catalyst loading of approximately 5 mg ${\mathrm{cm}}_{Mo{S}_2}^{-2}$ for the two electrodes. The PGM ink was created by distributing 3 mg of 20 wt.% PtIr(1:3)/C (fuelcellstore.com) in 1 mL of deionised water, 1.0 mL of isopropanol, and 6 mg of Sustainion^® XB-7 alkaline ionomer. This resulted in a catalyst loading of approximately 0.2 mg ${\mathrm{cm}}_{PtIr}^{-2}$ for the two electrodes. These dispersions were ultrasonicated for 15 min and spray-coated onto four 1 cm² nickel foam electrodes attached to an aluminium plate heated to approximately 80 °C. These four electrodes comprised two MoS₂ electrodes and two PtIr(1:3)/C electrodes; one was acid-treated and one was untreated for both types of catalytic spray coating. Several sets of electrodes were created to allow additional control experiments to be executed.

The electrochemical results were procured by utilising an Iviumstat electrochemical workstation. All potentials were initially measured against the Ag/AgCl reference electrode and converted to the reversible hydrogen electrode (RHE) scale using Equation (1).

$$E_{RHE}=E_{Ag/AgCl}+pH\times 0.059+E_{Ag/AgCl}^0,E_{Ag/AgCl}^0\left(3.0MKCl\right)=0.210\mathrm{V}$$

(1)

Electrochemical impedance spectroscopy (EIS) spectra at open circuit potential were initially collected at the frequencies of 10⁵–10⁻¹ Hz with a sinusoidal perturbation of 10 mV and 10 points per decade. This was followed by polarised EIS spectra at −50, −100, −150, and −200 mV relative to the reversible hydrogen electrode (RHE). Linear sweep voltammetry (LSV) curves were subsequently recorded between 0.30 and −0.30 V_RHE at 10 mV s⁻¹ [27], and were repeated to guarantee repeatability. These data were utilised to determine the Tafel slopes. The electrochemical double layer was determined through cyclic voltammetry (CV) between 0.346 and 0.446 V_RHE at scan speeds of 10 to 20 mV s⁻¹ with 2 mV increments [28,29,30]. To ensure stability, the initial scan at 10 mV s⁻¹ was repeated until all scans were overlapping. Stable CV results were obtained once scans at the slowest rate (10 mV s⁻¹) were stable. Chronopotentiometry was performed at 10 mA cm⁻² for 12 h in 1.0 M KOH at room temperature to ascertain stability. The degradation rates were determined based on the starting point of −0.20 V_RHE. This sequence was repeated for all electrodes to improve the basis for comparative work, and multiple versions of each electrode type were tested to ensure stability and repeatability.

A series of physicochemical measurements were performed in order to fully understand the effect of acid washing. The surface morphology of the nickel foam electrodes was analysed in a Jeol JSM-7200F field-emission scanning electron microscope (SEM). Multiple points were analysed with point and area-averaged analysis to ensure a solid foundation for determining the atomic composition of the surface. EDS point analysis was performed on the surface of the nickel foam, as opposed to the acid-induced pits. X-ray diffraction (XRD) was performed with a Bruker D8 Advance, and all Bragg Brentano measurements were made in reflection mode. The X-ray source was Cu kα (1.5406 Å) operated at 40 kV and 40 mA (1600 W). The peaks were fitted with Fityk with a pseudo-Voigt function by using the Rietveld refinement method.

3. Results and Discussion

3.1. Microstructural Characterisation

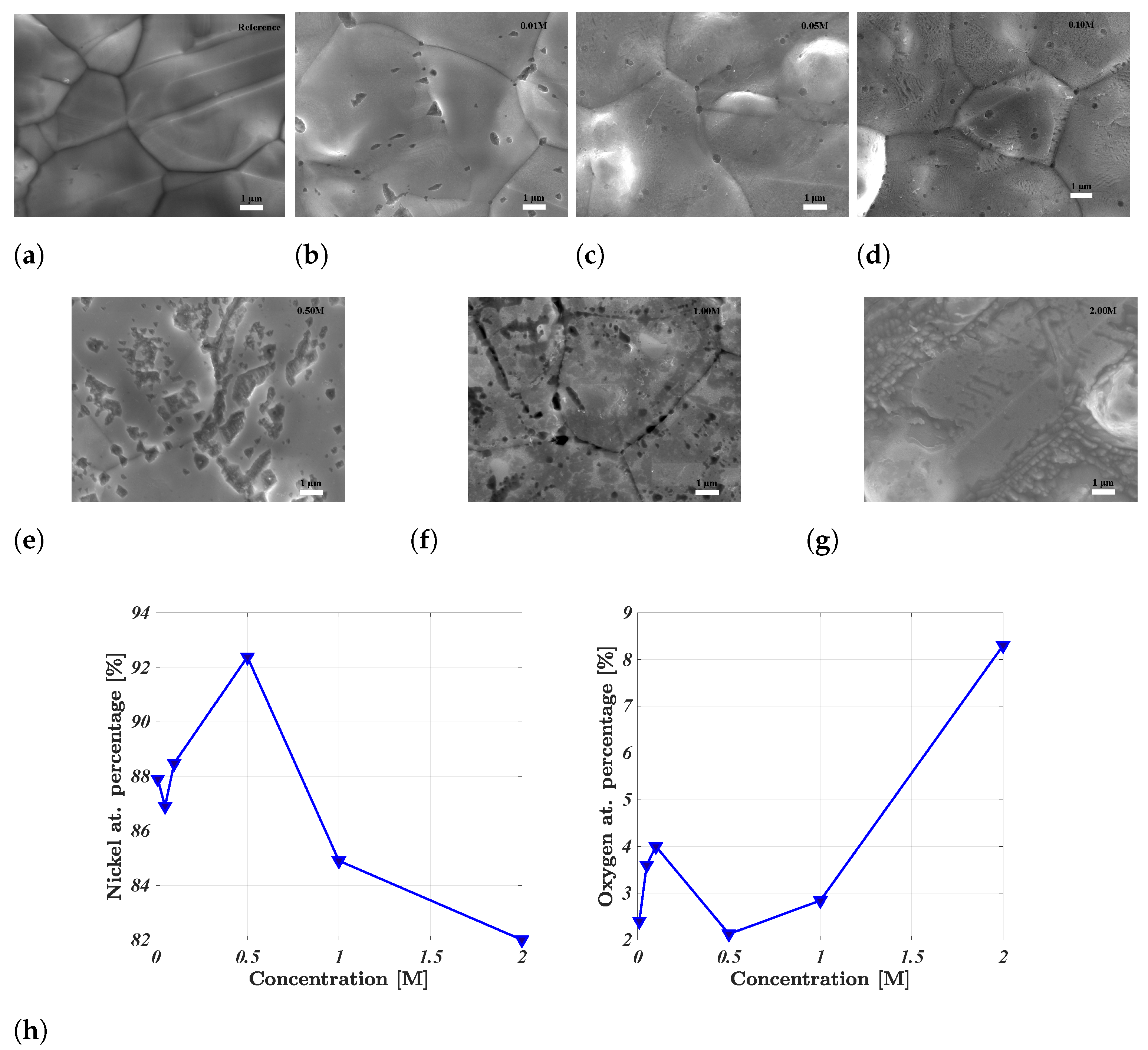

The effect of acid washing was ascertained through scanning electron microscopy (SEM), energy-dispersive X-ray spectroscopy (EDS), and X-ray diffraction (XRD). The effects of acid washing for increasingly potent concentrations of sulphuric acid are illustrated in Figure 2. The change in surface morphology is clear when comparing the pristine reference nickel foam in Figure 2a to the surfaces shown in Figure 2b–g. The reference nickel foam in Figure 2a presents a uniform surface with little influence of indentations, cracks or crevices. Pitting corrosion is immediately registered for the weak acid concentration of 0.01 M H₂SO₄, while any influence of uniform corrosion is not clear until the concentration is increased to 0.05 M. The degree of uniform corrosion increased together with the influence of pitting corrosion as the acid concentration was elevated, ultimately yielding surfaces where the visibility of the grain boundaries is notably reduced, as seen for 2.0 M H₂SO₄ in Figure 2g. The degree of uniform surface corrosion decreased the influence of pitting corrosion due to its severity.

The EDS results indicated a nadir/peak in the atomic percentage of oxygen/nickel, respectively, for the nickel foam electrode treated with 0.50 M sulphuric acid. This supported the results of previous work that showed a nadir for the EIS-determined series resistance for the same acid concentration [26]. Greater acid concentrations resulted in higher/lower concentrations of oxygen/nickel respectively, as shown in Figure 2h, thus agreeing with previous electrochemical evidence indicating the decreased influence of a surface oxide layer. Additional EDS point analysis of the acid-induced pits revealed a greater atomic percentage of oxygen, thus corresponding with the formation of an oxide layer, as previously noted in literature [21,22]. For large acid concentrations, the uniformity of the surface decreased simultaneously with a greater influence of oxygen. This is contradictory to the intention of acid washing, namely, to reduce the effects of surface oxides. The electrodes were exposed to air during sample mounting for SEM/EDS analysis. Thus, the increase in the surface concentration of oxygen for electrodes treated with concentrations greater than 0.50 M sulphuric acid may be related to an increased propensity to form an oxide layer once exposed to air after acid washing.

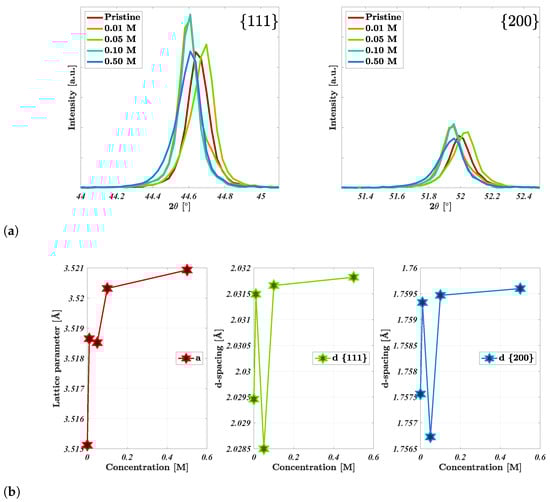

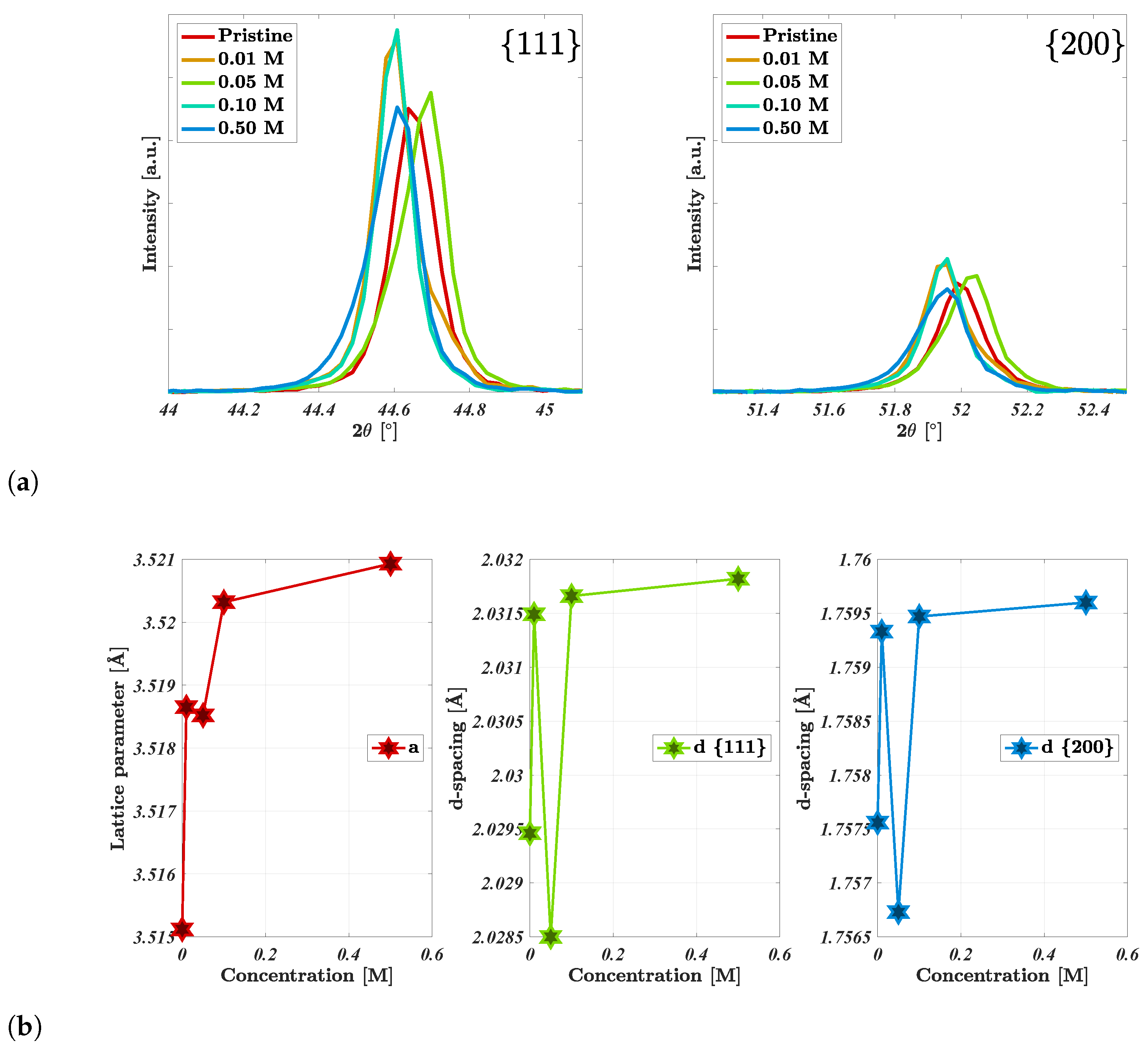

Shown in Figure 3a are the XRD spectra for select concentrations of the acid-treated nickel foam electrodes. The electrodes presented a singular cubic phase, fm-3m, where the highlighted peaks were affiliated with the 111 and 200 facets of nickel foam at 44.61–44.69° and 51.96–52.07°, respectively (JCPDS No. 87-0712) [31]. It is likely that the minor variation in peak position (0.08–0.11°) for the 0.05 M sample originated from height variations during sample mounting due to the porous nature of the nickel foam electrodes. It is clear that the width of these peaks has increased slightly with acid concentration, likely due to a decline in crystallinity owing to the formation of surface oxides during the acid washing [21,22]. A decline in crystallinity has been previously reported for HCl-treated nickel foam due to the formation of a NiO layer [21,22], where this has been noted through a gradual increment in peak width and confirmed through Raman and X-ray photoelectron spectroscopy spectra. The peaks were fitted to allow the extraction of the lattice parameters and d-spaces for the two peaks, as shown in Figure 3b. Both the lattice parameter a and the d-spacing slightly increased with increasing acid concentration. The increase in the lattice parameter a followed the same trend as that of the nickel and oxygen at.%. The change in the lattice parameter and d-spacing is likely affiliated with the aforementioned decline in crystallinity, and this would likely increase further as the acid concentration exceeded 0.50 M [21,22]. Greater lattice parameters have been affiliated with increased lattice distortion [32], where this may be due to the nickel oxide layer formed during the acid washing.

3.2. Electrochemical Characterisation

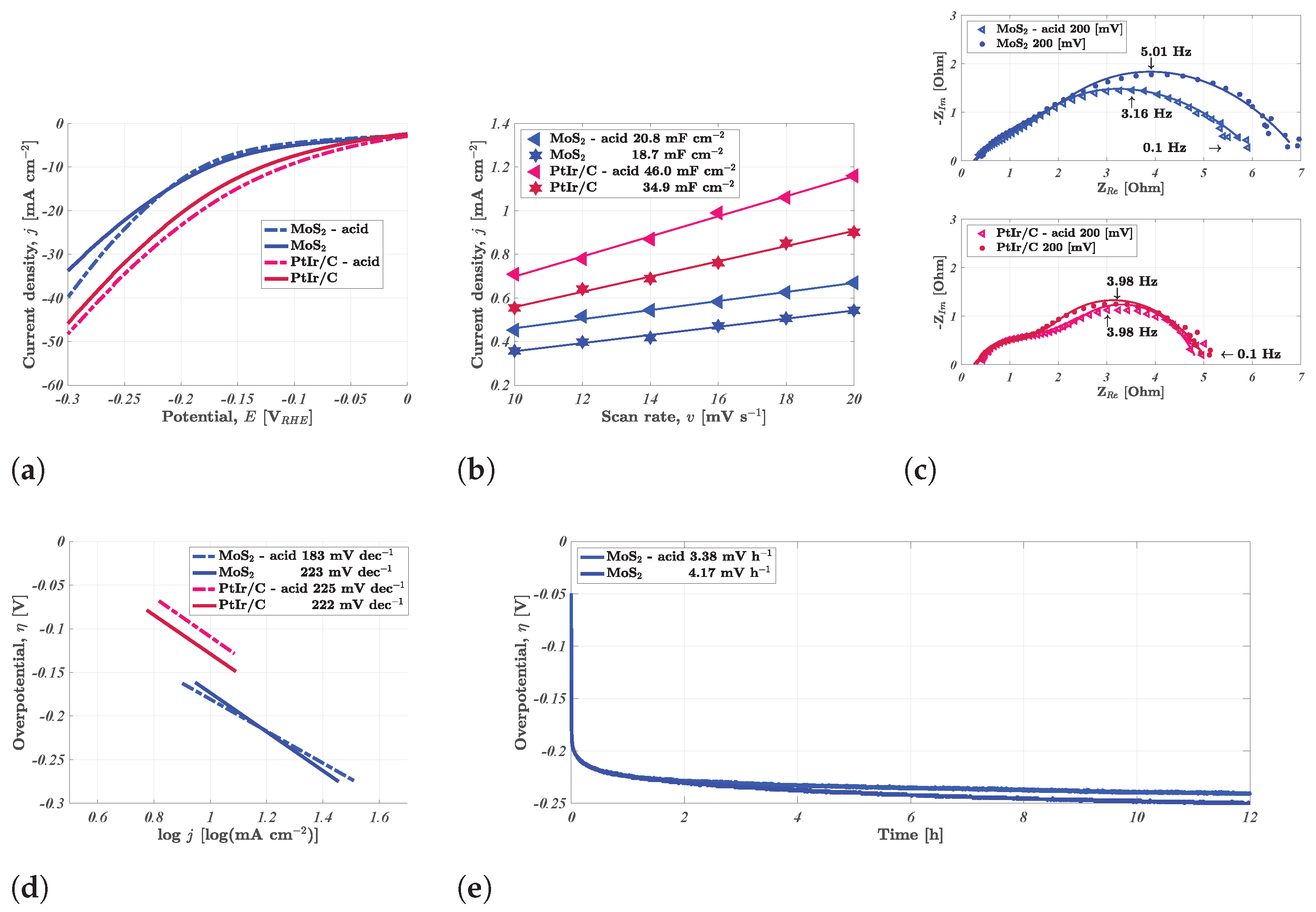

The following section details the results of the electrochemical characterisation. These results were procured by following the protocol detailed in the experimental section. The effects of spray-coating acid-treated nickel foam electrodes were tested for two different types of catalyst ink, namely, non-PGM MoS₂ and PGM PtIr(1:3)/C. LSVs were recorded for the four types of electrodes between 0 and −0.30 V_RHE, as shown in Figure 4a. The peak current density for the acid-treated MoS₂ and PtIr(1:3)/C electrodes increased by 17.9% and 5.19% relative to the untreated electrodes. Predictably enough, the PGM electrode surpassed the performance of the non-PGM MoS₂-coated electrode. The rationale for this performance increment was dissected by determining the electrochemical double layer C_dl (Figure 4b), which scales linearly with the electrochemically active surface area (ECSA). Both of the acid-treated, spray-coated electrodes displayed fair improvements relative to the regular spray-coated electrodes. However, the improvement was notably greater for the PtIr(1:3)/C-coated acid-treated electrode, where the ECSA increased by 31.8%. The ECSA of the acid-treated MoS₂-coated electrode improved by 11.2%. It is clear that the carbon black (CB)-supported catalyst experienced the greatest performance increment, which was likely due to the small particle size of the CB-supported PtIr, which enabled it to cover a greater degree of the acid-treated surface. Acid treatment with 0.50 M H₂SO₄ caused notable changes to the surface, as shown in the SEM images in Figure 2, where this increased surface roughness was likely a great contributor to the augmented ECSA.

Predictably enough, normalising the current density for the electrochemically active surface area (ECSA) revealed that the acid treatment did not notably enhance the intrinsic activity of the catalyst layer, as shown in Figure S5a. The purpose of the acid treatment was to decrease the prevalence of organic contaminants, reduce the surface oxide layer, and increase the ECSA. While there was little indication of a change in the surface oxide layer based on the series resistance shown in the polarised EIS spectra in Figure 4c, there was a clear indication of a greater ECSA, as shown by the fitted EIS curves. The EIS curves were fitted to an equivalent circuit that was typical for the HER (Figure S5c), i.e., corresponding to a faradaic reaction with one adsorbed intermediate [33]. A comparison of the double-layer capacitance from the EIS fitting revealed similar effects to those revealed by the CV scans, as shown in Table S1. The MoS₂-coated acid-treated electrode displayed a fair improvement with respect to the charge transfer resistance, amounting to a 14.3% reduction. This displayed that, while the series resistance was similar, a performance increment was still achieved by reducing the charge transfer resistance. This adhered to established trends in prior research [26] where acid treatment reduced the series resistance, though the decline in charge transfer resistance was greater. Both versions of the PtIr(1:3)/C-coated electrodes displayed similar total impedance spectra, though there was a slight change in capacitance, which correlated with the 31.8% improvement in C_dl.

The Tafel curves in Figure 4d show that the MoS₂-coated acid-treated electrode underwent a reduction in the Tafel slope, while the affiliated slopes of both versions of the PtIr(1:3)/C were largely similar to each other. Moreover, the MoS₂-coated untreated electrode displayed a Tafel slope that was very similar to those of the PtIr(1:3)/C-coated electrodes. The Volmer reaction (water dissociation) is the rate-determining step for Tafel slopes equal to or greater than 120 mV dec⁻¹ for the HER [5]. As such, the reduction in the Tafel slope for the MoS₂-coated acid-treated electrode indicated an improved pathway for hydrogen evolution, and the use of the acid treatment would appear to improve the efficiency of this step.

The stability of these improvements was tested by performing CP, as shown in Figure 4e, and the degradation rate of the MoS₂-coated acid-treated electrode was lower than that of the untreated version of the non-PGM HER electrode. The 18.9% lower degradation rate (3.38 mV h⁻¹) showed that the improvements induced by the acid treatment did not immediately abate during continuous operation. This indicates the possibility of greater longevity when including the initial acid-washing step prior to catalyst coating.

4. Conclusions

This paper investigated how acid washing nickel foam substrates affects the performance and stability of the electrodes after they have been spray-coated with a catalytic ink. The electrochemical performance of catalyst-coated nickel foam was evaluated for both acid-treated and untreated nickel foam for two types of catalytic ink. By employing MoS₂- or PtIr(1:3)/C-coated nickel foam as a hydrogen evolution reaction electrode in 1.0 M KOH, it was clear that the acid washing positively affected the performance of both types of HER electrodes. The LSV performance of the acid-treated MoS₂- and PtIr(1:3)/C-coated electrodes increased by 17.9% and 5.19%, respectively. This was correlated with an augmented ECSA, as shown by the CV and EIS spectra. A great ECSA improvement was noted for the MoS₂-coated electrode, which increased by 11.2%. The Tafel analysis indicated an improvement in the water dissociation step, which likely contributed to the enhanced LSV performance. The stability also appeared to increase after acid washing, as the degradation rate was lowered by 18.9%. These results demonstrate the utility of acid washing substrates prior to the application of a catalyst layer.
