Radially Symmetrical Heat Hydrate Dissociation Model with a Density Difference

Abstract

The hydrate dissociation is viewed as a phase change process in which hydrates transform from a solid phase into gas and liquid phase at a moving dissociation boundary. The boundary separates the dissociation zone containing gas and water from the undissociated zone containing the hydrates, leading to a density difference. Based on the assumption of a density difference between the dissociation zone and the hydrate zone, the authors propose a mathematical model to study hydrate dissociation under thermal stimulation in an infinite radially symmetrical reservoir. Analytical solutions to the temperature distribution are derived by using the self-similarity transformation. Considering the effect factors of the initial heated-water temperature and hydrate density, the authors conducted a thorough investigation of the temperature distribution and the location of the dissociation front for a sample hydrate reservoir. The results from our model show that the heated-water temperature and hydrate density exert significant influence on the hydrate dissociation. With the injection time unchanged, the dissociation distance tends to be increased as the heated-water temperature is increased, leading to a larger dissociation zone. Additionally, a smaller hydrate density can result in a larger dissociation distance. For hydrate thermal stimulation, a higher heated-water temperature and a lower hydrate density can lead to a larger dissociation distance with the injection time unchanged. As the hydrate dissociation proceeds, the dissociation rate is decreased.

1. Introduction

Natural gas hydrates are ice-like crystalline compounds comprised of water and gas molecules, they usually exist under conditions of high pressure and low temperature. Gas hydrates are widely found in permafrost regions and marine sediments [1]. Any change in temperature or pressure would induce instability of hydrates from equilibrium conditions, and cause hydrate dissociation [2,3]. Hydrate dissociation has both good and bad effects. Ocean and atmospheric warming may perturb the hydrate thermal stability, leading to hydrate dissociation and the release of methane into the environment. Methane and methane-derived carbon may reach the atmosphere and exacerbate greenhouse effect warming [4,5]. From a different perspective, however, natural gas hydrates are considered promising energy resources. Because of large-scale energy storage and high energy density, problems associated with the production of natural gas from hydrate reservoirs have drawn the interest of the hydrocarbon industry for a long time. Similar to ice ablation, hydrate dissociation is a phase change process in which gas hydrates transform from a solid phase into gas and liquid phase; heat transfer occurs during the phase change process [6,7,8,9,10,11,12]. Extensive work has been conducted to study hydrate dissociation analytically [13,14,15,16,17].

Kamath and Godbole [13] developed an analytical model to solve the heat conduction problem of hydrate dissociation under thermal stimulation. They found that the effect of hydrates on the net heat efficiency of the reservoir is not significant. Selim and Sloan [14] viewed the dissociation front as a moving boundary and proposed an analytical model to study the hydrate dissociation upon thermal stimulation. They successfully derived a similarity solution to the model. Tsypkin [15] proposed an analytical model to study the negative temperature interval and ice formation during hydrate dissociation. They found a transition hydrate dissociation regime where water and ice are formed simultaneously. Roostaie and Leonenko [16] introduced an analytical model to investigate heat conduction of hydrate dissociation in porous media under thermal stimulation. They claimed that a higher well temperature leads to a higher production rate. Fang et al. [17] investigated fractional partial differential equations with the fractional moving condition to study hydrate dissociation under thermal stimulation. They obtained the explicit solutions of the temperature distributions in the dissociation zone and the hydrate zone.

The studies above treat the hydrate reservoir as a semi-infinite slab cylinder. Recently, radial dissociation models have been proposed to characterize heat conduction and the moving boundary during hydrate dissociation [18,19,20]. Li et al. [18] presented analytical models to study radial heat conduction with a moving boundary. The explicit solutions of the temperature distribution in the dissociation zone and hydrate zone were obtained in their paper. Wang et al. [19] established an analytical model to study radial hydrate dissociation with different dissociation methods. They discovered a synergistic effect of depressurization and heat stimulation. Following the work of Roostaie and Leonenko [16], Roostaie and Leonenko [20] developed a radial analytical model to investigate hydrate dissociation under thermal stimulation. It was shown that a higher water temperature or a lower wellbore pressure can result in higher gas production.

Apart from analytical models, numerical solutions [21,22,23,24,25,26] and experiments [27,28,29,30,31,32,33,34,35] are also performed on hydrate dissociation. Even though great efforts have been made to study the hydrate dissociation process, most of these works ignore the scenario that there exists a density difference between the dissociation zone and the hydrate zone. To the best knowledge of the authors, Li et al. [36] viewed hydrate dissociation as a moving boundary problem, and were the first to discuss the heat dissociation of hydrate with a density difference. Exact solutions have been deduced for the temperature distribution as well as the dissociation front location. However, it has not been studied for hydrates with a density difference in an infinite radially symmetrical reservoir, which will make it difficult to provide a comprehensive insight into the temperature distribution and dissociation front of the heat dissociation of hydrates with a density difference. In this paper, the authors present a mathematical model to investigate hydrate dissociation with a density difference in an infinite radially symmetrical reservoir. With the aid of the proposed model, we predict the temperature distribution and dissociation front location under thermal stimulation.

There is also much literature discussing depressurization models [37,38,39,40] and considering various influential factors, such as heat convection and gravity. For simplicity of the dissociation process, we shall focus on an ideal scenario where only heat conduction is considered as the first attempt in the field of hydrate dissociation, which will cause some errors when applied to the actual situation. Further research with consideration closer to the real-world application will be conducted to improve the hydrate dissociation model.

2. Mathematical Model

Consider a uniform distribution of hydrates in a porous medium, which occupies an infinite radially symmetrical region ($0<r<\infty$). A vertical well is located at the center of the reservoir ($r=0$). There exists initially solid hydrates at $T_i$ (initial reservoir temperature), and when the temperature is raised to $T_d$ (hydrate dissociation temperature) ($T_d>T_i$), the hydrate dissociation occurs. As a result, the dissociation boundary, which is considered the moving boundary, separates the dissociation zone (Zone I, $0<r\le R(t)$) from the hydrate zone (Zone II, $R(t)<r<\infty$), where $R\left(t\right)$ is the radial dissociation distance (Figure 1). Assumptions are as follows: (1) the reservoir is completely saturated with methane hydrates and only water is generated during the dissociation process; (2) the density of the dissociation zone ${\rho }_D$ differs from that of the hydrate zone ${\rho }_H$ (${\rho }_D>{\rho }_H$), and ${\rho }_D$, ${\rho }_H$ are constants; (3) thermophysical parameters, thermal conductivity and diffusivity are assumed to be constant; (4) the dissociation front advances along the radial direction; (5) the uniform speed of volume change in the dissociation zone agrees with that of water dissociation, and the speed of the hydrate zone is 0; (6) there only exists heat conduction, and heat convection and gravity are not considered; and (7) no viscous dissipation occurs during the dissociation process, and the pressure of the reservoir is a constant.

In this section, the authors will provide a detailed introduction to the construction of the mathematical model for predicting temperature distribution and dissociation front location. In the whole hydrate reservoir system, the general energy conservation law can be written as [41]:

$$\frac{\partial (\rho \epsilon )}{\partial t}+\frac{\partial (\rho \epsilon v+q+pv)}{\partial r}=0,$$

(1)

where $t$ and $r$ indicate time and the radial coordinate, respectively, $\epsilon$ is the total energy per gram, $\rho \epsilon$ is the total energy per unit volume, $v$ is the velocity per unit volume, $q$ is heat flux rate, and $p$ is thermodynamic pressure.

As mentioned in the assumptions, the densities of the dissociation zone (Zone I) and the hydrate zone (Zone II) are constants, but different. Therefore, the velocity must be uniform in each zone. The total energy $\epsilon$ is the sum of the internal energy $u$, and Equation (1) can be rewritten as:

$$\frac{\partial (\rho u)}{\partial t}+\frac{\partial (\rho uv+q)}{\partial r}+p\frac{\partial v}{\partial r}=0.$$

(2)

Since $\frac{\partial v}{\partial r}=0$ in each zone, it has:

$$\rho \frac{\partial u}{\partial t}+\rho \frac{\partial u}{\partial r}v+\frac{\partial q}{\partial r}=0.$$

(3)

Because du = cdT, we can obtain $\frac{\partial u}{\partial t}=c\frac{\partial T}{\partial t}$, $\frac{\partial u}{\partial r}=c\frac{\partial T}{\partial r}$, and $q=-k\frac{\partial T}{\partial r}$, where k is thermal conductivity. Equation (3) describing the heat conduction in Zone I ($0<r\le R(t)$) is given as:

$${\rho }_D{c}_D(\frac{\partial T_D(r,t)}{\partial t}+v_D\frac{\partial T_D(r,t)}{\partial r})=k_D(\frac{\partial T_D^2(r,t)}{{\partial }^{2}r}+\frac{1}{r}\frac{\partial T_D(r,t)}{\partial r}),$$

(4)

and Equation (3) describing the heat conduction in Zone II ($R(t)<r<\infty$) is given as:

$${\rho }_H{c}_H(\frac{\partial T_H(r,t)}{\partial t}+v_H\frac{\partial T_H(r,t)}{\partial r})=k_H(\frac{\partial T_D^2(r,t)}{{\partial }^{2}r}+\frac{1}{r}\frac{\partial T_D(r,t)}{\partial r}).$$

(5)

Noticing that $v_H=0$, Equations (4) and (5) can be rewritten as:

$${\rho }_D{c}_D(\frac{\partial T_D(r,t)}{\partial t}+v_D\frac{\partial T_D(r,t)}{\partial r})=k_D(\frac{\partial T_D^2(r,t)}{{\partial }^{2}r}+\frac{1}{r}\frac{\partial T_D(r,t)}{\partial r}),$$

(6)

and

$${\rho }_H{c}_H\frac{\partial T_H(r,t)}{\partial t}=k_H(\frac{\partial T_D^2(r,t)}{{\partial }^{2}r}+\frac{1}{r}\frac{\partial T_D(r,t)}{\partial r}).$$

(7)

Let $\alpha =\frac{k}{\rho c}$, Equations (6) and (7) can be further rewritten as follows:

$$\frac{\partial T_D(r,t)}{\partial t}+v_D\frac{\partial T_D(r,t)}{\partial r}={\alpha }_D(\frac{\partial T_D^2(r,t)}{{\partial }^{2}r}+\frac{1}{r}\frac{\partial T_D(r,t)}{\partial r}),$$

(8)

and

$$\frac{\partial T_H(r,t)}{\partial t}={\alpha }_H(\frac{\partial T_D^2(r,t)}{{\partial }^{2}r}+\frac{1}{r}\frac{\partial T_D(r,t)}{\partial r}).$$

(9)

Because there is a density difference between Zone I and Zone II, the volume change in the dissociation zone leads to a uniform speed. Based on the mass conservation law, a volume of solid hydrates $A\Delta r$ melts in time $\Delta t$ has:

$$A{v}_D\Delta t={\rho }_{H}A\Delta r(\frac{1}{{\rho }_H}-\frac{1}{{\rho }_D}),$$

(10)

So,

$$v_D=(1-\frac{{\rho }_H}{{\rho }_D})\frac{\Delta r}{\Delta t}.$$

(11)

Let $\Delta t\to 0$, and it has:

$$v_D=(1-\frac{{\rho }_H}{{\rho }_D})\frac{dR(t)}{dt}=\lambda \frac{dR(t)}{dt},$$

(12)

Let $\lambda =1-\frac{{\rho }_H}{{\rho }_D}$. Then $\lambda$ is a constant and $0\le \lambda <1$, which indicates that the bulk water moves slower than the dissociation front.

Substituting Equation (12) into Equations (8) and (9), we can obtain the following heat conduction equation with a density difference:

$$\{\begin{array}{l}\frac{\partial T_D(r,t)}{\partial t}={\alpha }_D(\frac{\partial T_D^2(r,t)}{{\partial }^{2}r}+\frac{1}{r}\frac{\partial T_D(r,t)}{\partial r})-\lambda \frac{dR(t)}{dt}\frac{\partial T_D(r,t)}{\partial r}, 0<r\le R(t),\\ \frac{\partial T_H(r,t)}{\partial t}={\alpha }_H(\frac{\partial T_H^2(r,t)}{{\partial }^{2}r}+\frac{1}{r}\frac{\partial T_H(r,t)}{\partial r}), R(t)<r<\infty .\end{array}$$

(13)

The initial conditions t = 0, boundary conditions at Zone I ($r=0$) and Zone II ($r=\infty$) and dissociation front ($r=R\left(t\right)$) are as follows:

$$T_D(r,0)=T_H(r,0)=T_i, 0\le r<\infty ,$$

(14)

$$\{\begin{array}{l}{T}_D(0,t)=T_{inj}, r=0,t>0,\\ T_H(r,t)=T_i, r\to \infty ,t>0,\\ T_D(R(t),t)=T_H(R(t),t)=T_d, t>0.\end{array}$$

(15)

The location of the dissociation front, which is also known as the Stefan moving boundary, has the following relationship with time during the dissociation process:

$${\rho }_{H}L\frac{dR(t)}{dt}+\frac{1}{2}{\rho }_H{\lambda }^2{\left(\frac{dR(t)}{dt}\right)}^3=k_H\frac{\partial T_H}{\partial r}-k_D\frac{\partial T_D}{\partial r}.$$

(16)

We define the similarity variable $R(t)=2\xi \sqrt{t}$, where $\xi$ is an undetermined coefficient. Let $\eta =\frac{r}{2\sqrt{t}}$, and make the self-similar transformation to Equation (13), it has:

$$\{\begin{array}{l}\frac{d^2{T}_D}{d{\eta }^2}+(\frac{1}{\eta }+\frac{2\eta }{{\alpha }_D}-\frac{2\lambda \xi }{{\alpha }_D})\frac{d{T}_D}{d\eta }=0,0<r_c\le \eta \le \xi ,\\ \frac{d^2{T}_H}{d{\eta }^2}+(\frac{1}{\eta }+\frac{2\eta }{{\alpha }_H})\frac{d{T}_H}{d\eta }=0,\xi \le \eta <\infty ,\end{array}$$

(17)

where $r_c\to 0$, which is an infinitely small quantity. Meanwhile, at $t>0$, the boundary conditions are as follows:

$$\{\begin{array}{l}{T}_D(\eta )\to T_{inj},\eta \to r_c,\\ T_H(\eta )\to T_i, \eta \to \infty ,\\ T_D(\xi )=T_H(\xi )=T_d.\end{array}$$

(18)

The analytical solution of Equations (17) and (18) can be written as:

$$\{\begin{array}{l}{T}_D=T_{inj}-(T_{inj}-T_d)\frac{{\displaystyle \underset{r_c}{\overset{\eta }{\int }}\frac{\exp (-\frac{u^2}{{\alpha }_D}+\frac{2\lambda \xi }{{\alpha }_D}u)}{u}du}}{{\displaystyle \underset{r_c}{\overset{\xi }{\int }}\frac{\exp (-\frac{u^2}{{\alpha }_D}+\frac{2\lambda \xi }{{\alpha }_D}u)}{u}du}},\\ T_H=T_i+(T_d-T_i)\frac{{\displaystyle \underset{\eta }{\overset{\infty }{\int }}\frac{\exp (-\frac{u^2}{{\alpha }_H})}{u}du}}{{\displaystyle \underset{\xi }{\overset{\infty }{\int }}\frac{\exp (-\frac{u^2}{{\alpha }_H})}{u}du}}.\end{array}$$

(19)

To get a transcendental equation, we need to calculate the partial derivative of Equation (19) with respect to $r$, which is given as:

$$\{\begin{array}{l}\frac{\partial T_D}{\partial r}=\frac{\partial T_D}{\partial \eta }\frac{\partial \eta }{\partial r}=-\frac{(T_{inj}-T_d)}{2\sqrt{t}}\frac{\frac{\exp (-\frac{{\eta }^2}{{\alpha }_D}+\frac{2\lambda \xi \eta }{{\alpha }_D})}{\eta }}{{\displaystyle \underset{r_c}{\overset{\xi }{\int }}\frac{\exp (-\frac{u^2}{{\alpha }_D}+\frac{2\lambda \xi }{{\alpha }_D}u)}{u}du}},\\ \frac{\partial T_H}{\partial r}=\frac{\partial T_H}{\partial \eta }\frac{\partial \eta }{\partial r}=-\frac{(T_d-T_i)}{2\sqrt{t}}\frac{\frac{\exp (-\frac{{\eta }^2}{{\alpha }_H})}{\eta }}{{\displaystyle \underset{\xi }{\overset{\infty }{\int }}\frac{\exp (-\frac{u^2}{{\alpha }_H})}{u}du}}.\end{array}$$

(20)

Combining Equations (20) and (16), the transcendental equation can be expressed as:

$$k_H(T_i-T_d)\frac{\frac{\exp (-\frac{{\xi }^2}{{\alpha }_H})}{\xi }}{{\displaystyle \underset{\xi }{\overset{\infty }{\int }}\frac{\exp (-\frac{u^2}{{\alpha }_H})}{u}du}}-k_D(T_d-T_{inj})\frac{\frac{\exp (-\frac{{\xi }^2}{{\alpha }_D}+\frac{2\lambda {\xi }^2}{{\alpha }_D})}{\xi }}{{\displaystyle \underset{r_c}{\overset{\xi }{\int }}\frac{\exp (-\frac{u^2}{{\alpha }_D}+\frac{2\lambda \xi }{{\alpha }_D}u)}{u}du}}-(2{\rho }_{H}L\xi +\frac{{\rho }_H{\lambda }^2{\xi }^3}{t})=0.$$

(21)

The unique root $\xi$ of Equation (21) can be obtained using numerical iteration. Furthermore, Equation (21) indicates that the value of $\xi$ is related to the heated-water temperature and the hydrate density change.

3. Results and Discussion

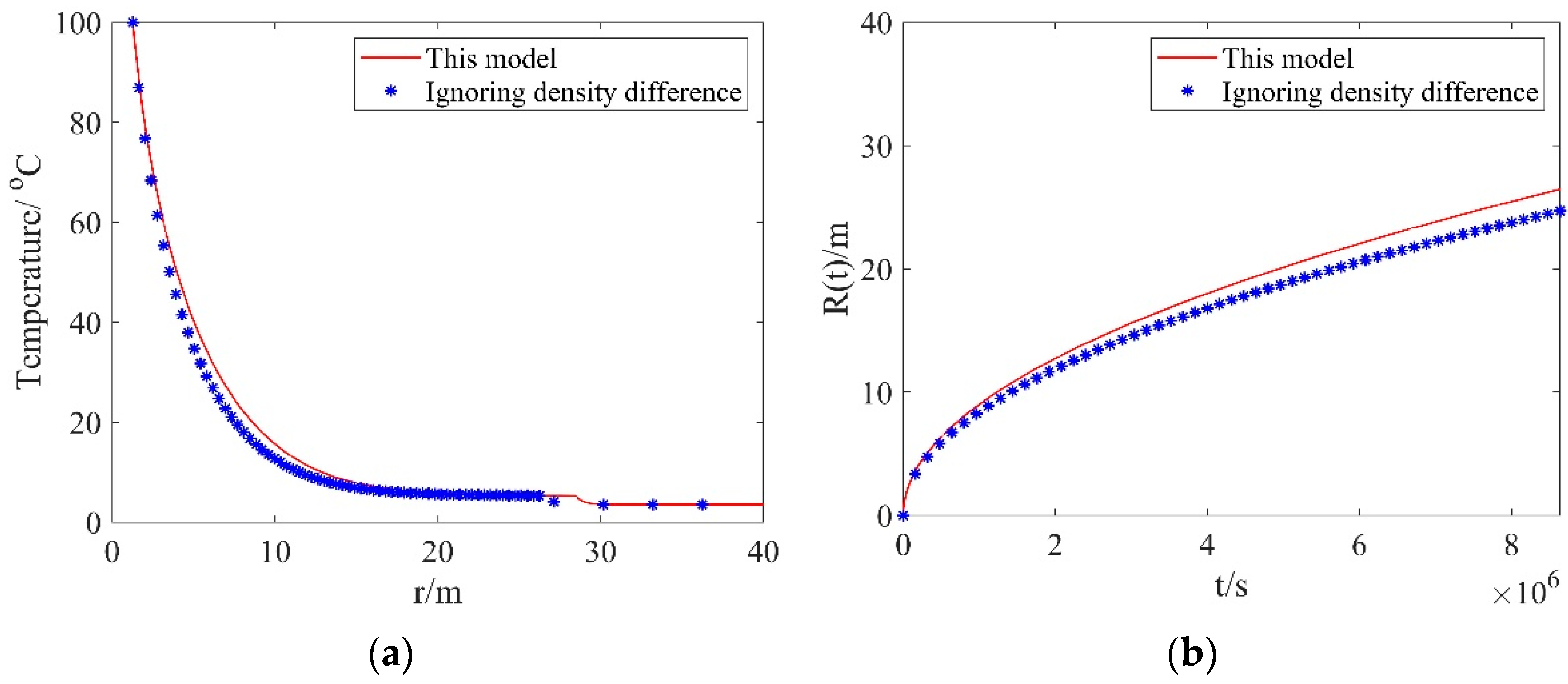

Before conducting the investigation, we discuss the effect of density difference on the simulation outputs. Figure 2a presents the comparison between the temperature distributions calculated with the proposed model and the model ignoring density difference. As one can see from this figure, the temperatures calculated with the proposed model are higher than those calculated with the model ignoring density difference. This can be explained as follows: The density difference between the dissociation zone and the hydrate zone can cause a volume change in the dissociation zone, leading to a bulk water velocity. The bulk water produced in the dissociation zone can store energy. Therefore, compared to the temperatures calculated with the model ignoring density difference, the temperatures considering density difference are higher. Figure 2b presents the comparison between the dissociation distances calculated with the proposed model and the model ignoring density difference. In Figure 2b, the dissociation distances calculated with this model are larger than those calculated with the model ignoring density difference. Since the temperature for the scenario considering density difference is higher than that for the scenario ignoring density difference, the dissociation front advances more rapidly, which results in a larger dissociation distance. In practice, the density difference between the dissociation zone and the hydrate zone should be physically present in the hydrate dissociation process. Therefore, the proposed model, which considers the density difference, can provide realistic results.

In this section, we firstly derive the unique root of the transcendental equation. Subsequently, we study the influence of the initial heated-water temperature and hydrate density on the unique root, dissociation front, and temperature distribution. The following values of parameters are used in the benchmark model [36]: P =5.5 MPa, T_i = 3.5 °C, T_inj = 100 °C, r =100 m, α_D = 2.89 × 10⁻⁶ m²/s, α_H = 0.697 × 10⁻⁶ m²/s, ρ_D = 1000 kg/m³, ρ_H = 914.7 kg/m³, k_D = 5.57 W/(m·k), and k_H =2.73 W/(m·k). k_D is the effective thermal conductivity of the dissociation zone containing solid grains, water, and gas, and k_H is the effective thermal conductivity of the hydrate zone containing solid grains and hydrate. Each unit volume of hydrate can dissociate into 0.8 units volume of water and ideal gas. This is ignored; therefore, the pressure change can be neglected when 0.2 units volume of heated-water is injected into the pure hydrate reservoir. We can calculate the dissociation temperature with the method introduced by Deaton [42]:

$$T_d=\frac{15360.8}{37.05-\ln P}-459.7=5.305089.$$

(22)

The latent heat of hydrate can be obtained with the equation introduced by Clausius [43]:

$$L=n_{g}zR{(T_d+459.7)}^2\frac{d\ln P}{dT}=14.83763.$$

(23)

where $n_g$ is the mole number of dissociation gas, $z$ is gas deviation factor, $R=0.008314$ MPa·m³/(kmol·K) is a universal gas coefficient.

The transcendental equation (Equation (21)) has a unique root $\xi$. However, it is difficult to calculate the analytical solution. Therefore, we calculate the unique root $\xi$ of Equation (21) through numerical iteration. We calculate $\xi$ with different values of injection time t (i.e., t = 10⁵ s, 10⁶ s, 10⁷ s), and the results show that $\xi$ remains constant ($\xi$ = 0.0045), which indicates that the numerical method cannot provide us with an insight into the effect of time on the unique root of Equation (21). As the temperature of the heated-water is increased from 100 °C to 300 °C, $\xi$ is increased from 0.0045 to 0.0048. In addition, $\xi$ is decreased from 0.0053 to 0.0043 as the hydrate densities are increased from 750 kg/m³ to 950 kg/m³.

Based on the analytical solution of temperature (Equation (19)) and the values of $\xi$, we can draw the temperature distribution of the dissociation zone and hydrate zone at different injection times, different distances, and different densities of hydrate.

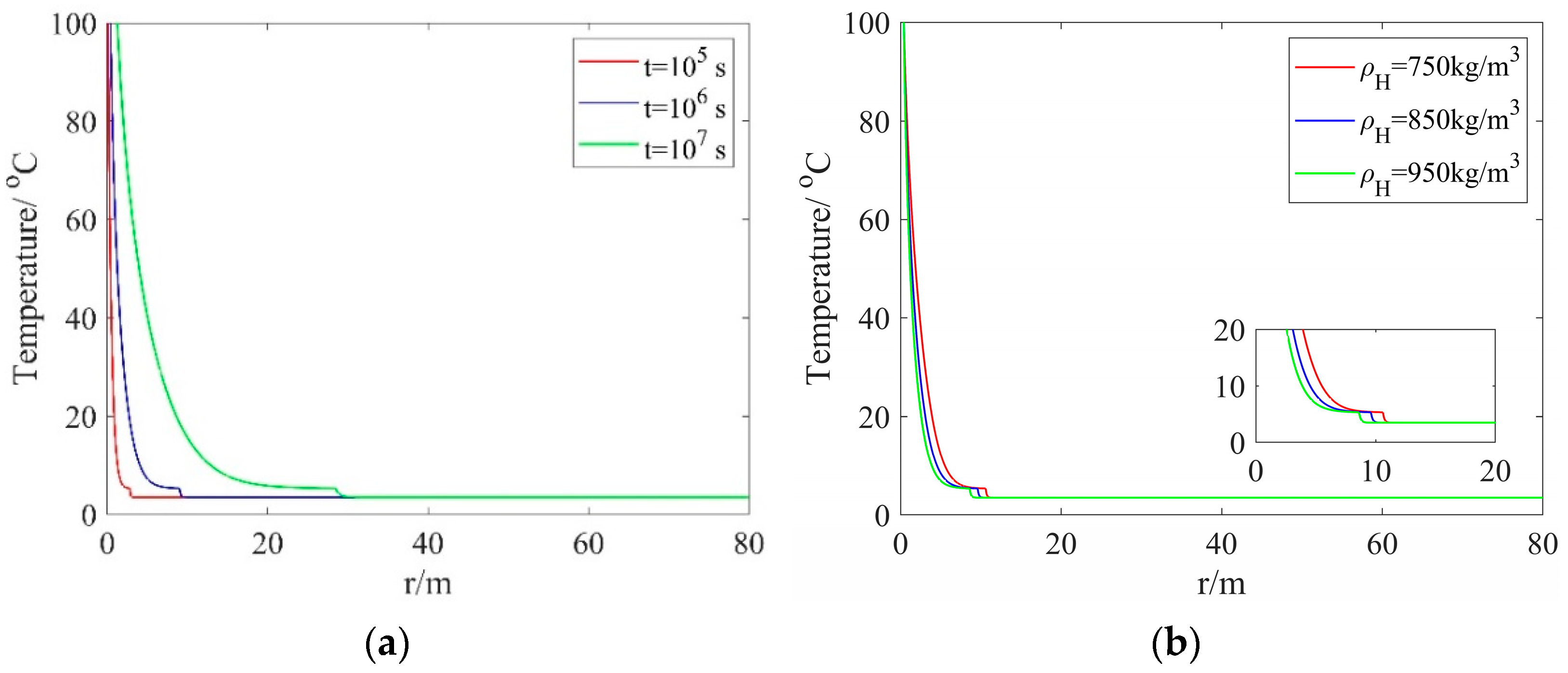

Figure 3a shows the temperature distribution along the radial direction with different injection times but a fixed hydrate density. One can see from this figure that the temperature exhibits a rapid decrease from 100 °C (the heated-water temperature) to 5.305089 °C (the hydrate dissociation temperature), and then decreases to the initial reservoir temperature. As the injection time is increased from 10⁵ s to 10⁷ s, the values of the radial dissociation distance R(t) are increased from 2.8460 m to 28.4605 m, which indicates that the dissociation distance increases rapidly. Figure 3b presents the temperature distribution along the radial direction with different hydrate densities but a fixed injection time. As one can see from this figure, with the hydrate density is increased, the dissociation distance gradually decreases. At a hydrate density of 750 kg/m³, the maximum dissociation distance is 10.6 m.

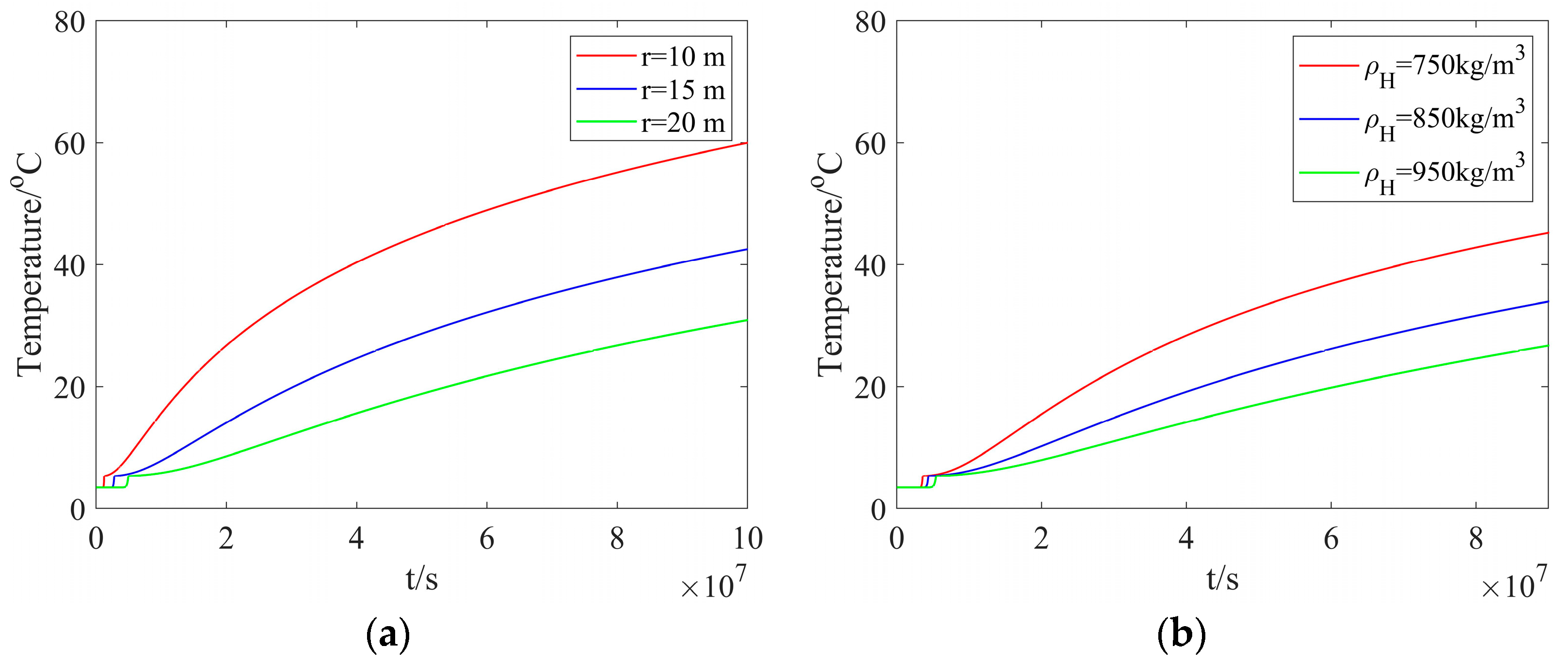

Figure 4a shows the reservoir temperature at different radial distances but with a fixed hydrate density. As one can see from this figure, the temperature rises slowly from the reservoir temperature to the hydrate dissociation temperature. Subsequently, the temperature exhibits a rapid increase and approaches the heated-water temperature. As the radial distance is decreased, it takes a longer time to reach the hydrate dissociation temperature. In addition, as the radial distance is increased from 10 m to 20 m, the time taken to reach the hydrate dissociation temperature is increased from 1.2346 × 10⁶ s to 4.9383 × 10⁶ s. This indicates that, the dissociation rate is decreased as the dissociation proceeds. Figure 4b presents the reservoir temperature with different hydrate densities but at a fixed radial distance. As one can see from this figure, a smaller hydrate density can lead to a higher temperature. At a hydrate density of 750 kg/m³, the minimum time taken for the dissociation distance to be 20 m is 3.56 × 10⁶ s.

Figure 5a shows the radial dissociation distance with different heated-water temperatures but a fixed hydrate density. The dissociation distance calculated with different heated-water temperatures illustrates negligible difference at early times. As the injection time is increased, the difference becomes noticeable, and the dissociation distance tends to be increased as the heated-water temperature is increased, leading to a larger dissociation zone. Figure 5b presents the radial dissociation distance with different hydrate densities but a fixed heated-water temperature. With the injection time unchanged, a smaller hydrate density can result in a larger dissociation distance, which agrees with the results calculated in Figure 4b. The effect of heated-water temperature on the dissociation distance is less noticeable than that of hydrate density.

4. Conclusions

In this work, the authors propose a mathematical model to study hydrate dissociation under thermal stimulation in an infinite radially symmetrical reservoir. The density difference between the dissociation zone and the hydrate zone can cause a volume change in the dissociation zone. The bulk water velocity is determined on the basis of the mass conservation law. The Stefan moving boundary conditions describing the discontinuity phase change interface are innovatively deduced, and analytical solutions to the temperature distribution are derived by using the self-similarity transformation. The unique root of the transcendental equation is presented for the infinite radially symmetrical reservoir example. In addition, the influences of the heated-water temperature and the hydrate density on ξ are studied in detail through numerical iteration. With the aid of the proposed model, the authors investigate the effects of heated-water temperature and hydrate density on temperature distribution and dissociation front location. The calculated results show that the heated-water temperature and hydrate density exert significant influence on the hydrate dissociation. With the injection time unchanged, the dissociation distance tends to be increased as the heated-water temperature is increased, leading to a larger dissociation zone. Additionally, a smaller hydrate density can result in a larger dissociation distance. For hydrate thermal stimulation, a higher heated-water temperature and a lower hydrate density can lead to a larger dissociation distance with the injection time unchanged. As the hydrate dissociation proceeds, the dissociation rate is decreased.
