Sub Synchronous Oscillations under High Penetration of Renewables—A Review of Existing Monitoring and Damping Methods, Challenges, and Research Prospects

Department of Electrical and Electronic Engineering, Auckland University of Technology (AUT), Auckland 1010, New Zealand
Author to whom correspondence should be addressed.
Energies 2022, 15(22), 8477;
Submission received: 14 October 2022 / Revised: 8 November 2022 / Accepted: 8 November 2022 / Published: 13 November 2022
(This article belongs to the Collection Feature Papers in Smart Grids and Microgrids)


With the recent developments in renewable energy generation and addition of power electronic devices, power system dynamics have become extremely complex. One of the challenges faced due to this transition is the sub synchronous oscillations caused by the interaction of renewable energy sources and various components of the power grid. Recently reported incidents due to sub synchronous oscillations highlight the need of monitoring and suppression of these harmful oscillations in real time. This paper gives an overview of the phenomena of sub synchronous oscillations and discusses the existing monitoring and damping techniques along with their limitations. Further, it highlights the research trends along this path.

1. Introduction

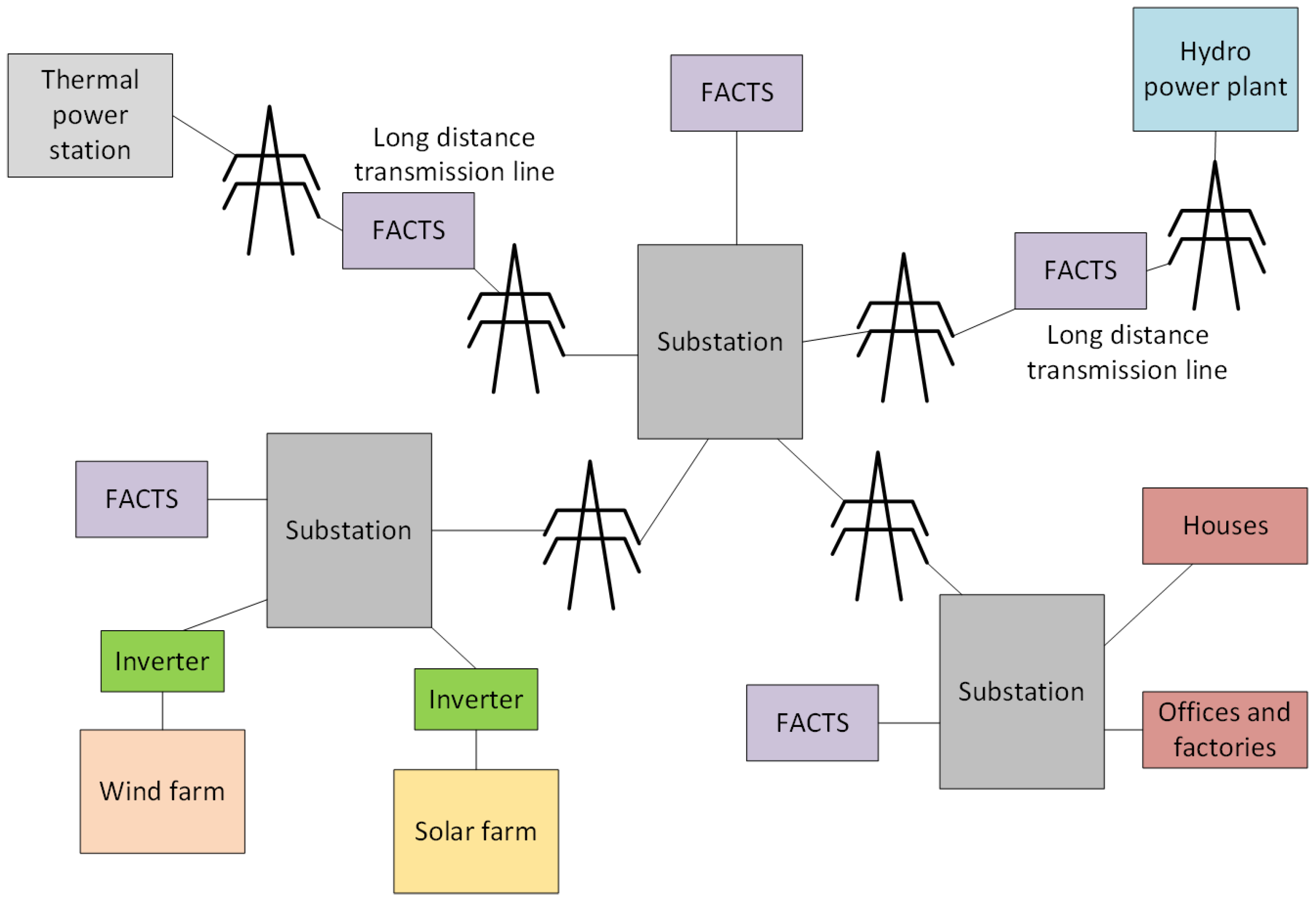

Owing to the ongoing transformation of the power grid towards sustainable development, power generation using renewable energy sources has been increased worldwide. The total addition of renewable energy globally in 2020 was more than 260 GW. This is greater than fourfold the addition from other sources and therefore depicts the trend of increased renewable penetration even during the adverse effects of the pandemic. Further, it is forecasted that the renewable energy penetration worldwide will increase significantly by 2050 [1,2].
Large scale development of wind energy for electricity production has become an integral part in many countries, with China ranking the first as having a total capacity of 221 GW power generated using wind energy. Furthermore, the United Nations Environment Programme (UNEP) has estimated that China has a potential of 1400 GW onshore and 600 GW offshore wind energy overall [3]. Eight 10 GW scale wind power bases are already implemented in different parts of China. The other leading countries deploying wind energy for power production are USA (96.4 GW), Germany (59.3 GW), India (35 GW), Spain (23 GW), UK (20.7 GW), France (15.3 GW), Brazil (14.5 GW), Canada (12.8 GW), and Italy (10 GW) [3,4]. In addition to wind, there has been a rapid increase in PV penetration in recent years. Several large-scale PV farms have been installed and most are connected to the transmission system, such as Longyangxia Dam Solar Park (850 MW) in China, Solar Star I and II (579 MW) in USA, Topaz Solar Farm and Desert Sunlight Solar Farm (550 MW each) in California, USA, Huanghe Hydropower Golmud Solar Park (500 MW) in China, Charanka Solar Park (345 MW) in India, Agua Caliente Solar Project (295 MW) in Arizona, USA, and California Valley Solar Ranch (250 MW) in California, USA [5].
The output generated from the abovementioned renewable energy sources is converted to AC with a frequency equal to that of the power system by utilizing power electronic devices. Hence, wind and solar photovoltaics are also referred to as inverter-based resources (IBRs) and are asynchronous. That is, IBRs do not have a physical coupling with the generated frequency, unlike the synchronous generators whose frequency of alternating current is physically coupled to the rotating shaft of the machine [6]. The ongoing transformation towards high renewable penetration has affected the power system dynamics to a great extent.
Power electronic converter (PEC) interfaced devices are deployed to account for the limitations that have arisen due to reduction in conventional synchronous generators. However, the presence of a power electronic dominated system leads to the control of interactions affecting the stability of the power grid. Emulation of synthetic inertia, frequency support, and grid synchronization are some such functionalities supported by PEC interfaced devices. The converter control system comprises of different control loops, such as current control, voltage control, power control, and phase-locked loop (PLL) [6,7,8]. In addition to the proliferation of PECs, factors such as intermittency of wind and solar irradiance, weak immunity to fluctuations in frequency and voltage, low short circuit ratio, reduction of inertia, and grid dynamics ranging over multiple time scales are the factors exacerbating the emerging stability issues [9,10]. An overview of the modern power grid is illustrated in Figure 1. The classification of power system dynamic stability has also been revised recently to incorporate the fast responses of PECs. Accordingly, two new classes of stability, namely resonance stability and converter driven stability, have been added to the traditional classification of rotor angle stability, voltage stability, and frequency stability [11,12].
This review aims to focus on the sub synchronous oscillation (SSO) phenomenon. It is categorized under resonance stability in the revised power system stability classification. SSO can be described as a harmful condition where growing or sustained oscillations occur when the electrical network exchanges energy with two or more power system components at one or more of the natural frequencies of the combined system [13,14]. In the past, SSO has been observed in synchronous generators and high voltage DC (HVDC) systems. Research also demonstrates the potential risk of SSO in flexible AC transmission systems (FACTS). The first sub synchronous oscillation incident was reported in 1970 at the Mohave generating station located in South Nevada. The incident occurred due to the interaction of the turbine generator of a coal power plant with series compensated transmission lines and resulted in critical damages to the mechanical shaft of the turbine generator [14,15]. In 1977, the first sub synchronous torsional vibration event due to the interaction of HVDC controls with a turbine generator was reported in Square Butte in North Dakota [15]. The research conducted in [16] demonstrates that the interaction of the voltage control loop of static var compensators (SVC) at lower short circuit ratios could cause SSO. Hence, it is not a novel phenomenon associated only with IBRs. However, the SSO associated with IBRs is more complex and can cause power system instabilities, leading to severe damage to electrical equipment and mechanical facilities. Several destructive incidents have been reported in USA and China recently [15]. These recent events in the renewable rich grid calls for the immediate need of a real-time monitoring tool to observe the occurrence of harmful SSO and appropriate techniques to suppress them in due time to avoid the undesirable consequences of emerging types of SSO, such as damages to crowbar circuits, tripping of transmission facilities, and disconnection of generators from the network, etc.
Research is underway to develop dynamic SSO monitoring methods as well as cost effective and efficient techniques to suppress the emerging SSO in the renewable rich grid [14,17,18]. The focus of this study is to provide a comprehensive review of the existing SSO monitoring and damping techniques based on renewable energy systems, their limitations, and future research trends.
The rest of the paper is structured as follows. A brief review of the types of SSO is presented in Section 2 followed by a discussion of SSO in renewable energy systems in Section 3. Existing SSO monitoring methods and challenges associated with the existing methods are given in Section 4 and Section 5, respectively. Existing SSO damping methods are given in Section 6. Challenges associated with the existing damping methods are given in Section 7. Finally, a discussion of future research trends and the conclusion are given in Section 8.

2. Sub Synchronous Oscillation Phenomenon

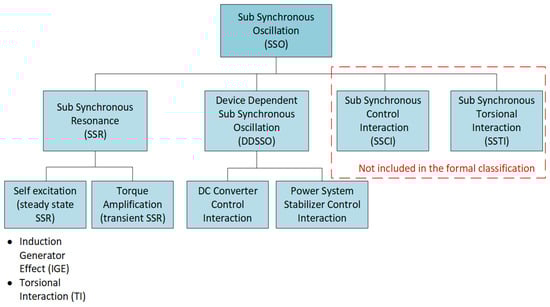

The definition of SSO according to the IEEE Sub Synchronous Resonance Working Group is as follows. “Sub synchronous oscillation is an electric power system condition where the electric network exchanges significant energy with a turbine generator at one or more of the natural frequencies of the combined system below the synchronous frequency of the system following a disturbance from equilibrium” [13]. According to the classification of SSO by the IEEE Sub Synchronous Resonance Working Group, there are two types of SSO, namely sub synchronous resonance (SSR) and device dependent sub synchronous oscillation (DDSSO). Sub synchronous control interaction (SSCI) and sub synchronous torsional interaction (SSTI) are other types of SSO. However, they are not included in the formal classification. Figure 2 below shows an extended classification of SSO based on the formal classification by the IEEE Sub Synchronous Resonance Group and other types of SSO.

2.1. Sub Synchronous Resonance (SSR)

Sub synchronous resonance is defined as the “oscillatory attributes of electrical and mechanical variables associated with turbine generators when coupled to a series capacitor compensated transmission system where the oscillatory energy interchange is lightly damped, undamped or even negatively damped and growing” [13].
Series compensation is deployed in transmission lines to enhance the power transmission capability. The level of series compensation is the ratio of impedance of the series capacitor and the impedance of the transmission line. Generally, the level of series compensation ranges from 20–80% [14,19]. However, when the multi mass turbine generators are connected to series compensated lines, it will cause sustained or growing oscillations due to the exchange of energy between the electric network and the turbine generator at one or more natural frequencies of electrical and mechanical components of the combined system [13,14,20]. This condition is termed as SSR. Self-excitation and torque amplification are the two aspects of SSR.

2.1.1. Self Excitation

Self-excitation is caused when the sub synchronous armature currents are sustained or enhanced by the sub synchronous armature voltage components, resulting from the induced sub synchronous rotor currents [13]. It is also referred to as steady state SSR.
Induction generator effect (IGE) is a form of self-excitation which occurs when the negative resistance to the sub synchronous current as viewed from the armature terminal exceeds the sum of armature and network resistance. It is a purely electrical phenomenon [13,20]. IGE occurs mostly in power systems with a higher level of series compensation [21]. Torsional interaction (TI) is the second type of self-excitation and involves electrical and mechanical dynamics of the system. When the equilibrium of the power system is disturbed, the turbine generator shaft system will oscillate at its torsional natural frequencies, thus inducing armature voltage components. If the induced sub synchronous armature voltage components are close to the electrical natural frequency of the system, a rotor torque will be produced. Self-excitation occurs if the sub synchronous torque component in phase with the rotor velocity deviation is equal to or exceeds the inherent damping torque of the rotating system. This is termed as torsional interaction [13,20]. TI occurs when the ratio of inertia between the turbine and generator are equal. The occurrence of TI in hydro power plants is less, as the generator inertia is much higher than that of hydro turbines. TI in wind power plants is also rare, as the low shaft stiffness of the wind turbine drive train causes torsional modes with low frequency [14,22].

2.1.2. Torque Amplification (TA)

TA is also called transient SSR and can occur due to network faults or switching operations. If the frequency of the electromagnetic torque component induced due to the interaction of the armature magnetic field with the magnetic field of the rotor coincides with the natural frequencies of the generator shaft, large torques will be observed due to resonance of electrical and mechanical natural frequencies. This phenomenon is defined as TA [14]. TA may cause fatigue in turbine generator shafts [13].

2.2. Device Dependent Sub Synchronous Oscillation (DDSSO)

DDSSO is the type of SSO that occurs when the turbine generator torsional system interacts with other power system components, such as HVDC converter controls, power system stabilizers (PSS), static var compensator (SVC), variable speed drives, or high-speed governor controls. In other words, DDSSO may occur due to the interaction of torsional systems of the turbine generator with any power control device having a wide bandwidth or any device having rapid response to speed or power variations in the sub synchronous frequency range [13,20]. DC converter control interaction and power system stabilizer control interaction are the sub classes of DDSSO. DC converter control interaction is caused by the interaction between the speed voltage component of the turbine generator and the firing angle of the of DC converter. Power system stabilizer control interaction occurs due to the voltage modulation of the generator field when there is a significant component of the generator speed in phase with the generator and exciter torque [13].

2.3. Sub Synchronous Control Interaction (SSCI)

SSCI is a new type of device dependent SSO caused by the interaction of a series compensated transmission system with a power electronic device. SSCI is differentiated from SSR, by the fact that it involves only electrical and control interactions and does not involve any mechanical interactions [23]. Although some researchers question whether IGE and SSCI are the same phenomenon, it is worthy to note that SSCI occurs only in asynchronous machines whereas IGE occurs in synchronous and asynchronous machines both [14]. Furthermore, SSCI occurs quicker in comparison to SSR, as it depends on the power electronic controller algorithm and may also grow faster due to the undamped oscillations being involved only with electrical and control interactions and not on mechanical components [14,21,23]. While SSR and SSTI depend on fixed torsional modes of the turbine generator, SSCI does not depend on a fixed frequency [23].

2.4. Sub Synchronous Torsional Interaction (SSTI)

SSTI is a device dependent SSO which occurs when the mechanical masses of a generator interact with power electronic devices, such as HVDC link, FACTS devices, PSS, or other power electronic devices [14,21,23]. SSTI should not be confused with TI. SSTI is different than SSR because the interactions which occur between the generator and power electronic device during SSTI does not involve resonance [14,24]. SVC and HVDC converters are the most vulnerable power electronic devices to SSTI [21]. Risk of SSTI in wind turbine generators is very low. This is because the low shaft stiffness coefficient only leads to low torsional natural frequencies [24,25].
SSO could be triggered by the interaction of various devices with the power network. Potential occurrence of SSO in different devices is summarized in Table 1 below. Figure 3 below indicates the grid interfacing configuration of each WTG type.

3. SSO in Renewable Energy Systems

3.1. SSO in Wind Power Plants

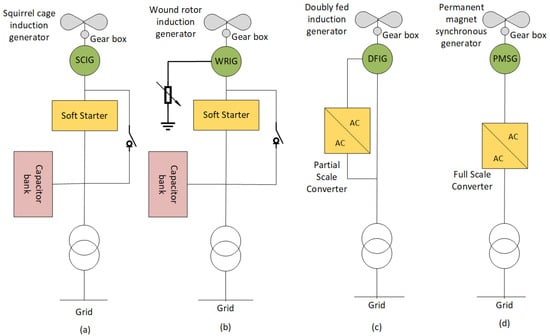

Power generation using wind energy has become a popular form of renewable energy penetration of the power grid. The power transfer capability of existing transmission lines must be increased to accommodate the deployment of large-scale wind farms. This can be done by the addition of series compensation. However, the series capacitors pose a threat to the power system stability as it may cause sub synchronous oscillations in wind turbine generators (WTG). Type 1, Type 2, Type 3, and Type 4 are the four types of WTGs used in grid connected wind power plants. All types of WTGs are vulnerable to SSO [14]. The factors affecting SSO in each type of WTG will be discussed in this section. Table 2 summarizes the possible causes of SSO based on WTG type.

3.2. SSO in Solar PV

The topology of solar PV and Type 4 (PMSG-based) wind turbines is similar, as both utilize full power voltage source converters (VSC). Although the rated capacities of VSCs are different in the two cases, the DC-AC control mechanism and modulation techniques are similar. Hence, they depict similar characteristics when observed from the perspective of the AC grid [40,41]. PV plants and Type 4 WTGs are comparatively immune to SSR than Type 1, 2, and 3 WTGs since they are decoupled from the electric source [42]. However, there is an underlying risk of occurrence of SSCI in grid connected PV systems [43]. Very limited research has been conducted on the occurrence of SSO in grid connected PV plants. SSO in PV plants connected to weak AC networks has been studied in [40]. It shows that resonance could occur at instances when the impedance of the grid connected PV system becomes capacitive in the sub synchronous frequency domain. Further, the eigenvalue analysis conducted in [41] shows that the voltage outer loop controller parameters in a grid connected PV system strongly affect the SSO conditions. It is shown that the current inner loop controller also has an impact on the SSO conditions, although the effect is lesser in comparison.

3.3. SSO in Hydro Power Plant

The risk of occurrence of SSO due to torsional interactions is low in hydro power plants as the inertia of the generator is much higher than the turbine inertia. Although SSO in hydro power is not explored due to the above reason, there is a possible risk of SSO in modern hydro plants employing the doubly fed induction machine (DFIM) with PEC for variable speed operation [14,44].

3.4. SSO in Other Renewable Energy Sources

There are no reported SSO incidents in other renewable energy sources, such as tidal energy, geothermal energy, or biomass energy. However, there could be a possible risk of SSO based on the adapted technologies. For instance, SSO could occur in tidal turbine generators. The power generation process by tidal stream is similar to wind power generation by air currents. Furthermore, tidal turbine generators are either the squirrel cage induction generator (SCIG), doubly fed induction generator (DFIG), or permanent magnet synchronous generator (PMSG) [45]. Hence, there is a potential risk of SSO due to interaction of tidal turbine generator converter control with components of the power grid. Risk of SSO in geothermal energy or biomass energy-based generation systems has not been discussed in the literature.

4. Existing SSO Monitoring Techniques

Although ample research has been done on the causes of SSO, there is a pressing need for the development of real-time SSO monitoring techniques to identify possible threats and activate appropriate mitigation measures to ensure the safety and reliability of the power system. Identification of SSO parameters is a key factor in the process, and many SSO parameter identification techniques are presented in the literature.
Existing oscillation identification techniques can be classified under three groups: time domain, frequency domain, and time-frequency domain methods. Prony [46] estimation of signal parameters via the rotational invariance technique (ESPRIT) [47] and particle swarm optimization [48] are time domain methods and use instantaneous voltage and current measurements. However, these methods require details of the system model to determine the parameters. Hilbert Huang transform [49] and variational modal decomposition (VMD) [50] are time-frequency domain methods and can be used to obtain parameters of all oscillation modes although it requires extensive computations. Frequency domain methods are based on Discrete Fourier Transform (DFT) [51] and give accurate results with improved DFT algorithms. However, spectrum leakage, spectrum aliasing, and fence effect are the main issues related to DFT. Therefore, as an alternative to overcome the above issues, artificial intelligence (AI) has been recently used for power system oscillation identification by feature extraction of historical data [52]. The SSO monitoring techniques presented in the literature can be discussed under the following three sections.

4.1. SSO Parameter Estimation-Based Techniques

The SSO parameter estimation-based techniques identifies the occurrence of SSO by using algorithms that determine the SSO parameters. The algorithms are designed to estimate parameters, such as frequency, amplitude, and damping. Hence, the severity of the oscillations can be determined, and the mitigation measures can be activated accordingly. Few such methods are discussed in Table 3 below.

4.2. Techniques Based on Sub Synchronous State Estimation (SSE)

Sub synchronous state estimation is another category of SSO monitoring techniques. State estimation (SE) in general is used to obtain the most accurate estimate of the system state using mathematical modeling. Its primary objective is to reduce the possible errors and inconsistencies in phasor measurement unit (PMU) data and provide reliable state estimates such that it can be used for dynamic monitoring and control the power grid [59,60]. Sub synchronous state estimation is similar to conventional SE. However, frequency measurements obtained at different locations may vary unlike in the conventional SE method. Therefore, the common sub synchronous frequency must be determined prior to the estimation of the state vector [61]. SSE can therefore be used to monitor SSO in the power grid as the method provides a global view of SSO as well as the source/path of the oscillation. However, limited research has been done in this context.
Wide area monitoring and the early warning system for SSO presented in [61] uses SSE to observe the SSO dynamics and determine the stability of SSO using oscillation damping based on the least square estimation algorithm and by the analysis of frequency characteristics using an aggregated impedance model. Depending on the pre-determined stability criteria, if harmful SSO is detected, an alarm will be sent such that relevant actions could be initiated to mitigate the adverse effects of SSO. This method can overcome the issue of the inability of the existing PMUs to capture inter harmonics accurately as it uses locally deployed sub synchronous phasor measurement units (S-PMUs) to capture data. Although time delays due to data processing and communication is possible, the time delays are low and do not have a significant impact on real-time monitoring of the system.

4.3. Artificial Intelligence (AI)-Based Techniques

The use of AI-based techniques for SSO monitoring is an emerging area of research. Since SSO does not always occur, performing the above mentioned SSO parameter identification techniques on each PMU data will be time consuming and unnecessary. The applicability of parameter identification methods for real-time oscillation monitoring is therefore impractical. AI-based techniques have been proposed and validated in the recent past as a possible solution to the above drawback. Some of the methods are given below.

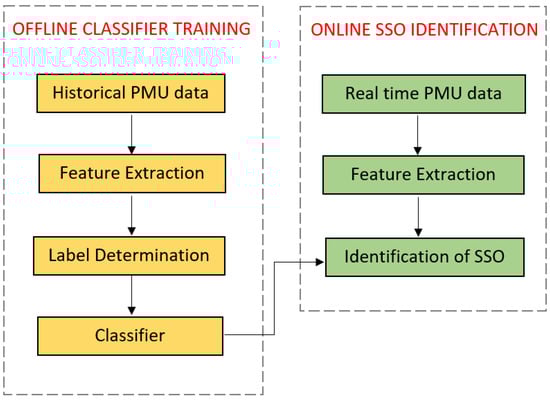

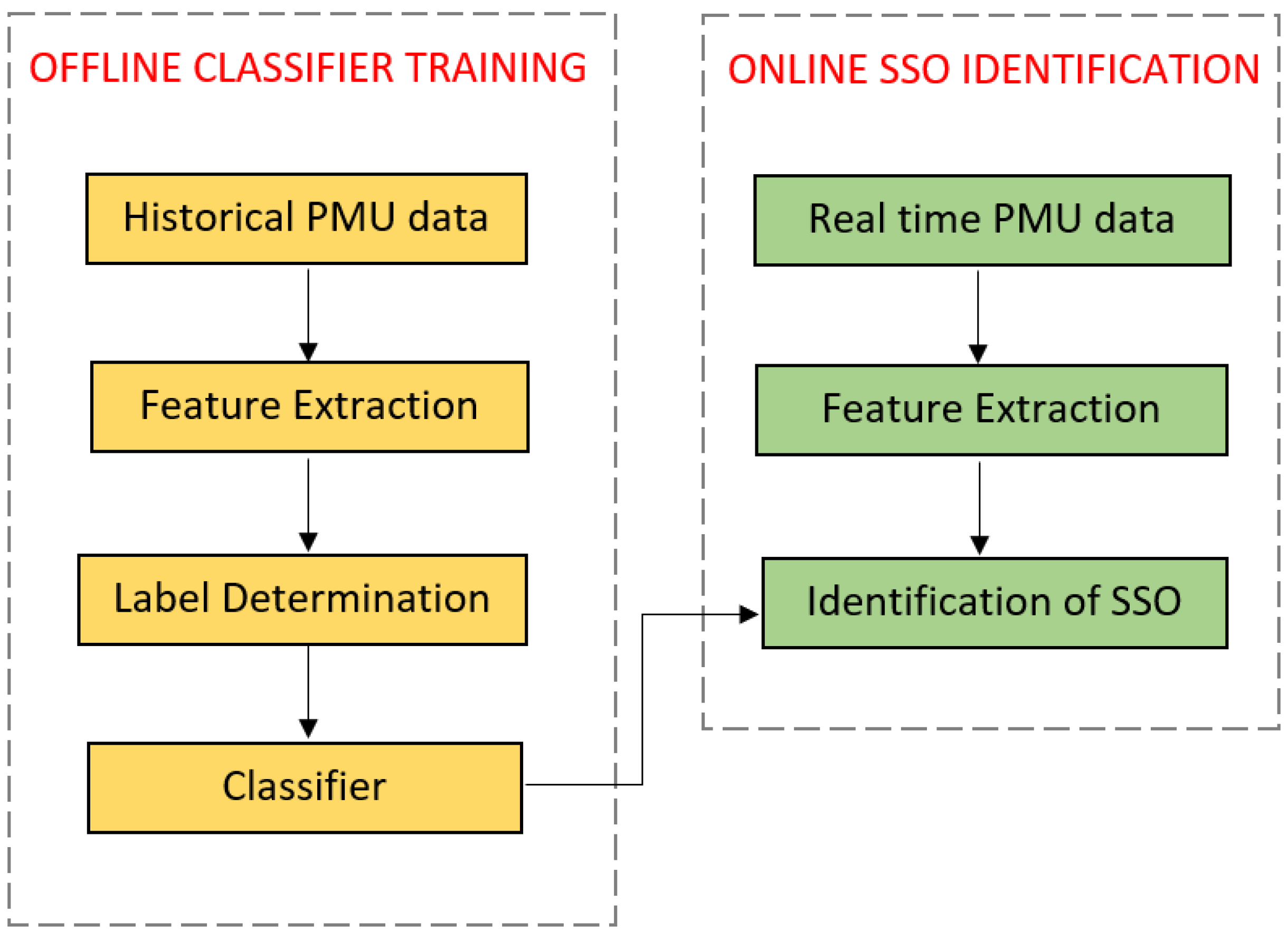

The data driven SSO identification method introduced in [52] detects SSO from a large set of PMU data. Accordingly, the multiple support vector machine (SVM) algorithm is used to detect SSO. Appropriate SSO parameter identification techniques can then be used to estimate SSO parameters. The advantage of this method is that it can detect SSO from a vast set of PMU data, and relatively low computations are required as SSO parameter identification needs to be carried out only in the selected data. Therefore, this method can be used for real-time monitoring of SSO in the power grid.
Another technique for SSO online monitoring and automatic alarming is presented in [62], where Fast Fourier Transform (FFT) is applied to the PMU current phasor to obtain sub synchronous frequency components. Harmful SSO components are then detected by a trained SVM algorithm, and finally, a threshold determined by frequency susceptibility, amplitude attenuation, and energy accumulation is used to decide whether to transmit an alarm signal.
The decision Tree (DT)-based SSO identification and alarming method in [63] uses historical PMU data to identify the SSO threshold using a DT algorithm where the threshold depends on the functional relation between the extracted feature vector and the label, and the threshold can be adjusted by changing the labeling criteria to suit the requirement. Once the threshold is identified using PMU data offline, online SSO detection can be carried out. For suspected SSO, FFT analysis is performed to calculate the amplitudes and frequency. If the frequency of suspected SSO is closer to the torsional vibration frequency of the generator shaft, the amplitude is large or persist for a longer duration, an alarm signal will be sent.
The research work [52,62,63] shows a similarity. Hence, their basic process can be recapped as shown in Figure 4. Further, a comparison of the above research work with respect to the basic steps is given in Table 4. Current phasor amplitude data obtained by PMU measurements is used for feature extraction in all three methods given above.
It is worthy to note that the existing methods are based on deterministic machine learning (ML) algorithms, such as SVM and DT. The DT algorithm has less computations although it could be subjected to overfitting [52]. SVM on the other hand is a more robust algorithm. Classification of data is done by finding the optimal hyperplane with a considerable margin [64]. However, deterministic ML algorithms do not reflect any idea regarding the uncertainty involved with the prediction. The use of probabilistic ML algorithms is therefore a better choice for decision making as it gives information regarding the level of confidence of the predicted outcome.

5. Challenges Associated with Existing SSO Monitoring Techniques

SSO must be monitored using appropriate techniques to identify their severity. If the severity is high, suitable protection mechanisms can be activated. However, more research must be dedicated to address the limitations of the available techniques. Based on the review of existing SSO monitoring methods, the following challenges can be identified:
  • Most of the SSO monitoring methods discussed in Section 4 above use measurements obtained by PMUs. Phasor measurement units provide information regarding current and voltage phasors, frequency, and rate of change of frequency using phasor estimation algorithms. Furthermore, PMUs scattered at different locations can transmit data to the phasor data concentrator (PDC) in a span of approximately 1 µs, enabling efficient and reliable real-time monitoring of power system dynamics [65,66]. However, the following key issues associated with synchro phasor technology poses limitations on SSO detection using PMU measurements:
    Available PMU technology is designed only to extract the fundamental component of the signals. The increased use of renewable energy sources and addition of power electronic devices to the grid have introduced a large number of inter harmonics that are non-integer multiples of the fundamental signal, thus changing the measurement of the fundamental component.
    Furthermore, one sub synchronous oscillation frequency component could be caused by two harmonics, resulting in aliasing [67]. Therefore, appropriate techniques must be employed to address the above issues and enhance the performance of PMUs before using PMU measurements for SSO detection.
  • The maximum available reporting rates of PMUs installed at present are limited to 100 Hz/120 Hz. If the SSO frequency is above half of the reporting frequency, the corresponding frequency cannot be restored according to the Nyquist Shannon sampling theorem [68]; hence, the SSO cannot be monitored accurately. In case the reporting rate of the installed PMUs is 50 Hz/60 Hz, the frequencies above 25 Hz and 30 Hz, respectively, cannot be observed.
  • Although PMU measurements are commonly used for the available SSO monitoring techniques, certain algorithms, such as the sub/super synchronous algorithm proposed in [57], require the use of instantaneous signals for SSO identification as PMU data are insufficient. In such cases, data from fault recorders must be used. However, acquiring data from fault recorders will be difficult and time consuming as they are placed in local stations individually. Furthermore, direct comparisons cannot be made among the non-time synchronized data obtained from fault recorders at different locations [54].
  • The computational burden of noise filtering processes of standard SSO identification algorithms can be stated as another challenge associated with existing techniques [52]. Hence, advancements must be made to eliminate the noise component from signals used for SSO identification.

6. Existing SSO Mitigation Methods

Sub synchronous oscillations affect the reliability of the power grid as severe consequences may occur if they are not suppressed in due time. Recently reported sub synchronous oscillation events highlight the requirement of efficient mechanisms to alleviate the emerging SSO conditions due to the deployment of large-scale wind farms and grid connected solar PV plants. Existing techniques for SSO damping are discussed below.

6.1. FACTS Devices

The modification of FACTS devices has been identified as an efficient way of alleviating SSO conditions although it is not the primary role of FACTS devices. The literature reveals that different types of FACTS devices have been modified to achieve successful damping of SSO. Table 5 gives an overview of the existing SSO mitigation techniques based on FACTS devices.

6.2. Converter Control of Distributed Energy Resources (DER)

Although FACTS devices can be used to damp SSR effectively, it is not economical to use FACTS devices just for the purpose of SSR mitigation due to the high cost involved. The modification of converter controls is a cost-effective alternative. Existing SSR damping methods based on the modification of converter controllers of distributed energy resources is discussed below.

6.2.1. Wind Farm-Based Converter Controls

Power generation from wind energy has increased substantially over the past decade. WTGs of Type 3 and Type 4 are the most deployed configurations in large scale wind farms. Type 3 DFIG-based WTG is composed of the grid side converter (GSC) control and rotor side converter (RSC) control as shown in Figure 5. The primary task of the GSC loop is to maintain the stator terminal voltage and DC link voltage at constant levels, whereas the RSC control loop regulates the stator reactive power and electrical torque [89].

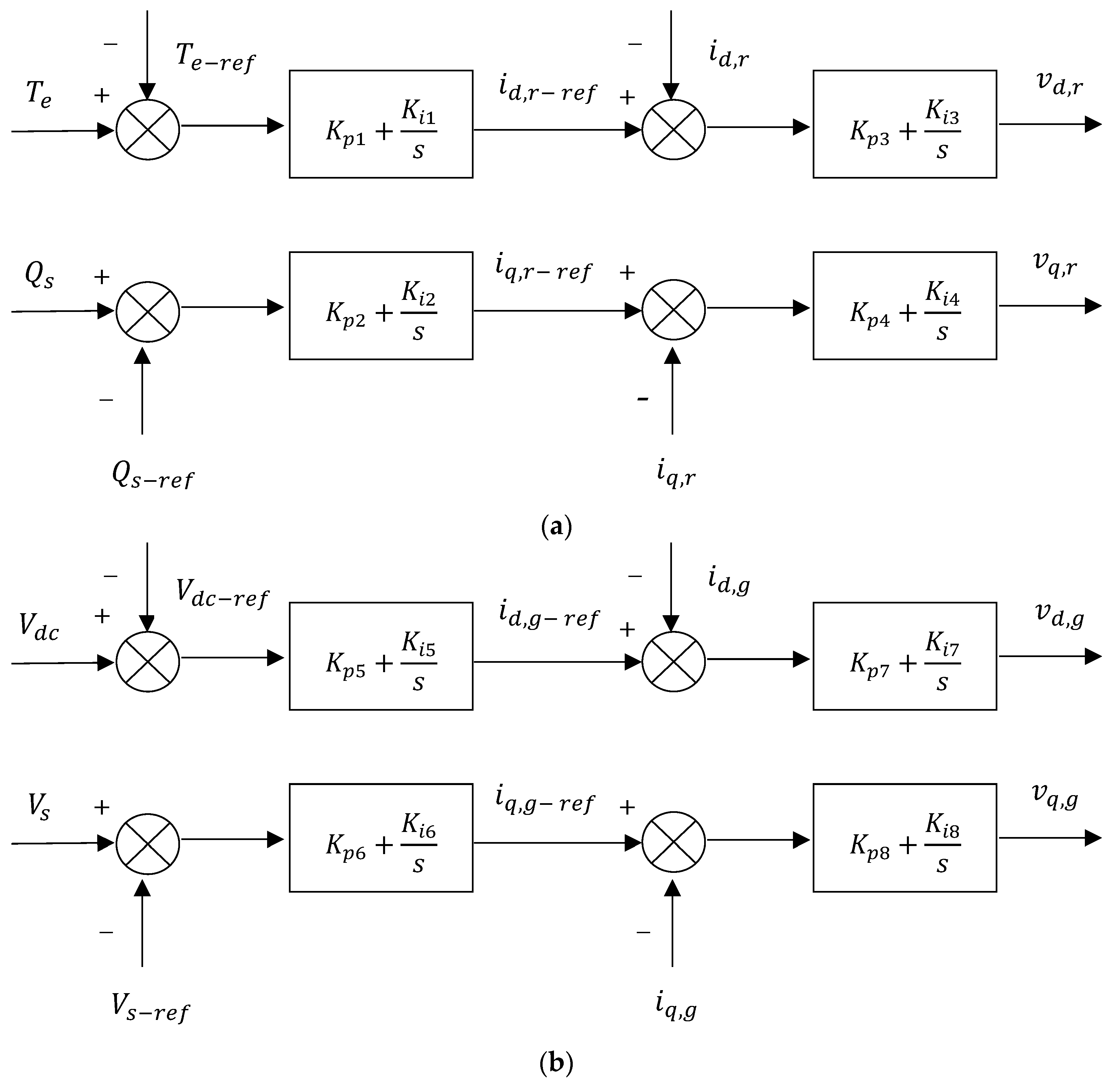

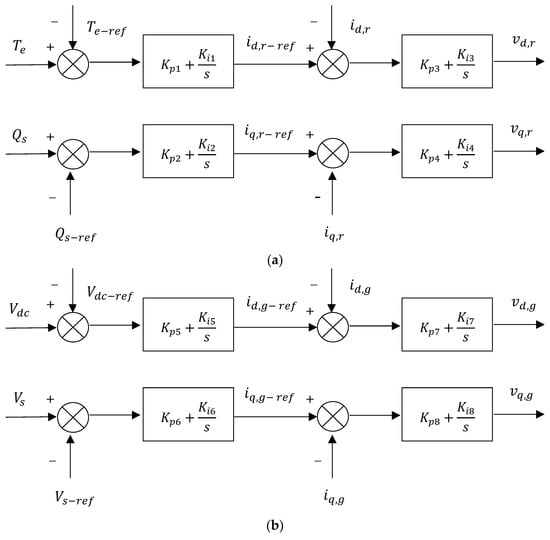

The GSC and RSC control loops of the DFIG WTG can be modified to mitigate SSR conditions. Table 6 summarizes the existing SSO damping techniques based on the modification of the above controllers. Furthermore, the RSC current controller loop has a stronger impact on the mitigation of SSR compared to the GSC controller [14]. The comparison of a supplementary damping controller added to RSC and GSC demonstrates that the RSC damping controller shows more damping and robustness to variations in operating conditions [90].

6.2.2. Solar PV-Based Converter Controls

There has been a significant increase in the penetration of large-scale grid connected photovoltaic (PV) plants recently. Although the addition of PV farms increases the risk of occurrence of SSR, modifications can be made by the addition of supplementary controllers for the damping of SSR. Table 7 summarizes the existing PV-based damping methods.

6.2.3. Battery Energy Storage System-Based Converter Controls

With the development of IBR technologies, there has been a widespread use of battery energy storage systems (BESS) in smart grids recently. A method to obviate SSR using BESS has been proposed in [18] where a supplementary damping controller is designed for the active power control loop of the BESS. This method uses PMU data to obtain the input signal of the damping controller. The effectiveness of the proposed controller is demonstrated with up to 5 milliseconds of communication delay of WAMS signals.

6.3. Other SSO Damping Methods

In addition to FACTS-based damping controllers and the modification of converter controls, several other methods have also been reported in the literature. Some of them can be applied during network planning and design while the others involve modifications of the existing system components. Several methods are discussed below.
Special purpose shunt voltage source converter (VSC)
Due to the cost considerations, use of FACTS devices for SSO damping is limited to instances when it is already installed in the network. Using shunt-VSC with well-tuned filters that could extract sub synchronous frequencies has been proposed as an economically feasible alternative [89]. A shunt VSC along with a properly designed controller could dissipate the resonance power resulting from SSCI by absorbing the sub synchronous currents, thus damping out the SSCI [106]. A robust SSR damping control strategy is proposed in [107] where the sub harmonic voltage source converter (SVSC) injects sub synchronous currents to stabilize SSR. The parameters of the damping control strategy are tuned using the genetic algorithm and simulated annealing algorithm (GASA).
Proper control of series capacitor
Series compensation is a popular and effective means of increasing the power transfer capability of transmission lines although it increases the risk of SSO. A possible solution for this is proposed in [108] where a control algorithm is used to bypass the series capacitor when SSR is detected and reinsert when the risk of SSR is reduced. This method is cost effective as it can be implemented at no extra cost.
Sub synchronous frequency relay
Sub synchronous frequency relay acts as a protection mechanism to prevent damages to equipment such as crowbar circuits and series capacitors if SSR occurs. A microprocessor-based sub synchronous frequency relay is proposed in [109]. It contains a range of tripping frequencies allowing the grid operators to customize settings according to the requirement. Another technique to detect sub harmonic components using voltage and current detectors is proposed in [110]. The sub harmonic relay will calculate individual sub harmonic components as well as the total sub harmonic distortion factor and generate an alarm or isolate the system based on the calculated values and user defined threshold levels.
Power system design improvements
Factors such as the level of series compensation and grid strength show a direct impact on the SSR phenomenon. The net series compensation level of the power grid increases due to external faults. If it exceeds a certain level, SSR could occur. Therefore, the series compensation level should be kept at a permissible level when the power network is designed such that the increased series compensation levels due to faults do not trigger SSR [14].
It has been discussed in Section 3.1 that type 4 WTGs interact with weak AC grid causing SSR. Therefore, the risk of occurrence of SSR could be minimized if appropriate measures are taken to increase the strength of the power grid [89].
Although many SSO mitigation methods have been discussed in the literature, each technique has its own advantages and disadvantages. A summary of the existing mitigation methods with the advantages and limitations is given below in Table 8.

7. Challenges of the Existing Mitigation Methods

It is vital to suppress the SSO conditions in due time to ensure the stability of the power grid. Despite the many techniques proposed in the literature to mitigate the harmful SSO, there are challenges that must be addressed to develop efficient and practical mitigation strategies. The following challenges have been identified based on the above review:
  • Although ample research has been done on the use of FACTS devices for the mitigation of SSR and are proven to be effective, it is not economical to use FACTS devices just for the purpose of SSR damping due to the high cost involved in installation and maintenance. Therefore, research is required to find more cost-effective solutions for the mitigation of SSO.
  • The augmentation of converter controls is a cheaper alternative for SSO damping. However, most of the proposed SSO damping control strategies are based on the modification of GSC and RSC of type 3 (DFIG-based) WTGs. Limited research has been conducted so far based on the modification of type 4 WTGs and PV plants for SSO damping. Additionally, some of the proposed methods fail to damp SSO under practical scenarios. For instance, the damping controller in [17] cannot damp out the SSO successfully when the time delay associated with the WAMS signal used as the input signal to the damping controller is taken into consideration.
  • Experimental validation of the proposed SSO damping methods has been conducted based on the model aggregation technique in simulation studies. However, a practical system could be comprised of different types of WTGs and controllers which cannot be considered during the simulations. Hence, the performance of the damping controllers may not be as satisfactory under actual conditions.
  • Although special purpose shunt VSC is an economically feasible solution for the mitigation of SSO, the challenge in tracking the fundamental and sub/super synchronous components which keep varying during the oscillation incident pose limitations on the use of special purpose shunt VSC for SSO damping [89].

8. Conclusions and Future Work

This paper presents an overview of the types of SSO and the causes that initiate SSO in different types of renewable energy resources followed by a comprehensive review of the existing sub synchronous oscillation monitoring and damping techniques and their limitations. In conclusion, it must be noted that although the transition of the power grid from conventional energy sources to renewable energy brings out a more sustainable power network, the expected benefits could be achieved only if suitable measures are taken to ensure the reliability of the grid. Emerging types of SSO, such as SSTI and SSCI discussed in this paper, are some such issues to be addressed to assist a smoother transition towards a renewable rich grid. Existing monitoring and control mechanisms have not been capable of mitigating the recent SSO incidents that have taken place in USA and China. Complex dynamics associated with the recent technological developments must be accommodated in monitoring and control mechanisms to enhance the resilience of the grid. Despite the many research studies proposed thus far, only a few methods can be implemented practically due to various concerns. Hence, more research must be dedicated to address the challenges in the existing monitoring and damping methods to ensure the stability of the grid. Some research needs can be listed as follows:
  • As PMUs are the widely used technology at present for dynamic monitoring of the power grid, measures should be taken to improve the accuracy of sub synchronous components reported by them. If not, the algorithms developed to identify SSO components will be meaningless. Hence, further research must be conducted to develop PMUs that can report sub synchronous frequencies accurately.
  • Studies on the impact of noise on SSO identification and techniques to eliminate noise from the measurement signals is another area of research requiring attention.
  • Use of Artificial Intelligence for SSO identification is an emerging area of research. As the SSO does not occur all the time, running algorithms to calculate SSO parameters of all PMU data will be unnecessary. Research is required to develop both deep learning (DL) and machine learning (ML) techniques for SSO identification.
  • Further studies are required to develop cost effective SSO damping techniques based on the modifications of PV plant converter controls.
  • A method to trace fundamental and sub/super synchronous components simultaneously is required such that effective SSO damping could be achieved.

Author Contributions

The authors contributed to this manuscript as follows: conceptualization, methodology and formal analysis were done by U.P. and R.Z.; writing—original draft preparation was done by U.P.; writing—review and editing was done by U.P., R.Z. and A.M.T.O.; supervision was done by R.Z. and A.M.T.O. All authors have read and agreed to the published version of the manuscript.


This research received no external funding.

Data Availability Statement

Not applicable.


The authors would like to acknowledge Auckland University of Technology for the conductive research environment that enabled the undertaking of this research.

Conflicts of Interest

The authors declare no conflict of interest.
