Thermodynamic, Exergoeconomic and Multi-Objective Analyses of Supercritical N₂O-He Recompression Brayton Cycle for a Nuclear Spacecraft Application

Abstract

Detailed thermodynamic, exergoeconomic, and multi-objective analysis are performed for a supercritical recompression Brayton cycle in which the advanced working medium mixture of nitrous oxide and helium (N₂O–He) is utilized for power generation. The thermodynamic and exergoeconomic models are propitious based on the standard components’ mass and energy conservation, exergy balance equation, and exergy cost calculation equation. An investigation of the sensitivity parametric is considered for judging the impact of crucial decision variable parameters on the performance of the proposed Brayton cycle. The proposed cycle’s performance is evaluated by systematic analysis of the thermal efficiency (η_th), exergy efficiency (η_ex), total cost rate ($\stackrel{.}{C}$_total), levelized cost of electricity (LCOE), and the total heat transfer area (A_total). Furthermore, multi-objective optimization is adopted from the viewpoint of the first and second laws of exergoeconomics to find the optimum operating parameters and to improve the circular’s exergoeconomic performance. The final results illustrate that the optimization calculation is based on the fact of the exergoeconomics method; the whole system produces electrical power of 0.277 MW with $\stackrel{.}{C}$_total of USD 18.37/h, while the η_th, η_ex, A_total, and LCOE are 49.14%, 67.29%, 165.55 m² and USD 0.0196/kWh, respectively. It is concluded that the work exergy destruction for the reactor and turbine is higher than that of other components; then, after the multi-objective optimization analysis, the η_th and η_ex improved by 2.08% and 5.07%, respectively, and the $\stackrel{.}{C}$_total, A_total, and LCOE decreased by 13.99%, 0.01%, and 5.13%, respectively.

1. Introduction

Concerns over restrictions of mass, mission time, and long-distance interstellar flight suggest an essential role for the nuclear electric propulsion (NEP) system in future deep space, even extrasolar exploration. The NEP system is simple electric propulsion in which the electricity is derived from a nuclear reactor. The thrusting fluid (gas, ion, plasma) receives its energy to accelerate from the application of electric fields, either directly heating the gas as in an arc jet, using an electric field to accelerate ions, or a magnetic field as in the magnetoplasmadynamic (MPD) approach. In order to successfully utilize nuclear power, many studies have been carried out to improve thermoelectric conversion efficiency, be lightweight, and reduce the power generation cost of spacecraft. High-efficiency thermoelectric conversion devices include static and dynamic conversion methods [1].

Static methods:

• Thermocouple conversion system;
• Thermionic conversion system.

Dynamic methods:

• Brayton conversion system;
• Rankine conversion system;
• Stirling conversion system.

The Brayton cycle has higher thermoelectric conversion efficiency than other conversion methods. It can convert approximately 20% to 35% of the whole thermal energy transported by the reactor part into electrical energy through dynamic mechanical processes [2]. Recently, the recompression Brayton cycle power generation has become a research frontier due to its advantages of compact and higher thermal efficiency [3] with a simple structure [4]. The recompression Brayton cycle is shown in Figure 1. To select suitable supercritical cycle structures, a lot of research was carried out during the period, with over 40 structures studied [5]. In 2015, Sulaiman’s research found that a system with a re-compressor has advanced performance compared to the simple system, regeneration system, pre-compression system, partial cooling system, segmented expansion system, and other structures [6]. The cycle with a re-compressor can weaken the influence of the “pinch point” of the cycle that may occur in the recuperator and regenerator, and the supercritical cycle is found to be more efficacious [7,8].

For the supercritical Brayton cycle, Sarkar [9] studied the exergy and optimization of the cycle and investigated the influence of pressure ratio, cycle energy, and thermal efficiency. Sarkar and Bhattacharyya [10] optimized the supercritical recompression Brayton cycle, achieving the maximum efficiency and the thermal efficiency improved by 3.5% when used reheating. Wang et al. [11] adopted the genetic algorithm (GA) method for the optimization of cycle parameters to obtain the maximum efficiency (thermal efficiency and exergy efficiency). P. Serrano et al. [12] designed a new arrangement scheme in which a bypass low-temperature cladding source replaced one of the regenerators. In the new arrangement scheme, high system efficiency can be achieved at the high inlet temperature of the turbine with medium pressures.

A revolutionary supercritical working medium, nitrous oxide and helium (N₂O–He), was performed for the proposed recompression Brayton cycle [13] to convert thermal energy into electricity. In the N₂O–He mixture’s components, the N₂O part has thermodynamic properties such as molecular weight, critical pressure, and temperature, causing almost comparable behaviors under operating conditions that may improve the N₂O system’s performance and can use the existing CO₂ configuration. Sarkar J. [14] utilized supercritical N₂O (S-N₂O) as the working medium to combine the Brayton cycle with the new generation nuclear reactors. Its thermal efficiency is higher than that of the S-CO₂ system. Characteristics of several critical working fluids at the critical point are shown in

Table 1. Physical properties of the working medium at critical point [18].

Name	Molecular Formula	Critical Temperature (K)	Critical Pressure (MPa)	Critical Density (kg/m3)
Carbon Dioxide	CO2	304.05	7.38	467.6
Ethane	C2H6	305.35	4.87	206.2
Nitrous Oxide	N2O	309.55	7.24	452.0
Sulfur Hexafluoride	SF6	318.75	3.75	724.3.
Water	H2O	647.05	22.13	322.0

. Using these mixtures (CO₂-He [15], CO₂-C₂H₆/SF₆ [16], binary mixture [17]) can further improve the thermodynamic cycling performance of different Brayton cycles. The mixed working medium Brayton cycle research has apparent advantages over the pure S-CO₂ Brayton cycle.

The research mentioned above is devoted primarily to thermodynamic analysis, and we know that comprehensive exergoeconomic analyses work on the recompression supercritical N₂O–He mixture Brayton cycle has not been reported yet. Moreover, some literature merely concerns the exergoeconomic analyses of the S-CO₂ Brayton system. A detailed exergoeconomic investigation and thermoeconomic analysis needs to also be conducted.

In this study, energy, exergy, and exergoeconomic theory of the recompression Brayton cycle are analyzed using the novelty working medium N₂O-He mixture with the mole fractions of N₂O and He of 85% and 15% (85%N₂O–15%He). Firstly, comprehensive energy and exergy studies are analyzed, and the exergy cost theory is applied to the cycle. Moreover, a parameter sensitivity analysis is presented to reveal the influence of the proposed cycle on the thermal and exergy efficiency and total cost of the nuclear-powered spacecraft. Finally, from the perspective of exergoeconomics, the supercritical N₂O–He Brayton cycle is optimized, and the appropriate parameters of various components’ thermal efficiency (η_th), exergy efficiency (η_ex), total cost rate ($\stackrel{.}{C}$_total), total heat transfer area (A_total), and levelized cost of electricity (LCOE) are selected by the GA method.

2. System Description and Assumptions

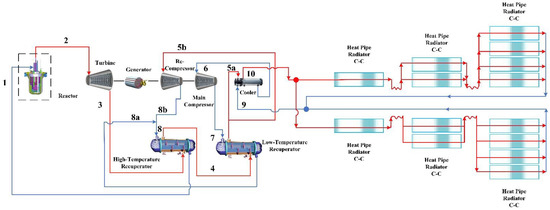

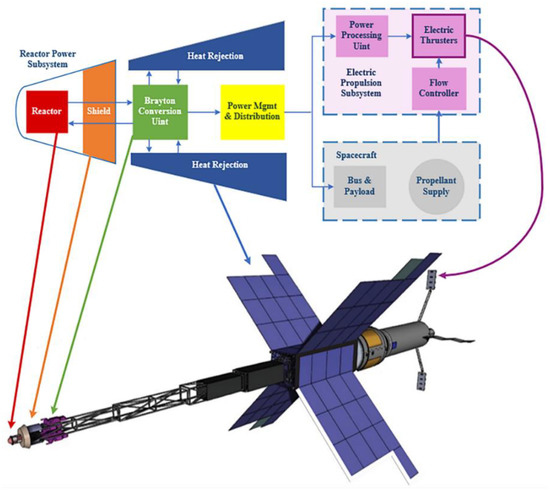

An NEP system with a typical Brayton cycle unit can be separated into six subsystems, depicted in Figure 2. The NEP system’s six subsystems are the reactor core, shielding, power conversion unit, heat dissipation, power management and distribution (PMAD), and electric propulsion (EP). The supercritical 85%N₂O–15%He recompression Brayton conversion unit consists of a heat source reactor (R), a TB (turbine), an MC (main compressor), an RC (recompression compressor), a G (generator), an HTR (high temperature recuperator), an LTR (low temperature recuperator), a cooler, and a radiator. The recompression Brayton cycle schematic diagram is presented in Figure 3. The T-s diagram for the proposed corresponding S-(N₂O-He) recompression Brayton cycle is shown in Figure 4.

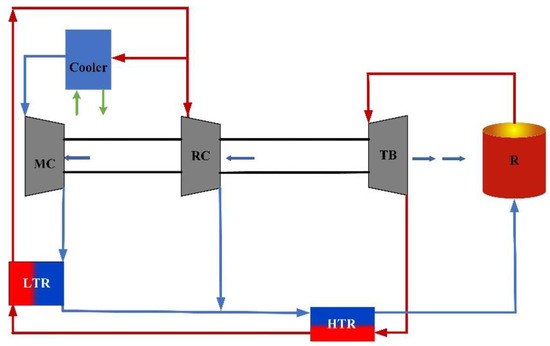

The supercritical N₂O-He stream leaving the high temperature reactor enters the TB as a working fluid (1–2), where it expands and produces power (2–3). Then, the expansion flow successfully flows through the HTR and LTR to heat the recompression flow (3–4–5). The air flows out of the LTR and is split into two streams (state 5). One stream,5a, has a high mass flow rate, and the other stream, 5b, has a low mass flow rate. The partial flow of 5a is cooled in the cooler component (5a–6) and then compressed in the MC to higher pressure (6–7). The stream flowing out of the MC absorbs heat from the LTR (7–8a) and is mixed with the steam, which is compressed by RC to the same pressure as MC (5b–8b). The two partial split streams are mixed at state point 8 and then enter into the HTR and are heated before flowing into the reactor core part (8–1). In this way, a complete thermodynamic cycle is formed.

The space nuclear reactor system of the actual recompression Brayton cycle includes the nuclear reactor core, high temperature recuperator, low temperature recuperator, heat accumulators, panel-type radiation radiators, turbine machinery, main compressor and re-compressor machinery, heat pipe and other complex and auxiliary equipment. The equipment structure is complex in the actual operation, and the operating condition is variable, so the system needs to be simplified. After the system is simplified, the cycle process can be better modeled to explore its cycle performance.

The study of this paper is conducted on the general assumptions as below:

• All processes reach the stable state.
• Turbine and compressor processes are adiabatic.
• The pressure loss of the heat exchanger is negligible.
• Kinetic energy and potential energy and heat transfer to the environment of the system are neglected.
• The efficiency of the turbine (TB) and compressors (MC and RC) is isentropic efficiencies.
• The effectiveness of the HTR and the LTR is considered.

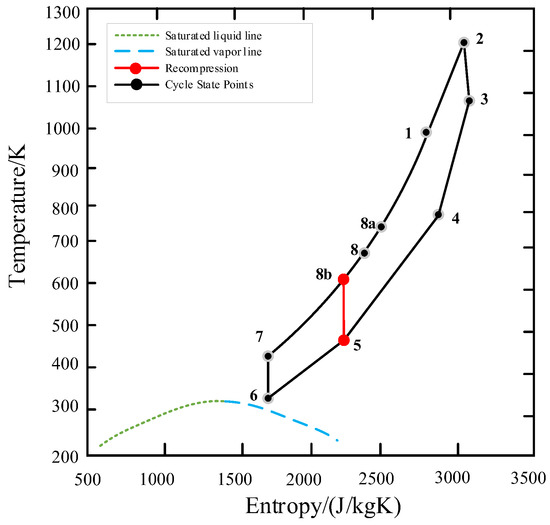

According to the above assumptions, the actual recompressed Brayton cycle space nuclear energy system is simplified to the recompressed closed Brayton cycle system, which becomes the most basic thermal cycle process composition.

3. Methods and Model Design

3.1. Thermodynamic Analysis

This work extends previous research [13,19], particularly concerning each state point’s thermodynamic and exergy analysis.

Table 2. Range of the decision operating parameters.

Parameter	Range
Split ratio—x	0.25–0.4
Pressure ratio—π	2.5–3.5
MC inlet temperature—T6	315–340 K
TB inlet temperature—T2	1000–1200 K
MC inlet pressure—P6	7.4–8.4 MPa

lists calculation equations for each component’s energy, exergy, and mass balance.

The study of the Brayton cycle is based on the theory of mass, energy, and exergy equilibrium, which is shown as follows:

$${\displaystyle \sum \stackrel{.}{m_i}}={\displaystyle \sum \stackrel{.}{m_e}}$$

(1)

$$\stackrel{.}{Q}-\stackrel{.}{W}={\displaystyle \sum \stackrel{.}{m_e}}{h}_e-{\displaystyle \sum \stackrel{.}{m_i}}{h}_i$$

(2)

$$\stackrel{.}{E_Q}+\sum {\stackrel{.}{E}}_i={\stackrel{.}{E}}_W+\sum {\stackrel{.}{E}}_e+{\stackrel{.}{E}}_{De}$$

(3)

where subscript i represents the value of the entry state point, and e represents the value of the exit state point. $\stackrel{.}{E}$_De is the exergy destruction rate in the component.

Stream exergy consists of four main parts, which are $\stackrel{.}{E}$_ph (stream physical exergy), $\stackrel{.}{E}$_ch (stream chemical exergy), $\stackrel{.}{E}$_k (stream kinetic exergy), and $\stackrel{.}{E}$_p (stream potential exergy). Regardless of the $\stackrel{.}{E}$_k and $\stackrel{.}{E}$_p of the working medium, total exergy of the working medium $\stackrel{.}{E}$_total is modified as follows [20]:

$${\stackrel{.}{E}}_{total}={\stackrel{.}{E}}_{ph}+{\stackrel{.}{E}}_{ch}$$

(4)

In the work at this stage, there is a chemical reaction process of the working medium in the cycle, and the working fluid passes through different system components, so only consider the working medium’s physical exergy. The calculation formula can be defined as [20]:

$${\stackrel{.}{E}}_{ph}=\stackrel{.}{m}\times \left[\left(h-h_0\right)-T_0(s-s_0)\right]$$

(5)

In the equation, the subscript “0” indicates the value of environmental conditions. T₀ is space environment temperature. The environmental conditions for the proposed cycle are T₀ = 298 K and P₀ = 0.101 MPa.

The effectiveness for each recuperator is defined and can be estimated as [19].

$${\epsilon }_{HTR}=\frac{T_3-T_4}{T_3-T_8}$$

(6)

$${\epsilon }_{LTR}=\frac{T_4-T_5}{T_4-T_7}$$

(7)

The thermodynamic model for the HTR and the LTR are given by [21]:

$$h_3-h_4=h_1-h_8$$

(8)

$${\stackrel{.}{m}}_4(h_{8a}-h_7)={\stackrel{.}{m}}_7(h_4-h_5)$$

(9)

The efficiency expressions for the TB, MC, and RC can be calculated by [14]:

$${\eta }_{TB}=\frac{h_2-h_3}{h_2-h_{3s}}$$

(10)

$${\eta }_{MC}=\frac{h_{7s}-h_6}{h_7-h_6}$$

(11)

$${\eta }_{RC}=\frac{h_{8s}-h_5}{h_8-h_5}$$

(12)

The subscript “s” is the isentropic process.

The thermodynamic calculation relations of the TB, MC, and RC are as follows [14]:

$${\stackrel{.}{W}}_{TB}={\stackrel{.}{m}}_2(h_3-h_2)$$

(13)

$${\stackrel{.}{W}}_{MC}={\stackrel{.}{m}}_7(h_7-h_6)$$

(14)

$${\stackrel{.}{W}}_{RC}={\stackrel{.}{m}}_{5b}(h_8-h_5)$$

(15)

Specific heat input of the reactor ($\stackrel{.}{Q}$_R) is expressed as:

$${\stackrel{.}{Q}}_R={\stackrel{.}{m}}_1(h_2-h_1)$$

(16)

The net power of circulating, W_net, is defined as:

$${\stackrel{.}{W}}_{net}={\stackrel{.}{W}}_{TB}-\left({\stackrel{.}{W}}_{MC}+{\stackrel{.}{W}}_{RC}\right)$$

(17)

The system thermal efficiency can be calculated by:

$${\eta }_{th}=\frac{{\stackrel{.}{W}}_{net}}{\stackrel{.}{Q_R}}$$

(18)

The system exergy efficiency is calculated by:

$${\eta }_{ex}=\frac{{\stackrel{.}{W}}_{net}}{{\stackrel{.}{E}}_{in}}=\frac{{\stackrel{.}{W}}_{net}}{{\stackrel{.}{Q}}_R(1-T_0/T_R)}$$

(19)

where $\stackrel{.}{E}$_in is the exergy entering the reactor, and T_R is the reactor temperature.

The details of the relations for energy and exergy balance equations for each component are provided in Appendix A. Energy and exergy balance calculation equations are listed in

Table A1. Energy balance and exergy balance calculation equations of circulating components.

Components	Energy Conservation Equation	$\mathbf{Exergy} \mathbf{Destruction} (\stackrel{.}{\mathit{E}}$F$-{\stackrel{.}{\mathit{E}}}_{\mathbf{P}})$
Reactor	${\stackrel{.}{Q}}_R={\stackrel{.}{m}}_1(h_2-h_1)$	${\stackrel{.}{E}}_{D,R}=({\stackrel{.}{E}}_1+{\stackrel{.}{E}}_{Q_R})-{\stackrel{.}{E}}_2$
Turbine	${\stackrel{.}{W}}_T={\stackrel{.}{m}}_2(h_3-h_2)$ ${\eta }_T=\frac{h_2-h_3}{h_2-h_{3s}}$	${\stackrel{.}{E}}_{D,T}=({\stackrel{.}{E}}_2-{\stackrel{.}{E}}_3)-\stackrel{.}{W_T}$
Main Compressor	${\stackrel{.}{W}}_{MC}={\stackrel{.}{m}}_7(h_7-h_6)$ ${\eta }_{MC}=\frac{h_{7s}-h_6}{h_7-h_6}$	${\stackrel{.}{E}}_{D,MC}={\stackrel{.}{W}}_{MC}-({\stackrel{.}{E}}_7-{\stackrel{.}{E}}_6)$
Recompression Compressor	${\stackrel{.}{W}}_{RC}={\stackrel{.}{m}}_{5b}(h_8-h_5)$ ${\stackrel{.}{W}}_{RC}={\stackrel{.}{m}}_{5b}(h_8-h_5)$	${\stackrel{.}{E}}_{D,RC}={\stackrel{.}{W}}_{RC}-({\stackrel{.}{E}}_{8b}-{\stackrel{.}{E}}_{5b})$
HTR	${\epsilon }_{HTR}=\frac{T_3-T_4}{T_3-T_8}$ $h_3-h_4=h_1-h_8$	${\stackrel{.}{E}}_{D,HTR}=({\stackrel{.}{E}}_3-{\stackrel{.}{E}}_4)-({\stackrel{.}{E}}_1-{\stackrel{.}{E}}_8)$
LTR	${\epsilon }_{LTR}=\frac{T_4-T_5}{T_4-T_7}$ ${\stackrel{.}{m}}_4(h_{8a}-h_7)={\stackrel{.}{m}}_7(h_4-h_5)$	${\stackrel{.}{E}}_{D,LTR}=({\stackrel{.}{E}}_4-{\stackrel{.}{E}}_5)-({\stackrel{.}{E}}_{8a}-{\stackrel{.}{E}}_7)$
Cooler	${\stackrel{.}{m}}_{5a}(h_5-h_6)={\stackrel{.}{m}}_9(h_{10}-h_9)$	${\stackrel{.}{E}}_{D,Cooler}=({\stackrel{.}{E}}_{5a}-{\stackrel{.}{E}}_6)-({\stackrel{.}{E}}_{10}-{\stackrel{.}{E}}_9)$

.

3.2. Exergoeconomic Analysis

A cost-effective energy conversion system is vital for the cycle, so economic consideration should be considered. Exergoeconomic analysis needs to consider the theory of the exergy cost [22], the average cost analysis method [23], specific exergy cost calculation [24,25,26], and basic economic theory principles. The purpose of exergy economic analysis is to study and calculate the exergy cost of unit product flow by revealing the system’s cost formation process. For system components that receive thermal energy and generate electricity, the equation of cost balance can be expressed as follows [27]:

$$\sum {\stackrel{.}{C}}_{out,j}+{\stackrel{.}{C}}_{W,j}=\sum {\stackrel{.}{C}}_{in,j}+{\stackrel{.}{C}}_{Q,j}+{\stackrel{.}{Z}}_j$$

(20)

In Equation (20), $\stackrel{.}{C}$_Q,j is the cost rate related to component input heat, and $\stackrel{.}{C}$_W,j is the cost rate of component output power. It can be seen from Equation (20) that the total cost rate of working medium exiting exergy is the sum of the total cost rate of working medium entering exergy and the total cost expenditure rate.

The calculation formula of the unit exergy cost rate is as follows [28]:

$${\stackrel{.}{C}}_j=c_j\times {\stackrel{.}{E}}_j$$

(21)

$${\stackrel{.}{C}}_W=c_W\times {\stackrel{.}{E}}_W$$

(22)

$${\stackrel{.}{C}}_Q=c_Q\times {\stackrel{.}{E}}_Q$$

(23)

In Equations (21)–(23), c_j, c_W, and c_Q are the per unit of cost exergy, $/GJ.

$\stackrel{.}{Z}$_j in calculation Formula (20) is the total cost rate related to the capital investment (CI) cost and operation and maintenance (OM) cost of the jth system component [20]:

$${\stackrel{.}{Z}}_j={\stackrel{.}{Z}}_j^{CI}+{\stackrel{.}{Z}}_j^{OM}$$

(24)

The component j’s annual levelized CI can be calculated by [27,29]:

$${\stackrel{.}{Z}}_j^{CI}=(\frac{CRF}{\tau })\times Z_j$$

(25)

In Equation (25), the CRF represents the capital recovery factor, and τ is the service life of the power system.

The annual leveling of the OM cost is calculated according to [27]:

$${\stackrel{.}{Z}}_j^{OM}=(\frac{{\gamma }_j}{\tau })\times Z_j$$

(26)

Table 3 lists the factors CRF, τ, γ_k, and Z_j of the system’s different components.

We update the Chemical Engineering Plant Cost Index (CEPCI) of equipment costs to 2021 values.

$$Z_{2021}=Z_{original}\times \frac{CEPC{I}_{2021}}{CEPC{I}_{original}}$$

(27)

where CEPCI₂₀₂₁ = 596.2 [30], and Z_original is each component’s original cost. The Z_k calculation details for each component of the proposed cycle are listed in Appendix B.

The cost balance for the different components of the proposed cycle and the auxiliary equations required are all presented in

Table A2. CI cost equations and economic value of each component [37,38].

Components	CI Cost Equation (Zoriginal)
Reactor	$Z_R=c_R*{\stackrel{.}{Q}}_R, c_R=283 \$/kW$
Turbine	$Z_{TB}=479.34*{\stackrel{.}{m}}_2*[1/(0.93-{\eta }_T)\left]*ln\left(\pi \right)*\right[1+exp(0.036*T_2-54.4)]$
Main Compressor	$Z_{MC}=71.1*{\stackrel{.}{m}}_6*[1/(0.92-{\eta }_{MC})]*\pi *ln\left(\pi \right)$
Recompression Compressor	$Z_{RC}=71.1*{\stackrel{.}{m}}_{5b}*[1/(0.92-{\eta }_{MC})]*\pi *ln\left(\pi \right)$
HTR	$Z_{HTR}=2681*A_{HTR}^{0.59}$
LTR	$Z_{LTR}=2681*A_{LTR}^{0.59}$
Cooler	$Z_{Cooler}=2143*A_{Cooler}^{0.514}$
Factor	Value
Number of system operation years (n)	20
Annual system working hours (τ)	8000
Interest rate of system (ir)	12%
Maintenance factor (ik)	0.06
Capital recovery factor (CRF)	$CRF=\frac{i_r*{(1+i_r)}^n}{{(1+i_r)}^n-1}$

. The Gauss–Seidel method is used to solve the various linear equations in

Table A3. Exergy balance for system different components and required auxiliary equations.

Components	Exergy Balance Equation	Auxiliary Equation
Reactor	${\stackrel{.}{C}}_2={\stackrel{.}{C}}_{Fuel}+{\stackrel{.}{C}}_1+{\stackrel{.}{Z}}_R$	non
Turbine	${\stackrel{.}{C}}_3+{\stackrel{.}{C}}_{TB}={\stackrel{.}{C}}_2+{\stackrel{.}{Z}}_{TB}$	$\frac{{\stackrel{.}{C}}_3}{{\stackrel{.}{E}}_3}=\frac{{\stackrel{.}{C}}_2}{{\stackrel{.}{E}}_2}$, or $c_2=c_3$
Main Compressor	${\stackrel{.}{C}}_7={\stackrel{.}{C}}_{MC}+{\stackrel{.}{C}}_6+{\stackrel{.}{Z}}_{MC}$	$\frac{{\stackrel{.}{C}}_{W_{MC}}}{{\stackrel{.}{W}}_{MC}}=\frac{{\stackrel{.}{C}}_{W_{TB}}}{{\stackrel{.}{W}}_{TB}}$, or $c_{MC}=c_{TB}$
Recompression Compressor	${\stackrel{.}{C}}_{8b}={\stackrel{.}{C}}_{RC}+{\stackrel{.}{C}}_{5b}+{\stackrel{.}{Z}}_{RC}$	$\frac{{\stackrel{.}{C}}_{W_{RC}}}{{\stackrel{.}{W}}_{RC}}=\frac{{\stackrel{.}{C}}_{W_{TB}}}{{\stackrel{.}{W}}_{TB}}$, or $c_{RC}=c_{TB}$${\stackrel{.}{C}}_{5b}=x{\stackrel{.}{C}}_5$
HTR	${\stackrel{.}{C}}_1+{\stackrel{.}{C}}_4={\stackrel{.}{C}}_8+{\stackrel{.}{C}}_3+{\stackrel{.}{Z}}_{HTR}$	$\frac{{\stackrel{.}{C}}_3}{{\stackrel{.}{E}}_3}=\frac{{\stackrel{.}{C}}_4}{{\stackrel{.}{E}}_4}$, or $c_3=c_4$${\stackrel{.}{C}}_8={\stackrel{.}{C}}_{8a}+{\stackrel{.}{C}}_{8b}$
LTR	${\stackrel{.}{C}}_5+{\stackrel{.}{C}}_{8a}={\stackrel{.}{C}}_7+{\stackrel{.}{C}}_4+{\stackrel{.}{Z}}_{LTR}$	$\frac{{\stackrel{.}{C}}_4}{{\stackrel{.}{E}}_4}=\frac{{\stackrel{.}{C}}_5}{{\stackrel{.}{E}}_5}$, or $c_4=c_5$
Cooler	${\stackrel{.}{C}}_6+{\stackrel{.}{C}}_{10}={\stackrel{.}{C}}_9+{\stackrel{.}{C}}_{5a}+{\stackrel{.}{Z}}_{Cooler}$	$\frac{{\stackrel{.}{C}}_6}{{\stackrel{.}{E}}_6}=\frac{{\stackrel{.}{C}}_{5a}}{{\stackrel{.}{E}}_{5a}}$, or $c_6=c_{5a}$${\stackrel{.}{C}}_9=0$, ${\stackrel{.}{C}}_{5a}=(1-x){\stackrel{.}{C}}_5$

. As shown in

Table A4. Exergoeconomic evaluation parameters [26,27].

Average exergy cost per unit of fuel	$c_{F,j}={\stackrel{.}{C}}_{F,j}/{\stackrel{.}{E}}_{F,j}$
Average exergy cost per unit of product	$c_{P,j}={\stackrel{.}{C}}_{P,j}/{\stackrel{.}{E}}_{P,j}$
Relative cost difference	$r_j=(c_{P,j}-c_{F,j})/c_{F,j}$
Exergy destruction cost rate	${\stackrel{.}{C}}_{D,j}=c_{F,j}{\times \stackrel{.}{E}}_{D,j}$
Exergy economic factor	$f_j={\stackrel{.}{Z}}_j/({\stackrel{.}{Z}}_j+{\stackrel{.}{C}}_{D,j}+{\stackrel{.}{C}}_{L,j})$
Total cost rate	${\stackrel{.}{C}}_{total}={\displaystyle \sum _j{\stackrel{.}{Z}}_j}+{\displaystyle \sum _j{\stackrel{.}{C}}_{D,j}}$

, several essential indicators are used to identify economic behavior. The total cost rate ($\stackrel{.}{C}$_total) is given in Table A4, which is the sum of these values, including the CI cost rate, the total exergy destruction cost rate ($\stackrel{.}{C}$_D), and the OM cost rate.

3.3. Performance Evaluation Index of the Cycle

$\stackrel{.}{W}$_net, η_th, η_ex, $\stackrel{.}{C}$_total, A_total, and LOCE are the evaluation metric for improving the operating system performance.

• Net power ($\stackrel{.}{W}$_net) is shown as Equation (17).
• Thermal efficiency (η_th) is calculated by Equation (18).
• Exergy efficiency (η_ex) can be calculated by Equation (19).
• Total cost rate ($\stackrel{.}{C}$_total) is calculated by the equation in Table A4.
• The price of electricity can be estimated using the levelized cost of electricity (LCOE) parameter. It is given as [31]:

$$LCOE=\frac{{\stackrel{.}{Z}}_{total}}{{\stackrel{.}{W}}_{net}}(\frac{\$}{\mathrm{kW}\cdot \mathrm{h}})$$

(28)

3.4. Parameter Selection of Sensitivity Analysis

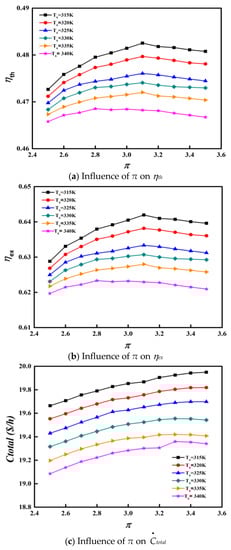

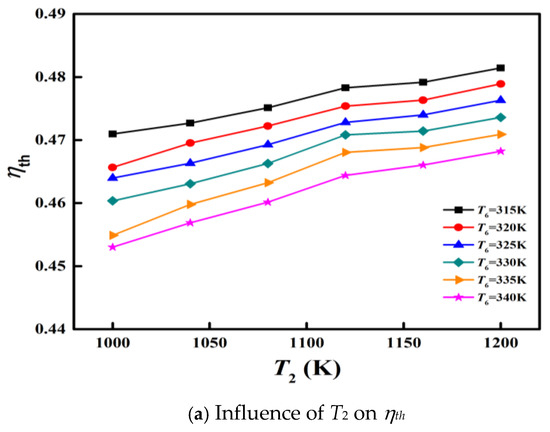

The parameter selection of sensitivity analysis aims to analyze the influence of various working conditions and design parameters on system performance. In this research work, significant parameters are selected to study their impact on the system performance, including split ratio—x, pressure ratio—π, MC inlet temperature—T₆, TB inlet temperature—T₂, and MC inlet pressure—P₆. The constraints are presented in Table 2. For the MW supercritical recompression Brayton cycle system, the split ratio, the pressure ratio, the MC inlet temperature, the TB inlet temperature, and the MC inlet pressure are important factors determining the cycle process.

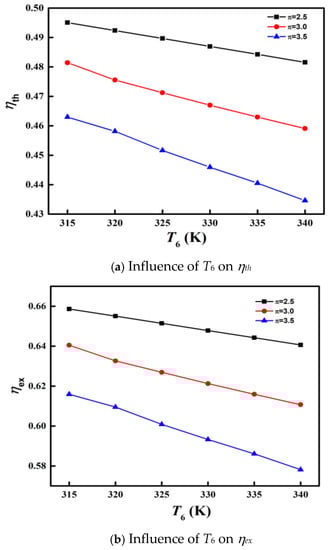

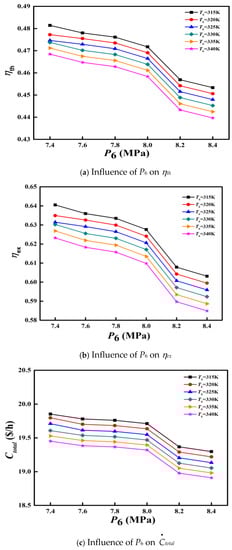

For the compressor, the inlet temperature and pressure are two main factors directly affecting its work. The compressor pressure ratio also has a significant influence on the system cycle. When the pressure ratio is too high, the power consumption of the compressor will increase, and the cycle efficiency will decrease. When the pressure ratio is too small, the heat absorption of the working medium will be negligible, and the output work of the turbine will be further affected. Considering that the critical pressure of the mixed working medium is about 7.4 MPa, the data point near the critical point is selected. Therefore, the inlet pressure of the compressor is set as 7.4–8.4 MPa, and the outlet pressure of the compressor is required to be 20–30 MPa, so the pressure ratio is selected as 2.5–3.5. The inlet temperature of the turbine is related to the output work of the turbine and has a great influence on the system. In recent years, with material technology development, the turbine inlet temperature can be raised to 1423 K [32], so the turbine inlet temperature is selected as 1000–1200 K. According to relevant references, the split ratio is generally 0.25–0.35 [33].

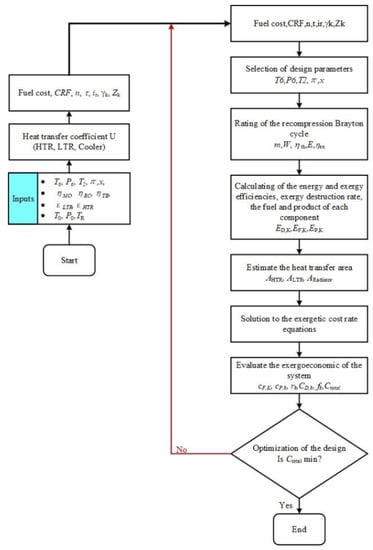

3.5. Calculation Process of Optimization

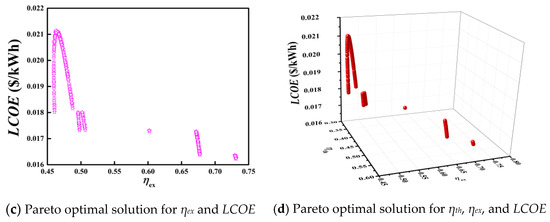

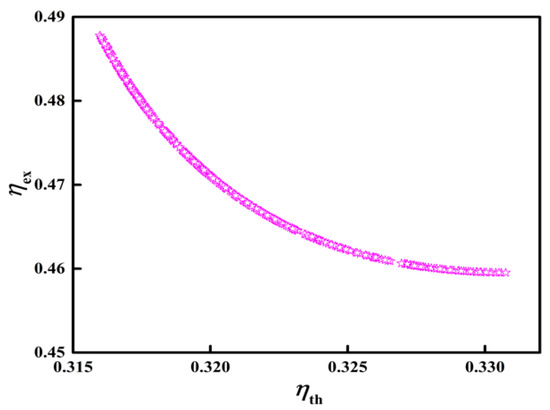

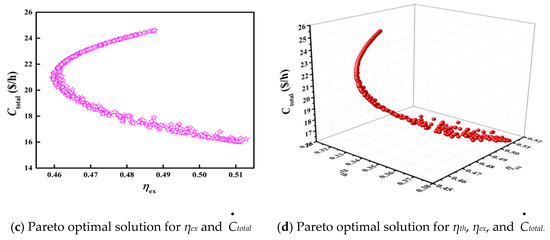

To build a high-efficiency and economical energy system, we must comprehensively consider the balance between efficiency (energy efficiency and exergy efficiency) and total cost rate. The objective of the present work is to maximize the efficiency (η_th and η_ex) and minimize $\stackrel{.}{C}$_total, A_total, and LCOE. The genetic algorithm (GA) [34] method optimizes the decision parameters selected to change the system performance. Figure 5 presents the optimization flowchart of the proposed system.

4. Results and Discussion

In this section, detailed thermodynamic and exergoeconomic analyses are presented. The thermodynamic properties of N₂O and He can be calculated using the NIST REFPROP [35] software. As the NIST REFPROP software shows, the temperature of N₂O is limited to 525 K, and to estimate the thermodynamic properties of N₂O, a thermodynamic property subroutine “PUREN2OPROP” was developed according to the previous literature report [36]. The performance of the system under different working conditions is evaluated using Excel and Python software. The basic parameters of the cycle used are listed in Table 3.

Table 3. Basic parameters selected in simulation.

Parameter Symbol	Select Value
T0 (K)	298
P0 (MPa)	0.101
P6 (MPa)	7.4 [36]
m (kg/s)	1
Fuel cost ($/MWh)	7.4 [31]
ηTB	0.88 [13]
ηMC	0.85 [9]
ηRC	0.85 [9]
εHTR	0.86 [9]
εLTR	0.86 [9]

Table 3. Basic parameters selected in simulation.

Parameter Symbol	Select Value
T0 (K)	298
P0 (MPa)	0.101
P6 (MPa)	7.4 [36]
m (kg/s)	1
Fuel cost ($/MWh)	7.4 [31]
ηTB	0.88 [13]
ηMC	0.85 [9]
ηRC	0.85 [9]
εHTR	0.86 [9]
εLTR	0.86 [9]

4.1. Energy, Exergy, and Exergoeconomic Investigation on Basic Condition

Table 4. Energy and exergy results for a basic parameters design.

Items	Value
ηth (%)	48.14
ηex (%)	64.04
$\stackrel{.}{W}$net (MW)	0.277

shows the energy and exergy analysis results of the proposed cycle under typical working conditions, and the parameters are shown in Table 3. In the typical cycle, $\stackrel{.}{W}$_net = 0.277 MW, η_th = 48.14%, and η_ex = 64.04%. The thermodynamic characteristics, mass flow rate, and cost values of state points under the proposed cycle based on the state point numbers in Figure 2 are provided in Appendix C.

The exergy and exergoeconomic analyses of components are listed in

Table 5. Exergy and exergoeconomic results for a basic parameters design.

Components	$$\begin{gathered} \stackrel{.}{\mathit{E}}{}_{\mathit{F},\mathit{j}} \\ \left(\mathbf{MW}\right) \end{gathered}$$	$$\begin{gathered} \stackrel{.}{\mathit{E}}{}_{\mathit{P},\mathit{j}} \\ \left(\mathbf{MW}\right) \end{gathered}$$	$$\begin{gathered} \stackrel{.}{\mathit{E}}{}_{\mathit{D},\mathit{j}} \\ \left(\mathbf{MW}\right) \end{gathered}$$	cF,j ($/GJ)	cP,j ($/GJ)	$$\begin{gathered} \stackrel{.}{\mathit{C}}{}_{\mathit{D},\mathit{j}} \\ (\$/\mathbf{h}) \end{gathered}$$	$$\begin{gathered} \stackrel{.}{\mathit{Z}}{}_{\mathit{j}} \\ (\$/\mathbf{h}) \end{gathered}$$	$\stackrel{.}{\mathit{Z}}$j$+ {\stackrel{.}{\mathit{C}}}_{\mathit{D},\mathit{j}}$$$\begin{gathered} + \stackrel{.}{\mathit{C}}{}_{\mathit{L},\mathit{j}} \\ (\$/\mathbf{h}) \end{gathered}$$	rj (%)	Fj (%)
Reactor	1.977	1.901	0.076	7.782	8.172	2.130	2.817	4.947	5.01	56.94
Turbine	0.721	0.601	0.120	8.172	9.488	3.526	0.308	3.834	16.10	8.04
Main Compressor	0.225	0.186	0.038	9.488	11.908	1.305	0.069	1.374	25.51	4.99
Recompression Compressor	0.175	0.101	0.074	9.488	10.808	2.531	0.029	2.561	13.91	1.15
HTR	0.213	0.184	0.029	8.172	8.742	0.850	0.084	0.933	6.98	8.98
LTR	0.261	0.228	0.034	8.172	8.742	0.992	0.051	1.043	6.98	4.92
Cooler	0.082	0.019	0.063	8.172	28.509	1.852	0.853	2.705	248.86	31.54
System	3.653	3.220	0.434	-	-	13.186	4.212	17.397	-	24.21

. Table 5 indicates that the reactor component has a higher $\stackrel{.}{Z}$_j+ $\stackrel{.}{C}$_D,j + $\stackrel{.}{C}$_L,j than other components, indicating that it should improve the reactor’s exergoeconomic performance. The exergoeconomic factor value for the reactor is 56.94%, meaning that the sum of CI and OM in the reactor has an excellent ratio. The exergoeconomic factor of the turbine is 8.04%, and the value of $\stackrel{.}{Z}$_j+ $\stackrel{.}{C}$_D,j + $\stackrel{.}{C}$_L,j is the second highest value. The cooler has a higher relative cost difference value than other cycle components. The cooler’s exergoeconomic factor is 31.54%, which reveals that the majority cost is the exergy destruction cost in the system’s total cost. Comprehensively considering overall cost values and reducing the exergy destruction of the cooler is an excellent method to change the cycle performance. The total f value of the whole cycle is 24.21%. It means that the exergy destruction reached 75.79% of the total system cost.

4.2. Sensitivity Analysis of Main Operating Parameters

4.2.1. Influence of Split Ratio—x

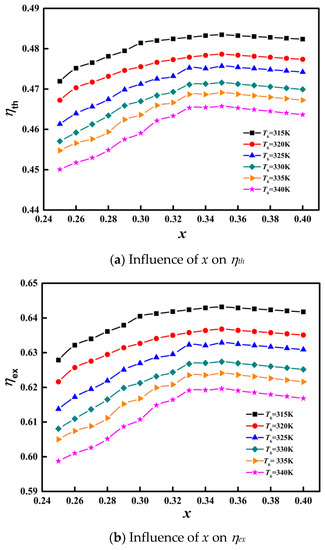

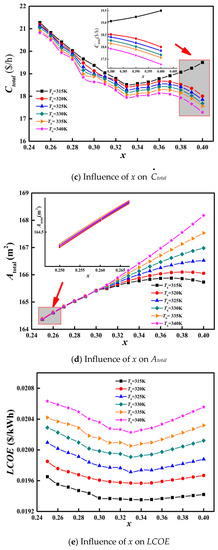

Figure 6 presents the influence of x (split ratio) on η_th, η_ex, $\stackrel{.}{C}$_total, A_totol, and LCOE. The cooling effect of the cooler and compressor power is changed by changing the split ratio with the mass flow rate change.

Figure 6a,b depict the cycle thermal and exergy efficiencies, respectively. From Figure 6a,b, under different T₆, the thermal and exergy efficiencies have the same variation trend with the increase of x, which increases slowly at first and then decreases. The η_th and η_ex are between 45.0–48.3% and 59.9–64.3%. With the increase of T₆, the η_th and η_ex decrease gradually. When x = 0.35, the efficiency (η_th and η_ex) reaches maximum with η_th = 48.34% and η_ex = 64.3%.

Referring to Figure 6c, the total cost rate ($\stackrel{.}{C}$_total) first decreased and then increased slightly; the whole variation trend decreases gently. An increase in the split ratio leads to the reduction of $\stackrel{.}{C}$_D,total. The minimum value of $\stackrel{.}{C}$_total can be obtained at x = 0.33. With the increase of T₆, the $\stackrel{.}{C}$_total decreases, but the variation trend is not apparent. When T₆ = 315 K and x > 0.37, $\stackrel{.}{C}$_total increases gradually with x increases. The main reason for the change in $\stackrel{.}{C}$_total is that the working temperature of 315 K is near the critical point area, and the thermodynamic characteristics of the working medium at this temperature change dramatically.

The impact of the split ratio on A_total (the sum of the HTR heat exchange area, LTR heat exchange area, and radiator heat exchange area) is presented in Figure 6d, and the central part is the radiator area. If we change the split ratio, the total area of the heat exchange components increases with the increase of x, and the area also tends to increase with the increase of T₆. Nevertheless, as the x < 0.31, the total area has little difference. When T₆ is at the temperature of 315 K, the total heat exchanger area at a high split ratio x > 0.37 slightly decreases, which is associated with the physical properties of the working medium.

Figure 6e displays the variation trend of the LCOE. Under the different MC inlet temperature-T₆, with the x increasing, the LCOE decreased gently and at x = 0.33 achieved the lowest LCOE; after that split ratio, the value of LCOE increased slightly.

When x is small, a “pinch point” occurs at the low temperature inlet side of the HTR; when x increases, RC mass flow rate and T₅ increase, reducing the total work consumed by MC and RC. The rate of increase in net power is faster than the rate of decrease in heat absorption; then, η_th and η_ex are increased. With the increase of x, the position of the “pinch point” changes, which appears at the low temperature inlet side of LTR, and the power consumption of the RC increases alongside the increase of x. As the W_net decreases, η_th and η_ex decrease. With the increase of T₆ (MC inlet temperature), the compression power consumption of the whole cycle increases, resulting in the decrease of η_th and η_ex. Comprehensively considering the whole cycle, when x < 0.33, the whole W_net increases, and when x > 0.33, the whole W_net decreases. The changing trend of W_net results in the LCOE decreasing at first and increasing modestly.

4.2.2. Influence of Pressure Ratio—π

Figure 7 presents the cycle primary performance under the operating condition of x = 2.5–3.5, T₂ = 1200 K, x = 0.3, P₆ = 7.4 MPa, and T₆ = 315–340 K.

The MC inlet temperature, the compressor power consumption, and the turbine’s work increase with a π increase. When the TB inlet temperature is constant at 1200 K, as the π increases, W_net first increases and then decreases. Moreover, the LTR outlet temperature was increased due to reduced turbine outlet temperature, increased outlet temperature in the MC, and reduced heat transfer in the recuperators. As the π increases, so does W_net. Therefore, η_th and η_ex first increase and then decrease with the increase of π, as presented in Figure 7a,b.

The results in Figure 7c show that an increase in π leads to an increase in $\stackrel{.}{C}$_total of the entire cycle, mainly due to an increase in $\stackrel{.}{C}$_D,reactor. In addition, with the increase of π, the $\stackrel{.}{C}$_D,HTR decreases and $\stackrel{.}{C}$_D,LTR increases, and the total exergy destruction cost rate of recuperators increases due to the reduction of recuperators’ heat transfer area. $\stackrel{.}{Z}$_j (CI and OM costs) of TB, MC, and RC increase by π. When π increases, the total system cost rate increases, mainly because of the rising cost of CI and OM, and $\stackrel{.}{C}$_total. With the increase of π, the reactor and recuperators’ exergy destruction cost rate increases with T₆.

According to Figure 7d, increasing π can reduce the heat transfer area of recuperators and radiators due to a decrease in heat exchange. The heat transfer area of all three components decreases, so the whole cycle heat transfer area is reduced by increasing π.

The change of π also affects the LCOE of the system, as plotted in Figure 7e. The output power of TB and the whole cycle net power are increasing by increasing the π. Increasing π up to around 3.0 reduces the LCOE of the system, which is mainly because the system’s net power value increases significantly. When π increases beyond 3.0, the net power value increase is less than the value of π below 3.0. Total investment and OM cost ($\stackrel{.}{Z}$_j) of the whole cycle is increased by π increasing. However, the total cycle net power is the dominant reason for LCOE reduction when π is below 3.0, and LCOE increases in the period of π beyond 3.0, mainly due to CI and OM cost increase.

4.2.3. Influence of MC Inlet Temperature—T₆

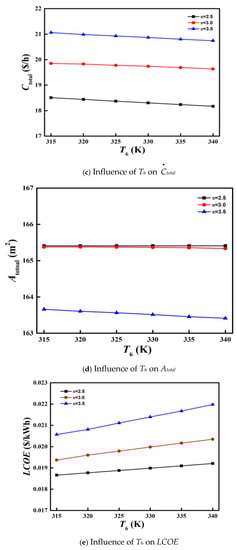

The influence of T₆ on the cycle key performance indicators is shown in Figure 8. Figure 8a–c illustrate η_th, η_ex, and $\stackrel{.}{C}$_total decrease as T₆ increases. However, $\stackrel{.}{C}$_total is not sensitive to the change of T₆. The main reason for cyclic η_th and η_ex reduction is the difference between the maximum and minimum cyclic temperatures (Carnot principle). A higher value of T₆ leads to a higher average temperature of N₂O-He at the cooler, creating a more significant heat loss in the cooler, a higher compression work value, and a lower cycle net power. By increasing T₆, the $\stackrel{.}{C}$_D,j of the reactor and the cooler is reduced. At the same time, the increase in the HTR and LTR heat transfer area will increase the $\stackrel{.}{Z}$_j value of the recuperators. Therefore, the increase of HTR and LTR cost rate is less than the decrease in the reactor and the cooler exergy destruction cost. To sum up, $\stackrel{.}{C}$_total of the circulating system is reduced.

A variation trend of the total heat transfer area has little influence on the increase of the MC inlet temperature, as presented in Figure 8d. Recuperators’ heat transfer area is increased with the increase of T₆; nevertheless, the radiator heat transfer area decreases. The heat transfer area of the radiator decrease is greater than the increase of that in the recuperators. Therefore, A_total is slightly reduced.

The change of T₆ also influences the LCOE of the cycle, as depicted in Figure 8e. The total investment, OM costs ($\stackrel{.}{Z}$_j), and whole system net power are decreased by T₆ increasing. However, the whole LOCE increases with a T₆ increase. The main reason for such a change is that the decrease in W_net is more significant than that of total investment and OM cost.

4.2.4. Influence of TB Inlet Temperature—T₂

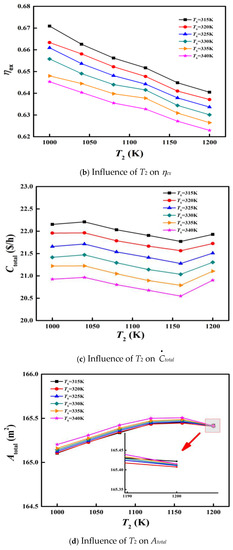

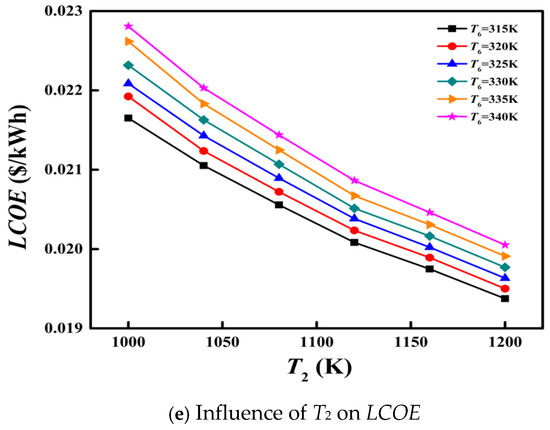

The influence of T₂ on the performance of the proposed S-(N₂O-He) cycle with x = 0.3, P₆ = 7.4 MPa, π = 3.0, and T₆ = 315–340 K is shown in Figure 9.

With the increase of T₂, the TB power output produced by the input rate of specific heat increases significantly due to the increase of TB input enthalpy. Insensitive to the effects of MC and RC work leads to an increase in W_net of the system. Therefore, the temperature difference between the maximum and minimum operating temperatures increases as T₂ increases, and η_th increases as shown in Figure 9a. The enthalpy of inflow and outflow of the reactor increases with the increases of T₂. Cycle exergy decreases with the increase of maximum operating temperature due to thermal exergy ($\stackrel{.}{E}$_in) increase greater than net power increases, resulting in reduced exergy efficiency, as shown in Figure 9b. $\stackrel{.}{C}$_total is decreased, mainly caused by the decrease in $\stackrel{.}{C}$_D,total, and the CI and OM costs of the reactor are decreased by the increase in maximum operating temperature, as displayed in Figure 9c.

Accordingly, the heat transfer of the radiator, HTR, and LTR increase with the TB inlet temperature, leading to a higher heat transfer area of these components in the system, as shown in Figure 9d. Referring to Figure 9e, LCOE reduces because the net power increases as T₂ increases.

4.2.5. Influence of MC Inlet Pressure—P₆

Figure 10 indicates the cycle performance variation at different P₆, T₂ = 1200 K, x = 0.3, and π = 3.0.

η_th and η_ex decrease with increasing P₆, as presented in Figure 10a and Figure 10b, respectively. η_th and η_ex decrease slowly and then decrease rapidly. As the working medium is worked close to the critical point area, the compression factor is small, and the consumption power of the compressor is increased, resulting in a decrease in W_net. The compression factor increases gradually as P₆ increases, resulting in more pressure loss, higher power consumption, and a lower net power of the cycle, thus reducing the η_th and η_ex, as shown in Figure 10a,b.

Figure 10c presents the influence of P₆ on the $\stackrel{.}{C}$_total. As the CI and OM cost of the reactor is reduced, the total investment and OM cost is reduced, which is the highest value part of the $\stackrel{.}{Z}$_total. $\stackrel{.}{C}$_D,Reactor and $\stackrel{.}{C}$_D,MC are also reduced. and the two components with the more significant proportion. All decreases in $\stackrel{.}{Z}$_total and $\stackrel{.}{C}$_D,total are a result of decreasing $\stackrel{.}{C}$_total.

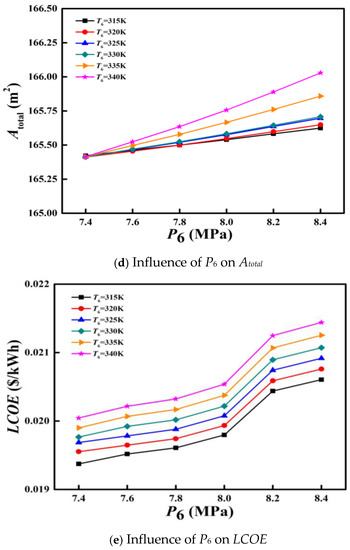

A_total is increased by the increase in P₆, as presented in Figure 10d. As P₆ increases, heat transfer in LTR and HTR increases. As a result, the heat transfer area of recuperators is also increased. The heat transfer area variation of HTR and LTR is the dominant factor causing the increase of A_total.

As mentioned above, W_net and OM costs decrease with the increase in P₆. $\stackrel{.}{W}$_net (net power) decreases more than $\stackrel{.}{Z}$_total, thereby allowing a high value of LCOE due to an increase in MC inlet pressure.

4.3. Exergoeconomic Optimization

Based on the sensitivity analysis discussed above, η_th and η_ex improvements are always inconsistent with LCOE. However, in the actual thermodynamic system, efficiency (η_th and η_ex) and cycle cost are considered simultaneously. Multi-objective optimization is used to maximize thermal performance and minimize cost. For the recompression Brayton cycle, its optimization objectives are thermal efficiency η_th = f₁(x), exergy efficiency η_ex = f₂(x), total cost rate $\stackrel{.}{C}$_total = f₃(x), total area of heat transfer A_total = f₄(x), and levelized cost of electricity LCOE = f₅(x).

The response surface methodology (RSM) [21] method is utilized to make a link between the objective functions and decision parameters for optimization. The regression equation is established by experimental design and variance analysis. Finally, based on the Pareto optimality, multi-objective optimization is carried out to seek the balance between efficiency and cost.

Appropriate sample points are selected using a central composite design (CCD) [21] to approximate the response function with higher accuracy. In the CCD method, a central design point needs to be added, and the distance from the center is α. The selected decision parameters are the five test factors shown in

Table 6. The partial Pareto optimal solution for η_th and η_ex.

Factor	T6 (K)	T2 (K)	P6 (MPa)	π	x	ηth (%)	ηex (%)
Optimal solution 1	337.75	1020.9	8.21	3.13	0.331	33.04	45.95
2	338.99	1001.0	8.35	3.42	0.251	32.99	45.96
3	339.99	1010.0	8.3	3.45	0.281	32.04	47.01
4	337.99	1012.0	8.1	3.49	0.332	32.05	46.95
5	338.65	1000.0	8.0	3.49	0.322	32.81	46.00
6	336.89	1020.0	8.2	3.49	0.333	33.08	45.95
7	339.99	1028.0	8.3	3.49	0.255	31.65	47.43
9	339.99	1031.0	8.4	3.49	0.325	32.88	46.98
10	338.94	1010.2	8.2	3.49	0.258	32.69	46.27
11	337.90	1020.5	8.1	3.34	0.322	32.77	46.02

. The Design-Expert software is used to create second-order model regression for the corresponding values of the loop.

Therefore, the multi-objective optimization problem of the whole loop can be defined as:

Max[f₁(x), f₂(x)]; Min[f₃(x), f₄(x), f₅(x)].

The regression model functions of η_th = f₁(x), η_ex = f₂(x), $\stackrel{.}{C}$_total = f₃(x), A_total = f₄(x), and LCOE = f₅(x) are expressed as:

$$\begin{array}{ll}{f}_1(x)={\eta }_{th}=& -342.95946-1.00182\times A+0.207314\times B+102.6095\times C\\ & +18.70625\times D+233.2025\times E-0.000034\times AB\\ & +0.0132\times AC-0.0512\times AD+0.96\times AE\\ & -0.0115\times BC+0.0561\times BD-0.2555\times BE\\ & -5.68\times CD-30.1\times CE-23.5\times DE+0.001108\times A^2\\ & -0.000085\times B^2-4.3875\times C^2-3.9575\times D^2\\ & +83.58333\times E^2\end{array}$$

(29)

$$\begin{array}{ll}{f}_2(x)={\eta }_{ex}=& 186.98794-4.05654\times A-0.025545\times B+85.97158\times C\\ & +67.343\times D+1105.8\times E+0.000136\times AB\\ & +0.1256\times AC-0.0684\times AD-1.42\times AE\\ & -0.01515\times BC+0.0595\times BD-0.252\times BE\\ & -8.63\times CD-63.5\times CE-31\times DE+0.00522\times A^2\\ & -2.85417\times {10}^{-6}\times B^2-4.27417\times C^2-8.06417\times D^2\\ & +406.25\times E^2\end{array}$$

(30)

$$\begin{array}{ll}{f}_3(x)={\stackrel{.}{C}}_{total}=& 458.17302-1.60636\times A-0.004646\times B-40.88086\times C\\ & +18.39035\times D-161.8025\times E-0.000275\times AB\\ & +0.14\times AC+0.0664\times AD+0.792\times AE\\ & -0.001725\times BC-0.01184\times BD+0.165\times BE\\ & -1.974\times CD-34.5\times CE-5\times DE+0.00052\times A^2\\ & +0.00004\times B^2+0.770917\times C^2-1.62475\times D^2\\ & -15.94167\times E^2\end{array}$$

(31)

$$\begin{array}{ll}{f}_4(x)=A_{total}=& 120.48618+0.278564\times A+0.009831\times B-2.801\times C\\ & +6.75212\times D-46.054\times E+0.000048\times AB\\ & +0.0136\times AC-0.01036\times AD-0.028\times AE\\ & +0.001272\times BC+0.00016\times BD+0.001\times BE\\ & -0.1989\times CD+5.3\times CE+38\times DE-0.000598\times A^2\\ & -0.000016\times B^2-0.24075\times C^2-2.49298\times D^2\\ & -151.70167\times E^2\end{array}$$

(32)

$$\begin{array}{ll}{f}_5(x)=LCOE& =0.1*(-33.32761+0.126413\times A+0.006422\times B\\ & +1.82567\times C+0.731167\times D+7.04317\times E\\ & +2.0\times {10}^{-9}\times AB+0.000043\times AC+0.000034\times AD\\ & -0.00056\times AE+4.6\times {10}^{-6}\times BC-0.000053\times BD\\ & +0.000201\times BE+0.000148\times CD+0.005\times CE\\ & +0.031\times DE-0.000193\times A^2-2.89721\times {10}^{-6}\times B^2\\ & -0.117088\times C^2-0.116345\times D^2-12.02983\times E^2)\end{array}$$

(33)

where A—MC inlet temperature T₆, B—TB inlet temperature T₂, C—MC inlet pressure P₆, D—compressor pressure ratio π, and E—split ratio x.

4.3.1. Dual Objective Optimization of η_th and η_ex

Firstly, the system’s thermodynamic performance is considered by using the dual-objective optimization method. Taking the cycle’s η_th—f₁(x) and η_ex— f₂(x) as the response targets, the functions are defined in Equations (29) and (30).

In the process of dual-objective optimization, the initial population size is 1000, the crossover factor is 0.7, and the variation factor is 0.3. The whole Pareto front of η_th and η_ex has 300 data in Figure 11 and partial data are shown in Table 6. After considering the η_th and η_ex, we select the final optimization result.

4.3.2. Three Objectives Optimization of η_th and η_ex, and $\stackrel{.}{C}$_total

Figure 12 and

Table 7. Pareto optimal solution for η_th, η_ex, and $\stackrel{.}{C}$ _total.

Factor	T6 (K)	T2 (K)	P6 (MPa)	π	x	ηth (%)	ηex (%)	$$\stackrel{.}{\mathit{C}}{}_{\mathit{total}} (\$/\mathbf{h})$$
Optimal solution 1	315.0	1117.71	8.3	3.4	0.349	37.74	51.11	16.01
2	317.5	1086.14	8.4	3.5	0.347	36.97	50.27	16.36
3	315.0	1112.47	8.4	3.5	0.345	37.65	51.09	16.01
4	315.1	1095.63	8.3	3.4	0.349	37.47	51.23	16.06
5	315.1	1065.91	8.3	3.5	0.349	36.70	50.95	16.17
6	315.6	1091.51	8.2	3.4	0.349	37.31	50.98	16.13
7	319.1	1065.93	8.3	3.3	0.346	36.49	49.89	16.69
8	318.3	1077.11	8.2	3.3	0.325	36.85	50.21	16.51
9	322.5	1066.45	8.3	3.5	0.348	36.24	48.96	17.10
10	321.8	1016.96	8.3	3.4	0.348	34.79	48.84	17.45

present the three objectives optimization results of η_th—f₁(x), η_ex—f₂(x), and $\stackrel{.}{C}$_total—f₃(x). The optimized functions are Equations (29), (30), and (31).

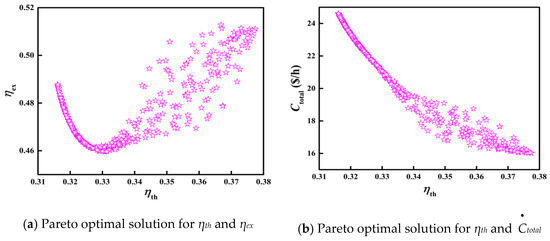

In the three objectives optimization, the initial population size is 1000, the crossover factor is 0.7, and the variation factor is 0.3. Figure 12a–c show the Pareto optimal boundary, which η_th and η_ex, η_th and $\stackrel{.}{C}$_total, and η_ex and $\stackrel{.}{C}$_total are the optimization objectives, respectively. Figure 12d considers the Pareto solution of η_th, η_ex, and $\stackrel{.}{C}$_total.

4.3.3. Three Objectives Optimization of η_th, η_ex, and A_total

The three objectives optimization between η_th–f₁(x), η_ex–f₂(x), and A_total–f₄(x) are shown in Figure 13 and

Table 8. Pareto optimal solution for η_th, η_ex, and A_total.

Factor	T6 (K)	T2 (K)	P6 (MPa)	π	x	ηth (%)	ηex (%)	Atotal (m2)
Optimal solution 1	337.0	1004.2	8.3	3.35	0.333	33.08	45.95	164.83
2	335.2	1020.3	8.4	3.45	0.302	32.39	46.34	164.01
3	337.5	1010.5	8.2	3.46	0.323	32.84	46.00	164.60
4	338.9	1078.6	8.2	3.42	0.332	33.04	45.95	164.80
5	339.1	1025.3	8.4	3.48	0.331	33.02	45.95	164.78

. The optimized functions are Equations (29), (30), and (32).

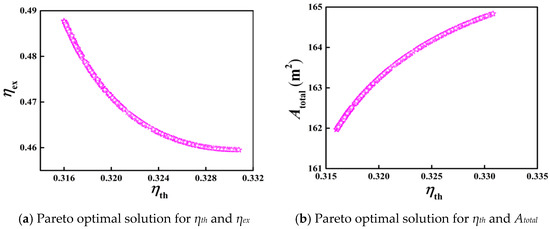

In the three objectives optimization, the initial population size is 1000, the crossover factor is 0.7, and the variation factor is 0.3. Figure 13a–c show the Pareto optimal boundary with η_th and η_ex, η_th and A_total, and η_ex and A_total as the optimization objectives. Figure 13d considers the Pareto solution of the three objectives of η_th, η_ex, and A_total.

4.3.4. Three Objectives Optimization of η_th, η_ex, and LCOE

The result of three objectives, optimization of η_th–f₁(x), η_ex–f₂(x), and LCOE–f₅(x), are shown in

Table 9. Pareto optimal solution for η_th, η_ex, and LCOE.

Factor	T6 (K)	T2 (K)	P6 (MPa)	π	x	ηth (%)	ηex (%)	LCOE ($/kWh)
Optimal solution 1	315.04	1000.13	7.4	2.58	0.258	48.77	67.16	0.01732
2	315.01	1000.16	7.4	2.55	0.252	49.08	67.41	0.01697
3	315.03	1000.32	7.4	2.56	0.255	49.24	67.12	0.01792
4	317.02	1002.89	7.4	2.52	0.263	49.30	67.56	0.01680
5	318.03	1010.16	7.4	2.56	0.265	48.92	67.28	0.01719
6	315.12	1000.59	8.4	2.51	0.251	53.51	72.92	0.01640
7	315.01	1000.89	7.4	2.51	0.268	49.45	67.68	0.01654
8	316	1000.46	7.4	2.52	0.255	49.36	67.62	0.01662

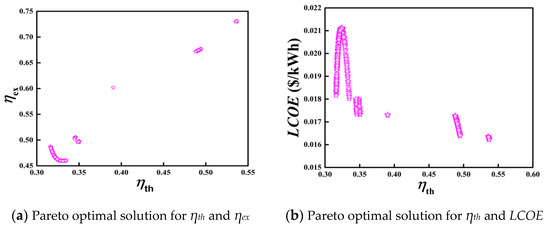

. Figure 14 depicts the Pareto frontier for the three objectives optimization. The optimized functions are Equations (29), (30), and (33).

In the three objectives optimization, the initial population size is 1000, the crossover factor is 0.7, and the variation factor is 0.3. Figure 14a–c shows the Pareto optimal boundary, with η_th and η_ex, η_th and LCOE, and η_ex and LCOE as the optimization objectives, respectively. Figure 14d considers the Pareto solution of three objectives: η_th, η_ex, and LCOE. In practical application, suitable operating parameters can be selected according to specific conditions and requirements.

According to this part, multi-optimization and comprehensiveness consider the optimization results, and the final vital parameters of the proposed S-(N₂O-He) cycle are selected and detailed in

Table 10. Final results of the key optimization parameters.

Factor	T6 (K)	T2 (K)	P6 (MPa)	π	x	ηth (%)	ηex (%)	$\stackrel{.}{\mathit{C}}{}_{\mathit{total}} (\$/\mathbf{h})$	Atotal (m2)	LCOE ($/kWh)
Optimal solution	316.5	1010	7.4	2.58	0.26	49.14	67.29	19.37	165.55	0.0196

.

Table 11. Key operating parameters after cycle optimization design.

Parameter	Value in Basic Case	Value in Optimization Case	Change from the Base Case (%)
T6 (K)	315	316.5	0.48
T2 (K)	1200	1010	−15.83
P6 (MPa)	7.4	7.4	0
π	3.0	2.58	−14.00
x	0.3	0.26	−13.33
$\stackrel{.}{W}$ (MW)	0.227	0.364	+60.35
ηth (%)	48.14	49.14	+2.08
ηex (%)	64.04	67.29	+5.07
$\stackrel{.}{C}$total ($/h)	22.52	19.37	−13.99
Atotal (m2)	165.57	165.55	−0.01
LCOE ($/kWh)	0.02066	0.0196	−5.13

shows the optimization operation parameters and performance metrics after the optimization process, while other conditions are under the same primary operating conditions.

5. Conclusions

A supercritical recompression Brayton cycle with 85% N₂O–15% He as the working medium is used for detailed thermodynamic analysis, exergoeconomic analysis, and parametric optimization. The sensitivity analysis and study of cycle parameters are carried out to study the influence of critical thermodynamic parameters on efficiency (η_th and η_ex), $\stackrel{.}{C}$_total, A_total, and LCOE. Then, dual-objective and multi-objective function optimization is performed out of the loop. The multi-objective is based on the Pareto frontier, selecting η_th, η_ex, $\stackrel{.}{C}$_total, A_total, and LCOE as the objective functions. At the same time, the essential parameters studied are selected as decision variables. For this work, to evaluate the thermodynamic and exergoeconimic performance, the results can be listed as follows:

• The exergy destruction rates in the reactor, TB, and RC are higher than the value in other components.
• The reactor and turbine have larger values of $\stackrel{.}{Z}$_j + $\stackrel{.}{C}$_D,j + $\stackrel{.}{C}$_L,j than other components in the cycle, which can be effectively reduced with a split ratio increase, TB inlet temperature, and MC inlet pressure.
• Compared with the initial basic design, η_th and η_ex improved by 2.08% and 5.07% when optimized based on the first and second laws of thermodynamics.
• When optimized based on the exergy economics, the sum of the system $\stackrel{.}{C}$_total is reduced by 13.99%.
• When the cycle operates on the optimized conditions, the net power increases by 60.35%. Based on the critical parametric analysis, the total heat transfer area and LCOE decrease by 0.01% and 5.13%.

Considering the particularity of the space system, it is necessary to focus on the mass characteristics of the nuclear power system and use the radiator model, exergoeconomic model, and levelized cost of electricity model to make a quantitative evaluation of its volume characteristics, economic cost characteristics, and power generation cost characteristics. The parametric sensitivity analysis concluded that there is always a contradiction between the thermal and economic performance of the system. Therefore, a multi-objective optimization method based on the Pareto frontier is used to determine the optimal operating condition and design parameters. Minimizing the total cost and maximizing the overall thermal and exergy efficiency reduces the total product unit cost and LCOE price. The proposed 85% N₂O–15% He recompression Brayton cycle could produce net power of 0.364 MW with a thermal efficiency of 49.14% at a LOCE price of USD 0.0196/kWh. The thermal efficiency is increased by 15.66%, and the LCOE price is reduced by 52.3% compared with the S-CO₂ recompression Brayton cycle under the same operating conditions. Accordingly, the performance of the proposed cycle is promising and can offer a potential working fluid selection for the space nuclear power system in the near future.
