Energy-Aware Bag-of-Tasks Scheduling in the Cloud Computing System Using Hybrid Oppositional Differential Evolution-Enabled Whale Optimization Algorithm
Abstract
:1. Introduction
1.1. Research Motivations
1.2. Research Contributions
- (1)
- A hybrid metaheuristic called h-DEWOA is suggested, which uses the search mechanisms of chaotic map and OBL techniques to generate diverse initial population, and integrates the evolutionary DE method with the basic WOA approach to improve search exploration and convergence rate.
- (2)
- The DE metaheuristic is further augmented with the OBL method to improve convergence rate and solution diversity throughout the h-DEWOA approach.
- (3)
- A fitness-aware tradeoff scheme is integrated in the h-DEWOA approach to provide sufficient tradeoff between exploration and exploitation phases, which further helps to improve the quality of scheduling solutions.
- (4)
- Finally, real-workloads of CEA-Curie and HPC2N supercomputing sites are selected for performance evaluation. Simulation results of the proposed h-DEWOA are compared with WOA-based and other state-of-the-art scheduling approaches using extensive experiments. Results and observations clearly show the supremacy of h-DEWOA over baseline algorithms.
2. Related Works
3. System Model and Problem Definition

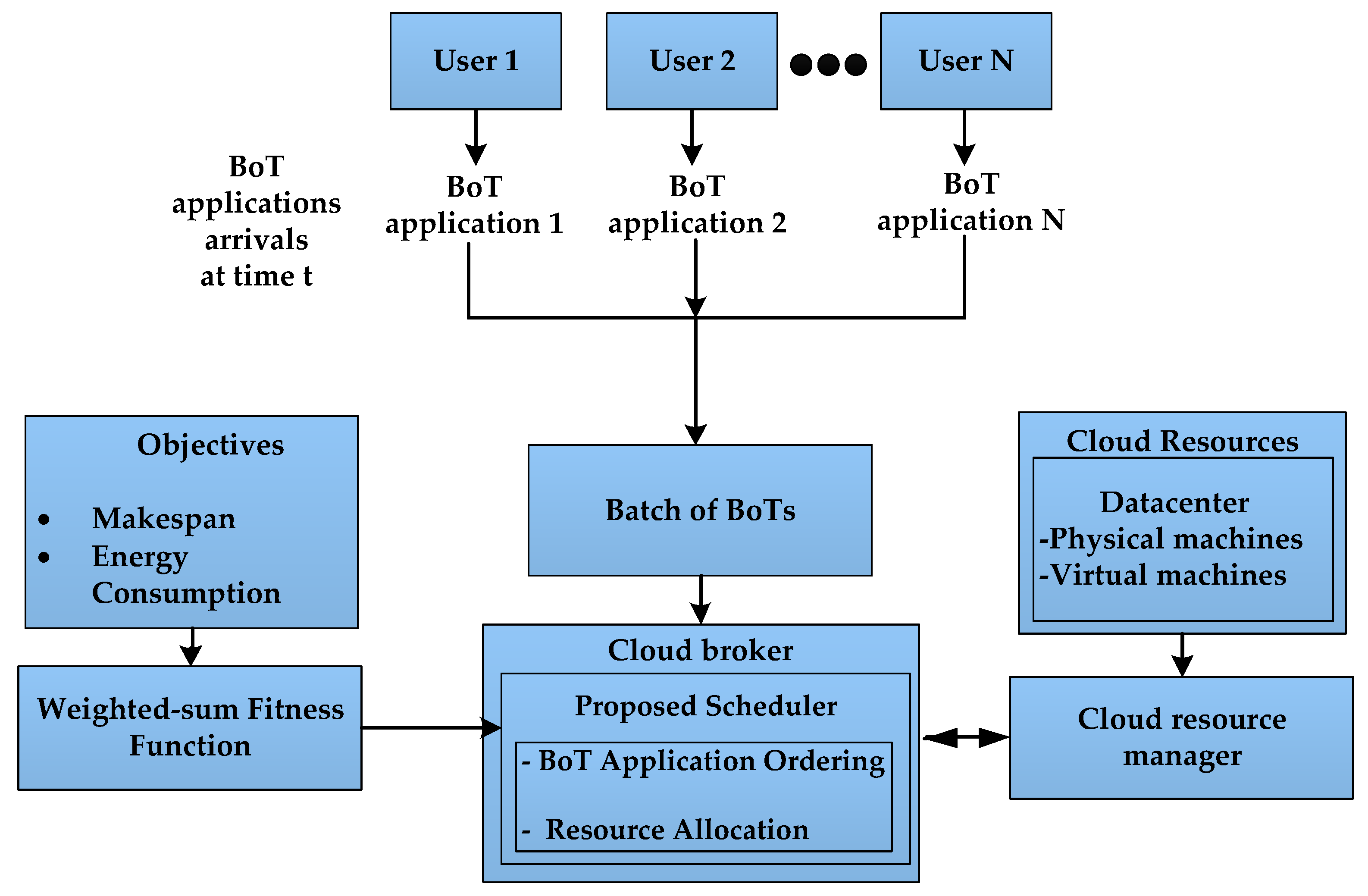

3.1. Cloud Data Center Model
3.2. BoT Application, Execution Time, and Scheduling Model
3.3. Problem Objectives and Fitness Function
3.3.1. Makespan Model
3.3.2. Energy Model
3.3.3. Fitness Function
- Every BoT application demands a static number of VMs for processing.
- Every VM only processes a single task of the BoT application at a time.
- The numbers of BoT applications and VMs in cloud data center are fixed.
- Deadlines are not associated with the execution of BoT applications.
4. Proposed Scheduling Methodology
4.1. Chaotic Maps (CM)
4.2. Opposition-Based Learning (OBL)
4.3. Whale Optimization Algorithm (WOA)
4.3.1. Encircling Prey (When |A| < 1 and p < 0.5)
4.3.2. Bubble-Net Attacking (Exploitation Process)
Shrinking Encircling Mechanism
Spiral updating position (When |A| < 1 and p < 0.5)
4.3.3. Search for Prey
4.4. Differential Evolution (DE)
4.4.1. DE Mutation Operator
4.4.2. DE Crossover Operator
4.4.3. DE Selection Operator
4.5. Limitations of the Standard WOA Approach
4.6. Proposed h-DEWOA Algorithm

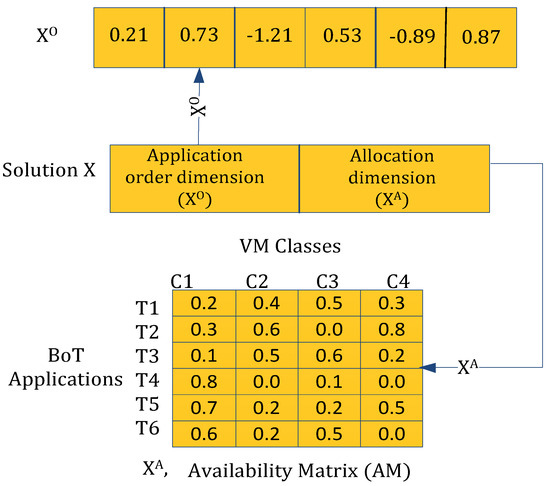

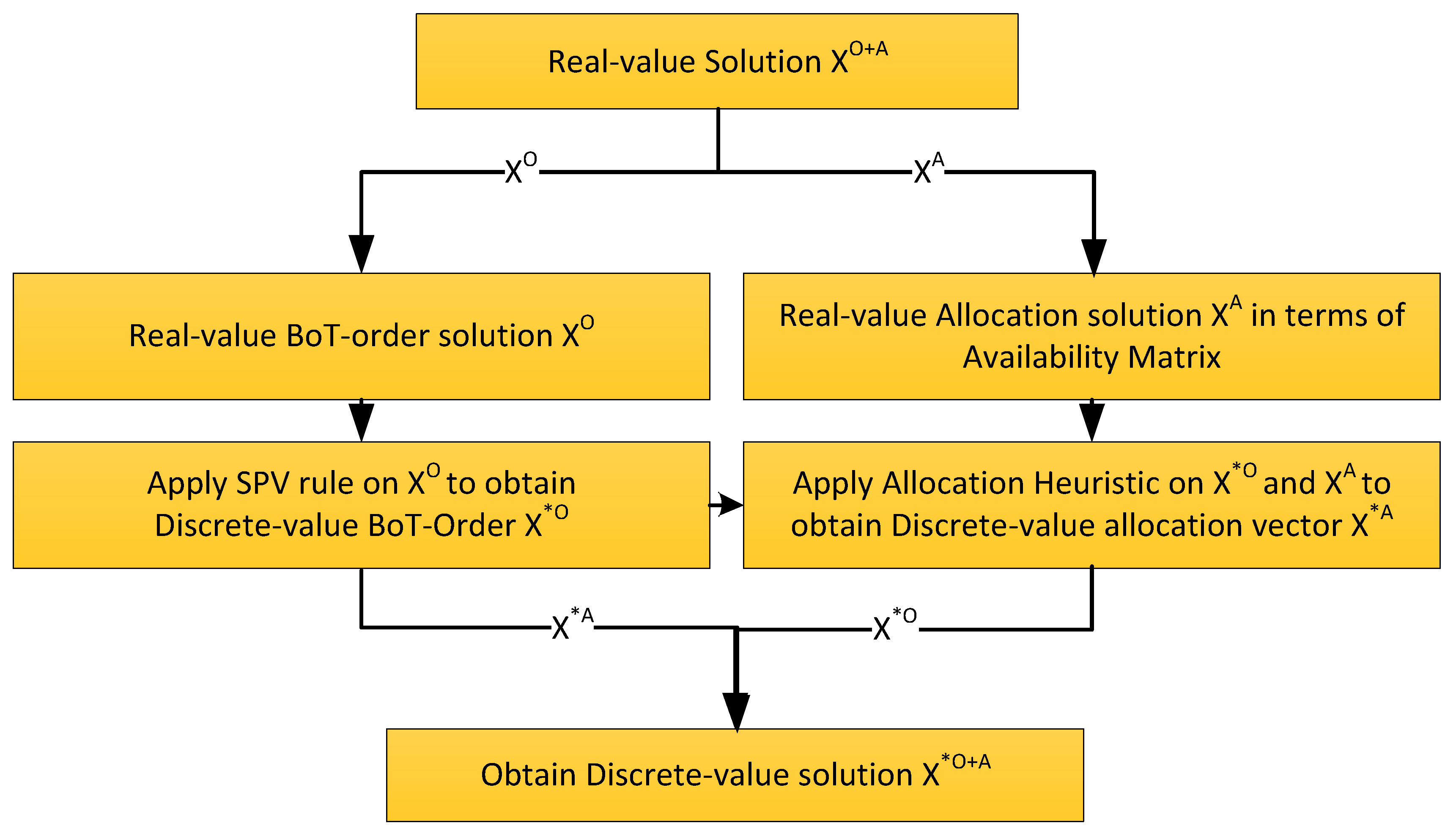

4.6.1. Solution Encoding

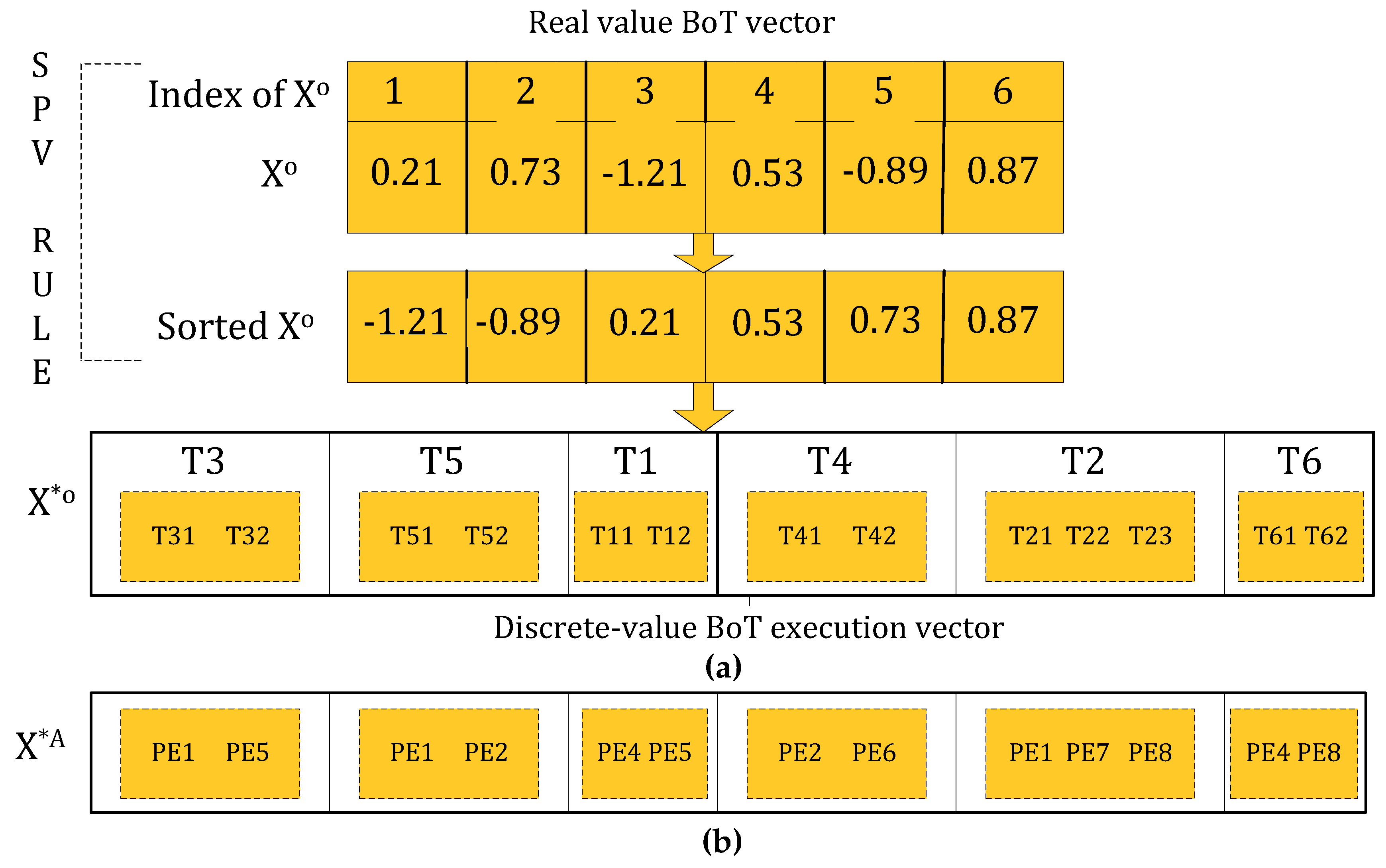

Discretization of BoT Application-Order Vector
Algorithm 1. SPV method. |
Input: Real-value BoT application-order vector |
Output: Discrete BoT application-order vector |
1. Begin |
2. Sort in the increasing order |
3. Calculate with discrete-values where |
4. End |
Discretization of Resource Allocation Vector
Algorithm 2. MDeRA heuristic. |
Input: PM: Total physical machines (pm), VM: Total virtual machines (vm), |
vms.PM: Virtual machines (vm) in each pm, CBA: Set of concurrent BoT applications |
Require: AM matrix representing VMs availability |
Result: Allocation list (AL): a pair of (BoT application ∈ CBA, vm ∈ VM) |
1. Sort available BoTs in CBA in the ascending order of their expected execution time |
2. for each BoT application ∈ CBA do |
3. Apply DeRA heuristic [13]. |
4. end for |
4.6.2. Pseudo-Code of the h-DEWOA Algorithm
Algorithm 3. h-DEWOA Algorithm. |
Input: Tasks, Virtual machines, fitness function: ObjFn(X), |
Variables: PX,G: Real-value population, PXD,G: Equivalent discrete-value population, G: Generation index; N: Population size, Gmax: Total generations |
Output: *: Best solution containing discrete-value BoT-order and resource allocation |
1: Initialization of parameters of scheduling problem, WOA, and DE metaheuristics |
2: G = 1//First generation for producing initial population |
3: PXChaotic,G ← ½ ChaoticInitialPopulation( )//First half of initial real-value population using logistic map |
4: PXOBL,G ← ½ OBLbasedInitialPopulation( )//Second half of initial real-value population using OBL |
5: PX,G ← PXChaotic,G + PXOBL,G //Merge both halves of initial real-value population |
6: PXD,G←MDeRA(SPV(PX,G)) //Generate discrete-form population using SPV and MDeRA heuristics |
7: Fitness (PXD,G) ← ObjFn(PXD,G) //Evaluate the fitness of population |
8: * = argmin (Fitness (PXD,G)) //Global best discrete-value solution |
9: * ) //Global best real-value solution |
10. G = G + 1 |
11: while (G < MaxGeneration) |
12: for each solution X𝑖,G ∈ population PX,G do |
13: if (Fitness (solution X𝑖,G) <= Fitness(gBestG−1)) //Exploration–exploitation tradeoff condition |
14: for both task-order and allocation dimensions of solution X𝑖,G do//WOA Exploitation |
15: Apply WOA on solution X𝑖,G using Equation (13) and Equation (18) to obtain X𝑖,G+1 |
16: Store position if X𝑖,G+1 is better than X𝑖,G |
17: end for //WOA phase ends |
18: else (Fitness (solution X𝑖,G) > Fitness(gBestG−1)) |
19: for both task-order and allocation dimensions of solution X𝑖,G do//DE Exploration |
20: Generate Mutant of X𝑖,G using Equation (22) |
21: Crossover of Mutant with the original solution using Equation (23) |
22: Obtain solution X𝑖,G+1 using selection operator using Equation (24) |
23: Apply OBL on X𝑖,G+1//Apply OBL on DE solution to improve exploration |
24: Retain best solution among OBL- and non-OBL-based DE solution |
25: end for //DE phase ends |
26: end if |
27: end for |
28: PXD,G← MDeRA(SPV(PX,G))//Generate discrete-form population |
29: Fitness (PXD,G) ← ObjFn(PXD,G) //Fitness evaluation Evaluate the fitness of population |
30: Update the current integer and real-value global best solution |
31: end while |
32: * = argmin (Fitness (PXD,G))//Record the global best scheduling solution found |
- Line 1: Initialize parameters of the scheduling problem, WOA algorithm, and DE algorithm
- Line 2: Initialize G equal to 1
- Line 3: Generate first random half of initial real-value population using logistic chaotic maps.
- Line 4: Generate second random half of initial real-value population using opposition-based learning method.
- Line 5: Merge both initial population halves generated in Line 2 and 3 to generate full initial real-value population.
- Line 6: Convert real-form population into an equivalent discrete-form population using SPV and MDeRA heuristic.
- Line 7: Evaluate the fitness of the population using objective function.
- Line 8: Find the global best discrete-value solution from whole population
- Line 9: Generate the real-value population
- Line 10: Update G value
- Line 11: Iterations of the h-DEWOA using while loop till (G < MaxGeneration) condition is true
- Line 12: Start of the for loop to update the position of solutions
- Line 13–17: Exploration–exploitation tradeoff condition is tested on the basis of fitness of current solution (Line 13). When the current solution’s fitness is equal to or better than the previous generation population’s global best solution (Line 13), then WOA exploitation mechanism is applied on the current solution position to search nearby better solutions (Line 14–17).
- Line 18–25: When the current solution’s fitness is less than the previous generation population’s global best solution (Line 18), the h-DEWOA algorithm performs DE exploration activity for searching better far-away solutions (Line 19–22). After that, OBL is applied on the real-value solution and select the best solution between the OBL solution and non-OBL solution (Line 23–25).
- Line 26: End of if condition for switching between exploration and exploitation.
- Line 27: End of for loop for updating solution position.
- Line 28: Obtain the discrete-form population by applying SPV and MDeRA heuristic.
- Line 29: Evaluate the fitness of new population using fitness function.
- Line 30: This step results in updating of the current integer and real-value global best solution.
- Line 31: End of while loop since algorithm iteration condition is met.
- Line 32: Output the best solution found with minimum fitness, which represents the optimal schedule consisting of BoT application-order and allocation of VMs to BoT applications.
- Initially, both logistic map and OBL are incorporated to produce an optimal initial population, leading to improved exploration and convergence rate thereafter in the later stages of the proposed h-DEWOA approach.
- Thereafter, the DE metaheuristic is added to the traditional WOA to boost the exploration ability and convergence rate. The OBL method is also incorporated in the DE to further maintain population diversity throughout consecutive generations, producing efficient final solutions and improving convergence rate further.
- Further, a fitness-based exploration–exploitation tradeoff mechanism is incorporated in the proposed h-DEWOA method to adequately balance the DE exploration and WOA exploitation phases, which leads to generation of better schedules.
4.7. Time Complexity Analysis
5. Experimentation and Results
5.1. Workloads and Cloud Configuration
5.2. Comparative Results
5.2.1. Comparison with WOA Variants—First Series of Experiments
5.2.2. Baseline WOA Variants

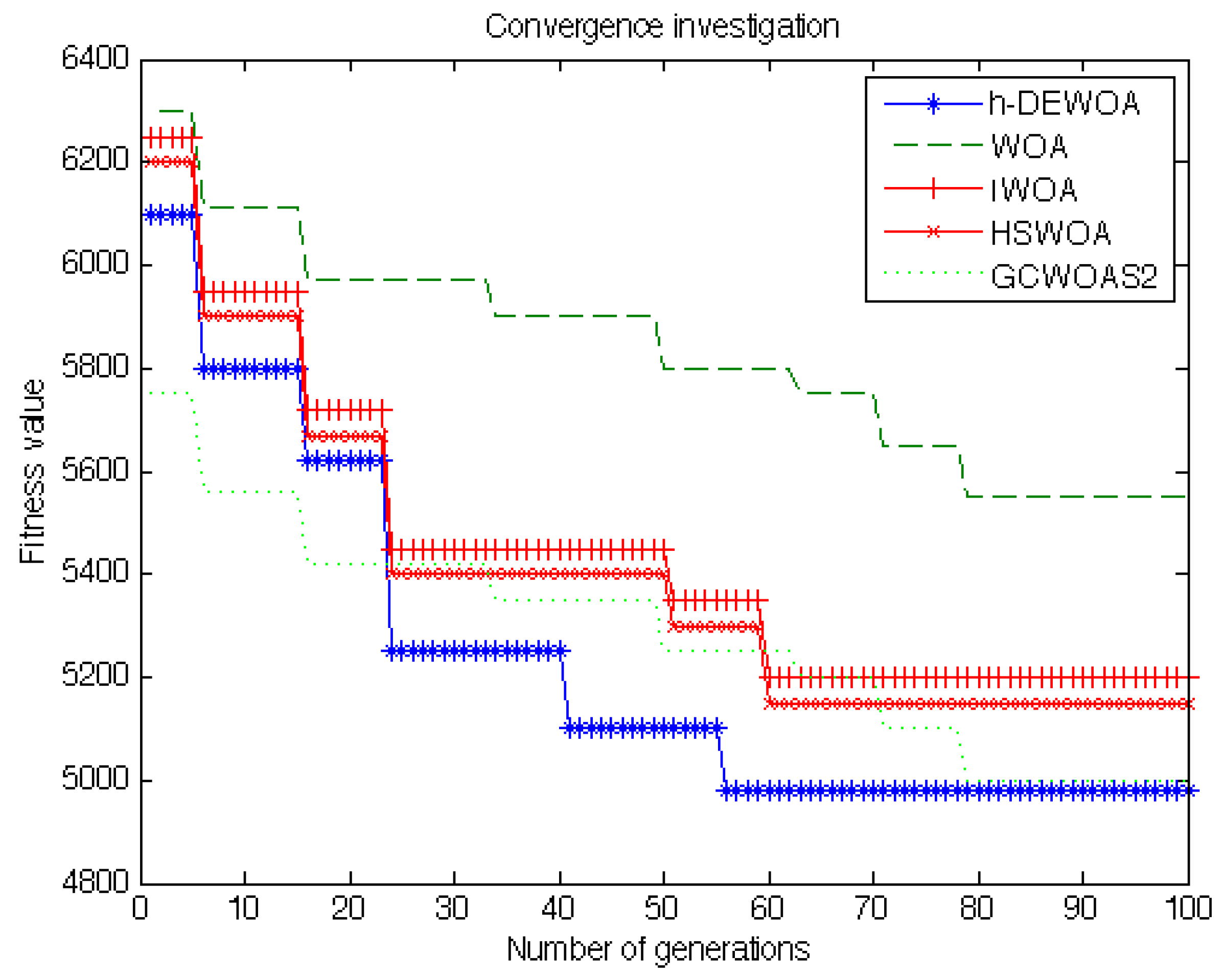

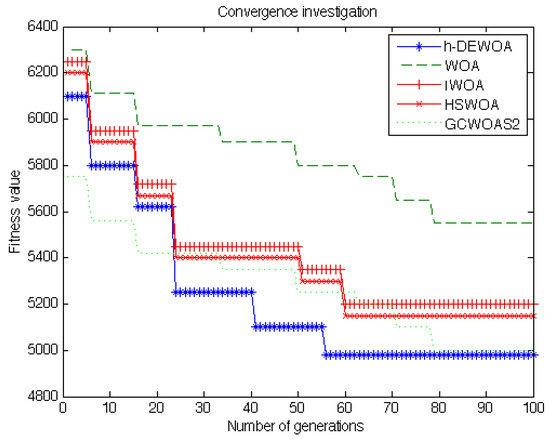

5.2.3. Convergence Examination and Final Values of Parameters
5.2.4. Performance Evaluation of First Set of Experiments

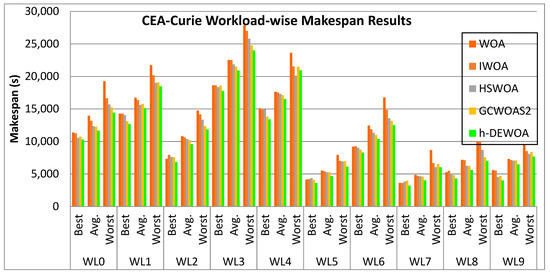

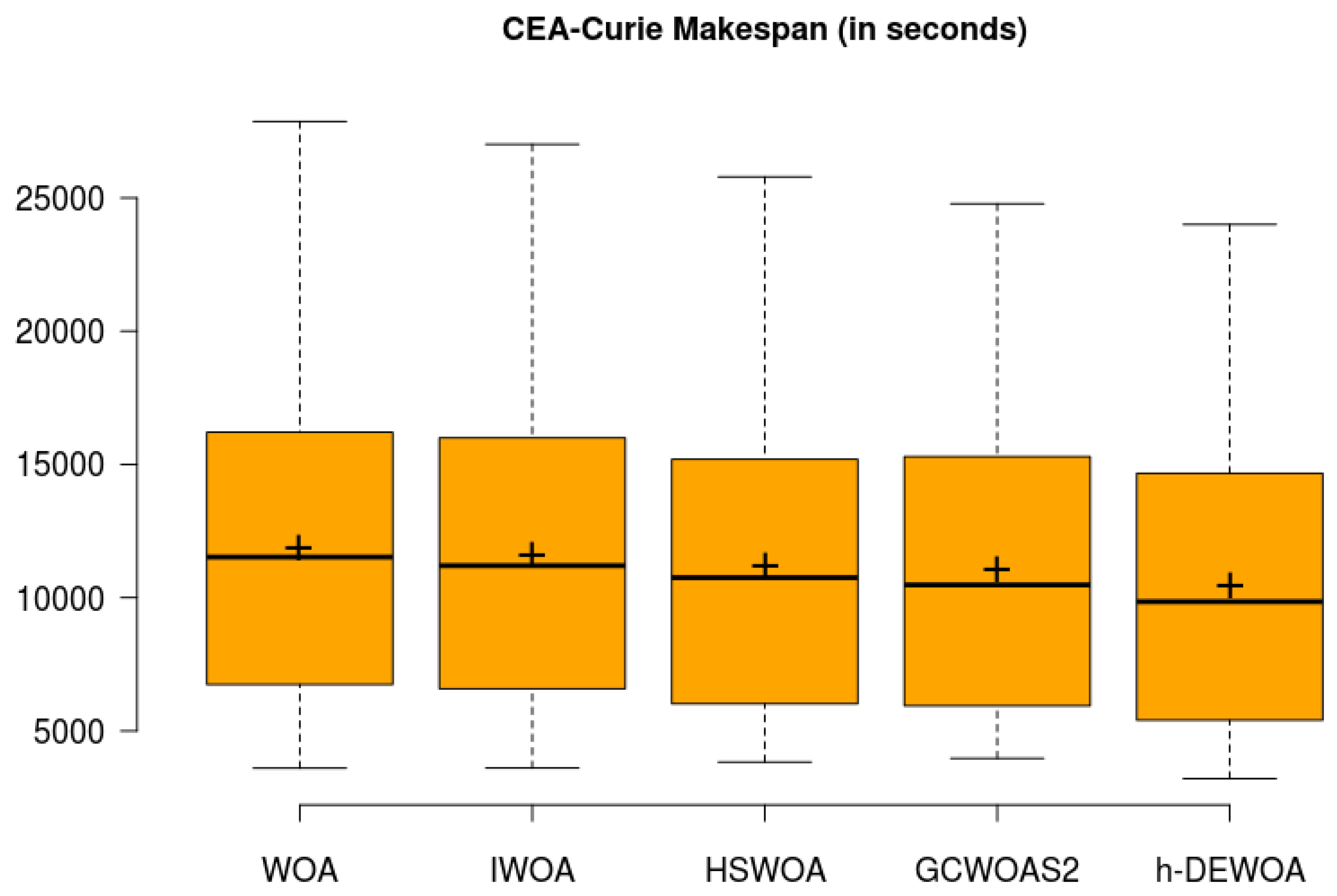

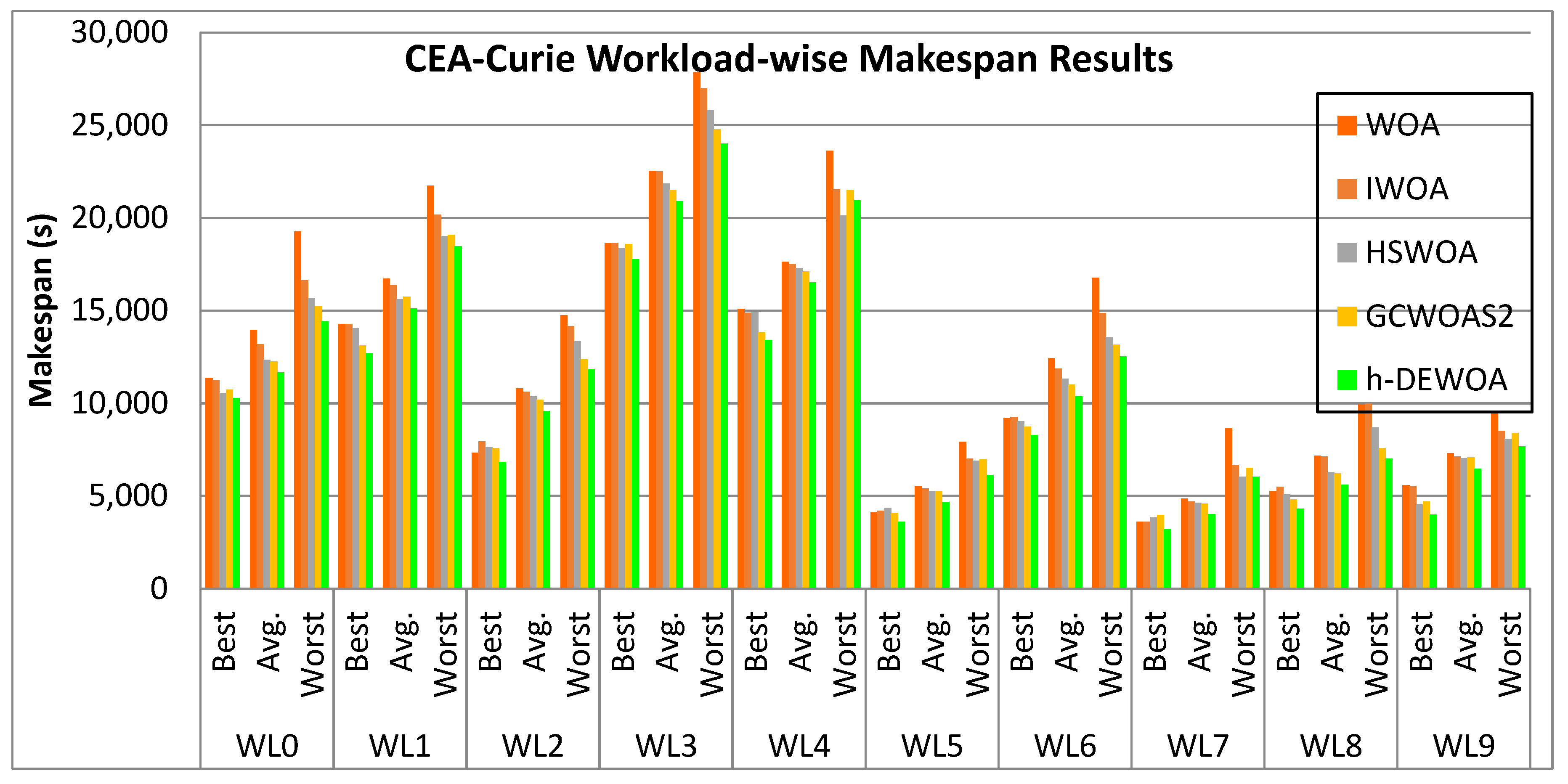

Workload-Wise Makespan Results for CEA-Curie Workloads

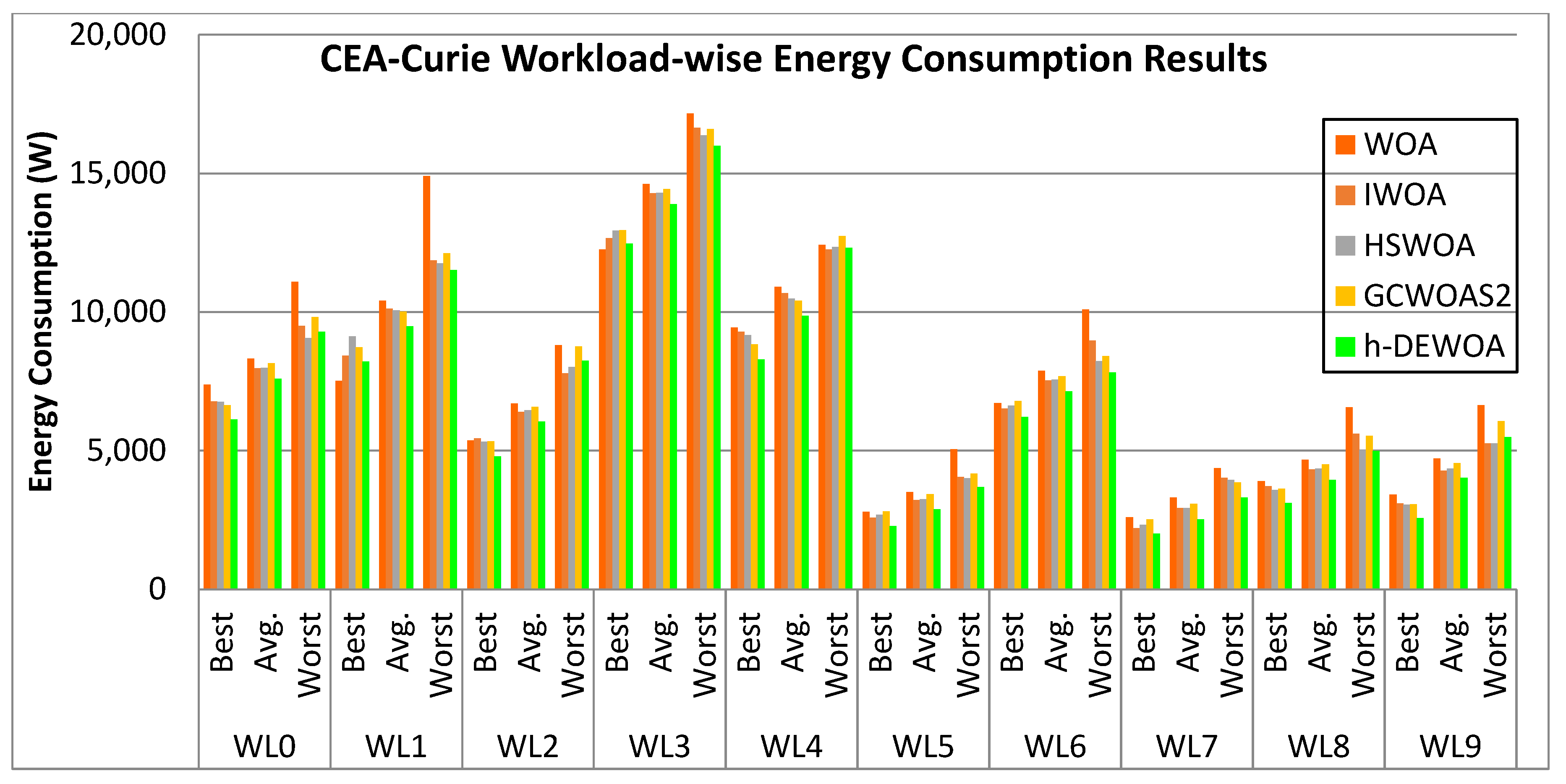

Workload-Wise Energy Consumption Results for CEA-Curie Workloads

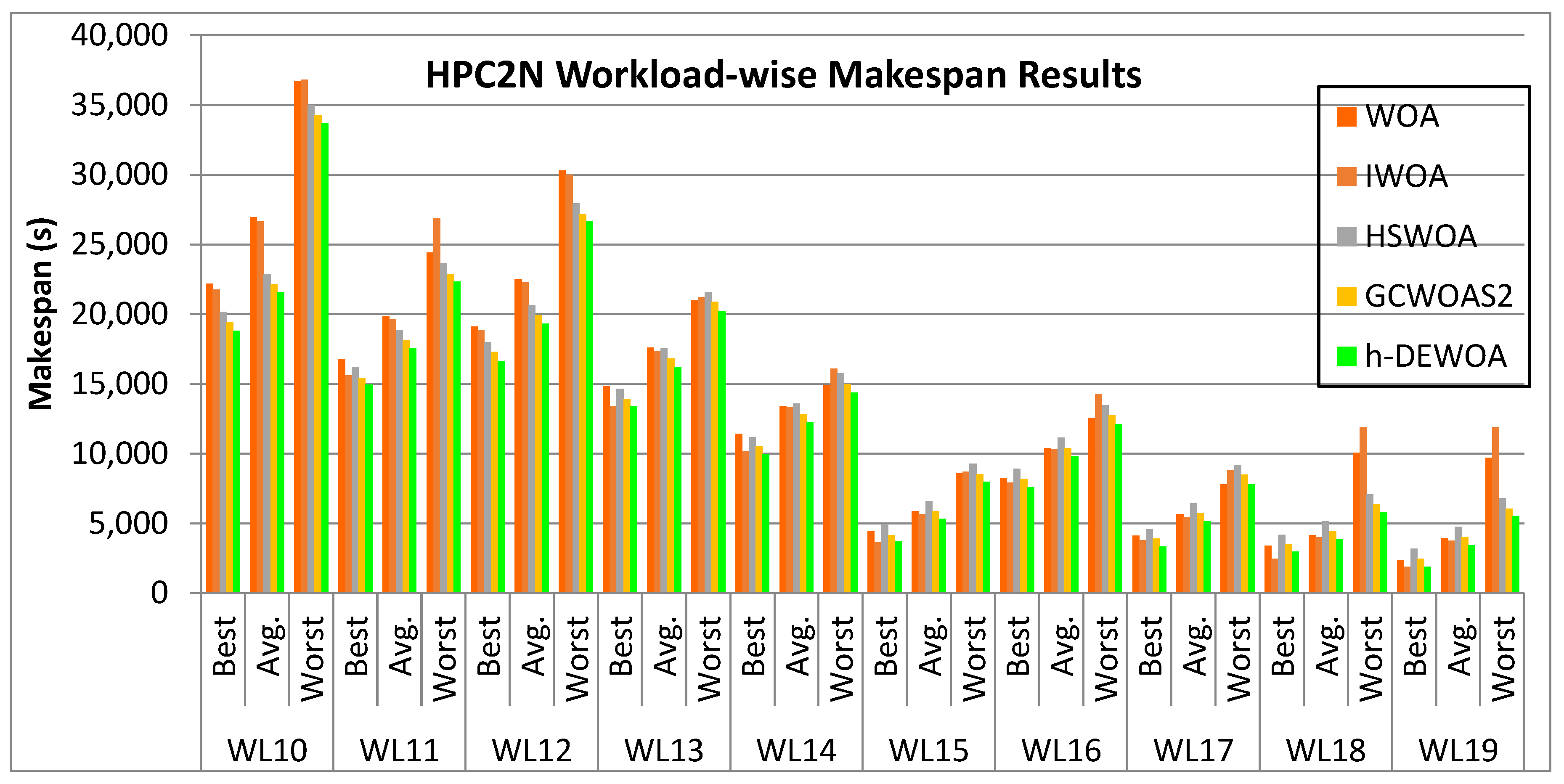

Workload-Wise Makespan Results for HPC2N Workloads

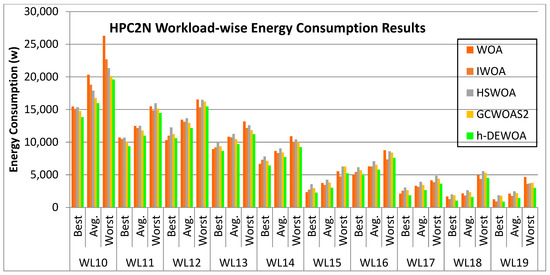

Workload-Wise Energy Consumption Results for HPC2N Workloads

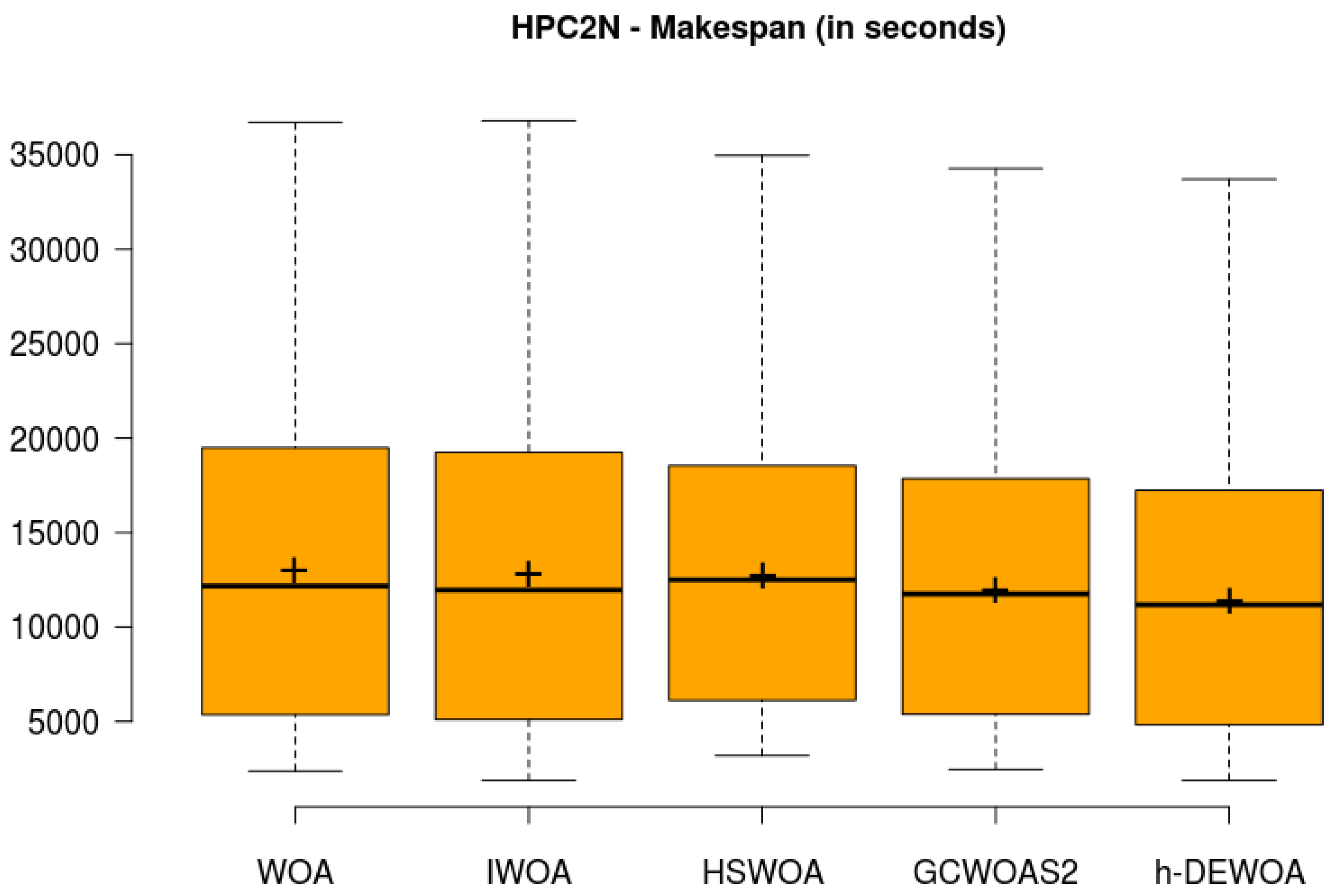

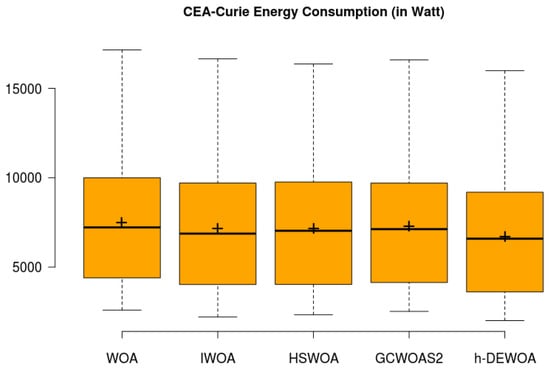

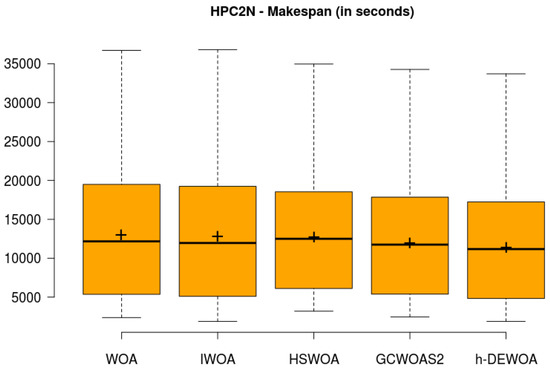

5.2.5. Overall Collective Results—First Set of Experiments
Summarizing the Overall Results—First Series of Experiments
5.3. Comparative Results with State-of-the-Art Algorithms—Second Series of Experiments
5.3.1. Baseline State-of-the-Art Scheduling Algorithms

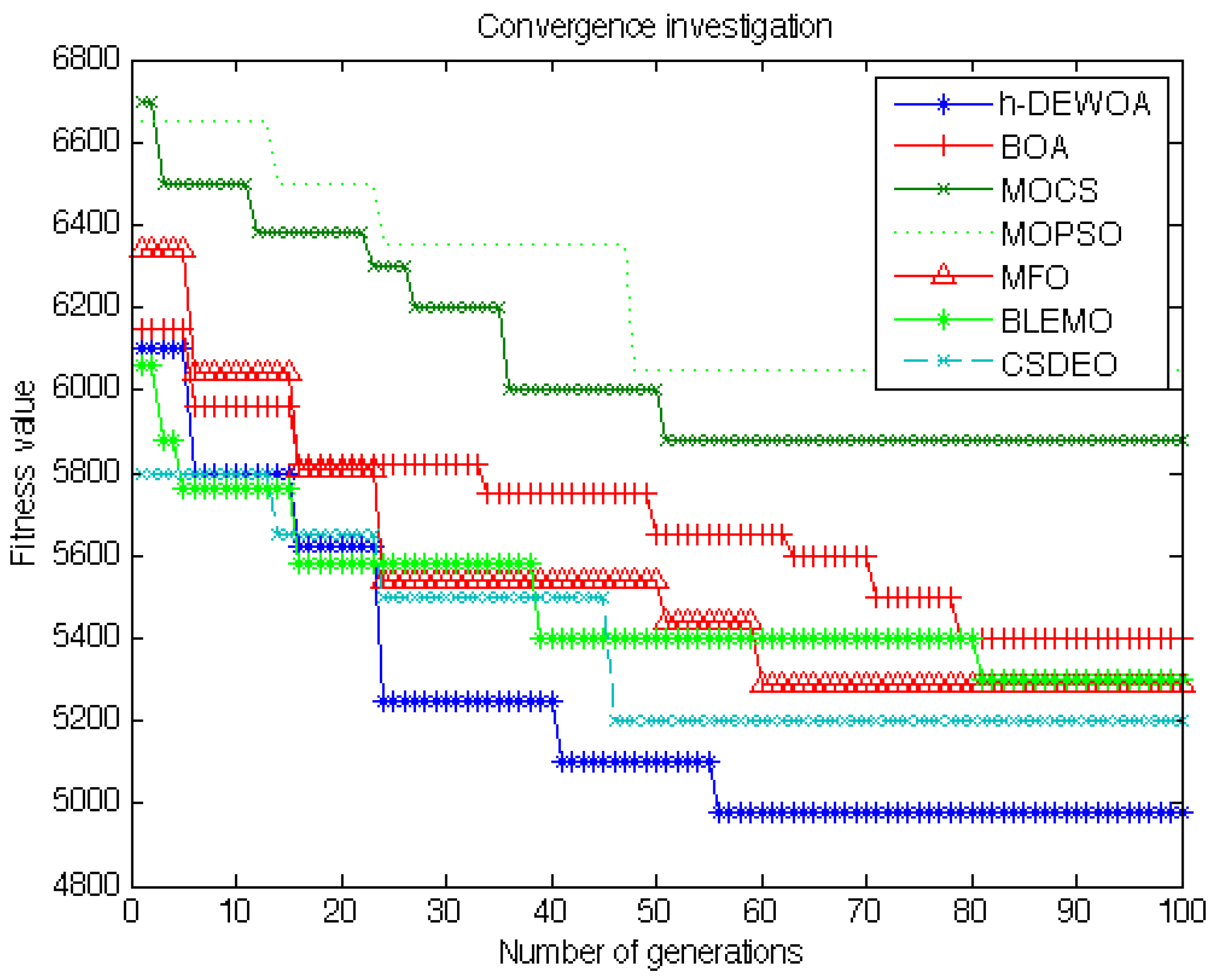

5.3.2. Convergence Examination and Final Values of Parameters
5.3.3. Performance Evaluation of Second Set of Experiments
Workload-Wise Makespan Results for CEA-Curie Workloads

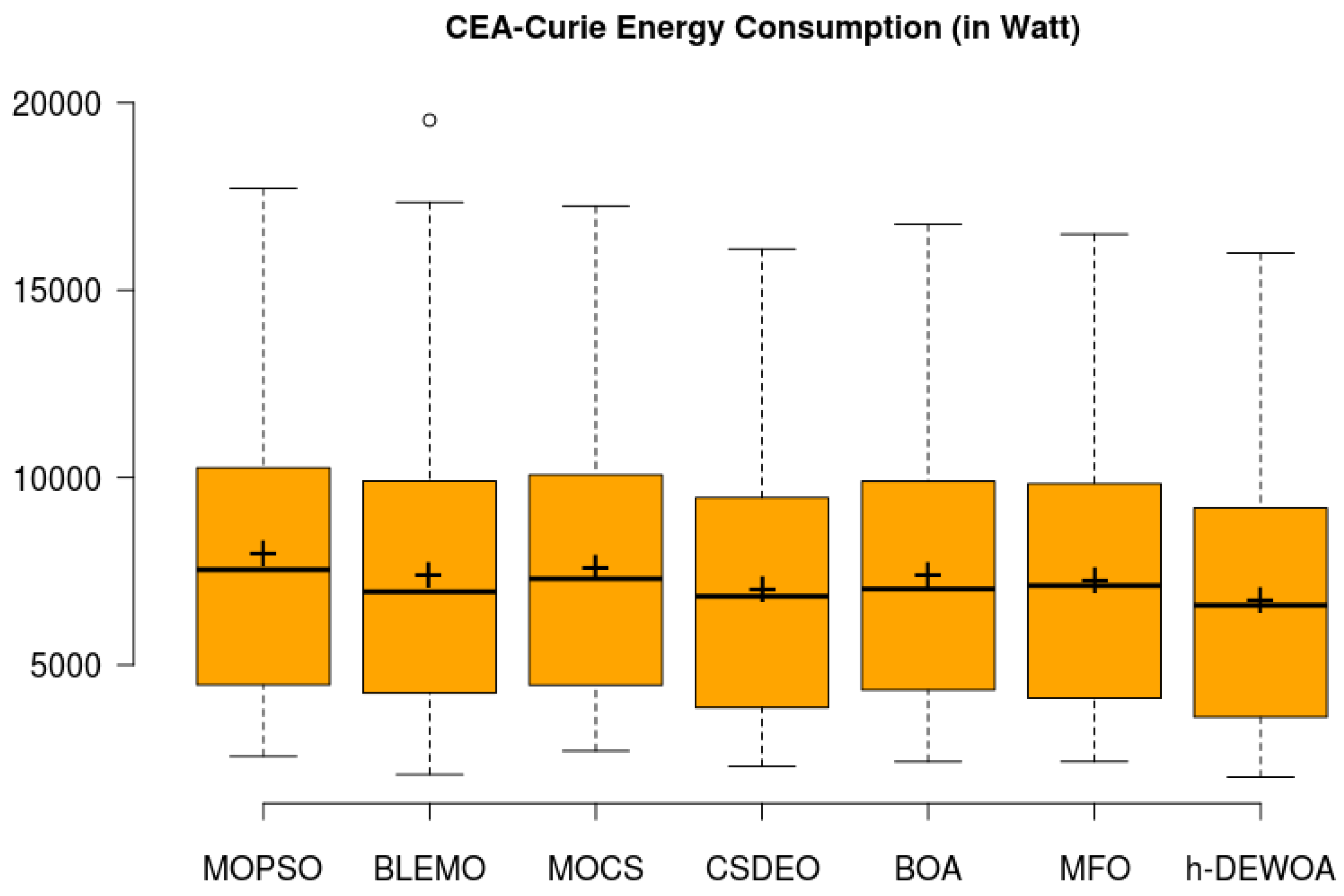

Workload-Wise Energy Consumption Results for WL0–WL9 Workloads

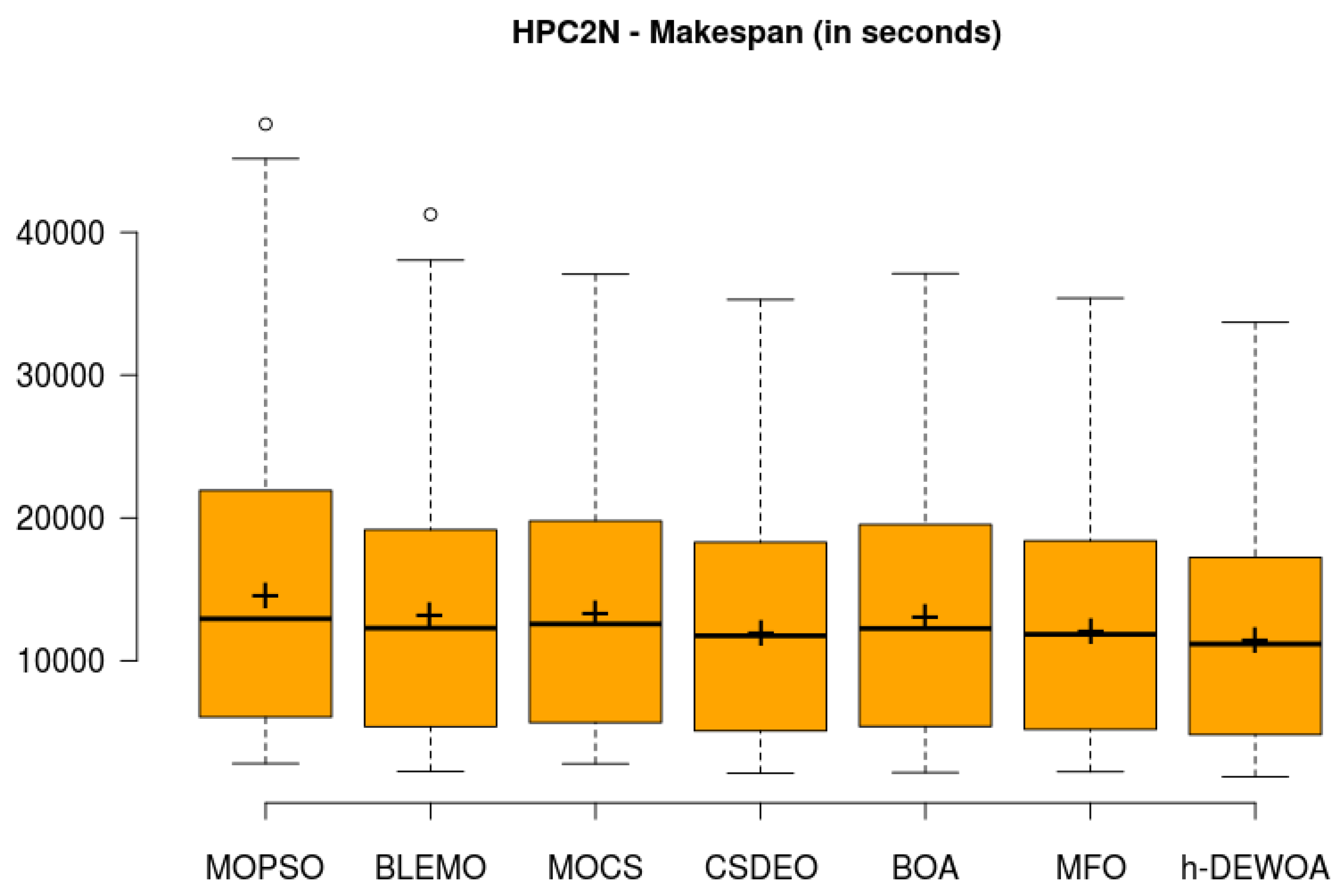

Workload-Wise Makespan Results for HPC2N Workloads

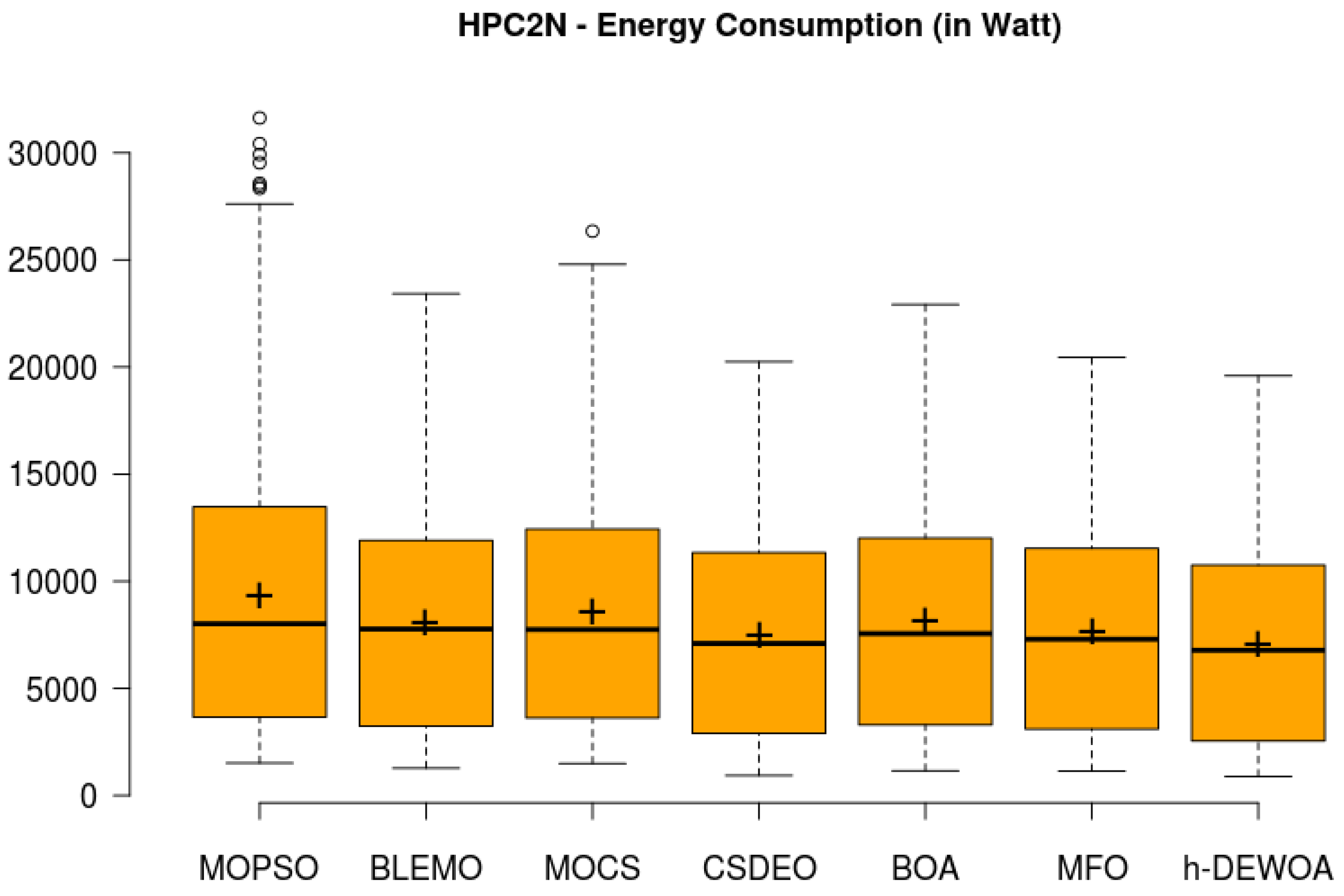

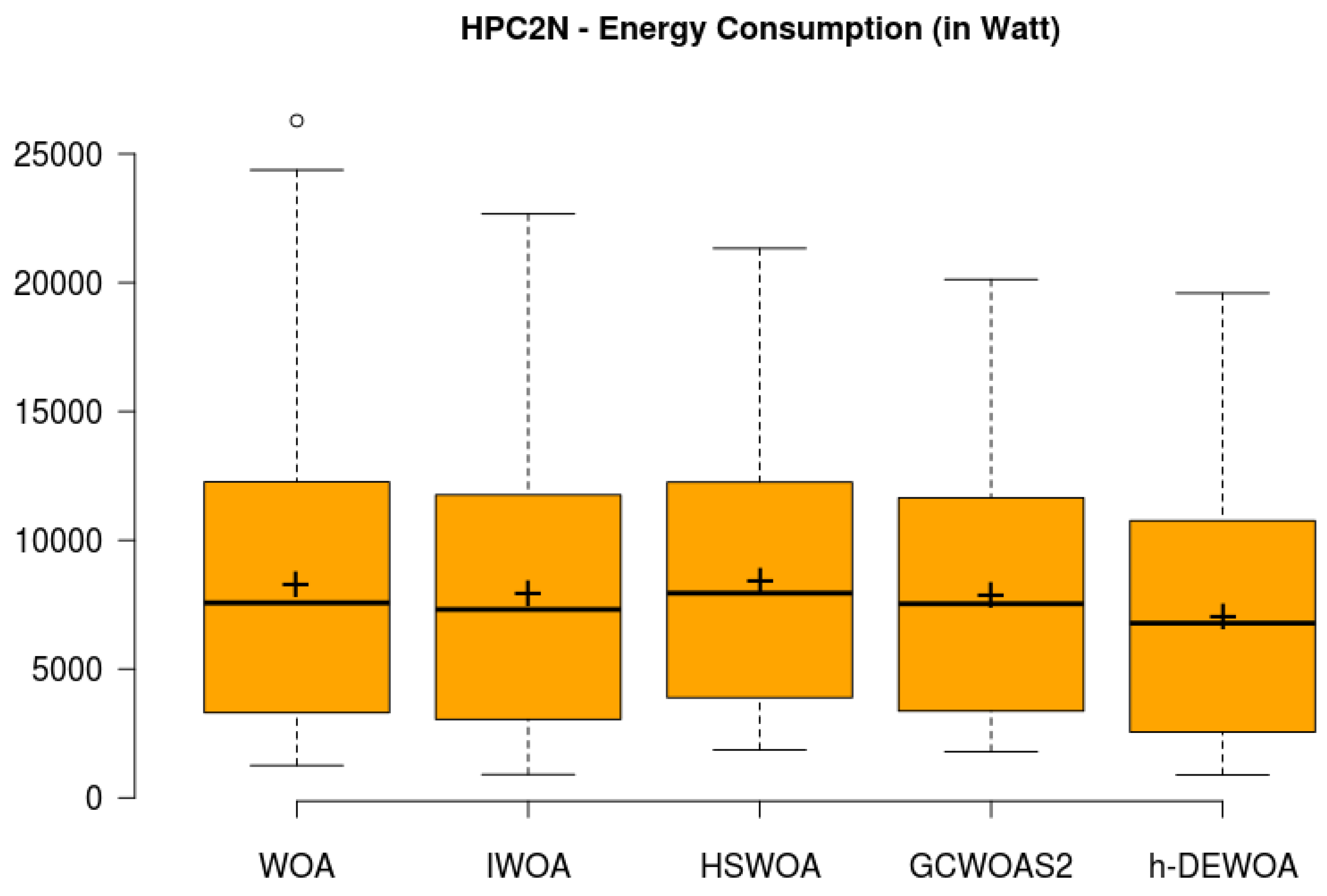

Workload-Wise Energy Consumption Results for HPC2N Workloads

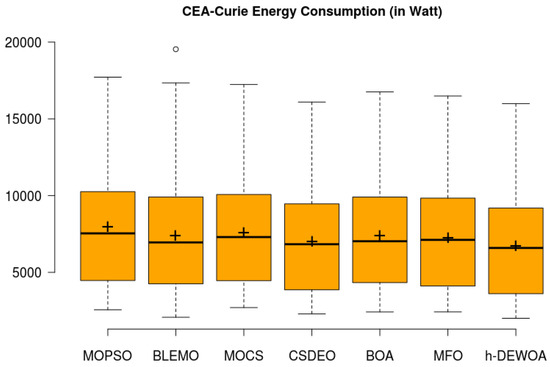

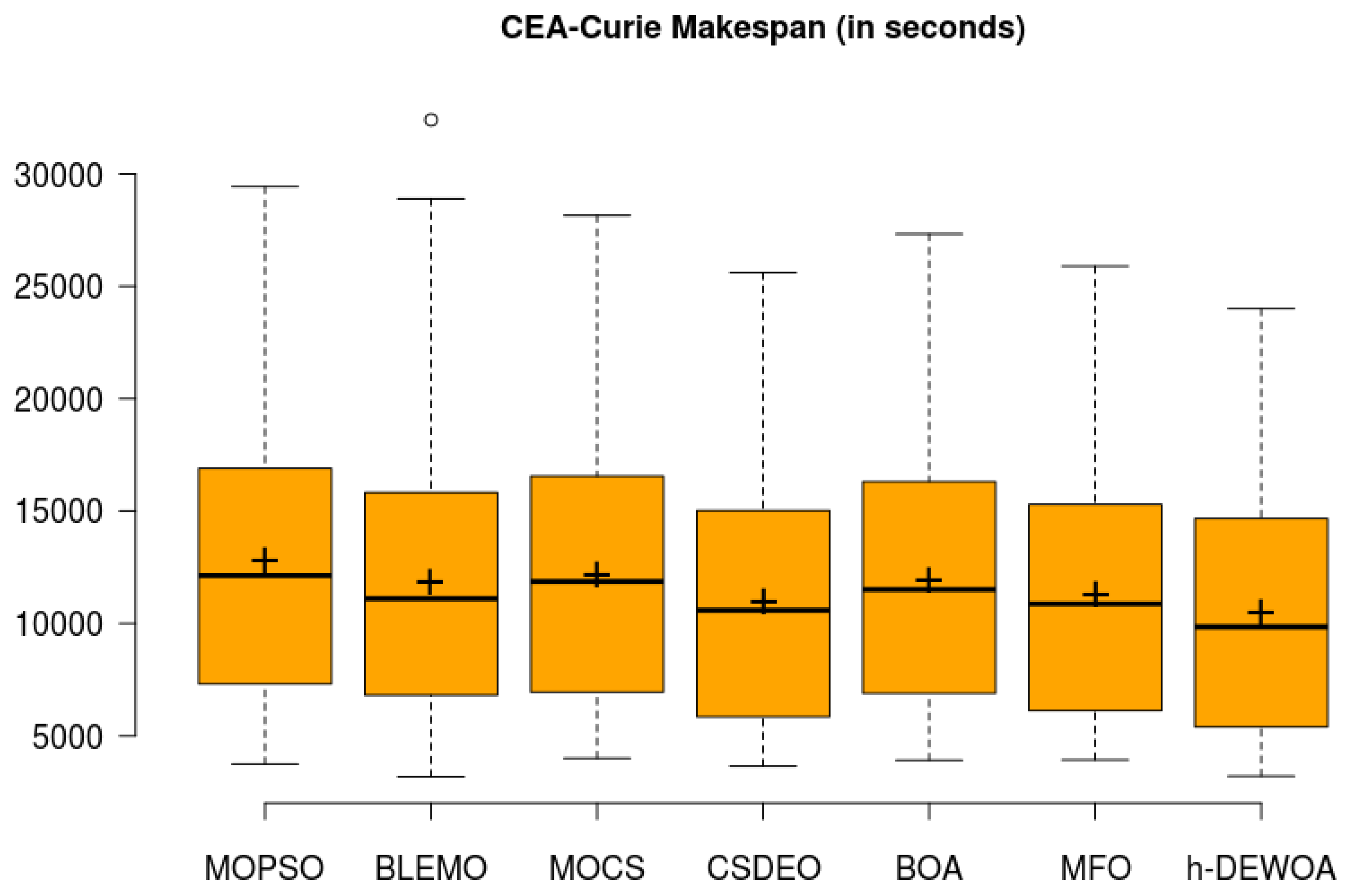

5.3.4. Overall Collective Results—Second Series of Experiments
Summarizing the Overall Results—Second Series of Experiments
5.4. Main Reasons for Excellent Performance of h-DEWOA
6. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
