# An Approach to the Design and the Interactions of a Fully Superconducting Synchronous Generator and Its Power Converter

^{1}

^{2}

^{3}

^{4}

^{*}

^{†}

## Abstract

**:**

## 1. Introduction

## 2. Dependencies and System Design Conflicts

_{c}= 52 A. This tape width is currently the most narrow one available.

_{1}on the number of parallel branches a, because ${U}_{1}\propto \frac{1}{a}$. For a power rating in the MW range and a coil current of I

_{coil}≈ I

_{c}= 52 A, large phase voltages U

_{1}have to be expected even without a series connection of the coils inside the armature winding. Although a suitable PEC could theoretically be designed, practical issues such as component properties and device costs usually aim for a more balanced distribution of voltage and current load for a PEC, which in this case requires the parallel connection of the FSSG coils.

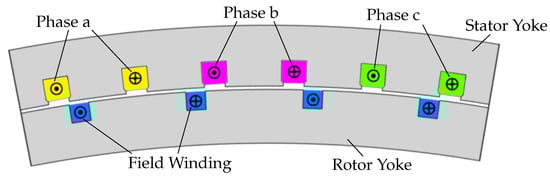

## 3. Design of a Fully Superconducting Synchronous Generator (FSSG)

#### 3.1. Basic Design Constraints of a 10 MW FSSG for Wind Power Plants

#### 3.2. Armature Winding

#### 3.3. Field Winding

## 4. Parameter Studies for an FSSG

#### 4.1. Parameter Study 1: Variation of the Number of Pole Pairs

#### 4.2. Parameter Study 2: Variation of the Pole Pitch

#### 4.3. Summary of Parameter Studies

## 5. Design Options for the Rectifier–Machine Interface

_{1}of a synchronous generator can be calculated according to (7). Depending on the topology of the PEC, either the peak phase voltage or the peak phase-to-phase voltage define the maximum voltage that power semiconductors inside a power rectifier are exposed to. Ignoring overvoltage events and observing (8) for the investigated FSSG concept, these peak values calculate according to (9) and (10), respectively.

#### 5.1. Rectifier-Side Possibilities

#### 5.2. Machine-Side Possibilities

## 6. Rectifier Concepts and Topologies for FSSGs

- Conventional converters that are designed for a specific conversion task and usually try to minimise the number of functional components;
- Modular or cell-based converters that combine multiple copies of a basic converter “cell” to address various conversion tasks and/or to enable a more flexible system.

#### 6.1. Conventional Converter Concepts

#### 6.1.1. Two-Level Active Rectifiers

#### 6.1.2. Three-Level Active Rectifiers

#### 6.2. Cell-Based Multi-Level Converters

#### 6.2.1. Flying Capacitor Converter

#### 6.2.2. Stacked-Multi-Cell Converter

#### 6.2.3. Modular Multi-Level Converter

#### 6.2.4. Cascaded Power Cells

#### 6.2.5. Cascaded H-Bridge Concept for the FSSG

#### 6.2.6. Realising an AC Grid Connection

## 7. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

CHB | Cascaded H-bridge | MF | Medium Frequency |

DAB | Dual Active Bridge | MMC | Modular Multilevel Converter |

FC | Flying Capacitor | MV | Medium Voltage |

HTS | High Temperature Superconductor | PEC | Power Electronic Converter |

HVDC | High-Voltage Direct Current | SMC | Stacked-Multicell Converter |

## Nomenclature

a | Number of parallel branches | ${P}_{1}$ | Real power of the generator |

${a}_{\mathrm{max}}$ | Maximum number of parallel branches | ${P}_{\mathrm{AC}}$ | AC losses in HTS tapes |

${B}_{\mathrm{t}}$ | Tangential flux density | ${P}_{\mathrm{N}}$ | Rated output power of the generator |

d | Width of the HTS tape | q | Number of slots per pole and per phase |

${f}_{1}$ | Electric frequency in the stator winding | ${S}_{1}$ | Apparent power of the generator |

${f}_{\mathrm{grid}}$ | AC grid frequency | ${s}_{\mathrm{Gen}}$ | Number of independent three-phase systems |

${I}_{1}$ | RMS phase current of the generator | ${s}_{\mathrm{PEC}}$ | Number of parallel three-phase systems per PEC |

${I}_{\mathrm{coil}}$ | Coil current | ${T}_{\mathrm{N}}$ | Rated input torque of the generator |

${I}_{\mathrm{c}}$ | Critical current of the HTS tape | ${U}_{\mathrm{Cell},\mathrm{DC},\mathrm{max}}$ | Maximum DC voltage of one power cell |

${I}_{\mathrm{PEC}}$ | Phase current of the PEC | ${U}_{\mathrm{Cell},\mathrm{DC}}$ | DC voltage of one power cell |

${l}_{\mathrm{tape}}$ | Effective length of the HTS tape | ${U}_{\mathrm{Cell},\mathrm{ph}}$ | RMS phase voltage of one power cell |

m | Number of phases | ${U}_{\mathrm{Grid},\mathrm{DC},\mathrm{max}}$ | Maximum total DC voltage with series power cell concept |

n | Rotational speed | ${U}_{\mathrm{PEC},\mathrm{DC}}$ | DC voltage of one three-phase rectifier |

${n}_{\mathrm{Cell},\mathrm{ph},\mathrm{min}}$ | Minimum number of power cells per phase | ${U}_{1}$ | RMS phase voltage of the generator |

${n}_{\mathrm{Cell},\mathrm{ph}}$ | Number of power cells per phase | ${Z}_{1}$ | Number of stator slots |

${n}_{\mathrm{Cell},\mathrm{tot}}$ | Total number of power cells | $cos\phi $ | Power factor |

${n}_{\mathrm{N}}$ | Rated rotor speed of the generator | ${\widehat{u}}_{1}$ | Amplitude of the generator phase voltage |

${n}_{\mathrm{PEC}}$ | Number of PEC | ${\widehat{u}}_{\mathrm{phase}-\mathrm{phase}}$ | Amplitude of the generator phase-to-phase voltage |

p | Number of pole pairs | ${\widehat{u}}_{\mathrm{Cell},\mathrm{ph},\mathrm{max}}$ | Maximum possible AC voltage amplitude of one power cell |

## References

- Polinder, H.; Ferreira, J.A.; Jensen, B.B.; Abrahamsen, A.B.; Atallah, K.; McMahon, R.A. Trends in Wind Turbine Generator Systems. IEEE J. Emerg. Sel. Top. Power Electron.
**2013**, 1, 174–185. [Google Scholar] [CrossRef] - Kalsi, S.S. Superconducting Wind Turbine Generator Employing M
_{g}B_{2}Windings Both on Rotor and Stator. IEEE Trans. Appl. Supercond.**2014**, 24, 47–53. [Google Scholar] [CrossRef] - Shrestha, G.; Polinder, H.; Ferreira, J.A. Scaling laws for direct drive generators in wind turbines. In Proceedings of the 2009 IEEE International Electric Machines and Drives Conference, Miami, FL, USA, 3–6 May 2009; pp. 797–803. [Google Scholar] [CrossRef]
- Stuebig, C.; Haberjan, L.; Seibel, A.; Steffen, J.; Thalemann, F.; Wecker, M.; Ponick, B. Segmented permanent magnet ring generator with active damping of axial oscillations. In Proceedings of the 2016 XXII International Conference on Electrical Machines (ICEM), Lausanne, Switzerland, 4–7 September 2016; IEEE: Piscataway, NJ, USA, 2016; pp. 564–570. [Google Scholar] [CrossRef]
- Steffen, J.; Lengsfeld, S.; Jung, M.; Ponick, B.; Herranz Gracia, M.; Spagnolo, A.; Klöpzig, M.; Schleicher, K.; Schäfer, K. Design of a Medium Voltage Generator with DC-Cascade for High Power Wind Energy Conversion Systems. Energies
**2021**, 14, 3106. [Google Scholar] [CrossRef] - Alexandrova, Y.; Semken, S.; Polikarpova, M.; Pyrhonen, J. Defining proper initial geometry of an 8 MW liquid-cooled direct-drive permanent magnet synchronous generator for wind turbine applications based on minimizing mass. In Proceedings of the 2012 XXth International Conference on Electrical Machines, Marseille, France, 2–5 September 2012; pp. 1250–1255. [Google Scholar] [CrossRef]
- Haran, K.S.; Kalsi, S.; Arndt, T.; Karmaker, H.; Badcock, R.; Buckley, B.; Haugan, T.; Izumi, M.; Loder, D.; Bray, J.W.; et al. High power density superconducting rotating machines—Development status and technology roadmap. Supercond. Sci. Technol.
**2017**, 30, 123002. [Google Scholar] [CrossRef] - Maples, B.; Hand, M.; Musial, W. Comparative Assessment of Direct Drive High Temperature Superconducting Generators in Multi-Megawatt Class Wind Turbines; National Renewable Energy Lab.(NREL): Golden, CO, USA, 2010. [Google Scholar] [CrossRef] [Green Version]
- Guan, Y.; Zhu, Z.Q.; Li, G.; Azar, Z.; Thomas, A.S.; Vedreño-Santos, F.; Odavic, M. Influence of Pole Number and Stator Outer Diameter on Volume, Weight, and Cost of Superconducting Generators with Iron-Cored Rotor Topology for Wind Turbines. IEEE Trans. Appl. Supercond.
**2017**, 27, 5204009. [Google Scholar] [CrossRef] - Oomen, M. AC Loss in Superconducting Tapes and Cables. Ph.D. Thesis, Universiteit Twente, Enschede, The Netherlands, 2000. [Google Scholar]
- Oomen, M.P.; Rieger, J.; Hussennether, V.; Leghissa, M. AC loss in high-temperature superconducting conductors, cables and windings for power devices. Supercond. Sci. Technol.
**2004**, 17, S394–S399. [Google Scholar] [CrossRef] - Vargas-Llanos, C.R.; Lengsfeld, S.; Noe, M.; Arndt, T.; Grilli, F. Influence of Coil Position on AC Losses of Stator Superconducting Windings of a Synchronous Machine for a 10 MW Wind Turbine. IEEE Trans. Appl. Supercond.
**2021**, 31, 5206509. [Google Scholar] [CrossRef] - Terao, Y.; Sekino, M.; Ohsaki, H. Electromagnetic Design of 10 MW Class Fully Superconducting Wind Turbine Generators. IEEE Trans. Appl. Supercond.
**2012**, 22, 5201904. [Google Scholar] [CrossRef] - Thoma, J.; Volzer, B.; Kranzer, D.; Derix, D.; Hensel, A. Design and Commissioning of a 10 kV Three-Phase Transformerless Inverter with 15 kV Silicon Carbide MOSFETs. In Proceedings of the 2018 20th European Conference on Power Electronics and Applications, EPE 2018 ECCE Europe, Riga, Latvia, 17–21 September 2018. [Google Scholar]
- Kranzer, D.; Thoma, J.; Volzer, B.; Derix, D.; Hensel, A.; Ise, F. Development of a 10 kV Three-Phase Transformerless Inverter with 15 kV Silicon Carbide MOSFETs for Grid Stabilization and Active Filtering of Harmonics. In Proceedings of the 2017 19th European Conference on Power Electronics and Applications (EPE’17 ECCE Europe), Warsaw, Poland, 11–14 September 2017; pp. 1–8. [Google Scholar]
- Thoma, J.; Kolb, S.; Salzmann, C.; Kranzer, D. Characterization of high-voltage-sic-devices with 15 kV blocking voltage. In Proceedings of the 2016 IEEE International Power Electronics and Motion Control Conference, PEMC 2016, Varna, Bulgaria, 25–28 September 2016; pp. 946–951. [Google Scholar] [CrossRef]
- Sabri, S.; Van Brunt, E.; Barkley, A.; Hull, B.; O’Loughlin, M.; Burk, A.; Allen, S.; Palmour, J. New generation 6.5 kV SiC power MOSFET. In Proceedings of the 2017 IEEE 5th Workshop on Wide Bandgap Power Devices and Applications, WiPDA 2017, Santa Ana Pueblo, NM, USA, 30 November–1 December 2017; pp. 246–250. [Google Scholar] [CrossRef]
- Pala, V.; Brunt, E.V.; Cheng, L.; O’Loughlin, M.; Richmond, J.; Burk, A.; Allen, S.T.; Grider, D.; Palmour, J.W.; Scozzie, C.J. 10 kV and 15 kV silicon carbide power MOSFETs for next-generation energy conversion and transmission systems. In Proceedings of the 2014 IEEE Energy Conversion Congress and Exposition, ECCE 2014, Pittsburgh, PA, USA, 14–18 September 2014; pp. 449–454. [Google Scholar] [CrossRef]
- Fronius Schweiz, A.G. Fronius Primo. Available online: https://www.fronius.com/~/downloads/Solar%20Energy/Datasheets/SE_DS_Fronius_Primo_DE.pdf (accessed on 13 April 2022).
- KACO New Energy GmbH. Blueplanet 125-150 TL3. Available online: https://kaco-newenergy.com/index.php?eID=dumpFile&t=f&f=8178&token=fd499b0bbd7a44b2bc9b5738a801782be60d53bb (accessed on 13 April 2022).
- SMA Solar Technology AG. SUNNY TRIPOWER 8.0/10.0 mit SMA SMART CONNECTED. Available online: https://files.sma.de/downloads/STP8-10-3AV-40-DS-en-32.pdf (accessed on 13 April 2022).
- Huber, J.E.; Kolar, J.W. Optimum Number of Cascaded Cells for High-Power Medium-Voltage AC-DC Converters. IEEE J. Emerg. Sel. Top. Power Electron.
**2017**, 5, 213–232. [Google Scholar] [CrossRef] - Lorenzani, E.; Immovilli, F.; Migliazza, G.; Frigieri, M.; Bianchini, C.; Davoli, M. CSI7: A Modified Three-Phase Current-Source Inverter for Modular Photovoltaic Applications. IEEE Trans. Ind. Electron.
**2017**, 64, 5449–5459. [Google Scholar] [CrossRef] - Sahan, B.; Araújo, S.V.; Nöding, C.; Zacharias, P. Comparative evaluation of three-phase current source inverters for grid interfacing of distributed and renewable energy systems. IEEE Trans. Power Electron.
**2011**, 26, 2304–2318. [Google Scholar] [CrossRef] - Meynard, T.A.; Foch, H. Multilevel choppers for high voltage applications. EPE J.
**1992**, 2, 45–50. [Google Scholar] [CrossRef] - Mersche, S.; Bernet, D.; Hiller, M. Quasi-two-level flying-capacitor-converter for medium voltage grid applications. In Proceedings of the 2019 IEEE Energy Conversion Congress and Exposition, ECCE 2019, Baltimore, MD, USA, 29 September–3 October 2019; pp. 3666–3673. [Google Scholar] [CrossRef] [Green Version]
- Gateau, G.; Meynard, T.A.; Foch, H. Stacked multicell converter (SMC): Properties and design. In Proceedings of the PESC Record–IEEE Annual Power Electronics Specialists Conference, Vancouver, BC, Canada, 17–21 June 2001; Volume 3, pp. 1583–1588. [Google Scholar] [CrossRef]
- Hosseini, S.H.; Khoshkbar Sadigh, A.; Sabahi, M. New configuration of stacked multicell converter with reduced number of DC voltage sources. IET Conf. Publ.
**2010**, 2010, 2–7. [Google Scholar] [CrossRef] - Sadeghi, M.; Hosseini, S.H.; Alizadeh, R.; Banaei, M.R. New mixed stacked multicell converter with interesting advantages. IET Power Electron.
**2012**, 5, 1298–1304. [Google Scholar] [CrossRef] - Lesnicar, A.; Marquardt, R. An innovative modular multilevel converter topology suitable for a wide power range. In Proceedings of the 2003 IEEE Bologna PowerTech—Conference Proceedings, Bologna, Italy, 23–26 June 2003; Volume 3, pp. 6–11. [Google Scholar] [CrossRef]
- Baker, I.R.H.; Bannister, L.H. Electric Power Converter. U.S. Patent 3,867,643, 18 February 1975. [Google Scholar]
- Doncker, W.A.A.D.; Divan, D.M.; Kheraluwala, M.H. A Three-phase Soft-Switched High-Power-Density dc/dc Converter for High-Power Applications. IEEE Trans. Ind. Appl.
**1991**, 27, 63–73. [Google Scholar] [CrossRef] - Mukherjee, S.; Kumar, A.; Chakraborty, S. Comparison of DAB and LLC DC-DC Converters in High-Step-Down Fixed-Conversion-Ratio (DCX) Applications. IEEE Trans. Power Electron.
**2021**, 36, 4383–4398. [Google Scholar] [CrossRef] - Yuan, L.; Lu, Z.; Sun, J.; Duan, R.; Zhao, Z. Comparative Evaluation of Isolated Bidirectional DC/DC Converter in High-Power High-Frequency Occasions. In Proceedings of the ICEMS 2018—2018 21st International Conference on Electrical Machines and Systems, Jeju, Korea, 7–10 October 2018; pp. 2285–2290. [Google Scholar] [CrossRef]
- Bernet, S.; Brückner, T.; Malinowski, M.; Weber, J.; Weitendorf, N. Selbstgeführte Stromrichter am Gleichspannungszwischenkreis; Springer: Berlin, Germany, 2012; p. 283. [Google Scholar]

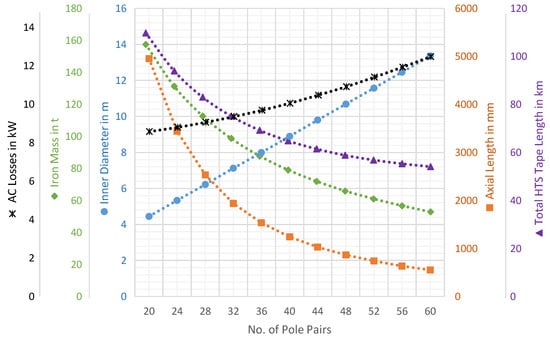

**Figure 2.**Dependency of the AC losses, the iron mass, the inner diameter, the axial length and the total HTS tape length on the number of pole pairs.

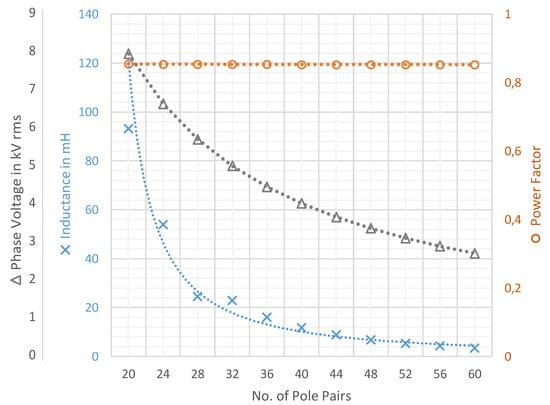

**Figure 3.**Dependency of the phase voltage, the power factor and the inductance on the number of pole pairs.

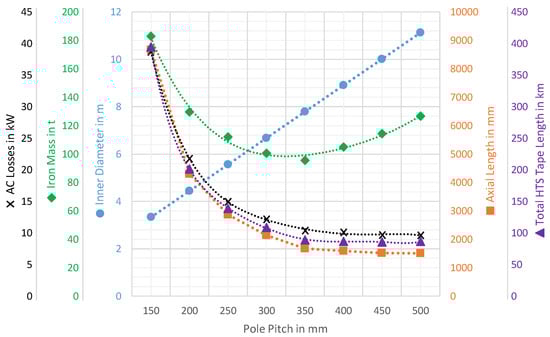

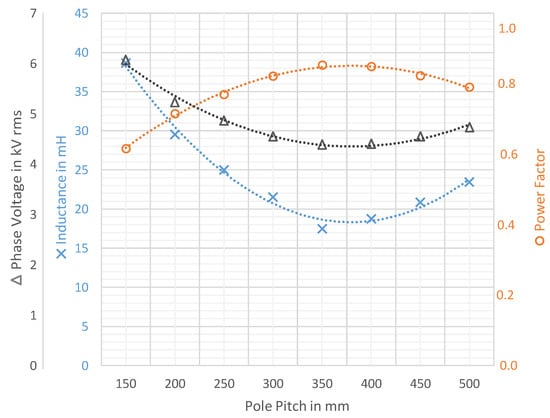

**Figure 4.**Dependency of the AC losses, the iron mass, the inner diameter, the axial length and the total HTS tape length on the pole pitch.

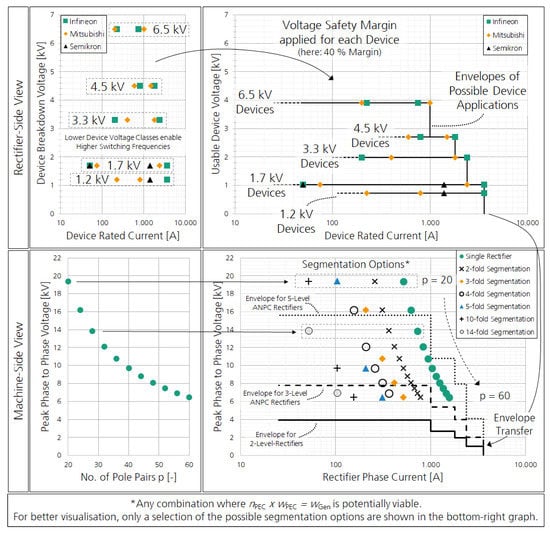

**Figure 6.**Interdependencies between the power electronic rectifier and the generator design.

**Top**: Non-complete survey of available power IGBT modules (

**left**) and their working voltage capabilities (

**right**) with an assumed safety margin of 40%.

**Bottom**: Peak phase-to-phase voltages for the investigated generator concepts (

**left**) and the possible segmentation options for each concept (

**right**). A combination of these investigations, marked by the solid, dashed and dotted lines in the bottom-right graph allows the identification of technically and economically feasible generator/rectifier combination candidates.

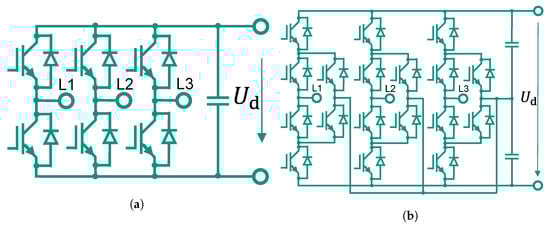

**Figure 7.**Example topologies for active rectifiers. (

**a**) Standard B6, (

**b**) 3-Level ANPC as an example of multi-level topologies.

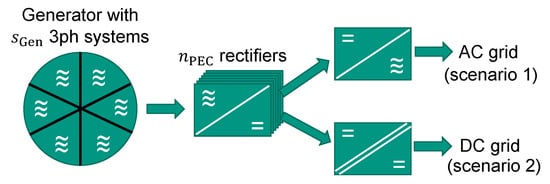

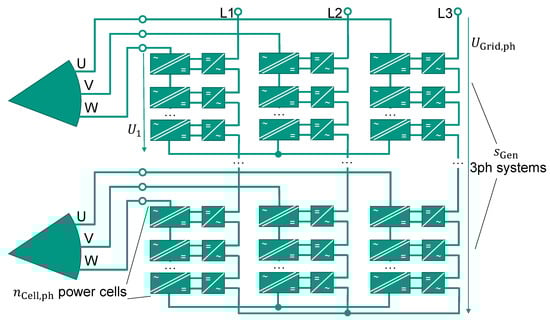

**Figure 8.**Proposed converter concept with a common DC voltage link for a superconducting generator with ${s}_{\mathrm{Gen}}$ three-phase systems. For the AC grid connection, a galvanic isolation is also to be ensured, which can be realised, e.g., with a grid-side transformer on system-level or, depending on the topology, by several medium frequency (MF) transformers on cell level.

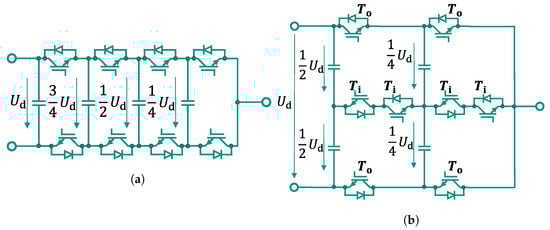

**Figure 9.**(

**a**) 5-Level Flying Capacitor (FC) Converter. (

**b**) 5-Level Stacked-Multi-Cell Converter (SMC).

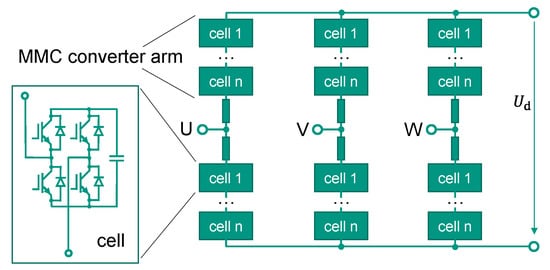

**Figure 10.**Topology of the Modular Multi-Level Converter (MMC) and the exemplary circuit diagram of one cell, configured as full bridge circuit.

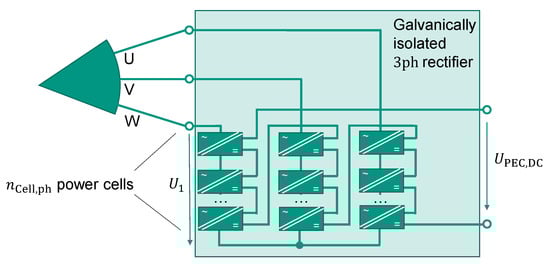

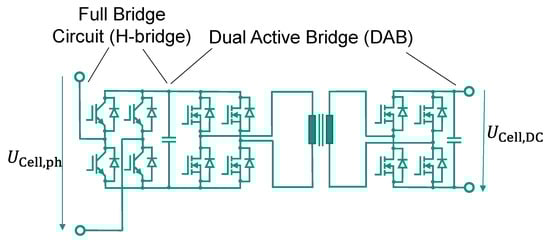

**Figure 12.**Possible design for a single power cell, consisting of an H-bridge rectifier and an isolated DAB.

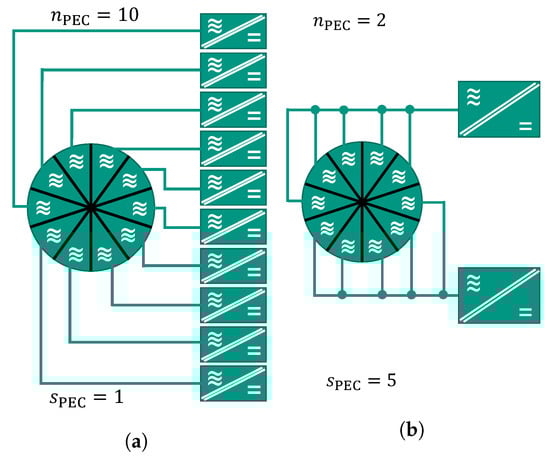

**Figure 13.**Two possible rectifier concepts. (

**a**) Each branch is connected to one three-phase rectifier; therefore, 50 A modules can be used. (

**b**) Direct parallelisation of five generator branches leads to a lower number of three-phase rectifiers but reduces the possibilities in the independent branch control. Here, 250 A modules can be used.

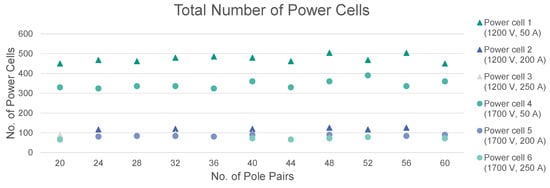

**Figure 14.**Total number of power cells ${n}_{\mathrm{Cell},\mathrm{tot}}$ necessary for the 10 MW FSSG depending on the number of pole pairs p and the semiconductor voltage and current rating. A current rating of 50 A corresponds to ${s}_{\mathrm{PEC}}=1$ (one three-phase rectifier for each branch), 200 A to ${s}_{\mathrm{PEC}}=4$ (one three-phase rectifier for four parallelised branches) and 250 A to ${s}_{\mathrm{PEC}}=5$ (one three-phase rectifier for five parallelised branches). A power factor of $\mathrm{cos}\left(\phi \right)=0.85$ and a HTS current of ${I}_{\mathrm{coil}}=52$ A are assumed as well as a semiconductor voltage utilisation of 60% and a current utilisation of 105% to handle the HTS current.

**Figure 15.**Proposed topology for a direct MV AC grid connection. Each power cell is extended by another H-bridge single-phase AC inverter.

**Table 1.**Exemplary options for the electric segmentation of a machine with $p=20$, ${s}_{\mathrm{Gen}}=10$ and ${I}_{\mathrm{coil}}=52$ A.

No. of PECs n_{PEC} | Parallel Three-Phase Systems per PEC S_{PEC} | PEC Phase Current I_{PEC} |
---|---|---|

1 | 10 | 520 A |

2 | 5 | 260 A |

5 | 2 | 104 A |

10 | 1 | 52 A |

**Table 2.**Total number of required power cells and corresponding maximum reachable DC link voltages for a 10 MW FSSG depending on the used semiconductor voltage class and the number of parallel connected branches. The maximum reachable voltages for the options without parallel branches, marked with ∗, are purely theoretical. In practice, several DC cells or DC three-phase rectifier outputs would be paralleled for these options.

Semiconductor Voltage Class U _{CES} | 1200 V | 1700 V | 1200 V | 1700 V |
---|---|---|---|---|

Parallel branches ${s}_{\mathrm{PEC}}$ | 1 | 1 | 5 | 5 |

Number of 3ph-rectifier ${n}_{\mathrm{PEC}}$ | 10 | 10 | 2 | 2 |

Converter RMS phase current ${I}_{\mathrm{PEC}}$ | 52 A | 52 A | 260 A | 260 A |

Min. no. of required power cells ${n}_{\mathrm{Cell},\mathrm{tot}}$ | 450 | 330 | 90 | 66 |

Max. total DC voltage ${U}_{\mathrm{Grid},\mathrm{DC},\mathrm{max}}$ | 324 kV * | 336.6 kV * | 64.8 kV | 67.32 kV |
