Influencing Factors of Performance Degradation of Zinc–Air Batteries Exposed to Air

by
Yuwei Zhong
,
Bin Liu
,
Zequan Zhao
,
Yuanhao Shen
,
Xiaorui Liu
and
Cheng Zhong
*
Key Laboratory of Advanced Ceramics and Machining Technology (Ministry of Education), Tianjin Key Laboratory of Composite and Functional Materials, School of Materials Science and Engineering, Tianjin University, Tianjin 300072, China
*
Author to whom correspondence should be addressed.
Energies 2021, 14(9), 2607; https://doi.org/10.3390/en14092607
Submission received: 23 March 2021 / Revised: 26 April 2021 / Accepted: 28 April 2021 / Published: 2 May 2021
(This article belongs to the Section D2: Electrochem: Batteries, Fuel Cells, Capacitors)
Browse Figures
Review Reports Versions Notes

Abstract

:
Zinc–air batteries feature high energy density, but they usually suffer from their short storage life after they start working, restricting their commercial applications. In the past, scholars did not reach an agreement on the influencing factors of the performance degradation of zinc–air batteries when exposed to air. Here, a series of comparative experiments were conducted to confirm the changes of the battery during storage after being exposed to air. The morphology and composition of the components of the battery were characterized by scanning electron microscopy (SEM) and X-ray diffraction analyses. SEM images revealed that with the increase of storage days, the corrosion of the zinc anode gradually deepens, but the surface morphology of the air cathode does not change much. The electrolyte of the batteries stored for different periods was examined through inductively coupled plasma spectroscopy and titration. After 20 days of storage, the concentration of CO32− reached 2.694 mol L−1, which indicates that more than 80% of the OH− in the electrolyte was consumed. The results show that after being exposed to air, the carbonation of the electrolyte is the main cause of the battery capacity decay.

1. Introduction

With the development of society and the economy, humans’ demand for energy has been growing rapidly [1,2,3,4,5,6]. Therefore, it is very important to develop clean, efficient and environmentally friendly energy storage devices. In recent years, zinc–air batteries (ZABs) have aroused widespread interest [7]. Due to their unique semi-open structure, zinc–air batteries have a very high theoretical energy density (~1086 Wh kg−1), which is about threefold higher than that of lithium-ion batteries [8,9,10,11]. Moreover, compared with other metal–air batteries, zinc–air batteries have the advantages of low cost, high safety and low pollution, so it is one of the most promising energy storage devices [12,13].
To promote the commercialization of zinc–air batteries, many research studies have been conducted to improve the energy efficiency and cycle life of zinc–air batteries. However, only a few works focus on the storage life of the zinc–air battery when exposed to air, which is also important for the commercialization of zinc–air batteries. For example, after being exposed to air for 15 days, a flexible zinc–air battery based on the gel KOH-PVA (poly(vinyl alcohol)) electrolyte was found to decrease by more than 90% of its cycling life, which made it unsuitable for the subsequent operation [14]. For the entire future use of commercial secondary zinc–air batteries (e.g., applied in large-scale grid energy storage systems or small electronic devices), it is not always possible to close the air holes to extend its shelf life. Therefore, identifying how to inhibit the self-discharge reaction and extend the storage life of the battery when it starts working is one of the major challenges for the commercialization of zinc–air batteries.
Scholars have put forward various opinions on the causes that lead to the performance degradation of zinc–air batteries. Some scholars believe that zinc corrosion and H2 evolution can affect battery life [15,16,17]. Henninot et al. [18] stated that gassing may occur before use of the battery, i.e., during its shelf life. This typically occurs after partial discharge. Dongmo et al. [19] analyzed the zinc–oxygen battery during its operation. By means of DEMS, they observed that the ion–current signal of hydrogen is higher during charge than during discharge. Hydrogen is mainly produced by harmful electrochemical reactions at the anode. Li et al. [20] found that the corrosion and dendrite growth of the zinc anode played a major role in battery failure. By replacing the components of the failed battery, they found that the battery using a disassembled Zn anode from the failed battery showed the shortest cycle life. Moreover, the air cathode is another important factor that affects the performance of a zinc–air battery [21]. Min et al. [22] stated that when the cell is recharged at high potentials, carbon corrosion will cause the degradation of the electrode. By contrast, other scholars believe that the effect of CO2 is the most important factor affecting the storage life of zinc–air batteries [23,24]. Jörissen’s work [25] showed that the electrolyte is sensitive to CO2 because of the zinc–air battery’s semi-open structure, which can react with hydroxide to form carbonates. The working life of the air electrode operating in pure O2 was 10 times that of the electrode in CO2 containing gas. To analyze the impact of the surrounding air composition, Schröder and Krewer [26] developed an isothermal mathematical model of a secondary zinc–air battery with alkaline liquid electrolyte. The results showed that the impact of the surrounding CO2 content is the strongest. Furthermore, a one-dimensional model for both porous electrodes was developed by Stamm et al. [27]. This model was parametrized and validated with a commercial zinc–air coin cell. According to the results, the authors believed that battery lifetime is limited by carbon dioxide absorption into the aqueous alkaline electrolyte. Yang et al. [28] reported that loss of water by evaporation through the air holes was inevitable due to the semi-open structure of the zinc–air battery, and when the water was depleted, the battery ceased to operate.
Although meaningful research studies have been conducted, the inconsistent evaluation standards and benchmarks also seriously hinder the commercialization of zinc–air batteries. For example, Zhang et al. [29] pointed out that the majority of previous studies on rechargeable zinc–air batteries were tested with a small current density and under very shallow cycling depths. Such experimental conditions would not effectively display the actual cycling performances of air cathodes. Hopkins et al. [30] found that some rechargeable zinc–air electrode materials may already be capable of enabling system-level specific energies between 200 and 450 Wh kgsys−1. Rechargeable zinc–air batteries will be commercialized if they can achieve such projected specific energy values and demonstrate long cycle lives. Stock et al. [31] analyzed 70 studies of alkaline Zn anodes for application in electrically rechargeable zinc–air batteries reported in the last 20 years based on seven descriptors. They revealed that only a small number of studies provided the data necessary to assess the performance metrics. Inconsistent evaluation standards and benchmarks will mislead scholars’ research direction and slow down the commercialization of zinc–air batteries.
Herein, a systematic analysis of each component of the zinc–air battery stored in open air for various days was conducted. Batteries with a sandwich structure were assembled and stored at room temperature to simulate the storage process of secondary zinc–air batteries. To determine the cause of the battery’s failure during storage, the anode and cathode of the stored batteries were characterized by X-ray diffraction (XRD) and scanning electron microscopy (SEM). Inductively coupled plasma spectroscopy (ICP) was used to characterize the electrolyte. Moreover, electrochemical impedance spectroscopy (EIS) was used to investigate the overall self-discharge behavior of zinc–air batteries.

2. Materials and Methods

2.1. Assembly of Zinc–Air Unit Cell

Figure 1 shows the components of the zinc–air battery used in this work. All the batteries were assembled using a commercial zinc–air battery test device (Changzhou Youteke New Energy Technology Co., Ltd., Changzhou, China) with a width of 7 cm, a height of 6 cm, a reaction area of 3 cm2, and an electrolyte loading of 6 mL. The anode material used was a 0.5 mm thick, 99.9% pure zinc sheet, and the cathode material was a commercial MnO2 air electrode (Changzhou Youteke New Energy Technology Co., Ltd., Changzhou, China). A 6 mol L−1 KOH solution was used as the electrolyte. Before battery assembly, the zinc sheets were polished with 400 grit sandpaper and ultrasonicated in deionized water for 2 min. At the same time, the test mold was also thoroughly cleaned with deionized water.
In the battery assembly process, follow the sequence from left to right in the schematic diagram to assemble the components one by one, and finally tighten them with nuts. Two O-rings are clamped in the electrolyte container’s grooves and the plates clamp the cathode and anode. For further research, top covers with different air hole sizes were designed to meet different experimental requirements.

2.2. Material Characterization

X-ray diffraction (XRD) patterns of the cathode and anode were obtained on an X-ray diffractometer (D8 Advanced, Bruker) with Cu Kα radiation, in the range of 10° and 90° at a scan rate of 6° min−1. The microstructures and composition of the cathode and anode were observed using a field emission scanning electron microscopy (FESEM, JSM-7800F, JEOL, Tokyo, Japan). Inductively coupled plasma (ICP) analysis was performed using an inductively coupled plasma emission spectrometer (Optima 2100DV, PerkinElmer). The content of CO32− is determined by titration using saturated BaCl2 solutions.

2.3. Electrochemical Characterization

The discharge data (measured at a constant current of 20 mA) of the fabricated batteries stored for different periods were evaluated using a LAND CT2001A eight-channel automatic battery test system. The storage life of the zinc–air batteries was measured at the same discharge condition after different storage times under the packaged condition. The electrochemical impedance spectroscopy (EIS) of the fabricated batteries was obtained using an electrochemical workstation (CHI 660E, Shanghai Chenhua), with an initial potential of 1.2 V.

3. Results and Discussion

3.1. Whole Battery Analysis

Figure 2a shows the discharge curves of the batteries after storage for 2, 4, 7, 10, and 20 days. It can be seen that with the increase of storage time, the discharge time of the battery is significantly shortened, and the voltage of the battery is reduced. This demonstrates that the zinc–air battery does have a self-discharge problem. After 10 and 20 days of storage, battery capacity has been reduced by about 40% and 80%, respectively.
To further determine the cause of battery performance degradation, electrochemical impedance spectroscopy (EIS) tests were also carried out on the batteries stored for different periods. Figure 2b shows the Nyquist plots of the impedance. The equivalent circuit is in the inset. Ro represents the total ohmic resistances and the contact resistance of the device with an external circuit. Rint represents the interfacial resistance between the electrodes and the electrolyte and Rct is the charge transfer resistance [32]. It can be observed that as the storage time increases, the impedance curves of the batteries shift to the right continuously, and the semicircular arcs in the intermediate–low frequency region also expand significantly. Larger X-intercept and semicircular arcs in the intermediate–low frequency region of the plot usually indicate a larger Ro and Rct. The Ro, Rint and Rct values of the batteries were calculated, respectively, based on the equivalent circuit model, and the results are shown in Table 1. The increase of Ro indicates an increase in the resistance of the electrode material and/or electrolyte. Meanwhile, a higher Rct usually means slower kinetics processes in the charge transfer process of the electrode material [33]. The increase in resistance will cause a decrease in the output voltage of the batteries, which is consistent with the discharge curves in Figure 2a.
The key factors resulting in the failure of the zinc–air battery remain unclear and are critical for developing zinc–air batteries with long storage life. Thus, in-depth investigations were carried out to clarify the potential reasons for the failure of the battery. Three batteries were fabricated in the same condition and stored for 10 days. After the storage test, the three batteries were replaced with a zinc anode, an air cathode and an electrolyte, respectively, and then discharged at a constant current of 20 mA. As shown in Figure 3, after 10 days of storage, the discharge capacities of the battery with the replacement of a zinc anode or an air cathode are 94.3 mAh cm−2 and 81.0 mAh cm−2, respectively, which is even lower than the battery without changing the component (121.3 mAh cm−2, green line in Figure 2a). In contrast, after replacing the electrolyte, the discharge capacity of the battery significantly increases by about 76.6 mAh cm−2 (197.9 mAh cm−2, blue line in Figure 3), which is close to the discharge time of a fresh battery (203.3 mAh cm−2, black line in Figure 2a). This experiment shows that the deterioration of the electrolyte plays an important role in the capacity loss of the battery during storage. To systematically analyze the changes in each component of the zinc–air battery in the storage process, we characterized the anode, cathode, and electrolyte of the stored battery, respectively.

3.2. Anode Analysis

To determine the morphological changes of the zinc sheets during the storage period, we disassembled the batteries after the storage time of 2, 4, 7, 10, and 20 days and compared the zinc anodes with a fresh one using a scanning electron microscope (SEM). Figure 4a–f shows the SEM morphology of the zinc anode stored for various days. As shown in Figure 4a, the surface of the fresh zinc sheet is smooth and flat. After being stored for 4 days, corrosion pits appear on the entire surface of the zinc sheet (Figure 4c). More obvious holes appear on the zinc sheet after 10 days of storage (Figure 4e). After 20 days’ storage, the surface of the zinc sheet has changed from a dense structure to a porous structure (Figure 4f). The results show that in the fabricated battery, the zinc sheets reacted with the electrolyte without an external circuit, causing corrosion of the zinc sheets. This is mainly attributed to the fact that zinc has a more negative reduction potential than hydrogen [34].
The surface morphology of the zinc anode in the battery stored for 20 days was further investigated by a high magnification SEM. As shown in Figure 5a, the formed holes on the zinc sheet have lamellar inner walls, indicating the continuous corrosion of the zinc anode. The sectional view of the zinc anode is shown in Figure 5b. It can be observed that the corrosion of the zinc anode is not only on the surface but continuously extends downward through the formed holes.
As shown in Figure 4 and Figure 5, the corrosion of the zinc anode seems to be continuous during the entire 20-day storage process. However, regarding the discharge of the zinc–air battery without storage, the termination of the discharge would happen in just a few days. The discharge capacity is far lower than that of the theoretical capacity of the zinc anode, which indicates that there is a large amount of zinc not being used. It is widely accepted that in the process of battery discharge, the reaction on the anode consists of two parts [35]:
Zn + 4OH− → Zn(OH)42− + 2e−
Zn(OH)42− → ZnO + H2O + 2OH−
As shown in Equation (2), the produced Zn(OH)42− would decompose into ZnO and cover the surface of the zinc anode when it reaches its saturation, which will eventually lead to the passivation of the anode and the termination of the discharge. Because the barrier created by the ZnO is enough to slow the transport of OH− and Zn(OH)42− between the electrode surface and the bulk of the electrolyte, the reaction cannot be sustained [36]. To explore the cause of this phenomenon, X-ray diffraction (XRD) measurements were conducted to characterize the phase and composition of the zinc anode after storage and the result was compared with the zinc anode in a discharged battery.
Figure 6 shows the XRD patterns of the zinc anodes of a battery discharged without storage and batteries stored for different periods without discharge. It can be observed that with the increase of storage time, the XRD patterns of the stored battery do not show significant change. The peaks at 36.34°, 39.04°, 43.27°, 54.30°, 70.08°, 77.05°, 82.10° and 86.53° are assigned to the (002), (100), (101), (102), (103), (004), (112), (201) reflections of Zn (JCPDS No. 99-0110). Moreover, in the XRD pattern of the zinc anode of the freshly discharged battery, the peaks detected at 31.78°, 34.35°, 36.27°, 47.58°, 56.56°, 62.78°, 67.92°, and 69.09° are attributed to the (100), (002), (101), (102), (110), (103), (112), and (201) reflections of ZnO (JCPDS No. 99-0111). ZnO would be formed on the anode surface after discharge, which is consistent with previous reports [37,38,39]. However, there are no evident peaks of ZnO on the XRD patterns of zinc anodes in the stored batteries. The possible reason for this could be that the oxidation rate of zinc anode is relatively high during the discharge progress. Thus, excessive Zn(OH)42− will be formed on the anode surface to reach its saturation, which leads to the decomposition of Zn(OH)42− and the formation of ZnO [40]. In contrast, the oxidation degree of the zinc anodes during storage was significantly reduced. As the corrosion product, the Zn(OH)42− cannot reach its solubility limit, thereby ZnO could hardly be generated on the anode surface. Without the protection of the ZnO passivation layer, the fresh zinc surface is continuously exposed to the electrolyte, causing severe corrosion across the anode [41]. The corrosion of the zinc anode will cause the loss of active material. However, according to the experiment mentioned above (Figure 3), the corrosion of the anode is not the main factor causing the decrease of the discharge capacity. This is because there is excess zinc in our battery system. The influence of the zinc anodes is reduced.

3.3. Cathode Analysis

To determine whether the composition or morphology of the air cathode changed during storage, XRD and SEM measurements were conducted on the fresh air cathode and air cathode stored in the battery for 20 days. As shown in Figure 7a, the two XRD curves are in good agreement with almost no peak shift, indicating that the composition of the air cathode has hardly changed after 20 days of storage. Moreover, Figure 7b,c shows that after storage, the surface morphology of the air cathode remains unchanged. This also explains why in Figure 3, changing the air cathode cannot improve the discharge capacity of the stored battery.

3.4. Electrolyte Analysis

The result in Figure 3 shows that the deterioration of the electrolyte is an important factor that affects the discharge capacity of the battery after storage. To explore the changes of the electrolyte during the battery storage, the concentration variation of CO32− and Zn2+ in the electrolyte was measured. As shown in Figure 8a, with the increase of storage time, the concentration of Zn2+ in the electrolyte keeps increasing, reaching about 0.450 mol L−1 after 20 days of storage. Moreover, the concentration of CO32− reaches 2.694 mol L−1 on the 20th day, which means that most of the OH− in the 6 mol L−1 KOH solution was consumed. The result indicates that during the storage of zinc–air batteries, the zinc anode reacts with the electrolyte continuously. Simultaneously, CO2 in the air enters the battery and reacts with the electrolyte, causing serious carbonation. The massive consumption of OH− leads to a sharp decline in the discharge capacity of the battery. This also explains why replacing the electrolyte of the stored battery can significantly extend the battery discharge capacity (Figure 3).
To prove this point, batteries with different air hole sizes (0 cm2, 0.03 cm2 and 0.3 cm2) were designed and performed the same discharge experiment after storing them in the same condition for 20 days (The air hole size of the batteries used in Figure 1, Figure 2, Figure 3, Figure 4, Figure 5, Figure 6 and Figure 7 is 3 cm2). The results are shown in Figure 8b. It can be observed that the smaller the hole size is, the longer the discharge life of the battery. Moreover, after 20 days of storage, we characterized the electrolyte of the batteries with air hole sizes of 0 cm2 and 3 cm2. The concentration of CO32− in the battery with air hole sizes of 0 cm2 is significantly lower than the other one. EIS tests were also carried out on the two batteries. Figure 8d shows the Nyquist plots of the batteries with the air hole sizes of 0 cm2 and 3 cm2 after being stored for 20 days. In the battery with the air hole sizes of 0 cm2, both Ro and Rct are much lower than in the 3 cm2 one. This is mainly due to the fact that OH− (20.64 × 10−8 m2 s−1 V−1) has mobility several times higher than CO32− (7.46 × 10−8 m2 s−1 V−1) [42]. The electrolyte with the lower CO32− concentration noticeably has smaller ohmic resistances and charge transfer resistance. In summary, according to the results of this experiment, we find that the carbonation of the electrolyte is a key factor leading to the reduction of battery capacity during storage. This work will help to shape future research activities toward the development of zinc–air batteries with an extended lifetime. More attention should be paid to the carbon dioxide separators or absorbents in order to inhibit the carbonation of electrolyte.

4. Conclusions

To verify the causes of performance degradation of zinc–air batteries exposed to air, we used the same mold to perform characterization and electrochemical tests on batteries after storage for different periods. Through the experiment, it was found that the carbonation of the electrolyte is the key factor affecting the storage life of zinc–air batteries. Changing the electrolyte can significantly increase the discharge capacity by about 76.6 mAh cm−2. Moreover, after 20 days of storage, more than 80% of the OH− in the electrolyte was consumed, which corresponds to the results that the battery stored for 20 days lost 81% of its capacity. To further extend the storage life of zinc–air batteries, we suggest that researchers should pay more attention to mitigating the electrolyte’s carbonation. In addition, it is suggested to select suitable criteria when evaluating the performance of the batteries. This is due to there being a misunderstanding in predicting the performance of the Zn-based battery tested on lab-scale research in a half-cell configuration. Establishing uniform evaluation standards and benchmarks can help scholars to find the real shortcomings that limit the life of zinc–air batteries.

Author Contributions

Conceptualization, C.Z., Y.Z. and B.L.; methodology, Y.Z., C.Z., B.L. and Z.Z.; validation, Y.Z. and Z.Z.; investigation, Y.Z.; resources, C.Z.; data curation, Y.Z.; writing—original draft preparation, Y.Z.; writing—review and editing, Y.Z., B.L., C.Z., Y.S. and X.L.; supervision, C.Z.; project administration, C.Z.; funding acquisition, C.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Acknowledgments

This research was funded by the National Natural Science Foundation for Excellent Young Scholar (51722403), Tianjin Natural Science Foundation for Distinguished Young Scholar (18JCJQJC46500) and the National Youth Talent Support Program.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dong, C.; Yue, X.; Li, X.; Wu, X.; Zhou, Y. Research progress of cathode materials for lithi-um-selenium batteries. Acta Phys. Chim. Sin. 2019, 35, 667–683. [Google Scholar]
  2. Liu, K.; Liu, Y.; Zhu, H.; Dong, X.; Wang, Y.; Wang, C.; Xia, Y. NaTiSi2O6/C composite as a novel anode material for lithium-ion batteries. Acta Phys. Chim. Sin. 2020, 36, 1912030. [Google Scholar]
  3. Shen, Y.; Liu, B.; Liu, X.; Liu, J.; Ding, J.; Zhong, C.; Hu, W. Water-in-salt electrolyte for safe and high-energy aqueous battery. Energy Storage Mater. 2021, 34, 461–474. [Google Scholar] [CrossRef]
  4. Zhong, C.; Liu, B.; Ding, J.; Liu, X.; Zhong, Y.; Li, Y.; Sun, C.; Han, X.; Deng, Y.; Zhao, N.; et al. Decoupling electrolytes towards stable and high-energy rechargeable aqueous zinc–manganese dioxide batteries. Nat. Energy 2020, 5, 440–449. [Google Scholar] [CrossRef]
  5. Teng, X.-L.; Sun, X.-T.; Guan, L.; Hu, H.; Wu, M.-B. Self-supported transition metal oxide electrodes for electrochemical energy storage. Tungsten 2020, 2, 337–361. [Google Scholar] [CrossRef]
  6. Li, G.; Mu, Y.; Huang, Z.; Wang, N.; Chen, Y.; Liu, J.; Liu, G.; Li, O.L.; Shao, M.; Shi, Z. Poly-active centric Co3O4-CeO2/Co-NC composites as superior oxygen reduction catalysts for Zn-air batteries. Sci. China Mater. 2021, 64, 73–84. [Google Scholar] [CrossRef]
  7. Song, Z.; Ding, J.; Liu, B.; Liu, X.; Han, X.; Deng, Y.; Hu, W.; Zhong, C. A Rechargeable Zn–Air Battery with High Energy Efficiency and Long Life Enabled by a Highly Water-Retentive Gel Electrolyte with Reaction Modifier. Adv. Mater. 2020, 32, e1908127. [Google Scholar] [CrossRef]
  8. Lu, Q.; Zou, X.; Liao, K.; Ran, R.; Zhou, W.; Ni, M.; Shao, Z. Direct growth of ordered N-doped carbon nanotube arrays on carbon fiber cloth as a free-standing and binder-free air electrode for flexible quasi-solid-state rechargeable Zn-Air batteries. Carbon Energy 2020, 2, 461–471. [Google Scholar] [CrossRef]
  9. Yang, D.; Chen, D.; Jiang, Y.; Ang, E.H.; Feng, Y.; Rui, X.; Yu, Y. Carbon-based materials for all-solid-state zinc-air batteries. Carbon Energy 2021, 3, 50–65. [Google Scholar] [CrossRef]
  10. Du, Q.; Wu, Q.; Wang, H.; Meng, X.; Ji, Z.; Zhao, S.; Zhu, W.; Liu, C.; Ling, M. Carbon dots modified silicon nanoparticle for lithium ion batteries. Int. J. Miner. Metall. Mater. 2021. [Google Scholar] [CrossRef]
  11. Guo, L.-F.; Zhang, S.-Y.; Xie, J.; Zhen, D.; Jin, Y.; Wan, K.-Y.; Zhuang, D.-G.; Zheng, W.-Q.; Zhao, X.-B. Controlled synthesis of nanosized Si by magnesiothermic reduction from diatomite as anode material for Li-ion batteries. Int. J. Min. Met. Mater. 2020, 27, 515–525. [Google Scholar] [CrossRef]
  12. Pei, P.; Wang, K.; Ma, Z. Technologies for extending zinc-air battery’s cyclelife: A review. Appl. Energy 2014, 128, 315–324. [Google Scholar] [CrossRef]
  13. Liu, X.; Yuan, Y.; Liu, J.; Liu, B.; Chen, X.; Ding, J.; Han, X.; Deng, Y.; Zhong, C.; Hu, W. Utilizing solar energy to improve the oxygen evolution reaction kinetics in zinc–air battery. Nat. Commun. 2019, 10, 1–10. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Li, M.; Liu, B.; Fan, X.; Liu, X.; Liu, J.; Ding, J.; Han, X.; Deng, Y.; Hu, W.; Zhong, C. Long-Shelf-Life Polymer Electrolyte Based on Tetraethylammonium Hydroxide for Flexible Zinc–Air Batteries. ACS Appl. Mater. Interfaces 2019, 11, 28909–28917. [Google Scholar] [CrossRef] [PubMed]
  15. Perez, M.G.; O’Keefe, M.J.; O’Keefe, T.; Ludlow, D. Chemical and morphological analyses of zinc powders for alkaline batteries. J. Appl. Electrochem. 2007, 37, 225–231. [Google Scholar] [CrossRef]
  16. Sun, Y.; Liu, X.; Jiang, Y.; Li, J.; Ding, J.; Hu, W.; Zhong, C. Recent advances and challenges in divalent and multivalent metal electrodes for metal–air batteries. J. Mater. Chem. A 2019, 7, 18183–18208. [Google Scholar] [CrossRef]
  17. Zhao, Z.; Fan, X.; Ding, J.; Hu, W.; Zhong, C.; Lu, J. Challenges in Zinc Electrodes for Alkaline Zinc–Air Batteries: Obstacles to Commercialization. ACS Energy Lett. 2019, 4, 2259–2270. [Google Scholar] [CrossRef]
  18. Henninot, C.; Strauven, Y. Alloyed Zinc Powders with Pierced Particles for Alkaline Batteries. U.S. Patent 8,142,540 B2, 27 March 2012. [Google Scholar]
  19. Dongmo, S.; Stock, D.; Alexander Kreissl, J.J.; Groß, M.; Weixler, S.; Hagen, M.; Miyazaki, K.; Abe, T.; Schröder, D. Implications of testing a zinc–oxygen battery with zinc foil anode revealed by oper-ando gas analysis. ACS Omega 2020, 5, 626–633. [Google Scholar] [CrossRef]
  20. Li, Y.; Fan, X.; Liu, X.; Qu, S.; Liu, J.; Ding, J.; Han, X.; Deng, Y.; Hu, W.; Zhong, C. Long-battery-life flexible zinc–air battery with near-neutral polymer electrolyte and nanoporous integrated air elec-trode. J. Mater. Chem. A 2019, 7, 25449–25457. [Google Scholar] [CrossRef]
  21. Wu, J.; Liu, B.; Fan, X.; Ding, J.; Han, X.; Deng, Y.; Hu, W.; Zhong, C. Carbon-based cathode ma-terials for rechargeable zinc-air batteries: From current collectors to bifunctional integrated air electrodes. Carbon Energy 2020, 2, 370–386. [Google Scholar] [CrossRef]
  22. Min, Y.-J.; Oh, S.-J.; Kim, M.-S.; Choi, J.-H.; Eom, S. Effect of carbon properties on the electro-chemical performance of carbon-based air electrodes for rechargeable zinc–air batteries. J. Appl. Electrochem. 2018, 48, 405–413. [Google Scholar] [CrossRef]
  23. Drillet, J.F.; Holzer, F.; Kallis, T.; Müller, S.; Schmidt, V.M. Influence of CO2 on the stability of bi-functional oxygen electrodes for rechargeable zinc/air batteries and study of different CO2 filter materials. Phys. Chem. Chem. Phys. 2001, 3, 368–371. [Google Scholar] [CrossRef]
  24. Goh, F.W.T.; Liu, Z.; Hor, T.S.A.; Zhang, J.; Ge, X.; Zong, Y.; Yu, A.; Khoo, W. A Near-Neutral Chloride Electrolyte for Electrically Rechargeable Zinc-Air Batteries. J. Electrochem. Soc. 2014, 161, A2080–A2086. [Google Scholar] [CrossRef]
  25. Jörissen, L. Bifunctional oxygen/air electrodes. J. Power Sources 2006, 155, 23–32. [Google Scholar] [CrossRef]
  26. Schröder, D.; Krewer, U. Model based quantification of air-composition impact on secondary zinc air batteries. Electrochim. Acta 2014, 117, 541–553. [Google Scholar] [CrossRef]
  27. Stamm, J.; Varzi, A.; Latz, A.; Horstmann, B. Modeling nucleation and growth of zinc oxide during discharge of primary zinc-air batteries. J. Power Sources 2017, 360, 136–149. [Google Scholar] [CrossRef] [Green Version]
  28. Yang, S.; Kim, K. Observation of Water Consumption in Zn–air Secondary Batteries. J. Electrochem. Sci. Technol. 2019, 10, 381–386. [Google Scholar] [CrossRef]
  29. Zhang, J.; Zhou, Q.; Tang, Y.; Zhang, L.; Li, Y. Zinc–air batteries: Are they ready for prime time? Chem. Sci. 2019, 10, 8924–8929. [Google Scholar] [CrossRef] [Green Version]
  30. Hopkins, B.J.; Chervin, C.N.; Long, J.W.; Rolison, D.R.; Parker, J.F. Projecting the Specific Energy of Rechargeable Zinc–Air Batteries. ACS Energy Lett. 2020, 5, 3405–3408. [Google Scholar] [CrossRef]
  31. Stock, D.; Dongmo, S.; Janek, J.; Schröder, D. Benchmarking anode concepts: The future of elec-trically rechargeable zinc–air batteries. ACS Energy Lett. 2019, 4, 1287–1300. [Google Scholar] [CrossRef] [Green Version]
  32. Fu, J.; Lee, D.U.; Hassan, F.M.; Bai, Z.; Park, M.G.; Chen, Z. Flexible high-energy poly-mer-electrolyte-based rechargeable zinc–air batteries. Adv. Mater. 2015, 27, 5617–5622. [Google Scholar] [CrossRef] [PubMed]
  33. Peng, K.; Zhang, Z.J.; Zhao, Z.J.; Yang, C.; Tian, Z.L.; Lai, Y.Q. Performance of carbon-coated nano-ZnO prepared by carbonizing gel precursor as anodic material for secondary alkaline Zn batteries. Trans. Nonferr. Metal Soc. 2019, 29, 2151–2159. [Google Scholar] [CrossRef]
  34. Beverskog, B.; Puigdomenech, I. Revised pourbaix diagrams for zinc at 25–300 °C. Corros. Sci. 1997, 39, 107–114. [Google Scholar] [CrossRef]
  35. Wongrujipairoj, K.; Poolnapol, L.; Arpornwichanop, A.; Suren, S.; Kheawhom, S. Suppression of zinc anode corrosion for printed flexible zinc-air battery. Phys. Status Solidi. 2016, 254, 1600442. [Google Scholar] [CrossRef]
  36. Liu, M.; Cook, G.M.; Yao, N.P. Passivation of Zinc Anodes in KOH Electrolytes. J. Electrochem. Soc. 1981, 128, 1663–1668. [Google Scholar] [CrossRef]
  37. Lee, S.-M.; Kim, Y.-J.; Eom, S.-W.; Choi, N.-S.; Kim, K.-W.; Cho, S.-B. Improvement in self-discharge of Zn anode by applying surface modification for Zn–air batteries with high energy density. J. Power Sources 2013, 227, 177–184. [Google Scholar] [CrossRef]
  38. Jo, Y.N.; Prasanna, K.; Kang, S.H.; Ilango, P.R.; Kim, H.S.; Eom, S.W.; Lee, C.W. The effects of mechanical alloying on the self-discharge and corrosion behavior in Zn-air batteries. J. Ind. Eng. Chem. 2017, 53, 247–252. [Google Scholar] [CrossRef]
  39. Jo, Y.N.; Kang, S.H.; Prasanna, K.; Eom, S.W.; Lee, C.W. Shield effect of polyaniline between zinc active material and aqueous electrolyte in zinc-air batteries. Appl. Surf. Sci. 2017, 422, 406–412. [Google Scholar] [CrossRef]
  40. Xu, M.; Ivey, D.; Xie, Z.; Qu, W. Rechargeable Zn-air batteries: Progress in electrolyte development and cell configuration advancement. J. Power Sources 2015, 283, 358–371. [Google Scholar] [CrossRef]
  41. Schmid, M.; Schadeck, U.; Willert-Porada, M. Development of silica based coatings on zinc particles for improved oxidation behavior in battery applications. Surf. Coat. Technol. 2017, 310, 51–58. [Google Scholar] [CrossRef]
  42. Kimura, T.; Yamazaki, Y. Effects of CO2 Concentration and Electric Current on the Ionic Conductivity of Anion Exchange Membranes for Fuel Cells. Electrochemistry 2011, 79, 94–97. [Google Scholar] [CrossRef] [Green Version]
Energies 14 02607 g001 550

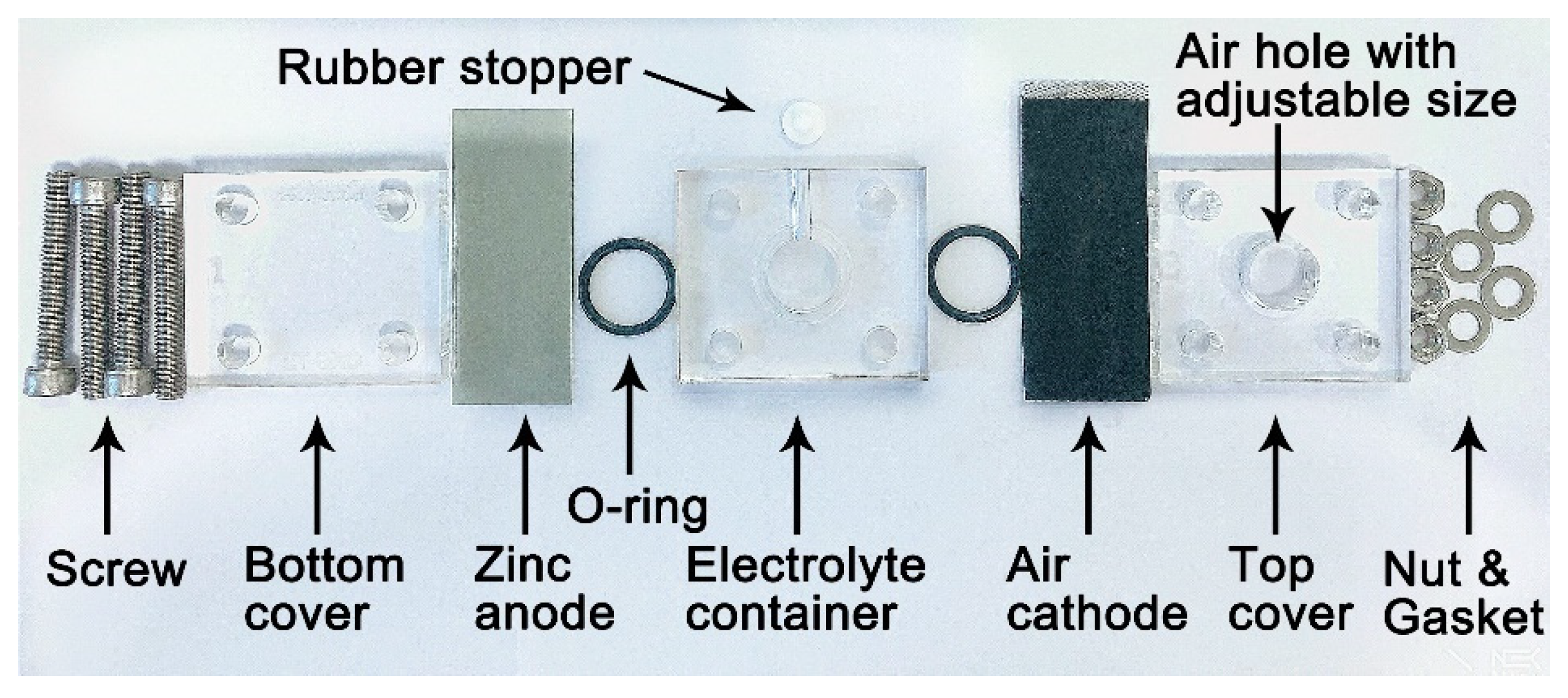

Figure 1. Component images of a unit type zinc–air battery.
Figure 1. Component images of a unit type zinc–air battery.
Energies 14 02607 g001
Energies 14 02607 g002 550

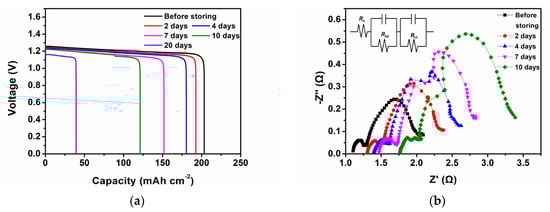

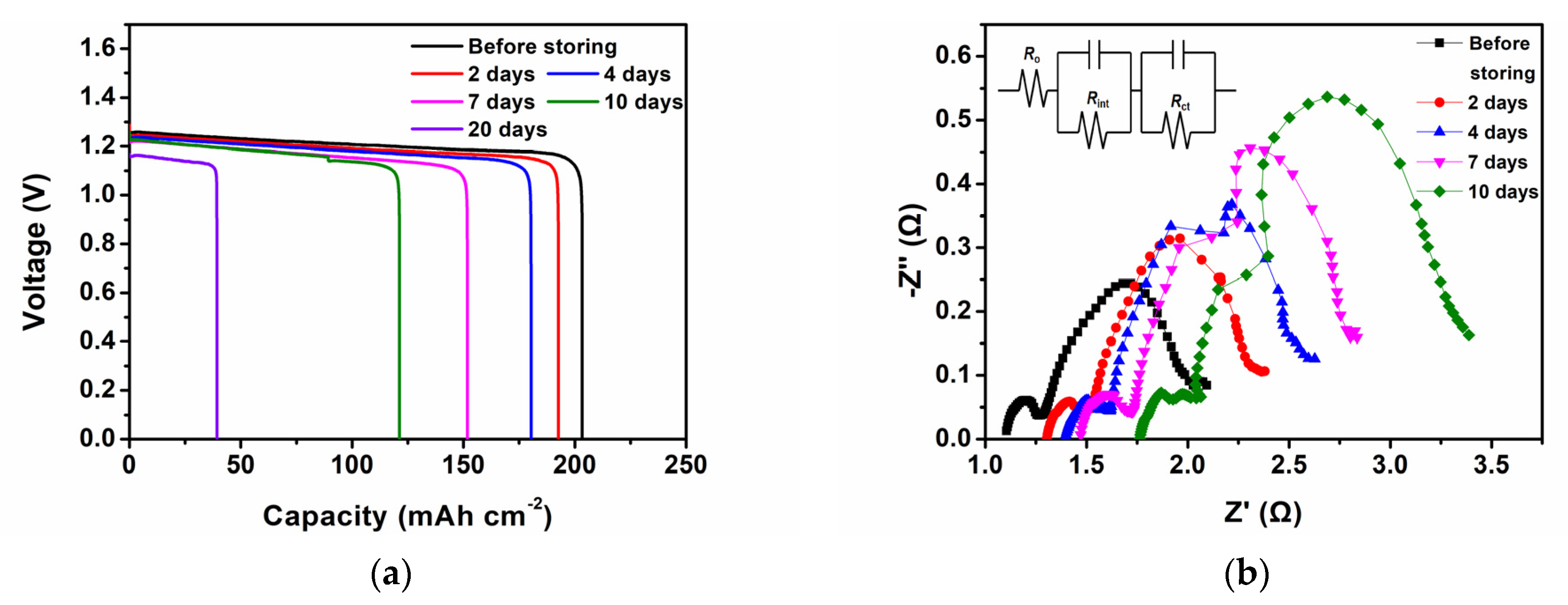

Figure 2. (a) Discharge curves of the batteries stored for various days. (b) Nyquist plots of the impedance of the batteries before storing and after being stored for various days at a potential of 1.2 V, with an equivalent circuit used in this experiment in the inset.
Figure 2. (a) Discharge curves of the batteries stored for various days. (b) Nyquist plots of the impedance of the batteries before storing and after being stored for various days at a potential of 1.2 V, with an equivalent circuit used in this experiment in the inset.
Energies 14 02607 g002
Energies 14 02607 g003 550

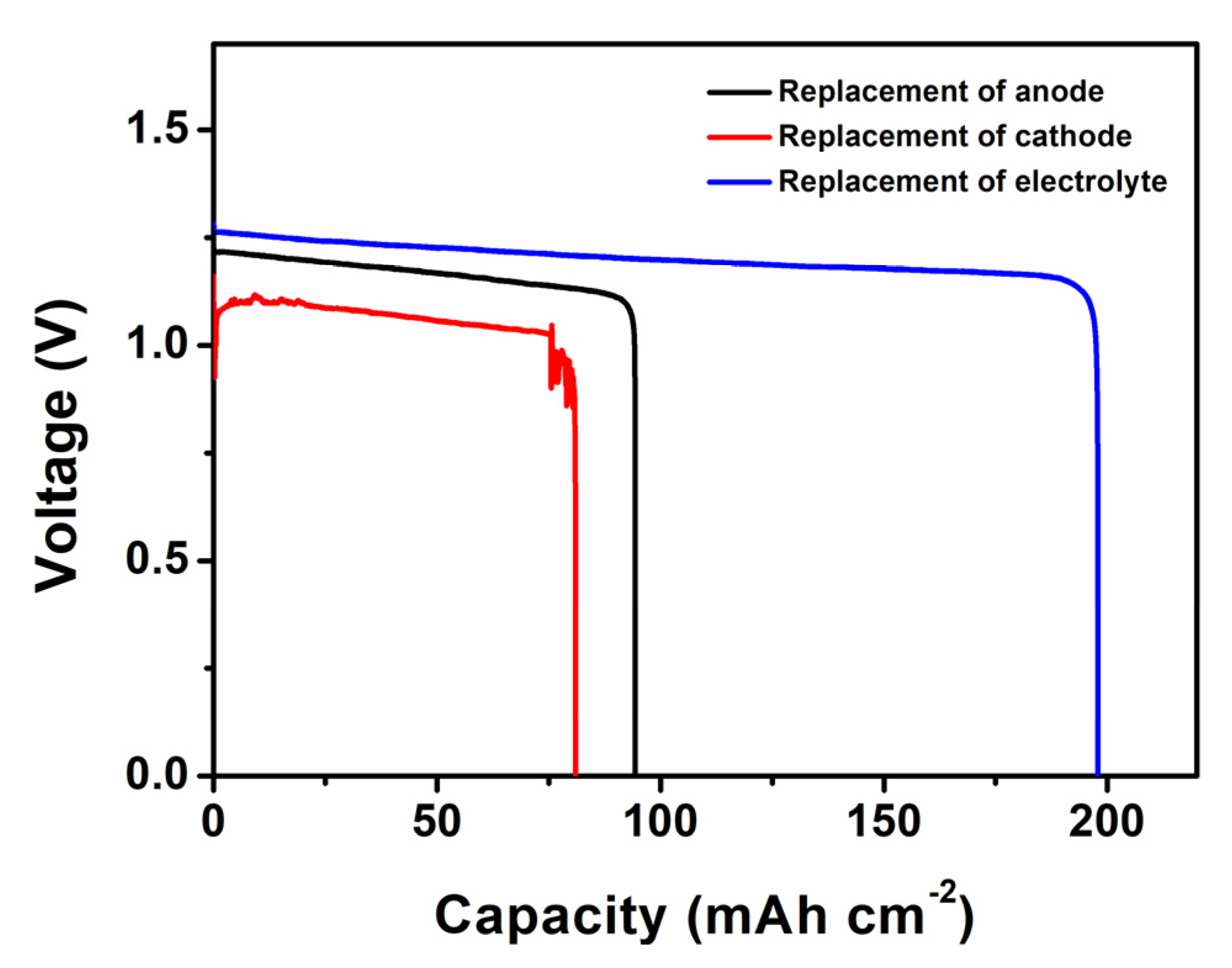

Figure 3. Discharge curves of the batteries whose cathode, anode and electrolyte were replaced, respectively, after being stored for 10 days.
Figure 3. Discharge curves of the batteries whose cathode, anode and electrolyte were replaced, respectively, after being stored for 10 days.
Energies 14 02607 g003
Energies 14 02607 g004 550

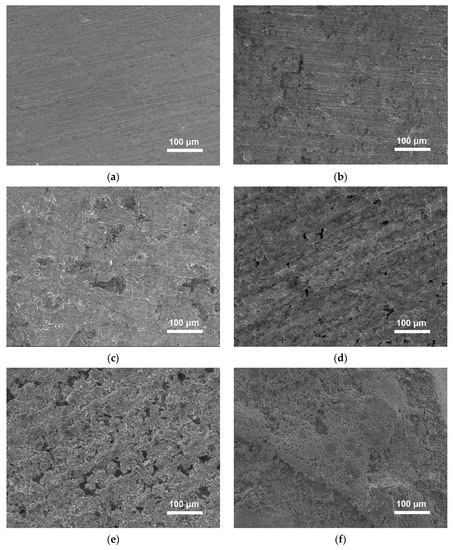

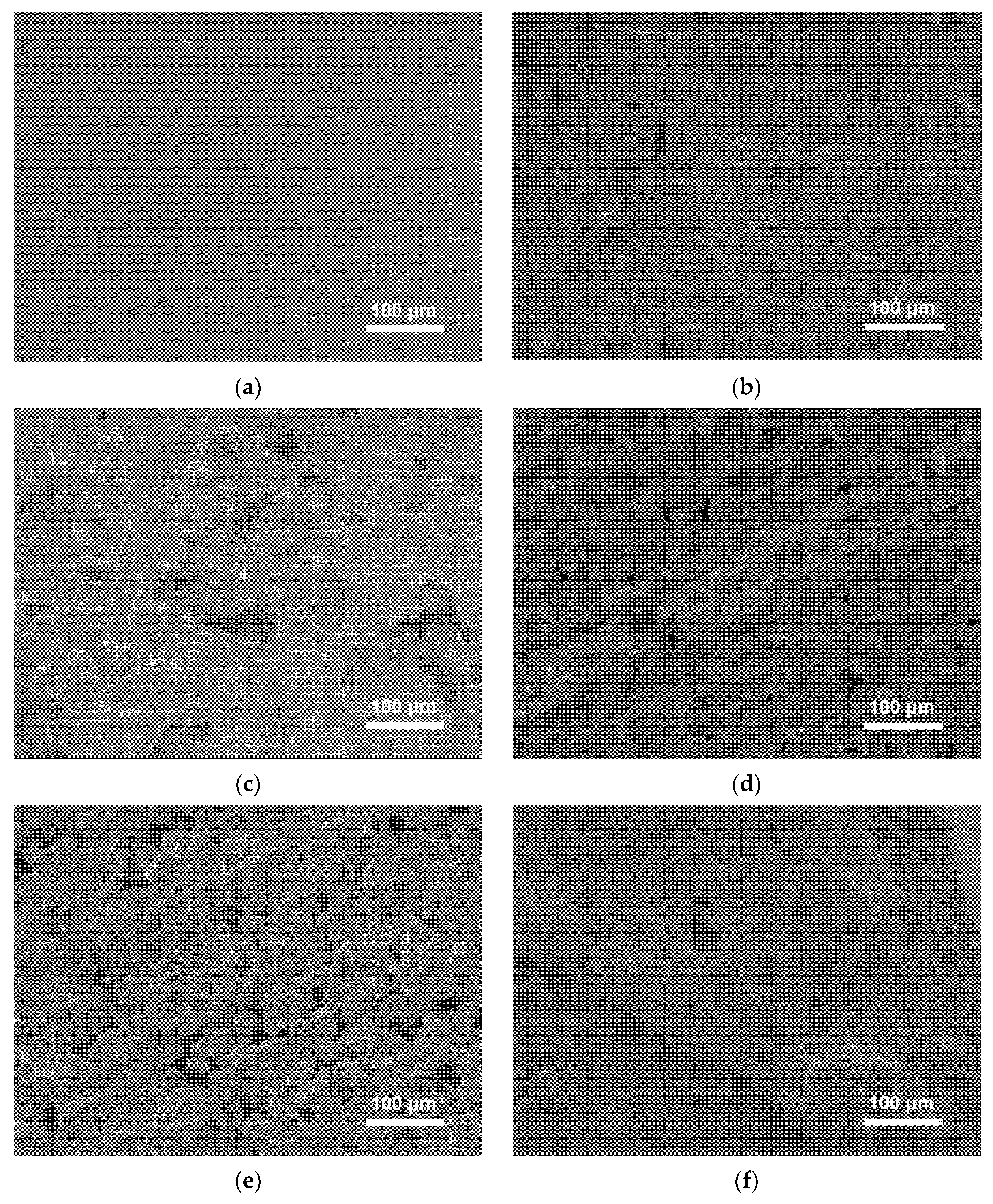

Figure 4. Low magnification SEM images of the surface morphology of the (a) fresh zinc sheet, and zinc anode in the batteries stored for (b) 2 days; (c) 4 days; (d) 7 days; (e) 10 days; (f) 20 days.
Figure 4. Low magnification SEM images of the surface morphology of the (a) fresh zinc sheet, and zinc anode in the batteries stored for (b) 2 days; (c) 4 days; (d) 7 days; (e) 10 days; (f) 20 days.
Energies 14 02607 g004
Energies 14 02607 g005 550

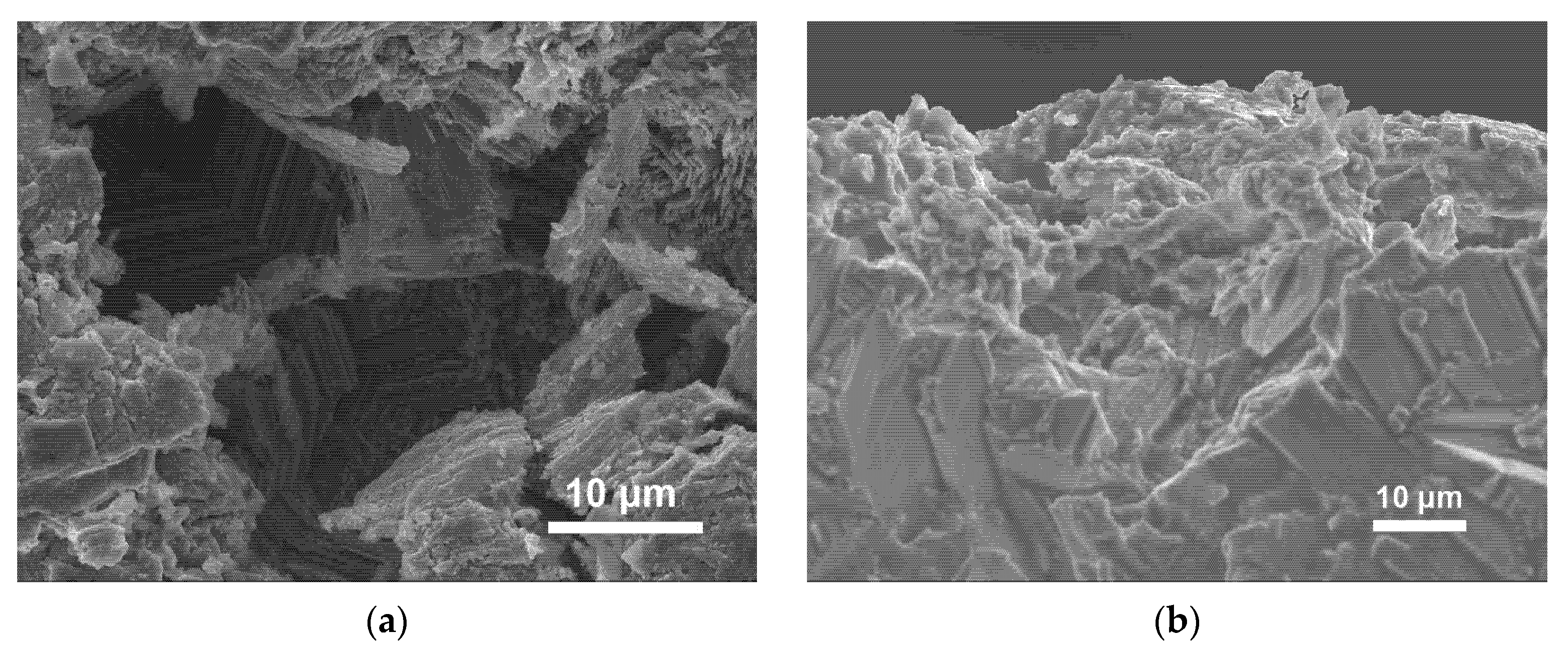

Figure 5. High magnification SEM Images. (a) SEM images of the surface morphology of the zinc anode in the battery stored for 20 days (top view). (b) SEM images of the surface morphology of the same zinc anode (sectional view).
Figure 5. High magnification SEM Images. (a) SEM images of the surface morphology of the zinc anode in the battery stored for 20 days (top view). (b) SEM images of the surface morphology of the same zinc anode (sectional view).
Energies 14 02607 g005
Energies 14 02607 g006 550

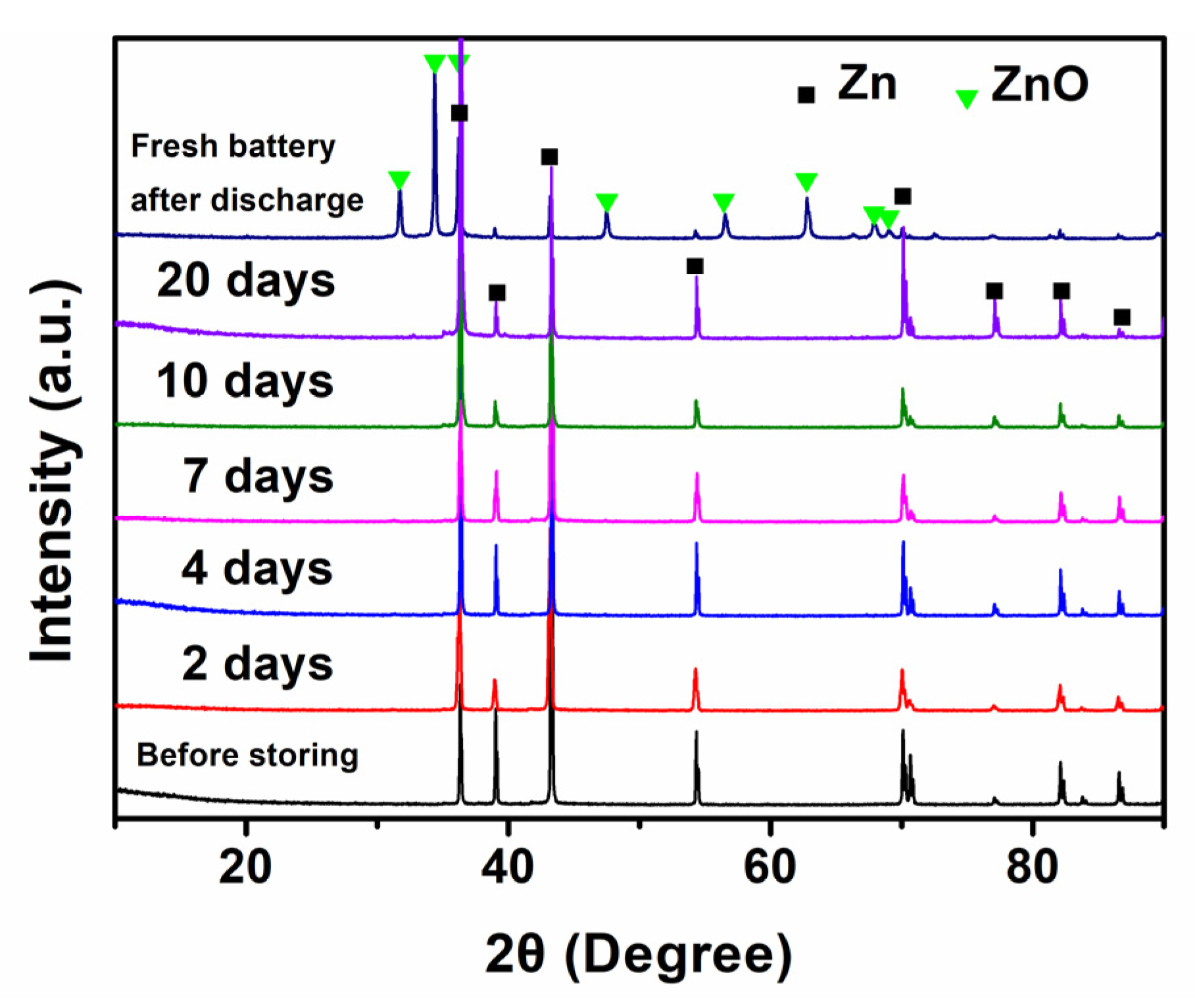

Figure 6. XRD patterns of the zinc anode stored for various days.
Figure 6. XRD patterns of the zinc anode stored for various days.
Energies 14 02607 g006
Energies 14 02607 g007a 550Energies 14 02607 g007b 550

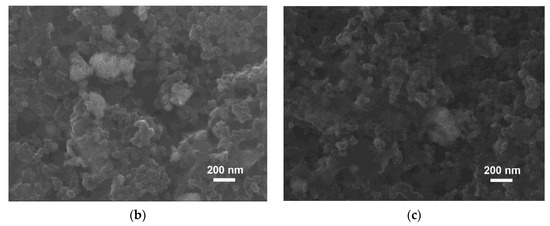

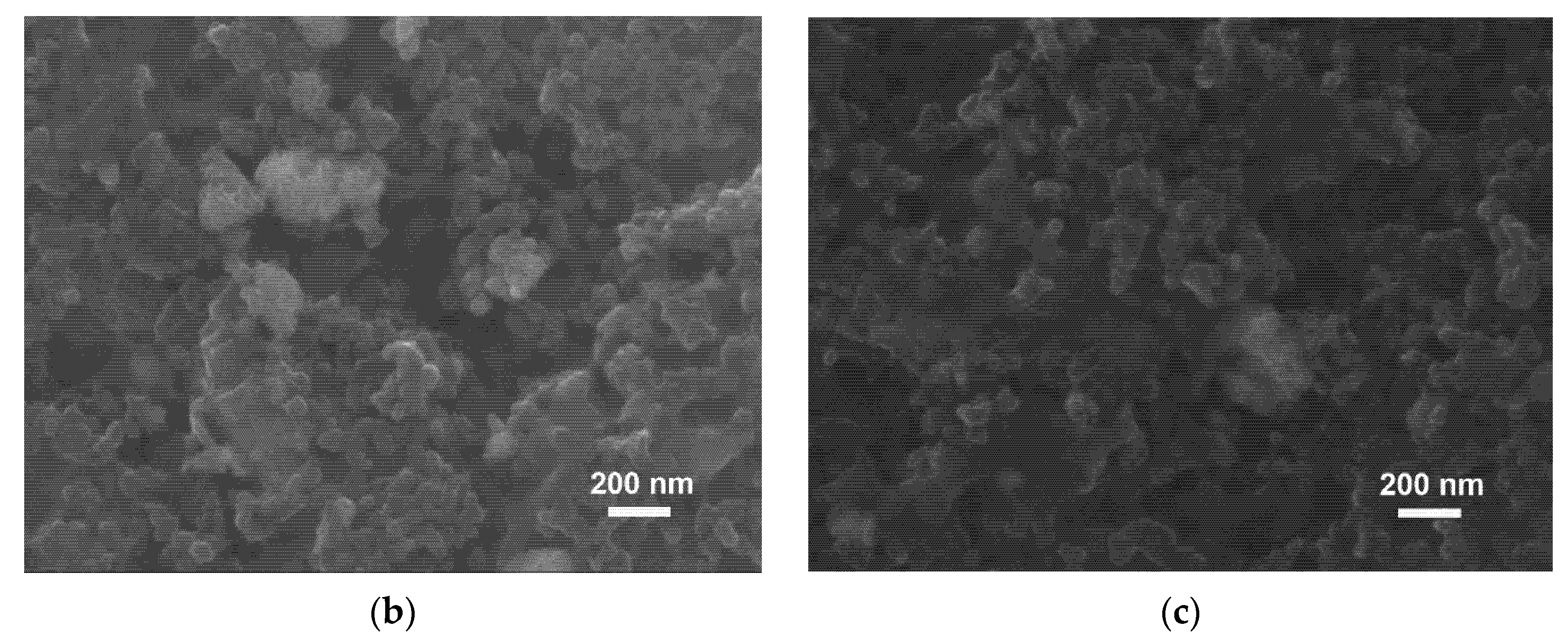

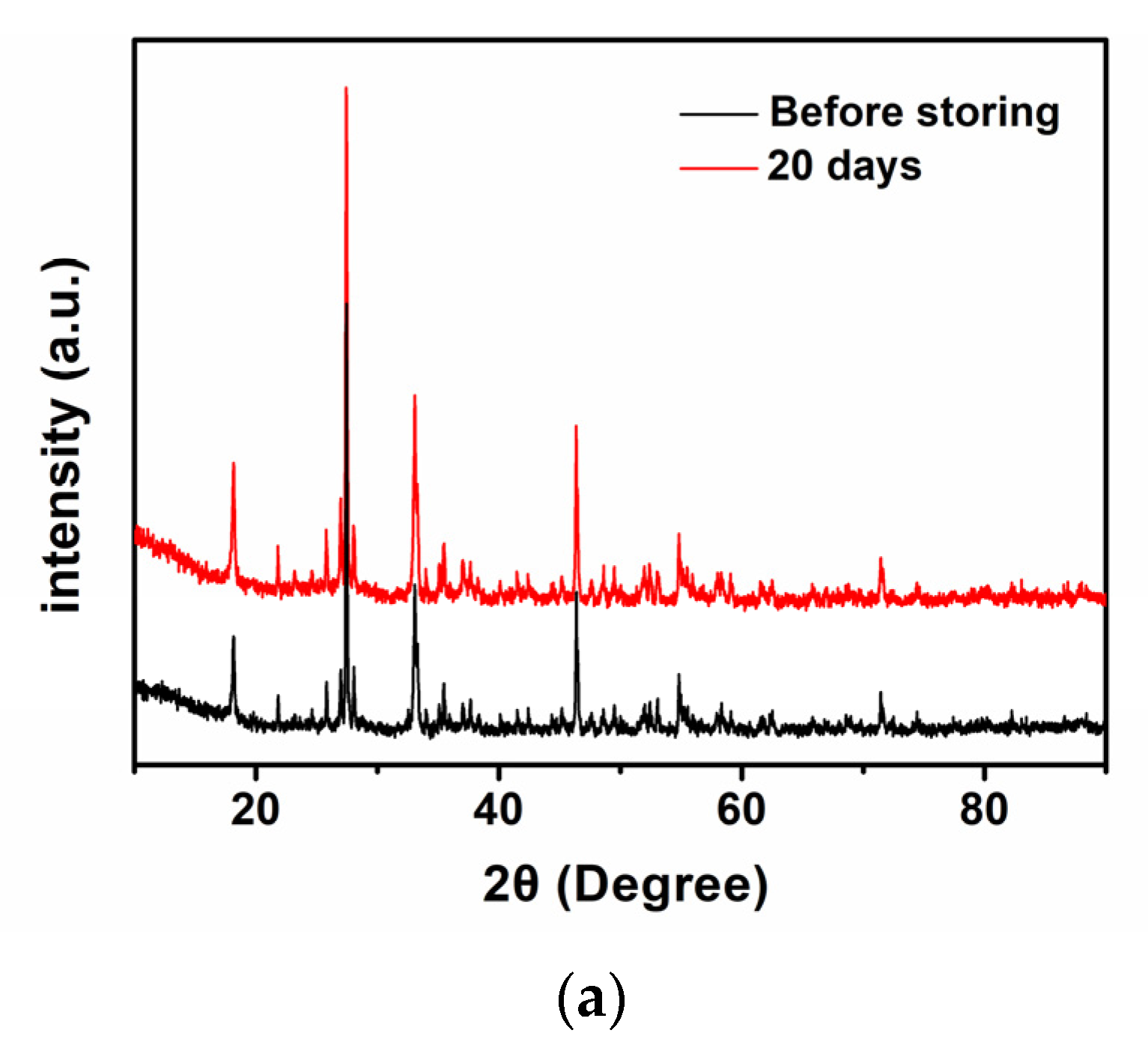

Figure 7. (a) XRD patterns of the fresh air cathode and air cathode stored for 20 days. (b) SEM images of the fresh air cathode and (c) air cathode stored for 20 days.
Figure 7. (a) XRD patterns of the fresh air cathode and air cathode stored for 20 days. (b) SEM images of the fresh air cathode and (c) air cathode stored for 20 days.
Energies 14 02607 g007aEnergies 14 02607 g007b
Energies 14 02607 g008a 550Energies 14 02607 g008b 550

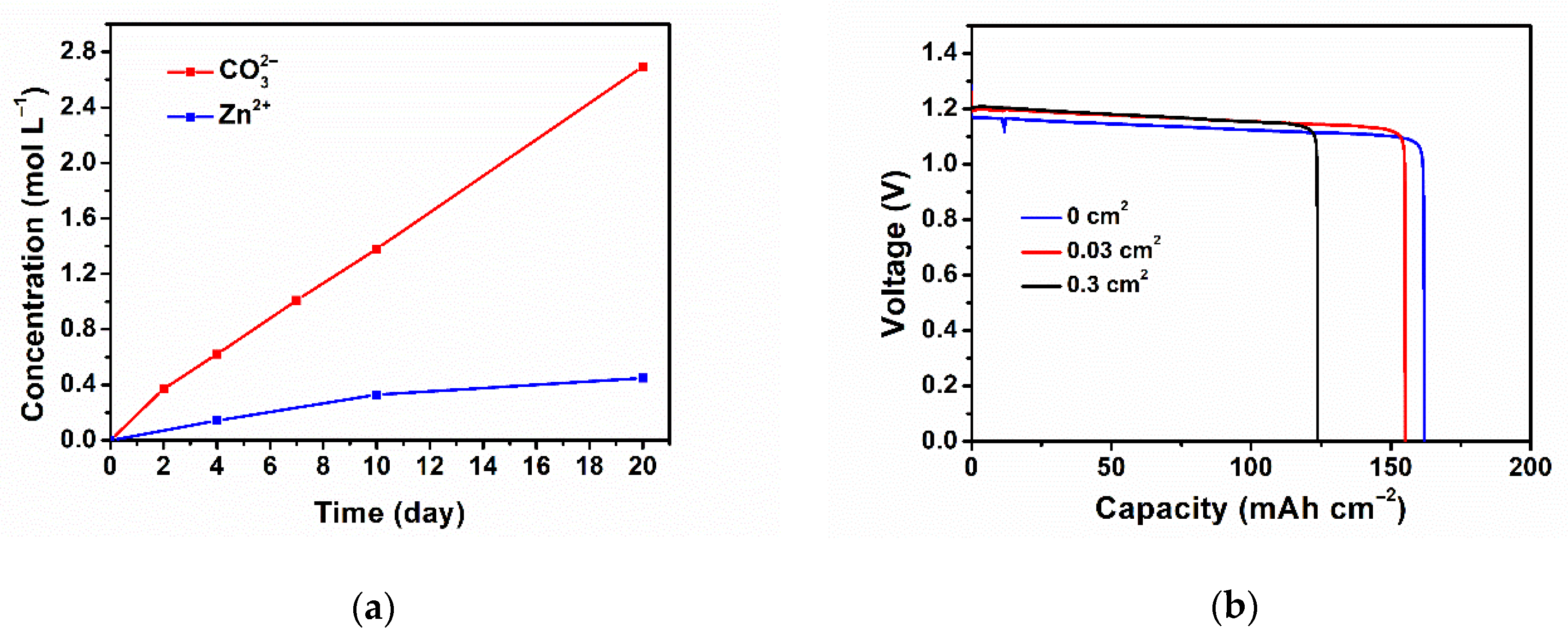

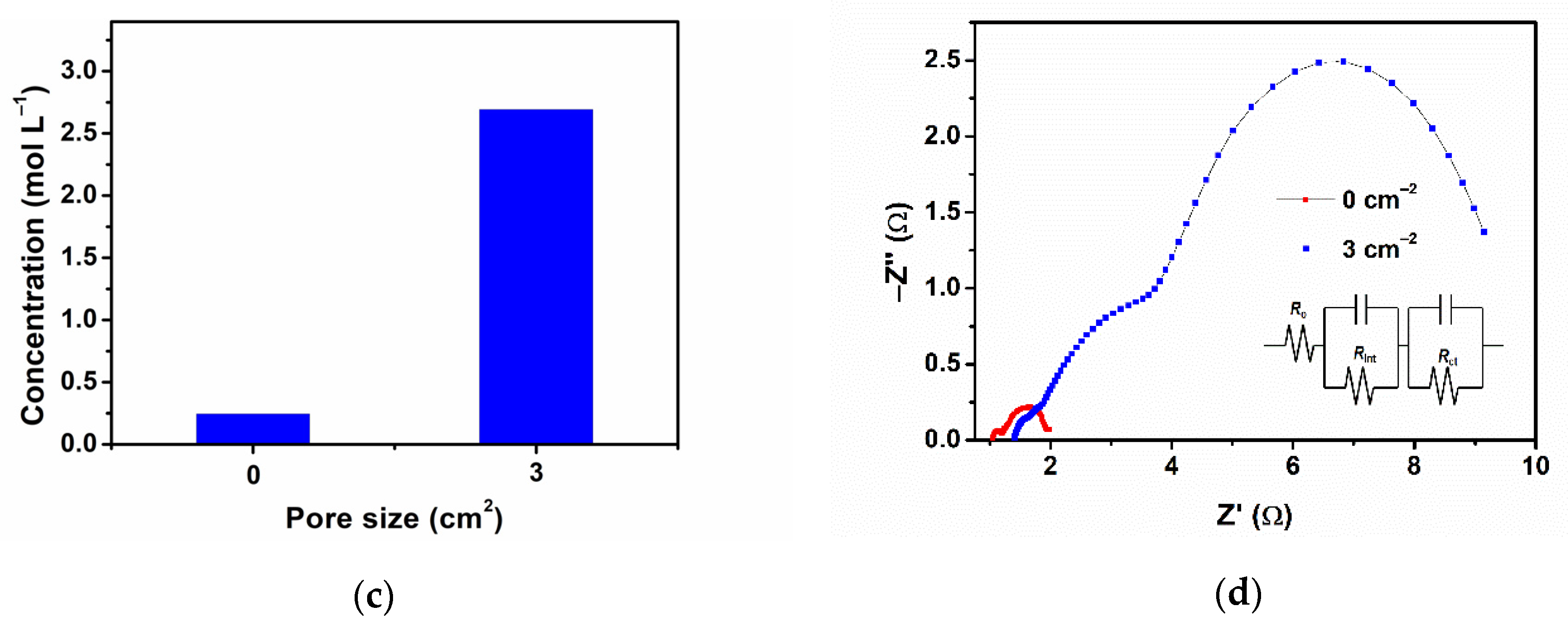

Figure 8. (a) The concentration variation of CO32− and Zn2+ in the battery electrolyte as the storage time increased. (b) The discharge curves of batteries with different air hole size after being stored under the same conditions for 20 days. (c) CO32− concentration comparison of the electrolyte stored in the batteries with the air hole sizes of 0 cm2 and 3 cm2 for 20 days. (d) Nyquist plots of the batteries with different hole size after being stored for 20 days.
Figure 8. (a) The concentration variation of CO32− and Zn2+ in the battery electrolyte as the storage time increased. (b) The discharge curves of batteries with different air hole size after being stored under the same conditions for 20 days. (c) CO32− concentration comparison of the electrolyte stored in the batteries with the air hole sizes of 0 cm2 and 3 cm2 for 20 days. (d) Nyquist plots of the batteries with different hole size after being stored for 20 days.
Energies 14 02607 g008aEnergies 14 02607 g008b
Table
Table 1. Impedance data obtained by fitting the equivalent circuit diagram in the inset of Figure 2b.
Table 1. Impedance data obtained by fitting the equivalent circuit diagram in the inset of Figure 2b.
Storage TimeRo/ΩRint/ΩRct/Ω
before storing1.1480.18540.635
2 days1.3270.21090.749
4 days1.4110.21780.876
7 days1.4950.25311.011
10 days1.7880.28191.200
