Design Flaws in United Kingdom Renewable Energy Support Scheme

Brighton Business School, The University of Brighton, Mithras House Lewes Road, Brighton BN2 4AT, UK
Energies 2021, 14(6), 1657;
Submission received: 6 January 2021 / Revised: 3 February 2021 / Accepted: 4 February 2021 / Published: 17 March 2021
(This article belongs to the Section C: Energy Economics and Policy)


Soon after the UK’s Feed-in Tariff (FiT) Scheme providing incentive prices for renewable energy was introduced in 2010, adjustments and modifications were made to eligibility criteria and incentive prices. Prices paid for renewable energy (RE) under the scheme were cut, deployment caps were introduced, and preliminary accreditation and efficiency standards were imposed. Controversy ensued as supporters sought help for the nascent RE technologies, while detractors claimed that the scheme was a wasteful means of reducing greenhouse gases. In this research, we examine how RE was incentivized under the FiT Scheme and its wider impact upon various stakeholders to assess its compatibility with liberalized electricity markets of the UK. We employ a financial performance metric to measure the direct costs of RE in compensation to investors and financial option theory to analyze the externalities of RE generation. As a means of reducing atmospheric CO2, the FiT Scheme was expensive, and the externalities imposed upon stakeholders were large. Whilst the UK scheme was effective in delivering RE capacity, our findings show that the scheme was flawed because the compensation provided to investors was greater than required while large indirect costs were ignored. Although eventually reducing feed-in tariffs addressed direct costs in compensation to RE investors, the externalities arising from stochastic renewable output under dispatch prioritization remain. Given the magnitude of externalities, large volumes of RE may be incompatible with the current design of electricity markets.

1. Introduction

To achieve the European Union (EU) decarbonization agenda and in conformity with various directives, the UK Government introduced in April 2010 a system of incentives, known as feed-in tariffs (FiT), covering various RE technologies including solar PV, anaerobic digestion, Combined Heat and Power (CHP), hydro power, and wind turbines. For wind and solar, the maximum capacity eligible for incentives under the scheme was 5000 kW. Larger facilities exceeding this size were incentivized under the home-grown Renewable Obligation Certificate (ROC) Scheme since 2002. This program is not considered in this research. The size cut-offs between these schemes are found on the website of the UK Energy Regulator Ofgem. With the Electricity Market Reform Act of 2012, the regime for supporting new, larger renewable energy (RE) was modified and centralized, and purchasing through a government entity under a Contract for Differences (CfD) was introduced [1]. The Feed-in Tariff (FiT) Support Scheme involved private generators of renewable electricity selling output to private purchasers or Licensees, which were typically integrated utilities and aggregators. Under the scheme, private generators received a tariff price from the licensee according to the scale and type of technology, as shown in Appendix B [2].
The use of FiT to support RE attracted controversy from inception. Supporters pointed to the success in new capacity and argued that nascent industries need assistance until they become financially viable [3,4]; detractors raised concerns that medium and especially smaller facilities (less than 10 kW for solar or 1.5 kW for wind) were wasteful and inefficient [5]. (As shown in Appendix B, the smaller the facilities, the more generous the incentive tariff prices. Grid integration costs must be spread over smaller levels of output). Supporters argued that the high costs were acceptable to achieve greenhouse gas (GHG) reduction. Job creation was a common justification [6]. Amidst the controversy, from 2010 when first introduced, the tariff prices were steadily reduced, and other changes to eligibility were made [7]. Although changes to the FiT Scheme were not applied retrospectively, between inception in 2010 and 2016, support levels were steadily reduced, as shown in Table A1 and Table A2 in Appendix B.
For solar PV, by 2016, support levels for the popular 10 kW or less of capacity had been reduced to £ 45 per MWh (although with the possibility of going even lower if investment thresholds were met). This was about 1/10 of the original 2010 level. For wind turbines of the popular 50 kW or less of capacity, tariff prices were cut to around £ 88.90 per MWh or about 30% of the 2010 support levels of £ 307.80 (full details on FiT prices may be found in Appendix B). In addition to cutting feed-in tariffs, the range of prices available for solar PV for facilities was now tied to the growth in capacity, with applicable tariffs varying greatly [7]. For example, within the single category of 10 kW or less, depending upon the capacity targets being met, possible FiT prices now had a range of between £ 6.00 and £ 44.60 per MWh. (Modifications to the Standard Conditions of Electricity Supply Licenses 2015, No. 3. Energy Feed in Tariffs. Presented to Parliament pursuant to Section 42 of the Energy Act 2008.) Although changes to prices were not be applied retrospectively to capacity that had already been built, in 2016, tariff prices paid by licensees to private generators for wind and solar output were sharply reduced [8]. The UK High Court ruled against the Department of Energy and Climate Change (DECC) and in favor of the solar industry: It was decided that retrospective changes to FiT prices were unlawful. The Government lost on appeal, and the Secretary of State in 2012 refused DECC permission to challenge the ruling. The judge also denied the request for DECC to go to the Supreme Court to challenge the lower court decision ( (accessed on 15 April 2020)). Altogether, it appears that the authorities were adjusting support levels to slow the pace of RE investment, recognizing the impact as well as limitations of existing market structure. (In addition to reducing tariffs, in 2011, the DECC tightened eligibility criteria, and categories of incentives were consolidated. In 2013, further instructions were issued for units qualifying under the FIT Scheme [9]. In 2015, tariff guarantees were removed entirely for certain units covered under the Renewable Obligation Order (ROO). In April of 2015, tighter eligibility rules for new RE facilities were imposed, and support levels were further reduced. Six months later, tariff guarantees were removed for community energy installations, and preliminary accreditation of Renewables Obligation Order (ROO) Feed-in Tariffs was imposed. In 2016, comprehensive changes were made to the entire FiT Scheme, including a further reduction in tariffs and the roll-out of deployment caps [10]. Amendments were also made to energy-efficiency requirements. Automatic extensions to already accredited facilities were ended. Along with cuts in tariffs, accreditation criteria were further tightened.)
Through the many changes, the British Government appears to have moved from a passive stance of setting incentives and allowing liberalized electricity markets to respond to adopting a managed approach to RE investment. In contrast to the official promotion that begun in 2010, the reforms including the Energy Market Reform Act of 2012 for larger plants appeared to represent a departure from a two-decade long reliance on free markets to deliver affordable and secure electricity, including that generated by renewable sources. From concern on how best to encourage RE investment [1], as capacity targets were achieved, the focus turned to whether reforms were needed [11]. Could a RE support program such as the FiT scheme be bolted-on to the existing market structure? In changing the scheme, questions were expressed over waste and compatibility with liberalized electricity markets [12,13]. Others wondered if the direct costs in the original design of tariffs had been properly calculated or if the wider impact appreciated. As a means of de-carbonizing electricity generation, was the FiT Scheme efficient?
As a retrospective examination of the FiT Scheme, we examine how it has been supported and consider its compatibility with current market design. In analyzing the merits of the scheme, we consider whether growth in RE capacity led to profligacy in how it was supported. Had investors received an appropriate level of return? Might similar levels of capacity and output have been achieved more cheaply and with smaller impacts upon stakeholders? Were the scheme’s externalities, defined as costs or benefits falling upon third parties but not included as costs by the producer, adequately considered? As a means of reducing greenhouse gas (GHG) emissions, was the FiT Scheme cost effective [14]? Changes occurring to the support schemes of other EU member countries added to the perception that how RE was supported may be flawed in both design and calibration [15,16]. However, was this an argument in favor of centralized planning of renewable investment rather than reliance upon traded markets, or a call for re-calibration of support mechanisms under existing market structures [17]? To examine these issues, we use a key financial performance metric and financial option theory to evaluate the RE support scheme in the UK as discussed below.
In our research, we examine the scheme’s economics and whether reforms to the tariffs, as first set in in 2010, were needed. Were reforms needed from the standpoint of economic efficiency? Were they sufficient to make RE compatible with a traded market in electricity? To examine the direct costs of RE support schemes, we measure the financial performance of renewable investments. From our results, we consider the extent to which supra-normal returns were earned by investors and if externalities may have been created. We use the investment costs and technical characteristics of the most subscribed UK wind and solar facilities covered by the Office of Electricity Market (Ofgem) FiT Scheme. We use half-hourly electricity prices between 2010 and 2016, as found on the UK APX Website. After calculating the direct costs measured in the financial returns earned by investors in RE, we introduce financial option theory to quantify the externalities of the FiT Scheme as arising from intermittent stochastic output having dispatch priority [18,19] (According to the US Department of Energy-Energy Information Administration, dispatch refers to the operating control of an integrated electric system involving operations such as (1) the assignment of load to specific generating stations; (2) the control of operations and maintenance of high-voltage lines, substations, and equipment; (3) the operation of principal tie lines and switching; and (4) the scheduling of energy transactions with connecting electric utilities. Through giving RE generators dispatch priority, it means output from dispatchable plants (coal and gas-fired generators) are curtailed). In line with welfare economics and public finance literature, we define externalities as the social costs or benefits that their producer or consumer does not consider in his or her decision making [20]. (Costs and benefits may be direct or indirect, tangible or intangible, and difficult to quantify.) The incidence of costs and benefits may vary by location [21]. As terminology, although the term “options” is often used in the policy literature referring to public choices, we use option theory for the valuation of state-contingent assets or liabilities, as treated in the finance literature [22] and as applied to the optimization of energy assets such as power stations [23].
The paper is organized as follows: in Section 2, Background and Literature Review, we begin with the economics of why and how renewable energy has been supported and discuss the issue of economic efficiency. In Section 3, RE Cost Measurement and Data, we address the issues raised in the literature review regarding the efficiency of incentive mechanisms using a key financial metric and option theory to capture the costs associated with renewable energy in liberalized traded markets for electricity. In Section 4, Results and Analysis, we calculate the direct cost of subsidizing solar and wind renewable generators, along with social costs under current liberalized, traded electricity markets. In Section 5, Conclusion, we reflect upon the changes to the UK Scheme and whether they are sufficient to make RE compatible with current market design, promote allocation efficiency, and reduce GHG in a cost-effective manner.

2. Background and Literature Review

When the liberalization of electricity markets began over two decades ago in the UK, Scandinavia, parts of Europe and North America, the RE policy agenda had yet to emerge. However, privatization of the electric utility industry and the introduction of traded markets in power meant that the [24] criteria for optimizing investment in public goods (as RE) could not be applied [25,26,27]. The “natural monopoly” argument for either state-ownership or operation as regulated utility had been dropped. Under liberalized markets, UK policy makers, similar to their counterparts elsewhere, now had to rely upon private investors and market forces to deliver RE. Was a RE policy agenda compatible with the existing market design [28]?
In the UK, similar to other EU markets, it was recognized that making RE compatible with deregulated/privatized electricity markets would require special mechanisms to address its key features: high fixed costs, negligible variable costs, low-capacity utilization, and stochastic output [29]. With liberalized electricity markets, the marginal price of electricity is set typically by the most thermally efficient plants, the Combined Cycle Gas Turbines (CCGT). Although the National Grid Company owns and operates the UK high-voltage transmission and sub-station systems, it is through the interaction of supply and demand, making half-hourly prices, rather than centralized dispatch that markets are balanced and reliability achieved. Market liberalization had succeeded in promoting investment with an array of dispatchable flexible plants such as CCGT underpinned by less flexible coal and nuclear generation. Capacity reserves were adequate to cover demand prediction errors, unexpected weather, or unplanned outages. National Grid entered into long-term contracts with suppliers to avoid supply disruptions and secure adequate reserve margins. The lucky coincidence of cheap and plentiful natural gas and the relaxation of EU directives on using it for power stations underpinned investment in gas-fired generation, the dash-for-gas, by the newly privatized electricity companies in the 1990s into the new millennium. Moreover, investment in CCGT handsomely served the policy goals of affordable and secure electricity supply; gas was no longer a premium fuel [30].

2.1. The Technology of RE

Given the aforementioned key features of RE noted above, modifications to the liberalized market structure were needed for its growth. As RE cannot be dispatched on demand but generates when the wind blows or the sun shines, it was given “dispatch priority” under the FiT Scheme in accordance with the EU 2009 directive: when RE plants are generating, others, with flexible and controllable output, such as gas turbines, must reduce their output (Directive 2009/28/EC of the European Parliament and of the Council of 23 April 2009 on the promotion of the use of energy from renewable sources and amending and subsequently repealing Directives 2001/77/EC and 2003/30/EC [31]. However, the growth of RE capacity and output under dispatch priority arrangements has externalities: For licensees, it means reduced load factors for dispatchable plants and reduced thermal efficiency [32]. There may be balancing problems for the grid operator and require additional connections [33,34,35]. Lastly, it may impact the long-term security of supply through falling dispatchable reserve margins as plants are moth-balled and fresh investment is discouraged [36,37,38,39]. Recognizing the risks to supply security and the system reliability of growing RE capacity under prevailing market design, the Energy Act of 2013 introduced capacity payments for dispatchable plants to secure their availability as back-up [39,40]. Making such payments has now been approved by the European Commission [23,41].
In addition to the dispatch issue, RE also presents challenges from a private investment standpoint. Even with a guaranteed market under dispatch priority, unlike conventional methods of generating electricity, its expected annual utilization as a percent of rated capacity, load factor, is likely to be sharply lower than that of conventional technologies. According to the latest data from the UK Office of National Statistics, the load factor in 2017 was 11.1% for solar PV, 23.7% for on-shore wind, and 36% for off-shore wind [42,43]. In liberalized electricity markets of the UK and elsewhere, given the low load factors, rewarding RE according to its output is problematic: at market prices, there would be insufficient return to investors [44,45]. Moreover, unlike a CCGT plant that may elect to dispatch electricity at the best half-hourly prices over the daily profile, when “Spark-Spreads” are positive, RE may be generating when prices are very low, such as wind turbines at night [46,47]. Together, low load factors and potentially low prices as set by market forces mean incentives are required to induce private investment [48]. (The observations also imply that setting prices for RE according to cost-plus regulation of output would be challenging given its greater Levelized Cost of Electricity Output (LCOE), which is defined as the per-megawatt hour cost (in discounted real dollars) of building and operating a generating plant over an assumed financial life and duty cycle [49,50].The alternative of making fossil fuel plants less competitive by pricing or taxing CO2 through initiatives such as the EU Emissions Trading Scheme has been ineffective given the inelasticity of electricity consumption [30,51,52].)
In light of the challenges RE faces in liberalized markets dominated by conventional dispatchable plants, various policy instruments have been used to enhance its return and reduce its risks, including guaranteed prices above a floating price or using a fixed premium to a floating electricity prices to encourage the building of new capacity [53,54]. In some US states, output quotas have been used to promote renewable energy generation [55] in others, rebates to consumers of solar PV were introduced [56,57]. The UK approach mirrored that of other EU countries, in offering incentive prices for RE through a feed-in tariff [58]. Through selling non-self-consumed output to a licensee such as a utility or aggregator at tariff prices, an investor in RE earned a financial return from installed renewable electricity-generating capacity [8,59]. From inception, there were concerns that tariffs were too generous [60]. As shown in Table A1 and Table A2 in Appendix B, every year, fresh reductions were made, leading to the sharp cuts by Ofgem in 2015 (Concerns over the FiT approach of relying upon private investors and private licensees also led to the 2012 program of centralized purchasing under a Contract for Differences (CfD) structure for RE output [56,59]. In addition to reducing tariff prices available under private commercial arrangements for smaller and medium facilities, with the Market Reform Act of 2012, the UK Government introduced a central purchasing Scheme for new RE to oversee investment in the technology [61]. Under the 2012 arrangements, a CfD entity was created by Government to contract electricity purchases with private low-carbon generators according to incentive feed-in tariffs. As stated in the Annex of the 2012 Act, projects that are able to receive support under the small-scale Feed-In Tariffs (FITs) were not eligible for CfDs. Projects covered under the old Renewable Obligation could also not switch to the new CfD program.
Given the sharp growth in UK renewable capacity in response to incentive prices, we ask whether the original incentives for private generation and purchasing were properly calibrated and whether any externalities were adequately reckoned [62,63]. Were the returns to private RE investors through the original FiT fair, given the limited risks, or were they too generous [64]? Was the subsequent reduction to the FiT Scheme justified? For licensees, and ultimately, all stakeholders, had the potential externalities been addressed? In sum, were the various reforms sufficient to square the circle of how to integrate RE into the current market structure and design, or would alternatives be needed [65]? Could the supply responsiveness of RE investment to changes in incentive tariffs be correctly anticipated? Overall, was the promotion of RE compatible with the liberalized electricity markets?

2.2. The Economics of RE

Given the requirement for financial incentives to induce RE private investment in liberalized traded markets for electricity, two questions arise. First, the level of support needed to achieve a desired level of investment and second, whether such investment is compatible with liberalized electricity markets. When it was found that wind-park owners in Portugal had been over-compensated under the country’s feed-in tariff scheme, hasty reforms were introduced [60,66]. The jump in RE investment in Italy and Spain also prompted cuts in support levels [67,68]. From inception, in the United Kingdom, similar concerns arose over RE support levels. There appears to have been differences in how policy makers viewed feed-in tariffs and how markets and investors looked upon them [69]. With its unique cost characteristics described above and stochastic output, inducing RE investment would require incentives, but the generosity of such support appears to have been inadequately addressed.
On the second question of whether the targeted growth in RE investment would be compatible with the design of liberalized power markets, minimal analysis appears to have been undertaken in advance of policies being implemented [70]. Although benefits of RE have been widely heralded such as reducing CO2 or promoting job growth, evidence to the contrary notwithstanding [34,71], the social costs appear to have not been weighed [72]. However, with the introduction of capacity payments in the Energy Act of 2013, there appears to be recognition that RE was affecting the reliability of the system through the impact upon incumbent dispatchable operators [73,74]. Externalities appear to have not been considered when on the back of the 2009 EU directives, the UK, similar to other members, introduced incentive prices for RE (Directive 2009/28/EC of the European Parliament and of the Council of 23 April 2009 on the promotion of the use of energy from renewable sources and amending and subsequently repealing Directives 2001/77/EC and 2003/30/EC. Other externalities such as the reduction in thermal efficiency of incumbent plants through running at reduced capacity or reduced reliability through frequent load changes were also not addressed in the aforementioned directive nor codified in the Energy Act of 2013. Officially at least, the benefits to RE investors of not paying for the common resource of dispatchable back-up generation and grid management under current market design was not articulated. In this regard, in the United States research has been undertaken on the impact of RE penetration on grid reliability [33,75,76].
Understanding the externalities associated with RE requires examining the operation of liberalized electricity markets. Externalities arise because electricity is not a homogenous good: power supply from different fuels and technologies are not commoditized substitutes; when and where electricity is generated determines both its value and system impact [77]. Under the current market design, any externalities associated with the FiT program fall initially upon dispatchable licensees, which are typically integrated utilities or aggregators, but its ultimate incidence is borne by shareholders, employees, and customers Quoting from the Ofgem document of 2010: “Licensed electricity Licensees who have a minimum of 50,000 domestic customers (as defined in the standard conditions of electricity supply licensees, or “SLCs”) will be obliged through their electricity supply license to offer and pay FITs. These Licensees are classed as Mandatory FIT Licensees.” [78]. Since the commercial storage of electricity is presently not commercial, the time of day when it is supplied or dispatched determines its value [79] and the degree of market penetration affects its impact [80]. The stochastic nature of RE generation under dispatch priority imposes costs on the owners/operators of dispatchable fossil fuel plants in accommodating such output. Meanwhile, RE investors enjoy the benefits of liberal market design through dispatch priority and a generous FiT from a licensee. However, as RE output may lead to externalities, it implies that returns are understated, as they are free-riding upon the costs of ensuring grid stability and curtailing the output of the dispatchable plant operated by integrated utilities. Overall, the potential for externalities under current market design has not been widely appreciated [81]. Hence, to analyze the economic efficiency and compatibility with liberalized market design of the FiT support scheme, one must examine not only the direct costs of support incentives but also any externalities [82]. Only by weighing both direct costs in subsidies along with externalities can we address whether the FiT scheme was a cost-effective means of decarbonizing electricity generation.
Although not presented as an official motivation for changes to the original 2010 UK incentive scheme, concerns had been expressed over the broader impact upon UK incumbent operators through general market conditions [83]. In addition to the owner/operator costs of providing back-up according to wind speed and solar irradiation, RE output affects general market conditions. The correlation between electricity output and electricity prices means that the stochastic nature of RE output may increase price volatility and, as a consequence, the cost of managing market risk [51,84]. Secondly, as generating RE has virtually no variable costs, its output may put downward pressure on electricity prices, reducing the income of conventional plant owners and operators, creating a pecuniary externality. RE output may alter the merit order of dispatchable plants, producing a system-wide impact as noted in other countries [51]. As electricity prices fall through the expansion of zero variable cost RE production, the market-to-market value of tariffs offered as incentives to RE developers increases, the opportunity costs for incumbent generators and aggregators of managing exposure under FiT arrangements grows [85]. Such observations have led to yet further questions over market design of whether liberalized traded power markets can handle large volumes of RE output [16,86]. Lastly, RE as a form of distributed generation raises costs through requiring additional high-voltage connections to the grid [66].
Altogether, the above observations raise concerns over the UK incentive scheme, prompting the following questions: was there only a problem in the calibration of the support scheme or, more fundamentally, were increasingly large volumes of intermittent electricity output through imposing costs upon the system and stakeholders such as licensees compatible with liberalized market design? From several hundred pounds per MWh in 2010, prices by 2015 had been reduced to levels resembling the wholesale electricity market [87], but were such reforms to the FiT Scheme an adequate remedy? As capacity targets were achieved, had attention turned to the broader impact of unfettered growth in RE? Analyzing the evolution of the FiT Scheme requires understanding its direct costs in compensation to investors, any externalities, and the overall effectiveness in reducing CO2.

3. RE Cost Measurement and Data

To address whether the UK scheme was economically efficient and whether changes were justified, we use a financial performance metric to quantify the direct costs of RE in returns paid to investors to see whether such returns were fair or whether RE investors were over-compensated (We define a “fair” return as that generally earned by other investments of equal systematic risk, according to Capital Asset Pricing Theory as first developed by Professor William F. Sharpe). To capture the externalities of the RE under the current market design, we use option theory to quantify the theoretical costs of hedging against the intermittent output under dispatch priority imposed upon incumbent operators, other stakeholders, and the system as a whole. (We assume neither a constant nor predictable supply of RE output. Rather, we quantify the costs using option theory, of hedging against all potential exposure. Subject to risk appetite, a licensee may hedge a proportion of the potential exposure, although such possibilities are not analyzed.) In addition to quantifying the externalities, option theory provides insights into the aforementioned effects associated with RE of lower prices and greater price volatility. Considering both sets of costs allow us to examine the efficiency of decarbonizing UK electricity generation under the FiT scheme [88]. From the above, we can gain insight into changes made to the original support schemes and whether they were sufficient to make RE compatible with liberalized traded markets in electricity [89].

3.1. The Direct Costs of RE

To address the question of whether changes to the UK support scheme were needed on the grounds of economic efficiency, we examine its direct and indirect cost. For direct costs, we examine returns received by investors using the Return on Capital Employed (ROCE) metric, which is computed as:
ROCE =   Earnings   before   Interest   and   Tax Capital   Employed .
“Earnings before Interest and Tax” captures what was paid through incentive tariffs to RE generators according to output, and “Capital Employed” is the investment required to purchase renewable generation capacity and excluding funding liabilities (Many licensees as purchasers paid for the initial investment in, for example, solar installations with the costs recovered through a reduction in tariffs received). As the operating costs of a renewable plant are low for wind turbines, especially during the first ten years of operation, and even lower for photovoltaic (estimated at just 1%), such costs were excluded from our analysis. Although there is no evidence that ROCE was used in setting official RE tariffs, arguably, it captures whether returns were fair, given the risks undertaken. (The method(s) actually used to set support levels back in 2010 has not been published.) We note that similar to other EU countries, the UK’s FiT Scheme was designed for smaller facilities, which may have partially self-consumed (“prosumers”) the energy produced and therefore only received incentive prices for volumes exported to the grid. In having the grid available as a back-up if the sun may not be shining or the wind not blowing, RE investors enjoyed the imputed benefit of assured supply or reliability. In effect, RE investors have non-economically exercised put options to sell electricity when produced or take electricity from the grid when not generating, creating exposure for licensees. Notwithstanding such nuances, we argue that ROCE captures the performance of RE from an investor perspective.

3.2. The Externalities of RE

In reforming and modifying the UK incentive scheme of 2010, several arguments were advanced. Most notably, it was said the scheme had been too generous or was even no longer needed, but one of the strongest arguments might have been that the externalities were not appreciated, although some concerns were expressed over the costs of integrating RE into the existing market [83]. In the literature, there are various approaches to analyzing such costs, although generally, the focus is not upon utilization costs [4]. One can use commercial full-scale stochastic dynamic programming models for system-wide simulation of the effects of stochastic RE output [20,81]. Otherwise, one must revert to heuristic methods to examine such costs such as the actuarial model used by one researcher to examine the Nordic Pool market [90]. In recent work, the externalities of integrating RE have been placed into three categories, having a linear relationship [80]:
  • Balancing and intra-day trading costs arising from random deviations to planned generation schedules;
  • Grid-related costs through changes to the market value of location of generation on the power grid and opportunity costs from displacement through the transmission of RE output.
  • Profile costs arising from differences between the load-weighted profile of market prices versus that of the RE-weighted profile over time.
Although the above categories are helpful, apportioning such costs is challenging. Moreover, their relationship may be non-linear but interact with one another. Instead, we offer a fresh approach to measuring externalities comprehensively by quantifying the cost of hedging exposure. We introduce financial option theory to analyze the externalities of RE output upon incumbent utilities or aggregators through quantifying the cost of neutralizing exposure to intermittent output at an incentive tariff, as introduced in our related research [30]. Under risk neutral pricing, as the hedging costs must be equal and opposite to neutralize an exposure, it represents the externalities imposed upon incumbent utilities from intermittent stochastic RE output.

3.3. Measurement of Externalities

To measure the indirect social cost of RE under the UK incentive scheme, we begin by noting that a utility or aggregator, as a licensee, must pay the difference between the market price and the FiT under a bi-lateral agreement. Even though, as mentioned above, some RE output may be for self-consumption and not supplied into the grid, an integrated utility or aggregator faces ex ante several potential costs: first, of adjusting output downward for reduced demand, second, of purchasing electricity at the incentive tariff prices as provided to wind or solar-generated electricity exported into the market, and thirdly, through exposure to the intra-day trading and balancing market. Ex ante, the aggregator or integrated utility neither knows how much may be produced nor how much of the produced volume will be self-consumed, i.e., not exported into the market and purchased at the incentive price. Therefore, he does not know what exposure to the balancing market may arise. The costs of satisfying within the day shape load profile may also be incurred by the licensee. Hence, to the extent that the potential costs of such risk are not recovered in the relationship with the private generator, they are borne by the licensee, an aggregator, a utility, and ultimately, various stakeholders under the rules set by Ofgem, if half-hourly prices exceed the tariff, the renewable operator must return the excess. Given the high FiT levels when the scheme commenced and prevailing wholesale prices, this an infrequent event. Some Renewable Energy aggregators in the UK offers packages to private generators, reducing prices in return for risk sharing. At a system level, through the arrangement between private generator and licensee, an exposure equal to the difference between the tariff and the market price is created and imposed initially upon the latter and, to the extent not absorbed, all stakeholders. (Capacity payments to integrated utilities and generators introduced with the 2013 Energy Act and now approved by the EU Commission may have offset some of the above costs but are not examined in the present research. Moreover, such payments have a cost that ultimately must impact consumers.)

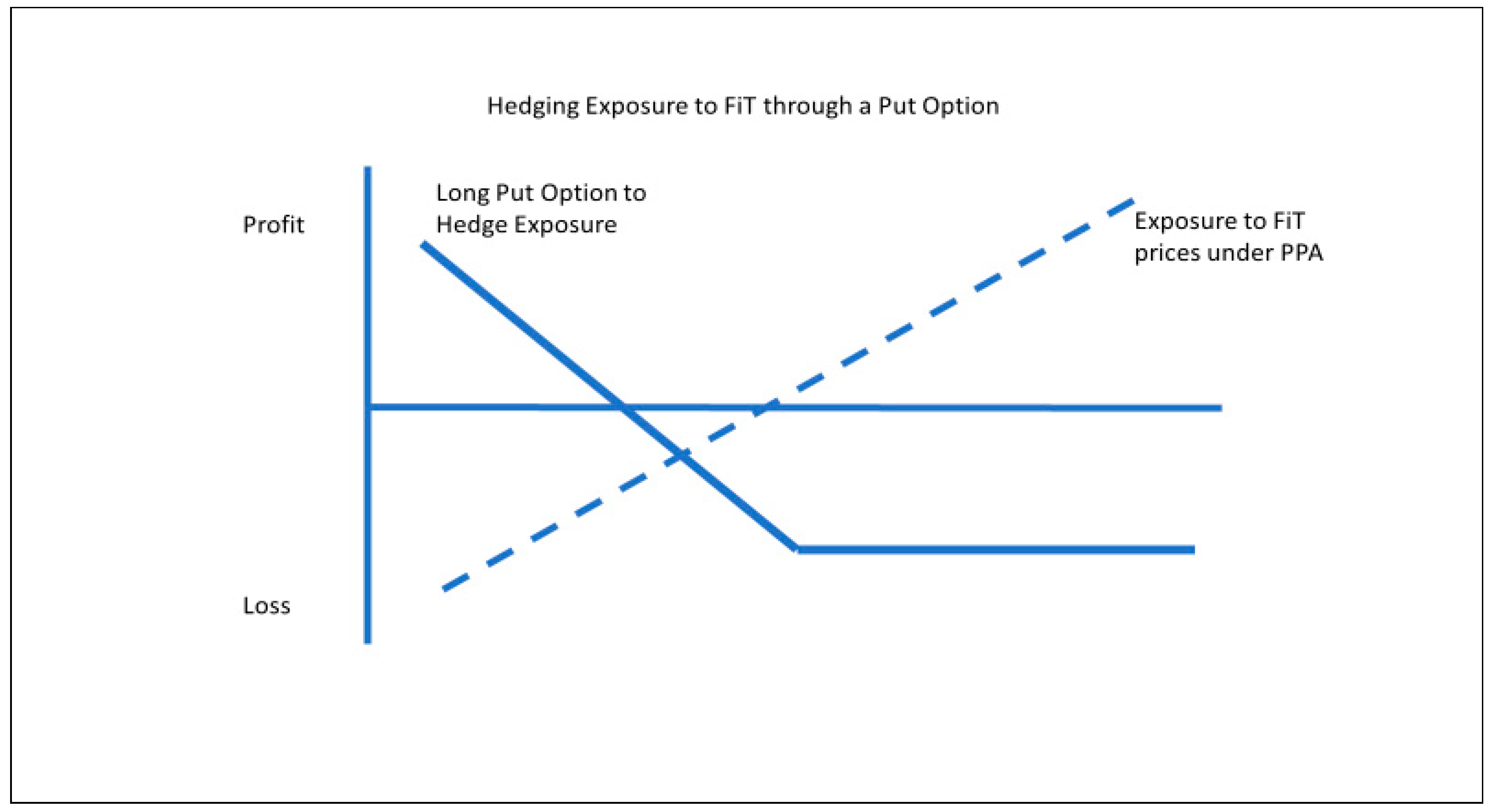

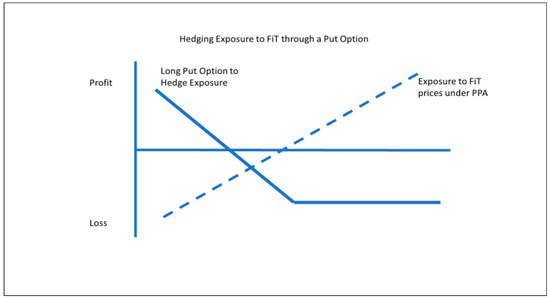

To measure these externalities, we turn to option theory. In theory, exposure under an arrangement to purchase RE output at FiT prices under a Power Purchase Agreement (PPA) could be hedged by purchasing put options (the right to sell) with strike prices equal to the tariff price (see Figure 1). Through hedging, what is lost through the difference between the incentive price and wholesale price would be compensated by what one gains through exercising the put options. According to received theory, the price of an option at maturity equals the present value of the expected terminal payoff, assuming no arbitrage and risk neutrality. Although actual options cannot be purchased at half-hourly frequency to hedge the exposure from feed-in tariffs, under risk neutrality, the theoretical price of the put options represents the expected cost of having to accept unexpected electricity at the feed-in tariff price and sell it at the market price (On the InterContinental Exchange, options and futures on electricity are traded at less granular frequency, such as day-ahead, months, and seasons. Although full replication for hedging is not possible at half-hourly granularity, a statistical hedging program might be conducted using the contracts available).
To measure the expected costs arising from the difference between market price and the tariff created through the arrangement between the private generator and licensee, we use the well-known Black and Scholes (BS) analytic formula for pricing a European style put options with strike prices equal to the feed-in tariff (A “European” style option can only be exercised at expiration, unlike an “American” style option, which may be used anytime during the life of a contract [91]. Although more complex option theory models have been developed allowing the relaxation of such assumptions as prices following geometric Brownian motion [69], use of the Black–Scholes option theory to price risk in electricity markets is accepted practice in the utility and financial sector [92,93]. As having insurance compensates for a loss, owning put options conferring the right to sell electricity at the incentive price would neutralize the cost of accepting RE under the FiT Scheme. In financial theory, options are priced according to the five parameters shown in Table 1 (The differential equation for pricing of options appears in Appendix A).

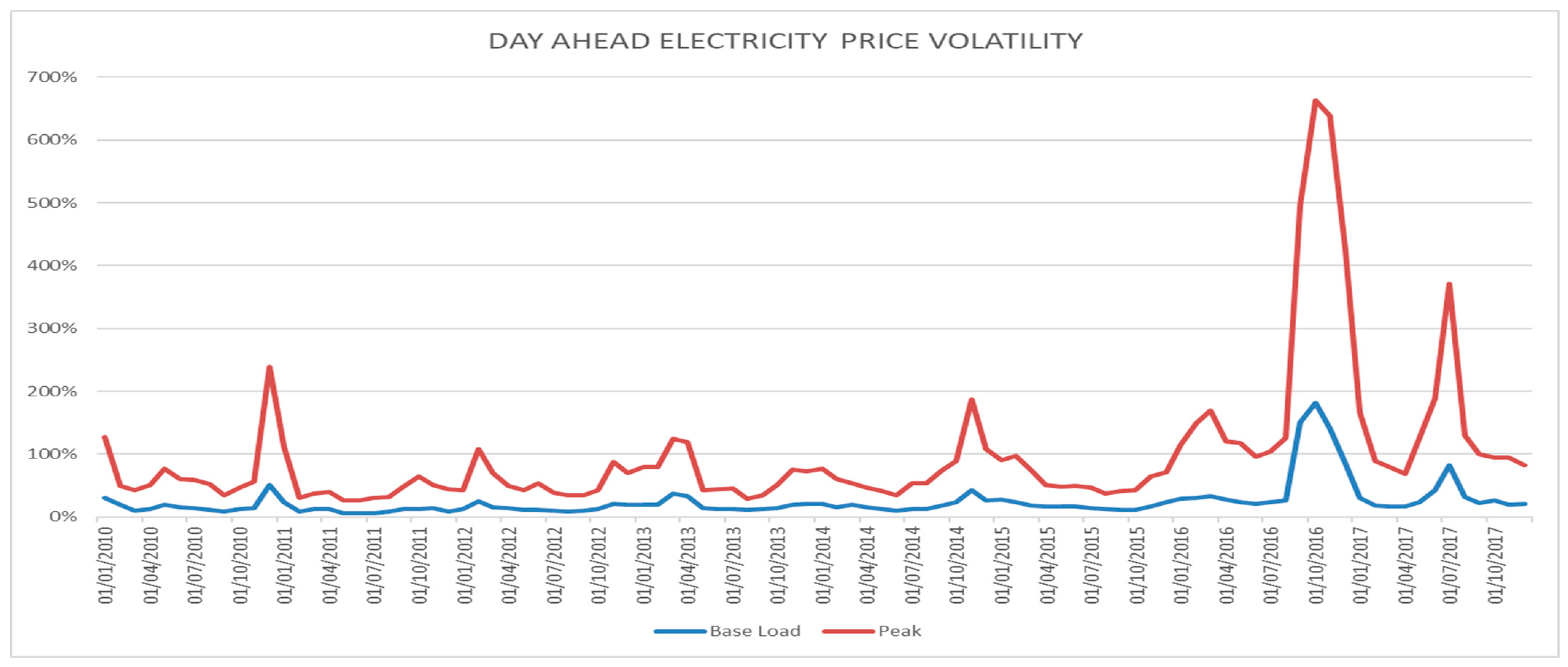

We note that according to option theory, the degree of risk aversion conveniently drops-out of the differential equation solution. Regardless of the degree of risk aversion, one is indifferent between accepting the risk and paying to neutralize exposure to the agreement. In using option theory to compute the theoretical cost of hedging all exposure to RE, we assume no strategy according to risk tolerance or commercial objectives; instead, all potential exposure from purchasing RE at the feed-in tariff price would be neutralized via options. However, if utilities or aggregators (or indeed other stakeholders) were risk adverse, they would be willing to pay more to neutralize the risk (We do not consider the heterogeneity of risk aversion of various stakeholders, i.e., that utilities may be less risk adverse than for example consumers to whom costs may be passed forward. We are also assuming that the exposure is gamma neutral, i.e., the second derivative of 2 ( e x p o s u r e ) ( p r i c e s ) 2 = zero. The absence of second-order price sensitivity means that the exposure does not need to be hedged at an increasing rate [88]. This is a strong assumption, as the integration of RE may lower prices, increasing the negative mark-to-market exposure of licensees [94,95]). Thus, if the risk faced in the first instance by the licensee can neither be recovered in the pricing arrangement nor hedged, it is borne by stakeholders: the generators, customers, employees, and shareholders. Lastly, even if a utility or aggregator does not choose to completely hedge his exposure according to risk appetite, the non-hedged risk is still reflected in the cost of capital and borne by stakeholders.
Applying option theory also affords insights into the systemic impact of RE under a liberalized market structure. According to option theory, as shown in the table above, conditions of falling market prices or greater volatility in market prices would increase what one should charge for accepting the aforementioned risk. Falling prices and greater volatility have been observed in markets where RE plays an increasing role [96]. By implication, if incumbent generators cannot charge for accepting the risk of intermittent electricity output at incentive prices, then they, along with stakeholders, bear the cost.
As explained above, the combination of self-dispatch and the feed-in tariff pricing enjoyed by renewable owners creates an exposure for the licensee purchaser and, ultimately, the system, which may be quantified using put options. Although some of the RE output may be for self-consumption, ex ante, the licensee faces the risk of having to accept such RE electricity at an incentive price and adjusting his own output downward accordingly. In using option theory, we assume that electricity prices and their volatility reflect relevant information including such factors as the risk of renewable generators exporting electricity and the correlation between wind and solar output and market prices. Given that the trading of electricity on exchanges and over-the-counter involves merchant generators, integrated utilities, banks, and trading houses, we believe that this assumption is reasonable.

3.4. Data and Technical Parameters

To examine the UK’s FiT Scheme, including the adjustments that were made, we analyze the direct costs of the FiT Scheme by computing a ROCE metric and its externalities using option theory as explained above in Section 3.3. In order to incentivize smaller scale RE investments operating at lower efficiency and load factors, FiTs were set in an inverse manner to size. As shown in Appendix B, from 2010 onward, tariffs paid by each licensee for various technologies and capacity were reduced annually as well as categories narrowed and restrictions introduced [7]. Although gross payments under the scheme made by individual licensees to investors may be found in the Ofgem FiT Annual Reports, expenditure according to applicable annual tariffs by volume is not. For the many possible arrangements between licensees and private generators, there are many possible combinations of volumes and applicable tariffs that may yield the same level of expenditure. Therefore, we take a “top–down” approach: Looking below to Table 2 showing the Return on Capital Employed for Renewable Generation, we divide FiT Scheme Payment, column 3, by Electricity Received, column 4, to obtain an implied price per MWh annually. Dividing income by the installed cost of RE per annum weighted according to the proportions that were generated by solar PV versus wind turbines gives us annual returns on capital employed metric as shown below in the right most column of Table 2.
For technical costs per installed MW of solar and wind facilities, which are shown below in Table 3, several sources were consulted, including academic research.
As we can see from Table 2, the ROCE for private investors in wind generation and solar PV under the FiT Scheme was quite attractive; with minimal risk, investors earned an average return of 18% over the six years. We observe that from 2013, the FiT payment jumped with the increase in both wind and solar capacity, sharply improving the returns to investors. Importantly, although the applicable tariffs for new build as shown in Table A1 and Table A2 in Appendix B were reduced annually, the implied price per MWh changed minimally from £ 210.55 to £ 192.52 or 7% less, reflecting the legacy of investment under the more attractive, early incentives. Compared to the prevailing half-hourly electricity price of column three of Table 2, we see that the implied price under the scheme was generous. Explaining the stability of returns, it may also be attributable to greater volumes from generation under the older tariffs. Changes to FiT tariffs as noted above were not applied retrospectively (see Footnote 2 above). Moreover, as we see from Table 2, investment in solar PV capacity over the six years was 6.5 times greater than investment in wind turbines covered by the FiT Scheme, and incentives for solar PV were greater. As shown in Table A2 in Appendix B, the tariff prices for the most popular solar PV investments between 4 and 10 kW were reduced from £ 378 to £ 240 during the six-year period, which is still greater than the tariffs applicable to the most popular wind turbines, the 15 to 100 kW models for which the prices were reduced from £ 253 to £ 201.
Although a licensee depending upon the vintage and scale of its obligations to purchase RE output may vary, for our analysis of externalities, we use as the put option strike price the effective prices, explained above, for RE output under the scheme of Table 2. In addition to the strike price, we require the option input parameters found in Table 1 above. For market price, we use half-hourly wholesale price electricity data for the UK between 2010 and 2016, which were found on the APX Group Power Exchange website. To these prices, we add the Use of System charges (transmission, balancing, and distribution costs) as found on the National Grid Website [100]. Volatility is computed from the standard deviation of daily returns in the aforementioned half-hourly prices, using the well-known procedure [91]. As a required input to the option valuation formula, we assume a risk-free rate of interest of 1%. The calculation model is written in Excel with the VBA add-in functions from DerivaGem© Software and computes the prices of 48 European-style put options per day between 2010 through 2016. We use the diurnal/nocturnal profile relevant to solar photovoltaic generation in the United Kingdom and the aforementioned technical load factors of 11.1% and 23.7% for solar PV and wind turbines, respectively. Using fixed load factors is a simplification, but we believe a more complicated approach would have offered few additional insights. As a hedge to the exposure, the option valuation captures the externalities arising from the three cost categories described above in Section 3.1 as faced by licensees in purchasing RE output. In closing, option valuation is used to quantify the risk exposure; the possibility that the licensee may have an appetite for risk and would have hedged less, assuming precise replication were possible, is not considered.

4. Results and Analysis

As discussed earlier, from the beginning of the FiT Scheme in 2010, reductions have been made to the prices paid by licensees to RE sites, and eligibility criteria have tightened as well. In addition to reducing tariffs, it appears the Government became increasingly involved in market outcomes rather than providing incentives to whatever qualified under the incentive support scheme. Below, we analyze the results from the standpoint of economic efficiency and effectiveness.

4.1. Results

We saw above in Table 2 that investors in RE under the FiT Scheme earned a healthy return averaging 18% for taking very little risk. We can scrutinize the results further by type of generation: if one apportions payments under the FiT Scheme according to the capacity invested in solar PV and wind turbines, from Table 3 above, one can estimate the returns made for the respective FiT technologies as shown below in Table 4 (Without data on individual agreements between private generators and licensees, estimation is unavoidable, as Ofgem does not disaggregate payments under the scheme according to technologies, their respective volumes of output, and the applicable FiT tariff).
Although tariff incentives for solar PV were greater than those for wind turbines, as already noted, the greater output from the latter means that on average investors in this form of technology earned more.
To measure the externalities faced by licensees (utilities, aggregators, and ultimately, society) of accommodating RE under dispatch priority, option theory yields the theoretical cost of hedging against fluctuating RE output. As presented in Table 5, we compute on an annual basis the theoretical cost of hedging both solar PV and wind turbine exposure for licensees. Reflecting how valuable the tariffs are in relation to the market price for electricity, the theoretical cost of hedging exposure to RE output according to option theory is nearly as large as what is spent on purchasing it under FiT arrangements, as shown in Table 5. For example, the theoretical cost of hedging 68,559 MWh of RE in the first year of the hedging program was £ 12,339,802 or 85% of what was spent on purchasing such output at the incentive tariffs or £ 14,435,325.

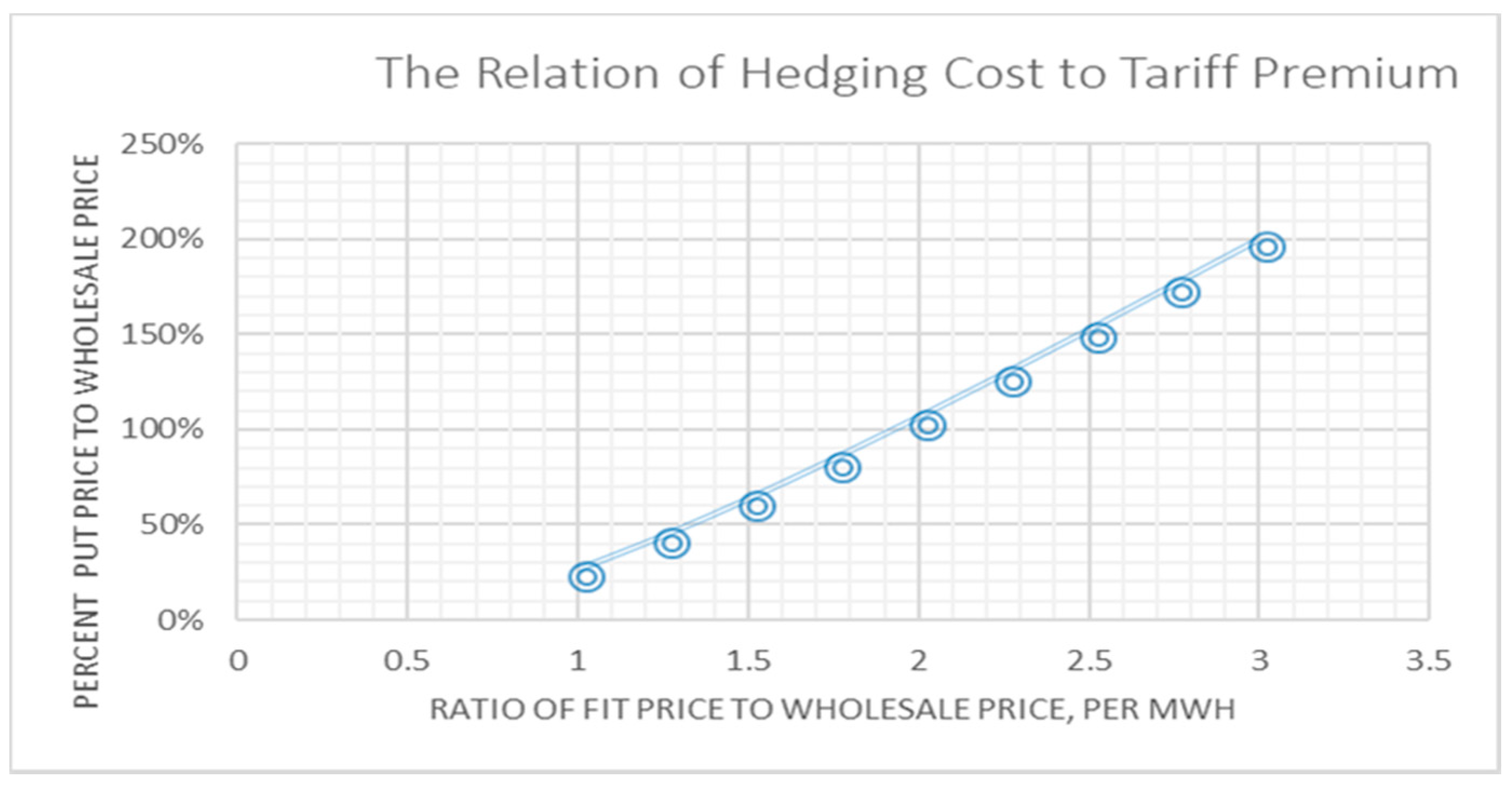

Hedging against all potential RE output is expensive, because compared to wholesale market prices, FiT are deeply in the money. In general, we may observe that while licensees were exposed to stochastic output from both forms of RE, the theoretical cost of managing exposure to wind turbines would likely to have been less than that for solar PV: Although the former generates output throughout the day and has greater load factor, the tariffs were lower (less in-the-money) than those designed to incentivize solar PV technology.

4.2. Analysis

Our results show that the direct costs of incentives paid to RE investors in the UK, as measured by ROCE, were large, and in addition, the theoretical cost of hedging the stochastic output for solar PV and wind turbines, using option theory, averaged 78% of what the licensee would have paid to private investors for RE generation. The fact that such options at half-hourly frequency were not available to replicate and hedge implies that the cost of the exposure fell upon stakeholders, utilities, their customers, employees, and shareholders. Even though the tariffs were reduced downwards each year, as shown in Table A1 and Table A2 in Appendix B, given the increase in solar PV and wind turbine investment and output as shown in Table 2, from 68,559 MWh annually to 5,578,000 MWh, the burden of having to accept output at incentive prices grew. Although these costs were large, there is no public information suggesting that they figured in the reduction of prices under the FiT Scheme. Even if a substantial portion of the cost of the incentive tariff was passed forward to customers, licensees were faced with the costs of random output as well as the opportunity cost of sub-optimizing and not using their own dispatchable generation according to data from the Department of Energy and Climate Change, after peaking at 43% of total electricity generation, output from CCGT has fallen to 28% by 2015 [78] with large impacts upon returns [74]. In sum, as licensees (such as utilities and aggregators) could not purchase put options to hedge the exposure created through dispatch priority to stochastic RE output, there were large externalities borne by them and ultimately, by society (it may be argued that the percentage of self-consumed RE reduces the net exposure of society to variable output. Ex post, this is true, but ex ante, utilities and distribution companies face the risk of variable output, which we argue is captured in electricity price volatility—a key parameter in pricing the option and the cost of accepting risk).
Option theory also provides general insights on the effect of introducing RE into traded electricity markets and explains the observations of other researchers [101]. As explained earlier, the parameters for the theoretical price of financial options include its intrinsic value (the difference between the tariff price and the market price) and price volatility. The increased volume of wind and solar output between 2010 and 2016 combined with the positive correlation between output and prices may partially explain the observed increase in volatility observable below in Figure 2. Random fluctuations in RE output may have contributed to price volatility and, therefore, to the theoretical cost of managing market risk (and hence the impact of not managing it) [102].
In Section 4.1 above, Table 2, we show the returns to investing in RE. The FiT program to promote the construction of wind turbines, solar facilities, and other forms of RE in the UK provided generous returns to investors, especially when compared to the general performance of the energy sector. Comparing the respective returns earned by renewables under the FiT Scheme versus the energy assets of utilities attests to the generosity of returns to RE investors. As shown in Table 6, the average return on capital earned by European utilities between 2010 and 2016 was a mere 8% while investors in RE under the FiT Scheme enjoyed an average return, as noted above, of 18%.

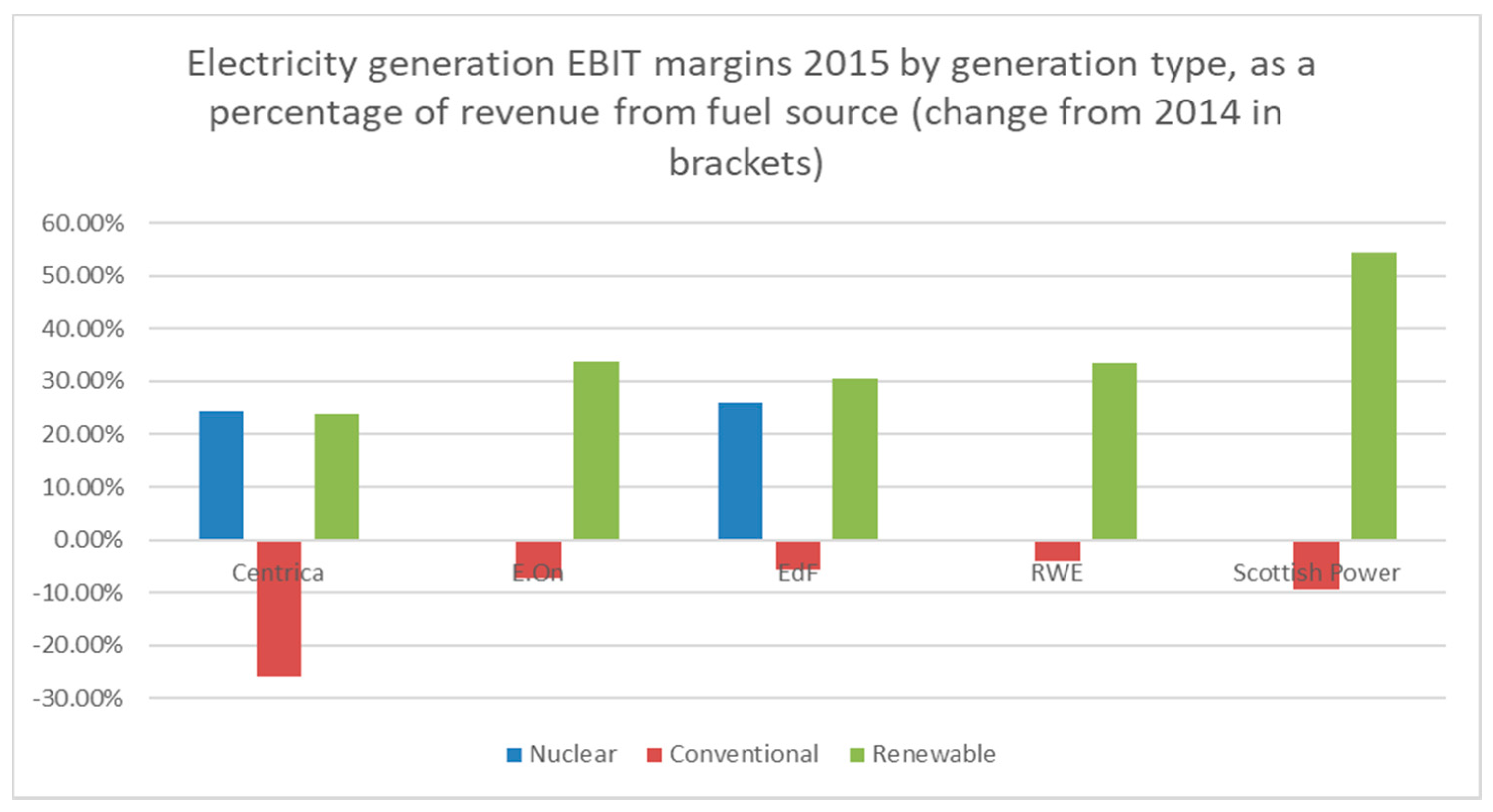

The profit margins for different forms of generation as appear in the Ofgem Annual Report of 2016 [59], as shown in Figure 3 below, further confirm the disparity between how RE was rewarded versus the returns to conventional forms of generation, i.e., dispatachable fossil fuel plants.
Apart from technical risks, the combination of UK government guaranteed price through the FiT scheme and dispatch priority made returns to investing in RE attractive, especially by comparison to earnings in conventional generation. To the extent that such investments would have happened under lower rates of return on capital, the original support scheme was wasteful. According to our calculations, cutting tariffs approximately in half would have provided investors a 9% ROCE. The results are shown in Table 7.
Hence, even with support tariffs being nearly three times greater than prevailing wholesale prices of around £ 40 per MWh, investors would still have earned a 9% return from a virtually risk-free investment. That investment continued to grow while tariffs support levels were ratcheted downward supports this contention. It was only after the major cuts of 2015 that a sharp fall-off investment was observed [15,104,105].
Although it is counterfactual, based upon our calculations, the same level of RE investment under the scheme might have taken place at sharply lower tariff prices. Attesting to the largess of the incentive scheme, from inception through 2016, reduced incentive prices under the FiT Scheme would have conferred returns similar to that earned in the energy sector in general. For an investment with a guaranteed market and prices, reduced incentives arguably might have provided sufficient market-based returns to investments in wind and solar PV and, perhaps, might have obviated the need for an increasingly “centrally planned” approach to administering prices and monitoring investment in green energy such as introduction of the parallel CfD program for larger investments described in Section 1. Referring back to Table 2, applying the differences between the actual FiTs paid and the required prices to yield a return of 9%, one may linearly approximate that between 2010 and 2015, £ 1.5 billion might have been saved in support levels through conferring market levels of return (or, alternatively, perhaps double the investment in RE might have been made for the same amount through offering appropriate returns to investors.) Although reducing returns to investors was not official policy, ex post, it is a further justification for reductions and reforms to the incentive tariffs. Altogether, we maintain that the UK incentive scheme was wasteful and various reforms made sense, yet it appears that the contentious changes were based upon adjusting growth in capacity and not concerns over profligacy and inefficiency.
Although the new tariffs especially after 2016 would yield returns to new investors resembling market rates, it still left licensees with the cost of hedging intermittent exposure. Although cutting tariff prices reduces the price of the put options, which we used to measure the exposure faced by integrated utilities and aggregators in purchasing RE output, they are still significant and may be exacerbated by the general impact of RE output upon electricity markets. To illustrate, using day-ahead volatility data from January 2016 to the beginning of 2018, we show in the graph of Figure 4 below the computed put option price as a percent of the wholesale plotted against the ratio of the FiT price to the wholesale electricity price. We see from the graph that even if the FiT prices were tied to the wholesale price, without intrinsic value, the theoretical price of purchasing an at-the-money put option to manage exposure would still add a 21% premium to the cost of electricity purchased by a licensee from an RE generator; or a 108% premium to the cost of purchased electricity if the tariff was twice the wholesale price. Even though cutting the FiT prices through various DECC-Ofgem reforms, the cost of managing stochastic output from RE generation remains significant for licensees and, ultimately, society to bear.
Proponents of RE support schemes have argued that costs are justified as a means of reducing dependence upon fossil fuel generation. However, from our analysis, we can see that as a means of cutting CO2 output, the FiT Scheme was expensive. Looking first at the expenditure per MWh of RE under the FiT Scheme, we can see below in Table 8 that between 2010 and 2016, the cost per tonne of avoided CO2 averaged £ 320 per MWh. Including the costs of externalities from stochastic RE output, the price per tonne of avoided CO2 averaged £ 571. Estimates vary on the costs of CO2: in the EU Emissions Trading Scheme, the price of abating a one tonne of CO2 has fluctuated, and in mid-2018, the price of allowances (EUAs) has been trading in the mid-teens, €s/tonne of CO2. According to the US Environmental Protection Agency 2015, an estimate of $37 per tonne represents the cost to society of this form of greenhouse gas emissions, although according to other research, the price should be $220 per tonne [34,106]. However, no research appears to justify spending £ 570 or even £ 320 to reduce one tonne of atmospheric CO2. Thus, in addition to the waste in overly generous incentives and the computed externalities, as a means of reducing greenhouse gases, the merits of the FiT Scheme were dubious.

5. Conclusions

In our research, using a financial performance metrics and option theory, we have examined the popular FiT Scheme for small and medium-scale facilities. We calculated the returns earned by investors and the indirect cost or externalities imposed upon stakeholders from this form of electricity generation. For the UK market, our research is the first to both quantify the financial returns to investors in RE generation and to analyze its externalities arising from stochastic output. We found that the financial returns earned by investors under the Ofgem-administered scheme were generous, especially for assets enjoying guaranteed markets and prices. We have shown that even cutting incentive tariffs under the scheme by half would still have conferred 9% returns to a largely risk-free investment. In addition to the case for reducing incentives because of generous returns to investors, we have measured the scheme’s externalities under the FiT scheme use, and the theoretical costs of hedging against stochastic RE output under dispatch priority were large. As options were not available to hedge the exposure, substantial costs were borne by licensees in the first instance, in accepting the random output of RE at large incentive prices under dispatch priority, but ultimately, all stakeholders were affected [107].
While the high fixed capital costs and low load factors of RE mean that incentives are needed to incentivize investment in liberalized electricity markets, arguably, the level of support should be calibrated to the nature of the investment and not ignore wider impacts. Our analysis shows why changes to the UK FiT Support Scheme were needed. Investors were earning excessive rewards for taking little risk. Given the rewards, the level of scheme subscription was not surprising. However, in addition to redressing the generous incentives and tightening of eligibility criteria, a further argument for reform was that the externalities arising through RE generation were at odds with a well-functioning, allocation-efficient electricity market [108]. Externalities arise whenever a good or service is over-supplied and certain costs are not internalized and hence disregarded by the consumer or producer. Although RE is promoted to redress the externalities of generating electricity through fossil fuels, managing its random output creates externalities for stakeholders. Arguably, large and persistent externalities are not compatible with electricity market objectives: affordability, reliability, and environmental protection. However, notwithstanding their magnitude, the externalities arising from random RE output appear not to have figured in reforms to the FiT incentive program. Although the introduction of capacity payments to utilities in the Act of 2012 may have offset some of these externalities to utilities, such costs must be recovered from consumers and ultimately taxpayers [109].
Looking back upon the history of the FiT Scheme, we see that its various reforms represented a departure from how smaller-scale facilities had been favored and supported. In the UK, RE generation had grown at an average rate of nearly 25% year-on-year between 2009 and 2015, or 69 GWh in 2010 to over 2.7 TWh by April 2014, which is a thirty-nine-fold increase. By 2015, the UK had achieved a milestone by exceeding 3 GW of renewable capacity and 568,612 FiT installations across Britain, with over 2500 new sites being registered weekly [89]. However, from setting incentives for RE and leaving markets to carry on, the tariff reductions connote a departure from the liberalized model of electricity markets with largely unqualified support for RE. In implementing a range of applicable prices linked to RE capacity and output, it suggests a growing perception by the authorities that investment in RE needs oversight under current market design [5]. Although subsequent reforms succeeded in reducing the direct costs in subsidies to RE investors, they did not address the externalities imposed upon incumbent utilities, aggregators, and ultimately society. Given the technological requirements of RE, making it compatible with liberalized electricity markets will remain a challenge.


This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

No issue, all date is in the public domain.


We thank Fred Joust of the Economics Department of George Washington University for his comments upon earlier drafts. We also thank the King Abdullah Petroleum Studies Research Center, Riyadh, KSA, for their role in supporting the related initial research.

Conflicts of Interest

The author declares no conflict of interest.

Appendix A

The Black–Scholes equation is a partial differential equation, which describes the price of the option over time. The equation is:
V t + 1 2 σ 2 S 2 2 V S 2 + r S V S r V = 0 .
The Black–Scholes formula calculates the price of European put and call options. European style options may only be exercised at maturity as opposed to American-style options, which may be exercised any time during the life of the contract. This price computed using the formula shown below is consistent with the Black–Scholes equation as above, since it can be obtained by solving the equation for the corresponding terminal and boundary conditions.
Thus, the formula for the value of a call option conferring the right to purchase for a non-dividend-paying underlying stock in terms of the Black–Scholes parameters is:
C ( S , T ) = N ( d 1 ) S N ( d 2 ) K e r ( T t )
d 1 = 1 σ T t [ ln ( S K ) + ( r + σ 2 2 ) ( T t ) ]
d 2 = d 1 σ T t .
The price of a corresponding put option conferring the right to sell based on put–call parity is:
P ( S , t ) = K e r ( T t ) S + C ( S , t )
P ( S , t ) = N ( d 2 ) K e r ( T t ) N ( d 1 ) S .
For both equations, as above:
  • N( ) is the cumulative distribution function of the standard normal distribution
  • T-t is the time to maturity
  • S is the spot price of the underlying asset
  • K is the strike price
  • r is the risk-free rate (annual rate, expressed in terms of continuous compounding)
  • σ is the volatility of returns of the underlying asset
Volatility can be defined as the standard deviation of the return provided from holding the instrument or security for one year when the return is expressed using continuous compounding. Thus, σ2Δt is approximately equal to the variance of the percent change in the security price in time Δt and σ√Δt is approximately equal to the standard deviation of the percentage change in the security price at time Δt.

Appendix B

Table A1. Prices per MWh of Wind Turbine Generation under Ofgem FiT Scheme.
Table A1. Prices per MWh of Wind Turbine Generation under Ofgem FiT Scheme.
Commissioning Dates (Changes Are Not Applied Retrospectively)0–1.5 kW1.5–15 kW15–100 kW100–500 kW500–1500 kW1500–5000 kW
1-4-2010 to 31-3-2011£ 440.10£ 340.05£ 307.80£ 239.30£ 120.80£ 56.80
1-4-2011 to 31-7-2011£ 440.10£ 340.05£ 307.80£ 239.30£ 120.80£ 56.80
1-8-2011 to 29-9-2011£ 440.10£ 340.05£ 307.80£ 239.30£ 120.80£ 56.80
30-9-2011 to 2-3-2011£ 440.10£ 340.05£ 307.80£ 239.30£ 120.80£ 56.80
3-3-2012 to 31-3-2012£ 440.10£ 340.05£ 307.80£ 239.30£ 120.80£ 56.80
1-4-2012 to 31-7-2012£ 415.90£ 325.20£ 295.10£ 239.30£ 120.80£ 56.80
1-8-2012 to 31-10-2012£ 415.90£ 325.20£ 295.10£ 239.30£ 120.80£ 56.80
1-11-2012 to 30-11-2012£ 415.90£ 325.20£ 295.10£ 239.30£ 120.80£ 56.80
1-12-2012 to 14-3-2013£ 243.90£ 243.90£ 243.90£ 203.40£ 110.30£ 52.10
15-3-2013 to 31-3-2013£ 243.90£ 243.90£ 243.90£ 203.40£ 110.30£ 46.80
1-4-2013 to 30-4-2013£ 243.90£ 243.90£ 243.90£ 203.40£ 110.30£ 46.80
1-5-2013 to 30-9-2013£ 243.90£ 243.90£ 243.90£ 203.40£ 110.30£ 46.80
1-10-2013 to 31-12-2013£ 243.90£ 243.90£ 243.90£ 203.40£ 110.30£ 46.80
1-1-2014 to 31-3-2014£ 243.90£ 243.90£ 243.90£ 203.40£ 110.30£ 46.80
1-4-2014 to 30-6-2014£ 195.10£ 195.10£ 195.10£ 162.60£ 88.30£ 37.30
1-7-2014 to 30-9-2014£ 195.10£ 195.10£ 195.10£ 162.60£ 88.30£ 37.30
1-10-2014 to 31-12-2014£ 175.60£ 175.60£ 175.60£ 146.30£ 79.50£ 33.70
1-1-2015 to 31-3-2015£ 175.60£ 175.60£ 175.60£ 146.30£ 79.50£ 33.70
1-4-2015 to 30-6-2015£ 156.60£ 156.60£ 156.60£ 130.00£ 70.70£ 29.90
1-7-2015 to 30-9-2015£ 156.60£ 156.60£ 156.60£ 130.00£ 70.70£ 29.90
1-10-2015 to 31-12-2015£ 148.30£ 148.30£ 148.30£ 117.20£ 63.60£ 26.90
1-1-2016 to 14-1-2016£ 148.30£ 148.30£ 148.30£ 117.20£ 63.60£ 26.90
15-1-2016 to 31-3-2016£ 91.00£ 91.00£ 91.00£ 58.30£ 58.30£ 9.20
1-4-2016 to 30-6-2016£ 90.30£ 90.30£ 81.20£ 52.50£ 52.20£ 9.20
1-7-2016 to 30-9-2016£ 89.50£ 89.50£ 73.10£ 46.90£ 46.90£ 9.10
1-10-2016 to 31-12-2016£ 88.90£ 88.90£ 64.90£ 41.80£ 41.80£ 8.90
Source: [7,87,110,111,112,113].
Table A2. Prices per MWh of Solar PV Generation under Ofgem FiT Scheme.
Table A2. Prices per MWh of Solar PV Generation under Ofgem FiT Scheme.
Commissioning Dates (Changes are Not Applied Retrospectively)Retro-Fit Solar ≤ 4 kWNew Build Solar ≤ 4 kWStandard Solar PV 4–10 kWStandard Solar PV 10–50 kWStandard Solar PV 10–100 kWStandard Solar PV 50–150 kWStandard Solar PV 150–250 kWStandard Solar PV 250–5000 kWStandard Solar PV 1000–5000 kWStand Alone Solar PV ≤ 5000 kW
1-4-2010 to 31-3-2011£ 527.50 £ 460.00 £ 400.80 £ 374.20£ 374.20
1-4-2011 to 31-7-2011£ 527.50£ 460.00£ 460.00 £ 400.80 £ 375.20£ 375.20
1-8-2011 to 29-9-2011£ 527.50£ 460.00£ 460.00£ 400.80£ 400.80£ 231.20£ 182.50£ 100.34 £ 100.34
30-9-2011 to 2-3-2011£ 527.50 £ 461.00£ 400.80£ 400.80£ 231.20£ 182.50£ 100.34 £ 100.34
3-3-2012 to 31-3-2012 £ 195.51£ 176.60 £ 149.90£ 149.90£ 103.40 £ 103.40
1-4-2012 to 31-7-2012 £ 243.90£ 195.10£ 176.60 £ 149.90£ 149.90£ 103.40 £ 103.40
1-8-2012 to 31-10-2012£ 186.00 £ 168.40£ 156.90 £ 133.60 £ 82.50 £ 82.50
1-11-2012 to 30-11-2012£ 174.00 £ 157.70£ 146.70 £ 129.50£ 123.90£ 80.10 £ 80.10
1-12-2012 to 14-3-2013£ 174.00 £ 157.70£ 146.70£ 129.50 £ 123.90£ 80.10 £ 80.10
15-3-2013 to 31-3-2013£ 174.00 £ 157.70£ 146.70£ 129.50 £ 123.90£ 80.10 £ 80.10
1-4-2013 to 30-4-2013£ 174.00 £ 157.70£ 146.70£ 129.50 £ 123.90£ 80.10 £ 80.10
1-5-2013 to 30-9-2013£ 174.00 £ 157.70£ 146.70£ 129.50£ 125.10£ 119.70£ 77.10 £ 77.10
1-10-2013 to 31-12-2013£ 167.80 £ 152.00£ 141.70 £ 125.10£ 119.70£ 77.10 £ 77.10
1-1-2014 to 31-3-2014£ 163.50 £ 148.10£ 137.80 £ 117.50£ 112.40£ 72.50 £ 72.50
1-4-2014 to 30-6-2014£ 157.80 £ 143.00£ 133.10 £ 117.50£ 112.40£ 72.50 £ 72.50
1-7-2014 to 30-9-2014£ 157.80 £ 143.00£ 133.10 £ 113.50£ 108.50£ 70.00 £ 70.00
1-10-2014 to 31-12-2014£ 157.80 £ 143.00£ 133.10 £ 113.50£ 108.50£ 70.00 £ 70.00
1-1-2015 to 31-3-2015£ 149.90 £ 135.70£ 126.40 £ 111.60£ 106.80£ 68.90 £ 68.90
1-4-2015 to 30-6-2015£ 144.60 £ 131.11£ 126.40 £ 107.80£ 103.00£ 66.50 £ 66.50
1-7-2015 to 30-9-2015£ 139.60 £ 126.40£ 126.40 £ 104.00£ 99.50£ 64.10 £ 47.90
1-10-2015 to 31-12-2015£ 134.70 £ 122.10£ 122.10 £ 104.00£ 94.90£ 64.10 £ 46.20
1-1-2016 to 14-1-2016£ 128.40 £ 116.30£ 116.30 £ 99.10 £ 61.10 £ 32.90
15-1-2016 to 31-3-2016 £ 46.80£ 46.80£ 49.00 £ 28.80£ 28.80 £ 93.00£ 93.00
1-4-2016 to 30-6-2016 £ 46.10£ 46.10£ 48.30 £ 25.40£ 25.40 £ 79.00£ 79.00
1-7-2016 to 30-9-2016 £ 45.30£ 45.30£ 47.60 £ 22.30£ 22.30 £ 65.00£ 65.00
1-10-2016 to 31-12-2016 £ 44.60£ 44.60£ 46.80 £ 21.70£ 21.70 £ 61.00£ 54.00
Source: [7,87,110,111,112,113].


  1. DerivaGem Software. Available online: (accessed on 15 April 2020).
  2. Feed-in Tariff Scheme. Available online: (accessed on 15 April 2020).
  3. Fera, M.; Iannone, R.; Macchiaroli, R.; Miranda, S.; Schiraldi, G.D.S.A.M.M. Project appraisal for small and medium size wind energy installation: The Italian wind energy policy effects. Energy Policy 2014, 74, 621–631. [Google Scholar] [CrossRef]
  4. Holttinen, H.; O’Malley, M.; Dillon, J.; Flynn, D.; Keane, A.; Abildgaard, H.; Söder, L. Steps for a complete wind integration study. In Proceedings of the 46th Hawaii International Conference on System Sciences, Manoa, HI USA, 7–10 January 2013; pp. 2261–2270. [Google Scholar]
  5. Stokes, L.C. The politics of renewable energy policies: The case of feed-in tariffs in Ontario, Canada. Energy Policy 2013, 56, 490–500. [Google Scholar] [CrossRef]
  6. Rivers, N. Renewable energy and unemployment: A general equilibrium analysis. Resour. Energy Econ. 2013, 35, 467–485. [Google Scholar] [CrossRef]
  7. Ofgem. Feed-in Tariff Rates. 2018. Available online: (accessed on 15 April 2020).
  8. Ofgem. 2011. Available online: (accessed on 15 April 2020).
  9. TheGreenAge. Available online: (accessed on 15 April 2018).
  10. Feed-in Tariff (FIT): Deployment Caps Reached in Tariff Period 2. Available online: (accessed on 15 April 2018).
  11. Electricity Market Reform (EMR). Available online: (accessed on 15 April 2020).
  12. Helm, D. Energy, the State and the Market; Oxford University Press: Oxford, UK, 2014. [Google Scholar]
  13. Helm, D. The European framework for energy and climate policies. Energy Policy 2014, 64, 29–35. [Google Scholar] [CrossRef]
  14. Palmer, K.; Burtraw, D. Cost-effectiveness of renewable electricity policies. Energy Econ. 2005, 27, 873–894. [Google Scholar] [CrossRef] [Green Version]
  15. UK Renewables: Price Discovery. Life Becoming Tougher for Solar and Wind Energy Producers. Available online: (accessed on 15 April 2020).
  16. Gelabert, L.; Labandeira, X.; Linares, P. An ex-post analysis of the effect of renewables and cogeneration on Spanish electricity prices. Energy Econ. 2011, 33 (Suppl. 1), S59–S65. [Google Scholar] [CrossRef]
  17. International Renewable Energy Agency (IREANA). Renewable Energy Auctions: A Guide to Design 2. Available online: https://www.irena.oreg/...RE_Auctions_Guide_2015_2_Policies.pdf (accessed on 15 April 2020).
  18. Haar, L.; Haar, L. An option analysis of the European Union renewable energy support mechanisms. Econ. Energy Environ. Policy 2017, 6, 131–147. [Google Scholar] [CrossRef]
  19. Pishgar-Komleh, S.H.; Keyhani, A.; Sefeedpari, P. Wind speed and power density analysis based on Weibull and Rayleigh distributions (a case study: Firouzkooh county of Iran). Renew. Sustain. Energy Rev. 2015, 42, 313–322. [Google Scholar] [CrossRef]
  20. Moore, F.C.; Diaz, D.B. Temperature impacts on economic growth warrant stringent mitigation policy. Nat. Clim. Change 2015, 5, 127–131. [Google Scholar] [CrossRef]
  21. Tiebout, C.M. A Pure theory of local expenditure. J. Politic. Econ. 1956, 64, 416–424. [Google Scholar] [CrossRef]
  22. Hirth, L. The market value of solar photovoltaics: Is solar power cost-competitive? IET Renew. Power Gener. 2015, 9, 37–45. [Google Scholar] [CrossRef]
  23. Energy Live News. Available online: (accessed on 15 April 2019).
  24. Ragwitzer, M.; Held, A.; Resch, G.; Faber, T.; Haas, R.; Huber, C.; OPTRES. Assessment and Optimization of Renewable Energy Support Schemes in the European Electricity Market; Fraunhoffer IRB: Stuttgart, Germany, 2007. [Google Scholar]
  25. Hettler, P.L. Changes in government subsidies to privately provided public goods. In Proceedings of the International Atlantic Energy Conference, The 68th International Atlantic Economic Conference, Boston, MA USA, 9 October 2009. [Google Scholar]
  26. Musgrave, R.A.; Musgrave, P.B. Public Finance in Theory and Practice, 5th ed.; McGraw-Hill College: New York, NY, USA, 1989. [Google Scholar]
  27. Samuelson, P.A. The pure theory of public expenditure. Rev. Econ. Statist. 1954, 36, 387–389. [Google Scholar] [CrossRef]
  28. Gross, R.; Blyth, W.; Heptonstall, P. Risks, income and investment in electricity generation: Why policy needs to look beyond costs. Energy Econ. 2010, 32, 796–804. [Google Scholar] [CrossRef]
  29. Baumol, W.J.; Wilig, R.D. Fixed costs, sunk costs, entry barriers, and sustainability of monopoly. Quart J. Econ. 1981, 96, 405–431. [Google Scholar] [CrossRef]
  30. Haar, L.N.; Haar, L. Policy-making under uncertainty: Commentary upon the European Union Emissions Trading. Energy Policy 2006, 34, 2615–2629. [Google Scholar] [CrossRef]
  31. EUR Lex. Available online: (accessed on 15 April 2020).
  32. Lüthi, S.; Wüstenhagen, R. The price of policy risk—Empirical insights from choice experiments with European photovoltaic project developers. Energy Econ. 2012, 34, 1001. [Google Scholar] [CrossRef] [Green Version]
  33. US Department of Energy—Energy Information Administration or EIA. Impacts of a 15-Percent Renewable Portfolio Standard; US Department of Energy—Energy Information Administration: Washington, DC, USA, 2007.
  34. US Environmental Protection Agency. EPA Fact Sheet: The Social Cost of Carbon; US Environmental Protection Agency: Washington, DC, USA, 2015.
  35. WindEurope Views on Curtailment of Wind Power and Its Links to Priority Dispatch. Available online: (accessed on 15 April 2019).
  36. Delucchia, M.A.; Jacobson, M.Z. Providing all global energy with wind, water, and solar power, Part II: Reliability, system and transmission costs, and policies. Energy Policy 2011, 39, 1170–1190. [Google Scholar] [CrossRef]
  37. Eurelectric. Renewable Energy and Security of Supply: Finding market Solutions; Eurelectric: Brussels, Belgium, 2014. [Google Scholar]
  38. Jansson, A. Renewable Energy Can Bring Security of Energy Supply. Energy Harvest. J. 2013. Available online: (accessed on 15 April 2020).
  39. Harlaxton. Statement of Use of System Charges—Statement of Methodology. Available online: (accessed on 15 April 2020).
  40. Hach, D.; Spinler, S. Capacity payment impact on gas-fired generation investments under rising renewable feed-in—A real options analysis. Energy Econ. 2016, 53, 270–280. [Google Scholar] [CrossRef]
  41. Kristiansen, T. Pricing of contracts for difference in the Nordic market. Energy Policy 2014, 30, 1075–1085. [Google Scholar] [CrossRef]
  42. Digest of UK Energy Statistics. Available online: (accessed on 15 April 2018).
  43. UK Office of National Statistics. Available online: (accessed on 15 April 2020).
  44. Renewable Energy Now. Available online: (accessed on 15 April 2020).
  45. Solar Cell Central. Available online: (accessed on 15 April 2018).
  46. Ketterer, J.C. The impact of wind power generation on the electricity price in Germany. Energy Econ. 2014, 44, 270–280. [Google Scholar] [CrossRef] [Green Version]
  47. Luthi, S.; Prassler, T. Analyzing policy support instruments and regulatory risk factors for wind energy developments-A developer’s perspective. Energy Policy 2011, 39, 4876–4892. [Google Scholar] [CrossRef]
  48. Jacobsson, S.; Karltop, K. Mechanisms blocking the dynamics of the European offshore wind energy innovation system—Challenges for policy intervention. Energy Policy 2013, 63, 1182–1195. [Google Scholar] [CrossRef]
  49. US Department of Energy, EIA. Levelized Cost and Levelized Avoided Cost of New Generation Resources in the Annual Energy Outlook; US Department of Energy, EIA: Washington, DC, USA, 2014.
  50. US Department of Energy, EIA. Levelized Cost and Levelized Avoided Cost of New Generation Resources in the Annual Energy Outlook; US Department of Energy, EIA: Washington, DC, USA, 2018; p. 1.
  51. Ballester, C.; Furió, D. Effects of renewables on the stylized facts of electricity prices. Renew. Sustain. Energy Rev. 2015, 52, 1596–1609. [Google Scholar] [CrossRef]
  52. Weight, H.; Denny Elerman, D.; Delarue, E. CO2 abatement from renewables in the German electricity sector: Does a CO2 price help? Energy Econ. 2013, 40, 5149–5158. [Google Scholar]
  53. Ayoub, N.; Yuji, N. Governmental intervention approaches to promote renewable energies—Special emphasis on Japanese feed-in tariff. Energy Policy 2012, 43, 191–201. [Google Scholar] [CrossRef]
  54. Blyth, W. Factoring Risk into Investment Decisions; UKERC: London, UK, 2006. [Google Scholar]
  55. Green, R.; Yatchew, A. Support Schemes for Renewable Energy: An Economic Analysis. Econ. Energy Environ. Policy 2012, 1, 83–98. [Google Scholar] [CrossRef]
  56. DECC. Electricity Market Reform: Policy Overview; DECC: Duluth, MN, USA, 2012; p. 48. ISBN 9780101849821. [Google Scholar]
  57. Michaelowa, A.; Hoch, S. FiT for Renewables: Design options for the Green Climate Fund to Support Renewable Energy Feed-in Tariffs in Developing Countries; World Future Council: Hamburg, Germany, 2013. [Google Scholar]
  58. Burns, J.E.; Kang, J.-S. Comparative economic analysis of supporting policies for residential solar PV in the United States: Solar Renewable Energy Credit (SREC) potential. Energy Policy 2012, 44, 217–225. [Google Scholar] [CrossRef]
  59. Ofgem. Wholesale Energy Markets in 2016. Available online: (accessed on 15 April 2020).
  60. Peña, I.; Azevedo, I.L.; Fialho, L.A.; Ferreira, M. Economic analysis of the profitability of existing wind parks in Portugal. Energy Econ. 2014, 45, 353–363. [Google Scholar] [CrossRef]
  61. Perez, C. The New Technological Revolution. Available online: (accessed on 15 April 2020).
  62. Murphy, M. UK: Planning Our Electric Future: DECC White Paper on Electricity Market Reform—Part 1—Feed-in Tariffs with Contracts for Difference; DECC Paper: London, UK, 2011. [Google Scholar]
  63. UK Office of National Statistics, Department for Business, Energy & Industrial Strategy. Digest of UK Energy Statistics (DUKES): Renewable Sources of Energy, Chapter 6: Statistics on Energy from Renewable Sources; Chapter 6, Page 159; 27 July 2017. Available online: (accessed on 15 April 2020).
  64. Wiser, R.; Pickles, S.; Goldman, C. Renewable Energy and restructuring: Policy solutions for the financing dilemma. Elec. J. 1997, 10, 65–75. [Google Scholar] [CrossRef]
  65. Newbery, D. Reforming competitive electricity markets to meet environmental targets. Econ. Energy Environ. Policy 2012, 1, 69–82. [Google Scholar] [CrossRef] [Green Version]
  66. Boeters, S.; Koorneef, J. Supply of renewable energy sources and the cost of EU climate policy. Energy Econ. 2011, 33, 1024–1034. [Google Scholar] [CrossRef] [Green Version]
  67. Gipe, P. Germans revise solar PV tariffs for 2012 and set new digression schedule. Renew. Energy World 2012, 12, 1–10. [Google Scholar]
  68. Gipe, P. Italy abandons RPS, adopts system of feed-in tariffs. Renew. Energy World 2012, 4, 1–9. [Google Scholar]
  69. Merton, R.C. Option pricing when underlying stock returns are continuous. J. Fin. Econ. 1976, 3, 125–144. [Google Scholar] [CrossRef] [Green Version]
  70. Phuangpompitak, N.; Tia, S. Feasibility study of wind farms under the thai very small-scale renewable energy power producer (VSPP) program. Energy Proc. 2011, 9, 159–170. [Google Scholar] [CrossRef] [Green Version]
  71. International Solar Energy Society. Transitioning to a Renewable Energy Future. Available online: (accessed on 15 April 2020).
  72. Jaraite, J.; Karimu, A.; Kazukauskas, A. Policy-induced expansion of solar and wind power capacity: Economic growth and employment in EU countries. Energy J. 2017, 38, 197–223. [Google Scholar] [CrossRef] [Green Version]
  73. Department of Energy and Climate Change. Available online: (accessed on 15 April 2018).
  74. Tweed, K. Europe Mothballs 20GW of Gas Plants in 2013, With More to Come. Available online: (accessed on 15 April 2016).
  75. UK Department of Energy and Climate Change. Annex A Feed-in Tariff with Contracts for Difference: Operational Framework. Available online: (accessed on 15 April 2020).
  76. US Department of Energy—Energy Information Administration. Impacts of a 10-Percent Renewable Portfolio Standard; US Department of Energy—Energy Information Administration: Washington, DC, USA, 2002.
  77. Edenhofer, O.; Hirth, L.; Knopf, B.; Pahle, M.; Schlömer, S.; Schmid, E.; Ueckerdt, F. On the economics of renewable energy sources. Energy Econ. 2013, 40 (Suppl. 1), S12–S23. [Google Scholar] [CrossRef]
  78. Household Gas and Electricity Guide. Available online: (accessed on 15 April 2018).
  79. Joskow, P.L. Comparing the costs of intermittent and dispatchable electricity generating technologies. Am. Econ. Rev. 2011, 101, 238–241. [Google Scholar] [CrossRef] [Green Version]
  80. Hirth, L.; Ueckerdt, F.; Edenhofer, O. Integration costs revisited—An economic framework of wind and solar variability. Renew. Energy 2015, 74, 925–939. [Google Scholar] [CrossRef]
  81. Movilla, M.; Blázquez, L.F. A system dynamics approach for the photovoltaic energy market in Spain. Energy Policy 2013, 60, 142–154. [Google Scholar] [CrossRef]
  82. Ritzenhofen, I.; Spinler, S. Optimal design of feed-in tariffs to stimulate renewable energy investments under regulatory uncertainty—A real options analysis. Energy Econ. 2015, 53, 76–89. [Google Scholar] [CrossRef]
  83. Bratby, P. The Disastrous Impact of Renewable Energy in Devon. Available online: (accessed on 15 April 2020).
  84. Eydeland, A.; Wolyniec, K. Energy and Power Risk Management: New Developments in Modelling, Pricing, and Hedging; Wiley Finance Publishers: London, UK, 2002. [Google Scholar]
  85. Cragoa, C.L.; Chernyakhovskiyb, I. Are policy incentives for solar power effective? Evidence from residential installations in the Northeast. J. Environ. Econ. Manag. 2017, 81, 132–151. [Google Scholar] [CrossRef]
  86. Hirth, L. The market value of variable renewables: The effect of solar wind power variability on their relative price. Energy Econ. 2013, 38, 218–236. [Google Scholar] [CrossRef] [Green Version]
  87. Renewable Obligation Certificate. Available online: (accessed on 15 April 2020).
  88. Blake, J.; Nagali, V.; Romine, B. Real options theory and the valuation of generating assets: A discussion for senior managers. In the New Power Markets; Jameson, R., Ed.; Risk Publications: London, UK, 1999. [Google Scholar]
  89. Grosche, P.; Schroder, C. On the redistribution effects of Germany’s feed-in-tariff. Empir. Econ. 2013, 46, 1339–1383. [Google Scholar] [CrossRef] [Green Version]
  90. Borenstein, S. The private and public economics of renewable electricity generation. J. Econ. Perspect. 2012, 26, 67–92. [Google Scholar] [CrossRef] [Green Version]
  91. Hull, J.C. Fundamentals of Futures and Options Markets, 8th ed.; Pearson/Prentice Hall: Upper Saddle River, NJ, USA, 2012. [Google Scholar]
  92. Kaminski, V. (Ed.) Chapters 2 and 7. In Managing Energy Risk; Risk Publications: London, UK, 1999. [Google Scholar]
  93. Harris, C. Electricity Market: Pricing Structures and Economics; John Wiley & Sons, Ltd.: Hoboken, NJ, USA, 2006. [Google Scholar]
  94. Lang, M.; Lang, A. Dena Study on Integration of Renewables: Fossil-fueled Power Plants Needed to Provide 60% of Secure Capacity in 2050. German Energy Blog. 2012. Available online: (accessed on 15 April 2019).
  95. Renewables International. Available online: (accessed on 15 April 2018).
  96. Dupuis, D.; Gauthier, G.; Godin, F. Short-term hedging for an electricity retailer. Energy J. 2016, 37. [Google Scholar] [CrossRef]
  97. EPEX Spot. Available online: (accessed on 15 April 2020).
  98. Zweibel, K. Should solar photovoltaics be deployed sooner because of long operating life at low, predictable cost? Energy Policy 2010, 38, 7519–7530. [Google Scholar] [CrossRef]
  99. International Energy Agency. 2014. Available online: (accessed on 15 April 2020).
  100. National Grid. Available online: (accessed on 15 April 2018).
  101. NREL Technical Report. Feed-in Tariffs vs Feed-In-Premium Policies. A Policymaker’s Guide to Feed-in Tariff Policy Design; Technical Report. NREL/TP-6A2-44849; 2010. Available online: (accessed on 15 April 2020).
  102. Van Donk, S.J.; Wagner, L.E.; Skidmore, E.L.; Tatarko, J. Comparison of the Weibull model with measured wind speed distributions for stochastic wind generation. Trans. ASAE 2005, 48, 503–510. [Google Scholar] [CrossRef] [Green Version]
  103. Ofgem Data Portal. Available online: (accessed on 15 April 2020).
  104. The Guardian. UK Solar Power Installations Plummet after Government Cuts. Available online:,subsidies%2C%20according%20to%20new%20figures (accessed on 15 April 2018).
  105. Renewable Obligation Scheme. Available online: (accessed on 15 April 2018).
  106. Estimated Social Cost of Climate Change Not Accurate, Stanford Scientists Say. Available online: (accessed on 15 April 2018).
  107. Held, A.; Ragwitzer, M.; Boie, I.; Wigand, F.; Janeiro, L.; Klessmann, C.; Nabe, C.; Hussy, C.; Neuhoff, K.; Grau, T.; et al. Assessing the Performance of Renewable Energy Support Policies with Quantitative Indicators—Update 2014; DIW: Karlsruhe, Germany, 2014. [Google Scholar]
  108. Tindale, S. What the UK Government means for UK Energy Policy. Available online: (accessed on 15 April 2020).
  109. The Guardian. The UK Capacity Auction Made Power Companies Merry This Christmas. Available online: (accessed on 15 April 2018).
  110. Ofgem. Feed-in Tariff: Guidance for Licensed Electricity Suppliers. Available online: (accessed on 15 April 2020).
  111. Ofgem. Feed-in Tariff Annual Report 2013–2014. Available online: (accessed on 15 April 2020).
  112. Ofgem. Electricity Security of Supply: A Commentary on National Grid’s Future Energy Scenarios for the Next Three Winters. Available online: (accessed on 15 April 2020).
  113. Ofgem. Feed-in Tariff: Guidance for Renewable Installations; Version 10.2; Ofgem: London, UK, 2016.
Figure 1. Stylized pay-offs diagram for hedging with put option.
Figure 1. Stylized pay-offs diagram for hedging with put option.
Energies 14 01657 g001
Figure 2. Volatility of Day Ahead Electricity Prices. Source: Department of Energy and Climate Change [103].
Figure 2. Volatility of Day Ahead Electricity Prices. Source: Department of Energy and Climate Change [103].
Energies 14 01657 g002
Figure 3. Electricity Generation EBIT margins 2015 by generation type as a percent of revenue from fuel source (change from 2014 in brackets). Source: [59].
Figure 3. Electricity Generation EBIT margins 2015 by generation type as a percent of revenue from fuel source (change from 2014 in brackets). Source: [59].
Energies 14 01657 g003
Figure 4. The Relation of Hedging Cost to Tariff Premium (source: author’s calculations using DerivaGem© Software [1]).
Figure 4. The Relation of Hedging Cost to Tariff Premium (source: author’s calculations using DerivaGem© Software [1]).
Energies 14 01657 g004
Table 1. Put option parameters (source: adapted by authors from [91]).
Table 1. Put option parameters (source: adapted by authors from [91]).
ParameterChange to ParameterEffect upon Option Valuation
Market PriceDecrease in market price of electricityGreater intrinsic value increases the price of put options.
Strike or Exercise PriceIncrease in strike price of feed-in tariff and other incentivesGreater intrinsic value increases the price of put options.
Volatility: Moving average of standard deviation of price changesIncrease volatility or variance in the half-hourly price of electricityGreater extrinsic value increases the price of put options.
Length of Option ContractIncrease in time to expiration of the agreementGreater extrinsic value increases the price of the put options.
Risk Free Rate of InterestIncrease in interest ratesThe discounted intrinsic value (Strike minus market price) decreases the price of the put options.
Table 2. Return on capital employed for renewable generation.
Table 2. Return on capital employed for renewable generation.
Return on Capital Employed in Renewable Investment
FiT Scheme Payment YearsAverage Wholesale Half-Hourly Electricity PricesFiT Scheme PaymentElectricity Received MWhPrice per MWh (Implied)Solar PV MW CapacityWind Turbine MW CapacityWeighted Capacity CostsROCE
01/04/201031/03/2011£ 44.49£ 14,435,32568,559£ 210.5577.718.9£ 133,140,00010.84%
01/04/201131/03/2012£ 47.30£ 151,000,000498,200£ 303.09100054.6£ 1,392,820,00010.84%
01/04/201231/03/2013£ 52.80£ 506,000,0001,675,000£ 302.091500134£ 2,177,800,00023.23%
01/04/201331/03/2014£ 52.80£ 691,991,5252,645,000£ 261.621896336£ 3,036,000,00022.79%
01/04/201431/03/2015£ 64.71£ 865,553,9753,815,000£ 226.882442561£ 4,128,300,00020.97%
01/04/201531/03/2016£ 42.62£ 1,089,041,5865,570,000£ 195.523609513£ 5,563,800,00019.57%
Sources: Authors’ calculations of Implied Prices per MWh and of Return on Capital Employed (ROCE) using data from Ofgem, FIT Annual Reports of UK Government, 2010–2011 to 2016–2017 [2,7]. The implied prices per MWh exclude balancing, network, and system costs, while market wholesale prices include balancing, distribution, and system costs of approximately 10% [97].
Table 3. Assumptions on cost per installed MW of capacity.
Table 3. Assumptions on cost per installed MW of capacity.
Renewable TechnologyInstalled Cost Per MW
Small wind turbines, from 15 kW but not exceeding 100 kW£ 1,300,000
Photovoltaic exceeding 4 kW but less than 10 kW£ 1,700,000
Sources: [46,98,99].
Table 4. Investor income per MW of capacity plus return on capital (source: authors’ calculations).
Table 4. Investor income per MW of capacity plus return on capital (source: authors’ calculations).
Pro-Rated Estimates of Returns to Renewables
FiT Scheme Payment YearsROCE SolarROCE Wind
Table 5. Licensee hedging cost (source: author’s calculations).
Table 5. Licensee hedging cost (source: author’s calculations).
Cost of Hedging Re Exposure
Fit Payment YearAnnual Hedging CostRatio of Hedging Cost to Fit Expenditure
2010–2011£ 12,337,06985%
2011–2012£ 121,514,78280%
2012–2013£ 386,583,91976%
2013–2014£ 527,238,63576%
2014–2015£ 665,635,01977%
2015–2016£ 808,625,04574%
Table 6. Average financial performance of UK energy suppliers, 2010–2016 (Source: Bloomberg.Com).
Table 6. Average financial performance of UK energy suppliers, 2010–2016 (Source: Bloomberg.Com).
Financial Performance of Big Six Suppliers/Parents Companies (BG, EdF, E.On, RWE, SP and SSE)
Return on Invested CapitalMarket Beta
Table 7. Model results of implied FiT for 9% ROCE.
Table 7. Model results of implied FiT for 9% ROCE.
Required Fit Yielding 9% Return on Capital and Comparison with Actual Fit Tariffs (£ /MWh)
2010 to 2016 Ofgem Avg. Feed-in TariffComputed Tariff conferring 9% ROCEPercentage Decrease in FiT
£ 249.96 Price per MWh (Implied)£ 124.98 Price per MWh (Implied)50%
Source: Author’s calculations.
Table 8. Cost per tonne of avoided CO2 under the Feed-in Tariff (FiT) Scheme.
Table 8. Cost per tonne of avoided CO2 under the Feed-in Tariff (FiT) Scheme.
Cost per Tonne of Avoided CO2
YearsFit Expenditure Plus Hedging CostAvoided CO2 TonnesDirect Cost per Tonne of CO2 AvoidedDirect Plus Indirect Cost per Tonne of CO2 Avoided
2010–2011£ 26,772,394.0749,693£ 290.49£ 538.76
2011–2012£ 272,514,781.54374,800£ 402.88£ 727.09
2012–2013£ 892,583,918.671,427,733£ 354.41£ 625.18
2013–2014£ 1,219,230,159.902,235,033£ 309.61£ 545.51
2014–2015£ 1,530,473,712.953,042,661£ 284.47£ 503.01
2015–2016£ 1,896,764,287.733,937,878£ 276.56£ 481.67
Source: Author’s Calculations and Department of Energy and Climate Change (DECC) data for the fuel mix of electricity generation. We assume 447 g of CO2 per kWh of gas-fired generation and 1001 g per kWh of coal fired generation.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Haar, L. Design Flaws in United Kingdom Renewable Energy Support Scheme. Energies 2021, 14, 1657.

AMA Style

Haar L. Design Flaws in United Kingdom Renewable Energy Support Scheme. Energies. 2021; 14(6):1657.

Chicago/Turabian Style

Haar, Lawrence. 2021. "Design Flaws in United Kingdom Renewable Energy Support Scheme" Energies 14, no. 6: 1657.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
