Article

A Fuzzy-ANP Approach for Comprehensive Benefit Evaluation of Grid-Side Commercial Storage Project

1
School of Economics and Management, North China Electric Power University, Beijing 102206, China
2
Beijing Key Laboratory of New Energy and Low-Carbon Development, North China Electric Power University, Beijing 102206, China
*
Author to whom correspondence should be addressed.
Energies 2021, 14(4), 1129; https://doi.org/10.3390/en14041129
Submission received: 25 January 2021 / Revised: 14 February 2021 / Accepted: 17 February 2021 / Published: 20 February 2021
(This article belongs to the Special Issue Mathematical and Statistical Models for Energy with Applications)

Abstract

:
With the increasing demand for clean and low-carbon energy, high proportion of renewable energy has been integrated into the receiving-end grid. The grid-side energy storage project can ensure the safe and stable operation of the grid, but it still faces many problems, such as high initial investment, difficult operation and maintenance, unclear profit model, lack of business mode. Therefore, it is of great significance to evaluate the comprehensive benefit of energy storage projects in order to guide the sustainable development of large-scale energy storage projects and power system. By studying the technical and economic characteristics of energy storage, this paper establishes a comprehensive evaluation system from four dimensions of energy efficiency, economic, social, and environmental benefit. Combined with typical business modes and determining the subdivision index system of different modes, the comprehensive benefit evaluation model of grid-side commercial storage project based on Fuzzy-Analytic Network Process (ANP) approach is established. Empirical analysis of a 100-megawatt storage project is carried out to evaluate the project benefits comprehensively, the potential problems of the market development and business mode of the grid-side large-scale storage project are discussed, and the future development orientation and suggestions are put forward.

1. Introduction

In recent years, the scale of renewable energy in the receiving power grid has been continuously expanded, which has seriously affected the safe and stable operation of the power grid and its ability to absorb renewable energy [1,2]. Large-scale energy storage is beneficial to improve the peak regulation ability, stability, and flexibility of the receiving end power grid [3]. However, the development and application of large-scale energy storage are still faced with many problems, such as excessive initial investment, difficult operation, unclear profit model, and immature business mode [4,5].
Moreover, the evaluation methods of energy storage are different because of their different roles in various fields. At present, most of the benefit evaluation and analysis of energy storage applications are based on economic consideration and lack of comprehensive benefit evaluation for environment and society. As a result, the benefits of energy storage in improving the flexibility and stability of power grid and relieving the pressure of peak regulation have not been reflected [6,7]. Therefore, it is urgent to establish the comprehensive benefit evaluation model of grid-side energy storage project, so as to provide decision support for improving the benefits and utilization of energy storage project.
In terms of applicable scenarios and business modes of energy storage, Schoenung S. M. et al., 1996, discussed the application opportunities of energy storage technology in the rapidly changing American energy market [8]. Sioshansi R. et al., 2012, investigated the main obstacles to the development of energy storage system in the U.S., and put forward suggestions to help solve these obstacles [9]. Li J. et al., 2019, summarized the application scenarios of energy storage in power system from the perspective of various stages of industrial development, and put forward relevant suggestions and conclusions [10]. DNV GL Company, Sandia National Laboratories, and the U.S. Department of Energy developed the ES-Select software jointly, which could calculate the technical and economic feasibility of energy storage under a given application scenario. However, the software could not carry out economic research on a single storage station [11].
The researches on the benefit evaluation of energy storage under the specific business mode is a key issue for the matured and large-scaled development. Poonpun P. et al., 2008, analyzed the economic benefits of energy storage systems, and verified the economic feasibility of energy storage arbitrage in the case of high peak-valley price difference [12]. Skyllas-Kazacos M, et al., 1997, proposed a net profit calculation method for electrochemical energy storage system in view of various application scenarios [13]. Sasaki T et al., 2004, established a net profit calculation model of typical energy storage and evaluated the application economy from typical application value aspects in power system, including delay of power grid upgrading and reconstruction, peak-valley arbitrage, frequency regulation auxiliary services, etc. [14]. Researches also put forward the energy storage site selection and capacity planning with the application indicators of energy storage investment cost, operating period cost, equipment replacement cost, power distribution online shopping cost and reliability cost [15,16].
Therefore, this study aims to build a comprehensive benefit evaluation system for large-scale energy storage projects, in order to evaluate the comprehensive benefits accurately and quantitatively based on the demand of receiving power grid and business modes. The main contributions of this study are as follows:
(1)
A comprehensive benefit evaluation index system has been established, which fully takes into account the actual operation status of grid-side energy storage projects and has more practical and theoretical value than financial evaluation. Refer to existing researches and literatures [17,18,19,20,21], take energy efficiency, economic benefit, social benefit, and environmental benefit as the four dimensions of the comprehensive benefit evaluation index system.
(2)
Summarized the current grid-side energy storage business modes in China. Consider the differences among modes, different indicators in the evaluation index system for specific business mode are selected to evaluate the comprehensive benefits, which can avoid the ambiguity of the evaluation process and ensure the accuracy of evaluation results.
(3)
Considering that the energy storage industry is in a rapid and unstable stage, the Analytic Network Process (ANP) and comprehensive fuzzy evaluation methods are combined to apply the comprehensive benefits evaluation of grid-side energy storage projects.
(4)
Through the empirical analysis of 100-megawatt storage project, the key influencing factors of comprehensive benefits are extracted. It would help promote the innovation and breakthrough of energy storage policy mechanism and ensure the orderly and sustainable development of energy storage.

2. Materials and Methods

The paper conducted a comprehensive evaluation system from energy efficiency, economic, social, and environmental benefits four dimensions based on literature review, and sub-dividable systems are identified according to typical business modes. Then, the fuzzy comprehensive evaluation method and network analytic hierarchy process are combined to reflect the interaction among indicators and evaluate the comprehensive benefits scientifically and quantitatively. Finally, a 100-megawatt storage project in Zhenjiang are applied for the empirical analysis. The methodology of this paper is shown in Figure 1.

2.1. Comprehensive Benefit Evaluation Index System of Grid-Side Commercial Storage Project

2.1.1. Comprehensive Benefit Evaluation Index System

Based on the technical and economic characteristics of energy storage and the application value in typical scenarios [22,23,24], the indicators that affect the comprehensive benefits of energy storage are collected by literature review. Taking the research frequency and the emphasis importance, the framework of comprehensive benefits of the energy storage projects is established from energy efficiency [25,26,27], economic benefits [28,29,30,31,32,33], social benefits [34,35], and environmental benefits [36,37]. Then, the final evaluation index system were determined by experts interviews with relevant experts from North China Electric Power University, NARI Group, State Grid Energy Research Institute and Jiangsu Institute of Economic Research and other institutions, as shown in Table 1.

Energy Efficiency

The energy efficiency indicators are selected according to the performance of the energy storage technology and its application in the receiving-end power grid. Technology evaluation indicators vary according to different types of battery energy storage systems, including cell voltage (A1), energy density (A2), power density (A3), and self-discharge rate (A4). Application performance indicators are based on different application scenarios, where cycle life (A5), charge and discharge efficiency (A6), stability (A7), and responsiveness (A8) indicators are selected. The stability and responsiveness indicators adopt 1–10 points expert scoring method to determine the score.

Economic Benefits

The economic indicators are constructed from the perspective of cost and benefit. The costs of energy storage projects mainly include construction cost (B1), capacity cost (B2), power cost (B3), and operation and maintenance cost (B4). On the other hand, the profits are as follows: the peak-to-valley price spread (B5) is expressed as the revenue obtained from the transfer of peak load; the investment delay (B6) is determined based on the average cost of substations, transformers, transmission lines and supporting equipment that can be built less or delayed; the government subsidy (B7) is determined by regional specific policies; the network loss reduction(B8) caused by peak and valley charging and discharging is the annual revenue of reducing the line network loss due to energy storage applications; the recycle revenue (B9) refers to the recyclable value of electrodes, metal materials, and carbon materials inside the system after the end of the life of the energy storage system.

Social Benefits

When energy storage projects are applied to the receiving power grid, they can be used as backup power sources to improve supply reliability and quality and participate in frequency regulation. Reliability indicators and frequency regulation benefit indicators are selected to evaluate social benefit. In this study, the system power shortage probability change value (C1) reflected the impact of transmission failure or blockage on the available generation capacity of the system. The mathematical expression is the probability that the available power generation of the system is less than or equal to a certain constant load demand. The average power supply availability change value (C2) of the system is determined by the expected value of insufficient power and the system cut-off power, which can reflect the power supply reliability of the system. The efficiency of frequency regulation before and after the participation of energy storage is evaluated by using the high efficiency multiples of frequency regulation C3 and C4.

Environmental Benefits

Environmental indicators are selected to measure the effectiveness of energy storage in energy transition and emission reduction [38]. When energy storage projects are connected to the receiving-end grid, they can smooth the output of new energy, provide good conditions for new energy consumption, and reduce a certain amount of carbon emissions. The clean energy consumption change rate (D1) reflects the grid improvement to adapt to new energy capacity, which is measured by the change rate of regional new energy consumption before and after the energy storage put into operation. Energy saving and emission reduction revenue (D2) are calculated by the electric energy emission cost of the thermal power unit and the charge of energy storage charge.

2.1.2. Benefit Evaluation System of Large-Scale Energy Storage Projects under Different Business Modes

The operated grid-side energy storage projects are mainly demonstration projects, and the business modes are mainly classified into 4 modes [39], as shown in Figure 2.
Different cost and revenue indicators need to be considered based on different business modes of energy storage projects. In the operating lease mode, the grid company only needs to consider the lease cost and operation and maintenance cost, where the recycle revenue cannot be included; in the contract energy management mode, the cost and revenue are calculated according to the contract; in the independent transaction entity mode, there is no need to consider costs and economic benefits on the power grid side, but it can improve the reliability of power supply. The detailed evaluation system under each business mode is shown in Table 2.

2.2. Fuzzy-ANP Evaluation Method of Grid-Side Commercial Storage Project

The Analytic Network Process (ANP) can deal with more disorderly and complex decision-making problems and has strong applicability on dependency and mapping structure [40], which is used it to determine the index weight. The fuzzy comprehensive evaluation is more in line with the decision-maker’s actual situation [41,42], which is used to determine the index value. These two methods are widely used in the energy field because they can give full play to their respective characteristics during evaluation and decision-making [43,44,45,46,47]. The Fuzzy-ANP method combining ANP and fuzzy comprehensive evaluation method to further research the established index system.
Step 1: Establish a network hierarchy.
A network hierarchical structure is established for the comprehensive benefit evaluation of the receiving end grid-side energy storage project firstly. The control layer contains four criteria B1–B4, namely Energy efficiency, Economy, Society, and Environment. The network layer contains four indicators sets as shown in Figure 3, where energy efficiency indicators, economic indicators, social indicators, and environmental indicators have mutual influences among groups.
Step 2: Construct a judgment matrix.
The judgment value of the judgment matrix is obtained by comparing the importance of any two elements i and j in the element group. The judgment value is 1 to 9. Then solve the maximum eigenvalue α m a x of the judgment matrix X according to the formula XW = α m a x W, the sorting vector [ w i 1 ( j k ) w i 2 ( j k ) w i n i ( j k ) ] T is obtained.
Step 3: Consistency check.
The random consensus ratio (CR) is the standard used to test whether the judgment matrix meets the consistency requirements in the network analytic hierarchy process. The CR solution formula is as follows:
C R = C I / R I
where C I = ( α m a x n ) / ( n 1 ) , C I . is consistency Index; RI is the average random consistency index. When the CR value is less than 0.1, the inconsistency of the judgment matrix is within the allowable range, and the judgment decision is reasonable.
Step 4: Construct the initial hypermatrix.
By continuously adjusting the elements in the judgment matrix to make all judgment matrices meet the consistency requirements, the local weight vector matrix can be written into the matrix form. For all local weight vector matrices, the systematic hypermatrix W is formed under the criterion of Bs. Since there are m Bs criteria in the control layer, there are m hypermatrices similar to the above criteria. The sub-block Wij of each hypermatrix is column normalized, but the entire hypermatrix W is not column normalized. Therefore, the hypermatrix needs to be weighted, using Bs as the criterion, and then Cj as the sub-criterion. Under Bs, the relative importance of each element group and Cj is compared one by one. Finally, N comparison matrices are formed, and the weighting matrix A is obtained as shown in Formula (2) [48].
A i j = [ a 11 a 12 a 1 n a 21 a 22 a 2 n a n 1 a n 2 a n n ]
A is a non-negative matrix with a column sum of 1. Since there are m elements in the control layer, there are a total of m matrices similar to A. Normalize W and weight its elements to obtain a weighted hypermatrix W ¯ = W i j ¯ ( i , j = 1 , 2 N ) , where W i j ¯ = aijWij. The number of such weighted hypermatrices is m.
Step 5: Calculate limit hypermatrix.
The stabilization process is to calculate the limit relative ranking vector by calculating the limit of each hypermatrix:
W = lim κ ( 1 N ) κ = 1 N W ¯ κ
If the limit converges, the value of the corresponding row of the matrix is the stability weight of each evaluation indicators.
Step 6: Determine the comment set.
The comment set is the set of all the evaluation results that the evaluators may make to the evaluation objects. Quantitative indicators will be determined through field research, literature search and other methods, combined with the actual situation of the area where the evaluated objects are located to determine the theoretical upper and lower limits [a, b] of the indicator. [a, b] is divided into four equal parts [a, c], [c, d], [d, e], and [e, b], if an indicator is a positive indicator, it corresponds to the four levels of {unqualified, qualified, good, excellent}; if an indicator is a negative indicator, vice versa [49]. Qualitative indicators will be determined by scoring by experts from 1 to 10, among which [0;2.5], [2.5;5], [5.7;5], and [7.5;10] correspond to (unqualified, qualified, good, excellent) respectively.
Step 7: Construct fuzzy relation matrix R and carry out fuzzy evaluation of single benefit indicators.
When obtaining the single-factor membership vector, this paper adopts the triangular fuzzy membership function as shown in Figure 4, and substitutes the single-factor’s value of the evaluated large-scale energy storage project into the following unqualified function, qualified function, good function, and excellent function:
(1)
Unqualified function
f 1 ( x ) = { 1 , x [ a , a + c 2 ] 2 d 2 x 2 d a c , x ( a + c 2 , d ] 0 , x ( d , b ]
(2)
Qualified function
f 2 ( x ) = { 2 x 2 a e a , x [ a , a + e 2 ] 2 e 2 x e a , x ( a + e 2 , e ] 0 , x ( e , b ]
(3)
Good function
f 3 ( x ) = { 0 , x [ a , c ] 2 x 2 c b c , x ( c , c + b 2 ] 2 b 2 x b c , x [ c + b 2 , b )
(4)
Excellent function
f 4 ( x ) = { 0 , x [ a , d ] x d b + e 2 d , x ( d , e + b 2 ] 1 , x ( e + b 2 , b ]
The fuzzy set ri = { ri1, ri2, …, rim } can be constructed. rij represents the membership degree of the evaluation factor ei to the graded fuzzy subset Vj. Combine the fuzzy subsets corresponding to each single benefit indicator to form an evaluation matrix:
R = [ r 11 r 12 r 1 n r 21 r 22 r 2 n r n 1 r n 2 r n n ]
Step 8: Comprehensive evaluation of multiple benefit indicators.
Since the M(·,⊕) operator can clearly reflect the role of the weight of each indicator, this paper selects the M(·,⊕) operator for fuzzy transformation:
B = ( b 1 , b 2 , , b m ) = A R = ( a 1 , a 2 , , a n ) [ r 11 r 12 r 1 n r 21 r 22 r 2 n r n 1 r n 2 r n n ]
bj is the membership degree of a large-scale energy storage project belonging to the j-th comment Vj when comprehensively considering the impact of all benefit indicators. B is a fuzzy set on the comment set V, and ○ represents the M(·,⊕) operator.
Step 9: Give the comprehensive evaluation conclusion.
According to the principle of maximum membership, compare the values of bj in fuzzy set B, take the level corresponding to the largest bj value, and determine the (excellent, good, qualified, unqualified) level corresponding to the large-scale energy storage project.

3. Results

Zhenjiang grid-side storage project located in Fangjin District. It is 101 MW capacity with 7524.4 million yuan total investment. Considered its operating lease business mode, the cost only needs to involve operating costs, and its recycle revenue cannot be included in the grid side revenue. Relevant original data was obtained through the project investigation.

3.1. Evaluation Indicators Values of Zhenjiang Storage Project

3.1.1. Energy Efficiency Indicators Values

The project uses lithium iron phosphate batteries. Through the latest research results of energy storage technologies [50], the original data for energy efficiency evaluation of energy storage systems is shown in Table 3.

3.1.2. Economic Indicators Values

Since the project was put into operation in July 2018, the Zhenjiang storage project has played a vital role in peak shifting and valley filling. During the peak summer period, a total of 157 charges and 149 discharges were completed, and the overall operating efficiency was about 85%. The peak-to-valley arbitrage benefit (B5) was calculated to be 18.325 million yuan based on the peak and valley electricity prices. The unit capacity saved cost on the grid side is 0.02 million yuan per MW [51], and the calculated saving investment (B6) is 6.267 million yuan. According to the energy data manual, the max line loss rate is 4.79% and the min line loss the rate is 3.59%, and B8 is calculated to be 69,700 yuan.

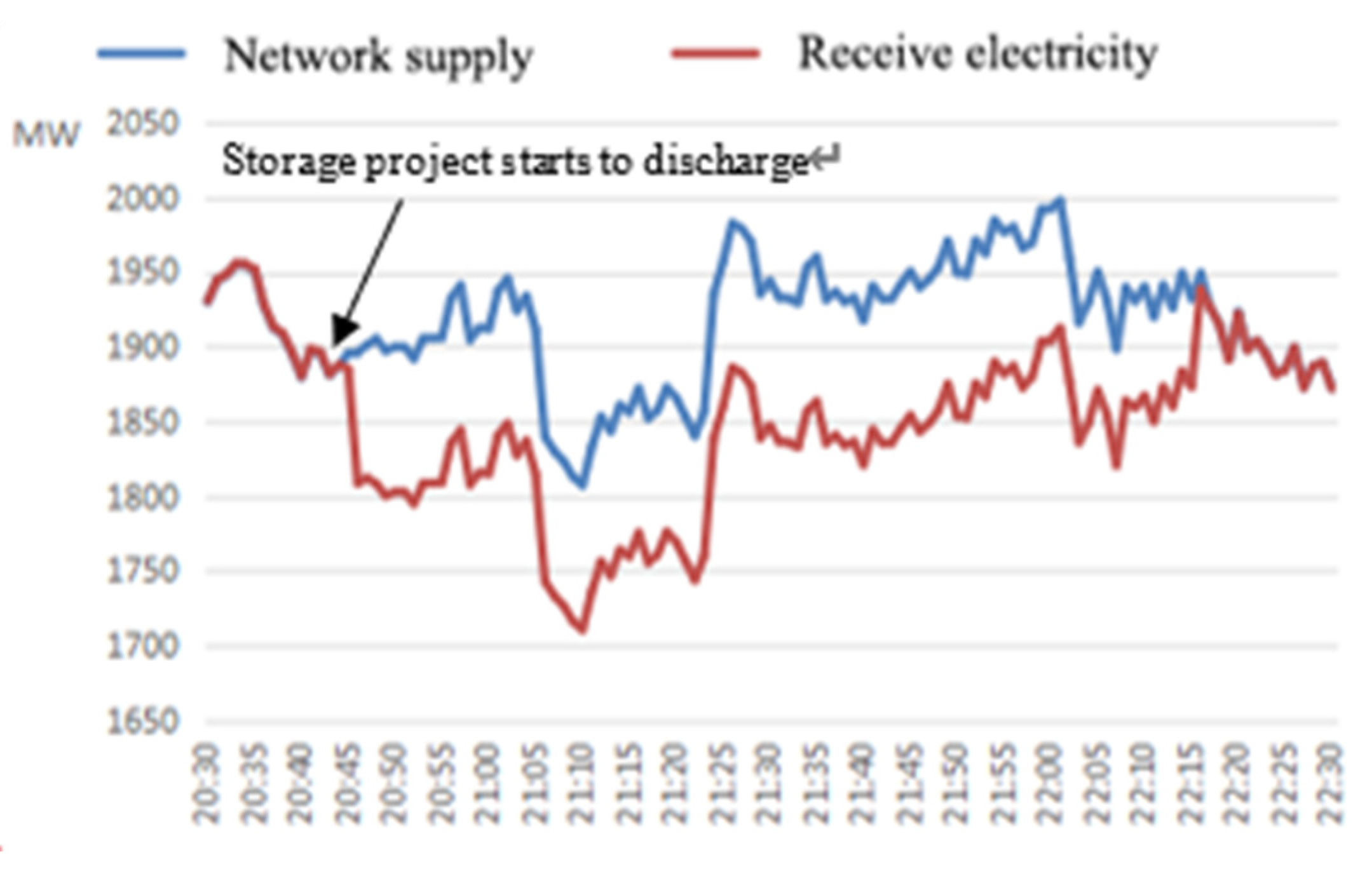

Take the maximum load day in Zhenjiang in 2018 as an example, the day load curve of the maximum load is shown in Figure 5. The discharge of the energy storage station caused the maximum power drop from 1997.56 MW to 1912.26 MW during this period. The policy subsidy value (B7) was calculated as 37.532 million yuan based on the subsidy of 440 yuan per kilowatt.

3.1.3. Social and Environmental Indicators Values

In terms of grid reliability indicators, when the penetration rate of energy storage is 40% [52], the value of grid reliability indicators with or without energy storage is simulated as shown in Table 4. The scenario 1 is energy storage participated and scenario 2 is without storage. The calculated values of C1 and C2 are −0.028 × 10−5 and 2.79 × 10−7.
In the tripping accident, the primary frequency modulation response with Zhenjiang storage power station is faster, and the time to reach the maximum adjustment is shorter compared with the conventional units. According to calculations, the contribution of the Zhenjiang side energy storage power station to the grid frequency modulation (C3) is 50 times that of the thermal power unit of the same capacity as shown in Figure 6.
Since the Zhenjiang energy storage was put into AGC in October 2018, the control performance standard (CPS) index of Jiangsu Power Grid has increased significantly compared with the same period last year. According to the calculation formula, C4 is 7.8%. The Jiangsu Power Grid CPS index from 2018 to 2018 is shown in Table 5:
At the end of 2018, Jiangsu Power Grid has achieved full consumption of new energy for 13 consecutive years, and D1 is calculated to be 45.3%; based on the unit electric energy emission cost of thermal power units is 0.11 yuan/kWh, and the energy storage charge is 157 times, so that promote new energy accounted for a quarter of the total value of the year, the D2 is 2.943 million yuan, and the final revenue is 65.124 million yuan.
The lease period of the energy storage power station group is eight years, the annual lease fee is 6% of the annual income, and the lease fee is 3.907 million yuan. The total operation and maintenance costs can be calculated at 2% of the total investment. The operation and maintenance cost of the energy power plant group is calculated at a quarter of 700,000 yuan, while B4 is 4.607 million yuan.

3.2. Comprehensive Benefit Evaluation of Zhenjiang Storage Project

3.2.1. Index System Weight Determination

Through interviews with relevant experts from North China Electric Power University, NARI Group, State Grid Energy Research Institute, and Jiangsu Economic Research Institute, the influence of the two elements was established as shown in Table 6.
According to the obtained judgment matrix, a weighted hypermatrix is constructed. Part of the weighted super matrix is shown in Table 7.
In the process of weighted hypermatrix stability, calculate the limit relative ranking vector by calculating the limit of each hypermatrix, and get the final weight of each index. The final weight of some indicators is shown in Table 8.

3.2.2. Fuzzy Comprehensive Benefit Evaluation

The range of each indicator value is based on the actual operation of the project, literature, and calculations, and finally the comprehensive benefit evaluation model for the Zhenjiang large-scale energy storage project is established, as shown in Table 9.
According to Formulas (4)–(7), the membership degree of each index is calculated. The final membership degree is calculated as {0.662306961, 0.500543371, 0.131011504, 0}. According to the principle of maximum membership degree, the comprehensive benefit level of the energy storage power station is excellent. According to the comprehensive evaluation results, the Zhenjiang energy storage power station group in Jiangsu Province has good benefits, which are consistent with the actual operation conditions. The result proves the effectiveness of the fuzzy comprehensive benefit evaluation model of the large-scale energy storage project built in this paper

4. Discussion

From the perspective of energy efficiency, lithium iron phosphate battery is the best choice for grid-side energy storage among the existing technologies. With the continuous improvement of new energy storage technologies, lithium iron phosphate battery may lose its advantages. The future development direction of lithium iron phosphate battery should make efforts to improve the stability performance.
As shown in Table 10, the highest revenue source of the energy storage project is government subsidy, which is 37.53 million yuan, accounting for almost two-thirds of the total revenue of 60.52 million yuan. Secondly, followed by peak and valley arbitrage, which is 18.31 million yuan. The highest indirect revenue from energy storage is delaying grid investment, followed by energy saving and emission reduction benefits, and the lowest revenue is reducing network losses. When considering the economics of energy storage, indirect revenue cannot be included in profitability, so the main profit comes from government subsidy and peak-to-valley arbitrage. However, with the advancement of power reform, large industrial power price has been reduced, peak-to-valley spread has narrowed, peak-to-valley arbitrage revenue will be greatly reduced, and government subsidy will become the main source of income. As a result, energy storage projects have poor economic benefits. In addition, the cost of electrochemical energy storage has slowed down in recent years, and even due to the improvement of safety performance, the investment cost has risen. In the non-lease mode, high investment costs and operating costs are potential problems for energy storage development.
From the perspective of social and environmental benefits, the commissioning of energy storage has increased the availability of system power supply by 0.3% and improved the power supply reliability of the entire power system. Not only that, the energy storage system has also promoted the consumption of new energy, and indirectly saved 2.943 million yuan in the emission cost of thermal power units, which has promoted the energy transition process to a certain extent.
As energy storage project technology is developing and business modes are still being explored, it is common that the grid-side energy storage projects are not profitable from the financial perspective. In this empirical analysis, the reward for permanent transfer of peak power load and the reward for temporarily reduce from demand response are 550 yuan/kW and 120 yuan/kW, which are the highest level of policy-based rewards. At the end of project cycle, the net present value is −315.88 million yuan, and the internal rate of return is less than 0. Although the grid-side energy storage projects have a large number of indirect benefits brought from social and environmental benefits, the real reflection of the energy storage projects’ financial status deserves further attention.
The Fuzzy-ANP approach is comprehensible and effective for large and complex projects such as grid-side energy storage. This approach fully considers the subjective opinions of decision-makers and experts when determining the weights, which is necessary for the energy storage system from a growing insight. Because of the development of energy storage system, there would be lagging change of objective weight determination. The ANP method can well solve the problem by taking advantage of the instant grasp of industry information by experts and decision makers. Although the AHP method is simpler, it does not take into account the mutual influence among the indicators, which tends to bias the final decision result. Compared with giving specific values, this approach could bring a scriptable and actual result for decision maker. Through the case analysis, this approach show its effectiveness for the comprehensive benefit evaluation and it is worthy of being applied to other grid energy storage projects.

5. Conclusions

The comprehensive benefit evaluation system established in this article comprehensively covers four dimensions from energy efficiency, economy, social benefits, and environmental benefits. Compared with the financial evaluation, it is more in line with the actual situation of the grid-side energy storage project. Moreover, the index system takes into account the current relatively mature business modes, so it can be applied to four business modes after the selection of indicators, which is universal and applicable. The fuzzy comprehensive evaluation method and network analytic hierarchy process are introduced to reflect the interaction between indicators and evaluate the comprehensive benefits scientifically and quantitatively, which matches the development stage of the grid-side energy storage system at this stage. The evaluation level of the 100-MW storage project is excellent, which is consistent with the actual operation situation. Although large-scale energy storage projects are still faced with many obstacles in the receiving power grid, it has good comprehensive benefits in the power system according to the empirical results. Based on the results, the following suggestions are conducted for the development of grid side scale energy storage projects:
Multiple business modes would be developed in parallel to strengthen the commercial application of existing grid side. The existing projects operation mostly adopts the operating lease mode, while the return cycle is long. In the scientific planning of the scale and layout of energy storage, it is necessary to strengthen the exploration and optimization of the existing business modes of demonstration projects through the actual operation status data, in order to accumulate experience in the whole process of marketization.
The research and development investment should be increased to further reduce the cost of electrochemical energy storage and improve its safety. Promote the development of new energy storage technologies by encouraging technological innovation; create a fair market and improve the investment recovery mechanism of energy storage facilities; increase market vitality and attract multiple parties to participate in the industrialization development process of energy storage industry.
The relevance and necessity of storing energy included into the electricity price of transmission and distribution need fully discuss. Policy subsidies and peak-valley price difference are the main economic sources of large-scale energy storage application in the receiving end grid. Establish an electricity price linkage time-sharing mechanism of power supply side, power grid side and user side, and realize the application value of energy storage peak-valley arbitrage through price incentive. All parties would be encouraged to actively participate in energy saving and low-carbon life, so as to reduce the operating pressure caused by the big difference between peak and valley.
In future work, objective weight determination methods can be added to the weight determination, so that subjective and objective weights can be combined to reflect the relationship and difference between indicators more scientifically and comprehensively. In addition, considering the risk factors in the index system is worthy of further study.

Author Contributions

Conceptualization H.Y., G.Q. and W.F.; methodology W.F., G.Q. and H.Y.; software W.F.; validation G.Q.; formal analysis H.Y. and W.F.; investigation H.Y. and G.Q.; resources H.Y. and W.F.; data curation H.Y. and W.F.; writing—original draft preparation H.Y. and W.F.; writing—review and editing G.Q. and Z.Z.; visualization H.Y. and W.F.; supervision G.Q.; project administration, G.Q. and Z.Z.; funding acquisition Z.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by the Science and Technology Project of State Grid Energy Research Institute Company LTD Project “Comprehensive Benefit Evaluation Study on Large-scale Energy Storage Project in Received Power Grid”, grant number “SGTYHT/18-JS-206”. Science and Technology Project of State Grid Energy Research Institute Company LTD Project “Valuation and Market Mechanism of New Flexibility Resources”, grant number” 4000-202057046A-0-0-00”.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The numerical data used to support the findings of this study are included within the article.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Essa, M.J.M.A. Power management of grid-integrated energy storage batteries with intermittent renewables. J. Energy Storage 2020, 31, 101762. [Google Scholar] [CrossRef]
  2. Conlon, T.; Waite, M.; Modi, V. Assessing new transmission and energy storage in achieving increasing renewable generation targets in a regional grid. Appl. Energy 2019, 250, 1085–1098. [Google Scholar] [CrossRef]
  3. Sheha, M.; Mohammadi, K.; Powell, K. Techno-economic analysis of the impact of dynamic electricity prices on solar penetration in a smart grid environment with distributed energy storage. Appl. Energy 2021, 282, 116168. [Google Scholar] [CrossRef]
  4. Frate, G.F.; Ferrari, L.; Desideri, U. Energy storage for grid-scale applications: Technology review and economic feasibility analysis. Renew. Energy 2020, 163, 1754–1772. [Google Scholar] [CrossRef]
  5. Zame, K.K.; Brehm, C.A.; Nitica, A.T.; Richard, C.L.; Schweitzer III, G.D. Smart grid and energy storage: Policy recommendations. Renew. Sustain. Energy Rev. 2018, 82, 1646–1654. [Google Scholar] [CrossRef]
  6. Barelli, L.; Bidini, G.; Ciupageanu, D.; Pelosi, D. Integrating Hybrid Energy Storage System on a Wind Generator to enhance grid safety and stability: A Levelized Cost of Electricity analysis. J. Energy Storage 2021, 34, 102050. [Google Scholar] [CrossRef]
  7. Child, M.; Kemfert, C.; Bogdanov, D.; Breyer, C. Flexible electricity generation, grid exchange and storage for the transition to a 100% renewable energy system in Europe. Renew. Energy 2019, 139, 80–101. [Google Scholar] [CrossRef]
  8. Schoenung, S.M.; Eyer, J.M.; Iannucci, J.J.; Horgan, S.A. Energy Storage for a Competitive Power Market. Annu. Rev. Energy Environ. 1996, 21, 347–370. [Google Scholar] [CrossRef]
  9. Sioshansi, R.; Denholm, P.; Jenkin, T. Market and Policy Barriers to Deployment of Energy Storage. Econ. Energy Environ. Policy 2012, 1. [Google Scholar] [CrossRef] [Green Version]
  10. Li, J.L.; Wang, J.B.; Yuan X., D.; Zhou, J.H. A Review of Energy Storage Industry Policies. Electr. Energy Manag. Technol. 2019, 20, 1–9. [Google Scholar]
  11. Valero, A.; Serra, L.; Uche, J. Fundamentals of Exergy Cost Accounting and Thermoeconomics. Part I: Theory. J. Energy Resour. Technol. 2005, 128, 1–8. [Google Scholar] [CrossRef]
  12. Poonpun, P.; Jewell, W.T. Analysis of the Cost per Kilowatt Hour to Store Electricity. IEEE Trans. Energy Convers. 2008, 23, 529–534. [Google Scholar] [CrossRef]
  13. Skyllas-Kazacos, M.; Menictas, C. The vanadium redox battery for emergency back-up application. In Proceedings of the 19th International Telecommunications Energy Conference—INTELEC 1997, Melbourne, VIC, Australia, 19–23 October 1997; IEEE: Piscataway, NJ, USA, 1997; pp. 463–471. [Google Scholar]
  14. Sasaki, T.; Kadoya, T.; Enomoto, K. Study on load frequency control using Redox flow batteries. IEEE Trans. Power Syst. 2004, 1, 580–586. [Google Scholar]
  15. Sedghi, M.; Ahmadian, A.; Aliakbar-Golkar, M. Optimal Storage Planning in Active Distribution Network Considering Uncertainty of Wind Power Distributed Generation. IEEE Trans. Power Syst. 2016, 31, 304–316. [Google Scholar] [CrossRef]
  16. Nick, M.; Cherkaoui, R.; Paolone, M. Optimal Allocation of Dispersed Energy Storage Systems in Active Distribution Networks for Energy Balance and Grid Support. IEEE Trans. Power Syst. 2014, 29, 2300–2310. [Google Scholar] [CrossRef]
  17. Yuan, J.; Luo, X.; Li, Z.; Li, L.; Ji, P.; Zhou, Q.; Zhang, Z. Sustainable development evaluation on wind power compressed air energy storage projects based on multi-source heterogeneous data. Renew. Energy 2021, 169, 1175–1189. [Google Scholar] [CrossRef]
  18. Wu, Y.; Wu, C.; Zhou, J.; He, F.; Xu, C.; Zhang, B.; Zhang, T. An investment decision framework for photovoltaic power coupling hydrogen storage project based on a mixed evaluation method under intuitionistic fuzzy environment. J. Energy Storage 2020, 30, 101601. [Google Scholar] [CrossRef]
  19. Liu, Y.; Zheng, R.; Chen, S.; Yuan, J. The economy of wind-integrated-energy-storage projects in China’s upcoming power market: A real options approach. Resour. Policy 2019, 63, 101434. [Google Scholar] [CrossRef]
  20. Wu, Y.; Xu, C.; Zhang, B.; Tao, Y.; Li, X.; Chu, H.; Liu, F. Sustainability performance assessment of wind power coupling hydrogen storage projects using a hybrid evaluation technique based on interval type-2 fuzzy set. Energy 2019, 179, 1176–1190. [Google Scholar] [CrossRef]
  21. Sidhu, A.S.; Pollitt, M.G.; Anaya, K.L. A social cost benefit analysis of grid-scale electrical energy storage projects: A case study. Appl. Energy 2018, 212, 881–894. [Google Scholar] [CrossRef]
  22. Ghadi, M.J.; Ghavidel, S.; Rajabi, A.; Azizivahed, A.; Li, L.; Zhang, J. A review on economic and technical operation of active distribution systems. Renew. Sustain. Energy Rev. 2019, 104, 38–53. [Google Scholar] [CrossRef]
  23. Saboori, H.; Hemmati, R.; Ghiasi, S.M.S.; Dehghan, S. Energy storage planning in electric power distribution networks—A state-of-the-art review. Renew. Sustain. Energy Rev. 2017, 79, 1108–1121. [Google Scholar] [CrossRef]
  24. Afzali, P.; Shoa, N.A.; Rashidinejad, M.; Bakhshai, A. Techno-economic study driven based on available efficiency index for optimal operation of a smart grid in the presence of energy storage system. J. Energy Storage 2020, 32, 101853. [Google Scholar] [CrossRef]
  25. Colmenar-Santos, A.; Reino-Rio, C.; Borge-Diez, D.; Collado-Fernández, E. Distributed generation: A review of factors that can contribute most to achieve a scenario of DG units embedded in the new distribution networks. Renew. Sustain. Energy Rev. 2016, 59, 1130–1148. [Google Scholar] [CrossRef]
  26. Escalera, A.; Hayes, B.; Prodanović, M. A survey of reliability assessment techniques for modern distribution networks. Renew. Sustain. Energy Rev. 2018, 91, 344–357. [Google Scholar] [CrossRef]
  27. Parwal, A.; Fregelius, M.; Temiz, I.; Göteman, M.; De Oliveira, J.G.; Boström, C.; Leijon, M. Energy management for a grid-connected wave energy park through a hybrid energy storage system. Appl. Energy 2018, 231, 399–411. [Google Scholar] [CrossRef]
  28. Mudumbai, R.; Dasgupta, S.; Cho, B.B. Distributed Control for Optimal Economic Dispatch of a Network of Heterogeneous Power Generators. IEEE Trans. Power Syst. 2012, 27, 1750–1760. [Google Scholar] [CrossRef]
  29. Tang, C.; Xu, J.; Sun, Y.; Liu, J.; Li, X.; Ke, D.; Yang, J.; Peng, X. Look-Ahead Economic Dispatch With Adjustable Confidence Interval Based on a Truncated Versatile Distribution Model for Wind Power. IEEE Trans. Power Syst. 2018, 33, 1755–1767. [Google Scholar] [CrossRef]
  30. Panda, D.K.; Das, S. Economic operational analytics for energy storage placement at different grid locations and contingency scenarios with stochastic wind profiles. Renew. Sustain. Energy Rev. 2021, 137, 110474. [Google Scholar] [CrossRef]
  31. Wu, Y.N.; Zhang, T.; Zhong, K.; Wang, L.W.; Xu, C.; Xu, R. Optimal planning of energy storage technologies considering thirteen demand scenarios from the perspective of electricity Grid: A Three-Stage framework. Energy Convers. Manag. 2021, 229, 113789. [Google Scholar] [CrossRef]
  32. National Energy Administrator: Interim Measures for the Management of Central Financial Incentive Funds for the Comprehensive Pilot Work of Electricity Demand Side Management. Available online: http://www.nea.gov.cn/2012-07/17/c_131719717.htm (accessed on 25 January 2021).
  33. Liu, J.; Hu, C.; Kimber, A.; Wang, Z. Uses, Cost-Benefit Analysis, and Markets of Energy Storage Systems for Electric Grid Applications. J. Energy Storage 2020, 32, 101731. [Google Scholar] [CrossRef]
  34. Wu, W.; Lin, B. Application value of energy storage in power grid: A special case of China electricity market. Energy 2018, 165, 1191–1199. [Google Scholar] [CrossRef]
  35. Ding, J.; Xu, Y.; Chen, H.; Sun, W.; Hu, S.; Sun, S. Value and economic estimation model for grid-scale energy storage in monopoly power markets. Appl. Energy 2019, 240, 986–1002. [Google Scholar] [CrossRef]
  36. Pupo-Roncallo, O.; Ingham, D.; Pourkashanian, M. Techno-economic benefits of grid-scale energy storage in future energy systems. Energy Rep. 2020, 6, 242–248. [Google Scholar] [CrossRef]
  37. Hannan, M.; Al-Shetwi, A.; Begum, R.; Young, S.; Hoque, M.; Ker, P.; Mansur, M.; Alzaareer, K. The value of thermal management control strategies for battery energy storage in grid decarbonization: Issues and recommendations. J. Clean. Prod. 2020, 276, 124223. [Google Scholar] [CrossRef]
  38. Arbabzadeh, M.; Johnson, J.X.; Keoleian, G.A. Parameters driving environmental performance of energy storage systems across grid applications. J. Energy Storage 2017, 12, 11–28. [Google Scholar] [CrossRef] [Green Version]
  39. Hu, J.; Li, Q.H.; Huang, B.B.; Feng, K.H. Business Model Research of Energy Storage on Grid Side Adapted to Application Scenarios and Policy Environment in China. J. Glob. Energy Interconnect. 2019, 2, 367–375. [Google Scholar]
  40. Li, J.C.; Li, J.Y.; Niu, D.X.; Wu, Y.N. Study on the evaluation model for the power grid corporation operation ability based on ANP. Power Syst. Prot. Control 2011, 39, 37–43. [Google Scholar]
  41. Wu, L.P. Research on Fuzzy Comprehensive Evaluation Method and Its Application. 2006. Available online: https://kns.cnki.net/kcms/detail/detail.aspx?FileName=2006152868.nh&DbName=CMFD2006 (accessed on 20 February 2021). (In Chinese).
  42. Liu, S.; Du, S.X. Fuzzy comprehensive evaluation based on data envelopment analysis. Fuzzy Syst. Math. 2010, 24, 93–98. [Google Scholar]
  43. Luo, C.; Ju, Y.; Gonzalez, E.D.S.; Dong, P.; Wang, A. The waste-to-energy incineration plant site selection based on hesitant fuzzy linguistic Best-Worst method ANP and double parameters TOPSIS approach: A case study in China. Energy 2020, 211, 118564. [Google Scholar] [CrossRef]
  44. Ervural, B.C.; Zaim, S.; Demirel, O.F.; Aydin, Z.; Delen, D. An ANP and fuzzy TOPSIS-based SWOT analysis for Turkey’s energy planning. Renew. Sustain. Energy Rev. 2018, 82, 1538–1550. [Google Scholar] [CrossRef]
  45. Wang, M.; Niu, D. Research on project post-evaluation of wind power based on improved ANP and fuzzy comprehensive evaluation model of trapezoid subordinate function improved by interval number. Renew. Energy 2019, 132, 255–265. [Google Scholar] [CrossRef]
  46. Wu, Y.; Zhang, B.; Xu, C.; Li, L. Site selection decision framework using fuzzy ANP-VIKOR for large commercial rooftop PV system based on sustainability perspective. Sustain. Cities Soc. 2018, 40, 454–470. [Google Scholar] [CrossRef]
  47. Wu, T.; Liu, S.; Ni, M.; Zhao, Y.; Shen, P.; Rafique, S.F. Model design and structure research for integration system of energy, information and transportation networks based on ANP-fuzzy comprehensive evaluation. Glob. Energy Interconnect. 2018, 1, 137–144. [Google Scholar]
  48. Morteza, Z.; Reza, F.M.; Seddiq, M.M.; Sharareh, P.; Jamal, G. Selection of the optimal tourism site using the ANP and fuzzy TOPSIS in the framework of Integrated Coastal Zone Management: A case of Qeshm Island. Ocean Coast. Manag. 2016, 130, 179–187. [Google Scholar] [CrossRef]
  49. Alilou, H.; Rahmati, O.; Singh, V.P.; Choubin, B.; Pradhan, B.; Keesstra, S.; Ghiasi, S.S.; Sadeghi, S.H. Evaluation of watershed health using Fuzzy-ANP approach considering geo-environmental and topo-hydrological criteria. J. Environ. Manag. 2019, 232, 22–36. [Google Scholar] [CrossRef] [PubMed]
  50. Qian, Q.Q. Research on Comprehensive Evaluation of Energy Storage System Applied in Wind Farm. North China Electric University 2016. Available online: https://kns.cnki.net/kcms/detail/detail.aspx?FileName=1016267316.nh&DbName=CMFD2017 (accessed on 20 February 2021). (In Chinese).
  51. Guo, L.; Xue, G.Y.; Wu, C.; Xie Z., J.; Liu, G.J.; Li, B.J. Research on economic evaluation of energy storage applied to load shift. Power Demand Side Manag. 2019, 21, 31–34. [Google Scholar]
  52. Zhong, Y.F.; Huang, M.X.; Qiang, D.J. Reliability modeling of battery energy storage system and its effect on the reliability of distribution system. Power Syst. Prot. Control 2013, 41, 95–102. [Google Scholar]

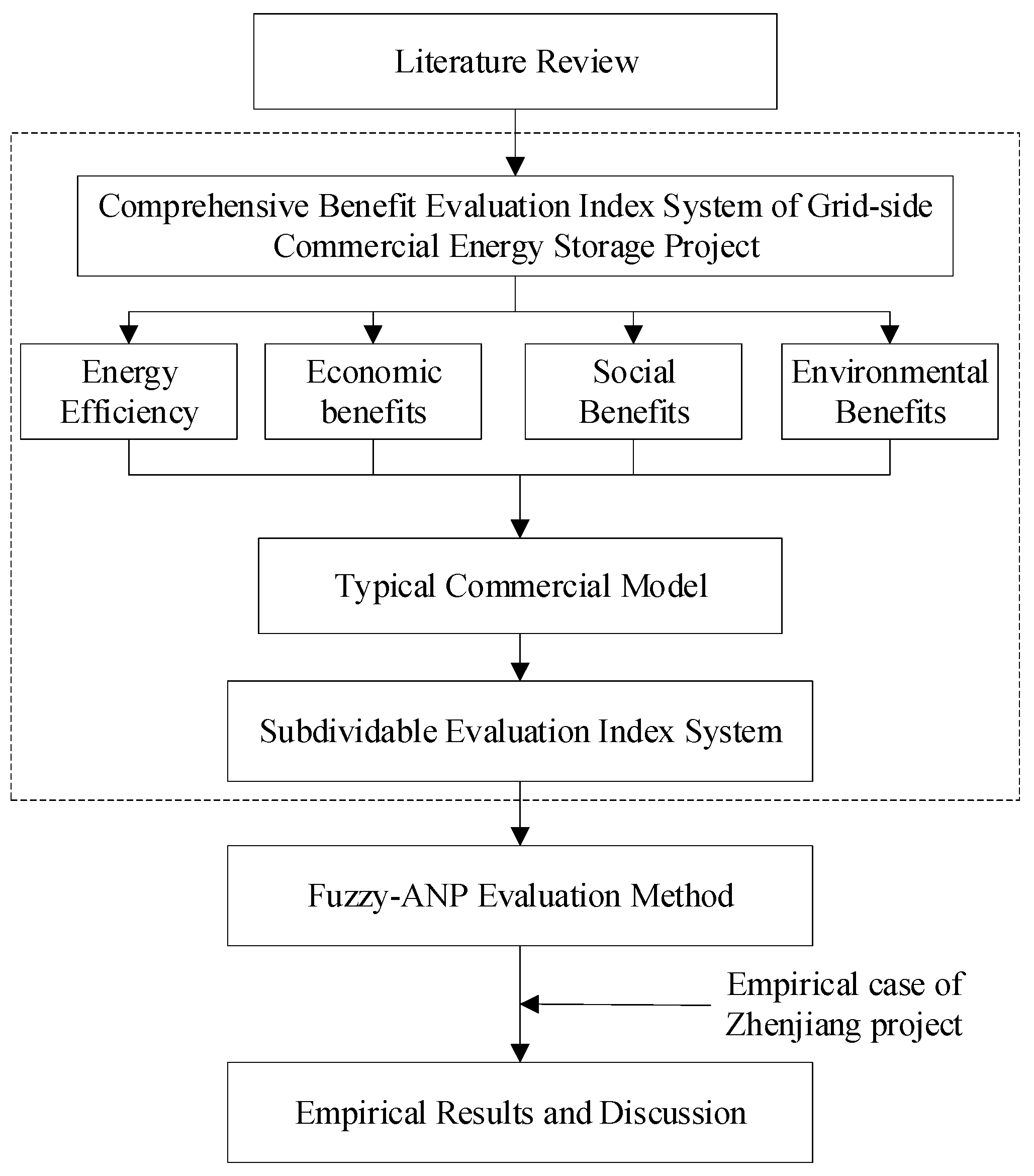

Figure 1. Methodology of comprehensive benefit evaluation of grid-side commercial storage project.
Figure 1. Methodology of comprehensive benefit evaluation of grid-side commercial storage project.
Energies 14 01129 g001

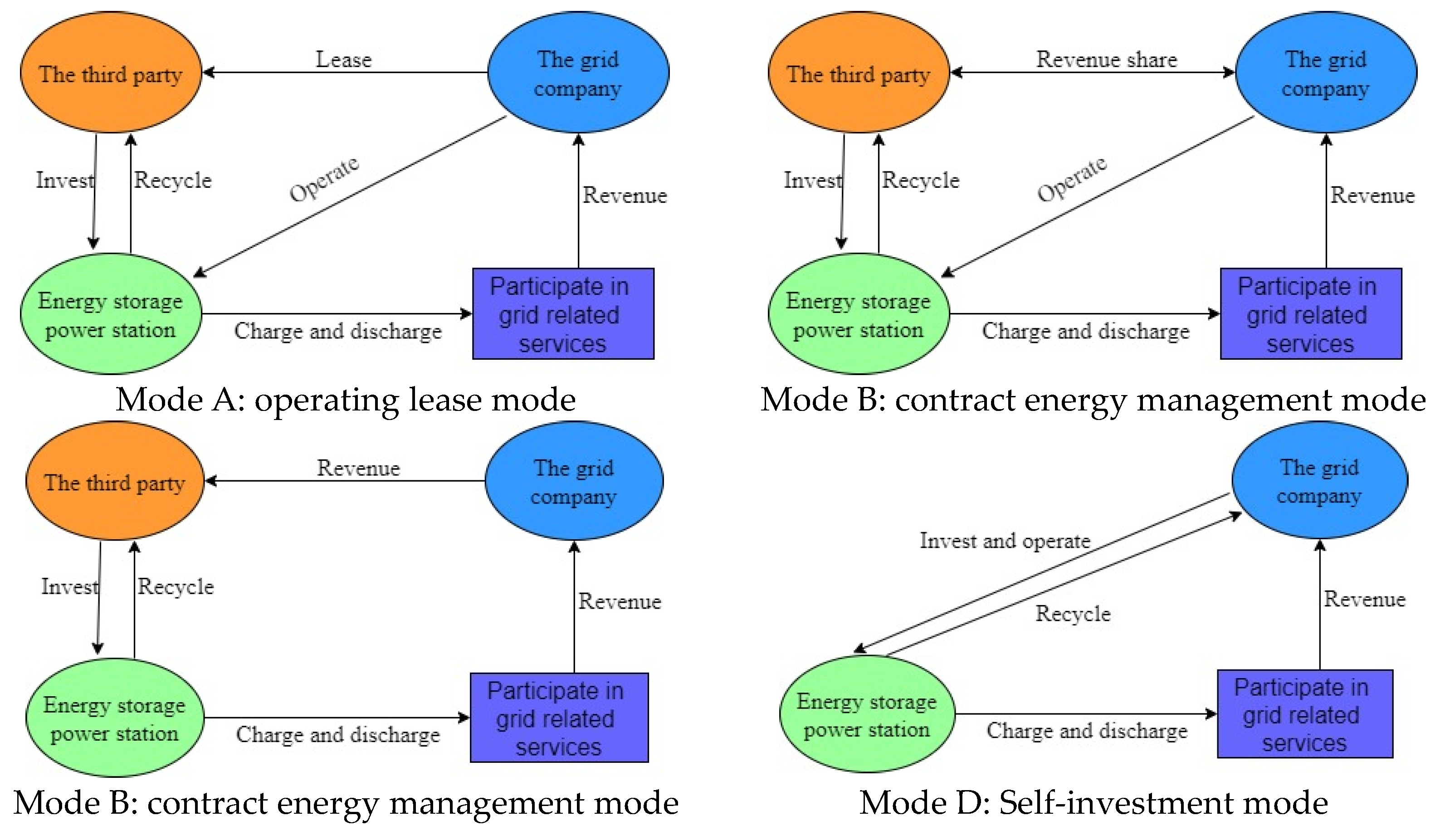

Figure 2. Four typical business modes.
Figure 2. Four typical business modes.
Energies 14 01129 g002

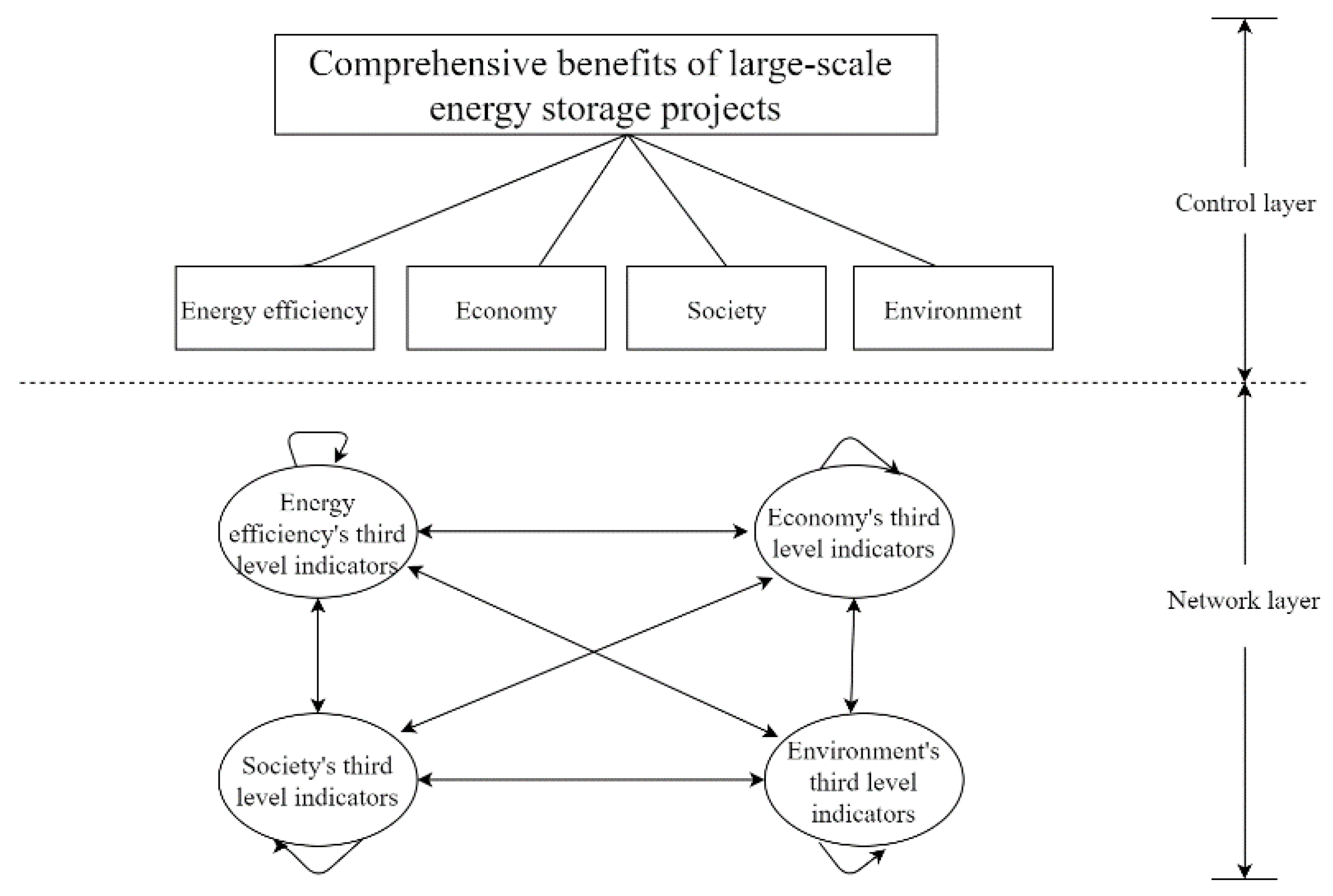

Figure 3. The hierarchical structure of the comprehensive benefit evaluation network of energy storage.
Figure 3. The hierarchical structure of the comprehensive benefit evaluation network of energy storage.
Energies 14 01129 g003
Figure 4. Triangular fuzzy membership function.
Figure 4. Triangular fuzzy membership function.
Energies 14 01129 g004
Figure 5. Load curve of the maximum load day in 2018.
Figure 5. Load curve of the maximum load day in 2018.
Energies 14 01129 g005
Figure 6. Contribution comparison of frequency regulation between energy storage and conventional unit.
Figure 6. Contribution comparison of frequency regulation between energy storage and conventional unit.
Energies 14 01129 g006
Table 1. Comprehensive benefit evaluation index system for storage project.
Table 1. Comprehensive benefit evaluation index system for storage project.
First Level
Indicator
Second Level IndicatorThird Level IndicatorIndicator PreferenceExplanation
Energy efficiency (A)TechnologyCell voltage (A1)+Standard voltage of each battery
Energy Density (A2)+Effective storage capacity of per unit mass of material
Power density (A3)+Effective storage power of per unit mass of material
Self-discharge rate (A4)The retain ability when the battery with open circuit state
Application Cycle life (A5)+The maximum cycle number that the system could withstand
Charge and discharge efficiency (A6)+The ratio of the released energy to the initial energy
Stability (A7)+Ability to maintain stable operation under external influence
Responsiveness (A8)+Required time for system response
Economic
benefits (B)
Cost Construction cost (B1)Construction cost of project
Capacity cost (B2)Cost of configuring battery system
Power cost (B3)Cost of conversion equipment and other facilities
Operation and maintenance cost (B4)Operation & maintenance costs and rental fees of storage systems
ProfitPeak-to-valley price spread (B5)+Profit from peak shaving and valley filling with storage system
Saving investment (B6)+Saving investment of grid equipment due to storage system
Government subsidy (B7)+Policy subsidy rewards of energy storage systems
Network loss reduction (B8)+Annual revenue from reducing line loss due to storage system
Recycle revenue (B9)+Recyclable value at the end of the energy storage system life
Social benefits (C)ReliabilityChange value of power shortage rate (C1)+=LOLP with storage − LOLP without storage
LOLP: loss of load probability
Change value of power available rate (C2)+=ASAI with storage − ASAI without storage
ASAI: average service availability index
Frequency regulation benefitFrequency regulation multiple (C3)+= σfwith storagefwithout storage
σf: frequency standard deviation
Frequency regulation
contribution rate (C4)
+=(CPSwith storage − CPSwithout storage)/CPSwithout storage
CPS: control performance standard
Environmental benefits (D)Clean consumptionChange rate of clean
consumption (D1)
+=(NCwith storage − NCwithout storage)/NCwithout storage
NC: regional new energy consumption amount
Low carbon reductionEmission reduction
revenue (D2)
+=Emission cost of thermal power unit × (Storage charge quantity + NCwith storage − NCwithout storage)
Table 2. Comprehensive benefit evaluation index system of energy storage projects under different business modes.
Table 2. Comprehensive benefit evaluation index system of energy storage projects under different business modes.
IndicatorsAB1B2B3B4B5B6B7B8B9C1C2C3C4D1D2
Mode A
Mode B
Mode C
Mode D
Table 3. Lithium iron phosphate energy efficiency data.
Table 3. Lithium iron phosphate energy efficiency data.
IndicatorA1A2A3A4A5A6A7A8
Value3.616012001%10,00095%79
Table 4. Reliability index value with or without the participation of energy storage.
Table 4. Reliability index value with or without the participation of energy storage.
ScenarioLOLP (%)EENS (MWh × a−1)BPECI (h × a−1)ASAI (%)
13.2035 × 10−534.51000.2806399.9967965
23.2315 × 10−534.81100.2830899.9967686
LOLP: loss of load probability. EENS: Expected energy not supplied. BPECI: Bulk power energy curtailment index. ASAI: average service availability index.
Table 5. Jiangsu Power Grid CPS Index during 2015–2018.
Table 5. Jiangsu Power Grid CPS Index during 2015–2018.
Year2015201620172018
CPS143.70145.33143.58154.72
CPS: The CPS standard introduced by the North American Electric Reliability Council serves as the main index for the control of the power and frequency deviation of the grid tie line.
Table 6. Influence relationship among indicators.
Table 6. Influence relationship among indicators.
A1A2A3A4A5A6A7A8B4B5B6B7B8C1C2C3C4D1D2
A1
A2
A3
A4
A5
A6
A7
A8
B4
B5
B6
B7
B8
C1
C2
C3
C4
D1
D2
Table 7. Part of weighted hypermatrix.
Table 7. Part of weighted hypermatrix.
A1A2A3A4A5A6A7A8
A10000.184340000
A20.1091700.059110.07420.131720.0417600
A30.167060.047700.038820.103870.0529500
A40.038740.022070.0955700.069940.0793600
A50.038740.01630.036920.0388200.112450.116820
A60.038740.116020.0260.057560.0493500.350490
A70.038740.132610.223910.032580.056210.0903900
A80.036120.132610.025790.040980.056210.0903900
B40.051680.035910.062210.059410.0135200.043230.02853
B50.039170.056640.036170.038390.02130.080350.016440.07141
B60.029690.028840.025040.027610.033970.013420.03030.05393
B70.02250.021960.019880.020.065530.02750.060290.03778
B80.017050.016720.016780.014670.025770.038820.009830.10886
C10.038270.055090.127040.070940.091030.058130.084010.07205
C20.054120.166030.080140.154840.046630.165710.134970.03877
C30.076540.037360.048030.033970.10630.035580.038650.27637
C40.108240.01870.021960.017430.033220.017760.019550.13313
D10.063620.063620.063620.031810.071580.023860.019090.14332
D20.031810.031810.031810.063620.023860.071580.076350.03583
Table 8. Indicator weight after limit stability.
Table 8. Indicator weight after limit stability.
IndicatorD2C3C4B4B7B8A6A7A8
Limiting0.137440.0073470.0067730.0079020.1496370.0813150.0011450.004320.00011
Table 9. Comment set of Zhenjiang large-scale energy storage project.
Table 9. Comment set of Zhenjiang large-scale energy storage project.
IndicatorExcellentGoodQualifiedUnqualifiedValue
A1{3.25; 4}{2.5; 3.25}{1.75; 2.5}{1; 1.75}3.6
A2{200; 250}{150; 200}{100; 150}{50; 100}160
A3{1040; 1340}{740; 1040}{440; 740}{140; 440}1200
A4{0; 5%}{5%; 10%}{10%; 15%}{15%; 20%}1%
A5{12,000; 16,000}{8000; 12,000}{4000; 8000}{0; 4000}13,000
A6{95%; 100%}{90%; 95%}{85%; 90%}{80%; 85%}95%
A7{7.5; 10}{5; 7.5}{2.5; 5}{0; 2.5}7
A8{7.5; 10}{5; 7.5}{2.5; 5}{0; 2.5}9
B4{0; 326}{326; 651}{651; 977}{977; 1304}460.7
B5{1617.5; 2156.6}{1078.3; 1617.5}{539.2; 1078.3}{0; 539.2}1831.3
B6{7.5; 10}{5; 7.5}{2.5; 5}{0; 2.5}6
B7{3954; 5272}{2636; 3954}{1318; 2636}{0; 1318}3753.2
B8{6.93–9.24}{4.62–6.93}{2.31; 4.62}{0; 2.31}6.97
C1{7.5; 10}{5; 7.5}{2.5; 5}{0; 2.5}7
C2{7.5; 10}{5; 7.5}{2.5; 5}{0; 2.5}8
C3{7.5; 10}{5; 7.5}{2.5; 5}{0; 2.5}6
C4{7.5; 10}{5; 7.5}{2.5; 5}{0; 2.5}9
D1{0.45; 0.6}{0.3; 0.45}{0.15; 0.3}{0; 0.15}0.453
D2{246.6; 328.8}{164.4; 246.6}{82.2; 164.4}{0; 82.2}294.3
Table 10. Economic analysis of Zhenjiang large-scale energy storage project.
Table 10. Economic analysis of Zhenjiang large-scale energy storage project.
IndicatorValue (unit: million yuan)
CostB44.61
ProfitB518.31
B66.27
B737.53
B80.07
D22.94
Total revenue60.52
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yang, H.; Fan, W.; Qin, G.; Zhao, Z. A Fuzzy-ANP Approach for Comprehensive Benefit Evaluation of Grid-Side Commercial Storage Project. Energies 2021, 14, 1129. https://doi.org/10.3390/en14041129

AMA Style

Yang H, Fan W, Qin G, Zhao Z. A Fuzzy-ANP Approach for Comprehensive Benefit Evaluation of Grid-Side Commercial Storage Project. Energies. 2021; 14(4):1129. https://doi.org/10.3390/en14041129

Chicago/Turabian Style

Yang, Huijia, Weiguang Fan, Guangyu Qin, and Zhenyu Zhao. 2021. "A Fuzzy-ANP Approach for Comprehensive Benefit Evaluation of Grid-Side Commercial Storage Project" Energies 14, no. 4: 1129. https://doi.org/10.3390/en14041129

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
