Abstract

:
Vehicle-to-grid services make use of the aggregated capacity available from a fleet of vehicles to participate in energy markets, help integrate renewable energy in the grid and balance energy use. In this paper, the critical components of such a service are described in the context of a commercial service that is currently under development. Key among these components is the prediction of available capacity at a future time. In this paper, we extend a previous work that used a deep learning recurrent neural network for this task to include online machine learning, which enables the network to continually refine its predictions based on observed behaviour. The coronavirus pandemic that was declared in 2020 resulted in closures of the university and substantial changes to the behaviour of the university fleet. In this work, the impact of this change in vehicles usage was used to test the predictions of a network initially trained using vehicle trip data from 2019 with and without online machine learning. It is shown that prediction error is significantly reduced using online machine learning, and it is concluded that a similar capability will be of critical importance for a commercial service such as the one described in this paper.

1. Introduction

Effective management of electricity networks at a distribution level is increasingly important to prevent system issues due to an increase in distributed generation, for example from renewable energy systems, and demand driven in part by the upsurge in electric vehicles (EVs) [1,2]. However, enhanced system management also provides additional benefits such as the possibility of eligible assets to participate in energy markets, for example EVs through vehicle-to-grid (V2G) or smart charging [3,4,5,6].
V2G services enable electric vehicles to generate an income from participating in electricity trading during the prolonged periods they are not being used for their primary transportation purpose. At an aggregated level, energy loads can be traded on the power exchanges and previous research has shown that significant revenues can be derived from these services [7]. Commercial services capitalising on this opportunity are beginning to emerge. Octopus Energy has developed Powerloop, which provides participants with a bi-directional charger and a Nissan LEAF vehicle enabling them to receive financial rewards for making their vehicle available during times of peak demand [8]. Kaluza, an Ovo Energy company, has completed a large-scale trial of V2G technology to provide grid balancing services through their smart energy platform concluding that users could save substantial amounts on their electricity bills [9]. Nuvve has developed a V2G platform that makes use of bi-directional chargers and a cloud-based control platform, to enable the use of V2G technology for commercial fleets [10]. EV8 Technologies are piloting and developing the EV8 Live Service, introduced in this paper, to enable V2G for consumers and fleets [11].
A key factor in V2G services is the complexity arising from the underlying storage being mobile rather than fixed, which raises two important issues: (1) the aggregation provider cannot typically enforce connectivity—the owner or user can unplug at any time; (2) to access the V2G value pool through the power exchange markets, understanding and managing the availability of storage, rate of discharge possible and disconnection risk is central to solving the challenge. Successfully managing this complexity requires prediction and adaptation to changing circumstances.
Such prediction is required at multiple levels. For example, a machine learning framework was introduced in [12] that predicted available capacity from a vehicle fleet based on the learned behaviour of simulated user types, their willingness to participate in proposed V2G events and their reliability in making their vehicles available at agreed times. In [13], an automated machine learning was used to predict the parking locations of a fleet of vehicles and their proximity to V2G charging locations. This capability could provide a V2G service with a set of vehicles ranked by risk, that may be available at the time of potential future trading opportunities. A deep learning neural network was used in [14] that predicted the available capacity for trading opportunities from a fleet of vehicles operated by the University of Nottingham (UoN) in the United Kingdom. The state-of-charge of individual vehicles was simulated given observed fleet behaviour and the neural network was shown to be able to predict aggregated capacity available from the fleet at future times while adapting to discharge events resulting from the actions of the aggregator executing market trades. However, this work used data from a fleet with relatively consistent schedules and the ability of the predictive system to adapt to substantial deviations from these schedules is an outstanding question.
The coronavirus pandemic that was declared by the World Health Organisation in 2020 resulted in unprecedented changes to the lives and routines of individuals and organisations across the world. During large periods of the year in the UK, people were instructed to stay at home, only essential businesses remained operational and university campuses were largely closed. This systemic shock also had a profound impact on the usage of vehicles with traffic reduced and fleet activity altered. At the University of Nottingham, for example, vehicles that were previously used for catering and estates services were required to support the coronavirus testing facilities on campus and thus the entire fleet was impacted. Such dramatic change provided a unique opportunity to assess the ability of a predictive tool to adapt to changing conditions—a critical requirement for a successful V2G service.
In this work, we build upon the deep learning neural network introduced in [14], which was used to predict the capacity available to a V2G service from UoN’s vehicle fleet. This network consisted of a convolutional neural network layer (CNN) coupled with a long-short term memory (LSTM) layer. Networks such as these have been used with success for multiple time-series prediction applications including natural language processing [15], visual recognition [16], residential energy consumption [17] and the routing of EVs to manage their impact on the electrical distribution system [18].
We extend the initial work to support ongoing adaptation in which the learning model is updated using new data as they arrive sequentially. Such online machine learning has received much attention for a wide range of applications [19]. Most of this work focusses on learning shallow models, however, the use of online machine learning for deep models has received increasing attention [20,21]. In this paper, we compare predictive performance of the CNN-LSTM model during 2020 with and without online machine learning and demonstrate a highly statistically significant improvement using the latter. To the best of our knowledge, this is the first successful application of online machine learning to predicting available capacity for a V2G service and adapting to a significant change in the behaviour of the underlying vehicles, such as that caused by the coronavirus pandemic.
The remainder of the paper is structured as follows: in the following section we place the work in the context of the Live Service that is under development by EV8 Technologies [11], describe the dataset and introduce the recurrent neural network at the heart of the predictive engine. We then show and discuss the accuracy of its predictions using 2020 data with and without online machine learning.

2. Materials and Methods

2.1. Live Service Description

The system described in this section, called the Live Service, was developed to simulate income potential from participation in energy market trading using EVs connected to V2G equipment. Data collected through telematics sources were used to simulate EV operators participating in V2G market mechanisms, whilst preserving the minimum level of transport utility from the vehicles. This system simulated the end-to-end application from vehicle management and owner interface through to energy market integration for trading of the stored energy. A whole system diagram of where the Live Service sits in the energy market is shown in Figure 1, and the process of making an energy trade using the aggregated fleet is shown in Figure 2.
The focus of this paper is on point 3 in Figure 2 and is on specifically supporting the service in deciding on whether to trade in the following 24 h period given the predicted available capacity from the aggregated vehicle fleet.

2.2. Vehicle Dataset

The University of Nottingham operates a fleet of vehicles to support the various functions of the university, including estates management, security, mailroom, transport, grounds, and catering services. During the study period, most of the vehicles were powered by internal combustion engines, however, nine electric vans were also in operation. Many of the vehicles were equipped with Trakm8 telematics equipment [22] that provided information on the trips made including start and end locations and the distance travelled. Data from 48 of these vehicles were used from the start of 2019 to the end of 2020 as the input dataset for this work, thus providing a detailed profile of a real fleet during the study period.
For each trip, the Global Navigation Satellite System (GNSS) coordinates and time at the start and end of each trip were recorded along with the trip distance. This resulted in a total of over 330,000 rows in the trip dataset each representing a single trip by an individual vehicle, an excerpt from which is shown in Table 1.
This dataset included a period of typical university operations until March 2020 followed by a period until the end of 2020 that was significantly impacted by the coronavirus pandemic, which resulted in university closures and in some cases a repurposing of university vehicles to support the response to the pandemic such as the vaccination program.
Analysis of the trips allowed the stationary location and dwell time of each vehicle throughout the 2-year period to be determined. Adopting the approach introduced in [13] and [14], if a vehicle was stationary for a full half-hour period within 100 m of the simulated location of one of six V2G chargers on the university campuses it was deemed to be available to the V2G aggregation service for that period. This process resulted in a dataset for each vehicle of consecutive half-hour periods indicating whether the vehicle was available. The total distance travelled for each trip was recorded for the half-hour period in which it was completed. The fleet operated differently during weekends or holidays and these features were therefore also added to the dataset. The combined vehicle availability dataset contained approximately 1.7 million rows, almost 57% of which represented half-hour periods in which a vehicle was available. An anonymised excerpt representing the trips shown in Table 1 assuming that the vehicles were parked close to a simulated V2G charger is provided in Table 2.
The vehicle availability dataset was used as input to state-of-charge simulations, which calculated reductions in battery state-of-charge (SoC) resulting from any trips made and increases in state-of-charge during stationary periods in which a vehicle was available and charging. This process, developed in [14] and reproduced in Appendix A and Equation (1), resulted in a state-of-charge for each vehicle at each half-hour period.
For some of the 48 vehicles, the SoC dropped to zero during the simulated period, which indicated that the vehicle was not parked close to the simulated V2G charger locations with enough regularity to allow the charge to be replenished. In these cases, it was assumed that the vehicles would be charged elsewhere and not available to the V2G service until they again were parked in a simulated V2G charger location. It was also assumed that on return, their SoC remained zero, i.e., the externally provided charge was enough to allow any trips taken but not enough for the vehicles to return to the service with surplus charge.
The output of this simulation was then used to determine the available capacity from each vehicle at each half-hour period as follows:
C v h h = M a x ( S o C v h h 1 0.5 ,   0 ) × 40 × A v
where C v h h is the available capacity in kWh from vehicle v at half-hour period hh, A v is the availability of vehicle v in this period and S o C v h h 1 is the state-of-charge, ranging from 0 to 1 of vehicle v at the end of the preceding half-hour period. This equation ensured that capacity was only available when the state-of-charge exceeded a minimum value of 0.5 and assumed the total battery capacity of a vehicle was 40 kWh, which mirrored that of some fleet electric vehicles at the time of the study. The maximum capacity available from each vehicle during a given half-hour period was therefore 20 kWh.
The final step of data preparation was to create an aggregated dataset for the fleet. The total available capacity for each half-hour period was calculated by summing the available capacity from each of the 48 vehicles for that period. This resulted in an available capacity dataset consisting of approximately 35,000 rows, one for each half-hour period during 2019 and 2020. This dataset was used as input to the predictive model.

2.3. Model Training

The CNN-LSTM model, developed in [14] and described in detail in Appendix B, was also used as the predictive model for this work. These networks utilize a convolutional neural network to encode the input, which is presented to a long short-term memory neural network that utilises recurrent connections and parameters enabling both short-term and long-term memory [23]. They are thus well suited for learning sequences in time-series data, such as those from vehicle activity over an extended period.
The CNN-LSTM network took data from the previous 24 h period as input and produced as output the predicted available capacity for the subsequent 24 h period. Thus, to produce a prediction at a given half hour period the previous 48 consecutive rows of the available capacity dataset were presented to the network, which then produced a 48-element vector representing the predicted capacity for each half-hour period in the subsequent 24 h. These outputs were then compared to the observed available capacity allowing prediction errors to be ascertained and minimized using the Adam optimizer [24] with mean squared error across all predictions in the training dataset as the loss function.
An initial model was trained using data from 2019, which was representative of typical university operations. The first 280 days of the 2019 data were used for training and the subsequent 85 days used as an independent test dataset. Batches of 48 inputs, representing one 24 h period, were presented to the network before each model update and training was run for a maximum of 100 epochs, i.e., cycles through the full training dataset. However, each training run was typically shorter than this due to an early-stopping feature that was used to protect against overtraining. Loss on the test set was assessed at the end of every epoch and if this did not improve for 10 epochs, training was stopped, and the best model seen to date used.
Two different approaches were investigated to assess the model’s ability to predict available capacity for 2020. First, predictions were made for each day of the year without further model updates. Second, online machine learning was implemented in which the model was updated following each week of the year. In this case, predictions were made for each day sequentially as previously. However, after each 7-day period the training set was expanded to include the data for the preceding week and the model re-trained for an additional 2 epochs. Thus, the model was updated 52 times during 2020.

2.4. Model Testing

The model was used to predict available capacity for each half-hour period within each day of 2020 with and without online machine learning. Although the model supported predictions up to 24 h in advance, the results presented in this paper focus on predictions half an hour in advance, which allowed the impact of the changes in fleet behaviour to be determined. Longer-term predictions were qualitatively similar with a gradually decreasing accuracy for both approaches. Mean absolute error (MAE) was calculated for each day as follows:
MAE d = h h = 1 48 | P C d h h A C d h h | 48
where P C d h h is the predicted available capacity for half-hour period hh on day d and A C d h h is the observed available capacity for that period.

3. Results

3.1. Fleet Behaviour

The impact of the pandemic on the operation of the university fleet was analysed by comparing the trips taken in 2019 and 2020. Figure 3 shows the total number of trips taken by the fleet on each day over these two years.
In both years, a higher number of trips were typically taken by the fleet during the working week with much reduced activity at the weekends. A cyclical pattern is therefore evident reflecting this behaviour. On 23 March 2020 (day 83), a national lockdown was announced by the UK government with an instruction to “stay at home” wherever possible. This strict lockdown stayed in force until a gradual reduction in restrictions began on the 1 June (day 153) with the phased re-opening of schools, followed by the opening of non-essential shops on the 15 June (day 167) and the introduction of more general relaxation in restrictions from the 23 June (day 175). A second wave of infections however prompted a tightening of restrictions from the 14 September (day 258) and a second national lockdown starting on the 5 November (day 310), which lasted for four weeks.
The impact of the first national lockdown on the behaviour of the fleet can be clearly seen in the figure. Many fewer trips were taken immediately following the announcement, however, despite the ongoing upheaval and changes in national restrictions no obvious correlation between fleet behaviour and the subsequent key events was apparent. This was likely because most staff continued to work at home during this period, with online teaching dominating. However, the start of the new academic year on 21 September (day 265) saw a return to more usual patterns of trips, albeit at a reduced level. Fleet activity was greatly reduced during closure of the university for Christmas holidays at the end of both years.

3.2. Available Capacity

A typical pattern of simulated available capacity for a pre-pandemic week during 2019 is shown in Figure 4. During the working day, available capacity was typically reduced as vehicles were used more regularly with a consistent spike corresponding to lunch break. Available capacity was far greater during overnight periods and during the weekends when vehicles tended to be more stationary.
The available capacity for all half-hour periods during each day was summed to yield the total daily available capacity, which is shown over the 2-year period in Figure 5. In contrast to total trips shown in Figure 3 the peaks in this graph represent the weekends and the troughs working days.
The impact of the lockdown announcement on day 83 is again evident in the figure. Available capacity in 2020 followed a pattern consistent with the previous year up until this date following which there was a fundamental change. Available capacity was typically reduced but less variable suggesting that vehicles became more static as the activity of the fleet reduced during the post-lockdown phase and that they were parked away from V2G charger locations more frequently. A pattern more consistent with 2019 was again evident at the start of the new academic year until the Christmas holidays, when available capacity was greatly reduced in 2020 compared to 2019 despite a similarly reduced number of trips. This suggested that the stationary location of the vehicles differed, and they were more frequently parked away from the V2G charger locations. An example weekly profile from the post-lockdown and new term phases are compared with an example week from the pre-lockdown phase in Figure 6.

3.3. Static Model

A series of 10 independent runs were performed to train a CNN-LTSM model on the 2019 dataset. The resulting networks thus represented typical pre-pandemic behaviour of the fleet. Following training, each network was tested using the 2020 dataset, which included the fluctuations in fleet behaviour resulting from the pandemic. Online machine learning was not enabled, and thus the model remained static throughout this period. Daily mean absolute error, MAEd, for each day of 2020 was calculated as described in Section 2.4. Average results for the 10 models are shown in Figure 7.
Prediction errors during weekends were typically much lower than during weekdays as fleet behaviour was typically more static and predictable. However, the figure reveals a dramatic increase in prediction errors following the start of lockdown on day 83. Average MAEd for the pre-lockdown phase was 16.2 kWh (s = 4.6), which more than doubled to 33.7 kWh (s = 15.8) for the post-lockdown phase before reducing to 22.1 kWh (s = 7.4) for the new term when fleet activity more closely reflected 2019 behaviour. Prediction errors again increased as the holiday period began, which was due to the different pattern of available capacity in 2020 revealed in Figure 3.
Further insight into model performance was gained by analysing the detailed predictions for four typical calendar weeks: one each during the pre-lockdown and new term phases and two at different times during the post-lockdown phase as shown in Figure 8. In the pre-lockdown phase, week beginning 6 January 2020, model predictions followed actual capacity closely and MAE during this period was 15.8 kWh (s = 16.2). However, these errors grew substantially in the post-lockdown week beginning 30 March 2020 and MAE increased to 40.1 kWh (s = 43.2). Similar prediction errors were also apparent later in the post-lockdown period, week beginning 1 June 2020, when MAE was 37.1 kWh (s = 35). As fleet behaviour returned to patterns more representative of the previous year in the new term, week beginning 28 September 2020, MAE reduced to 21.8 kWh (s = 26.8).

3.4. Online Machine Learning Model

The same 10 independent models trained and tested in Section 3.3 were used to directly compare performance with online machine learning. MAEd was again calculated for each day of 2020 sequentially. However, following each 7-day period, the models were re-trained for two epochs with a training dataset that was expanded to include the additional data collected during that period as described in Section 2.3. Average results for the 10 models are shown in Figure 9.
Average MAEd for the pre-lockdown phase was 16.1 kWh (s = 4.4), which was similar between both models. Following lockdown, performance of the online machine learning model also decreased; however, prediction errors were quickly reduced and the overall MAEd during this period was only slightly higher than pre-lockdown at 16.5 kWh (s = 6.9). This was a 51% improvement over the model without online machine learning. A Welch’s t test was performed to determine the statistical significance between the models with and without online machine learning, which revealed that the improved prediction errors of the online model were highly statistically significant (p < 0.001). Performance of the online model during the new term phase also improved over the static model with an average MAEd of 17.1 kWh (s = 6.3), which was a 22.6% improvement and again a highly statistically significant result (p < 0.001).
Detailed predictions for the same four weeks detailed in Section 3.3 are shown in Figure 10. MAE for the pre-lockdown week rose slightly for the online model to 18.98 kWh (s = 15.4), primarily due to a small overestimation of available capacity during the overnight periods. However, this was not a statistically significant change (p = 0.05). The post-lockdown week beginning on 30 March 2020, was the second full week of lockdown in the UK and therefore the model had been updated once with training data representative of this period at the end of the first week. Even with such limited post-lockdown training data, MAE was considerably lower than the static model at 29.58 kWh (s = 28.6)—a 26.2% improvement. However, this again was not statistically significant (p = 0.07). Clear improvements had, however been made by the post-lockdown week beginning on 1 June 2020. MAE for the online model was 15.76 kWh (s = 17.6), which was a 57.5% improvement over the static model and a highly statistically significant result (p < 0.001). MAE for the new term week beginning on 28 September 2020 was 14.77 kWh, which was a 29.4% improvement over the static model. However, this result did not reach statistical significance for this week (p = 0.12).

4. Discussion

The pandemic that was declared in 2020 was an extreme example of the need for the predictive models at the heart of a V2G service to adapt to changes in the behaviour of participating vehicles and in available capacity. However, such abrupt changes may also occur due to other events such as company re-organisations, repurposing of vehicles or refreshing a vehicle fleet at the end of its lifetime. In more usual times, smaller variations may also occur due to less dramatic events as patterns of vehicle behaviour gradually evolve over time due to schedule changes for example. The results presented in this paper demonstrated the ability of the CNN-LSTM model to quickly adapt to the most abrupt of changes with a limited amount of retraining; only two additional epochs were used following each new week in 2020 and the predictive performance of the network was recovered within several weeks of the changes in fleet behaviour resulting from national lockdown. This was achieved by extending the training set each week during 2020 before updating the models initially trained using data from 2019. This approach was manageable given that only 52 additional weeks were used in the study. However, for ongoing operation of a V2G service over many years this approach is not scalable as the dataset would become too large and the neural network too expensive and time-consuming to retrain. This is of particular concern for networks such as the LSTM, which have a relatively large number of trainable parameters. This need for scalability is likely to necessitate the use of other techniques, therefore. One approach is to use a rolling window such that the training dataset remains the same size, this would also result in network predictions being more strongly influenced by the more recent past. Periods that in retrospect are deemed to be more representative of typical fleet behaviour could also be favoured for re-training. However, such pruning of the data risks discarding important knowledge embedded in the training dataset such as infrequent but impactful events or, as in this study, data that is more representative of long-term vehicle behaviour.
Another potential issue when retraining the network is that of catastrophic forgetting in which the network loses the ability to make predictions for historical events due to the adaptations to new data [25]. This issue was addressed in [26] through use of an elastic weight consolidation algorithm inspired by synaptic consolidation in biological neural networks, which slowed down learning of weights that were important to previous tasks. Dynamically expandable networks were also introduced in [21], which selectively retrained parts of the network and extended it where necessary. The hedge backpropagation algorithm [20] and autonomous deep learning [27] allow the network architecture to grow from shallow to deep driven by the demands of the data and to learn from streaming data without need for any mini-batch learning phase. Approaches such as these are likely to be of value in the efficient operation and ongoing adaptation of the predictive models at the heart of a V2G service to changes in vehicle behaviour.
Vehicles are operated by people and used to satisfy their needs and schedules. The impact of user behaviour is thus of critical to the performance of a V2G service. Quantifying and adapting to individual users is of particular importance when a V2G aggregator targets individual vehicle owners rather than fleets, which are more likely to have well defined patterns of activity. An early example of such work was developed in [12], in which a learning algorithm was introduced to adapt to changes in factors influencing a user’s decision making and a user’s reliability in making their vehicle available to the service. A methodology was also developed in [28] using behavioural analysis to assess the potential of a fleet to transition to electric vehicles and V2G.
The scale of the increases in prediction error resulting from changes in underlying fleet behaviour without online machine learning emphasises the need for V2G services, such as the Live Service introduced in this work, to learn and adapt to changes at multiple different levels to confidently participate in energy markets and fully realise the promise of the technology.

5. Conclusions

In this paper, we explored the use of online machine learning within a V2G service to adapt to significant disruptions in the behaviour of the underlying fleet of vehicles due to the coronavirus pandemic declared in 2020. A deep recurrent neural network was trained using data representative of typical fleet behaviour and then tested using vehicle data from the pandemic with and without online machine learning. A highly statistical improvement in prediction error of 51% was demonstrated using the latter in the period following the disruptions. While the adopted approach was successful for the relatively short period considered in this work, scalability over the many years of operation of a V2G service is an important consideration and a fruitful avenue for subsequent research.

Author Contributions

Conceptualization, R.S. and R.R.; data curation, R.S. and J.W.; formal analysis, R.S.; funding acquisition, R.R., R.S. and M.G.; investigation, R.S.; methodology, R.S.; software, R.S.; validation, R.S.; writing—original draft, R.S. and R.R.; writing—review and editing, R.R., J.W., C.R., L.R. and M.G. All authors have read and agreed to the published version of the manuscript.

Funding

This work builds upon the Human Switch project supported by the European Space Agency contract number 4000120818/17/NL/US. The work was also supported by the UK Research and Innovation (UKRI) and Engineering and Physical Sciences Research Council (EPSRC) Industrial Strategy Challenge Fund (ISCF)—Transforming Construction: Active Building Centre (grant number EP/S016627/1) lead by Swansea University. The analysis of potential V2G charger locations was performed as part of EV-elocity (project number 104250) funded by the Office for Zero Emissions Vehicles (OZEV), the Department for Business, Energy and Industrial Strategy (BEIS) and facilitated by Innovate UK.

Acknowledgments

The Human Switch project, which underpins this work, was a collaboration between the University of Nottingham, Brixworth Technologies, Cenex and A.T. Kearney who hold patent number GB2566596.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A. State-of-Charge Simulation

A simplified charging and discharging model, developed in [14], was used without modification in this work to simulate expected charging behaviour and ensure SoC was kept within a range that allowed vehicles to fulfil their primary transportation role while supporting V2G market trading [29]. It was assumed that a vehicle would use rapid charging to a maximum 80% during the typical working day from 07:30 to 19:00, which would allow vehicle batteries to recharge as quickly as possible while not charging to a level that is typically inefficient for rapid charging. It was also assumed that slow charging would be used when vehicles were often stationary for extended periods between 19:30 to 07:00, which would allow vehicles to charge to 100% where possible while reducing the impact on battery degradation.
The initial battery SoC was set to fully charged, i.e., 1.0, and each half hour period was processed in chronological order. The state-of-charge for each vehicle for a half-hour period ( S o C v h h ) was calculated as follows, where S o C v h h 1 is the state-of-charge of vehicle v for the immediately preceding half-hour period, rapid_rate is the rapid DC charging rate of 50 kW, slow_rate is the slow charging rate of 6 kW, battery_capacity is the simulated battery size of each vehicle set to 40 kWh, c h a r g i n g _ η is the efficiency of the charging process set to 90%, i.e., 0.9 and v e h i c l e _ η is the energy used per km travelled by a vehicle set to 0.2 km/kWh:
  • For each half hour period, a vehicle was available (Av = 1) during the day from 07:30 to 19:00:
    S o C δ = r a p i d _ r a t e × 0.5 × c h a r g i n g _ η   b a t t e r y _ c a p a c i t y
    S o C v h h = M i n ( S o C v h h 1 + S o C δ ,   0.8 )
  • For each half hour period, a vehicle was available (Av = 1) overnight from 19:30 to 07:00:
    S o C δ = s l o w _ r a t e × 0.5 × c h a r g i n g _ η   b a t t e r y _ c a p a c i t y
    S o C v h h = M i n ( S o C v h h 1 + S o C δ ,   1.0 )
  • For each half hour period in which a trip was completed, i.e., where distance in km > 0:
    S o C δ = v e h i c l e _ η × km b a t t e r y _ c a p a c i t y
    S o C v h h = M a x ( S o C v h h 1 S o C δ ,   0 )
  • For all other half hour periods, the SoC was unchanged:
    S o C v h h = S o C v h h 1

Appendix B. CNN-LSTM Model

The architecture of the CNN-LSTM model, which was developed in [14] and used without modification in this work, is shown in Figure A1. The role of the network layers shown in Figure A1a was to encode the input features and the role of the layers in Figure A1b was to decode and learn temporal dependencies.

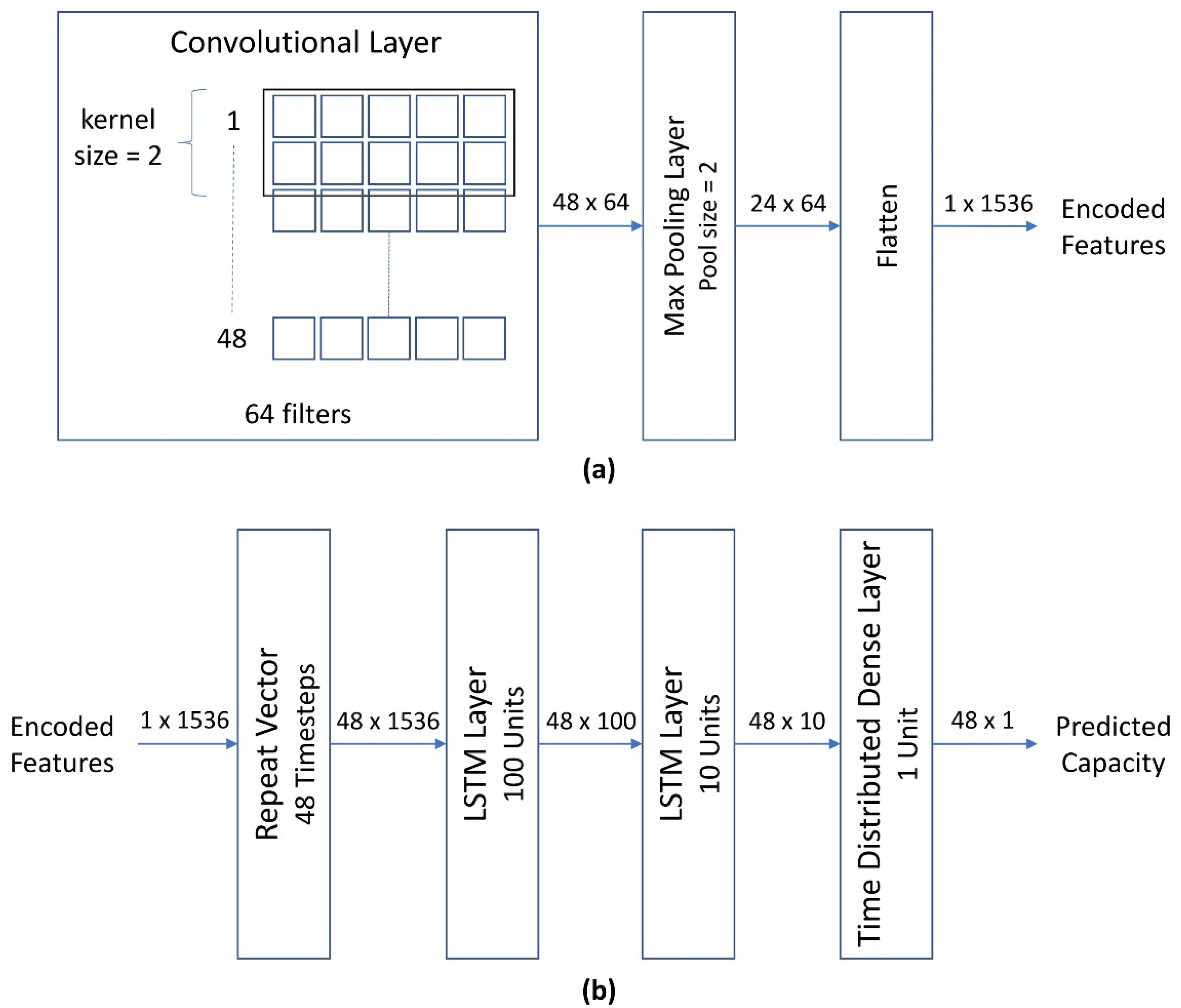

Figure A1. Architecture of the forecasting model. A convolutional neural network was used to encode the input (a), which was decoded using a stacked-LSTM network (b).
Figure A1. Architecture of the forecasting model. A convolutional neural network was used to encode the input (a), which was decoded using a stacked-LSTM network (b).
Energies 14 07176 g0a1
For a give timestep, the network operated as follows:
  • The previous 24 h of data from the available capacity dataset were used as input. This resulted in 48 rows, i.e., one row for each half-hour period.
  • A two-row filter (or kernel) was used, which traversed the input data one row at a time and produced an output at each step using a rectified linear unit (ReLU) activation function. The input data were zero-padded, which ensured that 48 outputs were produced for each filter. This process was repeated for each of 64 filters, thus producing a 48 × 64 output supporting the representation of different features in the input data.
  • A one-dimensional max pooling layer with a pool size of two was used to reduce the dimensionality of this data and help make the representation more invariant to differences in the specific location of the input features.
  • These data were then flattened or concatenated to form a single vector of size 1 × 1536, which represented the encoded features from the previous 24 h.
  • This encoding was then duplicated to produce 48 copies. A copy was required for each of the subsequent 48 half-hour periods for which available capacity was to be predicted.
  • A 100-unit LSTM layer [23] was used with the aim of learning the temporal sequences and dependencies between encoded features. Each of these recurrent units produced 48 outputs.
  • A stacked LSTM layer was then used with the aim of learning any higher-level dependencies. Each of these 10 units also produced 48 outputs representing each of the predicted half-hour periods.
  • A final fully connected dense layer with a ReLU activation function was then used. This was a time-distributed layer, such that each of the 48 outputs from the previous layer were input in sequence and an output produced for each. This resulted in a 48-element vector representing the total predicted available capacity for the fleet for the next 48 half-hour periods.

References

  1. Mahmud, K.; Town, G.E.; Morsalin, S.; Hossain, M.J. Integration of electric vehicles and management in the internet of energy. Renew. Sustain. Energy Rev. 2018, 82, 4179–4203. [Google Scholar] [CrossRef]
  2. Iweh, C.D.; Gyamfi, S.; Tanyi, E.; Effah-Donyina, E. Distributed Generation and Renewable Energy Integration into the Grid: Prerequisites, Push Factors, Practical Options, Issues and Merits. Energies 2021, 14, 5375. [Google Scholar] [CrossRef]
  3. Høj, C.J.; Juhl, T.L.; Lindegaard, B.S. V2G—An Economic Gamechanger in E-Mobility? World Electr. Veh. J. 2018, 9, 35. [Google Scholar] [CrossRef][Green Version]
  4. Kempton, W.; Tomić, J. Vehicle-to-grid power fundamentals: Calculating capacity and net revenue. J. Power Sources 2005, 144, 268–279. [Google Scholar] [CrossRef]
  5. DeForest, N.; MacDonald, J.S.; Black, D.R. Day ahead optimization of an electric vehicle fleet providing ancillary services in the Los Angeles Air Force Base vehicle-to-grid demonstration. Appl. Energy 2018, 210, 987–1001. [Google Scholar] [CrossRef][Green Version]
  6. Latinopoulos, C.; Sivakumar, A.; Polak, J.W. Optimal Pricing of Vehicle-to-Grid Services Using Disaggregate Demand Models. Energies 2021, 14, 1090. [Google Scholar] [CrossRef]
  7. Gough, R.; Dickerson, C.; Rowley, P.; Walsh, C. Vehicle-to-grid feasibility: A techno-economic analysis of EV-based energy storage. Appl. Energy 2017, 192. [Google Scholar] [CrossRef][Green Version]
  8. Powerloop V2G. Available online: https://www.octopusev.com/powerloop (accessed on 22 October 2021).
  9. Cenex Project Sciurus Trial Insights: Findings from 300 Domestic V2G Units in 2020. Available online: https://www.cenex.co.uk/app/uploads/2021/05/Sciurus-Trial-Insights.pdf (accessed on 22 October 2021).
  10. Nuvve Corporation Nuvve V2G Technology. Available online: https://nuvve.com/technology/ (accessed on 22 October 2021).
  11. EV8 Technologies Energy Vehicles Innovation. Available online: https://www.ev8-tech.com/ (accessed on 22 October 2021).
  12. Shipman, R.; Naylor, S.; Pinchin, J.; Gough, R.; Gillott, M. Learning capacity: Predicting user decisions for vehicle-to-grid services. Energy Inform. 2019, 2, 37. [Google Scholar] [CrossRef][Green Version]
  13. Shipman, R.; Waldron, J.; Naylor, S.; Pinchin, J.; Rodrigues, L.; Gillott, M. Where Will You Park? Predicting Vehicle Locations for Vehicle-to-Grid. Energies 2020, 13, 1933. [Google Scholar] [CrossRef][Green Version]
  14. Shipman, R.; Roberts, R.; Waldron, J.; Naylor, S.; Pinchin, J.; Rodrigues, L.; Gillott, M. We got the power: Predicting available capacity for vehicle-to-grid services using a deep recurrent neural network. Energy 2021, 221, 119813. [Google Scholar] [CrossRef]
  15. Sainath, T.N.; Vinyals, O.; Senior, A.; Sak, H. Convolutional, Long Short-Term Memory, fully connected Deep Neural Networks. In Proceedings of the 2015 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), South Brisbane, Australia, 19–24 April 2015; pp. 4580–4584. [Google Scholar]
  16. Donahue, J.; Hendricks, L.A.; Rohrbach, M.; Venugopalan, S.; Guadarrama, S.; Saenko, K.; Darrell, T. Long-Term Recurrent Convolutional Networks for Visual Recognition and Description. IEEE Trans. Pattern Anal. Mach. Intell. 2017, 39, 677–691. [Google Scholar] [CrossRef] [PubMed]
  17. Kim, T.Y.; Cho, S.B. Predicting residential energy consumption using CNN-LSTM neural networks. Energy 2019, 182, 72–81. [Google Scholar] [CrossRef]
  18. Shibl, M.; Ismail, L.; Massoud, A. Electric Vehicles Charging Management Using Machine Learning Considering Fast Charging and Vehicle-to-Grid Operation. Energies 2021, 14, 6199. [Google Scholar] [CrossRef]
  19. H Hoi, S.C.; Sahoo, D.; Lu, J.; Zhao, P. Online Learning: A Comprehensive Survey. Neurocomputing 2021, 1, 1–100. [Google Scholar]
  20. Sahoo, D.; Pham, Q.; Lu, J.; Hoi, S.C.H. Online Deep Learning: Learning Deep Neural Networks on the Fly. In Proceedings of the Twenty-Seventh International Joint Conference on Artificial Intelligence, {IJCAI-18}, Stockholm, Sweden, 13–19 July 2018; pp. 2660–2666. [Google Scholar]
  21. Yoon, J.; Yang, E.; Lee, J.; Hwang, S.J. Lifelong learning with dynamically expandable networks. In Proceedings of the 6th International Conference on Learning Representations, ICLR 2018—Conference Track Proceedings, Vancouver, BC, Canada, 30 April–5 May 2018; pp. 1–9. [Google Scholar]
  22. Trakm8 Limited Telematic Solutions. Available online: https://static.trakm8.com/static/downloads/trakm8-telematics-solutions-brochure.pdf (accessed on 22 October 2021).
  23. Hochreiter, S.; Schmidhuber, J. Long Short-Term Memory. Neural Comput. 1997, 9, 1735–1780. [Google Scholar] [CrossRef] [PubMed]
  24. Kingma, D.P.; Ba, J.L. Adam: A method for stochastic optimization. In Proceedings of the 3rd International Conference on Learning Representations, ICLR 2015—Conference Track Proceedings, San Diego, CA, USA, 7–9 May 2015. [Google Scholar]
  25. French, R.M. Catastrophic forgetting in connectionist networks. Trends Cogn. Sci. 1999, 3, 128–135. [Google Scholar] [CrossRef]
  26. Kirkpatrick, J.; Pascanu, R.; Rabinowitz, N.; Veness, J.; Desjardins, G.; Rusu, A.A.; Milan, K.; Quan, J.; Ramalho, T.; Grabska-Barwinska, A.; et al. Overcoming catastrophic forgetting in neural networks. Proc. Natl. Acad. Sci. USA 2017, 114, 3521–3526. [Google Scholar] [CrossRef] [PubMed][Green Version]
  27. Ashfahani, A.; Pratama, M. Autonomous deep learning: Continual learning approach for dynamic environments. In Proceedings of the SIAM International Conference on Data Mining, SDM 2019, Calgary, AB, Canada, 2–4 May 2019; pp. 666–674. [Google Scholar]
  28. Waldron, J.; Rodrigues, L.; Gillott, M.; Naylor, S.; Shipman, R. Decarbonising Our Transport System: User Behaviour Analysis to Assess the Transition to Electric Mobility. In Proceedings of the 35th PLEA Conference on Passive and Low Energy Architecture (PLEA 2020), A Coruña, Spain, 1–3 September 2020; pp. 689–694. [Google Scholar]
  29. Burgess, M.; Harris, M.; Walsh, C.; Carroll, S.; Mansbridge, S.; King, N.; Everett, A. Assessing the viability of electric vehicles in daily life: A longitudinal assessment (2008–2012). In Proceedings of the 2013 World Electric Vehicle Symposium and Exhibition (EVS27), Barcelona, Spain, 17–20 November 2013; pp. 1–5. [Google Scholar]

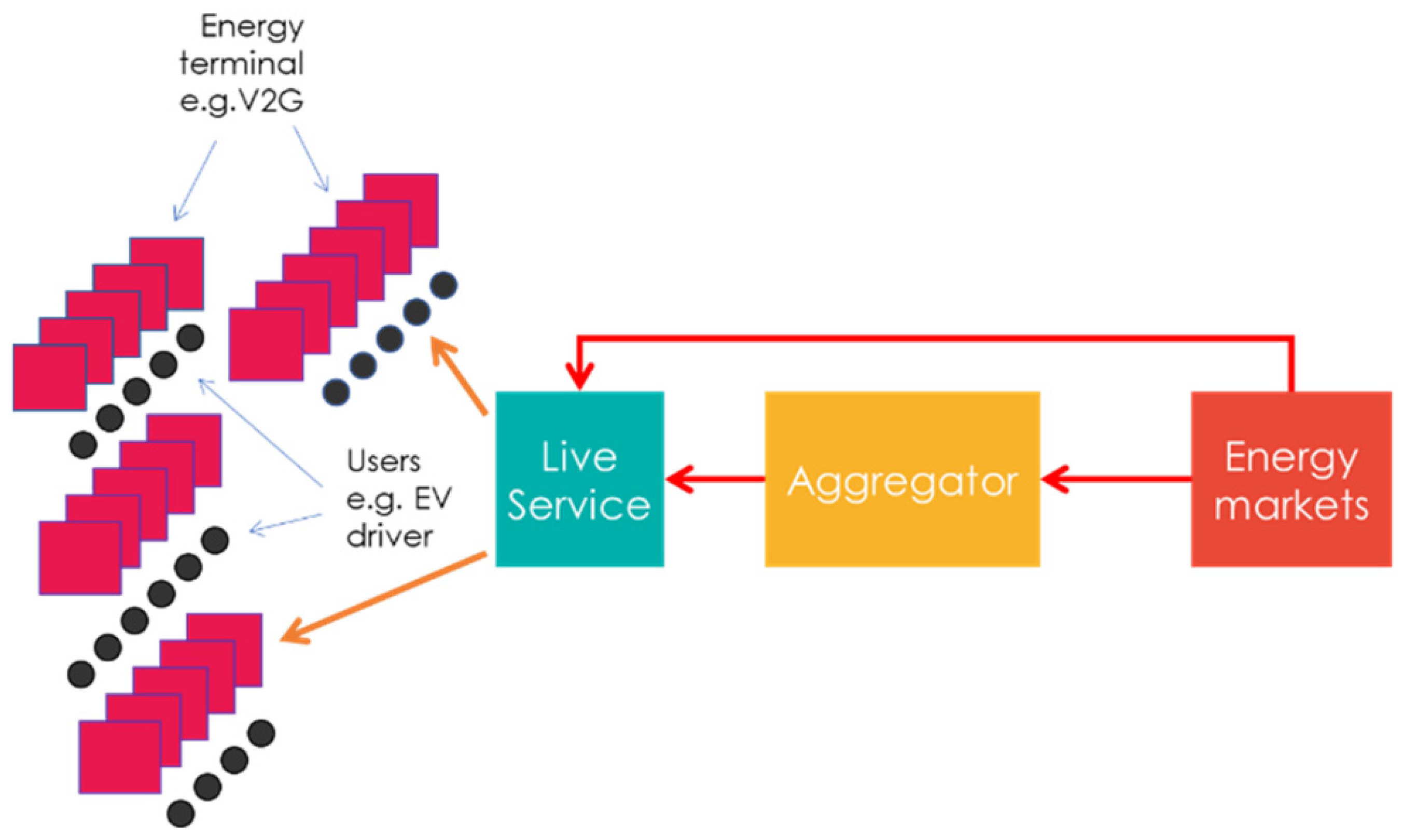

Figure 1. Live Service system diagram.
Figure 1. Live Service system diagram.
Energies 14 07176 g001

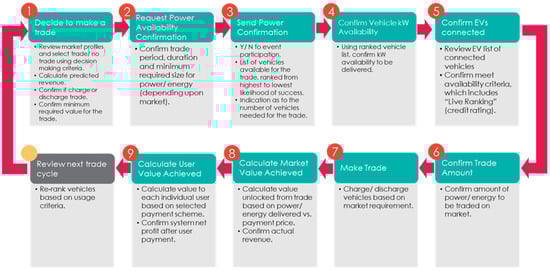

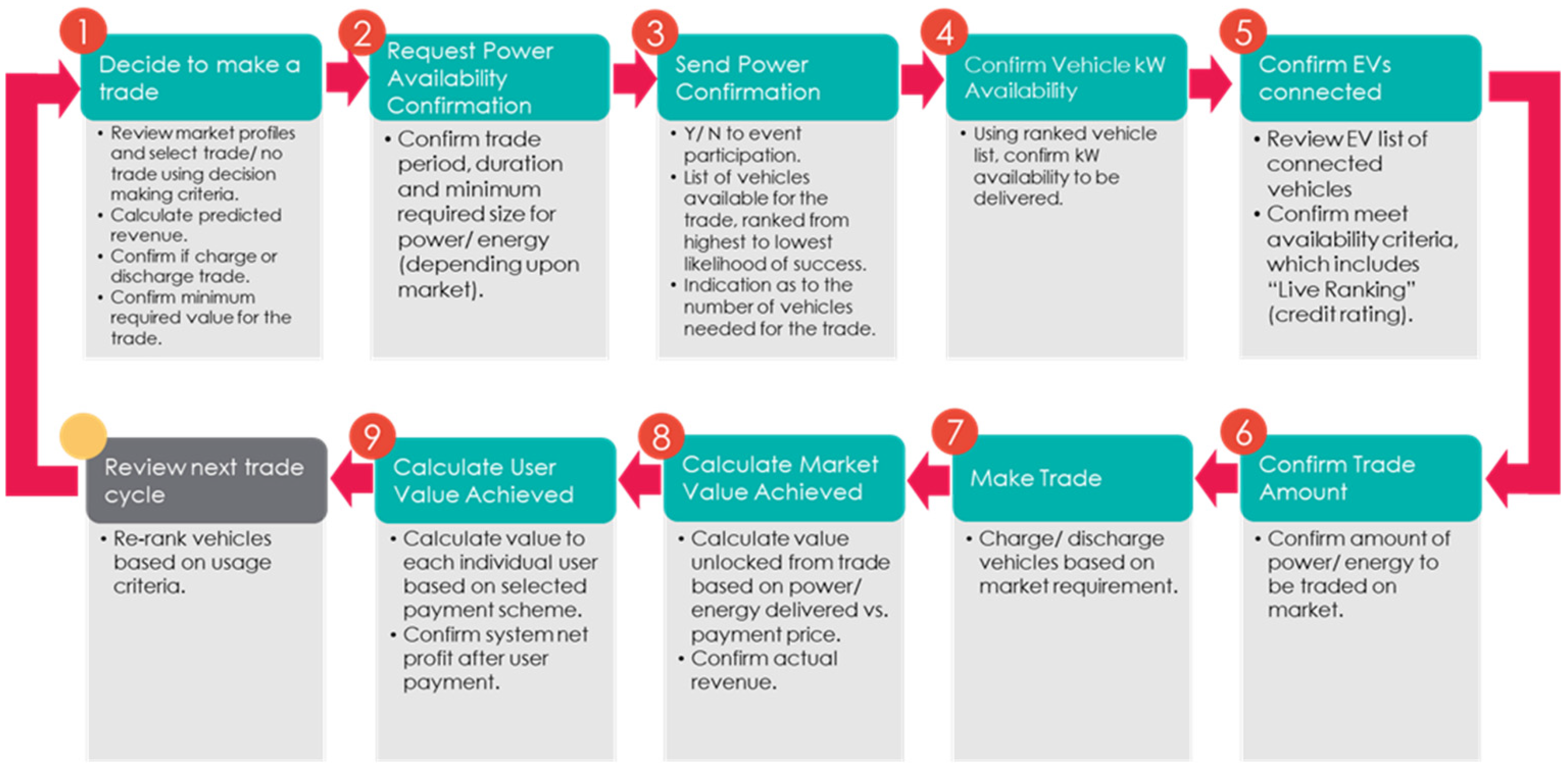

Figure 2. Schematic of the process of making energy trades using the Live Service.
Figure 2. Schematic of the process of making energy trades using the Live Service.
Energies 14 07176 g002

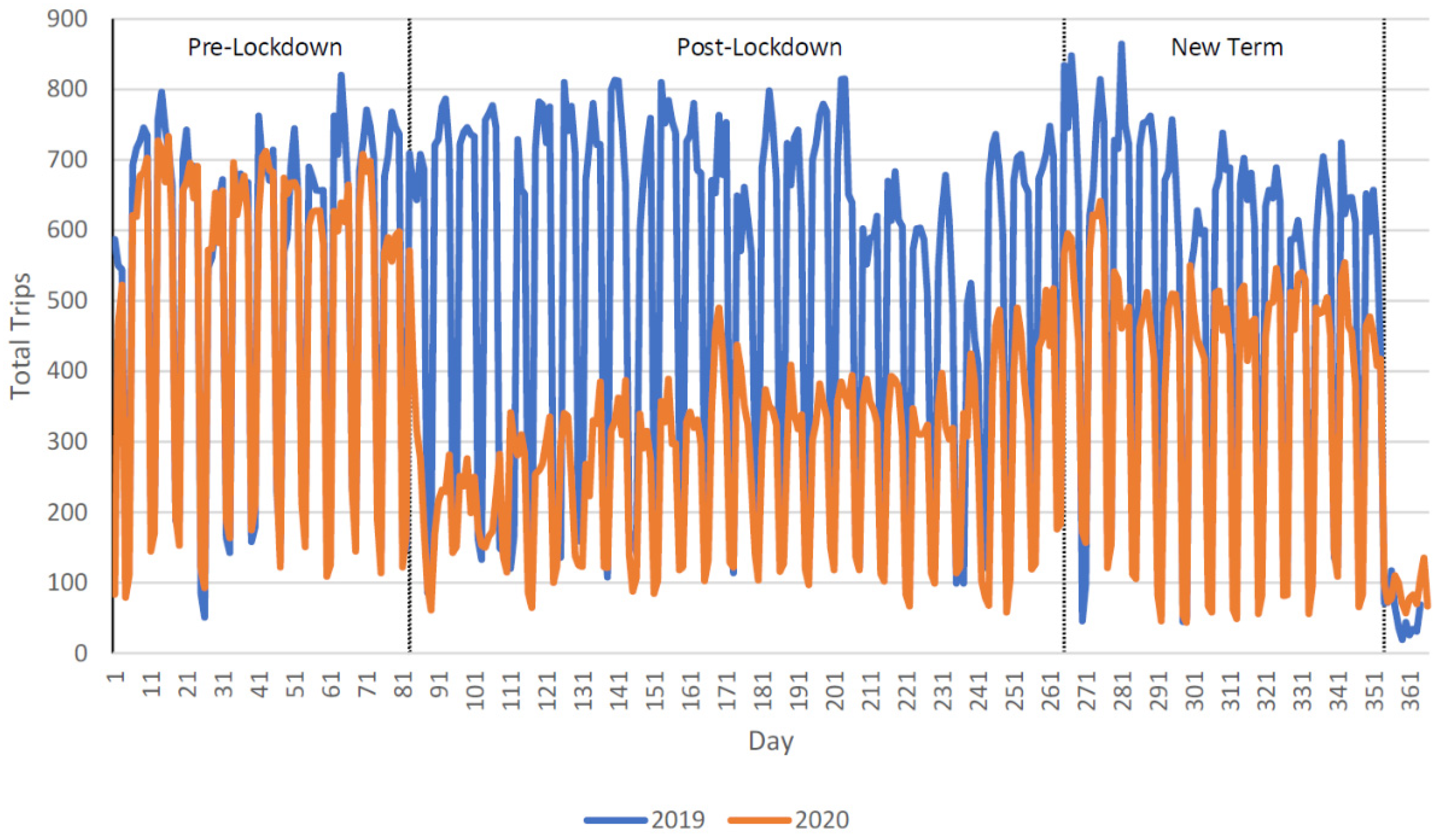

Figure 3. Total number of trips taken by the tracked vehicles on each day of the year. Three periods were identified for 2020: preceding the first UK national lockdown; between the start of the first lockdown and the start of the 2020/2021 academic year; and the first term of the academic year.
Figure 3. Total number of trips taken by the tracked vehicles on each day of the year. Three periods were identified for 2020: preceding the first UK national lockdown; between the start of the first lockdown and the start of the 2020/2021 academic year; and the first term of the academic year.
Energies 14 07176 g003

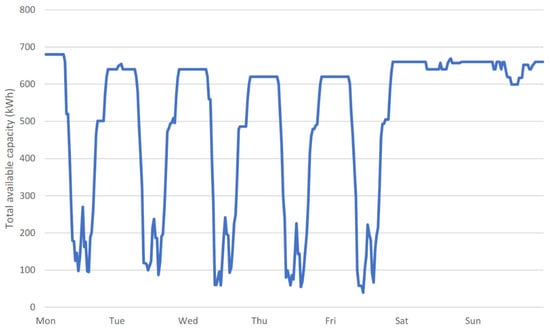

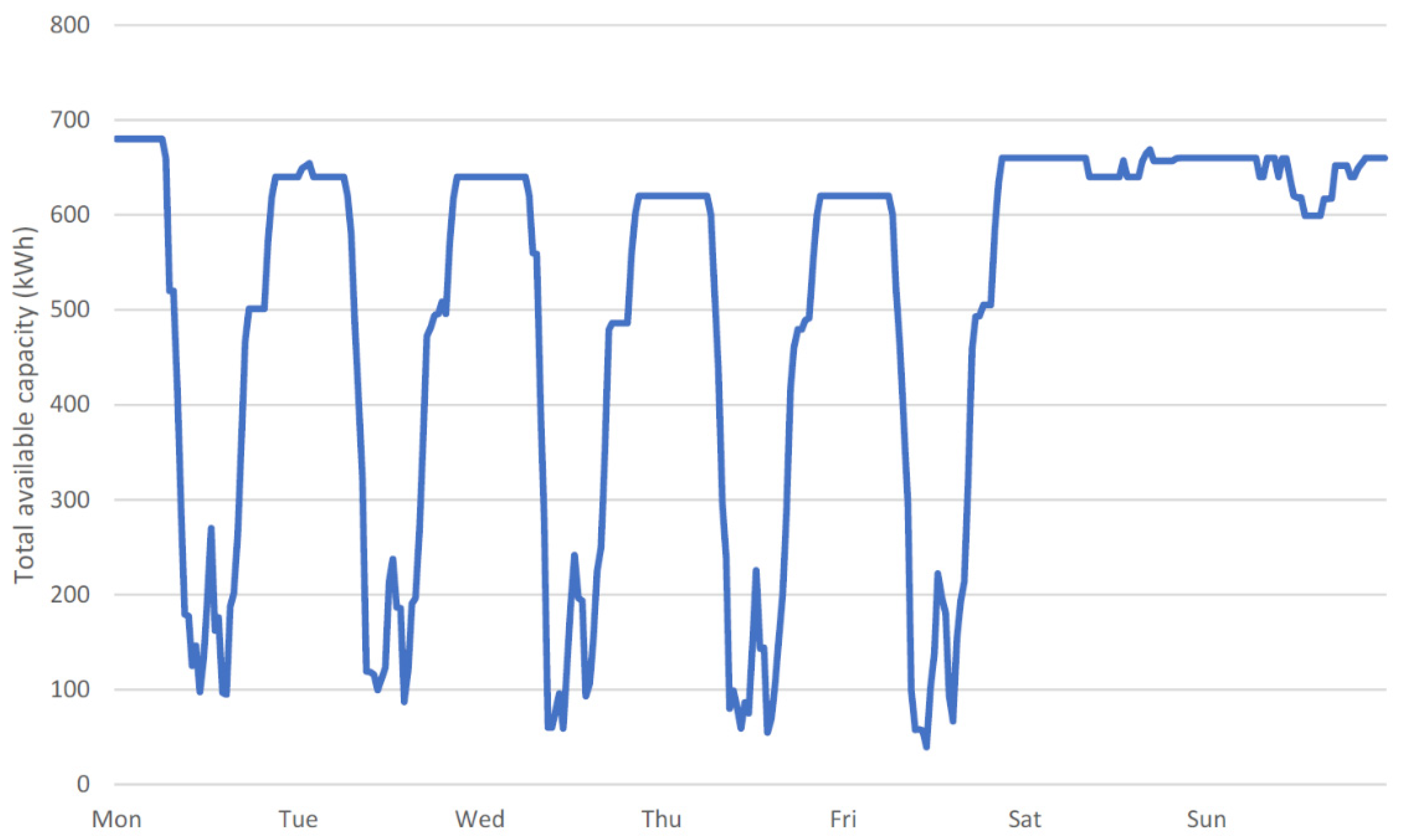

Figure 4. Typical weekly profile for total available capacity from the fleet of vehicles.
Figure 4. Typical weekly profile for total available capacity from the fleet of vehicles.
Energies 14 07176 g004

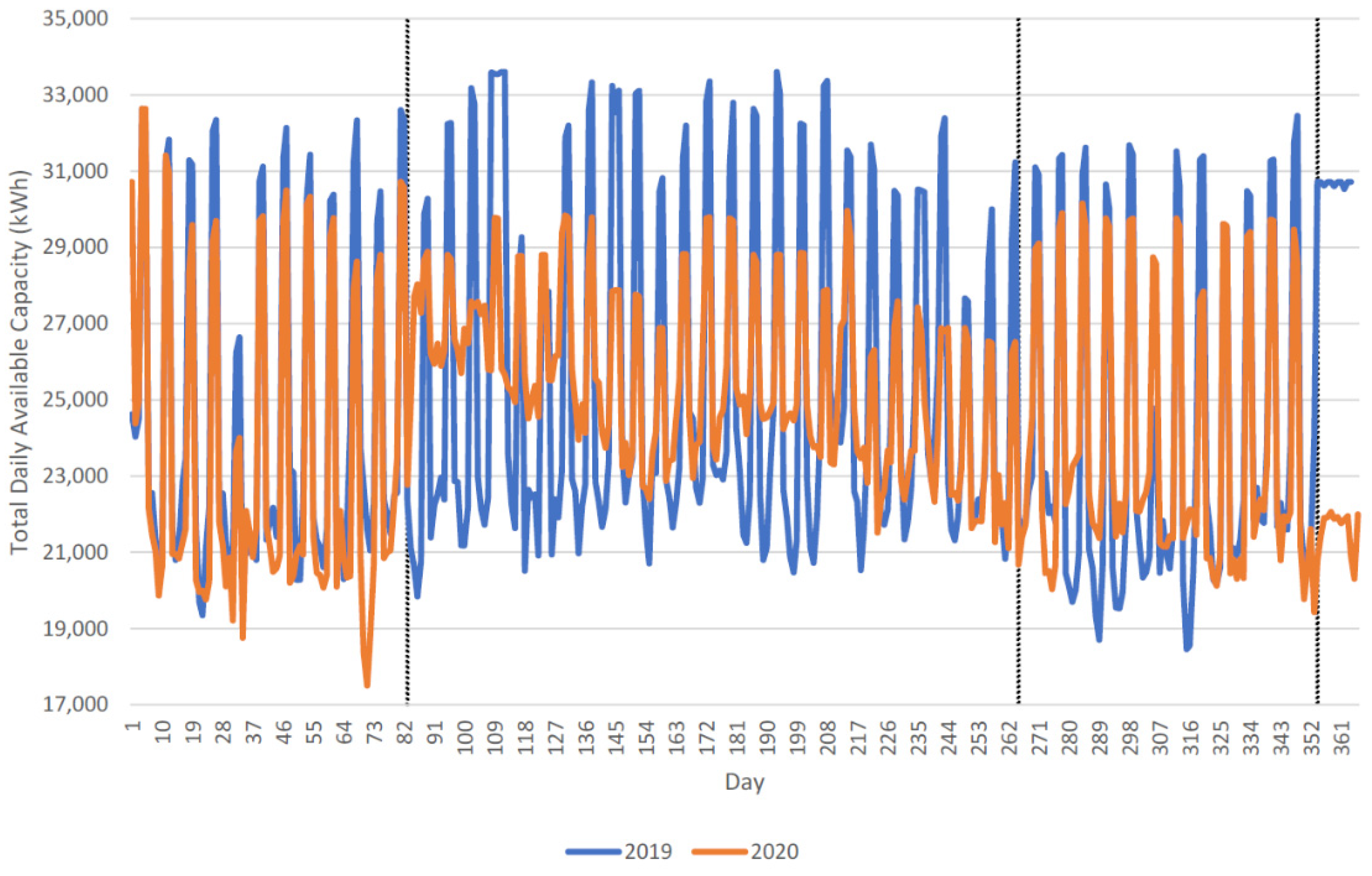

Figure 5. Total available capacity from the fleet for each day during 2019 and 2020. Pre-lockdown, post-lockdown and new academic term periods are identified as for Figure 3.
Figure 5. Total available capacity from the fleet for each day during 2019 and 2020. Pre-lockdown, post-lockdown and new academic term periods are identified as for Figure 3.
Energies 14 07176 g005

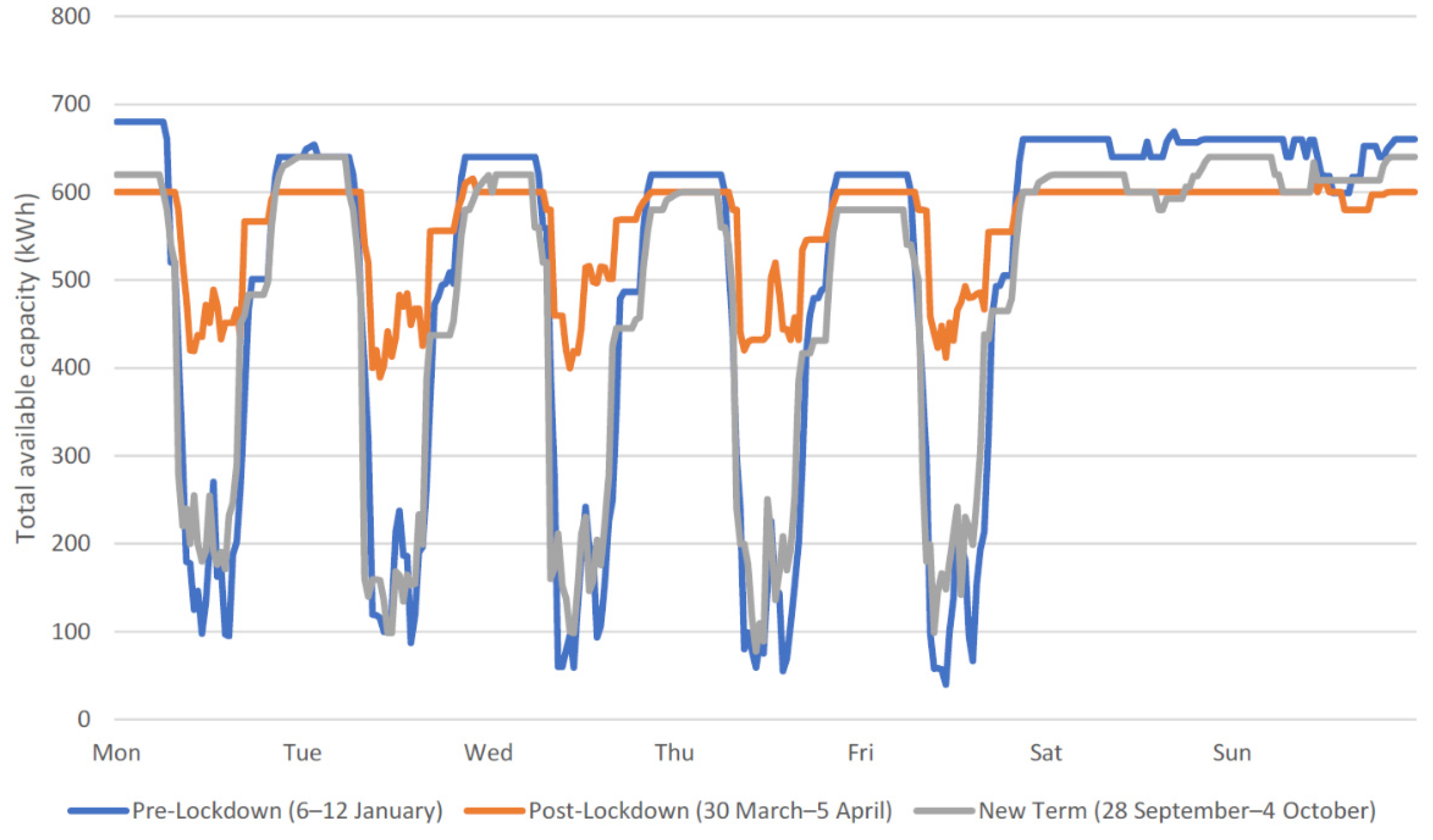

Figure 6. Comparison of example weekly available capacity profiles in 2020 from the pre-lockdown, post-lockdown, and new term phases.
Figure 6. Comparison of example weekly available capacity profiles in 2020 from the pre-lockdown, post-lockdown, and new term phases.
Energies 14 07176 g006

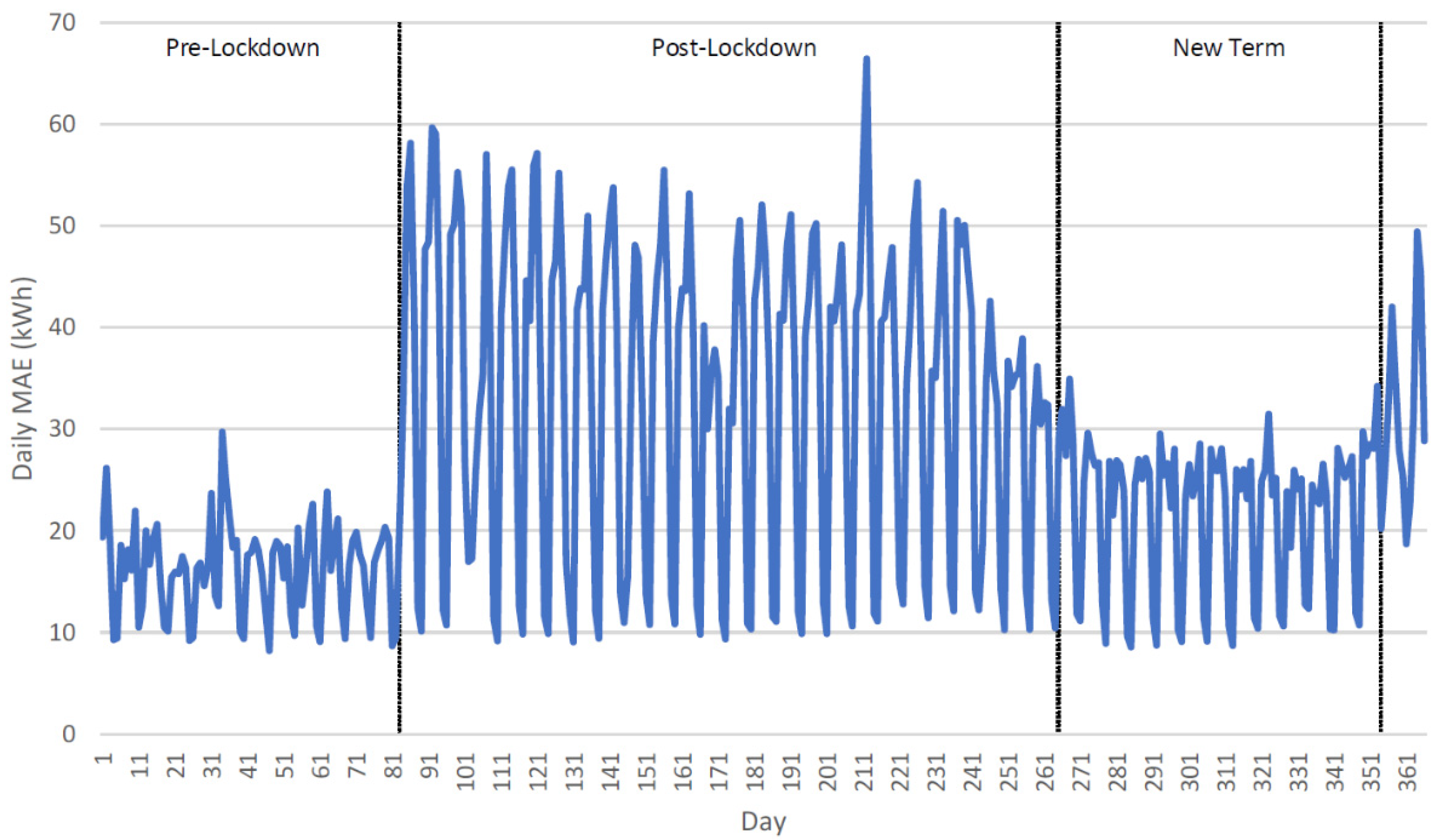

Figure 7. Daily mean absolute error (MAEd) with no online machine learning for 2020 averaged across 10 independent models trained on 2019 data.
Figure 7. Daily mean absolute error (MAEd) with no online machine learning for 2020 averaged across 10 independent models trained on 2019 data.
Energies 14 07176 g007

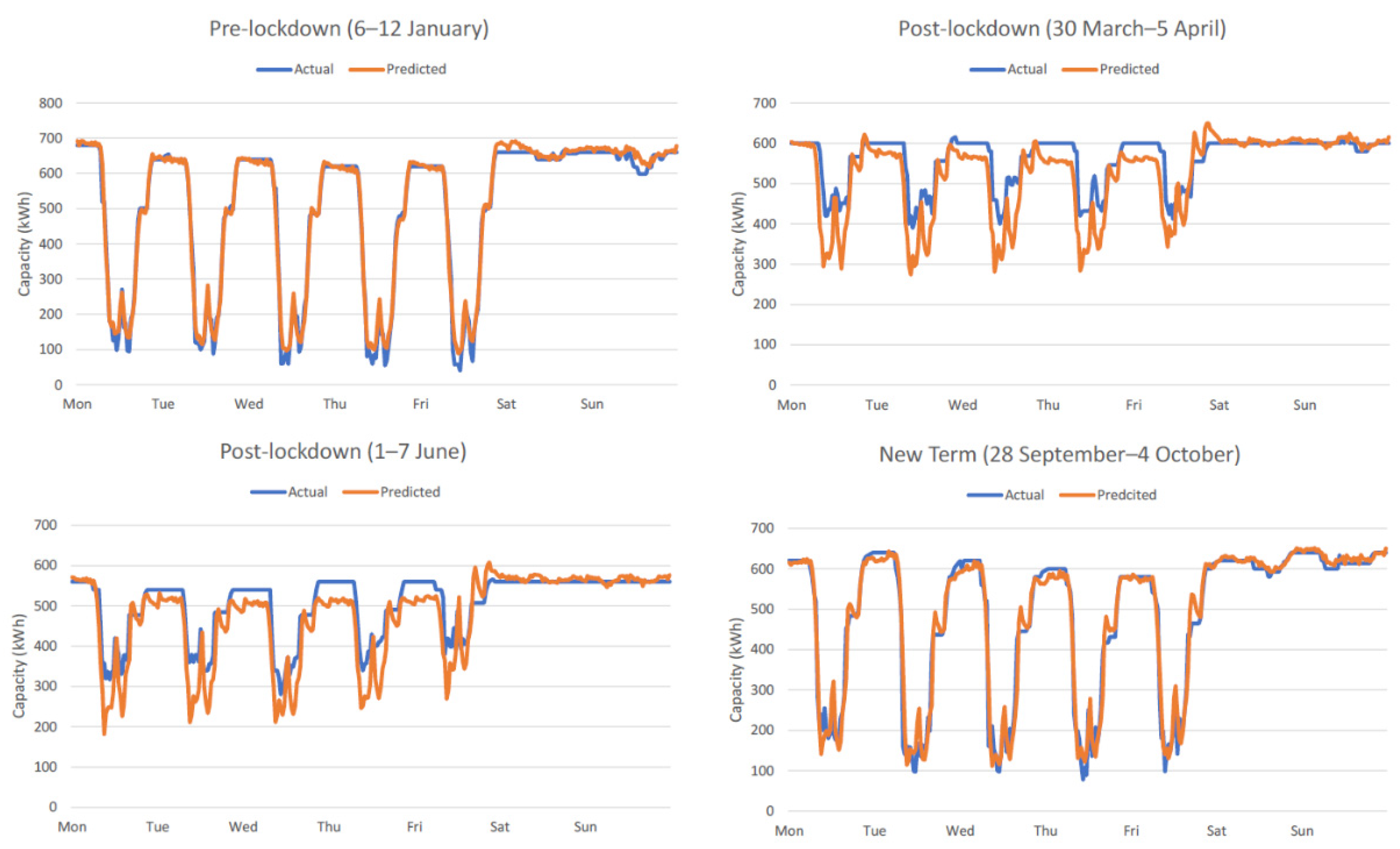

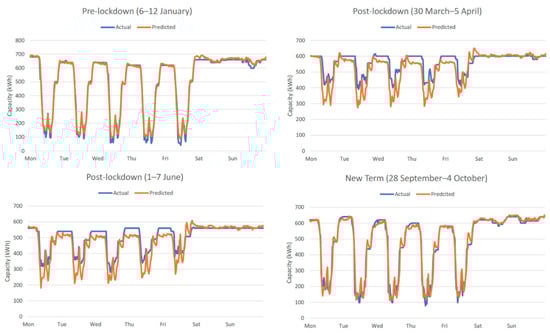

Figure 8. Actual vs. predicted capacity using the model without online machine learning for 4 sample weeks during 2020.
Figure 8. Actual vs. predicted capacity using the model without online machine learning for 4 sample weeks during 2020.
Energies 14 07176 g008

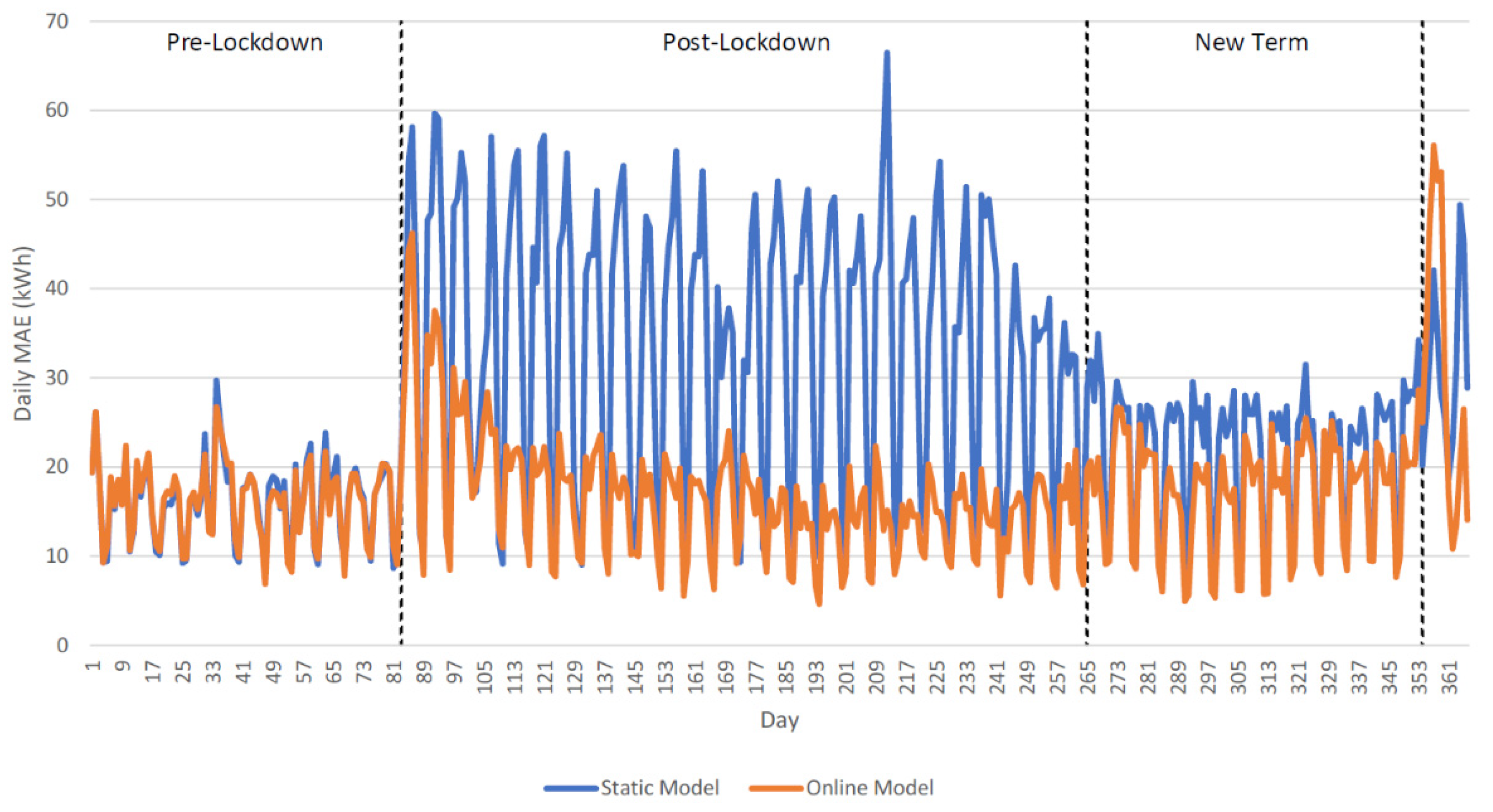

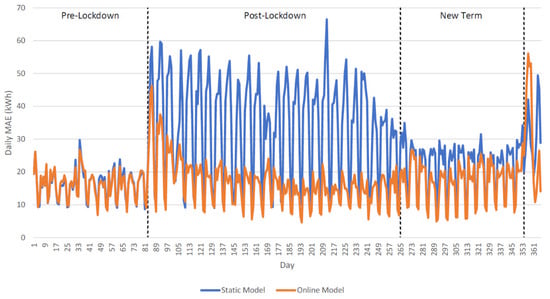

Figure 9. Average results across 10 models tested on the 2020 data with online machine learning. Equivalent results for the static model without online machine learning are also shown for comparison.
Figure 9. Average results across 10 models tested on the 2020 data with online machine learning. Equivalent results for the static model without online machine learning are also shown for comparison.
Energies 14 07176 g009

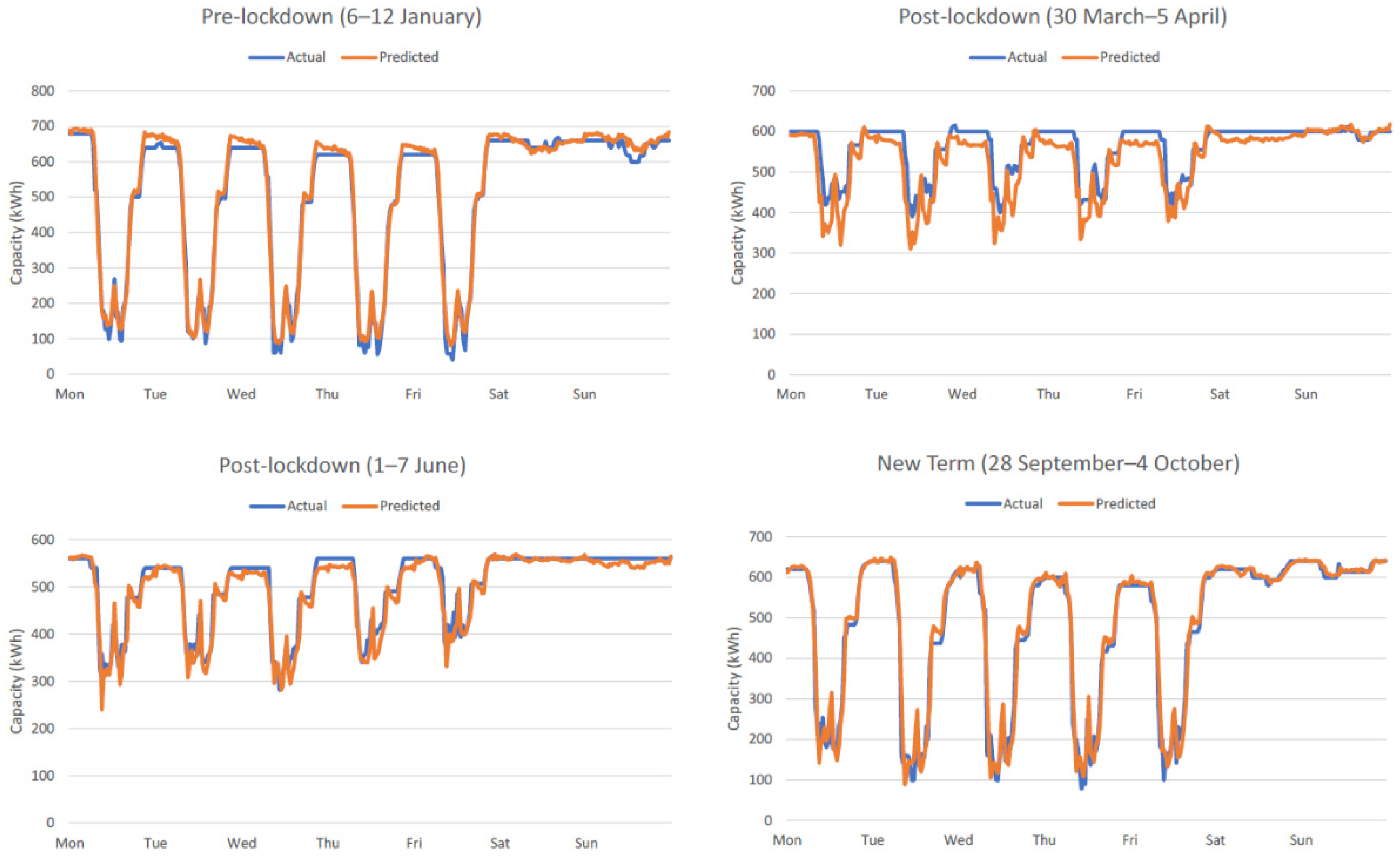

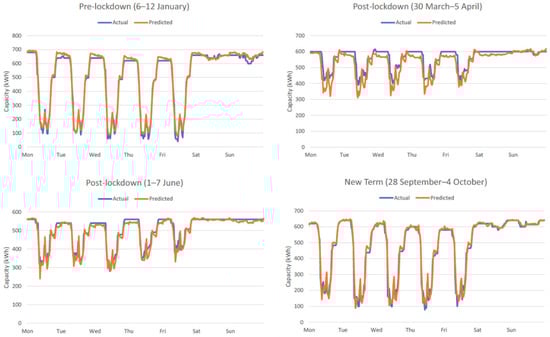

Figure 10. Actual vs. predicted capacity using the online machine learning model for 4 sample weeks during 2020.
