Numerical Investigation of the Impact of H₂ Enrichment on Lean Biogas/Air Flames: An Analytical Modelling Approach

Abstract

The transition from natural gas to renewable gases such as biogas and hydrogen creates an interchangeability challenge. The laminar flame speed $S_L$ is a critical parameter in appliance design as it is a unique characteristic of the flame mixture. It is thus essential to evaluate the impact of renewable gases on $S_L$. In this work, 1D simulations were conducted in Cantera with the USC-Mech 2.0 kinetic mechanism. The $S_L$ of three base biogas blends (BG100, BG90 and BG80) was computed for H₂ enrichment up to 50% in volume, equivalence ratio $0.8\le \varphi \le 1.0$, $p=1$ atm and $T_u=298$ K. It was found that the effect of H₂ enrichment is higher for base blends with higher CO₂ content as the thermal-diffusive and dilution effects of carbon dioxide are mitigated by hydrogen. The introduction of H₂ also increases the H radical pool, which is linked with the increase in $S_L$. A new correlation to model the impact of H₂ enrichment, $S_L\left(x_{{\mathrm{H}}_2}\right)=\left(\zeta \left(\varphi \right)/S_L^{\prime }\left(x_{\mathrm{C}{\mathrm{O}}_2}\right)\right)x_{{\mathrm{H}}_2}{e}^{x_{{\mathrm{H}}_2}}+S_L^{\prime }\left(x_{\mathrm{C}{\mathrm{O}}_2}\right)$, is proposed, which exhibits good agreement with the literature data and simulations. This equation can be directly used to estimate $S_L$ without the need for a priori adaptations of fit parameters as the contributions of CO₂ and H₂ are isolated in independent variables.

1. Introduction

Natural gas is a widely used fuel in applications ranging from heating and electricity generation to cooking and vehicle fuel [1]. However, the increasingly ambitious greenhouse gas (GHG) emission reduction targets, set by governments and institutions, means that it will likely be phased out in the future. As many of its current applications are not easily adaptable to consume electricity, renewable gases will be required. Recent developments in technology and public policy have opened a pathway where hydrogen and biogas are the likely candidates to replace natural gas [2,3,4,5].

Biogas is a biofuel obtained from the anaerobic digestion of organic matter. Its main components are CH₄ and CO₂, and it is often upgraded to biomethane by removing the excess carbon dioxide [6]. As biogas exhibits a similar composition to natural gas, with methane occupying the largest volume share in both, it has been widely used in its place in the past. In Denmark, for example, more than 50% of the biogas produced in the country is upgraded and injected in the national gas grid [7]. However, the limited feedstock for biogas production in most countries indicates that it cannot solely meet the gas demand. Therefore, green hydrogen has been pointed out as a more scalable alternative. It can be produced through electrolysis, requiring only a source of water and electricity [8]. By producing hydrogen through electrolysis, it is possible to couple the gas and electricity sectors, taking advantage of off-peak hours electricity production. However, replacing natural gas with hydrogen raises additional concerns as the two fuels have significantly different properties. The introduction of hydrogen and biogas in the energy sector is expected to be gradual by incorporating larger shares of renewable gases as time goes on. Several countries have already established targets for the use of renewable gases, particularly hydrogen, at least until 2030. Based on national strategies and roadmaps, a summary of these for selected countries is provided in

Table 1. Hydrogen related targets in selected countries for 2030. Data collected from national hydrogen roadmaps.

Country	Electrolyser Capacity (GW)	Hydrogen Refuelling Stations	Hydrogen Share in Gas Networks (%)
France	6.5	400–1000	-
Germany	5	-	-
Japan	-	900	-
Netherlands	3–4	-	-
New Zealand	-	-	20
Portugal	2–2.5	50–100	10–15
South Korea	-	310–1200	-
Spain	4	100–150	-

:

A major challenge in the transition from natural gas to renewable gases in the gas system is the interchangeability in end-use equipment [9]. These devices are often tailored for a specific fuel composition, thus having a unknown performance when this changes. Therefore, it is crucial to effectively determine the impact of different levels of renewable gas incorporation in current gas systems in a fast and accessible way. Significant impacts on reaction chemistry are expected due to high concentrations of CO₂ and H₂ in the gas composition resulting from hydrogen and biogas admixture. The sub-mechanism of the water-gas shift (WGS) reaction (CO + H₂O ⇌ CO₂ + H₂) is of particular importance in hydrogen applications. This reaction appears through the combination of the CO oxidation and a radical shuffle reaction [10]:

$$\mathrm{C}\mathrm{O}+\mathrm{O}\mathrm{H}\rightleftharpoons \mathrm{C}{\mathrm{O}}_{\mathrm{2}}+\mathrm{H}$$

(1)

$${\mathrm{H}}_2\mathrm{O}+\mathrm{H}\rightleftharpoons \mathrm{O}\mathrm{H}+{\mathrm{H}}_2$$

(2)

Changes in reaction kinetics will ultimately have an impact on the laminar flame speed $S_L$, a critical parameter in appliance design. This unique characteristic of a premixed combustion mixture depends on the reaction rate, thermal diffusivity and temperature in the flame region [11]. Consequently, a precise determination of $S_L$ is of the utmost importance in design and equipment performance.

The estimation of $S_L$ is often time-consuming. It can be experimentally measured, which often makes the process expensive, or obtained using numerical models. However, these methods require extensive and detailed kinetics mechanisms, which increase the computational cost [12]. As a result, there has been an effort to develop empirical and analytical relations to estimate $S_L$ for varied blends and conditions [13]. Several authors have focused on the impact of diluents in $S_L$ to address a challenge posed by exhaust gas recirculation (EGR) systems. Metgalchi and Keck [14], in 1982, established a “power-law” relation, which has been widely adopted [15,16]:

$$S_L=S_{L,ref}{\left(\frac{p}{p_{ref}}\right)}^{\sigma }{\left(\frac{T_u}{T_{u,ref}}\right)}^{\gamma }\left(1-2.1y_{dil}\right)$$

(3)

where $S_{L,ref}$ is the laminar flame speed at pressure $p=p_{ref}$ and unburned gas temperature $T_u=T_{u,ref}$ for a determined equivalence ratio $\varphi$. $\sigma =\sigma \left(\varphi \right)$ and $\gamma =\gamma \left(\varphi \right)$ are fit parameters and $y_{dil}$ the mass fraction of diluents in the premixed combustion mixture. The formulation of Equation (3) was based on experimental data obtained for propane, methanol, isooctane and indolene tested in a constant volume bomb experiment. The diluent simulated an EGR gas mixture (85%N₂/15%CO₂). Since then, other authors explored alternative formulations. Han et al. [17] tested CH₄/EGR mixtures, where EGR = 81.5%N₂/18.5%CO₂, obtaining the following correlation from empirical data: $S_{L,ref}=229.7D^2-157.6D+35.26$, where D is the volume fraction of EGR in the mixture. Elia et al. [18] proposed the following expression for a diluent mixture composed of 86%N₂/14%CO₂: $S_L/S_{L,ref}=1-a_{1}D+a_2{D}^2+a_3{D}^3$, where D is the diluent volume fraction (in %) and $a_i$ are model parameters.

Biogas composition is highly variable depending on the substrate used in production, as well as on the anaerobic digestion process, which, in turn, is affected by several technical aspects. As a result, the weight of CH₄ and CO₂ in the blend composition varies significantly, thus changing the laminar flame speed. Hydrogen can be used to compensate the changes in $S_L$ caused by increases in CO₂ content to attain a relatively steady value of $S_L$ that ensures adequate equipment performance and safety. However, to do this, an accurate estimation of the H₂ enrichment impact on the laminar flame speed is necessary, to ensure that changes in $S_L$ are not over- or under-compensated by the hydrogen admixture. In 2011, based on the original formulation of Metgalchi and Keck (Equation (3)), Bougrine et al. [19] proposed a new correlation to model $S_L$ in CH₄/H₂ flames. To this end, the authors performed one-dimensional simulations and collected literature data across a wide set of conditions. Even though the resulting model exhibited good agreement with premix simulations, it required the determination of 40 fit parameters, making its use not expeditious. Furthermore, biogas was not directly addressed in this research.

Recently, Quintino and Fernandes [20] explored the possibility of using an analytical correlation to model the impact of CO₂ content on the $S_L$ of biogas/air lean flames. Based on the formulation of Equation (3), a new expression was obtained, exhibiting good results for a mass fraction of CO₂ ($y_{\mathrm{C}{\mathrm{O}}_2,dil}$) in the flame up to 0.38. The model parameters were estimated using data from one-dimensional numerical simulations. Furthermore, the expression performance was also evaluated with available literature results. The final model took the form of Equation (4):

$$S_L=S_{L,ref}{\left(\frac{p}{p_{ref}}\right)}^{\sigma }{\left(\frac{T_u}{T_{u,ref}}\right)}^{\gamma }\left(1+\alpha y_{dil}+\beta y_{dil}^2\right)$$

(4)

where p and $T_u$ are the pressure and temperature of the unburned mixture, respectively, $p_{ref}=1$ atm and $T_{u,ref}=298$ K, $S_{L,ref}=S_{L,ref}\left(\varphi \right)$ is the laminar flame speed at reference conditions and $y_{dil}=0$ and $\alpha =\alpha \left(\varphi \right)$, $\beta =\beta \left(\varphi \right)$, $\sigma =\sigma \left(\varphi \right)$ and $\gamma =\gamma \left(\varphi \right)$ are model parameters. More details on the model can be found in the original paper [20]. This correlation failed to incorporate the possibility of hydrogen enrichment, making it possible to assess the drop in $S_L$ for a determined CO₂ content, but not to estimate the H₂ admixture necessary to compensate such a drop.

This work aims to study the impact of H₂ enrichment on the laminar flame speed of lean biogas/air flames and to develop an analytical correlation to model $S_L$, extending the application range of Equation (4). To that end, one-dimensional simulations in Cantera software are conducted for three base biogas blends (BG100, BG90 and BG80), with the equivalence ratio between 0.8 and 1.0 and hydrogen content in the fuel mixture up to 50% in volume. The impacts of thermal-diffusive, dilution and chemical effects of CO₂ and H₂ on $S_L$ at $p=1$ atm and $T_u=298$ K are analysed. A correlation is proposed and validated with simulations and literature data.

2. Methods

2.1. Modelling

Simulations were conducted using the CANTERA toolkit [21] in the Python (Version 3.7) programming language (Python Software Foundation, http://www.python.org/). The laminar flame speed $S_L$ for each blend and condition were obtained with a one-dimensional freely propagating flame routine (FPF). Steady-state and uniform inlet conditions were assumed in every run. The computational domain was defined with a sufficient size to ensure negligible heat and mass diffusion through the boundary. Inlet pressure and temperature were set to $p=1$ atm and $T_u=298$ K, respectively.

The 1D FPF routine was fed with the USC Mech 2.0 kinetics mechanism [22], published in 2007 by the Combustion Kinetics Laboratory of the University of Southern California. It comprises 111 chemical species and 784 reactions and is tailored for the combustion of H₂/CO/C₁-C₄ based blends. This mechanism has overall presented good results with CH₄/CO₂/H₂ fuels in engine simulations [23] and in the estimation of laminar premixed combustion characteristics [24,25].

Three base biogas blends were adopted for the conducted simulations: BG100, BG90 and BG80. Under the notation BG$XX$, $XX$ indicates the volume content (v/v %) of CH₄ in the blend, while the remainder is assumed to be CO₂. Previous research has shown that the presence of small quantities of other ballast components in biogas have little impact on $S_L$ values [20], indicating that modelling of biogas as a CH₄/CO₂ mixture is a valid assumption for this work. The impact of hydrogen enrichment for each biogas blend was also evaluated. H₂ content by volume in the fuel ($x_{{\mathrm{H}}_2}$) varied between 0% and 50%, with 1 p.p.steps. It was calculated as:

$$x_{{\mathrm{H}}_2}=\frac{n_{{\mathrm{H}}_2}}{n_{\mathrm{C}{\mathrm{H}}_4}+n_{\mathrm{C}{\mathrm{O}}_2}+n_{{\mathrm{H}}_2}}$$

(5)

where $x_{{\mathrm{H}}_2}$ is the hydrogen content in the fuel blend and $n_i\left[\mathrm{mol}\right]$ the amount of species i. The combustion reaction equivalence ratio $\varphi$ varied in the interval $0.8\le \varphi \le 1.0$, with 0.05 steps. Air was assumed to be only O₂ and N₂ in a 21/79% proportion. Every base biogas blend was simulated at every $\varphi$ and $x_{{\mathrm{H}}_2}$ detailed above.

2.2. Correlation

As stated before, this work intends to develop an analytical correlation to model the impact of H₂ enrichment on the $S_L$ of lean biogas/air flames. Based on the model outputs, a correlation was obtained using a best fit routine. To do so, several formulations based on the exponential behaviour were tested. This was performed using the curve-fit() function of the SciPy (Version 1.5.4) module in Python. The routine tests a function formulation and determines the parameters that provide the best fit. Simplicity was prioritized in the choice of the mathematical formulation. It was ensured that the obtained correlation attained an $R^2\ge 0.99$ for every base blend and $\varphi$. Furthermore, it was also guaranteed that correlation parameters were independent of CO₂ content ($x_{\mathrm{C}{\mathrm{O}}_2}$) in the base biogas blend except for an intermediate flame speed $S_L^{\prime }$, which already accounts for the carbon dioxide contribution. The expressions tested assumed the following formulation:

$$S_L=S_L(x_{{\mathrm{H}}_2},\varphi ,S_L^{\prime })$$

(6)

where $S_L[\mathrm{m}/\mathrm{s}]$ is the laminar flame speed, $x_{{\mathrm{H}}_2}$ is the H₂ enrichment given by Equation (5), $\varphi$ is the equivalence ratio and $S_L^{\prime }=S_L^{\prime }\left(x_{\mathrm{C}{\mathrm{O}}_2}\right)[\mathrm{m}/\mathrm{s}]$ is an intermediate flame speed ($x_{\mathrm{C}{\mathrm{O}}_2}$ is the CO₂ content in the base biogas blend such that $x_{\mathrm{C}{\mathrm{O}}_2}=n_{\mathrm{C}{\mathrm{O}}_2}/(n_{\mathrm{C}{\mathrm{O}}_2}+n_{\mathrm{C}{\mathrm{H}}_4})$.).

3. Results and Discussion

This discussion is divided into three complementary sections. In Section 3.1, the impact of H₂ content in the $S_L$ of biogas/air flames is discussed. Literature data on this topic were found to be scarce and, when present, focused on a narrow subset of conditions that did not support the development of a new correlation. Therefore, a numerical analysis was conducted to quantify the different effects of H₂ and CO₂ content on $S_L$ and to provide fundamental support for the model development. Here, the results obtained from the 1D-FPF simulations are presented, and the coupling effect of CO₂ and H₂ on $S_L$ is depicted. Section 3.2 describes the analytical model proposed in this work. The criteria used for model development are presented, and the improvement on Equations (3) and (4) is described. Furthermore, the new model’s novelty is explained. Finally, the proposed correlation is validated with reliable H₂/CO₂/CH₄/air $S_L$ measurements in Section 3.3. Model predictions are compared with literature data to assess performance, and relevant cases for model application are described.

3.1. Hydrogen Content Impact on $S_L$

The fuel blends tested in this work are ternary mixtures of CH₄, CO₂ and H₂ in varying proportions. Each of these species impacts the laminar flame speed by changing the mixture properties: producing thermal-diffusive, kinetic and concentration effects [26,27]. Thermal-diffusive effects are caused by changes in thermal diffusivity and the specific heat capacity of the mixture. Kinetic or chemical effects occur by the participation of species in chemical reactions or pathways [28]. Concentration effects result from a reduced amount of a determined species caused by the increase of any other. Methane, carbon dioxide and hydrogen exhibit largely different properties, making their impact on any of these effects highly asymmetric. While CH₄ and H₂ are reactive species, CO₂ can be generally considered an inert gas. Regarding density, that of CO₂ is around 20 times higher than that of H₂. Thus, an understanding of these species’ contributions on the effects that ultimately impact $S_L$ is of paramount importance.

Simulations were performed for three base biogas blends: BG100 (pure CH₄), BG90 and BG80. For each of these, the range of hydrogen enrichment, as defined by Equation (5), varied within the interval $0\%\le x_{{\mathrm{H}}_2}\le 50\%$. The equivalence ratio $\varphi$ range was set from 0.8 to 1.0, with 0.05 steps. The obtained results are exhibited in $S_L$ vs. $x_{{\mathrm{H}}_2}$ plots in Figure 1, Figure 2 and Figure 3, for BG100, BG90 and BG80, respectively.

Naturally, in all three cases, an increased $x_{{\mathrm{H}}_2}$ produced an increase in $S_L$. The thermal flame theory of Mallard and Le Chatelier [29] states that $S_L$ is dependent on the reaction rate ($\dot{\omega }$), thermal diffusivity ($\alpha$) and temperature (T (b—burned, u—unburned, i—ignition)) in the flame region in the form of Equation (7):

$$S_L=\sqrt{\alpha \dot{\omega }\left(\frac{T_b-T_i}{T_i-T_u}\right)}$$

(7)

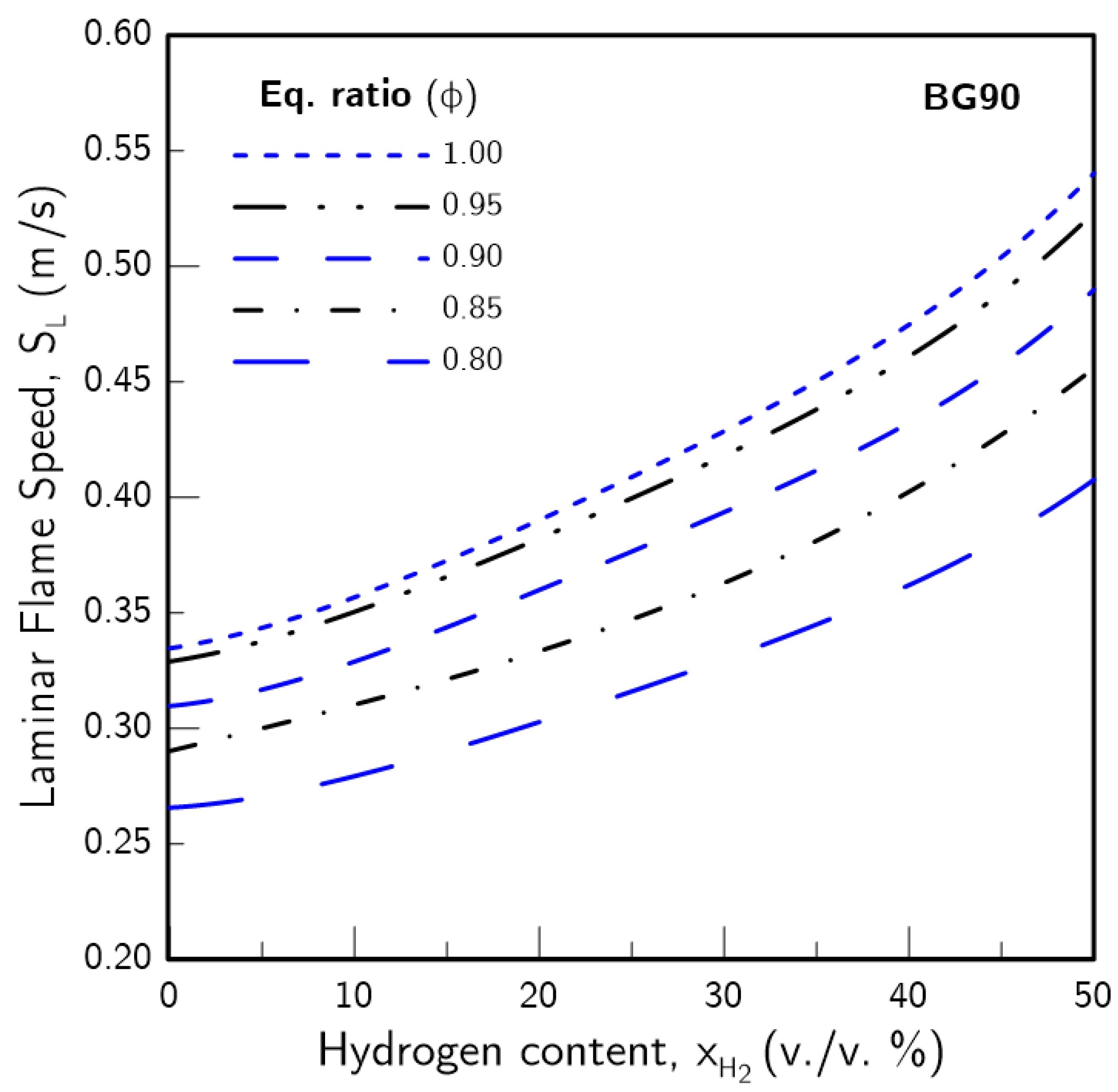

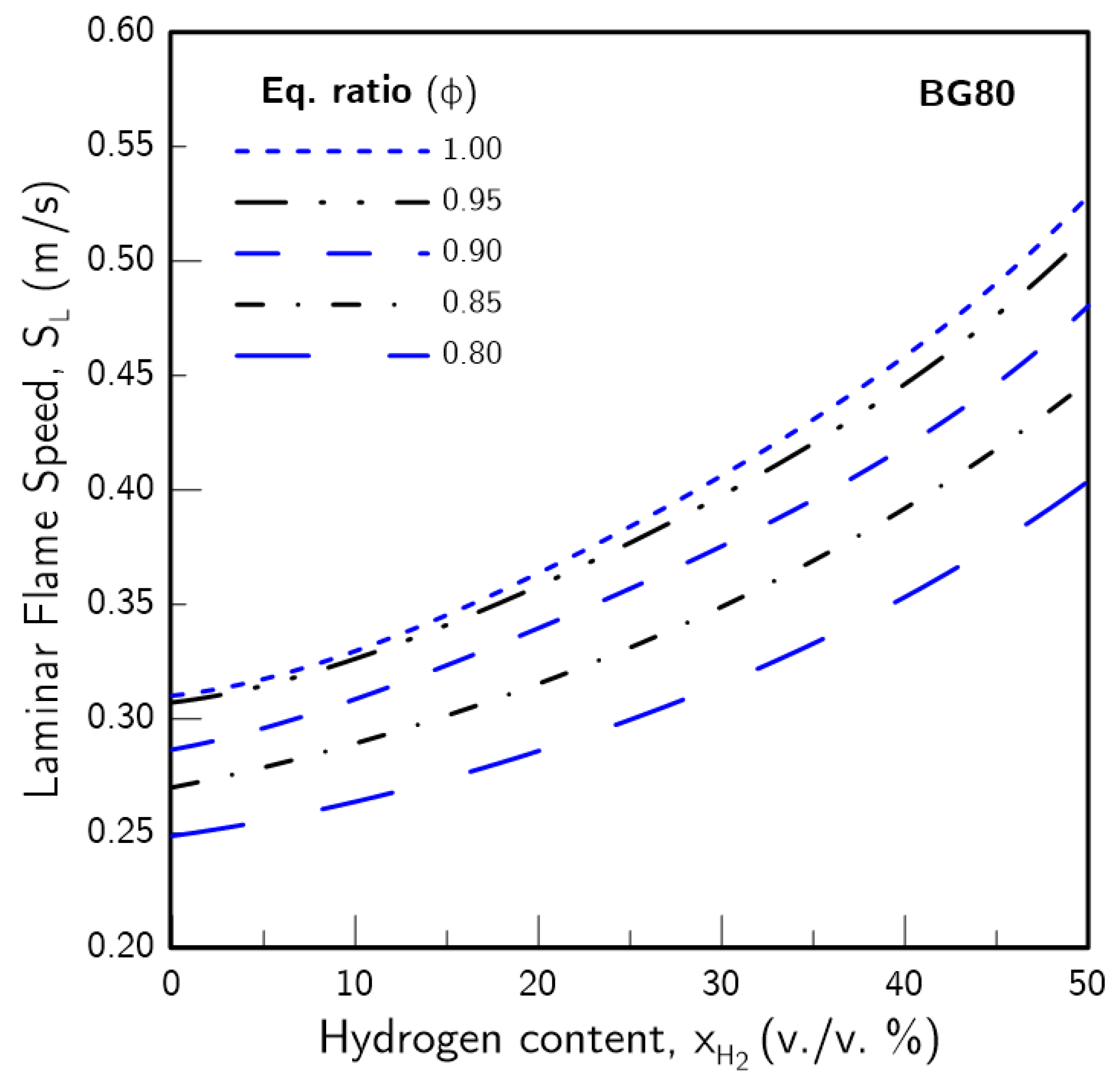

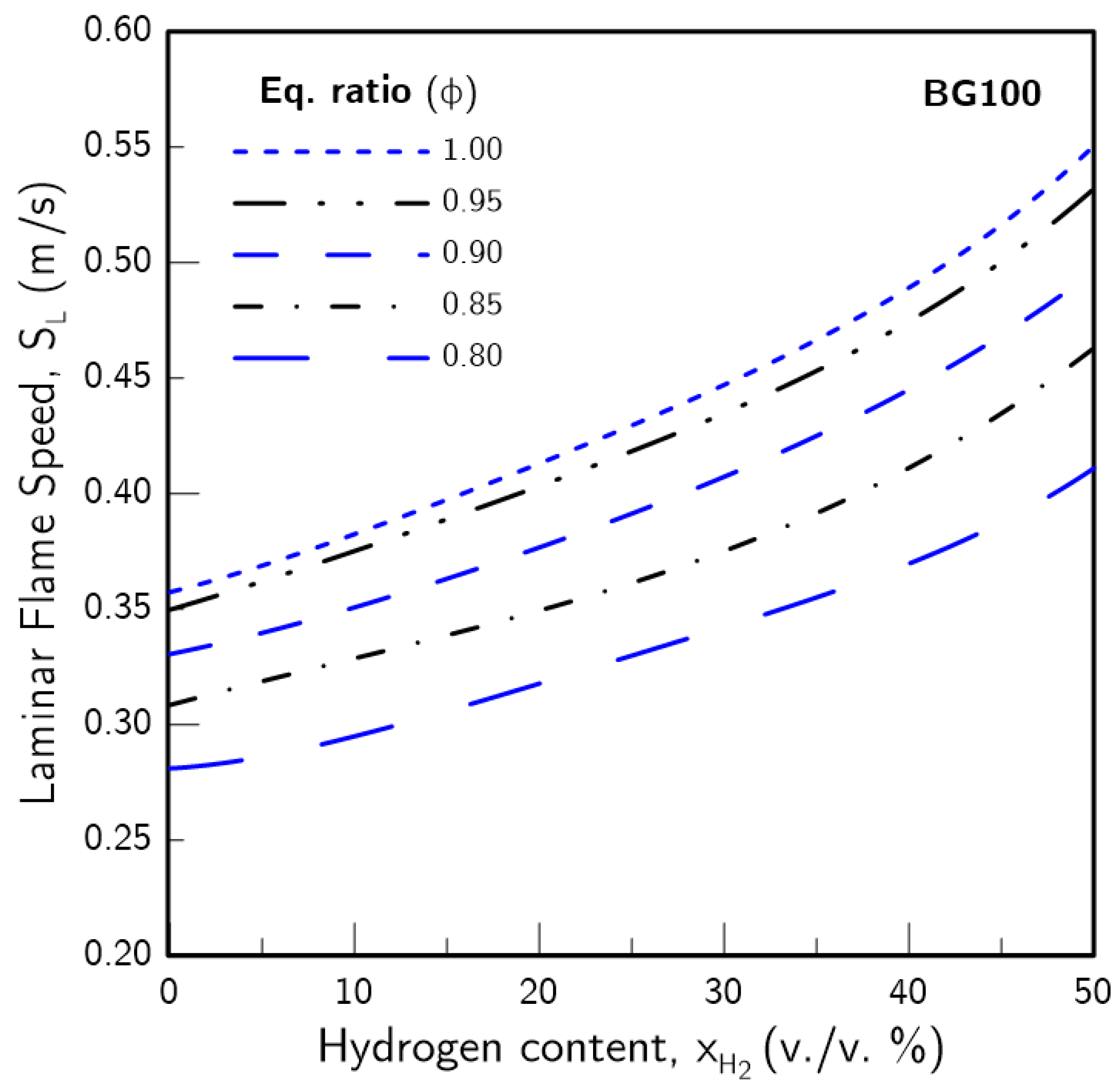

Hydrogen enrichment increases $\alpha$ and $\dot{\omega }$, as well as temperature, thus raising $S_L$. A comparison of the curves exhibited in Figure 1, Figure 2 and Figure 3 shows that hydrogen enrichment of biogas blends attenuates the negative effects of CO₂ in a non-linear fashion, with a greater proportion the higher $x_{{\mathrm{H}}_2}$ is. If an $S_L$ average for every $\varphi$ tested is taken at $x_{{\mathrm{H}}_2}=0\%$, it is observed that from BG100 to BG90, there is a $S_L$ drop of 6.3%, due to the contribution of CO₂. The difference increases between BG100 and BG80, reaching 13%. However, the same calculation performed at $x_{{\mathrm{H}}_2}=50\%$ yields a drop of 1.3% from BG100 to BG90 and of 3.1% from BG100 to BG80. As a consequence, the impact of hydrogen enrichment on $S_L$ is greater when CO₂ content is higher in the base biogas blend. On average, the $S_L$ increase caused by $x_{{\mathrm{H}}_2}=50\%$ is of 47.3% for BG100, 58.3% for BG90 and 67.5% for BG80.

Numerical simulations conducted by Wei et al. [30] indicate that the concentration of the H radical in the flame region affects the $S_L$ of BG/H₂ flames. Whereas H₂ increases the presence of H through the reactions R1: OH + H₂ → H₂O + H and R2: O + H₂ → H + OH, CO₂ produces the opposite phenomena through R3: OH + CO → H + CO₂ and R4: O + CH₃ → H + CH₂O. As introduced in Section 1, R1 and R3 are the steps of the water-gas shift (WGS) sub-mechanism, which seems to be responsible for the adjustments in the H radical pool that derive from modifications in the reaction kinetics. Furthermore, CO₂ also decreases the H radical pool by diluting the mixture. Wei et al. found that the coupling effects of CO₂/H₂ for lean mixtures, as CO₂ content is increased, give rise to evident improvements of $S_L$ through the kinetic effects of H₂. This conclusion is consistent with the results discussed above. The non-linear increase of $S_L$ with $x_{{\mathrm{H}}_2}$, such that $d^2{S}_L/d{x}_{{\mathrm{H}}_2}^2>0$, supports the hypothesis that the H₂ related kinetics gradually takes over the CH₄ dominated chemical pathways. Furthermore, it seems that a larger CO₂ concentration in the base blend increases the weight of the H₂ related chemistry for lower $x_{{\mathrm{H}}_2}$.

When considering the impact of CO₂ and H₂ on $S_L$, thermal-diffusive effects must also be taken into account. It is known that on top of a kinetic effect, CO₂ also produces a significant impact due to its high specific heat capacity [31]. Carbon dioxide acts as a heat sink in the flame, thus reducing the adiabatic flame temperature $T_{ad}$ and increasing the mixture ignition temperature $T_i$ [32,33]. In a numerical study on the impact of CO₂ dilution on CH₄/air premixed flames, Halter et al. [34] showed that for small concentrations in the flame mixture (<5%), this effect contributes to approximately 50% of the $S_L$ reduction experienced. On the other hand, H₂ enrichment increases $S_L$ not only through kinetics, but also as a result of thermal-diffusive effects. The increased thermal diffusivity of hydrogen produces a positive effect on $S_L$ (see Equation (7)), counterbalancing the negative impacts of carbon dioxide. Furthermore, the lower $T_i$ and higher $T_{ad}$ of H₂ produce a temperature increase throughout the flame region. This effect has been reported by Rocha et al. [35] in a numerical and experimental work where the impact of H₂ on the chemiluminescence of CH₄/CO₂/H₂/air flames was evaluated. The simulation results of the present work (Figure 1, Figure 2 and Figure 3) are congruent with previous research, manifesting an overall positive effect of H₂ enrichment on the $S_L$ of biogas/air flames, even though it varies with base blend composition due to coupling CO₂/H₂ effects.

To evaluate the effects of CO₂ when combined with H₂ enrichment on $S_L$, further simulations were conducted. To this end, two base blends were selected: BG100 and BG80. However, to isolate the different effects of CO₂ presence, simulations were also conducted with fake CO₂ (FCO₂) in the biogas blend. This species possesses the same transport and thermodynamic properties of CO₂, but does not participate in any chemical reaction. Thus, with $\varphi$ set at $0.9$, three $S_L$ curves were obtained for BG100, BG80 and BG80 (FCO₂). The results are provided in Figure 4.

The different impacts CO₂ produces in $S_L$ for varying levels of H₂ enrichment can be seen in Figure 4. As FCO₂ does not take part in the reaction chemistry, the difference between the BG100 and BG80 (FCO₂) curves can be attributed to the dilution and thermal-diffusive effects produced by CO₂, whereas the step from BG80 (FCO₂) to BG80 stems from the CO₂ impact on the kinetics. The results show that for low H₂ content, most of the CO₂ impact on $S_L$ can be attributed to dilution and thermal-diffusive effects. When $x_{{\mathrm{H}}_2}=0\%$, the $S_L$ of BG80 is $0.041 \mathrm{m}/\mathrm{s}$ lower than that of BG100, with $73\%$ of this reduction caused by thermal-diffusive and dilution effects and $27\%$ by kinetics. However, as $x_{{\mathrm{H}}_2}$ is increased, the weight of thermal-diffusive and concentration effects is reduced. At $x_{{\mathrm{H}}_2}=50\%$, the $S_L$ drop between the same base blends is of $0.016 \mathrm{m}/\mathrm{s}$, with $84\%$ of it resulting from changes in chemistry due to the presence of CO₂. Thus, whereas CO₂ thermal-diffusive and dilution effects gradually subside as H₂ content is increased, CO₂ chemistry maintains a consistent contribution in $S_L$ reduction. The simulation results indicate that the coupling of H₂ enrichment with CO₂ in the base biogas blend tends to mitigate the negative thermal-diffusive and dilution effects on $S_L$ caused by the latter.

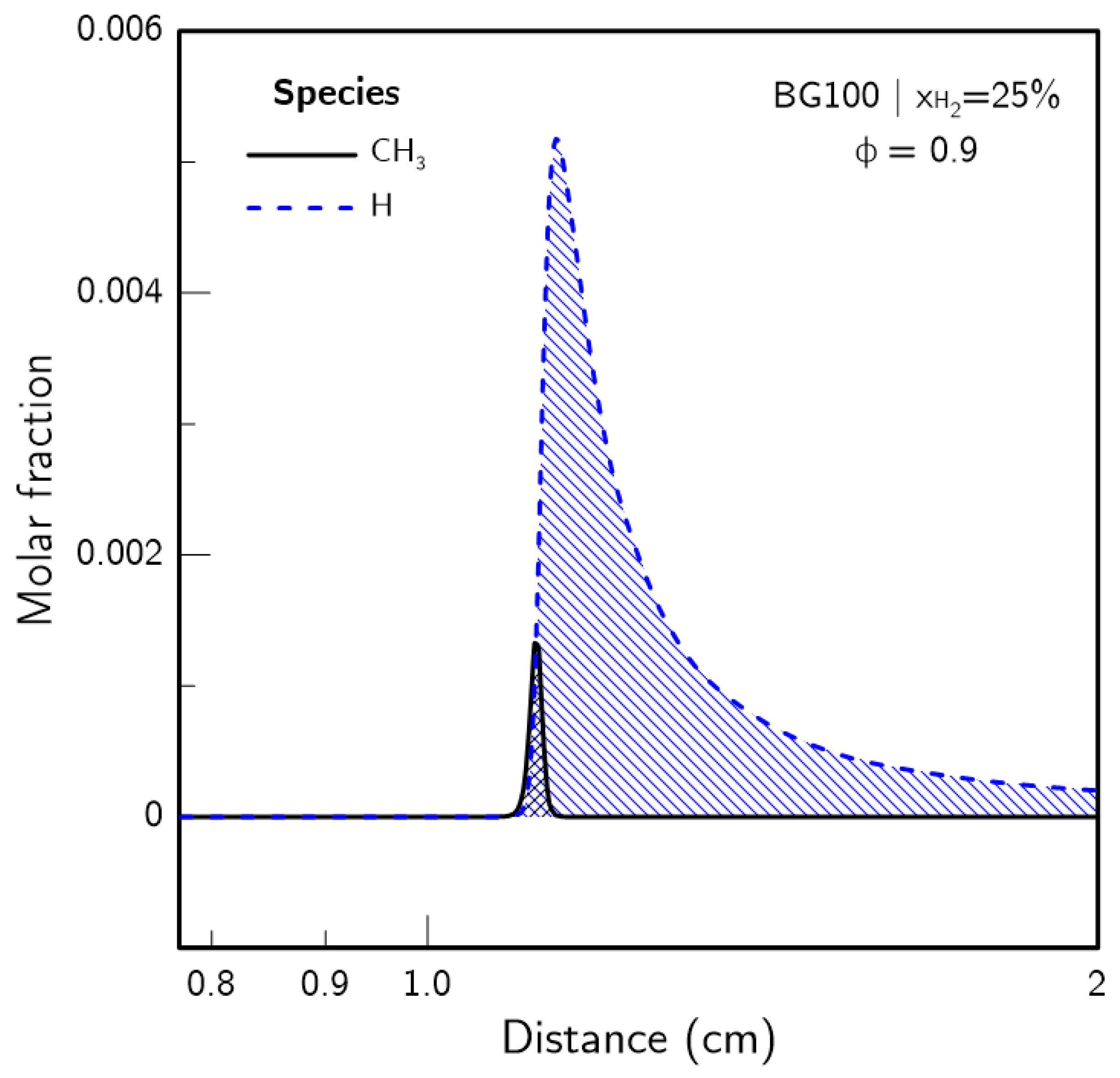

As stated previously, the impact of H₂ and CO₂ on the H radical pool is linked to variations in laminar flame speed [30]. Additionally, as the dominant decomposition product of methane, the radical CH₃ is an indicator of the CH₄ related chemistry [36]. Thus, to assess in further detail the H₂ and CO₂ chemical impact on $S_L$, the evolution of CH₃ and H was analysed for the conditions of this study. For the same blends that produced the results exhibited in Figure 4 at $\varphi =0.9$, a CH₃ and H weight was estimated to evaluate the radical pool of both species. The contribution for each blend was computed by integrating the molar fraction of each species along the reaction distance: $\int x_{\mathrm{H},\mathrm{C}{\mathrm{H}}_3}dz$. This calculation is illustrated in Figure 5 through the shadowed areas. Figure 6 exhibits the evolution of the CH₃ and H radical pool with H₂ content.

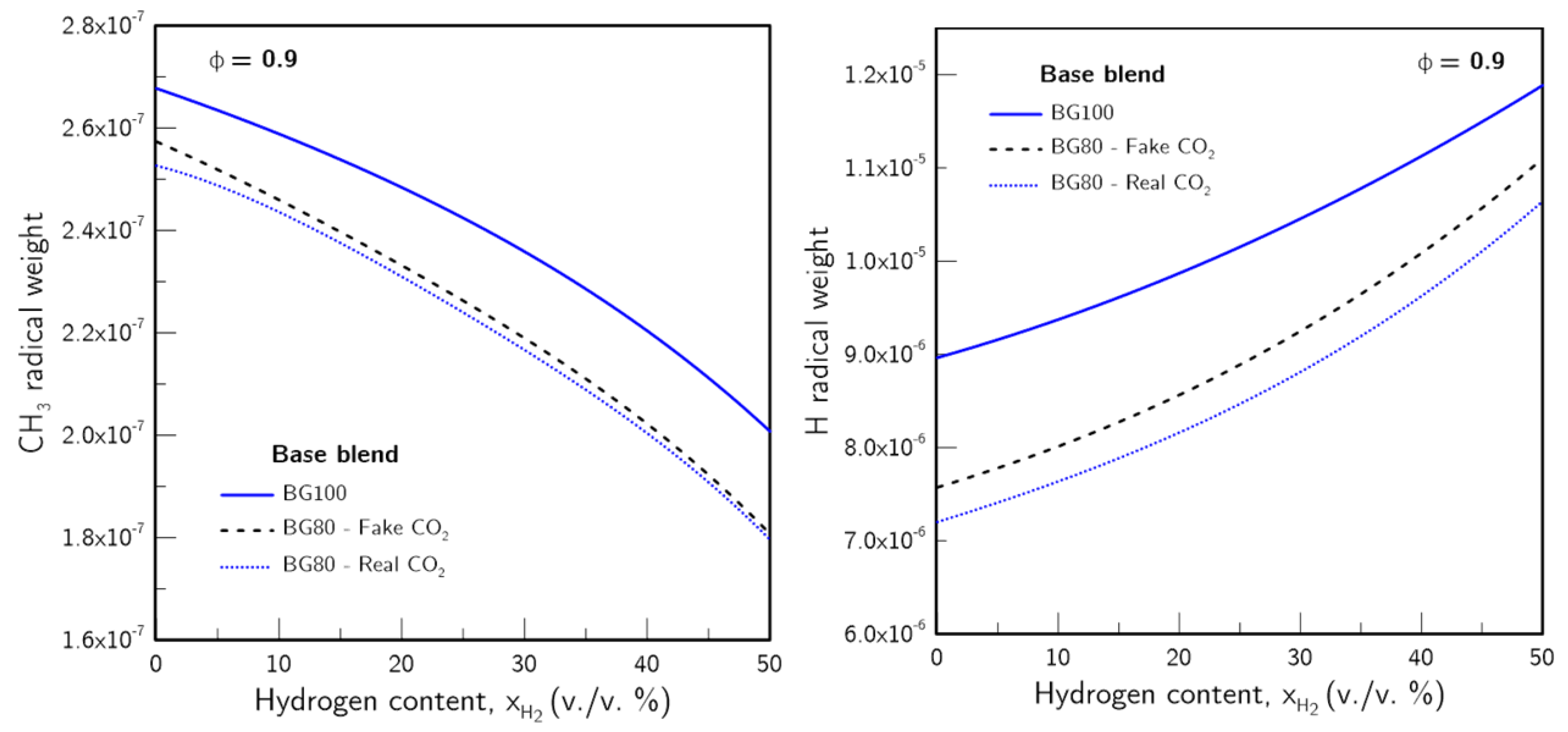

Figure 6 shows that the CH₃ evolution with H₂ content is non-linear, such that $d^2\mathrm{C}{\mathrm{H}}_{3,w}/d{x}_{{\mathrm{H}}_2}^2<0$. As CH₃ is a marker of CH₄ related chemistry, it would be expected that its weight diminishes as $x_{{\mathrm{H}}_2}$ is increased. However, the reduction of CH₃ weight is not proportional to the CH₄ concentration in the flame mixture. Even though CO₂ lowers the overall presence of CH₃, mostly through thermal-diffusive and concentration effects, it seems to have little impact on the evolution of the CH₃ radical weight with $x_{{\mathrm{H}}_2}$. This trend indicates that as H₂ content is increased, a transition occurs, consisting of a weakening of the CH₄ related chemistry and improvement of the H₂ related kinetics. As Wei et al. [30] reported in their work, the H radical evolution appears to follow the variations in laminar flame speed through changes in the WGS sub-mechanism. However, when comparing the curves of Figure 4 and Figure 6, it can be seen that as $x_{{\mathrm{H}}_2}$ increases, the difference between the BG100 and BG80 $S_L$ curves reduces faster than the difference between the H radical weight. It appears that as H₂ content is increased, the CO₂ thermal-diffusive and dilution effects maintain a more relevant impact on the H radical pool than on $S_L$. For the BG80 base blend, a $x_{{\mathrm{H}}_2}\approx 25\%$ is required to raise the H radical weight levels to those of BG100 without H₂ enrichment even though $S_L$ is matched at $x_{{\mathrm{H}}_2}\approx 17\%$. As CO₂ thermal-diffusive and dilution effects seem to produce a greater impact on H evolution than on $S_L$, this indicates that H₂ not only increases $S_L$ through a more efficient H radical production, but also due to its own thermal-diffusive and concentration effects.

The above-mentioned effect of CO₂ and H₂ on $S_L$ turns the modelling of their impact into a complex task. In the next section, the steps taken to obtain a simple analytical model to quantify the impact of H₂ enrichment on the $S_L$ of lean biogas/air flames are described.

3.2. Analytical Model

As stated in Section 1, this work aims to develop a correlation to model the impact of H₂ enrichment (up to 50%) on the $S_L$ of lean biogas/air flames. Currently, available correlations are either too complex to allow an expeditious use or are not tailored to hydrogen-enriched biogas blends [19,37]. Because of this, existing expressions require a priori undertakings to determine several fit parameters or to adapt mathematical formulations. Their complexity requires, in some cases, the estimation of several fit parameters on a case-by-case basis, hindering the expeditious aim of a correlation of this sort. Hence, it seems that these alternatives only seem applicable in an academic or advanced industry environment where computational cost might not be a significant issue. Additionally, these alternatives fail to specifically address the case of H₂-enriched biogas, thus combining the contributions of hydrogen and carbon dioxide in fit parameters that also depend on other variables. This implies that the user of any of these models has to determine new fit parameters every time the base biogas blend or the hydrogen enrichment level are changed, as $x_{{\mathrm{H}}_2}$ and $x_{\mathrm{C}{\mathrm{O}}_2}$ are not function arguments. Here, simplicity and fast use were adopted as priorities to improve on the options already available in the literature.

In a previous work, Quintino and Fernandes [20] quantified the impact of CO₂ dilution on the $S_L$ of CH₄/air lean flames and introduced a new analytical model to predict this effect. The final model is presented in Equation (4), and its details can be found in the original research. Thus, for the new model, it was intended to achieve an expression that isolated in different terms the contributions of CO₂ and H₂ for the $S_L$ of CH₄/CO₂/H₂/air lean flames. To this end, Equation (4) was adopted to estimate an intermediate flame speed $S_L^{\prime }\left(x_{\mathrm{C}{\mathrm{O}}_2}\right)$ that encompasses the effect of CO₂ in the base biogas blend. Based on the simulation outputs presented in the previous section, an iterative procedure as described in Section 2 was employed to obtain the model. Considering the curves in Figure 1, Figure 2 and Figure 3, the following constraints were set: $d{S}_L/d{x}_{{\mathrm{H}}_2}>0$ and $d^2{S}_L/d{x}_{{\mathrm{H}}_2}^2>0$ for $0\%\le x_{{\mathrm{H}}_2}\le 50\%$. Furthermore, a minimum coefficient of determination $\left(R^2\right)$ of 0.99 was ensured. For the formulations tested that complied with all established criteria, the choice was based on the expression’s simplicity.

Based on this approach, the following correlation for the impact of H₂ enrichment on the $S_L$ of biogas/air lean flames is proposed:

$$S_L\left(x_{{\mathrm{H}}_2}\right)=\frac{\zeta \left(\varphi \right)}{S_L^{\prime }\left(x_{\mathrm{C}{\mathrm{O}}_2}\right)}{x}_{{\mathrm{H}}_2}{e}^{x_{{\mathrm{H}}_2}}+S_L^{\prime }\left(x_{\mathrm{C}{\mathrm{O}}_2}\right)$$

(8)

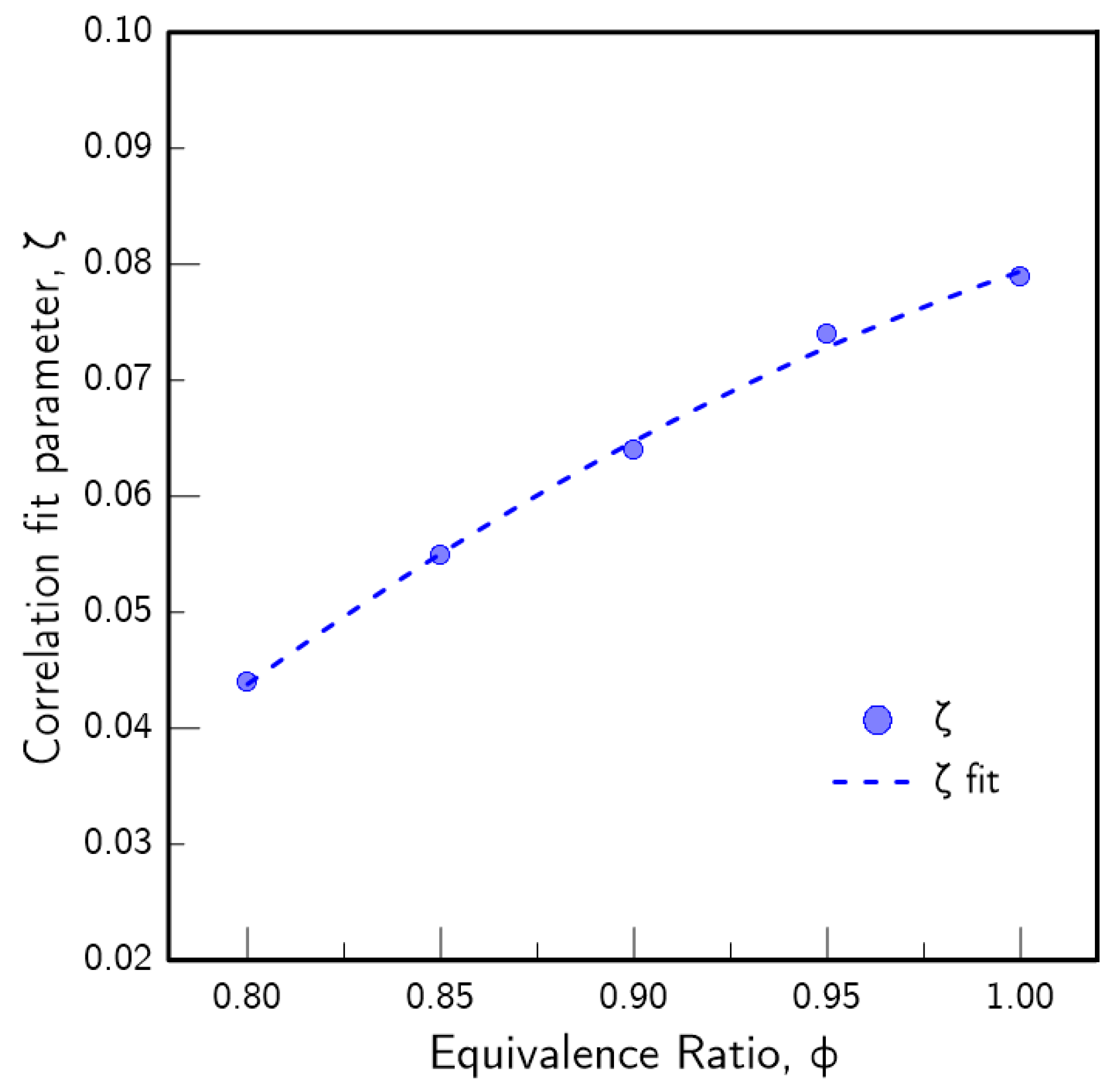

where $S_L=S_L\left(x_{{\mathrm{H}}_2}\right)$ is the laminar flame speed of the H₂-enriched flame mixture, $S_L^{\prime }=S_L^{\prime }\left(x_{\mathrm{C}{\mathrm{O}}_2}\right)$ is the intermediate flame speed computed with Equation (4), $x_{\mathrm{C}{\mathrm{O}}_2}$ is the CO₂ content of the base biogas blend, $x_{{\mathrm{H}}_2}$ is the hydrogen fraction in the flame mixture (Equation (5)) and $\zeta =\zeta \left(\varphi \right)$ is a fit parameter that varies with the equivalence ratio $\varphi$. The variation of $\zeta$ with $\varphi$ was evaluated, and a data fit was performed. The values obtained and the correspondent data fit can be found in Figure 7. The obtained expression took the form: $\zeta \left(\varphi \right)=-0.3143\times {\varphi }^2+0.7437\times \varphi -0.35$, with $R^2=0.9974$.

The final model compared well with the numerical results. The lowest coefficient of determination ($R^2=0.9903$) was found for BG80 at $\varphi =1.0$ and the highest ($R^2=0.9983$) for BG100 at $\varphi =1.0$.

The model proposed by Quintino and Fernandes [20] in 2018 improved the original correlation established by Metgalchi and Keck [14] in 1982 by re-defining fit parameters and modifying the term that quantifies the impact of diluents in the mixture. Equation (4) models the effect of CO₂ concentration on the laminar flame speed of biogas/air flames, which permits a fast estimation of $S_L$ for varying biogas composition. Equation (4) proved to be a significant improvement on Equation (3), which was shown to fail for biogas blends [20]. Thus, Equation (4) extended the original range of application of Equation (3) by accurately predicting the impact of CO₂ content on $S_L$. However, this improved correlation did not account for the possibility of blending other fuels with biogas. The model proposed in Equation (8) predicts the $S_L$ of biogas when enriched with H₂, thus extending the range of application of Equations (3) and (4). The most significant novelty of this work is that the developed model (Equation (8)) only requires a single fit parameter $\zeta \left(\varphi \right)$ for the $S_L$ prediction of H₂-enriched biogas/air flames. In opposition to alternative correlations, where lookup tables are required to readjust parameters according to blend composition, the new model proposed in this work is ready to use for CO₂ content up to 20% in the biogas blend and H₂ enrichment up to 50%.

3.3. Validation

As stated above, the analytical model of Equation (8) presented values in agreement with the numerical simulations performed. To validate the developed model, a collection of results from the literature was compared to the model predictions. These publications encompassed different numerical and experimental methods of $S_L$ determination, as well as base blends with two levels of CO₂ content (BG100 and BG80). This collection is compiled and summarized in

Table 2. Published work on laminar flame speed of lean CH₄/CO₂/H₂/air flames used to validate the correlation of this work.

Authors	Method	$\mathit{\varphi }$	p	${\mathit{T}}_{\mathit{u}}$	Ref.
Hermanns	Heat flux burner	0.8, 0.9, 1.0	$1$ atm	$298$ K	[38]
Coppens et al.	Heat flux burner	0.8, 0.9, 1.0	$1$ atm	$298$ K	[37]
Halter et al.	Constant volume bomb	0.8, 0.9, 1.0	$1$ bar	$298$ K	[39]
Yadav et al.	Flat flame burner and Ansys (GRI3.0)	0.8, 0.9, 1.0	$1$ bar	$298$ K	[40]
Wei et al.	Premix Code (GRI3.0)	0.9, 1.0	$1$ atm	$298$ K	[30]

.

The first two references of Table 2 employ the heat flux burner method to estimate $S_L$ [37,38]. A constant volume bomb experiment is also included [39], as well as tests with a flat flame burner [40]. Simulations ran with Ansys [40] and Premix Code [30] fed with the GRI-Mech 3.0 mechanism [41] were also used.

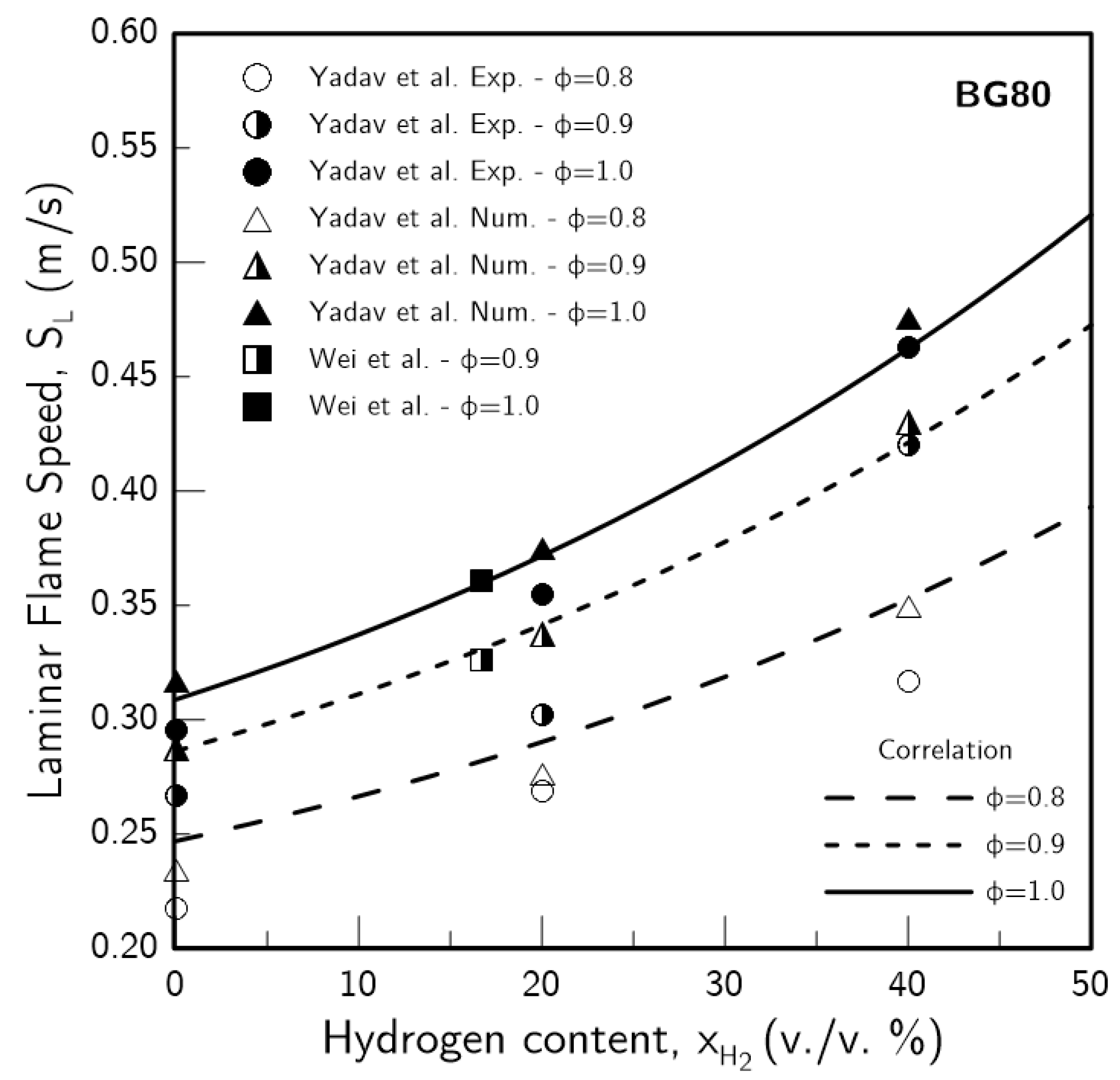

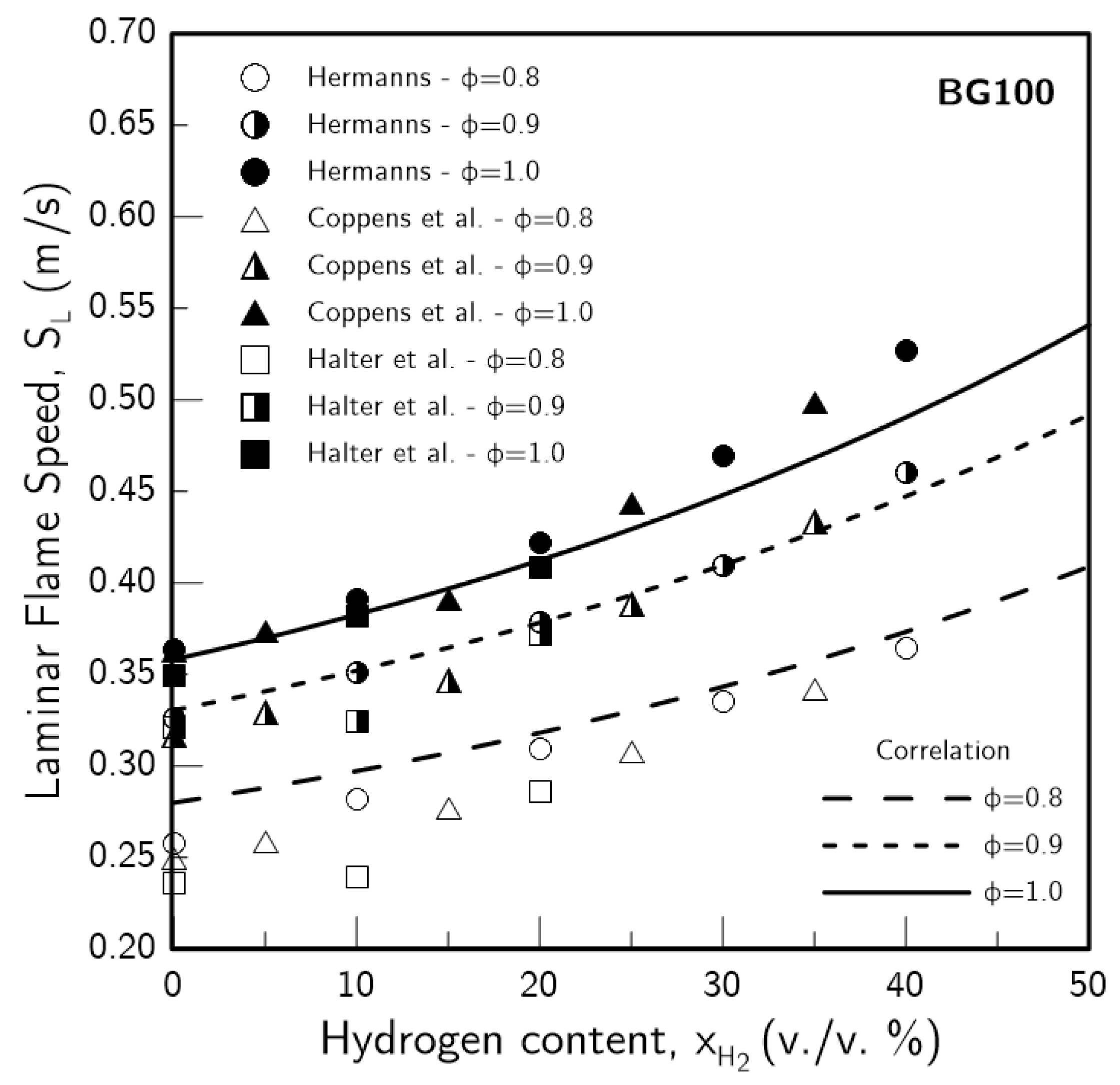

Based on the developed model (Equation (8)) and on available literature results, two data sets are plotted, for BG100 and BG80. For each base blend, literature data are plotted against model predictions in the range $0\%\le x_{{\mathrm{H}}_2}\le 50\%$ and for $\varphi =0.8,0.9,1.0$. The resulting graphs are exhibited in Figure 8 and Figure 9, for BG100 and BG80, respectively.

Overall, the correlation predictions exhibited good concordance with the literature data. The agreement was better at $\varphi =0.9$ and $1.0$, with similar performance whether the base blend was BG100 or BG80. A detailed evaluation of the data in both plots shows that the average percentage difference between the correlation prediction and literature data was 4.44% for BG100 (Figure 8) and 4.02% for BG80 (Figure 9). For the case of BG100, differences lied within the interval $[0.09,15.62]\%$, whereas for BG80 this interval was $[0.09,12.02]\%$. The highest differences were found for $\varphi =0.8$, where the correlation tended to overestimate the literature data, even though the difference never exceeded $0.056 \mathrm{m}/\mathrm{s}$. The highest differences were found in the data of Figure 8, where the correlation prediction was considerably higher than the data collected from the work developed by Halter et al. [39]. In their work, a spherical combustion chamber was coupled to a shadowgraphy system, and flame pictures were captured by a high-speed camera. Experiments were conducted for CH₄/H₂/air flames with the global equivalence ratio varying from 0.7 to 1.2. These were then compared to CHEMKIN simulations fed with the GRI-Mech 3.0 kinetics mechanism [41]. Measurements performed by Halter et al. (Figure 7 of reference [39]) at $\varphi =0.8$ exhibited the poorest agreement with CHEMKIN simulations and seemed to contrast with other published data. Thus, it appears that the impact of H₂ content on $S_L$ was well captured by the model of the present work. The literature data also exhibited a non-linear $S_L$ increase with $x_{{\mathrm{H}}_2}$. This supports the hypothesis, stated in Section 3.1, that the H₂ related kinetics takes over the CH₄ related one as $x_{{\mathrm{H}}_2}$ is increased.

On top of the comparison with the literature data, model predictions were evaluated with every $S_L$ value resulting from the performed simulations. Numerical results were compared to model predictions to evaluate if any subset of points were poorly captured by the developed correlation. Figure 10 exhibits this analysis’ output.

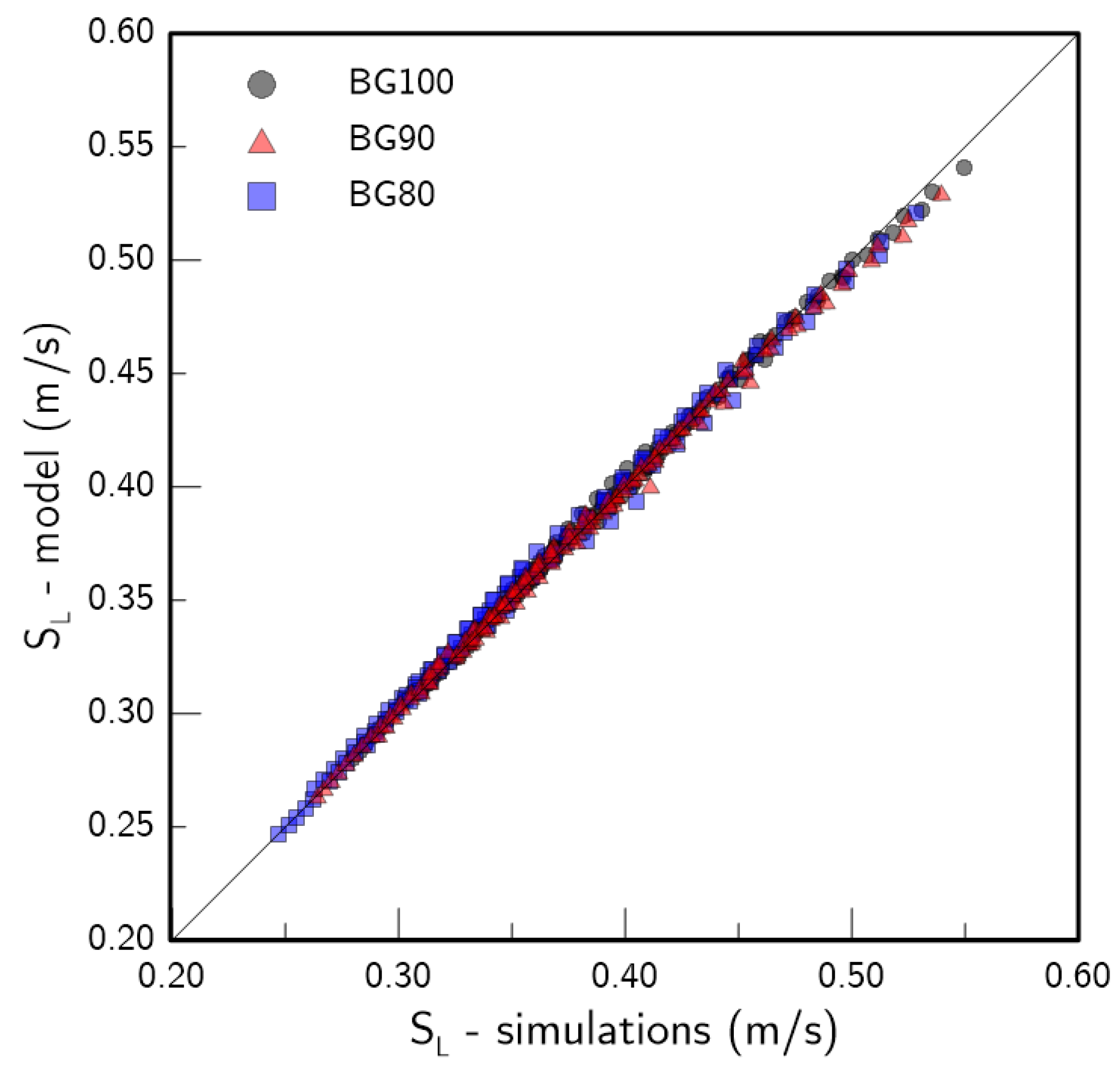

The data in Figure 10 demonstrate that the correlation displayed a good performance not only on average, but also for the complete set of numerical data produced in this work. There were no significant accuracy differences identified among BG100, BG90 and BG80. The percentage difference between the correlation predictions and simulations never exceeded 2.91%, with an average difference of 0.74%. Thus, the model in Equation (8) can be considered an accurate representation of the $S_L$ values yielded by the simulations conducted in Cantera with USC-Mech 2.0. Overall, the analytical model exhibited a good agreement with the experiments, indicating that numerical simulations also compared well with the literature data.

This new model should be particularly relevant in burner design and gas interchangeability analysis involving CH₄/CO₂/H₂ blends. Examples of this are the research developed by Jones et al. [42] and Vries et al. [43], where flashback and blowoff limits for domestic appliances were evaluated in a context where hydrogen is blended in the fuel feed. The determination of the theoretical flame stability first requires a prediction of the flame speed as a function of hydrogen content. The model developed in this work is tailored for these sorts of analysis, given its low average uncertainty of 0.74% when compared with simulations and 4.44% when compared with literature data. Therefore, it provides an accurate description of $S_L$ for CO₂ content up to 20% in the biogas blend and H₂ enrichment up to 50%.

4. Conclusions

In this work, 1D FPF simulations were conducted in Cantera to assess the impact of H₂ enrichment on the $S_L$ of biogas/air lean flames. Furthermore, numerical results were employed in the development of an analytical correlation to model this effect. Simulations were conducted for three base biogas blends (BG100, BG90 and BG80) with H₂ content in the fuel mixture ($x_{{\mathrm{H}}_2}$) up to $50\%$ and an equivalence ratio ($\varphi$) between 0.8 and 1.0. The approach undertaken in this work allowed the quantification of CO₂ and H₂ effects on $S_L$, by evaluating the dilution, thermal-diffusive and chemical impacts. The numerical model made it possible to run simulations with both real (CO₂) and fake (FCO₂) carbon dioxide to isolate the different effects of its presence on $S_L$. Finally, the analytical correlation was tested against data from the literature. The main findings are summarized below:

• The introduction of H₂ in the fuel blends produced a greater effect on $S_L$ the higher the CO₂ content was. Furthermore, the increase in $S_L$ due to H₂ enrichment was non-linear, with a more pronounced effect the higher $x_{{\mathrm{H}}_2}$ was. This was found to be linked with an increase in the H radical pool, which resulted from greater H production through the sub-mechanism of the water-gas shift (WGS) reaction.
• The presence of H₂ in the fuel blend tended to mitigate the thermal-diffusive and concentration effects of CO₂ on $S_L$. These effects were the highest contributor for $S_L$ reduction for low $x_{{\mathrm{H}}_2}$. However, these gradually subsided as $x_{{\mathrm{H}}_2}$ increased, while the CO₂ chemistry maintained a consistent impact. Thus, for practical applications, higher amounts of H₂-enrichment may avoid the need to completely remove carbon dioxide from biogas blends.
• H₂ enrichment was found to weaken the CH₄ related chemistry as the CH₃ radical pool was significantly impacted. The reduction of the CH₃ radical presence was found to be not directly proportional to the CH₄ concentration, with an acceleration of its reduction with increasing $x_{{\mathrm{H}}_2}$.
• Based on the numerical results, a new correlation to model the impact of H₂ enrichment on the $S_L$ of lean biogas/air flames was proposed:

  $$S_L\left(x_{\mathrm{H}2}\right)=\frac{\zeta \left(\varphi \right)}{S_L^{\prime }\left(x_{\mathrm{C}\mathrm{O}2}\right)}{x}_{\mathrm{H}2}{e}^{x_{\mathrm{H}2}}+S_L^{\prime }\left(x_{\mathrm{C}{\mathrm{O}}_2}\right)$$

  (9)

  where $S_L=S_L\left(x_{{\mathrm{H}}_2}\right)$ is the laminar flame speed of the H₂-enriched flame mixture, $S_L^{\prime }=S_L^{\prime }\left(x_{\mathrm{C}{\mathrm{O}}_2}\right)$ is the intermediate flame speed computed with Equation (4), $x_{\mathrm{C}{\mathrm{O}}_2}$ is the CO₂ content of the base biogas blend, $x_{{\mathrm{H}}_2}$ is the hydrogen fraction in the flame mixture (Equation (5)) and $\zeta =\zeta \left(\varphi \right)$ is a fit parameter. The correlation exhibited good agreement with literature data and with simulations for all of the tested conditions. This new model isolates the contribution of H₂ and CO₂ as both are arguments of the function that yield $S_L=S_L(x_{{\mathrm{H}}_2},\varphi ,S_L^{\prime }\left(x_{\mathrm{C}{\mathrm{O}}_2}\right))$. Thus, the final model can be directly used to estimate $S_L$ without the need for a priori adaptations of fit parameters for varying base blends as the correlation itself accomplishes that goal. The fast and reliable estimation of $S_L$ for H₂-enriched biogas blends makes this model useful for the adaptation or development of existing devices that rely on these blends.

Concluding remarks:

The model proposed in this work provides an engineering approach to estimate $S_L$ for fuel-lean combustion of H₂-enriched biogas blends. In contexts where biogas is widely available, the admixture of renewable hydrogen can improve equipment performance or even allow the possibility of using lower quality biogas blends, which would otherwise remain unused or burned in flares. Future research could address fuel-rich conditions. These configurations, typically found in the ceramics and glass industry for radiative heat transmission purposes, will eventually shift from natural gas to renewable gases. The use of biogas will likely require hydrogen admixture to compensate for the loss in CH₄. The development of an analytical model for fuel-rich conditions will require a reassessment of reaction kinetics and an adaptation of the original model proposed by Quintino and Fernandes in 2018 [20]. The USC Mech 2.0, employed in this research, should cope well with such conditions since it was subject to validation with proven H₂/CO/C₁-C₄ combustion data. However, the development of a new correlation for fuel-rich conditions must cope with the variability of the maxima location in relation to the equivalence ratio. The hydrogen enrichment of biogas, in fuel-rich conditions, will push the maximum value of $S_L$ for higher values of $\varphi$ as $x_{{\mathrm{H}}_2}$ is increased. This phenomena must be well captured by any new model proposed in the future.
