Next Article in Journal
The Effect of the COVID-19 Pandemic on the Electricity Consumption in Romania
Next Article in Special Issue
Smart and Functional Materials for Lithium-Ion Battery
Previous Article in Journal
Validating and Forecasting Carbon Emissions in the Framework of the Environmental Kuznets Curve: The Case of Vietnam
Previous Article in Special Issue
Monoclinic and Orthorhombic NaMnO2 for Secondary Batteries: A Comparative Study
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:

Recent Advances on Materials for Lithium-Ion Batteries

Center of Physics, University of Minho, 4710-057 Braga, Portugal
Center of Chemistry, University of Minho, 4710-057 Braga, Portugal
BCMaterials, Basque Center for Materials, Applications and Nanostructures, UPV/EHU Science Park, 48940 Leioa, Spain
IKERBASQUE, Basque Foundation for Science, 48009 Bilbao, Spain
Authors to whom correspondence should be addressed.
Energies 2021, 14(11), 3145;
Received: 13 April 2021 / Revised: 24 May 2021 / Accepted: 25 May 2021 / Published: 27 May 2021
(This article belongs to the Special Issue Smart and Functional Materials for Lithium-Ion Battery)


Environmental issues related to energy consumption are mainly associated with the strong dependence on fossil fuels. To solve these issues, renewable energy sources systems have been developed as well as advanced energy storage systems. Batteries are the main storage system related to mobility, and they are applied in devices such as laptops, cell phones, and electric vehicles. Lithium-ion batteries (LIBs) are the most used battery system based on their high specific capacity, long cycle life, and no memory effects. This rapidly evolving field urges for a systematic comparative compilation of the most recent developments on battery technology in order to keep up with the growing number of materials, strategies, and battery performance data, allowing the design of future developments in the field. Thus, this review focuses on the different materials recently developed for the different battery components—anode, cathode, and separator/electrolyte—in order to further improve LIB systems. Moreover, solid polymer electrolytes (SPE) for LIBs are also highlighted. Together with the study of new advanced materials, materials modification by doping or synthesis, the combination of different materials, fillers addition, size manipulation, or the use of high ionic conductor materials are also presented as effective methods to enhance the electrochemical properties of LIBs. Finally, it is also shown that the development of advanced materials is not only focused on improving efficiency but also on the application of more environmentally friendly materials.

1. Introduction

The search for more efficient and sustainable energy storage devices is a growing need and a fruitful research field, based on the increasing mobility of society. Industrial production and mobility require significant quantities of energy, mostly relying on fossil fuels, as coal or petroleum, and more recently natural gas and nuclear fission [1]. Nowadays, with the growing awareness with respect to environmental issues, renewable energy sources gained significant interest as they allow to obtain green energy, with the reliance in inexhaustible sources, such as wind, water or sun [2,3]. However, the use of renewable energies is limited by their irregularity, which does not warrant a constant energy supply [4]. In this context, the integration of renewable energies with efficient energy storage systems (ESS) arises as a potential solution regarding this issue.
These ESS can vary depending on the application needs, batteries being the most used systems worldwide. Since the voltaic pile, created in 1800 [5], until the commercialization of the first lithium-ion battery (LIB) in 1991, battery technology has undergone strong developments, with significant improvements on capacity, durability, and reversibility (Figure 1).
LIBs are the most commonly used ESS in modern society, mainly due to their high specific capacity, making them appropriate for small and light portable devices without limiting their performance. LIBs are also characterized by prolonged cycle life and no memory effects [6]. These are important advantages that increased the use of LIBs, leading to a progressive replacement of previous technologies, such as nickel–cadmium and nickel–metal hydride batteries, which are less efficient, in particular for small device applications. In fact, the developments in the area of ESS further supported the strong evolution of the market of portable equipment with increased and improved features, capacity and smaller sizes. LIBs are present in a large variety of commonly used devices including smartphones, tablets, laptops, grid stabilization, electric vehicles, and a vast range of other electronic systems [7].
In this constant growing field, it is extremely important to keep up with the high number of works that are published every year. Thus, a frequent systematization and review of the literature is needed in order to comparatively analyze newly developed materials, integration strategies, and battery performance data to properly design further developments in the field. The main focus of the research community in the field nowadays is the search for new high-performance materials, but also to address environmental questions, by finding more sustainable and green solutions. In the present work, the LIB constitution and working principles are described, presenting the most recent solutions for each component of the battery separately. In particular, the latest developed materials and production/modification strategies are considered.

2. Lithium-Ion Batteries

As stated before, LIBs are the most used energy storage devices worldwide, due to their versatility and high capacity, when compared with other ESS [8]. These devices convert chemical energy into electrical energy and vice versa, with high energy density, making them particularly suitable for smaller devices [9]. However, some issues related to the costs, progressive degradation of the components, and the necessity to maintain the voltage and current within safe limits need to be addressed for the LIB technology to be fully optimized [10,11].
The lithium-ion technology is somewhat recent, as it only appeared in the second half of the twentieth century. Stanley Whittingham in 1977 was responsible for the development of the first device [12]. The safety problems associated with lithium dendrites growth were solved in the 1980s by John Goodenough with the development of new cathode active materials and carbonaceous anode materials, avoiding the use of lithium metal anodes [13,14,15]. The first commercial battery was developed by Sony, using the work of Akira Yoshino [16], and it was placed in the market in 1991. These three researchers won the Nobel Prize in Chemistry in 2019 due to the relevance of their work in the essential area of energy storage. The research work in the battery field has been always accompanied by efforts on developing solid-state technology [17], in order to eliminate the liquid components of the battery structure, leading to safer devices, despite the difficulty of obtaining consistent results.
The typical constitution of a battery includes two electrodes (cathode and anode) and a separator membrane soaked in an electrolyte solution [18]. Each electrode is composed by an active material, a conductive material, and a binder. Both electrodes share similar binders and conductive materials, with the function of warranting the structural cohesion and the adhesion to the structure, in the case of the binder, and increasing the electric conductivity of the electrode, in the case of the conductive material. The battery capacity is determined by the active material, with the ability to deliver or store lithium-ions, in the cathode and the anode, respectively [19]. The current collectors are made of different metals and are placed in each electrode, contributing to the electronic conductivity and potential stability of the cell. The potential difference generated between the electrodes allows for the redox reactions to occur, which represents the basic working principle of the batteries [20]. Between the electrodes, a polymeric porous membrane, the separator, is placed to avoid the physical contact, preventing short circuits. The separator is typically soaked in an electrolyte solution, which increases the ionic conductivity of the system, allowing for an easier Li+ diffusion [21]. More recently, this design of the separator/electrolyte system is being replaced by a solid electrolyte, which combines the physical barrier function of the separator and the high ionic conductivity of the electrolyte, allowing the elimination of the liquid components from the battery structure [22]. However, there are still major drawbacks in this approach that limit battery performance, such as low ionic conductivity and difficult interfacial compatibility with the electrodes [23].
The function of a LIB is based in redox reactions. During the charging process, energy is provided to the system accompanied by a flow of electrons from the cathode to the anode, making the Li+ ions migrate from the cathode to the anode in order to compensate the created charge difference. This reaction is reverted during the discharge process. In this case, the Li+ ions return to their original state, with the corresponding release of energy, which can be used for different applications. This flow of Li+ and electrons is described by Equation (1):
LiAM ↔ AM + xLi+ + xe
where AM is the active material and e- is an electron.
The most common LIBs use different metal oxides, such as LiFePO4 [24], LiCoO2 [25], or LiMnO2 [26], as active materials for the cathodes. The selection of the active material is dependent on the specific application, as each one allows for different operational voltage [27]. For the anode, the most common active materials are carbon-based materials, such as graphite and silicon-based materials [28]. At the separator level, different kinds of polymers such as poly(ethylene) (PE) [29], poly(propylene) (PP) [30], or poly(vinylidene fluoride) (PVDF) [31] are successfully applied due to their properties, including high mechanical and thermal resistance, suitable porosity, electrolyte wettability, and electrochemical stability [32]. The electrolyte solution is usually composed by a lithium salt, lithium hexafluorophosphate (LiPF6), dissolved in organic carbonates, such as ethylene carbonate (EC) and dimethyl carbonate (DMC) or diethyl carbonate (DEC) [33]. In the field of solid electrolytes, they can be inorganic or organic. The inorganic ones are composed by ceramic crystalline materials as LISICON [34], NASICON [35], or perovskites [36], and they usually possess high ionic conductivity but have significant limitations when it comes to interfacial compatibility [23]. Solid polymer electrolytes comprise a polymer matrix and one or more fillers incorporated in their structure [37]. They show high mechanical and thermal stabilities but low ionic conductivity, being difficult to find the balance between the type and amount of fillers to optimize the abovementioned properties [38].
Other technologies based on lithium include lithium-air and lithium-sulfur batteries. These batteries represent promising options due to their higher theoretical capacities when compared to conventional LIBs. However, limitations such as the difficulty to obtain perfectly reversible reactions, control of the volume changes, and to warrant suitable ionic conductivity are holding back the full potential of these kind of batteries [39,40].
Beyond lithium, other promising battery technologies are being intensively studied and developed, as presented in Table 1.
These technologies aim to overcome some of the problems associated with lithium, such as its scarcity [46]. Thus, the abundance of sodium and magnesium could represent an effective and cheaper alternative if the problems associated with their high reactivity could be overcome [47]. Potassium has the advantage of high voltage operation; however, its low melting point can be an issue in the case of higher operation temperatures [48]. Beyond batteries, there are other ESS, such as fuel cells or hydrogen-based technologies, that can be successfully integrated with the most common batteries. However, there is a long path to go in research and development for these technologies to achieve their full potential [49]. This means that despite the alternatives to and the limitations of the commonly used LIBs, these devices are still the most appropriate, at least until further developments are made in other technologies. With this purpose, the research and development of advanced, more efficient, safer and environmentally friendlier materials for energy storage devices is a very relevant area nowadays.
In the next sections, the latest advances in the materials used for the different battery components will be provided, with particular focus in the materials that offer potential solutions for the previously mentioned LIBs issues.

3. Materials for Electrodes

Regardless of the type of electrode, its basic constituents are the active material, the conductive material, and the polymer binder. The microstructural characteristics of lithium-ion battery electrodes also determine their performance [50].
In the electrode composition, the amount of active material typically varies between 60 wt % and 95 wt %, the conductive material varies between 3 wt % and 30 wt %, and the polymer binder varies between 2 wt % and 25 wt %, where the proportion of 80 wt %/10 wt %/10 wt % for active material, conductive material, and polymer binder is the most used by the scientific community [51]. Basically, the difference between the two electrodes (anode and cathode) is the active materials; therefore, this review focuses on the recent advances for each of the active materials divided by the type of electrode.
Several issues can affect the performance and durability of the electrode materials, including volume expansion of the electrode during the charge–discharge process [52,53], mechanical failure of the electrodes due to external mechanical/thermal loadings [54,55], thermal failure caused by the battery overheating [56], and tortuosity/percolation limitations [57]. Some suggested solutions for these issues are presented in the following.

3.1. Active Anode Materials

Anode active materials can be structures of different types, their main characteristic being the capacity, electrical conductivity, mechanical stress, and structural stability, which plays a relevant role in the durability of the material through the Li+ intercalation–de-intercalation reactions [58].
In addition to the gravimetric and volumetric capacities of each anode active material, other parameters, such as the average voltage range, porosity, and irreversible capacity loss are relevant in determining the performance of the anode. Typically, the main active materials for the anode are carbonaceous materials, alloys based on Si, Sn, Al, Ga, Ge, Pb, and Sb, metal oxides, and metal chalcogenides, among others. Figure 2 shows the voltage range vs. Li/Li+ as a function of charge capacity of these anode active materials [59,60].
Carbonaceous materials are the most widely used active materials for the anode, including graphite and carbon nanotubes, among others, mainly due to the reversibility, low cost, low volume variation during the intercalation/deintercalation process, and high number of charge/discharge cycles. One of the main disadvantages of graphite is the irreversible loss of capacity during the first charge–discharge cycle to form a stable interface between the electrolyte and the graphite, called the solid electrolyte interface (SEI). Despite the fact that the SEI prevents the degradation of the battery materials, it also increases the overall resistance of the system, causing a loss of performance [62,63].
Conversion-type transition-metal compounds (MaXb, M = Mn, Fe, Co, Ni, Cu, X = O, S, Se, F, N, P, etc.) are attractive active materials for anodes due to their high theoretical capacity, tunable operation voltages, and the diversity of chemical composition and phases, allowing tuning materials characteristics. The main disadvantage is their poor intrinsic conductivity [64].
Recently, advances on anode active materials are focused on their compositional variation and design, taking into account that the low-dimensional, inter-spatial, and composite design of materials such as ordered-array, cross-aligned, or alternating-layer structure affect the lithium-ion and electrons transport within the electrodes, solid electrolyte interphase, and reversibility, among others [65]. In the following, advances in this area are divided by the composition of each material.

3.1.1. Carbon and Metal Alloys-Based Anode Materials

Graphite is widely used in the anode electrode, although, to improve even more its energy density, graphite intercalation compounds (GICs) have been developed allowing enhancing the electrochemical performances. Advanced anode materials based on cobalt chloride–ferric chloride–graphite bi-intercalation compounds (CoCl2-FeCl3-GICs) have been synthetized through the molten-salt method, showing a high capacity of 1033 mAh·g−1, with a retention rate of 94.2% at 200 mA·g−1 and, after 350 cycles under 1000 mA·g−1, the charge capacity reached 536 mAh·g−1, as shown in Figure 3a [66].
In order to improve the intrinsic electrical conductivity of graphite, a new material based on VGS/graphite was produced with high specific capacity. The electrochemical performance is shown in Figure 3b [67]. Using coffee grounds as a carbon and nitrogen source, and CaCO3, Fe(NO3)3, and their derivatives as structural templates and graphitization catalysts, nitrogen-doped graphene-like carbon nanosheets were prepared in the form of 3D porous architecture. The corresponding battery performance is shown in Figure 3c [68]. Alloys are also used as anode active materials, since they can adapt to volume changes during lithiation. Thus, the ternary Li-Sb-Sn system has been developed being able to uptake up to 15 at % Li without changing the crystal structure [69].

3.1.2. Silicon-Based Anode Materials

Silicon-based materials are characterized by a high specific capacity, over 10 times when compared with the one of graphite [70]. On the other hand, they exhibit large volume changes and form an unstable SEI. Recent advances in these materials are focused on solving those issues by developing advanced silicon-based materials [71]. The combination of silicon nanostructures with carbon structures is the main alternative to circumvent the disadvantages of silicon-based anodes [72] such as a coral-like porous Si/C (CLP-Si/C), which exhibit a stable capacity of 990.6 mAh·g−1 and can be kept after 100 cycles at a rate of 250 mA·g−1 [73]. Other interesting material is amorphous carbon cascade-coated nano-silicon, with 89% initial coulombic efficiency (ICE) and high reversible capacity of 874.5 mAh·g−1 after 300 cycles. The processing of this material is shown in Figure 4a [74]. Free-standing N-doped porous carbon nanofibers sheathed pumpkin-like Si/C composites (Si/C-ZIF-8/CNFs) [75], Si/carbon nanotube microspheres (Si/CNTsS) prepared by chemical vapor deposition [76], silicon (Si)/carbon(C) composites prepared by mixing appropriate concentrations of hydrocarbon resin, Si powder, and polyacrylic acid [77], and Si nanoparticles confined within a conductive 2D porous Cu-based metal–organic framework (Cu3(HITP)2) [78] represent interesting examples for the advanced materials developed in this area. Particularly interesting are [email protected]3Si nanocomposites, which show a delivering charge/discharge capacity of 1000 mAh·g−1 even after 300 cycles [79]. Si powders with electrical conductivity of 1.04 μs·cm−1 have been obtained from p-type solar grade broken Si wafers with electrical resistivity of about 1–10 Ω⋅cm via ball-milling and tested for anode electrodes. The charge-specific capacity of p-doped Si holds 1920.3 mAh·g−1 after 50 cycles at 0.84 A·g−1, when the charge current density increased to 21 A·g−1 (only taking 12 min for charging), and it is still maintains at 1758.5 mAh·g−1 after 50 cycles [80].
A MgH2-AlCl3-SiO2 melt system was developed to synthesize nano-Si through the reduction of SiO2 by MgH2 into molten AlCl3. The obtained nano-Si product shows an average particle size of 22.4 nm and exhibits a superior electrochemical storage capacity of 1185 mAh·g−1 over 300 cycles at 0.2 A·g−1 and a low thickness variation of 14.5% at 2 A·g−1 over 500 cycles, as shown in Figure 4b–d [81].
Silicon oxycarbide (SiOC, SiOn C4-n (0 ≤ n ≤ 4)) has been developed for anode material through the introduction of PSS-Octakis (dimethylsilyloxy) silsesquioxane (POSS) into the synthesis process of SiOC. The rate performance of these materials is shown in Figure 4e [82]. Silicon oxycarbide (SiOC) was also synthetized by pyrolysis using silicone oil and phenyl group-containing additives (divinylbenzene -DVB) as precursor, leading to a high reversible capacity (550 mAh·g−1 at 200 mA·g−1) [83].

3.1.3. Conversion-Type Transition-Metals and Their Composites-Based Anode Active Materials

Transition metals are another excellent option for the development of anode electrodes for LIBs due to their high theoretical capacities, low cost, and easy availability. The focus on these materials is the development of new compositions and the improvement of their electrical conductivity.
Various transition metals such as cerium vanadate (CeVO4) [84], Co0.85Se [85], CuSi2P3 [86], iron oxide (Fe2O3) [87], Mn3O4 [88], octahedral nanostructured Cu2WS4 [89], copper oxide (Cu2O) [90], Li3VO4 particles [91], NiO nanocrystals [92], nano-Mn2O3 particles [93], MnV2O4 particles [94], SnO2 [95], molybdenum sulfide (MoS2) [96], MoSe2 [97], Sn-based material (SnFe2O4) [98], SnS2 nanoflowers [99], SiO2 [100], SnO2 [101], SnO2@ZrO2 [102], and WS2 heterostructures [103] have been developed and doped with carbonaceous materials (carbon agents, carbon nanotubes, and graphene oxide, among other). This carbonaceous doping has the objective of increasing the electrical conductivity and, consequently, the electrochemical properties through conductive pathways to facilitate charge transport and structural buffer space to accommodate volume variations. Other active materials with interesting properties are Columbite CuNb2O6 with 154.9 mAh·g−1 at the ultra-large current rate of 5 A·g−1 [104], TiNb2O7 with specific capacity of 220 mAh·g−1 after 500 cycling at 0.5 C [105], and ammonium manganese phosphate hydrate (NMP) [106].
A widely used transition metal oxide is iron oxide (Fe2O3), considering the low cost and abundant reserves. In order to improve its performance, several approaches have been taken, including in situ encapsulation of α-Fe2O3 nanoparticles into micro-sized ZnFe2O4 capsules [107], a new synthesis method based on chemical precipitation with the sulfuric acid leaching liquor of tin ore tailings as an Fe source [108] and a new material based on Rosa roxburghii-like hierarchical hollow sandwich-structure [email protected]2O3@C microspheres [109]. In addition, Co3O4/Co in situ nanocomposites were synthetized to improve SEI [110]. CoS2[email protected] have been produced with excellent rate performance (1620 mAh·g−1 at 100 mA·g−1) and high reversible capacity (1327 and 927 mAh·g−1 at 100 and 1000 mA·g−1, respectively, after 100 cycles) [111]. In addition to carbon, nickel has been used for doping Co9S8@ZnS composites in order to improve the overall battery performance [112]. A new material based on hollow core–shell structured CNT/[email protected]9S8@C coaxial nanocables have been produced for anode active material with the aim of providing more channels for Li+ ions/electrons diffusion and relieving volume swelling during the charge/discharge process. This material exhibits excellent cycling performance (>700 mAh·g−1 at 0.1 A·g−1) [113].
The novel mixed Co/Mn vanadates have been obtained by balancing performance and cost through the doping of Mn for cobalt vanadate through an easy hydrothermal reaction where the optimized element ratio is found for 67% Mn-based vanadates. This material shows a high initial discharge capacity of 1193 mAh·g−1 and maintains 935 mAh·g−1 after 500 cycles at 0.5 A·g−1 [114].
A multifunctional heterostructure, MoS3-Ti3C2Tx, comprising a functionalized MXene (Ti3C2Tx) and amorphous MoS3 has been prepared by a scalable electrostatic self-assembly method, MoS3-Ti3C2Tx offering an excellent reversible capacity of 1043 mAh·g−1 at 200 mA·g−1 and exhibiting a capacity of 568 mAh·g−1 at a current density of 2 A·g−1 after 1000 cycles. Figure 5a shows the cycling performance of this material [115].
A hetero-structured few-layer MoS2-coated MoO2 (MoS2@MoO2) has been fabricated for anode applications. This material shows a high reversible specific capacity of 1263 mAh·g−1 after 40 cycles at 0.1 A·g−1 [120]. In addition, nanocomposites based on Fe2O3–TeO2–MoO3 allow improving the electronic conductivity and, consequently, lead to excellent battery performance [121]. SnO2/NiFe2O4/graphene (SNG) nanocomposites also lead to a high discharge capacity of 613 mAh·g−1 at 800 mA·g−1 after 100 cycles [122].
Another suitable nanocomposite is CoP-Co2P/Ti3C2 based on MXene, which effectively improves the cycle stability performance compared to Ti3C2 [123]. A new material based on MXene results from the intersection of TiO2 nanosheets using a molten-salt method, followed by the generation of dispersed Li3Ti2(PO4)3 NCs. This composite allows improvement of structural stability while showing a high discharge capacity of 204 mAh·g−1 at 50 mA·g−1 [124]. In addition, a new anode material based on CoO/Co1.94P nanocrystals wrapped within carbon polyhedron (CoO/Co1.94[email protected]) heterostructure has been prepared, and its cycling performance is shown in Figure 5b [116].
In order to improve the cycling performance of niobium oxide (Nb2O5), a new material based on aspergillus oryzae spore carbon (ASC) with niobium oxide has been developed to form ASC/Nb2O5 composites, The material is synthetized by the solvothermal (ST) method and offers discharge capacities of 189 and 65 mAh·g−1 as the current density increases from 0.2 to 20 C [125].
Another transition metal of mixed valence spinel cobalt oxide (Co3O4) has been used for anode electrodes, but it has low electronic conductivity and large volume expansion. To solve these disadvantages, carbon-coated porous Co3O4 polyhedrons with (220) facets are produced through a hydrothermal method. The discharge capacity of this material reaches 1463 and 596 mAh·g−1 at 100 and 5000 mA·g−1, respectively, as shown in Figure 5c [117].
Furthermore, TiO2 particles have been used to improve the electrical conductivity of the anode. TiO2/carbon composite-fiber anodes are developed through centrifugal spinning of TiS2/polyacrylonitrile (PAN) precursor fibers and subsequent thermal treatment. This material allows increasing the specific capacity, improves stability, and enhances electrochemical performance compared to TiO2. The corresponding rate performance is shown in Figure 5d [118]. Another material based on TiO2 is constituted by multi-role TiO2 coated on [email protected] MoS2 (CMT) nanotubes, showing excellent long-term cycling performance [126].
Considering their properties, metal–organic framework (MOF) derivatives are increasing their applicability for anode materials, and MnO/[email protected] nanohybrids have been developed with superior lithium storage capabilities, reaching a reversible capacity of 1396 mAh·g−1 at 0.2 A·g−1 with an initial coulombic efficiency higher than 75%, as shown in Figure 5e [119]. In addition, hollow urchins Co-MOF with fluorine (F) doping on reduced graphene oxide (rGO) was synthetized using a solvothermal reaction with excellent reversible capacity (1202.0 mAh·g−1 at 0.1 A·g−1) [127]. Finally, also related to MOFs, a new Co3O4/[email protected] composite was developed for anode applications. This structure allows improving the electrical conductivity and acts as a buffer medium to alleviate the volume change [128]. Furthermore, it allows the development of new polyoxometalate-based metal–organic frameworks (POMOFs) of NAU3–6 with various architectural features [129].

3.2. Active Cathode Materials

For cathode electrodes, the main characteristics of the active materials are high reactivity with lithium, high voltage, easy intercalation and desintercalation of Li+ ions during the charge and discharge process, i.e., lithium diffusion channels and low volume change, being good electronic conductors, stable in contact with the electrolyte solution, and having low cost. The most commonly used active materials for the cathode are lithium cobalt oxide (LiCoO2, LCO), lithium manganese oxides (LiMnO2 and LiMn2O4, LMO), lithium iron phosphate (LiFePO4, LFP), lithium nickel cobalt oxide (LiNi1-xCoxO2 (0.2 ≤ x ≤ 0.5), LNCO), lithium nickel manganese cobalt oxide (LiNi1/3Co1/3Mn1/3O2, LNCMO), and lithium nickel manganese oxide (LiNi0.5Mn0.5O2, LNMO). Table 2 shows the crystal system, specific capacity, and voltage range for each active material.
Recent advances in cathode active materials are focusing on the optimization of particle size, morphology, specific functionalization, doping with different elements, and developing composites with different particles and coating. All these optimization strategies are focusing on the improvement of electronic and thermal properties, to stabilize the particle with respect to the electrolyte, to optimize synthesize methods (as sol–gel synthesis and co-precipitation), and to improve the mechanochemical activation [130,131].
LiCoO2 is widely used in portable applications, such as smartphones, watches, or computers. In fact, it was applied in the first battery in 1991 by Sony due to its high volumetric energy density and reliability. The main disadvantage of this material is associated to the fact that its structure is not stable at high voltage (>4.2 V vs. Li/Li+). Improvements are relying on doping with different elements, surface coating with Li3NbO4 and Co3O4 layers [132], and also through electrolyte optimization [25]. Doping with transition metal ions in LiCoO2-based batteries has been shown to improve electrochemical properties due to the distorted local structure promoted by the impurity ions [133]. LiFePO4 (LFP) is an active material of particular interest to be applied in electric vehicles. To improve its performance, a carbon coating has been placed using biomass of phytic acid (PhyA) as a novel phosphorus source to replace traditional phosphoric acid [134], LiFePO4/multi-walled carbon nanotube (MWCNT) composites have been developed by a hydrothermal process [135], zinc oxide and carbon co-modified LiFePO4 nanomaterials (LFP/C-ZnO) have been produced by a hydrothermal method [136], and LiFePO4/C have been implemented as active cathode materials [137]. Moreover, for LFP, the volumetric capacity has been increased by hot isostatic pressing, isostatic pressure facilitating the electrolyte to penetrate into the voids among LFP particles, which improves Li+ ion diffusion [138].
A novel synthesis of LiFe0.25Mn0.75PO4/[email protected] graphene oxide (rGO) has been developed with the aim of reducing the charge-transfer impedance of the electrode and improving the conductivity and electrochemical properties. With a specific discharge capacity of 143.8 and 139.8 mAh.g−1 at 1 C and 2 C, respectively, this material shows excellent electrochemical reversibility [139]. LiFeBO4 (LFeB) has received special attention considering its high theoretical capacity of 220 mAh·g−1. To further improve its performance, a new active material, LiFeBO3- xF2 x (LFeBF, x = 0.05, 0.1, 0.2, 0.3, and 0.5), has been synthetized by a solid-state reaction, the fluorine substitution at the oxygen site of LFeB leading to an improvement in discharge capacity [140].
LiMn2O4 (LMO) is another active material widely used in LIBs, and its poor cycling behavior has been improved by doping with Ni, Cu, and Co through sol–gel synthesis. The LiMn1.5Ni0.5O4-based cathodes show a decrease in the total half-cell resistance after cycling and excellent electrochemical stability [141]. In addition, for this active material, nanocomposites with graphene oxide have been developed for enhanced electrochemical performance [142]. In order to improve the spinel deterioration, a rock salt type Li2Nb0.15Mn0.85O3 was synthetized, its structure showing no tendency for spinel deterioration or cation ordering, even with massive lithium vacancies [143]. Furthermore, the spinel LiMn1.5Ni0.5O4 has been coated with aluminum oxide to strongly influence the charge–discharge performance [144] and has been doped with vanadium to improve its thermal stability and cyclability [145]. LiNi0.4Mn1.6O4 has been also doped with Ti, where the strong Ti-O bonds reinforce the oxygen lattice and stabilize the crystal structure during the electrochemical reactions process [146].
LiNi0.8Co0.1Mn0.1O2 (NCM811) is a promising active material suitable for electric vehicles based on its high specific energy and power density [147], although it shows the disadvantages of mixed cation discharge, poor thermal stability, and cycling performance [148]. To improve its stabilization and performance, different strategies have been implemented. These strategies include synthetizing it in monocrystalline and polycrystalline structures [149], the ZnO surface coating to increase the structural stability and the conductivity (the corresponding battery performance is shown in Figure 6a) [150], or the use of Ag-Sn dual-modification to promote structural stability (Figure 6b) [151]. LiNi0.8Co0.1Mn0.1O2 has been also doped with reduced graphene oxide (rGO) [152] and with a La2Zr2O7 coating for Zr doping (cycling behavior shown in Figure 6c) [153]. Finally, other modification strategies for the same active material include surface modification after washing by H3BO3 [154], 3D carbon network using 6-amino-4-hydroxy-2-naphthalenesulfonic acid (AHNS)-functionalized rGO and carbon nanotubes (CNTs) [155], partially substitution of Co for Fe [156], and adding ethylene glycol (EG) and surfactant polyvinylpyrrolidone (PVP) [157].
A further variety of related active materials include LiNi0.5Co0.2Mn0.3O2 coated with an oligomer additive [158] and produced by drying methods (freeze drying and vacuum drying) through the solvothermal method [159], LiNi0.6Co0.2Mn0.2O2 with Zr-based dual modification [160], LiNi0.6Co0.2Mn0.2O2 synthesized via solid reaction assisted with a plasma milling pretreatment [161], 0.5Li2MnO3.0.5LiMn1/3Ni1/3Co1/3O2 [162], LiNi0.83Co0.10Mn0.07O2, [163], LiNi0.83Co0.12Mn0.05O2/graphite–SiOx [164], LiNi0.87Co0.1Al0.03O2 with the LBP coating layer [165], LiNi0.88Co0.06Mn0.03Al0.03O2 [166], LiNi0.88Co0.09Al0.03O2 coated with Al2O3 layer [167], LiNi0.90Co0.05Mn0.05O2 with lithium tungsten oxide (LWO) coating layer [168] and Sn-doping [169], Li1.02Ni0.05Mn1.93O4 [170], Li1.05Mn1.95-xNixO4 (0≤ x ≤ 0.08) by a solution combustion method [171], LiMn0.5Fe0.5PO4 cathode coated of Li3VO4, and carbon [172], Li2ZrO3-Li3V2(PO4)3/C composites [173], among others, have been also explored with great potential for cathode electrode aiming to increase battery performance and stability.
In addition, active cathode materials based on single crystal LiNi0.83Co0.10Mn0.07O2 (SC-NCM) have been developed to improve thermal stability, offering a reversible capacity of 167.0 mAh·g−1 [163]. LiNi0.88Co0.06Mn0.03Al0.03O2 has been synthesized and modified by Zr doping and LiBO2 coating to reach a discharge specific capacity of 211.7 mAh·g−1 at 0.1 C [166]. A composition of Li1.17Ni0.21Mn0.54Co0.08O2, with low cobalt content, synthetized by the co-precipitation method, reaches a specific capacity of 250 mAh·g−1, the electrochemical behavior being governed by Ni2+/Ni4+ and Co3+/Co4+ redox couples [174]. Li1.2Ni0.182Co0.08Mn0.538O2 has been coated with PVP-bridged γ-LiAlO2 nanolayers to improve the rate capability and cycling stability, the rate capability being 177.0 mAh·g−1 at 5 C [175].
Another interesting active material is Li1.2Mn0.54Co0.13Ni0.13O2, which doped with carbon and oriented following a {010} plane allows improving Li+ diffusion and reaching a reversible capacity of 276 mAh·g−1 [176]. Another strategy for this active material is to modify the surface using La–Co–O compounds [177]. Finally, this material has been also synthetized to improve the kinetics and reversibility of transition-metal (TM) ion migration, leading to an ultrahigh energy efficiency at 1 C (90.6%) and high capacity (>200 mAh·g−1) [178].
Other cathode active materials without lithium in their structure have been studied as an alternative of the conventional lithium cathode active materials. In this case, the source of lithium ions is the lithium metal used as anode. The electrode material NaVMoO6 with a layered structure has been found with the highest valence states for vanadium (+5) and molybdenum (+6), which are suitable for cathode active material for LIBs, their structure and performance being shown in Figure 7a,b, respectively [179].
In addition, a ferrocene-based MOF, iron (III) 1,1′-ferrocenedicarboxylate (Fe2(DFc)3), has been synthesized and tested for cathode applications with the specific capacity of 172 mAh·g−1 at 50 mA·g−1 [180].

4. Materials for Separators/Electrolytes

4.1. Separator Membrane

An essential component of electrochemical devices is the separator. This component is placed between the two electrodes, and its main function is to prevent the short circuit of the system. Its specific function depends on the type of application being, in the case of lithium-ion batteries, the means of transferring lithium-ions between the electrodes during the charge/discharge process [181].
There are different types of separators, such as microporous membranes, nonwoven membranes, electrospun membranes, membranes with external surface modification, composite membranes, and polymer blends [182].
The separator is composed by a porous membrane wetted with an organic electrolyte solution, the main characteristics required for battery applications being [32,182]:
  • Low thickness (<25 µm) and good permeability;
  • Porosity > 50% and pore size below <1 micron;
  • Excellent wettability: absorption and retention of electrolytes;
  • Chemical and dimensional stability;
  • Good thermal stability and excellent mechanical properties.
Different separator types are produced using different processing techniques, ranging from solvent casting to electrospinning, and different polymers have been used, including polyethylene (PE), polypropylene (PP), poly (vinyl chloride) (PVC), poly(ethylene oxide) (PEO), and poly (vinylidene fluoride) (PVDF), among others, commercial separators being based on polyolefins (PP and PE). Regardless of the separator type, its thickness should be lower than 25 μm, porosity higher than 40% with an average pore size lower than 1 μm and stable at temperatures above 150 °C [182].
Advances in the area of separators are focused on the development of advanced porous membranes based on environmental friendly materials, improving thermal and safety properties, increasing the wettability of polyolefins polymers, and inhibiting dendrites growth [183], among others. Table 3 summarizes representative recent works in this field.
Stability parameters, such as thermal and mechanical characteristics, are the easiest to achieve, as the properties of the separator components are well known and easily combined. Polyimide (PIs) is widely used in the separator field due to the improved thermal stability and different separators based on this polymer are being developed, such as PI nonwovens with diphenyl phosphate (DPhP) as plasticizer [204], PI with organic montmorillonite (OMMT) [205], a three-dimensionally ordered microporous polyimide (3DOM PI) separator developed by micropatterning [206], coating of silicon nitride on both sides of polyimide separator [207], and a PVDF-HFP/PI side-by-side bicomponent electrospun separator [208]. In addition to PI, other polymers such as poly(aryl ether benzimidazole) (OPBI) [209], polydopamine-coated poly(m-phenylene isophthalamid) membrane [210], and poly(phenylene sulfide) [211] are used due to their high thermal resistance.
The affinity of the separator with the electrolytes is also an important parameter, which is mainly associated with the wettability and uptake of the membranes. In order to improve electrolyte wettability and thermal stability, new separators based on heat-resistant polyphenylene sulfide (PPS) fibers and cellulose fibers (CFs) were fabricated via a facile papermaking process, and their performance is shown in Figure 8a [212]. The wettability of PE separator membranes can be improved by the coating of Al2O3 on the membrane, leading also to a reduction of the interfacial resistance [187]. Furthermore, in the same separator type and with the objective of enhancing thermal runaway, melamine-based porous organic polymer (POP) coatings [213] were implemented. In fact, different materials have been used as a layer on the surface of polyolefin separators to improve its wettability, including polyethyleneimine (PEI)/dopamine coating layer [188], Al2O3 layers in electrospun PVDF nanofibers [193], ammonium persulfate (APS) coating [194], a phenolic resin (AF) layer with immersion in situ reaction [186], a thin layer of low-density polyethylene microspheres [199], polyamine (PAI) containing natural clay nanorods (attapulgite, ATP) [197], and polyvinyl alcohol (PVA) [214], TiO2 [215], Al2O3 [216], UV-induced graft with polar methyl acrylate (MA) [217], and polyimide (PI)-SiO2 layers [218].
The ionic conduction of the separators is a direct consequence of their wettability and uptake, as the electrolyte plays a key role on the electrochemical properties of the system. In this regard, composite separators are intensively used, and different combinations of polymer matrix and specific fillers are being developed, such as, boehmite/polyacrylonitrile (BM/PAN) [219], 9,10-dihydro-9- oxa-10-phosphaphenanthrene-10-oxide (DOPO) into polyacrylonitrile (PAN) [220], PVDF containing titanium dioxide (TiO2) and graphene oxide (GO) [189], PVDF with 13X zeolite [195] and PVDF with modacrylic and SiO2 [221], polyacrylonitrile (PAN)/helical carbon nanofibers(HCNFs)@PVDF/UiO-66 composite [222], cellulose/Poly (vinylidene fluoride-hexafluoropropylene) membrane with titania nanoparticles [202], polyimide (PI) with ZSM-5 zeolite as filler [190] and PVDF with titanium hydroxide (Ti(OH)x) [223], polyethylene terephthalate (PET) combined with inorganic zirconia (ZrO2) [224], silica-coated expanded polytetrafluoroethylene separator [225], poly(vinyl alcohol) (PVA) with ZrO2 nanoparticles [226], poly(vinyl alcohol) (PVA) with submicron spindle-shaped CaCO3 [227], poly(vinyl alcohol)/melamine composite nanofiber membrane containing LATP nanocrystals [228], and poly(m-phenylene isophthalamide) (PMIA) with SiO2 nanoparticles [229], among others, mainly with the main focus on improving the electrochemical properties. In particular, separators based on PVDF coated with ZnO have been developed with higher ionic conductivity (2.261 mS·cm−1), high porosity (85.1%), favorable electrolyte wettability (352%), and lower interfacial impedance (220 Ω) [198].
The future trends on the separator technology include the development of more complex and multifunctional membranes, particularly with the increasing of the devices’ safety, by adding shutdown functions to the separators [199]. Novel separator architectures based on three layers were developed combining electrospinning and electrospraying techniques and composed of PI and poly(amic acid) ammonium salt (PAAS) solution with inorganic nanoparticles (SiO2 or Al2O3) [185]. Another three-layer separator was produced based on poly (ethylene-co-vinyl acetate) (EVA)/polyimide (PI)/EVA (PIE) with high thermal stability and a shutdown function [230].
With the increase of the global awareness on environmental issues, the development of “greener” separators for batteries has also gained relevance in recent years, with the application of biopolymers as host, and less hazardous fillers in order to reduce environmental impacts. A biopolymer widely used in battery separator membranes is cellulose. In order to improve its performance, the “Trojan Horse” camouflage strategy was used, which consists of preparing positively charged lignosulfonate–polyamide–epichlorohydrin complex (LPC) nanoparticles that are incorporated into the separator. This strategy shows exceptional electrolyte wettability and rate capability as shown in Figure 8b [231]. Other works in this field include composites based on bacterial cellulose nanocrystals (BCNCs) with polyether block amide (PEBAX) [232], zeolitic imidazolate framework-67 (ZIF-67) on the surface of cellulose nanofibers (CNFs) [233], poly(vinylidene fluoride-hexafluoropropylene)/cellulose/carboxylic titanium dioxide (PVDF-HFP/cellulose/C-TiO2) composites [234], aramid nanofiber (ANF)/bacterial cellulose (BC) [200], cellulose nanofibrils (CNFs) reinforced pure cellulose paper (CCP) [235], and Lyocell fibrillated fibers [236], all showing exceptional electrochemical performance and rate capability (Figure 8c for ANF/BC separator). A novel PVDF/triphenyl phosphate (TPP)/cellulose acetate (CA) separator membrane was fabricated by electrospinning, and this membrane shows high porosity, improved thermal stability, superior electrolyte wettability, improved flame resistance, excellent electrochemical properties, and cycle stability when compared to the commercial separators (Figure 8d) [237]. Silk fibroin membranes prepared by salt leaching are also an excellent candidate for this green transition, due to its high porosity and uptake, which leads to excellent battery performances at a wide range of discharge rates [203]. The experimental studies are frequently accompanied with theoretical and simulation models to better understand the involved physical–chemical phenomena [238].

4.2. Solid Polymer Electrolytes

Solid polymer electrolytes (SPE) are a solvent-free salt solution in a polymer host, which can be considered solid in the macroscopic scale [37]. They are a key component in the operation of solid-state batteries, as they allow the removal of the liquid electrolytes from the system, improving their safety. However, some major drawbacks are causing this technology to lag behind, namely the low ionic conductivity achieved and the difficult interfacial interaction between the electrodes and the electrolyte [239,240]. A good SPE in LIBs must have some basic properties, such as good ionic conductivity (>10−4 S·cm−1), good interfacial compatibility with the electrodes, high lithium-ion transference number, and good mechanical and thermal stability. The perfect balance among all these characteristics is difficult to achieve but will allow producing suitable SPE for application at large scale in the next generation of solid-state batteries [38].
The field of SPEs in lithium-ion batteries is strongly growing in recent years, with more than 500 publications in 2020 according to the Web of Science. This highlights the relevance of this thematic and the efforts made to find the most suitable materials for application in SPEs. Some of the most relevant studies are focusing on the resolution of issues that include the growth of lithium dendrites [241] and electrode/electrolyte interface [242], as well as enhancing the multifunctionality of the SPE, with the addition of battery shutdown functions or self-healing ability. Table 4 summarizes and outlines the recent works in the SPE field.
The lithium dendrite suppression can be a major breakthrough for the use of lithium metal batteries in their full potential, without safety problems. According to that, several studies have been carried out in order to solve this issue. The production of a sandwiched PVDF/LLTO by tape casting proved to be effective for this purpose, as the use of different LLTO concentrations in each layer allows for high ionic conductivities and good interfacial compatibility. This leads to batteries with good cycling capacities and excellent lifetimes [241]. Similar results are reported for LLZO nanofibers [251]. LLZO can also be combined with PEO and Pyr14TFSI to reinforce commercial Celgard® separators, leading to an SPE with excellent dendrite suppression ability. The formation of dense Li depositions in the interface with lithium metal is observed, due to a synergistic electro-chemo-mechanical effect observed in LLZO composite layer (Figure 9) [29]. The addition of 3D SiO2 particles into a PEO matrix offers a uniform dispersion of high conductive interfaces, improving the performance of the battery [244]. The 3D cross-linked network formed by a mixture of PEO, GO, and [Bmim][DCA] provided a fast ion transport channel in the SPE structure, leading to high lithium transference number and high ionic conductivity even at room temperature, simultaneously suppressing the lithium dendrite growth [243]. Ionic liquids such as Pyr13TFSI lead to a viscoelastic electrode/electrolyte interface, which reduces the impedance of the battery and avoids lithium dendrites [249]. The use of MOFs, such as UiO-66-NH2@SiO2, leads to a network of high conductivity channels in the SPE structure, which improves its electrochemical properties and reduces the lithium dendrite formation [252]. By adding Zn(BEH2) at the SPE, a LiZn alloy interface is formed in the anode, which suppresses dendrite penetration, simultaneously increasing the ionic conductivity [255]. The highly conductive LGPS salts act as stabilizers, particularly when combined with fluorinated polymers such as PVDF-HFP, due to the LiF layer formed between the electrodes and the electrolyte, which suppresses lithium propagation [256]. The addition of carbon quantum dots into a PEO matrix leads to an increase in the mechanical stability of the SPE, particularly at the level of stretching and puncture resistance, without compromising the battery performance [30]. The use of nonwoven glass fiber to reinforce the PEO matrix significantly improves the mechanical properties of the SPE with storage moduli up to 1 GPa. This allows not only the lithium dendrite suppression but also the possibility of increasing the load of other fillers, leading to higher ionic conductivities and cycling performances without compromising the mechanical properties [245].
Another strategy to suppress lithium dendrites is the combination of different kinds of polymers. By adding PAN electrospun nanofibers to a blend of PDMS and PEO, it is possible to reduce the crystallization of PEO and increase the mechanical properties of the SPE, which prevents it from being punctured by dendrites [254]. The addition of a PEO/LiTFSI solution in an electrospun PVDF nanofiber matrix also reduces the PEO crystallization due to the increase in the contact area with the nanofibers. This increases the mechanical strength and the cycling stability of the SPE [246]. Similar results can also be achieved by using a polyester-based triblock structure [247]. By combining different kinds of polymers in regular-random network structures, it is possible to regulate the lithium deposition by facilitating the formation of a regular and robust SEI in lithium metal [253]. Mechanical properties improvement can also be achieved by creating polymer blends between PVDF and cellulose acetate. Simultaneously, the addition of an inorganic filler (montmorillonite) accelerates the dissociation process of LiTFSI, allowing for higher ion transport rates [250]. The development of a hybrid polymer-in-ceramic composite electrolyte is an interesting approach, as it combines the advantages of high ionic conductivity in ceramic electrolytes, and the mechanical properties of the polymer electrolytes; furthermore, it can simultaneously suppress the lithium dendrites [248].
In many cases, the suppression of lithium dendrites is strongly associated with the improvement of the interfacial contact between the electrodes and the electrolyte [254,255,256]. The interfacial compatibility can be enhanced by combining different functional units, as PEG and HDIt in one SPE, in which its properties can be easily tuned by changing the ratio between the functional units [242]. The use of additive containing solid lithium-ion conductors, where lithium salts are combined with polymers such as PS, proved to reduce the interfacial resistivity between the electrolyte and the electrodes, improving battery performance [257]. The substitution of the conventional lithium salts by LiPCSI reduces the glass transition temperature of the SPE, thus increasing the mobility of the polymer chains and improving compatibility with metallic lithium anodes [258].
An interesting approach that attracted great interest in recent years is the study of the self-healing capacity in SPEs. This application has the potential to solve simultaneously the interfacial and lithium dendrite problems, leading to a reduction on the short circuits and electrolyte leakages occurrence, and consequently to a significant increase in the battery cycle life [280]. In this sense, the addition of lithium nitride as an artificial SEI in the interface between the SPE and Li metal proved to inhibit the reactions between the electrolyte and the electrode. This layer avoids the use of lithium-ions for the formation of the common SEI, and it has the capacity to maintain its structure after several charge and discharge cycles, also avoiding the growth of lithium dendrites due to their excellent mechanical properties [259]. The use of UV copolymerization of polymers such as hexa(4-ethyl acrylate phenoxy) cyclotriphosphazene (HCP), (2-(3-(6-methyl-4-oxo-1,4-dihydropyrimidin-2-yl)ureido)ethyl methacrylate) (UPyMA), and poly(ethylene glycol) methyl ether methacrylate (PEGMA) is an effective way to combine the different properties of each polymer and create an SPE with high thermal and mechanical stability, self-healing, and fire retardant capacity, improving both the safety and the performance of LIBs [260]. Polymeric ionic liquids (PILs) can also be effectively applied for this purpose. The reversible ionic bonds created by the abundance of cations and anions existent in the polymer chains and in the interstitial ionic liquid enhance the self-healing capacity and creates a system of interconnected pathways for the lithium-ion migration, increasing the ionic conductivity of the LIB (Figure 10) [261]. Fast self-healing levels can be achieved by combining disulfide bonds with urea groups, particularly at high temperatures, without loss in battery performance, due to the effect of hydrogen and disulfide bonds, which return the material to its former state [262].
Flame retardancy is also an important and needed development in the SPE technology, as it prevents the occurrence of incidents caused by short circuits, such as burning or explosion of the equipment. By doping the polymer matrix structure with phosphorous and silicon containing monomers, it is possible to increase the compatibility between the fillers and the matrix, which improves the overall stability even at high temperatures, enhancing the flame retardant performance [263].
More conventional approaches include the studies to increase battery performance, cycling stability, and to reduce the operation temperature of an SPE. In this context, the production of a PAES-g-PEG polymer blend, using room temperature ionic liquids as fillers lead to excellent cycling stabilities, particularly with the addition of nitrile functional groups to the matrix, with stability up to 500 cycles [264]. Ionic conduction can be increased when PVDF-HFP is added to the structure of an ETPTA UV cured polymer, with the formation of high ionic conduction pathways [266]. The use of MOFs promotes the intermolecular interactions in the polymer structure, which inhibits the crystallization of PEO, improving the ionic conductivity, particularly at high temperatures [267]. Ionic liquids are also an effective way to increase the ionic conductivity of an SPE, through the inhibition of the polymer crystallization [268,272]. The immobilization of lithium ionic liquids (LiIL) in a mesoporous silica structure creates a hybrid interface that provides fast Li+ transportation kinetics without compromising the mechanical properties. The assembled batteries with this SPE showed good cycling performances at high temperatures [269]. Polymeric ionic liquids (PILs) can reduce the interfacial resistance in the battery, resulting in improved ionic conductivity, and consequently good cycling performance [270]. BaTiO3 nanoparticles can be used to improve both the ionic conductivity and the dielectric constant of a PMMA based SPE, up to a maximum of 5166 [271]. The use of ultrasonic treatments in the PEO matrix proved to significant increase the ionic conductivity of the SPE by around 78% due to the breaking of PEO grains and reduction in the crystallinity [273]. Polymer-in-ceramic composites can also play a key role in the ionic conduction with fast Li+ conduction and high lithium transference number [274]. The use of zeolites is still not much explored, but it shows promising results, particularly in the prolonged cycle life of the batteries [265]. The comparison between the two most used lithium salts (LiTFSI and LiClO4) concluded that LiTFSI originates SPEs with the higher ionic conductivity, while the Li+ transference number is increased by the addition of LiClO4 [275].
Environmental issues are gaining significant relevance in modern society. Thus, the necessity to produce more sustainable devices has also reached the SPE field. In this context, the shift toward the use of environmental friendlier materials, both with the use of natural polymers as matrix, and by avoiding the use of organic solvents, is getting increasing interest [281]. The use of chitosan combined with a PEG plasticizer leads to an SPE with an excellent room temperature ionic conductivity, due to increasing polymer chain flexibility attributed to the plasticizer addition, making this a promising option for application in batteries [276]. Iota-Carrageenan [277], pectin, and guar gum [278] are other promising polymers that can achieve high room temperature ionic conductivity (in the order of 10−4 S·cm−1). The use of water as solvent in a super hydrophilic PAA matrix doped with silica nanoparticles presents outstanding ionic conductivities above 10−2 S·cm−1, being a promising candidate for aqueous rechargeable lithium-ion batteries [279].

5. Main Conclusions and Future Trends

Lithium-ion batteries (LIBs) are the most used energy storage system with increasing applicability on devices ranging from small sensors to large-scale and complex electric vehicles. The recent development in the materials used in the main three LIBs components, anode, cathode, and separator/electrolyte, have been presented and compared. These materials are focused on the resolution of the most frequent LIB issues, such as the ones related to their processability, safety, and stability, as well as to increase their performance. Furthermore, the environmental impact of materials and processes are gaining increasing relevance in this area. For the anode, the most studied active materials are carbon, metal alloys, and silicon-based materials. Furthermore, conversion-type transition metals and their composite-based anode materials increased interest in recent years due to their high theoretical capabilities, low cost, and availability. Materials such as iron oxides and MOFs increase lithium storage capabilities and electrical conductivity, and they act as a buffer medium to reduce the volume change.
With respect to cathode active materials, the most used ones, including LFP, LCO, LMO, or LNMO, are being modified through doping with different elements, innovative synthesis methods have been developed, composites with different particles have been processed, particle size and morphology are being optimized, and performance is being improved by functionalization and coating. Efforts are also being made in the field of hybrid structures, using materials such as MXenes and MOFs, to improve the electrode’s performance, with a focus on improving cycling behavior. Future trends in this area also include research in cobalt-free active materials, which will allow for the reduction of the battery costs, as cobalt is a scarce and costly component of batteries. These optimizations are focused to improve the electronic and thermal properties, to stabilize the particle with the electrolyte, and to improve the mechanochemical activation. Separator materials based on PP, PE, and PVDF, among other polymers, have been studied as microporous membranes, nonwoven membranes, and electrospun membranes. In addition to the structure, surface modification, composite membranes, and polymer blends have been studied showing improved lithium dendrite growth inhibition, improving thermal and safety properties, increasing the wettability, and improving interfacial issues. Studies of new environmentally friendly materials and SPE are increasing due to the commitment with advanced sustainable and safer materials in LIBs systems. Materials such as cellulose and silk, and fillers such as natural clay are some of these examples. The elimination of the liquid electrolyte in SPE strongly decreases the safety concerns visualized in the typical separators. Furthermore, SPE studies show that additional functionalities as battery shutdown, self-healing, and/or self-sensing ability can be implemented in those systems, strongly increasing battery characteristics, particularly at the safety level. In addition, initial studies demonstrate that natural polymers are a possible route for SPE development, once they allow for high room temperature ionic conductivity, without compromising sustainability. Thus, efforts to enhance the material properties of chitosan, iota-carrageenan, pectin, and guar gum have been made in order to be applied to LIBs.
The work on LIBs should always take into consideration improvements on all components of the batteries in order to achieve the best compatibility and improve the performance of the devices. Thus, the study of the different materials for a specific battery component must take into consideration the materials that will be integrated into the other components. The selection and combination of these materials will affect the overall performance of the system, aiming to solve the current performance, safety, stability, and environmental issues.
The development of LIB technology must also be accompanied with the advance in alternative energy storage systems, which allows for a higher diversity of options, limiting the over exploration of the same type of resources. These alternatives include sodium, potassium, and manganese-based batteries, which are areas of increasing research activity.
Thus, despite the strong success and implementation of Li-ion batteries in modern technology, efforts and the levels of materials must continue to provide a new generation of higher performance, safer, and environmentally friendlier batteries.

Author Contributions

Writing—original draft, Writing—review and editing, J.C.B., R.G., C.M.C. and S.L.-M.; Funding acquisition, S.L.-M. All authors have read and agreed to the published version of the manuscript.


Funding grants UID/FIS/04650/2020, UID/EEA/04436/2020 and UID/QUI/0686/2020; and project PTDC/FIS-MAC/28157/2017. Financial support grants SFRH/BD/140842/2018 (J.C.B.) and Investigator FCT Contracts CEECIND/00833/2017 (R.G.) and 2020.04028.CEECIND (C.M.C.) Financial support ELKARTEK and PIBA (PIBA-2018-06) programs.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.


The authors thank the FCT (Fundação para a Ciência e Tecnologia), POCH, European Union, Basque Government Industry and Education Departments for financial support.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Xu, M.; David, J.M.; Kim, S.H. The fourth industrial revolution: Opportunities and challenges. Int. J. Financ. Res. 2018, 9, 90–95. [Google Scholar] [CrossRef][Green Version]
  2. Abdelkareem, M.A.; Elsaid, K.; Wilberforce, T.; Kamil, M.; Sayed, E.T.; Olabi, A. Environmental aspects of fuel cells: A review. Sci. Total Environ. 2021, 752, 141803. [Google Scholar] [CrossRef]
  3. Kaltschmitt, M.; Streicher, W.; Wiese, A. Renewable Energy: Technology, Economics and Environment; Springer Science & Business Media: New York, NY, USA, 2007. [Google Scholar]
  4. Scrosati, B.; Hassoun, J.; Sun, Y.-K. Lithium-ion batteries. A look into the future. Energy Environ. Sci. 2011, 4, 3287–3295. [Google Scholar] [CrossRef]
  5. Volta, A. On the electricity excited by the mere contact of conducting substances of different kinds. In a letter from Mr. Alexander Volta, F.R.S. Professor of Natural Philosophy in the University of Pavia, to the Rt. Hon. Sir Joseph Banks, Bart. K.B. P. R. S. Philos. Trans. R. Soc. Lond. 1800, 90, 403–431. [Google Scholar]
  6. Abraham, K.M. Prospects and Limits of Energy Storage in Batteries. J. Phys. Chem. Lett. 2015, 6, 830–844. [Google Scholar] [CrossRef]
  7. Broussely, M.; Pistoia, G. Industrial Applications of Batteries: From Cars to Aerospace and Energy Storage; Elsevier: Amsterdam, The Netherlands, 2007. [Google Scholar]
  8. Diouf, B.; Pode, R. Potential of lithium-ion batteries in renewable energy. Renew. Energy 2015, 76, 375–380. [Google Scholar] [CrossRef]
  9. Väyrynen, A.; Salminen, J. Lithium ion battery production. J. Chem. Thermodyn. 2012, 46, 80–85. [Google Scholar] [CrossRef]
  10. Laing, D.; Bahl, C.; Bauer, T.; Fiss, M.; Breidenbach, N.; Hempel, M. High-Temperature Solid-Media Thermal Energy Storage for Solar Thermal Power Plants. Proc. IEEE 2012, 100, 516–524. [Google Scholar] [CrossRef]
  11. Jiang, F.; Peng, P. Elucidating the Performance Limitations of Lithium-ion Batteries due to Species and Charge Transport through Five Characteristic Parameters. Sci. Rep. 2016, 6, 32639. [Google Scholar] [CrossRef] [PubMed][Green Version]
  12. Whittingham, M.S. Electrical Energy Storage and Intercalation Chemistry. Science 1976, 192, 1126. [Google Scholar] [CrossRef] [PubMed]
  13. Mizushima, K.; Jones, P.C.; Wiseman, P.J.; Goodenough, J.B. LixCoO2 (0 < x < −1): A new cathode material for batteries of high energy density. Mater. Res. Bull. 1980, 15, 783–789. [Google Scholar]
  14. Thackeray, M.M.; David, W.I.F.; Bruce, P.G.; Goodenough, J.B. Lithium insertion into manganese spinels. Mater. Res. Bull. 1983, 18, 461–472. [Google Scholar] [CrossRef]
  15. Padhi, A.; Nanjundaswamy, K.S.; Goodenough, J. Phospho-Olivines as Positive-Electrode Materials for Rechargeable Lithium Batteries. J. Electrochem. Soc. 1997, 144, 1188–1194. [Google Scholar] [CrossRef]
  16. Nishi, Y. The development of lithium ion secondary batteries. Chem. Rec. 2001, 1, 406–413. [Google Scholar] [CrossRef] [PubMed]
  17. Takada, K. Progress and prospective of solid-state lithium batteries. Acta Mater. 2013, 61, 759–770. [Google Scholar] [CrossRef]
  18. Liu, C.; Neale, Z.G.; Cao, G. Understanding electrochemical potentials of cathode materials in rechargeable batteries. Mater. Today 2016, 19, 109–123. [Google Scholar] [CrossRef]
  19. Winter, M.; Besenhard, J.O.; Spahr, M.E.; Novák, P. Insertion Electrode Materials for Rechargeable Lithium Batteries. Adv. Mater. 1998, 10, 725–763. [Google Scholar] [CrossRef]
  20. Deng, W.; Zhu, W.; Zhou, X.; Liu, Z. Graphene nested porous carbon current collector for lithium metal anode with ultrahigh areal capacity. Energy Storage Mater. 2018, 15, 266–273. [Google Scholar] [CrossRef]
  21. Miranda, D.; Gören, A.; Costa, C.M.; Silva, M.M.; Almeida, A.M.; Lanceros-Méndez, S. Theoretical simulation of the optimal relation between active material, binder and conductive additive for lithium-ion battery cathodes. Energy 2019, 172, 68–78. [Google Scholar] [CrossRef]
  22. Lisbona, D.; Snee, T. A review of hazards associated with primary lithium and lithium-ion batteries. Process Saf. Environ. Prot. 2011, 89, 434–442. [Google Scholar] [CrossRef]
  23. Zhao, Q.; Stalin, S.; Zhao, C.-Z.; Archer, L.A. Designing solid-state electrolytes for safe, energy-dense batteries. Nat. Rev. Mater. 2020, 5, 229–252. [Google Scholar] [CrossRef]
  24. Zhang, W.-J. Structure and performance of LiFePO4 cathode materials: A review. J. Power Sources 2011, 196, 2962–2970. [Google Scholar] [CrossRef]
  25. Lyu, Y.; Wu, X.; Wang, K.; Feng, Z.; Cheng, T.; Liu, Y.; Wang, M.; Chen, R.; Xu, L.; Zhou, J. An Overview on the Advances of LiCoO2 Cathodes for Lithium-Ion Batteries. Adv. Energy Mater. 2020, 11, 2000982. [Google Scholar] [CrossRef]
  26. Tong, W.; Chu, Q.; Meng, Y.; Wang, X.; Bin, Y.; Gao, J.; Zhao, X.; Liu, X. Synthesis of mesoporous orthorhombic LiMnO2 cathode materials via a one-step flux method for high performance lithium-ion batteries. Mater. Res. Express 2018, 5, 065511. [Google Scholar] [CrossRef]
  27. Chikkannanavar, S.B.; Bernardi, D.M.; Liu, L. A review of blended cathode materials for use in Li-ion batteries. J. Power Sources 2014, 248, 91–100. [Google Scholar] [CrossRef]
  28. Kamali, A.R.; Fray, D.J. Review on carbon and silicon based materials as anode materials for lithium ion batteries. J. New Mater. Electrochem. Syst 2010, 13, 147–160. [Google Scholar]
  29. Zhou, D.; Zhang, M.; Sun, F.; Arlt, T.; Frerichs, J.E.; Dong, K.; Wang, J.; Hilger, A.; Wilde, F.; Kolek, M.; et al. Performance and behavior of LLZO-based composite polymer electrolyte for lithium metal electrode with high capacity utilization. Nano Energy 2020, 77, 105196. [Google Scholar] [CrossRef]
  30. Xie, W.; Wu, L.; Liu, W.; Dang, Y.; Tang, A.; Luo, Y. Modelling electrolyte-immersed tensile property of polypropylene separator for lithium-ion battery. Mech. Mater. 2021, 152, 103667. [Google Scholar] [CrossRef]
  31. Zhang, Z.; Zhou, M.; Yu, J.; Cai, J.; Yang, Z. Poly (vinylidene fluoride) Modified Commercial Paper as a Separator with Enhanced Thermal Stability and Electrolyte Affinity for Lithium-ion Battery. Energy Environ. Mater. 2020, 1–7. [Google Scholar] [CrossRef]
  32. Barbosa, J.C.; Dias, J.P.; Lanceros-Mendez, S.; Costa, C.M. Recent Advances in Poly(vinylidene fluoride) and Its Copolymers for Lithium-Ion Battery Separators. Membranes 2018, 8, 45. [Google Scholar] [CrossRef][Green Version]
  33. Li, Q.; Chen, J.; Fan, L.; Kong, X.; Lu, Y. Progress in electrolytes for rechargeable Li-based batteries and beyond. Green Energy Environ. 2016, 1, 18–42. [Google Scholar] [CrossRef][Green Version]
  34. Okumura, T.; Taminato, S.; Miyazaki, Y.; Kitamura, M.; Saito, T.; Takeuchi, T.; Kobayashi, H. LISICON-Based Amorphous Oxide for Bulk-Type All-Solid-State Lithium-Ion Battery. ACS Appl. Energy Mater. 2020, 3, 3220–3229. [Google Scholar] [CrossRef]
  35. DeWees, R.; Wang, H. Synthesis and Properties of NaSICON-type LATP and LAGP Solid Electrolytes. ChemSusChem 2019, 12, 3713–3725. [Google Scholar] [CrossRef]
  36. Li, Y.; Xu, H.; Chien, P.-H.; Wu, N.; Xin, S.; Xue, L.; Park, K.; Hu, Y.-Y.; Goodenough, J.B. A Perovskite Electrolyte That Is Stable in Moist Air for Lithium-Ion Batteries. Angew. Chem. Int. Ed. 2018, 57, 8587–8591. [Google Scholar] [CrossRef]
  37. Mindemark, J.; Lacey, M.J.; Bowden, T.; Brandell, D. Beyond PEO—Alternative host materials for Li+-conducting solidpolymer electrolytes. Prog. Polym. Sci. 2018, 81, 114–143. [Google Scholar] [CrossRef]
  38. Wu, F.; Zhang, K.; Liu, Y.; Gao, H.; Bai, Y.; Wang, X.; Wu, C. Polymer electrolytes and interfaces toward solid-state batteries: Recent advances and prospects. Energy Storage Mater. 2020, 33, 26–54. [Google Scholar] [CrossRef]
  39. Christensen, J.; Albertus, P.; Sanchez-Carrera, R.S.; Lohmann, T.; Kozinsky, B.; Liedtke, R.; Ahmed, J.; Kojic, A. A Critical Review of Li/Air Batteries. J. Electrochem. Soc. 2011, 159, R1–R30. [Google Scholar] [CrossRef]
  40. Li, T.; Bai, X.; Gulzar, U.; Bai, Y.-J.; Capiglia, C.; Deng, W.; Zhou, X.; Liu, Z.; Feng, Z.; Proietti Zaccaria, R. A Comprehensive Understanding of Lithium–Sulfur Battery Technology. Adv. Funct. Mater. 2019, 29, 1901730. [Google Scholar] [CrossRef]
  41. Nunes-Pereira, J.; Costa, C.M.; Lanceros-Méndez, S. Polymer composites and blends for battery separators: State of the art, challenges and future trends. J. Power Sources 2015, 281, 378–398. [Google Scholar] [CrossRef]
  42. Imanishi, N.; Yamamoto, O. Rechargeable lithium–air batteries: Characteristics and prospects. Mater. Today 2014, 17, 24–30. [Google Scholar] [CrossRef]
  43. Zhang, W.; Liu, Y.; Guo, Z. Approaching high-performance potassium-ion batteries via advanced design strategies and engineering. Sci. Adv. 2019, 5, eaav7412. [Google Scholar] [CrossRef][Green Version]
  44. Canepa, P.; Sai Gautam, G.; Hannah, D.C.; Malik, R.; Liu, M.; Gallagher, K.G.; Persson, K.A.; Ceder, G. Odyssey of Multivalent Cathode Materials: Open Questions and Future Challenges. Chem. Rev. 2017, 117, 4287–4341. [Google Scholar] [CrossRef]
  45. Abraham, K.M. How Comparable Are Sodium-Ion Batteries to Lithium-Ion Counterparts? ACS Energy Lett. 2020, 5, 3544–3547. [Google Scholar] [CrossRef]
  46. Costa, C.M.; Barbosa, J.C.; Gonçalves, R.; Castro, H.; Campo, F.J.D.; Lanceros-Méndez, S. Recycling and environmental issues of lithium-ion batteries: Advances, challenges and opportunities. Energy Storage Mater. 2021, 37, 433–465. [Google Scholar] [CrossRef]
  47. Slater, M.D.; Kim, D.; Lee, E.; Johnson, C.S. Sodium-Ion Batteries. Adv. Funct. Mater. 2013, 23, 947–958. [Google Scholar] [CrossRef]
  48. Hosaka, T.; Kubota, K.; Hameed, A.S.; Komaba, S. Research Development on K-Ion Batteries. Chem. Rev. 2020, 120, 6358–6466. [Google Scholar] [CrossRef] [PubMed]
  49. Liang, M.; Liu, Y.; Xiao, B.; Yang, S.; Wang, Z.; Han, H. An analytical model for the transverse permeability of gas diffusion layer with electrical double layer effects in proton exchange membrane fuel cells. Int. J. Hydrogen Energy 2018, 43, 17880–17888. [Google Scholar] [CrossRef]
  50. Joos, J.; Buchele, A.; Schmidt, A.; Weber, A.; Ivers-Tiffée, E. Virtual Electrode Design for Lithium-Ion Battery Cathodes. Energy Technol. 2021, 2000891. [Google Scholar] [CrossRef]
  51. Gören, A.; Costa, C.M.; Silva, M.M.; Lanceros-Méndez, S. State of the art and open questions on cathode preparation based on carbon coated lithium iron phosphate. Compos. Part B Eng. 2015, 83, 333–345. [Google Scholar] [CrossRef]
  52. Zhou, W.; Hao, F.; Fang, D. The effects of elastic stiffening on the evolution of the stress field within a spherical electrode particle of lithium-ion batteries. Int. J. Appl. Mech. 2013, 5, 1350040. [Google Scholar] [CrossRef]
  53. Christensen, J.; Newman, J. A Mathematical Model of Stress Generation and Fracture in Lithium Manganese Oxide. J. Electrochem. Soc. 2006, 153, A1019. [Google Scholar] [CrossRef]
  54. Zhou, W. Effects of external mechanical loading on stress generation during lithiation in Li-ion battery electrodes. Electrochim. Acta 2015, 185, 28–33. [Google Scholar] [CrossRef][Green Version]
  55. Zhu, Z.; He, Y.; Hu, H.; Zhang, F. Evolution of Internal Stress in Heterogeneous Electrode Composite during the Drying Process. Energies 2021, 14, 1683. [Google Scholar] [CrossRef]
  56. Lu, X.; Li, H.; Chen, N. Analysis of the Properties of Fractional Heat Conduction in Porous Electrodes of Lithium-Ion Batteries. Entropy 2021, 23, 195. [Google Scholar] [CrossRef]
  57. Nguyen, T.-T.; Demortière, A.; Fleutot, B.; Delobel, B.; Delacourt, C.; Cooper, S.J. The electrode tortuosity factor: Why the conventional tortuosity factor is not well suited for quantifying transport in porous Li-ion battery electrodes and what to use instead. NPJ Comput. Mater. 2020, 6, 123. [Google Scholar] [CrossRef]
  58. Roy, P.; Srivastava, S.K. Nanostructured anode materials for lithium ion batteries. J. Mater. Chem. A 2015, 3, 2454–2484. [Google Scholar] [CrossRef]
  59. Liu, N.; Li, W.; Pasta, M.; Cui, Y. Nanomaterials for electrochemical energy storage. Front. Phys. 2014, 9, 323–350. [Google Scholar] [CrossRef]
  60. Mahmood, N.; Tang, T.; Hou, Y. Nanostructured Anode Materials for Lithium Ion Batteries: Progress, Challenge and Perspective. Adv. Energy Mater. 2016, 6, 1600374. [Google Scholar] [CrossRef]
  61. Kumar, T.P.; Kumari, T.S.D.; Stephan, M.A. Carbonaceous anode materials for lithium-ion batteries–the road ahead. J. Indian Inst. Sci. 2009, 89, 393–424. [Google Scholar]
  62. Ni, W.; Shi, L. Review Article: Layer-structured carbonaceous materials for advanced Li-ion and Na-ion batteries: Beyond graphene. J. Vac. Sci. Technol. A 2019, 37, 040803. [Google Scholar] [CrossRef][Green Version]
  63. González, M.A.; Marschilok, A.C.; Reichmanis, E. Perspective—Enhancing Active Anode Material Performance for Lithium-Ion Batteries via Manipulation of Interfacial Chemistry. J. Electrochem. Soc. 2020, 167, 050507. [Google Scholar] [CrossRef]
  64. Lu, Y.; Yu, L.; Lou, X.W. Nanostructured Conversion-type Anode Materials for Advanced Lithium-Ion Batteries. Chem 2018, 4, 972–996. [Google Scholar] [CrossRef][Green Version]
  65. Zhong, Y.; Yang, M.; Zhou, X.; Zhou, Z. Structural design for anodes of lithium-ion batteries: Emerging horizons from materials to electrodes. Mater. Horiz. 2015, 2, 553–566. [Google Scholar] [CrossRef]
  66. Qi, X.; Li, B.-T.; Peng, S.-K.; Wang, N.; Chen, X.; Yan, S.-J. Cobalt chloride-ferric chloride-graphite Bi-Intercalation compounds as anode materials for high-performance lithium-ion batteries. J. Alloys Compd. 2021, 854, 157178. [Google Scholar] [CrossRef]
  67. Mu, Y.; Han, M.; Li, J.; Liang, J.; Yu, J. Growing vertical graphene sheets on natural graphite for fast charging lithium-ion batteries. Carbon 2021, 173, 477–484. [Google Scholar] [CrossRef]
  68. Xie, Q.; Qu, S.; Zhang, Y.; Zhao, P. Nitrogen-enriched graphene-like carbon architecture with tunable porosity derived from coffee ground as high performance anodes for lithium ion batteries. Appl. Surf. Sci. 2021, 537, 148092. [Google Scholar] [CrossRef]
  69. Berger, P.; Flandorfer, H. Sb–Sn alloy anodes for Li-ion batteries: The ternary system Li–Sb–Sn. J. Alloys Compd. 2021, 855, 157381. [Google Scholar] [CrossRef]
  70. Zhao, X.; Lehto, V.-P. Challenges and prospects of nanosized silicon anodes in lithium-ion batteries. Nanotechnology 2020, 32, 042002. [Google Scholar] [CrossRef]
  71. Shi, Q.; Zhou, J.; Ullah, S.; Yang, X.; Tokarska, K.; Trzebicka, B.; Ta, H.Q.; Rümmeli, M.H. A review of recent developments in Si/C composite materials for Li-ion batteries. Energy Storage Mater. 2021, 34, 735–754. [Google Scholar] [CrossRef]
  72. Casimir, A.; Zhang, H.; Ogoke, O.; Amine, J.C.; Lu, J.; Wu, G. Silicon-based anodes for lithium-ion batteries: Effectiveness of materials synthesis and electrode preparation. Nano Energy 2016, 27, 359–376. [Google Scholar] [CrossRef][Green Version]
  73. Di, F.; Wang, N.; Li, L.; Geng, X.; Yang, H.; Zhou, W.; Sun, C.; An, B. Coral-like porous composite material of silicon and carbon synthesized by using diatomite as self-template and precursor with a good performance as anode of lithium-ions battery. J. Alloys Compd. 2021, 854, 157253. [Google Scholar] [CrossRef]
  74. Yang, Y.; Lu, Z.; Xia, J.; Liu, Y.; Wang, K.; Wang, X. Crystalline and amorphous carbon double-modified silicon anode: Towards large-scale production and superior lithium storage performance. Chem. Eng. Sci. 2021, 229, 116054. [Google Scholar] [CrossRef]
  75. Zeng, Y.; Huang, Y.; Liu, N.; Wang, X.; Zhang, Y.; Guo, Y.; Wu, H.-H.; Chen, H.; Tang, X.; Zhang, Q. N-doped porous carbon nanofibers sheathed pumpkin-like Si/C composites as free-standing anodes for lithium-ion batteries. J. Energy Chem. 2021, 54, 727–735. [Google Scholar] [CrossRef]
  76. Zhao, H.; Tu, N.; Zhang, W.; Zhang, M.; Wang, J. Novel synthesis of Silicon/Carbon nanotubes microspheres as anode additives through chemical vapor deposition in fluidized bed reactors. Scr. Mater. 2021, 192, 49–54. [Google Scholar] [CrossRef]
  77. Chung, W.-Y.; Brahma, S.; Hou, S.-C.; Chang, C.-C.; Huang, J.-L. Petroleum waste hydrocarbon resin as a carbon source modified on a Si composite as a superior anode material in lithium ion batteries. Mater. Chem. Phys. 2021, 259, 124011. [Google Scholar] [CrossRef]
  78. Nazir, A.; Le, H.T.T.; Kasbe, A.; Park, C.-J. Si nanoparticles confined within a conductive 2D porous Cu-based metal–organic framework (Cu3(HITP)2) as potential anodes for high-capacity Li-ion batteries. Chem. Eng. J. 2021, 405, 126963. [Google Scholar] [CrossRef]
  79. Zhang, Y.; Zhu, C.; Ma, Z. [email protected]3Si nano-composite prepared by facile method as high-performance anode for lithium-ion batteries. J. Alloys Compd. 2021, 851, 156854. [Google Scholar] [CrossRef]
  80. Jin, C.; Lai, Q.; Dan, J.; Xu, G.; Yue, Z.; Li, X.; Sun, F.; Huang, H.; Zhou, L.; Wang, L. A novel scalable synthesis of high-rate performance silicon anode materials by liquid-phase coating doping method. Appl. Surf. Sci. 2021, 540, 148326. [Google Scholar] [CrossRef]
  81. Yu, J.; Wang, K.; Song, W.; Huang, H.; Liang, C.; Xia, Y.; Zhang, J.; Gan, Y.; Wang, F.; Zhang, W. A low temperature MgH2-AlCl3-SiO2 system to synthesize nano-silicon for high-performance Li-ion batteries. Chem. Eng. J. 2021, 406, 126805. [Google Scholar] [CrossRef]
  82. Lee, S.H.; Park, C.; Do, K.; Ahn, H. Maximizing the utilization of active sites through the formation of native nanovoids of silicon oxycarbide as anode materials in lithium-ion batteries. Energy Storage Mater. 2021, 35, 130–141. [Google Scholar] [CrossRef]
  83. Lim, H.; Kim, H.; Kim, S.-O.; Kim, K.J.; Choi, W. Novel approach for controlling free-carbon domain in silicone oil-derived silicon oxycarbide (SiOC) as an anode material in secondary batteries. Chem. Eng. J. 2021, 404, 126581. [Google Scholar] [CrossRef]
  84. Narsimulu, D.; Kakarla, A.K.; Su Yu, J. Cerium vanadate/carbon nanotube hybrid composite nanostructures as a high-performance anode material for lithium-ion batteries. J. Energy Chem. 2021, 58, 25–32. [Google Scholar] [CrossRef]
  85. Ding, W.; Wu, X.; Li, Y.; Wang, S.; Miao, Z.; Zhou, P.; Zhou, J.; Zhuo, S. Three-dimensional graphene-wrapped [email protected] as high volumetric capacity anode material for lithium-ion batteries. Appl. Surf. Sci. 2021, 536, 147746. [Google Scholar] [CrossRef]
  86. Li, W.; Ma, Q.; Shen, P.; Zhou, Y.; Soule, L.; Li, Y.; Wu, Y.; Zhang, H.; Liu, M. Yolk-shell structured CuSi2P3@Graphene nanocomposite anode for long-life and high-rate lithium-ion batteries. Nano Energy 2021, 80, 105506. [Google Scholar] [CrossRef]
  87. Wu, B.-S.; Wang, P.; Teng, S.-H. Controllable synthesis and coating-thickness-dependent electrochemical properties of mesoporous carbon-coated α-Fe2O3 nanoparticles for lithium-ion batteries. Colloids Surf. A Physicochem. Eng. Asp. 2021, 610, 125907. [Google Scholar] [CrossRef]
  88. Cao, K.; Jia, Y.; Wang, S.; Huang, K.-J.; Liu, H. Mn3O4 nanoparticles anchored on carbon nanotubes as anode material with enhanced lithium storage. J. Alloys Compd. 2021, 854, 157179. [Google Scholar] [CrossRef]
  89. Han, J.; Ren, J. Enhanced cycling stability of hierarchical Cu2WS4/C hollow octahedron anode for lithium-ion batteries by tuning its potential window. J. Alloys Compd. 2021, 851, 156730. [Google Scholar] [CrossRef]
  90. Trukawka, M.; Wenelska, K.; Singer, L.; Klingeler, R.; Chen, X.; Mijowska, E. Hollow carbon spheres loaded with uniform dispersion of copper oxide nanoparticles for anode in lithium- ion batteries. J. Alloys Compd. 2021, 853, 156700. [Google Scholar] [CrossRef]
  91. Thauer, E.; Zakharova, G.S.; Wegener, S.A.; Zhu, Q.; Klingeler, R. Sol-gel synthesis of Li3VO4/C composites as anode materials for lithium-ion batteries. J. Alloys Compd. 2021, 853, 157364. [Google Scholar] [CrossRef]
  92. Chu, K.; Li, Z.; Xu, S.; Yao, G.; Xu, Y.; Niu, P.; Zheng, F. NiO nanocrystals encapsulated into a nitrogen-doped porous carbon matrix as highly stable Li-ion battery anodes. J. Alloys Compd. 2021, 854, 157264. [Google Scholar] [CrossRef]
  93. Zhou, Y.; Zhang, M.; Yan, X.; Han, Q.; Dong, C.; Sun, X.; You, D.; Jiang, F. Spherical-graphite/nano-Mn2O3 composites as advanced anode materials for lithium half/full batteries. J. Alloys Compd. 2021, 853, 157109. [Google Scholar] [CrossRef]
  94. Wang, X.; Jia, Z.; Zhang, J.; Ou, X.; Zhang, B.; Feng, J.; Hou, F.; Liang, J. Nanophase MnV2O4 particles as anode materials for lithium-ion batteries. J. Alloys Compd. 2021, 852, 156999. [Google Scholar] [CrossRef]
  95. Lu, X.; Chen, Y.; Tian, Q.; Zhang, W.; Sui, Z.; Chen, J. Enabling improved cycling stability of hollow SnO2/C composite anode for lithium-ion battery by constructing a built-in porous carbon support. Appl. Surf. Sci. 2021, 537, 148052. [Google Scholar] [CrossRef]
  96. Ni, X.; Cui, Z.; Jiang, N.; Chen, H.; Wu, Q.; Ju, A.; Zhu, M. Hollow multi-nanochannel carbon nanofiber/MoS2 nanoflower composites as binder-free lithium-ion battery anodes with high capacity and ultralong-cycle life at large current density. J. Mater. Sci. Technol. 2021, 77, 169–177. [Google Scholar] [CrossRef]
  97. Ni, X.; Cui, Z.; Luo, H.; Chen, H.; Liu, C.; Wu, Q.; Ju, A. Hollow multi-nanochannel carbon [email protected]2 nanosheets composite as flexible anodes for high performance lithium-ion batteries. Chem. Eng. J. 2021, 404, 126249. [Google Scholar] [CrossRef]
  98. Sun, Y.-H.; Huang, M.-X.; Guan, D.-C.; Zhang, G.-L.; Wei, J.-L.; Nan, J.-M.; Yi, F.-Y. Influence of the Sn(Fe)–C bonds content in SnFe2O4@reduced graphene oxide composites on the electrochemical behavior of lithium-ion batteries. J. Alloys Compd. 2021, 854, 157297. [Google Scholar] [CrossRef]
  99. Wu, Y.-Q.; Zhao, Y.-S.; Meng, W.-J.; Xie, Y.; Zhang, J.; He, C.-J.; Zhao, D.-L. Nanoplates-assembled SnS2 nanoflowers with carbon coating anchored on reduced graphene oxide for high performance Li-ion batteries. Appl. Surf. Sci. 2021, 539, 148283. [Google Scholar] [CrossRef]
  100. Zhang, Z.; Huang, Q.; Ma, W.; Li, H. Interfacial engineering of polyhedral [email protected] [email protected]2 nanobox with tunable structure for enhanced lithium ion battery. Appl. Surf. Sci. 2021, 538, 148039. [Google Scholar] [CrossRef]
  101. Liu, D.; Wei, Z.; Liu, L.; Pan, H.; Duan, X.; Xia, L.; Zhong, B.; Wang, H.; Jia, D.; Zhou, Y.; et al. Ultrafine SnO2 anchored in ordered mesoporous carbon framework for lithium storage with high capacity and rate capability. Chem. Eng. J. 2021, 406, 126710. [Google Scholar] [CrossRef]
  102. Bai, C.; Feng, Y.; Ke, J.; Wu, K.; He, M. Superior electrochemical performance of sheet-stacked SnO2@ZrO2/C composite as anode material for lithium-ion batteries. Chem. Phys. Lett. 2021, 763, 138220. [Google Scholar] [CrossRef]
  103. Zhang, M.; Tang, C.; Cheng, W.; Fu, L. The first-principles study on the performance of the graphene/WS2 heterostructure as an anode material of Li-ion battery. J. Alloys Compd. 2021, 855, 157432. [Google Scholar] [CrossRef]
  104. Li, M.; Su, A.; Qin, Q.; Qin, Y.; Dou, A.; Zhou, Y.; Su, M.; Liu, Y. High-rate capability of columbite CuNb2O6 anode materials for lithium-ion batteries. Mater. Lett. 2021, 284, 128915. [Google Scholar] [CrossRef]
  105. Zhao, H.; Ren, Y.; Chen, S.; Xu, J.; Lu, Z. Novel synthesis of sea urchins-like TiNb2O7 with hierarchical structure as anode for lithium-ion batteries. Mater. Lett. 2021, 284, 128950. [Google Scholar] [CrossRef]
  106. Chen, W.; Fan, M.; Yue, M.; Wang, S.; Liu, J. Rational design of nano-structured ammonium manganese phosphate hydrate as lithium ion battery anode. Mater. Lett. 2021, 285, 129084. [Google Scholar] [CrossRef]
  107. Wu, W.; Wei, Y.; Chen, H.; Wei, K.; Li, Z.; He, J.; Deng, L.; Yao, L.; Yang, H. In-situ encapsulation of α-Fe2O3 nanoparticles into ZnFe2O4 micro-sized capsules as high-performance lithium-ion battery anodes. J. Mater. Sci. Technol. 2021, 75, 110–117. [Google Scholar] [CrossRef]
  108. Yao, J.; Yang, Y.; Li, Y.; Jiang, J.; Xiao, S.; Yang, J. Interconnected α-Fe2O3 nanoparticles prepared from leaching liquor of tin ore tailings as anode materials for lithium-ion batteries. J. Alloys Compd. 2021, 855, 157288. [Google Scholar] [CrossRef]
  109. Sun, M.; Chu, X.; Wang, Z.; Yang, H.; Yang, Z.; Ma, J.; Zhou, B.; Yang, T.; Chen, L. Rosa roxburghii-like hierarchical hollow sandwich-structure [email protected]2O3@C microspheres as second nanomaterialsfor superior lithium storage. J. Alloys Compd. 2021, 855, 157518. [Google Scholar] [CrossRef]
  110. Zhong, W.; Huang, X.; Lin, Y.; Cao, Y.; Wang, Z. Compact Co3O4/Co in-situ nanocomposites prepared by pulsed laser sintering as anode materials for lithium-ion batteries. J. Energy Chem. 2021, 58, 386–390. [Google Scholar] [CrossRef]
  111. Zheng, J.; He, C.; Li, X.; Wang, K.; Wang, T.; Zhang, R.; Tang, B.; Rui, Y. CoS2–[email protected] nanoparticles derived from metal–organic framework as a promising anode for lithium-ion batteries. J. Alloys Compd. 2021, 854, 157315. [Google Scholar] [CrossRef]
  112. Xiao, X.; Zhang, Z.; Yang, K.; Mei, T.; Yan, D.; Wang, X. Design and synthesize hollow spindle Ni-doped Co9S8@ZnS composites and their enhanced cycle performance. J. Alloys Compd. 2021, 853, 157118. [Google Scholar] [CrossRef]
  113. Gao, J.; Wang, X.; Huang, Y.; Meng, Z.; Sun, Y.; Zhang, Y.; Guo, Y.; Tang, X. Hollow core-shell structured CNT/[email protected]9S8@C coaxial nanocables as high-performance anode material for lithium ion batteries. J. Alloys Compd. 2021, 853, 157354. [Google Scholar] [CrossRef]
  114. Xia, D.; Yang, J.; Li, M.; Gao, H.; Gong, F. Hybridized cobalt/manganese vanadates as high-performance anodes in lithium ion battery. Mater. Lett. 2021, 283, 128782. [Google Scholar] [CrossRef]
  115. Chen, H.; Ke, G.; Wu, X.; Li, W.; Li, Y.; Mi, H.; Sun, L.; Zhang, Q.; He, C.; Ren, X. Amorphous MoS3 decoration on 2D functionalized MXene as a bifunctional electrode for stable and robust lithium storage. Chem. Eng. J. 2021, 406, 126775. [Google Scholar] [CrossRef]
  116. Chen, Z.; Li, H. A novel phosphatizing strategy to engineering CoO/[email protected] polyhedron heterostructures for enhanced lithium-ion battery. J. Mater. Sci. 2021, 56, 3346–3353. [Google Scholar] [CrossRef]
  117. Tan, Y.; Yang, C.; Qian, W.; Sui, X.; Teng, C.; Li, Q.; Lu, Z. Carbon coated porous Co3O4 polyhedrons as anode materials for highly reversible lithium-ion storage. J. Alloys Compd. 2021, 855, 157387. [Google Scholar] [CrossRef]
  118. Lopez, J.; Gonzalez, R.; Ayala, J.; Cantu, J.; Castillo, A.; Parsons, J.; Myers, J.; Lodge, T.P.; Alcoutlabi, M. Centrifugally spun TiO2/C composite fibers prepared from TiS2/PAN precursor fibers as binder-free anodes for LIBS. J. Phys. Chem. Solids 2021, 149, 109795. [Google Scholar] [CrossRef]
  119. Guo, F.; Chen, H.; Chen, Y.; Zhang, W.; Li, Z.; Xu, Y.; Wang, Y.; Zhou, J.; Zhang, H. Dual-metal-organic frameworks derived manganese and zinc oxides nanohybrids as high performance anodes for lithium-ion batteries. J. Alloys Compd. 2021, 852, 156814. [Google Scholar] [CrossRef]
  120. Sun, H.; Xu, J.; Huang, J.; Li, G.; Luo, J.; Rao, M.; Peng, Z.; Jiang, T. Facile synthesis of hetero-structured few-layer MoS2-coated MoO2 as superior anode materials of lithium ion batteries. J. Alloys Compd. 2021, 851, 156726. [Google Scholar] [CrossRef]
  121. Liu, J.; Li, G.; Wu, J. Fe2O3–TeO2–MoO3 semiconductor glass-ceramics as anode materials for high specific capacity lithium ion batteries. Mater. Chem. Phys. 2021, 258, 123894. [Google Scholar] [CrossRef]
  122. Shen, H.; Xia, X.; Yan, S.; Jiao, X.; Sun, D.; Lei, W.; Hao, Q. SnO2/NiFe2O4/graphene nanocomposites as anode materials for lithium ion batteries. J. Alloys Compd. 2021, 853, 157017. [Google Scholar] [CrossRef]
  123. Wang, Z.; Wang, F.; Liu, K.; Zhu, J.; Chen, T.; Gu, Z.; Yin, S. Cobalt phosphide nanoparticles grown on Ti3C2 nanosheet for enhanced lithium ions storage performances. J. Alloys Compd. 2021, 853, 157136. [Google Scholar] [CrossRef]
  124. Niu, R.; Han, R.; Wang, Y.; Zhang, L.; Qiao, Q.; Jiang, L.; Sun, Y.; Tang, S.; Zhu, J. MXene-based porous and robust 2D/2D hybrid architectures with dispersed Li3Ti2(PO4)3 as superior anodes for lithium-ion battery. Chem. Eng. J. 2021, 405, 127049. [Google Scholar] [CrossRef]
  125. Wu, J.; Lin, Y.; Huang, X. Aspergillus oryzae spore carbon/niobium oxide composite material as anode for lithium ion batteries. Mater. Res. Bull. 2021, 134, 111062. [Google Scholar] [CrossRef]
  126. Li, J.; Han, L.; Zhang, X.; Sun, H.; Liu, X.; Lu, T.; Yao, Y.; Pan, L. Multi-role TiO2 layer coated [email protected] MoS2 nanotubes for durable lithium storage. Chem. Eng. J. 2021, 406, 126873. [Google Scholar] [CrossRef]
  127. Wei, R.; Dong, Y.; Zhang, Y.; Zhang, R.; Al-Tahan, M.A.; Zhang, J. In-situ self-assembled hollow urchins F-Co-MOF on rGO as advanced anodes for lithium-ion and sodium-ion batteries. J. Colloid Interface Sci. 2021, 582, 236–245. [Google Scholar] [CrossRef] [PubMed]
  128. Guo, S.; Liu, J.; Zhang, Q.; Jin, Y.; Wang, H. Metal organic framework derived Co3O4/[email protected]–C composite as high-performance anode material for lithium-ion batteries. J. Alloys Compd. 2021, 855, 157538. [Google Scholar] [CrossRef]
  129. Wang, Z.; Bi, R.; Liu, J.; Wang, K.; Mao, F.; Wu, H.; Bu, Y.; Song, N. Polyoxometalate-based Cu/Zn-MOFs with diverse stereo dimensions as anode materials in lithium ion batteries. Chem. Eng. J. 2021, 404, 127117. [Google Scholar] [CrossRef]
  130. Costa, C.M.; Gonçalves, R.; Lanceros-Méndez, S. Advances in Cathode Nanomaterials for Lithium-Ion Batteries. In Nanostructured Materials for Next-Generation Energy Storage and Conversion: Advanced Battery and Supercapacitors; Zhen, Q., Bashir, S., Liu, J.L., Eds.; Springer: Berlin/Heidelberg, Germany, 2019; pp. 105–145. [Google Scholar]
  131. Nitta, N.; Wu, F.; Lee, J.T.; Yushin, G. Li-ion battery materials: Present and future. Mater. Today 2015, 18, 252–264. [Google Scholar] [CrossRef]
  132. Lu, G.; Peng, W.; Zhang, Y.; Wang, X.; Shi, X.; Song, D.; Zhang, H.; Zhang, L. Study on the formation, development and coating mechanism of new phases on interface in LiNbO3-coated LiCoO2. Electrochim. Acta 2021, 368, 137639. [Google Scholar] [CrossRef]
  133. Ding, C.-C.; Jia, L.; Wang, X.; Li, Y.; Wang, Z.-Q.; Wu, L.-N. An investigation of local structures for 3d3, 3d5 and 3d7 ions doing in the layered LiCoO2 cathode materials. J. Phys. Chem. Solids 2021, 150, 109800. [Google Scholar] [CrossRef]
  134. Li, Y.; Wang, L.; Zhang, K.; Liang, F.; Yuan, M.; Zhang, H.; Yao, Y. An encapsulation of phosphorus doped carbon over LiFePO4 prepared under vacuum condition for lithium-ion batteries. Vacuum 2021, 184, 109935. [Google Scholar] [CrossRef]
  135. Kanagaraj, A.B.; Chaturvedi, P.; Kim, H.J.; Choi, D.S. Controllable synthesis of LiFePO4 microrods and its superior electrochemical performance. Mater. Lett. 2021, 283, 128737. [Google Scholar] [CrossRef]
  136. Chen, X.; Li, Y.; Wang, J. Enhanced Electrochemical Performance of LiFePO4 Originating from the Synergistic Effect of ZnO and C Co-Modification. Nanomaterials 2021, 11, 12. [Google Scholar] [CrossRef]
  137. Shi, M.; Li, R.; Liu, Y. In situ preparation of LiFePO4/C with unique copolymer carbon resource for superior performance lithium-ion batteries. J. Alloys Compd. 2021, 854, 157162. [Google Scholar] [CrossRef]
  138. Wei, X.; Zhang, M.; Miao, B.; Liu, R. Volumetric capacity enhancement in LiFePO4 cathodes by hot isostatic pressing. Scr. Mater. 2021, 194, 113638. [Google Scholar] [CrossRef]
  139. Xie, X.; Zhang, B.; Hu, G.; Du, K.; Wu, J.; Wang, Y.; Gan, Z.; Fan, J.; Su, H.; Cao, Y.; et al. A new route for green synthesis of LiFe0.25Mn0.75PO4/[email protected] material for lithium ion batteries. J. Alloys Compd. 2021, 853, 157106. [Google Scholar] [CrossRef]
  140. Umam, K.; Sin, B.C.; Singh, L.; Moon, C.; Choi, J.; Lee, I.; Lim, J.; Jung, J.; Lah, M.S.; Lee, Y. Phase transition-induced improvement in the capacity of fluorine-substituted LiFeBO3 as a cathode material for lithium ion batteries. Electrochim. Acta 2021, 367, 137364. [Google Scholar] [CrossRef]
  141. Gonçalves, R.; Sharma, P.; Ram, P.; Ferdov, S.; Silva, M.M.; Costa, C.M.; Singhal, R.; Sharma, R.K.; Lanceros-Méndez, S. Improved electrochemical performance of LiMn1.5M0.5O4 (M=Ni, Co, Cu) based cathodes for lithium-ion batteries. J. Alloys Compd. 2021, 853, 157208. [Google Scholar] [CrossRef]
  142. Tian, Y.; Qiu, Y.; Liu, Z.; Wei, X.; Cao, H. LiMnO2@rGO nanocomposites for high-performance lithium-ion battery cathodes. Nanotechnology 2020, 32, 015402. [Google Scholar] [CrossRef] [PubMed]
  143. Abulikemu, A.; Matsunaga, T.; Watanabe, A.; Yamamoto, K.; Uchiyama, T.; Nakanishi, K.; Kawaguchi, S.; Osaka, K.; Uchimoto, Y. Rocksalt type Li2Nb0·15Mn0·85O3 without structure degradation or redox evolution upon cycling. J. Alloys Compd. 2021, 853, 156984. [Google Scholar] [CrossRef]
  144. Mereacre, V.; Bohn, N.; Müller, M.; Indris, S.; Bergfeldt, T.; Binder, J.R. Improved performance of high-voltage Li-ion batteries using a novel chemically activated coating process. Mater. Res. Bull. 2021, 134, 111095. [Google Scholar] [CrossRef]
  145. Kocak, T.; Wu, L.; Wang, J.; Savaci, U.; Turan, S.; Zhang, X. The effect of vanadium doping on the cycling performance of LiNi0.5Mn1.5O4 spinel cathode for high voltage lithium-ion batteries. J. Electroanal. Chem. 2021, 881, 114926. [Google Scholar] [CrossRef]
  146. Yang, Z.; Yu, H.; Hu, Y.; Zhu, H.; Zhu, Y.; Jiang, H.; Li, C. Pomegranate-like Ti-doped LiNi0.4Mn1.6O4 5 V-class cathode with superior high-voltage cycle and rate performance for Li-ion batteries. Chem. Eng. Sci. 2021, 231, 116297. [Google Scholar] [CrossRef]
  147. Wu, Q.; Mao, S.; Wang, Z.; Tong, Y.; Lu, Y. Improving LiNixCoyMn1−x−yO2 cathode electrolyte interface under high voltage in lithium ion batteries. Nano Sel. 2020, 1, 111–134. [Google Scholar] [CrossRef]
  148. Zhang, H.; Zhang, J. An overview of modification strategies to improve LiNi0·8Co0·1Mn0·1O2 (NCM811) cathode performance for automotive lithium-ion batteries. eTransportation 2021, 7, 100105. [Google Scholar] [CrossRef]
  149. Niu, S.; Xu, J.; Wu, K.; Liang, C.; Zhu, G.; Qu, Q.; Zheng, H. Different mechanical and electrochemical behavior between the two major Ni-rich cathode materials in Li-Ion batteries. Mater. Chem. Phys. 2021, 260, 124046. [Google Scholar] [CrossRef]
  150. Bai, X.; He, R.; Wei, A.; Li, X.; Zhang, L.; Liu, Z. A Co-Modified strategy for enhanced structural stability and long cycling life of Ni-Rich LiNi0.8Co0.1Mn0.1O2 cathode material. J. Alloys Compd. 2021, 857, 157877. [Google Scholar] [CrossRef]
  151. Sun, H.; Wang, J.; Liu, Q.; Zhang, Y.; Zhang, D.; Wang, Q.; Li, Z.; Li, W.; Wang, B. Ag–Sn dual-modified LiNi0.8Co0.1Mn0.1O2 as cathode for lithium storage. J. Alloys Compd. 2021, 850, 156763. [Google Scholar] [CrossRef]
  152. Ning, R.; Yuan, K.; Zhang, K.; Shen, C.; Xie, K. A scalable snowballing strategy to construct uniform rGO-wrapped LiNi0.8Co0.1Mn0.1O2 with enhanced processability and electrochemical performance. Appl. Surf. Sci. 2021, 542, 148663. [Google Scholar] [CrossRef]
  153. Tang, L.-B.; Liu, Y.; Wei, H.-X.; Yan, C.; He, Z.-J.; Li, Y.-J.; Zheng, J.-C. Boosting cell performance of LiNi0.8Co0.1Mn0.1O2 cathode material via structure design. J. Energy Chem. 2021, 55, 114–123. [Google Scholar] [CrossRef]
  154. You, L.; Chu, B.; Li, G.; Huang, T.; Yu, A. H3BO3 washed LiNi0.8Co0.1Mn0.1O2 with enhanced electrochemical performance and storage characteristics. J. Power Sources 2021, 482, 228940. [Google Scholar] [CrossRef]
  155. Hwang, J.; Do, K.; Ahn, H. Highly conductive 3D structural carbon network-encapsulated Ni-rich LiNi0.8Co0.1Mn0.1O2 as depolarized and passivated cathode for lithium-ion batteries. Chem. Eng. J. 2021, 406, 126813. [Google Scholar] [CrossRef]
  156. Zha, G.; Hu, W.; Agarwal, S.; Ouyang, C.; Hu, N.; Hou, H. High performance layered LiNi0.8Co0.07Fe0.03Mn0.1O2 cathode materials for Li-ion battery. Chem. Eng. J. 2021, 409, 128343. [Google Scholar] [CrossRef]
  157. Gu, H.; Wang, J.; Wang, Z.; Tong, J.; Qi, N.; Han, G.; Zhang, M. Self-assembled porous LiNi0.8Co0.1Mn0.1O2 cathode materials with micro/nano-layered hollow morphologies for high-power lithium-ion batteries. Appl. Surf. Sci. 2021, 539, 148034. [Google Scholar] [CrossRef]
  158. Wu, Y.-S.; Pham, Q.-T.; Yang, C.-C.; Chern, C.-S.; Musuvadhi Babulal, L.; Seenivasan, M.; Brunklaus, G.; Placke, T.; Hwang, B.-J.; Winter, M. Study of electrochemical performance and thermal property of LiNi0.5Co0.2Mn0.3O2 cathode materials coated with a novel oligomer additive for high-safety lithium-ion batteries. Chem. Eng. J. 2021, 405, 126727. [Google Scholar] [CrossRef]
  159. Zhang, Y.; Cui, C.; He, Y.; Liu, J.; Song, Y.; Song, Z.; Xu, H.; Huang, S.; Bei, Y. The effect of drying methods on the structure and performance of LiNi0.5Co0.2Mn0.3O2 cathode material for lithium-ion batteries. Mater. Chem. Phys. 2021, 262, 124269. [Google Scholar] [CrossRef]
  160. Yao, L.; Li, Y.; Gao, X.; Cai, M.; Jin, J.; Yang, J.; Xiu, T.; Song, Z.; Badding, M.E.; Wen, Z. Microstructure boosting the cycling stability of LiNi0.6Co0.2Mn0.2O2 cathode through Zr-based dual modification. Energy Storage Mater. 2021, 36, 179–185. [Google Scholar] [CrossRef]
  161. Meng, F.; Hu, R.; Chen, Z.; Tan, L.; Lan, X.; Yuan, B. Plasma assisted synthesis of LiNi0.6Co0.2Mn0.2O2 cathode materials with good cyclic stability at subzero temperatures. J. Energy Chem. 2021, 56, 46–55. [Google Scholar] [CrossRef]
  162. Li, L.; Liu, Y.; Yu, H.; Sun, R.; Ding, Z.; Li, K.; Yuan, Q.; Wu, J.; Liu, X. Hollow spherical 0.5Li2MnO3·0.5LiMn1/3Ni1/3Co1/3O2 prepared by facile molten salt method for enhanced long-cycle and rate capability of lithium-ion batteries. J. Alloys Compd. 2021, 855, 157376. [Google Scholar] [CrossRef]
  163. Pang, P.; Tan, X.; Wang, Z.; Cai, Z.; Nan, J.; Xing, Z.; Li, H. Crack-free single-crystal LiNi0.83Co0.10Mn0.07O2 as cycling/thermal stable cathode materials for high-voltage lithium-ion batteries. Electrochim. Acta 2021, 365, 137380. [Google Scholar] [CrossRef]
  164. Wang, L.; Zhang, B.; Hu, Y.; Li, X.; Zhao, T. Failure analysis of LiNi0·83Co0·12Mn0·05O2/graphite–SiOx pouch batteries cycled at high temperature. J. Power Sources 2021, 482, 228978. [Google Scholar] [CrossRef]
  165. Jamil, S.; Ran, Q.; Yang, L.; Huang, Y.; Cao, S.; Yang, X.; Wang, X. Improved high-voltage performance of LiNi0.87Co0.1Al0.03O2 by Li+-conductor coating. Chem. Eng. J. 2021, 407, 126442. [Google Scholar] [CrossRef]
  166. Song, X.; Liu, G.; Yue, H.; Luo, L.; Yang, S.; Huang, Y.; Wang, C. A novel low-cobalt long-life LiNi0.88Co0.06Mn0.03Al0.03O2 cathode material for lithium ion batteries. Chem. Eng. J. 2021, 407, 126301. [Google Scholar] [CrossRef]
  167. Shan, W.; Zhang, H.; Hu, C.; Zhou, Y.; Lam, K.-h.; Wang, S.; Hou, X. The cycle performance of high nickel cathode materials significantly enhanced by the LiAlO2@Al2O3 dual-modified coating. Electrochim. Acta 2021, 367, 137216. [Google Scholar] [CrossRef]
  168. Sim, S.-J.; Lee, S.-H.; Jin, B.-S.; Kim, H.-S. Effects of lithium tungsten oxide coating on LiNi0.90Co0.05Mn0.05O2 cathode material for lithium-ion batteries. J. Power Sources 2021, 481, 229037. [Google Scholar] [CrossRef]
  169. Thien Nguyen, T.; Kim, U.-H.; Yoon, C.S.; Sun, Y.-K. Enhanced cycling stability of Sn-doped Li[Ni0.90Co0.05Mn0.05]O2 via optimization of particle shape and orientation. Chem. Eng. J. 2021, 405, 126887. [Google Scholar] [CrossRef]
  170. Liu, H.; Li, M.; Xiang, M.; Guo, J.; Bai, H.; Bai, W.; Liu, X. Effects of crystal structure and plane orientation on lithium and nickel co-doped spinel lithium manganese oxide for long cycle life lithium-ion batteries. J. Colloid Interface Sci. 2021, 585, 729–739. [Google Scholar] [CrossRef]
  171. Liu, Q.; Liang, Q.; Guo, J.; Xiang, M.; Bai, W.; Bai, H.; Liu, X. High rate performance and kinetic investigation of polyhedral Li1·05Mn1.95-xNixO4 cathode material. Ceram. Int. 2021, 47, 2441–2449. [Google Scholar] [CrossRef]
  172. Yu, M.; Li, J.; Ning, X. Improving electrochemical performance of LiMn0.5Fe0.5PO4 cathode by hybrid coating of Li3VO4 and carbon. Electrochim. Acta 2021, 368, 137597. [Google Scholar] [CrossRef]
  173. Zhu, L.; Mo, L.; Xie, L.; Cao, X. Synthesis and electrochemical Li-storage performance of Li2ZrO3-Li3V2(PO4)3/C composites. Electrochem. Commun. 2021, 122, 106908. [Google Scholar] [CrossRef]
  174. Amou, M.; Larhrib, B.; Saadoune, I. Controlled synthesis of Li1.17Ni0.21Mn0.54Co0.08O2 as a cathode material for Li ion batteries. J. Electroanal. Chem. 2021, 881, 114957. [Google Scholar] [CrossRef]
  175. Tang, W.; Chen, Z.; Huang, H.; Irfan, M.; Huang, C.; Yang, Z.; Zhang, W. PVP-bridged γ-LiAlO2 nanolayer on Li1.2Ni0.182Co0.08Mn0.538O2 cathode materials for improving the rate capability and cycling stability. Chem. Eng. Sci. 2021, 229, 116126. [Google Scholar] [CrossRef]
  176. Amzil, S.; Zhang, Y.; Qiu, T.; Jiang, F.; Rao, H.; Fang, Z.; Huang, J. {010} oriented [email protected] nanoplate with high initial columbic efficiency. J. Power Sources 2021, 486, 229372. [Google Scholar] [CrossRef]
  177. Luo, Z.; Zhou, Z.; He, Z.; Sun, Z.; Zheng, J.; Li, Y. Enhanced electrochemical performance of Li1.2Mn0.54Ni0.13Co0.13O2 cathode by surface modification using La–Co–O compound. Ceram. Int. 2021, 47, 2656–2664. [Google Scholar] [CrossRef]
  178. Yin, C.; Wan, L.; Qiu, B.; Wang, F.; Jiang, W.; Cui, H.; Bai, J.; Ehrlich, S.; Wei, Z.; Liu, Z. Boosting energy efficiency of Li-rich layered oxide cathodes by tuning oxygen redox kinetics and reversibility. Energy Storage Mater. 2021, 35, 388–399. [Google Scholar] [CrossRef]
  179. Huang, C.; Liu, S.; Wang, Y.; Feng, J.; Zhao, Y. A new active NaVMoO6 cathode material for rechargeable Li ion batteries. J. Mater. Sci. Technol. 2021, 66, 97–102. [Google Scholar] [CrossRef]
  180. Li, C.; Zhang, C.; Xie, J.; Wang, K.; Li, J.; Zhang, Q. Ferrocene-based metal-organic framework as a promising cathode in lithium-ion battery. Chem. Eng. J. 2021, 404, 126463. [Google Scholar] [CrossRef]
  181. Costa, C.M.; Silva, M.M.; Lanceros-Méndez, S. Battery separators based on vinylidene fluoride (VDF) polymers and copolymers for lithium ion battery applications. RSC Adv. 2013, 3, 11404–11417. [Google Scholar] [CrossRef]
  182. Costa, C.M.; Lee, Y.-H.; Kim, J.-H.; Lee, S.-Y.; Lanceros-Méndez, S. Recent advances on separator membranes for lithium-ion battery applications: From porous membranes to solid electrolytes. Energy Storage Mater. 2019, 22, 346–375. [Google Scholar] [CrossRef]
  183. Ren, W.; Zheng, Y.; Cui, Z.; Tao, Y.; Li, B.; Wang, W. Recent progress of functional separators in dendrite inhibition for lithium metal batteries. Energy Storage Mater. 2021, 35, 157–168. [Google Scholar] [CrossRef]
  184. Li, M.; Sheng, L.; Zhang, H.; Yang, Y.; Xu, R.; Bai, Y.; Song, S.; Liu, G.; Wang, T.; Huang, X.; et al. Effect of the heat treatment temperature on mechanical and electrochemical properties of polyimide separator for lithium ion batteries. J. Mater. Sci. 2020, 55, 16158–16170. [Google Scholar] [CrossRef]
  185. Jaritphun, S.; Park, J.S.; Chung, O.H.; Nguyen, T.T.T. Sandwiched polyimide-composite separator for lithium-ion batteries via electrospinning and electrospraying. Polym. Compos. 2020, 41, 4478–4488. [Google Scholar] [CrossRef]
  186. Gu, Q.-Q.; Xue, H.-J.; Li, Z.-W.; Song, J.-C.; Sun, Z.-Y. High-performance polyethylene separators for lithium-ion batteries modified by phenolic resin. J. Power Sources 2021, 483, 229155. [Google Scholar] [CrossRef]
  187. Zhang, H.; Sheng, L.; Bai, Y.; Song, S.; Liu, G.; Xue, H.; Wang, T.; Huang, X.; He, J. Amino-Functionalized Al2O3 Particles Coating Separator with Excellent Lithium-Ion Transport Properties for High-Power Density Lithium-Ion Batteries. Adv. Eng. Mater. 2020, 22, 1901545. [Google Scholar] [CrossRef]
  188. Li, J.; Bi, S.; Li, M.; Xian, Y.; Shui, Y.; Yao, Y.; Wu, M. Rapid homogenization preparation of the mussel-inspired hydrophilic separator for high power lithium-ion batteries. J. Appl. Polym. Sci. 2020, 137, 49052. [Google Scholar] [CrossRef]
  189. Khassi, K.; Youssefi, M.; Semnani, D. PVDF/TiO2/graphene oxide composite nanofiber membranes serving as separators in lithium-ion batteries. J. Appl. Polym. Sci. 2020, 137, 48775. [Google Scholar] [CrossRef]
  190. Li, Y.; Wang, X.; Liang, J.; Wu, K.; Xu, L.; Wang, J. Design of A High Performance Zeolite/Polyimide Composite Separator for Lithium-Ion Batteries. Polymers 2020, 12, 764. [Google Scholar] [CrossRef][Green Version]
  191. Cui, W.; Shi, L.; Song, W.; Wang, X.; Lin, Z.; Deng, W.; Ma, Y. A heatproof electrospun PES/PVDF composite membrane as an advanced separator for lithium-ion batteries. J. Appl. Polym. Sci. 2020, 137, 49328. [Google Scholar] [CrossRef]
  192. Zhao, H.; Deng, N.; Kang, W.; Li, Z.; Wang, G.; Cheng, B. Highly multiscale structural Poly(vinylidene fluoridehexafluoropropylene)/poly-m-phenyleneisophthalamide separator with enhanced interface compatibility and uniform lithium-ion flux distribution for dendrite-proof lithium-metal batteries. Energy Storage Mater. 2020, 26, 334–348. [Google Scholar] [CrossRef]
  193. An, M.-Y.; Kim, H.-T.; Chang, D.-R. Multilayered separator based on porous polyethylene layer, Al2O3 layer, and electro-spun PVdF nanofiber layer for lithium batteries. J. Solid State Electrochem. 2014, 18, 1807–1814. [Google Scholar] [CrossRef]
  194. Ahn, Y.-K.; Kwon, Y.K.; Kim, K.J. Surface-modified polyethylene separator with hydrophilic property for enhancing the electrochemical performance of lithium-ion battery. Int. J. Energy Res. 2020, 44, 6651–6659. [Google Scholar] [CrossRef]
  195. Badini Pourazar, M.; Mohammadi, T.; Jafari Nasr, M.R.; Bakhtiari, O.; Javanbakht, M. Preparation and characterization of poly(vinylidene fluoride)-13X zeolite mixed matrix membranes for lithium ion batteries’ separator with enhanced performance. J. Appl. Polym. Sci. 2020, 137, 49367. [Google Scholar] [CrossRef]
  196. Liu, Q.; Jiang, W.; Lu, W.; Mei, Y.; He, F.; Zhang, M.; Liu, Y.; Chen, Y.; Peng, J.; Ding, Y. Anisotropic semi-aligned [email protected] separator for Li-ion batteries. Nanotechnology 2020, 31, 435701. [Google Scholar] [CrossRef]
  197. Wang, Z.; Chen, J.; Ye, B.; Pang, P.; Ma, Z.; Chen, H.; Nan, J. A pore-controllable polyamine (PAI) layer-coated polyolefin (PE) separator for pouch lithium-ion batteries with enhanced safety. J. Solid State Electrochem. 2020, 24, 843–853. [Google Scholar] [CrossRef]
  198. Jia, S.; Long, J.; Li, J.; Yang, S.; Huang, K.; Yang, N.; Liang, Y.; Xiao, J. Biomineralized zircon-coated PVDF nanofiber separator for enhancing thermo- and electro-chemical properties of lithium ion batteries. J. Mater. Sci. 2020, 55, 14907–14921. [Google Scholar] [CrossRef]
  199. Zhang, C.; Li, H.; Wang, S.; Cao, Y.; Yang, H.; Ai, X.; Zhong, F. A polyethylene microsphere-coated separator with rapid thermal shutdown function for lithium-ion batteries. J. Energy Chem. 2020, 44, 33–40. [Google Scholar] [CrossRef][Green Version]
  200. Yang, Y.; Huang, C.; Gao, G.; Hu, C.; Luo, L.; Xu, J. Aramid nanofiber/bacterial cellulose composite separators for lithium-ion batteries. Carbohydr. Polym. 2020, 247, 116702. [Google Scholar] [CrossRef] [PubMed]
  201. Barbosa, J.C.; Reizabal, A.; Correia, D.M.; Fidalgo-Marijuan, A.; Gonçalves, R.; Silva, M.M.; Lanceros-Mendez, S.; Costa, C.M. Lithium-ion battery separator membranes based on poly(L-lactic acid) biopolymer. Mater. Today Energy 2020, 18, 100494. [Google Scholar] [CrossRef]
  202. Asghar, M.R.; Anwar, M.T.; Xia, G.; Zhang, J. Cellulose/Poly(vinylidene fluoride hexafluoropropylene) composite membrane with titania nanoparticles for lithium-ion batteries. Mater. Chem. Phys. 2020, 252, 123122. [Google Scholar] [CrossRef]
  203. Reizabal, A.; Gonçalves, R.; Fidalgo-Marijuan, A.; Costa, C.M.; Pérez, L.; Vilas, J.-L.; Lanceros-Mendez, S. Tailoring silk fibroin separator membranes pore size for improving performance of lithium ion batteries. J. Membr. Sci. 2020, 598, 117678. [Google Scholar] [CrossRef]
  204. Wang, D.; Yu, J.; Duan, G.; Liu, K.; Hou, H. Electrospun polyimide nonwovens with enhanced mechanical and thermal properties by addition of trace plasticizer. J. Mater. Sci. 2020, 55, 5667–5679. [Google Scholar] [CrossRef]
  205. Li, J.; Yu, J.; Wang, Y.; Zhu, J.; Hu, Z. Intercalated Montmorillonite Reinforced Polyimide Separator Prepared by Solution Blow Spinning for Lithium-Ion Batteries. Ind. Eng. Chem. Res. 2020, 59, 12879–12888. [Google Scholar] [CrossRef]
  206. Kim, D.; Munakata, H.; Park, J.; Roh, Y.; Jin, D.; Ryou, M.-H.; Kanamura, K.; Lee, Y.M. Hybrid Effect of Micropatterned Lithium Metal and Three Dimensionally Ordered Macroporous Polyimide Separator on the Cycle Performance of Lithium Metal Batteries. ACS Appl. Energy Mater. 2020, 3, 3721–3727. [Google Scholar] [CrossRef]
  207. Liao, C.; Wang, W.; Wang, J.; Han, L.; Qiu, S.; Song, L.; Gui, Z.; Kan, Y.; Hu, Y. Magnetron sputtering deposition of silicon nitride on polyimide separator for high-temperature lithium-ion batteries. J. Energy Chem. 2021, 56, 1–10. [Google Scholar] [CrossRef]
  208. Cai, M.; Yuan, D.; Zhang, X.; Pu, Y.; Liu, X.; He, H.; Zhang, L.; Ning, X. Lithium ion battery separator with improved performance via side-by-side bicomponent electrospinning of PVDF-HFP/PI followed by 3D thermal crosslinking. J. Power Sources 2020, 461, 228123. [Google Scholar] [CrossRef]
  209. Liu, X.; Zhang, B.; Wu, Y.; Chen, J.; Fang, M.; Wang, L.; Wang, L. The effects of polybenzimidazole nanofiber separator on the safety and performance of lithium-ion batteries: Characterization and analysis from the perspective of mechanism. J. Power Sources 2020, 475, 228624. [Google Scholar] [CrossRef]
  210. Pan, F.; Qiao, L.; Yuan, B.; Duan, C.; Wang, J.; Wu, W.; Lin, Q.; Shi, Y.; Chen, Z.; Jiang, Z. Polydopamine coated poly(m-phenylene isophthalamid) membrane as heat-tolerant separator for lithium-ion batteries. Ionics 2020, 26, 5471–5480. [Google Scholar] [CrossRef]
  211. Yu, Y.; Xiong, S.; Huang, H.; Zhao, L.; Nie, K.; Chen, S.; Xu, J.; Yin, X.; Wang, H.; Wang, L. Fabrication and application of poly (phenylene sulfide) ultrafine fiber. React. Funct. Polym. 2020, 150, 104539. [Google Scholar] [CrossRef]
  212. Zhu, C.; Zhang, J.; Xu, J.; Yin, X.; Wu, J.; Chen, S.; Zhu, Z.; Wang, L.; Wang, H. Facile fabrication of cellulose/polyphenylene sulfide composite separator for lithium-ion batteries. Carbohydr. Polym. 2020, 248, 116753. [Google Scholar] [CrossRef]
  213. Mu, X.; Zhou, X.; Wang, W.; Xiao, Y.; Liao, C.; Longfei, H.; Kan, Y.; Song, L. Design of compressible flame retardant grafted porous organic polymer based separator with high fire safety and good electrochemical properties. Chem. Eng. J. 2021, 405, 126946. [Google Scholar] [CrossRef]
  214. Yang, Y.; Wang, W.; Zhang, J. A waterborne superLEphilic and thermostable separator based on natural clay nanorods for high-voltage lithium-ion batteries. Mater. Today Energy 2020, 16, 100420. [Google Scholar] [CrossRef]
  215. Chao, C.-H.; Hsieh, C.-T.; Ke, W.-J.; Lee, L.-W.; Lin, Y.-F.; Liu, H.-W.; Gu, S.; Fu, C.-C.; Juang, R.-S.; Mallick, B.C.; et al. Roll-to-roll atomic layer deposition of titania coating on polymeric separators for lithium ion batteries. J. Power Sources 2021, 482, 228896. [Google Scholar] [CrossRef]
  216. Qiu, Z.; Yuan, S.; Wang, Z.; Shi, L.; Jo, J.H.; Myung, S.-T.; Zhu, J. Construction of silica-oxygen-borate hybrid networks on Al2O3-coated polyethylene separators realizing multifunction for high-performance lithium ion batteries. J. Power Sources 2020, 472, 228445. [Google Scholar] [CrossRef]
  217. Sheng, L.; Song, L.; Gong, H.; Pan, J.; Bai, Y.; Song, S.; Liu, G.; Wang, T.; Huang, X.; He, J. Polyethylene separator grafting with polar monomer for enhancing the lithium-ion transport property. J. Power Sources 2020, 479, 228812. [Google Scholar] [CrossRef]
  218. Pai, J.-Y.; Hsieh, C.-T.; Lee, C.-H.; Wang, J.-A.; Ku, H.-Y.; Huang, C.-L.; Hardwick, L.J.; Hu, C.-C. Engineering of electrospun polyimide separators for electrical double-layer capacitors and lithium-ion cells. J. Power Sources 2021, 482, 229054. [Google Scholar] [CrossRef]
  219. Li, X.; Chen, S.; Xia, Z.; Li, L.; Yuan, W. High performance of boehmite/polyacrylonitrile composite nanofiber membrane for polymer lithium-ion battery. RSC Adv. 2020, 10, 27492–27501. [Google Scholar] [CrossRef]
  220. Yusuf, A.; Avvaru, V.S.; Dirican, M.; Changchun, S.; Wang, D.-Y. Low heat yielding electrospun phosphenanthrene oxide loaded polyacrylonitrile composite separators for safer high energy density lithium-ion batteries. Appl. Mater. Today 2020, 20, 100675. [Google Scholar] [CrossRef]
  221. Al Rai, A.; Stojanovska, E.; Akgul, Y.; Khan, M.M.; Kilic, A.; Yilmaz, S. Fabrication of co-PVDF/modacrylic/SiO2 nanofibrous membrane: Composite separator for safe and high performance lithium-ion batteries. J. Appl. Polym. Sci. 2021, 138, 49835. [Google Scholar] [CrossRef]
  222. Fu, Q.; Zhang, W.; Muhammad, I.P.; Chen, X.; Zeng, Y.; Wang, B.; Zhang, S. Coaxially electrospun PAN/[email protected]/UiO-66 composite separator with high strength and thermal stability for lithium-ion battery. Microporous Mesoporous Mater. 2021, 311, 110724. [Google Scholar] [CrossRef]
  223. Dwyer, D.B.; Mera, E.; Gudavalli, G.S.; Bernier, W.E.; Dhakal, T.P.; Jones, W.E. Homogeneous titanium hydroxide yields hydroxyl decorated nanofiber separator with improved electrolyte uptake and device capacitance. Mater. Lett. 2021, 284, 129023. [Google Scholar] [CrossRef]
  224. Liu, L.; Wang, Z.; Xie, Y.; Peng, Y.; Dong, J.; Chow, Y.T.; Zhang, G.; Zhu, L.; Wang, X.; Xu, D. Zirconia/polyethylene terephthalate ceramic fiber paper separator for high-safety lithium-ion battery. Ionics 2020, 26, 6057–6067. [Google Scholar] [CrossRef]
  225. Zhang, K.; Xiao, W.; Li, X.; Liu, J.; Yan, C. Highly thermostable expanded polytetrafluoroethylene separator with mussel-inspired silica coating for advanced Li-ion batteries. J. Power Sources 2020, 468, 228403. [Google Scholar] [CrossRef]
  226. Xiao, W.; Song, J.; Huang, L.; Yang, Z.; Qiao, Q. PVA-ZrO2 multilayer composite separator with enhanced electrolyte property and mechanical strength for lithium-ion batteries. Ceram. Int. 2020, 46, 29212–29221. [Google Scholar] [CrossRef]
  227. Xie, Y.; Pan, Y.; Cai, P. Novel PVA-Based Porous Separators Prepared via Freeze-Drying for Enhancing Performance of Lithium-Ion Batteries. Ind. Eng. Chem. Res. 2020, 59, 15242–15254. [Google Scholar] [CrossRef]
  228. Karuppiah, C.; Hsieh, Y.-C.; Beshahwured, S.L.; Wu, X.-W.; Wu, S.-H.; Jose, R.; Lue, S.J.; Yang, C.-C. Poly(vinyl alcohol)/Melamine Composite Containing LATP Nanocrystals as a High-Performing Nanofibrous Membrane Separator for High-Power, High-Voltage Lithium-Ion Batteries. ACS Appl. Energy Mater. 2020, 3, 8487–8499. [Google Scholar] [CrossRef]
  229. Wang, J.; Yuan, B.; Pan, F.; Qiao, L.; Guo, J.; Duan, C.; Wu, W.; Chen, Z.; Su, Y. Nano-silica-decorated Poly(m-Phenylene Isophthalamide) Separator with Enhanced Mechanical and Electrolyte Wetting Properties for Lithium-Ion Batteries. Trans. Tianjin Univ. 2020, 26, 256–264. [Google Scholar] [CrossRef]
  230. Kim, S.; Kwon, M.-S.; Han, J.H.; Yuk, J.; Lee, J.Y.; Lee, K.T.; Kim, T.-H. Poly(ethylene-co-vinyl acetate)/polyimide/poly(ethylene-co-vinyl acetate) tri-layer porous separator with high conductivity and tailored thermal shutdown function for application in sodium-ion batteries. J. Power Sources 2021, 482, 228907. [Google Scholar] [CrossRef]
  231. Zhang, F.; Lan, X.; Peng, H.; Hu, X.; Zhao, Q. A “Trojan Horse” Camouflage Strategy for High-Performance Cellulose Paper and Separators. Adv. Funct. Mater. 2020, 30, 2002169. [Google Scholar] [CrossRef]
  232. Ajkidkarn, P.; Manuspiya, H. Novel bacterial cellulose nanocrystals/polyether block amide microporous membranes as separators for lithium-ion batteries. Int. J. Biol. Macromol. 2020, 164, 3580–3588. [Google Scholar] [CrossRef]
  233. Sun, X.; Xu, W.; Zhang, X.; Lei, T.; Lee, S.-Y.; Wu, Q. [email protected] nanofiber hybrid membrane with controlled porosity for use as Li-ion battery separator. J. Energy Chem. 2021, 52, 170–180. [Google Scholar] [CrossRef]
  234. Li, L.; Li, H.; Wang, Y.; Zheng, S.; Zou, Y.; Ma, Z. Poly(vinylidenefluoride-hexafluoropropylene)/cellulose/carboxylic TiO2 composite separator with high temperature resistance for lithium-ion batteries. Ionics 2020, 26, 4489–4497. [Google Scholar] [CrossRef]
  235. Lv, D.; Chai, J.; Wang, P.; Zhu, L.; Liu, C.; Nie, S.; Li, B.; Cui, G. Pure cellulose lithium-ion battery separator with tunable pore size and improved working stability by cellulose nanofibrils. Carbohydr. Polym. 2021, 251, 116975. [Google Scholar] [CrossRef] [PubMed]
  236. Wang, Y.; Luo, J.; Chen, L.; Long, J.; Hu, J.; Meng, L. Effect of fibrillated fiber morphology on properties of paper-based separators for lithium-ion battery applications. J. Power Sources 2021, 482, 228899. [Google Scholar] [CrossRef]
  237. Chen, Y.; Qiu, L.; Ma, X.; Dong, L.; Jin, Z.; Xia, G.; Du, P.; Xiong, J. Electrospun cellulose polymer nanofiber membrane with flame resistance properties for lithium-ion batteries. Carbohydr. Polym. 2020, 234, 115907. [Google Scholar] [CrossRef] [PubMed]
  238. Liang, M.; Fu, C.; Xiao, B.; Luo, L.; Wang, Z. A fractal study for the effective electrolyte diffusion through charged porous media. Int. J. Heat Mass Transf. 2019, 137, 365–371. [Google Scholar] [CrossRef]
  239. Song, J.Y.; Wang, Y.; Wan, C. Review of gel-type polymer electrolytes for lithium-ion batteries. J. Power Sources 1999, 77, 183–197. [Google Scholar] [CrossRef]
  240. Koerver, R.; Zhang, W.; de Biasi, L.; Schweidler, S.; Kondrakov, A.O.; Kolling, S.; Brezesinski, T.; Hartmann, P.; Zeier, W.G.; Janek, J. Chemo-mechanical expansion of lithium electrode materials—On the route to mechanically optimized all-solid-state batteries. Energy Environ. Sci. 2018, 11, 2142–2158. [Google Scholar] [CrossRef]
  241. Li, B.; Su, Q.; Yu, L.; Dong, S.; Zhang, M.; Ding, S.; Du, G.; Xu, B. Ultrathin, flexible, and sandwiched structure composite polymer electrolyte membrane for solid-state lithium batteries. J. Membr. Sci. 2021, 618, 118734. [Google Scholar] [CrossRef]
  242. Lin, Z.; Guo, X.; Yang, Y.; Tang, M.; Wei, Q.; Yu, H. Block copolymer electrolyte with adjustable functional units for solid polymer lithium metal battery. J. Energy Chem. 2021, 52, 67–74. [Google Scholar] [CrossRef]
  243. Hu, Z.; Zhang, X.; Chen, S. A graphene oxide and ionic liquid assisted anion-immobilized polymer electrolyte with high ionic conductivity for dendrite-free lithium metal batteries. J. Power Sources 2020, 477, 228754. [Google Scholar] [CrossRef]
  244. Cui, J.; Zhou, Z.; Jia, M.; Chen, X.; Shi, C.; Zhao, N.; Guo, X. Solid Polymer Electrolytes with Flexible Framework of SiO2 Nanofibers for Highly Safe Solid Lithium Batteries. Polymers 2020, 12, 1324. [Google Scholar] [CrossRef]
  245. Yang, G.; Lehmann, M.L.; Zhao, S.; Li, B.; Ge, S.; Cao, P.-F.; Delnick, F.M.; Sokolov, A.P.; Saito, T.; Nanda, J. Anomalously high elastic modulus of a poly(ethylene oxide)-based composite electrolyte. Energy Storage Mater. 2021, 35, 431–442. [Google Scholar] [CrossRef]
  246. Gao, L.; Li, J.; Ju, J.; Wang, L.; Yan, J.; Cheng, B.; Kang, W.; Deng, N.; Li, Y. Designing of root-soil-like polyethylene oxide-based composite electrolyte for dendrite-free and long-cycling all-solid-state lithium metal batteries. Chem. Eng. J. 2020, 389, 124478. [Google Scholar] [CrossRef]
  247. Zhang, B.; Liu, Y.; Pan, X.; Liu, J.; Doyle-Davis, K.; Sun, L.; Liu, J.; Jiao, X.; Jie, J.; Xie, H.; et al. Dendrite-free lithium metal solid battery with a novel polyester based triblock copolymer solid-state electrolyte. Nano Energy 2020, 72, 104690. [Google Scholar] [CrossRef]
  248. Wang, S.; Li, Q.; Bai, M.; He, J.; Liu, C.; Li, Z.; Liu, X.; Lai, W.-Y.; Zhang, L. A dendrite-suppressed flexible polymer-in-ceramic electrolyte membrane for advanced lithium batteries. Electrochim. Acta 2020, 353, 136604. [Google Scholar] [CrossRef]
  249. Yang, Y.; Wu, Q.; Wang, D.; Ma, C.; Chen, Z.; Su, Q.; Zhu, C.; Li, C. Ionic liquid enhanced composite solid electrolyte for high-temperature/long-life/dendrite-free lithium metal batteries. J. Membr. Sci. 2020, 612, 118424. [Google Scholar] [CrossRef]
  250. Li, L.; Shan, Y.; Yang, X. New insights for constructing solid polymer electrolytes with ideal lithium-ion transfer channels by using inorganic filler. Mater. Today Commun. 2021, 26, 101910. [Google Scholar] [CrossRef]
  251. Zhang, W.; Wang, X.; Zhang, Q.; Wang, L.; Xu, Z.; Li, Y.; Huang, S. Li7La3Zr2O12 Ceramic Nanofiber-Incorporated Solid Polymer Electrolytes for Flexible Lithium Batteries. Acs Appl. Energy Mater. 2020, 3, 5238–5246. [Google Scholar] [CrossRef]
  252. Angulakshmi, N.; Zhou, Y.; Suriyakumar, S.; Dhanalakshmi, R.B.; Satishrajan, M.; Alwarappan, S.; Alkordi, M.H.; Stephan, A.M. Microporous Metal–Organic Framework (MOF)-Based Composite Polymer Electrolyte (CPE) Mitigating Lithium Dendrite Formation in All-Solid-State-Lithium Batteries. ACS Omega 2020, 5, 7885–7894. [Google Scholar] [CrossRef] [PubMed][Green Version]
  253. Fu, F.; Lu, W.; Zheng, Y.; Chen, K.; Sun, C.; Cong, L.; Liu, Y.; Xie, H.; Sun, L. Regulating lithium deposition via bifunctional regular-random cross-linking network solid polymer electrolyte for Li metal batteries. J. Power Sources 2021, 484, 229186. [Google Scholar] [CrossRef]
  254. Gao, L.; Li, J.; Sarmad, B.; Cheng, B.; Kang, W.; Deng, N. A 3D polyacrylonitrile nanofiber and flexible polydimethylsiloxane macromolecule combined all-solid-state composite electrolyte for efficient lithium metal batteries. Nanoscale 2020, 12, 14279–14289. [Google Scholar] [CrossRef] [PubMed]
  255. Zeng, Z.; Liu, G.; Jiang, Z.; Peng, L.; Xie, J. Zinc bis(2–ethylhexanoate), a homogeneous and bifunctional additive, to improve conductivity and lithium deposition for poly (ethylene oxide) based all-solid-state lithium metal battery. J. Power Sources 2020, 451, 227730. [Google Scholar] [CrossRef]
  256. Cong, L.; Li, Y.; Lu, W.; Jie, J.; Liu, Y.; Sun, L.; Xie, H. Unlocking the Poly(vinylidene fluoride-co-hexafluoropropylene)/Li10GeP2S12 composite solid-state Electrolytes for Dendrite-Free Li metal batteries assisting with perfluoropolyethers as bifunctional adjuvant. J. Power Sources 2020, 446, 227365. [Google Scholar] [CrossRef]
  257. Martinez-Ibañez, M.; Sanchez-Diez, E.; Qiao, L.; Zhang, Y.; Judez, X.; Santiago, A.; Aldalur, I.; Carrasco, J.; Zhu, H.; Forsyth, M.; et al. Unprecedented Improvement of Single Li-Ion Conductive Solid Polymer Electrolyte Through Salt Additive. Adv. Funct. Mater. 2020, 30, 2000455. [Google Scholar] [CrossRef]
  258. Yuan, H.; Luan, J.; Yang, Z.; Zhang, J.; Wu, Y.; Lu, Z.; Liu, H. Single Lithium-Ion Conducting Solid Polymer Electrolyte with Superior Electrochemical Stability and Interfacial Compatibility for Solid-State Lithium Metal Batteries. ACS Appl. Mater. Interfaces 2020, 12, 7249–7256. [Google Scholar] [CrossRef]
  259. Tang, S.; Zhang, X.; Li, Y.; Tian, J.; Zhao, Y.; Mai, L.; Wang, L.; Cao, Y.-C.; Zhang, W. A fast ionic conductor and stretchable solid electrolyte artificial interphase layer for Li metal protection in lithium batteries. J. Alloys Compd. 2020, 843, 155839. [Google Scholar] [CrossRef]
  260. Zhou, B.; Yang, M.; Zuo, C.; Chen, G.; He, D.; Zhou, X.; Liu, C.; Xie, X.; Xue, Z. Flexible, Self-Healing, and Fire-Resistant Polymer Electrolytes Fabricated via Photopolymerization for All-Solid-State Lithium Metal Batteries. ACS Macro Lett. 2020, 9, 525–532. [Google Scholar] [CrossRef]
  261. Tian, X.; Yang, P.; Yi, Y.; Liu, P.; Wang, T.; Shu, C.; Qu, L.; Tang, W.; Zhang, Y.; Li, M.; et al. Self-healing and high stretchable polymer electrolytes based on ionic bonds with high conductivity for lithium batteries. J. Power Sources 2020, 450, 227629. [Google Scholar] [CrossRef]
  262. Jo, Y.H.; Li, S.; Zuo, C.; Zhang, Y.; Gan, H.; Li, S.; Yu, L.; He, D.; Xie, X.; Xue, Z. Self-Healing Solid Polymer Electrolyte Facilitated by a Dynamic Cross-Linked Polymer Matrix for Lithium-Ion Batteries. Macromolecules 2020, 53, 1024–1032. [Google Scholar] [CrossRef]
  263. Zeng, L.; Jia, L.; Liu, X.; Zhang, C. A Novel Silicon/Phosphorus Co-Flame Retardant Polymer Electrolyte for High-Safety All-Solid-State Lithium Ion Batteries. Polymers 2020, 12, 2937. [Google Scholar] [CrossRef]
  264. Tian, Z.; Kim, D. Solid electrolyte membranes prepared from poly(arylene ether sulfone)-g-poly(ethylene glycol) with various functional end groups for lithium-ion battery. J. Membr. Sci. 2021, 621, 119023. [Google Scholar] [CrossRef]
  265. Lei, Z.; Shen, J.; Zhang, W.; Wang, Q.; Wang, J.; Deng, Y.; Wang, C. Exploring porous zeolitic imidazolate frame work-8 (ZIF-8) as an efficient filler for high-performance poly(ethyleneoxide)-based solid polymer electrolytes. Nano Res. 2020, 13, 2259–2267. [Google Scholar] [CrossRef]
  266. Kim, J.I.; Choi, Y.G.; Ahn, Y.; Kim, D.; Park, J.H. Optimized ion-conductive pathway in UV-cured solid polymer electrolytes for all-solid lithium/sodium ion batteries. J. Membr. Sci. 2021, 619, 118771. [Google Scholar] [CrossRef]
  267. Yang, J.; Shao, L.; Wang, X.; Yang, Y.; Tian, Z.; Chen, W.; Zhang, G.; Shen, C. Effect of intermolecular interactions on the performance of UiO-66-laden solid composite polymer electrolytes. J. Alloys Compd. 2020, 845, 155179. [Google Scholar] [CrossRef]
  268. Tan, J.; Ao, X.; Dai, A.; Yuan, Y.; Zhuo, H.; Lu, H.; Zhuang, L.; Ke, Y.; Su, C.; Peng, X.; et al. Polycation ionic liquid tailored PEO-based solid polymer electrolytes for high temperature lithium metal batteries. Energy Storage Mater. 2020, 33, 173–180. [Google Scholar] [CrossRef]
  269. Shen, X.; Li, R.; Ma, H.; Peng, L.; Huang, B.; Zhang, P.; Zhao, J. Enhancing Li+ transport kinetics of PEO-based polymer electrolyte with mesoporous silica-derived fillers for lithium-ion batteries. Solid State Ion. 2020, 354, 115412. [Google Scholar] [CrossRef]
  270. Sha, Y.; Dong, T.; Zhao, Q.; Zheng, H.; Wen, X.; Chen, S.; Zhang, S. A new strategy for enhancing the room temperature conductivity of solid-state electrolyte by using a polymeric ionic liquid. Ionics 2020, 26, 4803–4812. [Google Scholar] [CrossRef]
  271. Sathyanathan, T.; Pugazhendhi Sugumaran, C. Enhancement of Ionic Conductivity and Dielectric Permittivity for PMMA-Based Polymer Electrolyte with BaTiO3 NanoFiller. Int. J. Nanosci. 2020, 19, 1950035. [Google Scholar] [CrossRef]
  272. Serra, J.P.; Pinto, R.S.; Barbosa, J.C.; Correia, D.M.; Gonçalves, R.; Silva, M.M.; Lanceros-Mendez, S.; Costa, C.M. Ionic liquid based Fluoropolymer solid electrolytes for Lithium-ion batteries. Sustain. Mater. Technol. 2020, 25, e00176. [Google Scholar] [CrossRef]
  273. Wang, H.; Cui, X.; Zhang, C.; Gao, H.; Du, W.; Chen, Y. Promotion of Ionic Conductivity of PEO-Based Solid Electrolyte Using Ultrasonic Vibration. Polymers 2020, 12, 1889. [Google Scholar] [CrossRef] [PubMed]
  274. Cai, D.; Wang, D.; Chen, Y.; Zhang, S.; Wang, X.; Xia, X.; Tu, J. A highly ion-conductive three-dimensional LLZAO-PEO/LiTFSI solid electrolyte for high-performance solid-state batteries. Chem. Eng. J. 2020, 394, 124993. [Google Scholar] [CrossRef]
  275. Zhang, Q.; Liu, K.; Liu, K.; Zhou, L.; Ma, C.; Du, Y. Imidazole containing solid polymer electrolyte for lithium ion conduction and the effects of two lithium salts. Electrochim. Acta 2020, 351, 136342. [Google Scholar] [CrossRef]
  276. Leo Edward, M.; Dharanibalaji, K.C.; Kumar, K.T.; Chandrabose, A.R.S.; Shanmugharaj, A.M.; Jaisankar, V. Preparation and characterisation of chitosan extracted from shrimp shell (Penaeus monodon) and chitosan-based blended solid polymer electrolyte for lithium-ion batteries. Polym. Bull. 2021. [Google Scholar] [CrossRef]
  277. Chitra, R.; Sathya, P.; Selvasekarapandian, S.; Monisha, S.; Moniha, V.; Meyvel, S. Synthesis and characterization of iota-carrageenan solid biopolymer electrolytes for electrochemical applications. Ionics 2019, 25, 2147–2157. [Google Scholar] [CrossRef]
  278. Shilpa, R.; Saratha, R. Biodegradable pectin- guar gum blend electrolyte for solid state lithium ion batteries. AIP Conf. Proc. 2020, 2270, 100006. [Google Scholar]
  279. Park, J.H.; Jung, S.; Song, Y.H.; Aluru, N.R.; Kim, T.; Lee, S.B.; Choi, U.H.; Lee, J. Water-Assisted Increase of Ionic Conductivity of Lithium Poly(acrylic acid)-Based Aqueous Polymer Electrolyte. ACS Appl. Energy Mater. 2020, 3, 10119–10130. [Google Scholar] [CrossRef]
  280. Chen, H.; Liu, J.; Zhou, X.; Ji, H.; Liu, S.; Wang, M.; Qian, T.; Yan, C. Rapid leakage responsive and self-healing Li-metal batteries. Chem. Eng. J. 2021, 404, 126470. [Google Scholar] [CrossRef]
  281. Lizundia, E.; Kundu, D. Advances in Natural Biopolymer-Based Electrolytes and Separators for Battery Applications. Adv. Funct. Mater. 2021, 31, 2005646. [Google Scholar] [CrossRef]

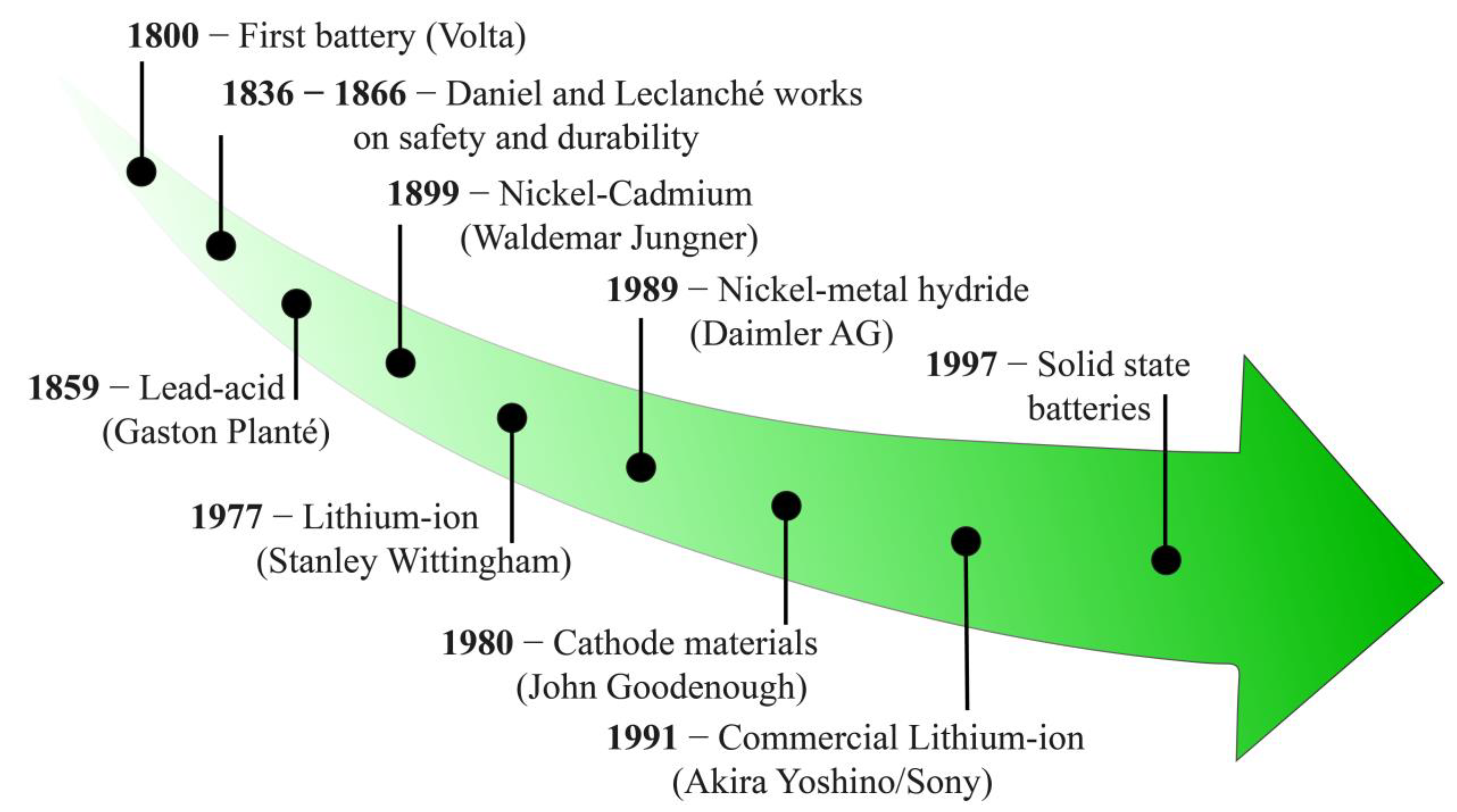

Figure 1. Advances in battery system development over the years.
Figure 1. Advances in battery system development over the years.
Energies 14 03145 g001

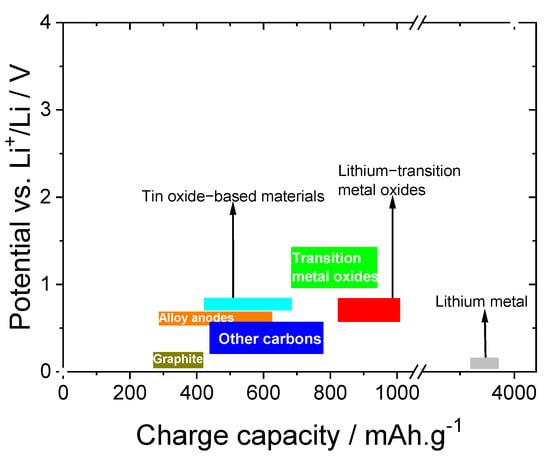

Figure 2. Voltage range vs. Li/Li+ as a function of the charge capacity of different anode active materials (adapted from [61]) [59].
Figure 2. Voltage range vs. Li/Li+ as a function of the charge capacity of different anode active materials (adapted from [61]) [59].
Energies 14 03145 g002

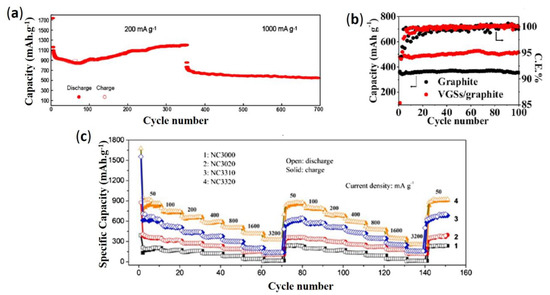

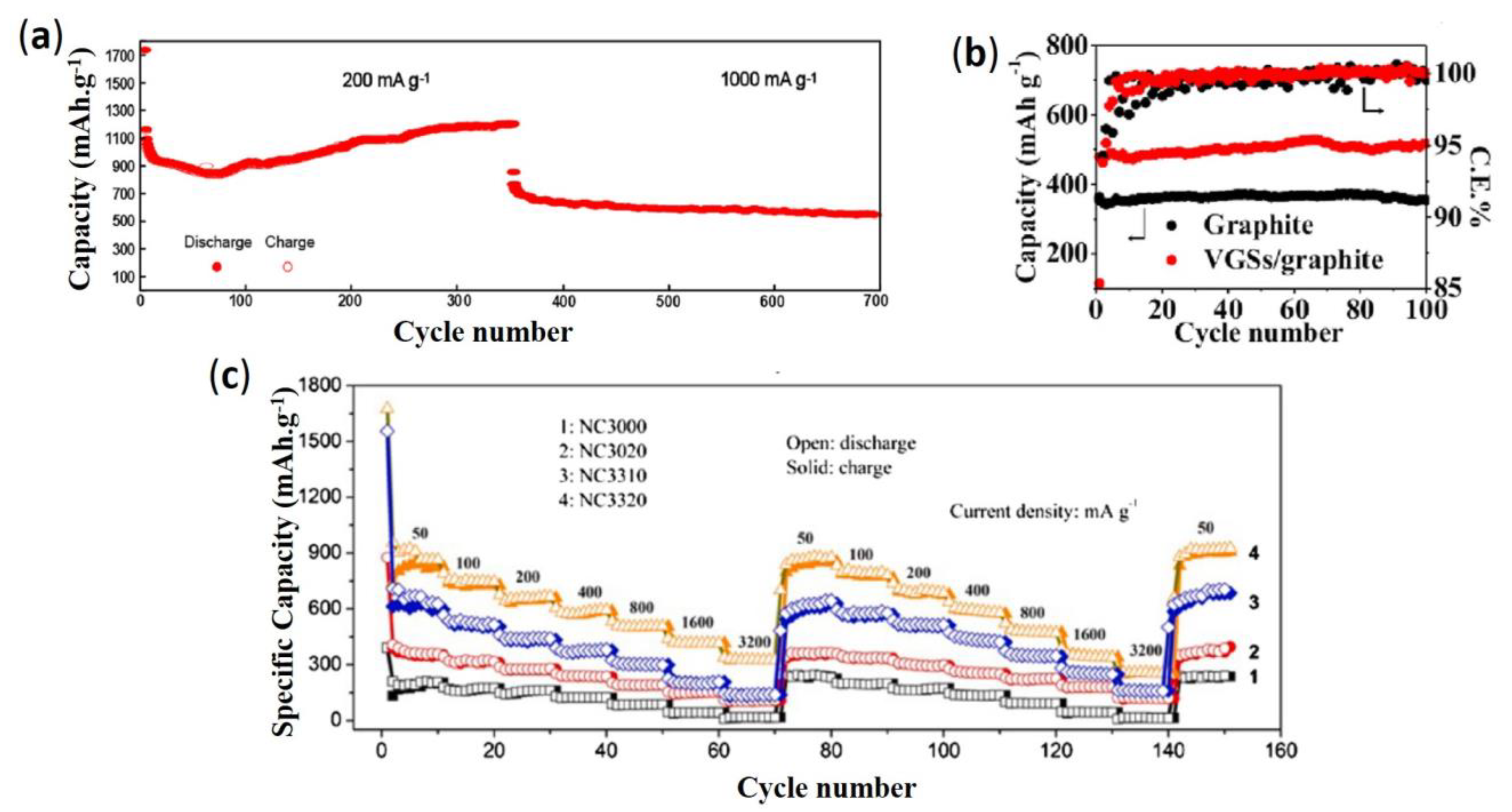

Figure 3. (a) Long-term cycling performance of CoCl2-FeCl3-GICs at 200 and 1000 mA·g−1 [66]. (b) Cycling curves of graphite and vertical graphene sheets (VGSs)/graphite at 0.2 C [67]. (c) Rate performance at various current densities for the different nitrogen-doped graphene-like carbon nanosheets samples [68].
Figure 3. (a) Long-term cycling performance of CoCl2-FeCl3-GICs at 200 and 1000 mA·g−1 [66]. (b) Cycling curves of graphite and vertical graphene sheets (VGSs)/graphite at 0.2 C [67]. (c) Rate performance at various current densities for the different nitrogen-doped graphene-like carbon nanosheets samples [68].
Energies 14 03145 g003

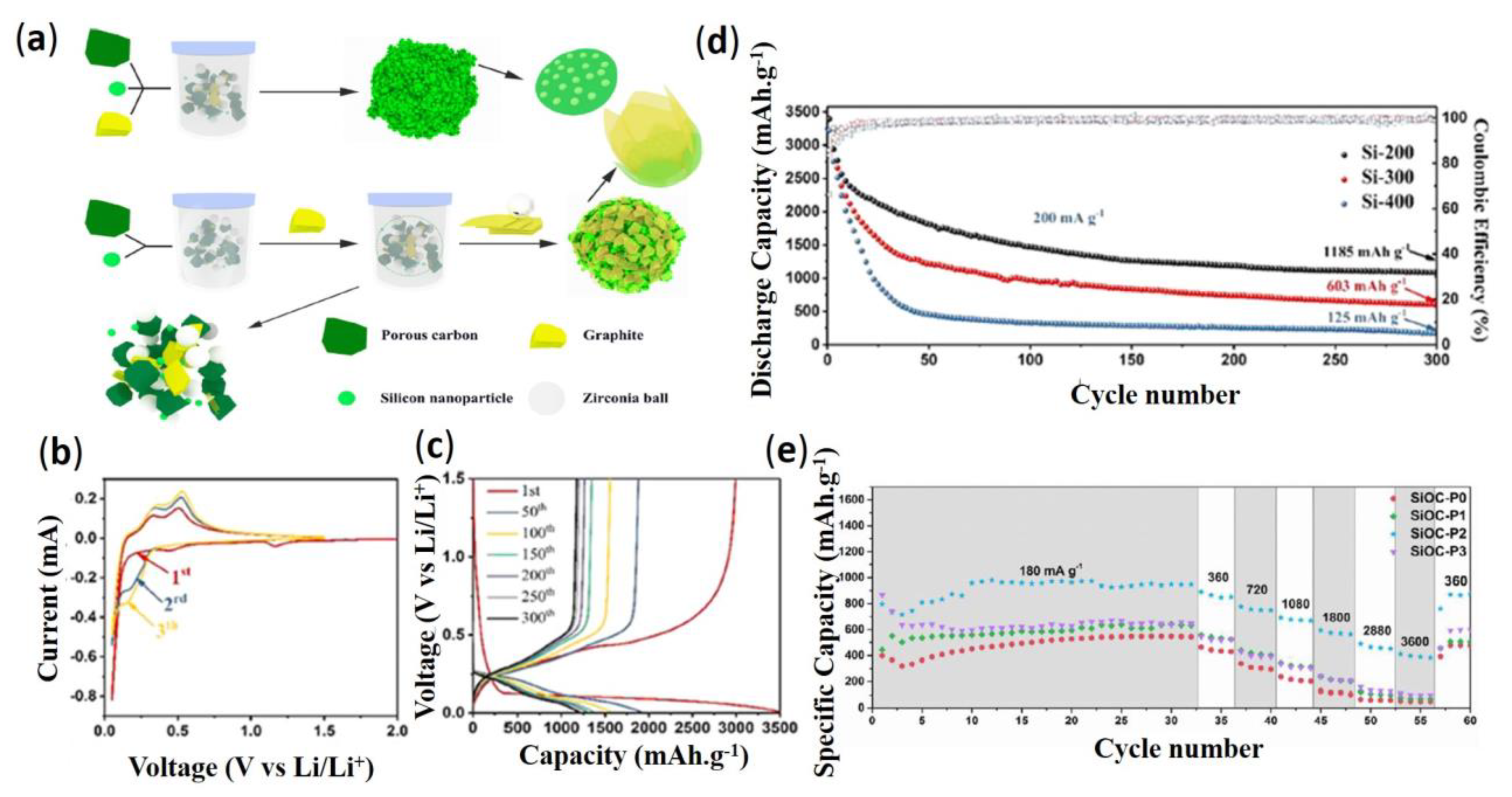

Figure 4. (a) Schematic illustration of the preparation process of amorphous carbon-coated silicon [74], (b) CV curves of Si-200 at a scan rate of 0.1 mV·s−1; (c) Galvanostatic discharge/charge profiles of Si-200 at 0.2 A·g−1; (d) Cycling performance of various nano-Si at 0.2 A·g−1 [81]; and (e) Rate capability of the different silicon oxycarbide (SiOC) samples measured at various C-rates from 180 to 3600 mA·g−1 [82].
Figure 4. (a) Schematic illustration of the preparation process of amorphous carbon-coated silicon [74], (b) CV curves of Si-200 at a scan rate of 0.1 mV·s−1; (c) Galvanostatic discharge/charge profiles of Si-200 at 0.2 A·g−1; (d) Cycling performance of various nano-Si at 0.2 A·g−1 [81]; and (e) Rate capability of the different silicon oxycarbide (SiOC) samples measured at various C-rates from 180 to 3600 mA·g−1 [82].
Energies 14 03145 g004

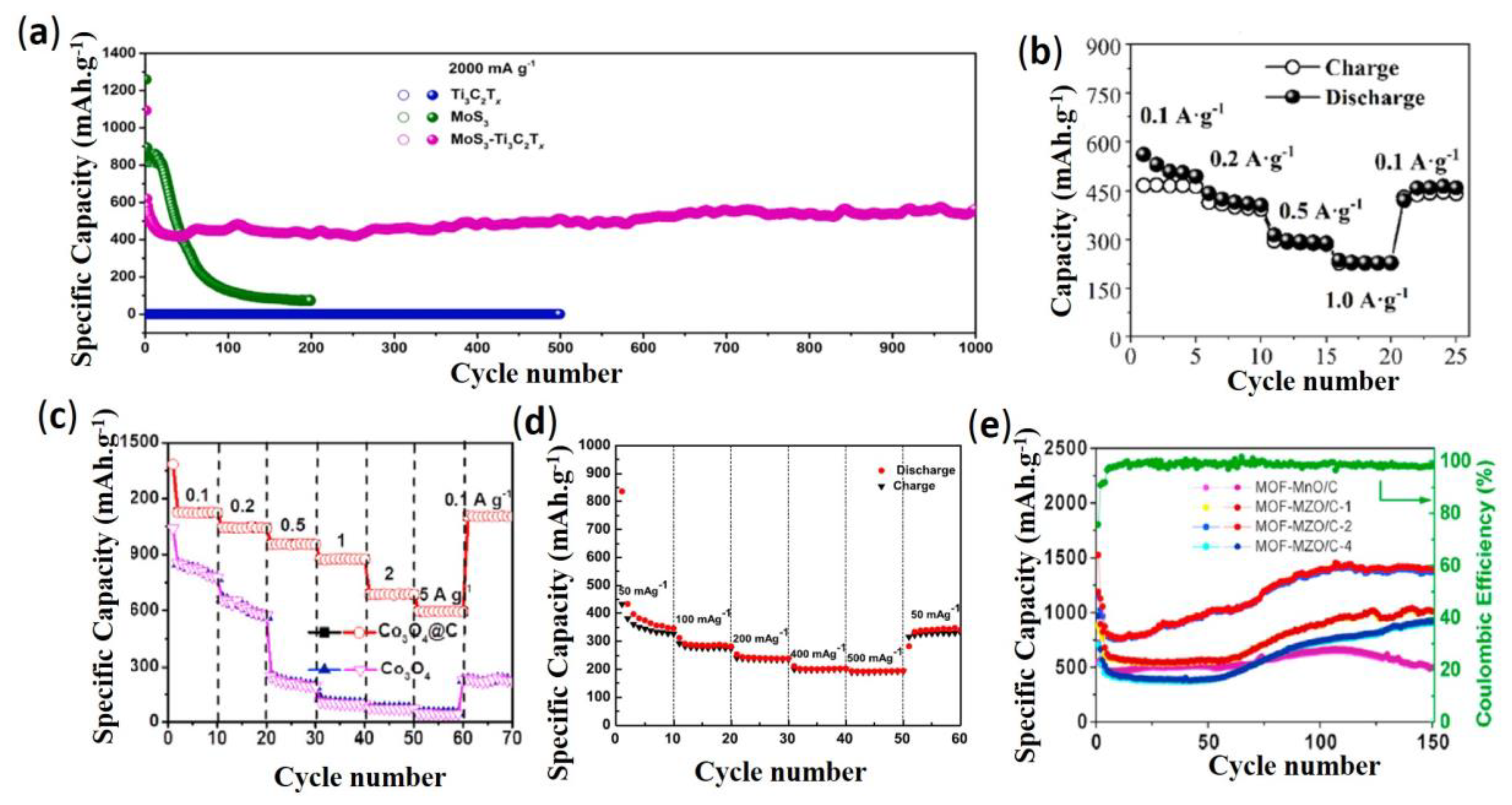

Figure 5. (a) Cycling performance of MoS3-Ti3C2Tx at 2000 mA·g−1 [115], (b) Rate capability of CoO/Co1.94[email protected] [116], (c) Rate performance of Co3O4@C and bare Co3O4 at various current densities from 0.1 to 5 A·g−1 in the voltage range of 0.01–3.0 V [117], (d) Rate performance of TiO2/C composite-fibers electrode at various current densities from 50 mA·g−1 to 500 mA·g−1 over 10 cycles [118], and (e) Cycling tests of MOF-MnO/C and MOF-MZO/C electrodes at 0.2 A·g−1 [119].
Figure 5. (a) Cycling performance of MoS3-Ti3C2Tx at 2000 mA·g−1 [115], (b) Rate capability of CoO/Co1.94[email protected] [116], (c) Rate performance of Co3O4@C and bare Co3O4 at various current densities from 0.1 to 5 A·g−1 in the voltage range of 0.01–3.0 V [117], (d) Rate performance of TiO2/C composite-fibers electrode at various current densities from 50 mA·g−1 to 500 mA·g−1 over 10 cycles [118], and (e) Cycling tests of MOF-MnO/C and MOF-MZO/C electrodes at 0.2 A·g−1 [119].
Energies 14 03145 g005

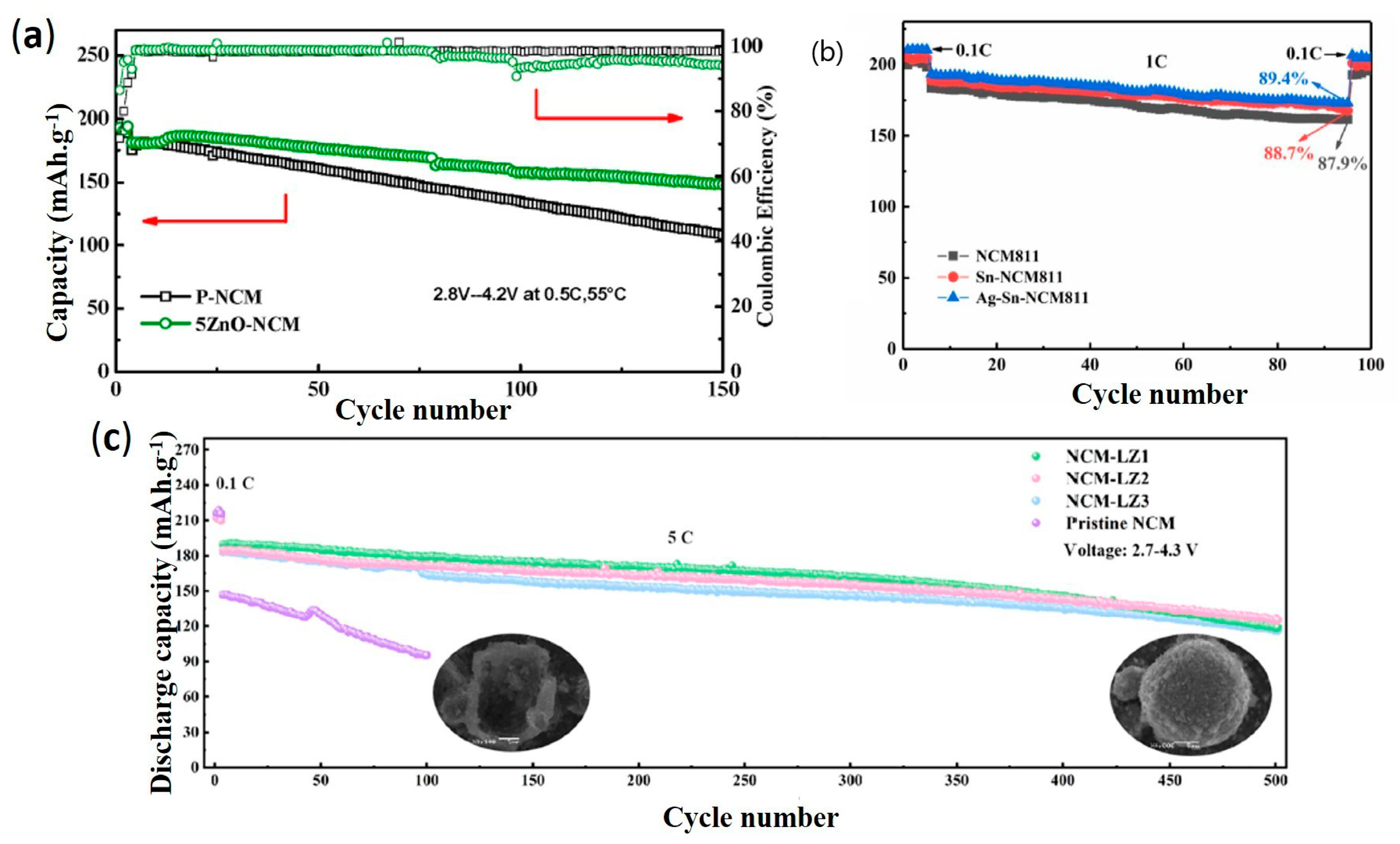

Figure 6. (a) Cyclic performance at 55 °C of NCM and 5ZnO-NCM [150], (b) Cycling performance of NCM811, Sn-NCM811, and Ag-Sn-NCM811 (1 C = 200 mA·g−1, at the range of 2.8–4.3 V) [151], and (c) Cycling performance of the a La2Zr2O7-coated NCM samples at 5 C [153].
Figure 6. (a) Cyclic performance at 55 °C of NCM and 5ZnO-NCM [150], (b) Cycling performance of NCM811, Sn-NCM811, and Ag-Sn-NCM811 (1 C = 200 mA·g−1, at the range of 2.8–4.3 V) [151], and (c) Cycling performance of the a La2Zr2O7-coated NCM samples at 5 C [153].
Energies 14 03145 g006

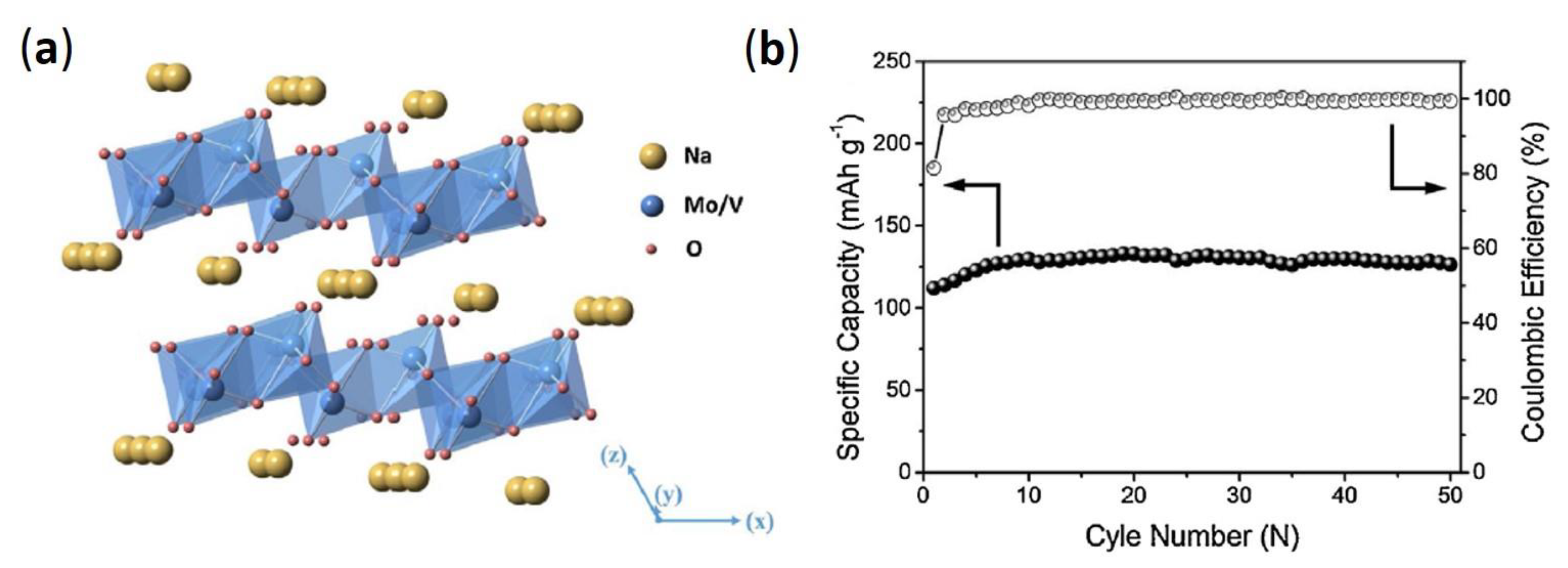

Figure 7. (a) Schematic structure and (b) battery performance for NaVMoO6 [179].
Figure 7. (a) Schematic structure and (b) battery performance for NaVMoO6 [179].
Energies 14 03145 g007

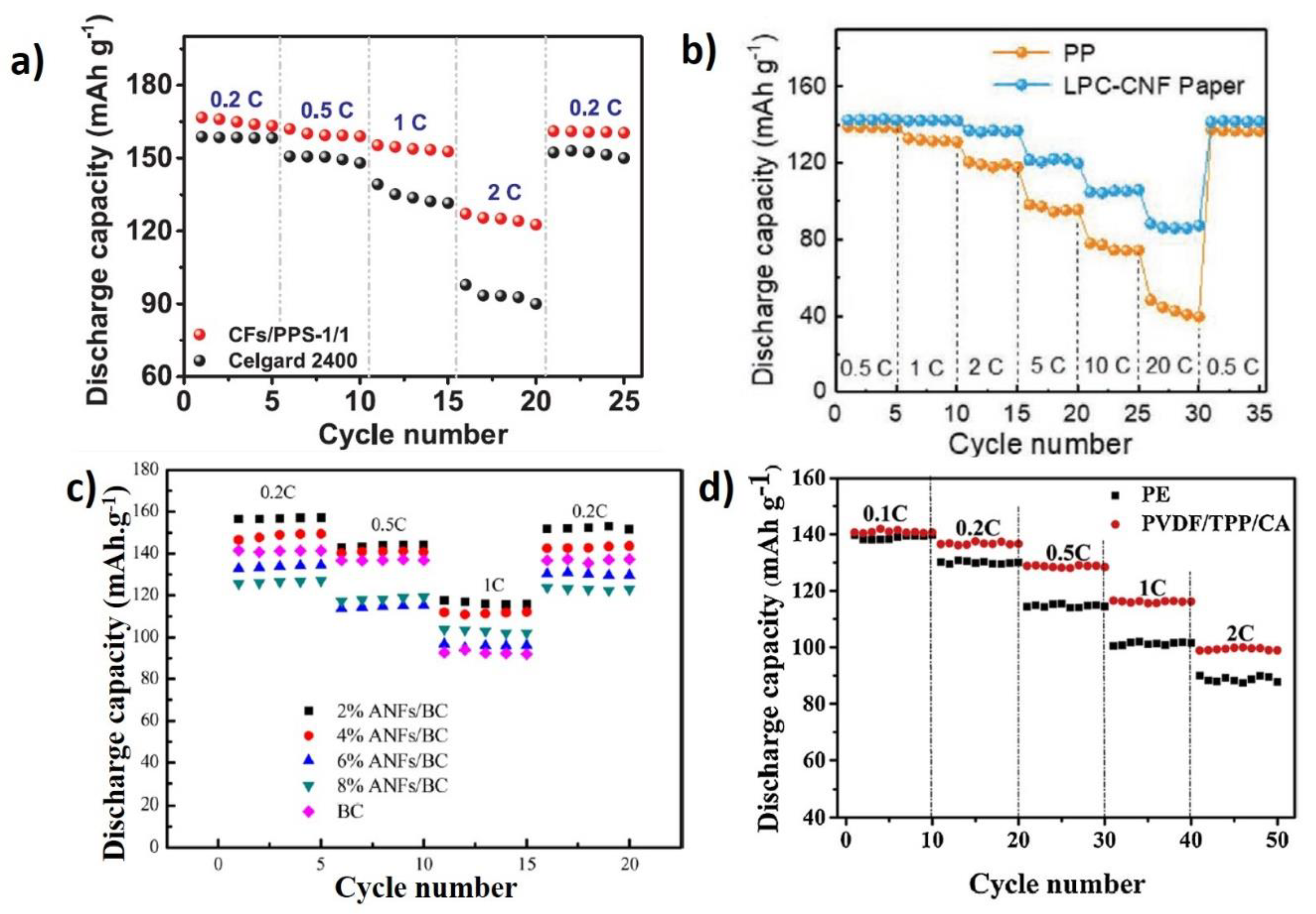

Figure 8. (a) Discharge C-rate capabilities of cells with Celgard 2400 separator and CFs/PPS-1/1 separator [212], (b) Rate capability of LFP half cells with PP and LPC-CNF paper separators at different current densities [231], (c) Rate capability of LFP half-cells with BC and ANFs/BC separators [200], and (d) Rate capabilities of LFP half cells using PE and PVDF/TPP/CA membranes [237].
Figure 8. (a) Discharge C-rate capabilities of cells with Celgard 2400 separator and CFs/PPS-1/1 separator [212], (b) Rate capability of LFP half cells with PP and LPC-CNF paper separators at different current densities [231], (c) Rate capability of LFP half-cells with BC and ANFs/BC separators [200], and (d) Rate capabilities of LFP half cells using PE and PVDF/TPP/CA membranes [237].
Energies 14 03145 g008

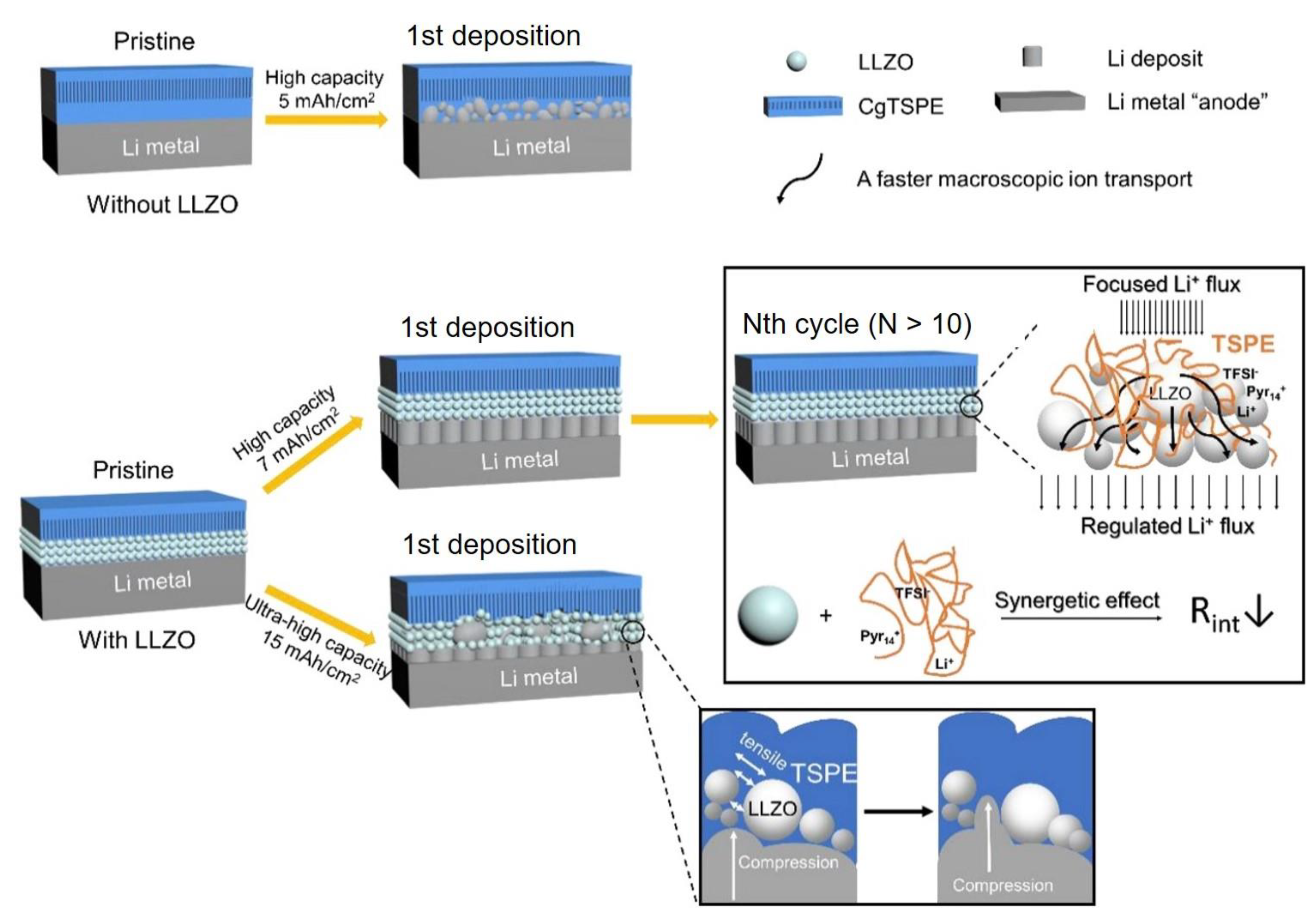

Figure 9. Effect of an LLZO layer in the suppression of lithium dendrites growth [29].
Figure 9. Effect of an LLZO layer in the suppression of lithium dendrites growth [29].
Energies 14 03145 g009

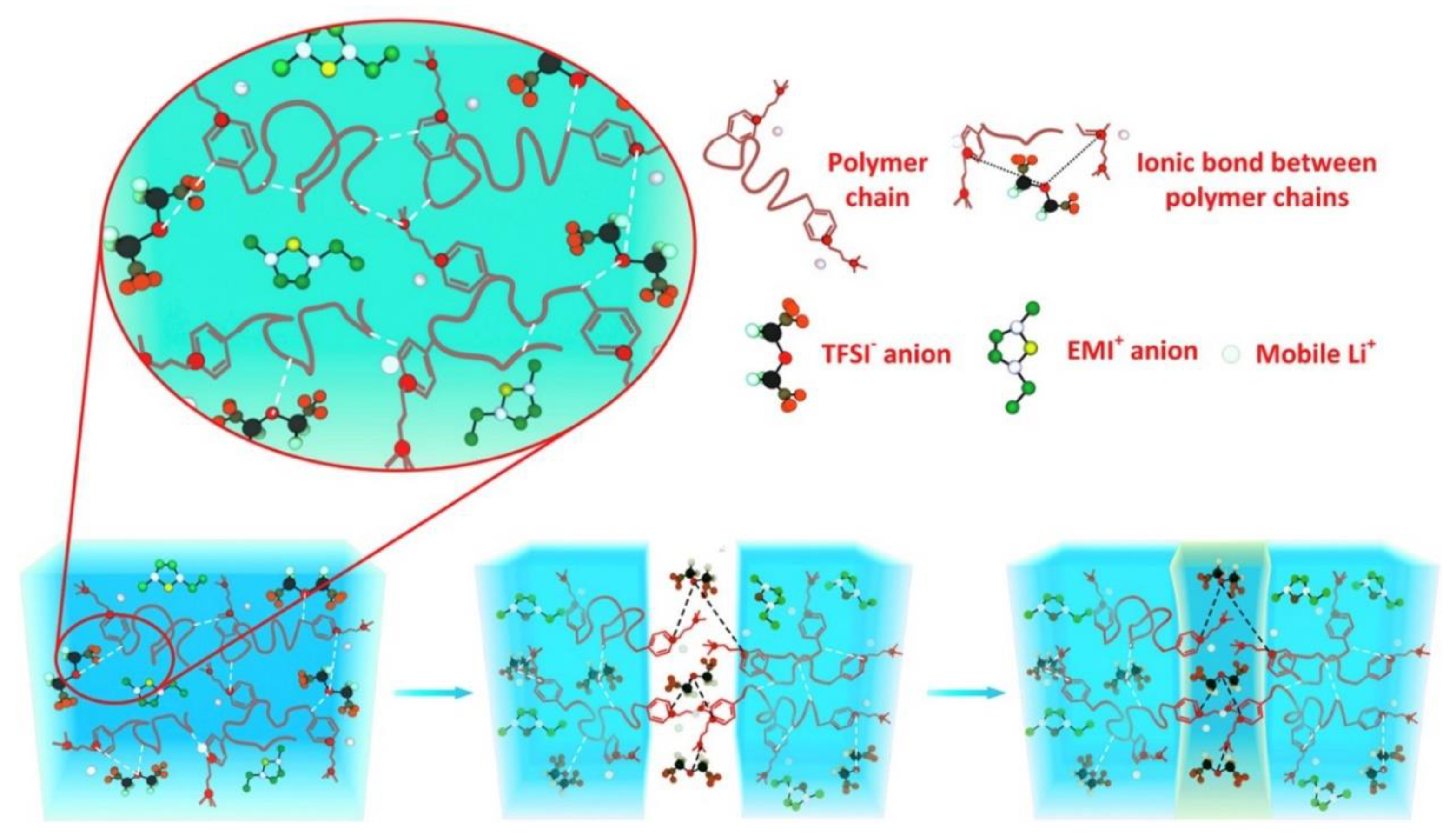

Figure 10. Self-healing mechanism in a PIL-based SPE [261].
Figure 10. Self-healing mechanism in a PIL-based SPE [261].
Energies 14 03145 g010
Table 1. Comparative analysis between different battery technologies. The variability of data for the same type of battery is due to the different active materials used for a given technology.
Table 1. Comparative analysis between different battery technologies. The variability of data for the same type of battery is due to the different active materials used for a given technology.
TechnologySpecific Energy (Wh/kg)Number of CyclesEfficiency (%)Voltage (V)Ref.
Table 2. Most commonly active cathode active materials used for lithium-ion battery applications [130].
Table 2. Most commonly active cathode active materials used for lithium-ion battery applications [130].
Cathode Active MaterialCrystal System/Space Group
[Point Group]
Specific Capacity/mAh·g−1Typical Voltage Range/V
LiCoO2Orthorhombic/R3m [C3V]2742.5–4.45
LiFePO4Orthorhombic/Pnma [D2h]1702.5–4.2
LiMn2O4Cubic/Fd 3 ¯ m [Oh]1483.0–4.3
LiNiO2Trigonal/R3m [C3V]2753.0–4.3
LiNi1-xCoxO2 (0.2 ≤ x ≤ 0.5)Rhombohedral/R3m [C3V]~2753.5–4.3
LiNi1/3Mn1/3Co1/3O2Rhombohedral/R3m [C3V]2782.3–4.3
LiNi0.5Mn1.5O2Trigonal/R3m [C3V]1473.5–4.9
Table 3. Recent advances on Li-ion battery separators based of different materials with main properties, goals and achievements for improving separator characteristics.
Table 3. Recent advances on Li-ion battery separators based of different materials with main properties, goals and achievements for improving separator characteristics.
MaterialsElectrolyte SolutionPorosity and Uptake (%)Conductivity (mS·cm−1) and Capacity (mAh·g−1)Main Goal/AchievementRef.
Polyimide (PI) with poly(amic acid) (PAA)1.0 M LiPF6 (ethylene carbonate (EC)/
diethyl carbonate (DEC) (1:1 by weight)) with 5% of fluoroethylene carbonate (FEC)
89.1/-1.79/1.930 mAhImproved mechanical strength[184]
Polyimide (PI)1.0 M
(EC/dimethyl carbonate (DMC) (1:1 in vol.))
-/--/-Improved thermal stability[185]
PE with phenolic resin (AF)1mol L−1 LiPF6 (DMC/EC (1:1 in vol.))57/2280.6/119Improved thermal stability
and electrochemical properties
Untreated Al2O3/PE1.0 M LiPF6
(EC/DEC (1:1 by weight)) with 5% of Fluoroethylene carbonate (FEC)
-/-0.39/[email protected]Good wettability, high thermal stability, and good electrochemical performance[187]
Polyethyleneimine (PEI)/dopamine coating layer in PP separator.1.0 M LiPF6 (EC/DMC (1:1 in vol.))-/1440.58/128High electrolyte uptake[188]
PVDF containing titanium dioxide (TiO2) and graphene oxide (GO)Commercial electrolyte based LiPF686.50/4944.87/-High electrolyte uptake[189]
Polyimide (PI) with ZSM-5 zeolite filler1.0 M LiPF6 (EC/DMC (1:1 in vol.))61/2601.04/[email protected]Enhanced wettability and electrolyte uptake[190]
Poly(aryl ether sulfone) (PES) and poly(vinylidene fluoride) (PVDF)1.0 M LiPF6 (EC/ethylmethyl carbonate (EMC)/DMC (1:1:1 in vol.))-/5951.69/162.8Enhanced wettability and high ionic conductivity[191]
Poly(vinylidene fluoridehExafluoropropyl-ene) (PVDF-HFP)/poly-mphenyleneisophthalamide (PMIA)1.0 M LiPF6 (EC/DEC/EMC (1:1:1 in vol.))94.28/~900-/-Good electrolyte affinity and enhanced interfacial compatibility[192]
PE with ammonium persulfate (APS) coating1.0 M LiPF6
(EC/EMC (3:7 in vol.)) with 2 wt %
vinylene carbonate as an additive
-/-0.36/~170High lithium-ion migration and ionic conductivity[193,194]
PVDF/13X zeolite particles1.0 M LiPF6 (EC/DEC/DMC (1:1:1 in vol.))76/475~1/144.14Excellent ionic conductivity[195]
[email protected]FP--/-1.2/[email protected]Excellent cycling performance, good rate capability[196]
PE with controllable polyamine (PAI) layer1.0 M LiPF6 carbonate solution60/--/-Enhanced safety[197]
PVDF coated with ZnO-85.1/3522.3/[email protected]High safety in high temperature.[198]
Thin layer of low-density polyethylene microspheres onto a commercial porous PP1.0 M LiPF6 (EC/DMC/EMC (1:1:1
in vol.))
-/-0.30/158Rapid thermal shutdown at elevated temperature (≈110 °C)[199]
Aramid nanofiber/bacterial cellulose1.0 M LiPF6 (EC/DMC/DEC (1:1:1 in vol.))83.9/-12.54/157Excellent tensile strength and ionic conductivity.[200]
Poly (L-lactic acid) (PLLA)1.0 M LiPF6 (EC/DMC (1:1In vol.))≈72/3501.6/[email protected]Environmentally friendly separator[201]
Cellulose/PVDF-HFP with TiO21.0 M LiPF6 (EC/DMC (1:1 in vol.))86/4031.68/[email protected]Excellent thermal stability and high ion conductivity[202]
Silk fibroin1.0 M LiPF6 (EC/DMC (1:1 in vol.))86/3502.2/131.3 @8CEnvironmentally friendly separator[203]
Table 4. Recent advances in solid polymer electrolyte (SPE) technology for Li-ion battery applications.
Table 4. Recent advances in solid polymer electrolyte (SPE) technology for Li-ion battery applications.
Polymer MatrixFillersMethodIonic Conductivity (S·cm−1)Discharge Capacity (mAh·g−1)Main FeaturesRef.
PEOCarbon quantum dots, LiTFSIDoctor blade2.2 × 10−4 (25 °C)160.4 (C/10)Lithium dendrite suppression[30]
PEOGO, [Bmim][DCA]Solvent casting1 × 10−4 (25 °C)156.2 (C/10)Lithium dendrite suppression[243]
PEOLiTFSI SiO2Solvent casting9.32 × 10−5 (30 °C)166.9 (C/10)Lithium dendrite suppression[244]
PEONonwoven glass fiber, LiTFSISolvent casting1.2 × 10−4 (20 °C)128 (C/10)Lithium dendrite suppression[245]
PEO, PVDFLiTFSISolvent casting2.46 × 10−9 (30 °C)157.5 (C/5)Lithium dendrite suppression[246]
PCL-PPC-PCLLiTFSISolvent casting3 × 10−5 (30 °C)142 (C/20)Lithium dendrite suppression[247]
PVDFLiTFSI, LLZTOSolvent casting1.16 × 10−3 (80 °C)151 (C/5)Lithium dendrite suppression[248]
PVDFLiTFSI, Pyr13TFSISolvent casting1.23 × 10−3 (25 °C)158.2 (1C)Lithium dendrite suppression[249]
PVDF-CAMontmorillonite, LiTFSISolvent casting3.40 × 10−4 (25 °C)112 (C/2)Lithium dendrite suppression[250]
PVDF-HFPLLZO, ILSolvent casting6.3 × 10−3 (20 °C)164 (C/2)Lithium dendrite suppression[251]
PEOLiTFSI, UiO-66-NH2@SiO2Hot pressing8.1 × 10−6 (60 °C)151 (C/10)Lithium dendrite suppression[252]
TMPTA-TEGDME-PEOLiTFSIUV curing4.36 × 10−4 (30 °C)157.8 (C/10)Lithium dendrite suppression[253]
PEOLiTFSI, Pyr14TFSI, LLZOUV curing5.0 × 10−4 (60 °C)-Lithium dendrite suppression[29]
PVDFLiClO4, LLTOTape casting4.7 × 10−4 (25 °C)139 (C/5)Lithium dendrite suppression, interfacial contact[241]
PAN nanofibers, PDMS, PEOLiTFSISolvent casting1.2 × 10−3 (60 °C)151.7 (C/5)Lithium dendrite suppression, interfacial contact[254]
PEOLiTFSI Zn(BEH2)Solvent casting1.1 × 10−5 (30 °C)145 (C/10)Lithium dendrite suppression, interfacial contact[255]
PVDF-HFPLiTFSI, LGPSSolvent casting1.8 × 10−4 (30 °C)158 (C/20)Lithium dendrite suppression, interfacial contact[256]
PEGLiTFSI, HDItCross-linked copolymerization6.51 × 10−5 (25 °C)162 (C/10)Interfacial contact[242]
PEOLiFSI, LiPSTFSIHot pressing3.7 × 10−5 (70 °C)150 (C/20)Interfacial contact[257]
PEOLiPCSISolvent casting7.33 × 10−5 (60 °C)141 (C/10)Interfacial contact[258]
PEOLi3NDoctor blade-160 (C/10)Self-healing[259]
HCP-UPyMA, PEGMALiTFSIUV copolymerization8.95 × 10−5 (30 °C)-Self-healing[260]
PVT[EMIM][TFSI], LiTFSISolvent casting1.26 × 10−4 (25 °C)145Self-healing[261]
PEGALiTFSI, Bis(2-methacryloyloxyethyl) Disulfide, 1,2-Bis (ureidoethylenemethacrylate) HexamethyleneRAFT polymerization7.28 × 10−6 (30 °C)140.5 (C/10)Self-healing[262]
PEG600Phosphorous and silicon-containing monomers, LiTFSISolvent casting2.98 × 10−5 (25 °C)142.0 (C/10)Flame retardancy[263]
PAES-g-PEGPYR14-TFSI, LiTFSISolvent casting8.9 × 10−4 (40 °C)138 (C/10)Battery stability[264]
PEOZIF-8Solvent casting2.2 × 10−5 (30 °C)111 (C/2)Battery stability[265]
ETPTA-PVDF-HFP-UV curing9 × 10−4 (25 °C)150 (C/5)Ionic conduction[266]
PEOUiO-66, LiClO4Solvent casting4.8 × 10−5 (25 °C)148 (C/10)Ionic conduction[267]
PEOHACC-TFSI, LiTFSISolvent casting1.77 × 10−5 (30 °C)161.3 (C/5)Ionic conduction[268]
PEOLiTFSO, Mesoporous silicaSolvent casting4.3 × 10−4 (60 °C)150.3 (C/10)Ionic conduction[269]
PVDF-HFPLiTFSI, Pyr13TFSI, P(MMA-co-VIm(1O2)) (TFSI)Solvent casting5.1 × 10−4 (25 °C)102 (C/10)Ionic conduction[270]
PMMABaTiO3, LiPF6Solvent casting3.9 × 10−4 (70 °C)-Ionic conduction[271]
PVDH-HFP[Bmim][SCN]Doctor blade1.5 × 10−4 (25 °C)148 (C/8)Ionic conduction[272]
PEOLiTFSIUltrasonic treatment, solvent casting3.2 × 10−4 (25 °C)-Ionic conduction[273]
PEOLiTFSI, LLZAOSolvent casting2.51 × 10−4 (25 °C)165.9 (C/5)Ionic conduction[274]
PVOLiTFSISolvent casting1.36 × 10−6 (25 °C)-Ionic conduction[275]
Chitosan, PEGLiClO4Solvent casting4.56 × 10−4 (25 °C)-Environmentally friendly[276]
I-CarrageenanLiClSolvent casting5.33 × 10−3 (25 °C)-Environmentally friendly[277]
Pectin, Guar gumLiTFSISolvent casting1.59 × 10−4 (25 °C)-Environmentally friendly[278]
PAASilica nanoparticlesFree radical polymerization1.29 × 10−2 (25 °C)-Environmentally friendly[279]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Barbosa, J.C.; Gonçalves, R.; Costa, C.M.; Lanceros-Mendez, S. Recent Advances on Materials for Lithium-Ion Batteries. Energies 2021, 14, 3145.

AMA Style

Barbosa JC, Gonçalves R, Costa CM, Lanceros-Mendez S. Recent Advances on Materials for Lithium-Ion Batteries. Energies. 2021; 14(11):3145.

Chicago/Turabian Style

Barbosa, João C., Renato Gonçalves, Carlos M. Costa, and Senentxu Lanceros-Mendez. 2021. "Recent Advances on Materials for Lithium-Ion Batteries" Energies 14, no. 11: 3145.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
