# Less Information, Similar Performance: Comparing Machine Learning-Based Time Series of Wind Power Generation to Renewables.ninja

^{1}

^{2}

^{3}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

- (a)
- Wind speed data were acquired, and wind speed components, i.e., the u and v variables, were interpolated from the MERRA2 grid to the actual turbine locations using LOESS regression.
- (b)
- Wind speeds were extrapolated to the corresponding turbine hub heights from the three height levels provided by MERRA2 (2, 10, and 50 m above the ground) using the logarithmic wind profile.
- (c)
- Wind speeds were converted to wind turbine power outputs by using manufacturers’ power curves.
- (d)
- An additional bias correction step for calibrating results against actual electricity generation was performed in the RN model as a post-processing step.

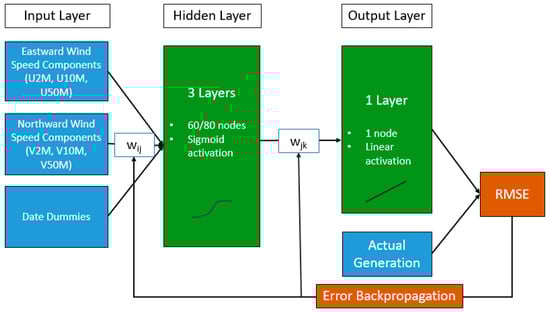

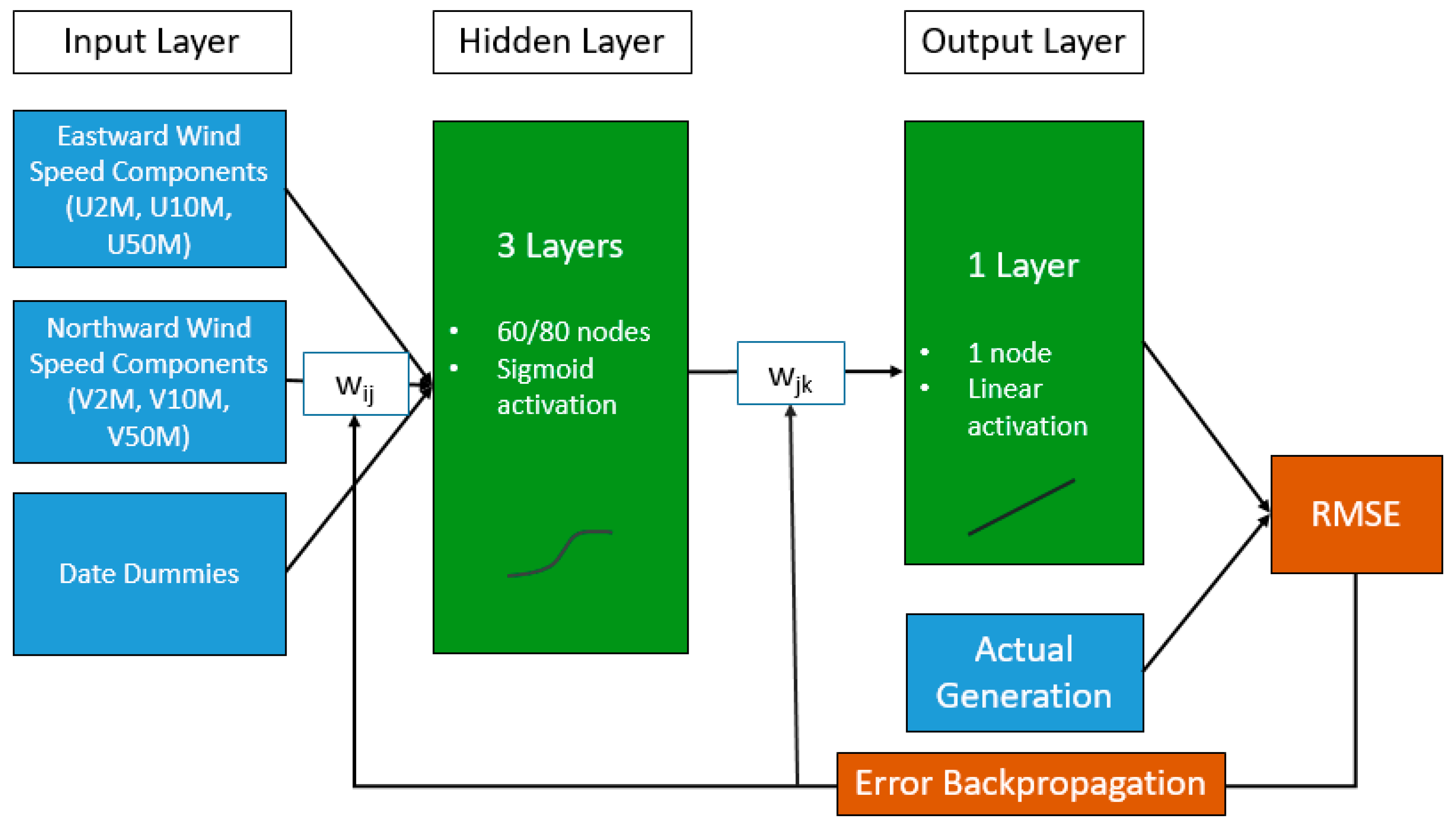

#### 2.1. Detailed Description of MLM

_{ij}and w

_{jk}) were estimated by minimizing the error of the network output in comparison to observations. In the chosen neural network modeling framework, the Root Mean Square Error (RMSE) is the default error measure. Error backpropagation was used to minimize the error in an iterative process (Figure 2). For the hidden layers, we tested models with layer sizes of 60 and 80 nodes. Out of these two models, the model size which resulted in better correlation, normalized root mean square error (NRMSE), and normalized mean absolute error (NMAE) was chosen for further use.

#### 2.2. Data

#### 2.2.1. Climate Input Data

#### 2.2.2. Installed Capacity and Electricity Generation Data

#### 2.3. Time Series Quality Assessment

## 3. Results

#### 3.1. Model Selection

#### 3.2. Basic Time Series Quality

#### 3.3. Diurnal Characteristics

#### 3.4. Seasonal Characteristics

#### 3.5. Durations and Frequencies of Low, High, and Extreme Values

#### 3.6. Frequencies and Ranges of Power Ramps

## 4. Discussions

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Appendix A

#### Appendix A.1. Results of a Model with a Stronger Subsetting of the Climate Data Grid Points (MLM3)

**Table A1.**Comparison of model error values for all tested models for the training and prediction dataset.

Error Metric | Network Size | MLM1 | MLM2 | MLM3 |
---|---|---|---|---|

NMAE | 60 | 0.152 | 0.144 | 0.138 |

NRMSE | 60 | 0.208 | 0.202 | 0.194 |

NMAE | 80 | 0.161 | 0.138 | 0.141 |

NRMSE | 80 | 0.220 | 0.190 | 0.194 |

#### Appendix A.2. Basic Time Series Quality of MLM3

Quality Measure | Observations | RN | MLM2 | MLM3 |
---|---|---|---|---|

Correlation | - | 0.976 | 0.975 | 0.975 |

NMAE | - | 0.152 | 0.138 | 0.138 |

NRMSE | - | 0.210 | 0.191 | 0.194 |

Variance | 0.026 | 0.030 | 0.025 | 0.024 |

Quantile | ||||

0% | 0.000 | 0.000 | −0.011 | −0.008 |

25% | 0.067 | 0.071 | 0.069 | 0.070 |

50% | 0.137 | 0.149 | 0.135 | 0.136 |

75% | 0.260 | 0.275 | 0.254 | 0.251 |

100% | 0.913 | 0.964 | 0.975 | 0.943 |

**Figure A1.**Scatterplot of modeled generation time series compared with observations (Renewables.ninja time series abbreviated as RN and machine learning model time series abbreviated as MLM2 and MLM3 versus observations on the X-axis).

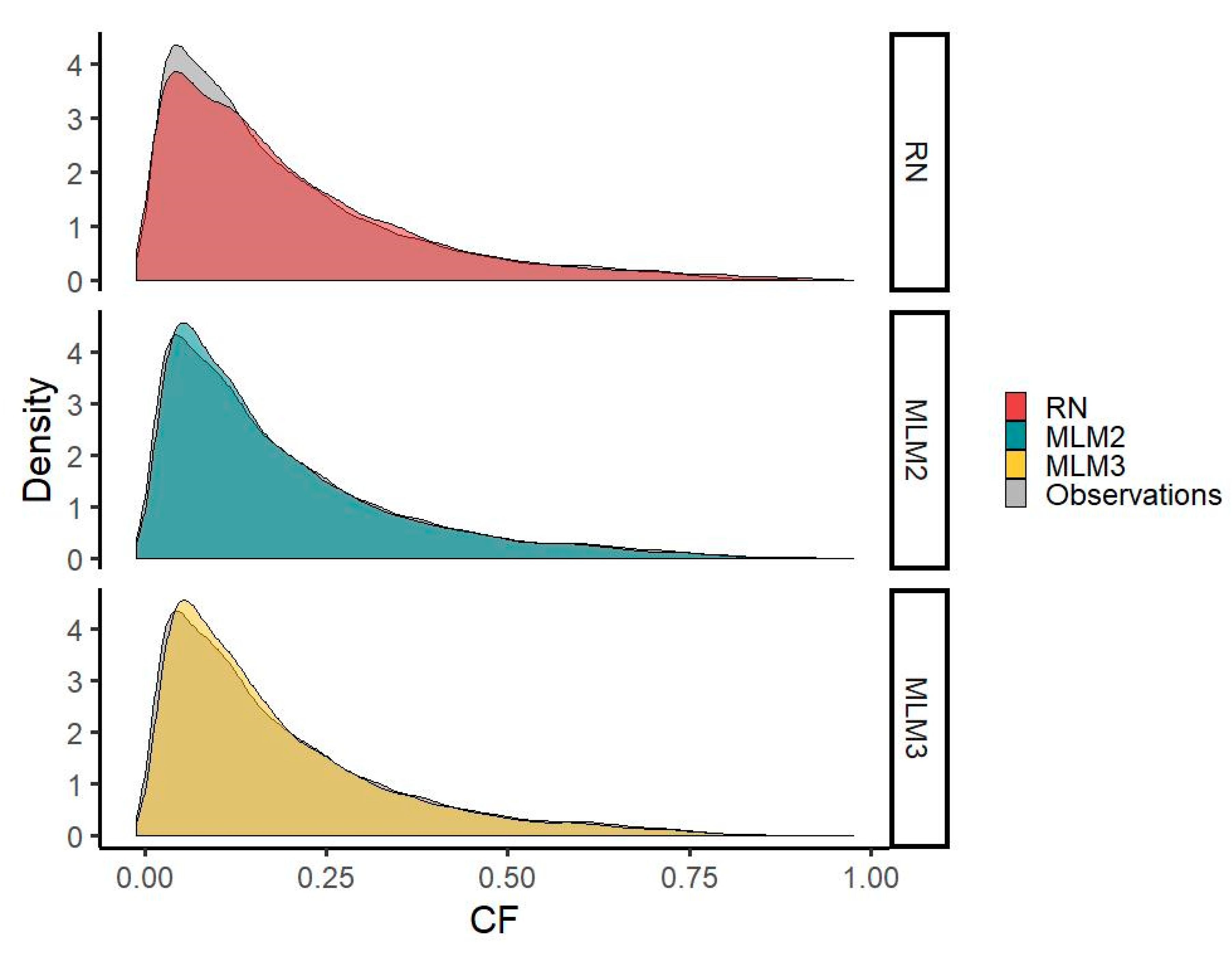

**Figure A2.**Total distributions of the RN, MLM2, and MLM3 modeled time series compared with the observed total distribution (dark colored areas correspond to an accordance of the modeled and observed time series; Renewables.ninja time series abbreviated as RN and machine learning model time series abbreviated as MLM2 and MLM3).

#### Appendix A.3. Diurnal Characteristics of MLM3

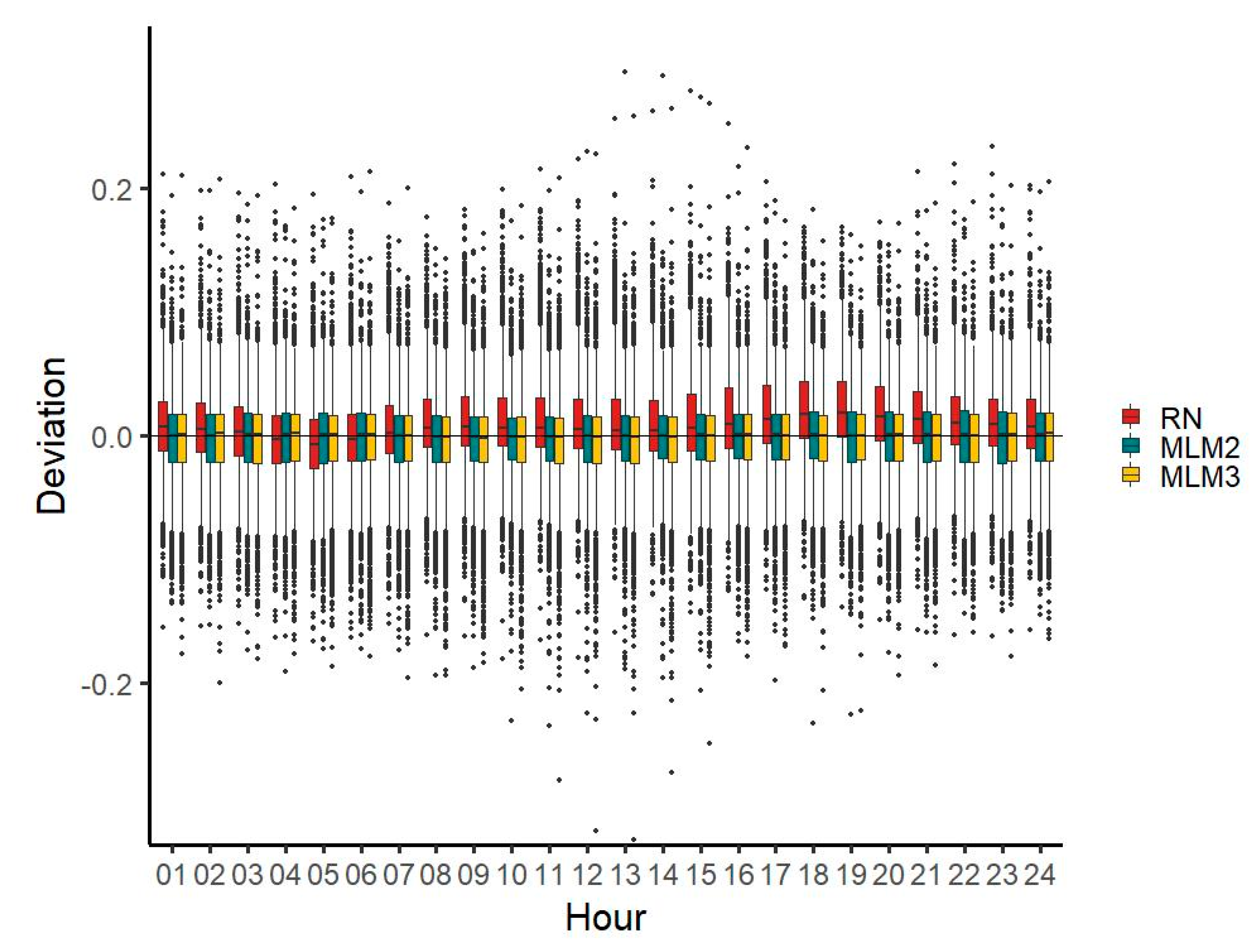

**Figure A3.**Hourly deviations from observed values for RN, MLM2, and MLM3 (Renewables.ninja time series abbreviated as RN and machine learning model time series abbreviated as MLM2 and MLM3).

#### Appendix A.4. Seasonal Characteristics of MLM3

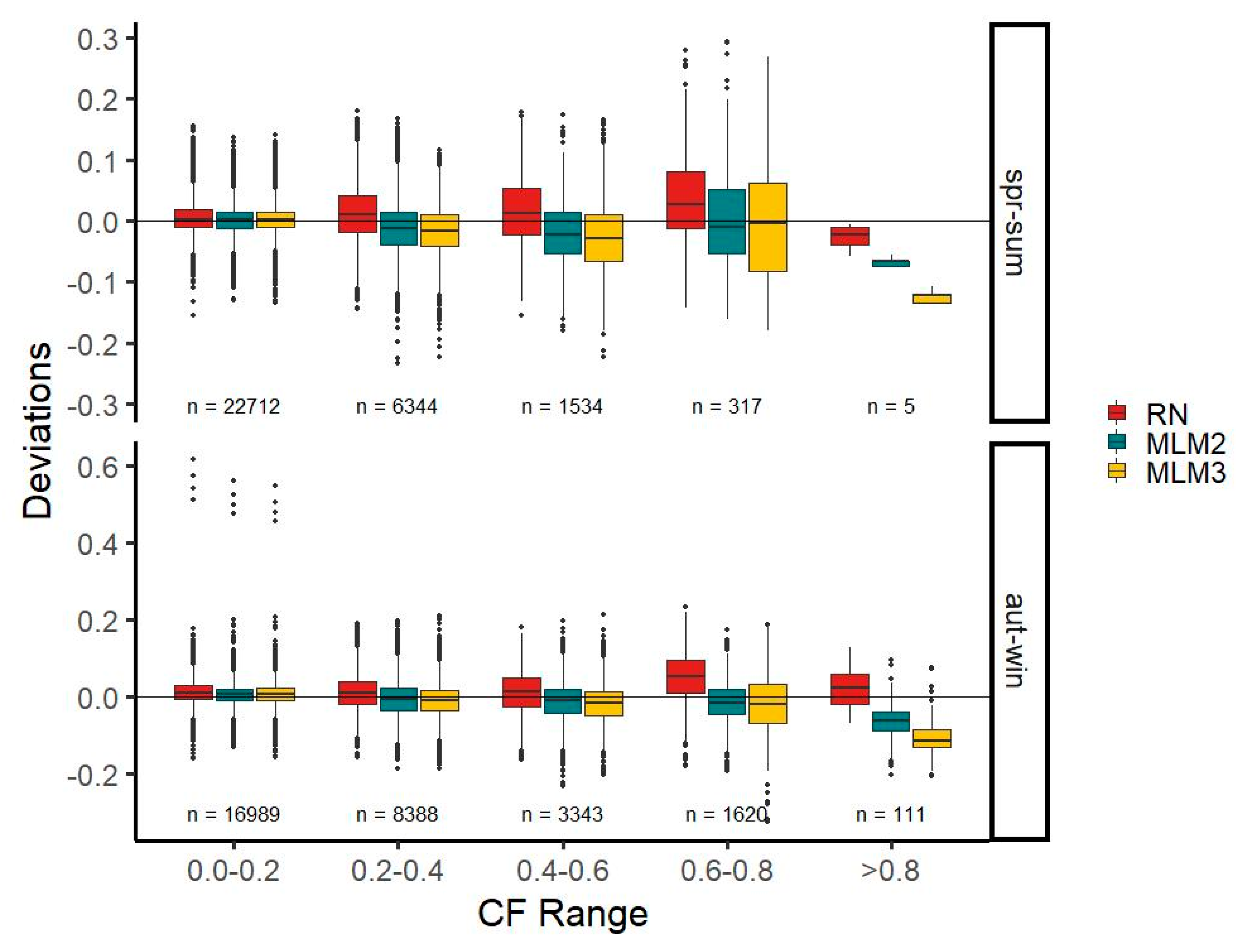

**Figure A4.**Capacity factor (CF) deviations of RN, MLM2, and MLM3 modeled time series within different CF bins for the autumn-winter and spring-summer half-year from 2010 to 2016 (Renewables.ninja time series abbreviated as RN, machine learning model time series abbreviated as MLM2 and MLM3, and n denotes the number of observations within CF bins).

#### Appendix A.5. Durations and Frequencies of Low, High, and Extreme Values of MLM3

**Table A3.**Observed and modeled (Renewables.ninja [RN] and machine learning models [MLM2 and MLM3]) CF, including frequencies, mean, and maximum durations of extremely low (<0.005), low (0.01), high (0.75), and extremely high (>0.8) generation events in consecutive hours.

CF Ranges | Observations | RN | MLM2 | MLM3 |
---|---|---|---|---|

CF < 0.005 | ||||

Frequency | 102 | 430 | 238 | 248 |

Mean Duration | 3.19 | 4.62 | 3.50 | 3.70 |

Max Duration | 10 | 14 | 10 | 15 |

CF < 0.01 | ||||

Frequency | 509 | 748 | 341 | 283 |

Mean Duration | 2.98 | 2.60 | 1.91 | 1.78 |

Max Duration | 25 | 12 | 5 | 7 |

CF > 0.75 | ||||

Frequency | 204 | 356 | 225 | 187 |

Mean Duration | 3.46 | 3.10 | 3.41 | 3.46 |

Max Duration | 13 | 18 | 15 | 21 |

CF > 0.8 | ||||

Frequency | 121 | 471 | 125 | 115 |

Mean Duration | 7.56 | 9.24 | 5.21 | 7.19 |

Max Duration | 35 | 33 | 21 | 17 |

#### Appendix A.6. Frequencies and Ranges of Power Ramps of MLM3

**Table A4.**Minimum, maximum, and mean of negative and positive capacity factor (CF) ramps within different time frames and frequency of highly positive and negative CF ramps.

Time Frame | Observations | RN | MLM2 | MLM3 |
---|---|---|---|---|

1 h | ||||

Min | −0.66 | −0.11 | −0.13 | −0.11 |

Neg. Mean | −0.012 | −0.013 | −0.012 | −0.012 |

Neg. Freq | 31,313 | 32,243 | 31,132 | 31,308 |

Pos. Mean | 0.013 | 0.014 | 0.013 | 0.012 |

Pos. Freq | 30,054 | 29,124 | 30,235 | 30,059 |

Max | 0.50 | 0.16 | 0.14 | 0.15 |

Frequency < −0.2 | 1 | 0 | 0 | 0 |

Frequency > 0.2 | 1 | 0 | 0 | 0 |

3 h | ||||

Min | −0.67 | −0.28 | −0.33 | −0.30 |

Neg. Mean | −0.022 | −0.024 | −0.022 | −0.022 |

Neg. Freq | 94,293 | 96,677 | 94,091 | 94,389 |

Pos. Mean | 0.023 | 0.027 | 0.023 | 0.023 |

Pos. Freq | 89,805 | 87,421 | 90,007 | 89,709 |

Max | 0.50 | 0.30 | 0.31 | 0.32 |

Frequency < −0.2 | 75 | 71 | 61 | 69 |

Frequency > 0.2 | 92 | 181 | 93 | 79 |

6 h | ||||

Min | −0.67 | −0.46 | −0.50 | −0.47 |

Neg. Mean | −0.035 | −0.038 | −0.034 | −0.034 |

Neg. Freq | 188,949 | 192,660 | 188,749 | 189,180 |

Pos. Mean | 0.037 | 0.042 | 0.036 | 0.036 |

Pos. Freq | 179,238 | 175,527 | 179,438 | 179,007 |

Max | 0.51 | 0.50 | 0.47 | 0.47 |

Frequency < −0.2 | 1616 | 2140 | 1736 | 1682 |

Frequency > 0.2 | 1846 | 2921 | 1860 | 1687 |

12 h | ||||

Min | −0.68 | −0.60 | −0.64 | −0.62 |

Neg. Mean | −0.054 | −0.059 | −0.053 | −0.052 |

Neg. Freq | 376,200 | 380,753 | 376,127 | 377,137 |

Pos. Mean | 0.056 | 0.064 | 0.055 | 0.055 |

Pos. Freq | 360,138 | 355,585 | 360,211 | 359,201 |

Max | 0.62 | 0.67 | 0.68 | 0.63 |

Frequency < −0.2 | 14,185 | 18,009 | 14,245 | 13,396 |

Frequency > 0.2 | 14,680 | 19,194 | 14,237 | 13,580 |

## References

- Maaßen, U. Arbeitsgemeinschaft Energiebilanzen Bruttostromerzeugung in Deutschland ab 1990 nach Energieträgern. Available online: https://ag-energiebilanzen.de/index.php?article_id=29&fileName=20181214_brd_stromerzeugung1990-2018.pdf (accessed on 4 May 2020).
- Global Wind Energy Council. Global Wind Report 2018; Global Wind Energy Council: Brussels, Belgium, 2019. [Google Scholar]
- Global Wind Energy Council. Global Wind 2007 Report; Global Wind Energy Council: Brussels, Belgium, 2008. [Google Scholar]
- WindEurope. Wind Energy in Europe in 2018 Trends and Statistics; WindEurope: Brussels, Belgium, 2019. [Google Scholar]
- Stanton, M.B.; Dessai, S.; Paavola, J. A systematic review of the impacts of climate variability and change on electricity systems in Europe. Energy
**2016**, 109, 1148–1159. [Google Scholar] [CrossRef][Green Version] - Klein, D.R.; Olonscheck, M.; Walther, C.; Kropp, J.P. Susceptibility of the European electricity sector to climate change. Energy
**2013**, 59, 183–193. [Google Scholar] [CrossRef] - Tobin, I.; Greuell, W.; Jerez, S.; Ludwig, F.; Vautard, R.; Van Vliet, M.T.H.; Bréon, F.-M.; Van Vliet, M.T.H. Vulnerabilities and resilience of European power generation to 1.5 °C, 2 °C and 3 °C warming. Environ. Res. Lett.
**2018**, 13, 044024. [Google Scholar] [CrossRef] - Réseau de Transport D’électricité Shedding Light on the Future of the Energy System. Available online: https://antares-simulator.org/ (accessed on 1 September 2019).
- Strbac, G.; Aunedi, M.; Papadaskalopoulos, D.; Qadrdan, M.; Moreno, R.; Pudjianto, D.; Djapic, P.; Konstantelos, I.; Teng, F. Modelling of Smart Low-Carbon Energy Systems; wholeSEM: London, UK, 2014. [Google Scholar]
- E3M Manual of PRIMES. Available online: http://www.e3mlab.eu/e3mlab/index.php?option=com_content&view=article&id=58%3Amanual-for-primes-model&catid=35%3Aprimes&Itemid=80&lang=en (accessed on 1 September 2019).
- Loulou, R.; Goldstein, G.; Kanudia, A.; Lettila, A.; Remme, U. Documentation for the TIMES Model—Part I; IEA: Paris, France, 2016. [Google Scholar]
- Simoes, S.; Zeyringer, M.; Mayr, D.; Huld, T.; Nijs, W.; Schmidt, J. Impact of different levels of geographical disaggregation of wind and PV electricity generation in large energy system models: A case study for Austria. Renew. Energy
**2017**, 105, 183–198. [Google Scholar] [CrossRef] - Staffell, I.; Pfenninger, S. Using bias-corrected reanalysis to simulate current and future wind power output. Energy
**2016**, 114, 1224–1239. [Google Scholar] [CrossRef][Green Version] - Andresen, G.; Søndergaard, A.A.; Greiner, M. Validation of Danish wind time series from a new global renewable energy atlas for energy system analysis. Energy
**2015**, 93, 1074–1088. [Google Scholar] [CrossRef][Green Version] - Cannon, D.; Brayshaw, D.; Methven, J.; Coker, P.; Lenaghan, D. Using reanalysis data to quantify extreme wind power generation statistics: A 33 year case study in Great Britain. Renew. Energy
**2015**, 75, 767–778. [Google Scholar] [CrossRef][Green Version] - Gruber, K.; Klöckl, C.; Regner, P.; Baumgartner, J.; Schmidt, J. Assessing the Global Wind Atlas and local measurements for bias correction of wind power generation simulated from MERRA-2 in Brazil. Energy
**2019**, 189, 116212. [Google Scholar] [CrossRef][Green Version] - Staffell, I.; Green, R. How does wind farm performance decline with age? Renew. Energy
**2014**, 66, 775–786. [Google Scholar] [CrossRef][Green Version] - Zucker, A.; Gonzalez Aparicio, I.; Careri, F.; Monforti, F.; Huld, T.; Badger, J.; European Commission. Joint Research Centre EMHIRES Dataset Part I, Wind Power Generation: European Meteorological Derived HIgh Resolution RES Generation Time Series for Present and Future Scenarios; Publications Office: Luxembourg, 2016. [Google Scholar]
- Olauson, J.; Bergkvist, M. Modelling the Swedish wind power production using MERRA reanalysis data. Renew. Energy
**2015**, 76, 717–725. [Google Scholar] [CrossRef] - Cybenko, G. Approximation by superpositions of a sigmoidal function. Math. Control. Signals Syst.
**1989**, 2, 303–314. [Google Scholar] [CrossRef] - Moraes, L.; Bussar, C.; Stoecker, P.; Jacqué, K.; Chang, M.; Sauer, D.U. Comparison of long-term wind and photovoltaic power capacity factor datasets with open-license. Appl. Energy
**2018**, 225, 209–220. [Google Scholar] [CrossRef] - Grams, C.M.; Beerli, R.; Pfenninger, S.; Staffell, I.; Wernli, H. Balancing Europe’s wind-power output through spatial deployment informed by weather regimes. Nat. Clim. Chang.
**2017**, 7, 557–562. [Google Scholar] [CrossRef] [PubMed][Green Version] - Collins, S.; Deane, P.; Gallachóir, B.Ó.; Pfenninger, S.; Staffell, I. Impacts of Inter-annual Wind and Solar Variations on the European Power System. Joule
**2018**, 2, 2076–2090. [Google Scholar] [CrossRef] [PubMed][Green Version] - Badami, M.; Fambri, G.; Mancò, S.; Martino, M.; Damousis, I.; Agtzidis, D.; Tzovaras, D. A Decision Support System Tool to Manage the Flexibility in Renewable Energy-Based Power Systems. Energies
**2019**, 13, 153. [Google Scholar] [CrossRef][Green Version] - Chang, G.W.; Lu, H.; Chang, Y.; Lee, Y. An improved neural network-based approach for short-term wind speed and power forecast. Renew. Energy
**2017**, 105, 301–311. [Google Scholar] [CrossRef] - Heinermann, J.; Kramer, O. Machine learning ensembles for wind power prediction. Renew. Energy
**2016**, 89, 671–679. [Google Scholar] [CrossRef] - Khosravi, A.; Koury, R.; Machado, L.; García-Pabón, J.J. Prediction of wind speed and wind direction using artificial neural network, support vector regression and adaptive neuro-fuzzy inference system. Sustain. Energy Technol. Assess.
**2018**, 25, 146–160. [Google Scholar] [CrossRef] - Treiber, N.A.; Heinermann, J.; Kramer, O. Wind Power Prediction with Machine Learning. In Applications of Hybrid Metaheuristic Algorithms for Image Processing; Springer Science and Business Media LLC: Berlin, Germany, 2016; Volume 645, pp. 13–29. [Google Scholar]
- Aghajani, A.; Kazemzadeh, R.; Ebrahimi, A. A novel hybrid approach for predicting wind farm power production based on wavelet transform, hybrid neural networks and imperialist competitive algorithm. Energy Convers. Manag.
**2016**, 121, 232–240. [Google Scholar] [CrossRef] - Dong, Q.; Sun, Y.; Li, P. A novel forecasting model based on a hybrid processing strategy and an optimized local linear fuzzy neural network to make wind power forecasting: A case study of wind farms in China. Renew. Energy
**2017**, 102, 241–257. [Google Scholar] [CrossRef] - Esfetang, N.N.; Kazemzadeh, R.; Esfetanaj, N.N. A novel hybrid technique for prediction of electric power generation in wind farms based on WIPSO, neural network and wavelet transform. Energy
**2018**, 149, 662–674. [Google Scholar] [CrossRef] - Park, J.; Park, J. Physics-induced graph neural network: An application to wind-farm power estimation. Energy
**2019**, 187, 115883. [Google Scholar] [CrossRef] - Gelaro, R.; Mccarty, W.; Suárez, M.J.; Todling, R.; Molod, A.; Takacs, L.; Randles, C.; Darmenov, A.; Bosilovich, M.G.; Reichle, R.H.; et al. The Modern-Era Retrospective Analysis for Research and Applications, Version 2 (MERRA-2). J. Clim.
**2017**, 30, 5419–5454. [Google Scholar] [CrossRef] [PubMed] - Downloads—Renewables.ninja. Available online: https://www.renewables.ninja/downloads (accessed on 28 June 2018).
- Abhinav, R.; Pindoriya, N.M.; Wu, J.; Long, C. Short-term wind power forecasting using wavelet-based neural network. Energy Procedia
**2017**, 142, 455–460. [Google Scholar] [CrossRef] - Díaz, S.; Carta, J.; Matías, J.M. Performance assessment of five MCP models proposed for the estimation of long-term wind turbine power outputs at a target site using three machine learning techniques. Appl. Energy
**2018**, 209, 455–477. [Google Scholar] [CrossRef] - Foley, A.M.; Leahy, P.G.; Marvuglia, A.; McKeogh, E. Current methods and advances in forecasting of wind power generation. Renew. Energy
**2012**, 37, 1–8. [Google Scholar] [CrossRef][Green Version] - Data Platform—Open Power System Data. Available online: https://data.open-power-system-data.org/time_series/ (accessed on 28 June 2018).
- Bergmeir, C.; Benitez, J.M. Neural Networks in R Using the Stuttgart Neural Network Simulator: RSNNS. J. Stat. Softw.
**2012**, 46, 46. [Google Scholar] [CrossRef][Green Version] - Kuhn, M. Building Predictive Models in R Using the caret Package. J. Stat. Softw.
**2008**, 28. [Google Scholar] [CrossRef][Green Version] - Schmidt, J. MERRAbin. Available online: https://github.com/joph/MERRAbin (accessed on 28 October 2019).
- Baumgartner, J. Machine-Learning-Long-Term-Wind-Power-Time-Series. Available online: https://github.com/jbaumg/Machine-learning-long-term-wind-power-time-series (accessed on 29 November 2019).
- Baumgartner, J. Machine-Learning-Long-Term-Wind-Power-Time-Series. Available online: https://zenodo.org/record/3784661 (accessed on 4 May 2020).
- Data Platform—Open Power System Data. Available online: https://data.open-power-system-data.org/renewable_power_plants/ (accessed on 16 August 2018).

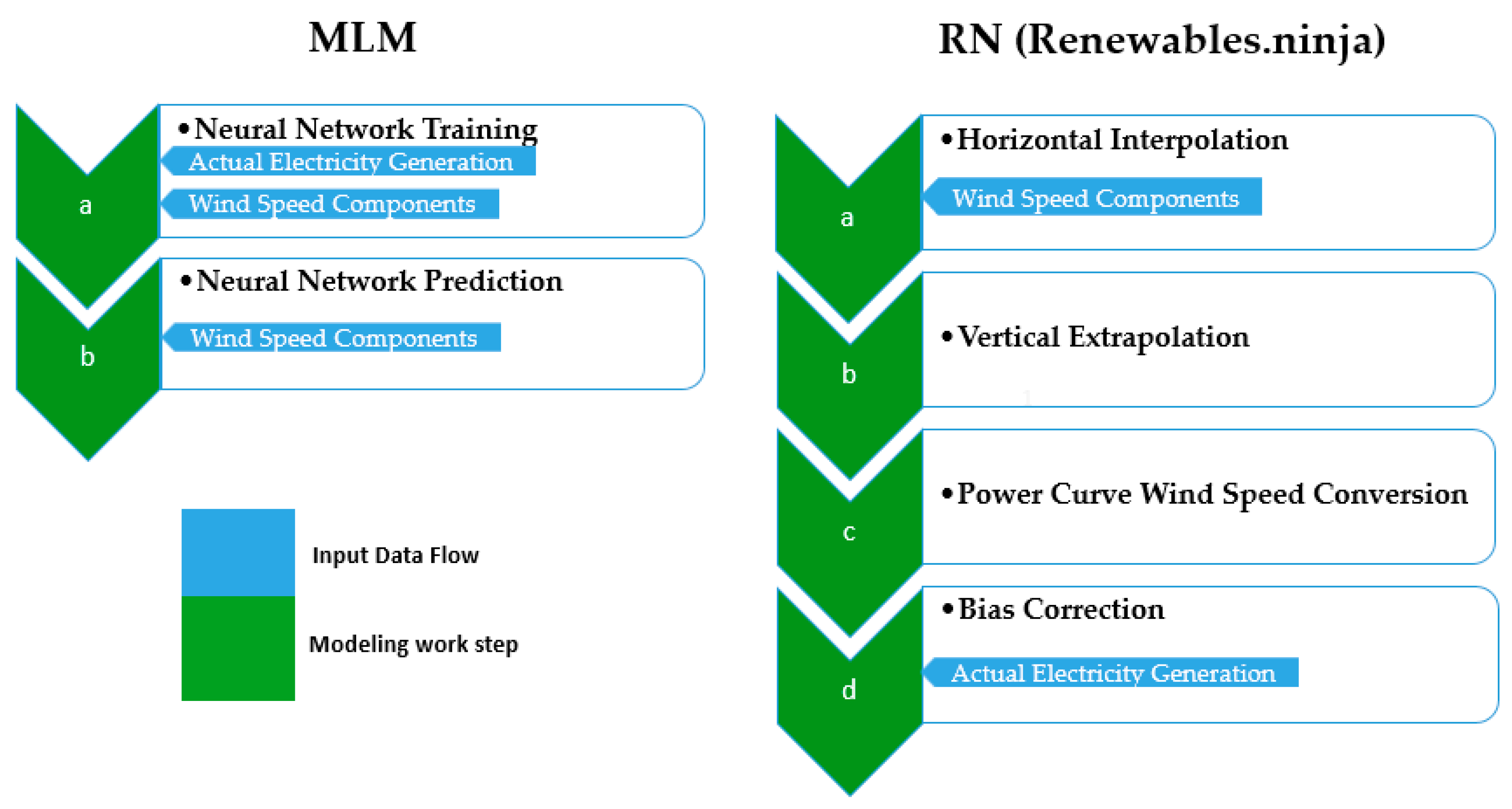

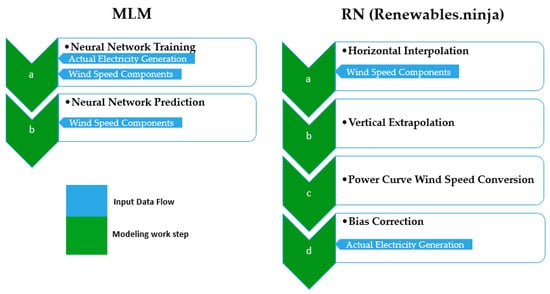

**Figure 1.**Comparison of the necessary modeling steps for deriving wind power output with the RN and the MLM approach indicated with letters a, b, c, d (Renewables.ninja abbreviated as RN, machine learning model abbreviated as MLM, own figure).

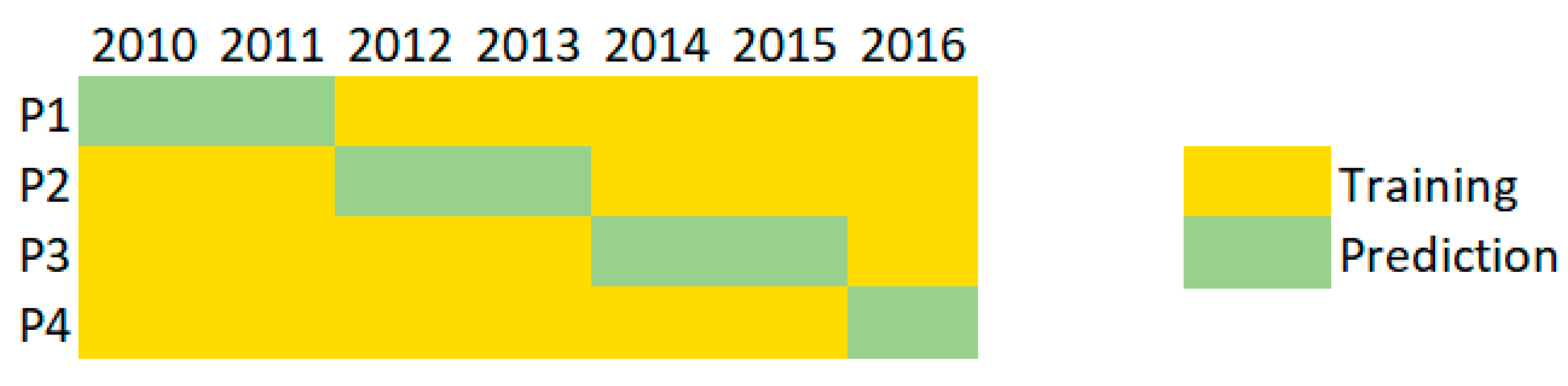

**Figure 3.**Training (yellow) and prediction (green) iterations P1–P4. In each iteration, model parameters are trained, and the associated prediction period is predicted with the neural network. All green periods are combined to form one 7 years timeseries.

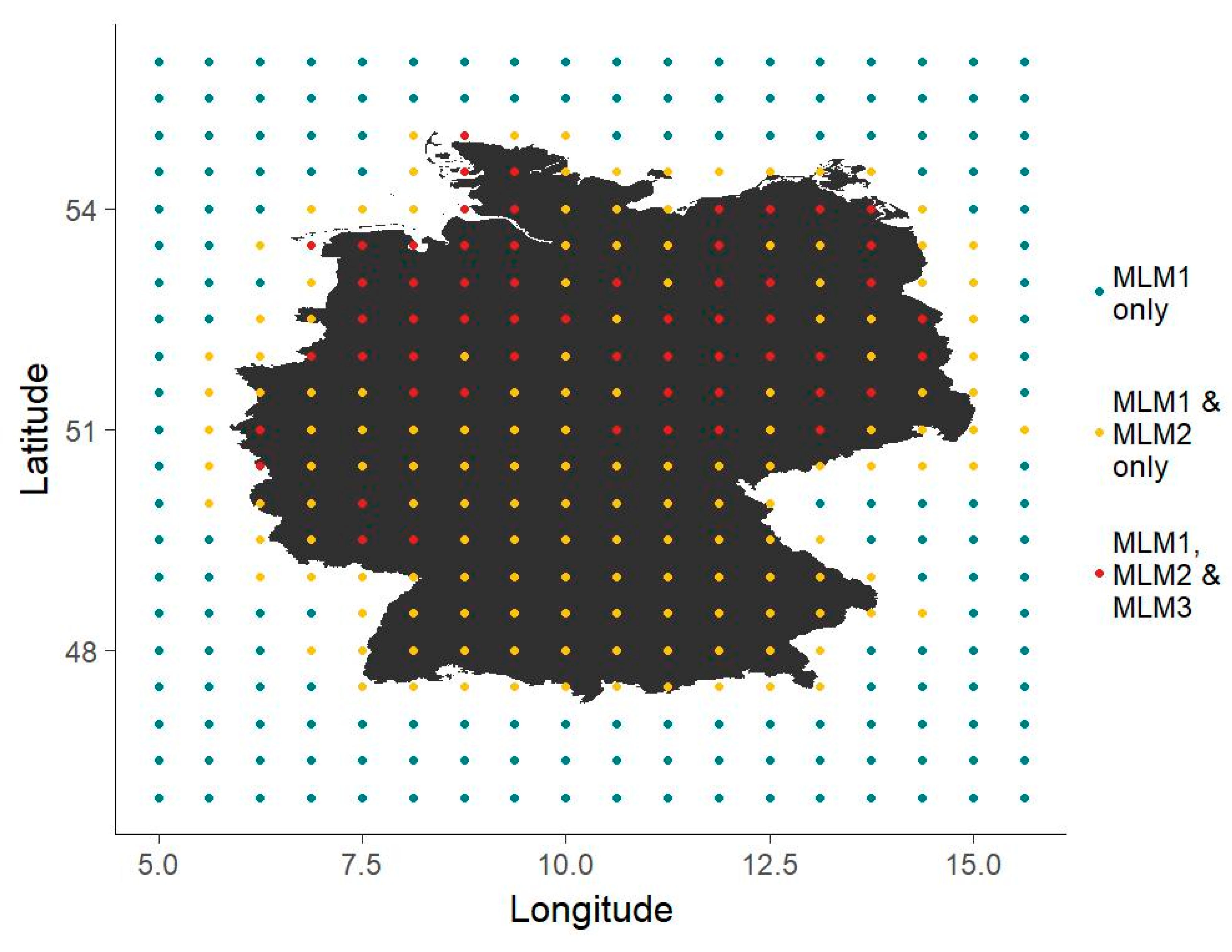

**Figure 4.**MERRA2 grid points selected for MLM input datasets (grid points only used as MLM1 inputs depicted in blue, input grid points used for MLM1 as well as MLM2 depicted in yellow, inputs used for all three models displayed in red).

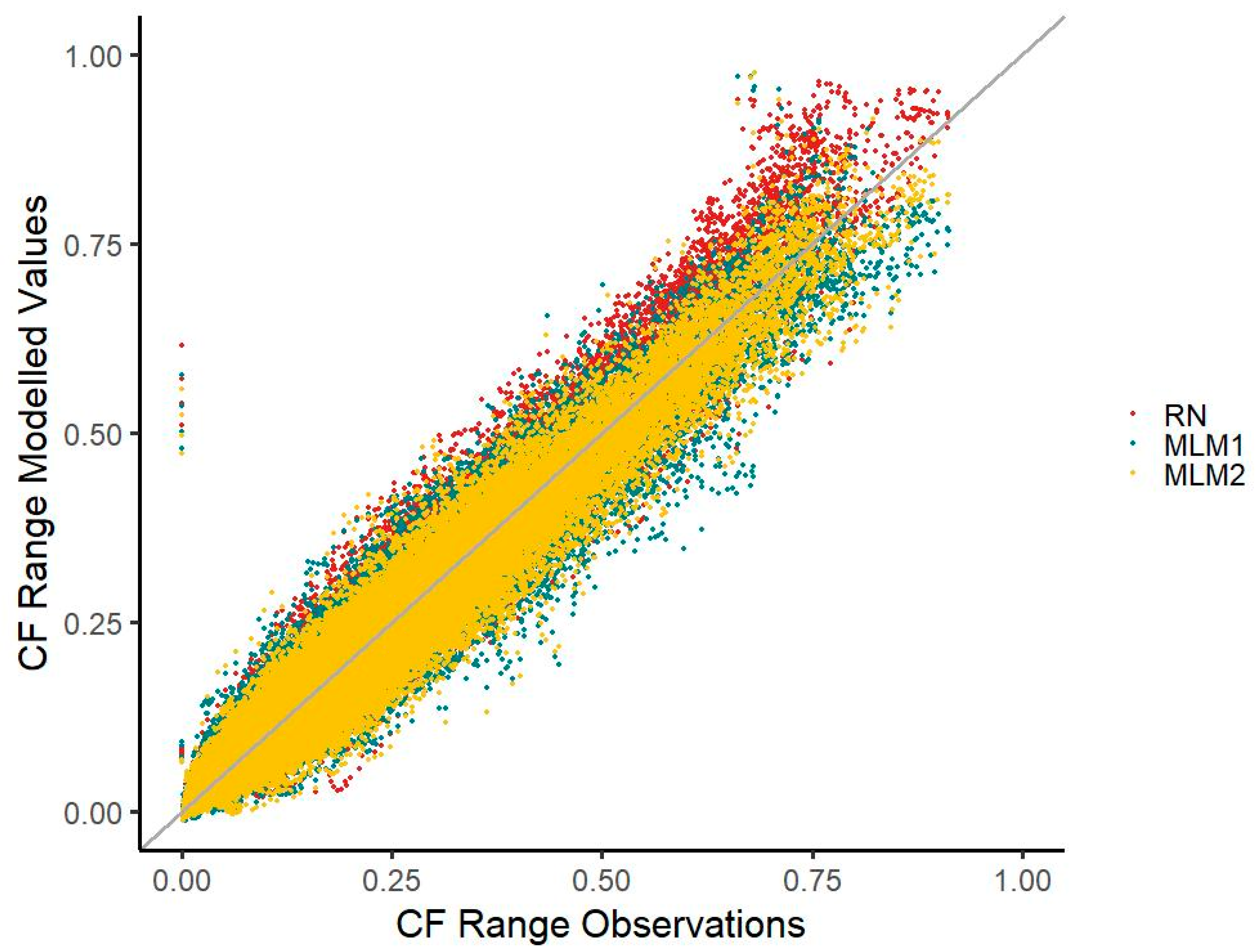

**Figure 5.**Scatterplot of modeled generation time series compared with observations (Renewables.ninja time series abbreviated as RN and machine learning model time series abbreviated as MLM1 and MLM2 versus observations on the X-axis).

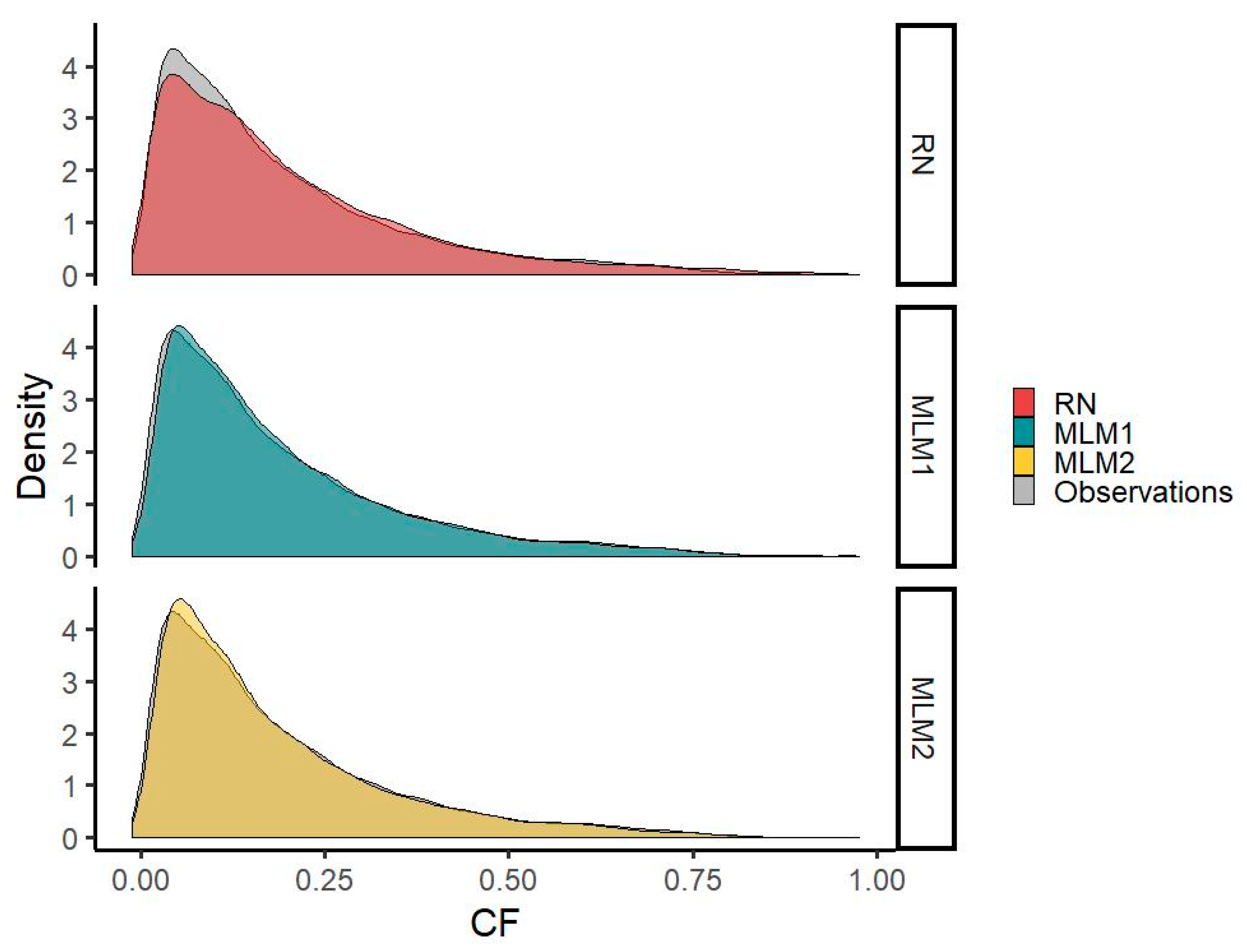

**Figure 6.**Total distributions of the RN, MLM1, and MLM2 modeled time series compared with the observed total distribution (dark colored areas correspond to an accordance of the modeled and observed time series; Renewables.ninja time series abbreviated as RN and machine learning model time series abbreviated as MLM1 and MLM2).

**Figure 7.**Hourly deviations from observed values for RN, MLM1, and MLM2 (Renewables.ninja time series abbreviated as RN and machine learning model time series abbreviated as MLM1 and MLM2).

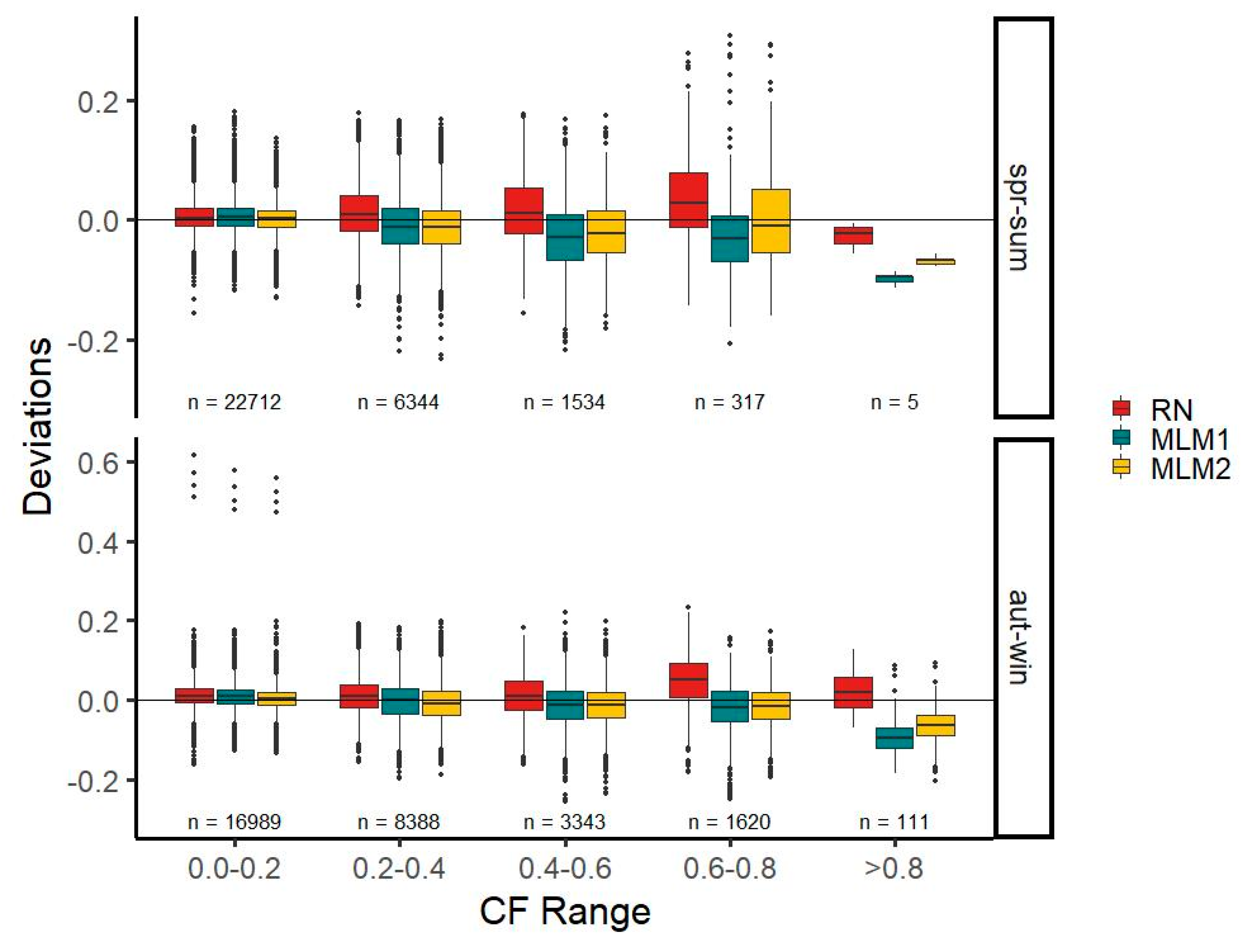

**Figure 8.**Capacity factor (CF) deviations of RN, MLM1, and MLM2 modeled time series within different CF bins for the autumn-winter and spring-summer half year from 2010 to 2016 (Renewables.ninja time series abbreviated as RN, machine learning model time series abbreviated as MLM1 and MLM2, and n denotes the number of observations within CF bins).

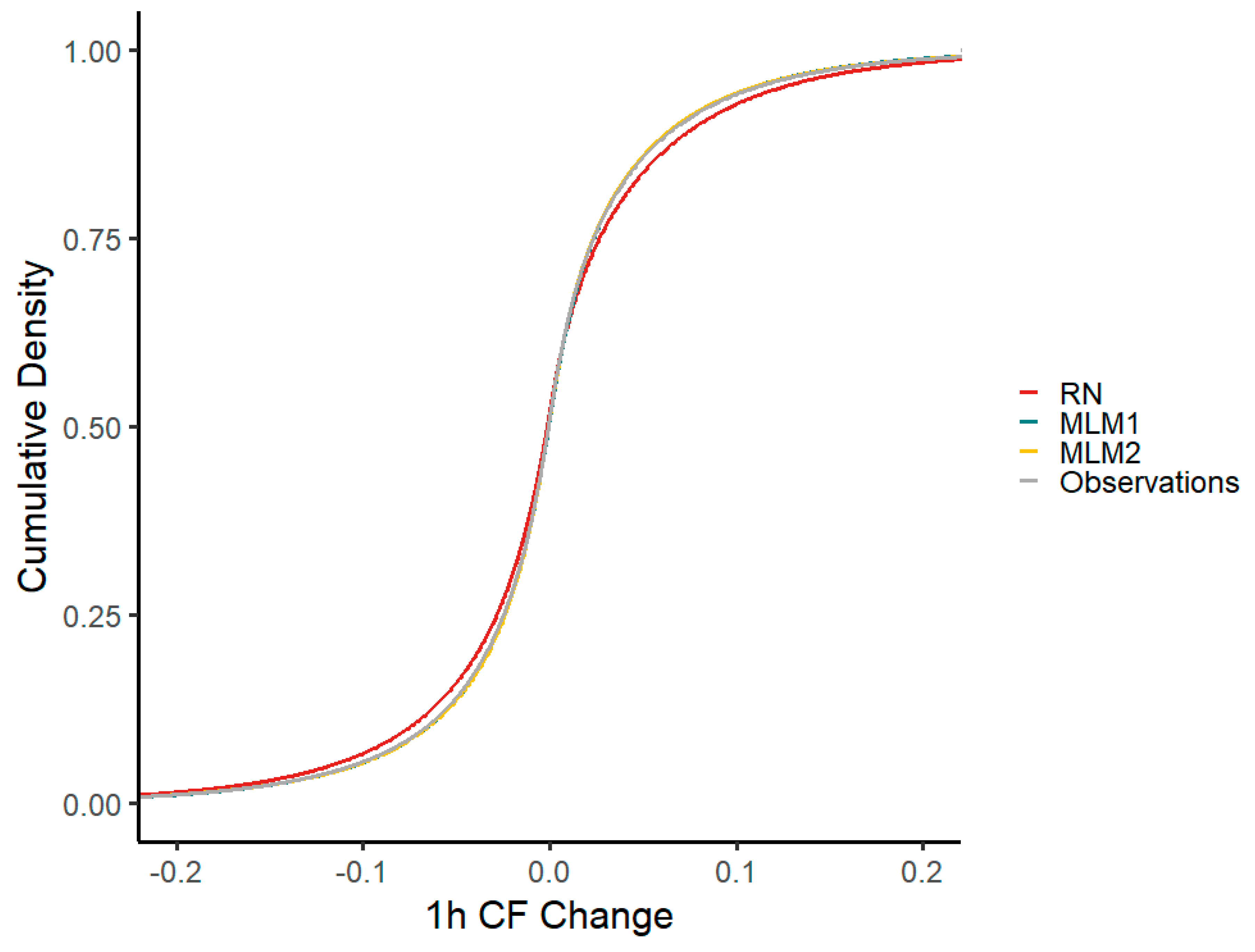

**Figure 9.**Cumulative density of one-hour capacity factor (CF) changes for the RN, MLM1, and MLM2 modeled time series compared with observations.

**Table 1.**All variables used in the machine learning modeling (MLM) process and validation with their corresponding name, application, unit, size in MLM1, size in MLM2, size in MLM3 and source (in the size column, the multiplicator corresponds to the number of grid points used and the multiplicand to the time series length in hours from 2010 to 2016; 43 date dummy variables: 24-h, 7-day, and 12-month dummy variables).

Name | Application | Unit | MLM1 Size | MLM2 Size | MLM3 Size | Source |
---|---|---|---|---|---|---|

2 m northward wind speed (V2M) | predictor | m/s | 378 × 61,368 | 206 × 61,368 | 58 × 61,368 | MERRA2 |

10 m northward wind speed (V10M) | predictor | m/s | 378 × 61,368 | 206 × 61,368 | 58 × 61,368 | MERRA2 |

50 m northward wind speed (V50M) | predictor | m/s | 378 × 61,368 | 206 × 61,368 | 58 × 61,368 | MERRA2 |

2 m eastward wind speed (U2M) | predictor | m/s | 378 × 61,368 | 206 × 61,368 | 58 × 61,368 | MERRA2 |

10 m eastward wind speed (U10M) | predictor | m/s | 378 × 61,368 | 206 × 61,368 | 58 × 61,368 | MERRA2 |

50 m eastward wind speed (U50M) | predictor | m/s | 378 × 61,368 | 206 × 61,368 | 58 × 61,368 | MERRA2 |

date dummy variables | predictor | - | 43 × 61,368 | 43 × 61,368 | 43 × 61,368 | OPSD date sequence |

actual generation | response | capacity factor | 61,368 | 61,368 | 61,368 | OPSD |

RN generation | validation | capacity factor | 61,368 | 61,368 | 61,368 | Renewables.ninja |

MLM1 generation | validation | capacity factor | 61,368 | 61,368 | 61,368 | Neural network prediction |

MLM2 generation | validation | capacity factor | 61,368 | 61,368 | 61,368 | Neural network prediction |

MLM3 generation | validation | capacity factor | 61,368 | 61,368 | 61,368 | Neural network prediction |

**Table 2.**Comparison of model error values for MLM1 and MLM2 for the training and prediction dataset.

Error Metric | Network Size | MLM1 | MLM2 |
---|---|---|---|

NMAE | 60 | 0.152 | 0.144 |

NRMSE | 60 | 0.208 | 0.202 |

NMAE | 80 | 0.161 | 0.138 |

NRMSE | 80 | 0.220 | 0.190 |

**Table 3.**Comparison of the error metrics for Renewables.ninja (RN), the first MLM-generated time series (MLM1), and the second MLM-generated time series (MLM2).

Quality Measure | Observations | RN | MLM1 | MLM2 |
---|---|---|---|---|

Correlation | - | 0.976 | 0.970 | 0.975 |

NMAE | - | 0.152 | 0.152 | 0.138 |

NRMSE | - | 0.210 | 0.209 | 0.191 |

Variance | 0.026 | 0.030 | 0.025 | 0.025 |

Quantile | ||||

0% | 0.000 | 0.000 | −0.012 | −0.011 |

25% | 0.067 | 0.071 | 0.072 | 0.069 |

50% | 0.137 | 0.149 | 0.140 | 0.135 |

75% | 0.260 | 0.275 | 0.260 | 0.254 |

100% | 0.913 | 0.964 | 0.970 | 0.975 |

**Table 4.**Observed and modeled (Renewables.ninja [RN] and machine learning models [MLM1 and MLM2]) CF, including frequencies, mean, and maximum durations of extremely low (<0.005), low (0.01), high (0.75), and extremely high (>0.8) generation events in consecutive hours.

CF Ranges | Observations | RN | MLM1 | MLM2 |
---|---|---|---|---|

CF < 0.005 | ||||

Frequency | 102 | 430 | 193 | 238 |

Mean Duration | 3.19 | 4.62 | 3.27 | 3.50 |

Max Duration | 10 | 14 | 10 | 10 |

CF < 0.01 | ||||

Frequency | 509 | 748 | 312 | 341 |

Mean Duration | 2.98 | 2.60 | 1.91 | 1.91 |

Max Duration | 25 | 12 | 7 | 5 |

CF > 0.75 | ||||

Frequency | 204 | 356 | 174 | 225 |

Mean Duration | 3.46 | 3.10 | 3.63 | 3.41 |

Max Duration | 13 | 18 | 22 | 15 |

CF > 0.8 | ||||

Frequency | 121 | 471 | 75 | 125 |

Mean Duration | 7.56 | 9.24 | 4.17 | 5.21 |

Max Duration | 35 | 33 | 11 | 21 |

**Table 5.**Minimum, maximum, and mean of negative and positive capacity factor (CF) ramps within different time frames and frequency of highly positive and negative CF ramps.

Time Frame | Observations | RN | MLM1 | MLM2 |
---|---|---|---|---|

1 h | ||||

Min | −0.66 | −0.11 | −0.14 | −0.13 |

Neg. Mean | −0.012 | −0.013 | −0.013 | −0.012 |

Neg. Freq | 31,313 | 32,243 | 31,070 | 31,132 |

Pos. Mean | 0.013 | 0.014 | 0.013 | 0.013 |

Pos. Freq | 30,054 | 29,124 | 30,297 | 30,235 |

Max | 0.50 | 0.16 | 0.16 | 0.14 |

Frequency < −0.2 | 1 | 0 | 0 | 0 |

Frequency > 0.2 | 1 | 0 | 0 | 0 |

3 h | ||||

Min | −0.67 | −0.28 | −0.30 | −0.33 |

Neg. Mean | −0.022 | −0.024 | −0.023 | −0.022 |

Neg. Freq | 94,293 | 96,677 | 93,587 | 94,091 |

Pos. Mean | 0.023 | 0.027 | 0.023 | 0.023 |

Pos. Freq | 89,805 | 87,421 | 90,411 | 90,007 |

Max | 0.50 | 0.30 | 0.38 | 0.31 |

Frequency < −0.2 | 75 | 71 | 84 | 61 |

Frequency > 0.2 | 92 | 181 | 85 | 93 |

6 h | ||||

Min | −0.67 | −0.46 | −0.48 | −0.50 |

Neg. Mean | −0.035 | −0.038 | −0.035 | −0.034 |

Neg. Freq | 188,949 | 192,660 | 188,102 | 188,749 |

Pos. Mean | 0.037 | 0.042 | 0.036 | 0.036 |

Pos. Freq | 179,238 | 175,527 | 180,085 | 179,438 |

Max | 0.51 | 0.50 | 0.55 | 0.47 |

Frequency < −0.2 | 1616 | 2140 | 1678 | 1736 |

Frequency > 0.2 | 1846 | 2921 | 1650 | 1860 |

12 h | ||||

Min | −0.68 | −0.60 | −0.66 | −0.64 |

Neg. Mean | −0.054 | −0.059 | −0.053 | −0.053 |

Neg. Freq | 376,200 | 380,753 | 375,262 | 376,127 |

Pos. Mean | 0.056 | 0.064 | 0.055 | 0.055 |

Pos. Freq | 360,138 | 355,585 | 361,076 | 360,211 |

Max | 0.62 | 0.67 | 0.65 | 0.68 |

Frequency < −0.2 | 14,185 | 18,009 | 13,781 | 14,245 |

Frequency > 0.2 | 14,680 | 19,194 | 13,634 | 14,237 |

© 2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).

## Share and Cite

**MDPI and ACS Style**

Baumgartner, J.; Gruber, K.; Simoes, S.G.; Saint-Drenan, Y.-M.; Schmidt, J. Less Information, Similar Performance: Comparing Machine Learning-Based Time Series of Wind Power Generation to Renewables.ninja. *Energies* **2020**, *13*, 2277.
https://doi.org/10.3390/en13092277

**AMA Style**

Baumgartner J, Gruber K, Simoes SG, Saint-Drenan Y-M, Schmidt J. Less Information, Similar Performance: Comparing Machine Learning-Based Time Series of Wind Power Generation to Renewables.ninja. *Energies*. 2020; 13(9):2277.
https://doi.org/10.3390/en13092277

**Chicago/Turabian Style**

Baumgartner, Johann, Katharina Gruber, Sofia G. Simoes, Yves-Marie Saint-Drenan, and Johannes Schmidt. 2020. "Less Information, Similar Performance: Comparing Machine Learning-Based Time Series of Wind Power Generation to Renewables.ninja" *Energies* 13, no. 9: 2277.
https://doi.org/10.3390/en13092277
