Article

Scientific Attention to Sustainability and SDGs: Meta-Analysis of Academic Papers

1
Graduate School of Engineering, The University of Tokyo, Tokyo 113-8654, Japan
2
Hitachi, Ltd., Tokyo 100-8280, Japan
*
Author to whom correspondence should be addressed.
Energies 2020, 13(4), 975; https://doi.org/10.3390/en13040975
Submission received: 15 January 2020 / Revised: 29 January 2020 / Accepted: 7 February 2020 / Published: 21 February 2020

Abstract

:
Scientific research plays an important role in the achievement of a sustainable society. However, grasping the trends in sustainability research is difficult because studies are not devised and conducted in a top-down manner with Sustainable Development Goals (SDGs). To understand the bottom-up research activities, we analyzed over 300,000 publications concerned with sustainability by using citation network analysis and natural language processing. The results suggest that sustainability science’s diverse and dynamic changes have been occurring over the last few years; several new topics, such as nanocellulose and global health, have begun to attract widespread scientific attention. We further examined the relationship between sustainability research subjects and SDGs and found significant correspondence between the two. Moreover, we extracted SDG topics that were discussed following a convergent approach in academic studies, such as “inclusive society” and “early childhood development”, by observing the convergence of terms in the citation network. These results are valuable for government officials, private companies, and academic researchers, empowering them to understand current academic progress along with research attention devoted to SDGs.

Graphical Abstract

1. Introduction

Scientific achievement in various fields is essential in ensuring a sustainable society. For example, studies focusing on more efficient energy systems are valuable to prevent additional global warming. According to a United Nations (UN) report [1], preventing global warming is technically achievable but requires “unprecedented and urgent actions”, including political agreement. Changes to the environment are foreseen to have a severe impact, especially on people in vulnerable countries [2]. Accordingly, diverse research fields would necessarily be required to engage collaboratively to achieve a sustainable society. Currently, specific scientific contributions such as those that pertain to renewable energy [3] for a sustainable society are receiving worldwide attention [4]; however, other topics have not been recognized in the scientific community or highlighted in the daily news. Apart from this, many research objectives and subjunctives are emerging, not only in materials science and urban engineering but also in fields such as political science and biochemistry. Therefore, it has become important to comprehend the complicated and dynamic sustainability research landscape to evaluate current scientific progress and create a research plan that works toward a sustainable society.
Scientific research that is aimed at achieving sustainability is composed of diverse topics and approaches. For instance, various kinds of studies such as material/bioscience [5,6], industrial engineering [7], operation research [8], and economics [9,10] play important roles in improving energy efficiency. Moreover, economic, social science, and computer science research are focusing on smart cities, sustainability education, and sustainable tourism. Environmental science is also an important subject of sustainability. To understand such a diverse sustainability science, large-scale reviews of sustainability science [11,12], and reviews of specific areas of sustainability, such as energy storage [13,14], biodiesel [15], sustainability-oriented innovations [16], or cooperation [17] are published. Multiple reports [18,19] concerning progress toward a sustainable society have been published, and these papers have made a significant impact on governments and the decision-making processes of companies. However, an expert top-down analysis of this nature cannot avoid heuristic biases or incompleteness. Other studies [20,21,22] provided a comprehensive map of sustainability research by analyzing large amounts of bibliographic information. However, considering the recent rapid growth in sustainability research, these results are no longer current. In addition, the databases used in these studies did not include conference proceedings, which are important in fields such as computer science. The study that included the largest dataset in its analysis was that by Kajikawa [20], who analyzed 107,277 papers listed on the Web of Science, which has the largest number of connected components of a citation network. However, of the largest connected components, 312,584 papers published prior to 2 January 2019 were found on Scopus. Therefore, it was necessary to create a more recent and comprehensive map of sustainability science.
The 17 Sustainable Development Goals (SDGs) of the United Nations (UN) [23] consist of comprehensive and carefully elaborated objectives for a sustainable society. The UN consolidates the goals from several strands of international work; thus, the scope of the goals covers diverse topics. Therefore, an investigation of the scientific focus on and contributions to each SDG is expected to provide comprehensive information concerning the current progress in sustainability science. The annual UN report on progress toward the SDGs [18] included a discussion concerning scientific attention and contributions to the achievement of SDGs. In addition, progress in research toward the SDGs is frequently reported in newspapers and corporate social responsibility reports [19]. However, the link between sustainability science and SDGs is not comprehensively understood. Regardless of this, each theme of the numerous studies on sustainability was decided in a top-down manner, starting from the SDGs. Moreover, many journals and conferences devoted to sustainability exist, and the fields covered by each are segmented and integrated. Therefore, the connection between scientific research and SDGs is not easy to understand simply by reading several sets of papers or by attending conferences. To enable a comparison to be made between the goals that were specified by using a top-down approach and the academic research topics constructed in a bottom-up manner, we investigated the correspondence between each SDG and the research area and extracted the topics discussed convergently by following the approach for academic studies.
The purpose of this study was to create a comprehensive map of sustainability research and evaluate the scientific attention paid to each SDG for understanding current sustainability science, especially focusing on the topics related to energy. We collected sustainability-related papers from Scopus through the “sustainab*” query, which was proposed by Kajikawa [20]. The query only retrieved the sustainability-related papers that were explicitly described by the author(s) as such. Therefore, rather than analyzing the entire set of sustainability-related activities, we examined the associated scientific attention they attracted. First, we classified the 312,584 sustainability papers using a citation network clustering method [24]. The analysis of the information from the clusters and the representative words enabled us to identify the scientific regions currently receiving attention in sustainability and their dynamic changes. Then, we evaluated the sustainability science from the point of view of its correspondence to the SDGs. We determined whether a scientific field corresponded to an SDG and examined the converging themes discussed in each field. Here, we defined a new metric, the convergently-discussed degree (CDD), by considering the usage of a specific term in the citation network.
The results of the network clustering of over 300,000 publications on sustainability suggest that sustainability research is diverse and dynamic changes have occurred in it within the last few years. Several new small fields of study, such as “nanocellulose” and “oxygen evolution reactions”, have emerged. Our comparison of the SDGs to the academic clusters indicated that a significant correspondence exists between selected areas of study and certain SDGs. This suggests that some SDGs have corresponding research clusters. We also extracted those topics of the SDGs that are discussed in a convergent manner in academic studies, such as “inclusive society” and “early childhood development”, by observing the term convergence in the citation network. Some sub-topics of SDGs were discussed in academic studies even when these sub-topics did not form an academic cluster in the citation networks. Our results offer an at-a-glance overview of the dynamically changing research field of sustainability, and the current research focus on SDGs.

2. Data

A widely accepted consensus concerning the definition of sustainability research does not yet exist. By taking the potential practicality of research toward achieving a sustainable society and the interrelatedness among scientific knowledge into account, many studies are related to sustainability science. In practice, we could run a sustainability search query on a bibliometric database; however, it appears to be challenging to reach a consensus concerning the nature of the query. Therefore, we decided to examine papers that explicitly used the terms “sustainability” or “sustainable”. In other words, we investigated the scientific attention paid to sustainability. In total, 514,480 papers were retrieved from the Scopus database on 2 January 2020. Figure 1 shows that the number of publications has dramatically increased each year. We analyzed 312,584 papers in the largest connected components of the citation network to discard unrelated papers that simply used the term “sustainab*”.
Data relating to the 17 SDGs were retrieved from the UN description of each SDG [18] to ensure the analysis was accurate. We used a document that described the progression of information from 2016 to 2019 and targeted the indicators of each SDG. In this way, we obtained a document that contained approximately 300–800 words for the 17 SDGs.

3. Methods

3.1. Constructing the Landscape and Detecting the Edge Area

The process to construct the landscape of academic publications is as follows: (1) perform citation network clustering; and (2) extract representative terms and fundamental data (e.g., keywords and the average published year) from each cluster.

3.1.1. Citation Network Clustering

The nodes of the network were divided into clusters using the Leiden clustering method [24]. This method searches for the best cluster set, for which the modularity Q value [25] is maximized. The modularity Q indicates the ratio of the density of edges between the same cluster nodes to that when considering a random node assignment while maintaining the sizes of the clusters. The Leiden method provides the necessary clustering accuracy and processing speed in real-time compared with the Louvain method [26], which is widely used in network analyses. After computing the clusters of sustainability papers, the results showed that a few clusters contained a large number of papers. To perform a detailed analysis, we used recursive calculation to identify the sub-clusters of papers in each cluster that contained more than 1000 papers.

3.1.2. Extracting Representative Terms and Fundamental Data

We used natural language processing to extract representative terms for each cluster. N-gram terms, which are contiguous sequences of n words that contain non-term sequences of words such as “is a” may be extracted, and words such as “algorithm” and “algorithms” may be considered different. Therefore, we lemmatized words using the NLTK WordNet Lemmatizer [27] and extracted the terms that met the part-of-speech pattern [28] (<JJ>* <NN.*>+ <IN>)? <JJ>* <NN.*>+. This led us to extract terms such as “high accuracy algorithm” and to exclude terms such as “is different”. Then, we singularized the retrieved terms using Python inflection library.
Next, we calculated the representative terms for each cluster. First, we used the concatenated title and the abstract of all the papers in the clusters as the “document” of each cluster. Then, we calculated the extent to which each word was representative of each cluster document using TF–IDF [29], which is the product of the term frequency (TF) and the inverse document frequency (IDF). This simple term-scoring method is empirically useful for a wide range of datasets and has been proven to represent “the amount of information of a term weighted by its occurrence probability” [30]. The equation for TF–IDF is presented below.
tfidf ( t , d ) = tf ( t , d ) · idf ( t ) ,
tf ( t , d ) = log ( 1 + f t , d ) ,
idf ( t ) = log N d f t ,
where t and d represent the term and the document, respectively; t f ( t , d ) is the log value of the TF; and i d f ( t ) is the inverse ratio of the number of documents that include the term t ( d f t ) . We analyzed the contents of the clusters by investigating the high TF–IDF terms in each cluster.

3.2. Investigating Scientific Attention to SDGs

We investigated the scientific attention devoted to each SDG from two perspectives. First, we examined whether an academic cluster existed that was closely related to each SDG. Since such a relationship exists, we were able to infer a correlation between the academic cluster and the SDG. Then, we retrieved the convergently-discussed terms related to each SDG. If none of the academic clusters were closely related to the SDG, part of the content of the SDG might possibly be convergently discussed in selected academic papers. The detailed methods for these two investigations are described below.

3.2.1. Linguistic Similarity between an SDG and a Cluster

We assessed the scientific attention of every SDG by comparing academic clusters with SDGs. The comparison between the two was measured by examining the text resemblance. Specifically, we calculated the cosine similarity of the TF–IDF vectors of the documents of each academic cluster and SDG. The TF–IDF vectors were composed of the TF–IDF values of each term in the document, whereas those of the SDGs are calculated in the same way using the SDG document. A high similarity indicates that the cluster and the SDG share many representative terms; therefore, they are considered to share common research purposes, topics, and methods.

3.2.2. Detecting the Scientifically Discussed Terms of an SDG

Even if none of the scientific fields correspond closely to an SDG, certain aspects of the SDG are still likely to have received convergent research attention. We searched for terms that represented the convergently-discussed topics of an SDG. The basic principle is that papers that include a term that is a convergently-discussed topic are likely to be connected via citations. For example, if the term “better accuracy” is assumed to appear in an area of information science, then the TF–IDF values of this term in the area would have a high score. However, the phrase is often simply used in this field of work rather than being convergently discussed. The citation network between papers that contain the phrase “better accuracy” is assumed to be sparse. Conversely, two papers that include the term “disaster risk reduction” are likely to be connected. Thus, we consider the term as a convergently-discussed term. We define the CDD metric via Equation (4).
C D D g , t = l o g ( n ( d t l c ) ) * n ( e t l c ) n ( d t l c ) 2 * t f i d f ( g , t )
CDD is the product of the size of the core component of the term l o g ( n ( d t l c ) ) , the condenseness of the term n ( e t l c ) n ( d t l c ) 2 , and the TFIDF of the term in the SDG documents t f i d f ( g , t ) . Furthermore, d t is the group of documents that include the term t, d t l c is the largest connected component of the citation network of d t , and n ( d t l c ) indicates the size of the largest connected paper on citations that include the term t. n ( e t l c ) / ( n ( d t l c ) 2 ) is the edge density of d t l c , where n ( e t l c ) indicates the number of edges in d t l c . This part indicates whether the term is convergently discussed. t f i d f ( g , t ) represents the TFIDF of the term t in the SDG document g. In this way, we obtained the terms with the highest CDD value for each SDG document. We ignored the non-frequently appearing terms (i.e., n ( d t l c ) < 10 ).

4. Results and Discussion

4.1. Research Clusters of Sustainability Science

The 312,584 academic papers were classified into 163 clusters, and we analyzed 23 clusters containing more than 1000 papers. The papers in these clusters are visualized in Figure 2, in which the different colors correspond to different clusters. The authors heuristically posteriorly labeled each cluster (Table 1 lists detailed information for each cluster). These clusters are numbered in the order of the number of their papers. The layout of each paper, which is calculated using LargeVis [31], indicates the structure of the entire network. In short, the nodes (papers) are placed such that connecting neighbors are located nearby. Therefore, the distance between nodes on the map indicates the closeness of the relationship, but the position itself and the axes have no intrinsic meaning.
Sustainability studies are composed of diverse clusters. This result indicates that scientists in various research fields have paid attention to sustainability. At first, we provide a quick look at these fields, except for those closely related to energy (which we analyze in Section 4.2). The largest cluster is Soil and agriculture (1). The related areas located near it in Figure 2 are Food (17), Forest (12), and Ecosystem (3). The cluster of Water (7) is closely related to that of Ecosystem (3). The papers of these clusters mainly discuss the current situation, change, and improvement technology regarding the natural environment. The second-largest cluster is Corporate (2), which discusses a corporate activity, such as supply chain management and sustainable manufacturing. The related areas are the Food (17), CSR (15: Corporate Social Responsibility), and Urban (10: urban and human activities’ impact on nature). The papers of the food cluster are located in two areas (the right of Soil/agriculture (1) and the left of Corporate (2)). The former research area is farming, food security, and so on, whereas the latter research area is green marketing, wine industry, and so on. The other large clusters are Building (5), and Smart City (6), which are located near. The research topics of former clusters are building materials, construction, and the use of a building. The latter cluster is about the city’s software: transportation, shared economy, compact city, and so on.
The clusters of Health care (11), Fishery (13), Tourism (14), Education (16), and Fiscal Sustainability (21) do not have a closely related cluster. For example, maternal care, HIV, and patient intervention are studied in Healthcare (11), and protection of the marine environment and species in marines is the main theme of the Fishery (13). In Tourism (14), scholars are finding the appropriate balance between the growing demand for tourism and the environmental impact of it [32]. The objective of sustainability education [33] (16) is “to integrate the principles, values, and practices that make up sustainable development into all aspects of education and learning” [34]. Education in early childhood, university, and business school is studied in the cluster. Fiscal Sustainability (21) is “the ability of government to maintain public finances at a credible and serviceable position over the long term” [35]. Financial policy such as debt is discussed in the cluster. Therefore, the topic of sustainability is diverse and the researchers of various research fields conduct sustainability science.

4.2. Detail of Energy-Related Subcluster

The clusters that are closely related to energy on the whole are Sustainable energy (others) (8) and Bioenergy (9). The Sustainable Energy (others) cluster is mainly composed of papers about the consumption, potential, and allocation of energy, including renewable energy. The central topic of Bioenergy (9) is the production of bioenergy (mainly biofuel). The topics of these clusters are not very similar because these two clusters are not located very close in Figure 2.
In addition to the research of these clusters, we need to examine the papers related to energy whose belonging clusters do not discuss the energy on the whole, which should be discovered. For example, energy consumption in the urban area is discussed in the Urban (10) cluster. Thus, we investigate all sub-clusters and pick up the energy-related sub-cluster. Specifically, the clusters whose top 15 TFIDF words include “energy” are considered the energy-related clusters. In addition, we manually discriminate the many sub-clusters of Catalyst/electrochemical (4), which discusses energy-related technologies, because the word “energy” is not used explicitly in the paper of the cluster. These energy-related clusters are listed in Table 2, along with subclusters of Renewable energy (others) (8) and Bioenergy (9).
In Table 2, the left number of the leftmost column indicates cluster number and subcluster number, and the subclusters are listed in the order of average publication year. The newest subcluster (8-7) of Sustainable energy (others) (8) is composed of the papers which discuss causality and the economic growth and energy consumption [36], and economic aspects of regulation and measures for dissemination. Other topics of the Sustainable energy (others) (8) are Renewable energy source and energy allocation (8-4), Microgrid (8-5), Desterilize of solar energy (8-8), Selection of renewable energy using the analytic hierarchy process (8-3), Building-integrated photovoltaics (BIPV) (8-9), and Renewable energy in a rural area (8-1). These papers discuss consumption, potential, and allocation of energy, and do not discuss the production of efficient or low environment load energy. For instance, although the title/abstract of 2300 papers on Sustainable energy (others) (8) includes the term “wind”, these papers are distributed in each sub-cluster.
Bioenergy (9) research mainly focuses on its production. The cluster is divided into subclusters according to the variant of bioenergy. The recent topics of bioenergy are Biosurfactant (9-9) and Microalgae (9-1). A biosurfactant, which is a surfactant that can be digested by microorganisms, is expected to become a new pollution-free food additive and oil processing/recovery approach [37,38]. Microalgae are expected to produce various organic compounds, such as enzymes and proteins, and accumulate waste in the water. Many microalgae exist in nature, and various applications are expected [39]. The other research topics are Lignocellulosic biomass (9-7), Biofuel from xylose (9-4), Microbial fuel cells (MFCs) (9-5), and so on.
Energy is an essential element in other research areas of sustainability science. We showed the energy-related subclusters in the bottom part of Table 2. The studies of Catalyst/electrochemical (4) mainly study the materials/catalysts for energy storage or sources. For instance, focusing on the cluster hydrogen evolution reaction (4-2), a highly efficient hydrogen/oxygen evolution reaction contributes to high-efficient energy production and storage [40,41]. Other energy-related subclusters are Supercapacitor (4-7), which is expected as a new structure of future energy storage, and Hydroxymethylfurfural biomass (4-3), which is an organic material of biofuel derived from plant-based sugars. In Building (5) cluster, energy is an essential factor of Life Cycle Assessment (5-4) and building refurbishment (5-4). In Smart city (5), energy-related clusters are comprised of Electric vehicles (6-9) and Energy transition (6-3), which is a pathway to zero-carbon energy society. Water–energy nexus (7-7), Urban metabolism (10-7), Ecological footprint (10-3), Green-ICT (18-2), and Waste Management (19-4) are also related to energy.

4.3. Emerging Areas of Sustainability Science

Soil agriculture (1), Urban (10), Forest (12), and CSR (15) are mostly composed of papers that were not published recently. On the other hand, Catalyst/electrochemical (4), Building (5), Bioenergy (9), Nanogenerator (22), and Entrepreneurship (23) are relatively new fields. Additionally, Ecosystem (3), Education (16), Food (17), and so on are relatively intermediate areas. Most of the new fields intend to develop chemical/nanotechnology applications for sustainability. However, the finding that the topics of relatively old clusters do not attract recent scientific attention is not a fair conclusion. Two reasons for the freshness of clusters are considered: research areas either emerged recently or researchers working in these areas recently associated their work with sustainability. In addition, the “freshness” of a cluster is affected by the publication speed of the field. This publication speed is higher in nanotechnology and chemistry than in politics and finance. Although it is difficult to distinguish the reasons for freshness from a retrieved dataset, the freshness of the average publication year indicates the level of recent scientific attention.
To retrieve the trend within each cluster, we investigated the sub-clusters of each. Figure 3 illustrates the sizes of the subclusters and their corresponding average year of publication. In this figure, the data of the subclusters is aligned vertically with the corresponding parent clusters. We added the names of the newest/oldest subcluster, which were heuristically named afterward by the authors, to the plotted data for each cluster. The results in the figure show that a relatively old/new sub-cluster exists in each cluster. For example, arbuscular mycorrhizal fungi (soil microorganisms expected to be used for agriculture as microbial fertilizers) [42] is a new topic in the soil/agriculture cluster (1). In the materials/bioscience clusters, Oxygen evolution reaction (4), Geopolymer (5), Renewable energy consumption (8), and Polyhydroxyalkanoates/biosurfactants (9) are emerging research topics. Each subcluster is detailed in the Supplementary Materials (S1).
For detecting the current attractive scientific research field, we listed the top 15 newest subclusters in Table 3. In this table, the number in the leftmost column indicates cluster number and subcluster number, and the subclusters are listed in the order of average publication year. These subclusters are numbered in the order of the number of their papers in each cluster. These subclusters provide an overview of the entire recent trend of scientific attention to sustainability. The five subclusters of Cluster 4 (i.e., Hydrogen/Oxygen evolution reaction (4-2), Porous carbon (4-7), Lithium-ion battery (4-11), Nanocellulose (4-6), Bisphenol (4-4), and Hydroxymethylfurfural yield (4-3)) were extracted as the top new subclusters. We explain these research fields in detail in the context of sustainability. A highly efficient hydrogen/oxygen evolution reaction is an essential technology for the production of solar cells and metal–air batteries [40,41]. Porous carbon is a suitable material for CO2 sorbents and carbon capture [43]. Lithium-ion batteries, which form an indispensable technology in modern society, should be sustainably produced and recycled [44]. Nanocelluose is an emerging material for various advanced applications, such as water purification [45]. Hydroxymethylfurfural (HMF) is an organic compound derived from plant-based sugars that is a material of biofuels [46].
We also focus on other topics: Maternal/Newborn healthcare (11-1), Bike-sharing (6-7), Smart city (IoT/Big data) (6-5), and Edible insects (17-8), all of which have been discussed recently. The Supplementary Materials (S1) show that research in Cluster 6 (Smart city) is mainly composed of transportation engineering, economics (6-6, 6-8), and social science (6-4, we 6-2). Thus, Cluster 6 also contains the accumulation of research in diverse scientific fields. In other clusters, such as Ecosystem (3) and Building (5), we observed the attention from diverse research fields. These results indicate that academic research topics, methods, and objectives in many areas have complementary relationships. Although some of these topics may be familiar to experts in each field, we consider the investigation of recent trends in sustainability science to be useful for scientists and decision-makers in companies or in the government.

4.4. Scientific Attention to SDGs

In the previous section, we discuss the diverse focus areas of research attention and the dynamic changes this attention underwent. Next, we discuss the research attention to sustainability from the viewpoint of the SDGs. Figure 4 shows the linguistic similarity between each SDG and the academic clusters. We found certain research clusters to correspond to specific SDGs. For example, the Good Health and Well-being (3) SDG is convergently researched in the Healthcare (11) cluster. Similarly, the Life Below Water (14) SDG and the Fishery (13) cluster, the Zero Hunger (2) SDG and the Soil Agriculture (1) cluster, and the Clean Water and Sanitation (6) SDG and the Water Resource (7) cluster are corresponding pairs. These SDGs, therefore, have corresponding academic clusters that discuss the means to achieve them.
However, many SDGs have multiple corresponding clusters. For example, the No Poverty (1) SDG is linguistically similar to the Ecosystem (3), Healthcare (11), and Soil Agriculture (1) clusters. This result is the same in other SDGs (e.g., SDGs 8, 10, 11, 16, and 17). As above, Figure 4 indicates the relationships between scientific attention and SDGs. A few SDGs, such as Reducing Inequality (10), have neither a single nor multiple corresponding clusters. It does not mean that academic researchers do not consider these SDGs. Selected components of the SDG might be researched in the scientific publications in diverse clusters. To verify this, we retrieved the terms that were convergently discussed in the scientific publications and the SDG documentation.
Table 4 lists the convergently-discussed terms (CDD) in each SDG document and the representative cluster (the cluster in which the term was most often used) for each SDG. We also plotted the words with the 10 highest TFIDF values of each SDG in the columns on the right. The TF–IDF values indicate the representative contents of the SDGs. The words with high CDD values indicate scientific attention to SDGs that are likely to be practical issues/solutions. For example, retirement age, microfinance, disaster risk reduction, and social protection are among the highest CDD values in SDG 1 No Poverty. The main description of this goal is interpreted by the top TFIDF words: “Extreme poverty, disaster risk, and social protection system”. The top words of TFIDF and CDD are interpreted as follows: The top words of TFIDF indicate the main focus of the SDG, and the CDD indicates the scientific attention/progress related to it.
A comparison between Figure 4 and Table 4 indicates the structure of the attention that the SDGs have received from academic research. The first pattern shows that the convergently-discussed terms converge to a single cluster or to specific clusters. SDGs 3 and 14 fall within this type of classification. In this case, we obtain the particulars of the scientific attention that the SDG received from the cluster. However, the representative clusters of the convergently-discussed words for SDG 1 are diverse. For example, the most frequent research field of Microfinance is cluster Financial sustainability (21), and disaster risk results are in cluster Environment (3).
First, we focus on SDGs 16 (Peace, Justice, and Strong Institutions) and 17 (Partnership for the goals) because these goals do not have a corresponding cluster, and the clusters with convergently-discussed terms are diverse. Studies concerning SDG 16 and 17 appear to be challenging for researchers in the hard sciences to imagine. In fact, these SDGs do not have corresponding clusters (in Figure 4). Using the CDD, we found some essential terms that have received research attention. For instance, prisoners, crime, bribery, and judiciary listed in SDG 16 are important terms in academic research. We also retrieved the terms “inclusive society” and “substantial advance”. The former phrase is highly important for a sustainable society and is frequently used in official government documents and corporate marketing. “Substantial advance” is an important keyword for evaluating persons, organizations, or governments for their contribution to a sustainable society. Considering the result for SDG 17, many terms such as “policy coordination” and “multi-stakeholder partnership” are convergently discussed. Although these terms might be highly familiar to an expert in these areas, they seem to be informative for people who need to understand the research attention paid to SDGs.
Next, we discuss the scientific attention received by Affordable and Clean Energy (SDG 7). This goal mainly mentions renewable energy in relation to the top TF–IDF terms (renewable energy, electricity sector, and clean fuel). The scientific attention this goal has attracted is diverse: Stove (cluster 12), Renewable Energy Consumption (8), Charcoal (12), Geothermal (8), Marine source (8), Energy Intensity (10), and so on. Therefore, the scientific attention to the SDG mainly originates from scientific fields that focus on energy, in particular, Sustainable Energy (others) (8). However, detail topics shown in the previous section, such as biosurfactant and microalgae, are not detected in this method because these words are not specifically mentioned in the collected document of SDGs.
Finally, we focus on the Catalyst/Electrochemical (4) cluster. The terms relating to the cluster are not prominent in the SDG. The main topic discussed in this cluster is the performance improvement of applications by enhancing or developing new catalysts and materials. Typical applications are oxygen evolution reactions, supercapacitors, fabricated batteries, and so on. Despite the progress in these topics being highlighted in newspapers and scientific journals, these activities are not detailed in the document describing the SDGs, which are a comprehensive assembly of goals from many viewpoints for sustainable societies. Thus, activities that improve energy efficiency are not focused on the SGD, even though their impact is very high. From a practical viewpoint, research in the catalyst/electrochemical (4) cluster contributes to each of the SDGs indirectly; for example, the reduction of CO2 and highly efficient oxygen/hydrogen generation contributes to the Climate action, Life below water, and Life on land clusters. This analysis indicates the need for new documents, besides SDGs, that evaluate recent progress of studies that straightforwardly contributes to the energy and environment system.

5. Conclusions

Using network-based classification and text analyses, we investigated the nature and amount of scientific attention devoted to sustainability. In addition, we detected dynamic changes in sustainability science and identified emerging fields (e.g., those involving nanocellulose and oxygen evolution reactions). Scientific clusters (e.g., bio/renewable energy and smart cities) are composed of diverse research fields (e.g., materials science, social science, and economics.). We also observed the relationship between the SDGs and scientific research and succeeded in retrieving the important terms that are convergently discussed in academic papers such as “inclusive society” and “early childhood development”. These results should be useful for analyzing the scientific attention received by SDGs, which is essential to enable government officials, companies, and research organizations to make decisions concerning the funding of and investments in scientific research. These implications may be useful for scientists (including those from the hard sciences) who are planning new research topics. We also discussed the limitations associated with analyzing scientific progress using the SDG documents. For example, certain activities involving a straightforward improvement such as energy efficiency are not referred to in SDG documents. Although we did not discuss all the scientific clusters and retrieved terms, further details are published in the Supplementary Materials and may affect the interpretation of the findings we report in this paper.
Our study did not include academic papers that did not contain the terms “sustainability” or “sustainable.” In the future, we need to analyze the whole area related to sustainability research, such as wind/solar energy. We also need to develop a model that considers the differences in word usage between the SDGs and academic publications to enable more accurate analysis. Finally, it is important to note that the results of this paper will be out of date in merely a few years, at which time we need to analyze the scientific attention to the SDGs.

Supplementary Materials

The following are available online at https://www.mdpi.com/1996-1073/13/4/975/s1.

Author Contributions

K.A., H.T., and I.S. proposed the idea. K.A. collected the data, analyzed the data, and wrote the manuscript. H.Y. helped with the analysis of the paper. H.Y. and I.S. revised the paper. All authors have read and agreed to the published version of the manuscript.

Funding

This project was funded by NEDO (New Energy and Industrial Technology Development Organization), the funding agency of the Japan Ministry of Economy, Trade and Industry (METI).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Special Climate Report: 1.5 °C Is Possible but Requires Unprecedented and Urgent Action—United Nations Sustainable Development. Available online: https://www.un.org/sustainabledevelopment/blog/2018/10/special-climate-report-1-5oc-is-possible-but-requires-unprecedented-and-urgent-action/ (accessed on 24 July 2019).
  2. World Faces ‘Climate Apartheid’ Risk, 120 More Million in Poverty: UN Expert|UN News. Available online: https://news.un.org/en/story/2019/06/1041261 (accessed on 24 July 2019).
  3. Panwar, N.; Kaushik, S.; Kothari, S. Role of renewable energy sources in environmental protection: A review. Renew. Sustain. Energy Rev. 2011, 15, 1513–1524. [Google Scholar] [CrossRef]
  4. Rogelj, J.; Den Elzen, M.; Höhne, N.; Fransen, T.; Fekete, H.; Winkler, H.; Schaeffer, R.; Sha, F.; Riahi, K.; Meinshausen, M. Paris Agreement climate proposals need a boost to keep warming well below 2 C. Nature 2016, 534, 631. [Google Scholar] [CrossRef] [Green Version]
  5. Li, M.; Lu, J.; Chen, Z.; Amine, K. 30 years of lithium-ion batteries. Adv. Mater. 2018, 30, 1800561. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Bar-On, Y.M.; Phillips, R.; Milo, R. The biomass distribution on Earth. Proc. Natl. Acad. Sci. USA 2018, 115, 6506–6511. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Pasetti, M.; Rinaldi, S.; Manerba, D. A virtual power plant architecture for the demand-side management of smart prosumers. Appl. Sci. 2018, 8, 432. [Google Scholar] [CrossRef] [Green Version]
  8. Weitzel, T.; Glock, C.H. Energy management for stationary electric energy storage systems: A systematic literature review. Eur. J. Oper. Res. 2018, 264, 582–606. [Google Scholar] [CrossRef]
  9. Marchi, B.; Zanoni, S. Supply chain management for improved energy efficiency: Review and opportunities. Energies 2017, 10, 1618. [Google Scholar] [CrossRef] [Green Version]
  10. Marchi, B.; Zanoni, S.; Ferretti, I.; Zavanella, L.E. Stimulating investments in energy efficiency through supply chain integration. Energies 2018, 11, 858. [Google Scholar] [CrossRef] [Green Version]
  11. Kates, R.W.; Clark, W.C.; Corell, R.; Hall, J.M.; Jaeger, C.C.; Lowe, I.; McCarthy, J.J.; Schellnhuber, H.J.; Bolin, B.; Dickson, N.M.; et al. Sustainability science. Science 2001, 292, 641–642. [Google Scholar] [CrossRef]
  12. Lang, D.J.; Wiek, A.; Bergmann, M.; Stauffacher, M.; Martens, P.; Moll, P.; Swilling, M.; Thomas, C.J. Transdisciplinary research in sustainability science: Practice, principles, and challenges. Sustain. Sci. 2012, 7, 25–43. [Google Scholar] [CrossRef]
  13. Goodenough, J.B.; Park, K.S. The Li-ion rechargeable battery: A perspective. J. Am. Chem. Soc. 2013, 135, 1167–1176. [Google Scholar] [CrossRef] [PubMed]
  14. Dunn, B.; Kamath, H.; Tarascon, J.M. Electrical energy storage for the grid: A battery of choices. Science 2011, 334, 928–935. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Mata, T.M.; Martins, A.A.; Caetano, N.S. Microalgae for biodiesel production and other applications: A review. Renew. Sustain. Energy Rev. 2010, 14, 217–232. [Google Scholar] [CrossRef] [Green Version]
  16. Klewitz, J.; Hansen, E.G. Sustainability-oriented innovation of SMEs: A systematic review. J. Clean. Prod. 2014, 65, 57–75. [Google Scholar] [CrossRef]
  17. Baland, J.M.; Bardhan, P.; Bowles, S. Inequality, Cooperation, and Environmental Sustainability; Princeton University Press: Princeton, NJ, USA, 2018. [Google Scholar]
  18. SDG Indicators. Available online: https://unstats.un.org/sdgs/report/2019 (accessed on 3 January 2020).
  19. Schönherr, N.; Findler, F.; Martinuzzi, A. Exploring the interface of CSR and the Sustainable Development Goals. Transnatl. Corp. 2017, 24, 33–49. [Google Scholar] [CrossRef] [Green Version]
  20. Kajikawa, Y.; Saito, O.; Takeuchi, K. Academic landscape of 10 years of sustainability science. Sustain. Sci. 2017, 12, 869–873. [Google Scholar] [CrossRef]
  21. Kajikawa, Y.; Ohno, J.; Takeda, Y.; Matsushima, K.; Komiyama, H. Creating an academic landscape of sustainability science: An analysis of the citation network. Sustain. Sci. 2007, 2, 221. [Google Scholar] [CrossRef] [Green Version]
  22. Ruhanen, L.; Weiler, B.; Moyle, B.D.; McLennan, C.l.J. Trends and patterns in sustainable tourism research: A 25-year bibliometric analysis. J. Sustain. Tour. 2015, 23, 517–535. [Google Scholar] [CrossRef] [Green Version]
  23. Home: Sustainable Development Knowledge Platform. Available online: https://sustainabledevelopment.un.org/ (accessed on 26 June 2019).
  24. Traag, V.A.; Waltman, L.; van Eck, N.J. From Louvain to Leiden: Guaranteeing well-connected communities. Sci. Rep. 2019, 9, 1–12. [Google Scholar] [CrossRef]
  25. Newman, M.E. Modularity and community structure in networks. Proc. Natl. Acad. Sci. USA 2006, 103, 8577–8582. [Google Scholar] [CrossRef] [Green Version]
  26. Blondel, V.D.; Guillaume, J.L.; Lambiotte, R.; Lefebvre, E. Fast unfolding of communities in large networks. J. Stat. Mech. Theory Exp. 2008, 2008, P10008. [Google Scholar] [CrossRef] [Green Version]
  27. Loper, E.; Bird, S. NLTK: The Natural Language Toolkit. In Proceedings of the ACL Workshop on Effective Tools and Methodologies for Teaching Natural Language Processing and Computational Linguistics; Association for Computational Linguistics: Philadelphia, PA, USA, 2002. [Google Scholar]
  28. Mooney, R. Relational learning of pattern-match rules for information extraction. In Proceedings of the Sixteenth National Conference on Artificial Intelligence, Orlando, FL, USA, 18–22 July 1999; Volume 334. [Google Scholar]
  29. Sparck Jones, K. A statistical interpretation of term specificity and its application in retrieval. J. Doc. 1972, 28, 11–21. [Google Scholar] [CrossRef]
  30. Aizawa, A. An information-theoretic perspective of tf–idf measures. Inf. Process. Manag. 2003, 39, 45–65. [Google Scholar] [CrossRef]
  31. Tang, J.; Liu, J.; Zhang, M.; Mei, Q. Visualizing large-scale and high-dimensional data. In Proceedings of the 25th International Conference on World Wide Web, Montreal, OC, Canada, 11–15 April 2016; pp. 287–297. [Google Scholar]
  32. Higgins-Desbiolles, F. Sustainable tourism: Sustaining tourism or something more? Tour. Manag. Perspect. 2018, 25, 157–160. [Google Scholar] [CrossRef]
  33. Sterling, S. Sustainable Education: Re-Visioning Learning and Change. Schumacher Briefings; ERIC: Schumacher, UK, 2001. [Google Scholar]
  34. Decade of Education for Sustainable Development (DESD): United Nations Educational, Scientific and Cultural Organization. Available online: https://en.unesco.org/themes/education-sustainable-development/what-is-esd/un-decade-of-esd (accessed on 26 June 2019).
  35. OECD. Organisation for Economic Cooperation and Development; Government at a Glance 2013: Procurement Data; OECD: Paris, France, 2013; p. 193. [Google Scholar]
  36. Dinda, S. Environmental Kuznets curve hypothesis: A survey. Ecol. Econ. 2004, 49, 431–455. [Google Scholar] [CrossRef] [Green Version]
  37. De Almeida, D.G.; Soares Da Silva, R.D.C.F.; Luna, J.M.; Rufino, R.D.; Santos, V.A.; Banat, I.M.; Sarubbo, L.A. Biosurfactants: Promising molecules for petroleum biotechnology advances. Front. Microbiol. 2016, 7, 1718. [Google Scholar] [CrossRef] [Green Version]
  38. Olasanmi, I.; Thring, R. The Role of Biosurfactants in the Continued Drive for Environmental Sustainability. Sustainability 2018, 10, 4817. [Google Scholar] [CrossRef] [Green Version]
  39. Khan, M.I.; Shin, J.H.; Kim, J.D. The promising future of microalgae: Current status, challenges, and optimization of a sustainable and renewable industry for biofuels, feed, and other products. Microb. Cell Fact. 2018, 17, 36. [Google Scholar] [CrossRef]
  40. Shi, Y.; Zhang, B. Recent advances in transition metal phosphide nanomaterials: Synthesis and applications in hydrogen evolution reaction. Chem. Soc. Rev. 2016, 45, 1529–1541. [Google Scholar] [CrossRef]
  41. Kush, P.; Deori, K.; Kumar, A.; Deka, S. Efficient hydrogen/oxygen evolution and photocatalytic dye degradation and reduction of aqueous Cr (VI) by surfactant free hydrophilic Cu2ZnSnS4 nanoparticles. J. Mater. Chem. A 2015, 3, 8098–8106. [Google Scholar] [CrossRef]
  42. Berruti, A.; Lumini, E.; Balestrini, R.; Bianciotto, V. Arbuscular mycorrhizal fungi as natural biofertilizers: Let’s benefit from past successes. Front. Microbiol. 2016, 6, 1559. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Xu, C.; Strømme, M. Sustainable porous carbon materials derived from wood-based biopolymers for CO2 capture. Nanomaterials 2019, 9, 103. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Pagliaro, M.; Meneguzzo, F. Lithium battery reusing and recycling: A circular economy insight. Heliyon 2019, 5, e01866. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Lee, K.Y. Nanocellulose and Sustainability: Production, Properties, Applications, and Case Studies; CRC Press: Boca Raton, FL, USA, 2018. [Google Scholar]
  46. Shapla, U.M.; Solayman, M.; Alam, N.; Khalil, M.I.; Gan, S.H. 5-Hydroxymethylfurfural (HMF) levels in honey and other food products: Effects on bees and human health. Chem. Cent. J. 2018, 12, 35. [Google Scholar] [CrossRef] [PubMed]

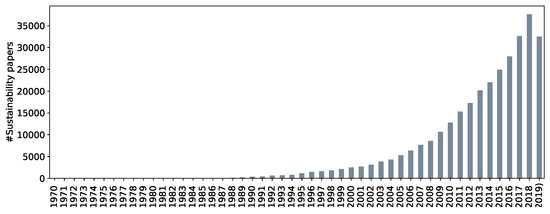

Figure 1. Number of papers relating to sustainability science in each year. (Not all papers published in 2019 have been included in Scopus yet).
Figure 1. Number of papers relating to sustainability science in each year. (Not all papers published in 2019 have been included in Scopus yet).
Energies 13 00975 g001

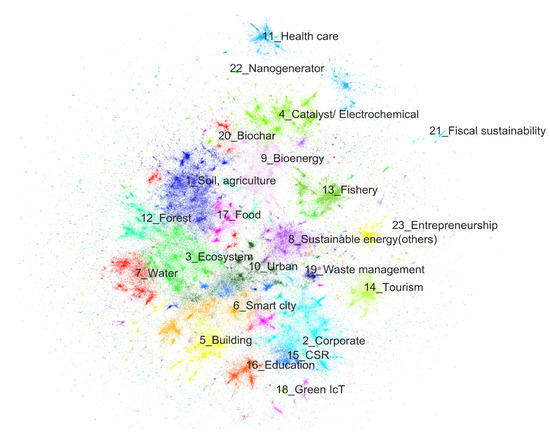

Figure 2. Map of sustainability science.
Figure 2. Map of sustainability science.
Energies 13 00975 g002

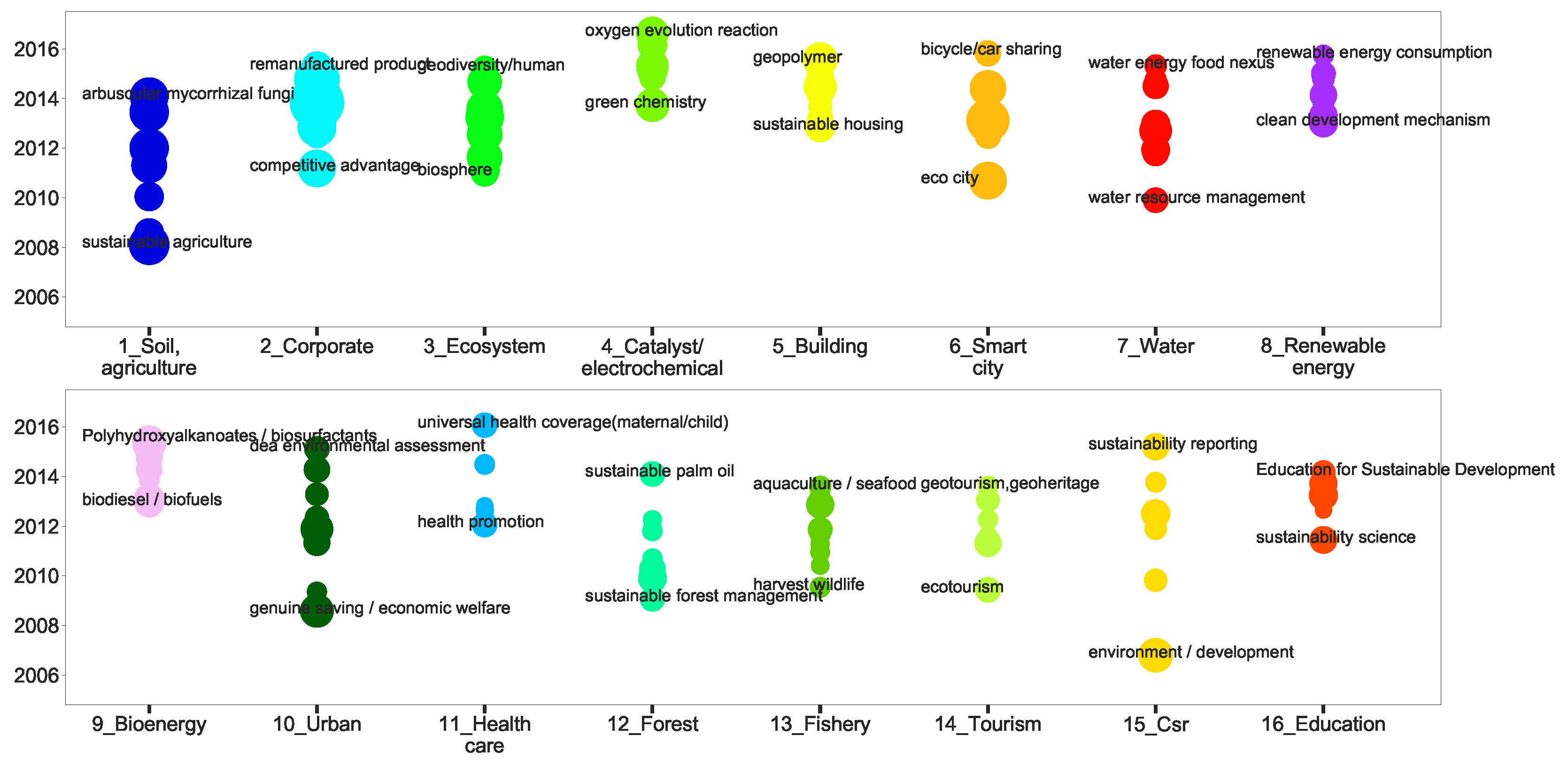

Figure 3. Subclusters of each cluster of sustainability science. The vertical axis represents the average publishing year of papers belonging to each subcluster.
Figure 3. Subclusters of each cluster of sustainability science. The vertical axis represents the average publishing year of papers belonging to each subcluster.
Energies 13 00975 g003

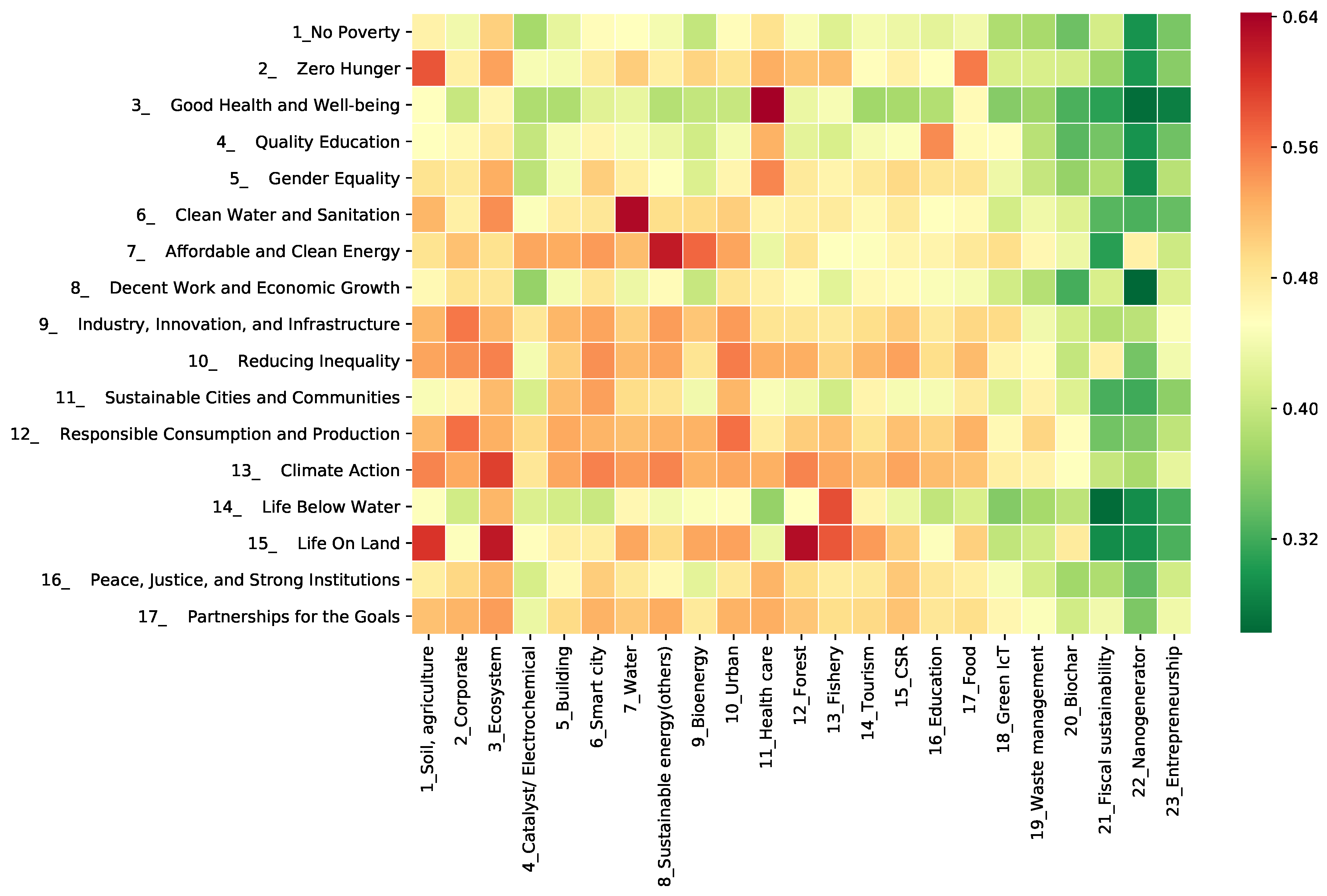

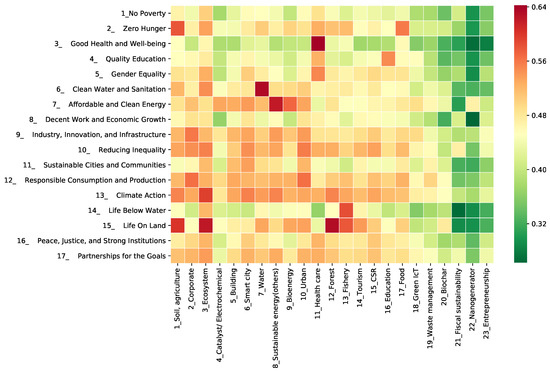

Figure 4. Heat map between SDGs and scientific clusters.
Figure 4. Heat map between SDGs and scientific clusters.
Energies 13 00975 g004
Table 1. Details of retrieved academic clusters.
Table 1. Details of retrieved academic clusters.
#Name#PapersAverage YearTFIDF
1Soil, agriculture30,8092011.65Soil, Organic, Agricultural, Farmer, Maize, Nutrient, Crop, Microbial, Tillage, Yield, Plant, Fertilizer, Rice, Agriculture, Sustainable agriculture
2Corporate28,8372013.69Environmental, Green, Firm, Social, Company, Sustainable, Sustainability, Economic, Supply chain, Corporate, Organizational, Product, Study, Eco, Strategic
3Ecosystem26,5312012.61Urban, Ecological, Ecosystem service, Coastal, Spatial, Social, Natural, Environmental, Sustainable, Human, China, Local, Climate change, Rural, Land use
4Catalyst/Electrochemical21,9802015.41Catalyst, Catalytic, Cellulose, Green, Lignin, Synthesis, Sustainable, Electrochemical, Hydroxymethylfurfural, Composite, High, American Chemical Society, Renewable, Chemistry, Ionic liquid
5Building20,4132014.20Concrete, Green, Building, Environmental impact, Compressive strength, Sustainable, Urban, Cement, Thermal, Construction industry, Recycled, Geopolymer, Study, Material, Mechanical
6Smart city18,4662013.31Urban, City, Social, Sustainable urban, Smart city, Environmental, Public, Local, Economic, Green, Sustainability, Transport, Policy, Political, Spatial
7Water17,7452012.80Groundwater resource, Water resource, Urban, Irrigation, Sustainable, Agricultural, Arid, Environmental, Aquifer, Study, Result, Wastewater, Economic, Irrigated, Soil
8Sustainable energy(others)17,0952013.88Renewable energy, Solar, Energy consumption, Environmental, Geothermal, Sustainable, China, Economic, Country, Electricity, Fossil, Grid, Thermal, Hydrogen, Nuclear
9Bioenergy16,8202014.37Biomass, Microalgae, Biofuel, Biodiesel production, Ethanol, Renewable, Bioenergy, Microbial, Fossil, Lipid, Anaerobic, Sustainable, Environmental, Production, Fuel
10Urban14,2522011.54Ecological footprint, Urban, Emergy, Environmental, China, Economic growth, City, Sustainable development, Social, Indicator, Natural, Sustainability, Country, Human, Regional
11Healthcare13,7722012.99Patient, Intervention, Child, Health, Community, Care, Clinical, CHW, Maternal, Country, Improve, Evidence, Conclusion, Implementation, Sustainability
12Forest13,4312010.63Forest management, Tree, Species, Medicinal, Biodiversity, Conservation, Sustainable forest management, Tropical, Ecological, Local, Timber, Natural, Silvicultural, Stand, Wild
13Fishery13,0142011.86Fish, Fishery, Marine, Coastal, Species, Aquaculture, Catch, Shrimp, Sustainable, Ecosystem, MSY, Ecological, Population, Stock, Diet
14Tourism11,1012012.07Tourism development, Tourist, Sustainable tourism development, Cultural, Local community, Ecotourism, Environmental, Social, Rural, Economic, Destination, Visitor, Study, Community, Natural
15CSR10,3482011.30Environmental, Social, CSR, Corporate social responsibility, Sustainable development, Company, Financial, Economic, Sustainability reporting, Firm, Sustainability report, SEA, Public, Study, Country
16Education99282012.91Student, Education, Sustainability, Environmental education, Sustainable development, University, ESD, Social, Educational, Teacher, Course, Learning, Curriculum, Professional, Green
17Food95592013.94Consumer, Food waste, Environmental impact, Sustainable consumption, Diet, Animal, Green, Organic, Social, Urban, Local, Insect, Consumption, Study, Dietary
18Green IcT54942013.35Green, Sustainable HCus, User, ICT, Environmental, Sustainability, Social, Mobile, Digital, Support, Data center, Design, IEEE, Study, Provide
19Waste management27022012.82Waste management, Municipal solid waste, MSW, Landfill, Solid waste management, Environmental, Sustainable development, Economic, City, Social, Organic, Study, Country, Urban, MSWM
20Biochar24272013.62Biochar application, Soil, Organic, Sustainable, Plant, Environmental, Brownfield, Mg, Nutrient, Heavy metal, Remediation, Phytoremediation, Site, Metal, Cd
21Fiscal sustainability16222011.61Fiscal sustainability, Public debt, Debt sustainability, Country, Financial, Current account deficit, Economic, Fiscal policy, Sustainability, Long, Sustainable, Government debt, Primary surplus, Intertemporal budget constraint, Macroeconomic
22Nanogenerator12342015.73TENG, Triboelectric nanogenerator, Energy harvesting, Wearable, Wireless, Nanogenerator, IEEE, Self, Sustainable, Piezoelectric, Solar, Mobile, EDo, Harvest, Device
23Entrepreneurship12312015.71Economic, Financial, Sustainable development, Sustainability Center, Social, VsI Entrepreneurship, Development, Country, Article, Russian, Region, Regional, Innovative, Enterprise, Environmental
Table 2. List of energy-related subclusters: subclusters of energy-related clusters (8 and 9) and subclusters that are related to energy of other clusters.
Table 2. List of energy-related subclusters: subclusters of energy-related clusters (8 and 9) and subclusters that are related to energy of other clusters.
#Parent_clusterNodesYearTFIDF
8_7Sustainable energy (others)8552015.75Ekc hypothesis, Financial development, Economic growth, Renewable energy consumption, Environmental kuznet, Co2 emission, Renewable, Trade openness, Energy consumption, Ardl, Gdp, Fdi, Emission, Cointegration, Unidirectional causality
8_4Sustainable energy (others)11892015.00Renewable energy source, District heating, Sdewe, Energy system, Environment systems sdewe, Solar, Electric vehicle, Heat, International centre, Dh, Electricity, Sustainable, Energy plan, Environment system, Smart
8_5Sustainable energy (others)9792014.79Microgrid, Smart grid, Ev, Electric vehicle, Grid, Renewable, Ieee, Phev, Pev, Micro grid, V2g, Dg, Solar, Power system, Pv
8_8Sustainable energy (others)7432014.52Solar potential, Urban scale, Pv, Seap, Renewable, Bipv, City, Building, Photovoltaic, Rooftop, Energy, Smart, Covenant, Sustainable, Nebka
8_3Sustainable energy (others)14732014.14Renewable energy source, Environmental, Fuzzy, Economic, Sustainable development, Ahp, Social, Criterium, Solar, Mcdm, Energy system, Method, Nuclear, Alternative, Mcda
8_6Sustainable energy (others)9642013.89China, Renewable energy development, ln, Pakistan, Solar, Wind power industry, Energy, Sustainable development, Environmental, Economic, Nuclear, Taiwan, Coal, Ltd, Geothermal
8_2Sustainable energy (others)15832013.31Exergy efficiency, Hydrogen production, Exergetic efficiency, Waste exergy ratio, Exergetic sustainability index, Solar, Exergy analysis, Environmental effect factor, Renewable, Hydrogen energy publication, Exergy destruction, Exergoeconomic, Thermodynamic, Thermochemical, Enviroeconomic
8_1Sustainable energy (others)16462013.01Renewable energy, Rural electrification, Solar, Grid extension, Electricity access, Solar home system, Mini grid, Microgrid, Energy access, Electrification, Pv, Bangladesh, Sustainable, Diesel generator, Country
9_9Bioenergy8202015.52Pha production, Rhamnolipid, Biosurfactant production, Phb, Polyhydroxyalkanoate, Sophorolipid, Olive, Scg, Succinic acid, Omw, Whey, Spent coffee ground, Hydroxybutyrate co, Product, Lactic acid
9_1Bioenergy23522015.36Microalgae cultivation, Microalgal biomass, Lipid productivity, Algal biofuel, Algae, Biodiesel production, Scenedesmu, Lipid production, Biofuel production, Chlamydomona, Mixotrophic, Lipid content, Lipid accumulation, Photobioreactor, Nannochloropsis sp.
9_7Bioenergy12372015.08Biorefinery, Biomass, Integrated biorefinery, Bioethanol, Environmental, Biofuel, Ethanol, Economic, Shale ga, Lignocellulosic, Process synthesis, Lcsoft, Optimal, Sustainable, Bioenergy
9_4Bioenergy14972015.02Xylose, Butanol production, Metabolic engineering, Ethanol, Lignocellulosic biomass, Heterologous, Bioethanol, Lignocellulose, Cyanobacterium, Glucose, Biobutanol, Biofuel, Microbial, Enzyme, Titer
9_5Bioenergy14282014.78Mfc technology, Microbial fuel cell, Anammox, Bioelectrochemical system, Microbial electrochemical, Smfc, Pmfc, Cathode, Anode, Biocathode, Maximum power density, Bioelectricity generation, Nitrite, Be, Electrode
9_8Bioenergy10522014.43Biodiesel production, Jatropha curca, Curca, Diesel engine, Btdc, Transesterification reaction, Wco, Engine performance, Vegetable oil, Biofuel, Methanol, Ulsd, Fame, Diesel fuel, Bsfc
9_6Bioenergy13842014.29Anaerobic digestion, Digestate, Bioga, Biogas production, Uasb, Co digestion, Sludge, Biomethane, Sewage sludge, Methane yield, Biogas plant, Ad, Vinasse, Organic, Mesophilic
9_10Bioenergy8062013.86Biomass, Ash, Gasification, Coal, Combustion, Biomass ash, Torrefaction, Fuel, Torrefied, Pyrolysis, Synga, Char, Hydrochar, Renewable, Water hyacinth
9_2Bioenergy18602013.10Switchgras, Miscanthu, Bioenergy crop, Ethanol, Energy crop, Biofuel, Panicum virgatum, Willow, Biomass, Lignocellulosic, Straw, Cellulosic, Srwc, Poplar, Sweet sorghum
9_3Bioenergy17932012.95Bioenergy system, Biofuel production, Sugarcane production, Ethanol production, Biodiesel production, Biomass, Jatropha, Environmental, Renewable, Iluc, Ej, Fossil, Ghg, Feedstock, Agricultural
4_2Catalyst/Electrochemical21282016.64Oer, Hydrogen evolution reaction, Electrocatalyst, Photocatalytic, Oxygen evolution reaction, Overpotential, Overall water splitting, Electrocatalytic, Photoelectrochemical, Low overpotential, Water splitting, Visible light, Photocatalyst, Mv dec, Tafel slope
4_7Catalyst/Electrochemical16492016.63Orr, Porous carbon, Oxygen reduction reaction, Supercapacitor, Porous, Carbon material, Graphene, Hierarchical porous, Hydrochar, High performance supercapacitor, Mah, Koh, Mesoporous, Electrochemical, Hydrothermal carbonization
4_3Catalyst/Electrochemical21022015.30Hydroxymethylfurfural, Hmf yield, Gvl, Furfural, Levulinic acid, Cellulose, Lignin, Valerolactone, Lignocellulosic biomass, Catalytic, Acrolein, Fructose, Glycerol, Ionic liquid, Fdca
5_2Building21732014.47Bim, Lca, Building material, Embodied energy, Information modeling, Environmental impact, Construction industry, Life cycle assessment, Tall building, Green, Material, Energy, Information modelling, Residential building, Sustainable building
5_4Building14732014.21Adaptive reuse, Heritage building, Historic building, Building stock, Urban renewal, Refurbishment, Retrofit, Sustainable refurbishment, Historical building, Urban regeneration, Energy performance, Social, Cultural, Environmental, Residential
6_9Smart city9252014.57Ev, Electric vehicle, Bev, Hybrid electric vehicle, Prosumer, Energy justice, Phev, Smart grid, Eco driving, Electric bus, Vehicle, Plug, Renewable, V2g, Environmental
6_3Smart city26392014.41Sustainability transition, Ull, Transition management, Grassroots innovation, Socio technical transition, Multi level perspective, Energy transition, Transition study, Technological innovation system, Urban, Strategic niche management, Renewable, Snm, Sociotechnical, Innovation system
7_7Water9862015.32Nexus, Water energy food nexus, Water security, Wef nexus, Iwrm, Energy water nexus, Energy, Nexus approach, Water resource, Food, Urban, China, Sustainable, Transboundary, Potassium ferrate
10_7Urban10742013.28Urban metabolism, City, Ecological network analysis, Ascendency, Urban metabolic, Environmental, China, Ena, Ecological, Emission, Sustainable urban, Energy, Economic, Eoli, Mfa
10_3Urban14272011.34Hm2 cap, Ecological footprint model, Ecological deficit, Ef, Gha, Wackernagel, Ecological capacity, Biocapacity, Ecological carrying capacity, Capita ecological footprint, Emergy ecological, Ecological footprint analysis, Footprint family, Ecological surplus, Energy ecological footprint
18_2Green IcT8012013.64Green ict, Green information system, Green information technology, Information system, Environmental sustainability, Git, Ict, Organization, Data center, Sustainable, Energy informatic, Adoption, Information technology, Sustainability, Organizational
19_4Waste management3062014.85Msw, Municipal solid waste management, Incineration, Wte plant, Waste, Landfill mining, Lca, Environmental impact, Energy recovery, Anaerobic digestion, Life cycle assessment, Solid, Gasification, Lfe, Aif
Table 3. Top 15 newest subclusters.
Table 3. Top 15 newest subclusters.
#Parent_clusterNodesYearTFIDF
4_2Catalyst/Electrochemical21282016.64Oer, Hydrogen evolution reaction, Electrocatalyst, Photocatalytic, Oxygen evolution reaction, Overpotential, Overall water splitting, Electrocatalytic, Photoelectrochemical, Low overpotential, Water splitting, Visible light, Photocatalyst, Mv dec, Tafel slope
4_7Catalyst/Electrochemical16492016.63Orr, Porous carbon, Oxygen reduction reaction, Supercapacitor, Porous, Carbon material, Graphene, Hierarchical porous, Hydrochar, High performance supercapacitor, Mah, Koh, Mesoporous, Electrochemical, Hydrothermal carbonization
4_6Catalyst/Electrochemical17062016.15Nanocellulose, Cellulose nanocrystal, Cnc, Cnf, Lignin, Cellulose nanofibril, Cellulose nanomaterial, Ggm, Nanocomposite, Nfc, Cellulose nanofiber, Chitosan, Hydrogel, Aerogel, Nanofibril
11_1Healthcare12602016.07Maternal mortality, Uhc, Neonatal mortality, Ncd, Newborn, Universal health coverage, U5mr, Livebirth, Sdg, Stillbirth, Health system, Child health, Fap sba, Sustainable development goal, Global health
4_11Catalyst/Electrochemical9142016.01Mah, Sodium ion battery, Lib, Rechargeable battery, Electrochemical performance, Li, Organic electrode material, Lithium, Cathode material, Electrode material, Capacity retention, Ion battery, Lithium ion battery, Electrolyte, Na ion battery
6_7Smart city10972015.87Bike sharing, Bicycle, Cyclist, Cycling infrastructure, Bs, Electric bicycle, Public bicycle, Car sharing, Pedestrian, Ride, Airbnb, Urban, Carsharing, City, Collaborative consumption
6_5Smart city13322015.81Smart city concept, Smart sustainable city, City, Urban, Iot, Ict, Smart mobility, Citizen, Sustainable city, Smartness, Big data analytic, Smart city project, Smart city service, Big datum, Social
8_7Sustainable energy (others)8552015.75Ekc hypothesis, Financial development, Economic growth, Renewable energy consumption, Environmental kuznet, Co2 emission, Renewable, Trade opennes, Energy consumption, Ardl, Gdp, Fdi, Emission, Cointegration, Unidirectional causality
5_1Building24262015.56Geopolymer concrete, Uhpc, Compressive strength, Cement, Concrete, Pofa, Pozzolanic, Opc, Fly ash, Cementitious, Mortar, Portland cement, Rha, Silica fume, Flexural
9_9Bioenergy8202015.52Pha production, Rhamnolipid, Biosurfactant production, Phb, Polyhydroxyalkanoate, Sophorolipid, Olive, Scg, Succinic acid, Omw, Whey, Spent coffee ground, Hydroxybutyrate co, Product, Lactic acid
17_8Food4482015.5Edible insect, Entomophagy, Insect meal, Black soldier fly, Hermetia illucen, Cricket, Fly larvae, Mealworm, Larvae, Hermetium, Diet, Bsf larvae, Cultured meat, Protein, Animal
9_1Bioenergy23522015.36Microalgae cultivation, Microalgal biomass, Lipid productivity, Algal biofuel, Algae, Biodiesel production, Scenedesmu, Lipid production, Biofuel production, Chlamydomona, Mixotrophic, Lipid content, Lipid accumulation, Photobioreactor, Nannochloropsis sp.
4_4Catalyst/ Electrochemical19222015.36Pla, Isosorbide, Polymer, Epoxy, Poly, Monomer, Lactide, Benzoxazine, Cardanol, Thermoset, Polyol, Polymerization, Polyester, Anticorrosive, Bisphenol
7_7Water9862015.32Nexus, Water energy food nexus, Water security, Wef nexus, Iwrm, Energy water nexus, Energy, Nexus approach, Water resource, Food, Urban, China, Sustainable, Transboundary, Potassium ferrate
4_3Catalyst/ Electrochemical21022015.30Hydroxymethylfurfural, Hmf yield, Gvl, Furfural, Levulinic acid, Cellulose, Lignin, Valerolactone, Lignocellulosic biomass, Catalytic, Acrolein, Fructose, Glycerol, Ionic liquid, Fdca
Table 4. The top 10 CDD terms and TFIDF terms for each SDG.
Table 4. The top 10 CDD terms and TFIDF terms for each SDG.
#SDGDescriptionTop 10 CDD TermsTop 10 TFIDF Terms
1No PovertyRetirement age 21, Disaster risk reduction 3, Social protection 3, Microfinance 25, Pension 21, Cash transfer 11, Heatwave 11, Healthcare facility 7, Pro poor 14, Extreme poverty 25Extreme poverty 25, Disaster 3, Extreme 11, Social protection system, Poverty 3, Social protection 3, Poor 1, Retirement age 21, Pension 21, Economic loss 10
2Zero HungerResilient agricultural 3, Stunting 11, Animal genetic resource 17, Healthy diet 17, Pastoralist 3, Child malnutrition 11, Family farmer 9, Overweight 11, Obesity epidemic 17, Local breed 1Hunger 1, Agriculture 1, Malnutrition 1, Overweight 11, Height 12, Nutrition 1, Small scale food producer, Agricultural productivity 1, Undernourished 1, Child 11
3Good Health and Well-beingNeglected tropical disease 11, Maternal death 11, Maternal mortality ratio 11, Communicable 11, Malaria 11, Child survival 11, Non communicable disease 11, Neonatal 11, Tropical disease 11, Neonatal mortality rate 11Live birth 11, Maternal 11, Live 13, Death 11, Communicable 11, Mortality rate 11, Malaria 11, Reproductive 13, Neonatal 11, Infectious 3
4Quality EducationEarly childhood development 11, Childhood education 16, Early childhood education 16, Upper secondary 16, Adjusted net 10, Pre service 16, Secondary education 16, Primary education 11, Completion rate 11, School 11Secondary 16, Reading 8, Mathematic 16, School 11, Proficient 11, Secondary education 16, Child 11, Minimum 1, Read 8, Primary education 11
5Gender EqualityEarly childhood education 16, Contraceptive 11, Reproductive health 11, Maternal death 11, Compounded 2, Long term care 21, Young child 16, Gender gap 16, Woman 3, Unpaid 3Woman 3, Girl 3, Sexual 11, Unpaid 3, Gender equality 14, Child marriage 11, Unpaid domestic, Reproductive 13, Violence 11, Marriage 11
6Clean Water and SanitationOpen defecation 7, IWRM 7, Integrated water resources management 7, Sanitation system 7, Future water scarcity 7, Affordable drinking water 7, Total renewable 8, Severe water scarcity 7, Desalination 7, Desalinated water 7Sanitation 7, Water stress 7, Water sector 7, Integrated water resources management 7, Integrated 3, Open defecation 7, Water 7, Basic 3, Operational 2, Practise 14
7Affordable and Clean EnergyStove 12, Renewable energy consumption 8, Solid biomass 9, Charcoal 12, Geothermal 8, Energy access 8, Marine source 13, Energy intensity 10, Final energy use 17, Global rate 12Renewable 8, Electricity 8, Renewable energy 8, Clean 8, Energy efficiency 5, Solar 8, Energy intensity 10, Modern renewable, Modern 8, Wind 8
8Decent Work and Economic GrowthMaterial footprint 10, Domestic material consumption 10, Real GDP 8, Decent work 14, Child labour 2, Labour right 12, Labour productivity 8, Formative stage 15, Sustainable consumption 17, Sustainable tourism 14Labour productivity 8, Labour 1, Informal employment, Real GDP 8, Unemployment rate 21, Adult 12, Youth 16, Global unemployment rate, Child labour 2, Annual growth rate
9Industry, Innovation, and InfrastructureAir travel 14, MVA 9, Emissions intensity 1, Air transport 14, Small scale industry 1, Entire global 15, Mobile network 6, Carbon intensity 10, Intensity level 3, New job opportunity 2Manufacturing 2, Small scale industry 1, Medium high, Mobile cellular 22, Value 2, Research 2, Total MVA, Join 17, Innovate 2, Credit 5
10Reducing InequalitySID 3, Total resource 7, Remittance 14, Clothing 17, Subcategory 2, Inclusivity 19, International human rights law 11, Financial flow 10, Global financial market 15, Religion 6Inequality 10, Bottom 2, Labour 1, Export 7, Wage 12, Duty free treatment, Origin 13, Labour share, Income growth 10, National average 10
11Sustainable Cities and CommunitiesSendai Framework 3, Slum dweller 10, Household air pollution 12, Disaster Risk Reduction 3, Sustainable urbanization 10, Adequate housing 5, Global urban 3, Human settlements inclusive 10, City 6, Public transport 6City 6, Urban 6, Slum 10, Public transport 6, Solid waste 19, Urban resident 3, Open public space, Urban population 3, Air pollution 10, Unplanned urban 10
12Responsible Consumption and ProductionMaterial footprint 10, Domestic material consumption 10, International Trade 12, Sustainable consumption 17, DMC 4, SCP 2, Relative decoupling 10, Fossil fuel subsidy 8, Decoupling 10, International supply chain 2Metric ton 9, Metric 2, Material footprint 10, Domestic material consumption 10, Material 4, Production 9, Sustainable consumption 17, Capitum 10, Hazardous waste 10, Tonne 9
13Climate ActionSendai Framework 3, Green Climate Fund 6, Adaptive capacity 3, Disaster Risk Reduction 3, Disaster risk reduction 3, Paris Agreement 9, NDC 3, Planetary 3, Adaptation planning 3, Industrial system 2United Nations Framework Convention 6, Climate Change 3, Climate 3, Paris Agreement 9, NAP, Determined 3, Determined contribution, Green Climate Fund 6, Party 8, April 13
14Life Below WaterNational jurisdiction 13, Fisheries subsidy 13, Unreported 13, Small scale fishery 13, Ocean acidification 13, Large marine ecosystem 13, Nautical 14, UNCLO 13, Fish stock 13, Fisherfolk 13Coastal 3, Ocean 13, Marine 13, Unreported 13, Fish 13, Fish stock 13, Ocean acidification 13, Sustainable level 6, Illegal 13, Coastal eutrophication 3
15Life On LandFreshwater biodiversity 3, International Treaty 3, Seychelles 14, Landscape restoration 3, Plant Genetic Resource 1, Fiji 14, Coral 13, Nagoya Protocol 12, Intergovernmental Science Policy Platform 3, Mammal 12Terrestrial 9, Forest 12, Biodiversity 1, Species 12, Protected 14, Total land area 9, Los 1, Sustainable use 12, Genetic 1, Biodiversity los 3
16Peace, Justice, and Strong InstitutionsPrisoner 3, Crime 6, Bribery 15, World Bank Group 7, Judiciary 16, Justice 6, Inclusive society 15, Substantial advance 17, Different flow 8, Journalist 15Victim 5, Justice 6, Journalist 15, Violence 11, Public official 7, Compliant 2, Sexual 11, Detected 3, Psychological aggression, Sexual exploitation
17Partnerships for the GoalsMulti stakeholder partnership 12, Policy coordination 10, Remittance 14, Revitalized 12, Broadband 18, National planning 10, External financing 2, Sustainable development indicator 10, Revenue collection 7, SDG target 11National statistical, Online 18, National statistical plan, Statistical 8, Statistic 10, World merchandise export, Gross national 11, Remittance 14, Housing census, Science 3

Share and Cite

MDPI and ACS Style

Asatani, K.; Takeda, H.; Yamano, H.; Sakata, I. Scientific Attention to Sustainability and SDGs: Meta-Analysis of Academic Papers. Energies 2020, 13, 975. https://doi.org/10.3390/en13040975

AMA Style

Asatani K, Takeda H, Yamano H, Sakata I. Scientific Attention to Sustainability and SDGs: Meta-Analysis of Academic Papers. Energies. 2020; 13(4):975. https://doi.org/10.3390/en13040975

Chicago/Turabian Style

Asatani, Kimitaka, Haruo Takeda, Hiroko Yamano, and Ichiro Sakata. 2020. "Scientific Attention to Sustainability and SDGs: Meta-Analysis of Academic Papers" Energies 13, no. 4: 975. https://doi.org/10.3390/en13040975

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
