Hot Blade Shape Reconstruction Considering Variable Stiffness and Unbalanced Load in a Steam Turbine

State Key Laboratory of Fluid Power & Mechatronic Systems, Zhejiang University, Hangzhou 310027, China
*
Authors to whom correspondence should be addressed.
Energies 2020, 13(4), 835; https://doi.org/10.3390/en13040835
Received: 14 January 2020 / Revised: 8 February 2020 / Accepted: 11 February 2020 / Published: 14 February 2020
(This article belongs to the Section Electrical Power and Energy System)

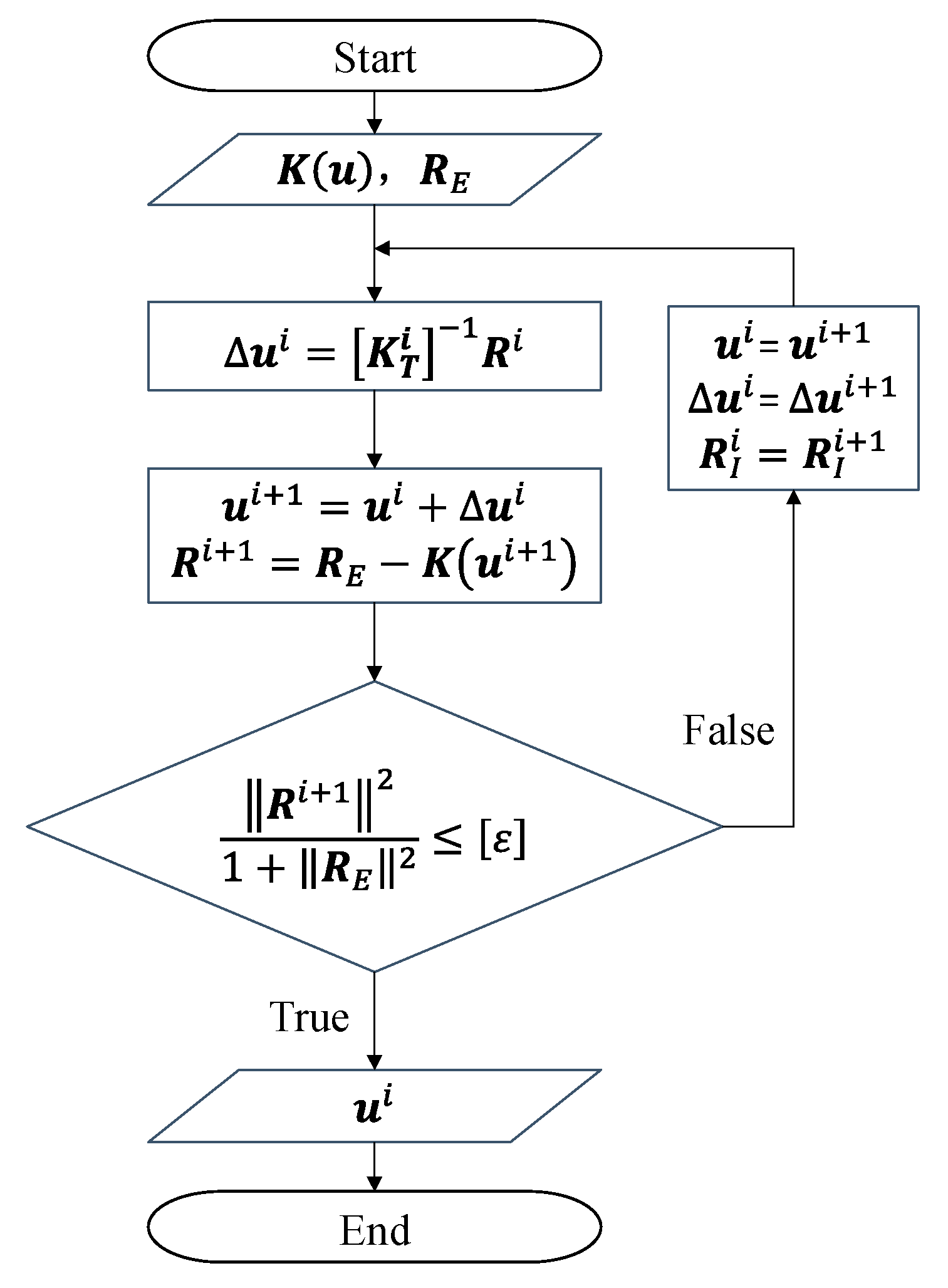

The blades in the low-pressure stage of a steam turbine must be reverse engineered according to the ideal blade shape due to the deformation of the blade during operation. A numerical analysis model of the flow field of the blades is proposed, and the model is solved by alternating between the fluid domain and the solid domain. Considering the imbalance of the load acting on the blade surface and the change in the blade stiffness matrix when the steam turbine is running, the Newton–Raphson method is used to calculate the pressure of the steam fluid on the blade surface and the change in the flow field caused by the blade deformation in each time step. The data are exchanged between the fluid domain and the solid domain after a single-step solution is completed. The simultaneous changes in the fluid domain and the solid domain are discretized in very short time steps, and the process of the blade deformation from stationary to running is simulated by accumulating the time steps. Finally, the trends in the change in the blade deformation and the aerodynamic load during the deformation process are analyzed according to the result of the reconstruction of the blade shape. View Full-Text
Keywords: steam turbine; blade; reconstruction; variable stiffness; unbalanced load steam turbine; blade; reconstruction; variable stiffness; unbalanced load
Show Figures

Graphical abstract

MDPI and ACS Style

Yi, G.; Zhou, H.; Qiu, L.; Wu, J. Hot Blade Shape Reconstruction Considering Variable Stiffness and Unbalanced Load in a Steam Turbine. Energies 2020, 13, 835.
