Study of the Antioxidant Power of the Waste Oil from Palm Oil Bleaching Clay

by
Katiane Cunha de Melo
1,
Ingrid Silva de Oliveira
1,
Luiza Helena de Oliveira Pires
2,
Luís Adriano Santos do Nascimento
1,
José Roberto Zamian
1,
Geraldo Narciso da Rocha Filho
1,
Marcele Fonseca Passos
1,
Alessandra Santos Lopes
3,
Attilio Converti
4 and
Carlos Emmerson Ferreira da Costa
1,*
1
Laboratory of Oils of the Amazon, Federal University of Pará, Pará 66075-110, Brazil
2
School of Application, Federal University of Pará, Pará 66077-585, Brazil
3
Laboratory of Science, Technology and food Engineering, Federal University of Pará, Pará 66075-110, Brazil
4
Department of Civil, Chemical and Environmental Engineering, University of Genoa, I-16145 Genoa, Italy
*
Author to whom correspondence should be addressed.
Energies 2020, 13(4), 804; https://doi.org/10.3390/en13040804
Submission received: 20 November 2019 / Revised: 17 December 2019 / Accepted: 30 December 2019 / Published: 12 February 2020
(This article belongs to the Special Issue Valorisation of Wastes: Environmental Sustainability and Production of Biofuels by Advanced Technologies)
Browse Figures
Versions Notes

Abstract

:
Palm oil is one of the most consumed oils, one of whose refining steps is the removal of pigments and other substances using bleaching clay as adsorbent. Worldwide production of this oil was 70 million tons in 2017, requiring 1 t of clay to produce 1000 t of refined oil. The residual bleaching clay, having an oil fraction (12.70%) rich in phenolics, carotenoids and tocopherols, was extracted in this study with ethanol to obtain an antioxidant-rich palm oil bleaching extract (POBE), with the aim of using it as a natural antioxidant source. The POBE antioxidant capacity determined by the DPPH method corresponded to a 20.29% inhibition of radical formation. The POBE was also tested for its potential to enhance oxidative stability of passion fruit, pracaxi and Brazil nut oils used as reference oils, and compared to common synthetic antioxidants (tert-butylhydroquinone and propyl gallate), either separately as controls or in mixtures with them. Besides the increased oxidative stability of these oils induced by the POBE, a positive synergistic effect between it and the synthetic antioxidants was observed. These results taken together suggest that the exploitation of the waste oil from bleaching clay as an additive to improve the oxidative stability of biofuels or lubricating oils is feasible.

Graphical Abstract

1. Introduction

Palm (Elaeis guineensis) is grown on over 11 million hectares worldwide [1], and its oil is one of the most important branches of agribusiness in many countries. In 2017 alone, worldwide palm oil production reached around 70 million tons [2]. Because of its high content in fatty acids and substances with strong antioxidant activities, such as tocopherols, tocotrienols and carotenoids, palm oil is one of the most consumed in the world and serves a variety of sectors, among which are the food, cosmetic, biofuel and energy industries [2,3,4,5]. However, in order to meet such market demands, it is necessary to remove impurities, pigments and unpleasant odors [6] through a process known as vegetable oil refining, which consists of four steps: degumming, neutralizing, bleaching and deodorization. In the initial two steps, some emulsifying substances such as lecithin, free fatty acids, glycerol, carbohydrates, resins and metals are removed [7]. Bleaching is one of the most important steps of refining, during which pigments (chlorophyll and its derivatives, carotenes, tocopherols), saponifiable materials, phosphatides, phospholipids, peroxides, metals, water and so on are eliminated [8,9,10]. Therefore, the loss of bioactive compounds from palm oil is inevitable during the refining process.
Bleaching, also called clarification, is carried out by adsorption of oil impurities using bleaching clays as adsorbents. Due to their cation exchange, expansion and plasticity properties, as well as their large surface area, smectite clays are often used in the refining of lubricating and insulating oils with high content of pigmented materials, as well as in the removal of substances of plant origin [11]. However, the production of 1000 tons of refined oil requires approximately 1 ton of bleaching clays [12]. Saturated at the refining stage, they are disposed of in landfills, increasing costs and causing a negative environmental impact [13]. The amount of biomass and waste produced in the palm oil refining process is almost equivalent to the oil production itself. As a result, research seeks to exploit these wastes in animal feed or as fertilizers [12,14], biofuels [15] and biolubricants [16]. The recovery of bleaching clay, which contains about 20%–40% of vegetable oil rich in antioxidant compounds [15,17], also opens a sustainable route to the use of this residual oil to reduce lipid oxidation of oils and derivatives.
The mechanism of lipid oxidation can be described in three main steps: initiation, propagation and termination, and generating hydroperoxides and free radicals, which tend to form more stable high molecular weight end products [18,19], such as insoluble oxygenated compounds. Consequently, there is thickening and formation of deposits in the oil [20], interfering with oxidative stability. Some factors such as fatty acid structure, temperature, light exposure, storage and pro-oxidizing agents may influence the mechanism of lipid oxidation. But an alternative way to retard or minimize the thermo-oxidation of oils and fats [21,22] is the addition of antioxidants. Antioxidants, made up of vitamins, minerals, natural pigments, plant compounds and enzymes, inactivate free radicals by donating hydrogen atoms or electrons to these molecules. In the food industry, the most commonly used synthetic antioxidants are phenolic compounds, such as butylhydroxyanisole (BHA), butylhydroxytoluene (BHT), tert-butylhydroquinone (TBHQ) and propyl gallate (PG) [19,23], which enable the donation of a proton to a free radical, regenerating the acylglycerol molecule and disrupting the lipid oxidation mechanism [24].
According to Brewer [25], natural antioxidants can circumvent the toxic and carcinogenic effects of synthetic antioxidants in humans. Preferably obtained from vegetables, which are the main source of phenolic compounds, ascorbic acid, carotenoids and tocopherols, they have a high antioxidant capacity associated mainly with the ability of the phenolic hydroxyl group to reduce reactive free radicals, such as singlet oxygen, or to decompose peroxides to phenoxyls [26]. Tocopherols and tocotrienols also inhibit the oxidation of unsaturated fatty acids [27], thus playing an important role against lipid oxidation. Crude palm oil contains 600–1000 mg/kg of tocols, about 50% of which are resistant to the palm oil refining process [28].
Considering the antioxidant potential of the main components present in the residual oil of the palm oil bleaching process, this work aimed at recycling the process adsorbent (bleaching clay) and evaluating the use of the residual oil for antioxidant purposes in poorly stable vegetable oils, namely those of passion fruit, Brazil nut and pracaxi. This approach is an innovative, economical, sustainable alternative capable of mitigating environmental impacts while reducing the production costs of the oleochemical industry.

2. Materials and Methods

Oils of passion fruit (Passiflora edulis) (PFO), Brazil nut (Bertholletia excelsa) (BNO) and pracaxi (Pentaclethra macroloba (Willd.) Kuntze) (PO)—used as reference oils—as well as bleaching clay were purchased from the local market.

2.1. Clay Characterization

The clay crystalline structure was investigated before and after the bleaching process by Powder X-ray Diffraction (PXRD) using a X´PERT PRO MPD (PW 3040/60) diffractometer (PANalytical, São Paulo, SP, Brazil) operating with Cu radiation and a 1.54 Å wavelength. Thermal behavior was investigated by thermogravimetric and derivative analysis (TG/DTG) under synthetic air (21% oxygen, 78% nitrogen and 1% other trace gases) at a 10 °C/min heating rate, in the temperature range of 25–800 °C, using a thermogravimetric analyzer, model DTG-60H (Shimadzu, Kyoto, Japan). The oil content in bleaching clay was quantified by nuclear magnetic resonance (NMR) using a Minispec mq 7.5 analyzer (Bruker Optics, Ettlingen, Germany).

2.2. Obtaining and Characterization of Palm Oil Bleaching Extract and Vegetable Oils

Palm oil bleaching extract (POBE) was obtained according to Fernandes et al. [29] with some modifications. Briefly, clay after bleaching was ground, mixed with 400 mL of ethanol, left at rest for seven days, stirred for one minute each day and finally vacuum filtered. The solvent was removed from the POBE by rotary evaporation at 40 °C.
Vegetable oils were physicochemically characterized according to the official standards of the American Oil Chemist’s Society (AOCS) [30] by determining the following quality parameters: acidity index (AOCS Ca 5a-40), peroxide index (AOCS Cd 7-25), saponification index (AOCS Cd 3-25) and iodine index (AOCS Cd 1c-85). Fatty acid composition (AOCS Ce 2-66) was determined using a gas chromatograph, model GC-2010 (Shimadzu), equipped with a Flame Ionization Detector (FID) and a 30 m-long TG-WAX MS capillary column with a 0.32 mm internal diameter and 0.25 μm film.

2.3. Antioxidant Activity of Palm Oil Bleaching Extract and Vegetable Oils

Antioxidant activities of vegetable oils and POBE were determined by the 2,2-diphenyl-1-picrylhydrazyl radical (DPPH) scavenging method, according to Brand-Williams et al. [31] with an Evolution Array UV-Vis spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA) at 515 nm wavelength. Results were expressed as percentage inhibition of radical formation (% I) in the sample compared to the initial DPPH concentration (% I), according to the equation % I = ((Ac − As)/Ac) × 100, where Ac is the absorbance of the control and As that of the sample. Results were expressed as percentage inhibition of radical formation (% I) in the sample compared to the initial DPPH concentration.
Total phenolic compounds were determined according to the Folin–Ciocalteu method described by Singleton et al. [32], using gallic acid as the standard. Quantitation was performed using the above-mentioned UV-Vis spectrophotometer at 760 nm wavelength and the equation TPC(mgGA/g) = Các.gallic × V volumetric balloon (mL) × F/m(g) × 103, where TPC = phenolic compound concentration; Các.gallic = concentration in gallic acid; V volumetric balloon (mL) = extract volume after extraction; F = dilution factor for reading; and m = sample mass. Results were expressed in milligrams of eqivalent gallic acid per gram of sample (mgGAE/g).
Total carotenoids were determined according to the methodology described by Rodriguez-Amaya [33] by wavelength scanning from 300 to 600 nm with the above UV-Vis spectrophotometer. The β-carotene scanning spectrum showed maximum absorption at 450 nm, which was used as a standard for quantifying carotene concentration in oils. Total carotenoid content (TC) was calculated using the β-carotene specific extinction coefficient in petroleum ether (ε = 2592), according to the equation TC(μg/g) = As. × 104 v/m × ε, where As. is the absorbance; v is the added petroleum ether volume in mL; and m = sample mass in g. Results were expressed as mg/g of total carotenoids.

2.4. Oxidative Stability of Vegetable Oils

The oxidative stability of vegetable oils was determined as the oxidative induction period according to the AOCS Cd 12b-92 method using an oxidative stability instrument, model Rancimat 873 (Metrohm, Herisau, Switzerland). Water conductivity was measured along the air bubbling, which was performed at a flow rate of 10 L/h in each oil (5.0 g) and a temperature of 110 °C. The oxidative induction period (OIP) was assumed as the time interval between the start of a measurement and the conductivity increase as a result of the oxidation products’ solubilization. Samples of each oil were weighed and homogenized with a magnetic stirrer for 10 min before performing oxidative stability assays.

2.4.1. Effect of Palm Oil Bleaching Extract or Synthetic Antioxidants

Oxidative stability of the same oils was also determined after adding 50, 100, 200, 500, 1000 and 2000 ppm of POBE; or 50, 100 and 200 ppm of tert-butylhydroquinone (TBHQ); or, 50 and 100 ppm of propyl gallate (PG)—chosen as the reference synthetic antioxidants. The Brazilian National Health Surveillance Agency (ANVISA, 2001) Resolution RDC nº 33/2001 [34] sets maximum permitted limits of these compounds in foods of 200 and 100 ppm, respectively.

2.4.2. Synergistic Effect of Palm Oil Bleaching Extract with Synthetic Antioxidants

Binary mixtures were prepared using 500, 1000 and 2000 ppm POBE together with both the above synthetic antioxidants at a concentration of 50 or 100 ppm and analyzed for their effects on the vegetable oils’ oxidative stability.

3. Results and Discussion

3.1. Clay Characterization before and after the Palm Oil Bleaching Process

Clay samples before and after the palm oil bleaching process were analyzed by powder X-ray Diffractometry (PXRD) to detect any changes in the crystalline phases induced by it:
  • The diffractograms shown in Figure 1 allow identifying the presence of the following clay crystalline phases both before and after bleaching: montmorillonite (Na0.3(AlMg)2Si4O10OH26H2O—JCPDS 12-0219), illite ((K,H3O)Al2Si3AlO10(OH)2—JCPDS 26-0911), kaolinite (Na0.3Al4Si6O15(OH)64H2O—JCPDS 29-1490), quartz (SiO2—JCPDS 05-490) and mica (K-Mg-Fe-Al-Si-O-H2O—JCDPS 02-0227). It is possible to infer the presence of iron oxide, which indicates that there is mica in the material, while the peak at 2θ = 27° may correspond to impurities such as quartz, as suggested by Santos [35].
The clay diffractogram before bleaching (Figure 1A) agrees with what is found in the literature for the same material used for commercial anthocyanin adsorption from red cabbage [36], while that after bleaching shows a decrease in peak intensity (Figure 1B), indicating decreased material crystallinity. This result may have been due to partial dissolution of the clay crystalline lamellae after acid treatment in the bleaching process [37,38]. However, even after bleaching the clay structure remained practically the same, suggesting that it may be profitably reused after removal of adsorbed palm oil.
The content of clay-impregnated oil quantified by low field Nuclear Magnetic Resonance (NMR) was approximately 12.70%, i.e., a lower value than reported in the literature (20%–30%) [12,39], probably due to the higher efficiency of our bleaching process.
The thermogravimetric curves of Figure 2 show a substantial difference in clay mass loss before and after treatment:
  • Two peaks in the clay DTG curve can be observed before bleaching (Figure 2A) in the temperature range of 25–120 °C, pointing out successive mass losses likely associated with free water evaporation and structural water loss from some mineral. A third, almost imperceptible event occurring at 120–190 °C could be attributed to the decomposition of the hydroxyl groups of compounds constituting a clay structure, such as Al(OH)3 and Fe(OH)2 [38]. Another event between 400 and 540 °C that occurred with approximately 4.6% mass loss was probably the result of the decomposition of the hydroxyl groups (structural water), mainly from kaolinite [40]. The last 2.1% mass loss observed between 550 and 700 °C is also likely to have been caused by the loss of hydroxyls from other clay minerals. Similar results were found by Miranda et al. [38] for montmorillonite clays, with a loss of 8.9% in the first event, 5.1% in the second event and 1.76% corresponding to structural dehydration.
Even TG/DTG curves of clay after bleaching highlight a first event in the range of 25 to 160 °C with 4.9% mass loss (Figure 2B), possibly due to evaporation of free water molecules, and at least two successive events in the temperature ranges of 170–270 °C and 270–340 °C. Considering that between 170 and 340 °C there was no clay mass loss before bleaching (Figure 2A), the last two events may be attributed to the loss of hydroxyl groups (structural water), ions or compounds adsorbed on clay lamella, probably originating from the bleaching process (7.1%), as well as the burning of oily organic matter adsorbed on clay (12.5%), respectively. The latter hypothesis appears to be confirmed by the similarity of clay thermal profile after bleaching between 270 and 340 °C to those found in DTG curves of vegetable oils [22,41,42]. As expected, the 12.5% loss attributed to organic material burning is very close to the content of oil embedded in clay determined by low-field NMR (12.7%). Finally, a last event, which occurred between 410 and 600 °C, indicates successive mass losses (6.1%) that can be attributed to clay hydroxyls, mainly kaolinite and other clay minerals [40].

3.2. Physicochemical Characterization of Palm Oil Bleaching Extract and Vegetable Oils

The fatty acid profiles of passion fruit (PFO), pracaxi (PO) and Brazil nut (BNO) oils presented in Table 1 show that they consist mainly of unsaturated fatty acids, which makes them particularly susceptible to oxidation. For this reason, they were chosen to test the POBE antioxidant power.
PFO had linoleic (64.32%), oleic (18.49%) and palmitic (10.91%) acids as the major components. Since the first one is a polyunsaturated fatty acid, its larger content compared to other reference vegetable oils suggests higher susceptibility to lipid oxidation [43,44]. The same type of oxidative sensitivity, although less pronounced, would be expected for BNO, of which these acids constitute 33.86%, 39.22% and 14.37%, respectively, in agreement with the composition reported by Rodrigues et al. [45]. On the other hand, PO had a higher content of saturated fatty acids, namely behenic (14.79%), lignoceric (10.88%) and stearic (5.77%) acids, and a lower content of linoleic acid (11.81%), from which higher oxidative stability would be expected.
Since palm oil refining did not significantly alter its fatty acid composition, its oxidative stability, which is generally attributed to the high concentration of saturated fatty acids [46], should not have been influenced. As expected, the residue removed from clay after bleaching had a fatty acid composition very similar to that of crude and refined palm oils, with higher percentages of oleic (44.32%), palmitic (39.82%), linoleic (9.13) and stearic (4.25%) acids.
Resolution RDC No. 270/2005 of ANVISA [47] establishes maximum limits of acidity and peroxide indices of 4 mgKOH/g and 15 meqO2/kg, respectively, for unrefined and cold-pressed oils and fats intended for human use. These values can be compared with the basic quality parameters of vegetable oils listed in Table 2, in order to clarify possible POBE effects on their oxidative stability.
PFO and PO are in accordance with current Brazilian legislation, while BNO had a slightly higher acidity index, probably due to the presence of undesirable substances in seeds resulting from the selection or their inadequate storage [48]. High acidity indices, like that detected in BNO and to a lesser extent in PO, are indicative of a high content of free fatty acids resulting from the action of vegetable or microbial lipases [49]. Indeed, seeds of oil-rich species, such as pracaxi and Brazil nut, are especially susceptible to the action of these enzymes because of their exposition during harvesting that increases their moisture content and causes hydrolytic rancidity [50].
The higher BNO peroxide index (13.0 meqO2/kg) compared to PO (8.5 meqO2/kg) and PFO (5.9 meqO2/kg) indicates a higher oxidation degree. The saponification index, which increases with decreasing the fatty acid chain length, and increasing the free fatty acids content [51], was 121.2, 146.5 and 131.3 mgKOH/g for BNO, PFO and PO, respectively.
The oxidative induction periods (OIPs) of PO (1.93 h) and BNO (2.10 h) were significantly shorter than those of PFO (3.40 h), which indicates higher oxidative stability of the last oil, contrary to what was expected by the fatty acid profile. This means that not only the lipid composition, but also other quality parameters should be taken into account when assessing oxidative stability, such as the acidity and peroxide indices. Both do in fact indicate the oil state of preservation and quality, by evaluating the products resulting from lipid oxidation, i.e., the degree of deterioration. The relatively short OIP values of the three reference oils tested suggest the possibility of improving the oxidative stability of other oils and biofuels as well, by supplementing them with antioxidant-rich waste oils such as that proposed in this study.

3.3. Bioactive Compounds and Antioxidant Activity of Palm Oil Bleaching Extract and Vegetable Oils

The contents of bioactive compounds in the oils investigated in this work are listed in Table 3.
The contents of total phenolic compounds (TPCs) in all oils tested indicate the presence in their chemical structures of hydroxyl groups and aromatic rings, both in simple and polymeric forms, which contribute to their antioxidant power. However, this content was particularly high in crude palm oil and POBE and significantly lower in the reference vegetable oils. In addition, as expected, the lowest content was found in refined palm oil, hence demonstrating the effectiveness of the bleaching process. Therefore, it is likely that a portion of the TPCs was degraded during the oil refining process, but another one was concentrated in the POBE and clay.
It is also possible to observe that a large amount of total carotenoids (TCs) was lost during bleaching, because the POBE had a TC value (357.4 ppm) that was almost thrice that of refined palm oil, but less than half of that of crude oil. According to Rossi et al. [52], the use of clays and synthetic silica mixtures in the bleaching process is responsible for the removal of no less than 30% to 50% of crude palm oil carotenoids, suggesting that residual oily extract could be an effective antioxidant additive. However, contrary to what is often stressed in the literature, there is no direct relationship between the TPC content and the antioxidant activity of natural products, many other causes being involved in the latter [53]. The TPC content does not determine antioxidant activity, but rather the structure of phenolic compounds. These, depending on the number and position of the hydroxyl groups, as well as replacements in their aromatic rings, may or may not present antioxidant properties [5].
Crude palm oil showed an antioxidant activity expressed as percentage inhibition of DPPH. (87.1%) not so different from that reported in the literature (59.02–88.16%), whose broad variability may have depended on the different industrial processes used [54,55]. However, the refining process led to an almost 80% decrease of this activity, confirming the literature data [55]. Although much lower than palm oil antioxidant activity, the one of the POBE (20.3%) was about 5–10-fold those of PFO and PO, respectively, and very close to that of BNO (Table 3). Since the TPC and TC contents of PFO and BNO are close to each other and the OIP of the former much longer than that of the latter (Table 2), it is likely that the oxidation inhibition mechanisms of these bioactive compounds are distinct and the inhibition percentages not proportional within of the oil. For this same reason, although PO had the lowest bioactive compound contents (TPC = 84.5 mgGAE/g; TC = 10.9 mg/g) along with the lowest DPPH. scavenging capacity (2.2%) among the three reference oils, its OIP was not significantly shorter than that of BNO.

3.4. Effect of Palm Oil Bleaching Extract or Synthetic Antioxidants on Vegetable Oil Stability

POBE addition to the reference vegetable oils led to a significant OIP lenghtening at concentrations ≥ 200 ppm, although this effect was well below that observed using tert-butylhydroquinone (TBHQ) and propyl gallate (PG) as synthetic antioxidants (Figure 3), whose overall effectiveness decreased in the order PFO > PO > BNO; i.e., according to the worsening of oil quality parameters (Table 2). However, the POBE performance as an antioxidant additive in PO was, when used at 1000 ppm, even better than that of synthetic antioxidants. On the other hand, the worst performance in BNO may have been the result of a different action mechanism or of its higher oxidation degree, in that bioactive compounds may have reacted with oxidation products thus reducing the POBE’s protective action.
In Table 4 and Table 5 it is possible to observe the influence of the POBE, in blend with synthetic antioxidants, on the OIP of vegetable oils. In general, the use of POBE in combination with PG (Table 4) or TBHQ (Table 5) increased the vegetable oils’ OIP, thus demonstrating the occurrence of a synergism between them, especially in the case of PG that showed the best results. This made it possible to increase the oxidation protection of these oils without exceeding the maximum limit allowed by law for the use of synthetic antioxidants.
PFO, which displayed the best quality parameters (Table 2), was the one among the vegetable oils tested that gave the best inhibition results, even quadrupling the OIP using the 100/2000 (ppm/ppm) PG/POBE blend. The OIP of BNO, which in contrast showed the worst quality parameters, using the 50/500 (ppm/ppm) PG/POBE blend, was almost the same as that obtained using the maximum PG concentration allowed by the legislation (100 ppm according to the Brazilian legislation (ANVISA RDC nº 33/2001)) [34]. There is no limit established for natural antioxidants, which is the case of the POBE. This allowed halving the dosage of this synthetic antioxidant, which, like all others, in large quantities can be harmful to human health. However, in the case of PO, a progressive increase in the TBHQ/POBE dosage led to a maximum OIP threshold of about 5.5 h, which was significantly exceeded only by using the maximum POBE dosage in the blend (Table 5).

4. Conclusions

The aim of this work was to recover the clay used as an adsorbent in the palm oil bleaching process and to use the residual oil extract (POBE) as an antioxidant additive in order to increase the oxidative stability of vegetable oils. For this purpose, the passion fruit, Brazil nut and pracaxi oils were tested as references for future studies on biofuels and lubricating oils. Thermogravimetric and NMR analyses of clay after bleaching indicated a 12% residual oil content, whose physicochemical characterization showed a high antioxidant potential related to its high contents of phenolic compounds and carotenoids.
The antioxidant capacity of POBE, tested at different concentrations in reference vegetable oils, was comparable to those of PG and TBHQ, which are commonly used to improve the stability of biofuels and lubricating oils. In general, starting from a POBE concentration of 200 ppm, an increase in the oxidative induction period was observed for the studied oils, which is expected to lead to an increase in their shelf life. PG showed higher efficiency than TBHQ as synthetic antioxidant, probably due to its larger number of active hydroxyl groups, which could have compensated the polarization effect of the aromatic ring, favoring the release of more protons.
In mixtures with these synthetic antioxidants, especially PG, the residual oil showed a positive synergistic effect on the oxidative stability of pracaxi, Brazil nut and passion fruit oils, whose oxidative induction periods, using 100/1000 (ppm/ppm) PG/POBE in oils, were lengthened to as much as 12.2, 11.1 and 11.1 h, respectively. Such a synergistic effect make way for future replacement of these synthetic antioxidants with natural alternatives such as POBE, to minimize their negative effects on human health and, at the same time, solve the environmental problem of waste oil disposal and bleaching clay exploitation.
These results point to the future substitution of synthetic antioxidants with natural alternatives, minimizing the negative effects of these substances on human health. POBE proved to be efficient in its antioxidant capacity, adding value to residual oils from the oil refinement processes and contributing to the reduction of the environmental problem caused by the exploration of bleaching clay. These results make way for future replacement of these synthetic antioxidants with natural alternatives such as POBE.

Author Contributions

The conceptualization and data curation K.C.d.M.; investigation, K.C.d.M. and I.S.d.O.; methodology, A.S.L.; resources, J.R.Z. and G.N.d.R.F; writing—original draft preparation, K.C.d.M. and L.H.d.O.P.; writing—review and editing, L.A.S.d.N.; M.F.P.; A.C. and L.H.d.O.P.; and supervision, C.E.F.d.C. and L.H.d.O.P.; funding acquisition, J.R.Z. and G.N.d.R.F. All authors have read and agree to the published version of the manuscript.

Funding

We thank the Pará State Government and PROPESP/UFPA for financial support. This research was funded by CNPQ, grant number 432221/2018-2. This study was financed in part by the Cooedenação de Aperfeiçoamento de Pessoal de Nível Superior–Brasil (CAPES)–Finance Code 001.

Acknowledgments

The authors are thankful to the Federal University of Pará, laboratories of the UFPA School of Physics, Amazon Oil Industry and AGROPALMA for providing oils and oil bleaching clays used in this study.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Abdul Khalil, H.P.S.; Nur Firdaus, M.Y.; Anis, M.; Ridzuan, R. The effect of storage time and humidity on mechanical and physical properties of medium density fiberboard (MDF) from oil palm empty fruit bunch and rubberwood. Polym. Plast. Technol. Eng. 2008, 47, 1046–1053. [Google Scholar] [CrossRef]
  2. United States Department of Agriculture. Corn and Soybean Production Costs and Export Competitiveness in Argentina, Brazil, and the United States; US Department of Agriculture: Washington, DC, USA, 2016.
  3. Alimentarius Codex. Codex standard for named vegetable oils. Codex Stan 1999, 8, 11–25. [Google Scholar]
  4. Nagendran, B.; Unnithan, U.R.; Choo, Y.M.; Sundram, K. Characteristics of red palm oil, a carotene- and vitamin E-rich refined oil for food uses. Food Nutr. Bull. 2000, 21, 189–194. [Google Scholar] [CrossRef]
  5. Sundram, K.; Sambanthamurthi, R.; Tan, Y.-A. Palm fruit chemistry and nutrition. Asia Pac. J. Clin. Nutr. 2003, 12, 355–362. [Google Scholar]
  6. O’Brien, R.D. Fats and Oils: Formulating and Processing for Applications; CRC Press: Boca Raton, FL, USA, 2008; ISBN 0849315999. [Google Scholar]
  7. Rosa, G.O.; Vieira Filho, F.C.; Jorge, L.M.M.; Paraíso, P.R.; Andrade, C.M.G. Modelagem e avaliação do processo de degomagem no refino de óleo de soja. Engevista 2016, 18, 78–95. [Google Scholar] [CrossRef] [Green Version]
  8. Rodrigues, M.G.F.; Pereira, K.R.O.; Valenzuela-Diaz, F.R. Obtenção e caracterização de materiais argilosos quimicamente ativados para utilização em catálise. Cerâmica 2006, 52, 260–263. [Google Scholar] [CrossRef] [Green Version]
  9. Caglar, B.; Afsin, B.; Tabak, A.; Eren, E. Characterization of the cation-exchanged bentonites by XRPD, ATR, DTA/TG analyses and BET measurement. Chem. Eng. J. 2009, 149, 242–248. [Google Scholar] [CrossRef]
  10. Vicari da Silva, J.O. Qualidade de Óleo de Soja Refinado Embalado em PET (Polietileno Tereftalato) Armazenado na Presença e Ausência de Luz. Master’s Thesis, Universidade Católica Dom Bosco, Campo Grande, Brazil, 2013. [Google Scholar]
  11. Sud Chemie do Brasil Ltda. Ficha Técnica de Produtos; Sud Chemie do Brasil Ltda: Jacareí, Brazil, 2011. [Google Scholar]
  12. Loh, S.K.; James, S.; Ngatiman, M.; Cheong, K.Y.; Choo, Y.M.; Lim, W.S. Enhancement of palm oil refinery waste—Spent bleaching earth (SBE) into bio organic fertilizer and their effects on crop biomass growth. Ind. Crops Prod. 2013, 49, 775–781. [Google Scholar] [CrossRef] [Green Version]
  13. Krzyśko-Łupicka, T.; Cybulska, K.; Wieczorek, A.; Możdżer, E.; Nowak, M.J. The effect of spent bleaching earth ageing process on its physicochemical and microbial composition and its potential use as a source of fatty acids and triterpenes. Environ. Sci. Pollut. Res. 2014, 21, 10765–10774. [Google Scholar] [CrossRef] [Green Version]
  14. Boukerroui, A.; Belhocine, L.; Ferroudj, S. Regeneration and reuse waste from an edible oil refinery. Environ. Sci. Pollut. Res. 2018, 25, 18278–18285. [Google Scholar] [CrossRef]
  15. Loh, L.S.K.; Foon, C.S.; May, C.Y.; Ngan, M.A. A study of residual oils recovered from spent bleaching earth: Their characteristics and applications. Am. J. Appl. Sci. 2006, 3, 2063–2067. [Google Scholar]
  16. Loh, S.K.; Choo, Y.M.; Ma, A.N. Residual Oil from Spent Bleaching Earth (SBE) for Biodiesel and Biolubricant Applications; MPOB: Bandar Baru Bangi, Malaysia, 2007. [Google Scholar]
  17. Mandarino, J.; Hirakuri, M.; Roessing, A. Tecnologia Para Produção do Óleo de Soja: Descrição das Etapas, Equipamentos, Produtos e Subprodutos; Embrapa Soja: Londrina, Brazil, 2015. [Google Scholar]
  18. Antolovich, M.; Prenzler, P.D.; Patsalides, E.; McDonald, S.; Robards, K. Methods for testing antioxidant activity. Analyst 2002, 127, 183–198. [Google Scholar] [CrossRef] [PubMed]
  19. Jorge, N.; Malacrida, C.R.; Angelo, P.M.; Andreo, D. Proximal composition and antioxidant activity of the extract of passion fruit seeds (Passiflora edulis) in soybean oil. Agric. Res. Trop. 2009, 39, 380–385. [Google Scholar]
  20. Adhvaryu, A.; Erhan, S.Z.; Liu, Z.S.; Perez, J.M. Oxidation kinetic studies of oils derived from unmodified and genetically modified vegetables using pressurized differential scanning calorimetry and nuclear magnetic resonance spectroscopy. Thermochim. Acta 2000, 364, 87–97. [Google Scholar] [CrossRef]
  21. Wayner, D.D.M.; Burton, G.W.; Ingold, K.U.; Locke, S. Quantitative measurement of the total, peroxyl radical-trapping antioxidant capability of human blood plasma by controlled peroxidation. The important contribution made by plasma proteins. FEBS Lett. 1985, 187, 33–37. [Google Scholar] [CrossRef]
  22. Pardauil, J.J.R.; de Molfetta, F.A.; Braga, M.; de Souza, L.K.C.; Filho, G.N.R.; Zamian, J.R.; da Costa, C.E.F. Characterization, thermal properties and phase transitions of amazonian vegetable oils. J. Therm. Anal. Calorim. 2017, 127, 1221–1229. [Google Scholar] [CrossRef]
  23. Tiveron, A.P. Atividade Antioxidante e Composição Fenólica de Legumes e Verduras Consumidos no Brasil. Master’s Thesis, Universidade de São Paulo, São Paulo, Brazil, 2010. [Google Scholar]
  24. Oliveira, R.R.; Lage, M.E.; da Silveira Neto, O.J.; de Sales, M.C. Antioxidante de produtos naturais cárneos. Publ. Med. Vet. Zootec. 2012, 6, 37–39. [Google Scholar]
  25. Brewer, M.S. Natural antioxidants: Sources, compounds, mechanisms of action, and potential applications. Compr. Rev. Food Sci. Food Saf. 2011, 10, 221–247. [Google Scholar] [CrossRef]
  26. Nijveldt, R.J.; Van Nood, E.; Van Hoorn, D.E.C.; Boelens, P.G.; Van Norren, K.; Van Leeuwen, P.A.M. Flavonoids: A review of probable mechanisms of action and potential applications. Am. J. Clin. Nutr. 2001, 74, 418–425. [Google Scholar] [CrossRef]
  27. Castelo-Branco, V.N.; Santana, I.; Di-Sarli, V.O.; Freitas, S.P.; Torres, A.G. Antioxidant capacity is a surrogate measure of the quality and stability of vegetable oils. Eur. J. Lipid Sci. Technol. 2016, 118, 224–235. [Google Scholar] [CrossRef]
  28. Bobbio, P.A.; Bobbio, F.O. Quimica do Processamento de Alimentos; Livraria Varela: São Paulo, Brazil, 1992; Volume 2, ISBN 9788578110796. [Google Scholar]
  29. Fernandes, D.M.; Sousa, R.M.F.; de Oliveira, A.; Morais, S.A.L.; Richter, E.M.; Muñoz, R.A.A. Moringa oleifera: A potential source for production of biodiesel and antioxidant additives. Fuel 2015, 146, 75–80. [Google Scholar] [CrossRef]
  30. American Oil Chemists’ Society. Official Methods And recommended Practices of the American Oil Chemists’ Society, 4th ed.; AOCS: Urbana, IL, USA, 1995. [Google Scholar]
  31. Brand-Williams, W.; Cuvelier, M.E.; Berset, C. Use of a free radical method to evaluate antioxidant activity. LWT-Food Sci. Technol. 1995, 28, 25–30. [Google Scholar] [CrossRef]
  32. Singleton, V.L.; Orthofer, R.; Lamuela-Raventós, R.M. Analysis of total phenols and other oxidation substrates and antioxidants by means of Folin-Ciocalteu reagent. Methods Enzymol. 1999, 299, 152–178. [Google Scholar]
  33. Rodriguez-Amaya, D.B. A Guide to Carotenoid Analysis in Foods; ILSI Press: Washington, DC, USA, 2001; ISBN 1578810728. [Google Scholar]
  34. Brasil ANVISA. Agência Nacional de Vigilância Sanitária. Resolução da Diretoria Colegiada—RDC; Brasil ANVISA: Brasília, Brazil, 2001; p. 43. [Google Scholar]
  35. Dos Santos, J.P. Determinação do teor de ilita em argilominerais interestratificado a partir da anállise do potássio total. Sitientibus 1998, 18, 127–141. [Google Scholar]
  36. Lopes, T.J.; Quadri, M.G.N.; Quadri, M.B. Recovery of anthocyanins from red cabbage using sandy porous medium enriched with clay. Appl. Clay Sci. 2007, 37, 97–106. [Google Scholar] [CrossRef]
  37. Teixeira-Neto, É.; TEIXEIRA-NETO, Â.A. Modificação química de argilas: Desafios científicos e tecnológicos para obtenção de novos produtos com maior valor agregado. Quím. Nova 2009, 32, 809–817. [Google Scholar] [CrossRef] [Green Version]
  38. Miranda, R.; Ríos, H.; Delgado, F.; Castro, M.; Cogordán, A.; Salmón, M. Characterization of a bentonitic clay and its application as catalyst in the preparation of benzyltoluenes and oligotoluenes. Appl. Catal. Gen. 2003, 244, 217–233. [Google Scholar] [CrossRef]
  39. Foletto, E.L.; Alves, C.C.A.; Porto, L.M. Regeneração e reutilização de uma argila comercial utilizada na clarificação de óleo vegetal. Cerâmica Ind. 2003, 8, 43–45. [Google Scholar]
  40. Santos, P.S. Ciência e Tecnologia de Argilas, 2nd ed.; Egdar Blücher Ltda: Sao Paulo, Brazil, 1989. [Google Scholar]
  41. Santos, A.G.D.; Caldeira, V.P.S.; Souza, L.D.; Oliveira, D.S.; Araujo, A.S.; Luz, G.E. Study of the thermal stability by thermogravimetry for oil, biodiesel and blend (B10) of different oilseeds. J. Therm. Anal. Calorim. 2016, 123, 2021–2028. [Google Scholar] [CrossRef]
  42. Santos, A.G.D.; Souza, L.D.; Caldeira, V.P.S.; Farias, M.F.; Fernandes, V.J., Jr.; Araujo, A.S. Kinetic study and thermoxidative degradation of palm oil and biodiesel. Thermochim. Acta 2014, 592, 18–22. [Google Scholar] [CrossRef]
  43. Knothe, G. Some aspects of biodiesel oxidative stability. Fuel Proc. Technol. 2007, 88, 669–677. [Google Scholar] [CrossRef]
  44. Pantoja, S.S.; da Conceição, L.R.V.; da Costa, C.E.F.; Zamian, J.R.; da Rocha Filho, G.N. Oxidative stability of biodiesels produced from vegetable oils having different degrees of unsaturation. Energy Convers. Manag. 2013, 74, 293–298. [Google Scholar] [CrossRef]
  45. Rodrigues, C.E.C.; Silva, F.A.; Marsaioli, A.; Meirelles, A.J.A. Deacidification of Brazil nut and macadamia nut oils by solvent extraction: Liquid-liquid equilibrium data at 298.2 K. J. Chem. Eng. Data 2005, 50, 517–523. [Google Scholar] [CrossRef]
  46. Mercadante, A.Z.; Steck, A.; Rodriguez-Amaya, D.; Pfander, H.; Britton, G. Isolation of methyl (9′Z)-apo-6′-lycopenoate from Bixa Orellana. Phytochemistry 1996, 41, 1201–1203. [Google Scholar] [CrossRef]
  47. Ministério da Saúde; Agência Nacional de Vigilância Sanitária. Resolução no 270, de 22 de setembro de 2005; Agência Nacional de Vigilância Sanitária: Brasília, Brazil, 2005; pp. 1–16. [Google Scholar]
  48. Yokoya, F.; Antunes, A.J.; Jordão, B.A. Deterioração de castanha do Pará: II-Armazenamento das castanhas. Rev. Bras. Tecnol. 1971, 2, 117–120. [Google Scholar]
  49. Queiroga Neto, V.; Bora, P.S.; Diniz, Z.N.; Cavalheiro, J.M.O.; Queiroga, K.F. Dipteryx lacunifera seed oil: Characterization and thermal stability. Ciênc. Agrotecnol. 2009, 33, 1601–1607. [Google Scholar] [CrossRef] [Green Version]
  50. Lima, J. Vida de Prateleira de Amêndoas de Castanha de Caju em Embalagens Comerciais; Technical Note; Embrapa: Brasilia, Brazil, 2005; pp. 1–3. [Google Scholar]
  51. Uzoh, C.F.; Obodo, N.J.; Onukwuli, O.D. Exploring the effect of styrene and anhydride ratio on the coating properties of non-drying vegetable oil based alkyd resin. J. King Saud Univ. Eng. Sci. 2018, 30, 12–21. [Google Scholar] [CrossRef] [Green Version]
  52. Rossi, M.; Gianazza, M.; Alamprese, C.; Stanga, F. The effect of bleaching and physical refining on colour and minor components of palm oil. J. Am. Oil Chem. Soc. 2001, 78, 1051–1055. [Google Scholar] [CrossRef]
  53. Roginsky, V.; Lissi, E.A. Review of methods to determine chainbreaking antioxidant activity in food. Food Chem. 2005, 92, 235–254. [Google Scholar] [CrossRef]
  54. Ogbunugafor, H.A.; Eneh, F.U.; Ozumba, A.N.; Igwo-Ezikpe, M.N.; Okpuzor, J.; Igwilo, I.O.; Adenekan, S.O.; Onyekwelu, O. Physico-chemical and anti-oxidant properties of Moringa oleifera seed oil. J. Nutr. 2011, 10, 409–414. [Google Scholar]
  55. Szydłowska-Czerniak, A.; Trokowski, K.; Karlovits, G.; Szłyk, E. Effect of refining processes on antioxidant capacity, total contents of phenolics and carotenoids in palm oils. Food Chem. 2011, 129, 1187–1192. [Google Scholar] [CrossRef] [PubMed]
Energies 13 00804 g001 550

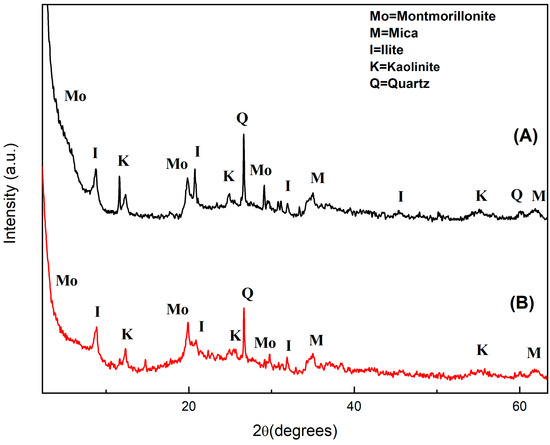

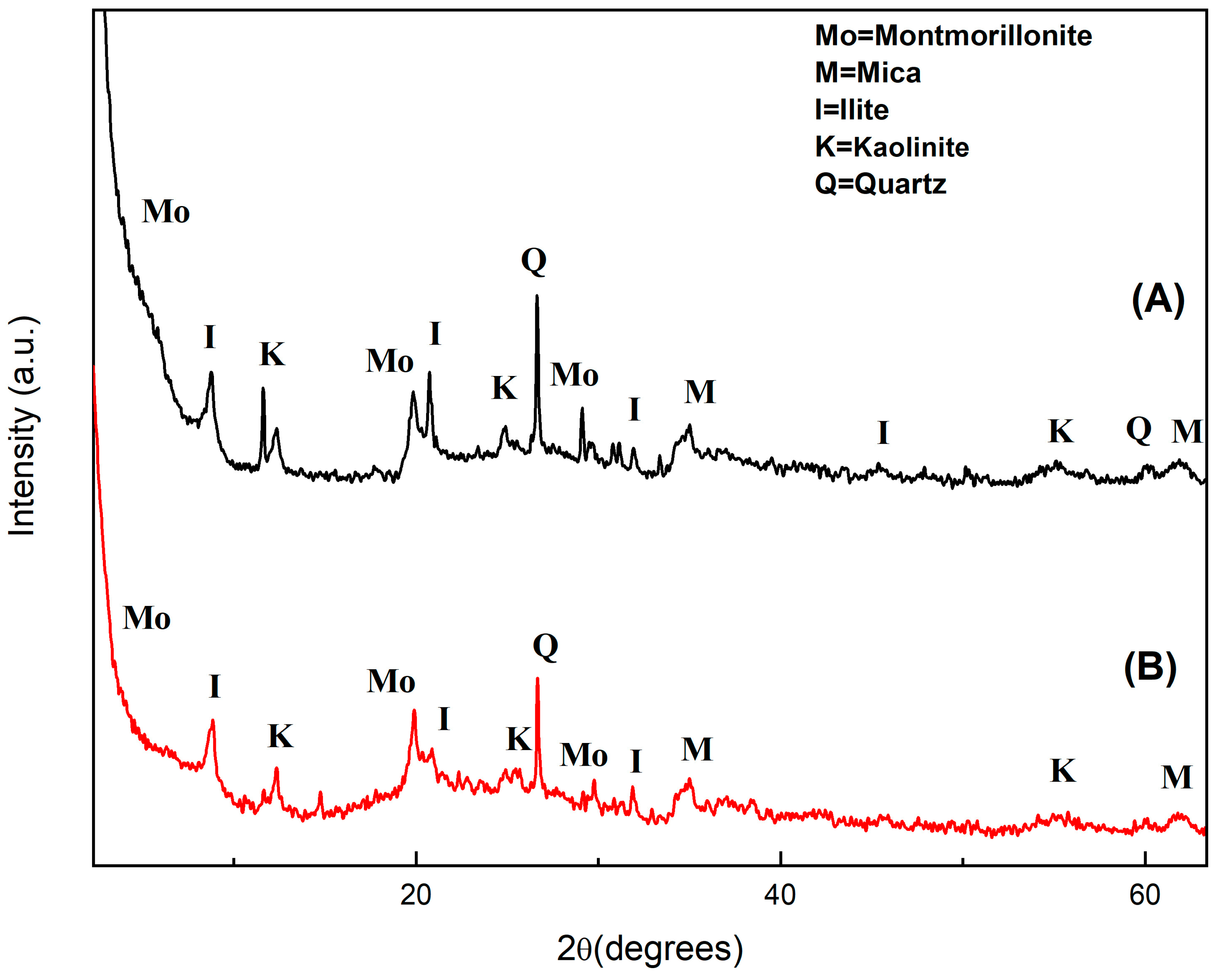

Figure 1. X-ray diffractograms of clay before (A) and after (B) palm oil bleaching.
Figure 1. X-ray diffractograms of clay before (A) and after (B) palm oil bleaching.
Energies 13 00804 g001
Energies 13 00804 g002 550

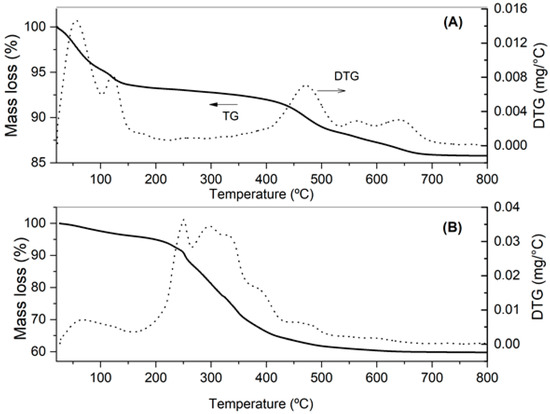

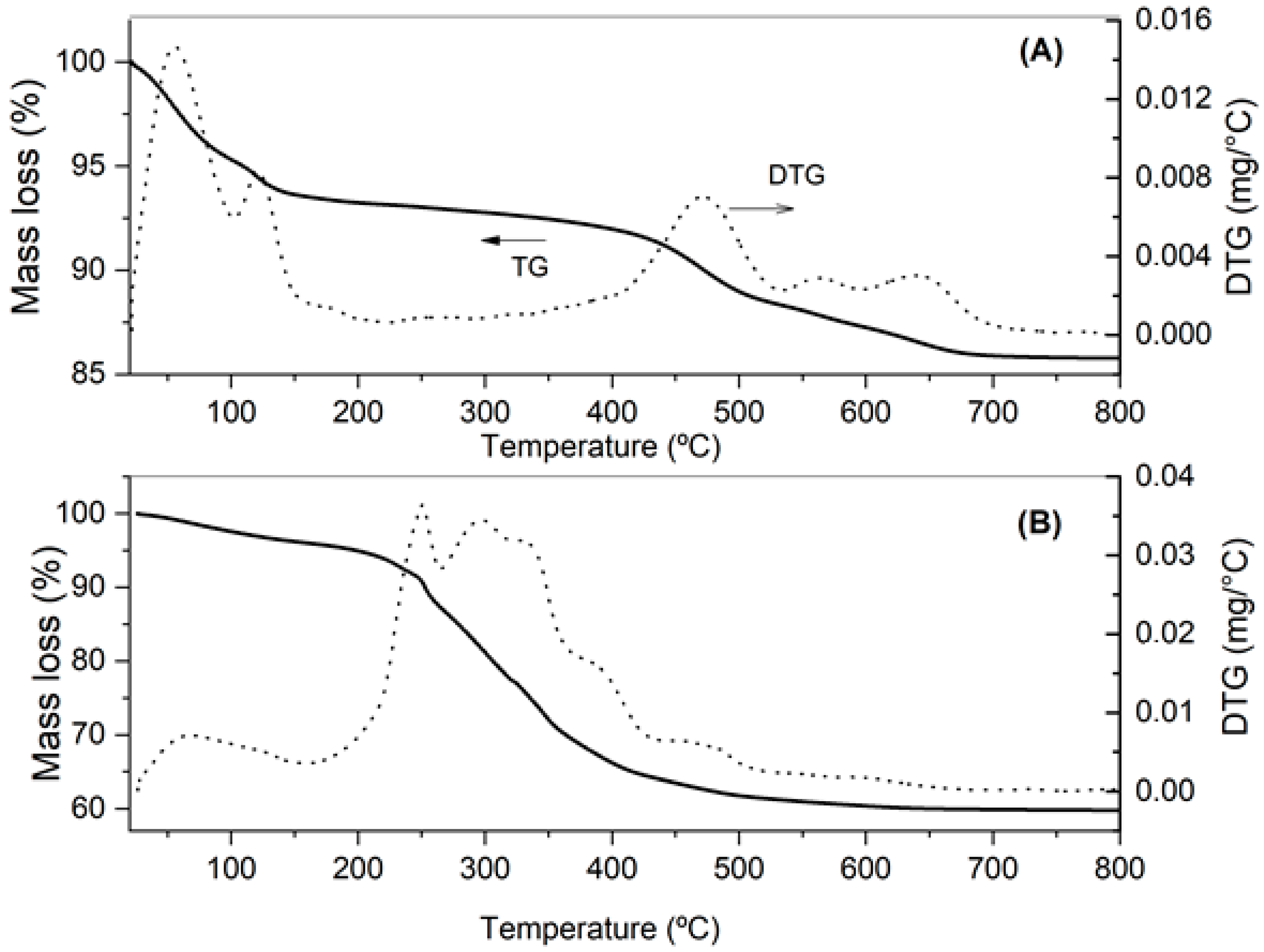

Figure 2. TG/DTG curves of clay before (A) and after (B) palm oil bleaching.
Figure 2. TG/DTG curves of clay before (A) and after (B) palm oil bleaching.
Energies 13 00804 g002
Energies 13 00804 g003 550

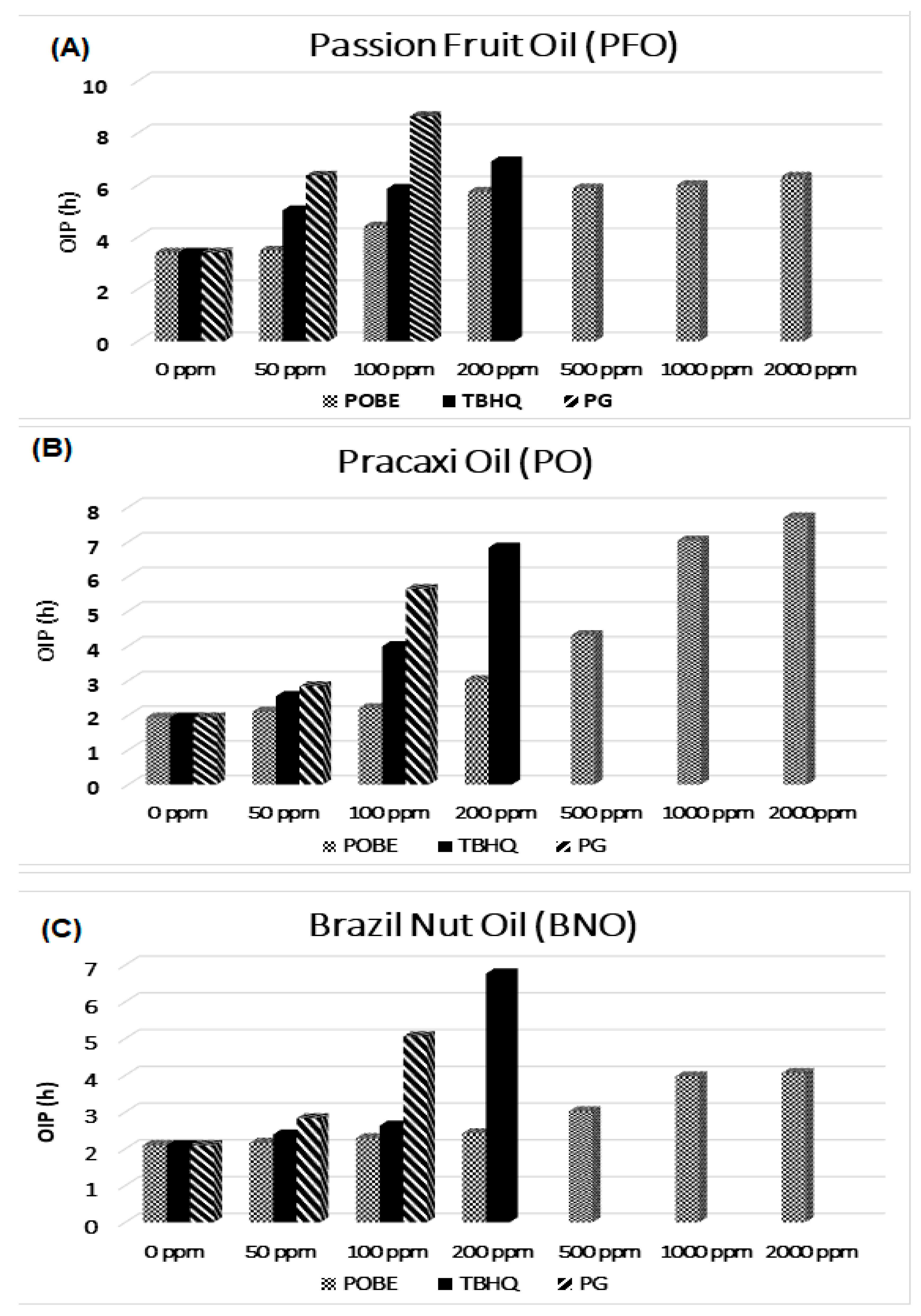

Figure 3. Rancimat induction period vs. antioxidant concentration measured at 110 °C. (A) Passion Fruit Oil (PFO); (B) Pracaxi Oil (PO); (C) Brazil Nut Oil (BNO).
Figure 3. Rancimat induction period vs. antioxidant concentration measured at 110 °C. (A) Passion Fruit Oil (PFO); (B) Pracaxi Oil (PO); (C) Brazil Nut Oil (BNO).
Energies 13 00804 g003
Table
Table 1. Fatty acid composition (%) of the palm oil bleaching extract (POBE) compared with those of vegetable oils.
Table 1. Fatty acid composition (%) of the palm oil bleaching extract (POBE) compared with those of vegetable oils.
Fatty AcidPassion Fruit OilPracaxi OilBrazil Nut OilCrude Palm OilRefined Palm OilPOBE
Myristic (C14:0)0.410.340.090.870.760.91
Palmitic (C16:0)10.913.0914.3740.4235.7539.82
Palmitoleic (C16:1)0.200.120.310.170.180.15
Stearic (C18:0)3.565.7711.414.644.264.25
Oleic (C18:1)18.4948.6139.2243.3848.0244.32
Linoleic (C18:2)64.3211.8133.868.859.859.13
Linolenic (C18:3)0.440.130.210.360.300.47
Arachidic (C20:0)0.323.010.490.540.540.29
Behenic (C22:0)0.6514.79----
Lignoceric (C24:0)0.3910.88----
Total saturated16.2437.8826.3646.4741.3145.27
Total unsaturated83.4560.6773.6052.7658.3554.07
Table
Table 2. Physicochemical characterization of reference vegetable oils.
Table 2. Physicochemical characterization of reference vegetable oils.
Property (Unit)Passion Fruit Oil (PFO)Pracaxi Oil (PO)Brazil Nut Oil (BNO)
Acidity index (mgKOH/g)2.03.97.0
Peroxide index (meqO2/kg)5.98.513.0
Saponification index (mgKOH/g)146.5131.0121.2
Iodine index (gI2/100g)134.465.497.4
Oxidative induction period (h)3.401.932.10
Table
Table 3. Bioactive compounds of the palm oil bleaching extract (POBE) compared with those of other vegetable oils.
Table 3. Bioactive compounds of the palm oil bleaching extract (POBE) compared with those of other vegetable oils.
Source of OilTotal Phenolic Compounds (mgGAE/g)Total Carotenoids (mg/g)Antioxidant Capacity (DPPH∙% Inhibition)
POBE386.1357.420.3
Crude palm840.8821.487.1
Refined palm54.9127.917.7
Passion fruit118.240.64.7
Pracaxi84.510.92.2
Brazil nut107.636.219.8
Table
Table 4. Influence of PG/POBE (ppm/ppm) blends on the oxidative induction period (h) of reference vegetable oils.
Table 4. Influence of PG/POBE (ppm/ppm) blends on the oxidative induction period (h) of reference vegetable oils.
PG/POBE
in Oil		Passion Fruit
Oil (PFO)		Pracaxi
Oil (PO)		Brazil Nut
Oil (BNO)
0/03.4 ± 0.41.9 ± 0.22.1 ± 0.6
50/06.4 ± 0.42.8 ± 0.82.8 ± 0.7
100/08.6 ± 1.15.6 ± 0.65.1 ± 1.0
50/5005.9 ± 0.64.7 ± 0.35.1 ± 0.2
50/10006.5 ± 1.05.1 ± 0.26.1 ± 0.2
50/20009.5 ± 0.47.3 ± 0.57.7 ± 0.6
100/5006.0 ± 0.59.8 ± 0.16.4 ± 0.3
100/100011.1 ± 1.012.2 ± 0.711.1±1.0
100/200011.4 ± 0.810.5 ± 0.49.5 ± 0.2
Table
Table 5. Influence of TBHQ/POBE (ppm/ppm) blends on the oxidative induction period (h) of reference vegetable oils.
Table 5. Influence of TBHQ/POBE (ppm/ppm) blends on the oxidative induction period (h) of reference vegetable oils.
TBHQ/POBE
in Oil		Passion Fruit
Oil (PFO)		Pracaxi
Oil (PO)		Brazil Nut
Oil (BNO)
0/03.4 ± 0.41.9 ± 0.22.1 ± 0.6
50/05.0 ± 0.82.6 ± 0.32.4 ± 1.0
100/05.9 ± 1.14.0 ± 0.72.6 ± 0.8
50/5005.0 ± 1.63.6 ± 0.43.3 ± 0.9
50/10005.7 ± 1.25.6 ± 0.24.6 ± 0.4
50/20009.3 ± 1.46.0 ± 0.33.9 ± 0.2
100/5005.7 ± 1.95.5 ± 0.44.4 ± 0.1
100/10008.3 ± 0.45.9 ± 0.16.4 ± 0.5
100/200010.9 ± 0.58.0 ± 0.19.4 ± 0.5

Share and Cite

MDPI and ACS Style

Cunha de Melo, K.; Silva de Oliveira, I.; Helena de Oliveira Pires, L.; Santos do Nascimento, L.A.; Roberto Zamian, J.; Narciso da Rocha Filho, G.; Fonseca Passos, M.; Santos Lopes, A.; Converti, A.; Costa, C.E.F.d. Study of the Antioxidant Power of the Waste Oil from Palm Oil Bleaching Clay. Energies 2020, 13, 804. https://doi.org/10.3390/en13040804

AMA Style

Cunha de Melo K, Silva de Oliveira I, Helena de Oliveira Pires L, Santos do Nascimento LA, Roberto Zamian J, Narciso da Rocha Filho G, Fonseca Passos M, Santos Lopes A, Converti A, Costa CEFd. Study of the Antioxidant Power of the Waste Oil from Palm Oil Bleaching Clay. Energies. 2020; 13(4):804. https://doi.org/10.3390/en13040804

Chicago/Turabian Style

Cunha de Melo, Katiane, Ingrid Silva de Oliveira, Luiza Helena de Oliveira Pires, Luís Adriano Santos do Nascimento, José Roberto Zamian, Geraldo Narciso da Rocha Filho, Marcele Fonseca Passos, Alessandra Santos Lopes, Attilio Converti, and Carlos Emmerson Ferreira da Costa. 2020. "Study of the Antioxidant Power of the Waste Oil from Palm Oil Bleaching Clay" Energies 13, no. 4: 804. https://doi.org/10.3390/en13040804

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
