Metal-Free Modified Boron Nitride for Enhanced CO2 Capture

School of Engineering, London South Bank University, 103 Borough Road, London SE1 0AA, UK
Sotacarbo S.p.A. Grande Miniera di Serbariu, 09013 Carbonia (CA), Italy
The Welding Institute, Granta Park, Great Abington, Cambridge CB21 6AL, UK
Author to whom correspondence should be addressed.
Energies 2020, 13(3), 549;
Received: 28 November 2019 / Revised: 16 January 2020 / Accepted: 21 January 2020 / Published: 23 January 2020
(This article belongs to the Special Issue Carbon Dioxide (CO2) Utilization)


Porous boron nitride is a new class of solid adsorbent with applications in CO2 capture. In order to further enhance the adsorption capacities of materials, new strategies such as porosity tuning, element doping and surface modification have been taken into account. In this work, metal-free modification of porous boron nitride (BN) has been prepared by a structure directing agent via simple heat treatment under N2 flow. We have demonstrated that textural properties of BN play a pivotal role in CO2 adsorption behavior. Therefore, addition of a triblock copolymer surfactant (P123) has been adopted to improve the pore ordering and textural properties of porous BN and its influence on the morphological and structural properties of pristine BN has been characterized. The obtained BN-P123 exhibits a high surface area of 476 m2/g, a large pore volume of 0.83 cm3/g with an abundance of micropores. More importantly, after modification with P123 copolymer, the capacity of pure CO2 on porous BN has improved by about 34.5% compared to pristine BN (2.69 mmol/g for BN-P123 vs. 2.00 mmol/g for pristine BN under ambient condition). The unique characteristics of boron nitride opens up new routes for designing porous BN, which could be employed for optimizing CO2 adsorption.

Graphical Abstract

1. Introduction

Over the last decades, climate change has become a global challenge for countries across the world [1]. Carbon capture and storage (CCS) is expected to play a substantial role in meeting the global warming targets set by the Inter-governmental Panel on Climate Change (IPCC) [2]. It is a promising option to maintain fossil fuels as a global central energy contributor and is expected to progress in lab scale, pilot scale, demonstration scale and commercial scale [3]. Chemical absorption technology, which has been used to remove CO2 from natural gas, is reached to the commercial phase of development and several pilot-scale projects have been conducted since decades ago [4,5]. To date, the capture technologies that have been demonstrated in pilot plant scale or higher are classified as (i) post-combustion, (ii) pre-combustion, and (iii) oxy-fuel combustion [6]. Among the current available technologies, CO2 capture from post-combustion emission gases is the most common technology in power plants and industries. Effective methods to separate, capture, store, and convert CO2 have attracted increasing attention [7]. The current technology for CO2 capture is based on absorption in aqueous organic amines [8]. However, the intensive energy consumption, equipment corrosion and toxicity, make exploration of new materials for CO2 capture highly demanding [9].
Solid adsorption is an alternative process to solvent-based chemisorption, which can be applied for a wide range of temperature and pressure conditions. Also, it can be designed for both post-combustion and pre-combustion applications. One of the challenges in this area relates to the manufacturing of new adsorbents that enables enhancing good diffusion kinetics and providing improved performance [10]. In this regards, porous materials with high porosity, chemical and thermal stability are promising solid adsorbents for capturing CO2 [11,12]. Among various kinds of porous materials, such as zeolites [13,14], porous polymers [15], metal-organic framework [16,17] and activated carbons [18], porous BN has become one of the new classes of CO2 adsorbents. Due to intrinsic properties of boron nitride such as high thermal and oxidation stability, large surface area, and polarity, porous boron nitride is a desired alternative for CO2 capture [19,20]. However, according to theoretical and experimental works, the interaction between pristine BN and CO2 is very weak due to electron deficient nature of boron atoms and the Lewis acidic nature of CO2 [21,22,23]. To overcome such disadvantages, some strategies in view of tuning the structure, pore size and charge state of the BN have been studied. Nag et al. [24] made a few-layered BN by controlled chemical synthesis. Similarly, the effects of different proportions of urea on the number of BN layers indicate that the sample with the lowest layer thickness shows a high CO2 uptake. Xiao et al. [25] reported a few layered porous boron nitride nanosheets (BNNs) by using magnesium diboride (MgB2) as a dynamic template. However, the CO2 uptake of their work was relatively low (0.45 mmol/g), while it demonstrated excellent selectivity of CO2 over N2. Yang et al. [26] developed a three dimensional (3D) functionalized porous BN with flower-like morphology and high specific surface area ≈114 m2/g, and it shows 1.69 mmol/g CO2 capture capacity at 1 bar and 273 K. It is also interesting to note that in most studies, element doping, and surface functionalization of boron nitride is critical to increase the CO2 adsorption capacity. For instance, Chen et al. [27] produced ultrahigh microporous volume of boron carbon nitride (BCN) by doping carbon into hexagonal structure of BN. The performance of BCN material displays increased relative to pure BN for CO2 uptake and reached up to 3.91 mmol/g at 298 K and ambient pressure. In addition, Huang et al. [28] enriched the interaction between electron-deficient boron atoms in BN and CO2 molecules by aminopolymer-functionalized BN nanosheets. Therefore, porous structure and surface chemistry features of BN-based materials play crucial roles in CO2 adsorption performance and it remains a challenge to control the parameters of boron nitride porosity and develop novel structures with high capacitive performance for carbon capture.
In this work, with the aim of achieving high CO2 adsorption capacity of porous BN through tuning the porosity, BN structure has been modified in the presence of P123 as a structure directing agent. The synthesized BN-P123 possesses high specific surface area and pore volume compared to pristine BN, which results in an enhanced CO2 adsorption capacity.

2. Materials and Methods

Metal-free modified BN was synthesized on a two-step method of solvent evaporation and high thermal decomposition [29]. Boric acid (ACS reagent, Sigma-Aldrich), urea (for synthesis, Sigma-Aldrich) and Pluronic P123 triblock copolymers (Mn ≈ 5800, Sigma-Aldrich) based on poly (ethylene glycol)-poly (propylene glycol)-poly (ethylene glycol) were used as raw materials. In detail, boric acid and urea with molar ratio 1:30 were added into 50 mL deionized water. Then 0.5 g P123 was introduced into the mixture solution and heated up at 338 K under vigorous stirring. A white precipitate was obtained after complete evaporation of water at that temperature. Afterwards, the precursor was dried into the oven for 24 h and annealed at 1173 K under N2 gas (the flow rate was 150 mL/min) for 3 h. Finally, modified porous BN was collected and marked as BN-P123. For comparison, pristine BN was also prepared following the same procedure without adding any surfactant.
The morphology of samples was collected scanning electron microscope (SEM, PEMTRON PS-230) in secondary electron mode (SE detector) at 10 kV. The microscope was equipped with an energy-dispersive X-ray (EDX, OXFORD X-act) with energy resolution at 5.9 keV for the local elemental analysis. The samples were ground, deposited on carbon tape, and coated (BIO-RAD sputter coater) with gold to reduce charging in the microscope.
X-ray diffraction (XRD) was performed to evaluate the structural properties using an X-ray diffractometer (Bruker D8 Advance) in reflection mode. The diffraction patterns run at an anode voltage of 40 kV and an emission current of 40 mA using monochromatic Cu Kα radiation (λ = 1.5418 Å). The intermolecular bonding and chemical properties of the materials were characterized by Fourier-transform infrared (FTIR) spectroscopy. The spectra were recorded on a Nicolet Avatar 370 spectrometer from 4000 to 400 cm−1 using KBr pellets at room temperature. Optical absorption measurement (SHIMADZU UV-1800) was performed. Prior to the measurement, the powder materials were dispersed in water (50 mg of samples in 25 mL water at room temperature). The thermal stability of samples was performed using thermal gravimetric analysis (TGA), Ultra micro balance, Mettler Toledo. An alumina pan was loaded with 5–10 mg of sample material and heated from room temperature to 1273 K at a rate of 10 K/min in air atmosphere.
Nitrogen isotherms were obtained using a porosity analyzer (Micromeritics ASAP2060) at 77 K. The surface areas of the samples were calculated using the Brunauer-Emmett-Teller (BET) method. The total volume of pores was calculated using the software from the BJH adsorption calculation. The CO2 adsorption and desorption performance were evaluated with a TGA/DSC 3+ micro balance, Mettler Toledo. The CO2 capture capacity of the sorbents were determined by measuring the mass uptake of the sample during the CO2 adsorption.

3. Results and Discussion

3.1. Sample Characterisation

The morphology of samples was studied using scanning electron microscopy (SEM). The pristine BN exhibited an ultrathin flake-like morphology, as displayed in (Figure 1a,b). BN-P123 presented a cloud-like sheet structure with interconnected network of porous structure (Figure 1c,d). Moreover, the formation of pristine BN and BN-P123 were studied by EDX and elemental mapping (Figure 2a,b). It is obvious that the product is mainly comprised of boron (B), nitrogen (N) and oxygen (O). As shown in Figure 2b, BN-P123 has very little increase in oxygen content compared to pristine BN. This is due to the introduction of P123 into BN formation.
The structure of samples was analysed and Figure 3a depicts the XRD patterns of the prepared samples. The results show two characteristic peaks around ≈25° and ≈42° which are attributed to the (002) and (100) crystal planes of hexagonal boron nitride, respectively [30]. Additionally, the peaks of both samples confirmed the poor crystallization with the presence of turbostratic material. Compared with pristine BN, the (002) diffraction peaks of BN-P123 shifted to a lower angle, which promote more disordered hexagonal boron nitride (h-BN) structure. More details of the chemical features were supported by Fourier transform infrared (FT-IR) spectroscopy and the results are shown in Figure 3b. All peaks exhibited two main characteristic bands of boron nitride at ≈1365 and 800 cm−1 corresponding to in-plane B-N transverse optical mode and out-of-plane B-N-B bending mode, respectively [31]. No major chemical differences could be observed between the samples. Thermal stability of samples was performed in air atmosphere (rate = 10 K/min) and shown in Figure 3c. The TG thermograms reflected the weight loss of 19% for both samples, representing the removal of moisture adsorbed on the material surface. After 573 K the lines show the thermal stability nature of BN at high temperature and there was no significant weight loss up to 1273 K. The UV-vis absorption collected in Figure 3d indicates a highly transparent from visible to UV wavelength [32]. The maximum absorption peak around 209 nm, is attributed to intrinsic excitation absorption band of h-BN. Besides, small humps around 265 and 352 nm were detected in BN-P123, corresponding to impurities. So far, above all characteristic results on both samples, it was found that the structure and chemical nature of BN has not changed after modifying BN with the surfactant compound and both samples revealed almost similar features. We assumed that the utilisation of block copolymer (P123) might affect the textural properties of pristine BN.

3.2. Textural Analysis

The textural properties of pristine BN and BN-P123 adsorbent were obtained by nitrogen adsorption/desorption isotherm at 77 K and the results are summarized in Table 1. As indicated in Figure 4a, the resulting isotherms display a typical type II curve based on IUPAC classification and type H3 hystersis loop in the partial pressure range 0.4–1.0, which indicates the presence of mesopores and slit shape pores [33]. There is a trivial rise in N2 adsorption-desorption isotherm of BN-P123 at lower pressure (P/P0 < 0.25), which is caused by presence of micropores [34]. The non-local density functional theory (NLDFT) was used to calculate pore size distributions. As expected, the dV/dW pore volume of BN-P123 increases dramatically with abundance of micropores (Figure 4b). Meanwhile, using the Brunauer-Emmett-Teller (BET) method [35], the specific surface areas are calculated showing that the BET surface area of BN-P123 is much higher than pristine BN (Table 1). It is clear from the above measurements that the P123 introduced into precursors during the fabrication process is highly effective on the microscale structure of porous BN and improves surface area and pore volume of the sample.

3.3. Gas Adsorption Analysis

Due to the relatively large porosity of samples, the modified sample BN-P123 and pristine BN were assessed for CO2 capture under ambient conditions. The adsorption capacities of pure CO2 on pristine BN and BN-P123 were determined by thermogravimetric analysis. Prior to the sorption test, samples were dried at 393 K with a heating rate of 10 K/min from 298 K under flowing N2 (150 mL/min) for 6 h and then allowed to cool to the temperature at which the sorption is carried out at 298 K with a heating rate of 10 K/min. When the sorption temperature was reached, samples were stabilized under flowing N2 (99.99%, 150 mL/min) for 15 min and then N2 flow was switched to pure CO2 (99.99%, 50 mL/min) flow for 6 h. The mass uptake during this stage was interpreted as the CO2 capture capacity. Figure 5 and Figure 6a–c illustrate the setup of experiments and the TG profiles of CO2 uptake along with weight change results respectively.
The experiments reveal that pristine BN shows a CO2 capacity of 2 mmol/g at 298 K, which enhanced with the addition of P123 copolymer (2.69 mmol/g for BN-P123 at 298 K) (Table 1). The augmented CO2 adsorption on BN-P123 sample is undoubtedly as a result of the porous morphology of modified BN, whereas pristine BN exhibits lower porosity. It is well-known that higher microporosity provides more active sites and storage space to boost the adsorption performances [36,37,38]. To the best of our knowledge, the result of the synthetic method is higher than other modification methods such as (3D) BCNO structure (1.8 mmol/g) at 298 K as reported by Lopez-Salas et al. [39] and closer to porous BCN (2.49 mmol/g) at 298 K and porous BN fiber (2.85 mmol/g) at 273 K [40,41]. However, the use of melamine in porous BCN as well as BN fiber leads to the presence of carbon content and consequently decreases the stability upon exposure to ambient air. The effect of high-temperature treatment in different gases was studied in [42], where porous BN fibers treated in NH3 gas at 1673–1773 K enhanced CO2 adsorption capacity (from 0.45 mmol/g to 1.6 mmol/g). Nonetheless, this outcome is not a satisfactory result. One possible insight of this finding is that pyrolysis temperature and carrier gas does not lead to a remarkable change in CO2 uptake. In addition, directing triblock co-polymer was also used to design a hierarchical carbon sorbent [43]. This hierarchical structure is desirable for CO2 capture as it shows superior capacity (4.5 mmol/g) under ambient conditions. It is noteworthy that at lower pressures (≤1 bar), the density of pore volume, especially the micropores volume plays a critical role in capturing CO2 [44]. Therefore, high surface area and porosity of BN-P123 has brought about a positive adsorption interaction.
It is to be noted that for the pristine BN (without adding surfactant) the CO2 adsorption capacity on our sample exceeds those materials reported by Marchesini et al. [45,46]. Although they accomplished highly porous boron nitride with a high surface area (>1900 m2/g), the CO2 adsorption capacity of their sample was up to 1.6 mmol/g under ambient condition. Given the results of our approach, one can conclude that though the specific surface area (SSA) is one of the main factors to increase the CO2 capacity, obtaining a high SSA e.g., (>1000 m2/g) does not lend itself to an increased CO2 capacity.

4. Conclusions

In summary, the porosity of boron nitride has been successfully tuned by introducing the triblock copolymer surfactant (P123) during the preparation process of BN precursors. In particular, we found that by utilizing the P123 into boron and nitrogen precursors leads to improved CO2 adsorption capacity up to 2.69 mmol/g, as compared with pristine porous BN which was found 2.00 mmol/g. Furthermore, based on the structural properties and morphology results obtained in this work, we determine that both samples share almost similar chemical features. However, the porosity of samples revealed a remarkable change and for the sample BN-P123 (0.83 cm3/g), it was virtually quadrupled as a result of the modification. This significant change is attributed to the formation of more gases during the decomposition process, thereby creating higher porosity levels. A natural progression of this work is to describe how textural property parameters of BN lead to higher interaction between BN and CO2 molecules. Our work could be extended by exploring other parameters (e.g., electronic features or surface chemistry of BN), which could influence on BN to capture more CO2. All in all, our analyses demonstrate the applicability of metal-free modification of BN for enhanced capacity of pure CO2.

Author Contributions

Main author and synthesized the materials in the laboratory, F.H.; Prepared the original draft, F.H. and M.M.; Performed CO2 adsorption tests, M.M. and F.D.; 2nd Supervisor and conducted some experiments in her laboratory in TWI, F.H., G.D.; 1st Supervisor, reviewed manuscript, gave comments, edited contents and supervised the PhD student at LSBU, B.S.; All authors have read and agreed to the published version of the manuscript.


F.H. was partially funded by the School of Engineering, London South Bank University. The Sotacarbo contribution in this work has been carried out within the “Centre of Excellence on Clean Energy” project (CUP: D83C17000370002), funded by the Regional Government of Sardinia (FSC 2014-2020).


The authors would like to acknowledge Angelo La Rosa from TWI for running BET adsorption isotherm experiments in the laboratory.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Oschatz, M.; Antonietti, M. A search for selectivity to enable CO2 capture with porous adsorbents. Energy Environ. Sci. 2018, 11, 57–70. [Google Scholar] [CrossRef][Green Version]
  2. Strielkowski, W.; Lisin, E.; Gryshova, I. Climate policy of the European Union: What to expect from the Paris agreement. Rom. J. Eur. Aff. 2016, 16, 68. [Google Scholar]
  3. Bui, M.; Adjiman, C.S.; Bardow, A.; Anthony, E.J.; Boston, A.; Brown, S.; Fennell, P.S.; Fuss, S.; Galindo, A.; Hackett, L.A. Carbon capture and storage (CCS): The way forward. Energy Environ. Sci. 2018, 11, 1062–1176. [Google Scholar] [CrossRef][Green Version]
  4. Akinpelumi, K.; Saha, C.; Rochelle, G.T. Piperazine aerosol mitigation for post-combustion carbon capture. Int. J. Greenh. Gas Control 2019, 91, 102845. [Google Scholar] [CrossRef]
  5. Mantripragada, H.C.; Zhai, H.; Rubin, E.S. Boundary dam or Petra nova—Which is a better model for CCS energy supply? Int. J. Greenh. Gas Control 2019, 82, 59–68. [Google Scholar] [CrossRef]
  6. Lee, S.-Y.; Park, S.-J. A review on solid adsorbents for carbon dioxide capture. J. Ind. Eng. Chem. 2015, 23, 1–11. [Google Scholar] [CrossRef]
  7. Yang, H.; Xu, Z.; Fan, M.; Gupta, R.; Slimane, R.B.; Bland, A.E.; Wright, I. Progress in carbon dioxide separation and capture: A review. J. Environ. Sci. 2008, 20, 14–27. [Google Scholar] [CrossRef]
  8. Li, B.; Duan, Y.; Luebke, D.; Morreale, B. Advances in CO2 capture technology: A patent review. Appl. Energy 2013, 102, 1439–1447. [Google Scholar] [CrossRef]
  9. Férey, G.; Serre, C.; Devic, T.; Maurin, G.; Jobic, H.; Llewellyn, P.L.; De Weireld, G.; Vimont, A.; Daturi, M.; Chang, J.-S. Why hybrid porous solids capture greenhouse gases? Chem. Soc. Rev. 2011, 40, 550–562. [Google Scholar] [CrossRef] [PubMed]
  10. Wang, J.; Huang, L.; Yang, R.; Zhang, Z.; Wu, J.; Gao, Y.; Wang, Q.; O’Hare, D.; Zhong, Z. Recent advances in solid sorbents for CO2 capture and new development trends. Energy Environ. Sci. 2014, 7, 3478–3518. [Google Scholar] [CrossRef]
  11. Gargiulo, N.; Pepe, F.; Caputo, D. CO2 adsorption by functionalized nanoporous materials: A review. J. Nanosci. Nanotechnol. 2014, 14, 1811–1822. [Google Scholar] [CrossRef]
  12. Pardakhti, M.; Jafari, T.; Tobin, Z.; Dutta, B.; Moharreri, E.; Saveh Shemshaki, N.; Suib, S.L.; Srivastava, R. Trends in solid adsorbent materials development for CO2 capture. ACS Appl. Mater. Interfaces 2019, 11, 34533–34559. [Google Scholar] [CrossRef]
  13. Yang, S.; Zhan, L.; Xu, X.; Wang, Y.; Ling, L.; Feng, X. Graphene-based porous silica sheets impregnated with polyethyleneimine for superior CO2 capture. Adv. Mater. 2013, 25, 2130–2134. [Google Scholar] [CrossRef] [PubMed]
  14. Mendes, P.A.P.; Ribeiro, A.M.; Gleichmann, K.; Ferreira, A.F.P.; Rodrigues, A.E. Separation of CO2/N2 on binderless 5A zeolite. J. CO2 Util. 2017, 20, 224–233. [Google Scholar] [CrossRef]
  15. Irani, M.; Jacobson, A.T.; Gasem, K.A.M.; Fan, M. Facilely synthesized porous polymer as support of poly(ethyleneimine) for effective CO2 capture. Energy 2018, 157, 1–9. [Google Scholar] [CrossRef]
  16. Zhang, J. Design and Synthesis of Metal Organic Frameworks for CO2 Separation and Catalysis. Ph.D. Thesis, Rutgers University, Newark, NJ, USA, 2013. [Google Scholar]
  17. Cota, I.; Martinez, F.F. Recent advances in the synthesis and applications of metal organic frameworks doped with ionic liquids for CO2 adsorption. Coord. Chem. Rev. 2017, 351, 189–204. [Google Scholar] [CrossRef]
  18. Ello, A.S.; de Souza, L.K.C.; Trokourey, A.; Jaroniec, M. Coconut shell-based microporous carbons for CO2 capture. Microporous Mesoporous Mater. 2013, 180, 280–283. [Google Scholar] [CrossRef]
  19. Weng, Q.; Wang, X.; Wang, X.; Bando, Y.; Golberg, D. Functionalized hexagonal boron nitride nanomaterials: Emerging properties and applications. Chem. Soc. Rev. 2016, 45, 3989–4012. [Google Scholar] [CrossRef][Green Version]
  20. Shtansky, D.V.; Firestein, K.L.; Golberg, D. V Fabrication and application of BN nanoparticles, nanosheets and their nanohybrids. Nanoscale 2018, 10, 17477–17493. [Google Scholar] [CrossRef][Green Version]
  21. Sun, Q.; Li, Z.; Searles, D.J.; Chen, Y.; Lu, G.; Du, A. Charge-controlled switchable CO2 capture on boron nitride nanomaterials. J. Am. Chem. Soc. 2013, 135, 8246–8253. [Google Scholar] [CrossRef]
  22. Choi, H.; Park, Y.C.; Kim, Y.-H.; Lee, Y.S. Ambient carbon dioxide capture by boron-rich boron nitride nanotube. J. Am. Chem. Soc. 2011, 133, 2084–2087. [Google Scholar] [CrossRef] [PubMed]
  23. Owuor, P.S.; Park, O.-K.; Woellner, C.F.; Jalilov, A.S.; Susarla, S.; Joyner, J.; Ozden, S.; Duy, L.; Villegas Salvatierra, R.; Vajtai, R. Lightweight hexagonal boron nitride foam for CO2 absorption. ACS Nano 2017, 11, 8944–8952. [Google Scholar] [CrossRef] [PubMed]
  24. Nag, A.; Raidongia, K.; Hembram, K.P.S.S.; Datta, R.; Waghmare, U.V.; Rao, C.N.R. Graphene analogues of BN: Novel synthesis and properties. ACS Nano 2010, 4, 1539–1544. [Google Scholar] [CrossRef] [PubMed]
  25. Xiao, F.; Chen, Z.; Casillas, G.; Richardson, C.; Li, H.; Huang, Z. Controllable synthesis of few-layered and hierarchically porous boron nitride nanosheets. Chem. Commun. 2016, 52, 3911–3914. [Google Scholar] [CrossRef][Green Version]
  26. Chen, Y.; Wang, J.; Chen, Y.; Liu, D.; Huang, S.; Lei, W. One-step template-free synthesis of 3D functionalized flower-like boron nitride nanosheets for NH3 and CO2 adsorption. Nanoscale 2018, 10, 10979–10985. [Google Scholar]
  27. Chen, S.; Li, P.; Xu, S.; Pan, X.; Fu, Q.; Bao, X. Carbon doping of hexagonal boron nitride porous materials toward CO2 capture. J. Mater. Chem. A 2018, 6, 1832–1839. [Google Scholar] [CrossRef]
  28. Huang, K.; Liang, L.; Chai, S.; Tumuluri, U.; Li, M.; Wu, Z.; Sumpter, B.G.; Dai, S. Aminopolymer functionalization of boron nitride nanosheets for highly efficient capture of carbon dioxide. J. Mater. Chem. A 2017, 5, 16241–16248. [Google Scholar] [CrossRef]
  29. Xiong, J.; Yang, L.; Chao, Y.; Pang, J.; Zhang, M.; Zhu, W.; Li, H. Boron nitride mesoporous nanowires with doped oxygen atoms for the remarkable adsorption desulfurization performance from fuels. ACS Sustain. Chem. Eng. 2016, 4, 4457–4464. [Google Scholar] [CrossRef]
  30. Kurakevych, O.O.; Solozhenko, V.L. Rhombohedral boron subnitride, B13N2, by X-ray powder diffraction. Acta Crystallogr. Sect. C Cryst. Struct. Commun. 2007, 63, i80–i82. [Google Scholar] [CrossRef]
  31. Liu, F.; Yu, J.; Ji, X.; Qian, M. Nanosheet-structured boron nitride spheres with a versatile adsorption capacity for water cleaning. ACS Appl. Mater. Interfaces 2015, 7, 1824–1832. [Google Scholar] [CrossRef]
  32. Ba, K.; Jiang, W.; Cheng, J.; Bao, J.; Xuan, N.; Sun, Y.; Liu, B.; Xie, A.; Wu, S.; Sun, Z. Chemical and bandgap engineering in monolayer hexagonal boron nitride. Sci. Rep. 2017, 7, 45584. [Google Scholar] [CrossRef] [PubMed]
  33. Pang, J.; Chao, Y.; Chang, H.; Li, H.; Xiong, J.; Zhang, Q.; Chen, G.; Qian, J.; Zhu, W.; Li, H. Silver nanoparticle-decorated boron nitride with tunable electronic properties for enhancement of adsorption performance. ACS Sustain. Chem. Eng. 2018, 6, 4948–4957. [Google Scholar] [CrossRef]
  34. Bi, W.; Hu, Y.; Li, W.; Jiang, H.; Li, C. Construction of nanoreactors combining two-dimensional hexagonal boron nitride (h-BN) coating with Pt/Al2O3 catalyst toward efficient catalysis for CO oxidation. Ind. Eng. Chem. Res. 2018, 57, 13353–13361. [Google Scholar] [CrossRef]
  35. Brunauer, S.; Emmett, P.H.; Teller, E. Adsorption of gases in multimolecular layers. J. Am. Chem. Soc. 1938, 60, 309–319. [Google Scholar] [CrossRef]
  36. Li, J.; Xiao, X.; Xu, X.; Lin, J.; Huang, Y.; Xue, Y.; Jin, P.; Zou, J.; Tang, C. Activated boron nitride as an effective adsorbent for metal ions and organic pollutants. Sci. Rep. 2013, 3, 3208. [Google Scholar] [CrossRef]
  37. Xiong, J.; Li, H.; Yang, L.; Luo, J.; Chao, Y.; Pang, J.; Zhu, W. Metal-free boron nitride adsorbent for ultra-deep desulfurization. AIChE J. 2017, 63, 3463–3469. [Google Scholar] [CrossRef]
  38. Liu, F.; Li, S.; Yu, D.; Su, Y.; Shao, N.; Zhang, Z. Template-free synthesis of oxygen-doped bundlelike porous boron nitride for highly efficient removal of heavy metals from wastewater. ACS Sustain. Chem. Eng. 2018, 6, 16011–16020. [Google Scholar] [CrossRef]
  39. López-Salas, N.; Ferrer, M.L.; Gutiérrez, M.C.; Fierro, J.L.G.; Cuadrado-Collados, C.; Gandara-Loe, J.; Silvestre-Albero, J.; del Monte, F. Hydrogen-bond supramolecular hydrogels as efficient precursors in the preparation of freestanding 3D carbonaceous architectures containing BCNO nanocrystals and exhibiting a high CO2/CH4 adsorption ratio. Carbon N. Y. 2018, 134, 470–479. [Google Scholar] [CrossRef][Green Version]
  40. Florent, M.; Bandosz, T.J. Irreversible water mediated transformation of BCN from a 3D highly porous form to its nonporous hydrolyzed counterpart. J. Mater. Chem. A 2018, 6, 3510–3521. [Google Scholar] [CrossRef]
  41. Wang, D.; Xue, Y.; Wang, C.; Ji, J.; Zhou, Z.; Tang, C. Improved capture of carbon dioxide and methane via adding micropores within porous boron nitride fibers. J. Mater. Sci. 2019, 54, 10168–10178. [Google Scholar] [CrossRef]
  42. Liang, J.; Song, Q.; Lin, J.; Huang, Y.; Fang, Y.; Yu, C.; Xue, Y.; Liu, Z.; Tang, C. Pore structure regulation and carbon dioxide adsorption capacity improvement on porous BN fibers: Effects of high-temperature treatments in gaseous ambient. Chem. Eng. J. 2019, 373, 616–623. [Google Scholar] [CrossRef]
  43. To, J.W.F.; He, J.; Mei, J.; Haghpanah, R.; Chen, Z.; Kurosawa, T.; Chen, S.; Bae, W.-G.; Pan, L.; Tok, J.B.-H. Hierarchical N-doped carbon as CO2 adsorbent with high CO2 selectivity from rationally designed polypyrrole precursor. J. Am. Chem. Soc. 2016, 138, 1001–1009. [Google Scholar] [CrossRef] [PubMed]
  44. Li, Y.; Ben, T.; Zhang, B.; Fu, Y.; Qiu, S. Ultrahigh gas storage both at low and high pressures in KOH-activated carbonized porous aromatic frameworks. Sci. Rep. 2013, 3, 2420. [Google Scholar] [CrossRef] [PubMed][Green Version]
  45. Marchesini, S.; Regoutz, A.; Payne, D.; Petit, C. Tunable porous boron nitride: Investigating its formation and its application for gas adsorption. Microporous Mesoporous Mater. 2017, 243, 154–163. [Google Scholar] [CrossRef][Green Version]
  46. Marchesini, S.; McGilvery, C.M.; Bailey, J.; Petit, C. Template-free synthesis of highly porous boron nitride: Insights into pore network design and impact on gas sorption. ACS Nano 2017, 11, 10003–10011. [Google Scholar] [CrossRef] [PubMed]
Figure 1. SEM images of (a,b) pristine BN; (c,d) BN-P123.The insert shows the interconnected porous structure.
Figure 1. SEM images of (a,b) pristine BN; (c,d) BN-P123.The insert shows the interconnected porous structure.
Energies 13 00549 g001aEnergies 13 00549 g001b

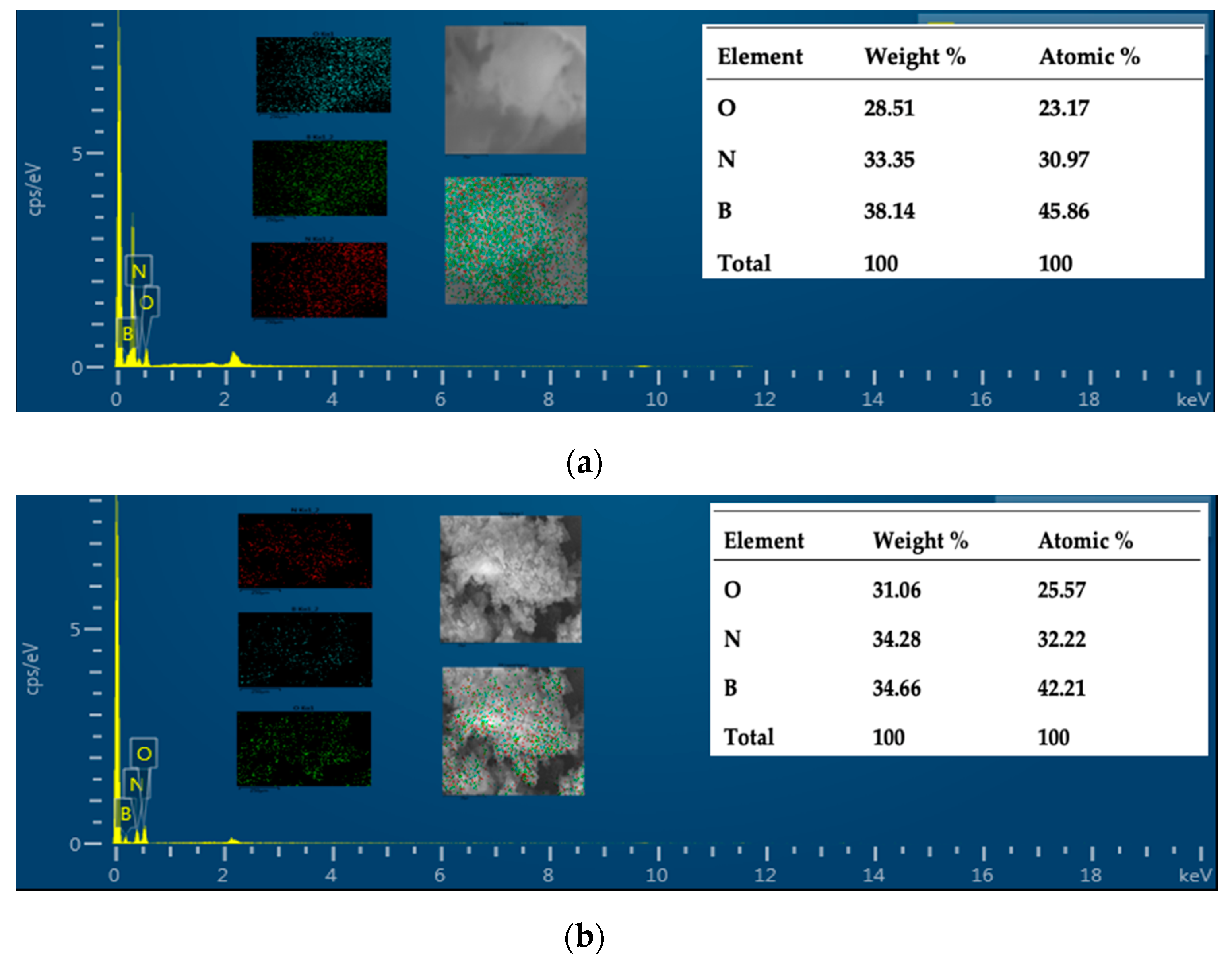

Figure 2. EDX spectra of (a) pristine BN; (b) BN-P123 and the insert show the elemental mapping and corresponding atomic % of elements.
Figure 2. EDX spectra of (a) pristine BN; (b) BN-P123 and the insert show the elemental mapping and corresponding atomic % of elements.
Energies 13 00549 g002

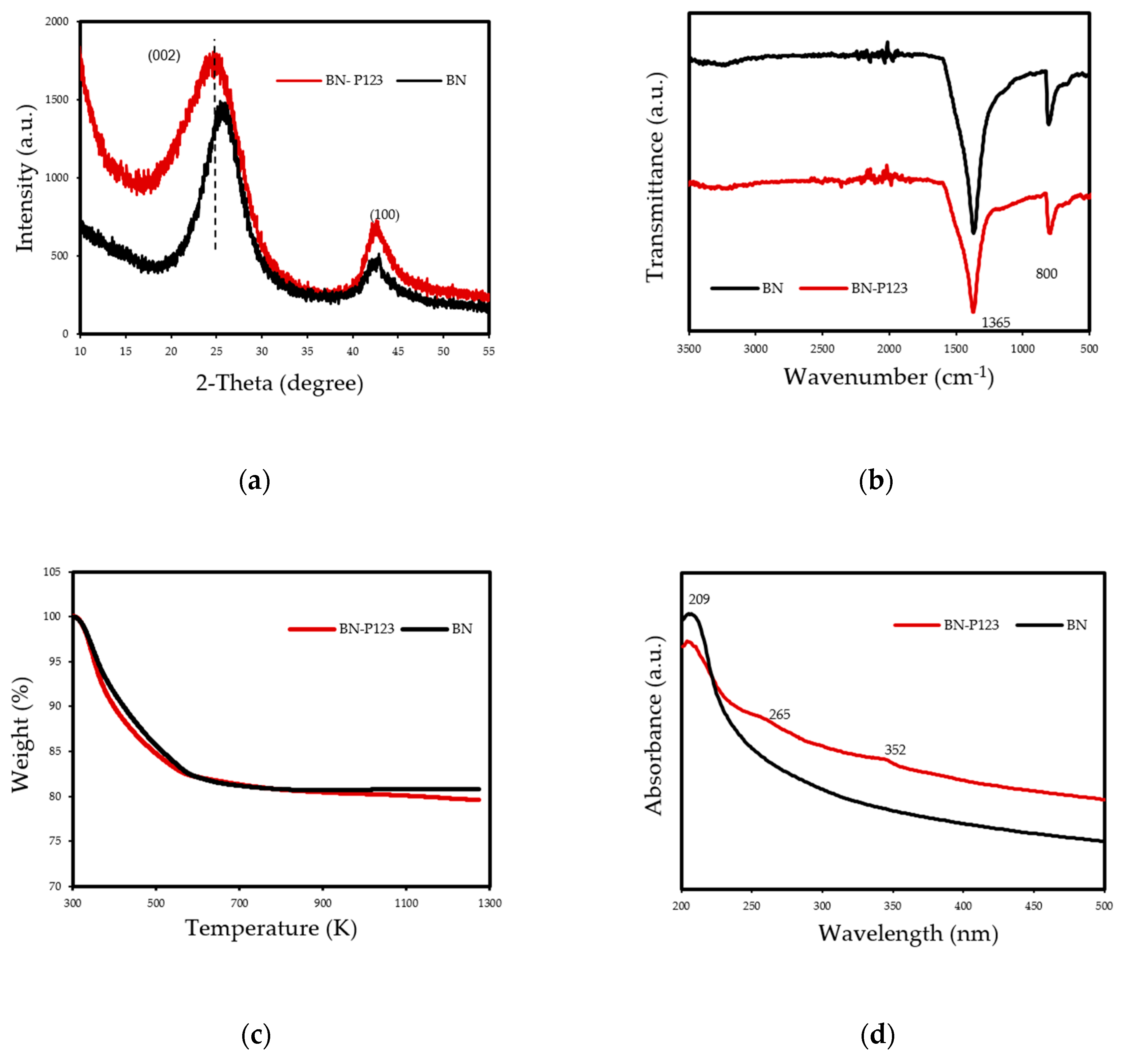

Figure 3. (a) XRD patterns; (b) FT-IR; (c) TG curves and (d) UV-Vis of prepared samples.
Figure 3. (a) XRD patterns; (b) FT-IR; (c) TG curves and (d) UV-Vis of prepared samples.
Energies 13 00549 g003
Figure 4. (a) Nitrogen adsorption-desorption isotherm of the pristine BN and BN-P123; (b) NLDFT pore size distribution curves of the same samples.
Figure 4. (a) Nitrogen adsorption-desorption isotherm of the pristine BN and BN-P123; (b) NLDFT pore size distribution curves of the same samples.
Energies 13 00549 g004
Figure 5. Illustration of CO2 adsorption experiment.
Figure 5. Illustration of CO2 adsorption experiment.
Energies 13 00549 g005

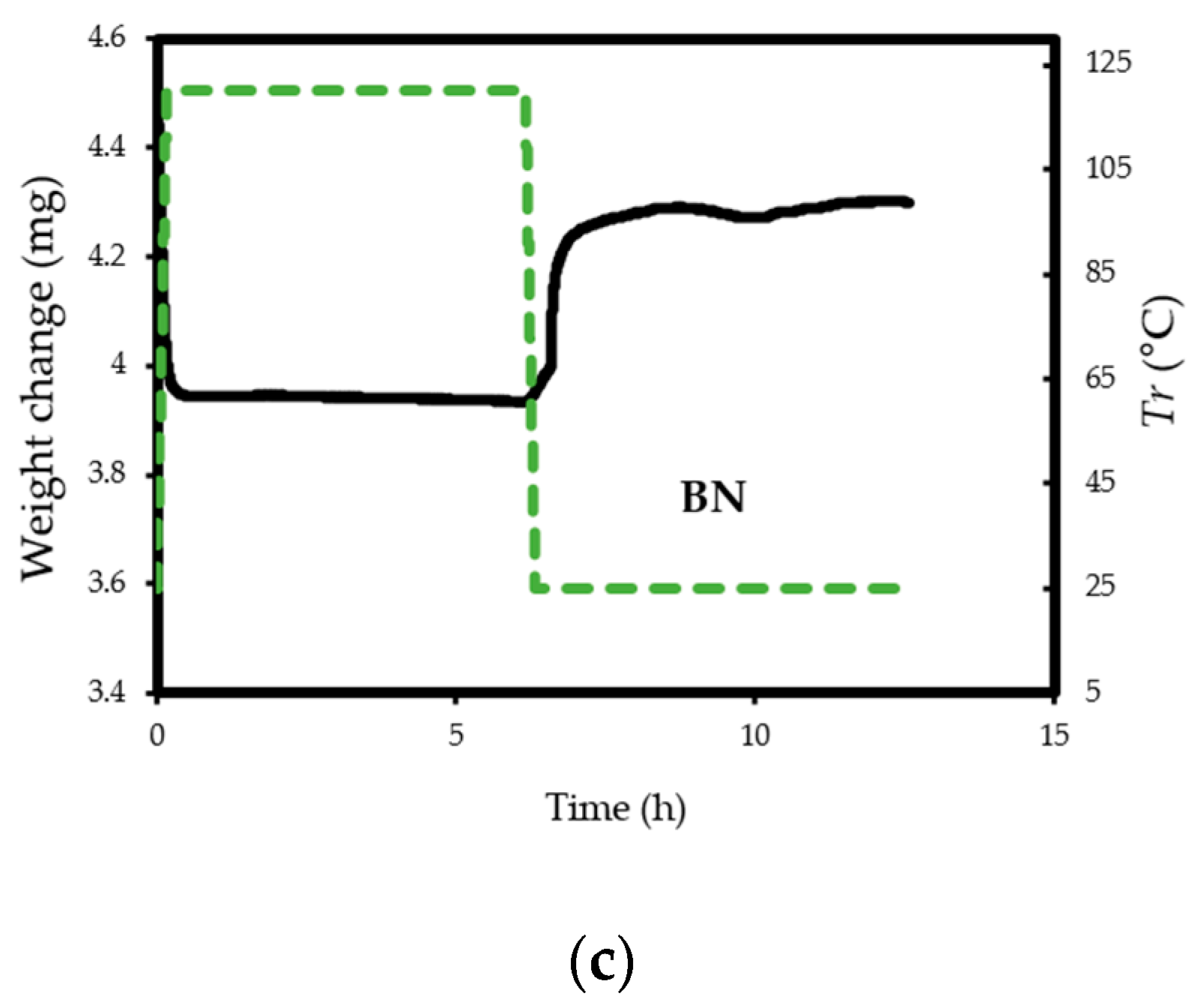

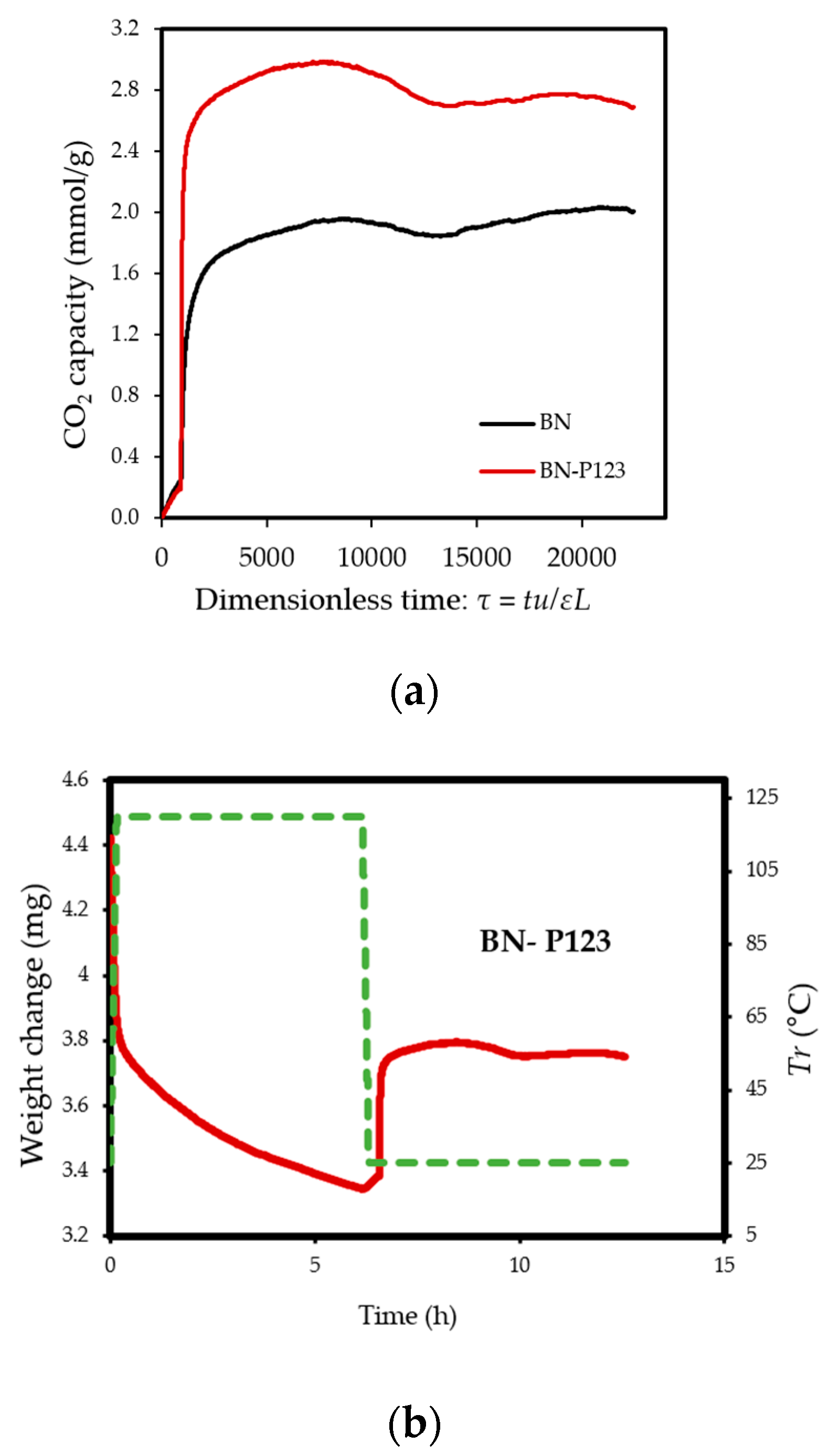

Figure 6. (a) TG profiles of CO2 adsorption on pristine BN and BN-P123; (b,c) TG profiles of weight change on the same samples.
Figure 6. (a) TG profiles of CO2 adsorption on pristine BN and BN-P123; (b,c) TG profiles of weight change on the same samples.
Energies 13 00549 g006aEnergies 13 00549 g006b
Table 1. Textural properties and CO2 capacity (298 K) of prepared materials.
Table 1. Textural properties and CO2 capacity (298 K) of prepared materials.
SampleSBET1 (m2/g)Vtotal2 (cm3/g)CO2 Uptake (mmol/g)
Pristine BN1020.462.00
1 Specific surface area (m2/g) obtained by Brunauer-Emmett-Teller (BET) method. 2 Total pore volume (cm3/g) calculated at P/P0 = 0.99.
