Numerical Analysis of the Deformation Performance of Monopile under Wave and Current Load
Abstract
:1. Introduction

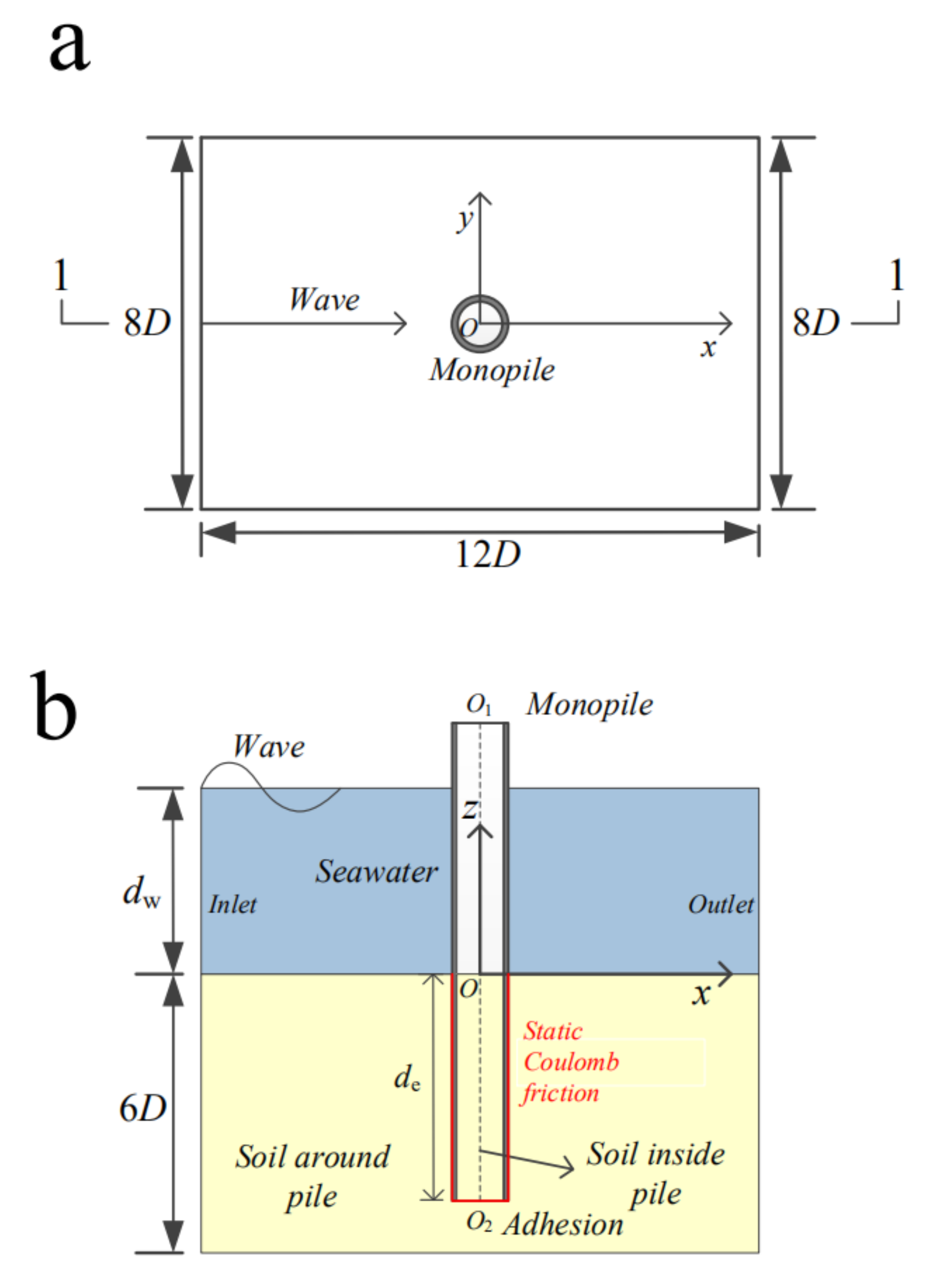

2. Numerical Model
2.1. Wave Model

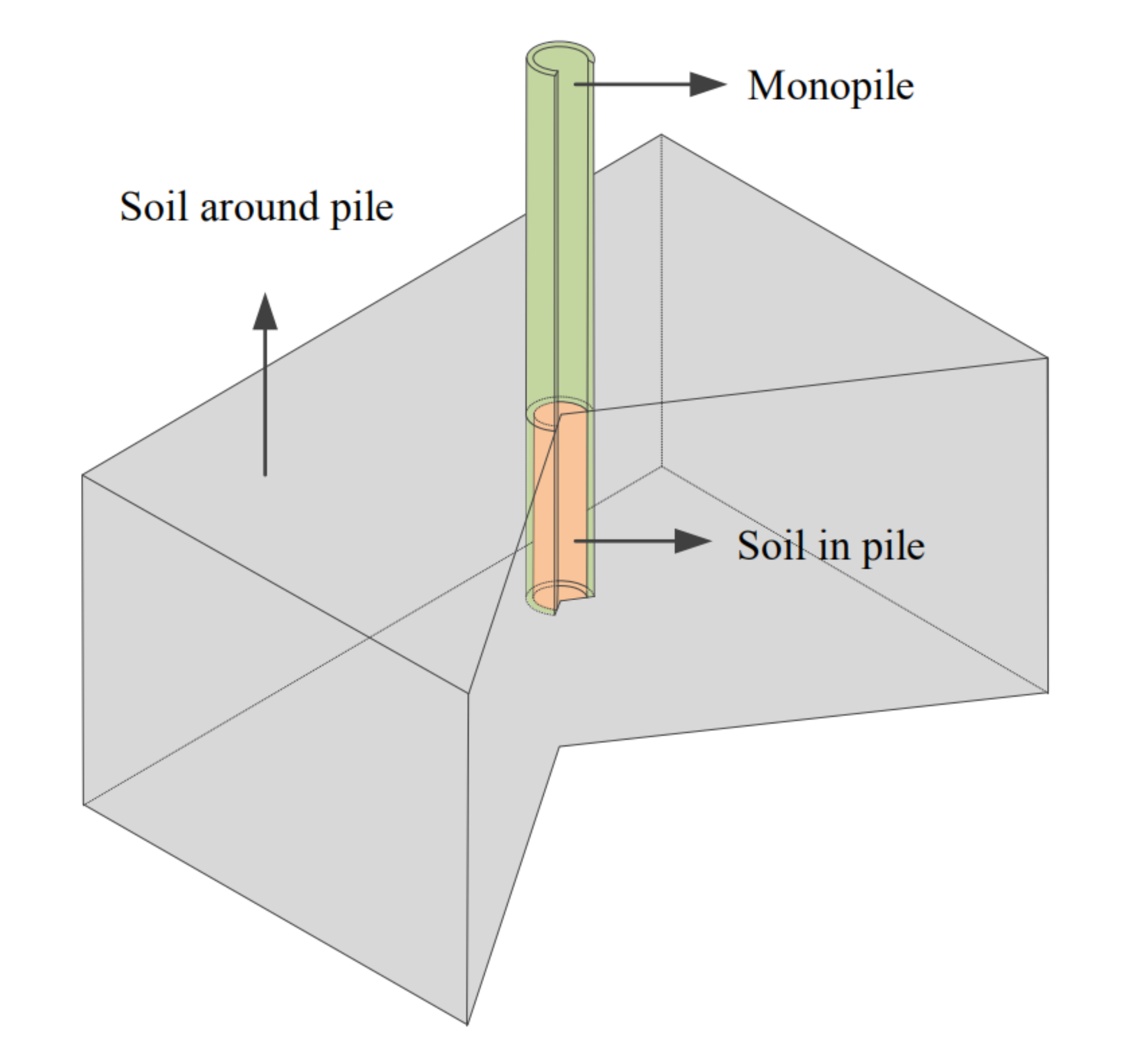

2.2. Monopile-Soil Model

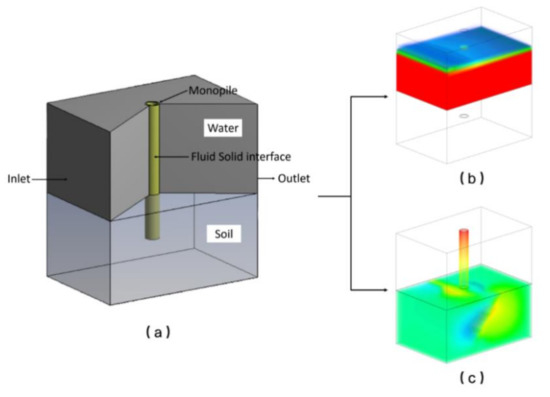

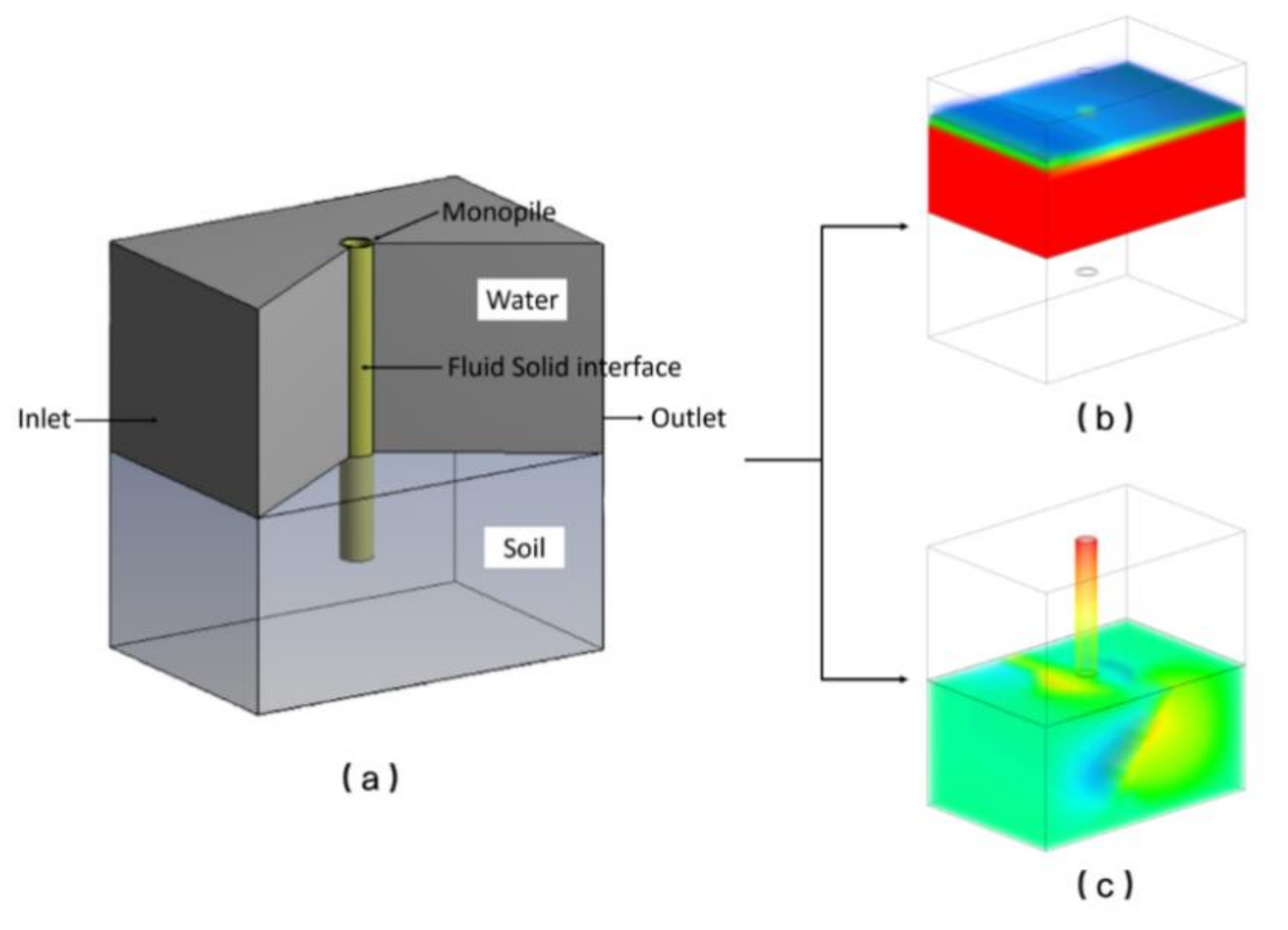

2.3. Wave-Monopile-Soil Coupling Model
3. Model Validation

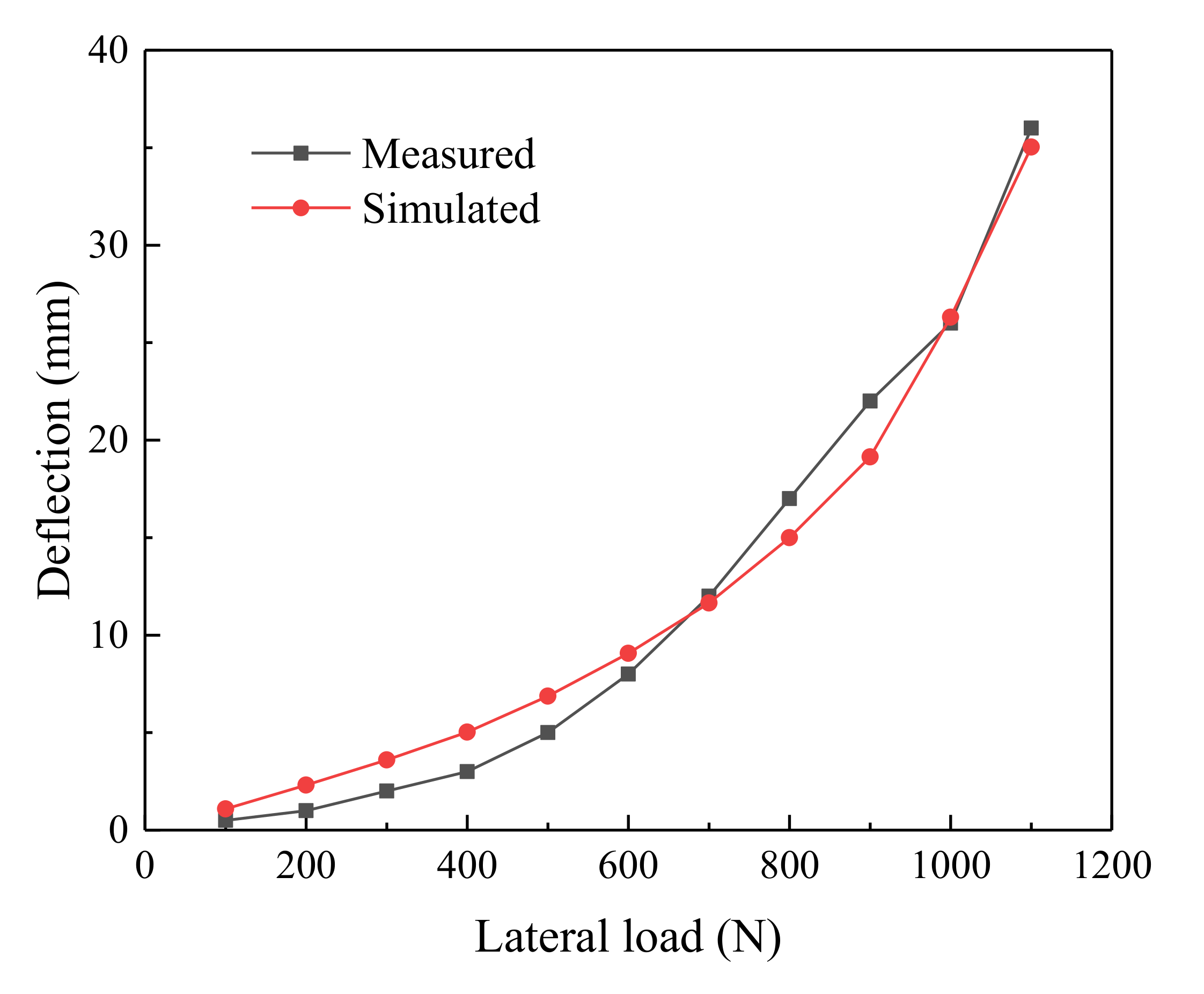

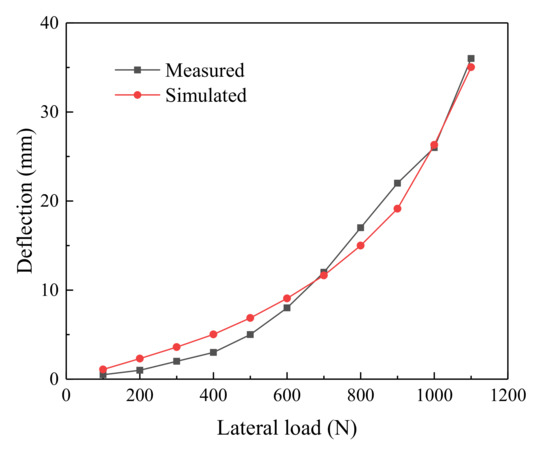

3.1. Validation of Monopile-Soil Model

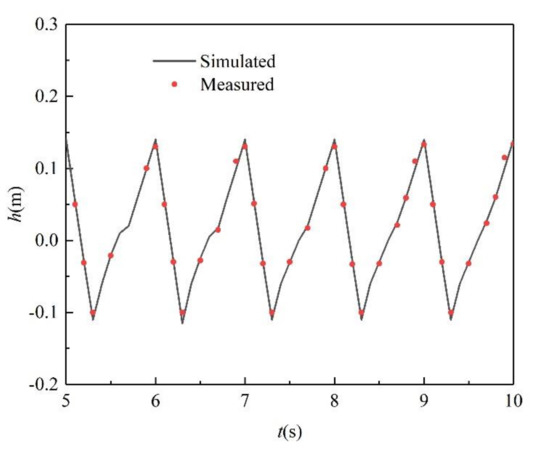

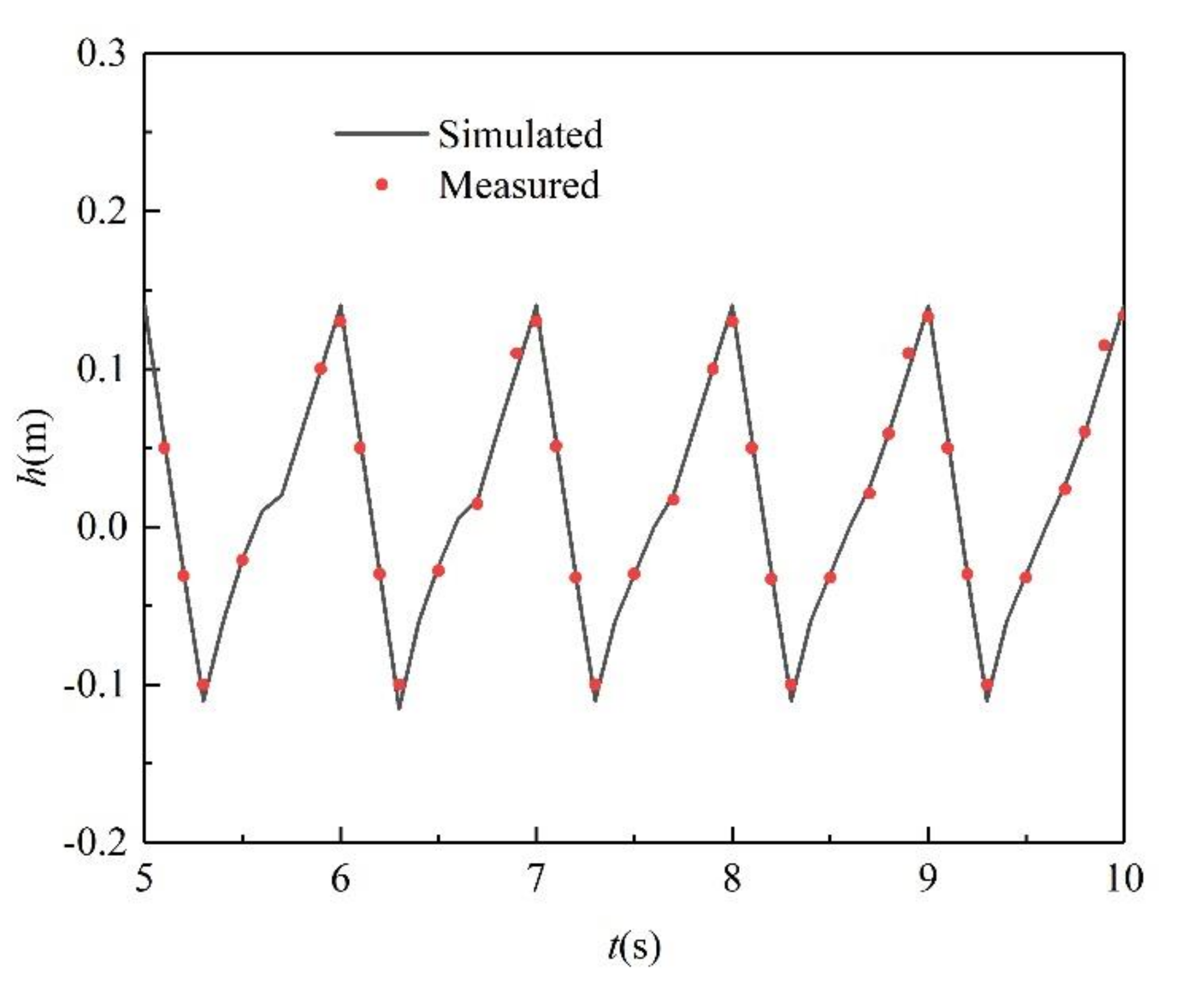

3.2. Validation of Wave Model
4. Response of Monopile Foundation under Extreme Marine Condition
5. Parametric Study

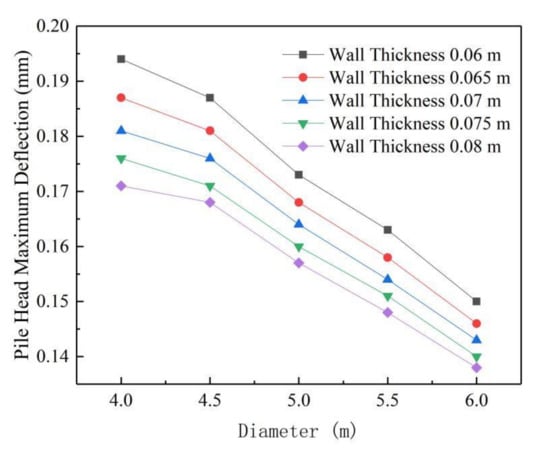

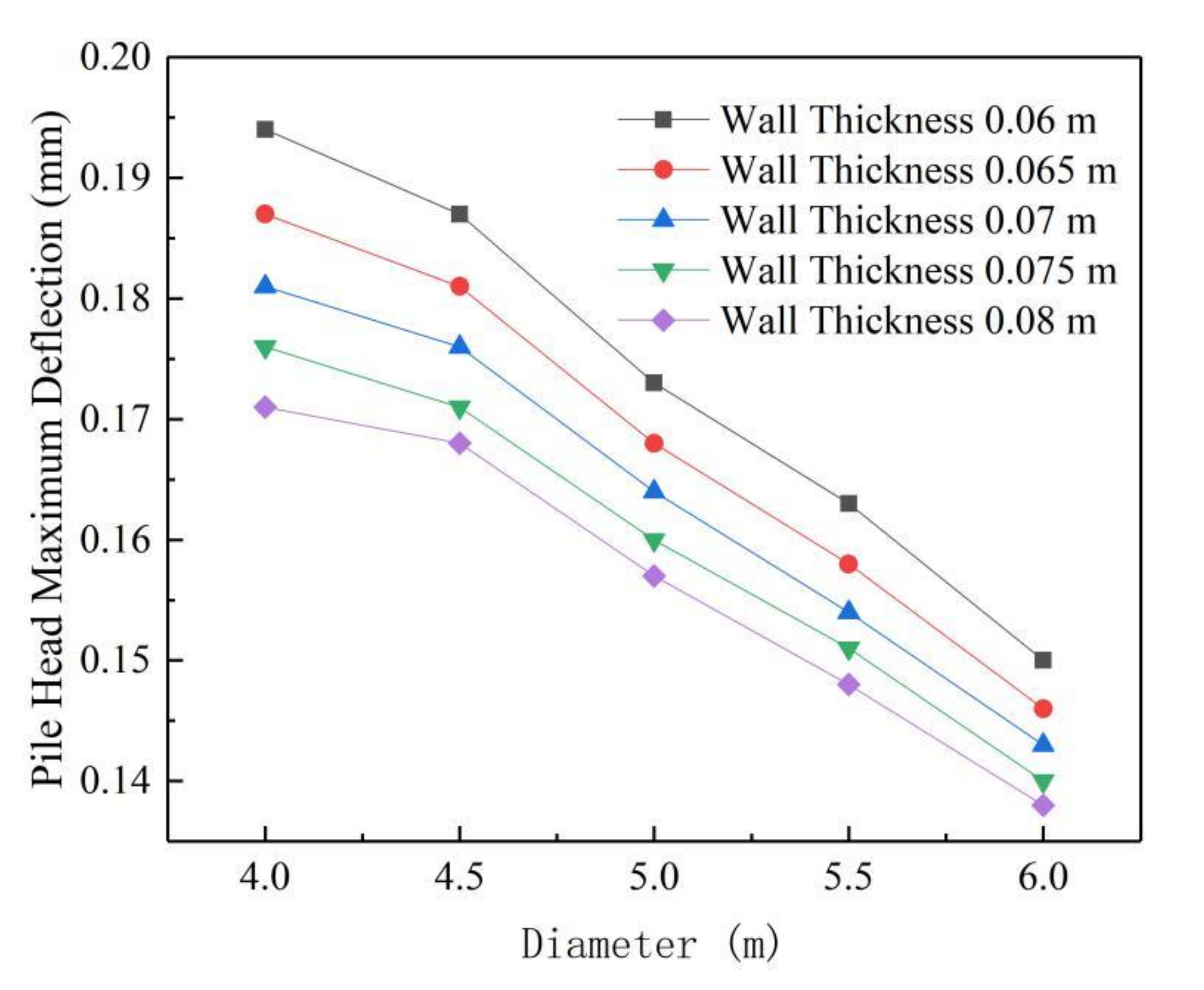

5.1. Effect of Pile Diameter and Wall Thickness

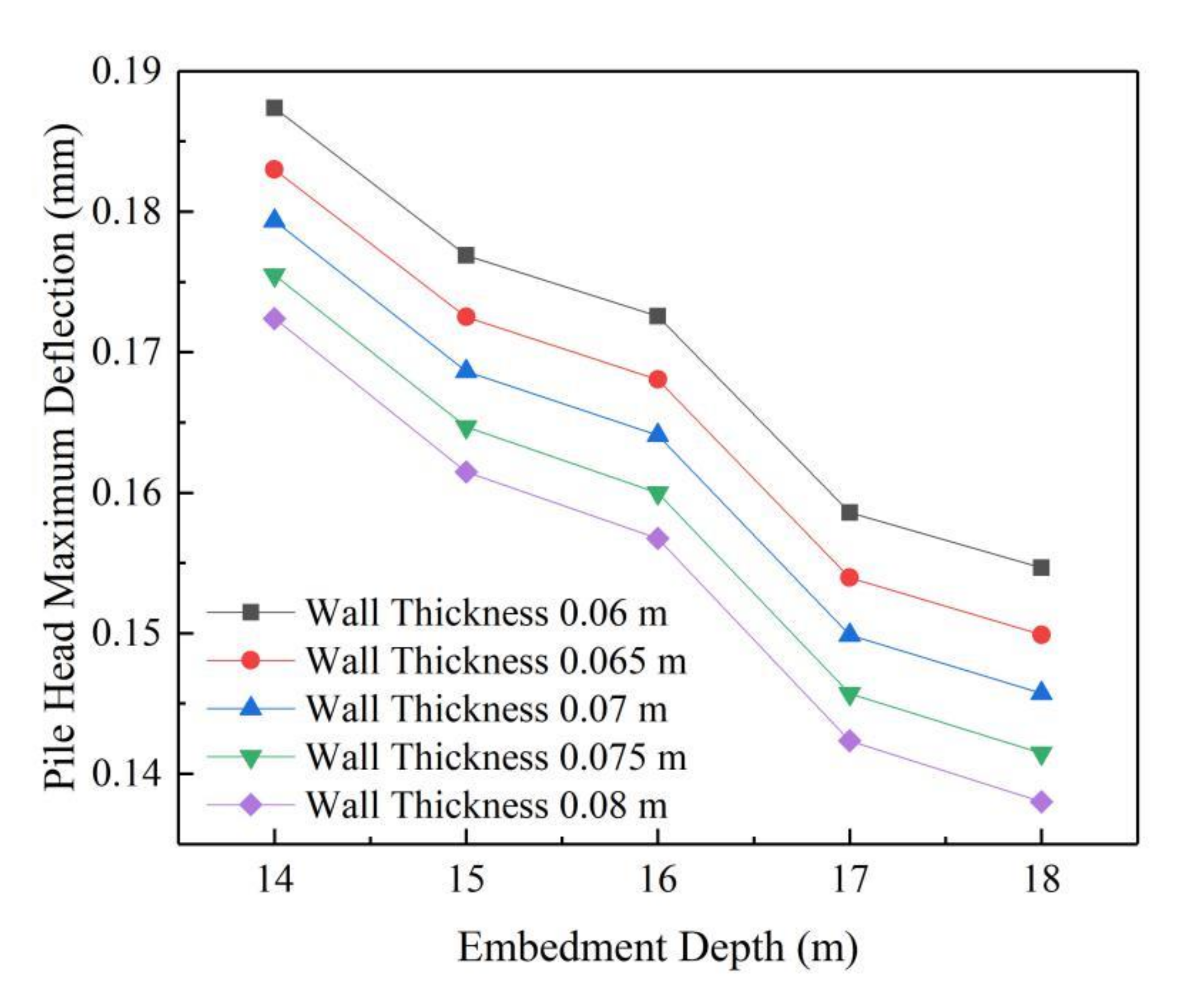

5.2. Effect of Embedment Depth and Wall Thickness
5.3. Effect of Pile Diameter and Embedment Depth
6. Conclusions
- (1)

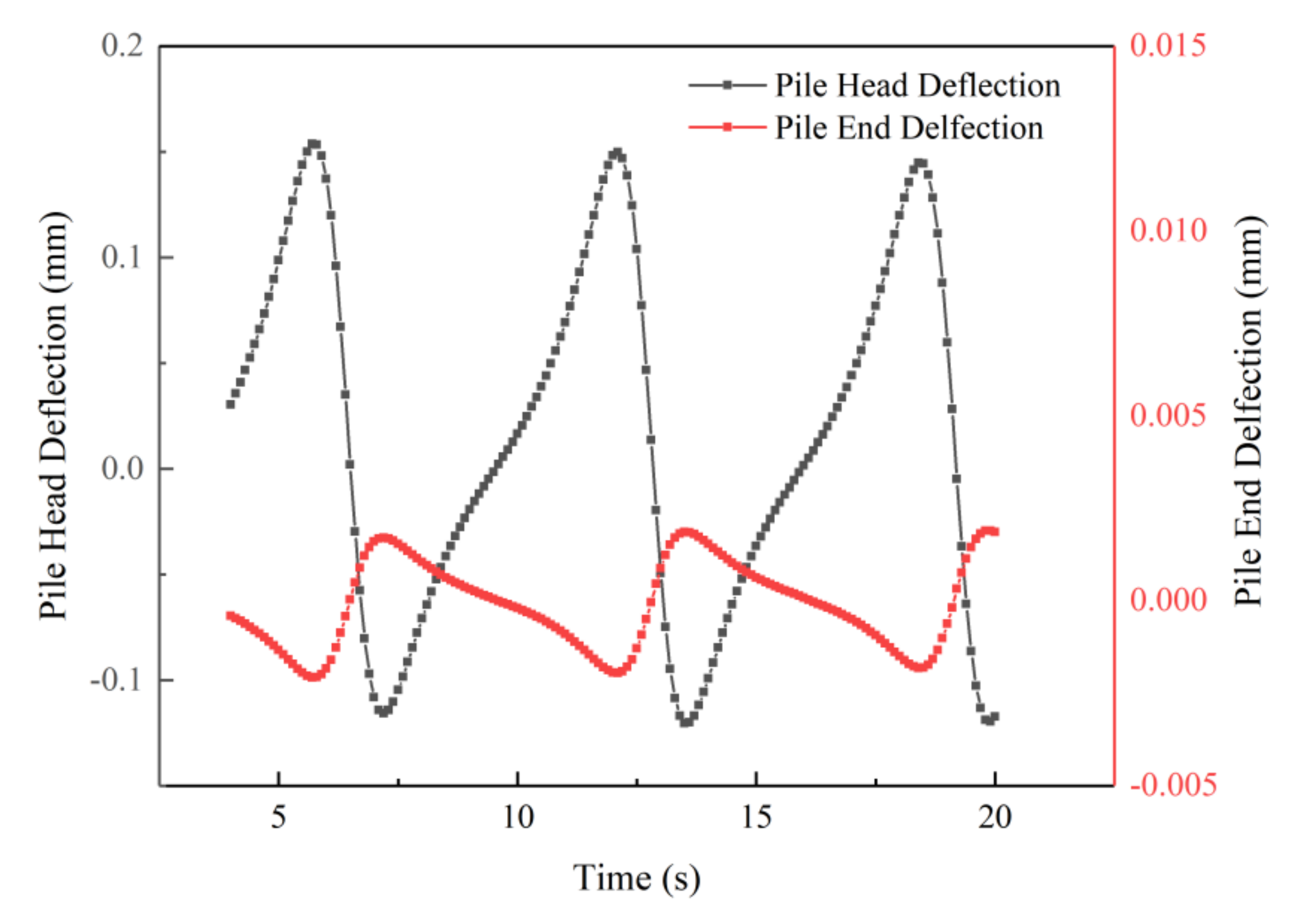

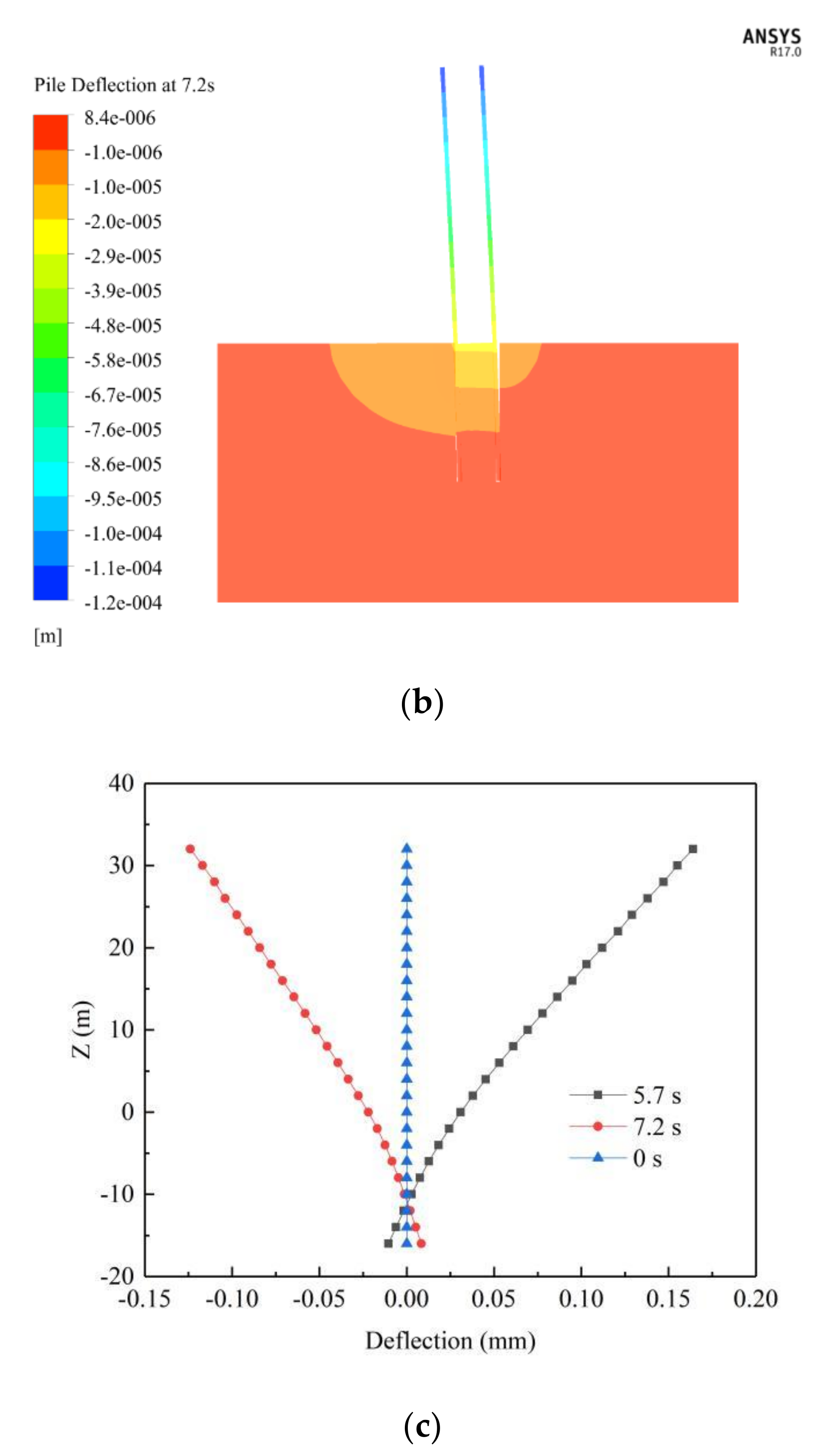

- Under the wave and current load, the monopile performs periodic reciprocating motion, and the pile head is displaced toward the direction of wave motion for most of the time during the whole movement process. Due to the rotation of the pile, the reciprocating motion of the monopile foundation will develop a pile-soil gap around the pile and threaten the stability of the foundation. In extreme environments, it is recommended that people not only focus on the maximum displacement of the foundation, but also monitor the entire process.
- (2)

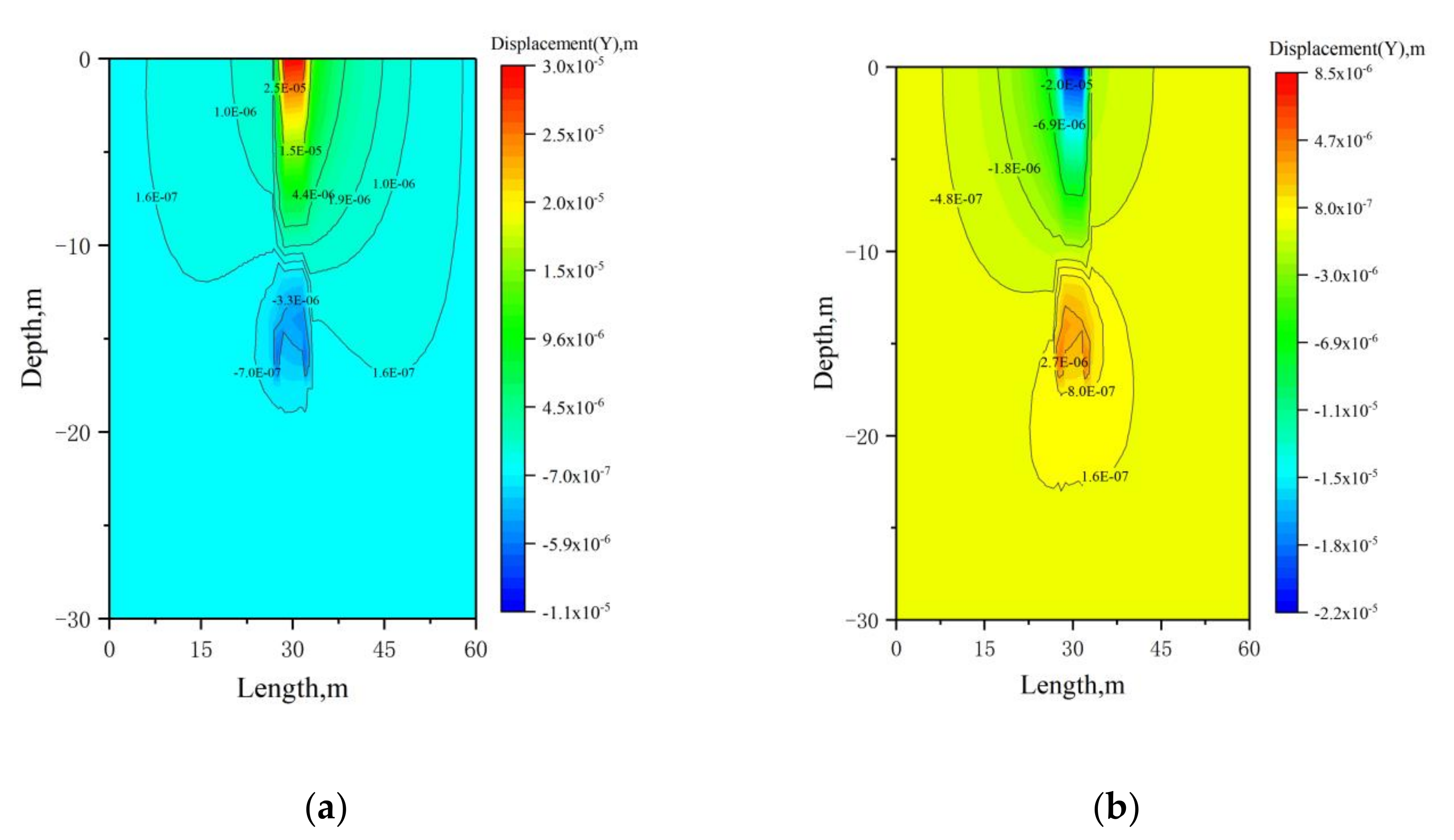

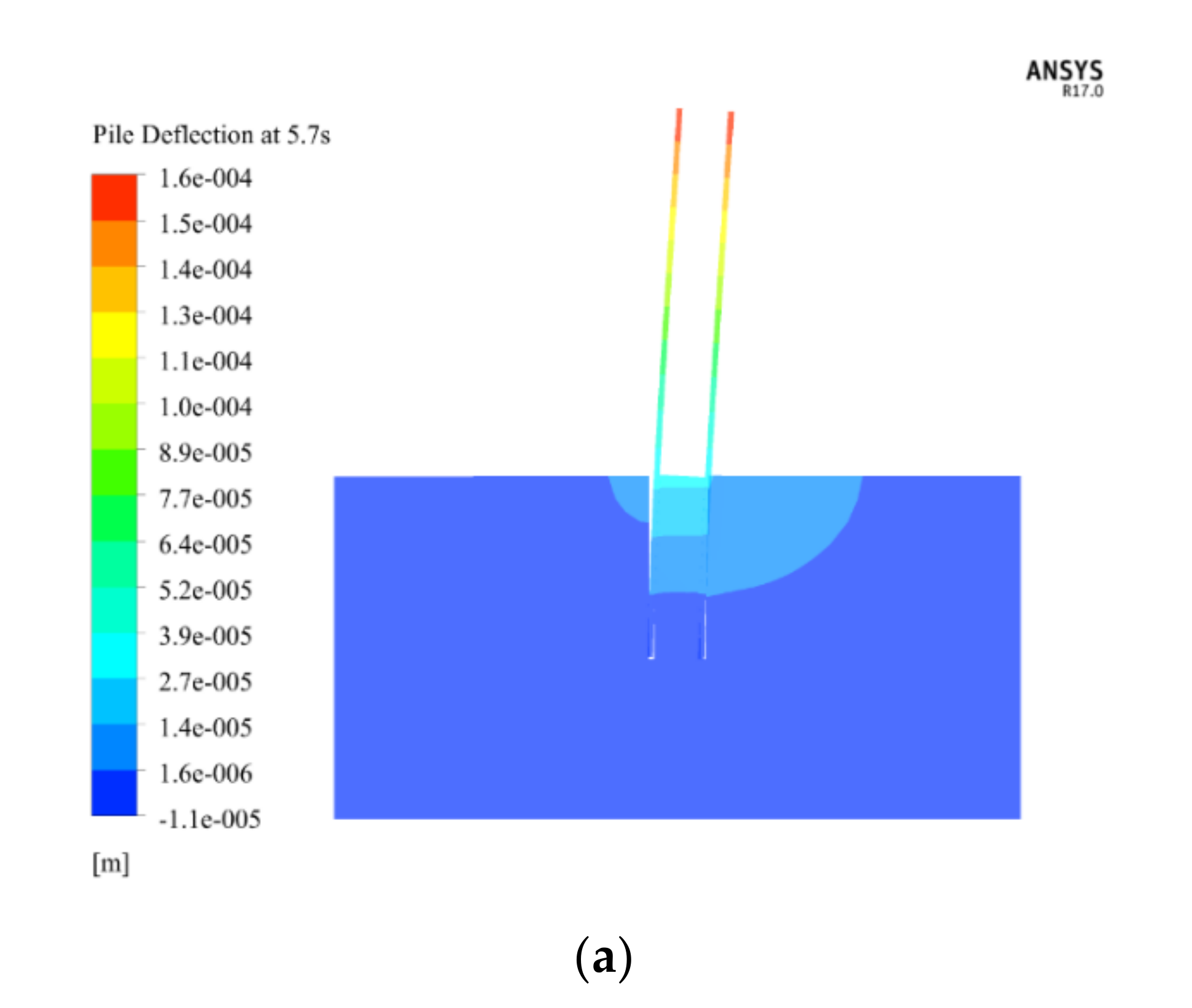

- When the monopile moves periodically, the soil within the pile close to the mud surface has obvious displacement, while the soil within the pile close to the pile end has small displacement. The rotation center is 10.5 m below the mud surface. The displacement of the soil around the pile at the mud surface is significantly greater than that of the soil at the pile end.
- (3)
- In the extreme marine environment, when the embedment depth remains unchanged, increasing the pile diameter is a better way to improve the lateral bearing capacity of monopile than increasing the wall thickness. When the pile diameter is relatively small, the benefits of increasing the wall thickness are greater.
- (4)

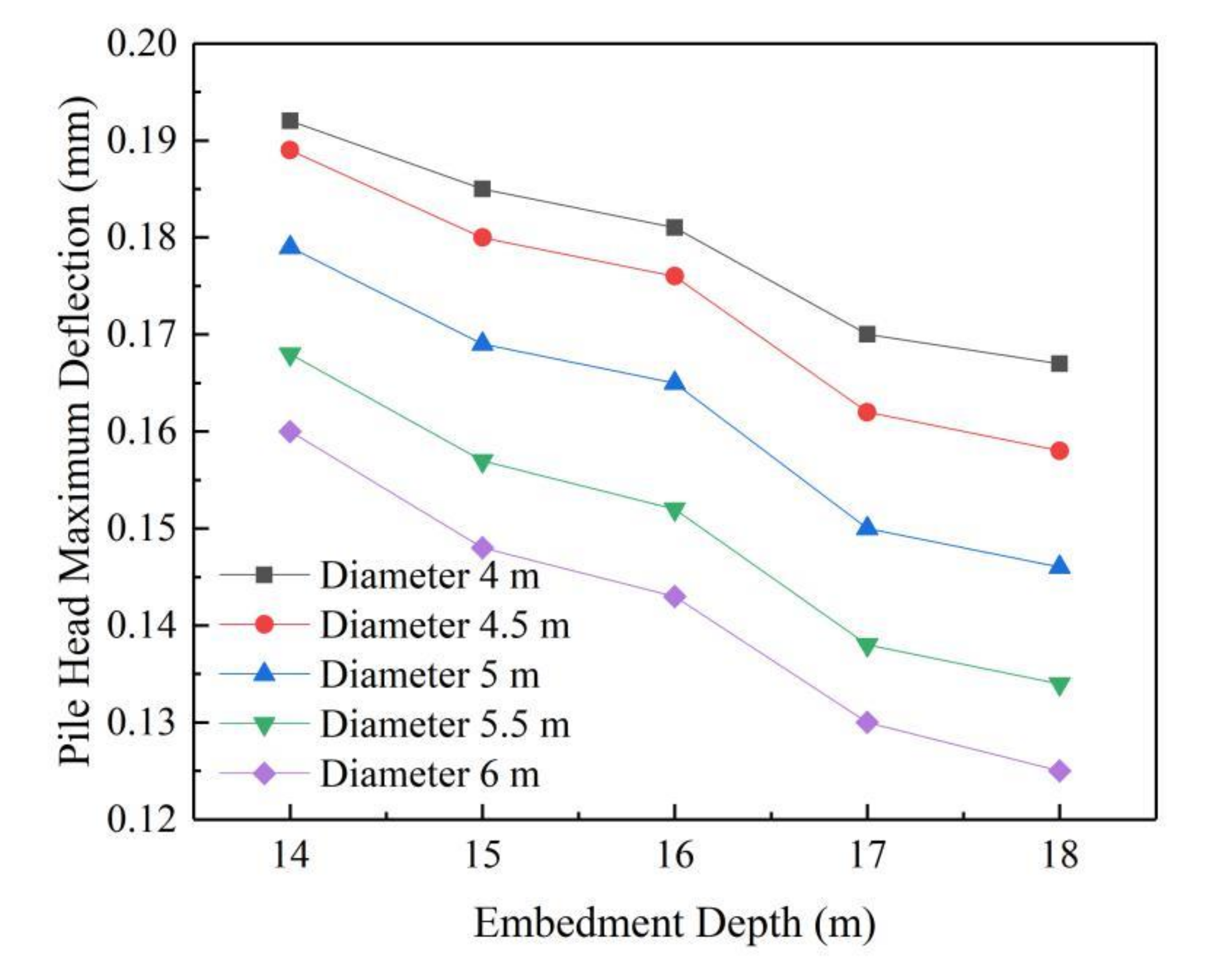

- Under normal circumstances, increasing the embedment depth of the monopile can significantly reduce the deflection of the pile head. However, if the embedment depth is already large enough, other measures like increasing the pile diameter and wall thickness should be taken to improve the lateral bearing capacity of the monopile.
Author Contributions
Funding
Conflicts of Interest
References
- Breton, S.P.; Moe, G. Status, plans and technologies for offshore wind turbines in Europe and North America. Renew. Energy 2009, 34, 646–654. [Google Scholar] [CrossRef]
- Yeter, B.; Garbatov, Y.; Guedes Soares, C. Structural design of an adaptable jacket offshore wind turbine support structure for deeper waters. In Maritime Technology and Engineering; Guedes Soares, C., Santos, T.A., Eds.; Taylor & Francis Group: Abingdon, UK, 2016; Volume 3, pp. 583–594. [Google Scholar]
- EWEA. The European offshore wind industry. Key Trends Stat. 2016, 2017, 33. [Google Scholar]
- DNV GL AS. DNVGL-ST-0126: Support Structures for Wind Turbines. 2016. Available online: http://rules.dnvgl.com/docs/pdf/dnvgl/ST/2016-04/DNVGL-ST-0126.pdf (accessed on 2 November 2020).
- API. API Recommended Practice 2A-WSD Planning, Designing, and Constructing Fixed Offshore Platforms—Working Stress Design, 22nd ed. 2014. Available online: https://www.api.org/~/media/files/publications/whats%20new/2a-wsd_e22%20pa.pdf (accessed on 2 November 2020).
- Martin, A.; Klaus, T.; Katrin, L. Evaluation of p-y approaches for large diameter monopiles in sand. Int. J. Offshore Polar Eng. 2014, 25, 531–539. [Google Scholar]
- Pappusetty, D.A.; Pando, M. Numerical evaluation of long term monopile head behavior for ocean energy converters under sustained low amplitude lateral loading. Int. J. Civ. Struct. Eng. 2013, 3, 669–684. [Google Scholar]
- Yang, M.; Ge, B.; Li, W.C.; Zhu, B.T. Dimension effect P-y model used for design of laterally loaded piles. Advances in Transportation Geotechnics 3. In Proceedings of the 3rd International Conference on Transportation Geotechnics (ICTG 2016), Guimarães, Portugal, 4–7 September 2016; Volume 143, pp. 598–606. [Google Scholar]
- Bipin, K.G.; Dipanjan, B. Analysis of laterally loaded rigid monopiles and poles in multilayered linearly varying soil. Comput. Geotech. 2016, 72, 114–125. [Google Scholar]
- Lesny, K.; Wiemann, J. Finite-element-modelling of large diameter monopiles for offshore wind energy converters. In GeoCongress 2006; American Society of Civil Engineers: Reston, VA, USA, 2006; pp. 1–6. [Google Scholar]
- Neenu, M.J.; Alice, M. A study on lateral deformation of monopile of offshore wind turbine due to environmental loads. Int. Conf. Emerg. Trends Eng. Sci. Technol. (ICETEST–2015) 2016, 24, 287–294. [Google Scholar]
- Gerry, M.; David, I.; Doherty, P.; Gavin, K. 3D FEM approach for laterally loaded monopile design. Comput. Geotech. 2018, 100, 76–83. [Google Scholar]
- Yang, M.; Luo, R.P.; Li, W.C. Numerical study on accumulated deformation of laterally loaded monopiles used by offshore wind turbine. Bull. Eng. Geol. Environ. 2018, 77, 911–921. [Google Scholar] [CrossRef]
- Ma, H.W.; Yang, J.; Chen, L.Z. Numeical analysis of the long-term performance offshore wind turbines supported by monopiles. Ocean Eng. 2017, 136, 94–105. [Google Scholar] [CrossRef]
- DNV-OS-J101. Design of Offshore Wind Turbine Structures; DET NORSKE VERITAS: Oslo, Norway, 2014. [Google Scholar]
- Ivan, D.; Thi, M.H.L.; Gudmund, E.; Thomes, B. Behavior of cyclically loaded monopile foundations for offshore wind turbines in heterogeneous sands. Comput. Geotech. 2015, 65, 266–277. [Google Scholar]
- Tong, D.G.; Liao, C.C.; Chen, J.J. Wave-monopile-seabed interaction considering nonlinear pile-soil contact. Comput. Geotech. 2019, 113, 103076. [Google Scholar] [CrossRef]
- Chen, L.Y.; Liao, C.C.; Duan, L.L.; Zheng, D.S. Influence of Porous Seabed Characteristics on Wave Forces Acting on Monopile. J. Southwest Jiaotong Univ. 2019, 54, 328–335. (In Chinese) [Google Scholar]
- Wilcox, D.C. Turbulence Modeling for CFD; DCW Industries: La Canada, CA, USA, 1998. [Google Scholar]
- Arshad, M.; O’Kelly, B.C. Offshore wind-turbine structures: A review. Proc. Inst. Civ. Eng. Energy 2013, 166, 139–152. [Google Scholar] [CrossRef]
- Fenton, J.D. Numerical methods for nonlinear waves. In Advances in Coastal and Ocean Engineering; World Scientific: Singapore, 1999; pp. 241–324. [Google Scholar]
- Li, L.C.; Wu, W.B.; Liu, H.; Lehane, B. DEM analysis of the plugging effect of open-ended pile during the installation process. Ocean Eng. 2020. online published. [Google Scholar]
- Zhang, Y.P.; Yang, X.Y.; Wu, W.B.; El Naggar, M.H.; Jiang, G.S.; Liang, R.Z. Torsional complex impedance of pipe pile considering pile installation and soil plug effect. Soil Dyn. Earthq. Eng. 2020, 131, 106010. [Google Scholar] [CrossRef]
- Zhu, B.; Yang, Y.Y.; Yu, Z.G.; Guo, J.F.; Chen, Y.M. Field tests on lateral monotonic and cyclic loadings of offshore elevated piles. Chin. J. Geotech. Eng. 2012, 34, 1028–1037. (In Chinese) [Google Scholar]
- Zang, J.; Taylor, P.H.; Morgan, G.; Stringer, R.; Orszaghova, J.; Grice, J.; Tello, M. Steep wave and breaking wave impact on offshore wind turbine foundations—Ringing revisited. In Proceedings of the 25th International Workshop on Water Waves and Floating Bodies, Harbin, China, 9–12 May 2010. [Google Scholar]
- Theo, G.; Lin, W.; Athanasios, K. Integrated structural optimisation of offshore wind turbine support structures based on finite element analysis and genetic algorithm. Appl. Energy 2017, 199, 187–204. [Google Scholar]
- Kim, Y.; Jeong, S. Analysis of soil resistance on laterally loaded piles based on 3D soil-pile interaction. Comput. Geotech. 2011, 38, 248–257. [Google Scholar] [CrossRef]
- Guan, W.J.; Wu, W.B.; Jiiang, G.S.; Leo, C.J.; Deng, G.D. Torsional dynamic response of tapered pile considering compaction effect and stress diffusion effect. J. Cent. South Univ. 2020, 1–13. [Google Scholar] [CrossRef]
- Ma, H.W.; Yang, J. A novel hybrid monopile foundation for offshore wind turbines. Ocean Eng. 2020, 198, 106963. [Google Scholar] [CrossRef]
- Chen, D.; Gao, P.; Huang, S.S.; Li, C.S.; Yu, X.G. Static and dynamic loading behavior of a hybrid foundation for offshore wind turbines. Mar. Struct. 2020, 71, 102727. [Google Scholar] [CrossRef]
- Chen, L.F.; Zang, J.; Hillis, A.J.; Morgan, G.C.J.; Plummer, A.R. Numerical Investigation of Wave-Structure Interaction using OpenFOAM. Ocean Eng. 2014, 88, 91–109. [Google Scholar] [CrossRef] [Green Version]
- Wang, W.; Yang, M. Review and discussion on key technologies in foundationdesign of offshore wind power. Chin. J. Hydroelectr. Eng. 2012, 31, 242–248. (In Chinese) [Google Scholar]
- Rasmus, T.K.; Ole, H. Lateral response of monopile supporting an offshore wind turbine. Geotech. Eng. 2013, 166, 147–158. [Google Scholar]
Pile Length (m) | Outer Diameter (mm) | Wall Thickness (mm) | Embedment Depth (m) | Loading Height |
---|---|---|---|---|
2 | 165 | 35.5 | 0 | 6D |
Soil Proportion | Shear Modulus (Pa) | Internal Friction Angle (°) | Effective Cohesion (kPa) | Poisson’s Ratio |
---|---|---|---|---|
2.69 | 4 × 106 | 35.5 | 0 | 0.3 |
Wave Period (s) | Wave Height (m) | Water Depth (m) | Current Speed (m/s) |
---|---|---|---|
7.7 | 6.9 | 20 | 0.8 |
Shear Modulus (Pa) | Poisson’s Ratio | Internal Friction Angle (°) | Effective Cohesion (kPa) |
---|---|---|---|
0.3 | 30 | 4 |
Shear Modulus (Pa) | Poisson’s Ratio | Pile Diameter (m) | Embedment Depth (m) | Thickness (mm) |
---|---|---|---|---|
0.3 | 5 | 16 | 70 |
