Chemical Free Two-Step Hydrothermal Pretreatment to Improve Sugar Yields from Energy Cane

Abstract

Energy cane is an attractive lignocellulosic feedstock for processing into biofuels and bioproducts. A low-severity two-step hydrothermal pretreatment was investigated on energy cane for the production of monomeric sugar. Pretreatment temperature and time, in addition to the effect of disk milling, were observed for the glucose and xylose yields during hydrolysis. At residence times above 5 min in case of pretreatment at 200 °C, all of the hemicellulose was observed to be solubilized. The pretreatment condition of 200 °C for 10 min with disk milling was observed to provide the highest glucose concentration of 5.4%, and 200 °C for 5 min with disk milling provided the highest xylose concentration of 2.15%. The effect of disk milling in improving the sugar concentrations during hydrolysis was significant, especially at lower pretreatment temperatures and times. Low xylose yields at higher temperatures were attributed to the formation of degradation products at increased severity.

1. Introduction

Energy cane, unlike conventional sugarcane, is a non-food energy crop with high carbohydrate (fiber more than sucrose) content, abundant availability, and low cost, making it attractive renewable feedstock for sugar production that can be converted to biofuel, biochemicals, and other bio-based products [1]. Energy cane is a high yielding crop (about 90 MT/ha) with almost double the fiber content and low sucrose compared to sugarcane [2]. Along with high fiber per unit land, the energy can also provide the advantages of relatively high cold-tolerance, lower fertilizer and water requirements, and less frequent replantation (10 years vs. 3 years for sugarcane), which makes it an ideal candidate for sustainable biofuel production [3,4].

Despite the numerous benefits of energy cane, like every cellulosic feedstock, the biomass recalcitrant structure remains one of the major challenges in its valorization process. Its structure consists of a highly complex matrix of cellulose, hemicellulose, and lignin, and a pretreatment is necessary to break this carbohydrate-lignin matrix to improve enzyme accessibility for efficient degradation. Some recent studies have investigated various chemical pretreatment processes, including dilute acid [5], dilute ammonia [6,7,8], and ionic liquid [3,9], and have reported high sugar recoveries during hydrolysis. However, these processes suffer from several limitations, including sugar loss, inhibitor formation, and the need of corrosion resistant equipment and neutralization along with high cost of the pretreatment reagent. Hot water pretreatment, also known as the “hydrothermal” or “auto-catalyzed” process, is an alternative efficient and environmentally friendly approach in which water acts at a very dilute acid due to the increased hydronium ion concentration at elevated temperatures and pressures [10,11,12]. The process avoids the use of chemicals and the need for specialized equipment; however, it requires about 20–50 °C higher temperature and longer residence times compared with dilute acid pretreatment [12,13]. An important aspect to consider for pretreatment is better recovery of C5 sugars, which are lost with high severity biomass. Hemicellulose ranges from 25% to 35% of lignocellulosic biomass, and has potential and importance in the production of bioethanol, hydrogen, and added value compounds [14]. Although the hydrothermal pretreatment addresses several limitations of chemical process by minimizing the sugar loss and inhibitor formation, the subsequent cellulose conversion efficiencies have been observed to be relatively lower for some feedstocks [12,15,16]. The efficiency can be improved by combining the hydrothermal pretreatment with another physical pretreatment process, such as disk milling, ball milling, or extrusion [15]. Combined hot water and disk milling pretreatment has been observed to be a highly effective, energy-efficient, and cost-effective process to improve the hydrolysis yield of biomass [15,17]. Mechanical refining processes can be used as a standalone pretreatment process also but are highly energy-intensive when processing raw biomass, and the subsequent hydrolysis yields are also relatively lower. The energy required for the grinding/milling of already pretreated biomass (such as hot water or dilute acid pretreatment) could be up to 95% lower than processing raw biomass [12,18]. Combined liquid hot water (LHW) and disk milling synergistically reduce the biomass recalcitrance, increase the surface area, and yield high sugar recoveries during hydrolysis without the need for using chemicals.

Considering the limitations of chemical pretreatment processes and the increasing interest in using combined pretreatment technologies, the objective of this work was to investigate the effect of chemical-free two-stage mechanical thermal pretreatment, combining hot water pretreatment followed by the disk milling process, on improving the sugar yields from hydrolysis of energy cane bagasse. The effect of two parameters during liquid hot water (LHW) pretreatment, namely temperature and time, along with the effect of disk milling following the LHW, was investigated.

2. Materials and Methods

2.1. Feedstock

Energy cane bagasse (UFCP84-1047), dried after the extraction of juice, was obtained from the experimental field plots at the University of Florida, Gainesville, FL. Samples obtained were ground to pass through a 2.00 mm sieve using a hammer mill (model MHM4, Glen Mills, Clifton, NJ, USA). The ground sample was stored at 4 °C until used for experiments.

2.2. Liquid Hot Water Pretreatment

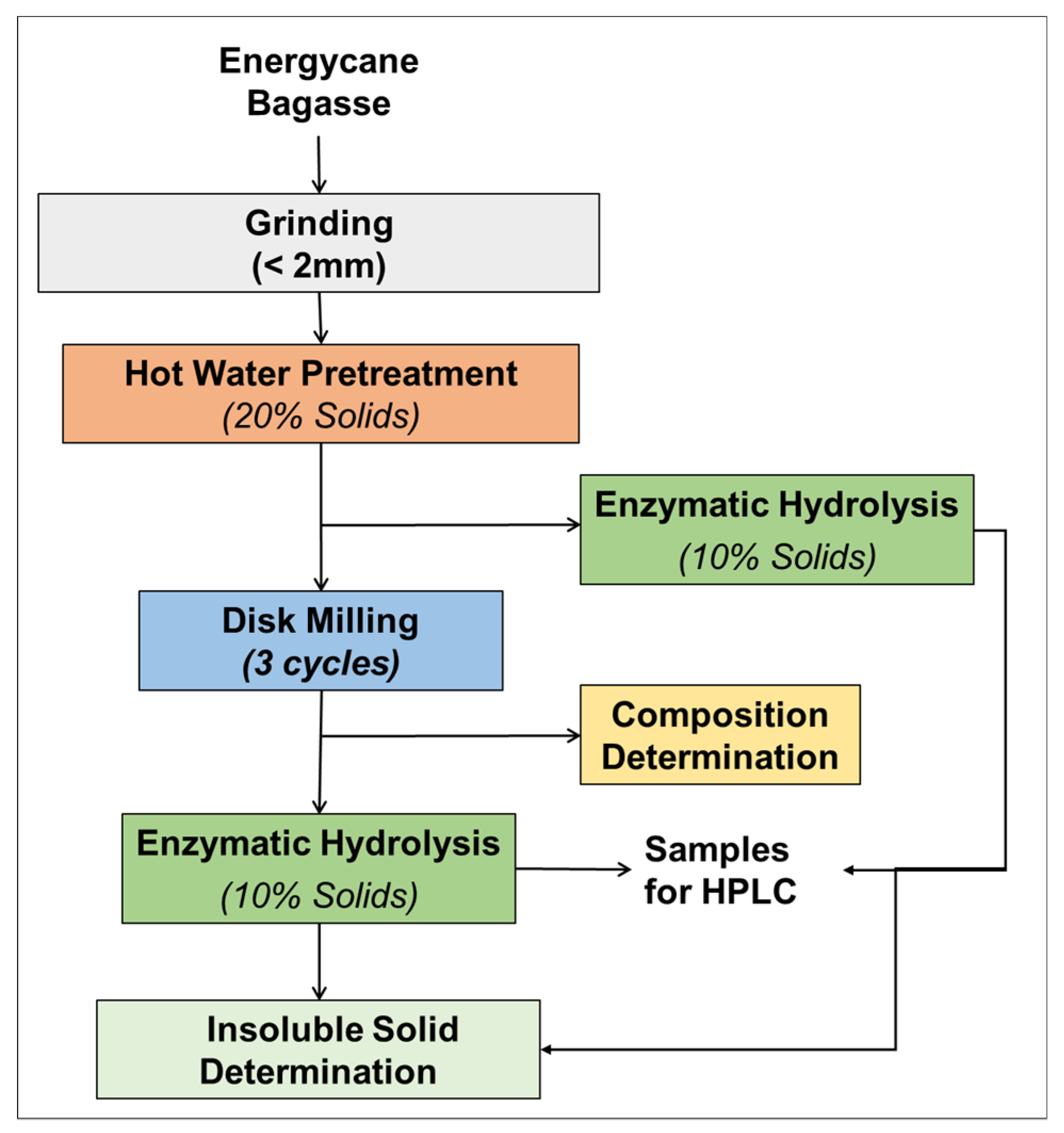

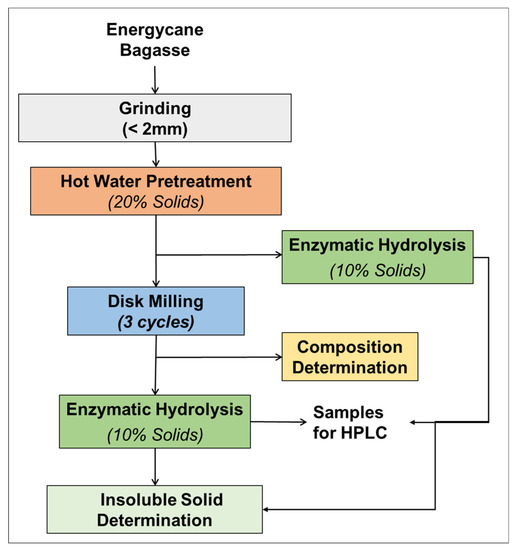

A simple schematic of the process used to produce sugars from energy cane is shown in Figure 1. All pretreatments were performed in 50 mL pipe reactors (stainless steel, 316 stainless, with 10.478 cm length × 1.905 cm o.d. × 0.165 cm wall thickness tubing; SS-T12-S-065–20, Swagelok, Chicago Fluid System Technologies, Chicago, IL, USA) using a fluidized sand bath (IFB-51 Industrial Fluidized Bath, Techne Inc., Burlington, NJ, USA) to provide the desired temperature. To obtain 20% solid loading, 8 g of ground energy cane (dry basis) was mixed with 32 mL of deionized (DI) water in the steel reactors. The reactors were closed with 316 stainless steel caps (SS-1210-C, Swagelok, Chicago Fluid System Technologies, Chicago, IL, USA). A full factorial design was used to conduct the experiments at three reaction temperatures, 160, 180, and 200 °C, and three residence times, 5, 10, and 15 min, with three replicates for each condition. The temperature of the slurry in the reactors was monitored using a thermocouple (Penetration/Immersion Thermocouple Probe Mini Conn (−418 to 1652 F), Mc Master-Carr, Robbinsville, NJ, USA) inserted into one reactor and connected to a data logger (HH306/306A, Datalogger Thermometer, Omega, Stamford, CT, USA). Rapid heating (within 5 min) in the sand bath was ensured for each pretreatment to reach its target temperature. The reactors were quenched in ambient temperature water right after pretreatment to lower the temperature of the reactors and stop the pretreatment reaction. During the cooling of reactors, the temperature dropped more than 100 °C in less than 1 min.

The severity parameter (R₀) of the pretreatment is generally defined as equation 1 [12,19], where t is reaction time (min), T is pretreatment temperature (°C), and T_R is reference temperature (100 °C). Log (R₀) was calculated to report the severity factor [20].

R₀ = t.exp{(T-T_R )/14.75}

(1)

2.3. Disk Milling/Mechanical Refining

Without washing, neutralization, or separation, the recovered samples from the pretreatment reactors from each pretreatment condition were passed though disk milling three times. The pretreated samples were mechanically refined by using the disk mill (Quaker City grinding mill model 4E, Straub Co., Philadelphia, PA, USA), with two plates: rotating and stationary. The gap between the two plates was set to minimal (about zero) with an output speed of 89 rpm. Based on results from preliminary studies, the disk milling of pretreated biomass was limited to three sequential milling cycles, to reduce energy, cost, moisture loss, and heat generation during the process [12].

2.4. Chemical Composition of Raw and Pretreated Energy Cane Biomass

Compositional analysis of untreated (raw) and pretreated biomass was carried out according to the Laboratory Analytical Procedure for biomass analysis from the National Renewable Energy Laboratory (NREL). Pretreated biomass samples were frozen for 24 h at −20 °C, followed by freeze drying (Laconco, Kansas City, MO, USA) for 72 h before analysis. Samples obtained after freeze drying were analyzed for chemical composition (extractives, cellulose, hemicellulose, acid soluble lignin, and acid insoluble lignin).

Extractives were removed by water and ethanol extraction using the Soxhlet method based on NREL/TP-510-42619 (2008). Extractive free biomass was used in a two-step hydrolysis adapted for measuring carbohydrate content in the biomass. In summary, 0.3 g of biomass is mixed with 3 mL of 72% sulfuric acid and incubated in a water bath at 30 °C for 1 h, with frequent stirring. The acid concentration was then diluted to 4% by adding 84 mL of deionized water in the sample, followed by autoclaving at 121 °C for 1 h. After the two-step acid hydrolysis, hydrolyzed samples were vacuum filtered using filter crucibles. The solids on the filter were analyzed for acid insoluble lignin (AIL) by drying the filter crucible in the oven at 105 °C for 24 h followed by combusting in a muffle furnace at 575 °C for 4 h. The filtrate was analyzed for acid soluble lignin (ASL) by recording the absorbance of sample at 205 nm. The filtrate was also neutralized and analyzed for sugar concentration by HPLC equipped with a refractive index detector (Aminex HPX-87P, Bio-Rad, Hercules, CA, USA).

2.5. Enzymatic Hydrolysis

Enzymatic hydrolysis was performed on the pretreated slurry following NREL/TP-5100-63351 procedures. Enzymatic hydrolysis was performed with samples from only LHW pretreatment, and from LHW pretreatment followed by three cycles of disk milling, to observe the effect of mechanical refining on the sugar yields during hydrolysis. Hydrolysis was conducted at 10% solids loading at a 25 mL scale in 50 mL Corning tubes. Pretreated samples were transferred into sterilized tubes (Corning), and 1 M sodium citrate buffer (pH 4.5) was used to adjust the pH to 5.0 bringing a final concentration of 0.05 M citrate buffer. Deionized water along with cellulase and hemicellulose cocktails were added to bring the final solid content to 10%. Cellic® Ctec2 and Cellic® Htec2 (Novozymes North America, Inc., Franklinton, NC, USA) at 0.215 mL/g dry substrate (30 FPU/g) and 0.054 mL/g dry substrate, respectively, were used for enzymatic hydrolysis. The slurry was kept at 50 °C in an incubator shaker at 120 rpm for 72 h. Aliquots (0.4 mL) were taken at 0, 4, 8, 24, 48, and 72 h for glucose, xylose, and organic acids measurements. Three replicates were used for each experiment.

2.6. Sugar Recovery and Hydrolysis Efficiency

The hydrolysis sugar recovery was defined as the ratio of sugar yield (obtained by subtracting the zero-point sugars, produced during pretreatment) at any time point to theoretical yield from carbohydrate contents in pretreated biomass under that condition. At the end of the hydrolysis, the slurry was filtered with a pre-weighed Wattman No. 4 cellulose filter paper, and the density of the filtrate was calculated with measured volume and weight. The solids on the filter were washed with 50 mL water and dried in the oven to obtain the weight of insoluble solids. The sugar concentrations were converted to percent sugar recovery based on the composition of the pretreated energy cane, the insoluble solids left after hydrolysis, and the density of the hydrolysate.

2.7. HPLC Analysis

The samples obtained at different time points were centrifuged at 9729 g (5415 D, Brinkmann Eppendorf, Hamburg, Germany) for 10 min. The top clear phase was passed through 0.2 µm syringe filters (nylon Acrodisc WAT200834, Pall Life Sciences, Port Washington, NY) into 150 µL HPLC vials. The vials were stored at 4 °C immediately, until analyzed. The filtrate was analyzed using HPLC with an ion-exclusion column (Aminex HPX-87H, Bio-Rad, Hercules, CA, USA). The mobile phase used was 0.005 M sulfuric acid at 50 °C with a flow rate of 0.6 mL/min. Carbohydrates and organic acids were measured with a refractive index detector (model 2414, Waters Corporation, Milford, MA, New Zealand) using multiple standards. HPLC samples were analyzed with a lowest detection limit of 0.001% w/v.

2.8. Statistical Analysis

All the results were presented as average ± standard deviation. To compare the sugar concentrations, one-way ANOVA (analysis of variance) and Fisher’s least significant difference (LSD) tests were used (SAS version 9.4). A 5% (p < 0.05) level was selected to determine statistical significance in all cases.

3. Results and Discussion

3.1. Chemical Compositional of Raw and Pretreated Energycane Bagasse

Glucans, xylans, extractives, acid soluble lignin (ASL), and acid insoluble lignin (AIL) were measured for raw biomass as well as for hot water pretreated biomass in nine conditions to observe the effect of pretreatment on energy cane composition (

Table 1. Composition analysis for untreated and pretreated energy cane.

Pretreatment Temp (°C)	Pretreatment Time (min)	Extractives (%, db)	Glucans (%, db)	Xylans (%, db)	Insoluble Lignin (%, db)	Soluble Lignin (%, db)
Untreated		18.62	34.77	20.16	15.37	2.08
160	5	15.70	32.32	16.32	14.06	1.78
160	10	18.04	33.71	15.88	13.96	1.60
160	15	36.33	32.04	10.39	9.22	1.00
180	5	18.40	34.31	16.70	13.48	1.58
180	10	33.69	31.48	8.56	11.70	0.57
180	15	29.78	32.73	9.07	12.54	0.67
200	5	41.54	34.15	4.40	10.32	0.73
200	10	45.16	37.07	0.00	10.78	0.38
200	15	45.51	41.58	0.00	10.23	0.37

). The post-LHW pretreatment slurry was freeze-dried, and the samples were used to perform composition analysis. The raw biomass (on dry basis (db)) contained about 55% carbohydrates (glucans and xylans), and the remaining components were extractives, acid insoluble lignin (AIL), and acid soluble lignin (ASL) (in order of abundance), which was in the range of previously reported compositions of energy cane [2,3]. After pretreatment, the glucans concentration was between 31.48% and 41.58%, with the maximum concentration found in the sample pretreated at 200 °C for 15 min (highest severity). This was not unexpected, since in this condition, all of the xylans and most of the soluble lignin were solubilized. Extractives (including both water-soluble and ethanol-soluble) increased with the pretreatment temperature and time, and the highest extractives were observed at 200 °C for 15 min. Similar results have been previously reported for pretreatment of another lignocellulosic biomass, sugarcane bagasse [16]. The major reason for higher extractives is the higher formation of degradation products with the increasing severity of the pretreatment, which are removed during the extraction process [21]. One of the major outcomes of pretreatment is the solubilization of hemicellulose due to autohydrolysis, resulting in decreased xylans with the increase in temperature and time of pretreatment [22,23]. In addition, harsher pretreatment conditions (higher temperatures and times) degrade the hexoses and pentoses into furfural and 5-hydroxylmethyl furfural, respectively [5]. Similar results were obtained in this study, and no xylan content was observed at the pretreatment temperature of 200 °C for 10 and 15 min. Another study reported hemicellulose content of 1.1% after hot compressed water pretreatment for 20 min at 200 °C for oil palm mesocarp fiber [24]. The amount of soluble lignin decreased with the increase in severity of the pretreatment, which is expected, since an increase in delignification has also been previously reported with an increase in the severity factor of the pretreatment [16].

3.2. Effect of Liquid Hot Water Pretreatment Followed by Disk Milling on Sugar Yields

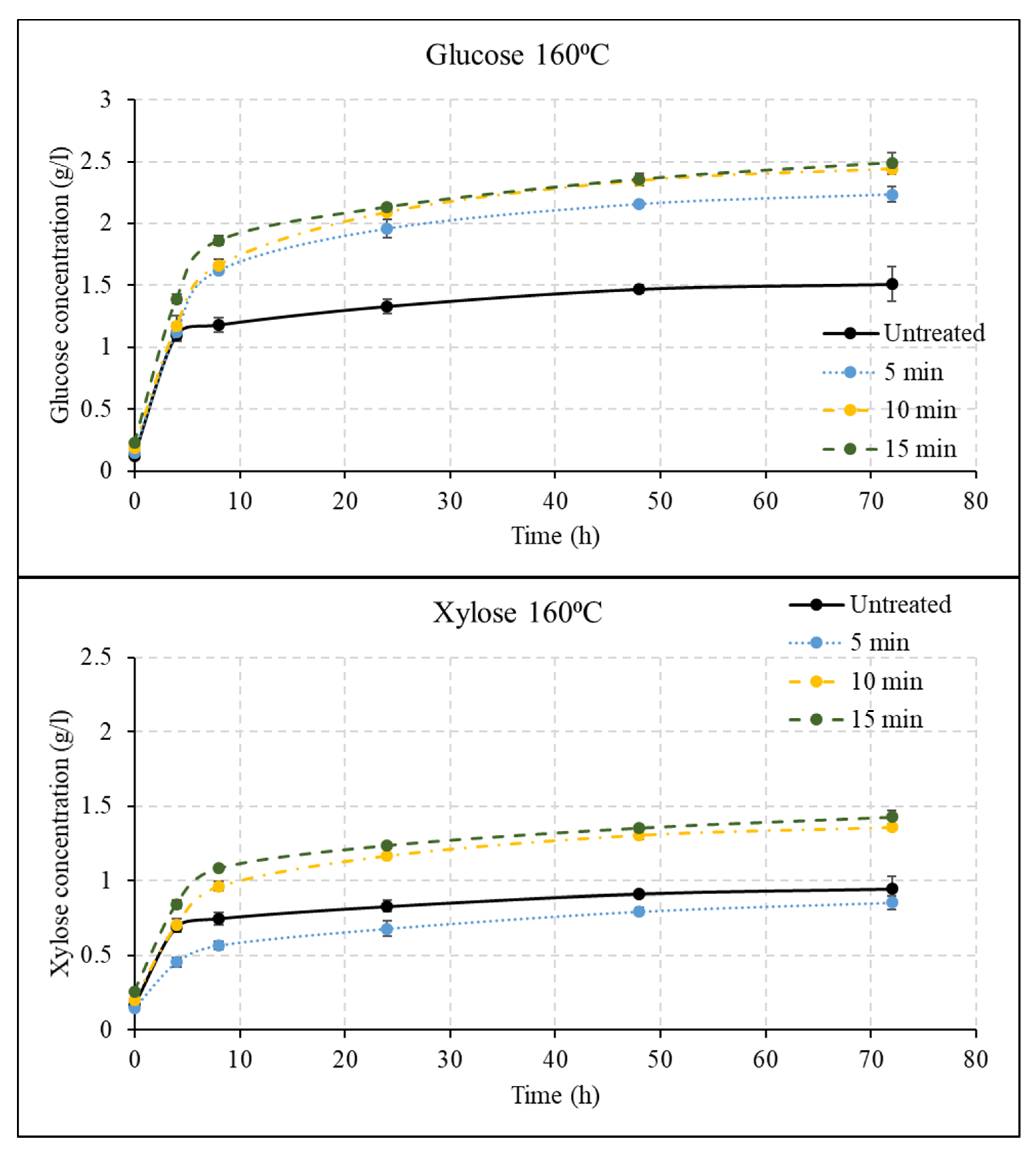

Pretreatment is a key cost center for commercial processing of lignocellulosic biomass; however, it is essential for releasing high sugars for conversion into bioproducts economically on a commercial scale [25]. The pretreatment temperature and time were observed to be critical factors in obtaining high sugar yields in comparison with untreated biomass (p < 0.05). The hydrolysis profile for samples pretreated at 160 °C, 180 °C, and 200 °C are shown in Figure 2, Figure 3 and Figure 4, respectively. At 160 °C, the rate of hydrolysis as well as the final glucose concentration were higher for all three residence times, in comparison with the untreated biomass. The sugar concentration was observed to increase with an increase in time from 5 to 10 min; however, the final glucose concentration for 10 min (2.45%) and 15 min (2.49%) was significantly similar (about 65% higher than the untreated biomass). Xylose concentration, however, did not increase with pretreatment for 5 min (mainly because 5 min was not enough to solubilize enough hemicellulose), but had a significant increase for pretreatment times of 10 and 15 min (44% and 51% higher than the untreated biomass, respectively). The glucose release at the end of the hydrolysis for samples pretreated at 160 °C was measured as 58.29%, 60.18%, and 63.59% for 5, 10, and 15 min of pretreatment, respectively. All the three values were calculated based on the glucose concentration in the pretreated biomass that is left unconverted during pretreatment.

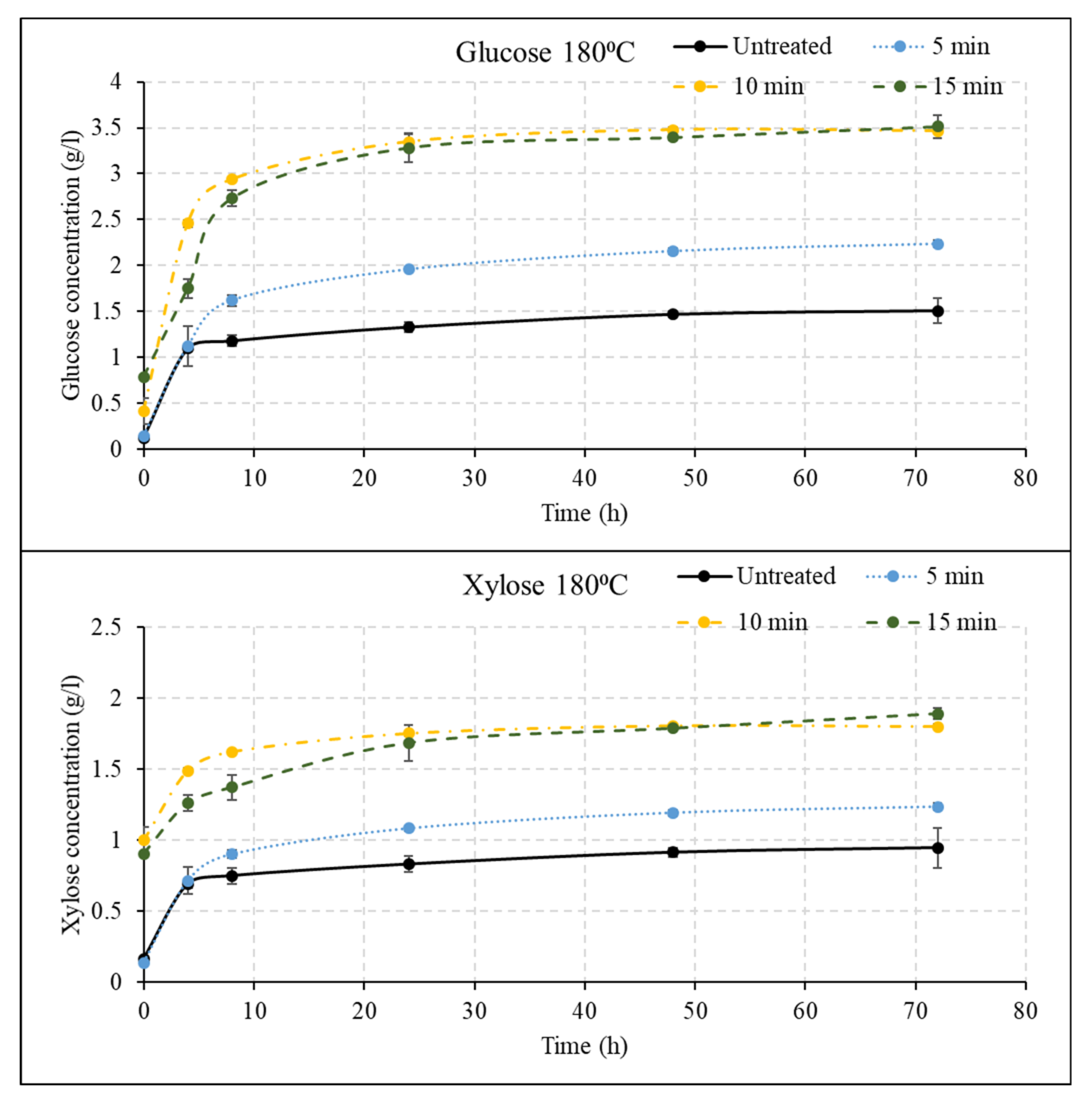

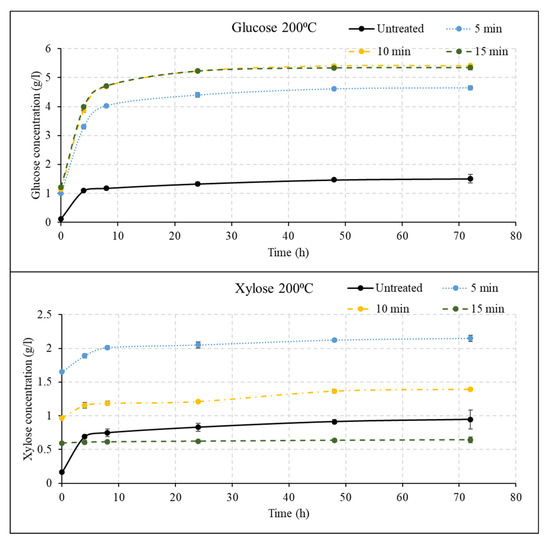

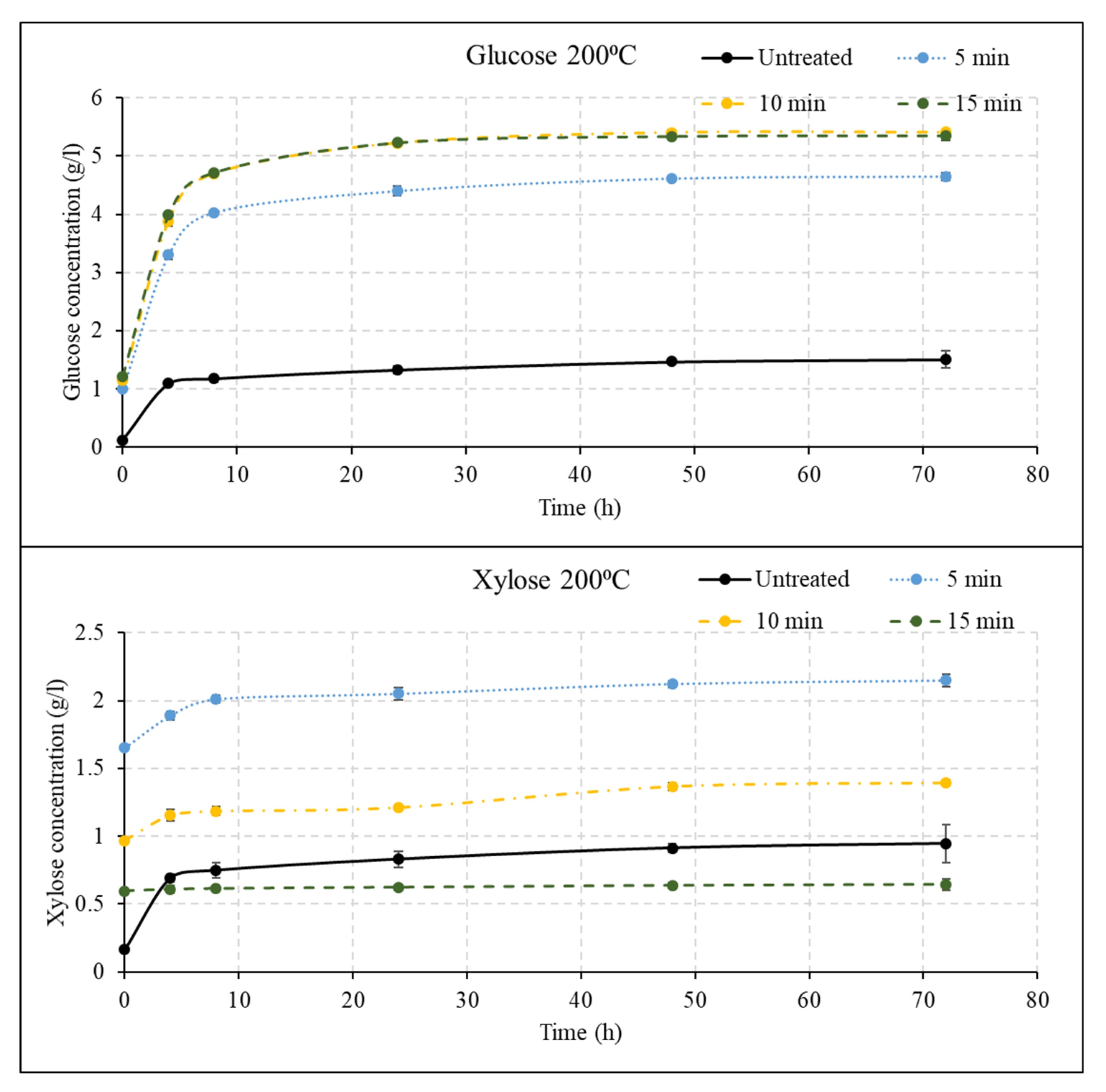

A similar trend was observed for hydrolysis with samples pretreated at 180 °C, as the final glucose and xylose concentrations were statistically similar for 10 and 15 min, both of which were significantly different from 5 min and untreated biomass. The final glucose (3.5%) and xylose (1.89%) for 10- and 15-min pretreatment times were about 133% and 100% higher than those for untreated biomass, respectively. The final glucose release for all three pretreatment times at 180 °C was in the range of 55% to 87%. Hydrolysis of energy cane bagasse pretreated with ionic liquid has been reported to provide cellulose digestibility of 64% to 87%, depending on enzyme dosage [3], which is in range of the results obtained in this study. Ionic liquid pretreatment suffers from economic constraints, making the LHW pretreatment with similar sugar yields more attractive [26]. The xylose concentration for samples pretreated at 200 °C showed an inverse relation of xylose concentration with increasing pretreatment time. In addition, the xylose concentration was observed to increase for the first 4 h but stayed constant thereafter. This is expected because in severe pretreatment conditions, hemicellulose solubilizes and is more likely to form inhibitors [16]. Similar results of decreasing xylose concentration with increasing severity were observed after pretreatment of energy cane bagasse with dilute ammonia [8]. Overall, the maximum glucose concentration achieved with 200 °C was 5.4%, both at 10- and 15-min pretreatment time, which was 258% higher than the untreated biomass; however, the maximum xylose concentration was obtained for 5 min pretreatment (2.149%), which was 127% higher than that of untreated biomass. At all temperatures, the glucose production profiles and final glucose concentrations were similar for 10 and 15 min residence time.

3.3. Effect of Disk Milling on Sugar Yields

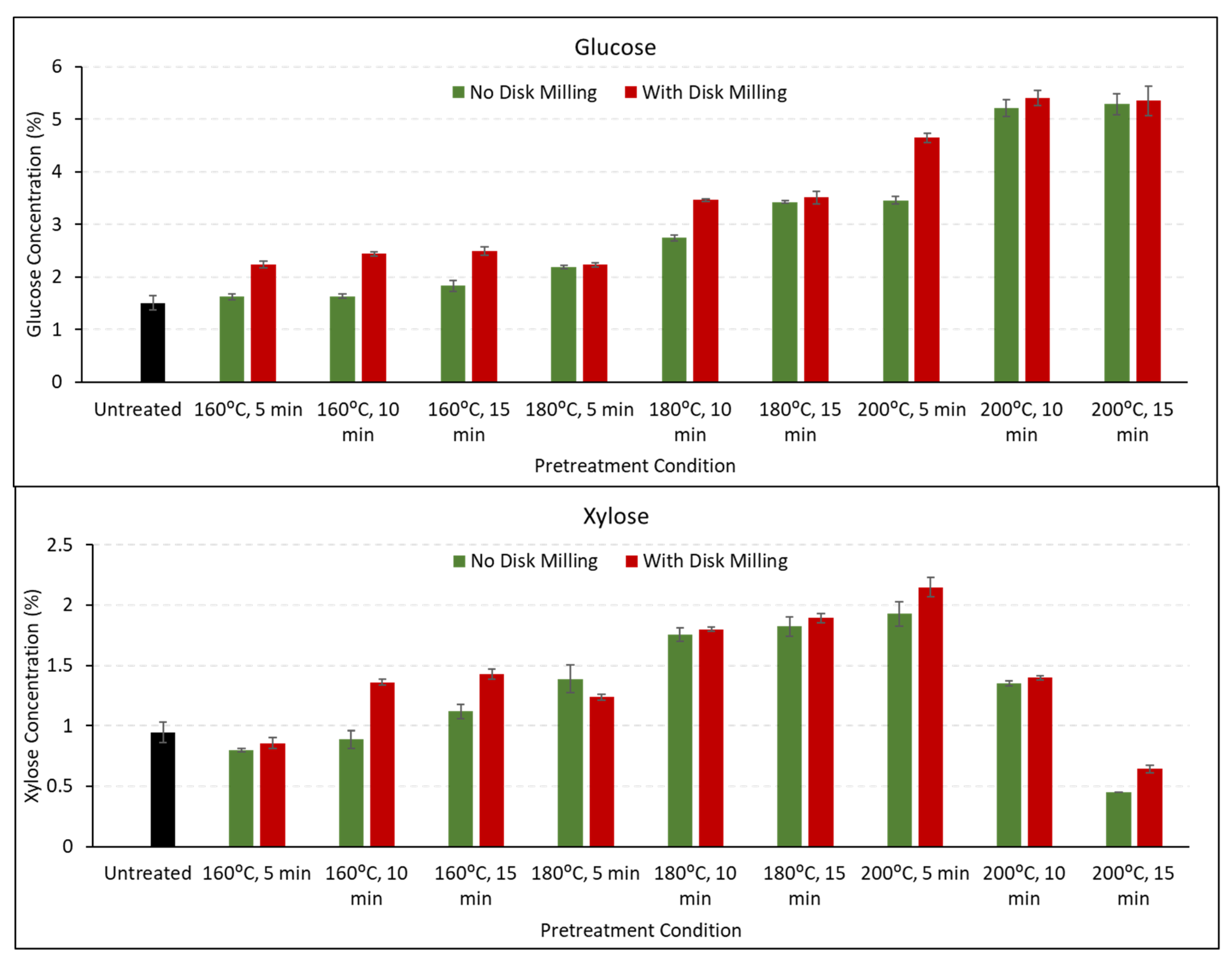

The final glucose and xylose concentration obtained after enzymatic hydrolysis for samples with and without the mechanical refining step are shown in Figure 5. The average glucose and xylose concentrations with disk milling ranged from 2.23% to 5.40% and 0.64% 2.15%, respectively, whereas average glucose and xylose concentrations without disk milling varied between 1.62% to 5.30% and 0.45% to 1.93%, respectively. Disk milling was observed to have a synergistic effect with LHW pretreatment to obtain high glucose and xylose concentrations. Disk milling leads to class I size reduction (shear forces increasing external surface area via delamination) and class II size reduction (deconstructing cell walls by breaking microfibril cross links and compression induced internal fibrillation) [27]. The effect of disk milling was more predominant at lower temperatures and times, which has also been observed previously for sugarcane bagasse [16]. For 160 °C pretreatment temperature, the addition of disk milling provided 37.75%, 49.09%, and 35.94% higher glucose concentrations for 5, 10, and 15 min pretreatment times, respectively, in comparison with no disk milling. A 26.16% and 34.34% increase in glucose was observed with the addition of three passes of disk milling in pretreatment conditions 180 °C, 10 min and 200 °C, 5 min. At 200 °C, extending the LHW pretreatment time beyond 5 min, the differences between disk-milled and non-milled samples were very limited. The hydrolysis yields are highly dependent on the process conditions, mainly the temperature and time used during the hot water pretreatment. It has been observed that the secondary disk milling process might not be required for all feedstocks, and only hot water pretreatment in certain conditions might be sufficient. Kumar and Murthy [28] observed no significant difference in the sugar yields during hydrolysis of hot water and dilute acid pretreated tall fescue and bentgrass straw; however, the yield was higher for dilute acid pretreated samples for perennial ryegrass straw [28]. For xylose concentrations, the increase in disk-milled samples was in the range of 2.5% to 53.4%. Similar results were obtained previously, where addition of wet disk milling showed an increase of 34–89% for glucose and 4–134% for glucose using corn stover [12].

3.4. Hydrolysis Efficiency

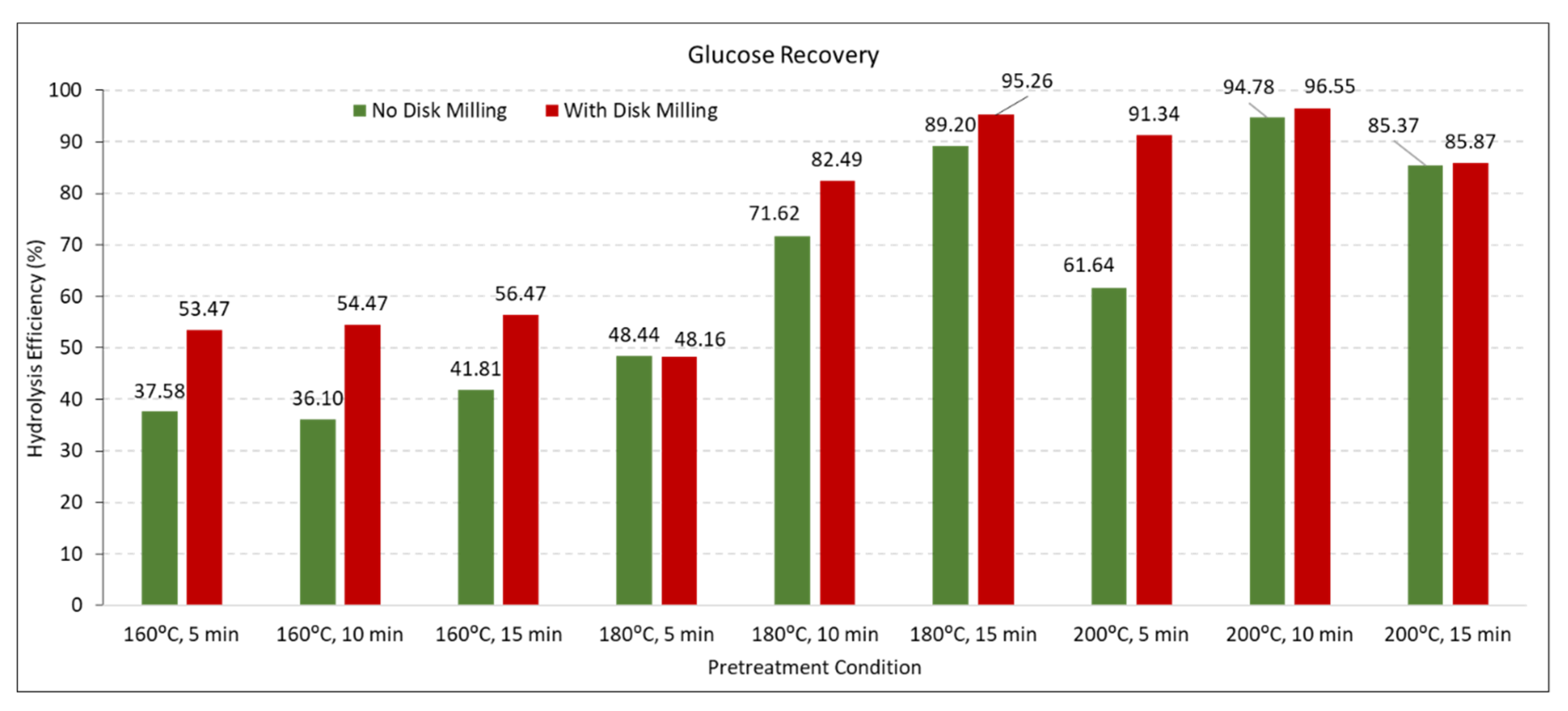

Glucose recoveries based on theoretical unconverted glucose present in the pretreated biomass under different pretreatment conditions are presented in Figure 6. The glucose recovery ranged from 36.10% to 94.78% for non-disk-milled samples, and from 48.16% to 96.55% for the disk-milled samples, with the highest sugar recovery at 200 °C, 10 min pretreatment conditions (SF = 3.94) during hydrolysis. However, in this condition, the recovery from the disk-milled samples was only 1.8% higher than that for the non-disk-milled samples. Similar high glucose recovery was obtained at 180 °C, 15 min (95.26%), which was 6.8% higher than the samples pretreated in the same condition but not disk-milled (Figure 6). The effect of disk milling was more predominant at all times for 160 °C, which has been previously reported [16]. The recovery observed at 180 °C, 15 min and disk milling corresponds to over 98% of the maximum glucose value recovered. Thus, disk milling permitted to achieve almost maximum hydrolysis efficiency while operating at a lower temperature of 20 °C for only 5 min more, highlighting a synergy between the pretreatments that helps mitigate the process conditions.

Xylose recovery was calculated based on raw biomass composition as well as on pretreated biomass composition (

Table 2. Xylose recovery based on the composition of raw biomass and pretreated biomass.

		Xylose Recovery, %
Basis of Calculation		160 °C, 5 min	160 °C, 10 min	160 °C, 15 min	180 °C, 5 min	180 °C, 10 min	180 °C, 15 min	200 °C, 5 min	200 °C, 10 min	200 °C, 15 min
Raw biomass composition	No DM*	28.36	45.48	45.239	41.9	32.88	41.16	20.48	17.31	2.058
	DM*	34.14	53.53	55.155	47.15	74.08	78.9	88.67	56.61	26.86
Pretreated biomass composition	No DM*	35.04	57.72	87.8	50.59	77.44	91.47	93.83	-	-
	DM*	80.42	119	66.6	58.26	94.01	153.1	406.2	-	-

*DM: liquid hot water (LHW) pretreatment followed by three cycles of disk milling. *No DM: LHW pretreatment only.

). The xylose recovery from untreated energy cane was measured as 5.5%, which is similar to 5.8% reported previously for untreated oil palm mesocarp fiber with similar hemicellulose content as energy cane [24]. On the basis of raw biomass composition, xylose yields at the end of the hydrolysis ranged from 2% to 45.5% for LHW pretreatment and from 26.86% to 88.67% for LHW followed by disk milling pretreatment. Previous studies have reported maximum xylose yields of 54.3% with LHW pretreated corn stover followed by nine cycles of disk milling [12], 50.50% with sugarcane bagasse pretreated by ozonolysis followed by seven cycles of disk milling [29], and 66.6% for LHW of sugarcane bagasse followed by three cycles of disk milling [16]. The xylose recovery in the current study is higher than all the yields previously reported only with three cycles of disk milling. This might suggest that different biomass, with varying levels of recalcitrance, requires different severity of pretreatment to release sugars. Also, different types of pretreatments can have varying effects on the same biomass, affecting the number of disk milling cycles needed to obtain the maximum possible sugar release. Based on the composition of pretreated biomass, xylose yields were in the range of 35%–94% for non-disk-milled samples and exceeded 100% for disk-milled samples in higher severity conditions (3.53–4.12). This observation is attributed to the fact that liquid hot water pretreatment (as severity increases) solubilizes the hemicellulose into liquid as soluble oligosaccharides, which are not detected as xylose, and break down during the hydrolysis process [30]. These oligomers, being soluble, are removed in extractives (rather than being measured as hemicellulose) during the estimation of composition of the pretreated biomass. Due to same reason, no xylose was detected in the composition of the biomass pretreated at 200 °C for 10 and 15 min; therefore, xylose recovery was also not obtained in these conditions.

4. Conclusions

A chemical-free two-step pretreatment was investigated for efficient sugar production from energy cane bagasse. Three liquid hot water pretreatment (LHW) temperatures (160 °C, 180 °C, and 200 °C) and three residence times (5, 10, and 15 min) were investigated, in addition to understanding the effect of disk milling following LHW on the sugar yields. During pretreatment at 200 °C, residence times of more than 5 min solubilized all the hemicellulose. The highest glucose concentration of 5.4% was obtained for the pretreatment condition of 200 °C for 10 min with disk milling, and the highest xylose concentration of 2.15% was obtained for 200 °C for 5 min with disk milling. Disk milling improved the sugar yields; however, the effect was more predominant at lower pretreatment temperatures and times. With the increase in the severity of pretreatment, the xylose content decreased as expected due to the formation of degradation products, such as 5-hydroxymethylfurfural (5-HMF).
