# Aerodynamic Study of the Wake Effects on a Formula 1 Car

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

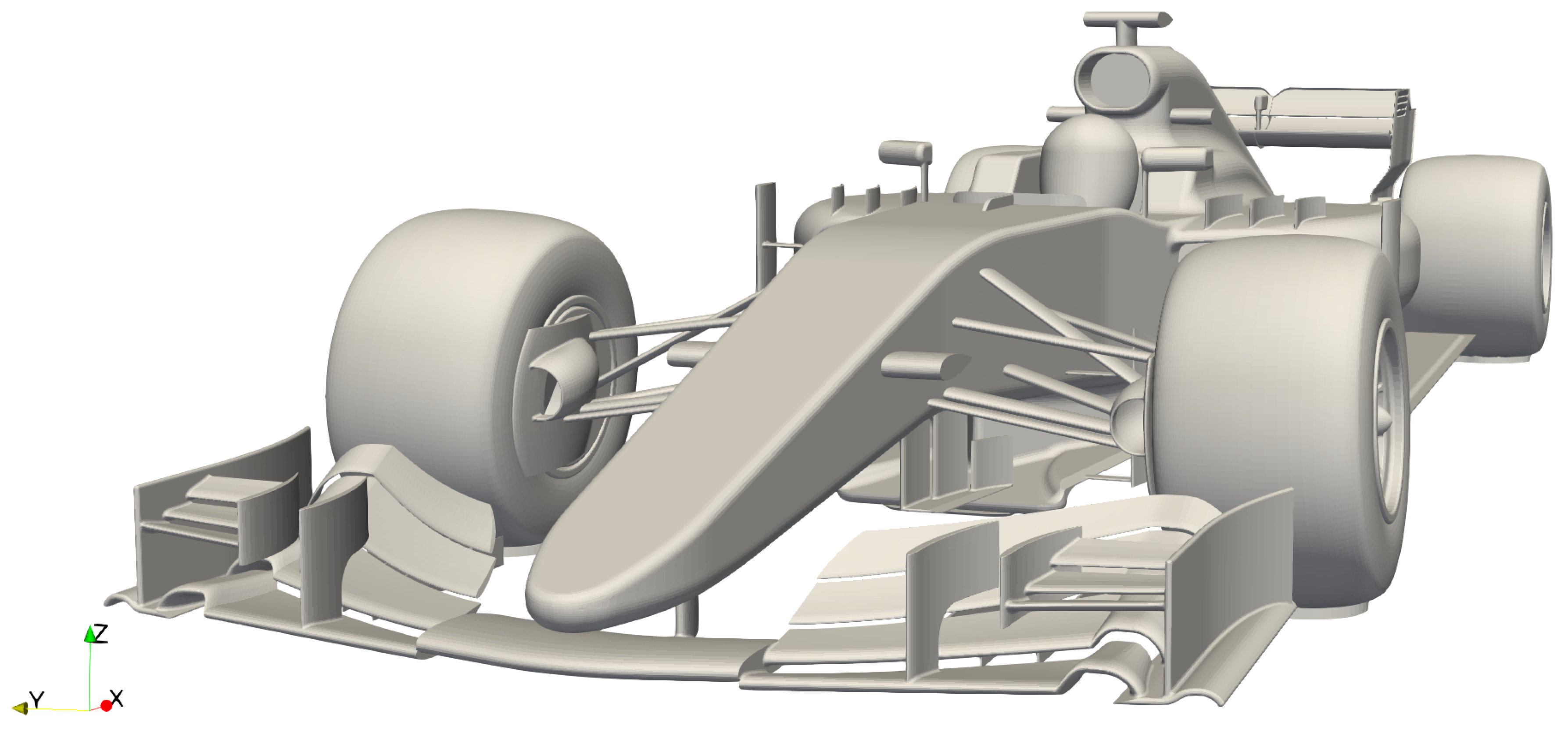

#### 2.1. Geometry

#### 2.2. Solver

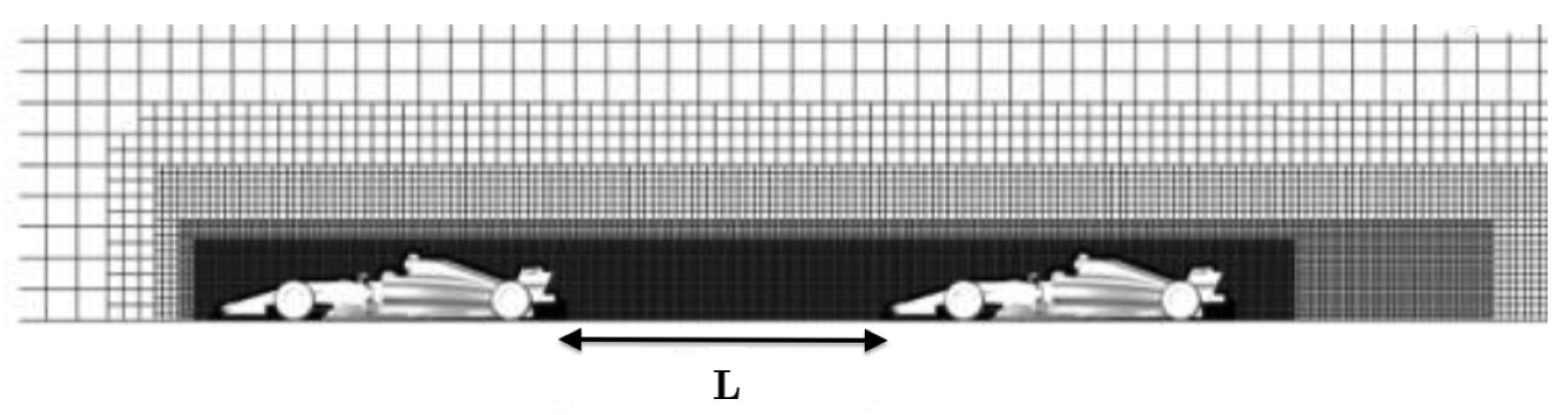

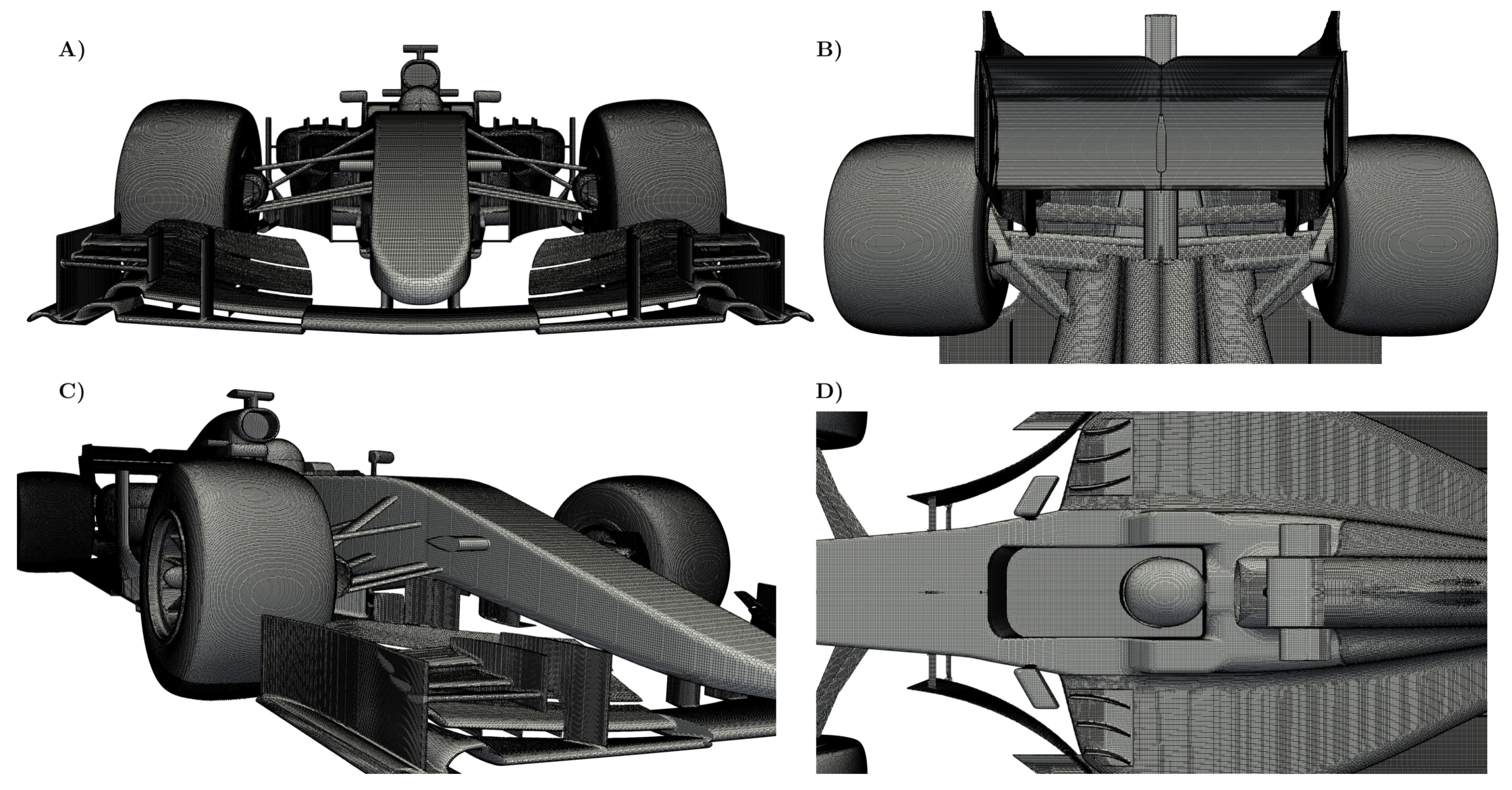

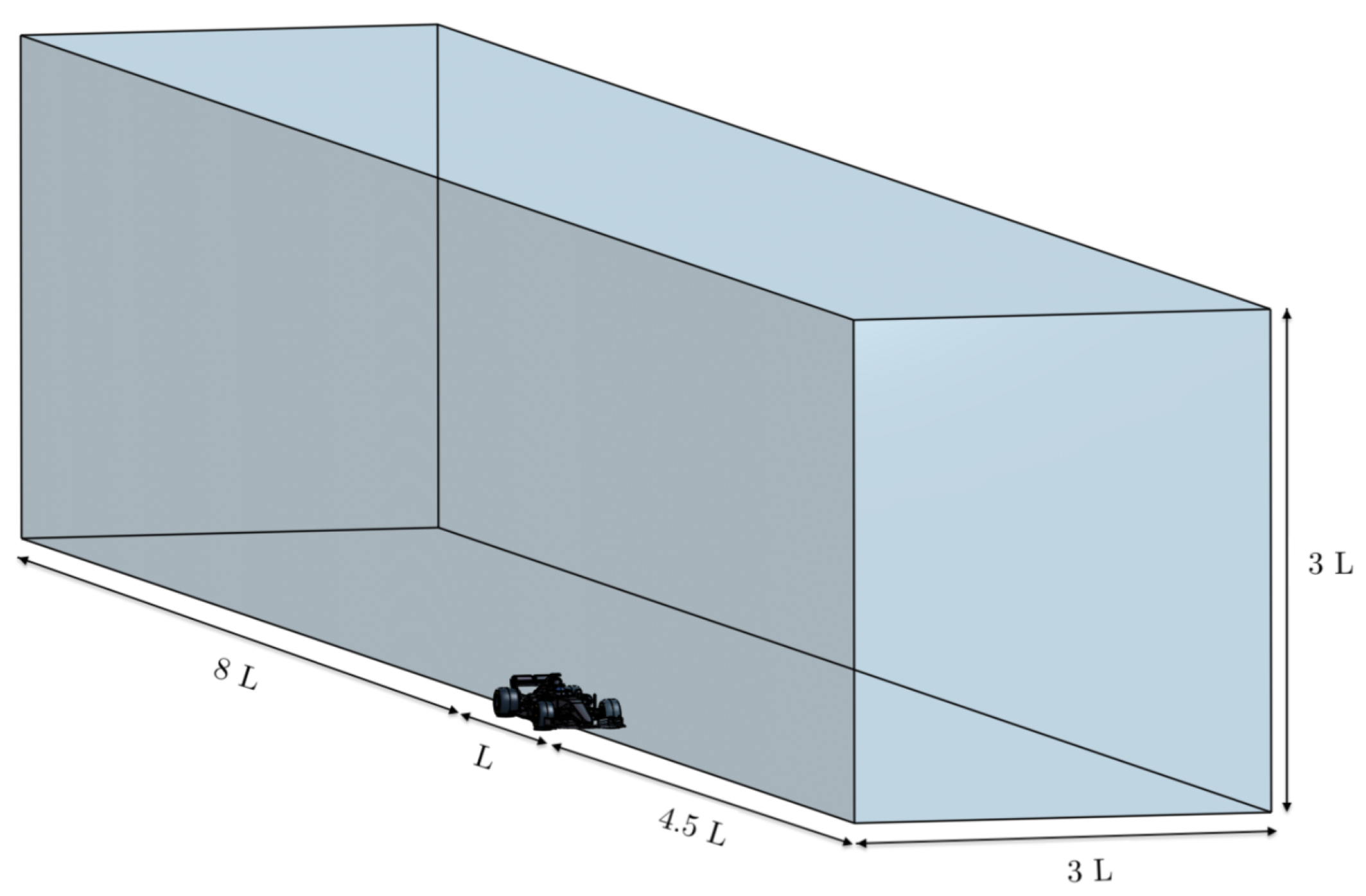

#### 2.3. Domain and Mesh

#### 2.4. Boundary Conditions

- Inlet velocity set at 50 m/s, as it corresponds to a value which can be easily replicated in a wind tunnel (for experimental validation purposes).
- Pressure outlet set at Atmospheric pressure.
- Symmetry plane.
- Ground velocity set at 50 m/s.
- Slip condition on the side wall and the top of the fluid domain.
- Angular velocity and rotational axis of the wheels (MRF).

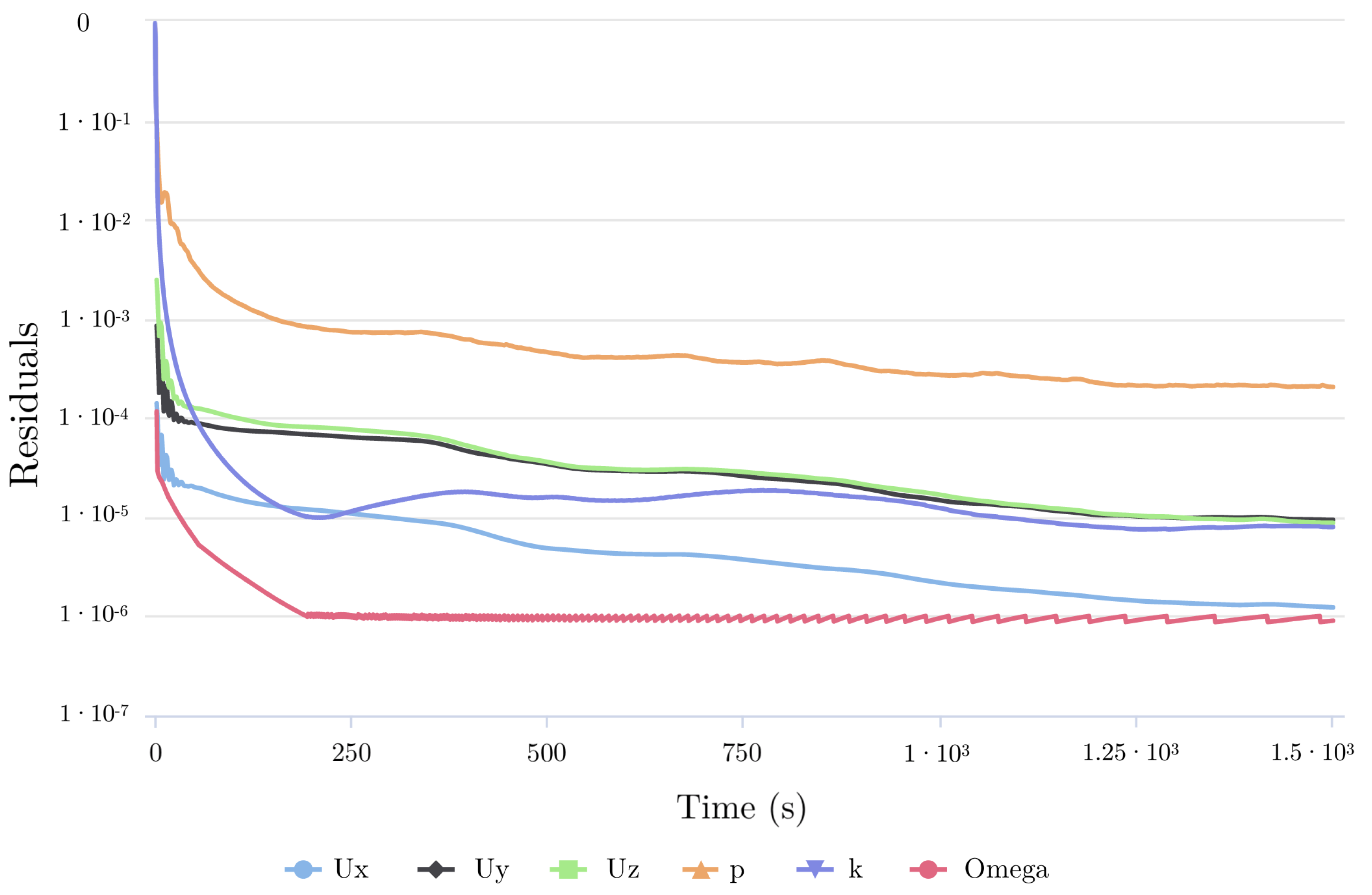

#### 2.5. Simulation Performance

## 3. Results and Discussion

#### 3.1. Free Stream Condition

#### 3.2. Under Wake flows

## 4. Conclusions

## Author Contributions

## Funding

## Conflicts of Interest

## Abbreviations

CFD | Computational Fluid Dynamics |

FVM | Finite Volume Method |

GAMG | Geometric Algebraic Multi Grid |

GCI | Grid Convergence Index |

FIA | Federation Internationale de l’Automobile |

CAD | Computer Aided Design |

RAM | Random Access Memory |

L | Vehicle length [m] |

$\varphi $ | Reference parameter [${\mathrm{m}}^{2}$] |

l | Turbulent length scale [m] |

I | Turbulent intensity [%] |

Re | Reynolds Number |

Cp | Pressure coefficient |

$\rho $ | Fluid density [kg/${\mathrm{m}}^{3}$] |

${U}_{\infty}$ | Fluid velocity [m/s] |

g | Gravitational acceleration [m/${\mathrm{s}}^{2}$] |

$\mu $ | Dynamic viscosity [kg/m·s] |

S | Reference Surface [${\mathrm{m}}^{2}$] |

${C}_{L}$ | Lift coefficient |

${C}_{D}$ | Drag coefficient |

E | Aerodynamic Efficiency |

FB | Front Balance |

## References

- Wilson, M.R.; Dominy, R.G.; Straker, A. The aerodynamic characteristics of a race car wing operating in a wake. SAE Int. J. Passeng. Cars-Mech. Syst.
**2008**, 1, 552–559. [Google Scholar] [CrossRef] - Ravelli, U.; Savini, M. Aerodynamic Simulation of a 2017 F1 Car with Open-Source CFD Code. J. Traffic Transp. Eng.
**2018**, 6. [Google Scholar] [CrossRef] - Ravelli, U.; Savini, M. Aerodynamic investigation of blunt and slender bodies in ground effect using OpenFOAM. Int. J. Aerodyn.
**2019**. [Google Scholar] [CrossRef] - Newbon, J.; Sims-Williams, D.; Dominy, R. Aerodynamic analysis of Grand Prix cars operating in wake flows. SAE Int. J. Passeng. Cars. Mech. Syst.
**2017**, 10, 318–329. [Google Scholar] [CrossRef] [Green Version] - Perry, R.; Marshall, D. An Evaluation of Proposed Formula 1 Aerodynamic Regulations Changes Using Computational Fluid Dynamics. In Proceedings of the 26th AIAA Applied Aerodynamics Conference, Honolulu, Hawaii, 18–21 August 2008; p. 6. [Google Scholar] [CrossRef] [Green Version]
- Ogawa, A.; Yano, S.; Mashio, S.; Takiguchi, T.; Nakamura, S.; Shingai, M. Development Methodologies for Formula One Aerodynamics; Honda R&D Technical Review 2009; F1 Special (The third Era Activities): Sakura/Chiba, Japan, 2009. [Google Scholar]
- Senger, S.; Bhardwaj, S.R. Aerodynamic Design of F1 and Normal Cars and Their Effect on Performance. Int. Rev. Appl. Eng. Res.
**2014**, 2248–9967. [Google Scholar] - Larsson, T. 2009 Formula One Aerodynamics BMW Sauber F1.09—Fundamentally Different. In Proceedings of the 4th European Automotive Simulation Conference, Munich, Germany, 6–7 July 2009; p. 4. [Google Scholar]
- Reddit. Ferrari SF70H, the 2017 Championship Contender. Available online: https://www.reddit.com/r/formula1/comments/bw9v7z/the_ferrari_sf70h_shark_fin_looks_good/ (accessed on 3 May 2020).
- Newbon, J.; Dominy, R.; Sims-Williams, D. Investigation into the Effect of the Wake from a Generic Formula One Car on a Downstream Vehicle. In Proceedings of the International Vehicle Aerodynamics Conference; Elsevier Science: Amsterdam, The Netherlands, 2014. [Google Scholar]
- Hajdukiewicz, M.; Geron, M.; Keane, M.M. Formal calibration methodology for CFD models of naturally ventilated indoor environments. Build. Environ.
**2013**, 59, 290–302. [Google Scholar] [CrossRef] [Green Version] - Williams, J.; Quinlan, W.; Hackett, J.; Thompson, S.; Marinaccio, T.; Robertson, A. A calibration study of CFD for automotive shapes and CD. SAE Trans.
**1994**, 103, 308–327. [Google Scholar] - Onshape a PTC Business. Perrinn Limited|Customer. Available online: https://www.onshape.com/customers/perrinn-limited (accessed on 3 May 2020).
- OpenFOAM Foundation. OpenFOAM Resources|Documentation|OpenFOAM. Available online: https://openfoam.org/resources/ (accessed on 2 February 2020).
- Constantin, P.; Foias, C. Navier-Stokes Equations; University of Chicago Press: Chicago, IL, USA, 1988. [Google Scholar]
- Eymard, R.; Gallouët, T.; Herbin, R. Finite volume methods. Handb. Numer. Anal.
**2000**, 7, 713–1018. [Google Scholar] [CrossRef] [Green Version] - Menter, F.R.; Kuntz, M.; Langtry, R. Ten years of industrial experience with the SST turbulence model. Turbul. Heat Mass Transf.
**2003**, 4, 625–632. [Google Scholar] - Broniszewski, J.; Piechna, J. A fully coupled analysis of unsteady aerodynamics impact on vehicle dynamics during braking. Eng. Appl. Comput. Fluid Mech.
**2019**, 13, 623–641. [Google Scholar] [CrossRef] - Moukalled, F.; Mangani, L.; Darwish, M. The Finite Volume Method in Computational Fluid Dynamics; Springer: Berlin/Heidelberg, Germany, 2016; Volume 6. [Google Scholar]
- Celik, I.B.; Ghia, U.; Roache, P.J.; Freitas, C.J.; Coleman, H.; Raad, P.E. Procedure for estimation and reporting of uncertainty due to discretization in CFD applications. J. Fluids Eng. Trans. ASME
**2008**, 130, 0780011–0780014. [Google Scholar] [CrossRef] [Green Version] - CFD Online. Turbulence Length Scale-CFD-Wiki, the Free CFD Reference. Available online: https://www.cfd-online.com/Wiki/Turbulence_length_scale (accessed on 1 May 2020).
- CFD Online. Turbulence Intensity-CFD-Wiki, the Free CFD Reference. Available online: https://www.cfd-online.com/Wiki/Turbulence_intensity (accessed on 27 April 2020).
- PERRINN CFD. Available online: https://docs.google.com/spreadsheets/d/1POHSdkdfXeUEeGgh-meufNzVRUycCLvzUfn_TVXs_PE/edit#gid=0 (accessed on 4 March 2020).
- Soso, M.; Wilson, P. Aerodynamics of a wing in ground effect in generic racing car wake flows. Proc. Inst. Mech. Eng. Part D J. Automob. Eng.
**2006**, 220, 1–13. [Google Scholar] [CrossRef] - Vargas, R.V. Meteorología Sinóptica—Vorticidad. Available online: https://slideplayer.es/slide/13178976/ (accessed on 9 May 2020).
- Nakagawa, M.; Kallweit, S.; Michaux, F.; Hojo, T. Typical velocity fields and vortical structures around a formula one car, based on experimental investigations using particle image velocimetry. SAE Int. J. Passeng. Cars-Mech. Syst.
**2016**, 9, 754–771. [Google Scholar] [CrossRef] - Ehirim, O.; Knowles, K.; Saddington, A. A Review of Ground-Effect Diffuser Aerodynamics. J. Fluids Eng.
**2018**, 141, 020801. [Google Scholar] [CrossRef] - Howell, J. Catastrophic lift forces on racing cars. J. Wind. Eng. Ind. Aerodyn.
**1981**, 9, 145–154. [Google Scholar] [CrossRef] - McBeath, S. Competition Car Aerodynamics, 3rd ed.; Veloce Publishing: Dorchester/Poundbury, UK, 2017. [Google Scholar]
- Dominy, R. The influence of slipstreaming on the performance of a Grand Prix racing car. Proc. Inst. Mech. Eng. Part D J. Automob. Eng.
**1990**, 204, 35–40. [Google Scholar] [CrossRef] - Bleacher Report, Inc. F1 Turbulence: Dumbing It Down|Bleacher Report|. Available online: https://bleacherreport.com/articles/220724-f1-turbulence-dumbing-it-down (accessed on 4 April 2020).

**Figure 1.**Ferrari SF70H, a 2017 spec. car. Extracted from Reddit [9].

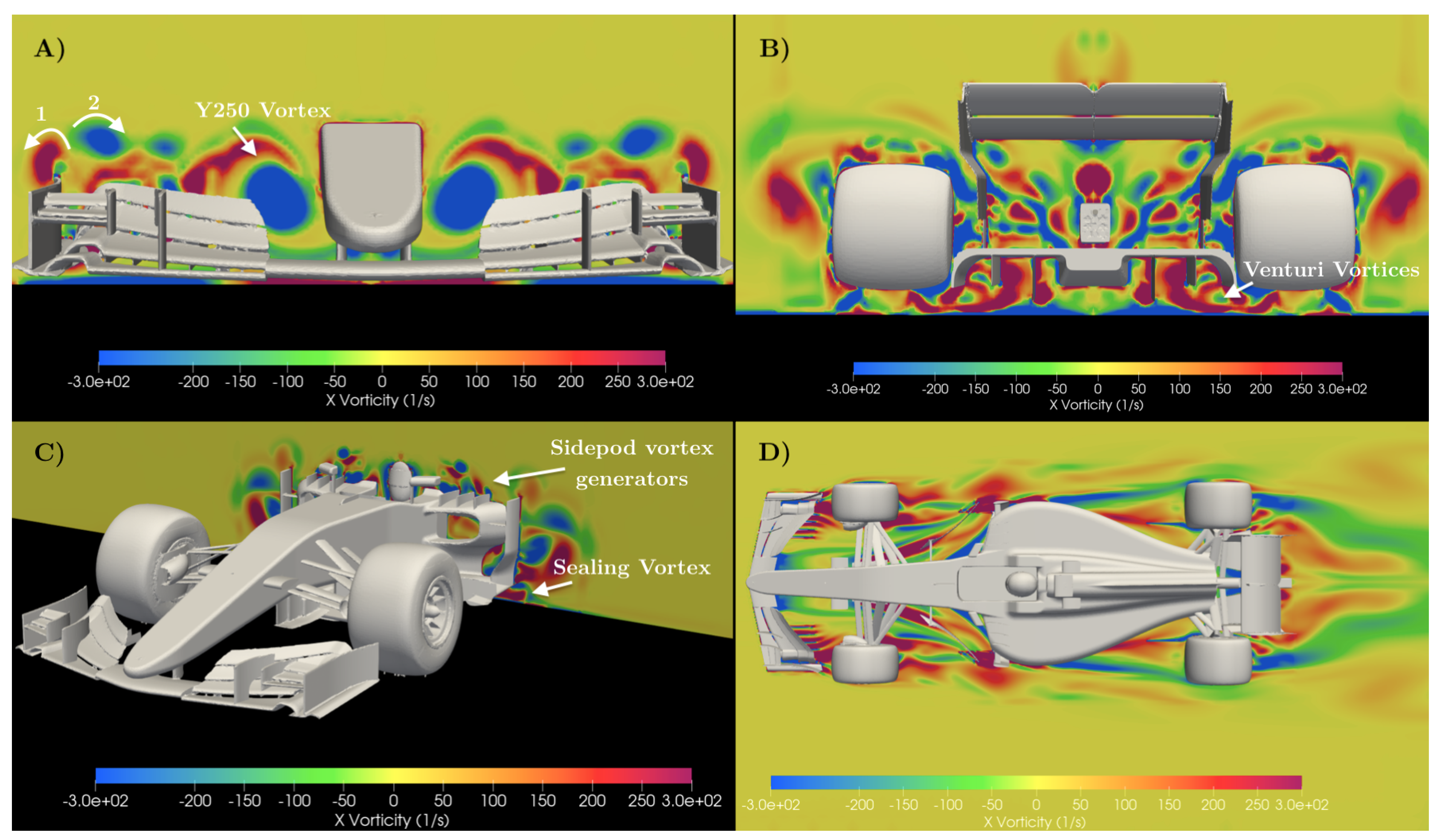

**Figure 10.**Several axial vorticity contours: (

**A**) YZ plane at 0.65 m in the X direction, (

**B**) YZ plane at 3.65 m in the X direction, (

**C**) YZ plane at 2.60 m in the X direction, and (

**D**) XY plane at 0 m in the Z direction.

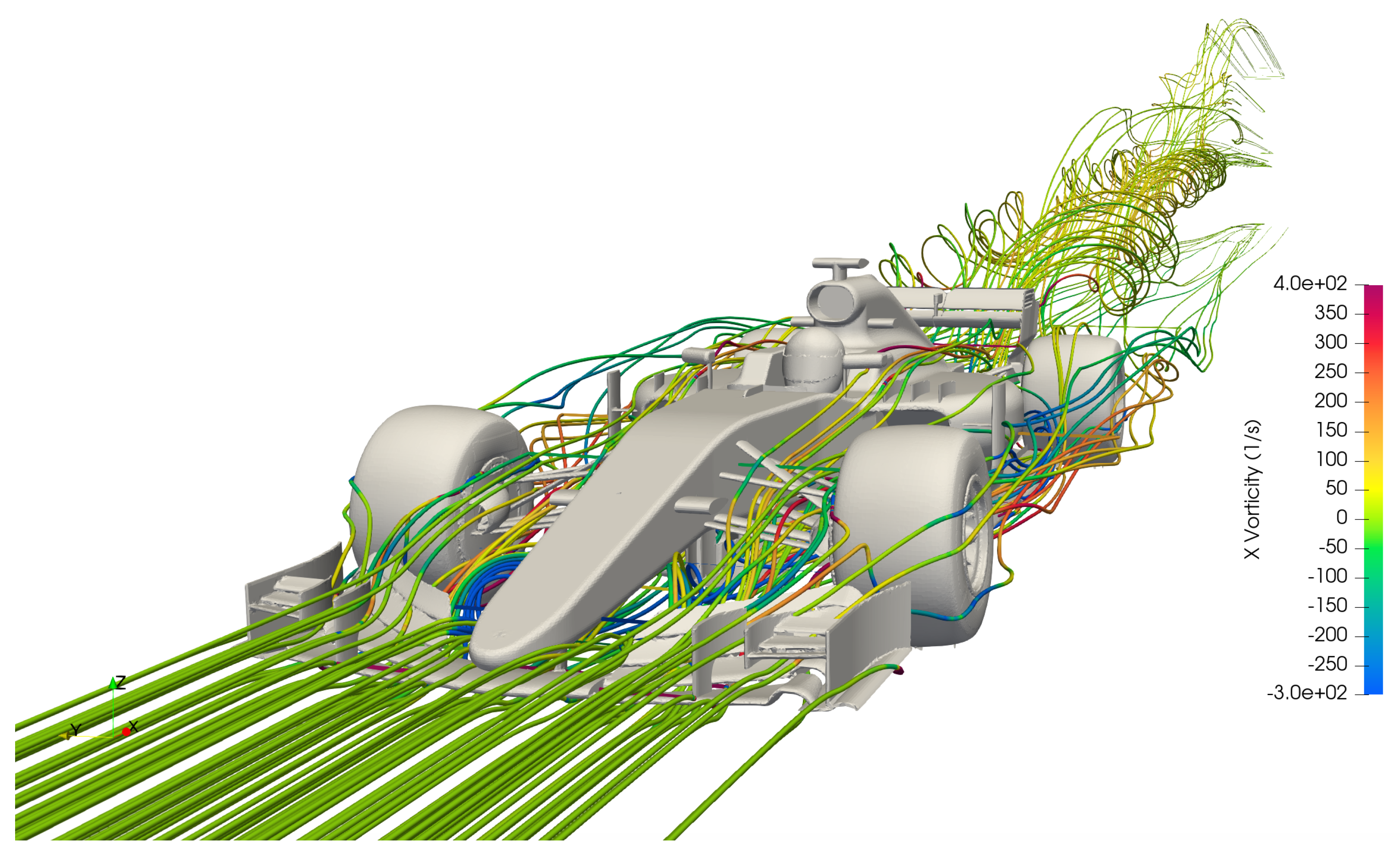

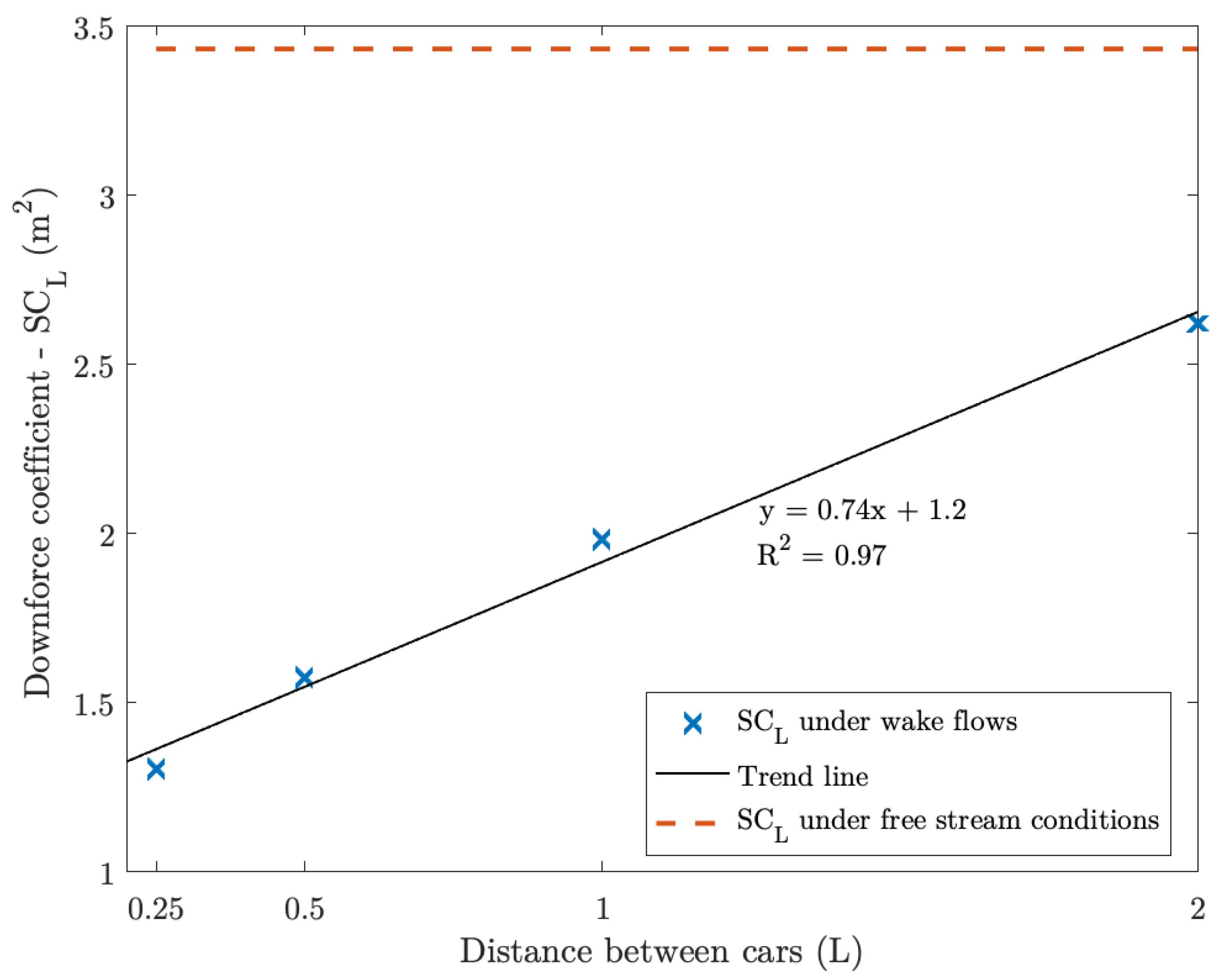

**Figure 12.**Comparison between values of S${C}_{L}$ under wake flows and under free stream conditions.

**Figure 13.**Comparison between values of S${C}_{D}$ under wake flows and under free stream conditions.

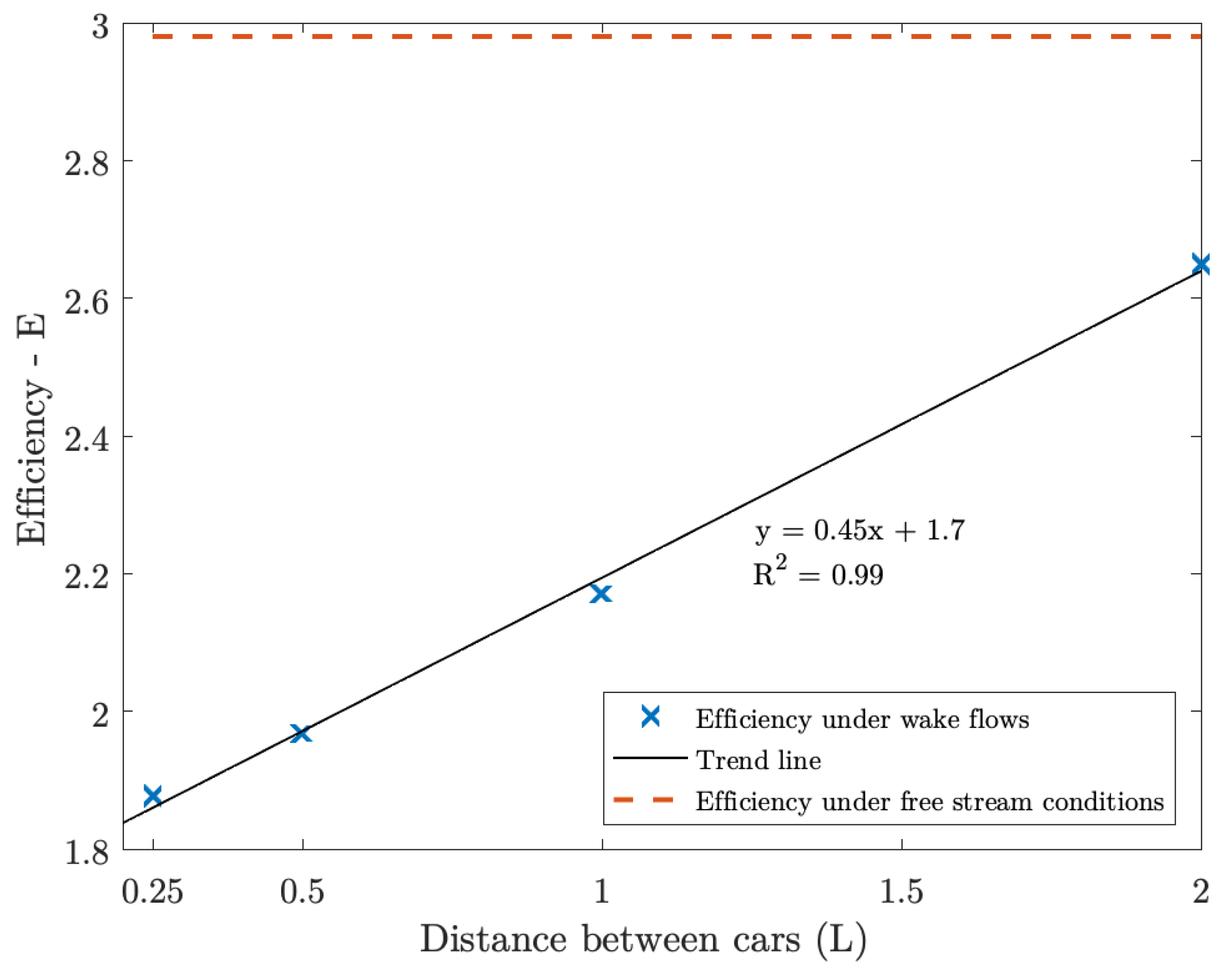

**Figure 14.**Comparison between values of efficiency under wake flows and under free stream conditions.

**Figure 15.**Comparison between values of front balance under wake flows and under free stream conditions.

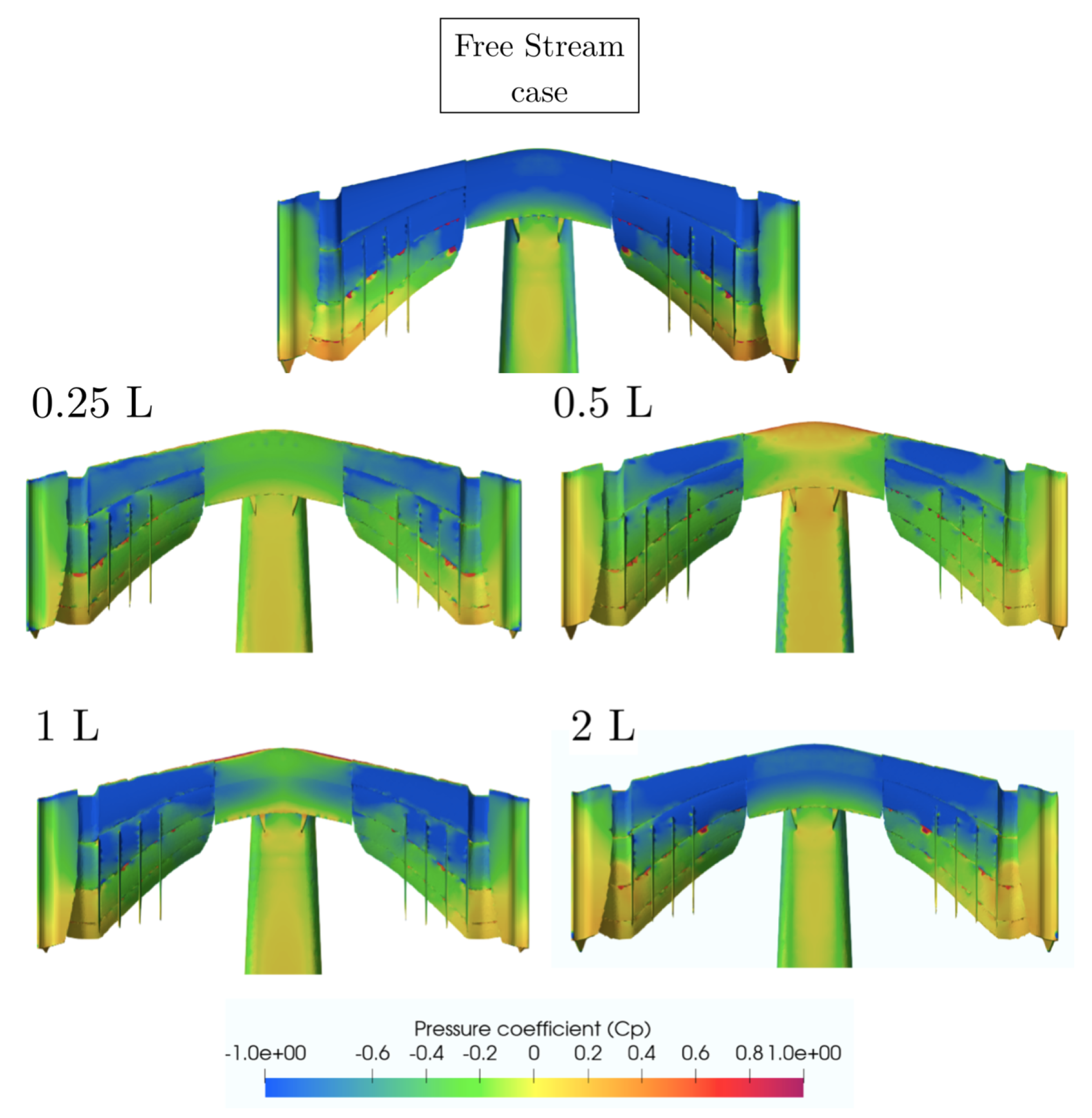

**Figure 17.**Pressure coefficient distribution on the front wing of the second car at a distance of 0.25 L, 0.5 L, 1 L, and 2 L as compared to the free stream case.

**Figure 18.**Streamlines of the velocity. Front wing of the second car at a distance of 0.25 L, 0.5 L, 1 L, and 2 L as compared to the free stream case.

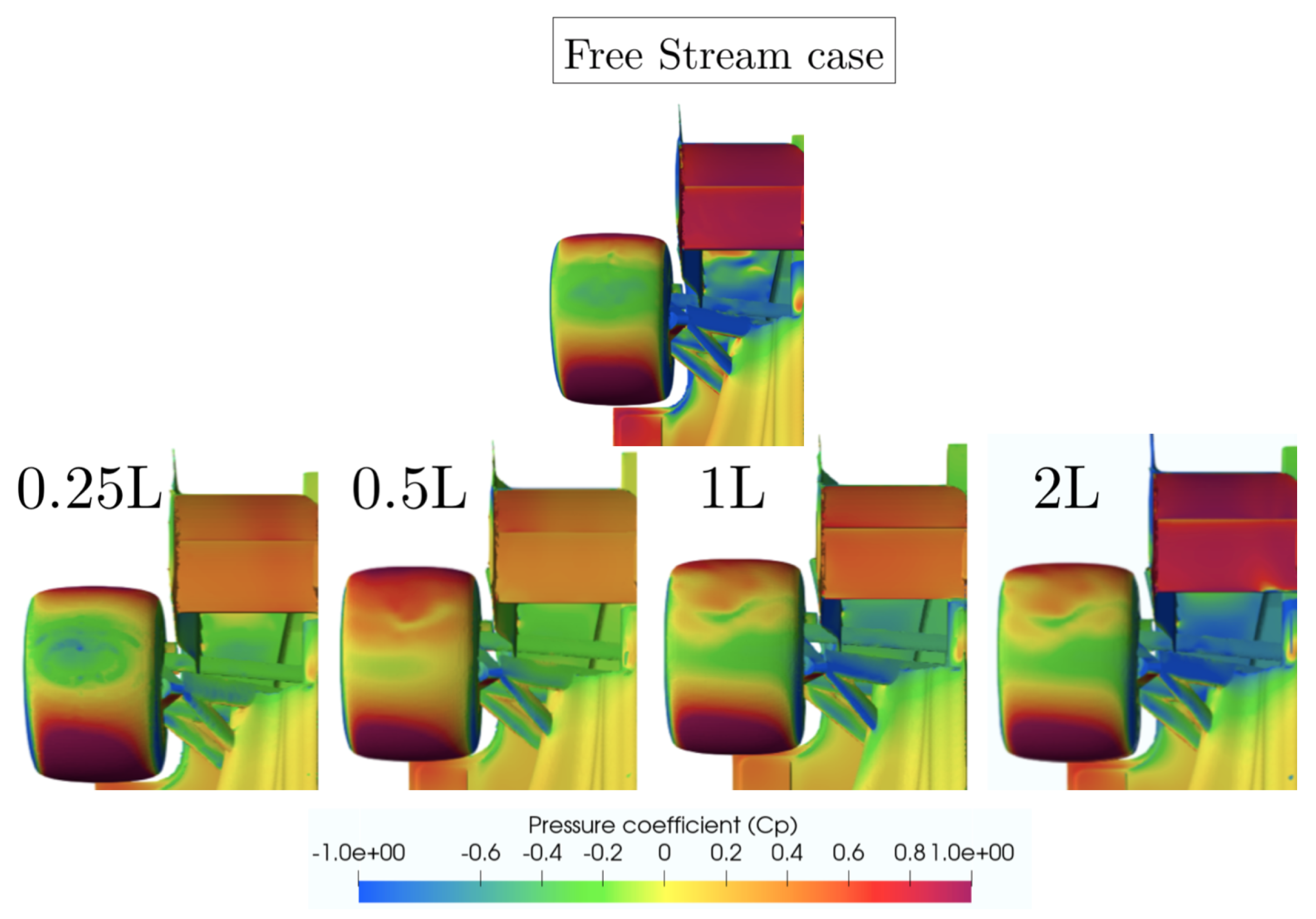

**Figure 19.**Pressure coefficient distribution on the rear wing of the second car at a distance of 0.25 L, 0.5 L, 1 L, and 2 L as compared to the free stream case.

**Figure 20.**Streamlines of the velocity. Rear wing of the second car at a distance of 0.25 L, 0.5 L, 1 L, and 2 L as compared to the free stream case.

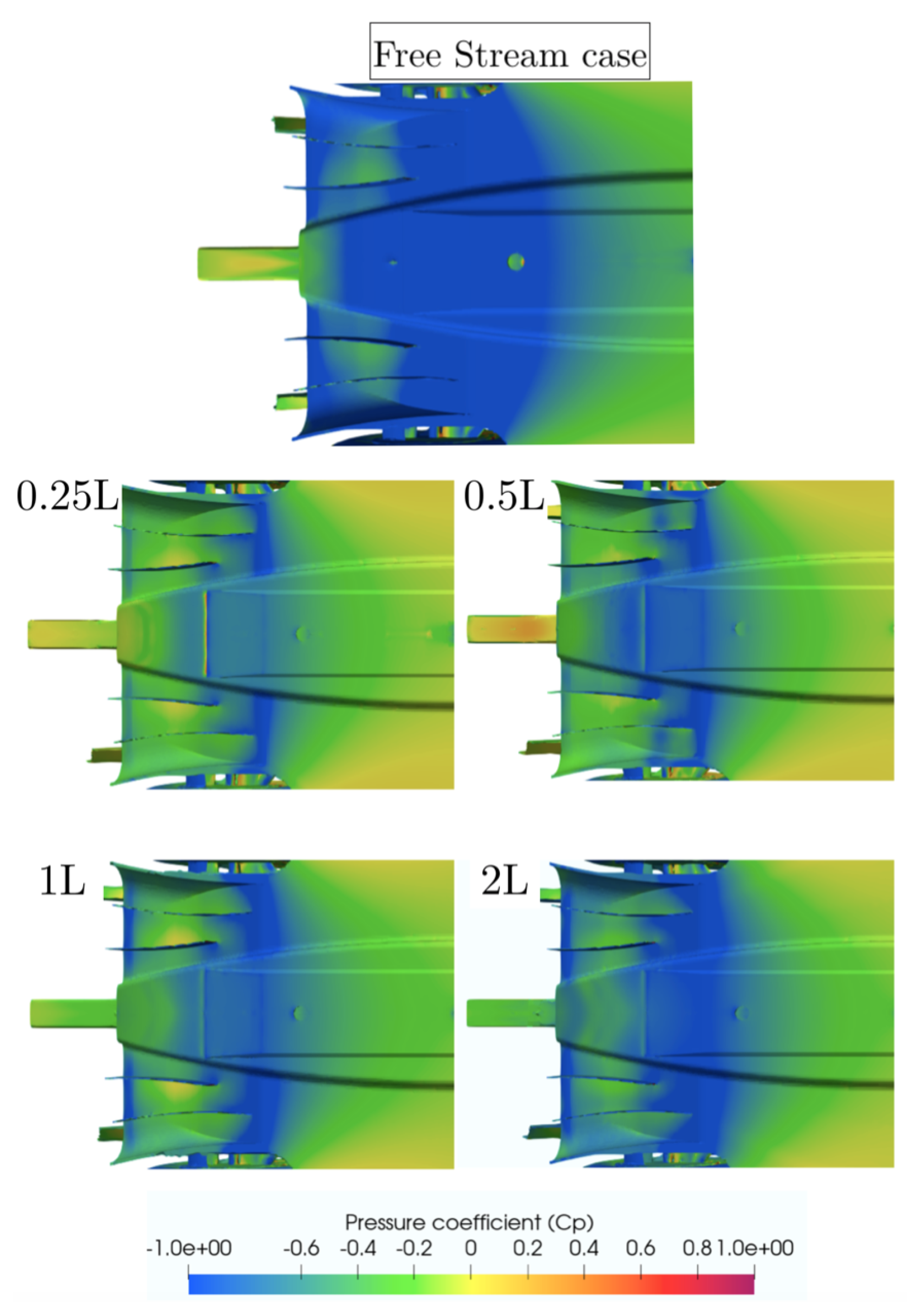

**Figure 21.**Pressure coefficient distribution on the diffuser of the second car at a distance of 0.25 L, 0.5 L, 1 L, and 2 L as compared to the free stream case.

**Figure 22.**Streamlines of the velocity. Diffuser of the second car at a distance of 0.25 L, 0.5 L, 1 L, and 2 L as compared to the free stream case.

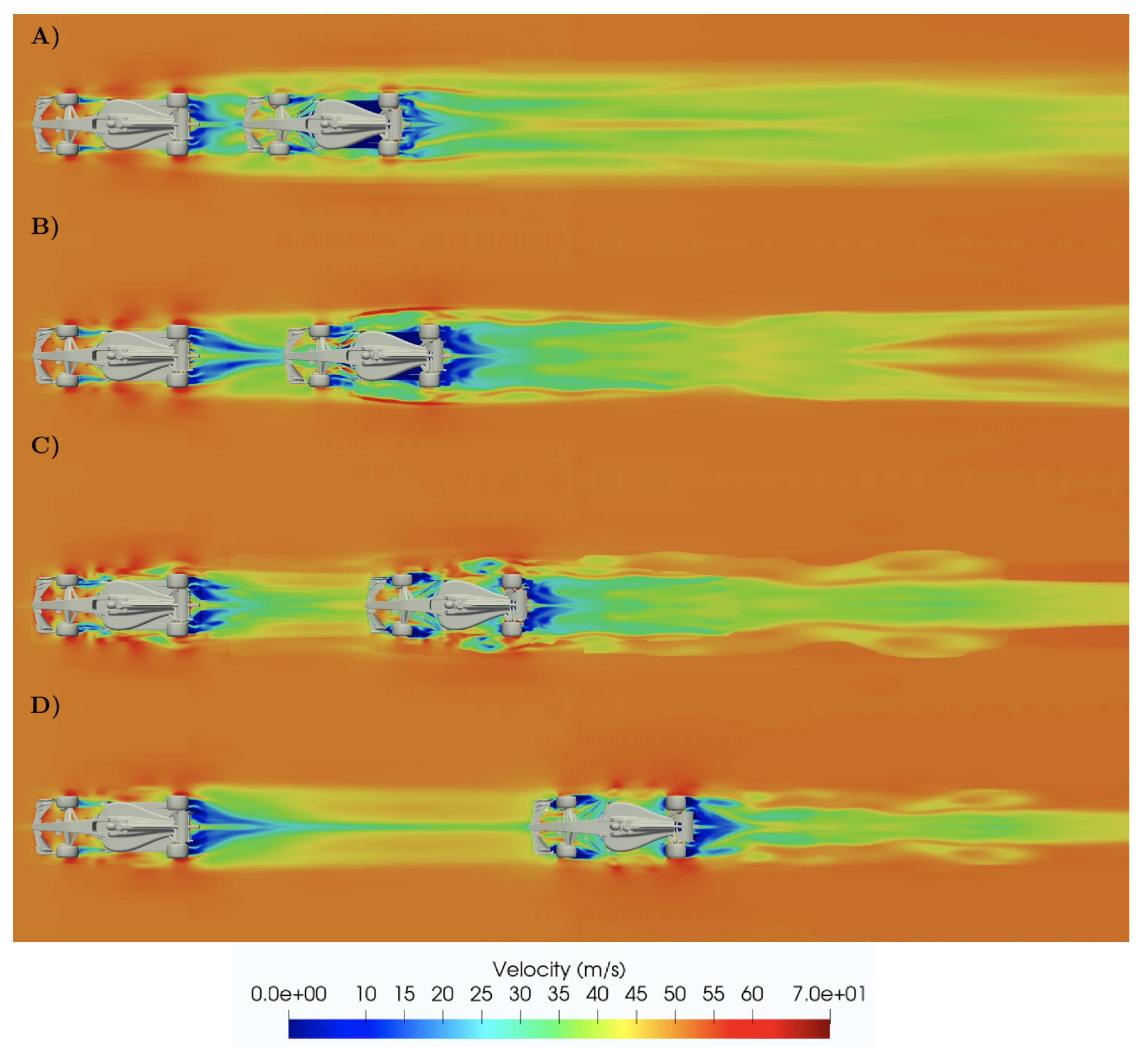

**Figure 24.**Velocity contours on a top plane at a distance of (

**A**) 0.25 L, (

**B**) 0.5 L, (

**C**) 1 L, and (

**D**) 2 L.

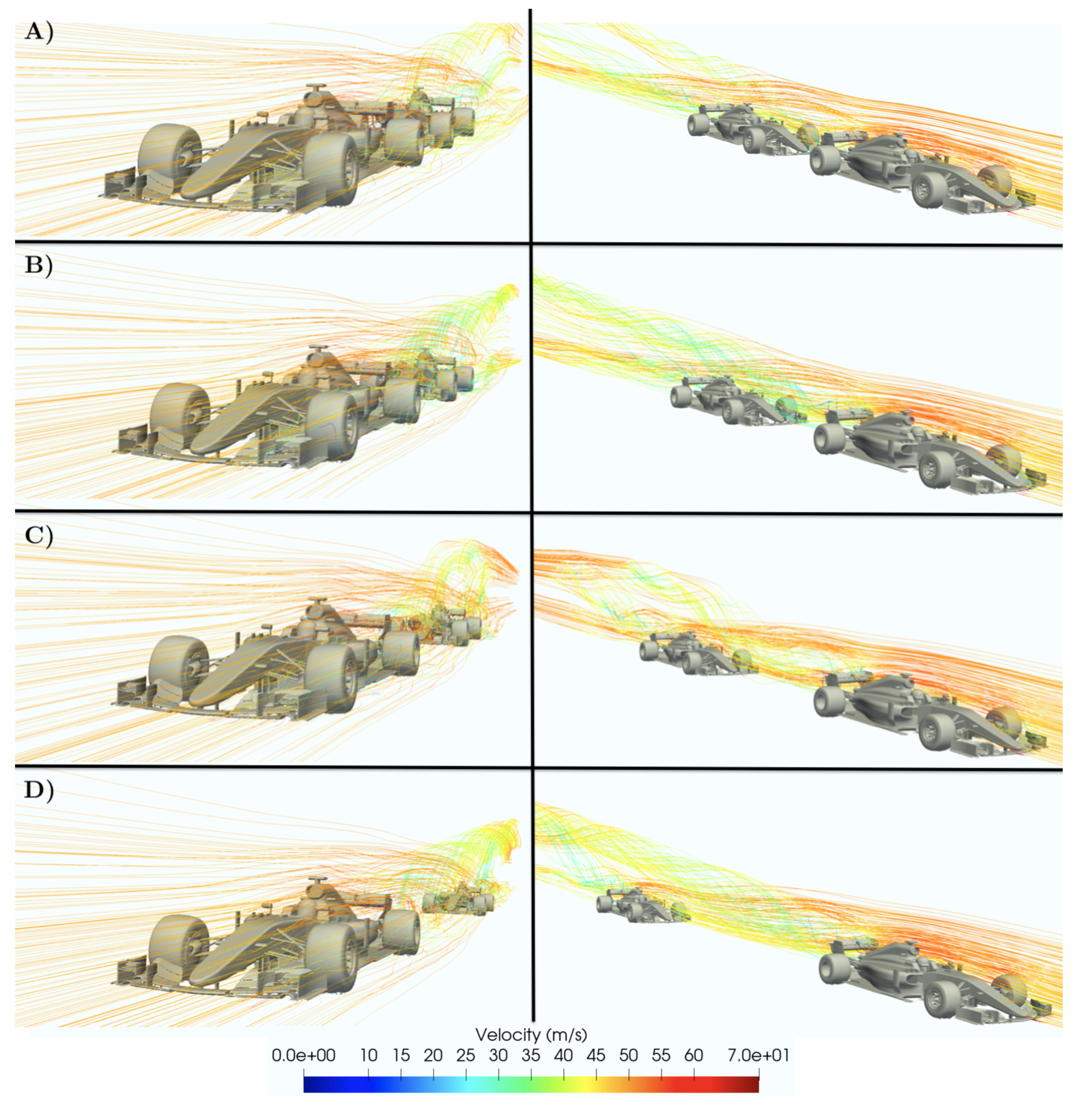

**Figure 25.**Streamlines of the velocity at a distance of (

**A**) 0.25 L, (

**B**) 0.5 L, (

**C**) 1 L, and (

**D**) 2 L.

Mesh Parameters | $\mathit{\varphi}$ = S·${\mathit{C}}_{\mathit{L}}$ |
---|---|

Number of elements N1, N2, N3 | 18055055, 13793013, 10634551 |

Refinement ratio ${r}_{21}$ | 1.309 |

Refinement ratio ${r}_{32}$ | 1.297 |

Finest result ${\varphi}_{1}$ | −3.43 |

Intermediate result ${\varphi}_{2}$ | −3.40 |

Coarsest result ${\varphi}_{3}$ | −3.28 |

Order of convergence p | 4.37 |

Error $GC{I}_{fine}$ | 1.1% |

Error $GC{I}_{coarse}$ | 3.7% |

Variable | Value |
---|---|

Free stream velocity ${U}_{\infty}$ | 50 m/s |

Fluid density ($\rho $) | 1.225 kg/${\mathrm{m}}^{3}$ |

Turbulent Intensity (I) [22] | 0.15% |

Turbulent length scale (l) | 3.475 m |

Reynolds Number (Re) | $12\times {10}^{6}$ |

S${\mathit{C}}_{\mathit{L}}$ (${\mathbf{m}}^{\mathbf{2}}$) | S${\mathit{C}}_{\mathit{D}}$ (${\mathbf{m}}^{\mathbf{2}}$) | |${\mathit{C}}_{\mathit{L}}$/${\mathit{C}}_{\mathit{D}}$| | FB (%) | |
---|---|---|---|---|

Reference Data | −3.59 | 1.23 | 2.92 | 44.80 |

Simulation Results | −3.43 | 1.15 | 2.98 | 41.23 |

Error (%) | 4.45 | 6.50 | 2.15 | 7.97 |

Elements | Downforce Contribution (%) | Drag Contribution (%) |
---|---|---|

Bargeboards and vanes | −1.71 | +2.97 |

Bodywork | +21.10 | +10.7 |

Front suspension | +2.36 | +2.88 |

Front Tires | +2.94 | +10.30 |

Front Wing | −22.84 | +12.69 |

Rear suspension | −0.40 | +3.93 |

Rear tires | +1.42 | +20.06 |

Rear wing | −35.46 | +20.38 |

Underbody | −61.09 | +15.05 |

Others | −6.65 | +1 |

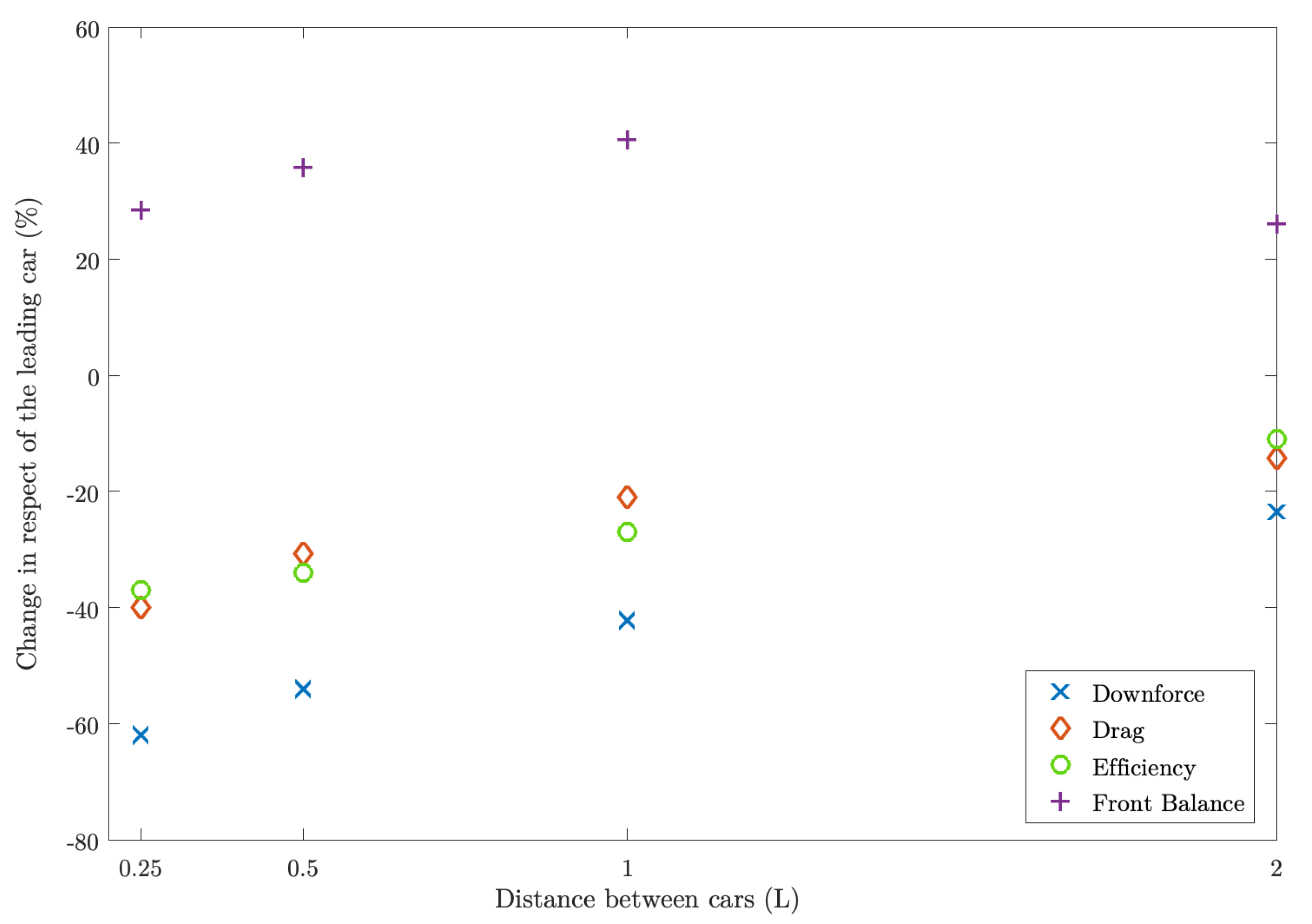

**Table 5.**Percentage of change of the aerodynamic coefficients of the second car as regards the first car.

Distance | S${\mathit{C}}_{\mathit{L}}$ (${\mathbf{m}}^{\mathbf{2}}$) | S${\mathit{C}}_{\mathit{D}}$ (${\mathbf{m}}^{\mathbf{2}}$) | |${\mathit{C}}_{\mathit{L}}$/${\mathit{C}}_{\mathit{D}}$| | FB |
---|---|---|---|---|

0.25 L | −62% | −40% | −37% | +28.5% |

0.5 L | −54.1% | −30.7% | −34% | +35.8% |

1 L | −42.3% | −21% | −27% | +40.7% |

2 L | −23.5% | −14.2% | −11% | +26.1% |

Distance | Power Required (kW) | Energy Required (kJ) |
---|---|---|

0.25 L | 33.44 | 668.8 |

0.5 L | 40.39 | 807.84 |

1 L | 50.77 | 1015.52 |

2 L | 67.32 | 1346.4 |

Free stream | 88 | 1760 |

**Table 7.**Percentage of change of the aerodynamic coefficients in the front wing of the second car as regards the first car.

Distance Front Wing | S${\mathit{C}}_{\mathit{L}}$ (${\mathbf{m}}^{\mathbf{2}}$) | S${\mathit{C}}_{\mathit{D}}$ (${\mathbf{m}}^{\mathbf{2}}$) |
---|---|---|

0.25 L | −38% | −36.1% |

0.5 L | −29% | −19.3% |

1 L | −10.7% | −1.1% |

2 L | −3.6% | +3% |

**Table 8.**Percentage of change of the aerodynamic coefficients in the rear wing of the second car as regards the first car.

Distance Rear Wing | S${\mathit{C}}_{\mathit{L}}$ (${\mathbf{m}}^{\mathbf{2}}$) | S${\mathit{C}}_{\mathit{D}}$ (${\mathbf{m}}^{\mathbf{2}}$) |
---|---|---|

0.25 L | −57.9% | −53.3% |

0.5 L | −54.8% | −50.6% |

1 L | −52% | −48% |

2 L | −40.3% | −36.2% |

**Table 9.**Percentage of change of the aerodynamic coefficients in the diffuser of the second car as regards the first car.

Distance Diffuser | S${\mathit{C}}_{\mathit{L}}$ (${\mathbf{m}}^{\mathbf{2}}$) | S${\mathit{C}}_{\mathit{D}}$ (${\mathbf{m}}^{\mathbf{2}}$) |
---|---|---|

0.25 L | −70.2% | −57.2% |

0.5 L | −62.8% | −48.7% |

1 L | −46.1% | −29% |

2 L | −25.3% | −16.9% |
