Technical Note

Technical Definition of the TetraSpar Demonstrator Floating Wind Turbine Foundation

Stiesdal Offshore Technologies A/S; Nørrevoldgade 45, 5000 Odense C, Denmark
Department of the Built Environment, Aalborg University, Thomas Manns Vej 23, 9220 Aalborg Ø, Denmark
Author to whom correspondence should be addressed.
Energies 2020, 13(18), 4911;
Received: 17 August 2020 / Revised: 14 September 2020 / Accepted: 15 September 2020 / Published: 18 September 2020
(This article belongs to the Special Issue Foundation Systems for Offshore Wind Turbines)


With the deployment of the TetraSpar demonstrator, a significant cost-reduction is realized in the field of offshore floating wind turbines. The TetraSpar floating wind turbine foundation brings a milestone that emphasizes on a modular and fully industrialized foundation that consists of main components already widely available in the current wind energy supply chain. In an effort to provide an open approach to the development of the concept, this paper aims at giving a description of the design in order to enable an educated discussion of different design philosophies and their influence on material usage and production times. The description of the different subcomponents of the system should allow any entity to build a model for comparison and/or benchmarking any of their own findings against this concept. It is the authors’ expectation that this open approach to technological discussion is paramount to obtaining continued cost-reduction in the area of floating offshore wind—for this concept and others.

1. Introduction

In recent years, the wind energy sector has seen a rapid development, both onshore and offshore. The offshore alone has seen a growth from a cumulative capacity of around 2.5 GW in 2009 to just over 22 GW in the end of 2019 [1]. It is obvious that this rate cannot continue neither onshore nor offshore as the most suitable and profitable locations are, as a consequence of the massive development, becoming scarcer. The move to offshore locations is motivated not only by the available open areas but also the improved wind resource of higher and more stable wind speeds. With the introduction of floating offshore wind turbine (FOWT) technology, a completely new and untapped market has opened up for the wind industry. As noted by the Carbon Trust [2], the share of the total offshore wind resource at water depths higher than 60 m in Europe, USA, and Japan is roughly 80%, 60%, and 80%, respectively.
A multitude of FOWT concepts have been presented and several have even been deployed in scaled demonstrator projects. Currently the market is picking up pace by presenting more than a dozen precommercial and fully commercial projects installed by 2022. The average rating of these projects resides around 28 MW [3] and the technologies used are among others the WindFloat semisubmersible by Principle Power [4], Damping Pool barge by IDEOL [5], and the Hywind spar by Equinor [6].
Despite this positive development in FOWT concepts, there are still a number of challenges to be addressed for the industry to demonstrate commercial viability. First, current methods for fabrication and structural assembly of FOWT concepts require substantial manual operations and long time horizons. Besides the obvious cost challenge from this approach, it may also prove to be difficult to install commercial scale projects within the optimal timeframe of spring to autumn when metocean conditions are more favorable. In addition, current FOWT concepts have not yet been proven adequate for holding turbines in the 15 MW+ class, the size which is expected to be available at the time the FOWT market commercialized in the late 2020s. Finally, there remain several technical orientated challenges such as operation and maintenance concept and cost-effective mooring design.
The motivation behind the open access approach of the present paper is to provide industry insight to the TetraSpar Demonstration Floating Wind Turbine Foundation, a concept which addresses a number of these industry challenges. It is the authors opinion that this open information sharing is paramount for the FOWT sector since it enables an educated discussion between designers and better clarity for developers, funding bodies and policymakers, and hence ultimately bringing down the levelized cost of energy (LCOE).

2. Design Requirements

Besides providing sufficient static and dynamic stability for the wind turbine, there are a number of design criteria which can enable cost effective, large-scale deployment of FOWT for the commercial markets anticipated in the late 2020s:
  • Design for scalable, industrialized production
    Key components should be scalable to accommodate turbines in the 15 MW+ scale, which is anticipated to be the average turbine size in the late 2020s when FOWT is commercialized.
    Components designed for industrialized production in order to capture benefits of learning curves and volume manufacturing.
  • Minimize works to be done at port of embarkation
    Port space is often scarce and costs relatively high for storage and assembly of FOWTs, possibly becoming a limiting factor for widespread buildout of FOWT.
    In order to maintain pace of FOWT installation at the offshore site, fast component assembly and commissioning would be possible.
  • Eliminate need for highly specialized, bespoke vessels
    One of the big upsides of FOWTs is the opportunity to utilize relatively small, local vessels and cranes for assembly and installation, making offshore wind more accessible for locations that are not near existing supply chain.
    Possibility to use relatively small, nonspecialized vessels also provides opportunity for increased local content in construction of offshore wind projects.

TetraSpar Design Philosophy

The main design philosophy behind the TetraSpar concept (cf. Figure 1) is the sole reliance on components that are highly suitable for industrialized mass production. For both the onshore and offshore wind energy sectors, the cost reductions in the tower structure have been key in bringing down the LCOE. This cost reduction has been made possible by substantial volume and standardized design allowing investments in highly industrialized production facilities. It is also important that the repeatability of lessons learnt on tower designs have not been hindered by any significant intellectual property rights.
To be able to reap the same fruits in the floating offshore wind industry, it is paramount that the design of any concept does not rely on any labor intensive tasks or quay-side production. All welding and coating works must be handled in tower production plants, where a controlled factory environment and automation allow for better tolerances and smaller safety factors. For the TetraSpar concept, this requirement is fulfilled by constructing modules that arrive at the port of embarkation ready for assembly by the already available workforce that is capable of assembling the wind turbine tower. This also implies that all assembly is of complexity equal to or less than the wind turbine tower, meaning primarily bolt and pin connections. The modularity of the TetraSpar concept allows for re-use of current logistics methods of the wind energy sector. No dimensions of the foundation elements exceeds those of the wind turbine, meaning that if the wind turbine can be delivered, then so can the foundation.
The TetraSpar foundation and wind turbine can be fully assembled by land based lifting equipment, and subsequently precommissioning at quayside by regular onshore turbine crews. From that point and onwards, all installation works are handled by the small and abundant anchor handler vessels that have also preinstalled the mooring system. During towing, the foundation is highly buoyant and not fully ballasted with seawater until arriving at the site.
By adhering to this design philosophy, the TetraSpar demonstrator is expected to mark a step change in the LCOE of the FOWT sector, as detailed in [7]. The TetraSpar demonstrator has served as the first validation of relying on existing industrialized offshore wind supply chain for fabrication of a FOWT, with components now enroute for assembly at port.

3. Demonstrator Site Description

The TetraSpar floater will be moored at the Marine Energy Test Centre in the North Sea off the island of Karmøy on the western coast of Norway—approximately 1500 m north-west of the Equinor Hywind Demo, see Figure 2.

Metocean Conditions

Extreme metocean conditions are defined in Table 1, while operational conditions are listed in Table 2. The extreme conditions are used in design of the structure, mooring system, and power cable, both to verify sufficient strength and to secure stability of the system. The accidental limit state (ALS) conditions in Table 1 correspond to a 1000-year wave event combined with 50-year wind and current. The sea state is used for evaluation of snap loads in suspension lines as well as other extreme excursion events.
In all cases, the turbulent wind can be modelled according to design requirements in, e.g., IEC-61400-1 [8]. The vertical wind speed variation is modelled by use of the NORSOK wind profile [9]. Based on site investigations, the waves are modelled with the Torsethaugen spectrum [10], while currents are considered constant in time.

4. Global System Overview

The foundation consists of a floating platform moored to the seabed with a catenary mooring system. The floating platform consists of the floater structure and the keel structure, which is suspended below the floater with a number of lines. The arrangement is illustrated in Figure 1 and definition of coordinate system in Figure 3.
The floater and the keel are constructed out of a series of steel tubes, connected together by nodes. The floater consists of a vertical central column where three horizontal radial braces are connected close to its base, oriented 120 degrees from one another. At the outer end of each of these radial braces, a diagonal brace is connected to the central column. Further, adjacent radial braces outer ends are connected by lateral braces (cf. Figure 4 for naming convention).
Lastly, the keel suspension lines and mooring lines are also connected to the radial braces outer nodes. The keel consists of three tubes connected together to form a triangular shape and is suspended below the floater with six suspension lines.
This configuration effectively gives the TetraSpar the properties of a spar, having a significant buoyancy and achieving stability via the ballast represented by the keel. With variations in the keel mass and depth the total system properties can be tuned to match the desired response of any design. The overall properties of the floater foundation are listed in Table 3. Detailed properties of all components are presented in the following sections.

5. Component Description

The TetraSpar demonstrator is a combination of the floater, keel, suspension system, mooring, and wind turbine. Each part is described in the following sections with necessary information on mechanical and structural properties. The sections provide sufficient data for modelling the total TetraSpar FOWT system. Due to simplicity, all structural elements are modelled as uniform cylinders with an equivalent length ensuring the buoyancy of the actual structure.

5.1. Floater

In general, the floater consists of ten individual components, distributed among four unique structural elements. The naming convention for the components of the floater is given in Figure 4. These elements are terminated in cast nodes and conically tapered where applicable. All nodes are connected with shear loaded pin connections in order to mitigate the risk of possible errors in works related to bolt tensioning. The overall description of the floater is presented in Table 4, while the definition of the position and properties of each component is listed in Table 5. The conically tapered ends are converted into constant cylinders providing similar buoyancy of the entire element. The floater is equipped with boat landing, platforms, wind turbine components, etc., all included in the mass defined in Table 4.

5.2. Keel

The keel consists of three identical cylinders combined in a triangular shape as shown in Figure 5. Similar to the elements in the floater, the cylinders in the keel are conically tapered, but here simplified into constant cylinders. The total keel system characteristics are listed in Table 6, together with description of the individual cylinders.

5.3. Suspension System

The keel is suspended from the floater through six lines. Each line is composed of a bundle of synthetic ropes. The mechanical properties of the line type are presented in Table 7.

5.4. Mooring System

The TetraSpar demonstrator utilizes a classic 3-line spread mooring system for station keeping. The general mooring description and line mechanical properties can be seen in Table 8 and Table 9 respectively. To account for dominant environmental load directions, the lines are unevenly distributed. The total mooring system and floater orientation in the table is not aligned with the actual onsite-orientation. Figure 6 shows the mooring line catenary at the static state.

5.5. Wind Turbine

The TetraSpar demonstrator is equipped with a Siemens 130-3.6 MW wind turbine. The detailed description of the RNA is not publicly available but can be modelled as a clump mass using the values in Table 10. The tower is modelled as a conical element with properties as listed in the table.

6. Conclusions

With the fabrication of the TetraSpar Demonstrator foundation nearing its completion, a milestone is reached in the sector of floating offshore wind turbines. This milestone marks the switch from one-of foundations based on the oil and gas industry high-margin approach to a more modular and fully industrialized foundation based solely on main components already widely available in the current wind energy supply chain. Hence this milestone also makes a completely new outlook on the CAPEX levels to be expected in the coming years.
This paper has presented a technical description of the main properties of the full demonstrator ranging from design conditions to specific design choices on wind turbine, foundation members, and mooring system. This level of detail should allow for colleagues in both industry and academia to make comparative studies on both technical solutions as well as cost estimates. It is the expectation of the authors that this open design approach is necessary to accelerate the development of the coming generation of floating wind turbine foundations, and hence would like to invite other main contributors in the sector to add to this discussion in order to obtain the most transparent and positive outlook of the sector as possible.

Author Contributions

M.B., M.W.J., S.U., H.S., M.T.A. and J.B.T. provided technical inputs; M.B., M.T.A., and J.B.T. drafted the paper; M.B., M.W.J., S.U., H.S., M.T.A. and J.B.T. reviewed the paper; J.B.T. finalized the paper. All authors have read and agreed to the published version of the manuscript.


This research was partially funded by the Energy Technology Development and Demonstration Program (EUDP) through the project TetraSpar (Grant number 64017-05171).

Conflicts of Interest

The authors declare no conflict of interest.


  1. Walsh, C.; Ramírez, L.; Fraile, D.; Brindley, G. Offshore Wind in Europe—Key Trends and Statistics 2019; Wind Europe: Brussels, Belgium, 2020. [Google Scholar]
  2. Carbon Trust. Floating Offshore Wind: Market and Technology Review. 2015. Available online: (accessed on 10 July 2020).
  3. WindEurope. Floating Offshore Wind Energy: A Policy Blueprint for Europe. 2018. Available online: (accessed on 25 March 2020).
  4. Principle Power, Inc. WindFloat. Available online: http:// (accessed on 3 June 2020).
  5. IDEOL. Floating Offshore Wind. Available online: (accessed on 3 June 2020).
  6. Equinor. Hywind. Available online: (accessed on 3 June 2020).
  7. Andersen, M.T.; Tetu, A.; Stiesdal, H. Economic Potential of Industrializing Floating Wind Turbine Foundations. In Proceedings of the ASME 2018 37th International Conference on Ocean, Offshore and Arctic Engineering. American Society of Mechanical Engineers, Madrid, Spain, 17–22 June 2018. [Google Scholar]
  8. IEC. IEC 61400-1:2019 Wind Energy Generation Systems—Part 1: Design Requirements; IEC: Geneva, Switzerland, 2019. [Google Scholar]
  9. Standards Norway. NORSOK Standard N-003: Actions and Action Effects; Standards Norway: Lysaker, Norway, 2007. [Google Scholar]
  10. Torsethaugen, K.; Haver, S. Simplified double peak spectral model for ocean waves. In Proceedings of the Fourteenth International Offshore and Polar Engineering Conference, Toulon, France, 23–28 May 2004. [Google Scholar]

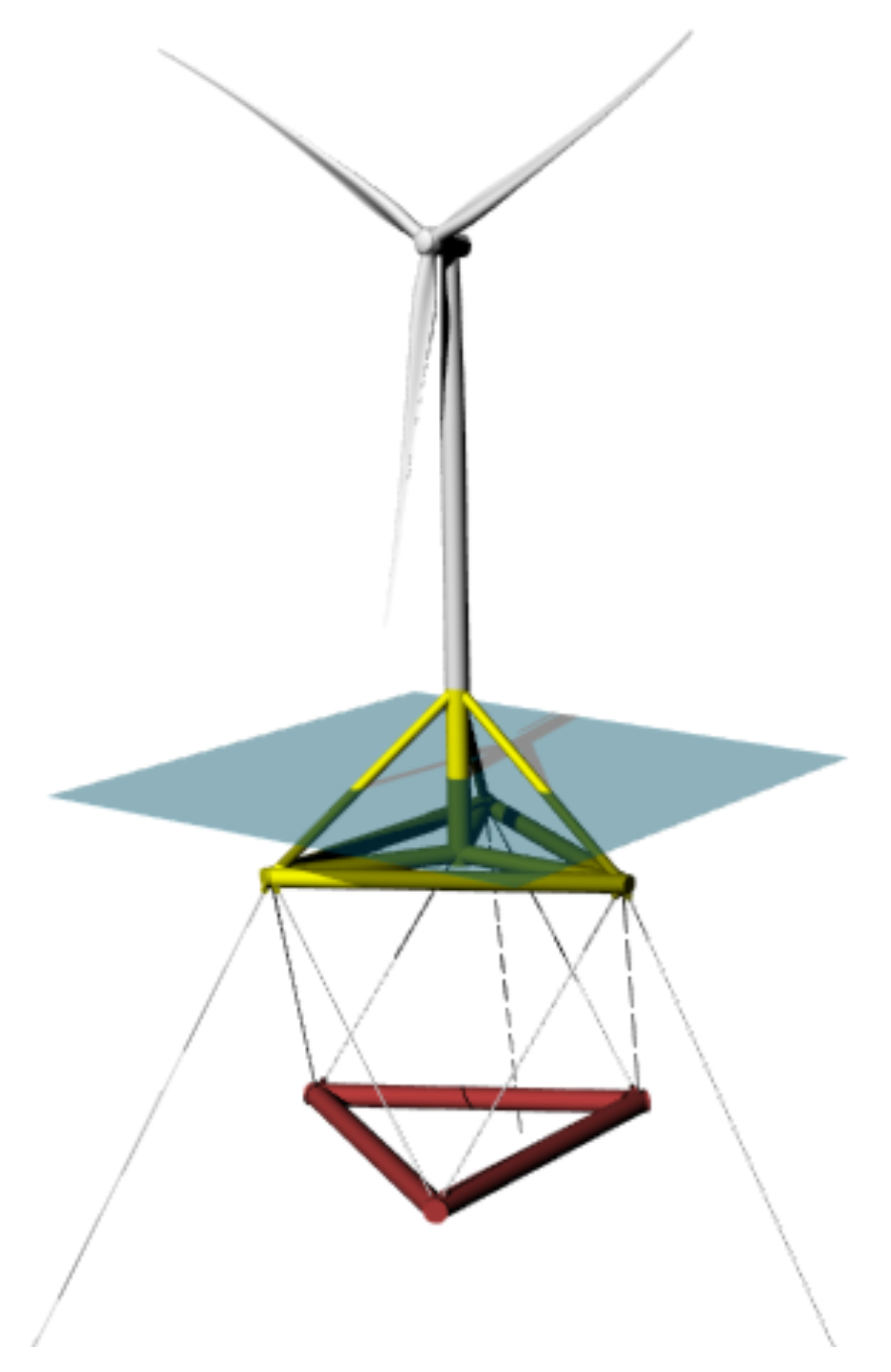

Figure 1. The TetraSpar concept.
Figure 1. The TetraSpar concept.
Energies 13 04911 g001
Figure 2. TetraSpar demonstrator project location.
Figure 2. TetraSpar demonstrator project location.
Energies 13 04911 g002

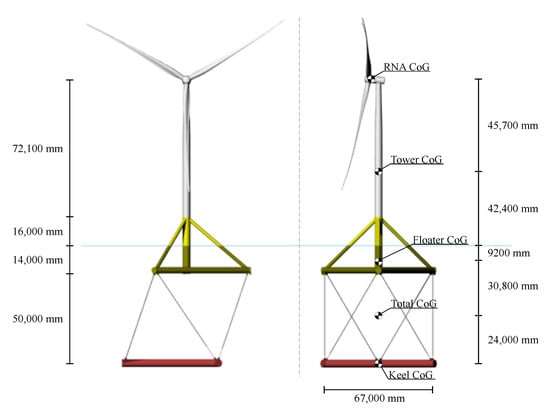

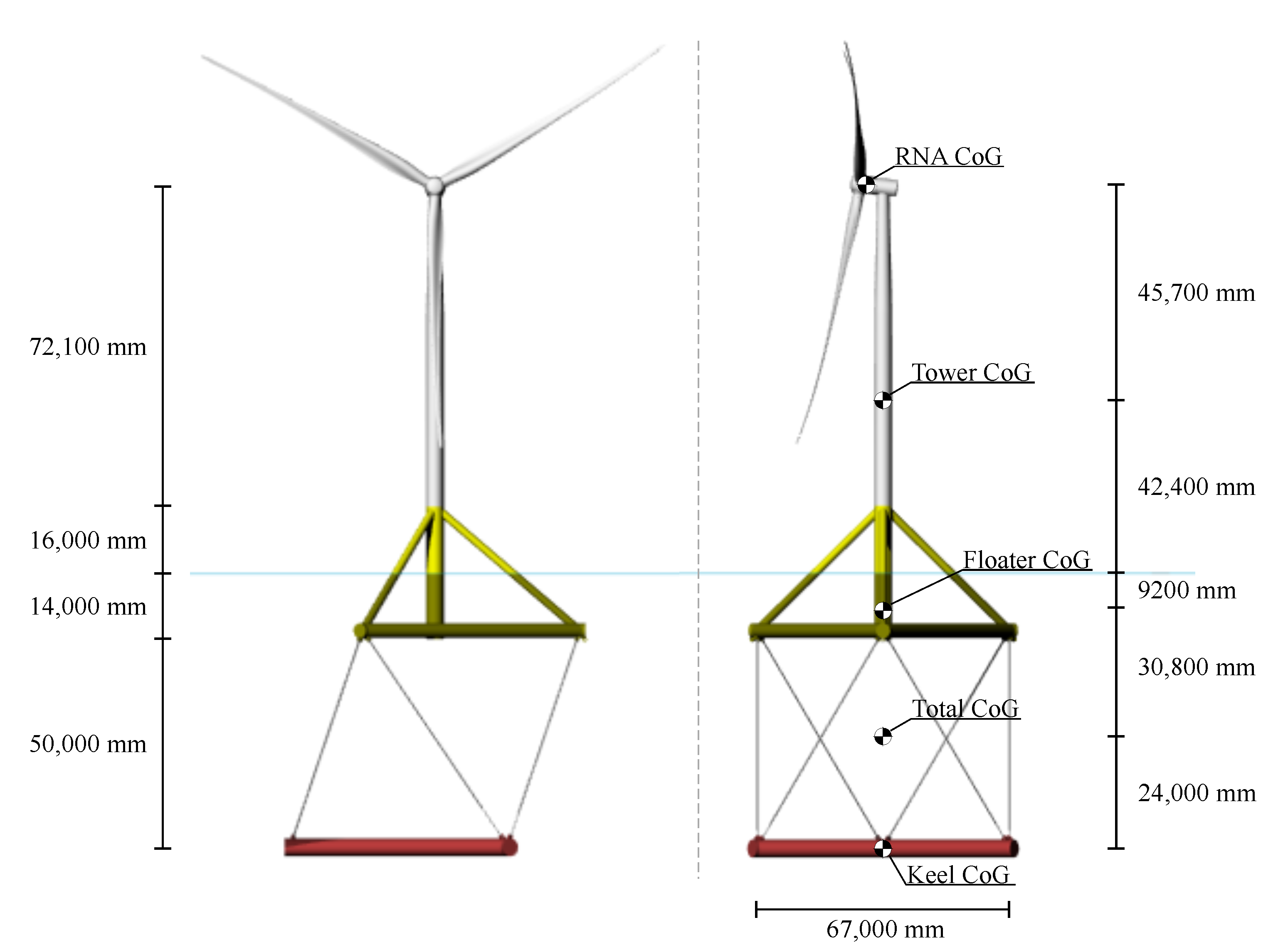

Figure 3. Definition of structure and centre of gravity (CoGs).
Figure 3. Definition of structure and centre of gravity (CoGs).
Energies 13 04911 g003

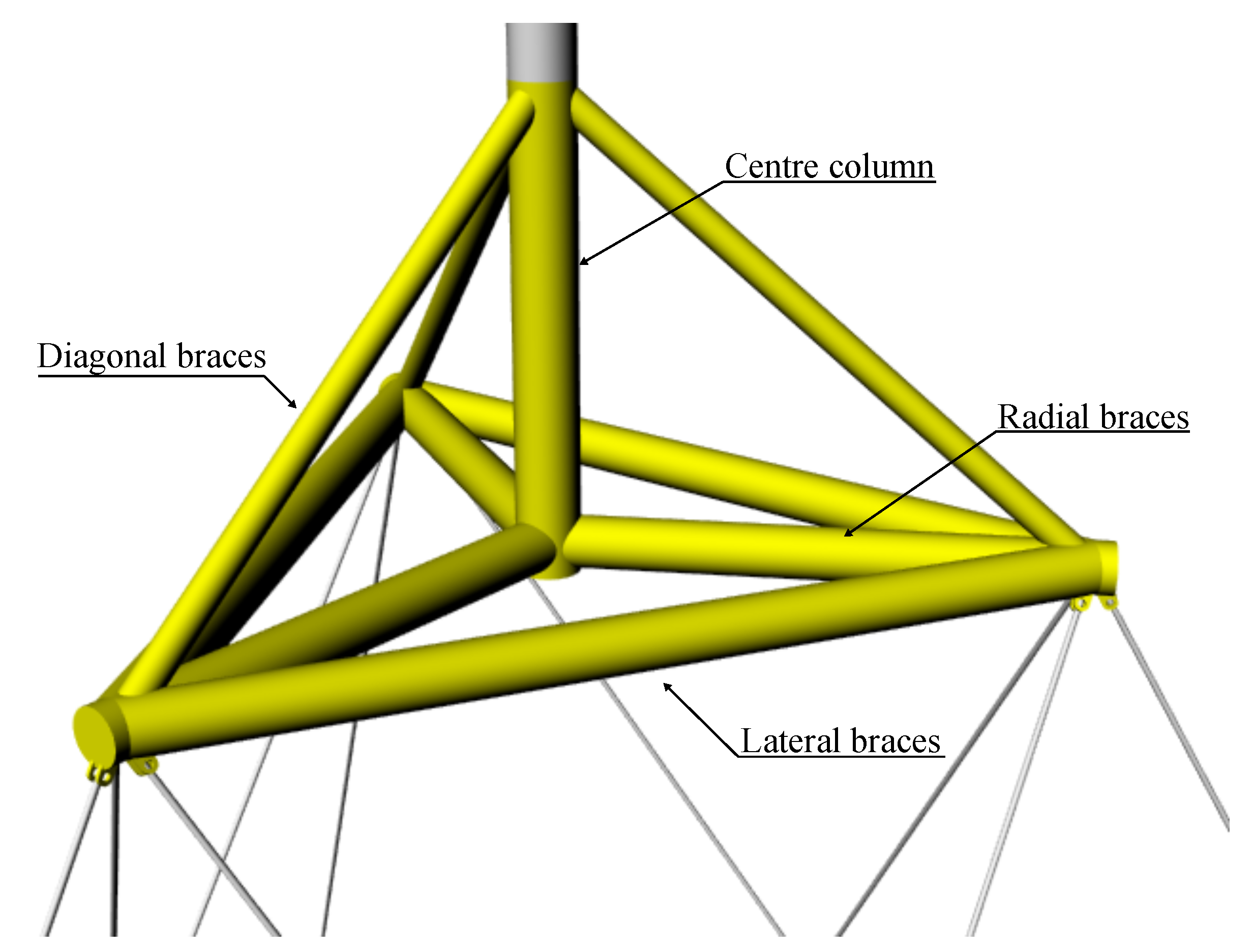

Figure 4. Naming of floater subcomponents.
Figure 4. Naming of floater subcomponents.
Energies 13 04911 g004

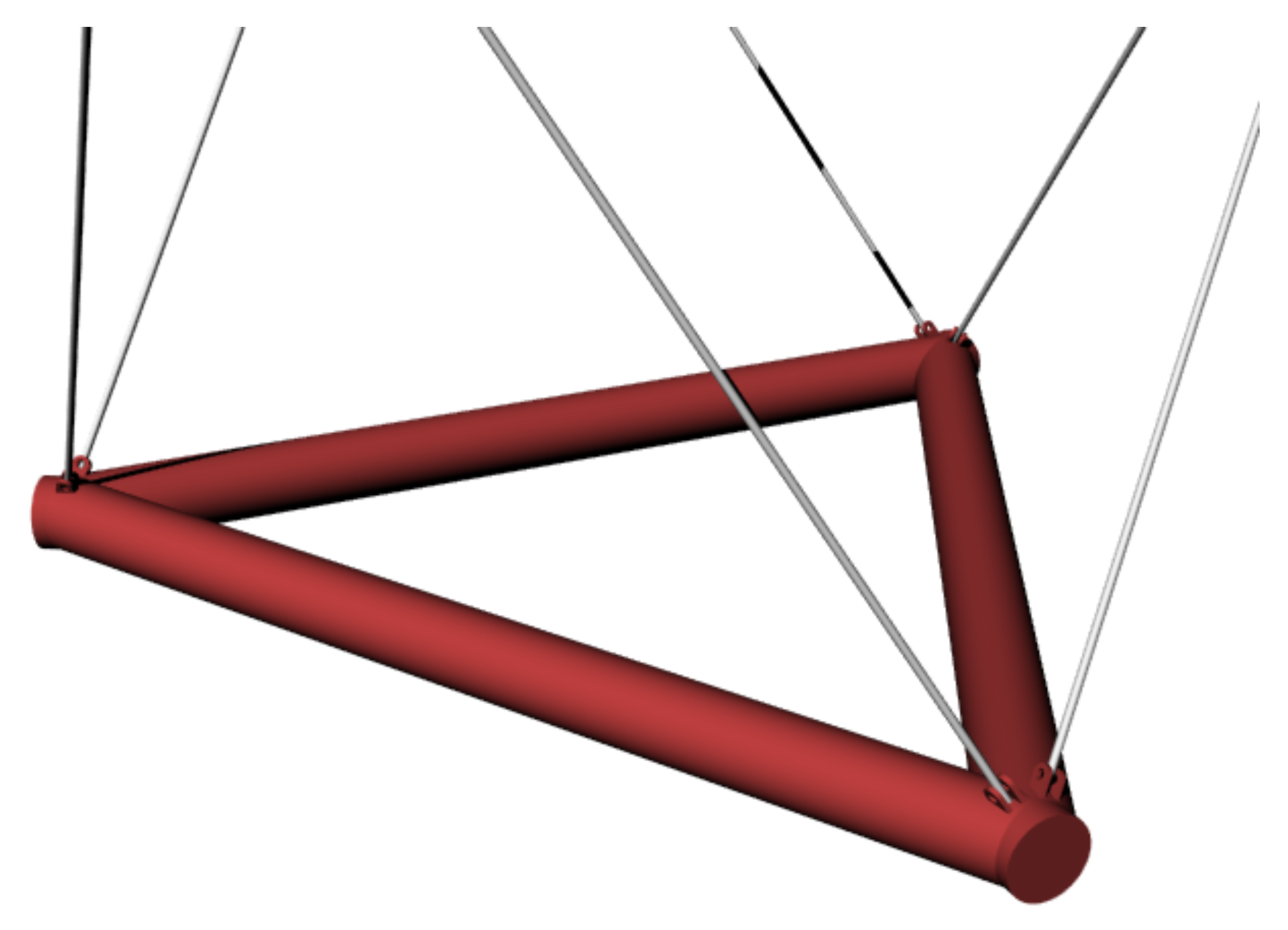

Figure 5. Illustration of the keel.
Figure 5. Illustration of the keel.
Energies 13 04911 g005

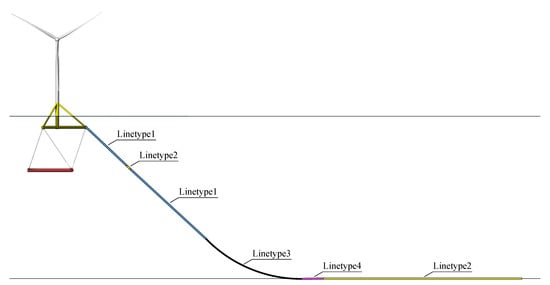

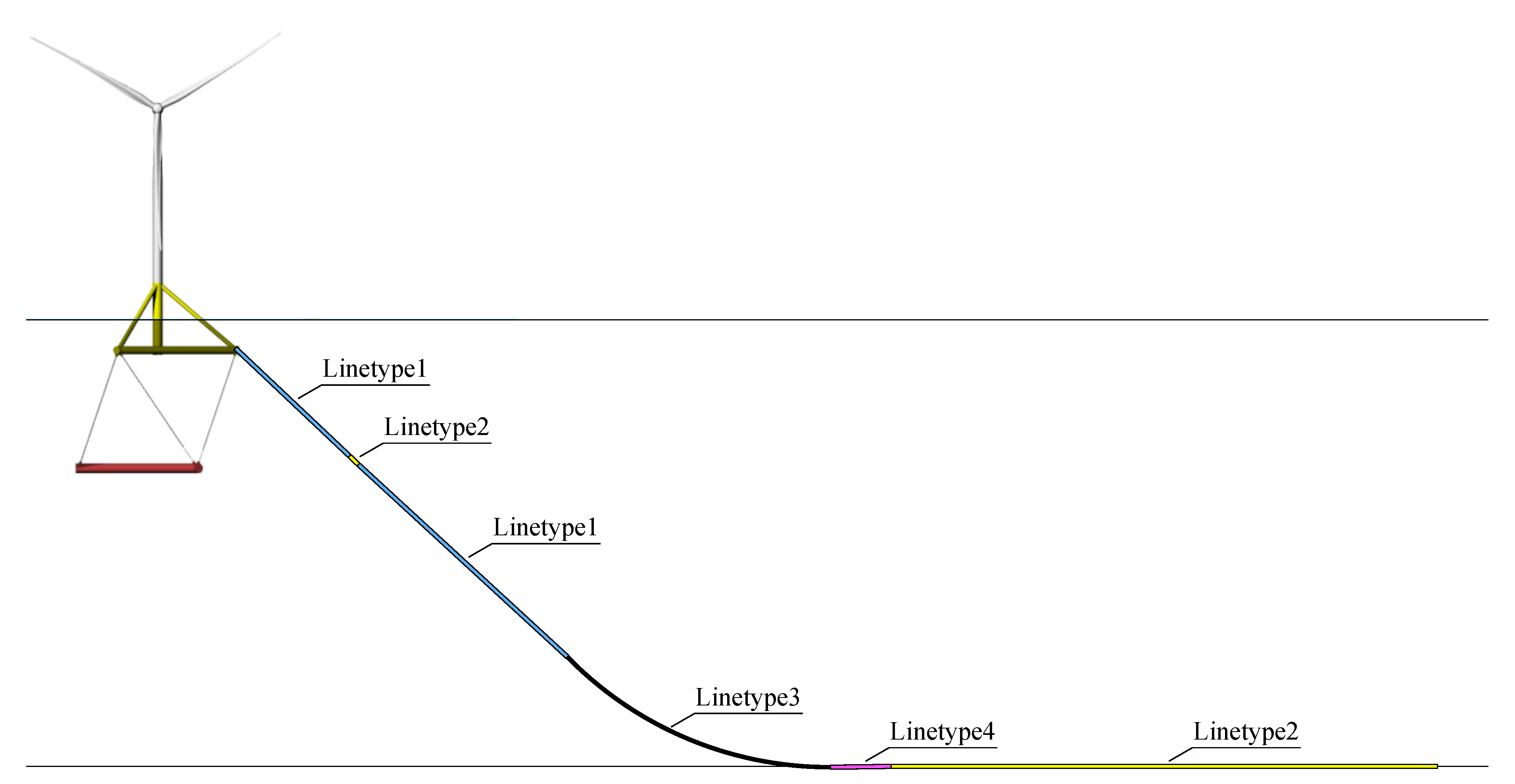

Figure 6. Mooring segments overview.
Figure 6. Mooring segments overview.
Energies 13 04911 g006
Table 1. Extreme metocean conditions for ultimate limit state (ULS) calculations.
Table 1. Extreme metocean conditions for ultimate limit state (ULS) calculations.
Water depth(m)220.0 m
ULS (50-year)
Wind speed at hub height(m/s)45.9
Significant wave height ( H s )(m)12.9
Peak wave period ( T p )(s)16.0
Current velocity(m/s)1.7
ALS (1000-year)
Wind speed at hub height(m/s)45.9
Significant wave height ( H s )(m)15.5
Peak wave period ( T p )(s)17.5
Current velocity(m/s)1.9
Table 2. Operational metocean conditions for fatigue limit state (FLS) calculations. Three peak wave periods are defined corresponding to the mean value of the probability sectors defined by the values in the indices.
Table 2. Operational metocean conditions for fatigue limit state (FLS) calculations. Three peak wave periods are defined corresponding to the mean value of the probability sectors defined by the values in the indices.
Wind speed at hub height(m/s)
Wave height ( H s )(m)0.640.951.311.712.152.643.153.704.274.875.506.16
Wave period ( T p , 0 25 )(s)4.825.205.595.996.416.917.357.868.318.849.379.90
Wave period ( T p , 25 75 )(s)7.517.888.288.649.019.429.7810.1910.6011.0111.4211.87
Wave period ( T p , 75 100 )(s)11.8612.0912.3912.5812.7612.9413.1113.2913.5613.7513.9514.25
Current velocity(m/s)
Table 3. Overall properties of the global system.
Table 3. Overall properties of the global system.
Overall mass incl. ballast(tons)5471
Overall vertical center of gravity below MWL(m)40.0
Height of foundation-tower interface, above MWL(m)16.0
Table 4. Properties of the floater.
Table 4. Properties of the floater.
Floater mass incl. ballast water and additional components(tons)1340
Floater vertical center of gravity wrt. MWL(m)−9.2
Distance from MWL to bottom of floater(m)16.0
Floater roll mass moment of inertia wrt. CoG(kgm 2 ) 442.5 × 10 6
Floater pitch mass moment of inertia wrt. CoG(kgm 2 ) 442.2 × 10 6
Floater yaw mass moment of inertia wrt. CoG(kgm 2 ) 532.2 × 10 6
Table 5. Definition of component position and dimensions.
Table 5. Definition of component position and dimensions.
Center column diameter(m)4.3
Center column equivalent length(m)30.6
Center column coordinates wrt. MWL(m)(0.0; 0.0; −14.6)–(0.0; 0.0; 16.0)
Radial brace diameter(m)3.5
Radial brace equivalent length(m)32.8
Radial brace mode coordinates wrt. MWL(m)(2.5; 0.0; −14.0)–(35.3; 0.0; −14.0)
(−1.2; 2.2; −14.0)–(−17.6; 30.6; −14)
(−1.2; −2.2; −14)–(−17.6; −30.6;−14)
Diagonal brace diameter(m)2.2
Diagonal brace equivalent length(m)38.9
Diagonal brace node coordinates wrt. MWL(m)(3.1; 0.0; 14.1)–(32.4; 0.0; −11.5)
(−1.5; 2.7; 14.1)–(−16.2; 28.0; −11.5)
(−1.5; −2.7; 14.1)–(−16.2; −28.0; −11.5)
Lateral brace diameter(m)4.0
Lateral brace equivalent length(m)49.2
Lateral brace node coordinates wrt. MWL(m)(30.5; 3.5; −14.0)–(−12.2; 28.1; −14.0)
(−18.3; 24.6; −14.0)–(−18.3; −24.6; −14)
(−12.2; −28.1; −14.0)–(30.5; −3.5; −14.0)
Table 6. Properties of the keel structure.
Table 6. Properties of the keel structure.
Keel mass incl. ballast water(tons)3696
Vertical distance from MWL to keel horizontal centerline(m)64.0
Keel roll mass moment of inertia wrt. CoG(kgm 2 ) 1.443 × 10 9
Keel pitch mass moment of inertia wrt. CoG(kgm 2 ) 1.443 × 10 9
Keel yaw mass moment of inertia wrt. CoG(kgm 2 ) 2.878 × 10 9
Keel equivalent cylinder length(m)56.4
Keel cylinder diameter(m)4.1
Keel brace node coordinates wrt. MWL(m)(20.0; −28.2; −64.0)–(20.0; 28.2; −64.0)
(14.4; 31.4; −64.0)–(−34.4; 3.2; −64)
(−34.4; −3.2; −64.0)–(14.4; −31.4; −64.0)
Table 7. Mechanical properties of the suspension lines, with definition of fairlead coordinates and line connectivity.
Table 7. Mechanical properties of the suspension lines, with definition of fairlead coordinates and line connectivity.
Linetype(-)Synthetic rope bundle
Buoyancy diameter(mm)119.0
Unstretched length(m)60.0
Submerged mass(kg/m)−0.44
Dry mass(kg/m)11.0
Axial Stiffness(kN)506,667.0
Floater Suspension (FS) fairlead coordinates (wrt. MWL)
FS1(m)(35.6; −1.2; −15.8)
FS2(m)(−16.8; −31.5; −15.8)
FS3(m)(−18.8; −30.3; −15.8)
FS4(m)(−18.8; 30.3; −15.8)
FS5(m)(−16.8; 31.4; −15.8)
FS6(m)(35.6; 1.2; −15.8)
Keel fairlead (KF) coordinates (wrt. MWL)
KF1(m)(19.8; −32.7; −64.0)
KF2(m)(18.4; −33.5; −64.0)
KF3(m)(−38.2; −0.8; −64.0)
KF4(m)(−38.2; 0.8; −64.0)
KF5(m)(18.4; 33.5; −64.0)
KF6(m)(19.8; 32.7; −64.0)
Suspension line 1FS1-KF1
Suspension line 2FS2-KF2
Suspension line 3FS3-KF3
Suspension line 4FS4- KF4
Suspension line 5FS5-KF5
Suspension line 6FS6-KF6
Table 8. Mooring system description.
Table 8. Mooring system description.
Anchor radius(m)630.0
Anchor node coordinates wrt. MWL(m)(630.0; 0.0; −220.0)
(−215.5; −592.0; −220.0)
(−315.0; 545.6; −220.0)
Mooring fairlead node coordinates wrt. MWL(m)(36.3; 0.0; −12.4)
(−18.1; −31.4; −12.4)
(−18.1; 31.4; −12.4)
Segment lengths of each mooring line
Table 9. Mechanical properties of the mooring system line types.
Table 9. Mechanical properties of the mooring system line types.
Linetype(-)Synthetic rope
Buoyancy diameter(mm)108.0
Submerged weight(N/m)2.2
Axial Stiffness(kN) 4.45 × 10 5
Linetype(-)Mooring chain
Buoyancy diameter(mm)202
Submerged weight(N/m)2139.6
Axial Stiffness(kN) 1.15 × 10 6
Linetype(-)Mooring chain
Buoyancy diameter(mm)234
Submerged weight(N/m)2872.0
Axial Stiffness(kN) 1.55 × 10 6
Linetype(-)Mooring chain w. clump weights
Buoyancy diameter(mm)698
Submerged weight(N/m)19,515.0
Axial Stiffness(kN) 1.06 × 10 6
Table 10. Wind turbine properties.
Table 10. Wind turbine properties.
Tower base above MWL(m)16.0
Rotor and nacelle (RNA) mass(tons)∼200.0
RNA CoG wrt. tower base(m)(3.75; 0.0; 72.1)
Total tower mass(tons)235
Vertical tower CoG above tower base(m)26.4
Tower length(m)71.6
Tower roll MoI wrt. CoG(kgm 2 ) 89.38 × 10 6
Tower pitch MoI wrt. CoG(kgm 2 ) 89.38 × 10 6
Tower yaw MoI wrt. CoG(kgm 2 ) 489.85 × 10 3
Tower base diameter(m)4.3
Tower top diameter(m)3.6
