State-Space Modeling Techniques of Emerging Grid-Connected Converters

1
Energy Department “Galileo Ferraris” (DENERG), Politecnico di Torino, Corso Duca degli Abruzzi 24, 10129 Torino, Italy
2
Department of Electrical Engineering, Technical University of Denmark, 2800 Kgs. Lyngby, Denmark
3
Department of Energy Technology, Aalborg University, 9220 Aalborg, Denmark
*
Author to whom correspondence should be addressed.
Energies 2020, 13(18), 4824; https://doi.org/10.3390/en13184824
Received: 17 August 2020 / Revised: 8 September 2020 / Accepted: 11 September 2020 / Published: 15 September 2020
(This article belongs to the Special Issue Advanced DC-DC Power Converters and Switching Converters)

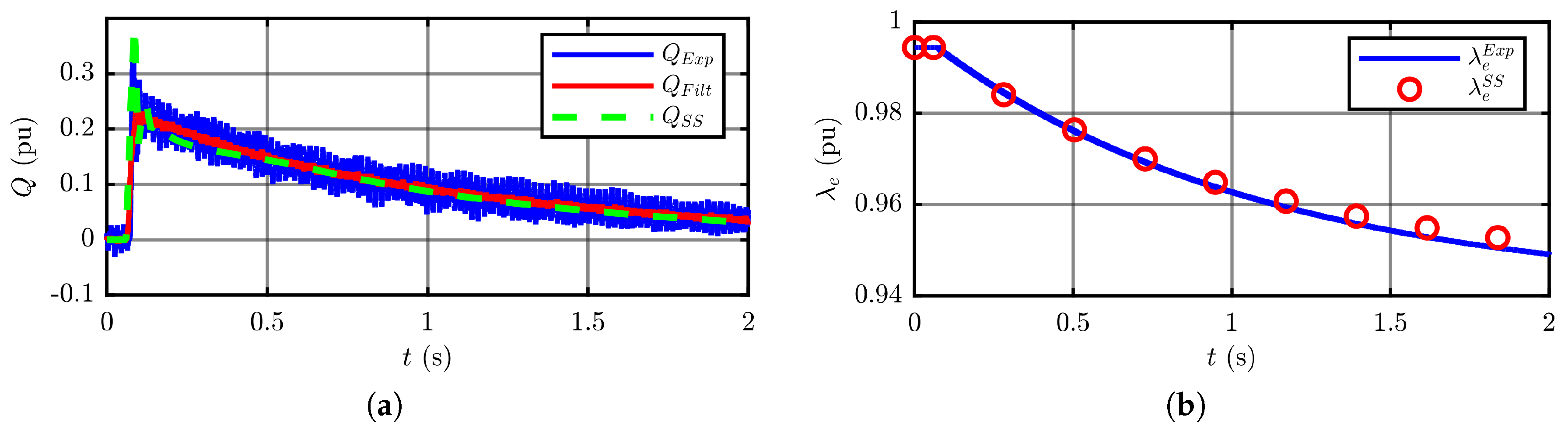

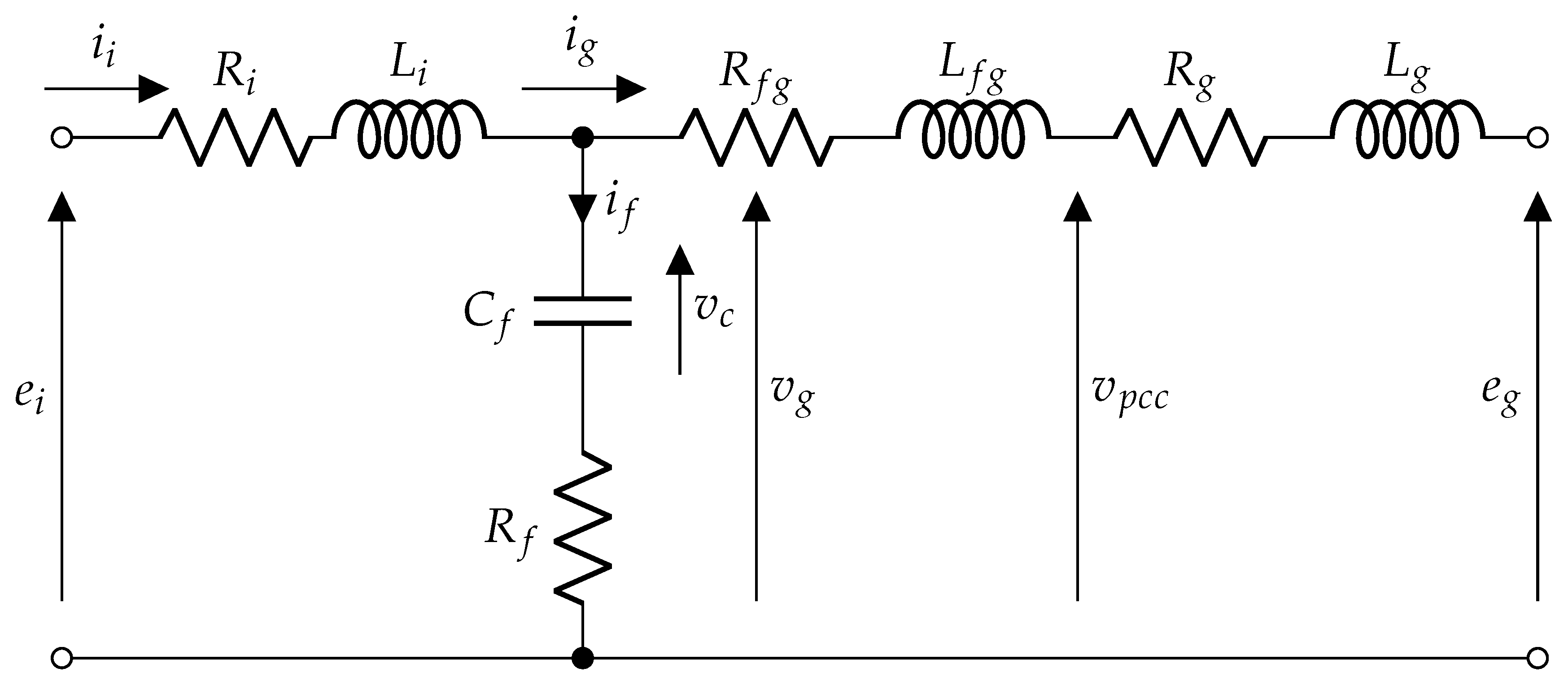

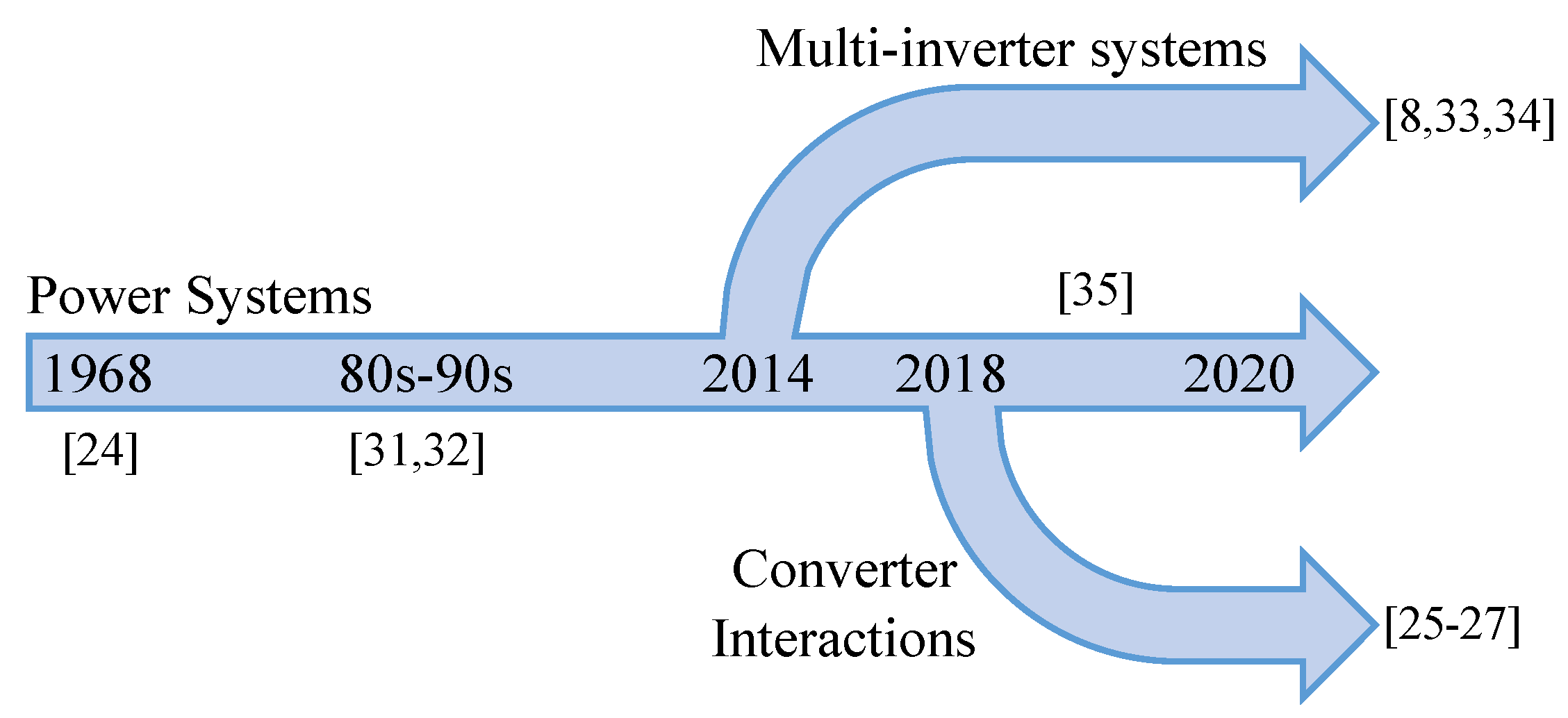

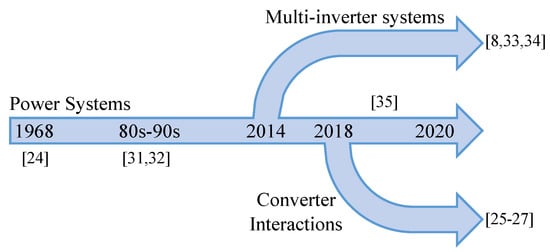

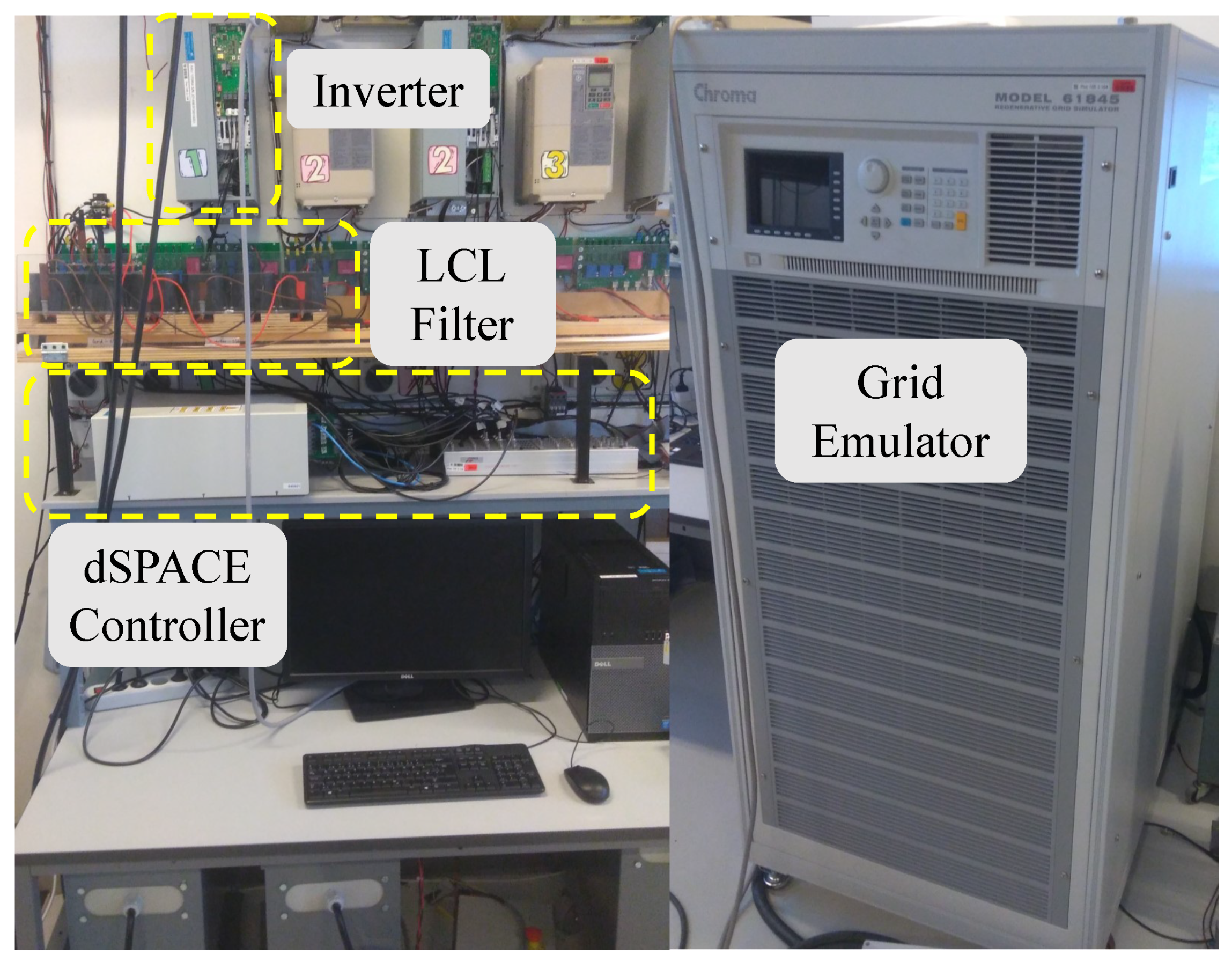

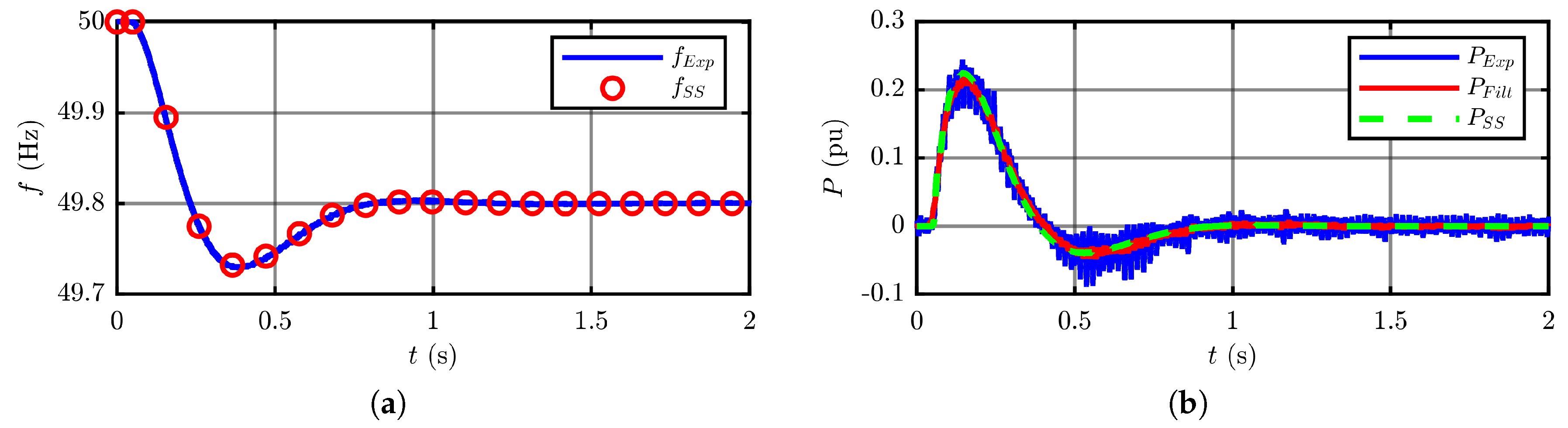

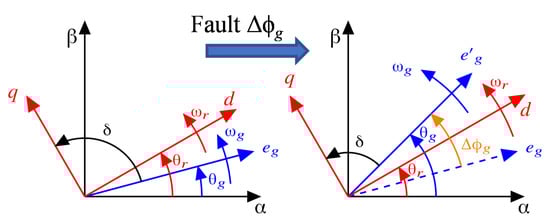

In modern power electronics-based power systems, accurate modeling is necessary in order to analyze stability and the interaction between the different elements, which are connected to it. State space modeling seems a valid approach to study the modes of a certain system and their correlation with its states. Unfortunately, this approach may require complicated calculations and it is difficult to model advanced or emerging control techniques for grid-tied converters, such as cascaded controllers (e.g., voltage and current) and virtual synchronous generators (VSGs). Moreover, this approach does not allow an easy reconfiguration of the modeled system by adding, removing of modifying certain elements. To solve such problems, this paper presents a step-by-step approach to the converter modeling based on the Component Connection Method (CCM). The CCM is explained in detail and a practical example is given, by modeling one exemplary VSG model available in the literature. The obtained model is finally validated experimentally to demonstrate the practical accuracy of such approach. View Full-Text
Keywords: Component Connection Method; power electronics-based systems; stability analysis; state-space methods; virtual synchronous generators Component Connection Method; power electronics-based systems; stability analysis; state-space methods; virtual synchronous generators
Show Figures

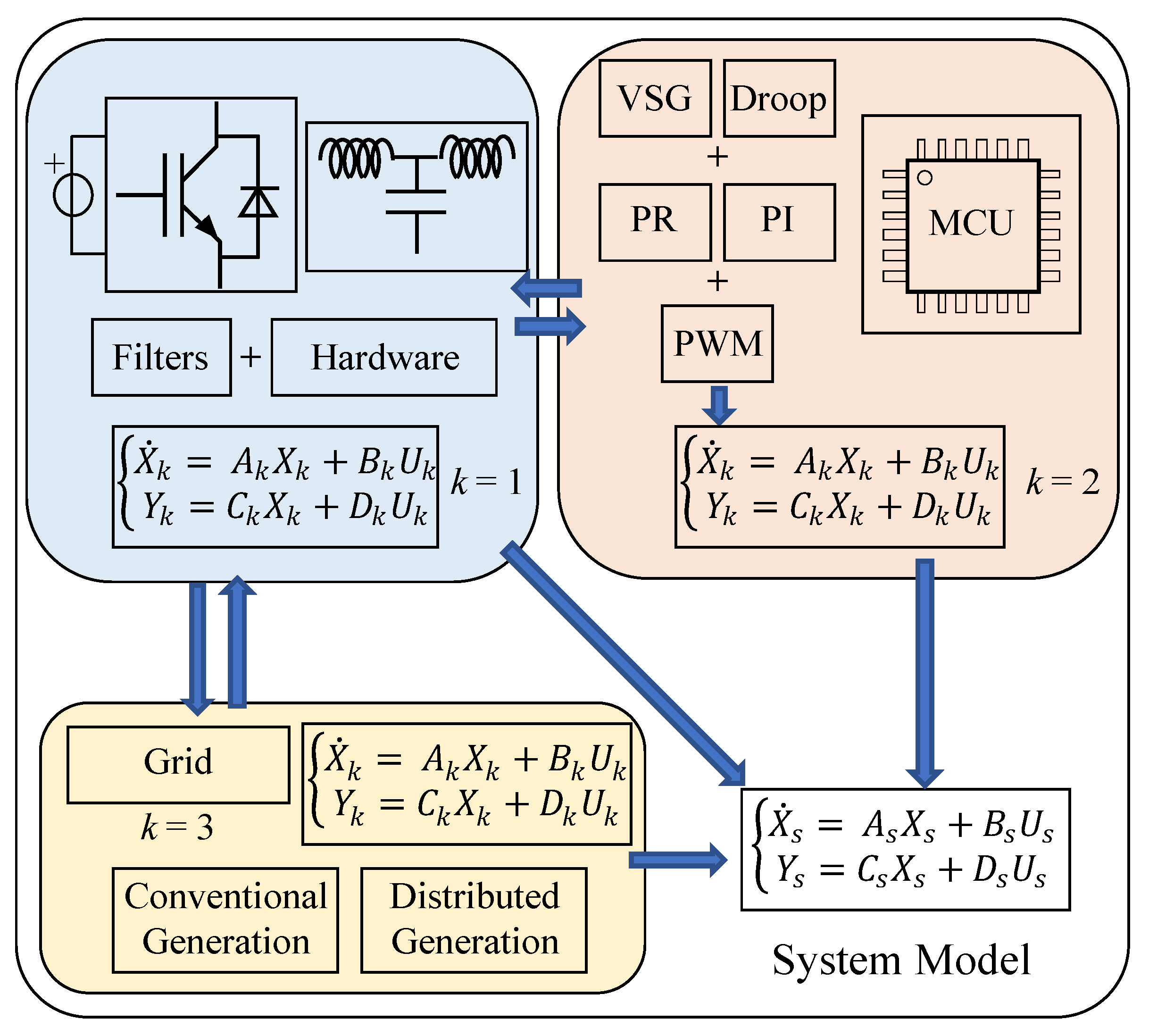

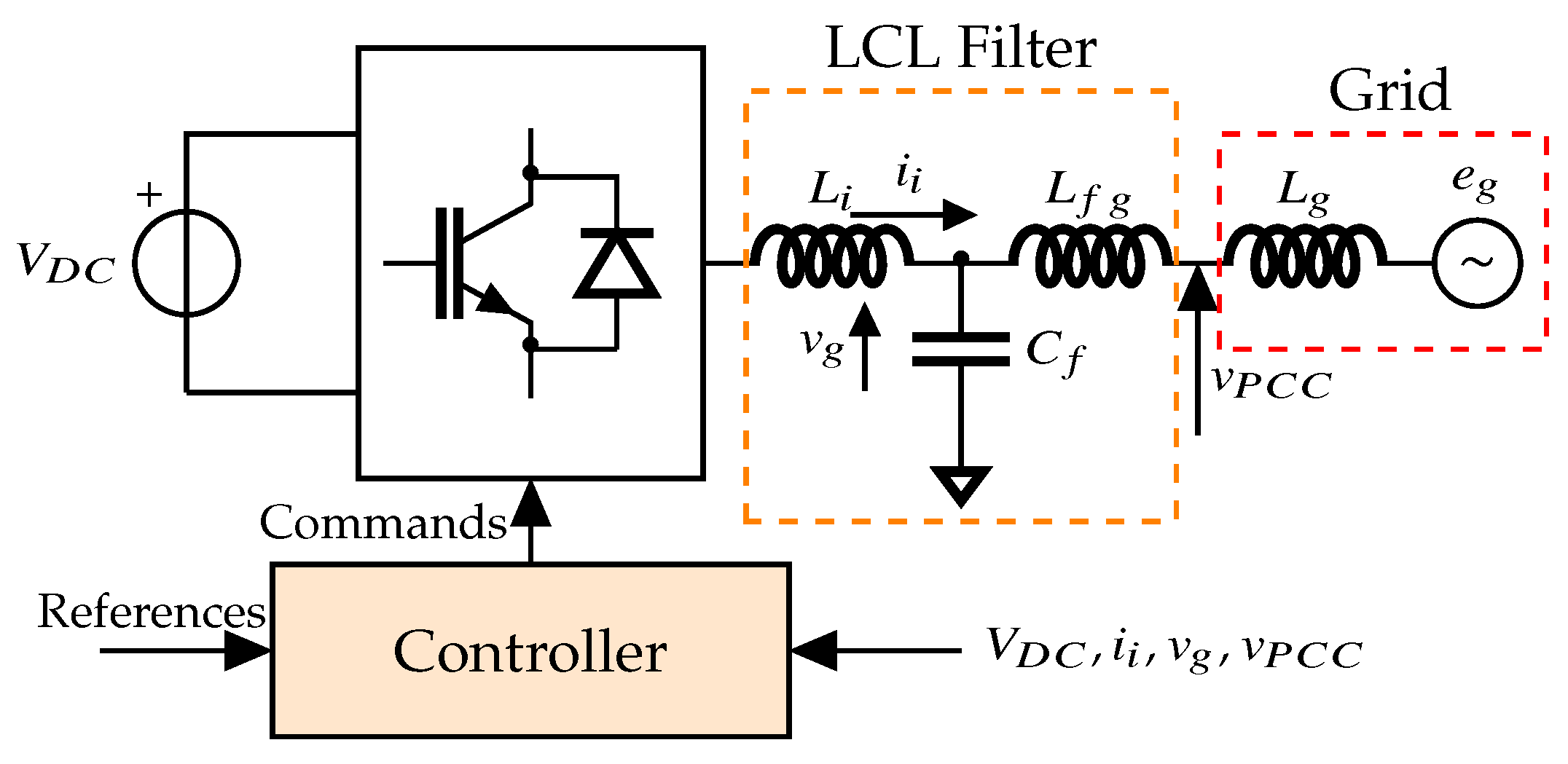

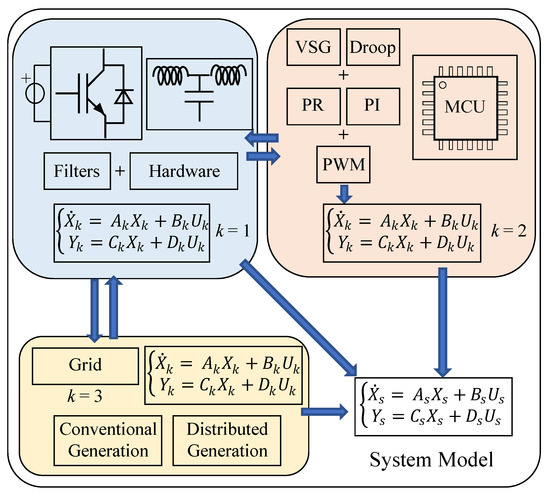

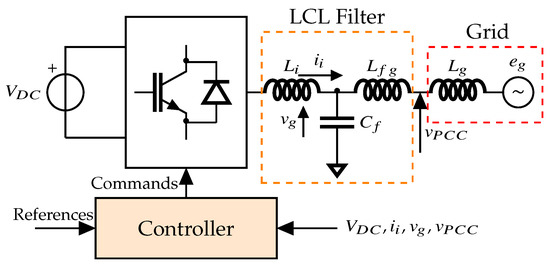

Figure 1
