Study of a Hybrid Solar Absorption-Cooling and Flash-Desalination System
Abstract
:1. Introduction
2. Materials and Methods

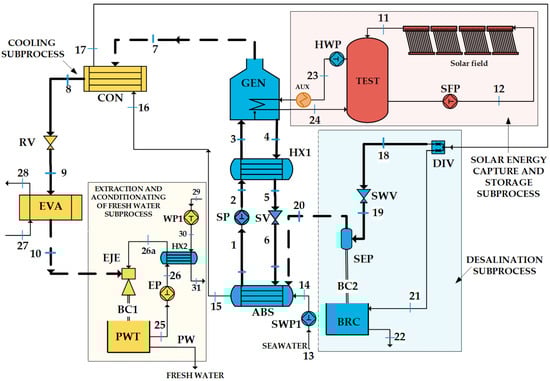

2.1. System Description
2.2. Methods

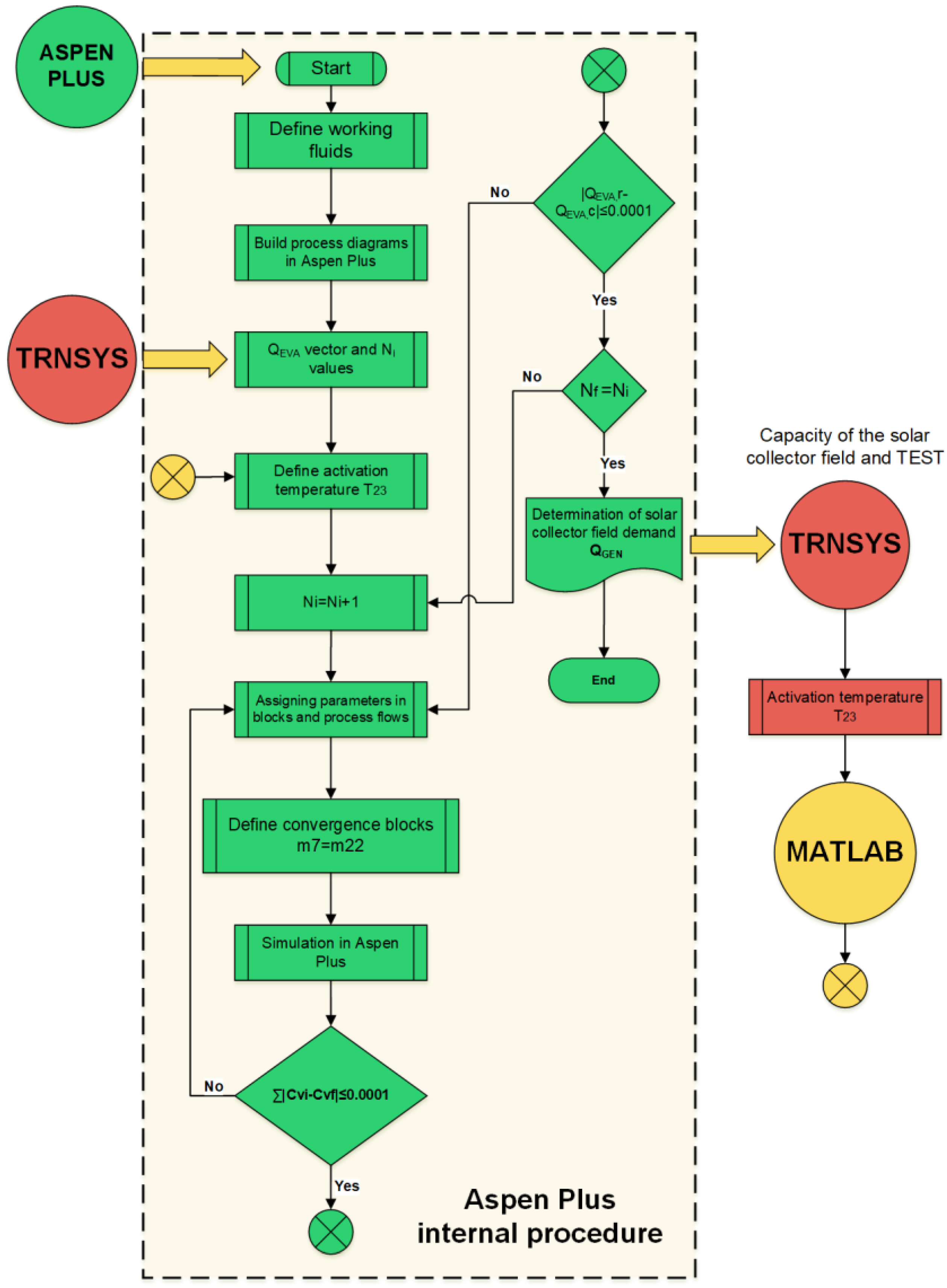

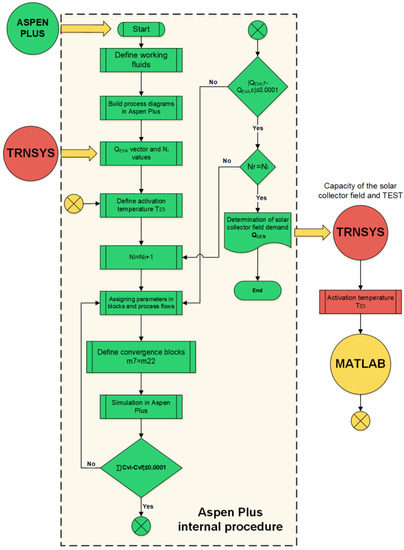

- Aspen Plus was used to evaluate the internal operation of the absorption-cooling and flash-desalination system.
- Through the TRNSYS software, the thermal load and capacity of the solar thermal collector and TEST system were determined.
- MATLAB was used to evaluate the coupling of the solar thermal collector, TEST, and thermal load with the proposed hybrid system.
- The proposed cycle operates in stable conditions. The LiBr/H2O solution is homogeneous and in balance. The weak solution is at 51%.
- The steam (22) generated in sudden evaporation must be equal to the steam (7) produced in the GEN.
- Operating pressures were set as reported in [29], unless otherwise mentioned.
- The maximum operating cooling capacity was set at 80 kW, and a minimum partial load operation of 20% (16 kW).
- The minimum operating temperature of the hybrid system is 78 °C; a lower temperature will force the use of the auxiliary heater.
- The on/off switching of the solar field pump was controlled by temperature difference ().
- 30-min simulation intervals.
2.3. System Simulator Validation

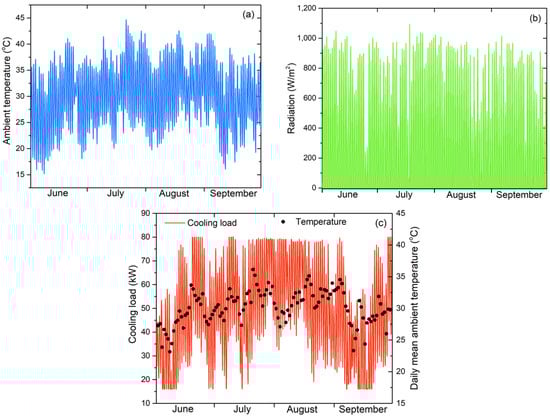

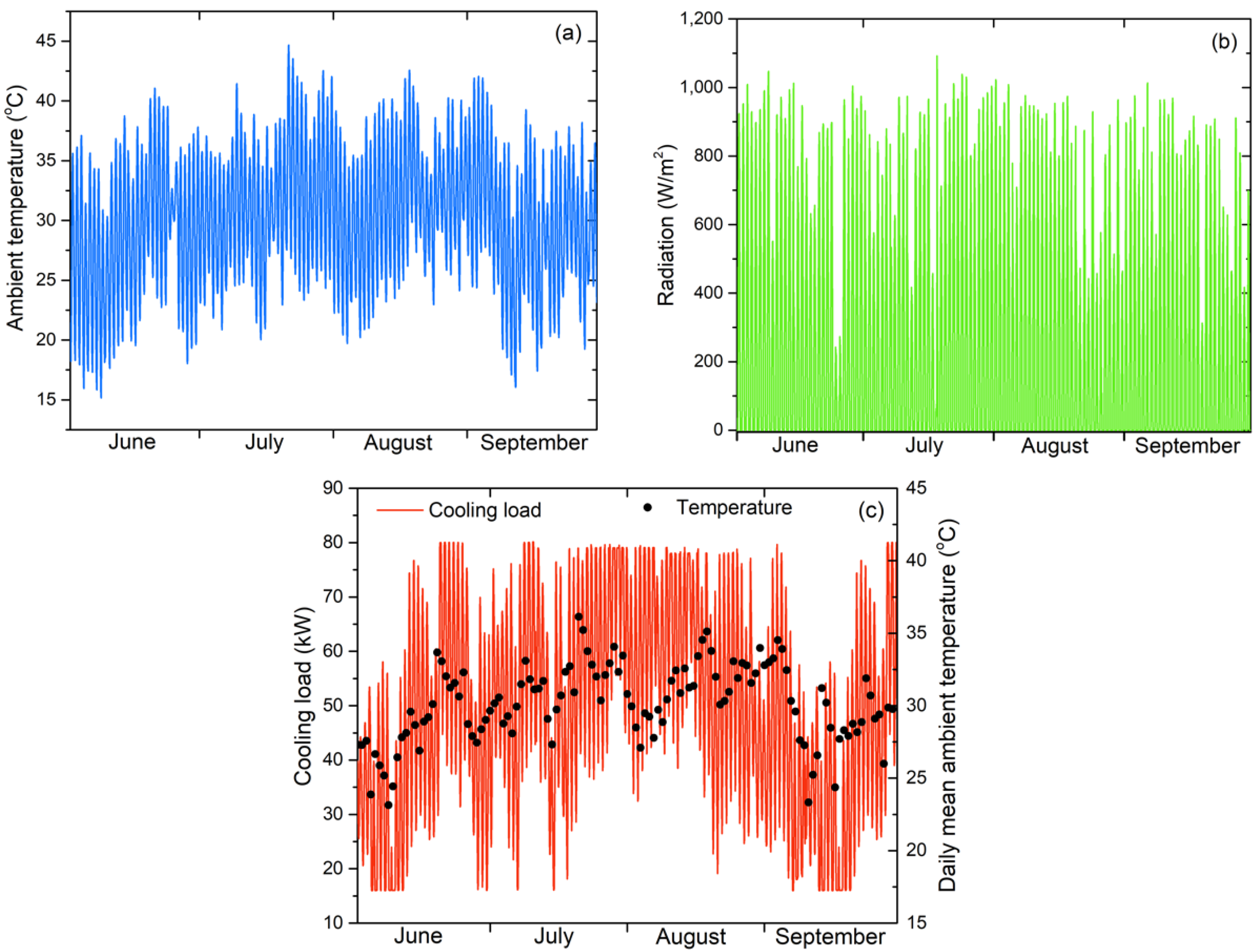

2.4. Case Study
2.5. System Evaluation
3. Results

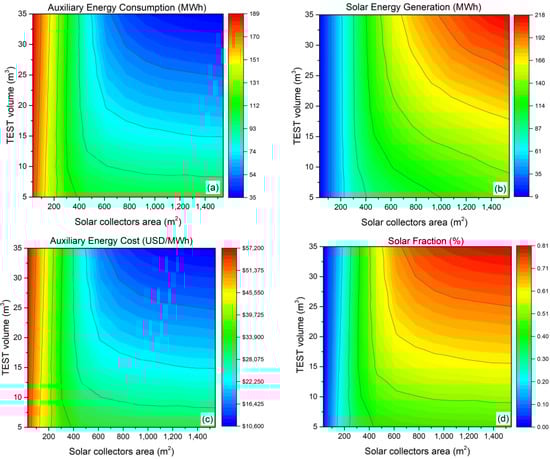

3.1. Analysis in Summer Period

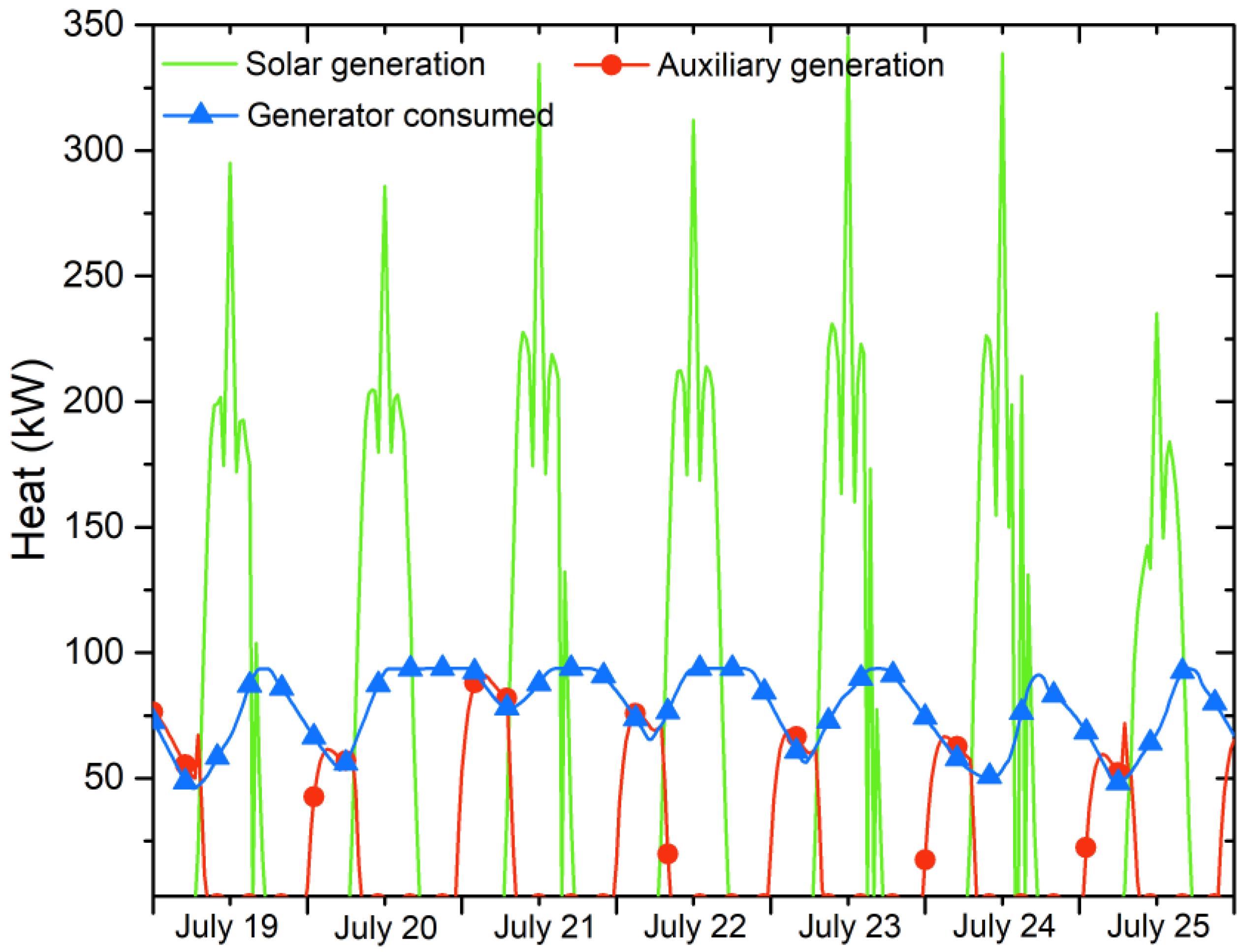

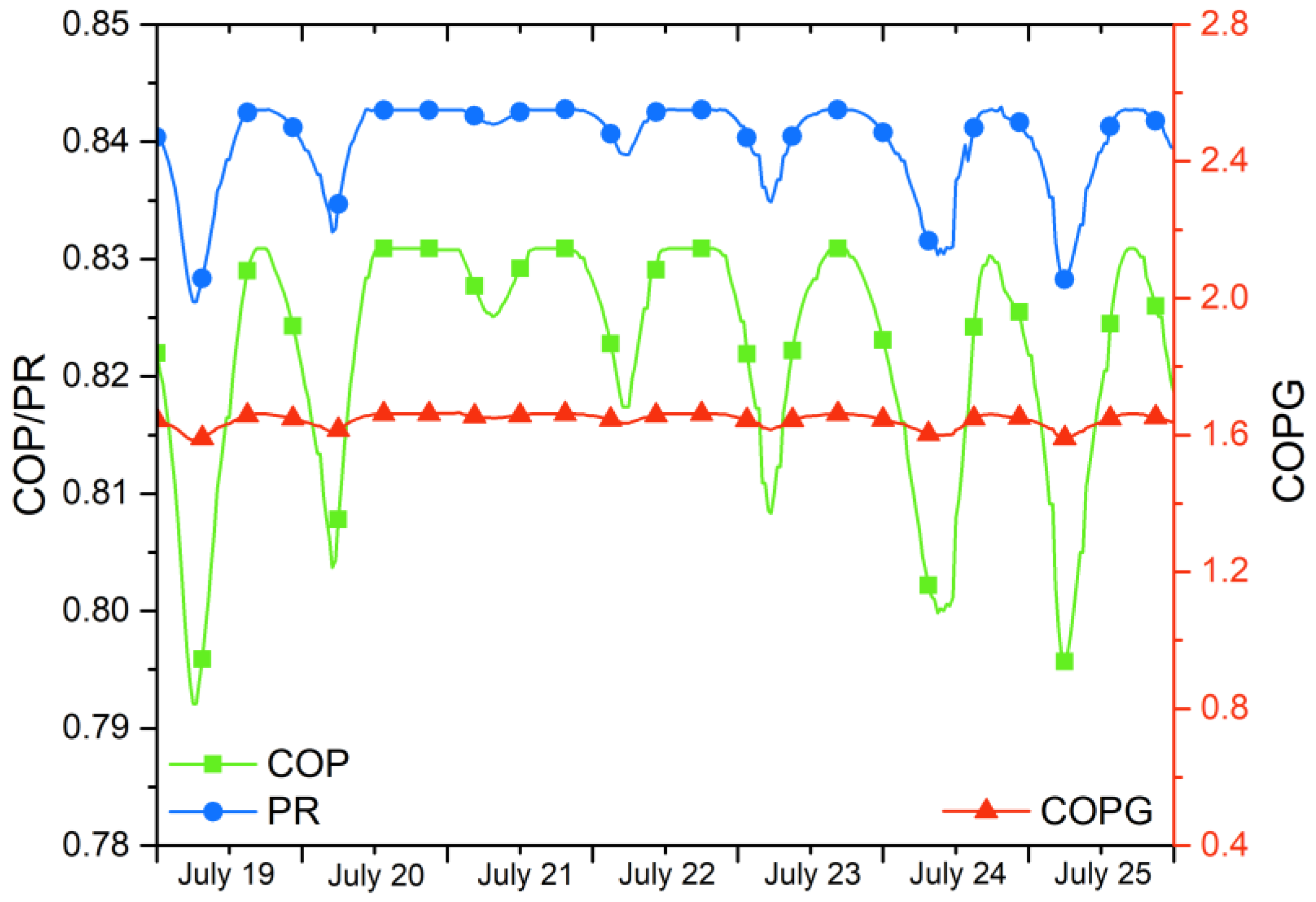

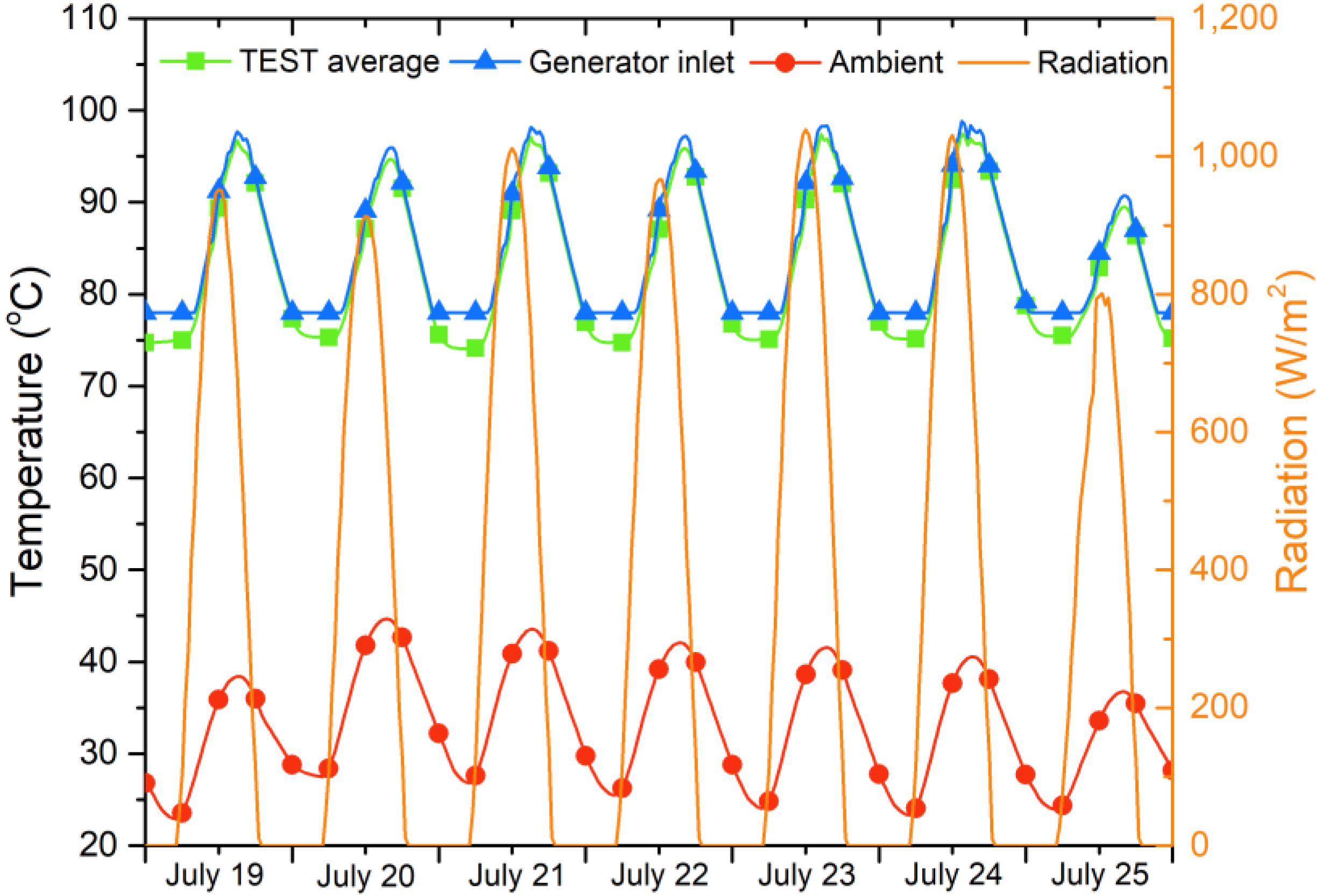

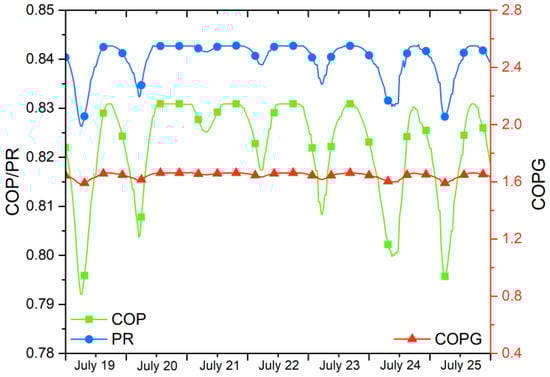

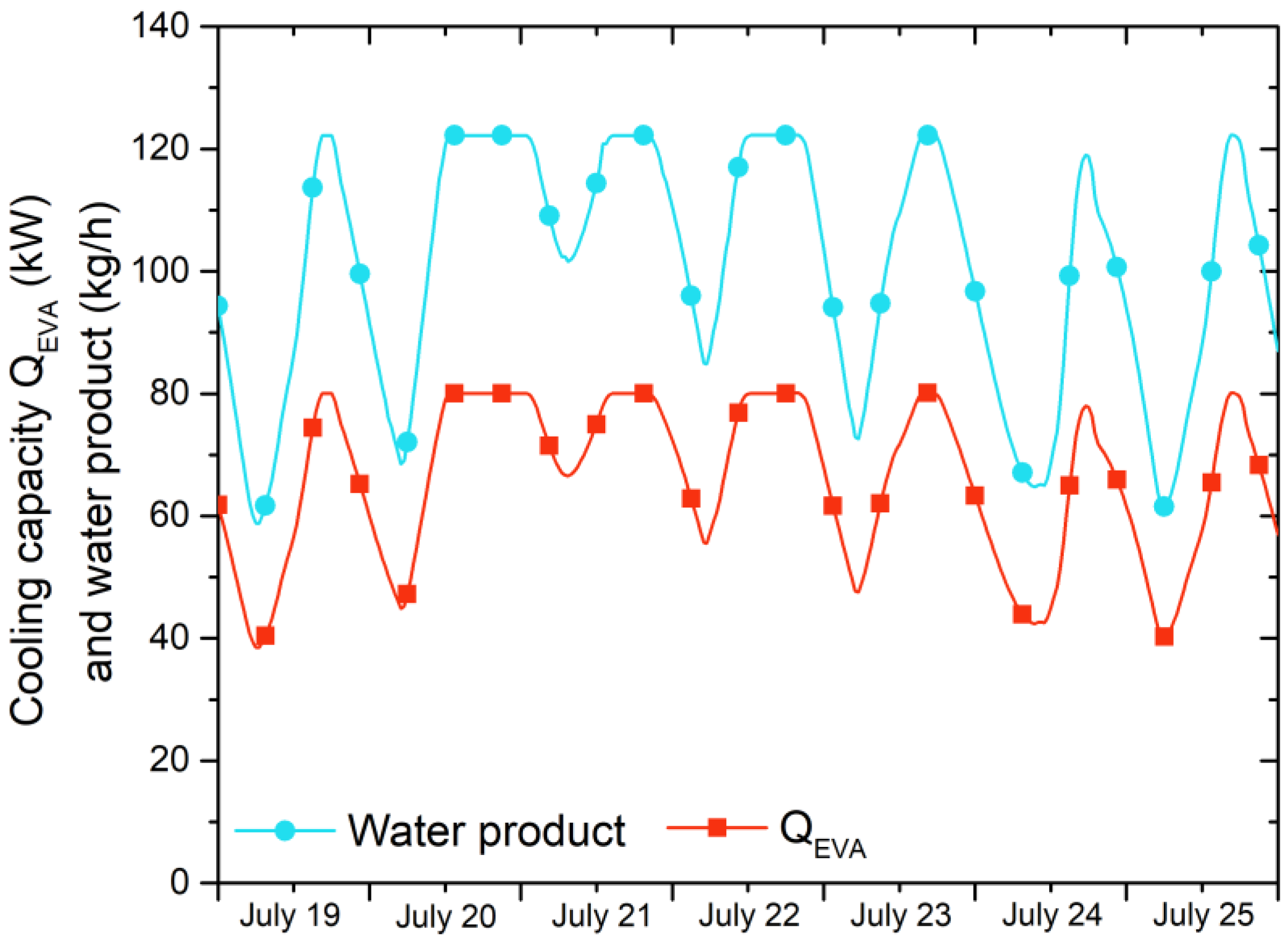

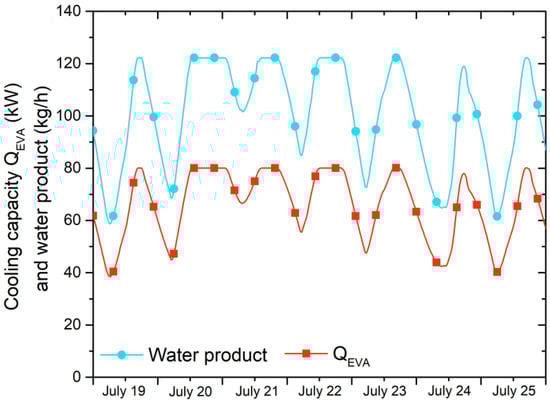

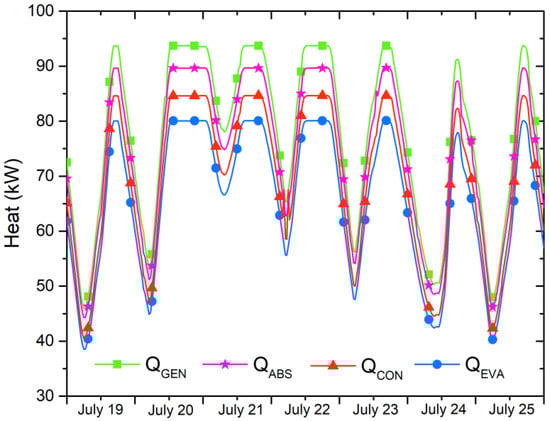

3.2. Weekly Operation
3.3. Technological Considerations
4. Conclusions
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
Abbreviations
GEN | Generator |
ABS | Absorber |
CON | Condenser |
EVA | Evaporator |
HX1 | Recovery heat exchanger |
HX2 | Driving fluid cooler |
AUX | Auxiliary heat exchanger |
TEST | Thermal energy storage tank |
SFP | Solar fluid pump |
HWP | Hot water pump |
SP | Solution pump |
SWP | Seawater pump |
SWP1 | Seawater pump for cooling |
EP | Ejector pump |
SV | Solution valve |
RV | Refrigeration valve |
SWV | Seawater expansion valve |
DIV | Streams divisor |
SEP | Separator equipment |
EJE | Ejector |
BC1 | Ejector barometric column |
BC2 | Separator barometric column |
PWT | Product water tank |
BRC | Brine container |
COP | Coefficient of operation |
PR | Performance ratio |
PW | Product water |
Nomenclature | |
T | Temperature [°C] |
P | Pressure [kPa] |
Q | Heat transfer [kW] |
ASC | Solar collection area |
GT | Incident solar radiation in the collector opening area |
a0 | Optical efficiency of the solar collector |
a1 | First order efficiency coefficient |
a2 | Second order efficiency coefficient |
Tin | Collector inlet temperature |
Ta | Ambient temperature |
f | Solar fraction |
Ef | Thermal efficiency of solar collectors |
Subscripts | |
a | Ambient |
in | Inlet |
1,2,3… | Number of streams |
sf | Solar field |
