Analysis of Dynamic Characteristics of Foreign Metal Objects under Electromagnetic Force in High-Power Wireless Power Transfer

Tianjin Key Laboratory of Advanced Electrical Engineering and Energy Technology, TianGong University, Tianjin 300387, China
*
Author to whom correspondence should be addressed.
Energies 2020, 13(15), 3881; https://doi.org/10.3390/en13153881
Received: 9 July 2020 / Revised: 24 July 2020 / Accepted: 27 July 2020 / Published: 30 July 2020
(This article belongs to the Special Issue Intelligent Wireless Power Transfer System and Its Application 2021)

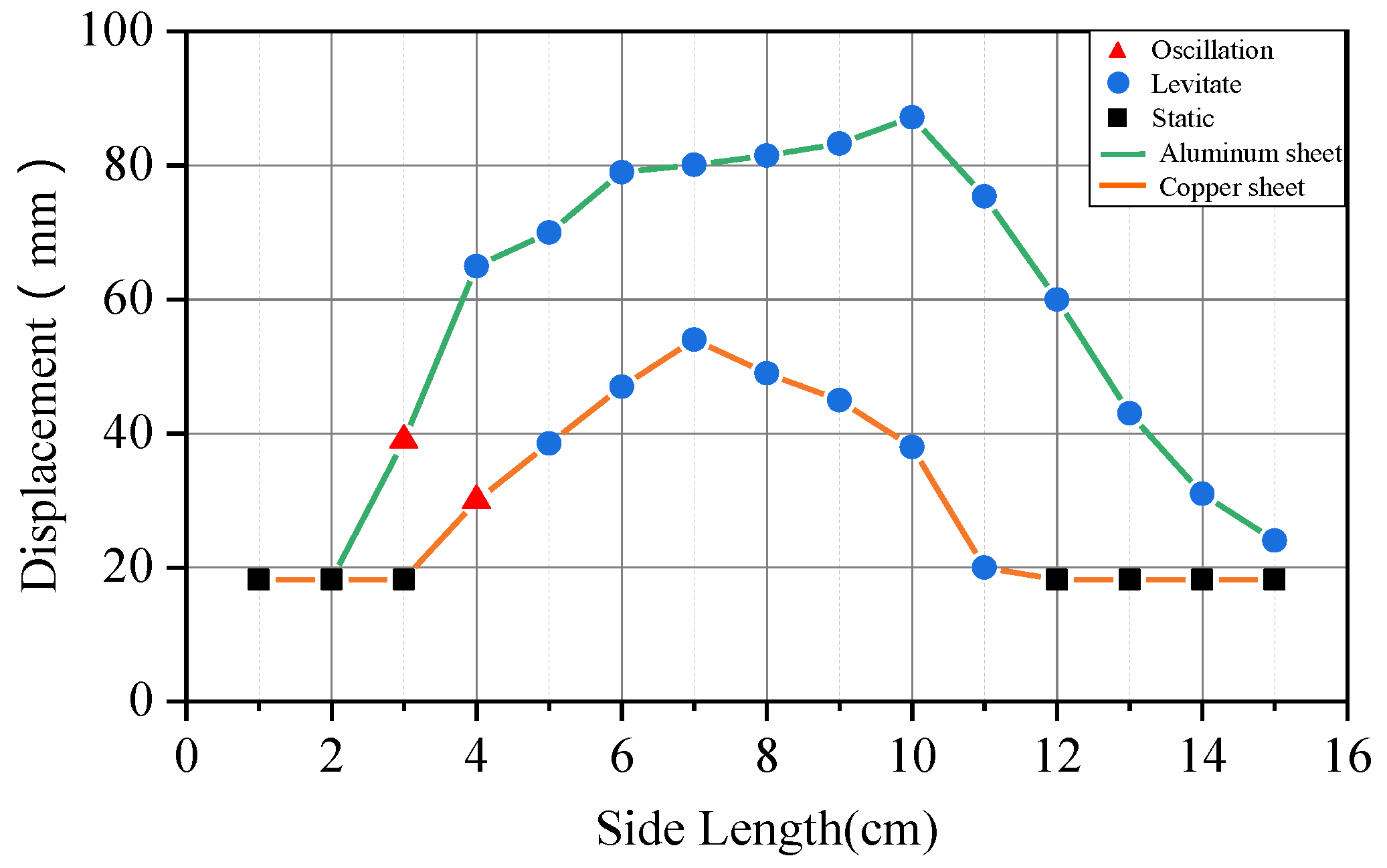

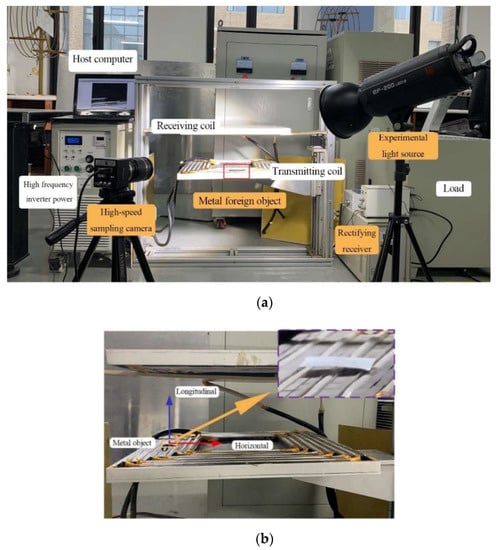

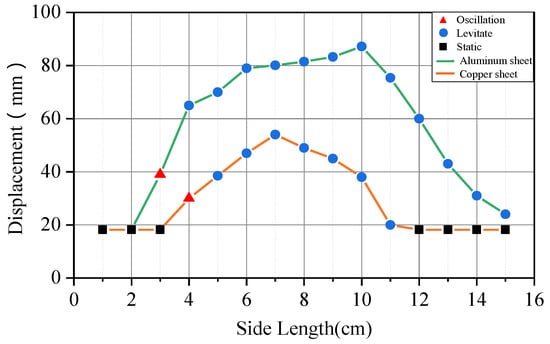

Because of the noncontact structure of wireless power transfer (WPT) systems, foreign metal objects can easily enter into the coupling region—and often move under the action of electromagnetic force (EMF), instead of staying relatively static, which brings a difficult problem for foreign object detection technology. In this paper, we investigate the motion state of foreign metal objects with different properties under the action of electromagnetic force in the coupling space of WPT system. The equivalent model of the circuit parameters with the intervention of foreign metal objects and the differential equations for the motion of foreign metal objects are derived. Combined with finite-element simulation calculations, the motion characteristic of ferromagnetic and non-ferromagnetic metals under EMF was analyzed. The results show that, due to the size and properties of the metal, non-ferromagnetic foreign metal objects have four states: vibration, suspension, static and flying out. The ferromagnetic foreign metal objects will adsorb on the coil surface and rapidly heat up. By establishing an experimental prototype, the analysis uses high-speed acquisition equipment to obtain the movement of foreign metal objects which verified the correctness of the simulation. This research is also beneficial to the operational safety and reliability of the WPT. View Full-Text
Keywords: foreign metal object; electromagnetic force (EMF); wireless power transfer (WPT); high-power foreign metal object; electromagnetic force (EMF); wireless power transfer (WPT); high-power
Show Figures

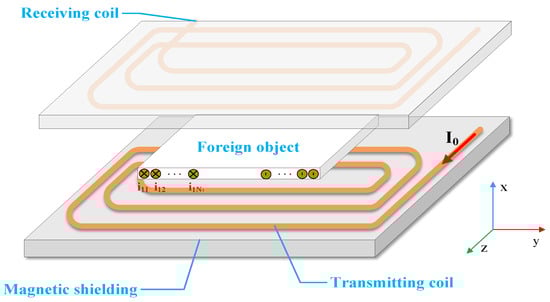

Figure 1
