Production of Hydrogen-Rich Gas by Oxidative Steam Reforming of Dimethoxymethane over CuO-CeO₂/γ-Al₂O₃ Catalyst

Abstract

The catalytic properties of CuO-CeO₂ supported on alumina for the oxidative steam reforming (OSR) of dimethoxymethane (DMM) to hydrogen-rich gas in a tubular fixed bed reactor were studied. The CuO-CeO₂/γ-Al₂O₃ catalyst provided complete DMM conversion and hydrogen productivity > 10 L h⁻¹ g_cat⁻¹ at 280 °C, GHSV (gas hourly space velocity) = 15,000 h⁻¹ and DMM:O₂:H₂O:N₂ = 10:2.5:40:47.5 vol.%. Comparative studies showed that DMM OSR exceeded DMM steam reforming (SR) and DMM partial oxidation (PO) in terms of hydrogen productivity. Thus, the outcomes of lab-scale catalytic experiments show high promise of DMM oxidative steam reforming to produce hydrogen-rich gas for fuel cell feeding.

1. Introduction

Growing worldwide concerns about the increase in greenhouse gas emission and local environmental pollution have stimulated active research and development in fuel cell technology in the past decades [1]. There is no doubt that fuel cells will play an important role in the global restructuring of energy supply, because they have several advantages over conventional power units such as high efficiency, noiseless operation, simple and modular design and environmental friendliness [2]. Generally, fuel cells are fed by hydrogen or hydrogen-containing gas produced by the catalytic conversion of various hydrocarbons and oxygenates [3,4,5].

Recently, dimethoxymethane (DMM) has been declared as a promising environmentally safe raw material for hydrogen production for fuel cell feeding [6,7,8,9,10,11,12,13,14,15,16]. At present, DMM is commonly synthesized from methanol [17,18]. It is worth noting that DMM synthesis using renewable feedstocks—namely, CO₂ produced from biomass and hydrogen generated by water electrolysis—is currently under development [19]. Since DMM is a relatively inert (non-corrosive and non-toxic) liquid compound, it can be easily handled, stored and transported.

Analysis of the current literature shows that DMM can be converted into hydrogen-rich gas by steam reforming (SR) (1) [6,7,8,9,10,11,12,13,14], decomposition (2) [15] and partial oxidation (PO) (3) [16] at relatively low temperatures. The reactions of DMM conversion are shown as follows:

CH₃OCH₂OCH₃ + 4H₂O = 8H₂ + 3CO₂

(1)

CH₃OCH₂OCH₃ = H₂ + CO + CH₃OCH₃

(2)

CH₃OCH₂OCH₃ + 0.5O₂ = 4H₂ + 3CO

(3)

Among these catalytic methods, steam reforming is the most efficient in terms of maximum hydrogen yield and negligible CO content. In accordance with the kinetic scheme of the DMM SR reaction, effective CuO-CeO₂ and CuO-ZnO catalysts supported on γ-Al₂O₃ have been proposed in our group [8,9,10,11]. Since DMM SR is a highly endothermic reaction (ΔH⁰₂₉₈ = +140 kJ/mol), the use of conventional granulated catalysts causes the formation of cold spot temperature gradients in the catalyst bed, resulting in reduced activity. Therefore, a solution suggested in our previous work [12], depositing the active catalytic components for DMM SR on metallic FeCrAl wire mesh support, was quite successful. However, an obvious drawback of using FeCrAl mesh support is a significant increase in the reactor volume.

It is well known that the temperature distribution in the catalytic reactor can be optimized by a combination of steam reforming (1) and partial oxidation (3) reactions [20,21,22]. The oxidative steam reforming (OSR) of hydrocarbons and oxygenates is being studied not only to minimize the cold/hot spot effect in the catalytic reactor, but in some cases the reaction shows enhanced effectivity over steam reforming or partial oxidation [20,21]. In particular, Velu et al. [20,21] found that methanol OSR was more efficient in many aspects than methanol SR and methanol PO for hydrogen production. Moreover, the presence of oxygen in the reaction mixture helps to control coking by the efficient removal of carbonaceous species produced during the reaction [22].

Inspired by the above-mentioned works, and by the fact that no studies have been conducted on DMM OSR to date (literature survey revealed no references devoted to the reaction), herein we report the first example of the titled reaction to produce hydrogen-rich gas for fuel cell feeding. In our experiments, we used the CuO-CeO₂/γ-Al₂O₃ catalyst which is known for its high activity and selectivity in DMM SR [8,9]. A comparative investigation of partial oxidation as well as steam reforming of DMM was performed to elucidate the prospects of DMM OSR in producing hydrogen-rich gas with low CO content for fuel cell feeding.

2. Materials and Methods

The catalyst 10 wt.% CuO-5 wt.% CeO₂ supported on γ-Al₂O₃ (further denoted as CuO-CeO₂/γ-Al₂O₃), which demonstrated good performance in DMM SR reaction [8,9], was used in the OSR and PO catalytic experiments. The catalyst was prepared by impregnating γ-Al₂O₃ (200 m²/g, 0.25–0.5 mm particles) with aqueous solutions of copper (II) and cerium (III) nitrates as described in detail in [8,9]. According to [9], the catalyst contained on its surface the Lewis acid sites of γ-Al₂O₃ (active sites for DMM hydrolysis to methanol and formaldehyde) and copper species as ~10 nm particles and agglomerates containing both copper and cerium (responsible for methanol and formaldehyde SR).

DMM OSR as well as DMM PO were studied using a fixed-bed flow reactor (i.d. 6 mm) in the temperature range 150–330 °C under ambient pressure (1 atm). The reactor has two inlets for a separate supply of O₂ and DMM to prevent homogeneous DMM oxidation in the gas phase, as reported in our recent work [16]. The DMM-H₂O-N₂ and O₂ flows were immediately mixed before entering the catalyst bed. The catalyst temperature was measured by a chromel/alumel thermocouple positioned in the center of the catalyst bed. Prior to the SR and OSR reactions (except partial oxidation), the catalyst (0.25–0.5 mm) was reduced in situ at 300 °C for 1 h using 5 vol.% H₂/N₂ with a total flow rate of 3000 mL/h.

Then, the catalyst was exposed to the feed composed of (vol.%): 16.7 DMM, 16.7 O₂ and 66.6 N₂ (DMM:air ≈ 1:5) for DMM PO; 10 DMM, 40 H₂O, 2.5 O₂ and 47.5 N₂ for DMM OSR; 10 DMM, 0–45 H₂O, 0–10 O₂ and 45–80 N₂ for comparative investigation. Note that the reagents were significantly diluted by N₂ exceeding 40 vol.% in order to correctly measure the reaction mixture composition during catalyst testing. Total GHSV (gas hourly space velocity) was maintained at 10,000 h⁻¹. Comparative investigations were performed at GHSV = 15,000 h⁻¹ as special experiments.

The deionized water was injected by a plunger pump into an evaporator at 120 °C. DMM was fed to the catalytic reactor by bubbling N₂ through a glass saturator filled with 99.5% purity DMM (Acros Organics) maintained at 20 °C. Additional N₂ and O₂ were fed to get the required reaction mixture. All the gases, N₂, O₂ and H₂ (for catalyst reduction) were introduced to the reactor by a mass-flow controller (Bronkhorst). The inlet reaction mixture and the outlet products were analyzed online by a gas chromatograph (Chromos-1000) equipped with two TCD detectors maintained at 130 °C. Argon was used as a carrier gas. DMM and O₂ conversion (X), H₂ productivity (W) and yields (Y) of carbon-containing products were calculated by the following equations:

$${\mathrm{X}}_{\mathrm{i}}(\%)=\frac{{\mathrm{C}}_{\mathrm{i}}^0-{\mathrm{C}}_{\mathrm{i}}^{}\times \frac{{\mathrm{C}}_{{\mathrm{N}}_2}^0}{{\mathrm{C}}_{{\mathrm{N}}_2}^{}}}{{\mathrm{C}}_{\mathrm{i}}^0}\times 100$$

(4)

$${\mathrm{W}}_{{\mathrm{H}}_2}\left(\frac{\mathrm{L}}{\mathrm{h}·{\mathrm{g}}_{\mathrm{cat}}}\right)=\frac{\mathrm{F}\times {\mathrm{C}}_{{\mathrm{H}}_2}^{}\times \frac{{\mathrm{C}}_{{\mathrm{N}}_2}^0}{{\mathrm{C}}_{{\mathrm{N}}_2}^{}}}{100\times {\mathrm{m}}_{\mathrm{cat}}}$$

(5)

$${\mathrm{Y}}_{\mathrm{i}}(\%)=\frac{{\mathrm{C}}_{\mathrm{i}}^{}\times \frac{{\mathrm{C}}_{{\mathrm{N}}_2}^0}{{\mathrm{C}}_{{\mathrm{N}}_2}^{}}}{({\mathrm{C}}_{\mathrm{DMM}}^0)\times {\mathrm{N}}_{\mathrm{i}}}\times 100$$

(6)

where C⁰, C are the inlet and outlet concentrations, F is the total reagents flow rate (L/h), m_cat is the catalyst weight (g), and N_i is the number of carbon molecules in the compound.

3. Results

3.1. DMM Partial Oxidation

Recently, we proposed an efficient Pt/CeO₂-ZrO₂ catalyst for DMM PO to syngas, showing high promise for Solid Oxide Fuel Cells (SOFC) applications [16]. The low cost of copper compared to noble metals, as well as the good performance of copper-containing catalysts in the partial oxidation of methanol [23] and dimethyl ether [24], encouraged our studies of DMM PO over the CuO-CeO₂/γ-Al₂O₃ catalyst.

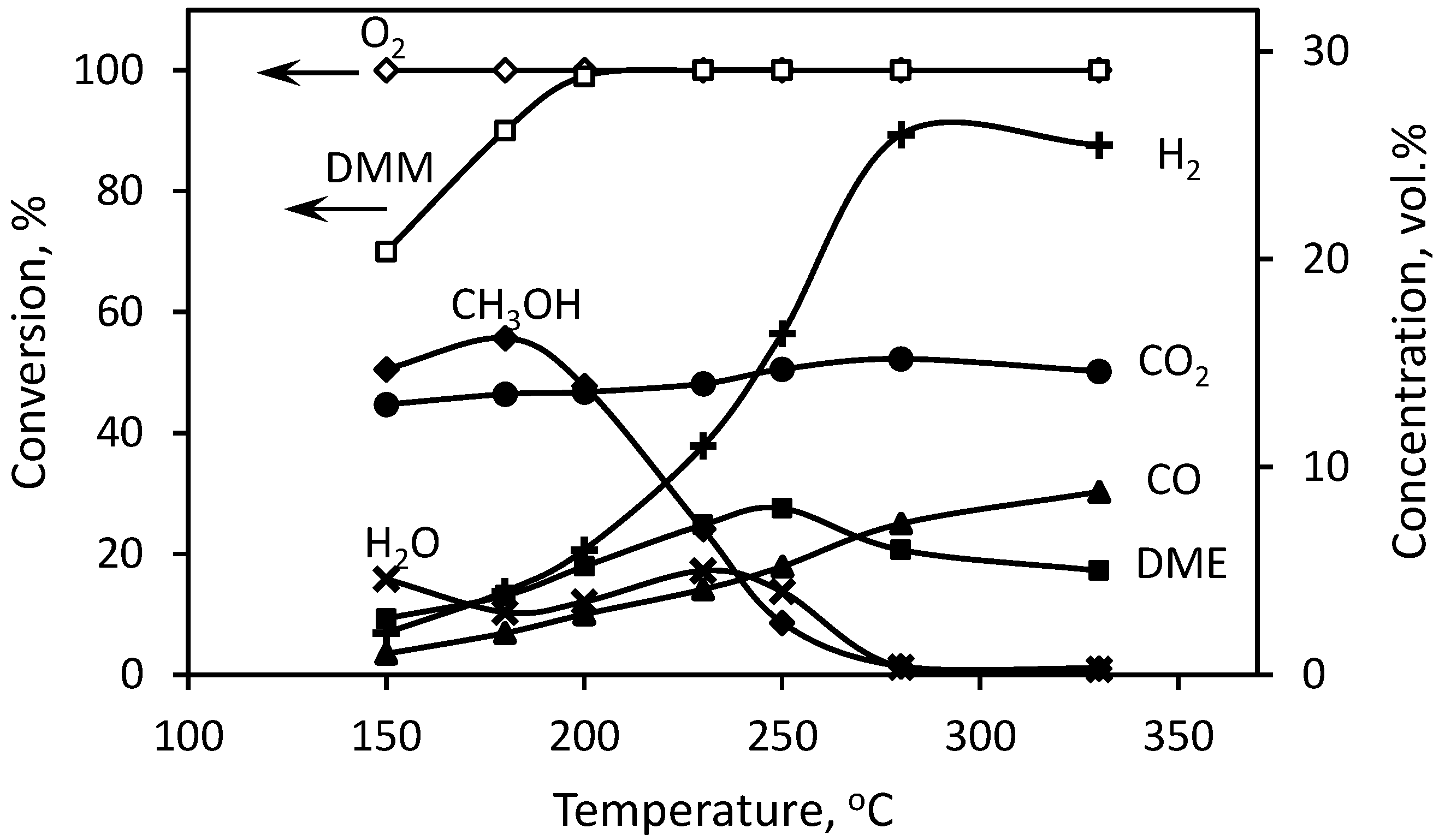

Figure 1 shows the effect of reaction temperature on DMM and O₂ conversions, as well as the reaction product concentrations during DMM PO over the CuO-CeO₂/γ-Al₂O₃ catalyst using the reaction mixture CH₃OCH₂OCH₃:O₂:N₂ = 16.7:16.7:66.6 vol.% at GHSV = 10,000 h⁻¹. Under these conditions, the O₂ conversion was 100% in the whole test temperature range. DMM conversion was ~70% at 150 °C, which increased with increasing temperature and reached ~100% at 200 °C.

As can be seen in Figure 1, two nominal temperature ranges at 150–200 °C and 250–330 °C with characteristic product distribution were observed. In the first range, CO₂ and CH₃OH were predominantly formed (> 13 vol.% concentration). In addition, H₂, CO, CH₃OCH₃ and H₂O were observed in an amount not exceeding 6 vol.%. Then, as the temperature increased (second range), the product distribution changed drastically; CH₃OH and H₂O concentrations decreased to 0 with simultaneous increase in H₂ and CO concentrations, respectively, up to 26 and 7–9 vol.%. Note that CO₂ concentration remained almost unchanged at 150–330 °C. Dimethyl ether (DME) concentration was about 3 vol.% at 150 °C, passed through a maximum (8 vol.%) at 250 °C and lowered to 5 vol.% with further temperature increase up to 330 °C.

Analysis of the product distributions, taking into account the recent papers on DMM hydrolysis [9], DMM decomposition [15], methanol [23] and DME [24,25] partial oxidation, helps us to clarify the kinetic scheme of the DMM PO reaction over the CuO-CeO₂/γ-Al₂O₃ catalyst. In our opinion, initially, DMM total oxidation (7) most likely proceeds in the frontal layer of the catalyst [23]. The produced water hydrolyzes DMM to methanol and formaldehyde (8) on the acid sites of γ-Al₂O₃ [9]:

CH₃OCH₂OCH₃ + 4O₂ = 3CO₂+4H₂O

(7)

CH₃OCH₂OCH₃ + H₂O = 2CH₃OH + CH₂O

(8)

However, formaldehyde was not detected in the reaction products, probably due to its higher reactivity (9,10) compared to methanol on the copper-containing catalyst [26].

CH₂O + H₂O = 2H₂ + CO₂

(9)

CH₂O = H₂ + CO

(10)

Thus, consideration of reactions (7)–(10) adequately explains the product distribution in the low-temperature region. At higher temperatures (250–330 °C) methanol can be converted to hydrogen-rich gas on the copper-based catalysts by steam reforming (11) or decomposition (12) reactions [4,23,26]:

CH₃OH + H₂O = 3H₂ + CO₂

(11)

CH₃OH = 2H₂ + CO

(12)

As for DME, its formation can be realized by a DMM decomposition reaction (2). A decrease in its concentration at >250 °C is probably associated with an increase in the reaction mixture volume during the DMM PO reaction (3).

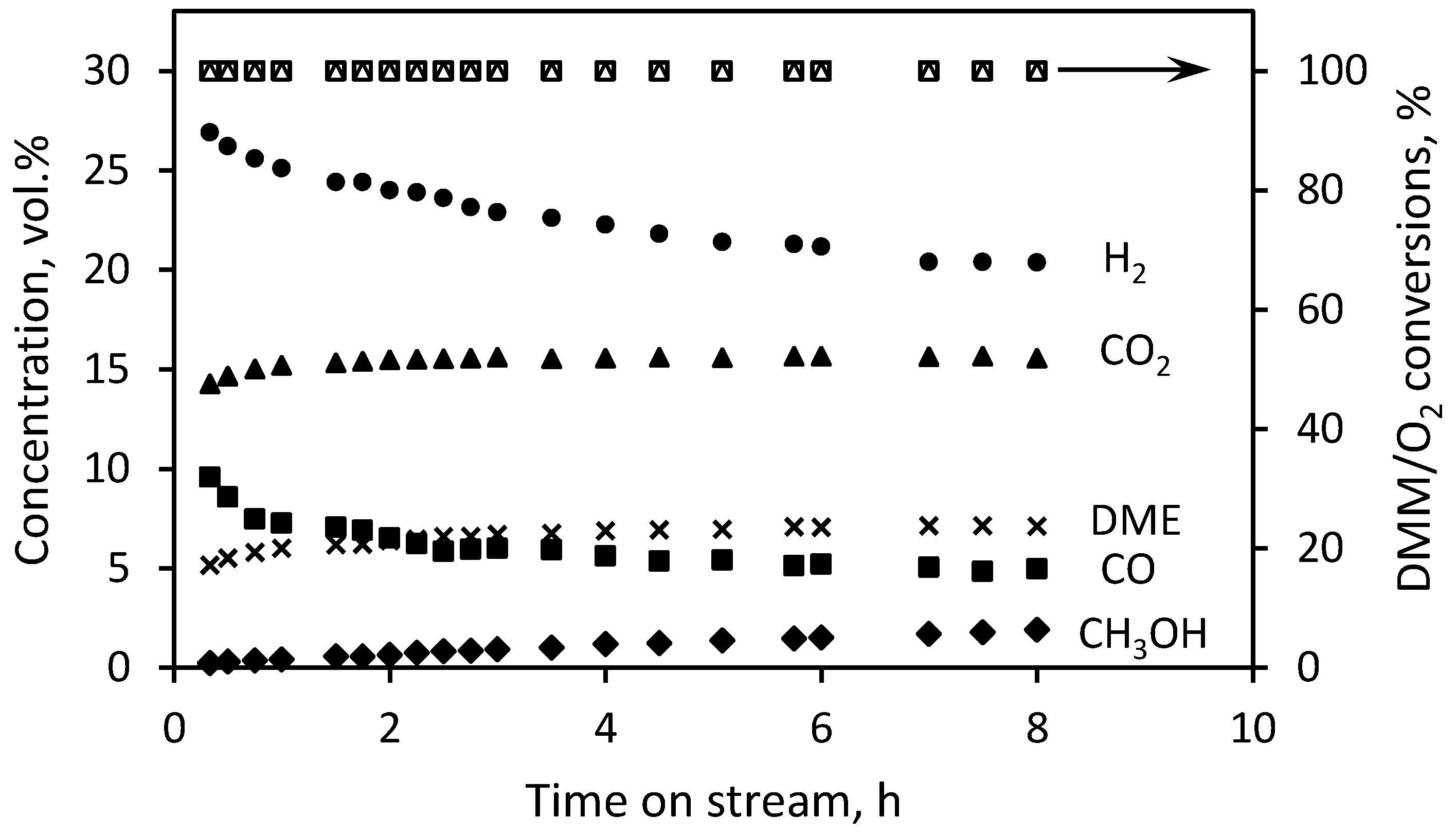

Figure 2 shows the effect of time-on-stream on the DMM and O₂ conversions, the outlet product concentrations in DMM PO over the CuO-CeO₂/γ-Al₂O₃ catalyst. The stability experiment was carried out at 280 °C, with the inlet composition CH₃OCH₂OCH₃:O₂:N₂ = 16.7:16.7:66.6 (vol.%) and GHSV = 10,000 h⁻¹. Under these conditions, complete DMM and O₂ conversions were provided. As seen in Figure 2, during the first hour on-stream, H₂, CO₂, CO and DME were the main reaction products, while only traces of CH₄, CH₃OH and H₂O were detected not exceeding 0.3 vol.%. Unlike DMM SR [8,9], the CuO-CeO₂/γ-Al₂O₃ demonstrated continuous deactivation during the first 6 h on DMM PO stream in terms of H₂ and CO concentrations (Figure 2). Then the outlet product concentrations remained constant and did not change with time.

Thus, the feasibility of DMM PO on a copper-containing catalyst was demonstrated for the first time. Although the CuO-CeO₂/γ-Al₂O₃ catalyst was not sufficiently stable during the DMM PO, the first example of the reaction is quite promising. Obviously, it seems appropriate to perform further studies aimed at developing a more active and stable copper-based catalyst for DMM PO as well as detailed reaction mechanism investigations.

3.2. DMM Oxidative Steam Reforming

One should note that a catalyst active for both SR and PO reactions is expected to be effective for the OSR reaction. Since CuO-CeO₂/γ-Al₂O₃ catalyst was active for DMM PO and DMM SR (see above Section 3.1 and our previous works [8,9]), we studied its behavior in DMM OSR.

The influence of the inlet composition on the catalytic performance of the CuO-CeO₂/γ-Al₂O₃ in DMM OSR is shown in

Table 1. Effect of inlet reaction mixture on hydrogen productivity and yield in DMM OSR ¹ over the CuO-CeO₂/γ-Al₂O₃ catalyst.

Inlet Reaction Mixture DMM:O2:H2O:N2, vol.%		W(H2), L h−1 gcat−1	Yield, %
			CO2	CO	CH3OCH3	CH3OH
1	10 : 0 : 45 : 45	12.4	82	1.4	4	12.6
2	10 : 2.5 : 40 : 47.5	14	87.7	1.8	3.2	7.3
3	10 : 5 : 25 : 60	10	70.6	3.3	16.6	9.5
4	10 : 10 : 0 : 80	5	43	21	34	1

¹ Reaction conditions: P = 1 atm, T = 280 °C and GHSV = 15,000 h⁻¹.

. This study was performed at 280 °C using a constant concentration of DMM (10 vol.%) in DMM SR (composition 1), DMM OSR (composition 2 and 3) and DMM PO (composition 4). H₂O, O₂ and N₂ content in the reaction mixture was varied as shown in Table 1. Total GHSV was maintained at 15,000 h⁻¹. The higher GHSV was chosen in order to clearly demonstrate the effect of the reaction composition. Note that H₂, CO₂, CO, DME and methanol were the main noticeable reaction products. The catalytic data in the table were obtained 1 h after the start of catalyst testing.

As reported earlier, the CuO-CeO₂/γ-Al₂O₃ catalyst provides excellent performance in DMM SR. A special experiment (composition 1, see Table 1) showed that H₂ productivity reached 12.4 L h⁻¹ g_cat⁻¹, CO₂ selectivity—82%. In our OSR experiments, the H₂O concentration in the reaction mixture was gradually decreased, while the O₂ concentration increased. Table 1 shows that the catalyst performance increased notably as O₂ was added in an amount of 2.5 vol.% to the DMM SR reaction mixture (composition 2): the H₂ productivity and CO₂ yield increased up to 14 L h⁻¹ g_cat⁻¹ and ~88%, respectively, mainly due to the consumption of methanol (its yield decreased from 12.6 to 7.3 vol.%). At the same time, a slight increase in CO yield was observed.

The catalyst behavior in DMM OSR was sensitive to both H₂O and O₂ content in the reaction mixture. As the H₂O concentration decreased below 40 vol.%, that is the stoichiometric value for DMM SR, the hydrogen productivity reduced significantly (composition 3). This observation is most likely associated with the fact that water deficiency promotes the side reaction of DMM decomposition (Equation (2)), leading to undesired CO and DME formation. Further addition of O₂ and the progressive decrease of H₂O concentration to 0 led to a decrease in the H₂ productivity down to 5 L h⁻¹ g_cat⁻¹ due to the predominant proceeding of DMM decomposition and partial oxidation reactions.

Comparative studies (Table 1) have shown the high promise of DMM OSR to produce hydrogen-rich gas. In particular, the DMM SR process was significantly promoted by a small O₂ additive (2.5 vol.%) resulting in an increase in H₂ productivity and a decrease in by-product formation in sum. As seen in Figure 3, the catalyst performance was sensitive to the O₂ addition in a wide range of temperatures between 200 and 300 °C in terms of DMM conversion and H₂ outlet concentration. The fundamental reason behind such behavior is likely related to the chemical state of copper in the active catalyst. It is claimed that O₂ in the reaction mixture causes oxidation of surface copper particles, which leads to the formation of Cu⁺ or Cu₂O species that improve the catalyst activity in methanol [27,28,29] and DME [30] reforming to hydrogen-rich gas.

The optimum composition of reagents for DMM OSR over the CuO-CeO₂/γ-Al₂O₃ catalyst is as follows: DMM:O₂:H₂O:N₂ = 10:2.5:40:47.5 (vol.%). This composition provided the maximum H₂ productivity; therefore, it was chosen for further studies.

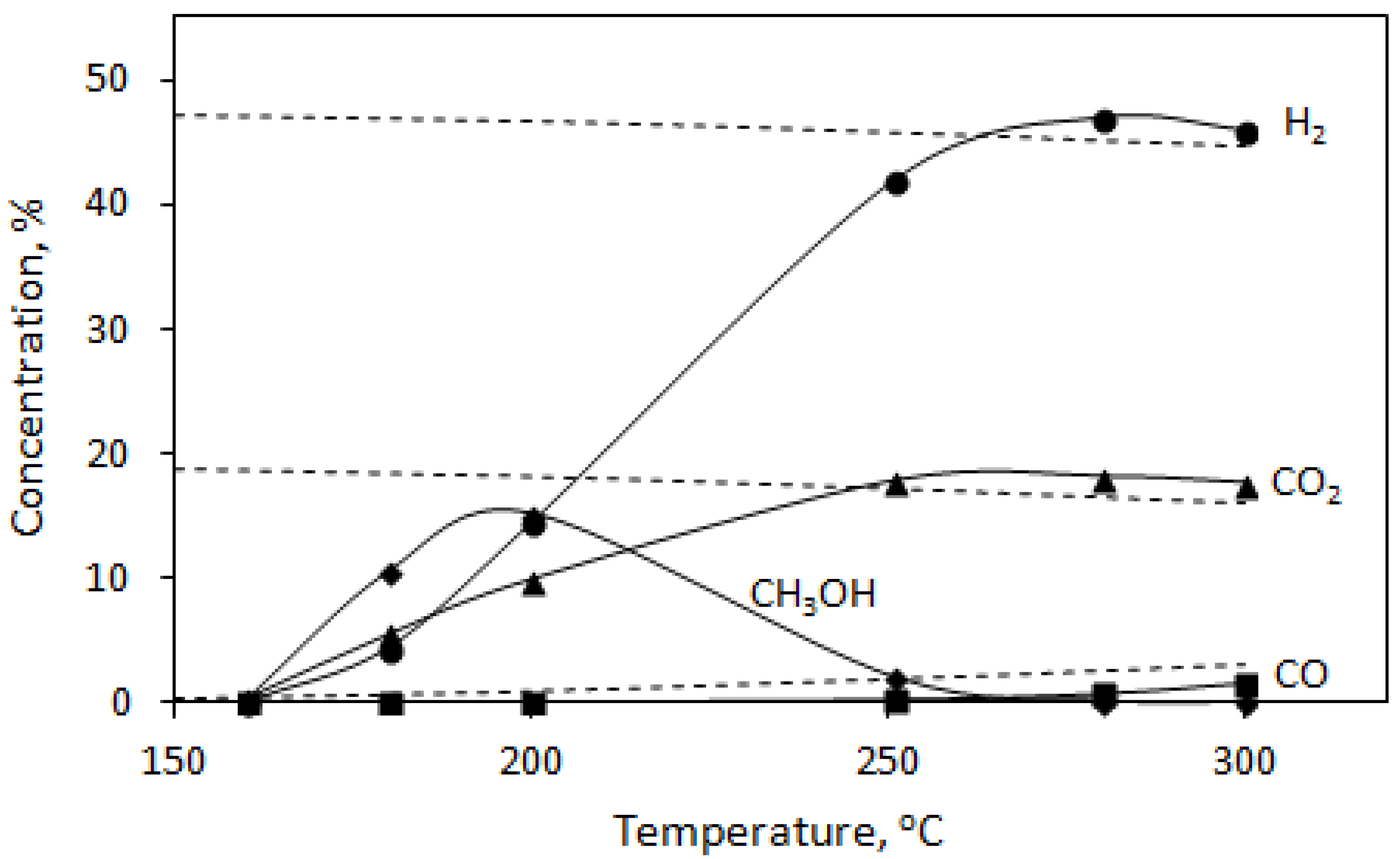

Figure 4 shows the effect of temperature on the outlet product concentration for DMM OSR over the CuO-CeO₂/γ-Al₂O₃ catalyst. The experiment was carried out using the inlet reaction mixture DMM:O₂:H₂O:N₂ = 10:2.5:40:47.5 (vol.%) and GHSV = 10,000 h⁻¹. The equilibrium values of product concentrations were calculated in the assumption that H₂, CO₂, CO, CH₃OH, CH₂O and CH₃OCH₃ were formed during the DMM OSR reaction. The equilibrium concentrations of oxygenates (CH₃OH, CH₂O, CH₃OCH₃ and CH₃OCH₂OCH₃) did not exceed 6 × 10⁻³ vol.%, and are not shown in Figure 4.

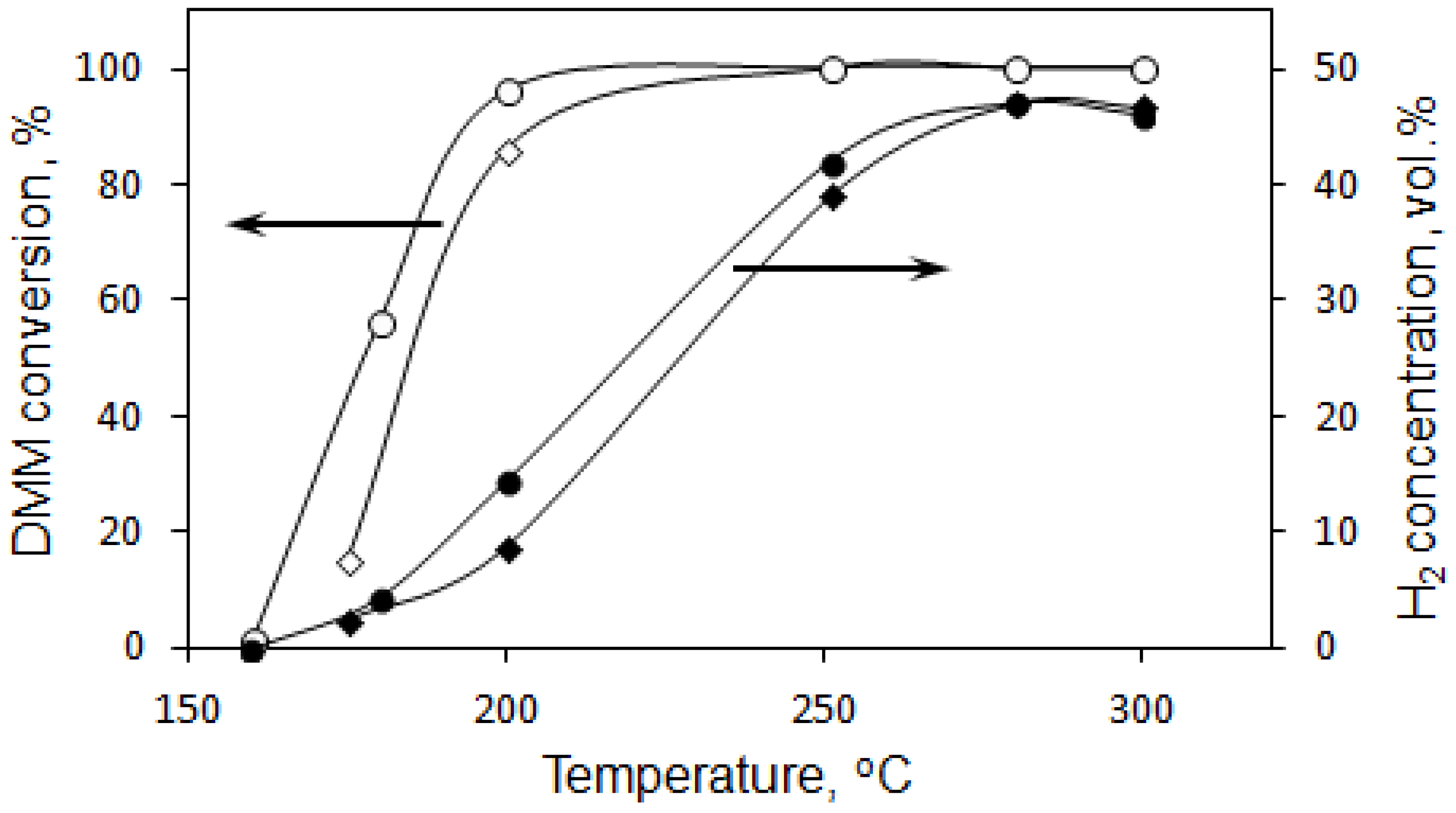

As shown in Figure 3, complete DMM conversion during DMM OSR over the CuO-CeO₂/γ-Al₂O₃ catalyst was reached at temperatures above 200 °C. Note that the temperature dependencies of the outlet product concentrations for DMM OSR were generally similar to those for DMM SR [8,9], but shifted to a lower temperature region. Similar to DMM SR, DME formation in DMM OSR was observed at temperatures 250–300 °C in amounts below 0.3 vol.% and is not shown in Figure 4.

As Figure 4 shows, methanol was the main reaction product in DMM OSR at temperatures below 200 °C. The CH₃OH concentration increased with temperature and passed through a maximum at 200 °C, then gradually reduced with further increasing temperature and fell to ~0 at 300 °C. Such dependence is in agreement with the previously proposed consecutive kinetic scheme of DMM SR [6,7,8,9,10,11,12]. According to this scheme, methanol and formaldehyde are produced as intermediates by DMM hydrolysis (8) on the γ-Al₂O₃ surface. However, during the catalyst testing, we did not observe the formation of formaldehyde, most likely, as mentioned above, due to its higher reactivity in the steam reforming (9) reaction over Cu-containing species [26] as compared to that of methanol (11).

The H₂ and CO₂ outlet concentrations increased with temperature and slightly exceeded respective equilibrium values at 280–300 °C. As for CO, a noticeable amount was observed at 250 °C. The CO concentration increased from 0.17 to 1.6 vol.% as the temperature increased from 250 to 300 °C. Nevertheless, the CO concentration was significantly lower than its equilibrium value. This behavior is related to the fact that H₂ and CO₂ are the primary products of formaldehyde (9) and methanol steam reforming (11), while CO is produced by reverse Water Gas Shift (WGS) reaction (13). Apparently, if the WGS reaction does not reach equilibrium in DMM OSR, the H₂ and CO₂ outlet concentrations should exceed respective equilibrium values and the CO concentration should remain below it.

H₂ + CO₂ = H₂O + CO

(13)

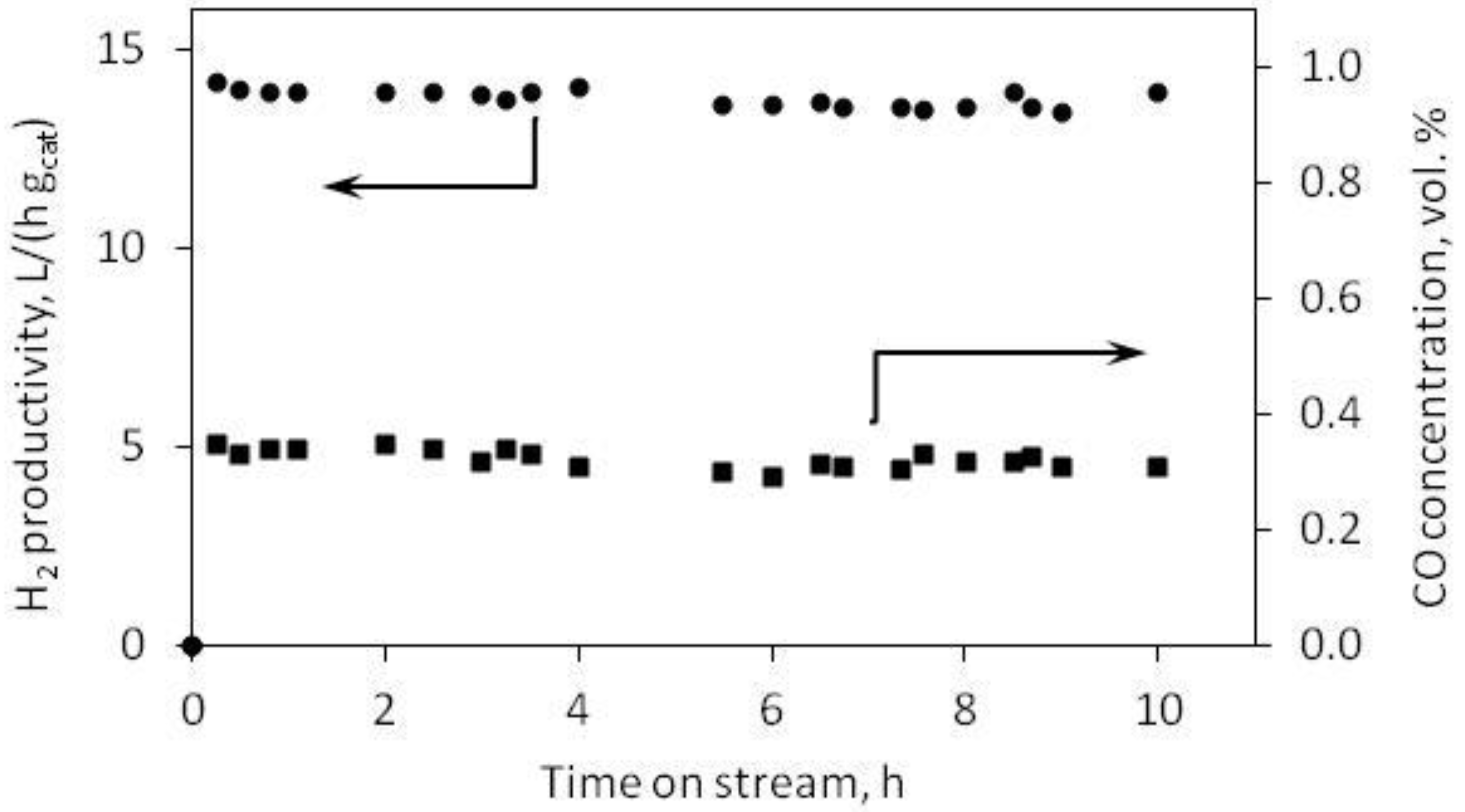

Thus, the data shown in Figure 4 prove that the favorable DMM OSR operation temperature to produce the maximum amount of H₂ over the CuO-CeO₂/γ-Al₂O₃ catalyst is ~280 °C. Moreover, as seen in Figure 5, the catalyst provides good stability during DMM OSR. The results prove there was no catalyst deactivation at 280 °C and GHSV= 15000 h⁻¹ for 10 h on-stream. Under these conditions, H₂ productivity reached 14 L h⁻¹ g_cat⁻¹ and the outlet CO concentration was less than 0.4 vol.%.

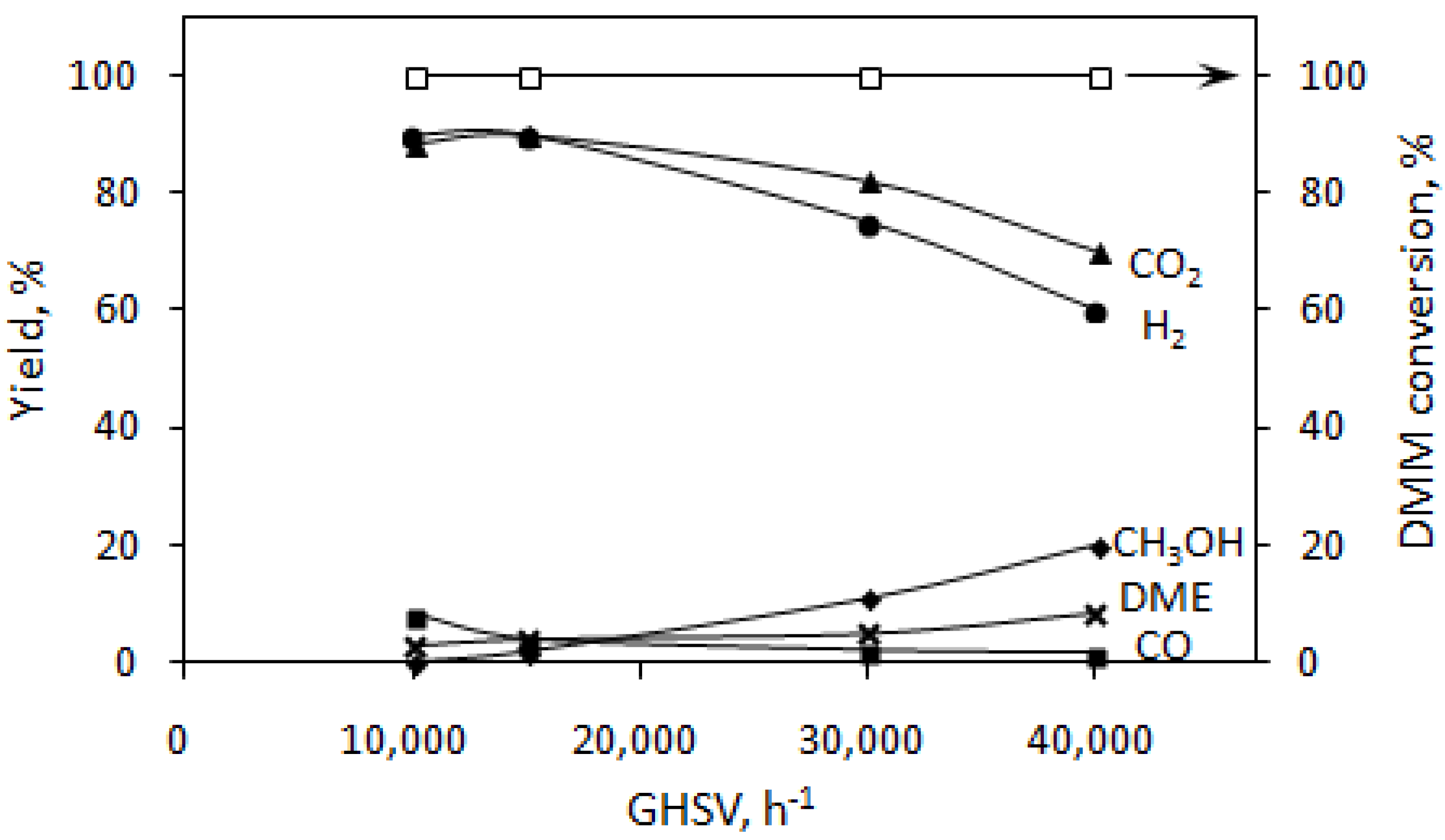

Impact of GHSV on the catalytic behavior of the CuO-CeO₂/γ-Al₂O₃ in DMM OSR is shown in Figure 6. The data on DMM conversion and product yields were obtained at 300 °C using the inlet reaction mixture composed of (vol.%): 10 DMM, 40 H₂O, 2.5 O₂ and 47.5 N₂ at GHSV = 10,000–40,000 h⁻¹. Under these conditions, the DMM conversion was 100%. At GHSV = 10,000–15,000 h⁻¹, the catalyst contact time was sufficient to effectively convert DMM to H₂ and CO₂ with ~90% yields. Therefore, the GHSV should be set at 10,000–15,000 h⁻¹ for efficient DMM OSR operation. Further increasing the velocity to 40,000 h⁻¹ led to a significant decrease in the H₂ and CO₂ yields to 60–70% while the methanol and DME yields increased.

Note again that the reagents in our lab-scale experiments were diluted by a significant amount of nitrogen to correctly evaluate the catalytic performance. Obviously, commercial DMM fuel reformer for fuel cell feeding applications should contain no additional diluents in the reagents, except the nitrogen of air required for DMM OSR operation. We made some calculations excluding excess nitrogen in order to evaluate the real composition of hydrogen-rich gas. The simulation results show that DMM OSR (with inlet mixture DMM:H₂O:air = 16:64:20 vol.%) over the CuO-CeO₂/γ-Al₂O₃ catalyst can produce a gas mixture containing ~60 vol.% H₂ with low (1 vol.%) CO content. As stated in [31], a gas mixture with this composition can be used directly for feeding high-temperature polymer electrolyte membrane (PEM) fuel cells. For low-temperature PEM fuel cell feeding, the gas mixture needs to be purified up to 10 ppm of CO, for example, by selective CO methanation [32].

4. Conclusions

Using the CuO-CeO₂/γ-Al₂O₃ catalyst, the feasibility of hydrogen production by partial oxidation and oxidative steam reforming of DMM was shown for the first time. The oxidative steam reforming of DMM was more efficient for hydrogen production than steam reforming and partial oxidation of DMM. In particular, the DMM steam reforming process was significantly promoted by a small O₂ additive that resulted in an increase in the DMM conversion and H₂ productivity. The CuO-CeO₂/γ-Al₂O₃ catalyst provided complete conversion of DMM to hydrogen-rich gas with a high production rate (>14 L h⁻¹ g_cat⁻¹) and low CO content (~1 vol.%) at 280–300 °C using the reaction mixture DMM:O₂:H₂O:N₂ = 10:2.5:40:47.5 (vol.%) and GHSV = 15,000 h⁻¹. The results obtained show that an efficient CuO-CeO₂/γ-Al₂O₃ catalyst has been proposed for the oxidative steam reforming of DMM. It shows high promise for polymer electrolyte membrane fuel cell feeding applications.
