# Image Recognition of Coal and Coal Gangue Using a Convolutional Neural Network and Transfer Learning

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Operating Principle of CNN for Image Recognition

_{h}× f

_{w}× d. Generally, f

_{h}and f

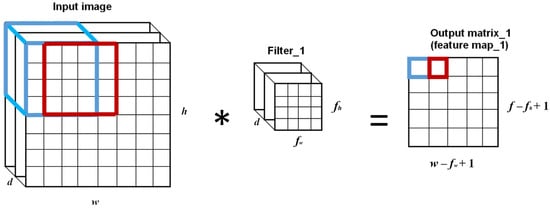

_{w}are much smaller than h and w, while the depth of input image matrix and filter matrix should be the same. When an input image passes through a convolutional layer, it is convolved by each filter in this convolutional layer to yield a relatively small size output matrix called “feature map.” After all filters have finished the convolutions, the input image is converted into a relatively small matrix with a larger depth. The depth is equal to the number of filters in the convolutional layer, which should be determined by the user before image feeding. Figure 2 is a sketch map of the convolution operation of the image matrix with a single filter, wherein the stride (the number of pixel shifts operated by the filter over the image matrix) is equal to one. After convolution, the obtained feature map undergoes a non-linear operation by a non-linear function. Generally, the rectified linear unit (ReLU) is adopted in CNN for non-linear mapping [12] because of its faster computation and no requirement for unsupervised pre-training [13]. The ReLU function is expressed by Equation (1):

**X**

^{(i)}represents the input features of an image, which is a vector resulting from processing by the flattening layer, and ${y}^{(i)}\in \{1,2,3,\dots ,k\}$ reflects the class label. In coal/gangue recognition, k = 2. The fundamental concept of a SoftMax regression is to estimate the probability of each class label for k categories, which means we have to compute the conditional probability $p(y=j|\mathit{X})$ for each $j\in (1,2,3,\dots ,k)$, given an input

**X**. Hence, the SoftMax model is expected to output a k dimensional vector whose entries are k estimated probabilities. Generally, these k probabilities sum to one after normalization. The concrete form of this vector is as follows (denoted by h

_{θ}(

**X**)), wherein $1/{\displaystyle \sum _{j=1}^{k}{e}^{{\theta}_{j}^{T}{\mathit{X}}^{(i)}}}$ is the normalization term, and $({\theta}_{1},{\theta}_{2},\dots ,{\theta}_{k})$ are model parameters which need to be optimized in the training process. For convenience, we stacked up $({\theta}_{1},{\theta}_{2},\dots ,{\theta}_{k})$ as

**θ**:

## 3. Model Construction for Coal/Gangue Recognition

^{2}× 3 + 1), 32 × (3

^{2}× 32 + 1), 32 × (3

^{2}× 32 + 1), 32 × (3

^{2}× 32 + 1), and 32 × (3

^{2}× 32 + 1), which is 37,888 in total. In practice, an industrial-strength CNN has much more parameters than this toy CNN. For example, the ImageNet [11] developed for image classification has 60 million parameters and employs 1.2 million images as input data to guarantee a valid learning of the parameters. Moreover, an industrial-strength CNN requires a super-strong computer to conduct training, which could never be accomplished by a PC. The ImageNet was trained on a strong GPU-based computer for eight weeks.

## 4. Model Performance and Results Discussion

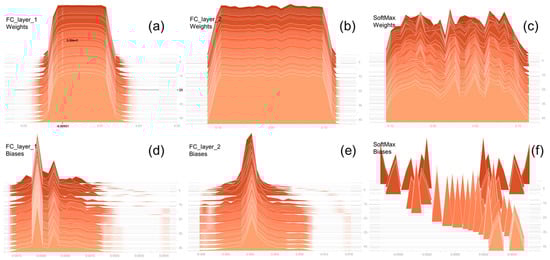

^{5}weights around the value of −0.01. In layer 1, the weights followed a plateaued normal distribution, where most weights were concentrated in the range [−0.02–0.02]. Layer 1 biases exhibited an obvious bimodal distribution, with the lower peak located near 0.0001, and the higher peak located near −0.0007. In layer 2, we still observed a normal distribution for weights, but with a wider plateau. The bias distribution changed from the bimodal distribution in layer 1 to the unimodal distribution, with a spike around 0.0001. For the SoftMax layer, the weights did not follow the normal distribution, but a distribution more analogous to a multimodal one. Biases in this layer exhibited two isolated mountain-like shapes in each epoch, since there were only two weights in the SoftMax layer. We can directly observe the values of two biases in Figure 6f.
