# Novel Protection Scheme considering Tie Switch Operation in an Open-Loop Distribution System using Wavelet Transform

## Abstract

**:**

## 1. Introduction

- The possibility of mal-operation of the protective relay after closing of the tie switch in the open loop distribution system is analyzed.
- To prevent this mal-operation, a new index to classify the normal load current supply and the fault current injection using the WT is proposed.
- A novel protection scheme using the new index is proposed.

## 2. Wavelet Transform

_{1}+ D

_{2}+ … + D

_{n}+ A

_{n}

## 3. Mal-Operation Possibility of Protection Relay according to the Tie Switch Operation in the Open-Loop Distribution System

## 4. Novel Protection Scheme using Wavelet Transform in the Open-Loop Distribution System

#### 4.1. Characteristics of the Normal Load Current Supply and Fault Current Injection according to the Operation of the Tie Switch in the Open-Loop Distribution System

#### 4.2. New Index to Classify the Normal Load Current Supply and Fault Current Injection Using Wavelet Transform

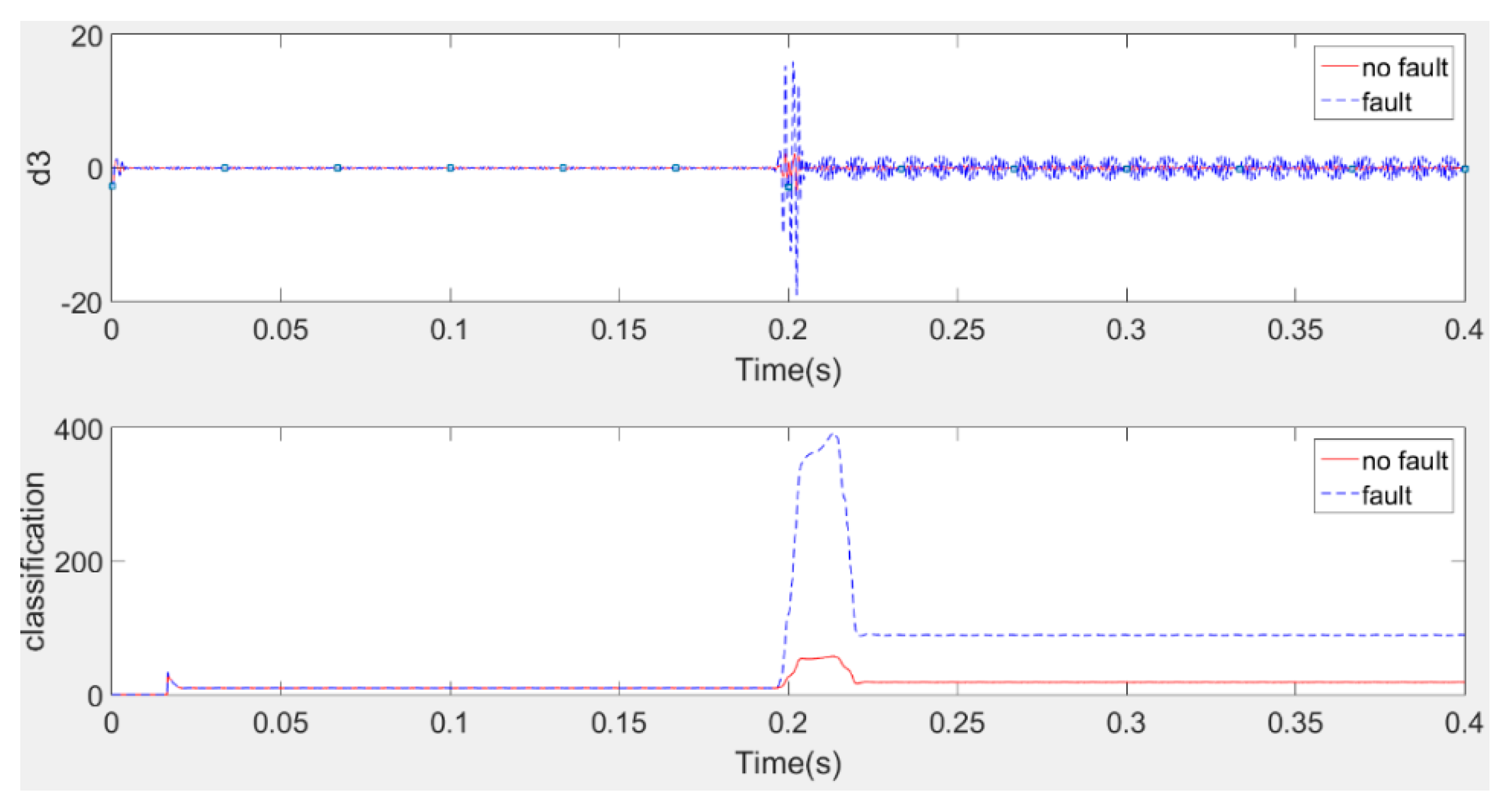

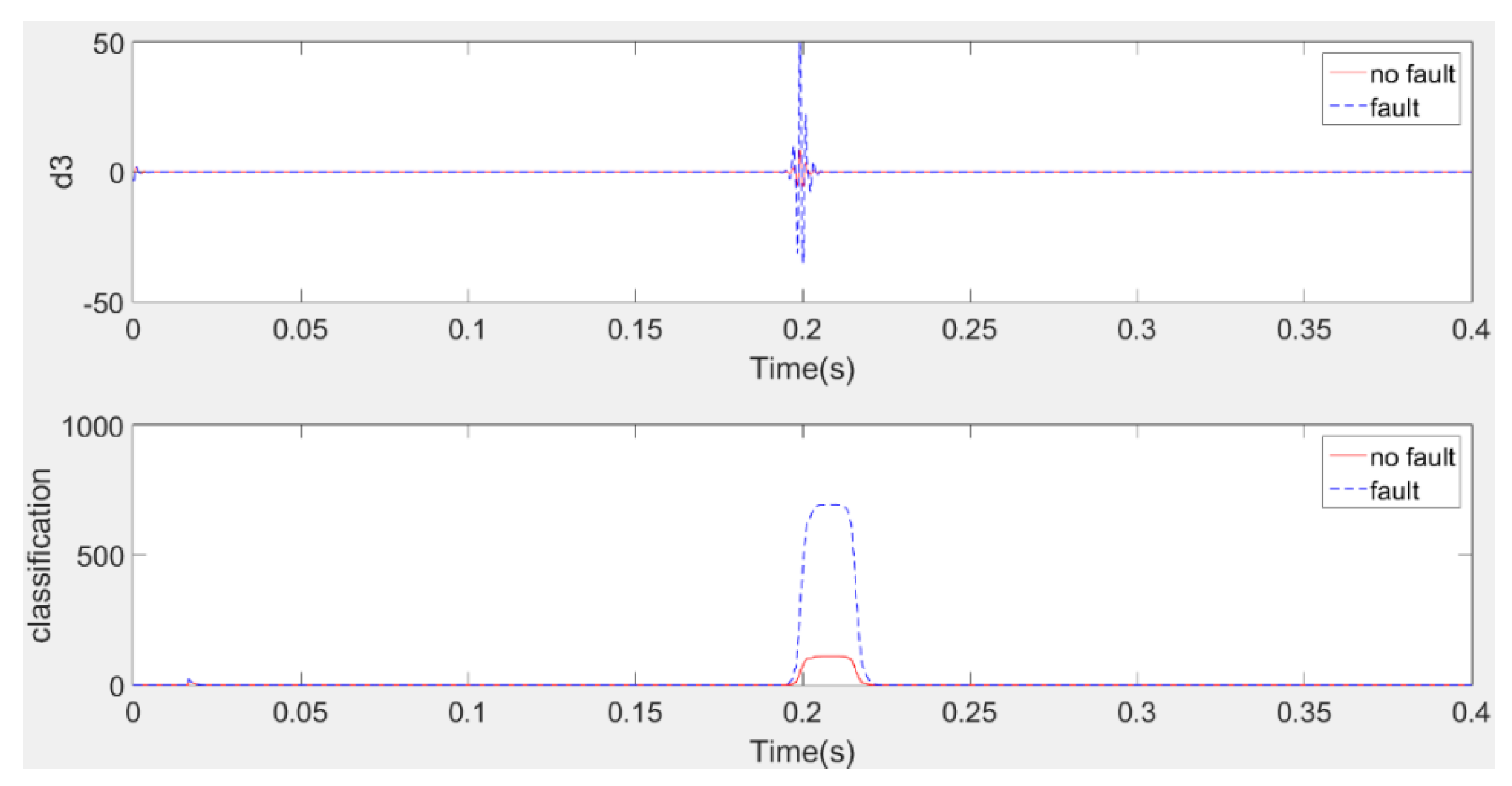

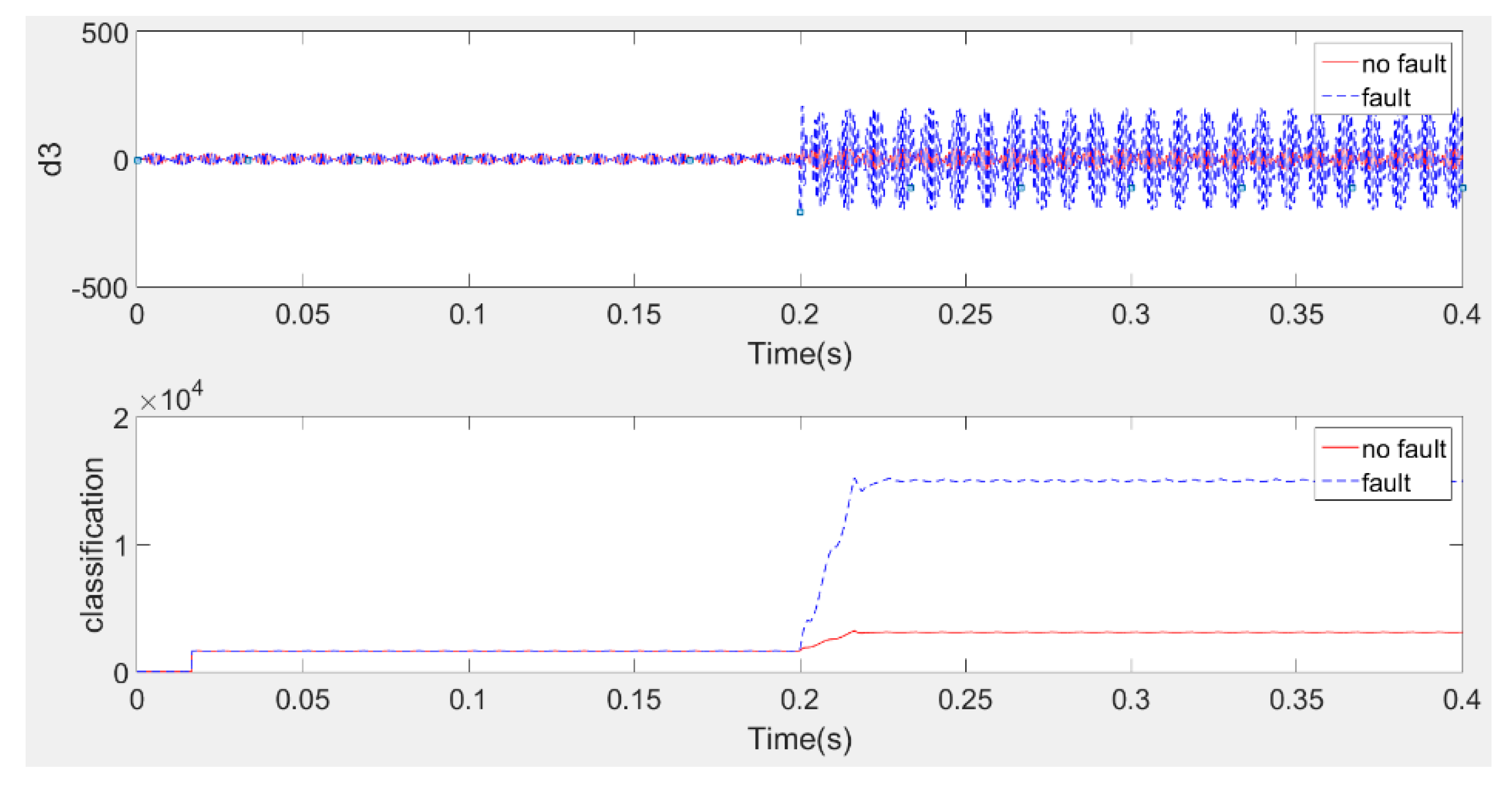

#### 4.3. Selection of Mother Wavelet

^{2}, WO 32 mm

^{2}, and ACSR 60 mm

^{2}, respectively. The fault occurred in 50% of Line i1. The fault resistance was 1 Ω, and the fault type was a 3 phase-to-ground fault. After the system modeling using EMTP, the current waveform extracted 120 samples per cycle and the WT was performed using MATLAB (R2015a, Mathworks, Natick, MA, USA). We compared haar, db4, sym5, bior 3.1, and coif4, which are the most commonly used in power system signal analysis, to select the MW.

#### 4.4. Protection Scheme using Wavelet Transform in an Open Loop Distribution System

- No additional communication facilities are required among fault lines, tie switches, and healthy distribution lines.
- The nature functions of the OCR are also included, so that it can be operated correctly regardless of the fault locations.

## 5. Simulations

#### 5.1. System Model

#### 5.2. Simulation Conditions

#### 5.3. Simulation Results and Discussion

## 6. Conclusions

## Funding

## Conflicts of Interest

## References

- Moon, J.-F.; Kim, J.-S. Voltage Sag Analysis in Loop Power Distribution System With SFCL. IEEE Trans. Appl. Supercond.
**2013**, 23. [Google Scholar] [CrossRef] - Sayed, M.A.; Takeshita, T. Line Loss Minimization in Isolated Substations and Multiple Loop Distribution Systems Using the UPFC. IEEE Trans. Power Electron.
**2014**, 29, 5813–5822. [Google Scholar] [CrossRef] - Lee, T.-L.; Hu, S.-H. Discrete Frequency-Tuning Active Filter to Suppress Harmonic Resonances of Closed-Loop Distribution Power Systems. IEEE Trans. Power Electron.
**2011**, 26, 137–148. [Google Scholar] - Sun, X.; Yang, L.; Wang, R.; Han, R.; Shen, H.; Chen, Z. A Novel Impedance Converter for Harmonic Damping in Loop Power Distribution Systems. IEEE J. Emerg. Sel. Top. Power Electron.
**2016**, 4, 162–173. [Google Scholar] [CrossRef] - Nagata, T.; Okuda, H.; Yamamura, N.; Ueda, F. The Study Related to Searching Method Optimal Connecting Point on Multi-Loop Power Distribution System. In Proceedings of the International Conference on Electrical Machines and Systems, Jeju, Korea, 7–10 October 2018. [Google Scholar]
- Che, L.; Zhang, X.; Shahidehpour, M.; Alabdulwahab, A.; Yusuf, A.-T. Optimal Planning of Loop-Based Microgrid Topology. IEEE Trans. Smart Grid
**2017**, 8, 1771–1781. [Google Scholar] [CrossRef] - Ahmed, A.H.; Hasan, S. Optimal allocation of distributed generation units for converting conventional radial distribution system to loop using particle swarm optimization. Energy proced.
**2018**, 153, 118–124. [Google Scholar] [CrossRef] - Javaid, B.; Arshad, M.A.; Ahmad, S.; Kazmi, S.A.A. Comparison of Different Multi Criteria Decision Analysis Techniques for Performance Evaluation of Loop Configured Micro Grid. In Proceedings of the International Conference on Computing, Sindh, Pakistan, 30–31 January 2019. [Google Scholar]
- Liu, J.; Cheng, H.; Tian, Y.; Yao, L. An Optimal N-1 Secure Operation Mode for Medium-voltage Loop Distribution Networks Considering Load Supply Capability and Security Distance. Electr. Power Compon. Syst.
**2017**, 45, 1393–1403. [Google Scholar] [CrossRef] - Deng, X.; Yuan, R.; Xiao, Z.; Li, T.; Wang, K.L.L. Fault location in loop distribution network using SVM technology. Int. J. Electr. Power Energy Syst.
**2015**, 65, 254–261. [Google Scholar] [CrossRef] - Lazarou, S.; Vita, V.; Ekonomou, L. Protection Schems of Meshed Distribution Networks for Smart Grids and Electric vehicles. Energies
**2018**, 11, 3106. [Google Scholar] [CrossRef] - Hsieh, S.-C.; Chen, C.-S.; Tsai, C.-T.; Hsu, C.-T.; Lin, C.-H. Adaptive Relay Setting for Distribution Systems Considering Operation Scenarios of Wind Generators. IEEE Trans. Ind. Appl.
**2014**, 50, 1356–1363. [Google Scholar] [CrossRef] - Li, B.; Yu, X.; Bo, Z. Protection Schemes for Closed loop Distribution Network with Distributed Generator. In Proceedings of the International Conference on Sustainable Power Generation and Supply, Nanjing, China, 6–7 April 2009. [Google Scholar]
- Hamad, A.-E.F.; Abd el-Ghany, H.A.; Azmy, A.M. Switching strategy for DG optimal allocation during repairing fault periods on loop distribution networks. Int. Trans. Electr. Energy Syst.
**2017**, 27. [Google Scholar] [CrossRef] - Liu, X.; Shahidehpour, M.; Li, Z.; Liu, X.; Cao, Y.; Tian, W. Protection Scheme for Loop-Based Microgrids. IEEE Trans. Smart Grid
**2017**, 8, 1340–1349. [Google Scholar] [CrossRef] - Tian, Y.; Zhao, Q.; Zhang, Z.; Li, L.; Crossley, P. Current-phase-comparison-based pilot protection for normally closed-loop distribution network with underground cable. Int. Trans. Electr. Energy Syst.
**2019**, 29, e2733. [Google Scholar] [CrossRef] - Park, J.-H.; Seo, H.-C.; Kim, C.-H.; Rhee, S.-B. Development of adaptive reclosing scheme using wavelet transform of neutral line current in distribution system. Electr. Power Compon. Syst.
**2016**, 44, 426–433. [Google Scholar] [CrossRef] - Lee, J.-W.; Kim, W.-K.; Oh, Y.-S.; Seo, H.-C.; Jang, W.-H.; Kim, Y.S.; Park, C.-W.; Kim, C.-H. Algorithm for fault detection and classification using wavelet singular value decomposition for wide-area protection. J. Electr. Eng. Technol.
**2015**, 10, 729–739. [Google Scholar] [CrossRef] - Seo, H.-C.; Rhee, S.-B. Novel adaptive reclosing scheme using wavelet transform in distribution system with battery energy storage system. Int. J. Electr.Power Energy Syst.
**2018**, 97, 186–200. [Google Scholar] [CrossRef] - Dong, X.; Wang, J.; Shi, S.; Wang, B.; Dominik, B.; Redefern, M. Traveling wave based single-phase-to-ground protection method for power distribution system. CSEE J. Power Energy Syst.
**2015**, 1, 75–82. [Google Scholar] [CrossRef] - Li, X.; Dyśko, A.; Burt, G.M. Traveling Wave-Based Protection Scheme for Inverter-Dominated Microgrid Using Mathematical Morphology. IEEE Trans. Smart Grid
**2014**, 5, 2211–2218. [Google Scholar] [CrossRef] [Green Version] - Magnago, F.H.; Abur, A. A New Fault Location Technique for Radial Distribution Systems Based on High Frequency Signals. In Proceedings of the IEEE Power Engineering Society Summer Meeting, Edmonton, Canada, 18–22 July 1999. [Google Scholar]
- Kojovic, L.A.; Esztergalyos, J. Traveling Wave Based Relay Protection. United States Patents US7973536B2, 5 July 2011. [Google Scholar]
- Zeng, X.; Li, K.K.; Liu, Z.; Yin, X. Fault Location Using Traveling Wave for Power Networks. In Proceedings of the IEEE Industry Applications Conference, Seattle, DC, USA, 3–7 October 2004. [Google Scholar]
- Davydova, N.; Hug, G. Traveling Wave Based Protection for Medium Voltage Grids with Distributed Generation. In Proceedings of the IEEE Manchester PowerTech, Manchester, UK, 18–22 June 2017. [Google Scholar]

**Figure 1.**Filter bank representation of the discrete wavelet transform. LPF: Low Pass Filter; HPF: High Pass Filter.

**Figure 4.**Current flow after the closing of the tie switch when the fault section is successfully disconnected.

**Figure 5.**Current flow after the closing of the tie switch when the fault section is unsuccessfully disconnected.

**Figure 9.**Current waveform measured at CBj2. (

**a**) Current waveform at no fault condition; (

**b**) Current waveform at fault condition.

**Figure 15.**Flow chart of protection scheme using wavelet transform in open loop distribution system. RMS: root mean square.

**Figure 17.**Simulation results of case 1 and 2. (

**a**) Calculation result of classification value; (

**b**) Trip signal; (

**c**) Current flowing in the Y line in case 1; (

**d**) Current flowing in the Y line in case 2.

**Figure 18.**Simulation results of case 3 and 4. (

**a**) Calculation result of classification value; (

**b**) Trip signal; (

**c**) Current flowing in the Y line in case 3; (

**d**) Current flowing in the Y line in case 4.

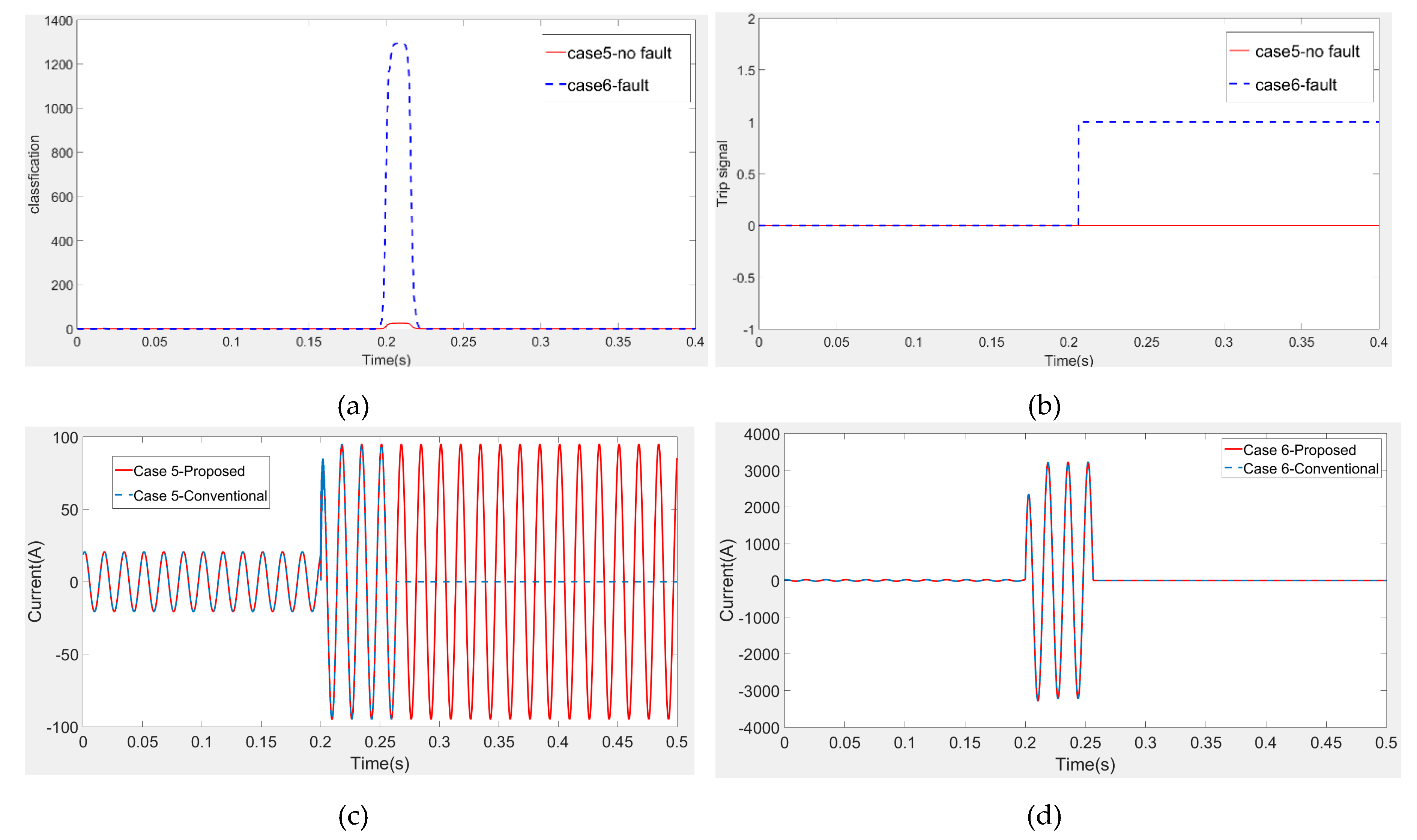

**Figure 19.**Simulation results of case 5 and 6. (

**a**) Calculation result of classification value; (

**b**) Trip signal; (

**c**) Current flowing in the Y line in case 5; (

**d**) Current flowing in the Y line in case 6.

**Figure 20.**Simulation results of case 7 and 8. (

**a**) Calculation result of classification value; (

**b**) Trip signal; (

**c**) Current flowing in the Y line in case 7; (

**d**) Current flowing in the Y line in case 8.

MW | Maximum Value | Time Required to Reach the Maximum Value | |||
---|---|---|---|---|---|

Fault | No Fault | Difference | Fault (s) | No Fault (s) | |

Haar | 15220 | 3190 | 12030 | 0.2165 | 0.0165 |

Db4 | 392.5 | 57.2 | 335.3 | 0.2134 | 0.0134 |

Sym5 | 574.9 | 121.3 | 453.6 | 0.2132 | 0.0132 |

Bior3.1 | 953.3 | 122 | 831.3 | 0.2145 | 0.0145 |

Coif4 | 694.3 | 109.4 | 584.9 | 0.2095 | 0.0095 |

Case | Tie Switch Position | Fault Location at X Distribution Line | Fault Section Separation |
---|---|---|---|

Case 1 | Tie switch (1) | 102 section | Success |

Case 2 | Tie switch (1) | 102 section | Failure |

Case 3 | Tie switch (1) | 105 section | Success |

Case 4 | Tie switch (1) | 105 section | Failure |

Case 5 | Tie switch (2) | 102 section | Success |

Case 6 | Tie switch (2) | 102 section | Failure |

Case 7 | Tie switch (2) | 107 section | Success |

Case 8 | Tie switch (2) | 107 section | Failure |
