Article

d2ix: A Model Input-Data Management and Analysis Tool for MESSAGEix

Chair of Energy Economy and Application Technology, Department of Electrical and Computer Engineering, Technical University of Munich, 80333 Munich, Germany
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Energies 2019, 12(8), 1483; https://doi.org/10.3390/en12081483
Submission received: 7 March 2019 / Revised: 9 April 2019 / Accepted: 15 April 2019 / Published: 18 April 2019
(This article belongs to the Special Issue Open Data and Energy Analytics)

Abstract

:
Bottom-up integrated assessment models, like MESSAGEix, depend on the description of the capabilities and limitations of technological, economical and ecological parameters, and their development over long-time horizons. Even small models of a few nodes, technologies and model years require input-data sets involving several hundred thousand data points. Such data sets quickly become incomprehensible, which makes error detection, collaborative working and the interpretation of results challenging, especially for non-self-created models. In response to the resulting need for manageable, comprehensible, and traceable representation of input-data, we developed a Python-based spreadsheet interface (d2ix) that enables presentation and editing of model input-data in a concise form. By increasing accessibility and transparency of the model input-data, d2ix reduces barriers to entry for new modellers and simplifies collaborative working. This paper describes the methodology and introduces the open-source Python-package d2ix. The package is available under the Apache License, Version 2.0 on GitHub.

1. Introduction

The software package described in the following —d2ix— is freely available under the Apache License, Version 2.0 on GitHub under: https://github.com/tum-ewk/d2ix.

1.1. Input-Data-Handling—The Underrated Modelling Challenge

Technology-based integrated assessment models, such as MESSAGEix (formerly known as MESSAGE) have a long history in energy and environmental systems modelling [1,2]. Despite having been developed in times of relatively low computing power, over the last forty years these models have grown in line with multiplying computing capacity, expanding models in dimensions such as coverage and detail [3]. Until the 1990s, the models focused on the energy-system only [4]; however, today’s energy-engineering-economic-environment optimising models are designed to describe the full extent of energy-system dynamics, including effects such as polluting greenhouse gas emissions, economic development, land and water use and health implications [5,6]. At the same time, rising computing power allows not only increasing coverage but also magnifies the level of detail represented in models, such as the number of model years, nodes, technologies and technology parameters.
While in line with this structural change, big data not only presents a challenge in terms of energy-systems modelling: here too, the amount of input-data has skyrocketed [7]. Today, one technology in MESSAGEix is described by forty parameters, of which fourteen are defined not only by the installation year of the technology but also the age of the technology. Thus, in even very simple input-data sets (e.g., describing one node over ten model years), each technology is defined by approximately one thousand input parameters, each again defined by up to twelve sets. Therefore, even a small model of one node over ten years has an input-data set per technology of more than twelve-thousand data points, not including the input-data for describing the ecology or economy (Figure 1).

1.2. d2ix—Combining Benefits of Non-Binary and Binary Data Formats

Currently, most models handle input-data using vast spreadsheets (e.g., MS Excel), csv (comma-separated value) or plain text-files to organise, pre-process and document the model-data. While on the one hand, binary (‘higher’) formats, such as spreadsheets, provide support with data-handling, (un)intentional changes made to the input files are not trackable and are difficult to retrace. On the other hand, non-binary (‘lower’) but trackable formats such as csv and text-files lack visual clarity and data-handling support. To ensure transparency in data-handling and reproducibility of model results, the modelling-platform (ixmp), supplies MESSAGEix users with tools for (i) database communication for version-controlled data management, (ii) a Python/R interface for efficient input-data and results processing and (iii) a web-browser based tool for drag and drop results visualisation [8]. The newly developed ‘data to MESSAGEix’ (d2ix) package adds to this functionality by providing the user with a visually comprehensible overview of the input-data by reducing the dimensions of the input-data set, thereby reducing the number of data points to be handled by the user (Figure 2).
This model input-data-handling approach, as such, is novel as it is the first to combine reduced form MS Excel spreadsheet data and lucidly change-tackable .yaml files for input-data documentation. By following the FAIR principles of scientific data-handling and analysis, d2ix makes data findable, accessible, interoperable and reusable, and thus facilitates collaborative working and can therefore support the energy-modelling community [9]. By enabling new users to quickly become acquainted with existing models, and by simplifying the generation of new scenarios, d2ix reduces the barriers to entry into energy- and climate-policy modelling. Furthermore, the synoptic organisation of the input-data set can reduce the risk of errors prone to happen when organising big data sets (Figure 3). Such errors can have detrimental effects such as the data and coding mistakes causing the infamous Reinhart-Roghoff spreadsheet error [10]. Lastly, the interface will be equipped with a unit test that can inspect the model for commodity ‘dead ends’ and overly restrictive bounds, a feature that can prevent infeasibilities, undesired exceedingly restricted scenarios and the misinterpretation of results. Overall, d2ix is a well-suited data-handling tool for large energy-system models such as MESSAGEix. The easy change-trackable framework for transparent model input-data preparation is the first of its kind to be introduced as a standardised model-creation workflow.

2. Related Work

While, in the light of good scientific practice, model transparency and reproducibility have received wide academic attention, the focus has remained on how to deal with and how to publish raw-data and model code [11]. However, the important link between the two much noted components—the raw-data and the model—the input-data-handling, has so far not been dealt with scientifically [12,13]. In contrast, the major strategies of input-data-handling which established themselves as go-to solutions in energy-system modelling have never been subject to publication but rather research-institution internal, customised, single-user solutions. Thus, most models now provide different data-handling strategies. Four mayor types can be identified among the most commonly used input-data-handling methods. They are:
  • Type I—Reduced text-file structures: The input-data of such models is handled in several long or one single, even longer, structured text-file. Such text-file-based input-data systems used to find application with most energy-system models. Due to their long history as well as their suitability for synoptic change-tracking, some modellers still rely on Type I input-data-handling strategies (e.g., Calliope [14]).
  • Type II—Full parameter text-files: The input-data handled by this type is organised in a multitude of text-files. Each file contains one parameter in full dimension and shape as required by the database. Despite the low lucidity and the difficulty in tracking any (un-)intentional changes made to the input-data, Type II data-handling schemes are commonly used. Especially community-friendly, open-source models such as PyPSA [15] and oemof [16] in particular appreciate the high flexibility of the input-data-handler in combination with the low requirements regarding the programming skills of the modeller.
  • Type III—Reduced parameter spreadsheets: Here the input-data is organised in MS Excel spreadsheets in reduced dimension. While this dimension reduction increases the lucidity of the input-data, it can at the same time limit flexibility. However, in order to lower barriers to entry for new modellers, several open-source models such as urbs [17] and ficus [18] rely on Type III input-data structures.
  • Type IV—Code-based input-data: Code-based input-data can be either hard-coded or predefined and processed in functions. Thus, the input-data is documented and stored together with the code. Such transparent data-handling types allow for the full documentation of code and input-data within one workflow. However, extensive amounts of hard-coded data, can become overwhelming for any new user, just like the text-file-based data. Nevertheless, several renowned models such as MESSAGEix [8], Temoa [19] and OSEMOSYS [20] provide interfaces for hard-coded model input-data.
Table 1 summarises and lists the strengths and shortcomings of those four strategies and compares them to the newly developed d2ix workflow. It shows that by filling the gaps in documentation, standardisation and transparency, frameworks such as d2ix can help improve energy-system modelling by combining the strength of binary and non-binary input-data storage and handling formats.

3. Methodology

The Python-package we have created, d2ix, supports the user in creating new MESSAGEix models as well as adapting and analysing existing input-data sets and scenarios. The support consists of four main tasks: first, d2ix supports the user in organising the input-data for MESSAGEix. For this task, we created an abstracted data model, summarising the reduced model input-data in two spreadsheet files. Secondly, d2ix functions as a standardised interface between the spreadsheets and the MESSAGEix Python API. Third, d2ix documents the pre-processed model input-data in yaml text-files. This allows systematic and visual change-tracking of the spreadsheets-based scenario-data using automated change-tracking services such as Git. Lastly, several unit tests implemented in d2ix will allow an automated structured inspection of input-data sets to identify commodity ‘dead ends’ and overly restrictive constraints.

3.1. Class Structure and Definition

The d2ix package supports researchers who want to create a MESSAGEix model, either from scratch or by modifying existing models (Figure 4). This support is supplied by the means of four different classes which handle the data input. In the following, the classes are described in their functionality and structure.

3.1.1. MessageInterface—Communication with the Ix Modelling-Platform

The MessageInterface class acts as the interface between d2ix and the ix modelling-platform (ixmp). To communicate with the ix modelling-platform, MessageInterface applies the MESSAGEix classes ixmp.Platform and message_ix.Scenario. While the Platform instance contains the connection to the database, the Scenario class predefines the format and indexation of the model in- and output-data (parameters, sets and variables) required for running the MESSAGEix model. The database with which MessageInterface establishes a communication with is defined in the run-config file provided in the config folder (..\d2ix\config\run_config.yaml.template). The unique identification of the established Scenario instance is defined by the user input (Section 4.2), as is the logger setting of the d2ix module.

3.1.2. DBInterface—Data-Handling in d2ix

The DBInterface class enables data-handling in the d2ix package. The DBInterface class holds the model input-data in the form of a dictionary containing all model sets and parameters which can be accessed and modified before being transferred to the database via the MessageInterface class. The central tasks of this class are (i) to hand over the final input-data created in d2ix to the database, (ii) to write the final input-data into text-files for transparency and change-tracking, and (iii) to collect the model results from the database after a model run. Furthermore, the DBInterface class will check whether the units used in the input-data are already stored in the database and will add them if they are not.

3.1.3. Model—Data Transformation from Reduced Spreadsheet to Database Format

The Model class constitutes the core of the d2ix package. Its main task is the pre-processing of the input-data from the reduced d2ix spreadsheet format to the expanded final input-data format required by MESSAGEix. Apart from creating all required sets and parameters, the Model class automatically adds one slack technology for each demand provided in the input-data set, in order to prevent the model from running into infeasibilities during calibration, and to simplify debugging. After each successful scenario-run in MESSAGEix, the Model class reformats the results from database tables into time-series elements optimised for post-processing, applying the TimeSeries class from the ixmp package [8].

3.1.4. ModifyModel—From Database to Spreadsheet and Back

The ModifyModel class is used to enable the analysis and modification of existing MESSAGEix models, i.e., models readily available in the database. To do so, the ModifyModel class has two main functions: (a) ModifyModel allows users to choose a specific MESSAGEix scenario-run, which is then, first collected from the database, secondly, written to an excel sheet and lastly, made accessible to the user as a Python dictionary. The data can then be analysed and modified either in spreadsheet or through scientific computing (e.g., Python). In the second function (b) the modified data can be returned to the database as a new scenario containing the changes applied by the user.

3.2. Testing and User Experience

In accordance with best-practice collaborative programming [21], we set up a Continuous Integration implementation, with CircleCI and Docker each executing several tasks. Additionally two linters, thus static code analysis segments, are configured for basic code quality checks to ensure long term code maintainability. The coding style is tested with Flake8 and MyPy, the static types in Python. Furthermore the API functionality is tested in a defined environment inside a Docker container using the d2ix tutorial and some basic examples.
We tested the functionality of d2ix together with various beta users. In a first step, the data transfer from the spreadsheet to the ixmp platform and the git-tracked text-files was evaluated, thus proving the data-model functionality of d2ix. In a second step, we created three models of different sizes, in order to analyse and improve the runtime performance. The model descriptions and runtime performance are documented in Table 2. Finally, we tested the tool’s intuitiveness with users without programming skills. By having such a user without programming experience recreating an existing MESSAGEix model we succeeded in proving the data-model functionally as well as the coherence of the API. As a test model to recreate, we used the standalone country model of South Africa, which is available under the GNU General Public License, Version 3 on GitHub (https://github.com/tum-ewk/message_ix_south_africa) [22]. Two further MESSAGEix country models are currently being developed for energy-research purposes.

4. Tutorial

4.1. Installation

To start using the open source Python-package d2ix, you must to ensure that your environment is equipped with the requirements as described in the README instructions found alongside the d2ix repository (https://github.com/tum-ewk/d2ix).

4.2. Running d2ix—Creating a Model from Scratch

The core functionality of the d2ix tool is to create a model from scratch. The bases for model creation are two reduced spreadsheets (Figure 3). In this example, we create a new MESSAGEix scenario—in this case the replica of the ‘Westeros’ tutorial from the MESSAGEix repository—using the d2ix MS Excel templates. The required parameters, configurations and files with the corresponding path are shown in Listing 1. The code creating the scenario is shown in Listing 2 and is explained below.
Furthermore, an introductory tutorial is provided in the d2ix repository under tutorial.ipynb.
Listing 1: Defining the d2ix model-creation parameters.
Energies 12 01483 i001

4.2.1. Creating a Model Instance

The Model class provides the functionality to create a model from scratch. The class instance is specified by thirteen parameters which are described in Table 3. Furthermore, the code to create a new instance is provided in Listing 2.
In the example shown in Listing 2, we create an instance of the dummy model ‘MESSAGE Westeros’, which comes as a tutorial in the d2ix repository. The run configurations required for scenario creation with d2ix as well as the model input-data paths and the model name are defined in Listing 1. The newly created instance is named ‘baseline’ and spans over a time horizon from the year 690 to the year of 720. The first model year is defined as the year 700. The resulting model-year vector is equal to [690, 700, 710, 720], wherein 690 is a historical year, thus, not considered in the optimisation.
By setting verbose to true, the log-level is set to debug mode which allows for more information to pass from the creation process to the user. Setting the yaml export parameter to true permits the creation of git-trackable yaml files of the input-data. It is recommended to only set it to false during calibration, as this shortens the model creation runtime, though it disables the git-trackability of the input-data set.
Listing 2: Creating a new MESSAGEix scenario using the d2ix spreadsheet templates.
Energies 12 01483 i002

4.2.2. Transferring a Scenario from d2ix to the Database—model2db()

When the input-data is ready, it can be passed to the database using the model2db function, which returns an instance of the messageix.Scenario class (Listing 2, line 11).

4.2.3. Solving a Scenario

Using the solve function (from the messageix.Scenario class), the database model is dropped to a structured input-gdx file, which is passed on via a solve command to the mathematical model formulation of MESSAGEix. After the successful model run, an output-gdx file is created containing all input and output-data. This file content is automatically passed on to and stored in the database. Further details on the solve() function can be found in the MESSAGEixdocumentation [23]. Sample results of the baseline scenario from the Westeros example are shown in Figure 5.

4.2.4. Modifying the Input-Data—get_parameter(), set_parameter()

After creating the class instance, model contains a dictionary of all parameters and sets of the expanded input-data, which can now be accessed (Listing 3, line 11), modified (line 12) and returned to the dictionary (line 13). In this scenario we introduce an emission tax using the d2ix get_parameter, set_parameter procedure. The comparison between Figure 5 and Figure 6 visualises the change in results induced by the introduction of the tax.
Listing 3: Creating a MESSAGEixscenario—with a carbon tax—using the d2ix get_parameter() and set_parameter() approach.
Energies 12 01483 i003

4.3. Running d2ix— Modifying Existing Models

The d2ix package can also be used to modify existing models. The code required for retrieving, modifying and returning input-data sets to the database is shown in Listing 4, and is explained below.

4.3.1. Creating a ModifyModel Instance

The ModifyModel class provides the functionality of collecting models from the database, writing them into a structured spreadsheet file for user modification and returning the modified model to the database. The parameters specifying the ModifyModel instance not introduced in Section 4.2.1 (run_config, model, scen and verbose) are described in Table 4.

4.3.2. From Database to ModifyModel Instance & Excel Sheet—scen2xls()

The scen2xls() function (Listing 4, line 8) searches the database for the scenario defined by model and scenario name, and in the mod_model. If a scenario with the defined model and scenario name is available, all parameters and sets from the most recent (default) version of the scenario will be written to the spreadsheet. If a version is specified, this version instance of the scenario will be copied.

4.3.3. From the Excel File to ModifyModel Instance—xls2model()

The xls2model() (Listing 4, line 10) function reads the spreadsheet file specified in the mod_model instance and stores the data as a structured dictionary in the instance. The data is then available to modify, analyses and visualise using the Python functionality.
Listing 4: Modifying an existing MESSAGEix model using spreadsheet inputs.
Energies 12 01483 i004

4.4. Post-Processing a MESSAGEix Scenario

The ixmp package supplies tools for standardised reporting of reference data and results. These tools are documented and described in [8] as well as in the online documentation [24].

5. Conclusions

In d2ix, we built a package that supports users in creating, modifying, and analysing MESSAGEix scenarios. The main benefits of using d2ix for scenario creation are threefold. (i) The synoptic input-data supports the transparency and reproducibility of even large models and can thus reduce errors. It further encourages collaborative modelling attempts by making it easier to understand and review model parameters and assumptions implemented by other researchers. (ii) By reducing the dimensions of the input-data, the researchers can easily handle the data using two MS Excel sheets. Hence, d2ix reduces barriers to access by reducing input-data complexity and allowing scenario creation without programming knowledge. (iii) d2ix permits the combination of the benefits of ‘higher’ (easy and synoptic data-handling) and ‘lower’ (change-trackability) data formats. To put it succinctly: by providing a synoptic and easy input-data-handling workflow d2ix can support the efforts of the open data movement within the MESSAGEix modeller community and can serve as an example for data-handling frameworks built for other model types.
However, simplification of input-data does reduce the flexibility of the model, e.g., currently a maximum of two outputs is supplied for each technology. However, this can be bypassed by either adapting the model parameter ‘output’ using the get_ and set_ parameter functionality, or by adapting the input spreadsheet and the underlying code to supply as many outputs as required. An expansion of d2ix to increased flexibility could be subject of future work; however, the decision on the specific balance between flexibility and simplicity requires practical experience which still remains to be collected.

Author Contributions

T.Z. and C.L.O. have cooperated in the development of d2ix. While T.Z. is the creator of most of the code and software concept, C.L.O. developed the work flow and the overlying package concept, which are described in this paper. Both authors read and approved the final manuscript.

Funding

This work was supported by the German Research Foundation (DFG) and the Technical University of Munich (TUM) in the framework of the Open Access Publishing Program.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Schrattenholzer, L. The Energy Supply Model Message; Number 81-31 in Research Report; OCLC: 254145200; International Institute for Applied Systems Analysis (IIASA): Laxenburg, Austria, 1981. [Google Scholar]
  2. Messner, S.; Schrattenholzer, L. MESSAGE–MACRO: Linking an energy supply model with a macroeconomic module and solving it iteratively. Energy 2000, 25, 267–282. [Google Scholar] [CrossRef]
  3. Koomey, J.; Berard, S.; Sanchez, M.; Wong, H. Implications of Historical Trends in the Electrical Efficiency of Computing. IEEE Ann. Hist. Comput. 2011, 33, 46–54. [Google Scholar] [CrossRef]
  4. Messner, S.; Strubegger, M. The energy model MESSAGE III. In Advances in Systems Analysis: Modelling Energy-Related Emissions on a National and Global Scale; Hake, J.F., Kleemann, M., Kuckshinrichs, W., Martinsen, D., Walbeck, M., Eds.; Konferenzen des Forschungszentrums Juelich: Juelich, Germany, 1994. [Google Scholar]
  5. Huppmann, D.; Rogelj, J.; Kriegler, E.; Krey, V.; Riahi, K. A new scenario resource for integrated 1.5 °C research. Nat. Clim. Chang. 2018, 8, 1027–1030. [Google Scholar] [CrossRef]
  6. Fricko, O.; Havlik, P.; Rogelj, J.; Klimont, Z.; Gusti, M.; Johnson, N.; Kolp, P.; Strubegger, M.; Valin, H.; Amann, M.; et al. The marker quantification of the Shared Socioeconomic Pathway 2: A middle-of-the-road scenario for the 21st century. Glob. Environ. Chang. 2017, 42, 251–267. [Google Scholar] [CrossRef]
  7. Baker, T.; Asim, M.; Tawfik, H.; Aldawsari, B.; Buyya, R. An energy-aware service composition algorithm for multiple cloud-based IoT applications. J. Netw. Comput. Appl. 2017, 89, 96–108. [Google Scholar] [CrossRef]
  8. Huppmann, D.; Gidden, M.; Fricko, O.; Kolp, P.; Orthofer, C.; Pimmer, M.; Kushin, N.; Vinca, A.; Mastrucci, A.; Riahi, K.; et al. The MESSAGE Integrated Assessment Model and the ix modeling platform (ixmp): An open framework for integrated and cross-cutting analysis of energy, climate, the environment, and sustainable development. Environ. Model. Softw. 2019, 112, 143–156. [Google Scholar] [CrossRef]
  9. Wilkinson, M.D.; Dumontier, M.; Aalbersberg, I.J.; Appleton, G.; Axton, M.; Baak, A.; Blomberg, N.; Boiten, J.W.; da Silva Santos, L.B.; Bourne, P.E.; et al. The FAIR Guiding Principles for scientific data management and stewardship. Sci. Data 2016, 3, 160018. [Google Scholar] [CrossRef] [PubMed]
  10. Reinhart, C.M.; Rogoff, K.S. Growth in a Time of Deb—Errata. Am. Econ. Rev. 2010, 100, 573–578. [Google Scholar] [CrossRef]
  11. Pfenninger, S. Energy scientists must show their workings. Nature 2017, 542, 393. [Google Scholar] [CrossRef] [PubMed]
  12. Pfenninger, S.; Hirth, L.; Schlecht, I.; Schmid, E.; Wiese, F.; Brown, T.; Davis, C.; Gidden, M.; Heinrichs, H.; Heuberger, C.; et al. Opening the black box of energy modelling: Strategies and lessons learned. Energy Strategy Rev. 2018, 19, 63–71. [Google Scholar] [CrossRef]
  13. Cao, K.K.; Cebulla, F.; Vilchez, J.J.G.; Mousavi, B.; Prehofer, S. Raising awareness in model-based energy scenario studies—Transparency checklist. Energy Sustain. Soc. 2016, 6. [Google Scholar] [CrossRef]
  14. Pfenninger, S.; Pickering, B. Calliope: A multi-scale energy systems modelling framework. J. Open Source Softw. 2018, 3, 825. [Google Scholar] [CrossRef]
  15. Brown, T.; Hörsch, J.; Schlachtberger, D. PyPSA: Python for Power System Analysis. J. Open Res. Softw. 2018, 6. [Google Scholar] [CrossRef]
  16. Hilpert, S.; Kaldemeyer, C.; Krien, U.; Günther, S.; Wingenbach, C.; Plessmann, G. The Open Energy Modelling Framework (oemof) - A new approach to facilitate open science in energy system modelling. Energy Strategy Rev. 2018, 22, 16–25. [Google Scholar] [CrossRef]
  17. Dorfner, J. Open Source Modelling and Optimisation of Energy Infrastructure at Urban Scale. Ph.D. Thesis, Technical University of Munich, Munich, Germany, 2016. [Google Scholar]
  18. Atabay, D. An open-source model for optimal design and operation of industrial energy systems. Energy 2017, 121, 803–821. [Google Scholar] [CrossRef]
  19. Decarolis, K.H.S.S.J.F. Modeling for insight using Tools for Energy Model Optimization and Analysis (Temoa). Energy Econ. 2013, 339–349. [Google Scholar] [CrossRef]
  20. Howells, M.; Rogner, H.; Strachan, N.; Heaps, C.; Huntington, H.; Kypreos, S.; Hughes, A.; Silveira, S.; DeCarolis, J.; Bazillian, M.; et al. OSeMOSYS: The Open Source Energy Modeling System. Energy Policy 2011, 39, 5850–5870. [Google Scholar] [CrossRef]
  21. Latte, B.; Henning, S.; Wojcieszak, M. Clean code: On the use of practices and tools to produce maintainable code for long-living. In Proceedings of the Workshops of the Software Engineering Conference 2019, Stuttgart, Germany, 18 February 2019. [Google Scholar]
  22. Orthofer, C.L.; Huppmann, D.; Krey, V. South Africa After Paris—Fracking Its Way to the NDCs? Front. Energy Res. 2019, 7, 20. [Google Scholar] [CrossRef]
  23. International Institute for Applied Systems Analysis (IIASA). The MESSAGEix Framework Documentation. 2018. Available online: http://messageix.iiasa.ac.at (accessed on 8 April 2019).
  24. International Institute for Applied Systems Analysis (IIASA). The MESSAGEix Framework. 2018. Available online: https://github.com/iiasa/message_ix (accessed on 8 April 2019).

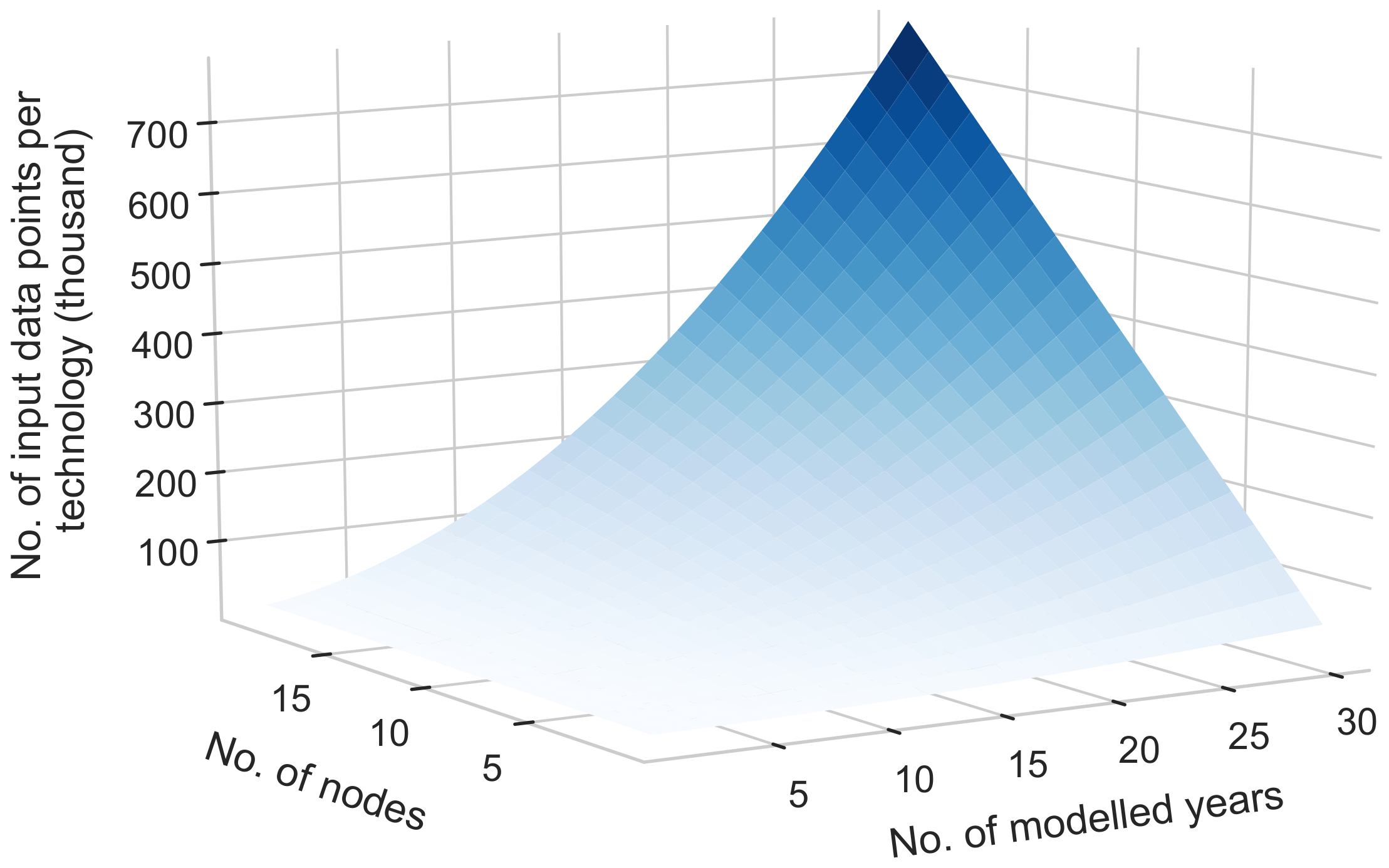

Figure 1. Average number of data points per technology in the input-data set of a MESSAGEix model in dependence of the number of modelled years and nodes.
Figure 1. Average number of data points per technology in the input-data set of a MESSAGEix model in dependence of the number of modelled years and nodes.
Energies 12 01483 g001

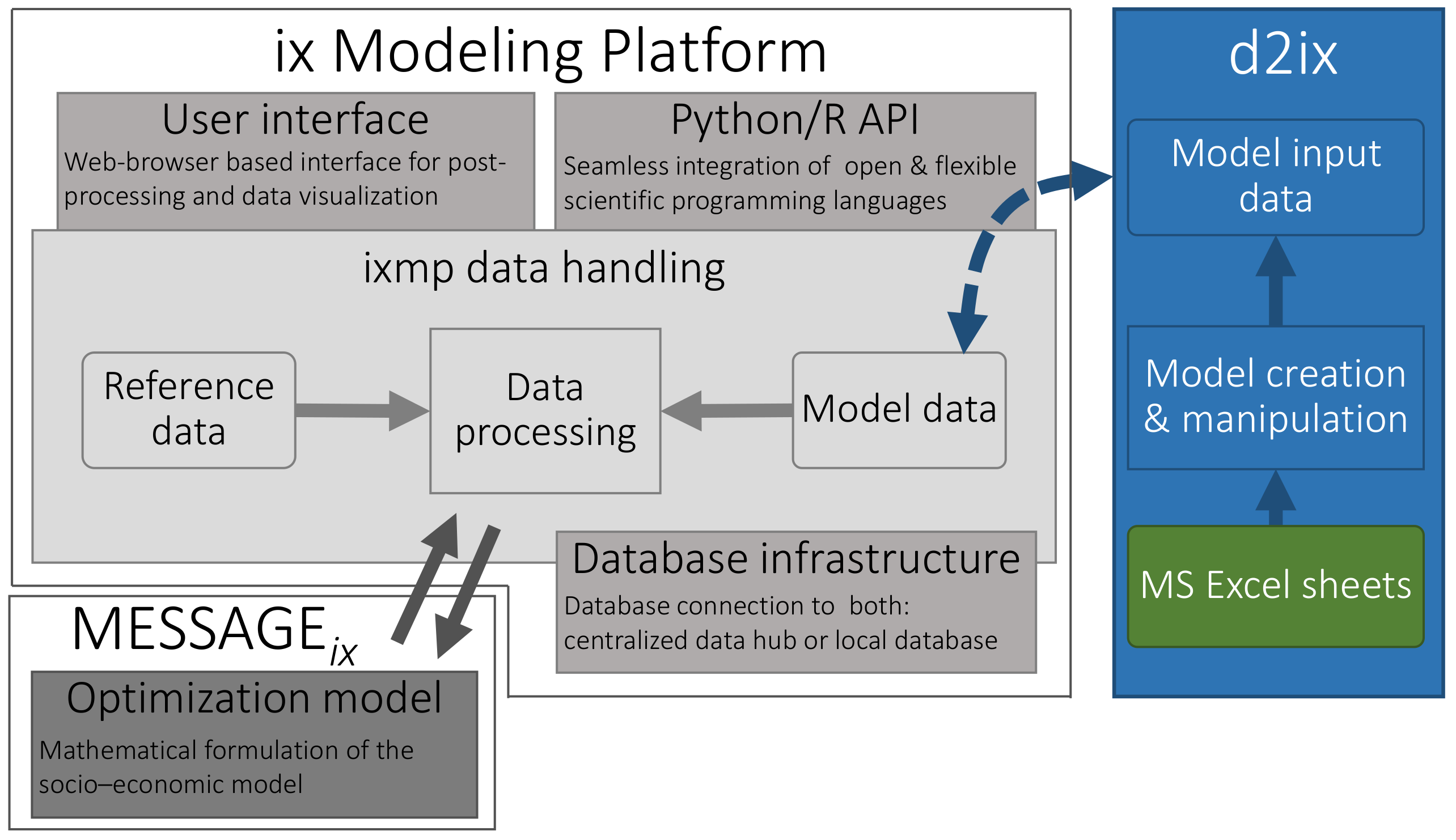

Figure 2. Integration and interlinkages of d2ix to the ixmp modelling-platform (adapted from [8]).
Figure 2. Integration and interlinkages of d2ix to the ixmp modelling-platform (adapted from [8]).
Energies 12 01483 g002

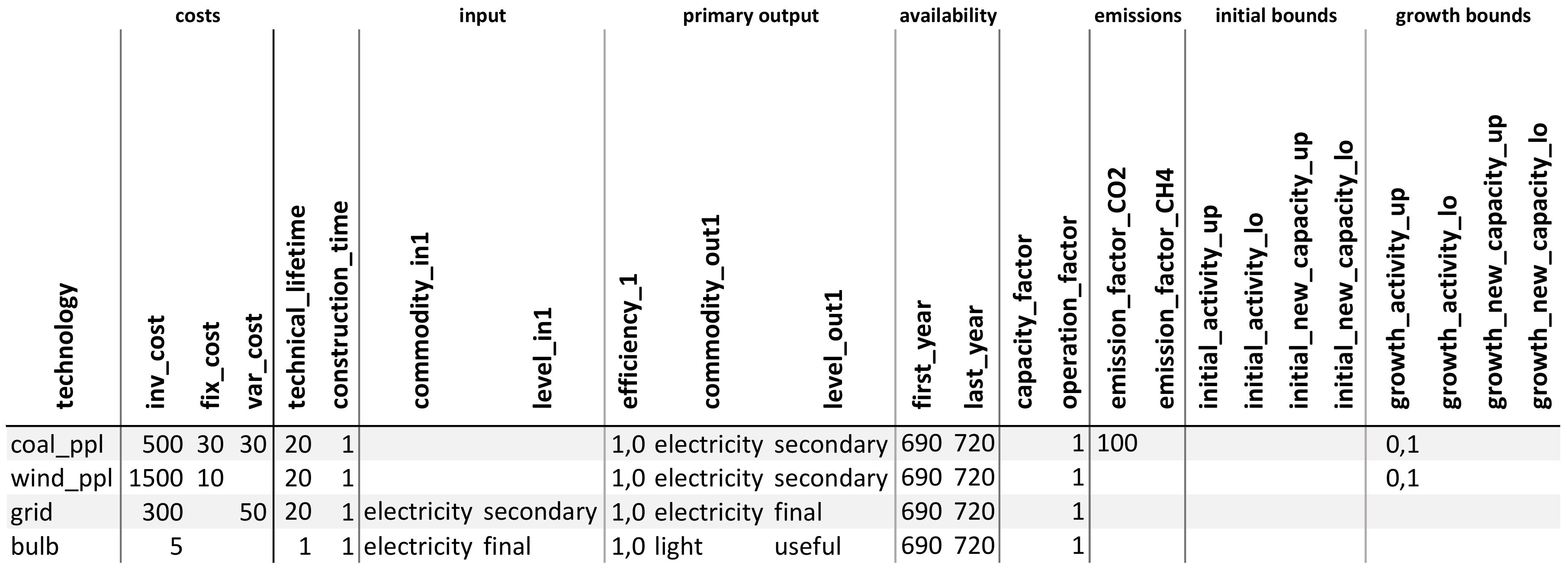

Figure 3. Reduced spreadsheet input for technology specification for the tutorial.
Figure 3. Reduced spreadsheet input for technology specification for the tutorial.
Energies 12 01483 g003

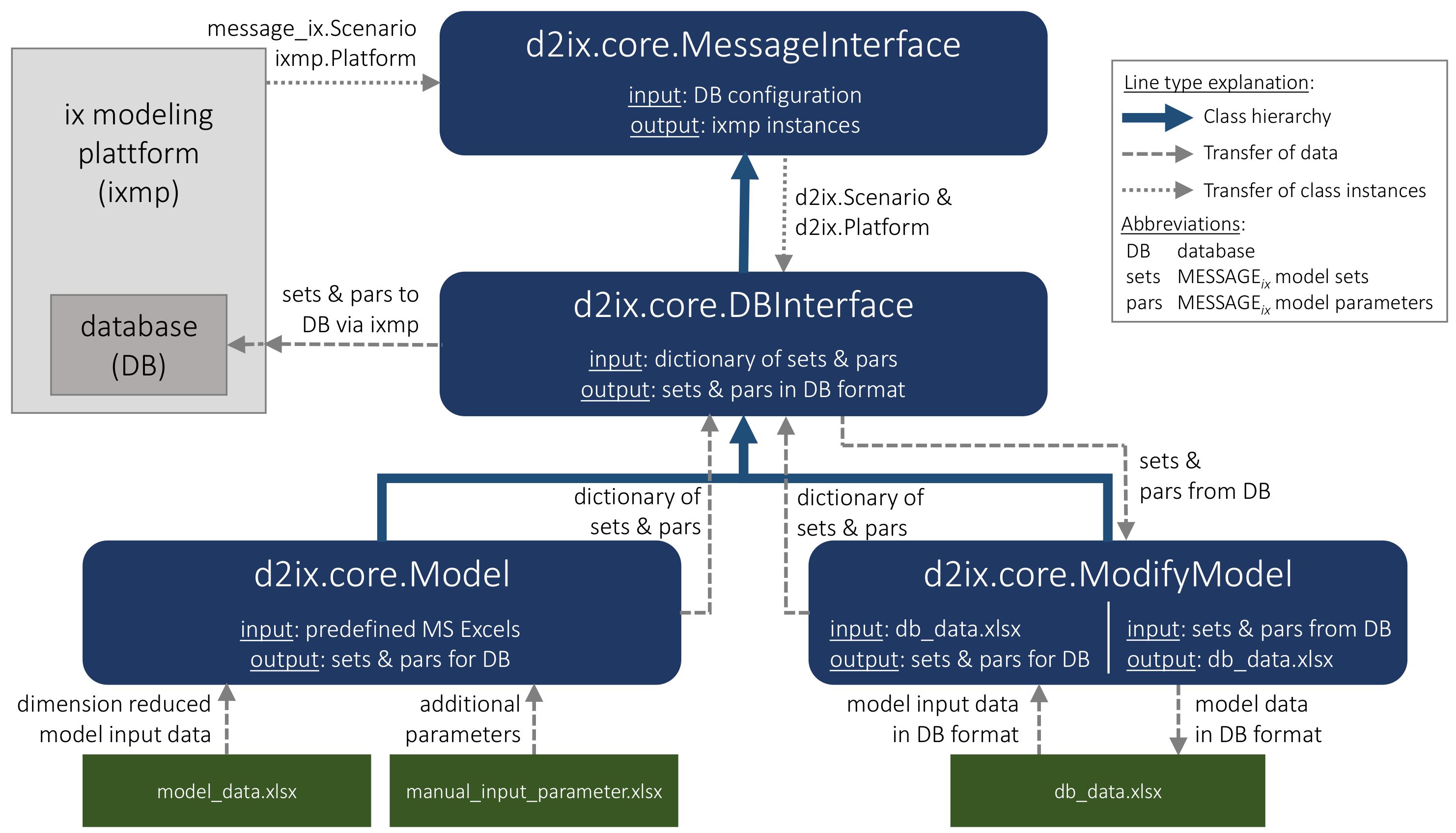

Figure 4. Class hierarchy diagram of the d2ix package.
Figure 4. Class hierarchy diagram of the d2ix package.
Energies 12 01483 g004

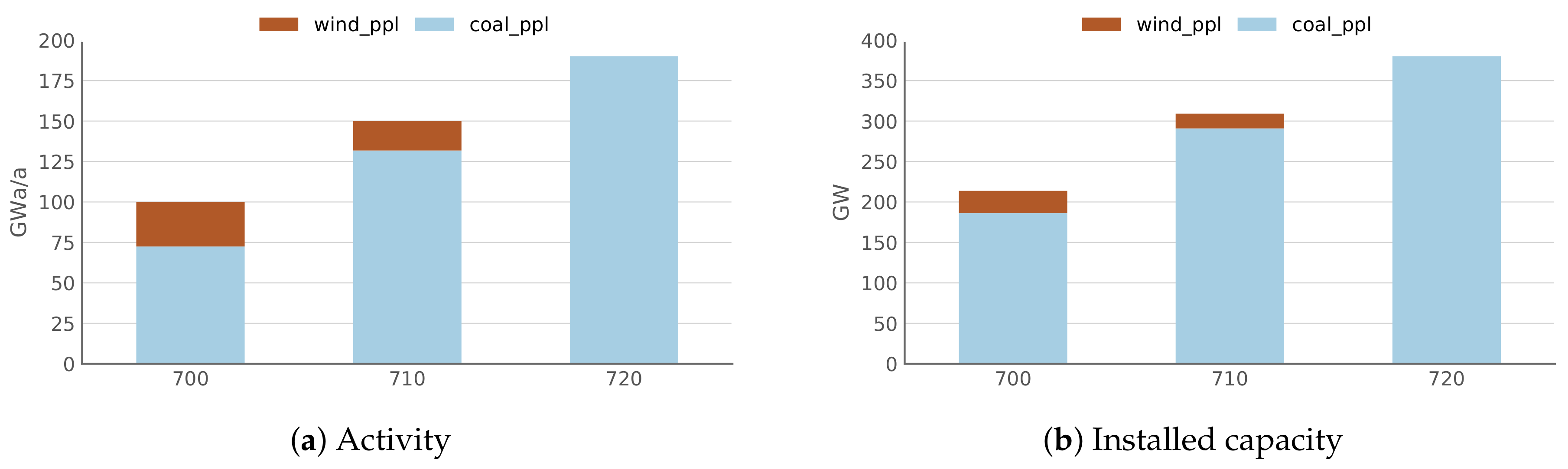

Figure 5. Power plant activity and capacity in the ‘baseline’ scenario (Listing 2).
Figure 5. Power plant activity and capacity in the ‘baseline’ scenario (Listing 2).
Energies 12 01483 g005

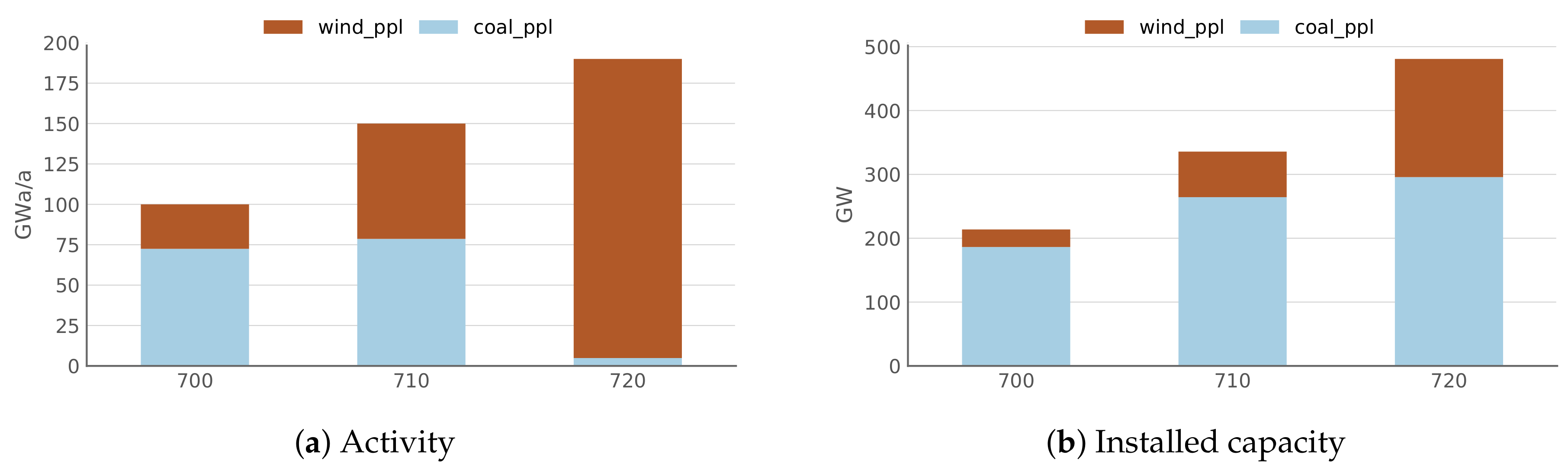

Figure 6. Power plant activity and capacity in the ‘tax-emission’ scenario (Listing 4).
Figure 6. Power plant activity and capacity in the ‘tax-emission’ scenario (Listing 4).
Energies 12 01483 g006
Table 1. Comparison of the input-data-handling types used so far and the new data-handling framework d2ix. The types are described in Section 2.
Table 1. Comparison of the input-data-handling types used so far and the new data-handling framework d2ix. The types are described in Section 2.
Type IType IIType IIIType IVd2ix
(Git) change-trackingyesnonoyesyes
Synoptic data presentationnonoyesnoyes
Parameter dimension reductionnonoyespartlyyes
Sub-horizon parameter adaptationyesyesnoyespartly
Usable without programming knowledgenoyesfewnoyes
Dynamic scenario documentationnonononoyes
Easy result visualisationnonononoyes
Table 2. d2ix model-creation performance tests with different models. Calculations were performed on a Intel(R) Core(TM) i7 CPU with 3.2 GHz and 64 GB RAM.
Table 2. d2ix model-creation performance tests with different models. Calculations were performed on a Intel(R) Core(TM) i7 CPU with 3.2 GHz and 64 GB RAM.
NodesTechnologiesHistorical PeriodsModel PeriodsRuntime in sec. *
Test Model 125158171
Test Model 2488658657
Test Model 316698582291
* average of 10 runs.
Table 3. Parameters used for creating a model instance.
Table 3. Parameters used for creating a model instance.
ParameterDescription
run_configthe path to the run_config.yaml file located in the config folder 1
The file contains the specifications of the database type.
base_xlsthe path to the model_data file, located in the input folder 2
MS Excel file consists of seven input sheets that contain all necessary information for the model creation. Thus, the demand, the units, the technologies, and the nodes are defined and mapped in model_data. The structure of the file must to remain unchanged, as the input-data expansion done by d2ix depends on the current structure.
manual_input_parameterall possible parameters, such as economic parameters and ecological constraints, can be added to the model using the manual_input_data file
It provides the option of adding parameters manually by adding a sheet by the name of the parameter which contains the data in the format required by MESSAGEix. Thus, parameters in the manual_input_data are not manipulated by d2ix, but simply scanned for new set elements before being passed on to the database.
modelixmpthe name assigned to the model used as an identifier in the ixmp database
scenixmpthe name assigned to the scenario used as an identifier in the ixmp database
historical_dataallows the use of historical data
first_historical_yeardefines the first historical year
first_model_yeardefines the first model year
If not assigned, it is set to the first year of demand.
last_model_yeardefines the last model year If not assigned, it is set to the last year of demand.
historical_range_yeardefines the the temporal resolution from historical data
model_range_yeardefines the the model temporal resolution
verbosedefines the logger level in order to facilitate easy debugging
yaml_exportallows the export of yaml files from the model
The model parameters and sets can be written to structured text-files before being added to the database in order to facilitate change-tracking (e.g., Git) despite the input-data being provided in xlsx format. This can be turned off during model calibration in order to increase speed.
1 ..\d2ix\config\run_config.yaml.template; 2 ..\d2ix\input\model_data.xlsx.
Table 4. Parameters used for creating a modified model instance.
Table 4. Parameters used for creating a modified model instance.
ParameterDescription
xls_dirthe path to the directory where the MS Excel file will be saved
file_namethe name of the MS Excel that will be created or that the data will be read from
