Open AccessArticle

Modeling and Forecasting Electric Vehicle Consumption Profiles

MINES ParisTech, PERSEE-Center for Processes, Renewable Energies and Energy Systems, PSL University, 06904 Sophia, Antipolis, France
*
Author to whom correspondence should be addressed.
This paper is an extension of the paper Gerossier, A.; Girard, R.; Kariniotakis, G. Modeling Electric Vehicle Consumption Profiles for Short-Term Forecasting and Long-Term Simulation. Presented at the 11th Mediterranean Conference on Power Generation, Transmission, Distribution and Energy Conversion (MEDPOWER 2018), Dubrovnik, Croatia, 12–15 November 2018.
Energies 2019, 12(7), 1341; https://doi.org/10.3390/en12071341
Received: 28 January 2019 / Revised: 21 March 2019 / Accepted: 22 March 2019 / Published: 8 April 2019

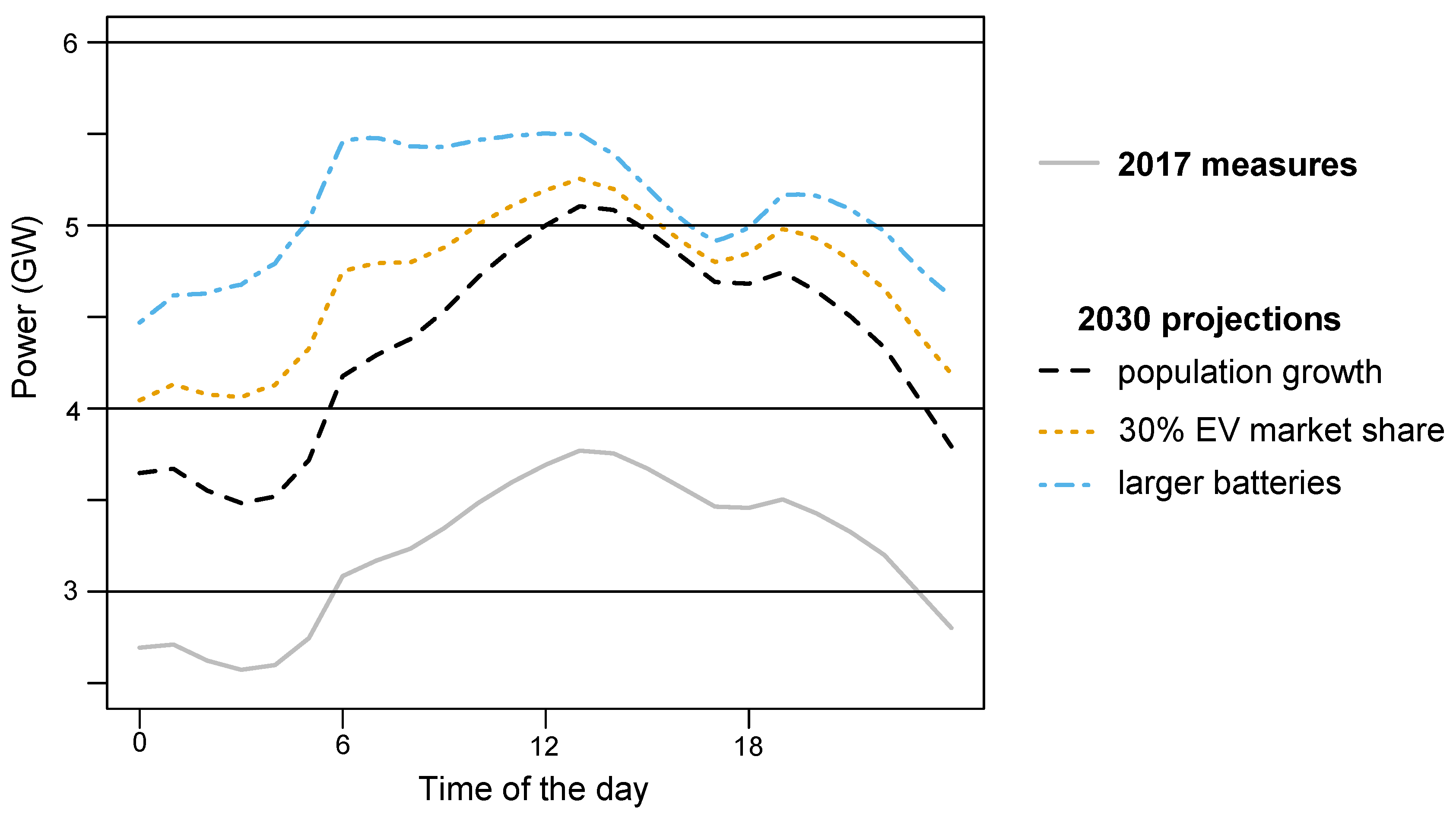

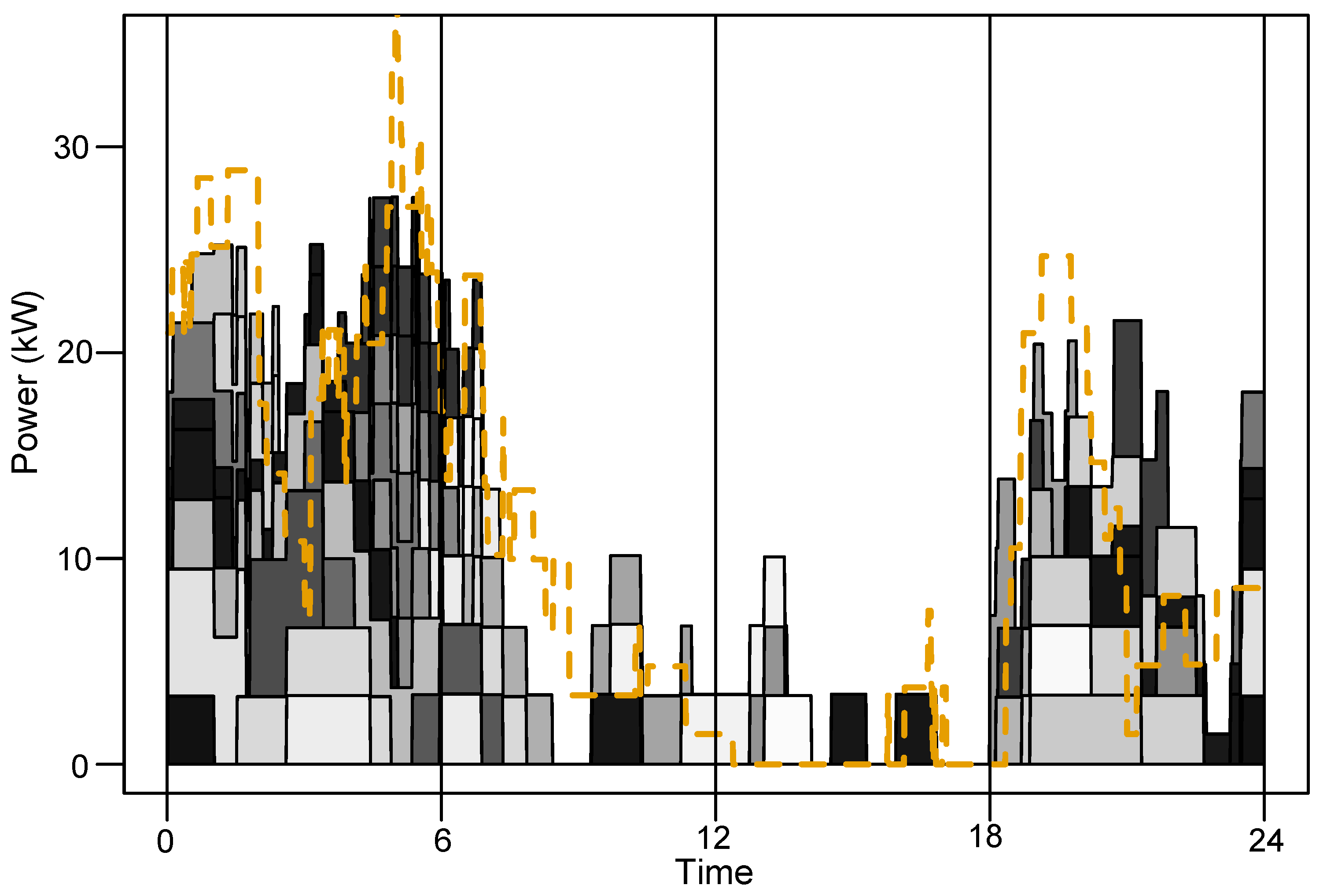

The growing number of electric vehicles (EV) is challenging the traditional distribution grid with a new set of consumption curves. We employ information from individual meters at charging stations that record the power drawn by an EV at high temporal resolution (i.e., every minute) to analyze and model charging habits. We identify five types of batteries that determine the power an EV draws from the grid and its maximal capacity. In parallel, we identify four main clusters of charging habits. Charging habit models are then used for forecasting at short and long horizons. We start by forecasting day-ahead consumption scenarios for a single EV. By summing scenarios for a fleet of EVs, we obtain probabilistic forecasts of the aggregated load, and observe that our bottom-up approach performs similarly to a machine-learning technique that directly forecasts the aggregated load. Secondly, we assess the expected impact of the additional EVs on the grid by 2030, assuming that future charging habits follow current behavior. Although the overall load logically increases, the shape of the load is marginally modified, showing that the current network seems fairly well-suited to this evolution. View Full-Text
Keywords: electric vehicle; forecasting model; scenario generation; probabilistic evaluation electric vehicle; forecasting model; scenario generation; probabilistic evaluation
Show Figures

Figure 1
