Open AccessArticle

Evaluation of Using Biogas to Supply the Dual Fuel Diesel Engine of an Agricultural Tractor

1
Automotive Industry Institute, 03-301 Warsaw, Poland
2
Faculty of Christian Philosophy, Cardinal Stefan Wyszynski University, 01-938 Warsaw, Poland
3
Motor Transport Institute, 03-301 Warsaw, Poland
4
Faculty of Automotive and Construction Machinery Engineering, Warsaw University of Technology, 02-524 Warsaw, Poland
*
Author to whom correspondence should be addressed.
Energies 2019, 12(6), 1071; https://doi.org/10.3390/en12061071
Received: 30 January 2019 / Revised: 15 March 2019 / Accepted: 15 March 2019 / Published: 20 March 2019
(This article belongs to the Special Issue Production and Utilization of Biogas)

Abstract

It is known that biogas without prior purification to biomethane is a commonly used fuel only for the stationary internal combustion engines but not for vehicle engines. The current study evaluates the use of biogas without its prior upgrading to biomethane as fuel for tractor engines. The following tests were carried out: biochemical methane potential tests, dynamometer engine tests, and field tests with the use of a tractor. The average methane content in biogas obtained from vegetable wastes exceeded 60%. The tests performed on the engine dynamometer showed that the engine powered by dual fuel worked stably when diesel was replaced by 40% biogas (containing 50% of CO2) or 30% methane. Dual fuel supplying of the engine caused an increase in the concentration of hydrocarbons and carbon monoxide in the exhaust gases and a decrease or no effect in the concentration of particulate matter and nitrogen oxides. It did not significantly affect the dynamics of the vehicle and its useful properties. Biogas that contains a maximum of 50% CO2 and from which H2S, moisture, and siloxanes have been largely removed, is suitable as a fuel for tractors. Such biogas can be obtained in biogas plants from different substrates, e.g., vegetable or agriculture wastes as well as biodegradable municipal wastes.
Keywords: biogas; dual fuel engine; knocking combustion; exhaust gas emissions biogas; dual fuel engine; knocking combustion; exhaust gas emissions

1. Introduction

Biogas is produced by microorganisms from organic raw materials during the methane fermentation process. Its main components are methane (CH4) and carbon dioxide (CO2) as well as small amounts of nitrogen (N2), hydrogen (H2), oxygen (O2), hydrogen sulphide (H2S), water vapour (H2O), carbon monoxide (CO), hydrocarbons (HC), ammonia (NH3), volatile organic compounds (VOC), and siloxanes [1,2]. For biogas production, different substrates such as organic waste from agricultural, industrial, or food sources, the biodegradable fraction of municipal wastes are used [3,4]. Also, in several research institutions, work on the use of other substrates, e.g., microalgae for biogas production, has been conducted [5,6].
Biogas, biomethane, and natural gas (CNG—compressed natural gas, LNG—liquefied natural gas) are classified as methane fuels. Biogas is mainly used for the production of heat and electricity in cogeneration systems [7,8]. This gas, after appropriate purification to biomethane quality, can be pressed into the natural gas distribution network or used as fuel to power spark ignition (SP) and self-ignition (SI) engines of vehicles [9,10,11]. It is also possible to use biogas in fuel cells [12,13] or to produce syngas [14,15], which is an intermediate product in the production processes of different chemicals, e.g., dimethyl ether (DME) [16] or hydrogen [17,18].
The studies on the use of methane fuels to power vehicle engines have been undertaken by various research units around the world for years. These studies have concerned mainly natural gas [19] and its applications in the transport sector. Research in this area is focused on, among others:
  • the impact of the type of gas fuel (CNG, LPG) on engine operation parameters, compared to the conventional fuel [20,21];
  • the evaluation of the natural gas combustion process in the engine, with the addition of another gas, e.g., hydrogen [22,23];
  • the impact of the change in initiation of fuel ignition of the mixture, from diesel oil to, e.g., biodiesel [24,25], biodiesel with ethanol [26,27], or diesel with ethanol [28];
  • emission of toxic components in exhaust gases from the engine [29] and environmental impact throughout the life cycle of gaseous fuel (from obtaining the raw material, through production, to its use in the engine) [30,31];
  • economic effects of fuelling the engine with CNG [32].
Apart from natural gas, there is research work on biomethane. This work is mainly concentrated on environmental benefits resulting from the use of biomethane to power the engine of vehicle, instead of natural gas or fossil fuel. It was shown, among others, that biomethane, in relation to these fuels, is characterized by lower greenhouse gas emissions in the whole life cycle [33,34,35]. In addition to road vehicle applications, some works were also carried out on discovering the possibility of biomethane use for powering of tractor and agricultural machinery engines. The main result of the research was the production of tractors equipped with biomethane engines (or alternatively natural gas), among others, by AGCO Valtra [36], Same Deutz-Fahr [37], or New Holland [38].
On the other hand, there is a lack of research focused on the use of untreated biogas to power vehicle engines. In the area of its use, the only research was carried out on the possibility of supplying stationary engines (SP or SI), which are part of a cogeneration installation [39,40]. These engines differ from the vehicle engines because their design is adapted to the steady state working conditions. The conducted research concerned, among others, the effect of methane content in biogas on the amount of energy produced and on the process of its combustion in the engine. It was found that with increasing methane concentration in biogas, the amount of energy [41], adiabatic combustion temperature, laminar combustion speed, ignition delay, calorific value of the mixture, and the methane number [42] would also increase. The effect of biogas on thermal efficiency, engine performance, as well as the emission of exhaust components was also investigated. In this work [43] it was shown that with the compression ratio of 15.5:1 and various engine loads, the engine works normally (without knocking combustion) when it was supplied with a mixture containing 50% biogas and 50% methane. It was also found that changing the ignition system from SI to SP resulted in the reduction of CO, CH4, and nitrogen oxides (NOx) emission levels. On the other hand, in the work [44] it was found that with the increase in the share of CO2 in the biogas, the volume of hydrocarbons (HC) and CO emissions increase, while the emission of nitrogen oxides decreases. These results were confirmed by the studies presented in [45,46]. According to the authors [44], due to thermal efficiency and engine power, the content of carbon dioxide in the biogas should not exceed 40%. In [47], it was additionally found that the 40% concentration of CO2 in biogas does not significantly affect the deterioration of the performance of a two-cylinder, dual engine, compared to its supply with natural gas containing 96% methane. On the basis of the literature study, it can be stated that both the amount of carbon dioxide in biogas and its role in the fuel combustion process are not clearly defined. However, these works show that biogas is successfully used as fuel for the supply of stationary internal combustion engines. The aim of this article is to evaluate the use of biogas as agriculture tractor fuel, without prior purification to biomethane.

2. Materials and Methods

Empirical studies were divided into three stages. In the first stage, biochemical methane potential (BMP) research was carried out on raw materials of various origins and on a laboratory scale. In the second stage, the influence of dual fuel supply mode on the self-ignition engine parameters was studied. The tests were carried out on the engine dynamometer, while the engine was supplied with diesel fuel and biogas. In the third stage, operational tests were carried out in a field conditions.

2.1. Stage 1

Biochemical methane potential tests were carried out under mesophilic conditions (35 °C), for seventeen mixtures of different substrates used in various ratio. The BMP tests were performed in digesters of 0.8 L working volume in duplicate for all samples. The digesters were connected to gas collectors (scaled plastic containers, approximately 1 L of volume each, filled with saturated NaCl water solution) and buffer tanks. The volume of the produced biogas was monitored daily compared to the reference sample (inoculum with the water). Gas analyser with pressure and temperature sensors (GMF 416, GAS DATA Ltd) was used to analyse the pressure and composition (CH4, CO2, H2, H2S, NH3) of the biogas. The tests were run until the bacteria stopped to produce biogas (approximately 45 days). The substrates used in the research were: maize silage (MS), grass silage (GS), whey (W), cattle manure (CM), pig manure (PM), distillery decoction (DD), biodegradable vegetable wastes (BVW), biodegradable municipal wastes (BMW), drain from municipal waste composting plant (D), sewage sludge concentrated by flotation (SSF), sewage sludge concentrated by gravitation (SSG), and a mixture of sewage sludge (MSS). Based on the results of that stage, the best biogas composition for the engine tests was selected.

2.2. Stage 2

The engine tests were carried out on the engine dynamometer with the use of a turbocharged Cummins CDC 6T-590 diesel engine from a CASE MX 135 tractor. The engine was adapted to dual fuel supply with diesel oil and biogas, through just a simple modification without interfering in the construction of the engine. This solution avoided the introduction of a complicated management system or construction modification of the engine. The detailed scheme of the gas supply and gas injection systems in the tested engine is presented in Figure 1.
The engine was supplied with commercial diesel oil (denoted as ON), high methane content natural gas denoted as CH4 (containing 97.8% of methane, 0.2% of carbon dioxide, and the remaining 2.0% were other typical components of natural gas such as: ethane, propane, butane, and nitrogen) and synthetic biogas. The process of combustion of the test fuels, including the knocking combustion phenomena, was examined on the engine dynamometer using the IndiSmart engine control system from AVL List GmbH. To measure the concentrations of exhaust gas components (carbon monoxide, carbon dioxide, oxygen, total hydrocarbons, and nitrogen oxides), the AVB CEB II analyser was used. The analysis of the particulate matter concentration was carried out using the AVL 415 analyser. The engine was loaded by the Schenck W 450 electro-rotor brake device. Tests were carried out in the mono (by diesel oil) and in the dual fuel (by ON/biogas or ON/CH4) supply modes, at two characteristic crankshaft rotation speeds of the engine: maximum torque n = 1400 rpm and maximum power n = 1800 rpm, for: 100%, 75%, 50%, 25%, and 10% engine loads.

2.3. Stage 3

Prior to operational testing, the Cummins 6T-590 engine and the dual fuel supply system were mounted on a Case IH MX 135 tractor (Figure 2). Four cylinders with a total capacity of 160 L, which were filled with biogas under the pressure of 125 bar, were mounted on the top of the tractor. In order to protect the engine against operation in destructive conditions, a knock sensor was also installed.
As part of the study, tractor tests were carried out to determine its dynamics (acceleration of the tractor from the idle speed to maximum speed on the selected gear ratio) and the level of fuel consumption during mono and dual fuel engine supply. As a next step, the research was carried out in the biogas plant, using realistic conditions of the vehicle operation. The engine was supplied in dual fuel mode with diesel and real biogas, obtained from the agricultural biogas plant with a capacity of 946 kWe/1004 kWth (located in the Pomeranian Province in Poland). This gas contained from approximately 50% to approximately 60% methane, depending on the substrates used (different ratio of pig manure, maize silage, and glycerine). After leaving the digestion chamber, the biogas was subjected to a biological treatment (Thiobacillus and Sulfolobus species were used) from hydrogen sulphide (up to a maximum concentration of 20 ppm). Then the biogas was pressurized to a maximum pressure of 13 MPa (due to the possibility of carbon dioxide condensation in the compressed biogas), and it was directed to the drying system and then the gas fuel storage.
During the field works, the fuel consumption was recorded and the engine operation parameters were analysed. Additionally, the changes in the physicochemical properties of the lubricating oil, the degree of engine pollution, and the wear of its components were assessed. Due to the specific nature of gas fuel combustion, the engine was lubricated with commercial engine oil of SAE 15W/40 viscosity class and API CI-4 quality class, with increased resistance to oxidative changes. Engine oil samples were taken from the oil sump every 40 moto hours. According to standards presented in Table 1, the following parameters were investigated: kinematic viscosity, basic number, sulphated ash content and total sediments, coking residues, ignition temperatures, fuel content, and content of metallic elements originating from engine construction elements. Operational tests were carried out for 200 moto hours.

3. Results

3.1. Stage 1

Figure 3 shows the results of biochemical methane potential for different substrates. It shows the average yield for biogas and methane per 100 g of substrates used for the tests or their mixtures in different ratio of particular substances.
Based on the results from BMP tests (Figure 3), it can be stated that the higher productivity of biogas and methane was observed for biodegradable vegetable waste (13.45 L of biogas and 8.76 L of methane per 100 g of BVW). Additionally, this sample was characterized by the highest methane concentration in the biogas (62.2%) among all the tested samples. The smallest volume of biogas was obtained from the mixture of maize silage with pig manure (MS+PM, ratio 20:80) and it was 3.20 L/100 g substrates. However, the lowest methane yield was found for the mixture of biodegradable municipal waste (BMW) and sewage sludge concentrated by flotation (SSF) used in ratio 50:50, and it was 1.04 L/100 g substrates. Depending on the type of fermented feedstock, the average methane content in the biogas was within the range between 52.2% and 62.2%, while carbon dioxide was within the range between 28.3% and 45.9%.
The H2S content ranged from 0.06% to 1.86% v/v. The most hydrogen sulphide was found in a mixture of biodegradable municipal wastes with a mixture of sewage sludge (18,640 ppm H2S), while the smallest amount was characterized by: distillery decoction (628 ppm H2S); maize silage mixture with pig manure (785 ppm for the share of 40:60 substrates and 2570 ppm H2S for the share of 20:80); and biodegradable vegetable wastes (4080 ppm H2S).
Differences in the biogas productivity, obtained from particular substrates and their mixtures, are the result of different physicochemical properties of these materials, i.e., the dry matter content, organic matter content, and organic load characterized by the chemical oxygen demand parameter.

3.2. Stage 2

Taking into account the results of the Stage 1 tests, synthetic biogas composed of 60% CH4 and 40% CO2 was prepared for the engine tests. The engine was supplied in the dual fuel with diesel and various methane or biogas contents. Based on the analysis of the combustion process of these fuels in the engine, it was found that knocking combustion symptoms and unstable engine operation occurred when replacing the diesel fuel with about 40% biogas or slightly more than 30% methane. This phenomenon was manifested by temporary fluctuations (oscillations) in the pressure of the working medium in the combustion chamber, greater than 0.7–0.8 MPa. The abovementioned levels of pressure were set as a limiting factor for the maximum acceptable methane fuel concentration in the mixture with diesel fuel due to the possibility of engine damage [48]. The occurrence of pressure peaks during the combustion process was accurately determined based on indicator diagrams. These diagrams show the change of the working medium pressure in the combustion chamber as a function of the crankshaft rotation angle (dp/dα). The determined instantaneous maximum amplitude of pressure fluctuations of the working medium in the engine combustion chamber was 1.7 MPa/°CA when the engine was supplied with a diesel fuel mixture with 40% biogas share, under the same speed and load conditions. Figure 4 shows examples of engine test results when supplying with diesel and 40% of biogas.
The conducted research has shown that replacing diesel fuel with 30% of gaseous fuel (methane or biogas), would help to avoid knocking combustion. Therefore, the combustion process in the engine was investigated for this composition of fuel mixture. The tests were carried out in the entire engine load range at two rotational speeds of the crankshaft. It was observed that the pressure values for both mono and dual fuel mode, under the same speed and load conditions of the engine operation, were similar. However, the initiation of self-ignition of diesel fuel blends with methane or biogas was earlier by approximately 2–3°CA, in relation to the engine fueled with diesel only.
Figure 5 presents results of exhaust gases emission during supply the engine with diesel oil and diesel oil with 30% of methane fuels content.
The results presented in Figure 5 show that replacing diesel fuel with methane or biogas doses in quantities of 30%, regardless of the operating conditions of engine, resulted in an increase in HC and CO emissions in the exhaust gases. But at the same time such change of supply mode did not have a significant influence on the concentration of nitrogen oxides. In the case of solid particles, their concentration in the exhaust gases was lower during the dual fuel supply, especially in the high engine loads. It has also been found that higher concentrations of solid particles were generated when the engine was supplied with diesel, especially at a higher engine crankshaft rotation speed. On the other hand, replacing methane with the same biogas dose resulted in a significant reduction of hydrocarbons and carbon monoxide emission levels. These differences were particularly visible for a rotational speed of 1800 rpm and a torque above 200 Nm. The substitution of methane with biogas did not significantly affect the emission of nitrogen oxides and particulates, practically in all the examined range.
The research engine was factory designed for mono fuel operation with diesel oil. The increase in carbon oxide and hydrocarbon concentrations, when supplying the engine with diesel oil with 30% methane fuels share, could be a result of the lack of changes in the factory settings of operating parameters of the engine used for the tests. This could affect incomplete fuels combustion. Optimizing these can change the course of the combustion process and, as a result, reduce CO and HC emissions.

3.3. Stage 3

On the basis of the results of Stages 1 and 2 of the tests, biogas and diesel fuel dosing maps were developed and the electronic system controlling the time of gas injectors opening was programmed, depending on the speed of the tractor engine and its load. At high loads, the engine was mainly fed with liquid fuel (ON), while at lower loads with a mixture of liquid fuel and biogas. In order to avoid knocking combustion, the maximum dose of biogas was 30% in relation to liquid fuel.
During field tests, the tractor worked 200 moto hours, consuming 280 L of diesel and 63 L of biogas (containing approximately 50% carbon dioxide). In operational tests, there was no excessive fuel consumption, problems with starting the engine, smoke during the start-up, or a negative impact on the noise level. It was found that the average value of the maximum acceleration was 1.89 m/s when the engine was powered by only ON and 1.56 m/s when the dual fuel ON/Biogas system was used. The average value of the maximum speed reached by the tractor during mono fuel tests was 20.5 km/h and 18.7 km/h during dual fuel supply.
Changing the power supply of tractor did not negatively affect the cleanliness of the lubrication system of the engine. The examples of analytical tests of engine oil samples are presented in Table 2.
The results presented in Table 2 indicated that there was no significant effect of dual fuel mode on acceleration of aging of engine oil during the tested tractor operation period [52]. There were also no failures or incorrect functioning of the storage system, gas fuel injection characteristics, and the tractor itself.
In terms of usability, the use of dual fuel supply did not increase the failure rate when using the tractor in its real operation conditions. During the entire operational tests, there was no interference from the anti-knocking combustion system. It indicates that the correct selection of the proportion of diesel oil and biogas during the variable working conditions of the agricultural tractor engine was done.

4. Conclusions

The authors evaluated the possibility of using biogas without prior upgrading to biomethane as fuel for an agriculture tractor engine. The physicochemical properties of biogas and its availability are key prerequisites for its use as an alternative engine fuel, affecting the reduction of dependence on fossil fuels, and the diversification of energy sources. Such biogas should contain at least 50% methane and it ought to be cleaned from hydrogen sulphide, water, and siloxanes. This gas can be obtained in typical biogas plants from various types of biodegradable raw materials. The BMP tests have shown that a good substrate for its production can be: biodegradable vegetable wastes (BVW) and a mixture of biodegradable municipal wastes (BMW) with drain from municipal waste composting plant (D). The average methane content in the biogas obtained from these substrates exceeded 60%. For these samples the higher amounts of biogas were also obtained compared to other tested mixtures (13.45 L from 100 g of BVM and 10.76 L from 100 g of BMW+D). Additionally, the biogas produced from BVM contained smaller amounts of hydrogen sulphide (4080 ppm) compared with e.g., a mixture of biodegradable municipal wastes with mixture of sewage sludge (18,640 ppm). Generally, the H2S content in biogas obtained during BMP tests was in range from 0.06% to 1.86% v/v.
Biogas without prior purification to biomethane quality is used as fuel for stationary internal combustion engines. At present, its use for powering vehicle engines involves the necessity of performing complicated and expensive refining processes (removal of carbon dioxide, hydrogen sulphide and water). The study showed that it is possible to use biogas with at least 50% methane content to power an agriculture tractor engine. The tests performed with the use of an engine dynamometer showed that an engine powered by dual fuel (diesel oil and biogas) worked stably when replacing the diesel fuel with about 40% biogas or slightly more than 30% methane. Higher amounts of methane fuels caused knocking combustion symptoms in the engine. The results of the engine load characteristics tests showed that tested dual fuel solution caused a decrease in PM concentration, especially at higher values of torque and during higher engine crankshaft rotation speed (1800 rpm) in comparison to mono fuel supplying. Replacing diesel with methane or biogas doses in quantities of 30%, regardless of operating conditions of the engine, resulted in an increase in HC and CO emissions in the exhaust. Such increase can be reduced by optimizing engine performance or using a catalytic converter. Dual fuel supply of the engine did not have a significant influence on the concentration of nitrogen oxides in exhaust gases.
In field tests conducted during 200 moto hours, the tractor engine was supplied with real biogas containing approximately: 50% methane, 50% carbon dioxide, 20 ppm of hydrogen sulphide, and without water and siloxanes. Results showed that the change of tractor engine power from single to dual fuel did not significantly affect the dynamics of vehicle and its useful properties. During these tests there was no excessive fuel consumption (the tractor engine consumed 280 L of diesel and 63 L of biogas). Problems with starting the engine, extra smoke emission during the start-up phase, as well as negative impact on the noise level were not noticed. Moreover, no negative impact on the lubrication system of the engine was found. The replacement of 30% diesel oil with biogas caused negligible deterioration in maximum acceleration of agriculture tractor from 1.89 m/s to 1.56 m/s and in maximum speed from 20.5 km/h to 18.7 km/h.
The dual fuel self-ignition engine is a solution that makes it possible to implement the idea of using of biogas (without the need to purify it to biomethane quality) as fuel for vehicles. Such biogas can contain up to approximately 50% of carbon dioxide and it should be purified from water and siloxanes. It is also important to purify the gas from hydrogen sulphide due to its corrosive effect. However, the authors stated that a small amount of H2S (20 ppm) had no negative effect on the engine. An unquestionable disadvantage of the solution is the relatively small share of biogas in relation to diesel oil. The use of larger amounts of biogas requires significant changes in engine construction in aim to its decompression. Due to the high concentration of CO2 in biogas, it is not possible to compress it (without its condensation) to pressures such as CNG. This is an additional disadvantage which has influence on the amount of refuelled fuel and the driving range of the vehicle.
The concept of a dual fuel engine is known, but the innovative possibilities related to the supply of the engine with biogas and its operation control give hope for widespread adoption of this solution, not only in the stationary but also the traction versions. Nevertheless, this solution requires further research and optimization work.

Author Contributions

M.O. and A.M. designed and performed the methane digestion tests, S.K. and W.K. designed the dual fuel supply system and performed the experimental engine tests. All authors conducted the field tests and analysed obtained research results.

Funding

This research was funded by the National Centre for Research and Development, research Grant No. 5030E! BIOGASFUEL “Development and implementation of a dual-fuel supply system for diesel engines supplied by an agriculture biogas and a diesel fuel dose”.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Ryckebosch, E.; Drouillon, M.; Vervaeren, H. Techniques for transformation of biogas to biomethane. Biomass Bioenergy 2011, 35, 1633–1645. [Google Scholar] [CrossRef]
  2. Aryal, N.; Kvist, T. Alternative of biogas injection into the Danish gas grid system—A study from demand perspective. ChemEngineering 2018, 2, 43. [Google Scholar] [CrossRef]
  3. Mao, C.; Feng, Y.; Wang, X.; Ren, G. Review on research achievements of biogas from anaerobic digestion. Renew. Sustain. Energy Rev. 2015, 45, 540–555. [Google Scholar] [CrossRef]
  4. Achinas, S.; Achinas, V.; Euverinka, G.J.W.A. Technological Overview of Biogas Production from Biowaste. Engineering 2017, 3, 299–307. [Google Scholar] [CrossRef]
  5. Wieczorek, N.; Kucuker, M.A.; Kuchta, K. Microalgae-bacteria flocs (MaB-Flocs) as a substrate for fermentative biogas production. Bioresource Technol. 2015, 194, 130–136. [Google Scholar] [CrossRef] [PubMed]
  6. Dębowski, M.; Zieliński, M.; Grala, A.; Dudek, M. Algae biomass as an alternative substrate in biogas production technologies—Review. Renew. Sustain. Energy Rev. J. 2013, 27, 596–604. [Google Scholar] [CrossRef]
  7. Shen, Y.; Linville, J.L.; Urgun-Demirtas, M.; Mintz, M.M.; Snyder, S.W. An overview of biogas production and utilization at full-scale wastewater treatment plants (WWTPs) in the United States: Challenges and opportunities towards energy-neutral WWTPs. Renew. Sustain. Energy Rev. 2015, 50, 346–362. [Google Scholar] [CrossRef][Green Version]
  8. Gazda, W.; Stanek, W. Energy and environmental assessment of integrated biogas trigeneration and photovoltaic plant as more sustainable industrial system. Appl. Energy 2016, 169, 138–149. [Google Scholar] [CrossRef]
  9. Ray, N.H.S.; Mohanty, M.K.; Mohanty, R.C. Biogas as Alternate Fuel in Diesel Engines: A Literature Review. J. Mech. Civ. Eng. 2013, 9, 23–28. [Google Scholar] [CrossRef]
  10. Subramanian, K.A.; Mathad, V.C.; Vijay, V.K.; Subbarao, P.M.V. Comparative evaluation of emission and fuel economy of an automotive spark ignition vehicle fuelled with methane enriched biogas and CNG using chassis dynamometer. Appl. Energy 2013, 105, 17–29. [Google Scholar] [CrossRef]
  11. Goulding, D.; Power, N. Which is the preferable biogas utilisation technology for anaerobic digestion of agricultural crops in Ireland: Biogas to CHP or biomethane as a transport fuel? Renew. Energy 2013, 53, 121–131. [Google Scholar] [CrossRef]
  12. Lanzini, A.; Madi, H.; Chiodo, V.; Papurello, D.; Maisano, S.; Santarelli, M.; Van herle, J. Dealing with fuel contaminants in biogas-fed solid oxide fuel cell (SOFC) and molten carbonate fuel cell (MCFC) plants: Degradation of catalytic and electro-catalytic active surfaces and related gas purification methods. Prog. Energy Combust. Sci. 2017, 61, 150–188. [Google Scholar] [CrossRef]
  13. Papurello, D.; Lanzini, A.; Tognana, L.; Silvestri, S.; Santarelli, M. Waste to energy: Exploitation of biogas from organic waste in a 500 Wel solid oxide fuel cell (SOFC) stack. Energy 2015, 85, 145–158. [Google Scholar] [CrossRef]
  14. Rathoda, V.; Bhalea, P.V. Experimental Investigation on Biogas Reforming for Syngas Production over an Alumina Based Nickel Catalyst. Energy Procedia 2014, 54, 236–245. [Google Scholar] [CrossRef]
  15. Vita, A.; Pino, L.; Cipitì, F.; Laganà, M.; Recupero, V. Biogas as renewable raw material for syngas production by tri-reforming process over NiCeO2 catalysts: Optimal operative condition and effect of nickel content. Fuel Process. Technol. 2014, 127, 47–58. [Google Scholar] [CrossRef]
  16. Krupa, M.; Moskalewicz, M.; Sikora, A.P.; Szurlej, A. Dimethyl ether. Properties, production technologies and the market. Przemysł Chemiczny 2014, 9, 1621–1627. (In Polish) [Google Scholar]
  17. Changa, A.C.C.; Lee, K.Y. Biogas reforming by the honeycomb reactor for hydrogen production. Int. J. Hydrogen Energy 2016, 41, 4358–4365. [Google Scholar] [CrossRef]
  18. Faria, E.C.; Neto, R.C.R.; Colman, R.C.; Noronha, F.B. Hydrogen production through CO2 reforming of methane over Ni/CeZrO2/Al2O3 catalysts. Catal. Today 2014, 228, 138–144. [Google Scholar] [CrossRef]
  19. Nwafor, O.M.I. Effect of choice of pilot fuel on the performance of natural gas in diesel engines. Renew. Energy 2000, 21, 495–504. [Google Scholar] [CrossRef]
  20. Selim, M.Y.E.; Radwan, M.S.; Saleh, H.E. Improving the performance of dual fuel engines running on natural gas/LPG by using pilot fuel derived from jojoba seeds. Renew. Energy 2008, 33, 1173–1185. [Google Scholar] [CrossRef]
  21. Selim, M.Y.E. Effect of engine parameters and gaseous fuel type on the cyclic variability of dual fuel engines. Fuel 2005, 84, 961–971. [Google Scholar] [CrossRef]
  22. Banapurmath, N.R.; Gireesh, N.M.; Basavarajappa, Y.H.; Hosmath, R.S.; Yaliwal, V.S.; Pai, A.; Navale, K.G.; Jog, P.; Tewari, P.G. Effect of hydrogen addition to CNG in a biodiesel-operated dual-fuel engine. Int. J. Sustain. Eng. 2015, 8, 332–340. [Google Scholar] [CrossRef]
  23. Chuayboona, S.; Prasertsana, S.; Theppayaa, T.; Maliwana, K.; Prasertsanb, P. Effects of CH4, H2 and CO2 Mixtures on SI Gas Engine. Energy Procedia 2014, 52, 659–665. [Google Scholar] [CrossRef]
  24. Sidthiphong, W.; Swasdisevi, T.; Pisitsungkakarn, S.S.; Theinnoi, K. The Investigation of CNG Dual-Biodiesel fuel Approach to Address the Performance—Emission Assisted Multipurpose Diesel Engine. J. Ind. Technol. 2015, 11, 1–10. [Google Scholar]
  25. Basavarajappa, Y.H.; Banapurmath, N.R. Effect of CNG Manifold Injection on the Performance, Combustion and Emission Characteristics of a CNG-Biodiesel Dual Fuel Operation. Int. J. Autom. Eng. Technol. 2015, 4, 223–244. [Google Scholar]
  26. Basavarajappa, Y.H.; Banapurmath, N.R. Effect of Exhaust Gas Recirculation on the Performance and Emissions of a Dual Fuel Engine Operated on CNG-Biodiesel-Ethanol Blends. Int. J. Eng. Res. Technol. 2013, 2, 449–458. [Google Scholar]
  27. Banapurmath, N.R.; Marikatti, M.K.; Hunashyal, A.M.; Tewari, P.G. Combustion characteristics of a four-stroke CI engine operated on Honge and Jatropha oil methyl ester-ethanol blends when directly injected and dual fuelled with CNG induction. Int. J. Sustain. Eng. 2011, 4, 145–152. [Google Scholar] [CrossRef]
  28. Paul, A.; Bose, P.K.; Panua, R.S.; Banerjee, R. An experimental investigation of performance-emission trade off of a CI engine fueled by diesel–compressed natural gas (CNG) combination and diesel–ethanol blends with CNG enrichment. Energy 2013, 55, 787–802. [Google Scholar] [CrossRef]
  29. Yoon, S.H.; Lee, C.S. Experimental investigation on the combustion and exhaust emission characteristics of biogas-biodiesel dual-fuel combustion in a CI engine. Fuel Process. Technol. 2011, 92, 992–1000. [Google Scholar] [CrossRef]
  30. Rose, L.; Hussain, M.; Ahmeda, S.; Malek, K.; Costanzo, R.; Kjeang, E. A comparative life cycle assessment of diesel and compressed natural gas powered refuse collection vehicles in a Canadian city. Energy Policy 2013, 52, 453–461. [Google Scholar] [CrossRef]
  31. Kliucininkas, L.; Matulevicius, J.; Martuzevicius, D. The life cycle assessment of alternative fuel chains for urban buses and trolleybuses. J. Environ. Manag. 2012, 99, 98–103. [Google Scholar] [CrossRef]
  32. Lejda, K.; Jaworski, A. Problemy Zasilania Gazowego Silników Rolniczych. Available online: http://www.pan-ol.lublin.pl/wydawnictwa/Motrol5/Lejda.pdf (accessed on 17 December 2018). (In Polish).
  33. Mierlo, J.V.; Messagie, M.; Rangaraju, S. Comparative environmental assessment of alternative fuelled vehicles using a life cycle assessment. Transp. Res. Procedia 2017, 25, 3435–3445. [Google Scholar] [CrossRef]
  34. Adelt, M.; Wolf, D.; Vogel, A. LCA of biomethane. J. Nat. Gas Sci. Eng. 2011, 3, 646–650. [Google Scholar] [CrossRef]
  35. Cong, R.-G.; Caro, D.; Thomsen, M. Is it beneficial to use biogas in the Danish transport sector?—An environmental-economic analysis. J. Clean. Prod. 2017, 165, 1025–1035. [Google Scholar] [CrossRef]
  36. Available online: http://www.wrp.pl/valtra-na-biogaz (accessed on 20 December 2018).
  37. Available online: https://cng.auto.pl/13521/ciagnik-zasilany-sprezonym-gazem-ziemnym-cng-biometan/ (accessed on 20 December 2018).
  38. Available online: http://www.tygodnik-rolniczy.pl/articles/technika/new-holland-stawia-na-biometan/ (accessed on 20 December 2018).
  39. Hosseini, S.E.; Wahid, M.A. Development of biogas combustion in combined heat and Power generation. Renew. Sustain. Energy Rev. 2014, 40, 868–875. [Google Scholar] [CrossRef]
  40. Hosseini, S.E.; Wahid, M.A. Utilization of biogas released from palm oil mill effluent for power generation using self-preheated reaktor. Energy Convers. Manag. 2015, 105, 957–966. [Google Scholar] [CrossRef]
  41. Lee, T.H.; Huang, S.R.; Chen, C.H. The experimental study on biogas power generation enhanced by using waste heat to preheat inlet gases. Renew. Energy 2013, 50, 342–347. [Google Scholar] [CrossRef]
  42. Szwaja, S.; Tutak, W.; Grab-Rogaliński, K.; Jamrozik, A.; Kociszewski, A. Selected combustion parameters of biogas at elevated pressure–temperature conditions. Combust. Engines 2012, 1, 40–47. (In Polish) [Google Scholar]
  43. Montoya, J.P.G.; Arrieta, A.A.A.; Lopez, J.F.Z. Spark ignition engine performance and emissions in a high compression engine using biogas and methane mixtures without knock occurrence. Therm. Sci. 2015, 19, 1919–1930. [Google Scholar]
  44. Huang, J.; Crookes, R.J. Assessment of simulated biogas as a fuel for the spark ignition engine. Fuel 1998, 77, 1793–1801. [Google Scholar] [CrossRef]
  45. Glarborg, P.; Bentzen, L.B. Chemical effects of a high CO2 concetration in oxy-fuel combustion of methane. Energy Fuel 2008, 22, 291–296. [Google Scholar] [CrossRef]
  46. Anderlohr, J.M.; Pires da Cruz, A.; Bounaceur, R.; Battin-Leclerc, F. Thermal and kinetic impact of CO, CO2 and H2O on the postoxiadtion of IC-engine exhaust gases. Combust. Sci. Technol. 2010, 182, 39–59. [Google Scholar] [CrossRef]
  47. Bari, S. Effect of carbon dioxide on the performance of biogas/diesel duel-fuel engine. Renew. Energy 1996, 9, 1007–1010. [Google Scholar] [CrossRef]
  48. Kruczyński, S.W.; Orliński, P.; Wojs, M.K.; Owczuk, M.; Matuszewska, A. Rating of occurrence of knock combustion in dual fuel CI engine powered by addition of biogas. Combust. Engines 2015, 162, 639–646. (In Polish) [Google Scholar]
  49. Kruczyński, S.W.; Orliński, P.; Wojs, M.K.; Owczuk, M. Ocena możliwości spalania biogazu w silniku o zapłonie samoczynnym z dawką pilotującą oleju napędowego. Zeszyty Naukowe Instytutu Pojazdów 2014, 100, 103–111. (In Polish) [Google Scholar]
  50. Owczuk, M.; Matuszewska, A.; Wojs, M.K.; Orliński, P.; Kruczyński, S.W. Influence of biogas composition on selected performance parameters of the engine. Przemysł Chemiczny 2016, 95, 2249–2253. (In Polish) [Google Scholar]
  51. Matuszewska, A.; Owczuk, M.; Zamojska-Jaroszewicz, A.; Jakubiak-Lasocka, J.; Lasocki, J.; Orliński, P. Evaluation of the biological methane potential of various feedstock for the production of biogas to supply agricultural tractors. Energy Convers. Manag. 2016, 125, 309–319. [Google Scholar] [CrossRef]
  52. Ziółkowska, M.; Matuszewska, A.; Kruczyński, S.W.; Kamela, W. Wpływ biogazu rolniczego na właściwości eksploatacyjne oleju silnikowego. In Nowoczesne środki smarowe do specjalistycznych zastosowań w urządzeniach przemysłowych, transporcie i komunikacji; Krasodomski, M., Ed.; INiG PIB: Kraków, Poland, 2015; pp. 68–83. (In Polish) [Google Scholar]
Figure 1. Scheme of the test bench with the Cummins 6T-590 engine adapted for dual fuel supply with diesel oil and biogas, where: 1—exhaust outlet, 2—air inlet, 3—turbocharger, 4—crankshaft angle sensor, 5—tractor engine, 6—CH4 injectors, 7—CO2 injectors, 8—boost pressure sensor, 9—thermocouple, 10—knocking combustion sensor, 11—cylinder pressure sensor, 12—engine temperature sensor, 13—drive shaft, 14 - Schenck W450 eddy-current dynamometer, 15—heating pipes supplying exhaust gas to the analysers, 16—low pressure gas pipes, 17—low pressure shut-off valve, 18—200/2.5 bar gas pressure reducer, 19—high pressure gas pipes, 20—compressed CH4 storage, 21—compressed CO2 storage, 22—adjustable gas pressure reducer, 23—CH4 and CO2 flowmeter, 24—PC computer integrated with the IndiSmart module with the registration and data acquisition system, 25—exhaust gas analysers, 26—reference gases, 27—injection pump with injector system, 28—fuel dose correction system, and 29—liquid fuel tank.
Figure 1. Scheme of the test bench with the Cummins 6T-590 engine adapted for dual fuel supply with diesel oil and biogas, where: 1—exhaust outlet, 2—air inlet, 3—turbocharger, 4—crankshaft angle sensor, 5—tractor engine, 6—CH4 injectors, 7—CO2 injectors, 8—boost pressure sensor, 9—thermocouple, 10—knocking combustion sensor, 11—cylinder pressure sensor, 12—engine temperature sensor, 13—drive shaft, 14 - Schenck W450 eddy-current dynamometer, 15—heating pipes supplying exhaust gas to the analysers, 16—low pressure gas pipes, 17—low pressure shut-off valve, 18—200/2.5 bar gas pressure reducer, 19—high pressure gas pipes, 20—compressed CH4 storage, 21—compressed CO2 storage, 22—adjustable gas pressure reducer, 23—CH4 and CO2 flowmeter, 24—PC computer integrated with the IndiSmart module with the registration and data acquisition system, 25—exhaust gas analysers, 26—reference gases, 27—injection pump with injector system, 28—fuel dose correction system, and 29—liquid fuel tank.
Energies 12 01071 g001

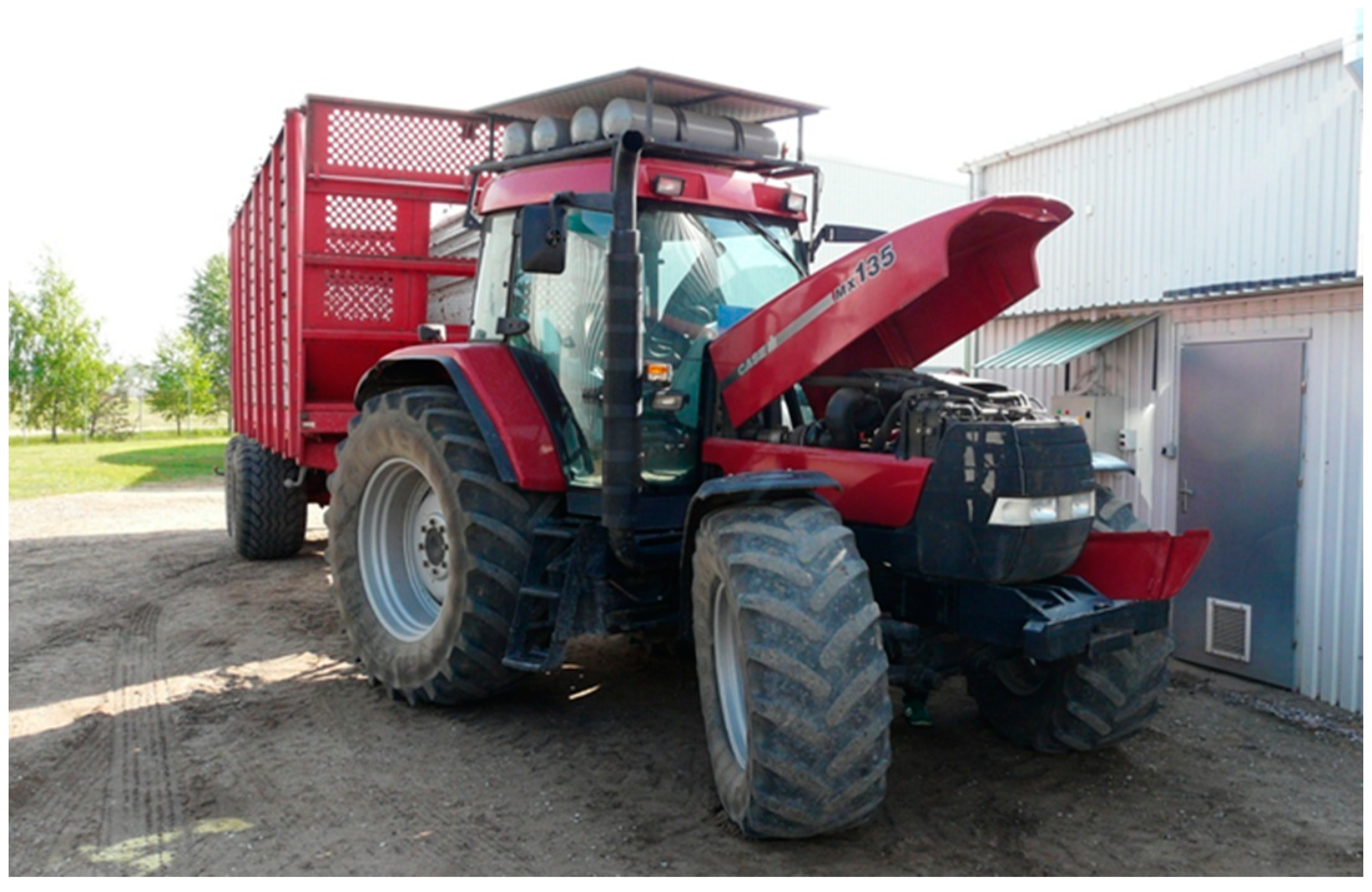

Figure 2. View of the Case IH MX 135 agricultural tractor.
Figure 2. View of the Case IH MX 135 agricultural tractor.
Energies 12 01071 g002

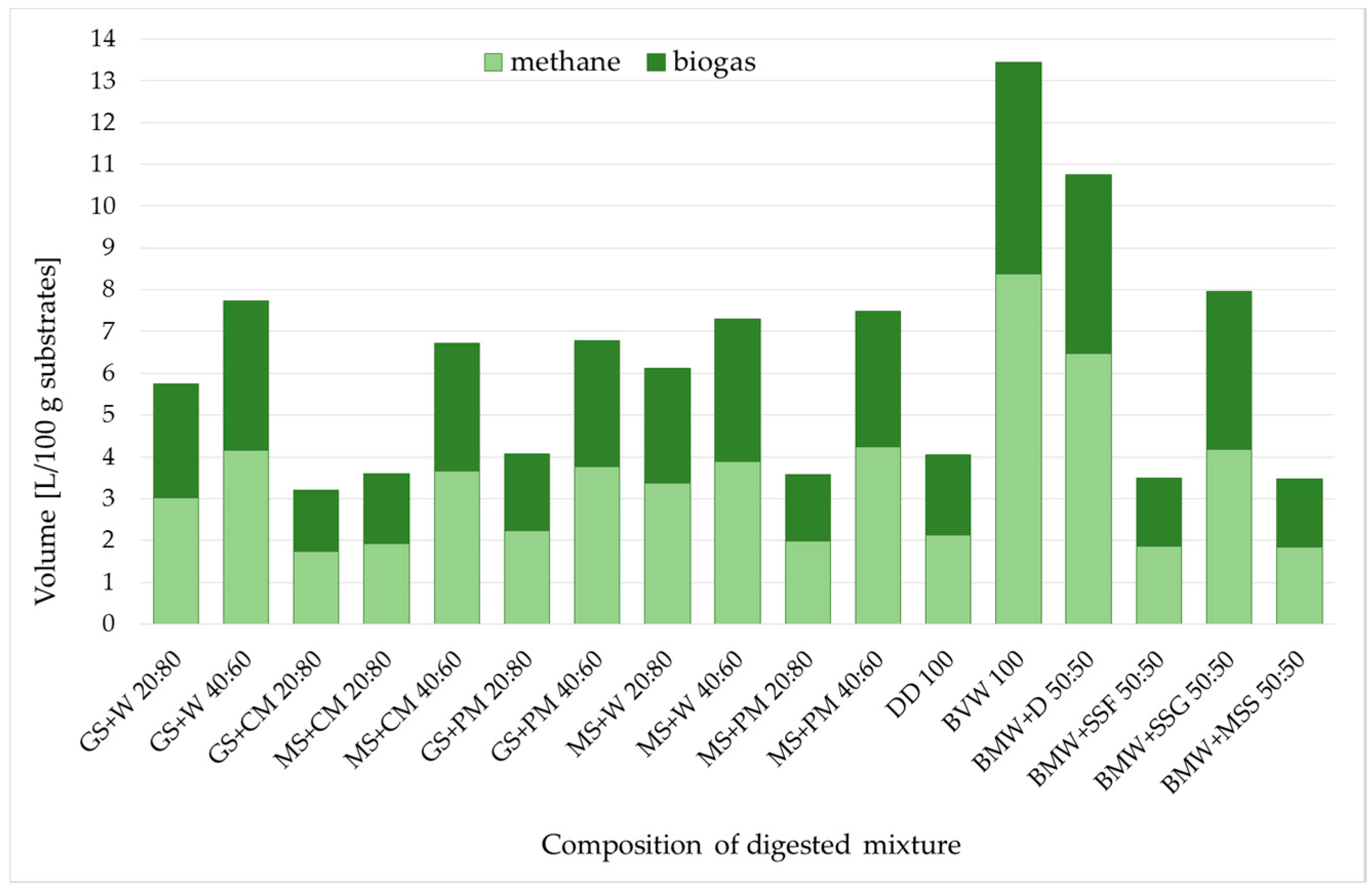

Figure 3. Average biogas and methane yields from biochemical methane potential (BMP) tests of different substrate mixtures.
Figure 3. Average biogas and methane yields from biochemical methane potential (BMP) tests of different substrate mixtures.
Energies 12 01071 g003
Figure 4. The course of changes: (a) The pressure in the combustion chamber along with the knocking combustion symptoms; (b) oscillation of pressure dp/dα of the working medium resulting from knocking combustion in the combustion chamber; when the engine was powered by diesel oil and 40% of biogas, for 80% load of engine and two rotational speeds of the engine crankshaft (1400 and 1800 rpm). Reproduced from [48], Polish Scientific Society of Combustion Engines: 2015.
Figure 4. The course of changes: (a) The pressure in the combustion chamber along with the knocking combustion symptoms; (b) oscillation of pressure dp/dα of the working medium resulting from knocking combustion in the combustion chamber; when the engine was powered by diesel oil and 40% of biogas, for 80% load of engine and two rotational speeds of the engine crankshaft (1400 and 1800 rpm). Reproduced from [48], Polish Scientific Society of Combustion Engines: 2015.
Energies 12 01071 g004
Figure 5. Emission versus torque under two crankshaft rotational speed for: (a) CO at 1400 rpm; (b) CO at 1800 rpm; (c) HC at 1400 rpm; (d) HC at 1800 rpm; (e) NOx at 1400 rpm; (f) NOx at 1800 rpm; (g) PM at 1400 rpm; (h) PM at 1800 rpm; on the base of [49,50,51].
Figure 5. Emission versus torque under two crankshaft rotational speed for: (a) CO at 1400 rpm; (b) CO at 1800 rpm; (c) HC at 1400 rpm; (d) HC at 1800 rpm; (e) NOx at 1400 rpm; (f) NOx at 1800 rpm; (g) PM at 1400 rpm; (h) PM at 1800 rpm; on the base of [49,50,51].
Energies 12 01071 g005
Table 1. Analytical methods used for engine oil analysis.
Table 1. Analytical methods used for engine oil analysis.
ParameterAnalytical Method
Kinematic viscosity at 40 °C and 100 °CPN-EN ISO 3104
Basic numberPN ISO 3771
Total sediments own method
Coking residues PN-EN ISO 10370
Fuel content PN/C-04083
Sulphated ash content PN-ISO 3987
Ignition temperaturesPN-EN ISO 2719
Content of metallic elementsASTM D 5185
Table 2. Results of engine oil analysis.
Table 2. Results of engine oil analysis.
ParameterFresh OilSample after
140 mth
Sample after
200 mth
Kinematic viscosity in 40 °C, mm2/s111.7104.7102.6
Kinematic viscosity in 100 °C, mm2/s14.7713.5613.69
Basic number, mg KOH11.4011.9512.02
Total sediments, %, m/m -0.080.03
Coking residues, %, m/m 1.391.381.47
Fuel content, %, v/v -0.60.8
Sulphated ash content, %, m/m 1.351.331.34
Ignition temperatures, °C200206204
Content of Fe, ppm-3.05.6
Content of Cu, ppm-0.91.4
Content of Pb, ppm-0.81.2
