Open AccessArticle
Energies 2019, 12(5), 961; https://doi.org/10.3390/en12050961

Robust Speed Controller Design Using H_infinity Theory for High-Performance Sensorless Induction Motor Drives

1
Electrical Engineering Department, Faculty of Engineering, Minia University, Minia 61111, Egypt
2
El-Minia High Institute of Engineering and Technology, Minia 61111, Egypt
*
Author to whom correspondence should be addressed.
Received: 31 January 2019 / Revised: 6 March 2019 / Accepted: 9 March 2019 / Published: 12 March 2019
(This article belongs to the Special Issue Advances in Rotating Electric Machines)
Full-Text   |   PDF [3776 KB, uploaded 13 March 2019]   |

Abstract

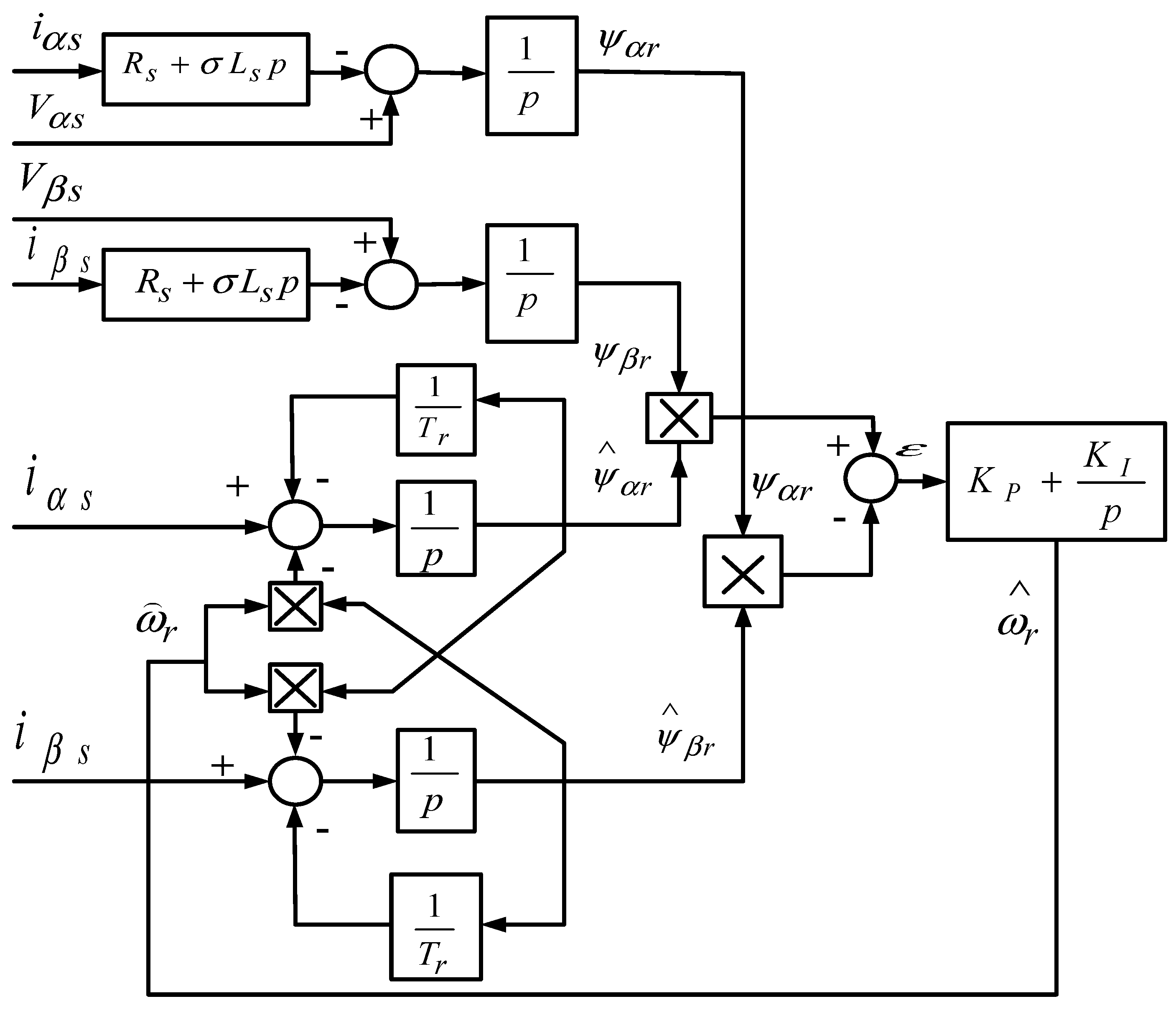

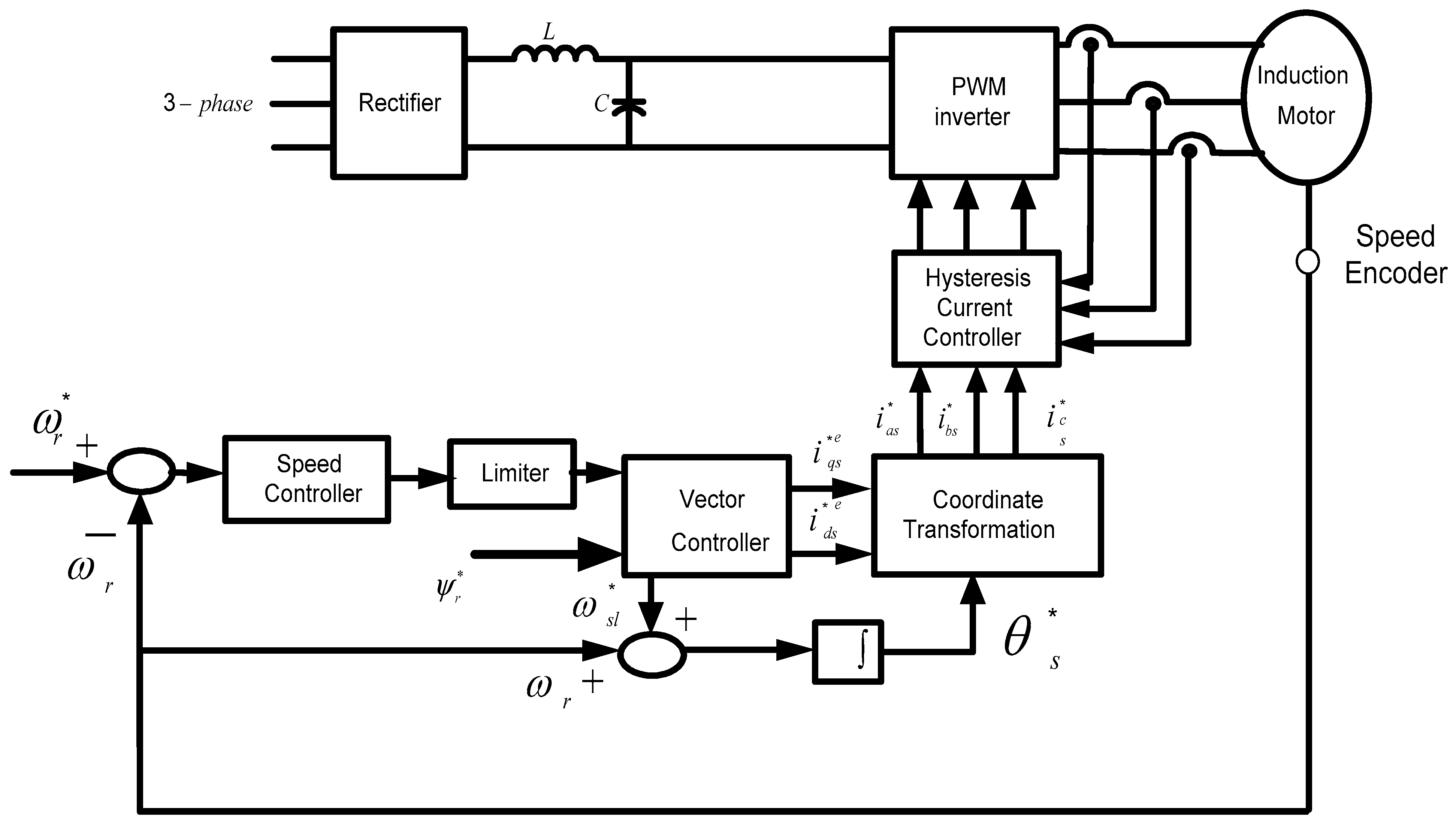

In this paper, a robust speed control scheme for high dynamic performance sensorless induction motor drives based on the H_infinity (H) theory has been presented and analyzed. The proposed controller is robust against system parameter variations and achieves good dynamic performance. In addition, it rejects disturbances well and can minimize system noise. The H controller design has a standard form that emphasizes the selection of the weighting functions that achieve the robustness and performance goals of motor drives in a wide range of operating conditions. Moreover, for eliminating the speed encoder—which increases the cost and decreases the overall system reliability—a motor speed estimation using a Model Reference Adaptive System (MRAS) is included. The estimated speed of the motor is used as a control signal in a sensor-free field-oriented control mechanism for induction motor drives. To explore the effectiveness of the suggested robust control scheme, the performance of the control scheme with the proposed controllers at different operating conditions such as a sudden change of the speed command/load torque disturbance is compared with that when using a classical controller. Experimental and simulation results demonstrate that the presented control scheme with the H controller and MRAS speed estimator has a reasonable estimated motor speed accuracy and a good dynamic performance. View Full-Text
Keywords: Sensorless; induction motors; H_infinity; drives; vector control; experimental implementation Sensorless; induction motors; H_infinity; drives; vector control; experimental implementation
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
