Experimental Investigation on the Mechanical Behavior of an Innovative Parabolic Trough Collector
Abstract
:1. Introduction
2. Materials and Methods

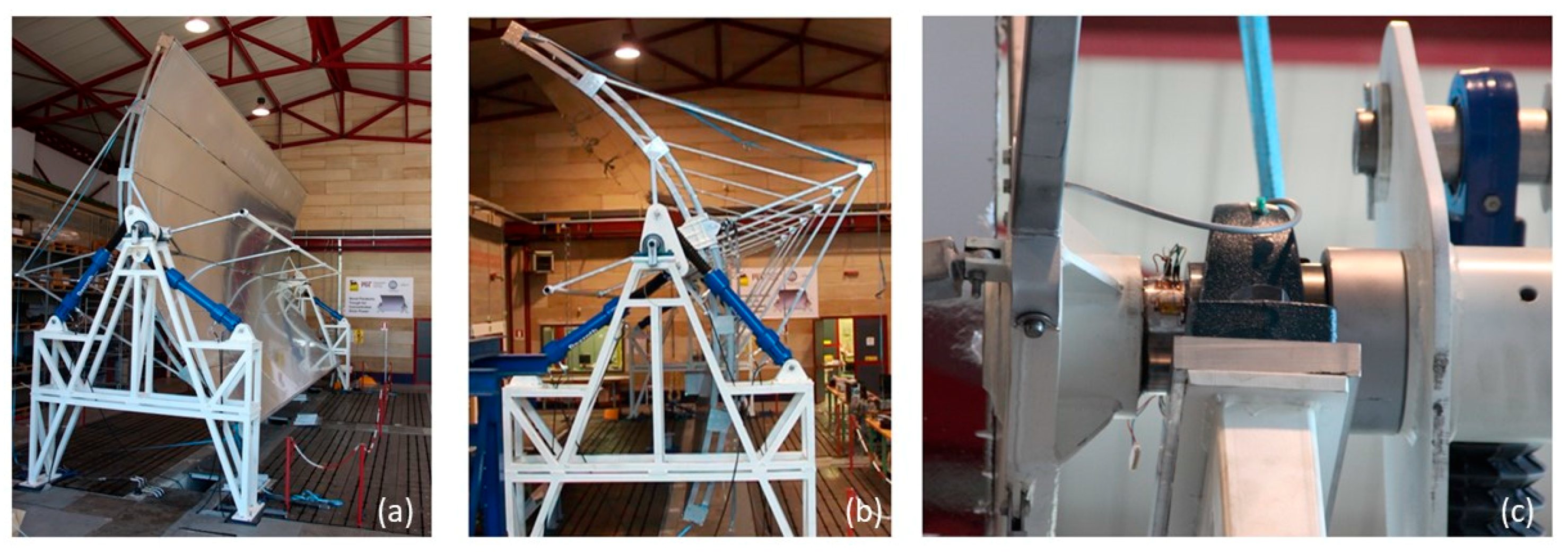

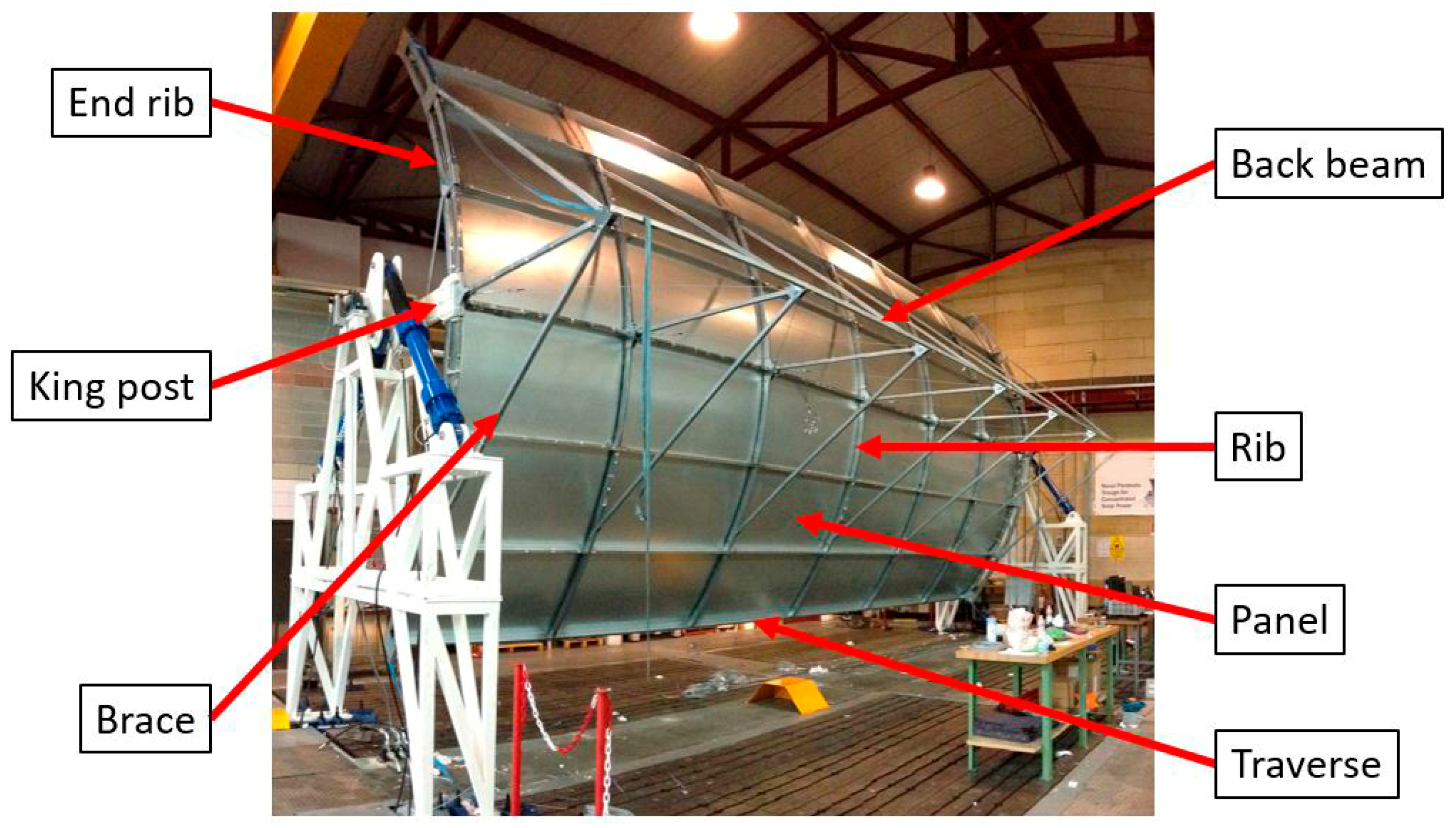

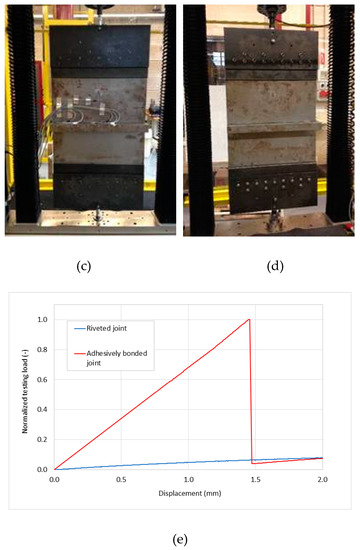

2.1. Collector Design Overview
2.2. Experimental Activity
- Movement tests (Section 2.2.2), aimed at verifying that the trough can cover the desired operational angle range in an adequate time;
- Static tests (Section 2.2.3), aimed at evaluating that under severe loads the trough does not fail and does not present excessive deformations;
- Fatigue test (Section 2.2.4), aimed at evaluating that after a cyclic severe load, the structure integrity of the trough is still guaranteed.

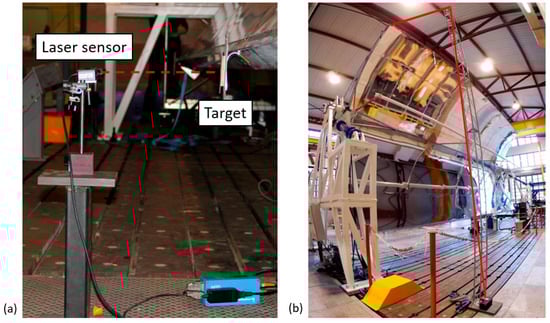

2.2.1. Experimental Setup
- Uniaxial strain gauges, used to measure the strain on a single direction (37 linear SG LY11-6/120);
- Rosette strain gauge, composed of three strain gauges placed at different angles, two orthogonal and one at 45°, used to measure the full strain state on the surface of a part (1 rosette SG RY11-6/120);
- Torque strain gauges, used to measure the shear strain in order to obtain the torque applied to the trough (2 rosette SG XY21-6/120).
2.2.2. Movement Tests

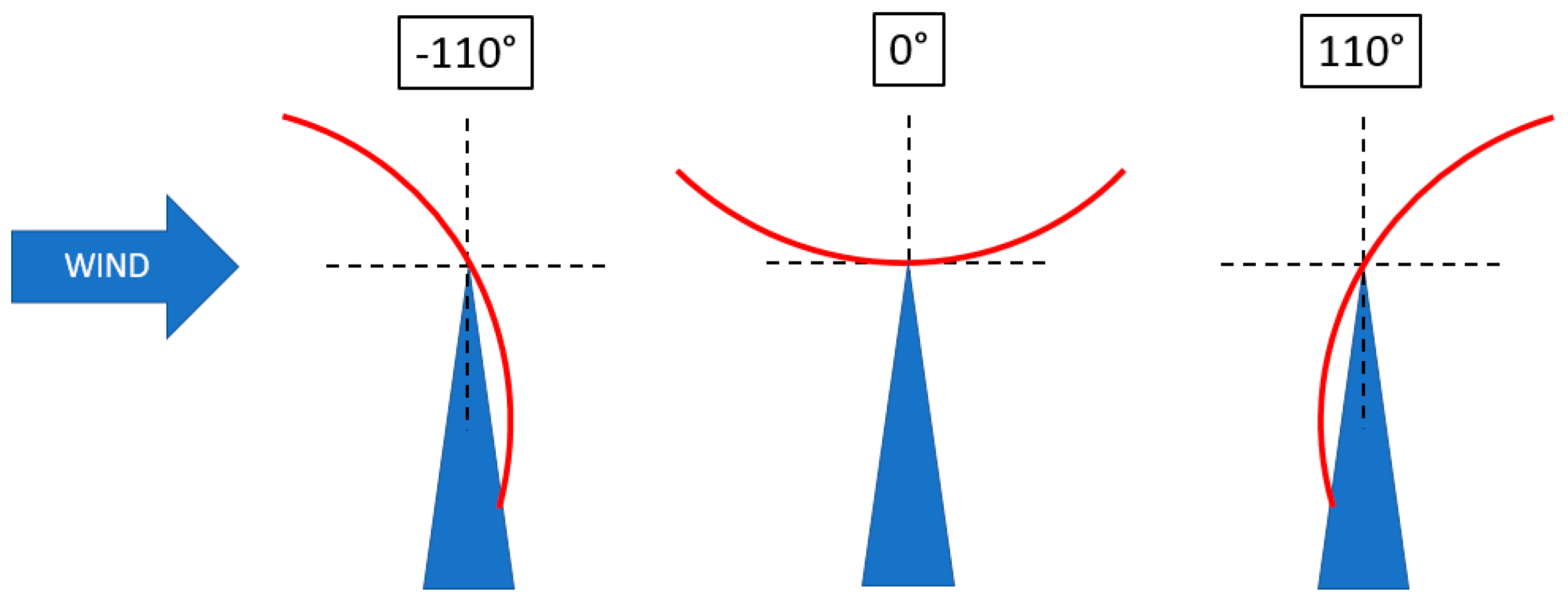

- “Full rotation” test of the parabolic trough between the two limit values (±110°). This test was performed to assess the behavior of the collector through the full range of possible rotation angles.
- “Rotation from service to recovery” test. The capability to quickly move from a service to a safety condition was assessed (exploiting a larger rotation speed).
- “Tracking” test: The correct movement of the trough as it followed the sun trajectory was verified.
2.2.3. Static Tests

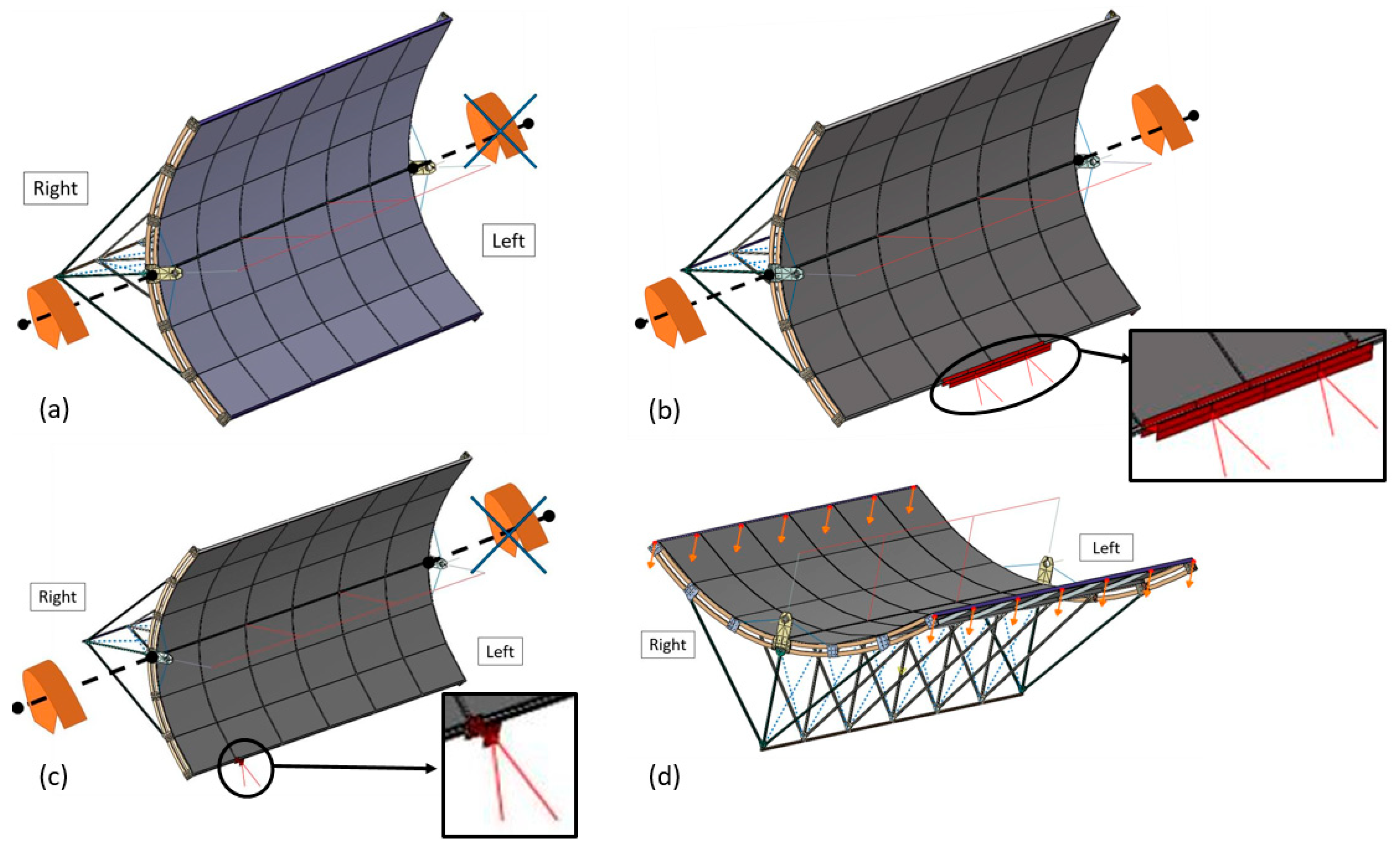

- “Differential torsion” test. The behavior under a torsional load, obtained by imposing a rotation of one side of the prototype and keeping the other side fixed, was checked (Figure 6a).

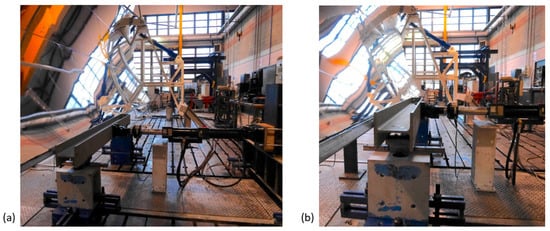

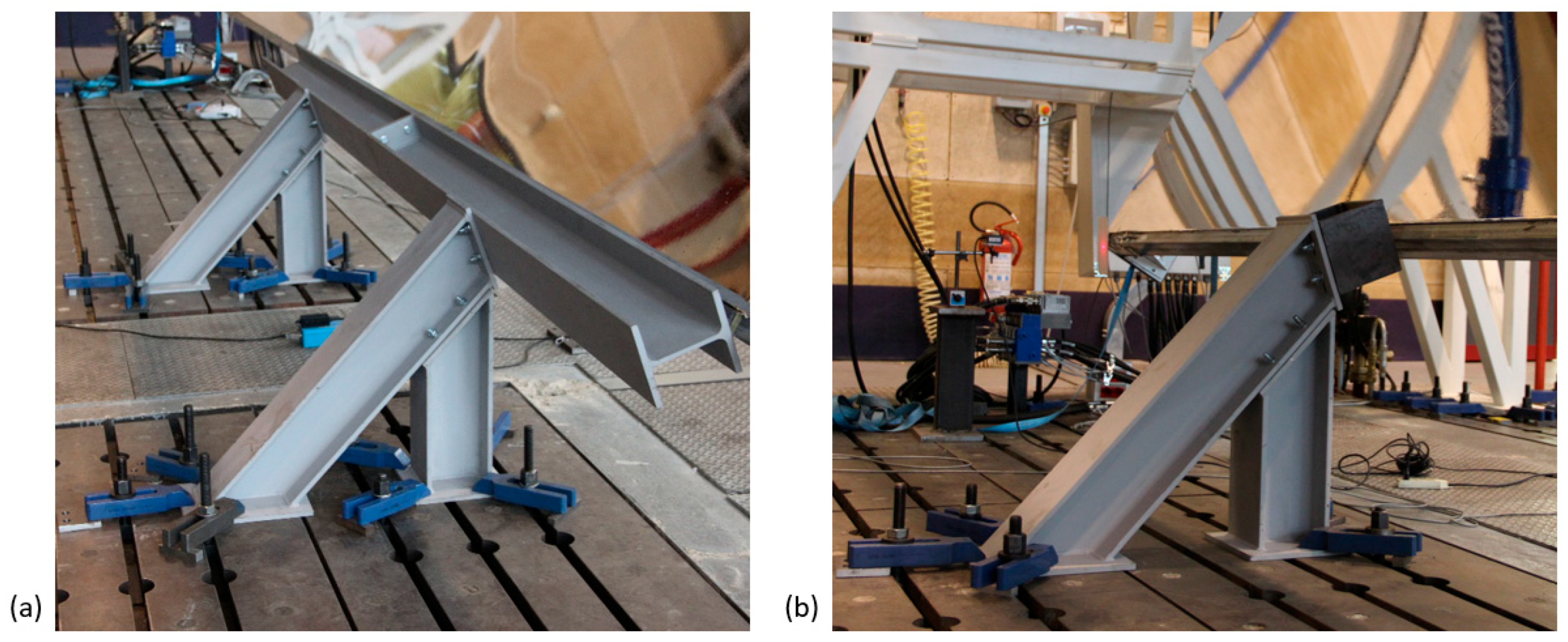

- Distributed bending test. The behavior under a bending load obtained by imposing an equal rotation of both the tips of the prototype and using a 4 m long auxiliary structure, which constrained the central part of the prototype, in order to provide a reaction force, was investigated. This is a partially distributed load that involves the two central ribs (Figure 6b).
- “Concentrated bending” test. The behavior under a very localized concentrated bending load (160 mm-long) applied to one rib of the prototype was verified by using an auxiliary structure as a constraint (Figure 6c).

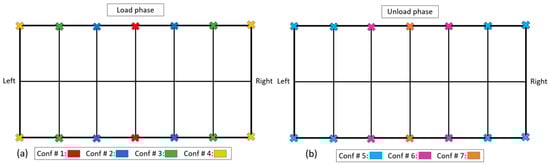

- “Wind load” test. The behavior applying a weight of 30 kg on the extremities of each rib, in order to simulate a distributed load that mimics some of the effects of the loads due to winds acting on the collector (Figure 6d).
Differential Torsion Test
Distributed Bending Test
Concentrated Bending Test
Wind Load Test
2.2.4. Fatigue Test
3. Results

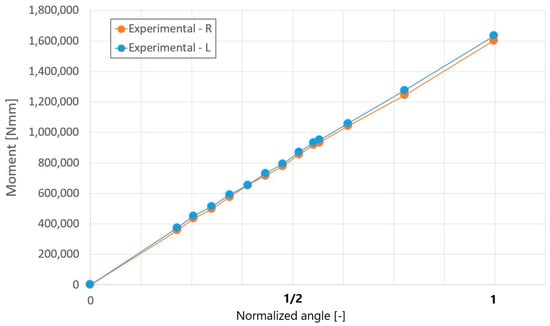

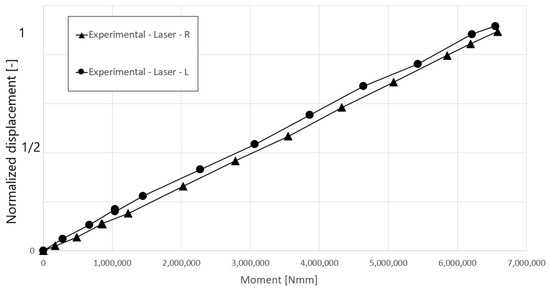

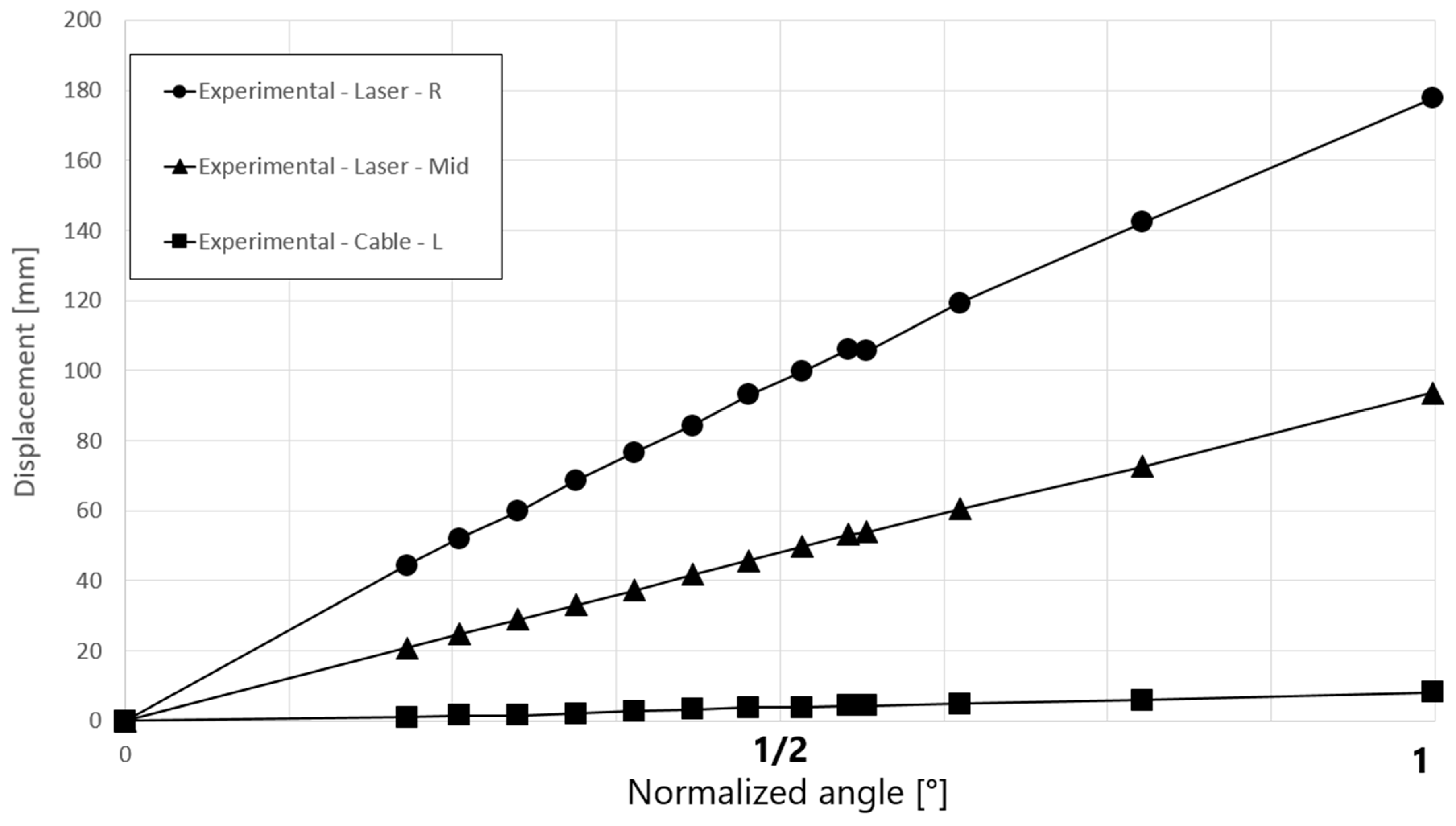

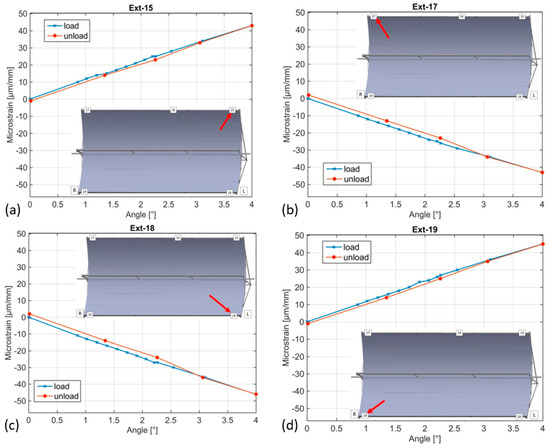

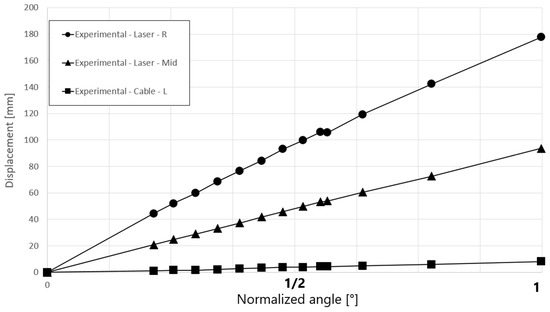

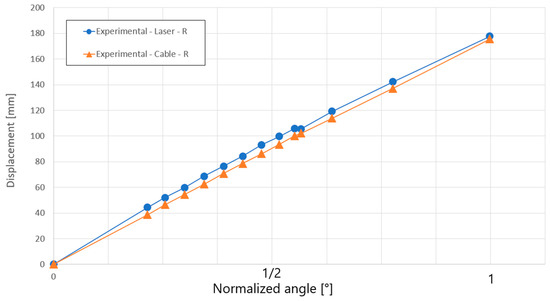

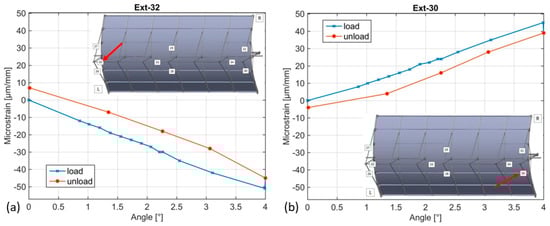

3.1. Differential Torsion Test

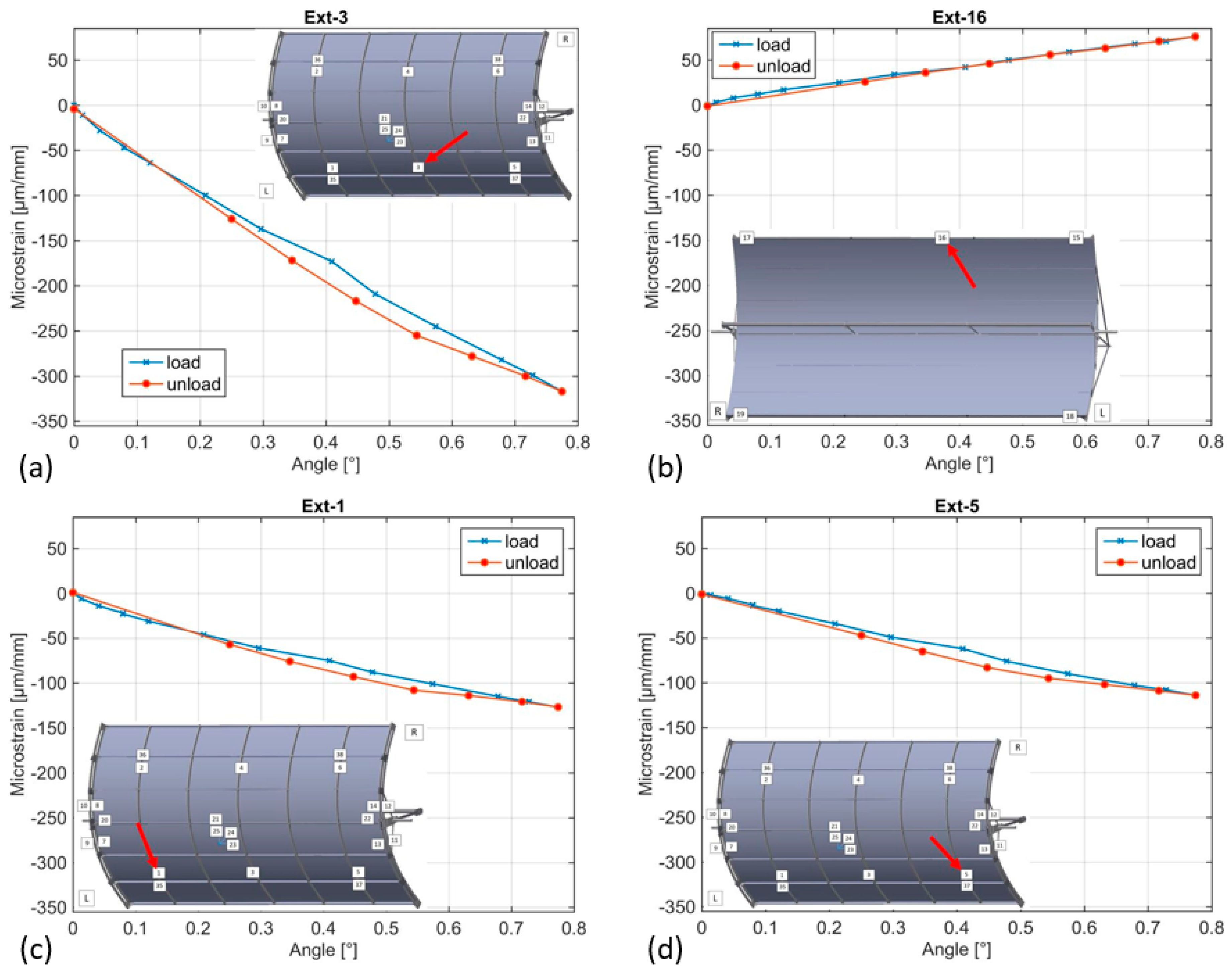

3.2. Distributed Bending Test

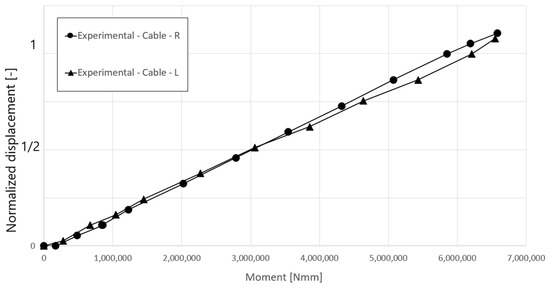

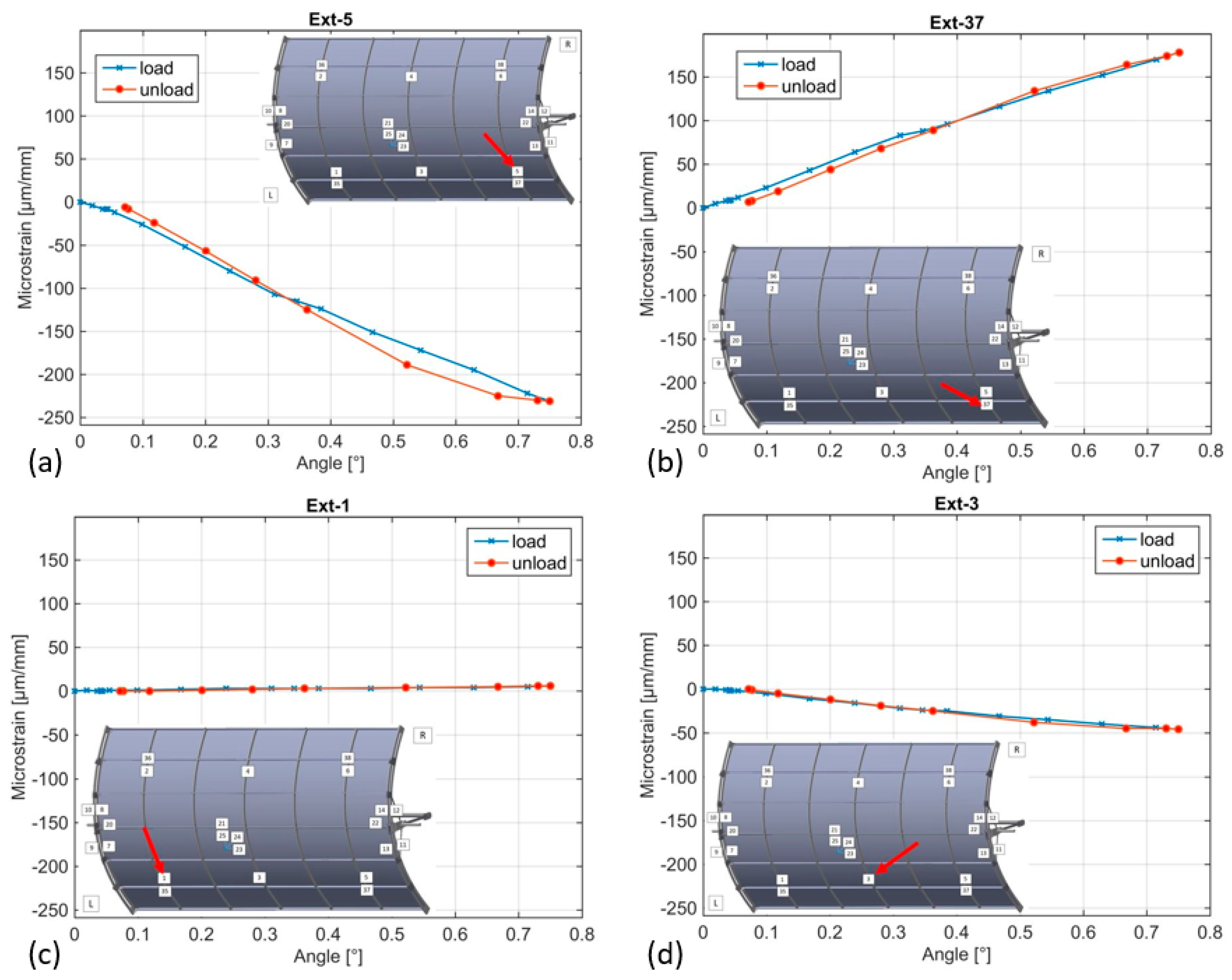

3.3. Concentrated Bending Test

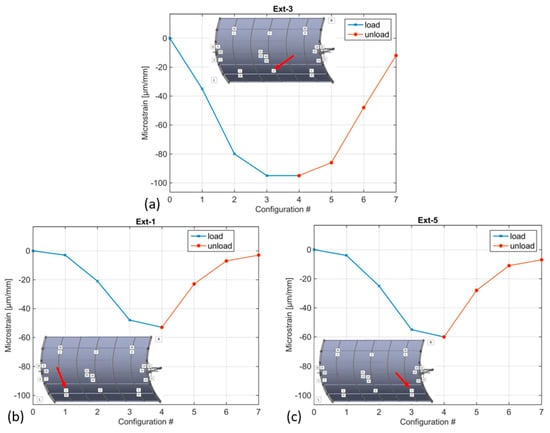

3.4. Wind Load Test
4. Discussion
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Barlev, D.; Vidu, R.; Stroeve, P. Innovation in concentrated solar power. Sol. Energy Mater. Sol. Cells 2011, 95, 2703–2725. [Google Scholar] [CrossRef]
- Jebasingh, V.K.; Herbert, G.M. A review of solar parabolic trough collector. Renew. Sustain. Energy Rev. 2016, 54, 1085–1091. [Google Scholar] [CrossRef]
- Răboacă, M.S.; Badea, G.; Enache, A.; Filote, C.; Răsoi, G.; Rata, M.; Lavric, A.; Felseghi, R.-A. Concentrating Solar Power Technologies. Energies 2019, 12, 1048. [Google Scholar] [CrossRef]
- Kumaresan, G.; Sudhakar, P.; Santosh, R.; Velraj, R. Experimental and numerical studies of thermal performance enhancement in the receiver part of solar parabolic trough collectors. Renew. Sustain. Energy Rev. 2017, 77, 1363–1374. [Google Scholar] [CrossRef]
- Uzair, M.; ur Rehman, N.; Raza, S.A. Probabilistic approach for estimating heat fluid exit temperature correlation in a linear parabolic trough solar collector. J. Mech. Sci. Technol. 2018, 32, 447–453. [Google Scholar] [CrossRef]
- Soudani, M.E.; Aiadi, K.E.; Bechki, D.; Chihi, S. Experimental and theoretical study of Parabolic trough collector (PTC) with a flat glass cover in the region of algerian sahara (Ouargla). J. Mech. Sci. Technol. 2017, 31, 4003–4009. [Google Scholar] [CrossRef]
- Sauceda, D.; Velázquez, N.; García-Valladares, O.; Beltrán, R. Numerical simulation and design of a parabolic trough solar collector used as a direct generator in a solar-GAX cooling cycle. J. Mech. Sci. Technol. 2011, 25, 1399–1408. [Google Scholar] [CrossRef]
- Zamparelli, C. Storia, Scienza e Leggenda Degli Specchi Ustori di Archimede. Available online: https://www.gses.it/pub/specchi1.pdf (accessed on 21 November 2019).
- IRENA. Renewable Power Generation Cost in 2014; IRENA: Abu Dhabi, UAE, 2015. [Google Scholar]
- Geyer, M.; Lüpfert, E. EUROTROUGH—Parabolic Trough Collector Developed for Cost Efficient Solar Power Generation. In Proceedings of the 11th SolarPACES International Symposium on Concentrated Solar Power and Chemical Energy Technologies, Zurich, Switzerland, 4–6 September 2002. [Google Scholar]
- Energy.Gov | SunShot Initiative. Available online: https://energy.gov/eere/sunshot/sunshot-initiative (accessed on 21 November 2019).
- Mokheimer, E.M.A.; Dabwan, Y.N.; Habib, M.A.; Said, S.A.M.; Al-sulaiman, F.A. Techno-economic performance analysis of parabolic trough collector in Dhahran, Saudi Arabia. Energy Convers. Manag. 2014, 86, 622–633. [Google Scholar] [CrossRef]
- Slocum, A.H.; Campbell, R.B. Low Cost Parabolic Cylindrical trough for Concentrated Solar Power. U.S. Brevetto US20170082322, 23 March 2017. [Google Scholar]
- Kötter, J.; Riffelmann, K.-J.; Decker, S.; Fellmuth, J.; Macke, A.; Nava, P.; Weinrebe, G.; Schiel, W.; Steindorf, A.; Dracker, R. Heliotrough—One Year Experience with the Loop in a Commercial Solar Power Plant. In Proceedings of the SolarPACES 2010 Conference, Perpignan, France, 21–24 September 2010. [Google Scholar]
- Rubia, S.V.; Schramm, M.; Yildiz, H.; Marcotte, P. Construction and Thermal Efficiency Test of 145m and 165m SpaceTube ® Large-Aperture Parabolic Trough Collector Prototypes. AIP Conf. Proc. 2016, 1734. [Google Scholar] [CrossRef]
- Praveen, R.P.; Abdul Baseer, M.; Awan, A.B.; Zubair, M. Performance Analysis and Optimization of a Parabolic Trough Solar Power Plant in the Middle East Region. Energies 2018, 11, 741. [Google Scholar] [CrossRef]
- Fernandez-Garcia, A.; Zarza, E.; Valenzuela, L.; Perez, M. Parabolic trough solar collectors and their applications. Renew. Sustain. Energy Rev. 2010, 14, 1695–1721. [Google Scholar] [CrossRef]
- Gunther, M.; Joemann, M.; Csambor, S. Parabolic Trough Collector. In Advanced CSP Teaching Materials; Deutsches Zentrums für Luft- und Raumfahrt e.V.: Stuttgart, Germany, 2011; Chapter 5. [Google Scholar]
- Price, H.; Lüpfert, E.; Kearney, D.; Zarza, E.; Cohen, G. Advances in Parabolic Trough Solar Power Technology. J. Sol. Energy Eng. 2002, 124, 109–125. [Google Scholar] [CrossRef]
- Marcotte, P.; Manning, K. Development of an advanced large-aperture parabolic trough collector. Energy Procedia 2013, 49, 145–154. [Google Scholar] [CrossRef]
- Cardamone, S. Ottimizzazione Strutturale di un Collettore Solare Parabolico Mediante la Tecnologia Dell’incollaggio. Master’s Thesis, Politecnico di Milano, Milan, Italy, 2013. [Google Scholar]
- Crescenzo, C.D. Numerical, Experimental and NDT Analyses on Adhesively Bonded Joints of a Parabolic Solar Trough. Master’s Thesis, Politecnico di Milano, Milan, Italy, 2017. [Google Scholar]
- Giannuzzi, G.M.; Majorana, C.E.; Miliozzi, A.; Salomoni, V.; Nicolini, D. Structural Design Criteria for Steel Components of Parabolic-Trough Solar Concentrators. J. Sol. Energy Eng. 2007, 129, 382–390. [Google Scholar] [CrossRef]
- Salomoni, V.A.; Majorana, C.E.; Giannuzzi, G.M. New Trends in Designing Parabolic trough Solar Concentrators and Heat Storage Concrete Systems in Solar Power Plants. In Solar Energy; 2010; pp. 268–292. Available online: https://www.intechopen.com/books/solar-energy/new-trends-in-designing-parabolic-trough-solar-concentrators-and-heat-storage-concrete-systems-in-so (accessed on 21 November 2019).
Ranging Unit |
| |||
Ranging Noise @90% refl. @10% refl. | @10m 0.6 mm 1.2 mm | @10m noise compr. 0.3 mm 0.6 mm | @25m 0.95 mm 2.20 mm | @25m noise compr. 0.5 mm 1.1 mm |
Laser (Optical transmission) |
|

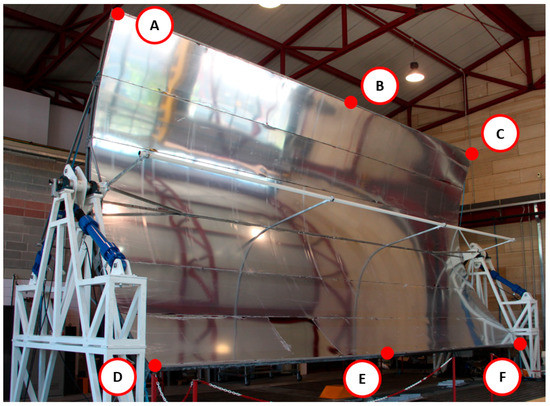

Position | Differential Torsion Test | Distributed Bending Test | Concentrated Bending Test | Wind Load Test |
---|---|---|---|---|
Cable—Left (A) | X | X | X | |
Cable—Middle (B) | X | |||
Cable—Right (C) | X | X | X | |
Laser—Left (D) | X | X | ||
Laser—Middle (E) | X | X | X | |
Laser—Right (F) | X | X | X |
Actuator Displacement (mm) | Reference Load (N) | |
---|---|---|
Maximum value | −80.5 | −3400 |
Minimum value | −53.3 | −1350 |
Average value | −66.9 | −2375 |
