Experimental Investigation, Techno-Economic Analysis and Environmental Impact of Bioethanol Production from Banana Stem

Abstract

Banana stem is being considered as the second largest waste biomass in Malaysia. Therefore, the environmental challenge of managing this huge amount of biomass as well as converting the feedstock into value-added products has spurred the demand for diversified applications to be implemented as a realistic approach. In this study, banana stem waste was experimented for bioethanol generation via hydrolysis and fermentation methods with the presence of Saccharomyces cerevisiae (yeast) subsequently. Along with the experimental analysis, a realistic pilot scale application of electricity generation from the bioethanol has been designed by HOMER software to demonstrate techno-economic and environmental impact. During sulfuric acid and enzymatic hydrolysis, the highest glucose yield was 5.614 and 40.61 g/L, respectively. During fermentation, the maximum and minimum glucose yield was 62.23 g/L at 12 h and 0.69 g/L at 72 h, respectively. Subsequently, 99.8% pure bioethanol was recovered by a distillation process. Plant modeling simulated operating costs 65,980 US$/y, net production cost 869347 US$ and electricity cost 0.392 US$/kWh. The CO₂ emission from bioethanol was 97,161 kg/y and SO₂ emission was 513 kg/y which is much lower than diesel emission. The overall bioethanol production from banana stem and application of electricity generation presented the approach economically favorable and environmentally benign.

1. Introduction

The adverse environmental impact, especially global warming due to excessive use of fossil fuel, has forced scientists to find alternative energy such as renewable energy. Many regions all over the world have emphasized solar energy due to the abundant sunlight in those regions [1,2]. However, the major limitation of solar and wind energy applications is that these sources of energy are merely available for a certain period of time [3]. Therefore, energy storage devices are required to store energy, such as batteries or other energy storage materials [4,5,6]. Besides that, many countries worldwide have highlighted biomass as an alternative fuel for renewable sources power generation [7,8]. Among south-east Asian regions, Indonesia, Thailand, Cambodia, Malaysia have successfully produced biodiesel from their tropical biodiversity sources [9,10,11]. Based on the previous experimental and statistical analyses, biomass could be turned into the Earth’s most attractive alternative in the next decades since fossil fuel is depleting day by day. Lignocellulosic biomass is certainly considered as a new sustainable supply of combined glucose for fermentation to produce bioethanol as well as other biofuels and bio-products. Numerous technologies have been implemented in the last 50 years for effective biomass conversion to biofuels to augment biofuel as cost-competitive fuel in modern fuel market [12,13,14,15,16]. Bioethanol is deemed as one of the excellent energy resources that attribute for the spark-ignition internal combustion power plant. It contains higher octane and higher heat associated with vaporization, causes alcohol better to be a 100% pure energy resource than gasoline [17,18]. Hence, bioethanol is being implemented commercially in many chemical industries. A report conducted by Energy Efficiency and Renewable Energy, U.S. Department of Energy presented that ethylene and propylene can be manufactured from bioethanol, biopropanol, and biobutanol in the short term [19]. Production of polyethylene and polypropylene from this route has been commercialized in Braskem and a group of Dow Chemical and Crystalsev in Brazil [20].

Banana (Musa spp.) is one of the major harvested plants of numerous places around the world and the second-largest cultivated fruit in Malaysia. The tender core of the banana pseudo-stem is densely packed in the center (core) of the banana stem, tube-like shape with a diameter of approximately 5–6 cm [21]. This herbaceous banana plant is usually cultivated on 26,000 hectares of the total land of Malaysia and produces almost 530,000 metric ton of banana fruit per year. After each batch of mature banana fruit (usually 10–12 months), four times of banana waste (e.g., banana stem, leaves, fruit bunch, rotten fruit, and rhizomes) are abandoned to the environment [22,23]. After the banana collection, mostly the wastes are either left for natural degradation as fertilizer/soil conditioner for the purpose of nutrition and mulching or thrown to the barren land and that contributes to environmental pollution and troubles further replanting operations [21,24,25]. To accumulate this banana waste in an environment-friendly and cost-effective approach, bioethanol production concept has been introduced in this study. In addition, a previous study demonstrated that the banana stem is usually combined with cellulose 34.5%, hemicelluloses 25.6%, and low lignin 12% [26]. High cellulosic content with low lignin causes low resistance to enzymatic attack and makes banana stem a high potential lignocellulosic biomass which could be used for the production of bio-ethanol [27].

In the recent biofuel market, bioethanol is the most widespread and commercially produced biofuel. Mostly bioethanol is used for the transportation sector while it also can be potential for electricity generation and contribute to energy saving for the power sector. Diversified applications of bioethanol can boost the market value of bioethanol as well as encourage biofuel production industries to utilize biomass and waste biomass for higher conversion. This may have a major impact on both environmental and energy-saving aspects [2,15,16,28]. A study demonstrated that a solid-state fuel cell with electric motor and controller can produce electricity from bioethanol with 75–80% conversion efficiency [29,30,31]. However, very little research and design have been conducted on bioethanol-electricity generation. To the author’s best knowledge, no study has been performed on electricity generation from bioethanol produced from waste biomass so far. This study attempted primarily to manage banana stem waste of Malaysia for green fuel, bioethanol production and initiate a new addition, electricity from bioethanol to power sector by designing a plant scale through a diesel generator for a small town in Malaysia.

On the other hand, a higher amount of greenhouse gases, such as CO_2, in Malaysia’s environment appears as another crucial issue nowadays [32]. In 2008, based on high CO₂ emission, Malaysia was ranked 26th among 149 countries worldwide and the excessive fossil fuel usage for electricity generation and transportation was the core reason behind it. To get rid of this increasing CO₂ content from the environment, Malaysia started to emphasize renewable energies from several years earlier [33]. Besides CO₂ pollution, there are additional pollutants such as soot, particulate matter (PM), nitrogen oxides (NOx) and others inside the exhaust gas mixture of the internal combustion engines. These pollutants emitted from conventional diesel engines also contribute significantly to air pollution [34]. The two major advantages for bioethanol applications in diesel engines are: (i) Bioethanol emits less CO₂, Nox, and PM, (ii) bioethanol can be converted to hydrogen by using steam reforming system via waste utilization from heat recovery system and this hydrogen would improve the fuel combustion efficiency in the internal combustion engines [35]. Therefore, the Ministry of Plantation Industries and Commodities of Malaysia made a policy for bioenergy and biofuels for transport [36]. However, all research on bioenergy applications is mostly confined to transportation fuel and not much biofuel studies have been performed to play a significant role in electricity generation. Hence, no biofuel policy has been made in the power sector. Therefore, this study projects to contribute to the power sector with renewable biofuel.

The main objectives of this study are (i) to maximize glucose production from the banana stem, (ii) to investigate the potential of bioethanol production from the banana stem, (iii) to demonstrate the techno-economic and environmental analysis of experiments bioethanol-electricity supply through a diesel generator. This study demonstrates the maximum glucose with two delignification approaches: Acid hydrolysis by diluting sulfuric acid and enzymatic hydrolysis by cellulase enzymes. Later, yeast (Saccharomyces cerevisiae) fermentation was conducted to determine the maximum bioethanolic yield. Apart from the experimental investigation, a techno-economic and environmental optimization were performed by the HOMER software (The Micropower Optimization Model, Homer Energy for LLC, version 2.68 beta released by 24 July 2009) to project this experimented bioethanol converting into electricity generation by a diesel generator.

2. Materials and Methods

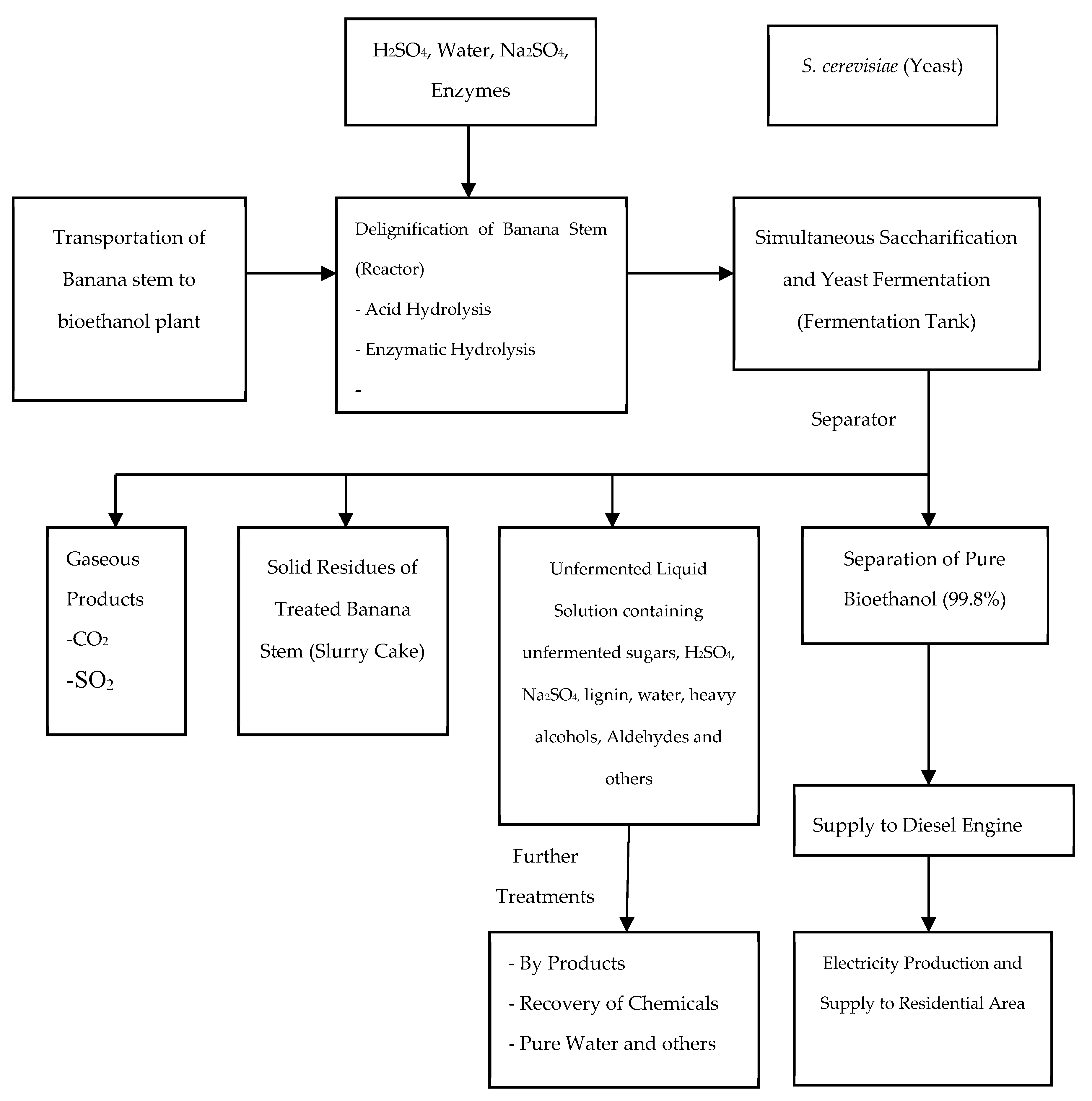

A technical flowsheet of banana stem-bioethanol-electricity supply has been presented in Figure 1. This flowchart presents the raw material (banana stem) transportation to bioethanol plant, pre-treatment of materials, handling processes (hydrolysis and fermentation), separation of pure product (bioethanol) and other by-products, as well as pure product conversion to end product and end product supply to consumers.

2.1. Collection and Preparation of Banana Stem

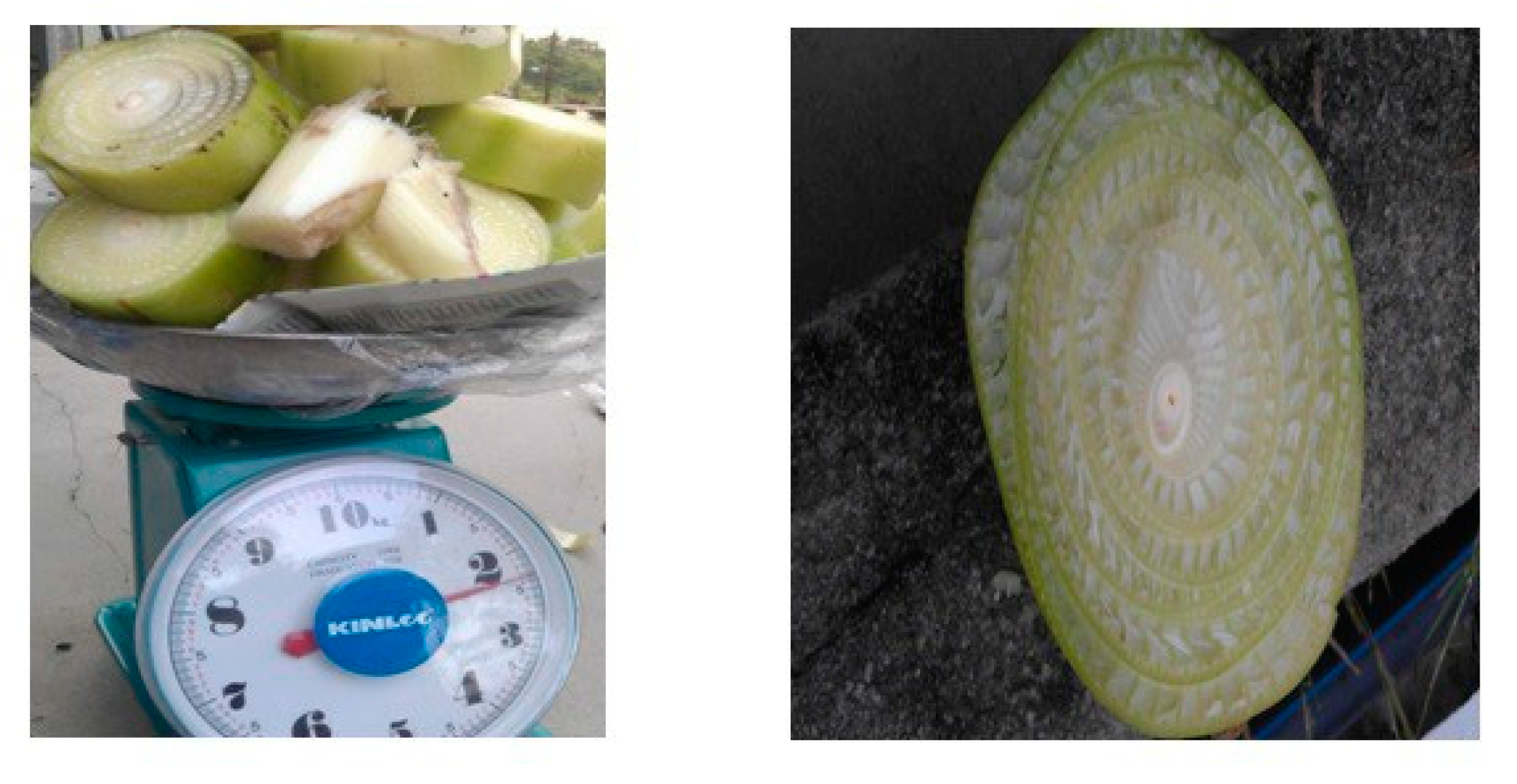

A large amount of banana stem was collected locally and cut into small pieces. The stem pieces were ground by a top bench blending machine to trigger the reaction between a material and enzymes for further experiments. Figure 2 presents the collected banana stem for this experimental study. The ground banana stem was preserved in the chiller of −3 °C to maintain and prevent the banana stem from rotting.

2.2. Microorganism and Media Preparation

Saccharomyces cerevisiae (yeast) was collected from the local market and used for metabolizing glucose to bioethanol under anaerobic conditions. Ten grams of potato dextrose agar (PDA) was dissolved in 250 mL distilled water to prepare the media. Then, the media was poured into bottles, test tubes, and flasks separately. The culture was inoculated by wetting the cotton swab in the media, dipping in the yeast packet and swirling it into the media again. Five grams of Saccharomyces cerevisiae was then introduced into the Petri dishes with the aid of a sterilized inoculating loop. A wad of cotton was placed on the top of each tube to prevent contamination. The yeast-containing Petri dish was incubated in a warm place with 35 °C for 48 h.

2.3. Pre-Treatment of Banana Stem

Two types of pre-treatment methods were performed in this study to separate the components of banana stem biomass (hemicelluloses, cellulose, and lignin) and make the remaining solid biomass easy to access for further chemical treatment.

2.3.1. Acid Hydrolysis

Sulfuric acid (H₂SO₄, 0.5 M) was prepared for the acid hydrolysis pre-treatment. Twenty grams of the ground banana stem was transferred into a flask with 0.5 M H₂SO₄. The media-containing flasks were inserted into a hot water bath for 90 min at 90 °C to ensure maximum possible reaction between the solid materials and acid solution at a temperature and reaction period. After cooling the hot media, 1 M of sodium hydroxide (NaOH) was dissolved in the flask to neutralize the media for maintaining media pH 4.0–6.0. Reaction 1 presented the neutralization process.

$$H_{2}S{O}_4+2NaOH\to N{a}_{2}S{O}_4+2H_{2}O(\mathrm{Rc}.1)$$

After neutralizing the media, solution and solid materials were separated through filter paper. The clear liquid solution was obtained and preserved in the chiller. The solid material was rinsed with distilled water and dried in Memmert oven at 60 °C for 24 h to evaporate all moisture.

2.3.2. Enzymatic Hydrolysis

Next, 1.3 g of oven-dried banana stem was dissolved in 100 mL sodium acetate (CH₃COONa) solution (0.68 g solid CH₃COONa) into a flask for enzymatic hydrolysis. 1.0 M NaOH and 1.0 M H₂SO4 were added to adjust the pH between 4.0 to 6.0. Five grams of the purchase cellulose enzyme was added into the solution, and the flask was covered with cotton and aluminum foil. The flask was placed in the incubator shaker at 37 °C, 150 rpm for 48–72 h. In the interval time of 12–24 h, the samples were taken for the glucose test. After 72 h, the samples were removed from incubator shaker, solid and solution of the flask was separated by a filter paper. The solution was preserved in a chiller for further experiments.

2.4. Yeast Fermentation of treated Banana Stem

S. cerevisiae was cultured earlier to perform the fermentation process and metabolize glucose to bioethanol. For this study, the fermentation process was carried out for 72 h continuously, confirming maximum yeast growth by consuming glucose containing the solution. All equipment was sterilized in an autoclave at 121 °C for 15 min. A yeast solution combined of 10 g cultured yeast extract, 4 g potassium hydrogen phosphate (KH₂PO₄), 2 g ammonium chloride (NH₄Cl₂) and 1L reverse osmosis (RO) water was prepared. Then, the preserved glucose solution after acid hydrolysis and enzymatic hydrolysis were combined for the fermentation process and sterilized at 121 °C for 15 min. Fifty mL of glucose solution was transferred into three flasks separately to run triplicates. The yeast solution was added into the glucose solution to each flask. Flasks were air-tightly closed with cotton and aluminum foil to maintain anaerobic conditions. Flasks were placed inside the incubator shaker at 37 °C and 150 rpm for 72 h. Fermentation temperature was set at 37 °C since this temperature was very much favorable to enhance cellulase activity during enzymatic hydrolysis as well as fermentation in a previous study [37]. The samples were tested to determine glucose concentration at an interval time for every 12 h.

2.5. Glucose Determination

Samples of glucose solution were taken into an Eppendorf tube, centrifuged by laboratory benchtop centrifuge machine at 10,000 rpm for 5 min for complete separation of the solid and liquid phase. One mL of upper liquid was transferred into a 50 mL centrifuge tube and 49 mL distilled water poured into the tube for dilution purpose. The tube was shaken well to mix the solution thoroughly. The 2 mL solution for each tube was transferred to several test tubes further. Two mL of 3, 5-dinitrosalicylic acid (DNS) reagent was added to glucose analysis. All test tubes were covered with paraffin and immersed in a water bath at 90 °C for 5 min. Then, the observance of the samples was obtained by the laboratory UV spectrophotometer with a wavelength of 540 nm.

Glucose Yield Analysis

Diluted sulfuric acid (H₂SO₄) acid pre-treatment was applied due to method simplicity and low cost for primary depolymerization of the banana stem. Along with that, this treatment does not require high-tech and sophisticated equipment [26]. In previous studies, acid treatment was more effective than alkali hydrolysis on banana stem delignification [37]. This experiment was performed by using DNS reagent and the reading was obtained from the spectrophotometer at a wavelength of 540 nm. The molarity of H₂SO₄ was 0.5, 1.0, 1.5, and 2.0 M. The hydrolysis period taken for this treatment was 60 min and 90 min.

2.6. Biomass Production

For biomass production analysis, the solid phase left in the lower part of the Eppendorf tube was analyzed. One mL of reverse osmosis (RO) water was transferred into the Eppendorf tube. The solid phase with RO water was mixed thoroughly by a vortex. Then, the observance of the samples was obtained by the laboratory UV spectrophotometer with a wavelength of 640 nm. Distilled water was used as the reference reading.

2.7. Bioethanol Recovery by Distillation

The distillation process was applied in this study to purify bioethanol from fermented solutions. For bioethanol distillation, the heating temperature was set to be between 65 °C and 75 °C in a rotary evaporator for bioethanol distillation. One hundred mL of the fermented solution was transferred into the rotary evaporator flask, this flask was attached to the distillation chamber and immersed in a hot water bath to evaporate the gas. The vacuum temperature was set at 0.8 kPa and the speed controller was at one. The distillation process was run with 40 min under vacuum conditions. After the distillation process, pure bioethanol (99.8%) was collected and measured by a measuring cylinder.

2.8. Techno-Economics and Environmental Analysis

A pilot-scale economic analysis was performed to determine the energy savings by bioethanol from the banana stem application. A pilot-scale bioethanol plant has been projected to set up in a small city in Malaysia, which contains three types of residents: Low, medium, and high-income residents. Average energy loads for different types of residents have been identified. The economic and environmental optimization of this study was simulated by HOMER Software based on the load profile for each hour of the day. HOMER software usually optimizes micro-power models and designs power systems with numerous applications in both off-grid and on-grid [38]. Along with model optimization, this software provided the economic cost estimation and gas emissions.

2.8.1. Diesel Generator

The diesel generator considered in the present study was for power (kW) generation and it was fueled by diesel. The fuel consumption rate (m³) of a diesel generator to generate electricity was simulated by Equation (1).

$$L=L_{0,dg}{Y}_{dg}+L_{1,dg}{P}_{dg}$$

(1)

where, L₀: Fuel curve intercept coefficient (0.000205 m³/h), L₁: Fuel curve slope (0.00025 m³/h/kW), Y_dg: Rated capacity of the generator (kW), P_dg: Electrical output of the generator (kW).

2.8.2. Economic Analysis

Economic analysis was performed by Homer software. Homer concluded the optimum result based on the cost of energy, COE ($/kWh), and net present cost (NPC). COE was determined by Equation (2).

$$COE=\frac{C_A}{E_S}$$

(2)

where, C_A ($/year) depicts the sum of every year capital, replacement, and operational and maintenance cost of each component and E_S (kWh) is the energy generated in a year to meet the demand (kW/y) [1].

The net present cost, C_NPC ($) was the ratio of total annual cost (C_A) to capital recovery factor (CRF) and evaluated by Equations (3)–(5).

$$C_{NPC}=\frac{C_A}{CRF\left(i,N\right)}$$

(3)

$$CRF\left(i,N\right)=\frac{i{\left(1+i\right)}^N}{{\left(1+i\right)}^N-1}$$

(4)

$$i=\frac{i\prime -f}{1+f}$$

(5)

where, i is the annual real interest rate (%), $i\prime$ represents nominal interest rate (%), $f$ denotes annual inflation rate (%), and N is the project lifetime. In this study, the annual inflation rate considered is 2%, whereas the annual interest rate considered is 8%.

2.8.3. Environmental Analysis:

In this study, life cycle emission, LCE (kg CO₂-eq/yr) has been performed to determine the quantity of equivalent CO₂ and SO₂ emission from the energy used to transport, manufacture and recycle the components used to model the system. The mathematical expression of Equation (6) has been used to calculate life cycle emission [39].

$$LCE={\displaystyle \sum }_{i=1}^x{B}_i{E}_L$$

(6)

where $x$ depicts the number of components used to model the system, E_L (kWh) represents the energy generated and reserved in each units or components, B_i (kg CO₂-eq/kWh) and B_i (kg SO₂-eq/kWh) denote the lifetime equivalent CO₂ and SO₂ emissions of various components to model the system, respectively. In this study for diesel generator, the values considered are 0.88 kg CO₂-eq/kWh and 0.000002 kg SO₂-eq/kWh [39,40]. In Homer, all of the technical and economical parameters are input to simulate the system.

3. Results and Discussions

The banana stem was prefered as raw material for bioethanol production due to the significant amount of intracellular lignocellulosic content [26]. A bioethanolic study on banana stem presented 44.6% cellulose, 36% hemicelluloses, and 19.4% lignin in the banana stem [37]. A large amount of cellulose and hemicellulose content can be converted into bioethanol through a fermentation process where lignin is a barrier for complete conversion. Lignin contains the complex cellular structure and is resistant to the activity of many microbes and chemical reagents [37]. Raw banana stems delignification processes: Acid hydrolysis and enzymatic hydrolysis before fermentation was carried out to degrade the lignocelluloses, especially lignin, in this study. Alkali pre-treatment can remove lignin effectively, but this treatment leaves the remaining carbohydrates quite intact. Since carbohydrate degradation is the main purpose of this, alkali pre-treatment was not run as delignification approach for the banana stem. Other effective delignification processes, like wet oxidation, solvent and metal complexes, steam explosion, liquid hot water, ammonia fiber expansion, supercritical fluid treatment and thermochemical treatment, were not applied due to higher raw material processing cost [20,21].

3.1. Glucose Yield Analysis during Pre-Treatment

The obtained glucose concentration results were tabulated in

Table 1. Glucose yield during acid hydrolysis.

H2SO4 Concentration (Molar)	Time (min)	Optical Density (OD)	Glucose Yield (g/L)
0.5	60	0.006	0.717
	90	0.047	5.614
1.0	60	0.013	1.553
	90	0.008	0.956
1.5	60	0.007	0.836
	90	0.006	0.717
2.0	60	0.031	3.703
	90	0.001	0.119

. From Table 1, the maximum glucose yield by acid hydrolysis was obtained as 5.61 g/L, the optimum time and H₂SO₄ concentration for the highest yield were determined as 90 min of acid hydrolysis and 0.5 M H₂SO₄, respectively. This result showed that the banana stem reacted with H₂SO₄ and treated perfectly during this optimum time and molarity. Therefore, a similar parameter was projected to apply for further processes to obtain the highest bioethanolic yield. For 1.0, 1.5, and 2.0 M of H₂SO₄, the results of Table 1 manifested that glucose yields were higher at 60 min hydrolysis period compared to 90 min hydrolysis period.

The second pre-treatment of the banana stem was enzymatic hydrolysis and the pre-treatment was conducted by using DNS reagent and reading was obtained at a wavelength of 540 nm. The results are presented in

Table 2. Glucose yield during enzymatic hydrolysis.

Time (h)	Optical Density (OD)	Glucose Yield (g/L)
24	0.226	26.99
48	0.266	31.77
72	0.340	40.61

.

For the enzymatic hydrolysis, the time interval for the experimental sample was at 24 h, 48 h, and 72 h. DNS test through optical density was carried out for each time interval to analyze the samples. Based on Table 2, OD was positively correlated with a time interval. The highest glucose yield, 40.61 g/L was achieved at 72 h of enzymatic reactions. This result manifested that the cellulase enzyme was very active and reacted maximum with the sodium acetate and dried banana stem with the time increase. The previous study on enzymatic hydrolysis of banana stem presented maximum saccharification at 48 h [21]. The current study unveiled that 24 h additional hydrolysis enhanced glucose yield, 8.84 g/L more compared to 48 h hydrolysis. Apart from that, this study determined the highest amount of glucose content among all the previous studies done for the banana stem in other countries, such as Taiwan, Brazil, India, and Indonesia [21,26,37,41]. Applications of efficient catalysts and nano-catalysts may enhance the effectiveness of cellulase enzyme and lead to a higher rate of delignification. One study suggested that solid nano-particles and nano-droplets application as an immobilized bed of expensive enzymes could break down the long chain of complex sugar continuously with a faster rate and produce more simple sugar, which drives a few times higher bioethanol production [42]. Hence, highly efficient enzymes and nanocatalysts will be implemented in further experiments.

3.2. Glucose and Biomass Content Analysis during Fermentation Process

For every 12 h time interval, the samples were taken out and chilled inside the chiller before analyzing the process. The determination of optical density was done by using DNS reagent and the reading was obtained from the spectrophotometer at a wavelength of 540 nm. The obtained results have been shown in

Table 3. Glucose and biomass content analysis during fermentation.

Time (h)	Optical Density (OD)	Glucose Yield (g/L)	Biomass Content Yield (g/g)
12	0.521	62.23	0.006
24	0.007	0.83	0.139
36	0.020	2.39	0.135
48	0.035	4.18	0.133
60	0.052	6.21	0.212
72	0.008	0.69	0.462

.

From the tabulated data of Table 3, the highest glucose yield, 62.23 g/L was obtained in 12 h fermentation period. For each experiment, triplicates have been conducted and the average value was considered. The value of glucose yield reached a peak at the interval time of 12 h. At 24 h of fermentation time, the glucose content decreased tremendously and in other time interval presented comparatively lower glucose content than 12 h time interval. It can be concluded that S. cerevisiae still has not consumed a large amount of glucose content inside the solution. A previous saccharification study from oil palm trunk (OPT) demonstrated that Epsom salt (MgSO₄) and alanine amino acid (C₃H₅NO₂) addition, during hydrolysis increased the sugar yield from 12.52% to 17.19% [27]. Hence, additional supplements, such as vitamin B₁₂, Epsom salt, alanine amino acid, and other vitamins-minerals, as well as recombinant yeast and yeast strains to the fermentation solution, are highly recommended for further experiments to obtain desired sugar content [43].

The biomass content analysis was not involved with the DNS test. The sediment at the bottom of Eppendorf tube was mixed with RO water and went through the vortex process. While the process was conducted, OD was analyzed by the spectrophotometer and biomass content yield was determined. Table 3 presented the biomass content yield during fermentation. Besides glucose yield, Table 3 also revealed that the biomass content yield increased with fermentation period and increased significantly once fermentation reached 72 h, which was the maximum biomass content yield. This biomass content manifested that the S. cerevisiae produced the end-product called a waste product. This biomass was produced from the reaction between S. cerevisiae and the glucose content inside the solution during the fermentation process. This biomass content output maintained an output consistency of the previous study where banana stems biomass content was obtained 0.104 g/g at 12 h and 0.201 g/g at 72 h after yeast fermentation of banana stem [21]. An experimental study on bioethanol production in the wine industry showed that assimilable nitrogen deficiency in the growth media is the most prevalent cause of high biomass content within days to weeks, which is considered as sluggish formation. The intracellular analysis of this study also presented trehalose accumulation, which is directly correlated with bioethanol production and could be responsible for sustaining cell viability in nitrogen-poor musts independent of the initial assimilable nitrogen content [44].

3.3. Pure Bioethanol after Distillation

The last stage to achieve the final product was pure bioethanol recovery by the distillation process. After the fermentation process, the distillation process for the fermentation solution was carried out in triplicates. The pure bioethanol was recovered after 30–40 min of the distillation process. The average result obtained from the distillation process was demonstrated in

Table 4. Pure bioethanol by the distillation process.

Items	Unit
Distilled bioethanol (mL)	25
Total fermented solution (mL)	100
Bioethanolic yield (mL bioethanol/mL fermented solution)	0.25 or 25%

. Table 4 shows that the pure bioethanolic yield was 0.25 mL/mL fermented solution or 25%. After obtaining distilled bioethanol, the left-over solution may contain unfermented sugars, by-products (heavy alcohols, aldehydes, and others), Na₂SO₄, water, lignin, and gaseous components: CO₂ and CH₄ [27,45]. The bioethanol of banana stem grown in Malaysia was higher than the highest leading feedstock for bioethanol of the country, oil palm trunk (OPT). The experimental study of bioethanol from OPT presented 33.5% bioethanol after 72 h of fermentation, which is 8.5% higher than the banana stem.

Along with a usual bioethanol yield of OPT, that study also revealed the nutrient addition: Epsom salt (MgSO₄) and alanine amino acid (C₃H₅NO₂) in the fermentation solution boosted the bioethanol output from 33.5% to 48.28% at 72 h of OPT sap fermentation [43]. Therefore, suitable supplement addition during fermentation is strongly recommended for maximum bioethanolic yield from the banana stem in the future. In addition, recombinant yeast and yeast strains such as recombinant S. cerevisiae (0.91 g/L bioethanolic yield), recombinant S. pombe (0.42 g/L), C. shehatae CBS 4705 (0.48 g/L), P. stipitis CBS 5776 (0.45 g/L) will also be applied as a fermentation tool instead of S. cerevisiae in further experiments to improve the bioethanol output. Another future plan to boost bioethanol productivity for the banana stem is to co-culture other yeasts, e.g., Candida guillermondii, Candida tropicalis during fermentation to degrade the pentoses (sugar content) and converted into value-added co-product and alternative sweetener, xylitol [17,46,47].

3.4. Techno-Economics and Environmental Analysis

Pilot-scale economic analysis determined energy savings through obtained bioethanol application and electricity generation from bioethanol in the Gombak region, Malaysia. The electricity produced from bioethanol was planned to be distributed among Gombak residents. At first, power rating data of different loads of a typical Malaysian household were collected. Then, the collected data were multiplied by numbers of loads connected and their operating hours to get the connected load. Average energy loads for different types of residents are presented in

Table 5. Average energy load of different types of residents living in the projected arena.

Load	Power Rating (W)	Low-Income Household		Medium Income Household		High-Income Household
		No of Items	h/Day	No of Items	h/Day	No of Items	h/Day
Energy Efficient bulb	20	3	4	4	5	5	6
Mobile Charger	25	1	3	3	2	4	2
Fan	70	1	4	2	7	3	8
TV	80			1	6	1	6
Fridge	150					1	24

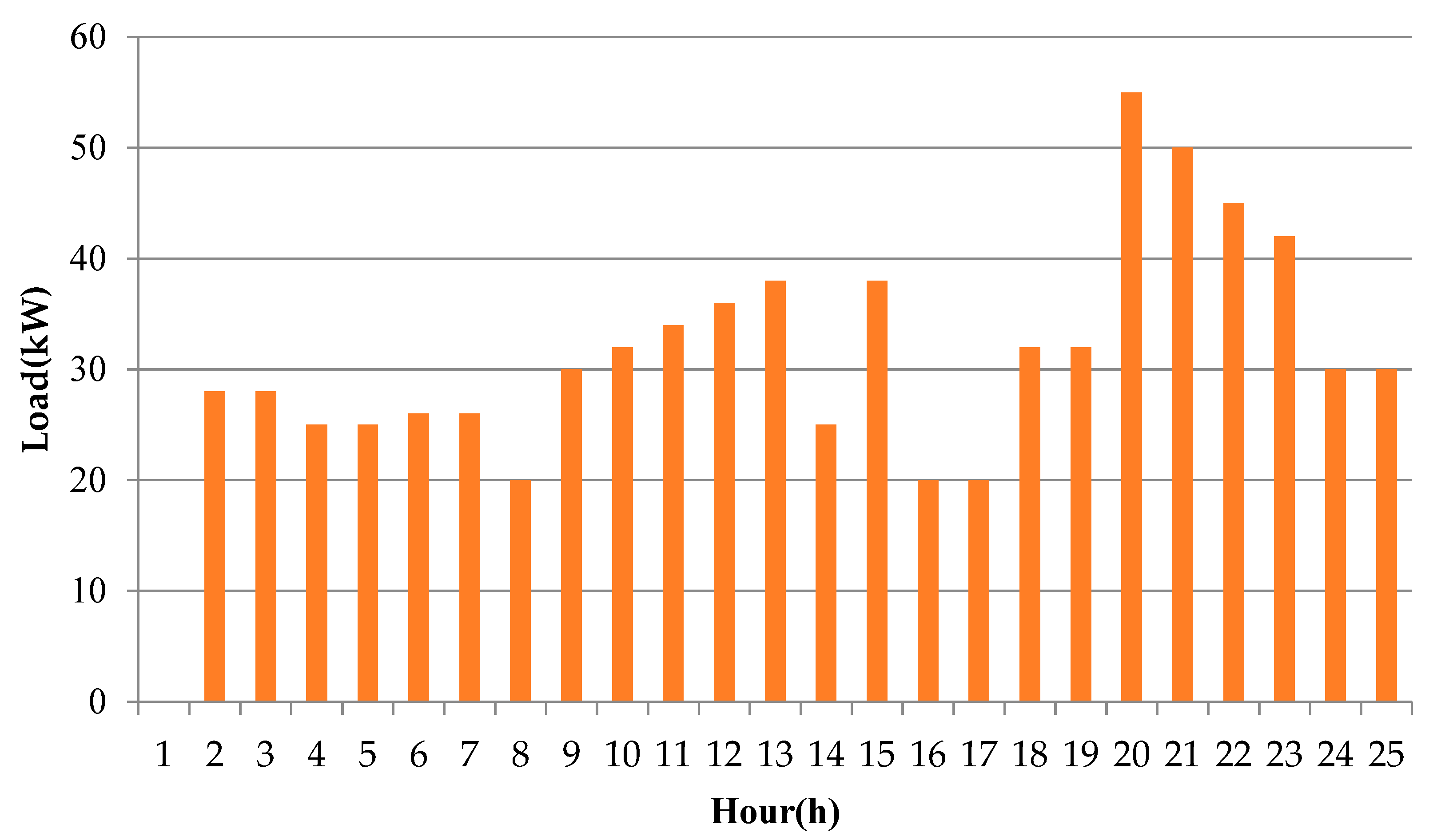

. Figure 3 shows daily load profiles for each hour of the day.

The fuel properties of diesel and bioethanol are presented in

Table 6. Fuel properties of diesel and bioethanol.

Parameters	Diesel	Bioethanol
Lower heating value (MJ/kg)	43.2	15.4 [22]
Density (kg/m3)	820	820
Carbon (C) content (%)	88	37.7 [22]
Sulfur (S) content (%)	0.33	0.37 [22]

. These parameters were input in the Homer software to operate the diesel generator. In this study, the fuel properties of diesel and desired bioethanol density were applied by the Homer software database. The total pure bioethanol yield from the experimented banana stem was 25%. The banana stem contains heating value 15.4 MJ/kg, carbon content 37.7% and sulfur content 0.37% [22]. During the techno-economic simulation, bioethanol fuel application was analyzed and compared with diesel since diesel is the dominant fuel in a diesel generator. Bioethanol is recommended in this study to be initially blended with diesel [48,49,50].

Table 7. Techno-economic parameters considered for the simulation of diesel generator.

Components	Technical Description	Capital Cost ($)	Replacement Cost ($)	Operation and Maintenance Cost ($)	Lifetime (y)	Fuel Price of ($/L) Diesel	Fuel Price of ($/L) Bioethanol
Diesel generator	70 KW	370/KW	296/KW	0.050/h	15,000 h	0.53 [55]	0.40 [56]

depicts the techno-economic parameters for simulation of diesel generator by Homer software.

Table 8. Economical parameters after result simulation for the proposed case.

Economical Parameters	Diesel	Bioethanol
Initial Capital ($)	25,900	25,900
Operating Cost ($/y)	77,235	65,980
Net Production Cost ($)	1,013,217	86,9347
Cost of electricity ($/kWh)	0.457	0.392

demonstrates that the cost of electricity produced by bioethanol was less than the dominant fossil fuel diesel. Besides that, the operating cost and the production cost of electricity from bioethanol was much lower compared to diesel fuel. One of the limitations of simulation of the operating cost is that this simulating approach did not consider the possibility of the corrosion of the chemical installation’s metallic components. Due to the presence of bioethanol, ethanol-gasoline blends (EGBs) can easily absorb large amounts of water which may result in corrosion. Moreover, acidic compounds and ions can be dissolved in water and these substances can have corrosive effects on metallic construction materials [51].

Apart from the techno-economic simulation, the environmental effect of bioethanol utilization has been simulated by this study.

Table 9. Emission comparison between fossil diesel and experimented bioethanol combustion.

Greenhouse Gases	Diesel	Bioethanol
CO2 (kg/y)	227,975	97,161
SO2 (kg/y)	458	513

reveals that while bioethanol was used as fuel, almost 2.5 times environmental pollution by CO₂ has been turned down compared to diesel utilization. Reducing CO₂ in the environment has become an emerging issue all over the world, including Malaysia [52,53,54]. Another fact is that the banana stem absorbs CO₂ from the environment for growth purposes since it is a renewable energy source, while diesel purely adds CO₂ to the environment without any absorption. For SO₂ emission, diesel and bioethanol produced SO₂ almost in a similar range.

3.5. Practical Implications and Policy

To apply the design outcomes in a realistic approach in Gombak City, some merits and demerits can be outlined to set up this plant scale industry. The advantages can be:

➢

Bioenergy production from biomass has been practiced in Malaysia for decades. Alternative fuel research is very popular and numerous grants from the government have been invested in Malaysia to encourage biofuel production and application. Therefore, an initiative to establish this bioethanol to power generation is projected to attract government fuel policy and there is a great possibility to get assistance from a local government fund.

➢

Waste management and environmental pollution are a hot issue in Malaysia nowadays. Many types of research are being performed to utilize wastes and reduce greenhouse gases from the environment. Using banana stem waste for bioethanol can cover both waste management and cleaner production, which may attract the energy and environment sector of the country.

➢

The core raw material, the banana stem can be obtained at a very cheap price in large amounts since Malaysia is the second-largest banana producer worldwide [21]. Therefore, for this case, raw material costs will be negligible. Since the banana stem has got a soft and juicy texture, extra chemicals will not be required for softening and delignification. Hence, the handling cost will be very low. Moreover, high pre-treatment and handling cost is the main reason for growing popularity of biofuel production from most of the hard biomass such as rice and wheat straw, husk, willow, seeds, and others [57]. Additionally, the ‘National Biofuel Policy’ of The Govt. of Malaysia (GOM), 2006 excluded bioethanol due to the advanced technology and high price of pre-treatment cost of palm oil mill effluent and the high price of raw material, sugarcane [58].

The challenges may appear as:

➢

Since banana stem cannot be obtained at a consistent amount all over the year, the production of a inconsistent amount of bioethanol and electricity is expected. In this case, other feedstocks for bioethanol (e.g., oil palm trunk, fronds, leaves) are recommended to be integrated since oil palm is the highest abandoned biomass in Malaysia [27].

➢

There is an established Malaysian Government Renewable Energy Policy named ‘Bioenergy, Biofuels for Transport’ of policy type ‘Regulatory Instruments, Policy Support and Strategic Planning’ under The Ministry of Plantation Industries and Commodities, Malaysia which is based on transportation fuel. Therefore, this project needs to be elaborately analyzed further to attract the Malaysian Government Renewable Energy Policy [36]. This policy is subjected to contribute to individual industries, socio-economic and environmental progress by creating new employment opportunities lower educated to higher educated man-force.

➢

This design is an initial attempt and was simulated based on HOMER software. To achieve realistic figures, more detailed techno-economic analysis containing maintenance and raw material cost, life-cycle cost, by-products sale, plant profit, sensitivity analysis of all related factors besides initial, operating, production cost and product selling price are needed to be considered for more precision and conciseness.

➢

A comprehensive life cycle assessment containing land and water footprint, chemical usage and energy balance besides CO₂ and SO₂ determination will be needed for a realistic approach. We will continue extensive life cycle cost analysis and life cycle assessment in our future work.

4. Conclusions

Banana stem has been experimented for bioethanol production in India, Indonesia, Brazil and other countries previously. This study strived to present the initial bioethanol production from banana stem based on a laboratory scale for the scenario of Malaysia. Since banana stem is one of the largest bio-wastes in the country, this study emphasized the possible scale-up conditions and designed a pilot-scale bioethanol production scheme for commercial transportation fuel application. To the authors’ best knowledge, this is the first initiative to implement bioethanol (obtained from the banana stem) for transportation fuel in mercantile approach within Malaysia. This project’s outcomes can be deemed as a major contribution to the biofuel industry in Malaysia.

To summarize the experimental outcomes, diluted sulfuric acid (H₂SO₄) and enzymatic hydrolysis have been shown to very effective pre-treatment approaches through adequate glucose production. The pre-treated solution was further processed for fermentation to metabolize obtained glucose into bioethanol by the presence of S. cerevisiae (yeast) at 37 °C, 150 rpm for 72 h. The fermentation approach resulted in decreased glucose content, and gradually increased biomass content during the fermentation period. Techno-economic analysis of the electricity production from banana stem bioethanol presented low operating cost, net production cost, and electricity cost compared to the dominating fossil fuel, diesel fuel of the international fuel market. In addition, environmental analysis simulated 97,161 kg/year CO₂ emission from this process which is 2.5 times less than the diesel emission and 513 kg/year SO₂ which is a similar range with diesel emission. This study recommends producing bioethanol from wasted banana stem in mercantile approach and blending with diesel fuel to generate electricity what will be economically sound and environmentally benign.

This study presented the highest bioethanol amount from wasted banana stem among all the studies performed earlier. Besides the highest bioethanol content, this study initiated an applied design to generate electricity from this bioethanol, which is the prior novelty of this project. Beyond transportation fuel applications, this design presented a new window for diversification of bioethanol implications. That could be a new fuel outlook for the pilot and large-scale bioethanol production, which can accumulate waste biomass besides regular feedstock. Hence, it may be a significant contribution to waste management, reduction of greenhouse gases, and cleaner production.
