A Self-Contained Electro-Hydraulic Cylinder with Passive Load-Holding Capability

Abstract

Self-contained electro-hydraulic cylinders have the potential to replace both conventional hydraulic systems and the electro-mechanical counterparts enhancing energy efficiency, plug-and-play installation, and reduced maintenance. Current commercial solutions of this technology are limited and typically tailor-made, whereas the research emphasis is primarily on cost efficiency and power applications below five [kW]. Therefore, there is the need of developing more flexible systems adaptable to multiple applications. This research paper offers a contribution in this regard. It presents an electro-hydraulic self-contained single-rod cylinder with passive load-holding capability, sealed tank, capable of recovering energy, and scalable up to about eighty [kW]. The system implementation on a single-boom crane confirms its feasibility: The position tracking error remains well within ±2 [mm], oscillations are limited, and the overall energy efficiency is about 60 [%] during actuation. Concerning the passive load-holding devices, it is shown that both vented and non-vented pilot-operated check valves achieve the desired functioning and can hold the actuator position without consuming energy. Additional observations about the size and the arrangement of the load-holding valves are also provided. In conclusion, this paper demonstrates that the proposed self-contained cylinder can be successfully extended to several practical applications, especially to those characterized by overrunning external loads and the need of securing the actuator position.

1. Introduction

Linear actuators capable of delivering high forces to perform heavy-duty operations are commonplace in many fields of industry. Lifters, earth-moving or construction machines, manufacturing processes, and oil drilling applications are a few examples. Since energy efficiency, plug-and-play installation, and reduced maintenance are becoming crucial characteristics in these areas, there is an ongoing tendency to replace standard valve-controlled hydraulic cylinders with the electro-mechanical counterparts (e.g., roller-screw actuators directly driven by electric motors [1]). Nevertheless, these electro-mechanical solutions are unsuitable in several applications such as offshore oil drilling [2], mainly due to the limited reliability (i.e., unexpected impact forces and overloads damage the screw). An alternative approach makes use of self-contained electro-hydraulic cylinders (SCCs). They are, according to the definition used in this paper, self-sufficient linear hydraulic actuators controlled by a local hydraulic unit that is driven by a dedicated electric motor. A sealed tank is essential and additional components such as flow balancing valves and load-holding valves might be required. Figure 1 provides a simplified example of a SCC, even though multiple system architectures are conceivable. More in general, this approach intends to:

• Ensure high energy efficiency (i.e., suitable hydraulic layouts are chosen),
• Achieve compactness (i.e., the built-in components are arranged ad hoc),
• Allow plug-and-play commissioning (i.e., the system only requires a wired connection to the electrical power source),
• Enhance flexible installation (i.e., a centralized hydraulic power supply is not required anymore, long hydraulic transmission lines are removed, and the closed-circuit layout characterized by a sealed reservoir can be tilted without leaking out fluid).

Countless applications will benefit from such a drive solution. A few examples are cranes, presses, gripper arms for offshore pipe handling, marine jack plates, trailer lifts, scissors tables, positioning systems for solar panels, and Stewart platforms.

In regard to what has been done so far, a limited number of commercial SCCs were introduced to the market, mainly using single-rod cylinders [3]; those are typically tailor-made solutions restricted to some niche applications because exceptional design effort is needed. It is the authors’ opinion that this circumscribed use of SCCs is mainly due to the lack of consistent investigations aimed at identifying cost-effective system architectures adaptable to multiple applications.

Concerning the research activities connected to SCCs, emphasis is primarily on cost efficiency [4], thermal behavior [5], and low power applications below 5 [kW] [6,7]. Employing valve-less architectures to control the hydraulic actuators is commonplace since higher energy efficiency is achieved. Scenarios involving passive load-holding capability (i.e., maintaining the piston position without delivering any power) are seldom addressed, as shown in the next section. There is, therefore, the need of developing a SCC adaptable to the changing requirements of multiple applications and sustainable as a valid alternative to electro-mechanical systems.

This research paper presents a system architecture for an electro-hydraulic self-contained single-rod cylinder in closed-circuit configuration with passive load-holding capability, sealed tank, capable of recovering energy, and suitable for power levels above 5 [kW] representative of many hydraulic machines. Effort is dedicated to motivating the introduction of such a system, to experimentally confirm that the desired performance is achieved in terms of both actuator’s position tracking and energy efficiency, and to better understanding the load load-holding capability (insight on the design of the load-holding valves and on their settings is given as well as on their arrangement in the hydraulic layout). This work significantly extends a previous conference publication [8] where a numerical analysis of a SCC that meets the aforementioned requirements is proposed. Specifically, this paper makes the following novel contributions: An improved system architecture, the implementation of the SCC on a test-bed, the experimental validation of the proposed dynamic model, the analysis of the system performance, and noteworthy considerations about the load-holding valves not traced in the technical literature.

2. Literature Survey

Due to the limited literature on SCCs, this survey also covers generic valve-less systems that might be converted into self-contained solutions. The main reason for focusing on valve-less layouts is their potential for high energy efficiency (i.e., throttle-related losses in control valves are removed and energy recovery can be easily implemented). In fact, conventional valve-controlled systems waste a considerable percentage of the input energy in control valves (e.g., about 35 [%] in working cycles of load-sensing excavators [9]). Previous investigations about throttle-less concepts showed fuel savings up to 40 [%] in comparison to standard hydraulics [10].

Relevant valve-less systems that drive linear actuators can be classified depending on the following closed-circuit layouts:

• Variable-displacement hydraulic unit and fixed-speed prime mover. The actuator motion is controlled by varying the displacement of the hydraulic pump/motor. This approach is prevalent among multi-actuator machines (e.g., compact excavators [10]) since a unique charge pump supplies the displacement adjustment system of each unit. The prime mover can be either a combustion engine or an electric motor.
• Fixed-displacement hydraulic unit and variable-speed prime mover. Regulating both the angular speed and the direction of rotation of the prime mover’s shaft controls the actuator motion [3,11,12,13]. The electric prime mover can be either a synchronous machine [11] or an asynchronous machine [14].
• Variable-displacement hydraulic unit and variable-speed prime mover. Both the electric prime mover and the hydraulic unit actively control the actuator motion [15].

Narrowing the search field to case #2, this approach minimizes the number of control elements when compared to case #3 (i.e., a much cheaper fixed-displacement hydraulic unit is selected) and simplifies the hydraulics if related to case #1 (i.e., the pressure source dedicated to adjusting the unit displacement is not needed).

Moreover, a competing valve-less solution that does not fall under any of these three categories is gaining ground. It is based on multiple fixed-displacement pumps/motors driven by a common variable-speed prime mover. Alternatives with two hydraulic units [6,16,17,18] or with three hydraulic units [19,20,21] exist.

Regarding the hydraulic actuator, double-rod cylinders are almost exclusively used in the aerospace industry [22,23,24,25,26]. When compared to the single-rod design, the double-rod configuration increases the installation space and delivers a reduced output force for a given pressure. Thus, single-rod cylinders are the most popular solution for at least 80% of the electro-hydraulic drives [27]. Balancing the differential flow dictated by the unequal piston areas is, therefore, essential to implement a closed-circuit architecture. Various flow compensation methods were investigated in the past, mainly involving pilot-operated check valves [28], shuttle valves [13], or electrically-operated on/off valves [29]. Some issues related to instability and uncontrolled pressure oscillations were mentioned for shuttle valves [13] and for pilot-operated check valves [30], respectively. However, this is typically the case under high dynamic excitations of the system [3] (i.e., operating conditions that might be representative of some low-power applications). Other flow compensation alternatives were explored such as hydraulic transformers, three-port asymmetric piston pumps, or multiple gear pumps.

Table 1. Methods for compensating the differential flow.

Methods	References
Hydraulic transformers	[31,32,33]
Pilot-operated check valves	[10,28,34,35,36,37,38]
Inverse shuttle valve	[3,39,40]
3-port asymmetric pump	[41,42,43,44]
Two cylinders in parallel	[45]
Multiple fixed-displacement pumps	[6,16,17,18,19,20,21,46]

provides a synthesis of these options.

Additionally, limited researches addressed passive load-holding capabilities for SCCs. This feature serves the purpose of maintaining a given actuator position without supplying any power to the system. A first solution is a commercialized system [47,48] where pilot-operated check valves (POCVs) are installed between the pump and the actuator. The hydraulic connections are arranged in such a manner that each opening pilot line of the POCVs is sensing the pressure of the opposite pump side. A similar approach is also presented in Reference [49]. Then, an interesting method to control the opening pilot of POCVs is discussed in References [37,38] and in Reference [50], even though this technique is not intended for SCCs. Alternatively, passive load-holding systems grounded on counterbalance valves were studied in Reference [12] and References [51,52], but they cannot recover energy.

Table 2. Self-contained cylinders: concepts and characteristics.

Architectures	4Q	PLH	References
Multiple fixed-displacement pumps	No	No	[27]
Multiple fixed-displacement pumps	Yes	No	[11,20,21]
Inverse shuttle valves	Yes	No	[3,5,6,13,53]
Compact system	Yes 1	Yes	[12,51]
Electro-hydraulic actuator	No	Yes	[47,48,49]

¹ No energy recovery.

summarizes the system architectures for the SCCs addressed in this survey. Details about the presence of the passive load-holding capability (P_LH) are listed, as well as the possibility of performing four quadrant operations (4Q) that refer to piston extension and to piston retraction with both resistant and overrunning external loads acting on the actuator.

In conclusion, the idea behind electro-hydraulic self-contained cylinders is to combine the advantages of standard hydraulic actuators (i.e., reliability and high power-to-weight ratio) with the benefits of electro-mechanical drives (i.e., energy efficiency, minimal maintenance, and simple plug-and-play commissioning). Extra requirements such as compactness, robustness, and reduced costs are also of interest due to their relevance in both industrial and mobile applications [3,17].

3. The System under Investigation

According to the literature review, the requirements for SCCs listed in the introduction are not met by previously published solutions (several systems only represent a partial fit according to Table 2). Hence, some of these features were combined accordingly to create the proposed SCC.

3.1. System Architecture

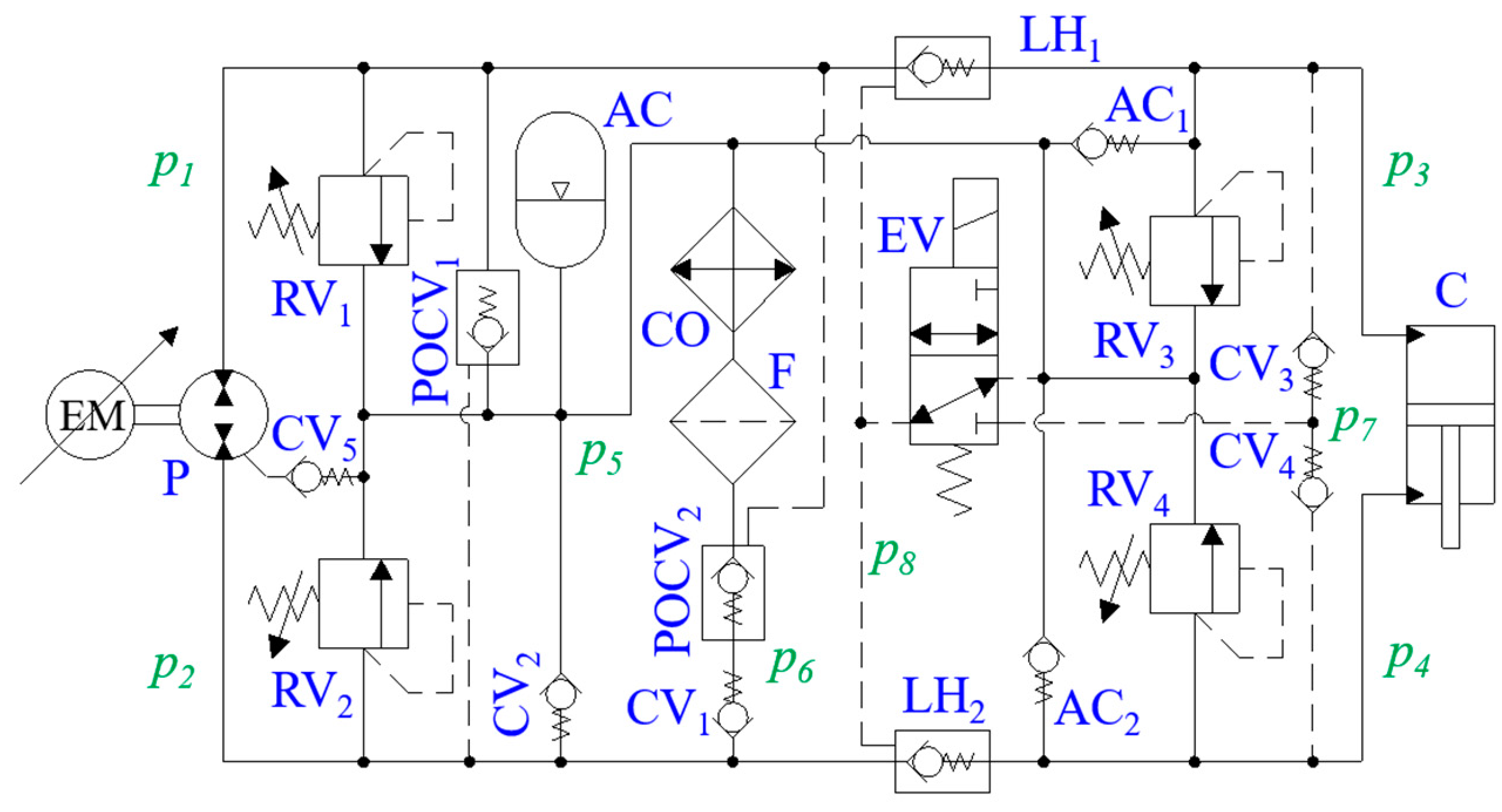

Figure 2 depicts the self-contained cylinder discussed in this investigation. The system operates in four quadrants, includes passive load-holding devices, can recover energy, has a sealed reservoir, and is suitable for power levels up to at least 80 [kW].

The combination of an electric servo-motor (EM) and of a fixed-displacement hydraulic unit (P) drives the single-rod double-acting cylinder (C) arranged in a closed-circuit configuration. The differential flow dictated by the piston’s unequal areas is balanced by two pilot-operated check valves (POCV_1→2) and by two check valves (CV_1→2). The low-pressure accumulator (AC) represents the sealed reservoir of the SCC. The pilot-operated check valves LH₁ and LH₂ (i.e., the load-holding valves) create the passive load-holding capability by isolating the actuator when the 3/2 electro-valve (EV) is de-energized. Conversely, energizing the EV results in transferring the highest actuator pressure into the opening pilot line of the two load-holding valves (the check valves CV_3→4 select the dominant value among the pressures in the cylinder chambers); this enables the actuator motion. As can be seen, the EV is repositioned by the spring force in case of power failure, securing the load-holding function. Pressure-relief valves (RV_1→4) are installed on both pump ports and on both actuator ports to avoid over-pressurizations during actuation and throughout passive load-holding. Anti-cavitation valves (AC_1→2) are also connected to the actuator chambers. A cooler (CO) and a filter (F) are comprised in the system. The cooler can be easily removed if it is not necessary.

Figure 3 takes advantage of a simplified system representation to outline the operating condition in each quadrant when the passive load-holding capability is deactivated (i.e., EV is energized). Flow directions and pressure levels are emphasized: The red color denotes the high-pressure side, the blue color designates the low-pressure side, Q_p is the cylinder flow on the bore-side, Q_r is the cylinder flow on the rod-side, and Q_d = Q_p − Q_r represents the differential flow. For a given speed of the servo-motor, the actuator velocity is higher in the left half-plane because the pump/motor flow is going to (or is coming from) the actuator’s rod-side chamber that has a smaller piston area than the bore-side. More importantly, it should be noted that this system architecture fits particularly well with applications characterized by frequent overrunning loads acting on the actuator (e.g., cranes); the differential flow is, in fact, forced to go through both the filter and the cooler during operations in the IV quadrant, ensuring proper fluid conditioning.

3.2. Control Algorithm

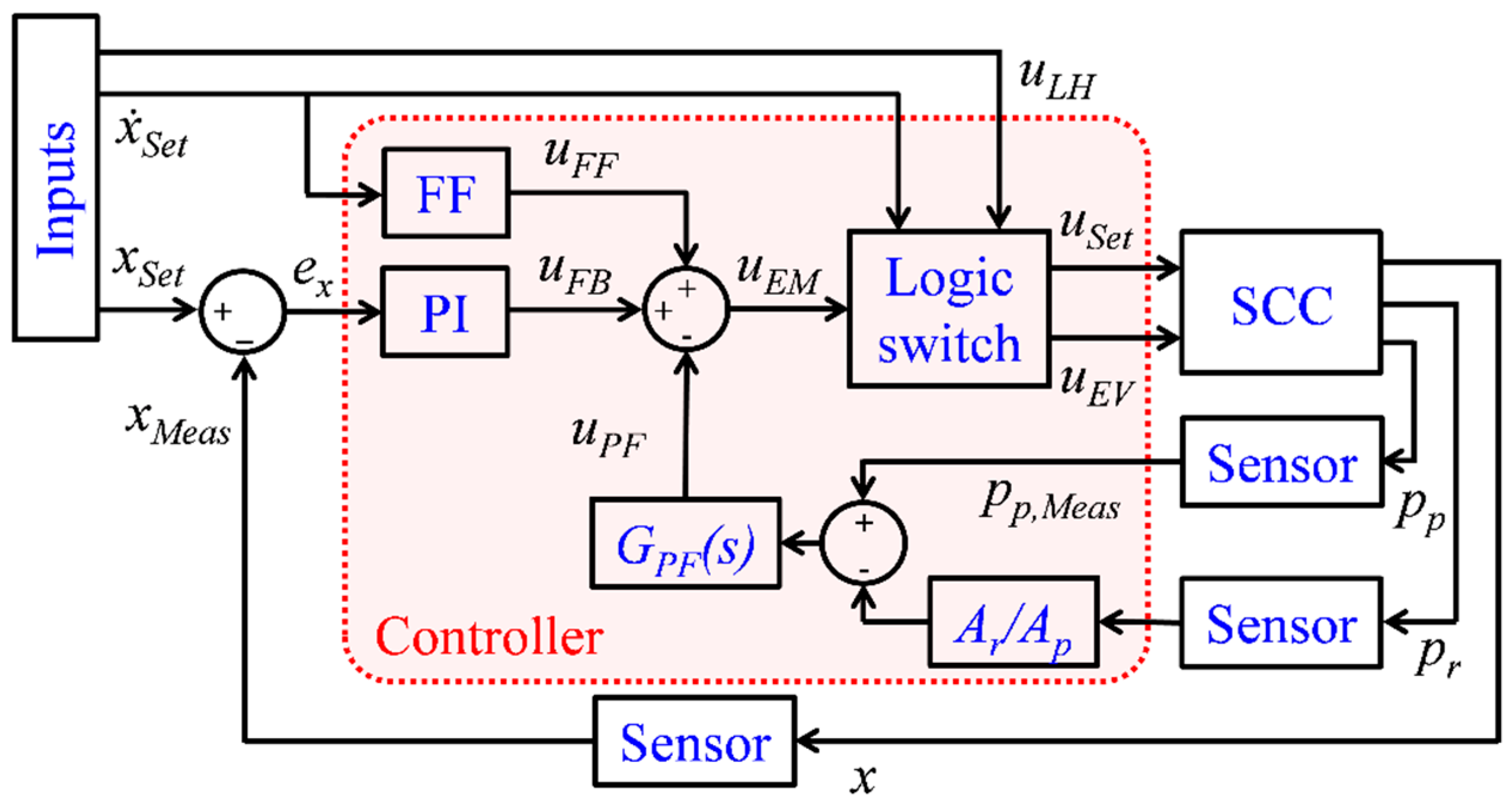

The control algorithm designed for this SCC generates a reference speed for the electric servo-motor in order to track the commanded position of the linear actuator. The control logic emerges from the block diagram proposed in Figure 4. A feedforward controller (FF) estimates the required servo-motor speed (u_FF) via (1), depending on the operating condition (there are different formulations for each quadrant). The actuator’s bore-side area (A_p), the rod-side area (A_r), the pump/motor displacement (D), and a constant volumetric efficiency (e.g., η_v = 0.95 in motoring mode and η_v = 1 in pumping mode) are recalled.

$$u_{FF}=\{\begin{array}{ccc}\frac{{\dot{x}}_{Set}·A_p}{D·{\eta }_v}& \mathrm{if}\dot{x}\ge 0 \& \Delta p\ge 0& \left(\mathrm{i}.\mathrm{e}.,\mathrm{I}\mathrm{quadrant}\right)\\ \frac{{\dot{x}}_{Set}·A_r·{\eta }_v}{D}& \mathrm{if}\dot{x}\ge 0 \& \Delta p<0& \left(\mathrm{i}.\mathrm{e}.,\mathrm{II}\mathrm{quadrant}\right)\\ \frac{{\dot{x}}_{Set}·A_r}{D·{\eta }_v}& \mathrm{if}\dot{x}<0 \& \Delta p<0& \left(\mathrm{i}.\mathrm{e}.,\mathrm{III}\mathrm{quadrant}\right)\\ \frac{{\dot{x}}_{Set}·A_p·{\eta }_v}{D}& \mathrm{if}\dot{x}<0 \& \Delta p\ge 0& \left(\mathrm{i}.\mathrm{e}.,\mathrm{IV}\mathrm{quadrant}\right)\end{array}$$

(1)

The proportional-integral controller (PI) in the position feedback loop corrects the prediction of the feedforward term by manipulating the position error (e_x). The proportional gain k_P = 90 [rev/(min·mm)] and the integral gain k_I = 300 [rev/(min·mm·s)] generate the corresponding feedback command (u_FB).

Additionally, a negative pressure feedback term (u_PF) adds damping to the system by canceling out pressure oscillations. This is done by filtering the measured actuator pressures using a first-order high-pass filter (2). Its cut-off frequency is ω_PF = 3 [rad/s], whereas the small filter gain k_PF = 5 × 10⁻⁵ [rev/min/Pa] is due to the input being [Pa].

$$G_{PF}\left(s\right)=k_{PF}·\frac{s}{s+{\omega }_{PF}}$$

(2)

The resulting speed command for the servo-motor (u_EM) is then sent through the logic switch and finally propagated to the SCC. The logic switch sets the commanded motor speed (u_Set) to zero when actuator motion is not desired (i.e., when |ẋ_Set| < 0.005 [mm/s]) otherwise it does not affect the signal. At the same time, the logic switch generates the command (u_EV) directed to the 3/2 electro-valve that engages, or disengages, the load-holding capability. If the load-holding enabler (u_LH) is active (this means passive load-holding is wanted), then the EV is energized when ẋ_Set is non-zero or de-energized when ẋ_Set is zero and the position error is smaller than two [mm]. If passive load-holding is not desired (i.e., u_LH is switched off), then the EV is energized independently of ẋ_Set.

4. Experimental Set-Up

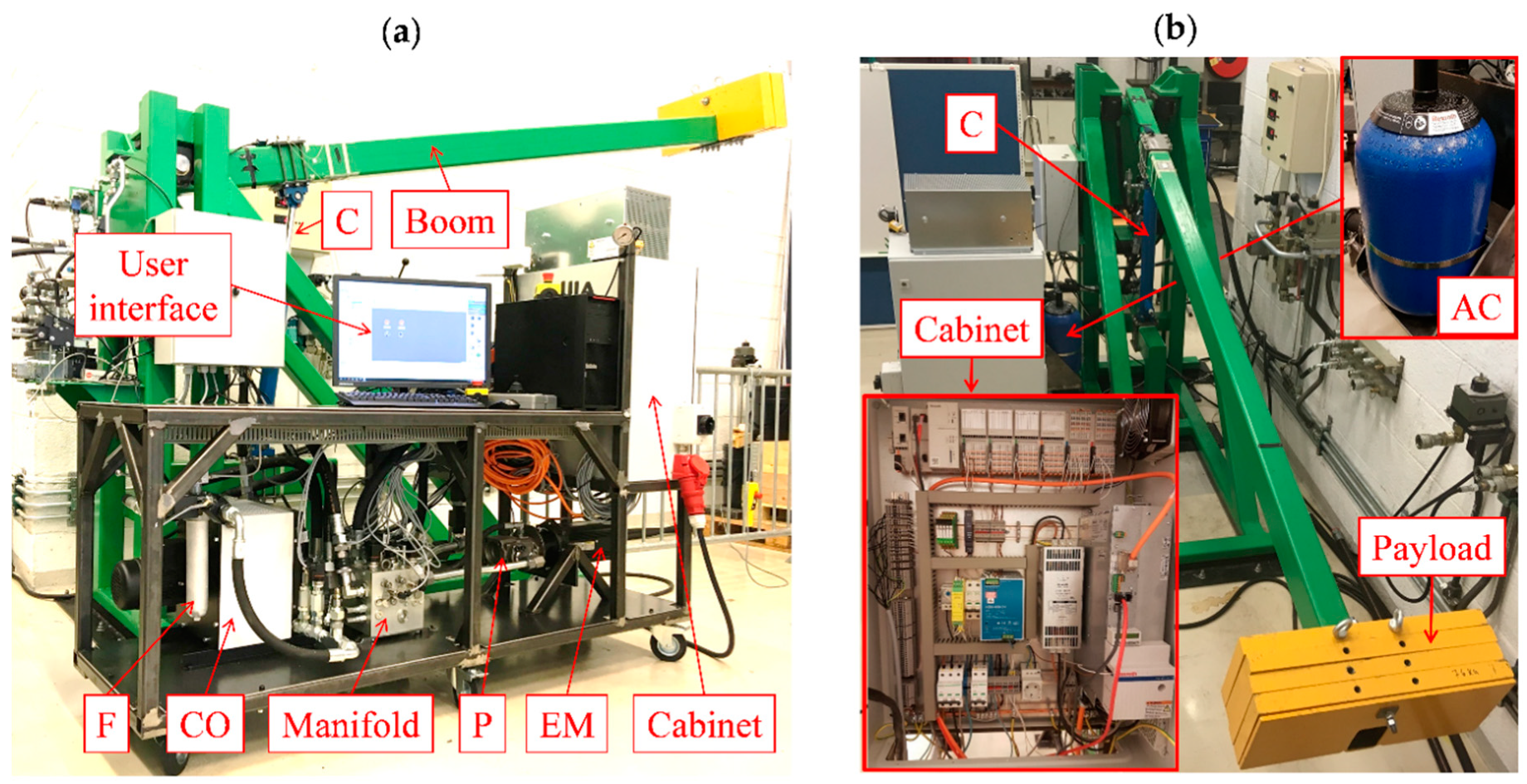

An experimental test-bed was commissioned to drive a single-boom crane available at the University of Agder (Figure 5). This representative application was selected since it encompasses different operating conditions such as motion against both resistant external loads (i.e., I quadrant) and overrunning external loads (i.e., IV quadrant). It also offers the opportunity of testing the passive load-holding capability. Furthermore, this crane challenges the performance of the SCC because the mechanical structure was specifically designed to enhance oscillations (originally, the crane was driven by a valve-controlled system [54]). More details about the crane are available in Appendix A.

Regarding the SCC, the selected servo-motor is a PMSM Bosch Rexroth MSK071E-0300 with a dedicated driver IndraDrive HCS02. The axial-piston swashplate unit A10F has a displacement of 10.6 [cm³/rev]. The cylinder PMC 25CA has piston diameter of 65 [mm], rod diameter of 35 [mm], and stroke of 500 [mm]. The load-holding valves (Sun Hydraulics CVEVXFN) have area ratio 3:1 and cracking pressure of seven [bar], whereas the other POCVs (Sun Hydraulics CKEBXCN) have the same area ratio, but cracking pressure of two [bar]. The opening pilot for the load-holding valves is selected by means of check valves Hawe Hydraulics RB2 with cracking pressure of 0.1 [bar] and of a 3/2 directional control valve Argo Hytos SD1E. The additional check valves Hawe Hydraulic RK4 still have cracking pressure of 0.1 [bar], whereas the pressure-relief valves Sun Hydraulics RDDA have cracking pressure of 200 [bar]. A tailor-made manifold houses these valves. A Bosch Rexroth cooler KOL3N (cooling power up to 3 [kW]) and a filter 50LEN0100 are used to condition the oil ISO VG 46.

In terms of sensors, the servo-motor comes standard with an encoder. A position sensor Regal PS6310 monitors the actuator’s piston position. Transducers Bosch Rexroth HM20 measure the pressures p_1→5. Finally, MATLAB-Simulink® is used for control and data acquisition. The software IndraWorks translates the control algorithm into machine code that runs at a frequency of 1000 [Hz] on the PLC IndraControl XM22.

5. System Modeling and Validation

Multiple dynamic models of the SCC were created and simulated in MATLAB-Simulink®.

5.1. The Dynamic Modeling of the System

The electric servo-motor was modeled using a second-order transfer function (3) from commanded to simulate shaft speed where the natural frequency and the damping ratio are ω_n = 5 [Hz] and ζ = 0.99, respectively.

$$G_{EM}\left(s\right)=\frac{{\omega }_n^2}{s^2+2·{\omega }_n·\zeta ·s+{\omega }_n^2}$$

(3)

The hydraulics was simulated by means of a consolidated approach. The effective fluid’s bulk modulus (β_i) in the i-th hydraulic capacitance was modeled via Equation (4).

$${\beta }_i=\frac{1}{\frac{1}{{\beta }_O}+{\epsilon }_{A,i}·\left(\frac{1}{{\beta }_{A,i}}-\frac{1}{{\beta }_O}\right)}$$

(4)

The different terms are the oil’s bulk modulus (β_O = 7500 [bar]), the air’s bulk modulus (β_A,i) calculated as β_A,i = γ·p_i with γ being the adiabatic air constant and p_i the pressure in the capacitance, and the volumetric air content (ε_A,i), which is obtained according to Equation (5). This equation recalls the atmospheric pressure (p_atm) and the volumetric air content of the oil at atmospheric pressure (ε_A,0 = 0.015 [%]).

$${\epsilon }_{A,i}=\frac{1}{\frac{1-{\epsilon }_{A,0}}{{\epsilon }_{A,0}}·{\left(\frac{p_{atm}}{p_i}\right)}^{-\frac{1}{\gamma }}+1}$$

(5)

The well-known pressure build-up equation was applied several times to evaluate the pressures p_1→8 labeled in Figure 2. The resulting expressions are reported in Equations (6)–(13) where the effective bulk modulus (β_i), the appropriate flow rates (Q_i), and the suitable volumes of the hydraulic capacitances (V_i) are considered accordingly.

$${\dot{p}}_1=\frac{{\beta }_1·\left(Q_{e,P}+Q_{POCV,1}-Q_{LH,1}-Q_{RV,1}\right)}{V_{1,0}}$$

(6)

$${\dot{p}}_2=\frac{{\beta }_2·\left(-Q_{e,P}-Q_{CV,1}+Q_{CV,2}-Q_{LH,2}-Q_{RV,2}\right)}{V_{2,0}}$$

(7)

$${\dot{p}}_3=\frac{{\beta }_3·\left(Q_{LH,1}-A_p·\dot{x}-Q_{RV,3}+Q_{AC,1}-Q_{CV,3}\right)}{V_{3,0}+A_p·x}$$

(8)

$${\dot{p}}_4=\frac{{\beta }_4·\left(Q_{LH,2}+A_r·\dot{x}-Q_{RV,4}+Q_{AC,2}-Q_{CV,4}\right)}{V_{4,0}+A_r·\left(x_{Max}-x\right)}$$

(9)

$${\dot{p}}_5=\frac{1}{C_{H,5}}·\left({\displaystyle \sum _{i=1}^4{Q}_{RV,i}+Q_{EV}-Q_{POCV,1}-Q_{POCV,2}-Q_{AC,1}-Q_{AC,2}-Q_{CV,2}}\right)$$

(10)

$${\dot{p}}_6=\frac{{\beta }_6·\left(Q_{CV,1}+Q_{POCV,2}\right)}{V_{6,0}}$$

(11)

$${\dot{p}}_7=\frac{{\beta }_7·\left(Q_{CV,3}+Q_{CV,4}-Q_{EV}\right)}{V_{7,0}}$$

(12)

$${\dot{p}}_8=\frac{{\beta }_8·Q_{EV}}{V_{8,0}}$$

(13)

The volumes of the transmission lines (V_i,0) are assumed constant whereas the equations related to the actuator require the piston areas, the piston position (x), and the cylinder stroke (x_Max). The capacitance C_H,5 used in the pressure build-up equation associated to the hydro-pneumatic accumulator is elucidated in Equation (14). Among other terms, it involves the effective accumulator gas volume (V_AC,0 = 9.2 [L]) and the pre-charge pressure of the accumulator (p_AC,0 = 0.05 [bar]).

$$C_{H,5}=\frac{V_{5,0}}{{\beta }_5}+\frac{V_{AC,0}}{\gamma }·\frac{p_{AC,0}{}^{\frac{1}{\gamma }}}{p_5{}^{\frac{\gamma +1}{\gamma }}}$$

(14)

Concerning the flow rates, the contributions ascribed to the different components are clarified in the sequel. The flow rates through the POCVs (Q_POCV,i) are computed by means of the orifice Equation (15). It comprises the pressure differential across the valve (Δp_i), the discharge coefficient (C_d), the seat diameter (d_i), the poppet lift (y_i), and the fluid density (ρ).

$$Q_{POCV,i}=C_d·\pi ·d_i·y_i·sign\left(\Delta p_i\right)·\sqrt{\frac{2}{\rho }·\left|\Delta p_i\right|}$$

(15)

If a POCV is not closed, two operating modes characterize its functioning. The “normal flow” condition takes place when the pilot stage is detached from the poppet. Conversely, the valve is subjected to “reverse flow” if the pilot stage and the poppet are in contact. In the case of a non-vented valve (Figure 6 depicts alternative designs), an opening pilot pressure lower than the inlet pressure is the prerequisite for “normal flow” (i.e., p_x < p_In). The poppet lift always results from the force equilibrium that is expressed differently and is contingent on “normal flow” (16) or “reverse flow” (17).

$$y_i=\frac{\left(p_{In,i}-p_{Out,i}\right)·A_{S,i}-F_{S0,i}}{k_{S,i}}$$

(16)

$$y_i=\frac{\left(p_{x,i}-p_{In,i}\right)·A_{x,i}+\left(p_{In,i}-p_{Out,i}\right)·A_{S,i}-F_{S0,i}}{k_{S,i}}$$

(17)

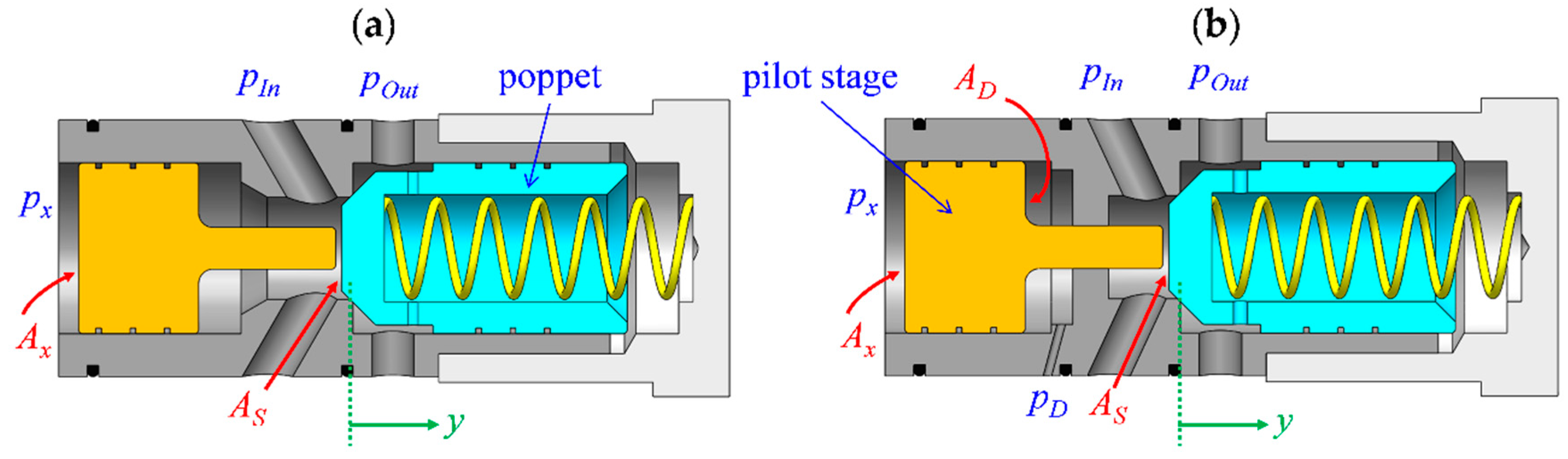

The areas of the poppet seat (A_S,i) and of the pilot stage (A_x,i) are introduced in the previous equations as well as the spring stiffness (k_S,i) and the spring’s pre-load force (F_S0,i). The poppet dynamics is simulated via a first-order transfer function with time constant τ = 0.05 [s].

If a POCV comes in the vented version, the previous definition of the operating modes holds true, but the criterion for “normal flow” becomes p_x · A_x < p_D · A_D + p_In · (A_x – A_D). The force balance for the “normal flow” condition is still given by Equation (16), whereas it is described in Equation (18) for the other operating mode. The pilot stage’s area inside the drain chamber (A_D,i) and the drain pressure (p_D,i) are included.

$$y_i=\frac{1}{k_{S,i}}·[\left(p_{x,i}-p_{In,i}\right)·A_{x,i}+\left(p_{In,i}-p_{Out,i}\right)·A_{S,i}+\left(p_{In,i}-p_{D,i}\right)·A_{D,i}-F_{S0,i}]$$

(18)

The orifice equation also provides the flow rate through the electro-valve (Q_EV). The only difference from the formulation given in Equation (15) is about the flow area that depends on the valve command. Then, the flow rate of both the CVs and the RVs is computed according to Equation (19). The evoked parameters are the valve flow gain (k_v,i), the cracking pressure (p_c,i), the inlet pressure (p_In,i), and the outlet pressure (p_Out,i).

$$Q_i=\begin{array}{cc}\{\begin{array}{l}0\\ k_{v,i}·\left(p_{In,i}-p_{Out,i}-p_{c,i}\right)\end{array}& \begin{array}{c}\mathrm{if}{p}_{In,i}<p_{Out,i}+p_{c,i}\\ \mathrm{if}{p}_{In,i}\ge p_{Out,i}+p_{c,i}\end{array}\end{array}$$

(19)

The effective magnitudes of the pump/motor are evaluated by means of flow losses (Q_S ≥ 0) and torque losses (T_S ≥ 0) derived from steady-state experimental data of a reference axial-piston unit with displacement equal to D_Ref [55]. The same losses are assumed for all quadrants and are scaled to the desired pump displacement (D) by using the scaling laws elucidated in Equation (20) that refer to the quantities of the reference unit denoted by the subscript “Ref”. The scaling factor (λ), the unit’s shaft speed (ω), and the losses of the reference unit are involved.

$$\begin{array}{ccc}\lambda =\sqrt[3]{\frac{D}{D_{Ref}}}& \to & \{\begin{array}{c}{\omega }_{Ref}=\lambda ·\omega \\ Q_S={\lambda }^2·Q_{S,Ref}\\ T_S={\lambda }^3·T_{S,Ref}\end{array}\end{array}$$

(20)

The effective flow rate of the pump/motor (Q_e,P) is elucidated in Equation (21) for operations in the I quadrant and in the IV quadrant (the sign convention accounts for the functioning in pumping or in motoring mode). The flow losses are completely attributed to internal leakages.

$$Q_{e,P}=D·\omega -Q_S$$

(21)

The computation of the pump/motor’s effective shaft torque (T_e,P) expressed in Equation (22) requires the pressure differential across the unit (Δp).

$$T_{e,P}=\{\begin{array}{c}\begin{array}{cc}\hfill \frac{D·\Delta p}{2·\pi }+T_S& \left(\mathrm{I}\mathrm{quadrant}\right)\hfill \end{array}\\ \begin{array}{cc}\hfill -\frac{D·\Delta p}{2·\pi }+T_S& \left(\mathrm{IV}\mathrm{quadrant}\right)\hfill \end{array}\end{array}$$

(22)

The pressure losses in the transmission lines and in the cooling/filtering unit are neglected mainly due to the compact configuration of the drive. Moreover, Equation (23) describes the actuator’s force balance where the hydraulic force (F_H) and the friction force (F_F) are clarified in Equations (24) and (25), respectively.

$$F_H=F_F+G\left(x\right)+M\left(x\right)·\ddot{x}$$

(23)

$$F_H=p_3·A_p-p_4·A_r$$

(24)

$$F_F=f_v·\dot{x}+\tanh \left(\dot{x}·a\right)·\left(F_C+F_S·e^{\frac{-\dot{x}·\tanh \left(\dot{x}·a\right)}{k_C}}\right)$$

(25)

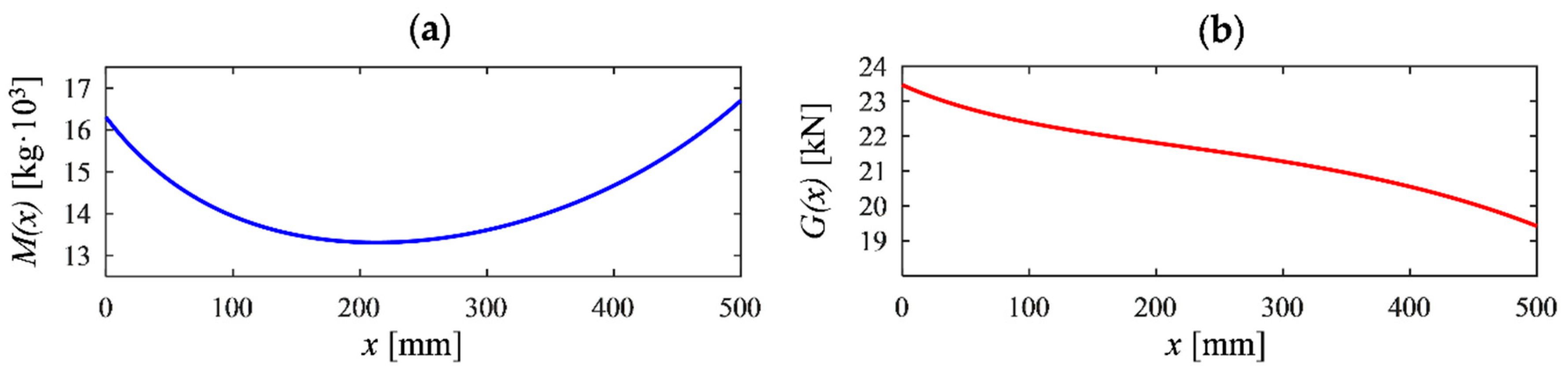

The different terms represent the pressure in the bore-side chamber (p₃), the pressure in the rod-side chamber (p₄), the viscous friction coefficient (f_v = 4 × 10³ [kg/s]), the Coulomb force (F_C = 75 [N]), the static friction force (F_S = 500 [N]), the static friction force’s constant (k_C = 0.02 [m/s]), the equivalent mass of the system M(x), and the gravitational load G(x) on the actuator. The friction in the joint of the crane is lumped into the friction of the linear actuator whereas the hyperbolic tangent is used to prevent numerical issues such as discontinuities (the dimensionless tuning parameter is set equal to a = 250). Figure 7 depicts the variation of both G(x) and M(x) as a function of the piston position (Appendix A); the Coriolis and the centripetal terms are neglected due to their minimal influence.

Regarding the overall system efficiency (η_SCC), the mechanical power at the load/actuator interface (P_C) and the servo-motor’s electrical power (P_EM) are addressed. The latter term involves the armature current (i_A) and the torque constant of the machine (k_T = 2.05 [N·m/A]). The ratio of the output energy over the input energy of the SCC is calculated via Equation (26).

$${\eta }_{SCC}=\{\begin{array}{c}\begin{array}{ccc}\frac{P_C}{P_{EM}}=\frac{\left(F_H-F_F\right)·\dot{x}}{i_A·k_T·\omega }& \mathrm{if}& P_{EM}\ge 0\end{array}\\ \begin{array}{ccc}\frac{P_{EM}}{P_P}=\frac{i_A·k_T·\omega }{\left(F_H-F_F\right)·\dot{x}}& \mathrm{if}& P_{EM}<0\end{array}\end{array}$$

(26)

Diverse formulations are used if the electrical energy is supplied, or if the regenerative functioning is taking place (i.e., P_EM < 0).

5.2.Open-Loop Model Validation

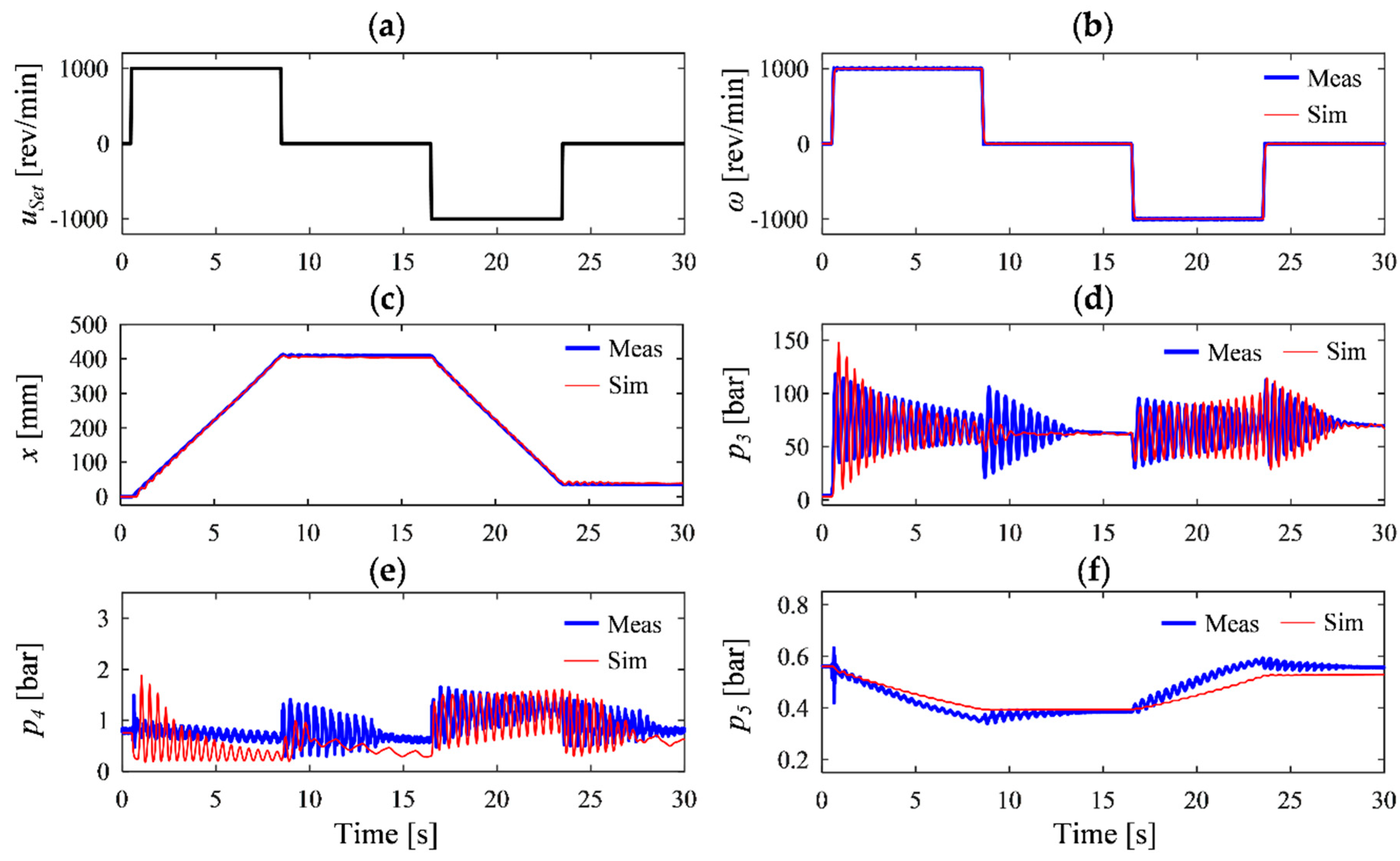

The complete dynamic model of the SCC was validated against experimental data. The applied open-loop command (i.e., the desired speed for the electric motor) generates typical working conditions such as extension and retraction of the actuator. The results proposed in Figure 8 show good agreement among measured and simulated quantities, confirming the high-fidelity nature of the model. Consequently, it represents a meaningful tool for further analyses.

6. Closed-Loop System Performance

A representative working cycle with both active load-holding operations (A_LH) and passive load-holding operations (P_LH) serves the purpose of analyzing the system performance when the SCC is controlled in closed-loop according to the algorithm illustrated in Figure 4. The trend of the commanded position selected for this test implies a piston velocity equal to 150 [mm/s] during actuation, that represents the upper limit for the experimental set-up.

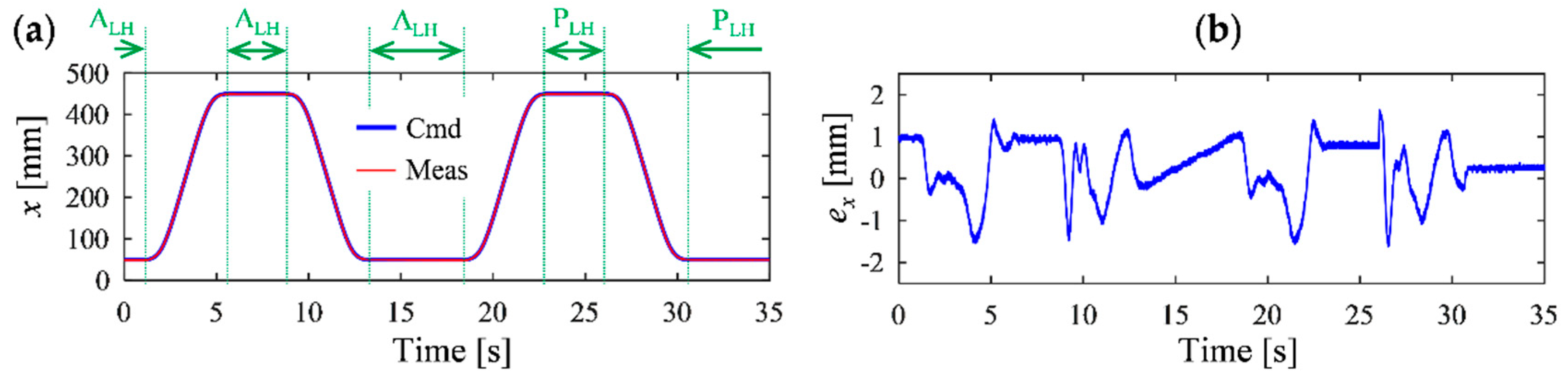

The agreement between the commanded and the measured actuator position presented in Figure 9 is satisfactory since the error falls well within ±2 [mm]. In fact, the expected accuracy for hydraulic cranes is typically worse as the maximum position error is frequently higher than 15 [mm] [56,57].

The servo-motor speed shown in Figure 10 (i.e., the control effort of this electro-hydraulic system) remains within the recommended limits of the machine (about ±3200 [rev/min]) and its variation is mostly smooth.

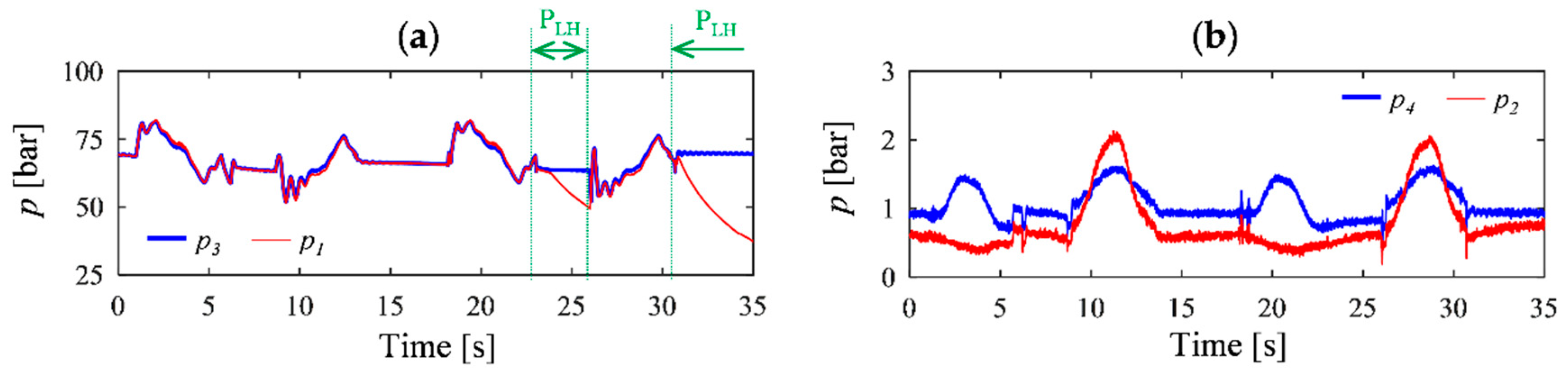

The relevant system pressures are presented in Figure 11. They vary, as expected, showing stable behavior and smooth transitions between different operating conditions; this result is a key aspect because standard hydraulic cranes equipped with load-holding valves are usually characterized by a disturbing oscillatory behavior (this is also the case for the crane used in this investigation when powered by a conventional load-sensing system [54]). Regarding the pressures in the bore-side of the SCC, the difference between p₁ and p₃ during passive load-holding is due to the leakages across the pump/motor.

Concerning the load-holding valves, Figure 12 highlights the poppet position and the command directed to the on/off electro-valve that supervises the load-holding devices (the passive load-holding function is activated when the signal is equal to zero).

These POCVs do not introduce any unpleasant oscillations during motion. Most importantly, they maintain the piston position when the servo-motor is not active (this is the case between about 23–27 seconds and 31–35 seconds).

Finally, the overall energy efficiency of the system is addressed in Figure 13. The average value during actuation runs in the neighborhood of 60 [%], with a slightly worse performance during regenerative functioning. This means the SCC can be considered efficient when compared to conventional valve-controlled circuits (e.g., [9]). Furthermore, the SCC is regenerating energy during piston retraction. This means the electric machine is outputting electrical energy that can be returned to the grid or can be stored in a dedicated device (in the case of the test-bed, the recovered electrical energy is dissipated by a resistor). The measured current (filtered signal) was used to calculate the electrical power, whereas a zero efficiency was arbitrarily assigned if |P_EM| < 0.25 [kW] to avoid numerical issues.

7. Discussion about the Load-Holding Valves

It is worth recalling that the load-holding valves represent a peculiarity of this SCC. Discussing, therefore, both their design and their arrangement is invaluable to gain deeper insight.

7.1. Design of the Pilot-Operated Check Valves

The experimental results were obtained by utilizing vented load-holding POCVs. This is the most conservative approach since the total effort required to open the poppet in a given operating condition is reduced, if compared to non-vented valves. Thus, this sub-section is about understanding how the valve design (i.e., vented or non-vented valve configuration) affects the overall system response (Figure 14).

The outcomes displayed in Figure 14 were derived by simulating non-vented load-holding POCVs where diverse values of the area ratio and of the seat diameter were considered, specifically: the “original” settings of the experimental set-up (i.e., area ratio 3:1 and seat diameter 5 [mm]), a first alternative with area ratio increased to 7:1 and seat diameter 5 [mm], and another solution with area ratio 3:1 and seat diameter raised to 9 [mm].

Choosing the vented design is not strictly necessary, even though it is advisable. The piston position is, in fact, indistinguishable if non-vented POCVs are preferred to the vented counterparts (plot a) in Figure 14). Nevertheless, the poppet of the non-vented valve LH₁, located on the bore-side of the actuator, is not completely lifted from its seat when the hydraulic cylinder is actuated (plot b) in Figure 14); this aspect does not affect the position tracking, but results in an increased pressure drop across the valve that turns out in a higher energy consumption. This drawback related to energy efficiency is mitigated if non-vented load-holding valves with enlarged nominal flow (i.e., bigger seat diameter) and/or increased pilot ratio are introduced (plot c) in Figure 14). Using these modified settings, the actuator’s position tracking is still equivalent to the reference scenario established by vented POCVs and the oscillations of the poppet diminish (plot d) in Figure 14).

7.2. Arrangement of the Pilot-Operated Check Valves

The other aspect that deserves further debate is the arrangement of the load-holding valves. The proposed SCC takes their opening pilot pressures from the actuator chambers, when the EV is energized. This approach is in contrast with some references that mention POCVs utilized as load-holding devices: In fact, the opening pilot pressures in these systems are taken from the pump/motor ports according to the diagram given in Figure 15.

The dynamic model of the SCC was adapted congruently to reflect the alteration in the configuration of the load-holding POCVs’ pilot lines and to remove the sub-system dedicated to the selection of their pilot pressure (i.e., the EV and CV_3→4). After simulating this transformed hydraulic architecture, it is therefore relevant to stress that such an approach leads to an unwanted system functioning when overrunning loads are acting on the actuator (Figure 16).

When the actuator load becomes overrunning between about 9.5–14 seconds and 27–31.5 seconds, then the load-holding valves do not stay open as desired (plot d) in Figure 16). This causes an oscillatory behavior that undermines both the position tracking (plot a) in Figure 16) and the operational safety. Enormous pressure fluctuations (plot c) in Figure 16) arise up to the maximum admitted value (a pressure-relief valve located on the bore-side is regulating, namely this solution is also characterized by inefficient functioning). Then, the control input (i.e., the commanded speed of the electric servo-motor) varies abruptly trying to match the commanded actuator position.

A similar undesirable system behavior takes place if the pilot ratio of the load-holding valves is increased (e.g., from 3:1 up to 7:1), meaning that this modified layout does not properly manage overrunning loads. Additionally, vented load-holding valves were assumed, even though non-vented components lead to equivalent results not reported for the sake of brevity.

8. Conclusions

An in-depth literature survey emphasized the need for self-contained cylinders that operate in four quadrants, include passive load-holding devices, and can deal with power levels above 5 [kW]. Consequently, this research paper gives a contribution to bridge this gap as follows:

• A novel system architecture (i.e., a solution not found in literature) of an electro-hydraulic self-contained cylinder was presented and implemented on a test-bed.
• Experimental evidence proves the expected system functioning; the maximum position error ranges well within ±2 [mm] and the passive load-holding capability maintains the actuator position when needed.
• A dynamic model of the system was developed and experimentally validated; it provides a sizing and simulation tool for future implementations.
• Insight about key parameters was given; the overall system efficiency results highly satisfactory being about 60 [%] during actuation.
• It was shown that both vented and non-vented load-holding valves achieve the desired system functioning; however, choosing the vented design is advisable.
• The drastic limitations caused by an alternative arrangement of the load-holding pilot-operated check valves traced in the technical literature were highlighted.

For these reasons, the proposed self-contained system can be successfully extended to several practical applications. Those including overrunning external loads and the need of securing the actuator position represent the natural field of application (e.g., cranes, presses, gripper arms for offshore pipe handling, marine jack plates, trailer lifts, scissors tables, positioning systems for solar panels, and Stewart platforms). Future work will cover the system implementation in real-world environments, the thermal analysis of this hydraulic architecture to minimize the cooler size, and considerations about the life estimation of key components. In particular, emphasis will be placed on scaling up the system to deal with higher power levels. It is expected to deliver up to about eighty [kW] by simply replacing some components with alternative off-the-shelf parts selected from the same catalogues used during the design of the experimental test-bed.
