# Can LiDARs Replace Meteorological Masts in Wind Energy?

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

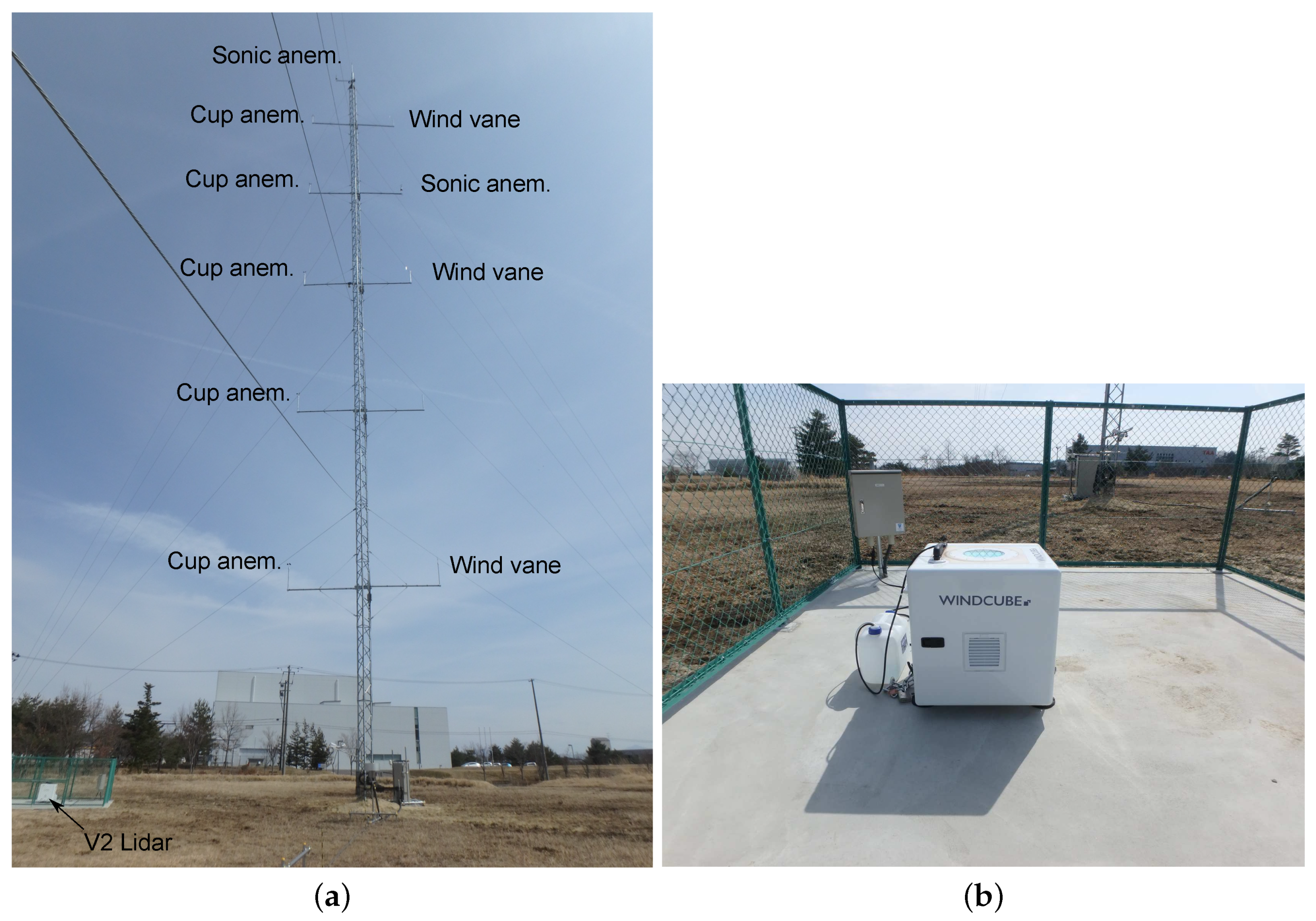

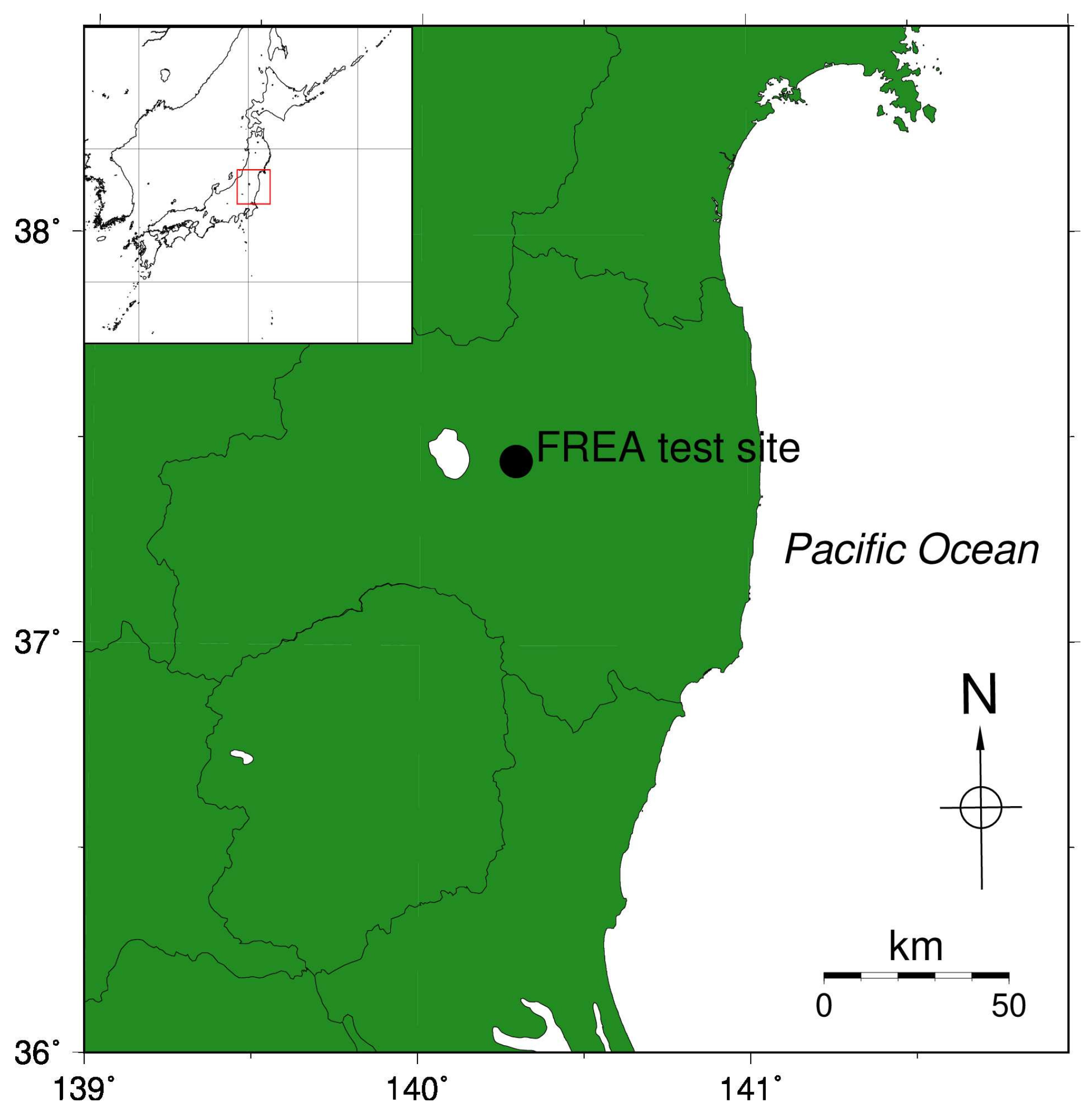

## 2. Test Site and Measurement Setup

## 3. Comparison of LiDAR Measurement with Sonic and Cup Anemometer

#### 3.1. Mean Wind Speed and Turbulence Intensity

#### 3.2. Peak Wind Speed

#### 3.3. Effect of Terrain

## 4. Wind Resource, Power and Load Comparison

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## Abbreviations

ABL | Atmospheric Boundary Layer |

CFD | Computational Fluid Dynamics |

CNR | Carrier-to-Noise Ratio |

CW | Continuous Wave |

DBS | Doppler Beam Swinging |

DEL | Damage Equivalent Loads |

DLC | Design Load Case |

IEC | International Electrotechnical Commission |

NTM | Normal Turbulence Model |

Probability Density Function | |

RIX | Ruggedness Index |

RMSE | Root-Mean-Square Error |

VAD | Velocity Azimuth Display |

## References

- Kelley, N.D.; Jonkman, B.J.; Scott, G.N. Comparing Pulse Doppler LIDAR with SODAR and Direct Measurements for Wind Assessment. In Proceedings of the AWEA2007 Conference and Exhibition, Los Angeles, CA, USA, 3–7 June 2007; p. 20. [Google Scholar]
- Scholbrock, A.; Fleming, P.; Schlipf, D.; Wright, A.; Johnson, K.; Wang, N. Lidar-Enhanced Wind Turbine Control: Past, Present, and Future. In Proceedings of the American Control Conference (ACC), Boston, MA, USA, 6–8 July 2016; pp. 1399–1406. [Google Scholar]
- IEA Wind Workshop on Lidar Measurements for Wake Assessment and Comparison with Wake Models; Technical University of Munich: Munich, Germany, 2016.
- El-Asha, S.; Zhan, L.; Iungo, G.V. Quantification of power losses due to wind turbine wake interactions through SCADA, meteorological and wind LiDAR data. Wind Energy
**2017**, 20, 1823–1839. [Google Scholar] [CrossRef] - Easterbrook, C.C. Estimating Horizontal Wind Fields by Two-dimensional Curve Fitting of Single Doppler Radar Measurements. In Proceedings of the Radar Meteorology Conference, Houston, TX, USA, 22–24 April 1975. [Google Scholar]
- Koscielny, A.J.; Doviak, R.J.; Rabin, R. Statistical considerations in the estimation of divergence from single-Doppler radar and application to prestorm boundary-layer observations. J. Appl. Meteorol.
**1982**, 21, 197–210. [Google Scholar] [CrossRef] - Krishnamurthy, R. Wind Farm Characterization and Control using Coherent Doppler Lidar. Ph.D. Thesis, Arizona State University, Tempe, Arizona, 2013. [Google Scholar]
- Smith, D.A.; Harris, M.; Coffey, A.S.; Mikkelsen, T.; Jørgensen, H.E.; Mann, J.; Danielian, R. Wind Lidar Evaluation at the Danish Wind Test Site in Høvsøre. Wind Energy
**2006**, 9, 87–93. [Google Scholar] [CrossRef] - Sathe, A.; Mann, J.; Gottschall, J.; Courtney, M.S. Can wind lidars measure turbulence? J. Atmos. Ocean. Technol.
**2011**, 28, 853–868. [Google Scholar] [CrossRef] - Gottschall, J.; Courtney, M. Verification Test for Three WindCube WLS7 LiDARs at the Høvsøre Test Site; Tech. Rep. Risø-R-1732; Technical University of Denmark: Roskilde, Denmark, 2010. [Google Scholar]
- Klaas, T.; Pauscher, L.; Callies, D. LiDAR-mast deviations in complex terrain and their simulation using CFD. Met. Z.
**2015**, 24, 591–603. [Google Scholar] [CrossRef] - Barthelmie, R.J.; Wang, H.; Doubrawa, P.; Pryor, S.C. Best Practice for Measuring Wind Speeds and Turbulence Offshore through In-Situ and Remote Sensing Technologies; Report to the Department of Energy as Partial Fulfilment of Grant EE0005379; Cornell University: Ithaca, NY, USA, 2016. [Google Scholar]
- Shimada, S.; Takeyama, Y.; Kogaki, T.; Ohsawa, T.; Nakamura, S. Investigation of the Fetch Effect Using Onshore and Offshore Vertical LiDAR Devices. Remote Sens.
**2018**, 10, 1408. [Google Scholar] [CrossRef] - Sathe, A.; Mann, J. A review of turbulence measurements using ground-based wind lidars. Atmos. Meas. Tech.
**2013**, 6, 3147–3167. [Google Scholar] [CrossRef] [Green Version] - Sathe, A.; Banta, R.M.; Pauscher, L.; Vogstad, K.; Schlipf, D.; Wylie, S. Estimating Turbulence Statistics and Parameters from Ground- and Nacelle-Based Lidar Measurements IEA Wind Task 32; DTU Wind Energy: Roskilde, Denmark, 2015. [Google Scholar]
- Wilson, D.A. Doppler Radar Studies of Boundary Layer Wind Profiles and Turbulence in Snow Conditions. In Proceedings of the 14th Conference on Radar Meteorology, Tuscon, AZ, USA, 17–20 November 1970; pp. 191–196. [Google Scholar]
- Kropfli, R.A. Single Doppler radar measurements of turbulence profiles in the convective boundary layer. J. Atmos. Ocean. Technol.
**1986**, 3, 305–314. [Google Scholar] [CrossRef] - Eberhard, W.L.; Cupp, R.E.; Healy, K.R. Doppler Lidar Measurement of Profiles of Turbulence and Momentum Flux. J. Atmos. Ocean. Technol.
**1989**, 6, 809–819. [Google Scholar] [CrossRef] [Green Version] - Sjöholm, M.; Mikkelsen, T.; Mann, J.; Enevoldsen, K.; Courtney, M. Spatial Averaging-effects on Turbulence Measured by a Continuous-wave Coherent Lidar. Met. Z.
**2009**, 18, 281–287. [Google Scholar] [CrossRef] - Mann, J.; Peña, A.; Bingöl, F.; Wagner, R.; Courtney, M.S. Lidar Scanning of Momentum Flux in and above the Atmospheric Surface Layer. J. Atmos. Ocean. Technol.
**2010**, 27, 959–976. [Google Scholar] [CrossRef] - Bot, E.T.G. Turbulence Assessment with Ground Based LiDARs; Tech. Rep. ECN-E–14-043; ECN: Petten, The Netherlands, 2014. [Google Scholar]
- Mann, J.; Cariou, J.P.; Courtney, M.S.; Parmentier, R.; Mikkelsen, T.; Wagner, R.; Lindelöw, P.; Sjöholm, M.; Enevoldsen, K. Comparison of 3D Turbulence Measurements using Three Staring Wind LiDARs and a Sonic Anemometer. Met. Z.
**2009**, 18, 135–140. [Google Scholar] [CrossRef] - Fuertes, F.C.; Iungo, G.V.; Porte-Agel, F. 3D Turbulence Measurements using Three Synchronous Wind LiDARs: Validation against Sonic Anemometry. J. Atmos. Ocean. Technol.
**2014**, 31, 1549–1556. [Google Scholar] [CrossRef] - Newman, J.F.; Bonin, T.A.; Klein, P.M.; Sonia, W.; Newsom, R.K. Testing and Validation of Multi-LiDAR Scanning Strategies for Wind Energy Applications. Wind Energy
**2016**, 19, 2239–2254. [Google Scholar] [CrossRef] - NREL: OpenFAST. Available online: https://nwtc.nrel.gov/OpenFAST (accessed on 15 July 2019).
- Land Processes Distributed Active Archive Center. Available online: https://lpdaac.usgs.gov/citing_our_data (accessed on 8 March 2019).
- Mortensen, N.G.; Bowen, A.J.; Antoniou, I. Improving WAsP Predictions in (too) Complex Terrain. In Proceedings of the European Wind Energy Conference and Exhibition (EWEC), Athens, Greece, 27 February–2 March 2006. [Google Scholar]
- IEC 61400-12-1 Wind Energy Generation Systems—Part 12-1: Power Performance Measurements of Electricity Producing Wind Turbines, 2nd ed.; IEC Central Office: Geneva, Switzerland, 2017.
- Manwell, J.F.; McGowan, J.G.; Rogers, A.L. Wind Energy Explained: Theory, Design and Application; John Wiley & Sons: West Sussex, UK, 2009. [Google Scholar]
- IEC 61400-1 Wind Energy Generation Systems—Part 1: Design Requirements, 4th ed.; IEC Central Office: Geneva, Switzerland, 2019.
- Guideline for the Certification of Wind Turbines; Germanischer Lloyd: Hamburg, Germany, 2010.
- Holmes, J.D. Wind Loading of Structures, 3rd ed.; CRC Presee Taylor & Francis Group: Boca Raton, FL, USA, 2009. [Google Scholar]
- Bingöl, F.; Mann, J.; Foussekis, D. Modeling Conically Scanning LiDAR Error in Complex Terrain with WAsP Engineering; Tech. Rep. Risø-R-166; Technical University of Denmark: Roskilde, Denmark, 2008. [Google Scholar]
- Pauscher, L.; Vasiljevic, N.; Callies, D.; Lea, G.; Mann, J.; Klaas, T.; Hieronimus, J.; Gottschall, J.; Schwesig, A.; Kühn, M.; et al. An Inter-comparison Study of Multi- and DBS LiDAR Measurements in Complex Terrain. Remote Sens.
**2016**, 8, 782. [Google Scholar] [CrossRef] - Jonkman, J.; Butterfield, S.; Musial, W.; Scott, G. Definition of a 5-MW Reference Wind Turbine for Offshore System Development; Tech. Rep. NREL/TP-500-38060; National Renewable Energy Laboratory: Boulevard, CO, USA, 2009.
- Gryning, S.E.; van Ulden, P.; Larsen, R.E. Dispersion from a Continuous Ground-level Source Investigated by a K model. Quat. J. R. Met. Soc.
**1983**, 109, 355–364. [Google Scholar] [CrossRef] - Kelley, N.D.; Jonkman, B.J. Overview of the TurbSim Stochastic Inflow Turbulence Simulator; Tech. Rep. NREL/TP-500-41137; National Renewable Energy Laboratory: Boulevard, CO, USA, 2007.
- Hayman, G.J.; Buhl, M. MLife User’s Guide for Version 1.00; Tech. Rep. NREL/TP-XXXXX; National Renewable Energy Laboratory: Boulder, CO, USA, 2012.

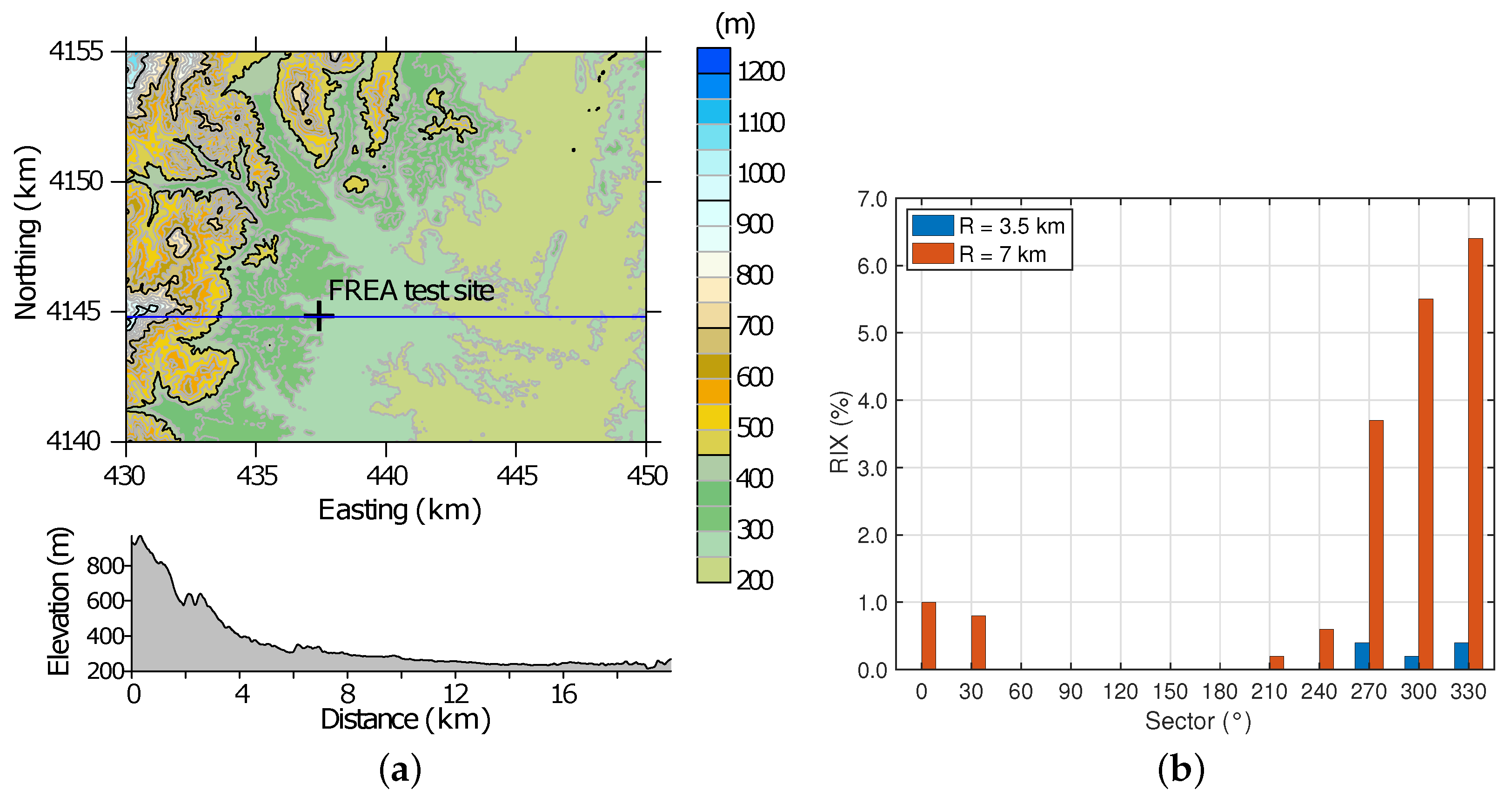

**Figure 2.**(

**a**) Terrain complexity of the region around the test site; (

**b**) Ruggedness index of the site.

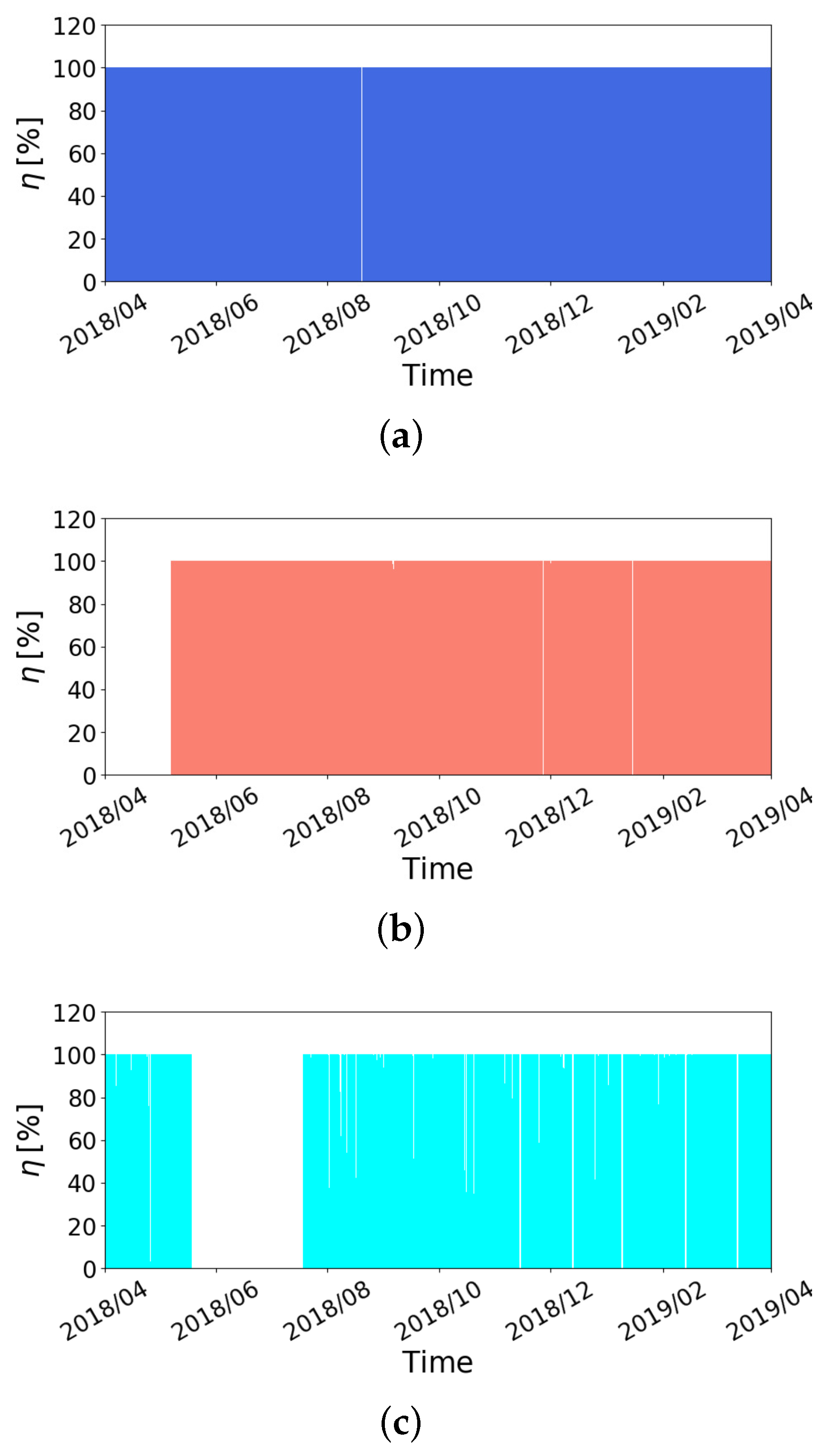

**Figure 4.**Data availability for the period of one year from April 2018 through March 2019. (

**a**) Cup anemometer; (

**b**) Sonic anemometer; (

**c**) V2 profiling LiDAR.

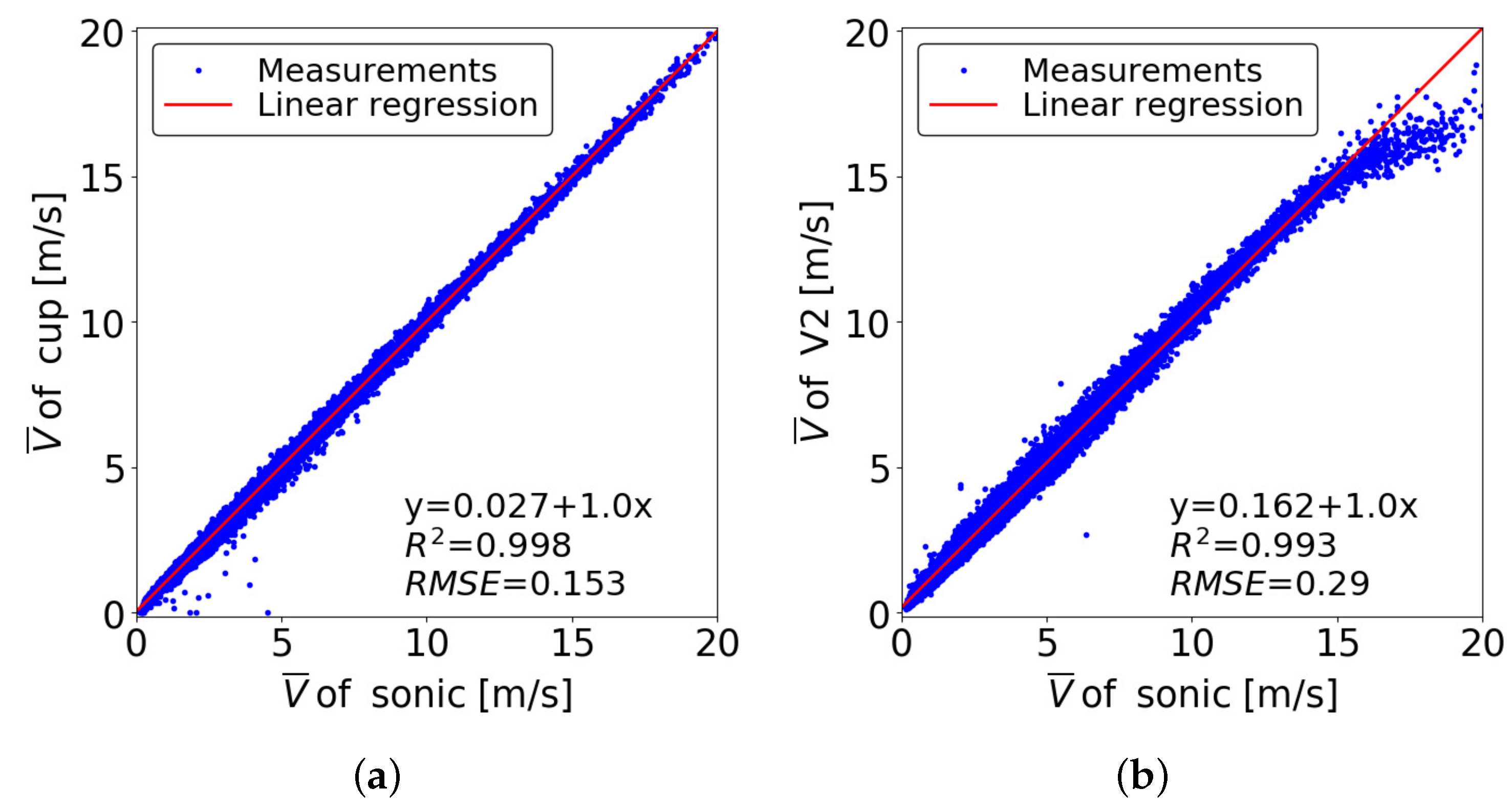

**Figure 5.**Comparison of 10-min average horizontal wind speeds at 40 m height. (

**a**) Sonic anemometer and cup anemometer; (

**b**) Sonic anemometer and V2 profiling LiDAR.

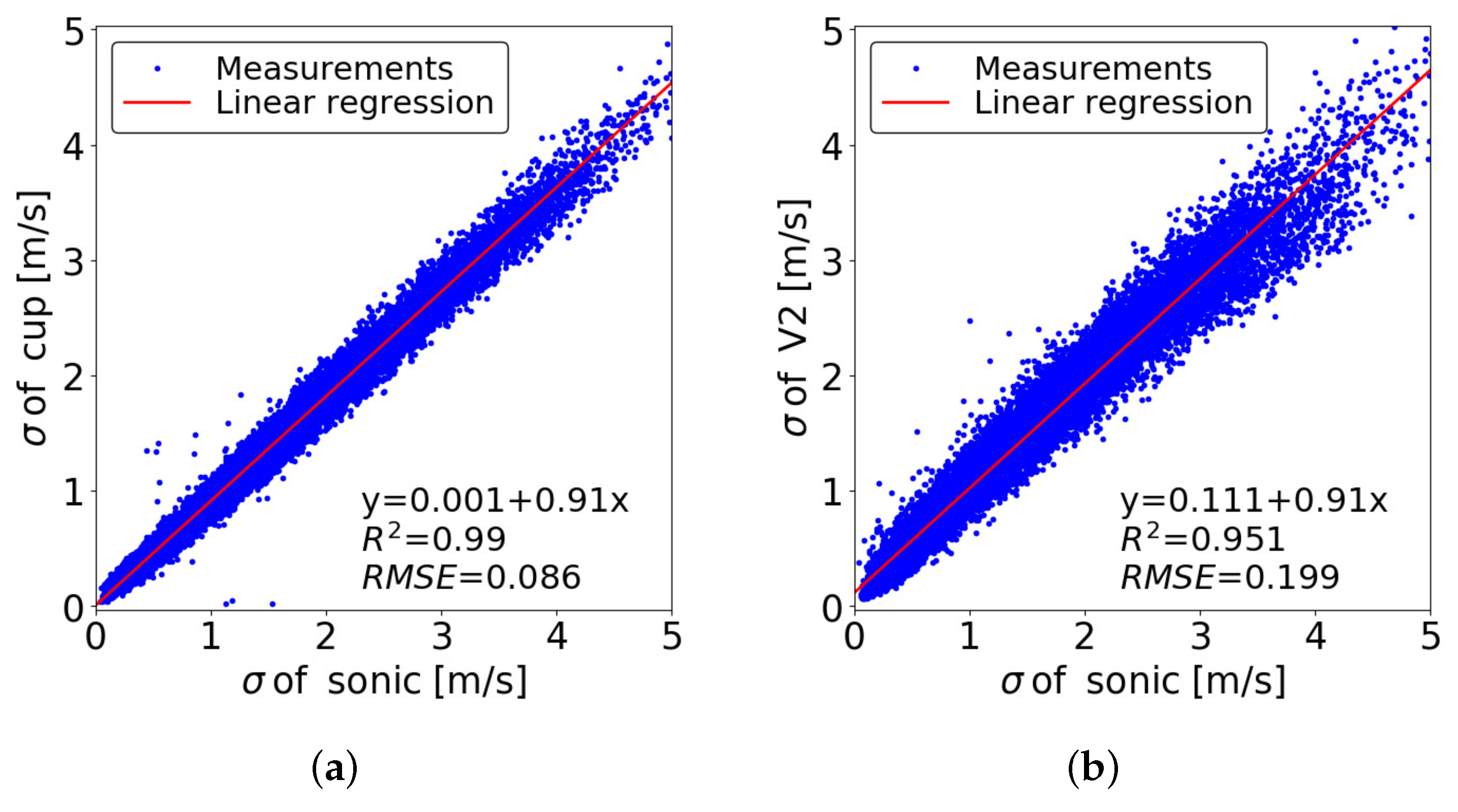

**Figure 6.**Comparison of standard deviation at 40 m height. (

**a**) Sonic anemometer and cup anemometer; (

**b**) Sonic anemometer and V2 profiling LiDAR.

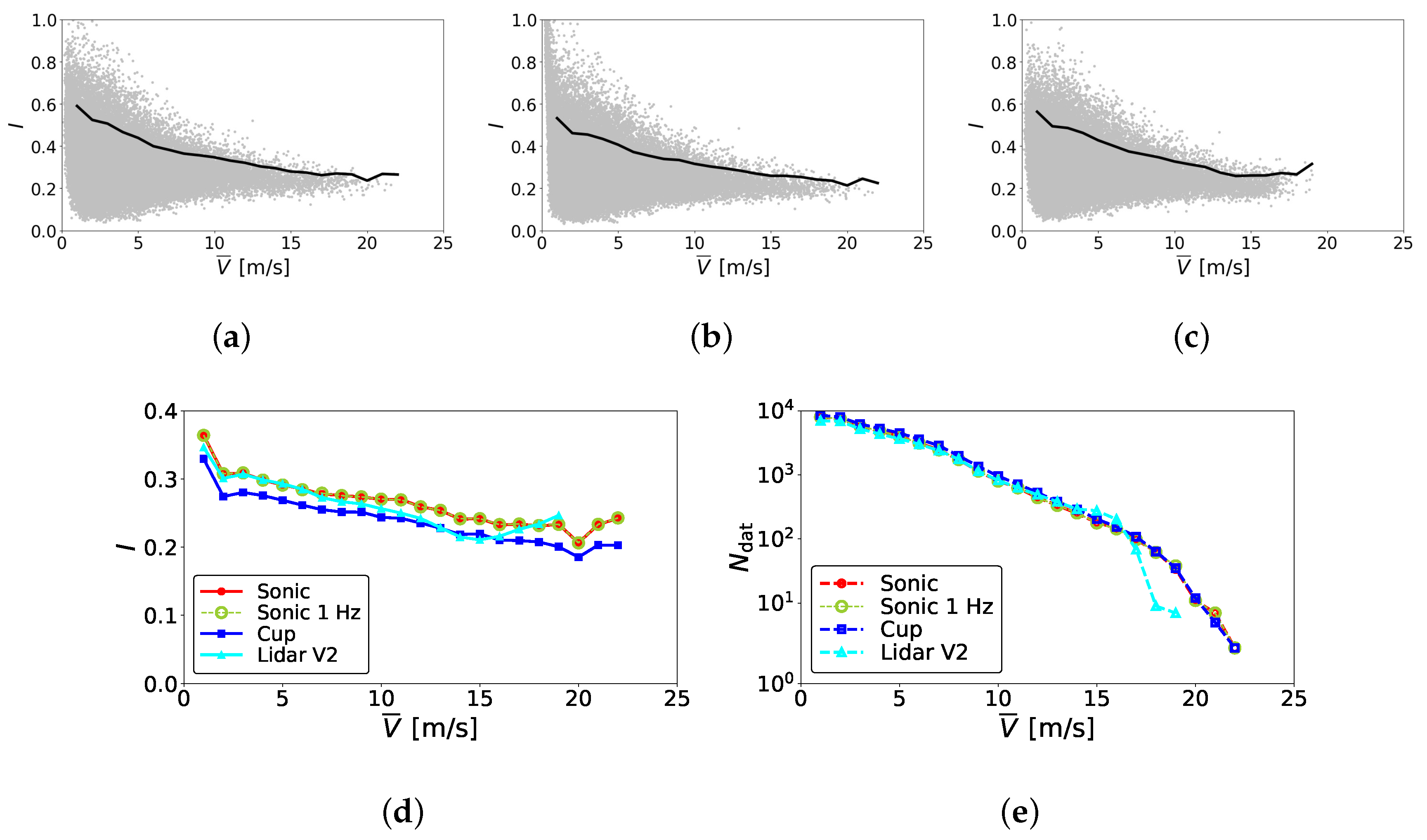

**Figure 7.**Turbulence intensity as a function of mean wind speed at 40 m height. (

**a**) Sonic anemometer; (

**b**) Cup anemometer; (

**c**) V2 profiling LiDAR; (

**d**) Bin-averaged turbulence intensities; (

**e**) Number of 10-min average data per bin. Lines in (

**a**–

**c**) represent the 90th percentile of the standard deviation for the wind speed bin. Bin size is set to 1 m/s of mean wind speed.

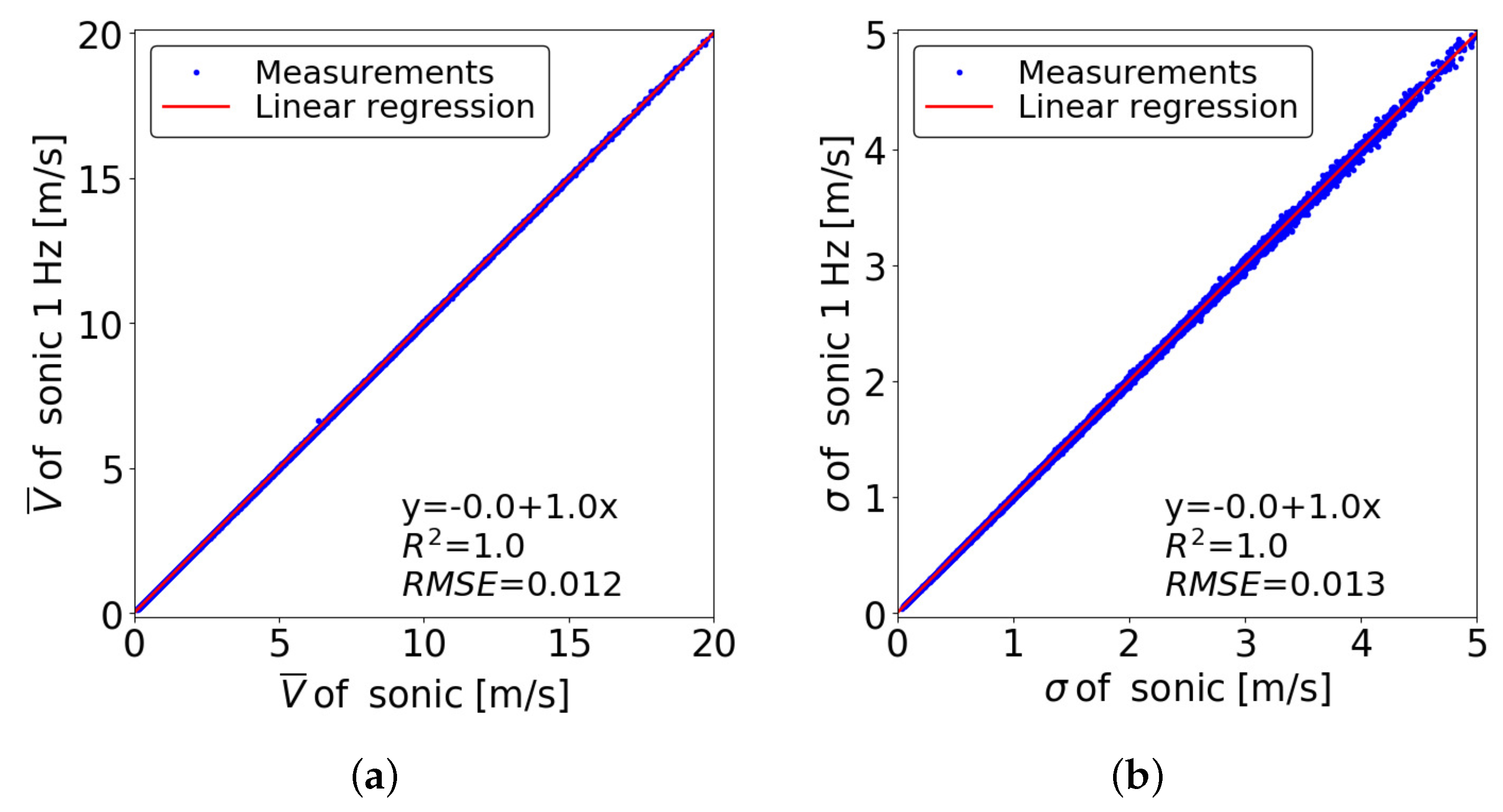

**Figure 8.**Comparison of the original sonic anemometer data collected at a sampling frequency of 10 Hz and the sonic anemometer data re-sampled at 1 Hz sampling frequency. The measurement height is 40 m. (

**a**) 10-min average horizontal wind speeds and (

**b**) standard deviation.

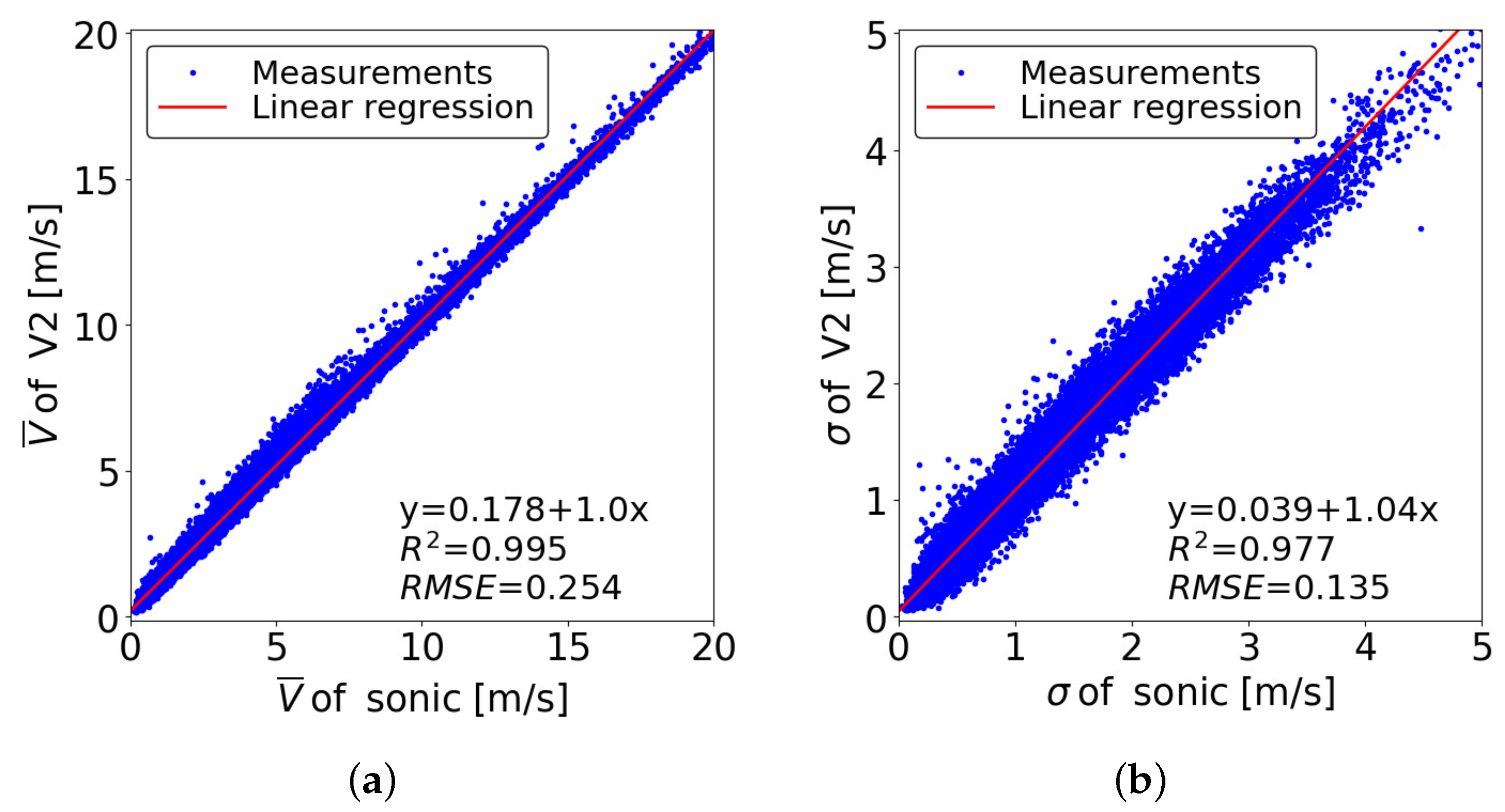

**Figure 9.**Comparison of measurements at 57 m height. (

**a**) 10-min average horizontal wind speed; (

**b**) Standard deviation.

**Figure 10.**Turbulence intensity as a function of mean wind speed at 57 m height. (

**a**) Sonic anemometer; (

**b**) V2 profiling LiDAR; (

**c**) bin-averaged turbulence intensities; (

**d**) turbulence intensity for the 90th percentile of the standard deviation for the wind speed bin; (

**e**) number of 10-min average data per bin. Lines in (

**a**,

**b**) represent the 90th percentile of the standard deviation for the wind speed bin. Bin size is set to 1 m/s of mean wind speed.

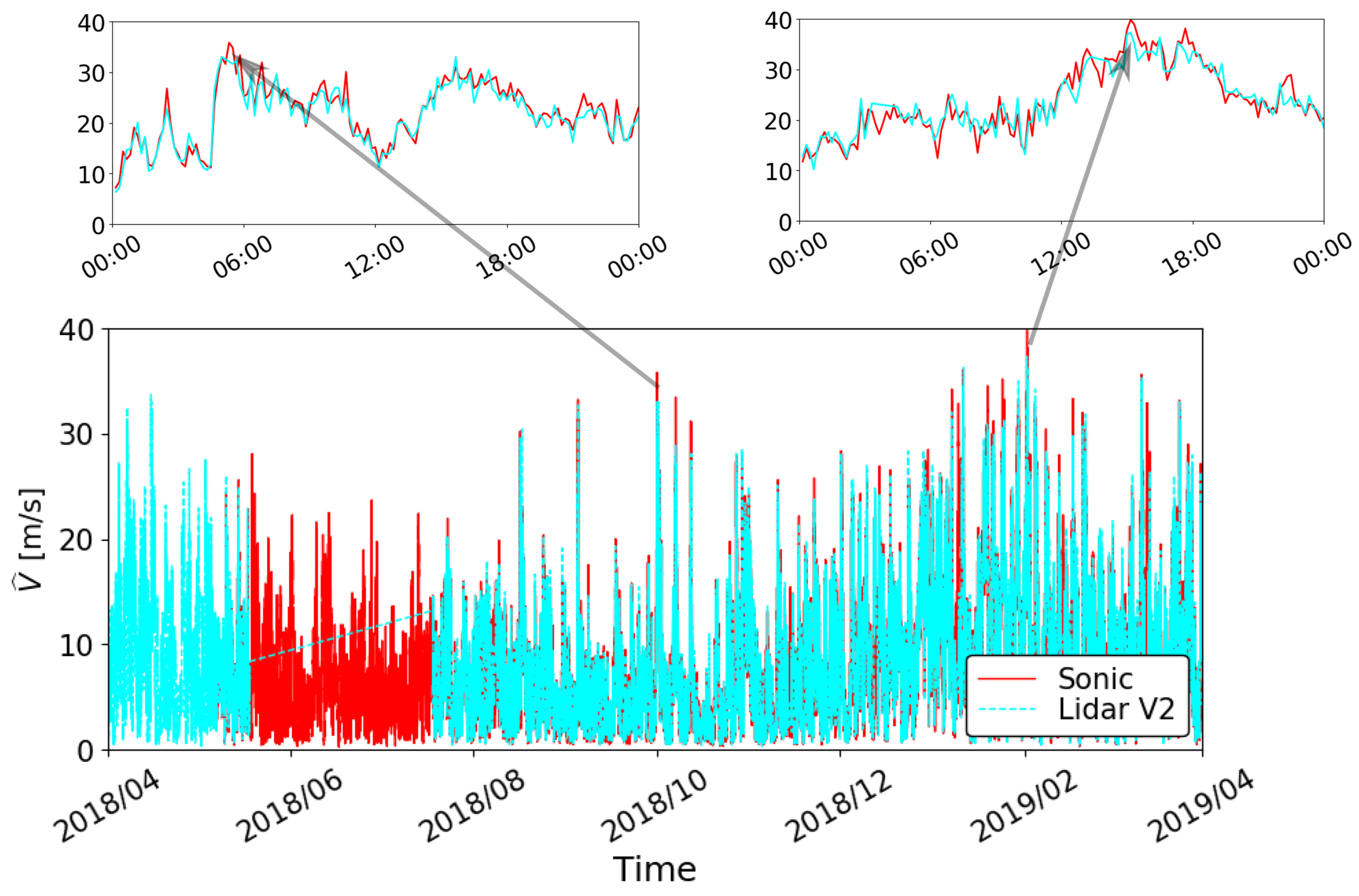

**Figure 11.**Time series of maximum wind speed in every 10-min time slot at 57 m height. The two zoom-in figures show the maximum wind speeds for a 24 h period; (

**top left**) is for 2018-10-01 and (

**top right**) is for 2019-02-01.

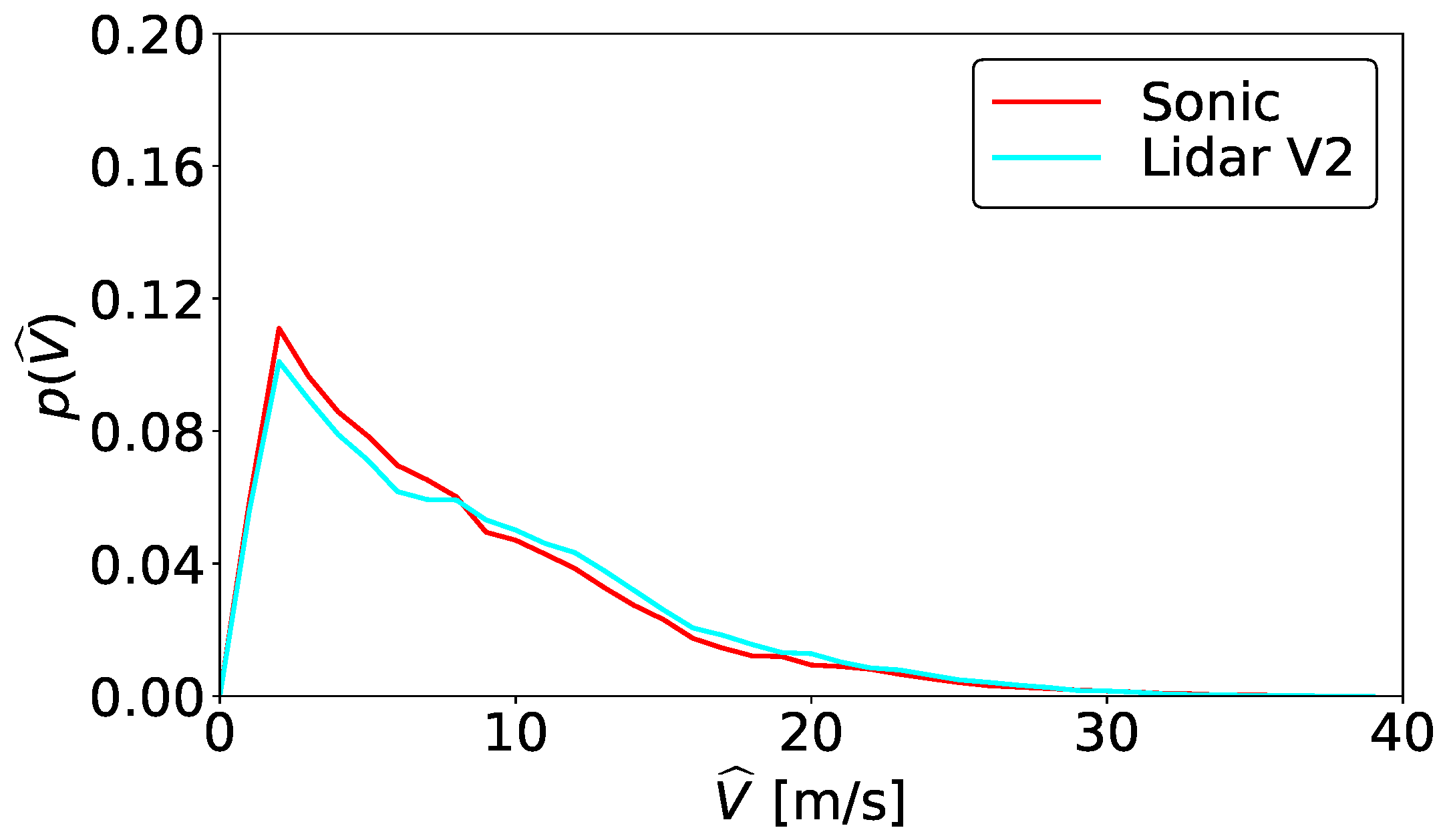

**Figure 12.**Probability density function (PDF) of the maximum wind speed in every 10-min time slot at 57 m height. Bin size for PDF is 1 m/s of peak wind sped.

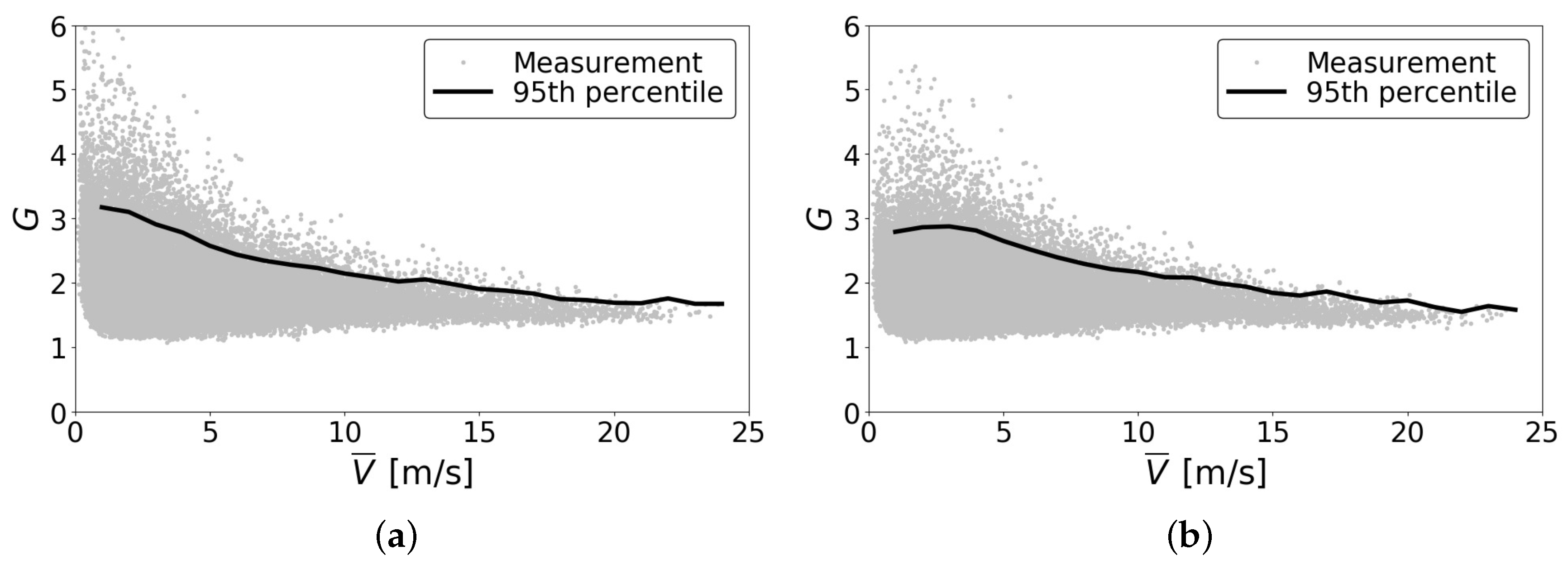

**Figure 13.**Gust factor ($G=\widehat{V}/\overline{V}$) as a function of mean wind speed at 57 m height. (

**a**) Sonic anemometer; (

**b**) V2 profiling LiDAR. The lines indicate the 95th percentile of the measured data.

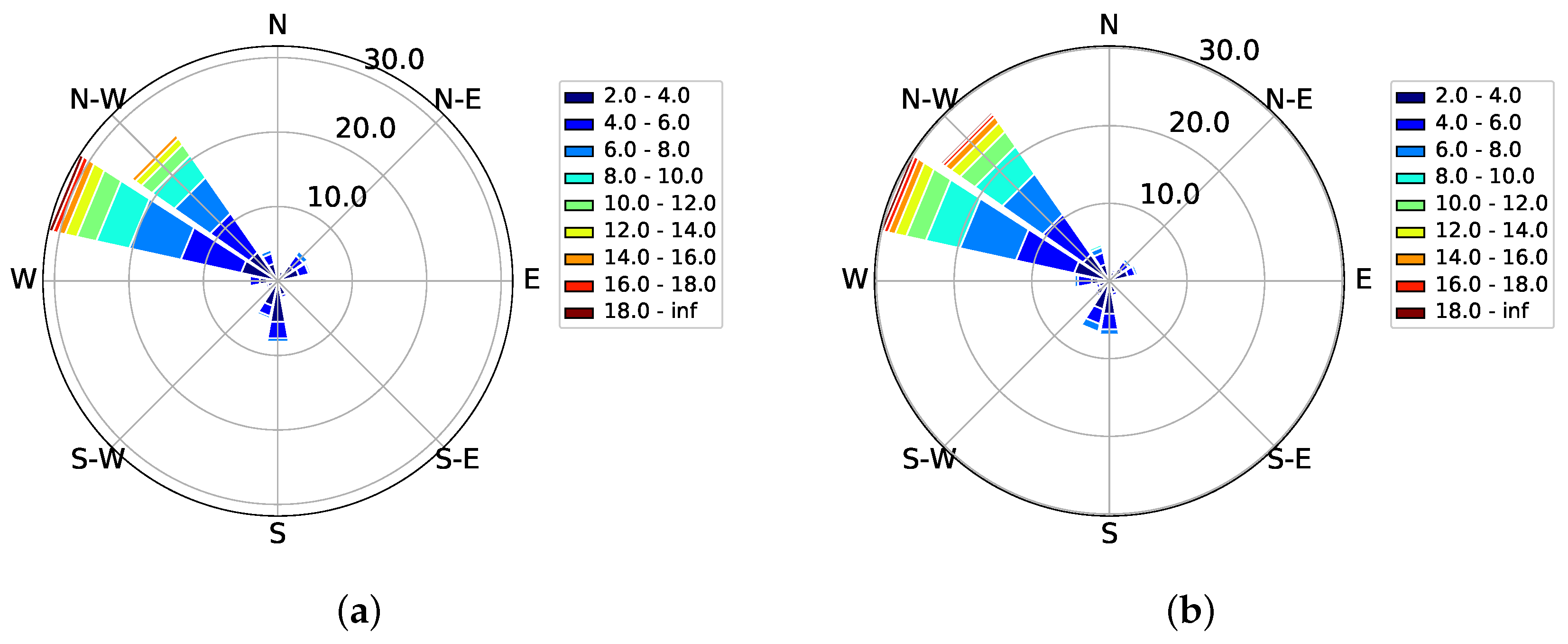

**Figure 14.**Wind rose showing wind speed and wind direction as measured at 57 m height. (

**a**) Sonic anemometer; (

**b**) V2 LiDAR.

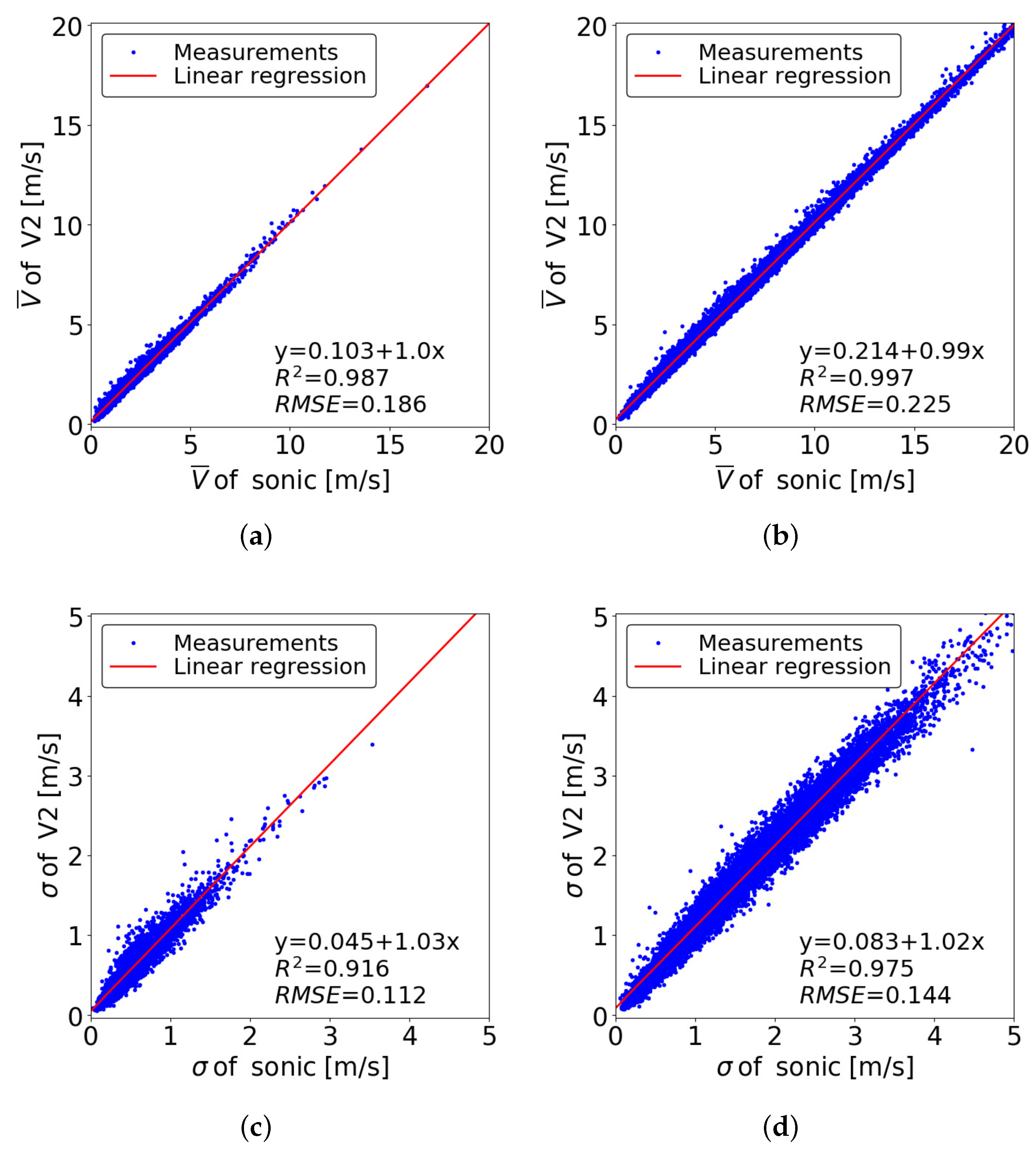

**Figure 15.**Comparison of measurements at 57 m height. (

**a**) 10-min average horizontal wind speed for wind direction between ${60}^{\circ}$ and ${180}^{\circ}$ (non-complex terrain); (

**b**) 10-min average horizontal wind speed for wind direction between ${270}^{\circ}$ and ${330}^{\circ}$ (moderately complex terrain); (

**c**) Standard deviation for wind direction between ${60}^{\circ}$ and ${180}^{\circ}$; (

**d**) Standard deviation for wind direction between ${270}^{\circ}$ and ${330}^{\circ}$.

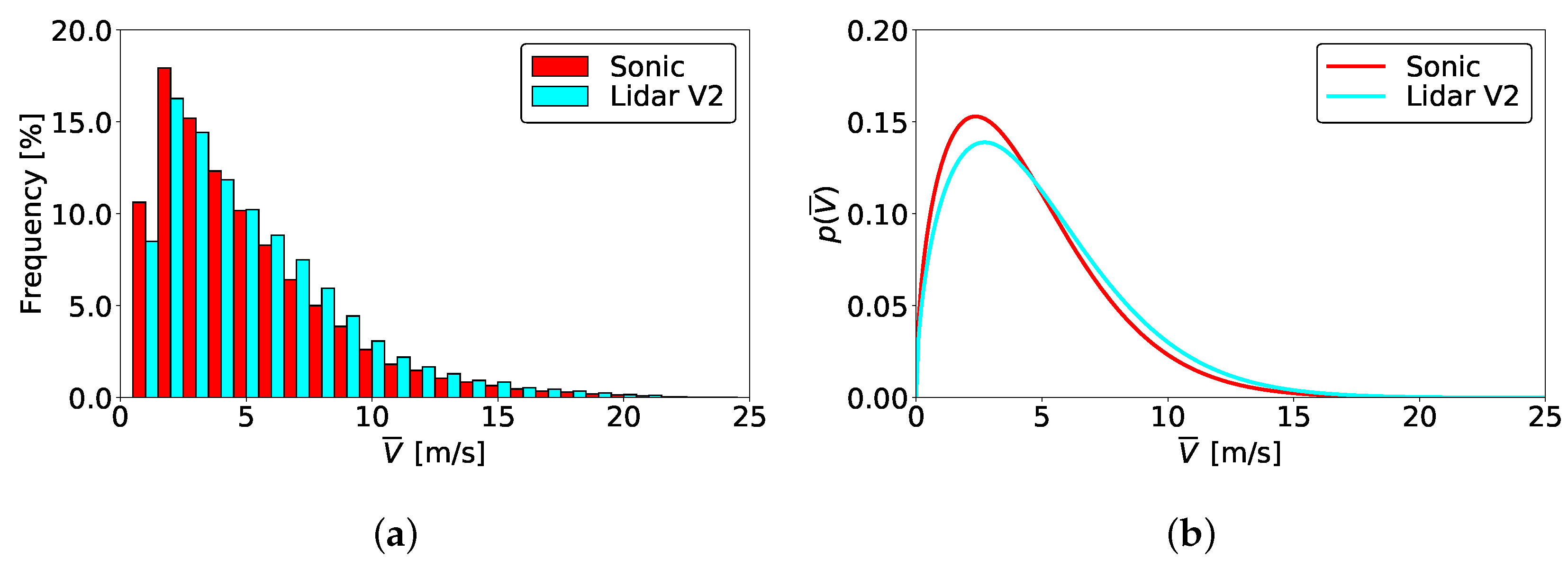

**Figure 16.**Velocity distribution at 57 m height. (

**a**) Histogram of frequency of occurrence of 10-min average wind speed; (

**b**) Weibull distribution of the PDF obtained from the measured data.

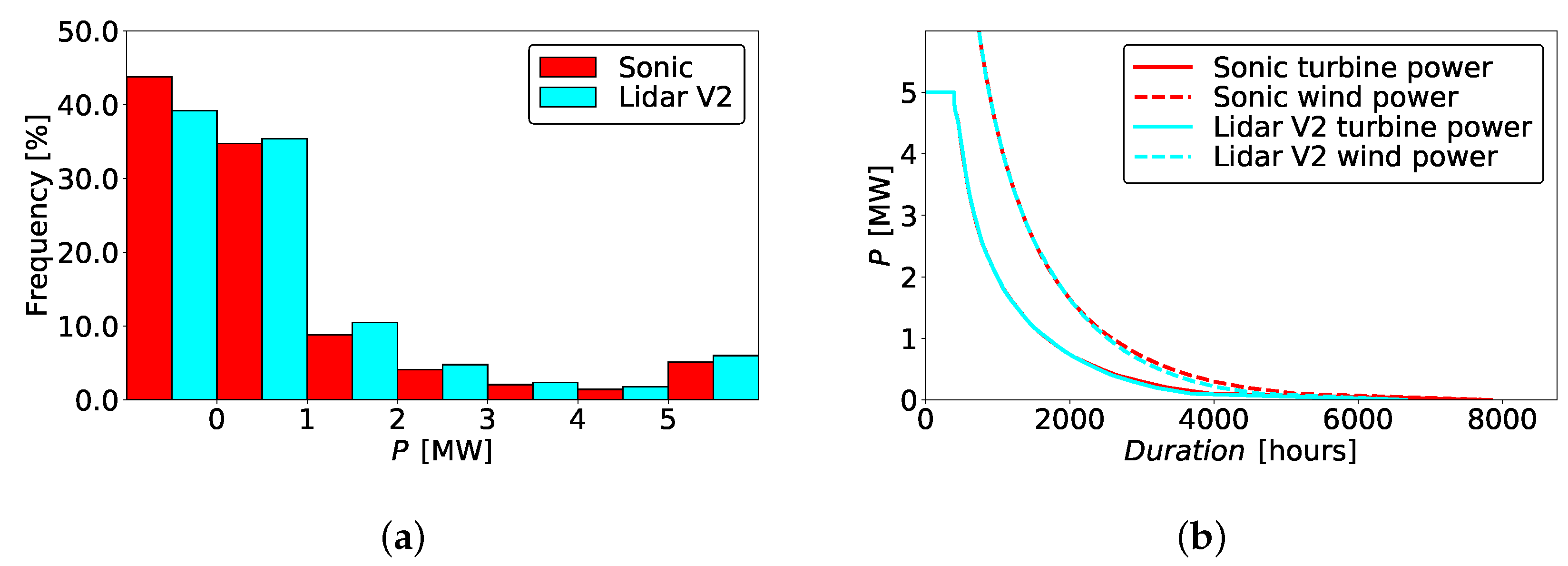

**Figure 17.**Power distribution of the site for the NREL 5-MW wind turbine. (

**a**) Histogram of frequency of occurrence of power values estimated from the measured wind speed; (

**b**) Wind turbine power duration curve.

**Figure 18.**Comparison of DELs computed using the distribution of wind speed and turbulence intensity of the sonic anemometer and the LiDAR measurements. (

**a**) DELs for the blade root bending moment; (

**b**) DELs for the tower base moment; (

**c**) Lifetime DELs (vertical line separates the blade root and the tower base moments).

**Table 1.**Overview of wind speed and wind direction sensors installed at the FREA test site. For orientation, true north is set to ${0}^{\circ}$ and the meteorological convention is followed.

Sensor | Heights [m] | Orientations [${}^{\circ}$] | Sampling Frequency [Hz] |
---|---|---|---|

Sonic anemometers | 40, 57 | ${198}^{\circ}$, ${17}^{\circ}$ | 10.0 |

SONIC CORPORATION SAT900 | |||

Cup anemometers | 10, 20, 30, 40, 50 | ${21}^{\circ}$, ${20}^{\circ}$, ${19}^{\circ}$, ${18}^{\circ}$, ${16}^{\circ}$ | 1.0 |

Thies Clima (4.3351.10.141) | |||

Wind vanes | 10, 30, 50 | ${201}^{\circ}$, ${199}^{\circ}$, ${196}^{\circ}$ | 1.0 |

Thies Clima (4.3150.10.141) | |||

V2 LiDAR | 40, 50, 57, | ${0}^{\circ}$ | ≈1.0 |

Windcube WLS7-724 | 60 to 220 at 20 m interval |

Tool | Description | Set-Up and Parameters |
---|---|---|

Wind speed: 3–23 m/s at wind step of 2 m/s, | ||

General input | 24 m/s | |

Total number of cases: $2\times 12=24$ | ||

Wind type: NTM | ||

Turbulence model: Kaimal | ||

TurbSim | Turbulent wind field generation | Number of grid points (Vertical × Horizontal): $31\times 31$ |

Grid height × Grid width: 145 m × 145 m | ||

Different random seed used for each simulation | ||

OpenFAST | Aero-servo-elastic simulation | Simulation time (T): 630 s |

of a wind turbine | Discard first 30 s of data | |

Time step ($dt$): 0.005 s | ||

Equivalent load frequency: 1 Hz | ||

MLife | Fatigue load analysis | Number of equivalent cycles: $2.98\times {10}^{8}$ |

Analysis corresponds to 20 year lifetime |
