Production of Hydrogen-Rich Gas by Formic Acid Decomposition over CuO-CeO₂/γ-Al₂O₃ Catalyst

Abstract

Formic acid decomposition to H₂-rich gas was investigated over a CuO-CeO₂/γ-Al₂O₃ catalyst. The catalyst was characterized by XRD, HR TEM and EDX methods. A 100% conversion of formic acid was observed over the copper-ceria catalyst under ambient pressure, at 200–300 °C, N₂:HCOOH = 75:25 vol.% and flow rate 3500–35,000 h⁻¹ with H₂ yield of 98%, wherein outlet CO concentration is below the equilibrium data (<0.5 vol.%). The copper-ceria catalyst proved to be promising for multifuel processor application, and the H₂ generation from dimethoxymethane, methanol, dimethyl ether and formic acid on the same catalyst for fuel cell supply.

1. Introduction

Growing interest in, and demand for, high temperature proton exchange membrane fuel cells (HT PEM FC) has evidently manifested itself during the past decade due to their high tolerance to fuel impurities compared to the low temperature (LT) PEM FC [1,2,3]. For instance, the HT PEM FC can be fueled by hydrogen-rich gas containing up to 3 vol.% of CO [1]. Analysis of current literature shows that gas mixture with this composition can be produced by catalytic conversion of oxygenates such as methanol [4,5,6], dimethyl ether (DME) [7,8,9], dimethoxymethane (DMM) [10,11,12,13,14] and formic acid (FA) [15,16,17,18,19,20,21,22,23]. The obtained H₂-rich gas can be directly used as fuel without complex CO removal processes. This makes the HT PEM FC-based power units more compact and simple. The typical HT PEM FC-based power unit scheme is shown in Figure 1.

In our previous work [12,13], effective bifunctional CuO-CeO₂/γ-Al₂O₃ catalysts have been proposed for methanol, dimethyl ether and dimethoxymethane steam reforming (SR) to H₂-rich gas showing great promise for a multifuel processor approach. The catalysts comprised of acidic and Cu-based sites and provided complete methanol/DME/DMM conversion and a H₂ production rate of 15 L/(g_cat∙h) at 300–370 °C.

Supported Cu-based catalysts proved highly active and selective for formic acid (FA) decomposition (Reaction (1)) [20]. In particular, the reaction in this work was studied over carbon-supported copper catalysts doped with nitrogen atoms (Cu/N-PCN). The catalysts provided complete conversion of FA at temperatures >270 °C and high hydrogen productivity (up to 97.4%).

HCOOH = CO₂ + H₂

(1)

Reaction (1) can be accompanied by side Reactions (2) and (3) yielding CO and water:

HCOOH = CO + H₂O

(2)

CO₂ + H₂ = CO + H₂O

(3)

The present work reports the performance of the CuO-CeO₂/γ-Al₂O₃ catalysts in FA decomposition to H₂-rich gas to be used for HT PEM FC. The effect of some reaction conditions on the catalyst’s performance was studied. The catalyst was characterized by XRD, HRTEM and EDX techniques. In order to evaluate the catalyst’s possibility for multifuel processor applications, we compared CuO-CeO₂/γ-Al₂O₃ catalytic properties in methanol, dimethyl ether and dimethoxymethane steam reforming and FA decomposition reactions.

2. Materials and Methods

The catalyst of composition 10 wt.% CuO-5 wt.% CeO₂/γ-Al₂O₃, which showed the best performance in methanol, DME and DMM SR reactions in our earlier study [13], was used in the FA decomposition experiments. It was prepared by the impregnation method reported in details elsewhere [13]. Samples for transmission electron microscopy (TEM) were prepared by carefully applying the catalyst powder on a carbon film on a nickel grid. These samples were investigated by conventional and high-resolution (HR) TEM and energy-dispersive X-ray (EDX) chemical microanalysis, using an electron microscope JEM 2010 (JEOL Ltd., Tokyo, Japan) at operation voltage 200 kV and lattice-fringe resolution 0.14 nm. The microscope was equipped with an EDX unit (EDAX Co, Mahwah, NJ, USA) for the local elemental analysis (the energy resolution was 130 eV).

X-ray diffraction (XRD) data were collected using a URD-63 diffractometer with a CuK_α source (graphite monochromator). The measurements were taken within 2θ scanning area = 20°–80° with a step of 0.02° (2θ) and an accumulation time of 1.0 s. The diffraction patterns were processed using the PowderCell 2.4 software package. The identification of the crystalline phases was performed using the JCPDS international diffraction database.

Experiments on FA decomposition were carried out in a flow U-shaped reactor (inner diameter 4 mm) at 120–320 °C under ambient pressure. The temperature of the catalytic bed was measured using a chromel/alumel thermocouple placed in the middle of this bed. Before reaction, the copper-ceria catalyst was pre-reduced in situ at 300 °C in a mixture of hydrogen (5 vol.%) diluted with N₂ at a total flow rate of 3000 mL/h during 1 h. After that, the reactor was cooled to 120–200 °C in a flowing mixture of hydrogen and nitrogen and then the gas mixture was switched to (vol.%): 25 HCOOH and 75 N₂. The total gas hourly space velocity (GHSV) was 3500–35,000 h⁻¹.

FA was fed into the reactor by passing N₂ (99.999%) through a glass saturator filled with formic acid (JSC Reahim, 99%) maintained at 60 °C. N₂ and H₂ were introduced to the reactor by gas flow-mass meters (Bronkhorst). The inlet and outlet concentrations of H₂, CO, CO₂ and H₂O were recorded using gas chromatography (Chromos-1000, Chromos Engineering, Dzerzhinsk, Russia) equipped with thermal conductivity and flame ionization detectors (Porapak T and CaA molecular sieves columns). The minimum concentration of CO, CO₂, H₂ and H₂O that could be determined using this method was 5∙10⁻³ vol.%. During the experiments, the carbon balance was controlled with an accuracy of ±3%.

Conversion of HCOOH, H₂ selectivity, hydrogen yield and productivity were calculated by the following formulas:

$${\mathrm{X}}_{\mathrm{HCOOH}}(\%)=\frac{{\mathrm{C}}_{\mathrm{HCOOH}}^{\mathrm{in}}-{\mathrm{C}}_{\mathrm{HCOOH}}^{\mathrm{out}}\times \frac{{\mathrm{C}}_{{\mathrm{N}}_2}^{\mathrm{in}}}{{\mathrm{C}}_{{\mathrm{N}}_2}^{\mathrm{out}}}}{{\mathrm{C}}_{\mathrm{HCOOH}}^{\mathrm{in}}}\times 100$$

(4)

$${\mathrm{S}}_{{\mathrm{H}}_2}(\%)=\frac{{\mathrm{C}}_{{\mathrm{CO}}_2}^{\mathrm{out}}}{{\mathrm{C}}_{{\mathrm{CO}}_2}^{\mathrm{out}}+{\mathrm{C}}_{\mathrm{CO}}^{\mathrm{out}}}\times 100$$

(5)

$${\mathrm{Y}}_{{\mathrm{H}}_2}(\%)=\frac{{\mathrm{S}}_{{\mathrm{H}}_2}\times {\mathrm{X}}_{\mathrm{HCOOH}}}{100}$$

(6)

$${\mathrm{W}}_{{\mathrm{H}}_2}\left(\frac{\mathrm{L}}{\mathrm{h}·{\mathrm{g}}_{\mathrm{cat}}}\right)=\frac{\mathrm{F}\times {\mathrm{C}}_{{\mathrm{H}}_2}^{\mathrm{out}}\times \frac{{\mathrm{C}}_{{\mathrm{N}}_2}^{\mathrm{in}}}{{\mathrm{C}}_{{\mathrm{N}}_2}^{\mathrm{out}}}}{100\times {\mathrm{m}}_{\mathrm{cat}}}$$

(7)

where Cⁱⁿ, C^out are the concentrations before and after reactor, respectively; F is the flow rate of the reaction mixture (L/h); m_cat is the catalyst weight (g).

3. Results

3.1. Catalyst Characterization

Table 1. XRD data for the CuO-CeO₂/γ-Al₂O₃ catalysts.

Catalyst	Phase Composition	Unit Cell Parameters, Å	CSR (Å)
Fresh	γ-Al2O3	7.918	50
	CeO2	5.390	40
Used	γ-Al2O3	7.918	50
	CeO2	5.395	30
	Cu	n.d.	highly dispersed

presents the data obtained from XRD patterns of fresh and used CuO-CeO₂/γ-Al₂O₃ catalysts. It shows that the fresh catalyst contains phases of cerium dioxide and γ-Al₂O₃. A strong decrease in the value of cerium dioxide unit cell parameter to 5.390 Å, as compared to the standard value of 5.411 Å, was observed. This may be due to the insertion of copper ions with a smaller ionic radius and a lesser degree of oxidation in the structure of cerium dioxide (r (Cu²⁺) = 0.76 Å, r (Ce⁴⁺) = 1.01 Å). CeO₂ is in a highly dispersed state; its CSR size is 40 Å. The phases of crystallized copper species were not detected. Apparently, this fact indicates that copper oxide is in a form of either well dispersed or amorphous species on γ-Al₂O₃ surface. For the used catalyst, we can see a slight decrease in the CeO₂ lattice parameter to a value of 5.395 Å. This fact most likely indicates the possible formation of a mixed oxide of copper and cerium [24,25,26]. The phase of highly dispersed metallic copper is also observed in the used catalyst. Most likely, this is due to the fact that part of the copper ions leave the structure of cerium oxide during the reaction.

Figure 2 shows the TEM image of the fresh CuO-CeO₂/γ-Al₂O₃ catalyst and the HR TEM image and EDX spectrum of the marked area. In the TEM image, we observed an agglomerate of about 50 nm in size (the marked area). The HR TEM image and EDX spectrum of this area were recorded. The EDX spectrum shows that this agglomerate consists of Cu and Ce and an atomic ratio Cu:Ce = 70:30 at.%. In the high resolution TEM picture of the agglomerate, cerium dioxide particle (interplanar distances d(111) = 0.312 and d(200) = 0.271 nm, not shown in figure) was observed. We were unable to detect copper particles in the HR TEM image because of their low contrast. According to XRD data, copper oxide phases were not observed in the fresh catalyst, so it can be concluded that copper oxide particles were in a highly dispersed state.

Figure 3 shows the TEM, HR TEM images and EDX spectrum of the CuO-CeO₂/γ-Al₂O₃ catalyst after reaction. It shows that, similar to the fresh catalyst, the used catalyst contains copper-ceria agglomerates of about 30–50 nm in size and an atomic ratio Cu:Ce = 60:40 at.%. In the HR TEM image, we observed CeO₂ particles and no copper particles, as in the case of the fresh catalyst. However, according to XRD data, the used catalyst contains the phase of highly dispersed metallic copper. We believe that this phase refers to particles outside the agglomerates. These particles obviously suffer sintering during long-term operation of the catalyst and therefore lose activity. At the same time, the active sites of the catalyst are particles of copper stabilized by cerium oxide which do not undergo changes during the formic acid decomposition reaction.

So, the CuO-CeO₂/γ-Al₂O₃ catalyst surface contains the agglomerates of 30–50 nm in size which consist of mixed copper-cerium oxide (solid solution) particles of 5–7 nm in size, and some fine dispersed copper. We suggest that these agglomerated mixed copper-cerium oxide particles are the active coppers sites of the catalyst, which is in agreement with our previous work [13].

3.2. Catalytic Performance of CuO-CeO₂/γ-Al₂O₃ in FA Decomposition

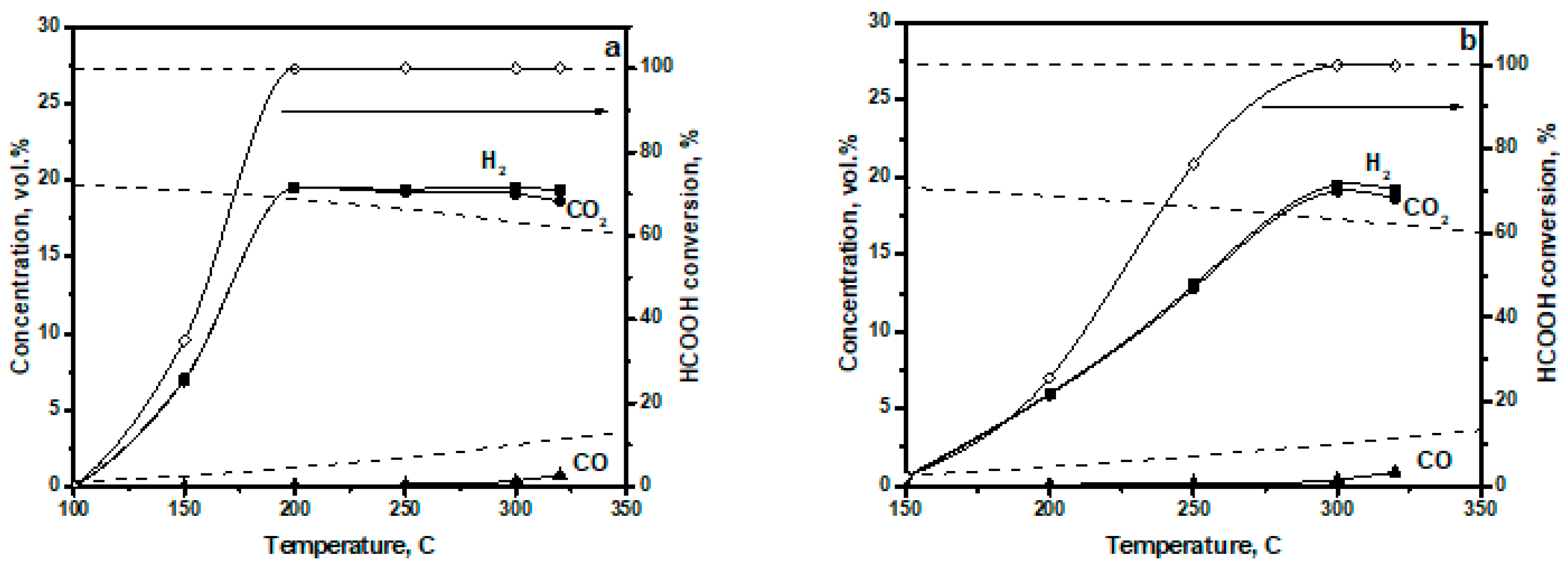

Figure 4 demonstrates dependencies of FA conversion and outlet H₂, CO₂, CO concentrations at FA decomposition over 10%Cu-5%CeO₂/γ-Al₂O₃ catalyst at GHSV of 3500 h⁻¹ (Figure 4a) and 35,000 h⁻¹ (Figure 4b) on temperature. Equilibrium values are shown by dashed lines. The equilibrium compositions were calculated assuming equilibrium mixtures contained only H₂, H₂O, CO₂ and CO. The equilibrium and experimental values of H₂O are not shown because they coincide with respective values of CO, as well as the equilibrium values of CO₂ which are nearly similar to those of H₂.

The products of formic acid decomposition were H₂, H₂O, CO₂ and CO; no other products were observed. As shown in Figure 4, FA conversion rises with increasing temperature and gets 100% at 200 °C, GHSV = 3500 h⁻¹, and at 300 °C, GHSV = 35,000 h⁻¹. The product concentrations also increase with increasing temperature. In the case of GHSV = 3500 h⁻¹, at temperatures above 200 °C, the H₂ and CO₂ concentrations are above their equilibrium composition, whereas the CO concentration is below the equilibrium value. This is because the RWGS Reaction (3) does not reach equilibrium during the experiment. Such behavior is typical for this catalyst; similar results were obtained in the steam reforming of methanol, DME and DMM [13]. As GHSV increased to 35,000 h⁻¹, the temperature dependencies of FA conversion and product concentrations shifted to a higher temperature region. Complete FA conversion was reached at 300 °C, whereas the CO concentration remained constant and stayed below 0.5 vol.%.

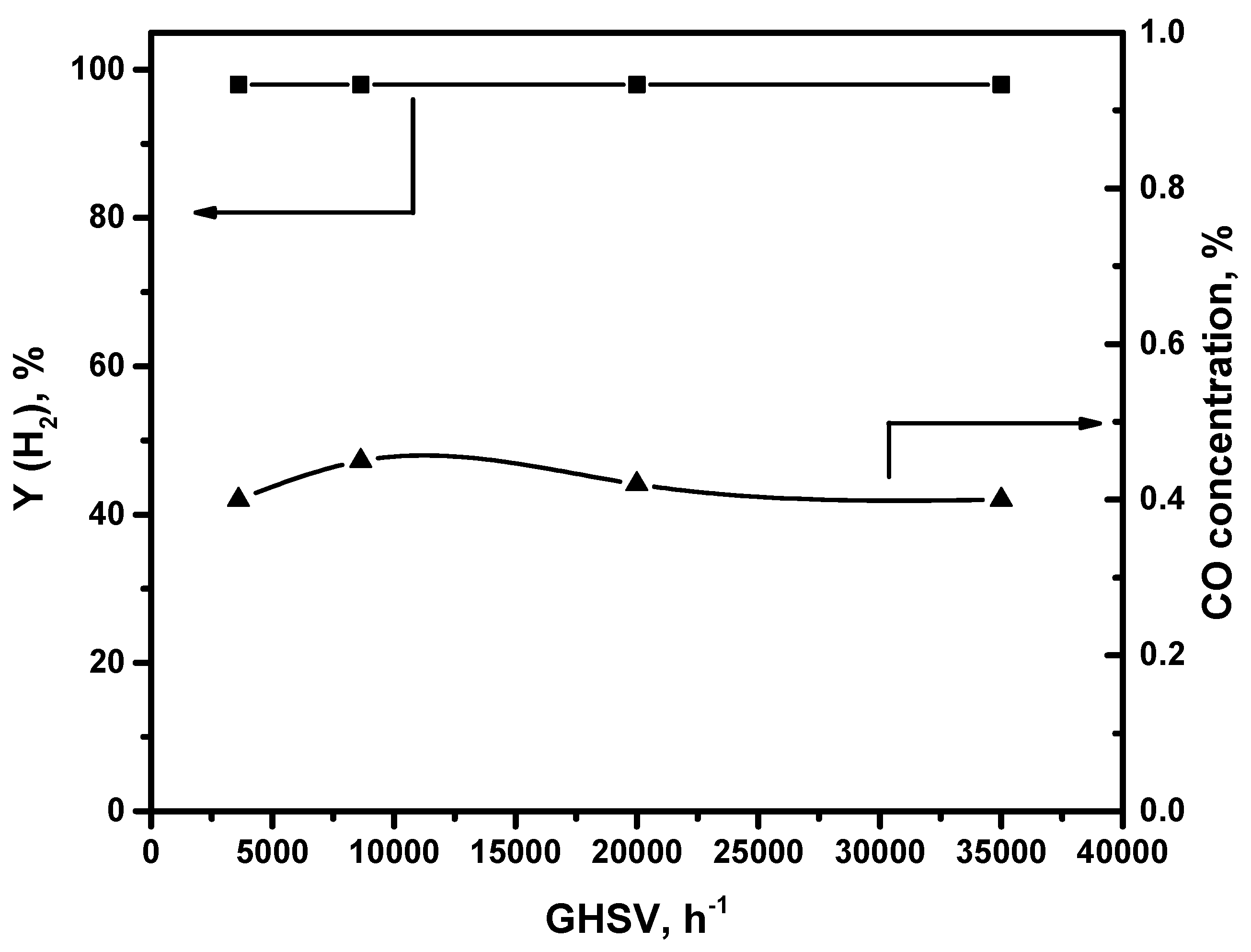

Figure 5 illustrates how the hydrogen yield and CO concentration depended on the reaction mixture feed rate at FA decomposition over CuO-CeO₂/γ-Al₂O₃ at 300 °C. It shows that, even with ten-fold increase in GHSV, the hydrogen yield and CO concentration remained almost unchanged and amount to 98% and 0.4 vol.%, respectively.

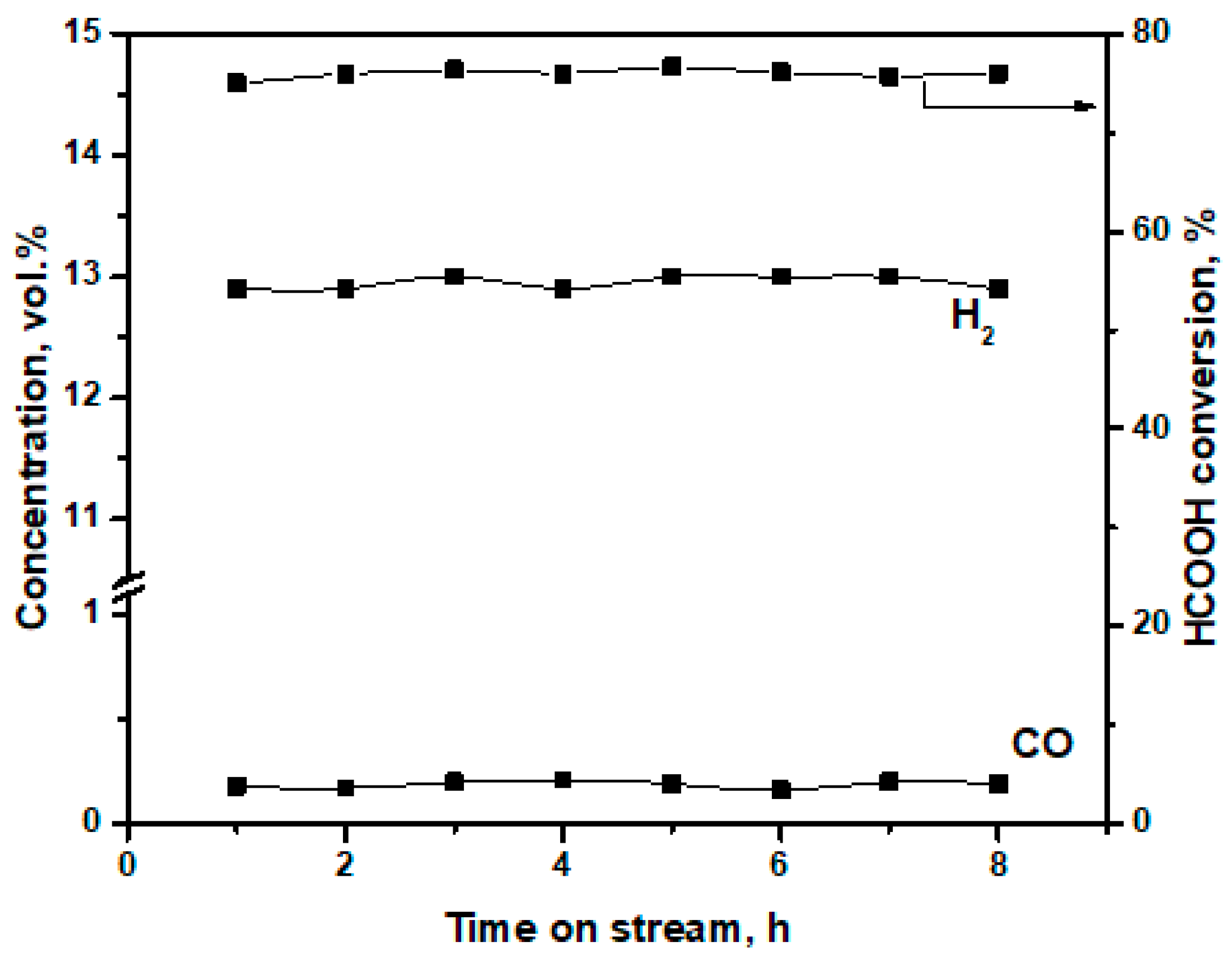

Figure 6 illustrates the effect of time on stream on the FA conversion and the outlet concentrations of H₂ and CO in FA decomposition over CuO-CeO₂/γ-Al₂O₃. The experiment was carried out at 250 °C and GHSV = 35,000 h⁻¹. It showed that during 8 h on stream, the catalyst was stable and supported constant values of FA conversion and H₂ and CO concentrations. We tend to explain this catalyst stability by the fact that the copper particles on the CuO-CeO₂/γ-Al₂O₃ surface were stabilized by ceria and thus protected against sintering.

So, the results obtained (Figure 4, Figure 5 and Figure 6) show that complete conversion of FA over 10% CuO-5% CeO₂/γ-Al₂O₃ was reached at temperatures 200–300 °C, yielding H₂ and CO₂ as the main products. The CO concentration was below 0.5 vol.%. The catalyst provided high hydrogen yield (~100%) in a wide range of GHSV = 3500–35,000 h⁻¹ at temperatures 200–300 °C.

In this work, the catalyst properties were studied using reaction mixture diluted with nitrogen. Note again that nitrogen was used as an internal standard to provide correct determination of the reaction parameters. Clearly, hydrogen-rich gas mixture for FC feeding should be free of nitrogen dilution. Our calculations for nitrogen-free reaction mixture showed that FA decomposition over 10% CuO-5% CeO₂/γ-Al₂O₃ produces hydrogen-rich gas of composition (vol.%): 48 H₂, 48 CO₂, 2 CO, 2 H₂O that is appropriate for direct feeding HT PEM FC.

Table 2. Comparison of catalyst activities in formic acid decomposition.

Catalysts	T, °C	Reaction Condition		Y (H2), %	Refs
		HCOOH: Inert vol.%:vol.%	FA Flow Rate, h−1
10% CuO-5% CeO2/γ-Al2O3	200	25:75	875	98	This work
	300	25:75	8750	98
Cu/C	270	5:95	3150 1	97.4	[20]
1% Au/SiO2	250	7:93	560	99.5	[21]
2% Ir/C 2% Pt/C 2% Rh/C 2% Pd/C	200	5:95	400	99.5 98.6 97 91.7	[22]

¹—data calculated per gram catalyst 3150 mL/(h g_cat).

compares the results on vapor phase FA decomposition over CuO-CeO₂/γ-Al₂O₃ and other efficient catalysts: Cu/N-doped carbon [20]; 1% Au/SiO₂ [21]; and Ir-, Pt-, Rh-, Pd-/C [22]. All data refer to complete FA conversion. Note that H₂ and CO₂ were the main products of FA decomposition over these catalysts. According to the cited data, the product distribution insignificantly depended on the reaction conditions, and the maximum yield of H₂ (92–99.5 %) was observed at 200–300 °C for all catalysts.

Thus, the literature data [20] and results of the present work prove that Cu-based catalysts are effective in the reaction of FA decomposition and keep up with catalysts containing the VIII group metals.

As mentioned above (see Introduction), the CuO-CeO₂/γ-Al₂O₃ catalyst was effective in dimethoxymethane, dimethyl ether, methanol SR reactions [12,13]. It seems reasonable to compare the catalytic properties of CuO-CeO₂/γ-Al₂O₃ catalyst in dimethoxymethane, dimethyl ether, methanol SR and FA decomposition reactions in order to extend the scope of multifuel processor applications.

Table 3. Performance of the CuO-CeO₂/γ-Al₂O₃ catalyst in dimethoxymethane, dimethyl ether, methanol steam reforming and FA decomposition.

Reactions	Inlet Composition	T	GHSV	Y (H2)	CO	W (H2)	Refs
	vol.%	°C	h−1	%	vol.%	l/(h gcat)
DMM SR	C3H8O2:H2O:N2 = 14:70:16	300	10,000	95	0.5	15.5	[12]
DME SR	C2H6O:H2O:N2 = 20:60:20	370		90	1	15
Methanol SR	CH3OH:H2O:N2 = 40:40:20	300		95	1	15
FA decomposition	HCOOH:N2 = 25:75	300	35,000	98	0.45	15	This work

presents the following data: temperature of 100% conversion of dimethoxymethane, dimethyl ether, methanol and FA to H₂-rich gas; H₂ yield; outlet CO concentration in the produced H₂-rich gas; and H₂ productivity. Complete dimethoxymethane, dimethyl ether, methanol and FA conversion was attained at 300–370 °C. Regardless of the raw material, the catalyst yielded H₂-rich gas containing low outlet CO concentration (≤1 vol.%), which can be used directly for HT PEM FC feeding [1,2,3]. H₂ productivity of the CuO-CeO₂/γ-Al₂O₃ catalyst (Table 3) in FA decomposition (~15 L H₂/g_cat·h) was the same as in DMM, DME, methanol SR reactions. Taking into account these H₂ productivity data, we calculated that just ~50 g of the CuO-CeO₂/γ-Al₂O₃ catalytic system is enough to operate a 1 kW HT PEM FC-based power unit using any substrate—DMM + H₂O, DME + H₂O, methanol + H₂O or FA.

4. Conclusions

A CuO-CeO₂/γ-Al₂O₃ catalyst for vapor-phase formic acid decomposition to H₂-rich gas is suggested. The catalyst containing CuO-CeO₂ mixed oxides on the γ-Al₂O₃ surface is active and selective in formic acid decomposition to H₂-rich gas with low CO concentration (<0.5 vol.%). In particular, the CuO-CeO₂/γ-Al₂O₃ catalyst provides 100% conversion of formic acid with H₂ yield ~98% at 200–300 °C and GHSV = 3500–350,000 h⁻¹. Moreover, the CuO-CeO₂/γ-Al₂O₃ catalyst shows high prospects for the multifuel processor concept. It enables the H₂ generation from oxygenated compounds of C1 chemistry (dimethyl ether, methanol, dimethoxymethane and formic acid) under similar reaction conditions.
