Optimization of Solar Panel Orientation Considering Temporal Volatility and Scenario-Based Photovoltaic Potential: A Case Study in Seoul National University

Abstract

University campuses accommodate large numbers of people and are suitable places to organize a microgrid. The solar potential in the university area is estimated and the optimal orientation of solar panels is presented in this study. The optimal orientation is analyzed considering temporal volatility to increase the stability of the grid. Several variables are selected and scenarios are designed to consider various investments and technologies. Scenario-specific photovoltaic potentials were estimated using Geographic Information Systems analysis technology. Analysis of temporal volatility was conducted based on the difference between demand and supply of electricity. Optimal panel orientations were presented according to project objectives, such as highest efficiency or low volatility. As a result, the total potential of the study area was tens to hundreds of GWh/year depending on the scenario. The university has an advantage in hourly volatility, but has some problems in monthly volatility. The optimal orientation varies according to objectives and solar power supply ratio. The results of this study are expected to help researchers and technicians in the solar energy industry and assist in urban planning.

1. Introduction

Because of the development of solar energy technology, there has been an increase in solar power system installation in urban areas. Consistently lower solar panel prices have made it possible to install solar energy systems in complex areas. Many solar power systems are installed not only on roofs but also on the ground and building façades. Mapping of the accurate spatial distribution of solar energy potential and analysis of shadowing should be considered to achieve maximized efficiency. However, as solar power generation increases, there are factors to consider besides simply increasing efficiency. The difference pattern of solar power supply and power demand requires additional energy or energy storage. The most representative case is ‘duck curve’, which shows net demand, the difference between the electric load and the supply of solar power, in California [1]. It represents the steep ramping needs of energy demand in the evening, as solar power increases. As this sudden ramping causes difficulties in providing a stable energy supply, it is necessary to find methods to stabilize it. One of the methods to alleviate this volatility is to change the orientation of the solar panel.

Power systems have traditionally consisted of a macrogrid at the national level, but in recent years, many small microgrid forms have been studied. Microgrid, which is an independent and distributed group of power systems, has many potential advantages such as low transmission losses, low grid congestion, utilization of local renewable resources, etc. [2]. The word microgrid has various synonyms, such as minigrid, depending on capacity or characteristics; however, it is used to refer to all terms that match the definition in the preceding sentence in this study. The detailed renewable energy potential of the site and its variability should be analyzed to construct the microgrid. At microgrid level, the main factors for solar energy are shading, shadowing, and other system variables rather than solar irradiance of the region. Analysis of the spatial distribution and temporal variance of the potential should be conducted to maintain the stability of the grid.

The university campus is one of the most suitable sites for running such an independent microgrid. In general, although each university has a different area and number of buildings, it has many regular energy users and various facilities in the university. The electricity consumption of the university is in the range of a few to hundreds GWh/year, but varies widely depending on the university. Therefore, universities around the world already started to construct a microgrid in universities such as Wesleyan University in Connecticut and the University of California at San Diego (UCSD) [3]. In addition, there are over 45 global activities for sustainable campus and green university [4]. Korea is also making efforts to construct microgrids to various regions, including universities based on the Renewable Energy 2030 plan by the Ministry of Commerce, Industry and Energy (MOTIE). According to the Korean Association for Green Campus Initiative (KAGCI), electricity usage of university and college in Korea was approximately 4000 GWh/year in 2018.

Many previous studies have analyzed the optimal orientations in various regions [5,6,7,8,9,10,11]. They focused on calculating methods [5,6,7], the spatial distribution of optimal orientation [8,9], seasonal optimal tilt [5,10], and special application such as panels on large ship [11], however, they estimate optimal orientation based on the total value of power generation. The optimal orientation considering the temporal volatility should be studied to maintain the stability of the grid. If the change in orientation of the solar panel reduces volatility with a loss of little power, it can be an optimal choice considering the high price of batteries. In this respect, it is necessary to calculate the optimal orientation considering the generation pattern and energy demand according to various time distributions. There are still many areas using fixed solar panels because of cost and maintenance, and the volatility optimization can help stabilization of these solar power systems.

There is considerable previous literature regarding estimating solar potential in urban areas such as a university. Some studies have focused on building roofs [12,13,14,15,16,17,18,19]. These mainly studied the extraction of high potential roofs of buildings considering roof orientation and shadowing. Some have focused on the detection of building roofs [12,13,14,15] and various scales of this method were applied from specific detailed building roofs [12,16] to the national scale [17]. This method is appropriate for urban areas with low buildings. Other studies have focused on both building roofs and façades using simple box-shaped buildings [20,21,22]. They calculated solar potential in each plane of the building containing a vertical plane. These methodologies are appropriate to highly urbanized areas and simple box data are easy to acquire and use; however, in most cases, these data contain only buildings without other objects. Other studies have focused on all the objects in an area using detailed surface models such as Light Detection And Ranging (LiDAR) data [23,24,25,26,27,28], UAV-derived data [29] and designed three dimensional (3D) models [30,31,32]. These detailed models contain all objects containing trees, but usually, have complex shapes and are difficult to analyze. Using these data enables accurate calculation of potential distribution in urban areas, but they require many resources to create.

Estimating the solar potential of specific urban areas or optimal solar direction for high potential has been done. However, as the solar power supply ratio increases, new perspectives are required to address future temporal volatility. Therefore, the objectives of this study are the estimation of photovoltaic potential and analysis of optimal orientation considering temporal volatility to increase the stability of the grid. A new tool and methodology have been proposed to achieve these objectives.

2. Methodology

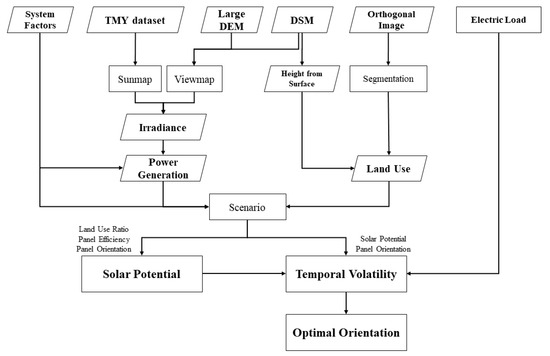

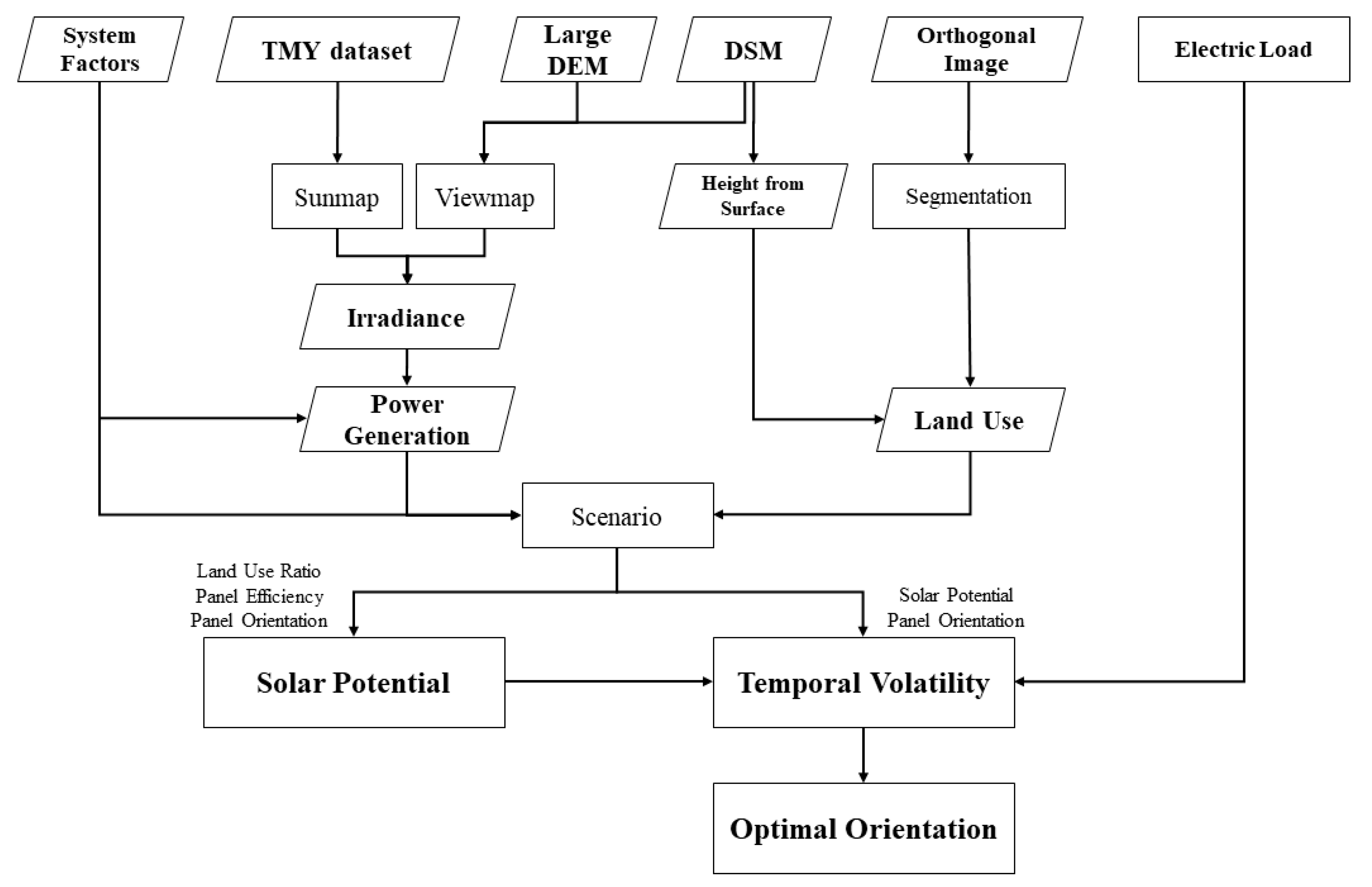

A developed tool termed “SNU Solar” is designed to calculate solar potential in an urban area with system factors and be highly compatible with geographic information system (GIS) analysis. Potential is estimated based on photovoltaic energy with scenarios constructed by variables and different urban plans. Analysis of temporal volatility is conducted with demand and supply pattern of solar power. Optimal orientation is estimated based on the results of solar potential and temporal volatility. Figure 1 shows a flowchart of the overall process.

2.1. Study Area

The study area is the Gwanak campus of Seoul National University in Seoul, Korea. It has an area of approximately 4 million m² and over 300,000 students, faculty, and staff. Over 200 buildings are constructed in the area. It consumes more than 190 GWh of electricity, which is 5% of all consumption in Korean universities, and was ranked number one in power use as a single facility in 2016. As there are several mountains around the area, the campus is sloped overall and shows mountainous characteristics.

Dataset

A typical meteorological year (TMY) dataset was used to consider the long-term climate of the study area. It is comprised of hourly data of 1 year from data measured over a 10-year timeframe. Each hourly data during a month is extracted from one of the measured data in a specific year. The TMY dataset in Korea was created by the Korea Institute of Energy Research (KIER). It uses measured data from 1991 to 2010 and contains information such as global horizontal irradiance (GHI), direct normal irradiance (DNI), and dry temperature. The TMY dataset of Seoul in which the average expanded uncertainty is 3% for GHI and 18% for DNI is used in this study.

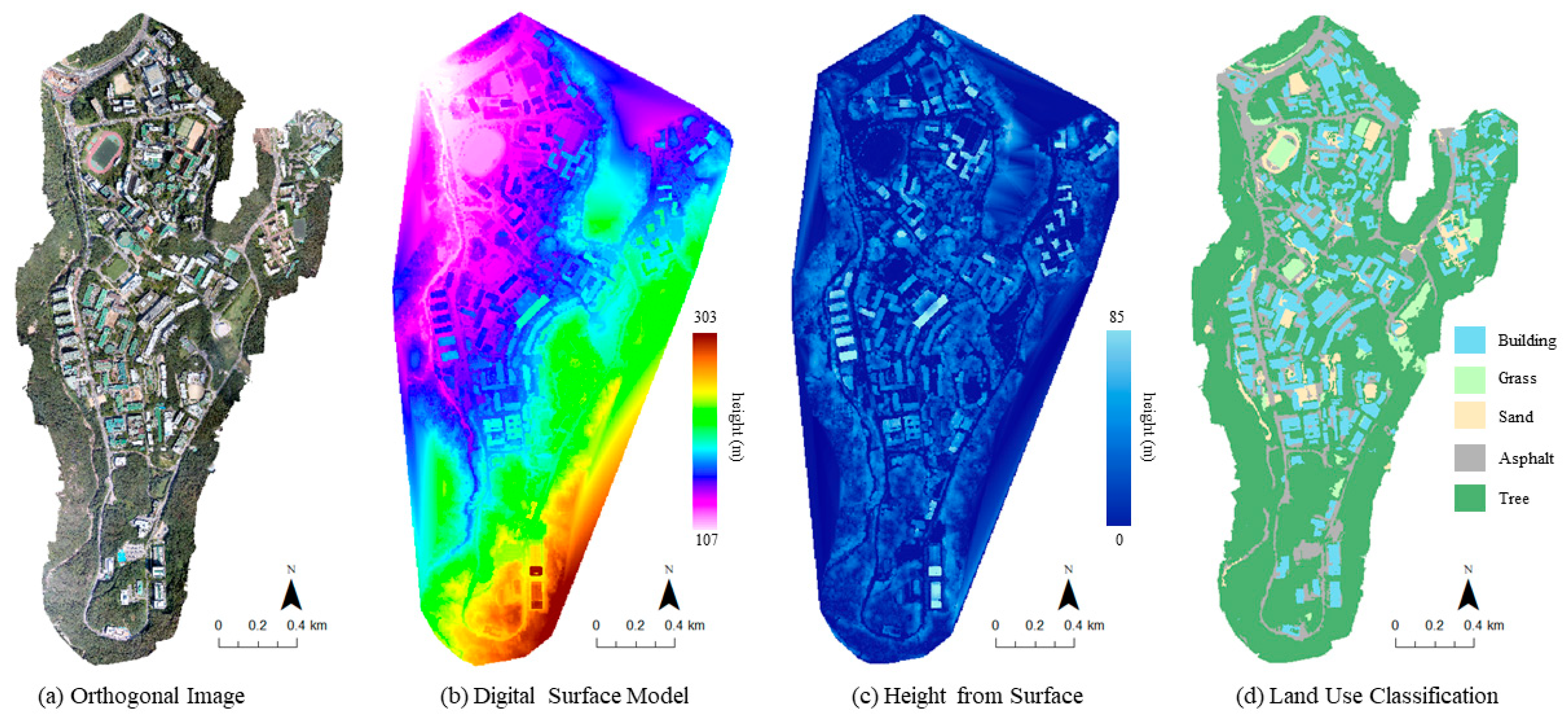

Various GIS datasets are needed for spatial analysis. Figure 2 shows the GIS datasets used as input data. High-resolution orthogonal images and digital surface models (DSMs) are generated by an UAV. Images from the UAV are acquired from the three 2017 flight plans. The spatial resolution of an orthogonal image is approximately 6 cm and that of a DSM is approximately 1 m. Not only are high-resolution DSMs used, but low-resolution DSMs as well. The Advanced Spaceborne Thermal Emission and Reflection Radiometer Global Digital Elevation Model (ASTER GDEM), which has a spatial resolution of approximately 30 m, is used to consider mountains near the study area. Some data such as height from surfaces and land use classification are generated from other input datasets.

2.2. Calculation Tool

2.2.1. Summary of the Developed Tool

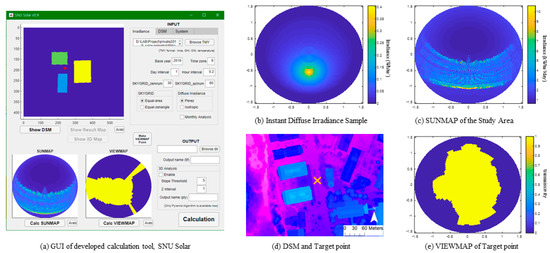

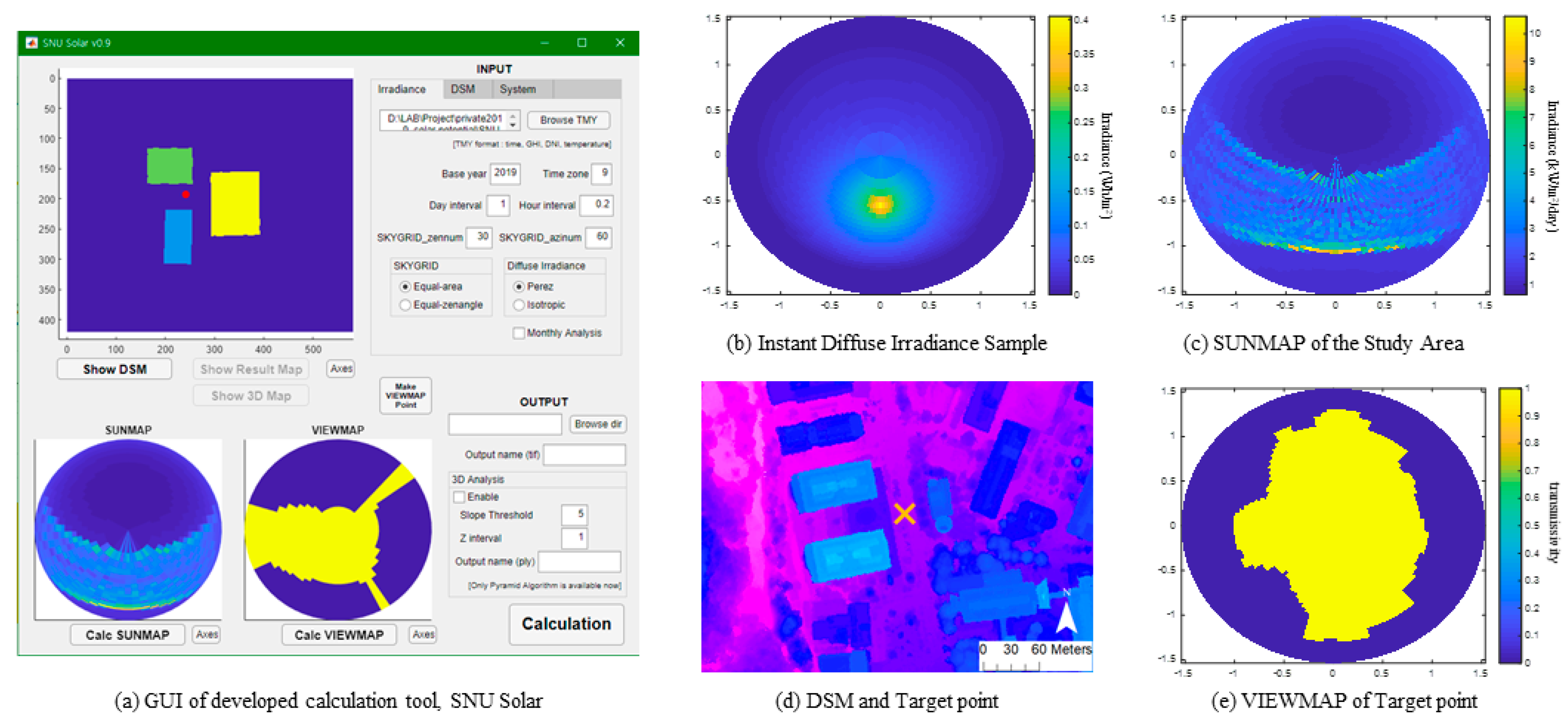

A new calculation tool termed “SNU Solar” for the Seoul National University Solar Potential Mapping Tool is developed and used. This tool can calculate irradiance and electricity generation considering local weather data, spatial properties, and system parameters. It can process high-resolution UAV-derived maps like the latest literature and is designed for temporal analysis according to system variables. It also can be used for visualization of irradiance distribution and 3D analysis with façade potential. All the code is written in a MATLAB environment and it is developed as a tool with graphical user interface (GUI). Inputs are categorized into irradiance, DSM, and system factors. Various factors such as calculation interval and diffuse irradiance model can be selected or entered. Detailed postprocessing analysis in this study was completed through programming rather than a GUI tool.

2.2.2. Calculation Algorithm of the Developed Tool

An hourly irradiance dataset and high-resolution DSMs are used to calculate irradiance at each location. The hourly irradiance dataset is processed to SUNMAP, which contains information of irradiance in each sky sector. The sky sector is defined by an equal-area-equal-angle sky division grid [33]. Diffuse irradiance of the all-sky sector in each time-step is calculated using the Perez model [34] as shown in Figure 3b. SUNMAP is expressed through a sky division grid where the center part is zenith angle 0° and the edge is zenith angle 90°. Figure 3c shows the generated SUNMAP of the study area.

The shadow effect is calculated using a VIEWMAP-based calculation with pyramid dataset, which can calculate faster than previous algorithms [33]. VIEWMAP contains information on the shadowed sky division by nearby objects as shown in Figure 3d,e. The shadowed sky sector is calculated using a DSM or digital elevation model (DEM). A different VIEWMAP at each location and an equal SUNMAP are generated and used to calculate irradiance. Shadowed sectors can be excluded by simple multiplication of SUNMAP and VIEWMAP. Two VIEWMAPs, a nearby VIEWMAP and far VIEWMAP are calculated and used. The former is generated by a high-resolution DSM and the latter is generated by a low-resolution DEM. The nearby VIEWMAP is assumed to affect diffuse irradiance shadowing, which has been used in many previous studies such as the Sky View Factor (SVF) [35] and ArcGIS Solar Analyst [36].

The potential of a building façade is calculated in the same manner. The difference is that the method for façade has a fixed tilt angle of 90° and its azimuth angle should be normal to the building façade. Vertical planes are extracted by calculating the DSM slope and setting a threshold. The calculation points are extracted at one meter intervals in all areas where the slope rapidly increases. The orientation of the building can be calculated from the aspect of the DSM. To remove the shadow of the staircase adjacent to the façade, which is caused by the limitation of the raster format, the adjacent eight data points are removed in each calculation.

2.2.3. Electricity Generation Calculation of the Developed Tool

To estimate solar potential, irradiance, and electricity generation were calculated in order. Electricity generation is calculated based on the PVWatts module [37], which is used in the System Advisor Model (SAM). SAM was developed by National Renewable Energy Laboratory (NREL), and its accuracy is technically proven [38]. This model, which does not have many variables, is selected because this study focused on potential over the study area without selecting a specific solar panel model or inverters. System capacity is calculated with area, panel efficiency, ground cover ratio (GCR), and land use ratio as follows

$$System Capacity\left(P\right)=A\times {\mathsf{\eta }}_p\times {\mathrm{R}}_{gcr}\times {\mathrm{R}}_{lu}$$

(1)

where $A$ is the area, ${\mathsf{\eta }}_p$ is the panel efficiency, ${\mathrm{R}}_{gcr}$ is the GCR, and ${\mathrm{R}}_{lu}$ is the land use ratio. Land use ratio is the ratio of the total area to the actual solar system installation area. It is not a factor for solar power systems, but it is important for estimating solar potential. Electricity generation is calculated with system capacity, irradiance, inverter efficiency, DC–AC ratio, panel temperature, temperature coefficient, and other losses as follows

$$Electricity Generation\left(E\right)=\mathrm{I}/1000\times \mathrm{P}\times \mathsf{\eta }\mathrm{i}\times {\mathrm{R}}_{da}\times \left(100-\left(25-\mathrm{T}\right)\mathsf{\gamma }\right)/100\times \mathrm{L}\times 365$$

(2)

where $\mathrm{I}$ is the irradiance, ${\mathsf{\eta }}_i$ is the inverter efficiency, ${\mathrm{R}}_{da}$ is the DC to AC ratio, $\mathrm{T}$ is the panel temperature, $\mathsf{\gamma }$ is the temperature coefficient, and $L$ is the other losses.

Default SAM values are used for some factors. The inverter efficiency, DC to AC ratio, and temperature coefficient is set to 96 %, 1.1, and −0.5 %/°C, respectively. The area is calculated by GIS datasets. GCR is calculated from the solar panel tilt angle. The separation distance is calculated to be no shadow at the winter solstice. GCR is the ratio of panel length and separation distance as follows

$$GCR=1/\left(\left(\cos tilt+\sin tilt\right)\times \tan \left(lat+23.5\right)\right)$$

(3)

where $tilt$ is the tilt angle and $lat$ is the latitude. Panel temperature is assumed to be the same as the dry bulb temperature and is calculated according to each hour. Temperature are considered in the SUNMAP calculation to perform the hourly calculation. Other losses are assigned as the mean value of the actual installed system. Panel efficiency and land use ratio are set as variables and different values are used for each scenario. Capacity factor, which is the ratio of the actual output and maximum possible output, and supply ratio, which is the ratio of the estimated electricity generation and actual energy use, are also calculated.

2.3. Scenario

As some variables cannot be set as specific constants, analyzing some possibilities through scenarios can yield practical results. Zandler et al. [39] constructed a scenario in terms of economy and demand and Good et al. [40] constructed a scenario through a land use ratio of buildings. In this study, a detailed scenario is constructed through land use, which is categorized through a remote-sensing technique and GIS analysis, and system-related variables. These scenarios represent the potential differences between different investments and technologies. The results for each scenario are compared to the actual electricity consumption. In addition, hourly energy production by scenario is analyzed in the discussion.

2.3.1. Land Use Classification

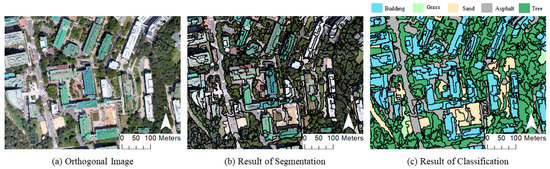

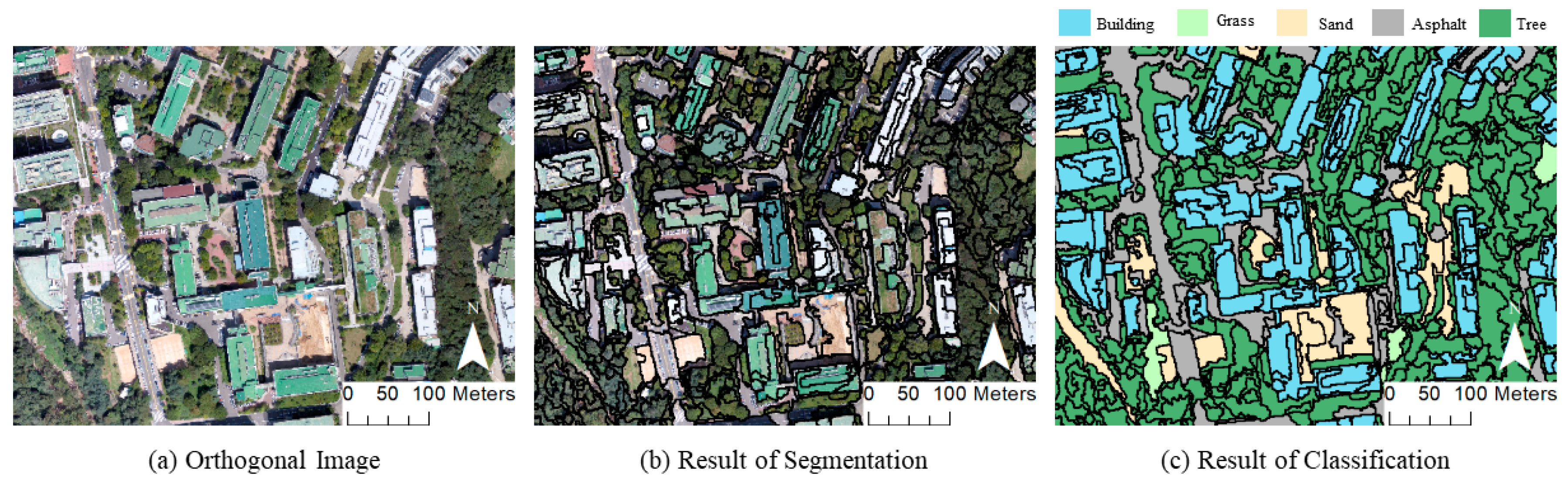

Five land use classes, i.e. building, grass, sand, asphalt, and tree, were selected. The classes are acquired by object-based classification and multiresolution segmentation [41,42]. As object-based classification uses image objects rather than a single pixel, it shows high performance when using a high spatial-resolution image [42]. Multiresolution segmentation is used to make objects from an image using the clustering method. Figure 4a shows the original orthogonal image and (b) shows the segmented image. Classification has been conducted using the orthogonal image and height from the surface. All classes are classified using nearest neighbor and knowledge-based rule sets. Some objects showing irregular patterns, such as the bridge, which is asphalt but has a height, are manually modified. Figure 4c shows the results of the classification.

2.3.2. Design of the Scenario

Scenarios were classified into five according to land use and were analyzed according to panel efficiency and panel orientation, respectively. Five land use classes were used to design the scenario. Four classes—building roof, grass, sand, and asphalt—were extracted from the land use classification, and one class, building façade, was extracted from the vertical plane in the building area. Tree class was excluded under all scenarios. Grass, sand, and asphalt classes are currently not preferred areas but can have high potential in the future. Even motorcar roads, which were included in the asphalt class, were considered as sites for a future solar power system. In the case of building façades, various products such as a building integrated photovoltaic (BIPV) system had already been studied and applied.

Five land use scenarios are designed with assumptions regarding how many solar panels will be installed in each class. Areas with less than 40 kWh/m²/year, which is less than 1000 Wh/m²/day irradiance, are excluded in the calculation. Scenario 1 covers all the area of the classes except for asphalt. As the asphalt area is used as a motorcar road, 50% of the total area is assumed to be installed. This scenario represents the maximum potential with the highest investment and future technology. Scenarios 2 through 5 assume a lower investment in turn: higher, high, practical, and poor investment at the current level, respectively. Detailed land use ratio and panel efficiency of each basic scenario are shown in

Table 1. Land use ratio (%) by scenario.

Land Use Scenario	Building Roof	Grass	Sand	Asphalt	Building Façade
S1	100	100	100	50	100
S2	80	50	50	10	80
S3	80	30	30	0	60
S4	60	10	0	0	30
S5	30	0	0	0	15

.

The panel efficiency is changed from 12% to 30%, and the result according to technology development is analyzed. Two panel orientations—flat and 30° tilt angles—are used to analyze the scenario. The flat angle scenario assumes that the solar panel is installed at a 0° tilt, which results in lower irradiance but a higher possible system capacity. As these systems have lower irradiance, they will have a low capacity factor. However, more solar panels can be installed because the separation distance does not need to be considered. The 30° tilt angle scenario assumes that the solar panel is installed at a southward 30° tilt, which is similar to the latitudinal angle of the study area. This angle is widely used and has relatively high energy efficiency; however, a separation distance is needed.

2.4. Temporal Volatility

Two temporal volatility—hourly and monthly—are calculated according to scenarios. Hourly ramp and monthly variance from net demand are analyzed. In terms of power systems, electricity production should always be consistent with demand. If production is higher, energy is wasted and, if demand is higher, a blackout could occur. In the volatility of hour unit, the steep ramp must be reduced [1] because abrupt ramp requires immediate and flexible power sources such as batteries and diesel generators. The higher the ramp, the greater the capacity and the more equipment required. In addition, as the solar power supply increases, the mitigation of oversupply becomes important. To manage oversupply, energy storage systems (ESS) must be used, however, the required amount can be reduced when hourly volatility is reduced. Therefore, the maximum hourly ramp is calculated with respect to panel direction and scenarios.

In the volatility of the month unit, the variance is important in terms of long-term energy composition. To accommodate energy fluctuations over several months, it is necessary to use huge amount of ESS or different energy sources on a monthly basis. The monthly energy mix is important when the solar power ratio is low, but ESS becomes more important as the solar power ratio increases. As ESS has a high cost currently, mitigation of monthly volatility can be an economically important strategy. Unlike hourly volatility, in this case, the difference between the monthly value and standard deviation are more important than a ramp. Therefore, the standard deviation is calculated with respect to panel direction and scenarios.

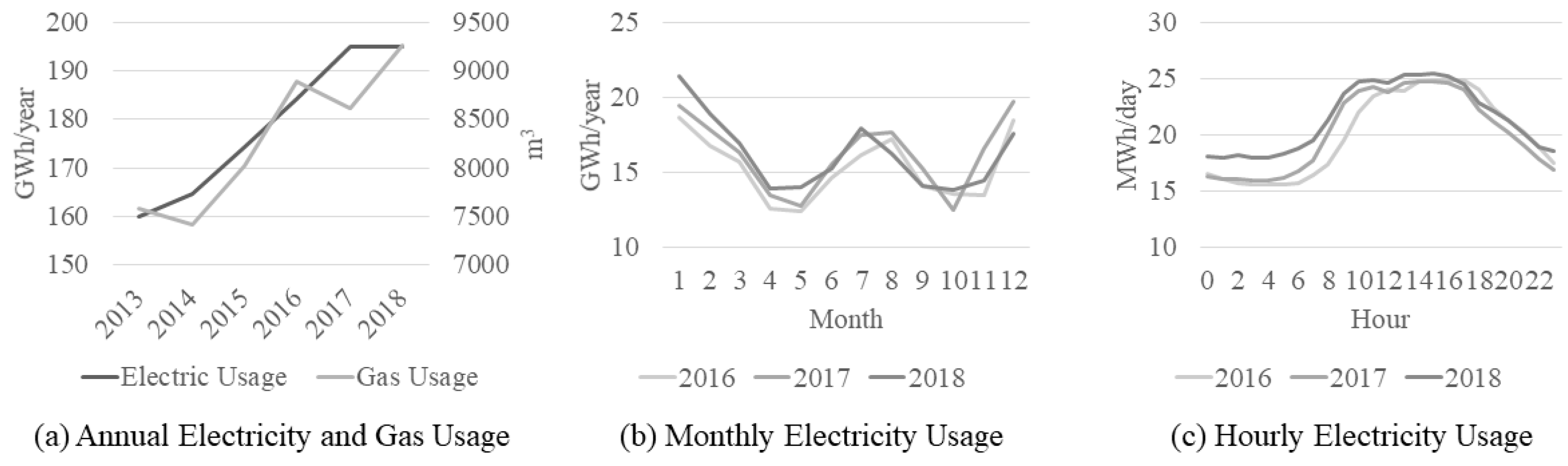

Figure 5 shows the amount and volatility of energy usage in the study area. The study area is currently using both electricity and gas, which have some fluctuations but are steadily increasing over time. Although total usage has increased, patterns of monthly and hourly usage have been similar for the past three years as shown in Figure 5b,c. However, energy usage in the morning showed a slightly increasing tendency in hourly patterns.

2.5. The Optimal Orientation of the Solar Panel

The optimal orientation for one condition can be estimated as one value, however, that for multiple conditions with economic factors cannot be estimated as one value. Therefore, the optimal orientation is analyzed under three conditions, annual production, hourly volatility, and monthly volatility. In annual production, energy density according to panel orientation and GCR are analyzed. Energy density is the most important factor, but GCR also can be important in a limited area. In volatility analysis, correlation and standard deviation of temporal patterns are analyzed. The net demands according to the scenario are also analyzed based on ramp and volatility. Since the optimal orientation can be changed according to factors such as project target, area, and economic factors, this study presents the optimal orientation according to several scenarios and objectives.

3. Results

3.1. Irradiance Mapping

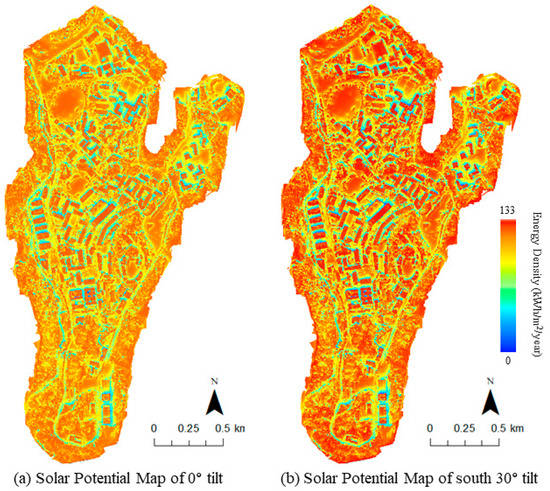

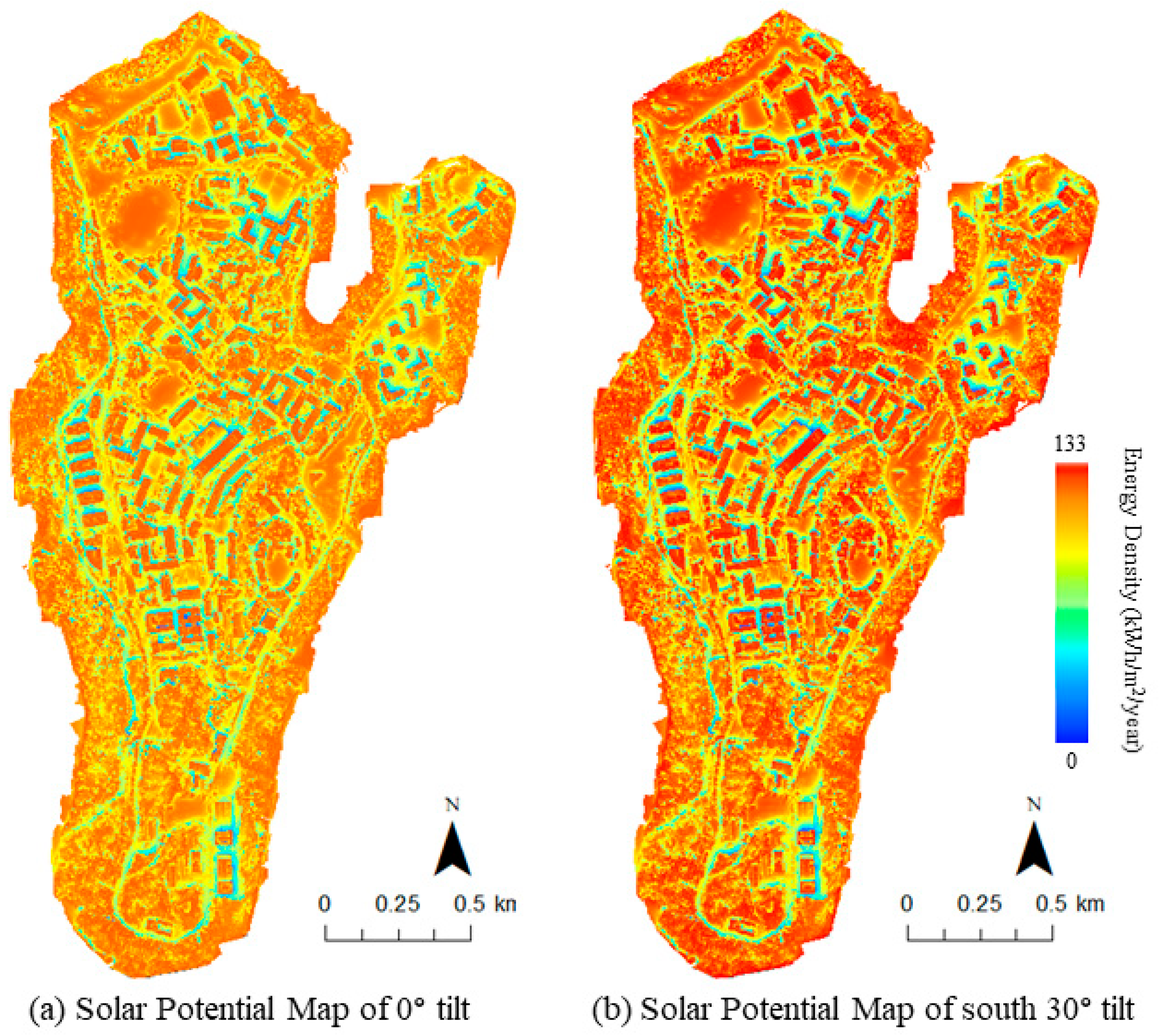

The irradiance maps are generated for all of the study area and two maps—an irradiance map for both 0° tilt and southward 30° tilt—are shown in Figure 6. The result as a potential map, is calculated as the energy density. It is electricity generation according to the panel area, which does not consider GCR. An irradiance map with flat panels shows lower irradiance than that of the other map. The irradiance of most building roofs, which are typically a high area, shows high values, while that of another area such as road or grass shows relatively low irradiance. Overall, the lowest value is found around the buildings and the area of the roads is low near the surrounding trees. The maximum energy density of each map is 122.2 kWh/m²/year and 133.3 kWh/m²/year, respectively. The mean values are 64.3 kWh/m²/year and 67.6 kWh/m²/year, respectively.

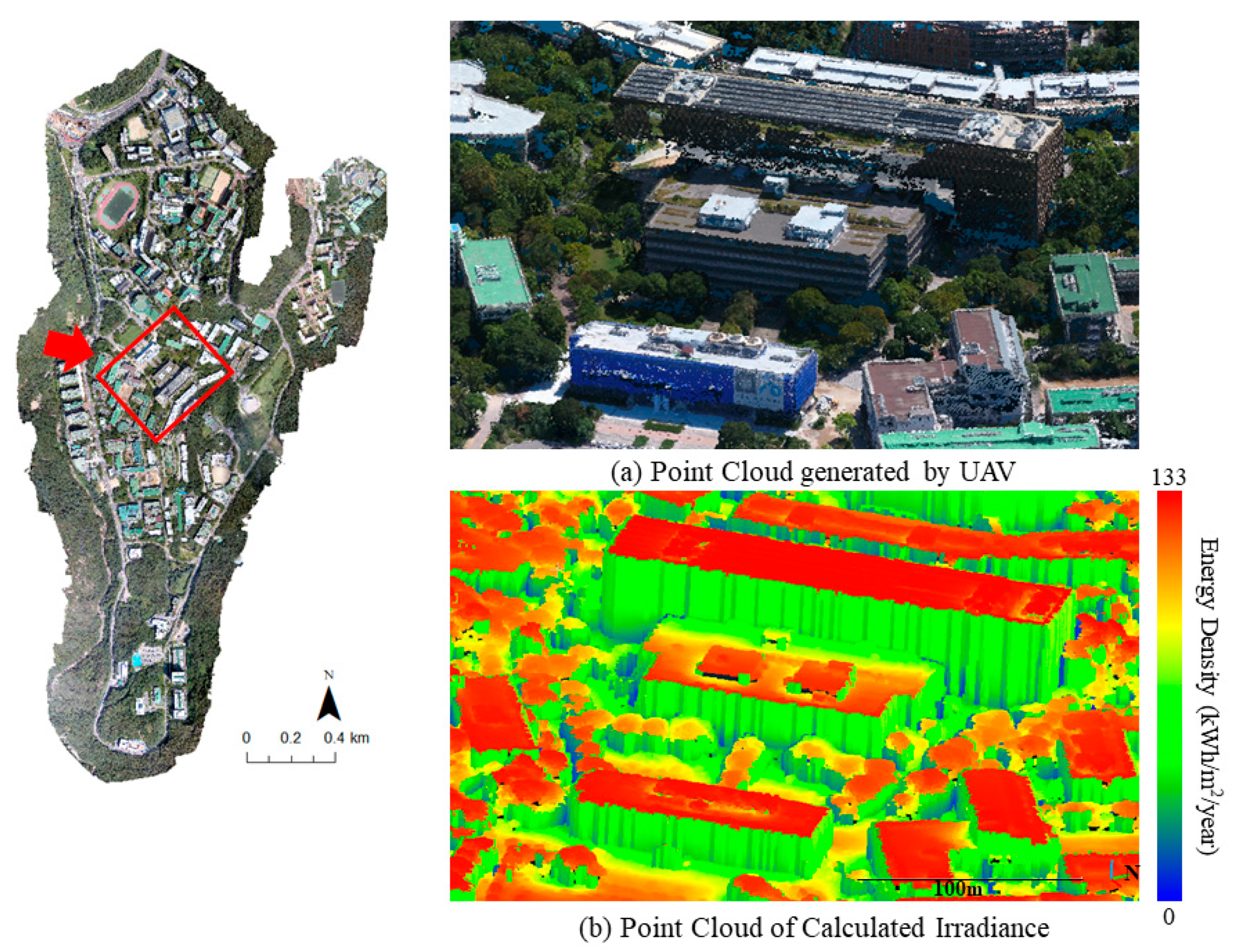

A sample of the calculated 3D point is shown in Figure 7. The middle part of the study site with the large library building is visualized and the other areas are calculated in the same manner. All the panels of the façades are assumed to have 90° tilt angles but with varying azimuth angles. Most azimuth angles of the building façades are not southward but partly toward the east or west. As many buildings in the study area are not high-rise buildings, many areas of the façades are shadowed by nearby buildings or trees. The maximum energy density in the vertical plane is 80.3 kWh/m²/year and mean value is 58.6 kWh/m²/year.

3.2. Potential by Scenario

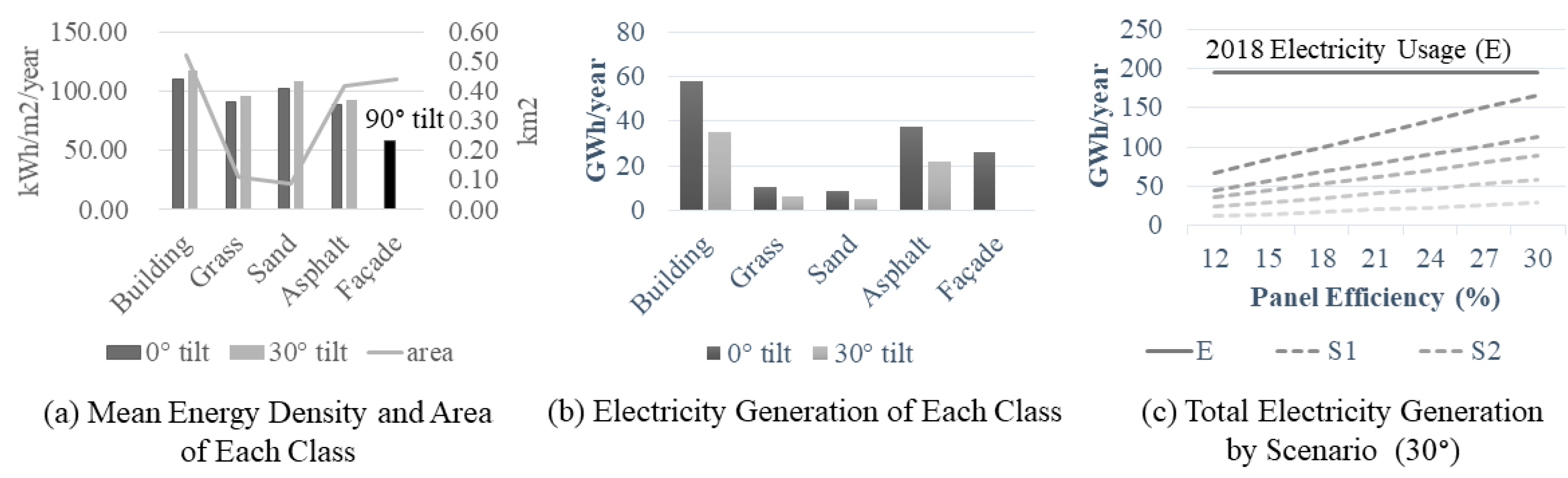

Mean energy density and area of each class are calculated and shown in Figure 8a. Only areas with an energy density higher than 40 kWh/m²/year, which is higher than 1000 Wh/m²/day irradiance, are considered and visualized. The building roof, asphalt, and building facade classes show a high area of approximately 0.4 to 0.5 km². Other classes show approximately 0.1 km². The mean energy density decreases from the building roof to sand, grass, asphalt, and building façade. The energy density of the 0° tilt shows an approximately 6% higher value than that of the flat tilt. The difference between the highest value, a building roof with 30° tilt, and the lowest value, a building façade, is greater than 50%.

Electricity generation is calculated for each class and shown in Figure 8b. A constant panel efficiency of 15% and land use ratio of 100% are used in these cases. Electricity generation shows a pattern similar to area, but decreases on the building façade due to low energy density. Unlike the energy density, the 30° tilt shows a much smaller value than that of the flat tilt. The difference in electricity generation between the 30° and flat tilt is approximately 40%. The capacity factor shows a nearly equal pattern to that of the energy density, ranging from 4% to 9%

Electricity generation under each scenario is calculated and shown with actual electricity consumption of the study area in Figure 8c and

Table 2. Estimated potential for each scenario (GWh/year).

Scenario		Panel Efficiency (%)
		12	15	18	21	24	27	30
Annual Electricity Usage (2018)		194.85	194.85	194.85	194.85	194.85	194.85	194.85
S1	Panel tilt angle 0°	97.21	121.52	145.82	170.12	194.43	218.73	243.03
S2		64.21	80.26	96.31	112.36	128.42	144.47	160.52
S3		51.96	64.95	77.94	90.93	103.92	116.91	129.90
S4		34.79	43.49	52.19	60.88	69.58	78.28	86.98
S5		16.99	21.23	25.48	29.72	33.97	38.22	42.46
S1	Panel tilt angle 30°	66.56	83.20	99.84	116.48	133.12	149.76	166.40
S2		45.19	56.49	67.79	79.09	90.38	101.68	112.98
S3		35.40	44.25	53.10	61.95	70.80	79.64	88.49
S4		23.43	29.29	35.15	41.00	46.86	52.72	58.58
S5		11.47	14.34	17.21	20.08	22.94	25.81	28.68

. For the 20% panel efficiency, which is currently in commercial use, it has been shown that it is possible to generate approximately 30 to 170 GWh/year depending on the scenario. However, as Scenarios 1 and 2 require very high investment, less than 100 GWh/year is expected to be possible. Only land use Scenario 1 with a flat tilt angle can generate more than the electricity usage in 2018. However, even in this case, because the panel efficiency should be approximately 24%, it requires considerable technological development and investment.

3.3. Temporal Volatility

3.3.1. Hourly Volatility

Figure 9a shows hourly electricity usage and energy density according to the zenith angle. Electricity usage shows typical two peaks in the morning and afternoon, which is slightly different from electricity generation. In the case of a southward panel, the peak output is at noon, and the peak time moves to the morning or evening as the panel moves east or west. The electricity usage was higher in the afternoon than in the morning; therefore, the correlation was higher toward the west as shown in Figure 9b. As the energy density decreases as the azimuth angle moves away from the south, proper orientation should be determined considering both energy production and ramp mitigation. Unlike the azimuth angle, the zenith angle has little effect on the hourly pattern.

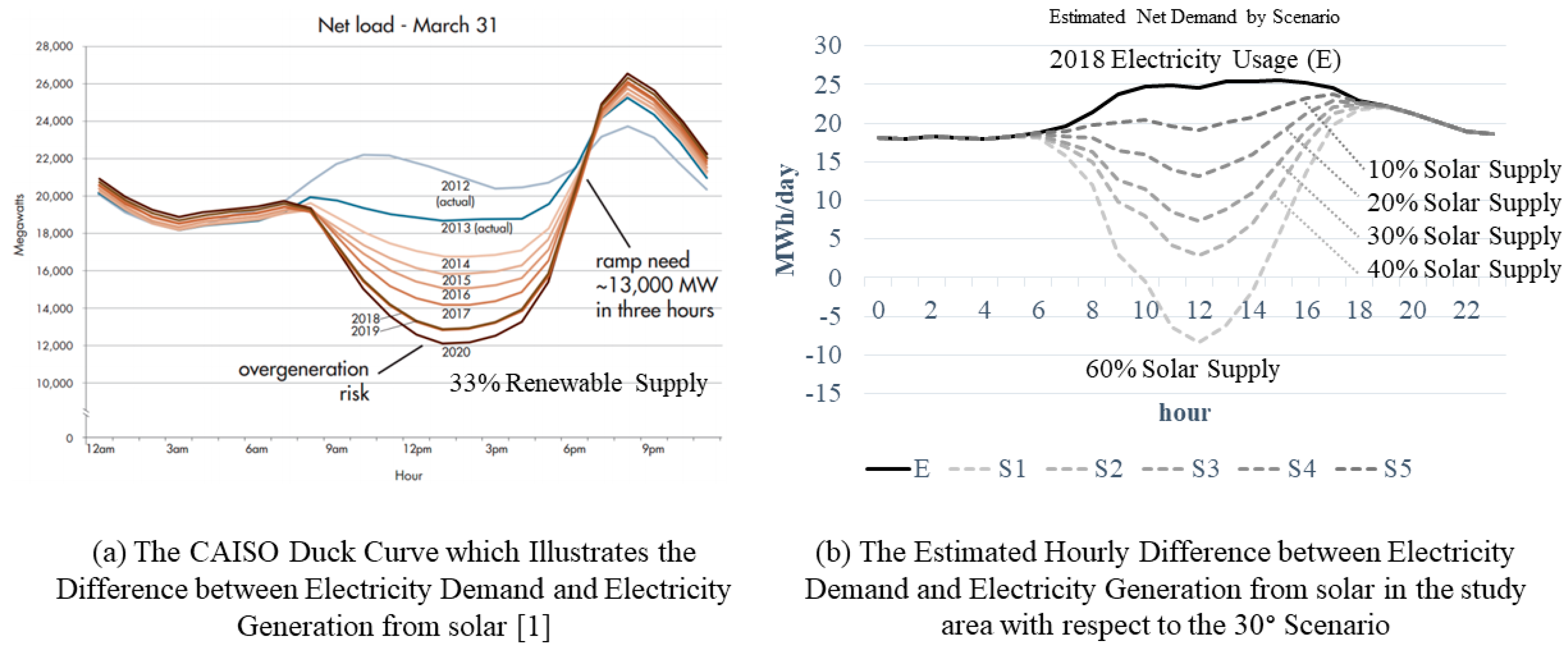

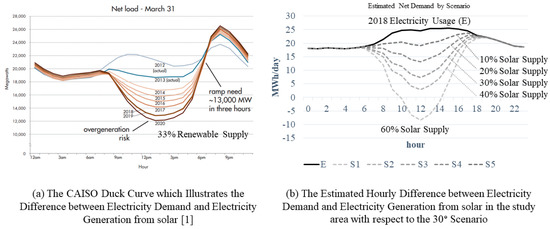

Figure 10a shows the typical duck curve in California [1] and Figure 10b shows the net demand in the study area according to scenarios. This scenario is based on a southward panel with a 30° tilt and a panel efficiency of 20%. In the former, it can be seen that a steep ramp occurs around 6:00 pm as the solar power generation increases. However, in the latter case, the evening ramp is not as large as the former because there is no evening peak demand and only a low peak in the afternoon which is a typical pattern for university campuses in Korea. Although the steep ramp appears as the solar power supply increases, the intensity of the ramp seems to be much lower in universities than in general cities. This is because, unlike residential areas, people in universities go home at night. Nevertheless, as there are lamps in universities from the S2 scenarios where the solar energy penetration rate is more than 10%, measures are required to overcome them. If the solar power ratio exceeds 40%, there is negative net demand at noon, therefore, ESS is essential to reduce oversupply.

3.3.2. Monthly Volatility

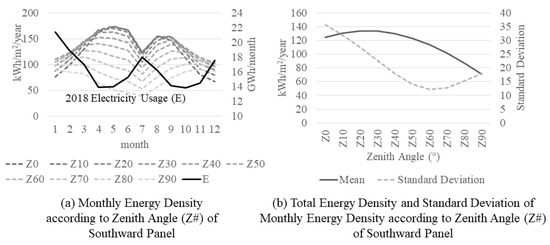

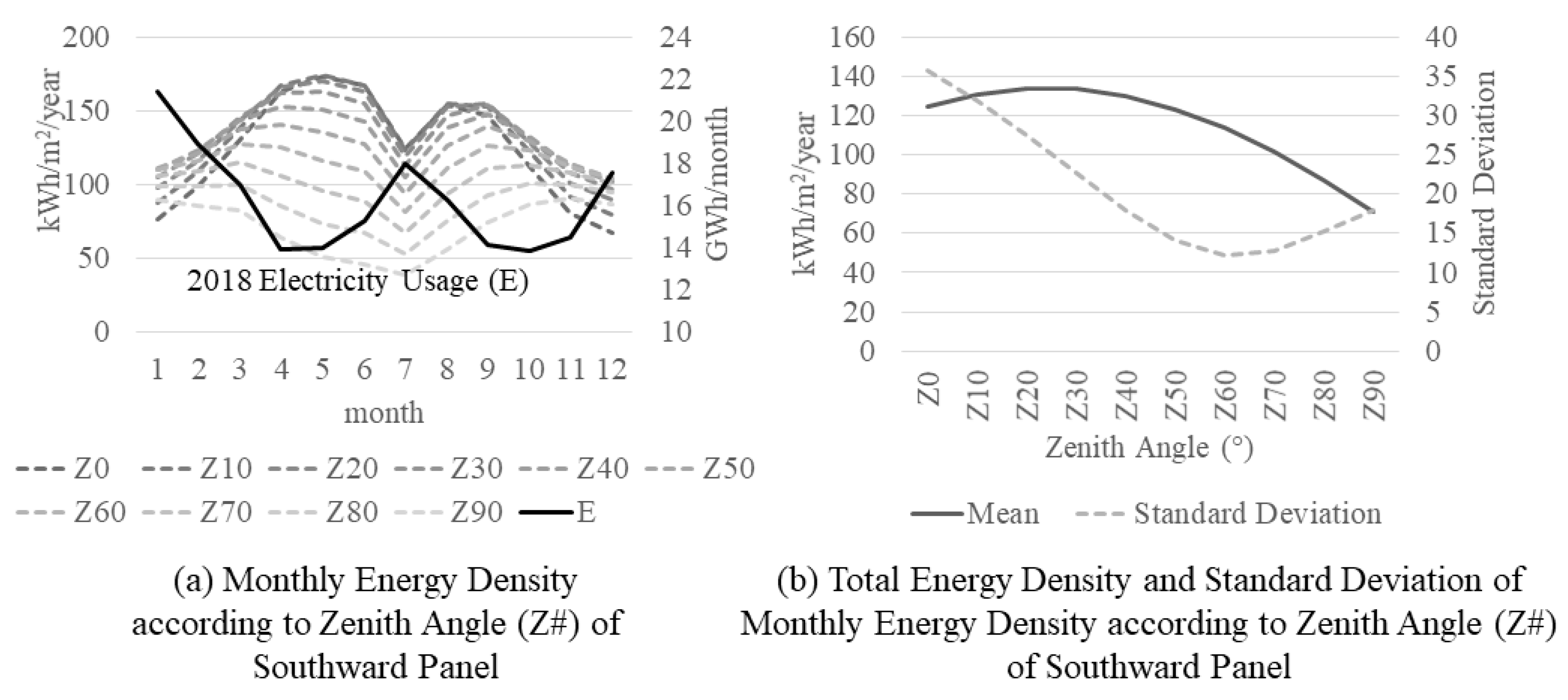

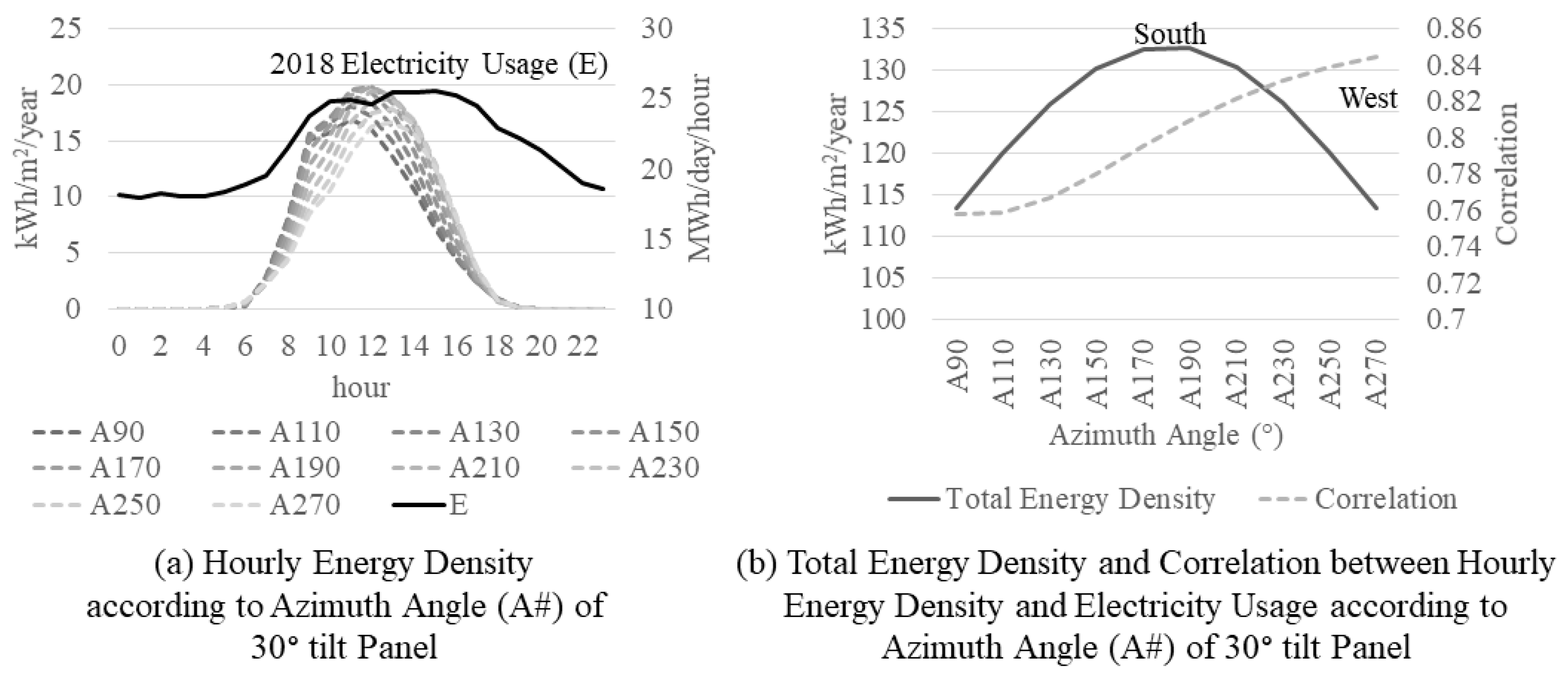

Monthly electricity usage and energy density according to the azimuth angle are shown in Figure 11a. The monthly usage and generation from 30° tilt panel show the opposite pattern with a correlation of −0.6. As tilt angle moves to vertical, the correlation increases but most correlations were less than zero. However, as the volatility decreases as it becomes vertical, it may help to maintain stability. As shown in Figure 11b, energy density is the highest at 25° tilt angle but the standard deviation is the lowest at 60° tilt angle. The energy density is 15% lower than the 25° tilt, but the standard deviation falls to less than half with 60° tilt. When the monthly volatility increases as the solar power increase because of the negative monthly correlation, it is considerable to choose a low-energy tilt with a small deviation. Contrary to hourly volatility, the azimuth angle has little effect on the monthly pattern.

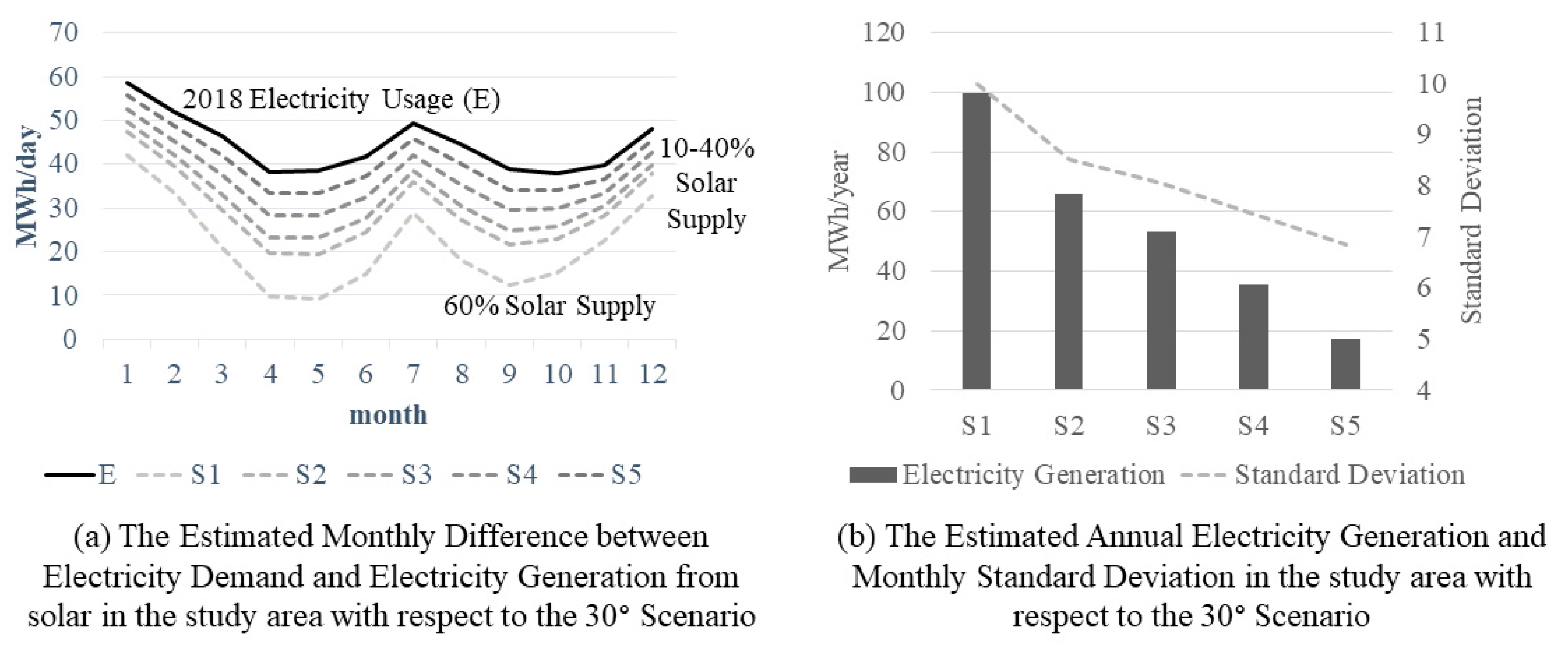

Monthly net demand according to scenarios is shown in Figure 12a. As these scenarios suppose 30° tilt, the deviation increases with high solar power. Figure 12b represents a proportional pattern of the standard deviation according to solar power. Since electricity usage is high and solar power is low in summer and winter, additional energy is required in these seasons. Because there is more cumulative energy variation than hour unit, it is necessary to generate or store huge energy. In addition, to increase solar energy ratio more than 70%, oversupply in spring and fall should be resolved with ESS. As monthly gas consumption of SNU campus is also similar to electricity usage, the effect from the electrification of gas is unexpected. Therefore, even if some excessive power is abandoned, it may be necessary to change the tilt angle of the panel to reduce the deviation.

3.4. Optimal Orientation

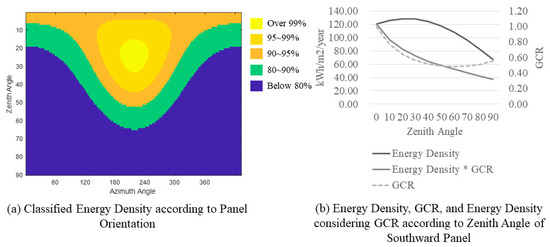

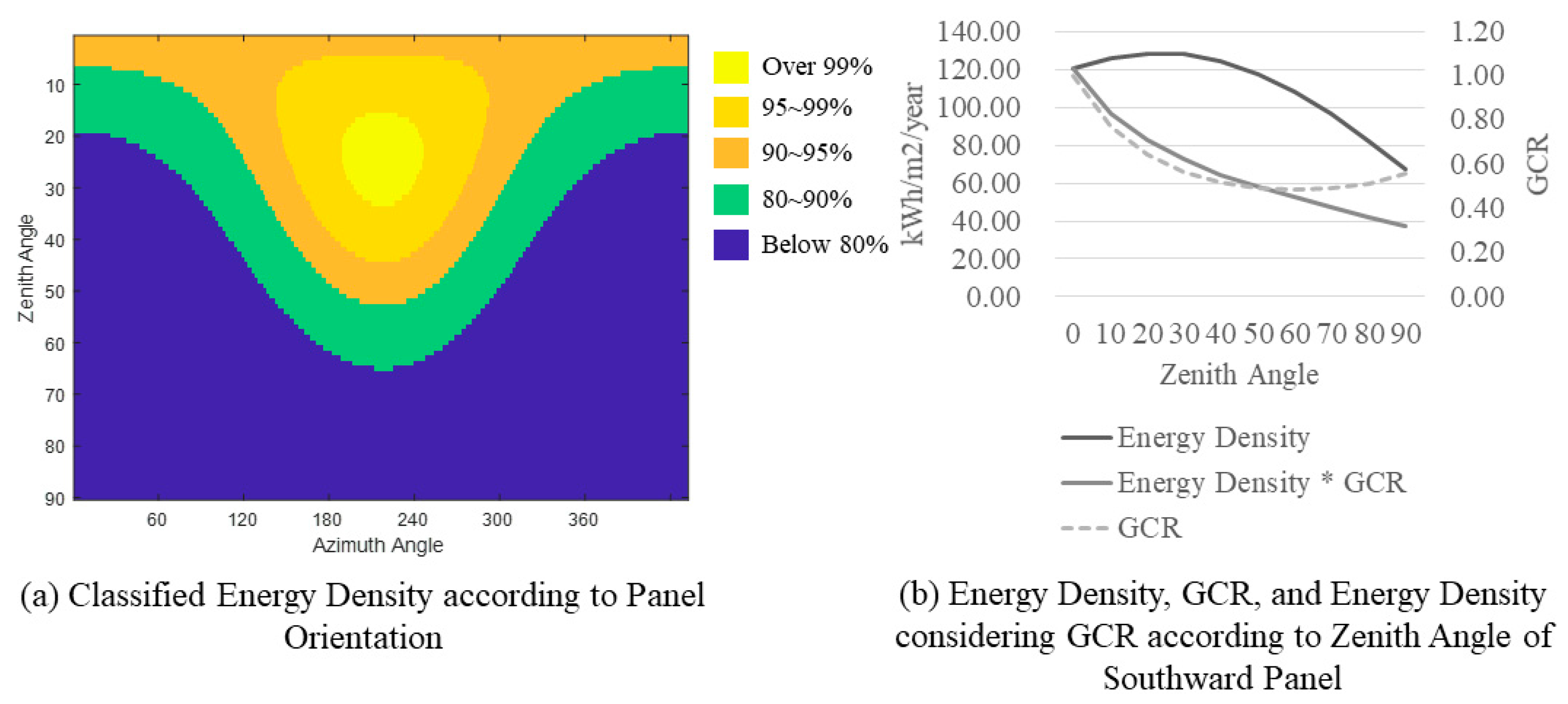

Panel orientation for highest energy density is southward 25° tilt angle. Notably, the energy density near the highest point is nearly equal to that point. Figure 13a shows the visualization of classified energy density distribution. The change in orientation of approximately 10° results in only 1% of the difference. Therefore, changing a small amount of panel orientation has little effect on the energy density. As shown in Figure 13b, the panel orientation affects the GCR rather than the energy density on tilt angle close to horizontal. Considering the separation distance, a low zenith angle can be a preferred angle if high capacity is required in a small area.

Optimal orientation of the solar panel is analyzed by combining the above results. Net demand pattern is arranged based on solar power supply ratio and optimal orientation is assigned in categorized cases. In terms of annual power, the optimal azimuth angle is southward and there are two optimal tilt angles for high capacity and high efficiency—0° and 25°, respectively (

Table 3. Analysis results of net demand and optimal orientation according to solar power supply ratio.

	Net Demand		Optimal Orientation
Solar Power Ratio (%)	Hourly	Monthly	Annual	Hourly	Monthly
0	High at the daytime	High in the summer and winter	South 0° tilt for high capacity 25° tilt for high efficiency	South for high efficiency West for high correlation	South 0° tilt for high capacity 25° tilt for high efficiency 60° tilt for low standard deviation
10	Nearly Flat
20	High at night			South
30
40	High at night (Negative at the daytime)
50
60
70		High in the summer and winter (Negative in the spring and fall)
80
90
100

). In terms of hourly volatility, the westward panel can be considerable when solar supply is below 10%. The westward panel is similar to the pattern of electricity demand, which makes it easy to supply stable power. This is not meaningful if the supply ratio exceeds 10% because since then, net demand starts to show the opposite pattern. In terms of monthly volatility, 60° tilt angle which can reduce the deviation can be further considered. The optimal orientation should be selected according to the objectives in consideration of all factors such as area, cost of electricity, battery, etc.

3.5. Validation

Results of the study are verified through actual electricity generation and measured irradiance in 2017. There are greater than 15 photovoltaic systems with a capacity of 20 kW or more in the study area. As hourly or daily data are not organized well and have considerable missing data, monthly data modified by the interpolation of missing daily data from eight sites are used. The degradation rate of 0.5 %/year is applied to each system considering its year of manufacture. Other losses are assigned differently for each system at a 5% interval. Correlation of normalized monthly data and mean relative RMSE are 0.9574 and 9%, respectively.

4. Discussion

4.1. Solar Potential

A most significant factor for solar potential in each class is the area. As the study area has little vacant lot area, buildings and motorcar roads cover large areas. The building façade area is similar to that of the building roof but slightly less. The mean energy density of the four non-vertical classes shows a maximum difference of 20%. This implies a photovoltaic system can be installed in every classes according to technological development. Although the energy density of building facade is approximately 60% of that of other ground classes, it has the advantage of utilizing hidden space. As results, the total solar potential of the study area is heavily influenced by the usage of each class area and discussions on land use from a long-term perspective are needed.

Although the results show electricity generation could exceed the electricity consumption in 2018, land use Scenario 1 is too ideal approach and electricity consumption is steadily increasing. Therefore, 100% of the electricity supply seems to be impossible without a technological breakthrough or expand the sites with cutting trees. From the current perspective, a supply ratio of less than 30% is expected to be practical. Even in these cases, tens of MW capacity and tens of GW/year electricity are expected.

As panel efficiency is generally approximately 20%, an increase of 1% can have a large impact on the total value. Recent studies show that the efficiency of silicon photovoltaic cells is greater than 26% [43]. Although these laboratory results may differ from those in industry, these studies could be expected to improve the efficiency of commercial solar panels in the future. Another important factor is the degradation of the system over time. However, such degradation is expected to be compensated by maintenance methods and various techniques such as monitoring systems [44,45].

4.2. Temporal Volatility and Optimization of Panel Orientation

The current study area is connected to the national grid. Therefore, the analysis of temporal volatility in the university may not be meaningful. However, as mentioned in the introduction, the microgrid is studied for various reasons and this research is essential if the system partly adopts to the microgrid. The analysis of the hourly volatility implies that microgrid at the university campus has advantages in the absence of evening peak demand. However, the analysis of the monthly volatility implies that there are huge deviations of several months. To solve this problem and to construct the microgrid, large ESS should be constructed from a long-term perspective. Pumped hydro energy storage (PHES) can be an alternative for high renewable energy supply [46]. This study area is favorable in this respect because it is located in the mountain area, but the actual installation of PHES requires further study.

When applying orientation optimization, there is an easy way to connect with architecture. The orientation of the building is oriented not in the south but in various orientations depending on the terrain and the object. If photovoltaic power plants are installed in buildings with appropriate orientation, both architectural and system stability aspects can be beneficial. The buildings in this study area are also mostly oriented to the southeast rather than the south. In addition, vertical tilt angles on the building façade can help to reduce monthly volatility. However, if the photovoltaic system uses tracking solar panel, optimization of panel direction is not necessary. Nevertheless, optimal orientation analysis is very important because fixed solar panels are constantly being used because of maintenance, additional energy use, and economic reasons.

5. Conclusions

The solar potential of the university is estimated using the developed tool and various scenarios. The optimistic and ideal scenario shows a high solar potential that can exceed the total energy consumption in 2018 with high panel efficiency. However, the practical scenarios show less than 25% of the total consumption is available. Temporal volatility is analyzed on an hourly and monthly basis, each of which was used to maintain short-term stability and long-term stability. The university has advantages in terms of low electricity demand in the evening, but monthly demand shows a pattern opposite to solar power generation. Optimal orientation of solar panel for mitigation of temporal volatility is estimated according to objectives and solar power supply ratio.

The potential, optimal orientation and electricity usage can vary from region to region. Other university campuses with different location and life patterns can show different results. The results can also change if new technology emerges or the environment of the sites changes. Nevertheless, the methodology and results can aid future urban energy planning. The solar potential can be used to understand the objectives of projects and compatibility of a microgrid on the university campus. The results of volatility and optimal orientation can be used to optimize the system and understand future perspectives. There will be more campaigns for environment-friendly campuses and microgrid in the university. This study is expected to help the decision-making and the design of a solar power system for these campaigns.
