CFD Simulations of the Propagation of Free-Surface Waves Past Two Side-By-Side Fixed Squares with a Narrow Gap

1
School of Naval Architecture and Ocean Engineering, Jiangsu University of Science and Technology, Zhenjiang 212003, China
2
Department of Mechanical and Structural Engineering and Materials Science, University of Stavanger, 4036 Stavanger, Norway
*
Author to whom correspondence should be addressed.
Energies 2019, 12(14), 2669; https://doi.org/10.3390/en12142669
Received: 1 June 2019 / Revised: 1 July 2019 / Accepted: 4 July 2019 / Published: 11 July 2019
(This article belongs to the Special Issue Engineering Fluid Dynamics 2019-2020)
  |
PDF [9614 KB, uploaded 11 July 2019]
  |

Abstract

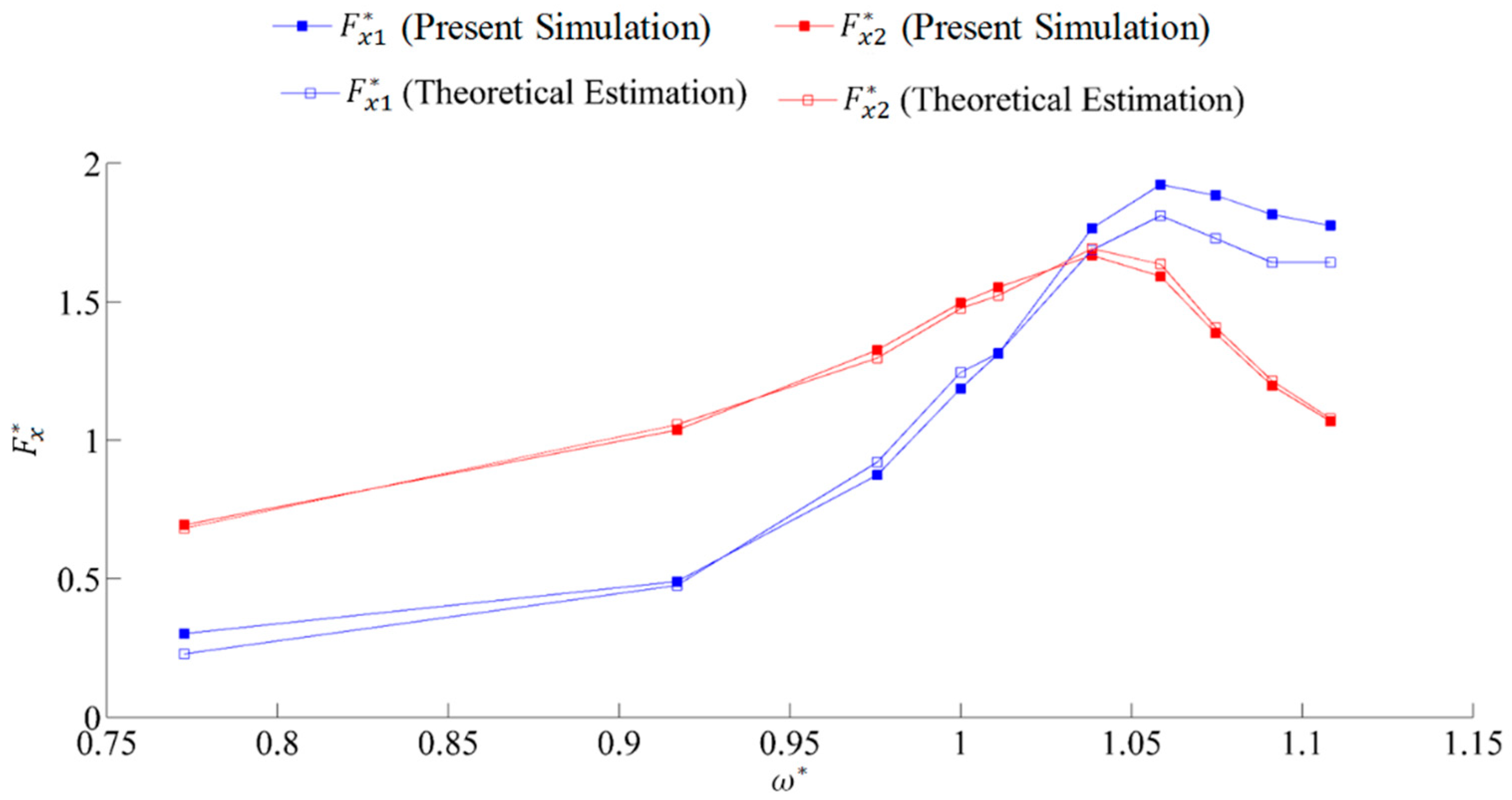

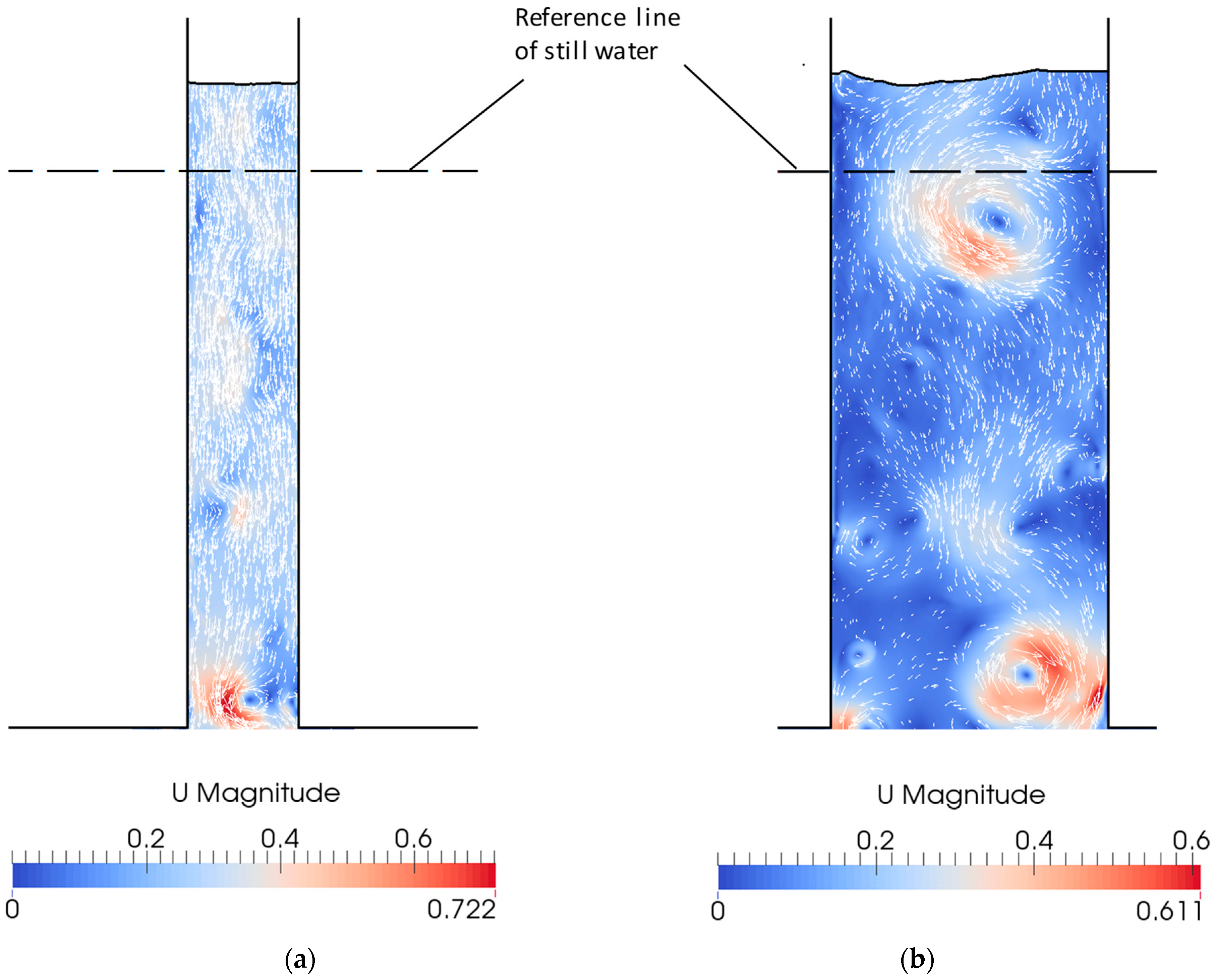

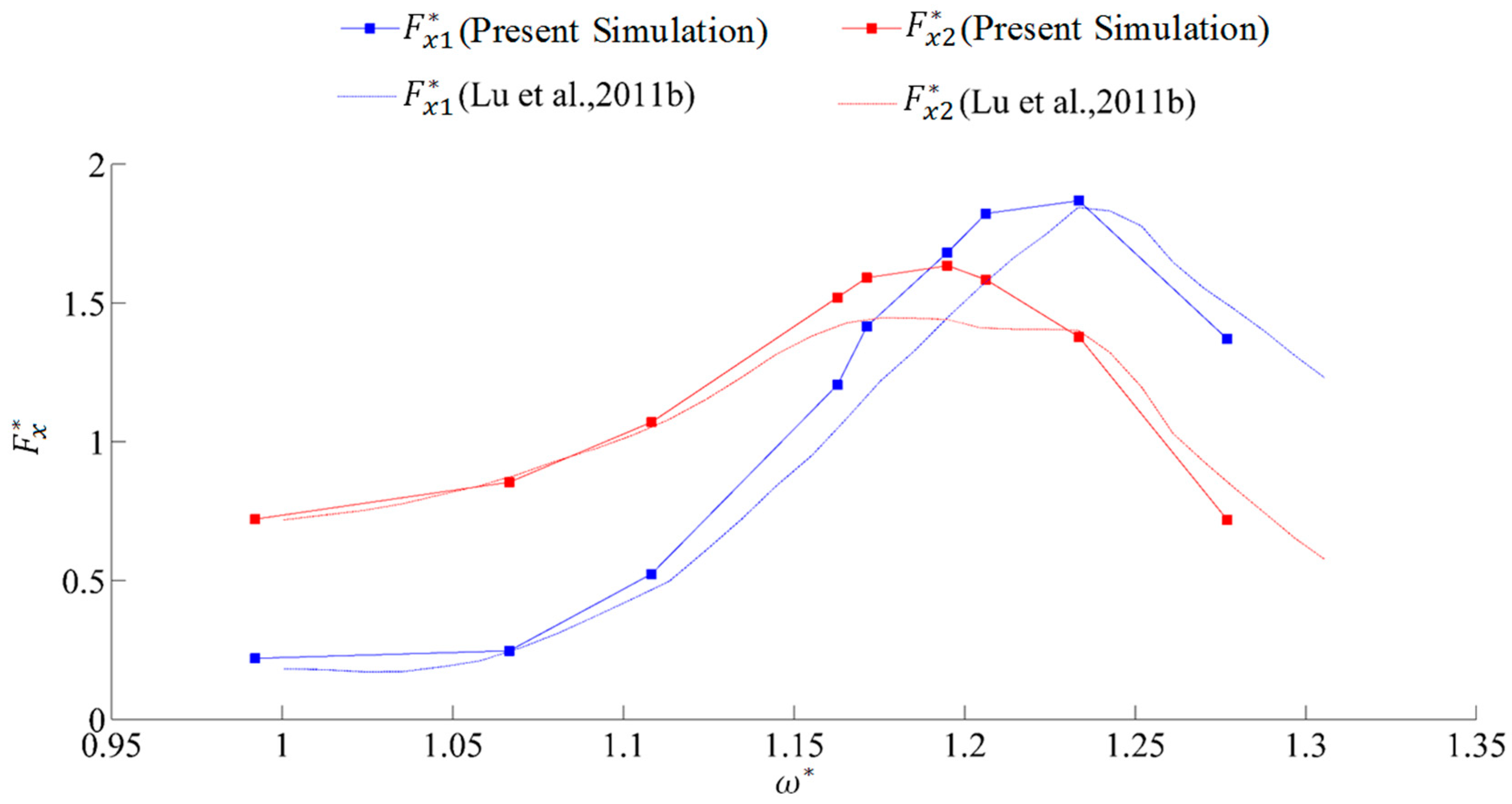

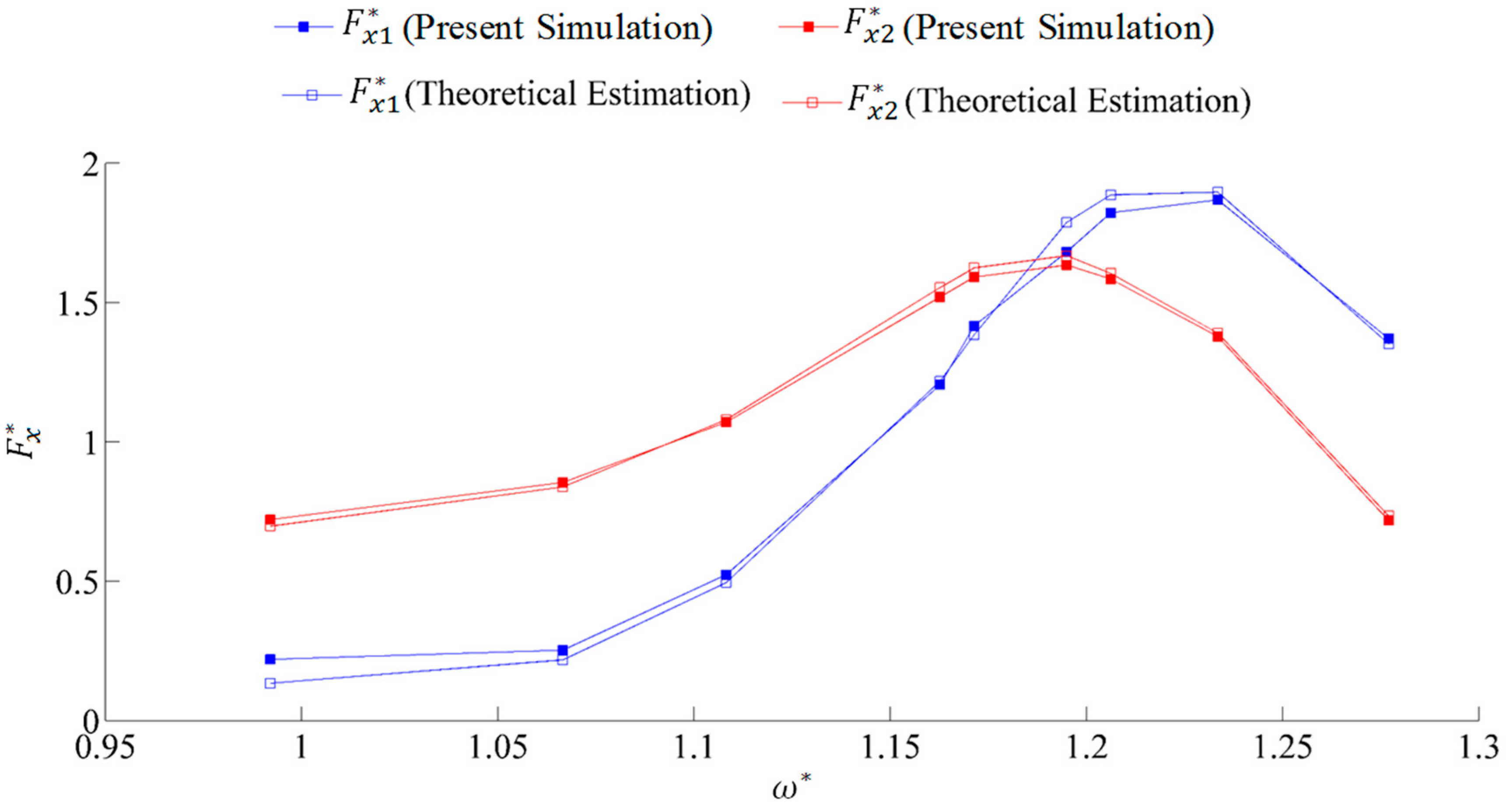

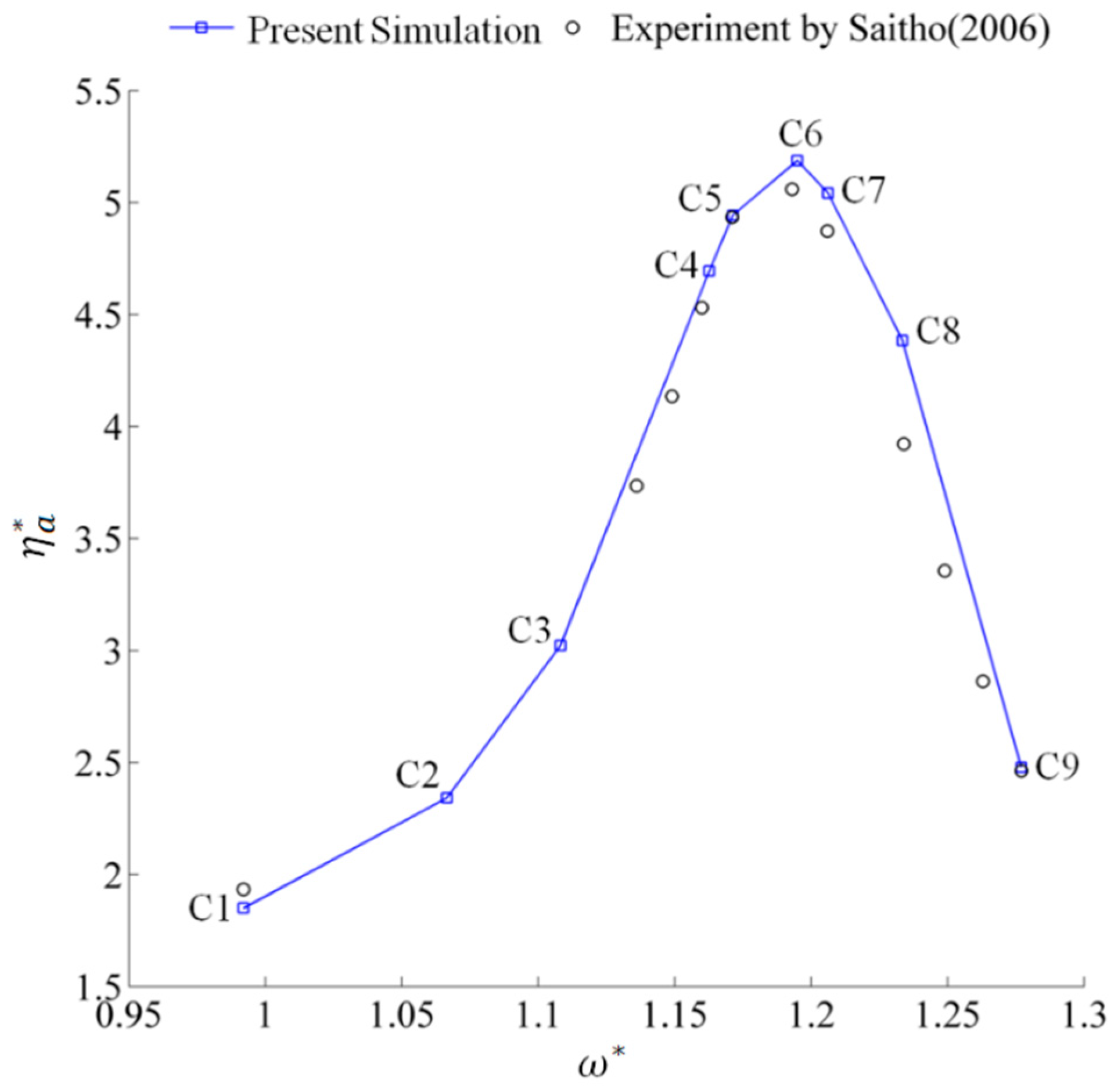

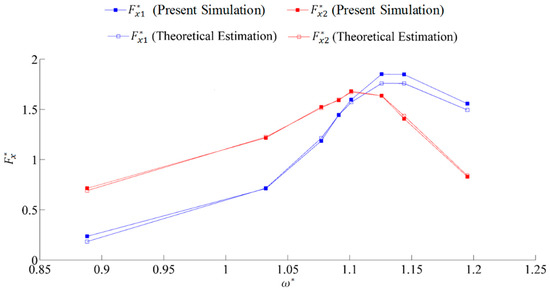

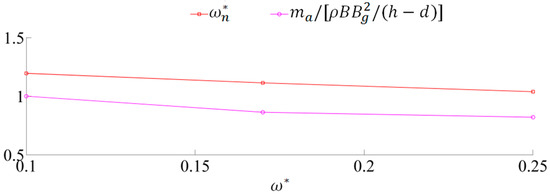

Two-dimensional computational fluid dynamics (CFD) simulations are carried out to investigate the gap resonance phenomenon that occurs when free-surface waves travel past twin squares in tandem. The volume of fluid method is used to capture the free surface. Validation studies of the present numerical model are conducted for different incident wave frequencies. The numerical results agree well with the published experimental data in terms of the free surface elevations in the gap. The hydrodynamic characteristics of the water column in the gap are investigated at different incident wave frequencies and gap widths. It is found that the free surface elevation in the gap increases and then decreases with the increasing incident wave frequency. The horizontal force on the weather side square structure (the structure in front of the gap) reaches the peak value at a larger frequency than the gap resonance frequency, whereas the variation of the horizontal force on the lee side structure (the structure behind the gap) is in-phase with the free surface elevation in the gap. Moreover, the added mass of the water column in the gap increases with the increasing gap width, which results in the decrease of resonance amplitude and frequency in the gap. However, this does not necessarily reduce the peak value of the horizontal forces on the structures. View Full-Text
Keywords: CFD; gap resonance; hydrodynamic forces; free surface waves CFD; gap resonance; hydrodynamic forces; free surface waves
