Energies 2019, 12(12), 2307; https://doi.org/10.3390/en12122307

Article
From Carbon Calculators to Energy System Analysis in Cities
1
Department of Planning, Aalborg University, A C Meyers Vænge 15, 2450 Copenhagen, Denmark
2
Department of Planning, Aalborg University, Rendsburggade 14, 9000 Aalborg, Denmark
*
Author to whom correspondence should be addressed.
Received: 30 April 2019 / Accepted: 5 June 2019 / Published: 17 June 2019

Abstract

:
Energy systems in cities need to be decarbonized and are becoming more integrated via energy sector coupling. Today, cities often use simple methods to assess their low carbon targets, e.g., carbon calculators, and these methods use annualized carbon reduction potentials. For example, reductions from heat savings in buildings or fuel demand in transport. This is done because it is simple and fast. This paper describes a methodology that goes beyond carbon calculators and assesses highly renewable energy systems. The methodology is carried out for a case city—Sønderborg, Denmark. Using a national 100% renewable energy study and a suitable energy system analysis tool (EnergyPLAN), the method accounts for inter-sector coupling and energy system dynamics. The energy system is assessed by comparing the results from the analysis tool against numerous key sustainability factors for a Smart Energy System. The paper illustrates how the method delivers a sustainable 100% renewable Smart Energy System for Sønderborg, which can be part of the Danish energy system in 2050 based on local resources. The paper discusses the broader applicability of the method within strategic energy planning.
Keywords:
climate change; energy planning; renewable energy; city

1. Introduction

Cities consume vast amounts of energy due to citizen activity in buildings and transport, and commercial activities such as industry. Energy is consumed either in the form of electricity, fuels, or heat, or a combination of these, which releases greenhouse gas emissions (GHGs). To address these emissions, the European Union set goals of 20% GHG reduction by 2020 and 40% by 2030 [1]. In response, 7755 European Cities have signed the Covenant of Mayors, with more than 6000 submitting Sustainable Energy Action Plans (SEAPs) [2]. In these plans, the current energy situation of each city is described in a Baseline Emission Inventory (BEI) which attaches CO2 equivalent emissions to energy demand, and reduction potentials for these emissions [3]. SEAPs often look at the use of renewable energy, improved energy efficiency in buildings, optimizing public lighting, improving air conditioning, and improving the efficiency of other appliances [4]. Measures are planned with reduction targets attached to each and, when implemented, lead to reductions in GHGs. These reductions are often analyzed independently and on an annualized GHG reduction basis. Consequently, carbon calculators are used when preparing SEAPs for the Covenant of Mayors [5].

1.1. Shifting to 100% Renewable Energy

Shifting from a partial fossil fuel-based energy system to a 100% renewable energy system in a city involves numerous additional factors [6]. For example, the full integration of energy sectors and large number and variety of inter-linked production technologies, as presented for Denmark in Figure 1.
The future energy system will be highly electrified and this requires that local energy sectors are integrated, creating numerous synergies via energy storages and flexibility [7]. Energy sectors are already beginning to become more integrated, with decentralized renewable energy, and sector coupling technologies such as electric vehicles [8]. Therefore, in the future when looking at a city as a whole, the energy sectors should be conceptualized as an energy system.
In order for a future 100% renewable energy system to be considered “smart” it needs to meet certain sustainability factors as well, including all energy sectors, improving efficiency and resource use, and improving the environment (Table 1). Addressing these factors ensures that socio-economic costs and biomass consumption are minimized, which are two critical aspects of the future energy system [9].
To achieve these sustainability factors, goals need to shift from focusing on the silo effects of individual measures on the energy supply chain, which are too simple, to complex effects in the energy supply chain [12]. In order to set goals, an understanding of the local energy system is required for all the energy system components in an energy system, today and in the future. To develop goals for a Smart Energy System there are three main targets that need to be understood [10]:
  • Resources: fuels, electricity (source);
  • Conversion/exchange and storage technologies (system);
  • Final demand: user behavior end-uses (Service).
All these targets should be analyzed in the dynamic energy system to understand the interlinked and interacting energy flows (Figure 2). Electricity exchange with the rest of the country is also part of this interconnected system (the “energy exchange” box in Figure 2).
The method in this article is focused on developing a local energy system that includes, at minimum, the sustainability factors of: 1) all energy sectors, and 2) a technically feasible design and analysis. In the future energy system, it is assumed that numerous technologies will be local and distributed in many sectors, and the results from the method will develop an understanding of both their interrelations in an integrated energy system and the combination of these technologies with energy savings and energy storages. This requires the use of urban energy system models. Keirstead [13] reviewed the state of the current practice of urban energy system models. The conclusion was that there are four main challenges, which include understanding model complexity, data quality and uncertainty, model integration, and policy relevance. They suggest improvements to the current practice in urban energy systems modeling by focusing on sensitivity analysis and cloud computing, data collection, and integration techniques, and using activity-based modeling as an integrating framework. This article advances from this research by focusing on the sustainability factors of the energy system as well as data quality and verification, as described in [13]. Allegrini [14] investigated numerous district level models and tools for district energy systems and renewable energy. The present article focuses on the broader scope of the city rather than districts, and smaller scale systems in buildings, which apply different methods and tools.
Urban energy system modeling should not be an isolated activity. It should be relevant and done within a planning process. Mirakyan [15] describe integrated energy planning (IEP), which involves city energy system modeling and analysis coupled with the engagement of stakeholders. IEP partly addresses the challenge of policy relevance mentioned in [13]. Mirakyan [15] present numerous options for methods and models for energy system analysis but no clear methodological procedure around assessing the sustainability factors is presented, which is described in this article.
Numerous studies have focused on future energy systems in cities. Aalborg Municipality, Denmark was investigated for how it could rely on renewable energy sources in all the energy sector—electricity, heating, and transportation [16]—specifically using low-temperature geothermal heat, wind power, and biomass. The study was designed to have a self-sustained internal power balance to the highest extent possible, called the “inter-connected island mode”, which helps lower transmission losses and avoid transmission grid expansion [17]. This study looked at local resources and applied local expert judgment to build a technically feasible model. The study followed the sustainability factors, however the method is uniquely related to the Aalborg case and is based on local expert judgment. A similar study was performed in the Frederikshavn municipality, which utilized low-temperature geothermal energy for district heating, and modeling was done with expert judgment [18]. Bačeković and Østergaard [19] analyzed Zagreb, Croatia as a traditional renewable energy system and an integrated smart energy system. The analysis modeled numerous technologies in the city as an isolated energy system. For determining the energy supply, the approach followed five criteria:
  • 100% renewable heat and electricity and fossil free transport and industry;
  • Sustainable biomass;
  • Isolated energy system;
  • System balances itself;
  • Technically feasible technologies.
The study followed the sustainability factors, however, to gather data, and to determine the technically feasible technologies, local expert judgment was used. Prina [20] developed a specific method for Bressanone-Brixen, Italy, and analyzed the city as a single node, minimizing the exchange of electricity with surrounding areas. Electricity exchange was limited by using electric and thermal storages, large heat pumps, seasonal thermal storage, and batteries. De Luca et al. [21] developed a method for Altavilla Silentina, Italy to become zero GHG by 2030. They considered all the energy sectors, and the exchange of electricity with surrounding areas was limited. The study also considered the neighboring regions in a scenario analysis. The study demonstrated the potential to share excess electricity between neighbouring regions, which is possible if coordinated. However, some studies have shown that there are potential imbalances in the exchange and balance of electricity between a city and the rest of the country, which poses new challenges [22,23].

1.2. Aim of this Article

The aim of this article is to present a simple approach to determine the configuration of a sustainable energy system of a case city that has been derived from a national 100% renewable energy system (Figure 3). The article provides a systematic methodology and efficient data collection approach, which minimizes the need for detailed local expert knowledge. Such an approach can provide information on which technologies to use in the city within the national context and how a 100% renewable city energy system can be designed in order to contribute to long-term national energy goals.
In this study, the term “city” is used, which refers to either a city—i.e., urban area—or municipalities, villages, or towns. Sønderborg municipality in Denmark is used as the case study in this article—herein called Sønderborg. The area includes a medium sized city, a few villages, and rural areas. The energy system for Sønderborg is determined based on the Danish 100% renewable energy system for 2050. In the case study, the method determines:
  • The 100% renewable city energy system configuration and role of the technologies within the national 100% renewable energy system;
  • The implications for Sønderborg for bioenergy, wind, and solar resources within the context of the national energy system and key sustainability factors.
The methodology is a two-staged approach of: 1) energy data collection and 2) sustainability assessment. In relation to the sustainability factors shown in Table 1, the energy system is refined around local technical feasibility, socio-economic costs, better resource use. This is done by analyzing the results from an energy system analysis tool against the sustainability factors.
The study is presented in five sections. In Section 2, the methodology for the study is described. In Section 3, the case study of Sønderborg is presented. In Section 4, the results for the 100% renewable energy system in Sønderborg are presented and described. In Section 5, the methodology is discussed in terms of its broader applicability within strategic energy planning, including some limitations, and some conclusions are presented.

2. Methodology

The methodology in this article took inspiration from Sperling [6], who suggested that the energy visions and concrete focus areas of municipalities should be provided based on a 100% renewable national strategy. Based on analyzing Danish cases, they suggested that long term national objectives (i.e., 100% renewable energy) should be linked with relevant, sector-specific goals (i.e., for heating, electricity, transport, urban planning, energy savings, and efficiency), where municipalities are given relevant responsibilities and tasks. In other words, a national energy system analysis for 100% renewable energy in 2050 needs to align with city level energy system analyses and actions. National highly renewable energy system scenarios are often detailed and analyzed in their entirety, including all interconnecting sectors and often hour-by-hour [24]. National renewable energy visions can provide useful insights for city energy systems. This approach can ensure that renewable resources are shared between cities and one city does not hinder another city in also converting to 100% renewable energy.
Based on Sperling [6], the methodology derived the 100% renewable energy system of Sønderborg from the Danish 100% renewable energy system in 2050. In this section, the steps for deriving and analyzing the city energy system of today and in the future are described. The method involved four main steps and each step will be described in detail. Steps 1–3 determined the nationally-derived local energy system, and Step 4 was about analyzing the local energy system regarding the sustainability factors. The results from applying the methodology in Sønderborg are presented in Section 3 (steps 1–3) and Section 4 (step 4). The steps included:
  • City energy system diagnosis today: Define boundary conditions for the city and gather energy dataset for the city for a recent year;
  • National long-term energy study and per capita data: Locate a national study that has both an energy system scenario for a recent year and that looks at 100% renewable energy in the long-term, i.e., 2050. The scenarios should meet specific characteristics, which are described in more detail below;
  • Per capita energy data for the city in the future: Quantify per capita energy data for city energy system based on the national long term 100% renewable system (2050);
  • Analyze and balance the city energy system: Using the per capita data for the city in 2050 and an energy system analysis tool, assess the city energy system in 2050 with regards to the sustainability factors.
In summary, the approach required three sets of data: (1) recent city energy data, (2) recent national energy data, and (3) long-term (2050) national energy data.

2.1. Step One: City Energy System Diagnosis Today

The first step of the method was gathering the city energy data from a recent year. The data collected in this step was only used for comparing the current (recent year) city per capita data with the country per capita data in Step 2. The city dataset was based on numerous data points for the energy system, which were derived from Figure 2. (Table 2).
The city energy system was not separate from the national energy system, for instance, vehicles cross the boundaries, i.e., cars, air travel, and electricity flows through the national grid. Therefore, there were two main considerations when collecting this data: (1) the geographical boundaries of the energy system being analyzed, and (2) the exchange of energy across these boundaries. Assumptions could be made for transport for what was accounted for and what was not.

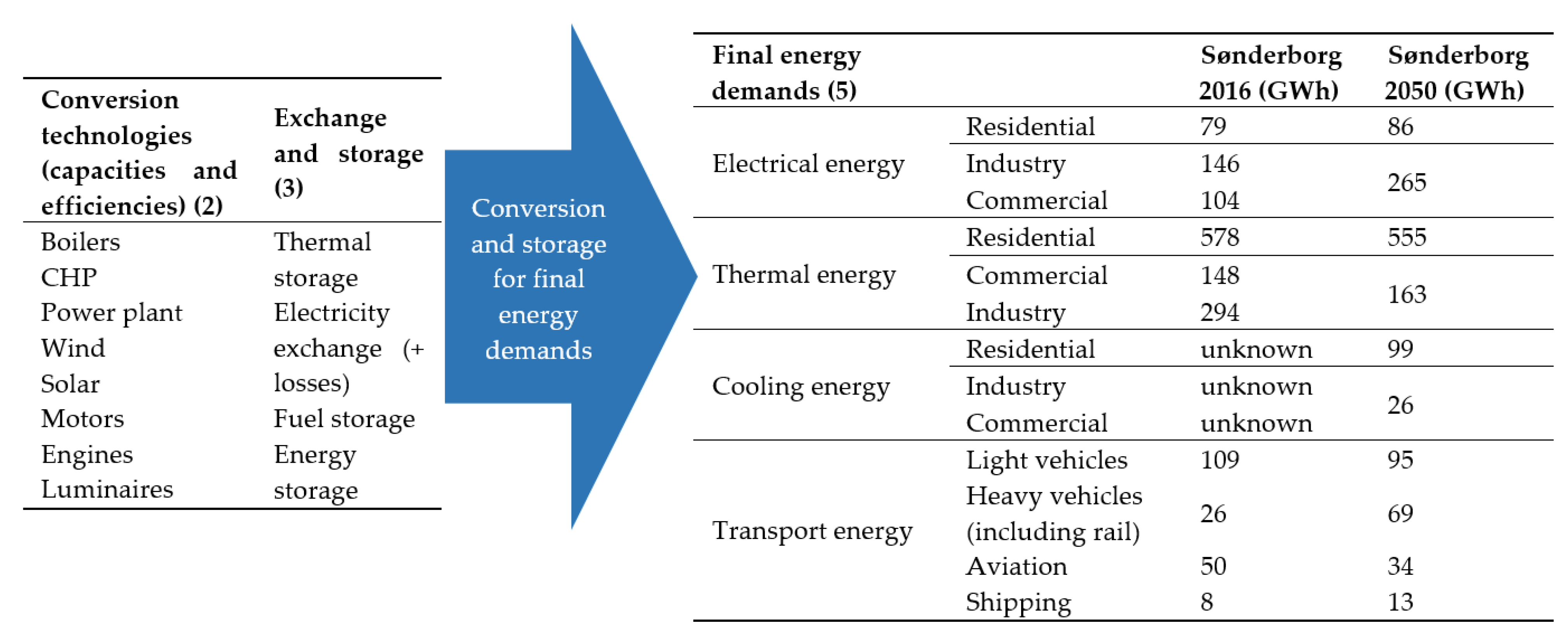

Table 2 is a tool for data collection and presents all the basic data collection components required for the energy system analysis. When reporting the data for Sønderborg, the data type number was used, e.g., resource inputs is 1. Data in one category are connected to all the other categories, for instance, resource inputs are quantified with data from conversion technologies, end-user demands and distribution, and storage losses (if any). See [25] for a template example for data connections. Energy conversion technology data (data type 3) are the capacities and efficiencies of the technologies doing the energy conversion of fuels or electricity into end-use energy. Distribution of electricity and district heat were assigned an energy loss. The final energy demands (data type 5) were an aggregate of end-user demands and provided sufficient data for an energy system scenario. The final energy demands contributed to the total energy sector demands (data type 6). The final energy demands included only the end-use energy requirement and excluded the energy losses from conversion and distribution. Resource inputs were entered into the system to supply the total energy sector demands, and during conversion and distribution, resource inputs increased due to losses.
To effectively analyze the sustainability of the Smart Energy System of the city, the total energy sector demands were provided at a temporal resolution higher than annualized data. For instance, hour by hour. This enabled the analyst to understand and analyze the dynamics of the energy system with energy storages and to identify imbalances in the energy system.
Data sources for the city could include local and national databases (energy statistics), e.g., industry fuel consumption, which provides an up to date account of the energy demand and supplies, or private heating fuel demands. For data type 7, average local data could be used or national hour by hour demand and supply data.

2.2. Step Two: National Long-Term Energy Study and Per Capita Data

The second step of the method was identifying a national 100% renewable study (or similar) which provided data for the current energy system and for the future energy system in the city. The study was used for two purposes. The first purpose was to determine per capita national data that fitted the data types in Table 2. This per capita data could be compared with the per capita data in the city in a recent year to understand the differences between the two datasets. The second purpose was to provide future 2050 per capita data that could be used for determining the future city energy system data in Step 3. The national study needed to have the same types of data as the city, including final energy demands (data type 5), and it needed to provide a rough estimate of technologies to use in the city. It needed to have at least conversion technology data (data type 2) and a list of storage technologies and efficiencies (data type 3) that could be used in the analysis.
Per capita energy data from the city and country was calculated and compared for the closest year the data was collected for each energy system (i.e., 2016). This comparison was informative and helped the energy system balancing in Step 4. Both demand and supply data were determined using a per capita approach. However, a few electricity demands changed due to the energy system analysis, for example, the tool determined the electricity demand for large-scale heat pumps and electric boilers, since they are used for system balancing. Most energy demand data remained the same from Step 3 to Step 4. Some energy supply data were influenced by the energy system analysis and balancing in Step 4. The formula for calculating the per capita energy data for the city and country is:
Per   capita   energy   data   value = data   in   recent   year data   type   2 , 3 , 5 population city / country .
Per capita energy data were calculated for: (1) recent city energy data, (2) recent national energy data, and (3) long term (2050) national energy data. These data were entered into a spreadsheet.

2.3. Step Three: Per Capita Data for the City in the Future

The third step of the method was quantifying the energy system data for the city in 2050 based on the national study. In this step, the rough 100% renewable energy system in the city was determined (before analysing it in Step 4). The future city energy system data were determined based on the 2050 per capita data of the country, except for some values dependent on Step 4, such as electricity demand for large-scale heat pumps and electric boilers. The main aim of this step was to get per capita final energy demand, conversion, and storage data (data types 2, 3, and 5), which were used in the analysis in Step 4. The future city per capita data were calculated by following a simple formula:
Country 2050 demand / supply   =   Country 2050 demand / supply   × %   of   city   population   of   national   population .
Cost data (i.e., investment costs, lifetime, and operation and maintenance could be assigned to the energy technologies and other system costs—such as district heating grids and related technologies—that will be implemented until 2050.

2.4. Step Four: Analyze and Balance the City Energy System

The fourth step was analysing and balancing the future city energy system to meet the Smart Energy System sustainability factors. Some final energy demands and energy supply data were adjusted as a consequence of this analysis. To analyze the energy system, a tool was required, which included the entire energy system and could model a 100% renewable energy system in a high-resolution temporality (i.e., hour-by-hour). The appropriate data collected from Steps 1–3 were entered into the energy system analysis tool. When the tool was run, a set of results were delivered that were entered into a spreadsheet for visualization, analysis, and decision making. A small selection of tools could achieve the requirements—Mesap PlaNet, H2RES, SimREN, EnergyPLAN [26]. Other factors were also considered, including the speed to respond to energy planning processes at city level with numerous stakeholder feedbacks, price of the tool, ease of use, tutorials, and accessibility. Based on these factors, EnergyPLAN was used in this study.
The analysis in Step 4 was based on the three previous steps and was an iterative process going back and forth, considering:
  • The local energy system that exists today, e.g., district heating network (Step 1);
  • The energy system of the country in 2050 and the technologies that can be used locally (Step 2 and 3);
  • The sustainability factors are met, for example all energy sectors are included and energy demands are met, resource consumption is low and energy is efficiently used, i.e., district heat is not being overproduced (Step 4)

2.4.1. EnergyPLAN

EnergyPLAN (Version 14.2, Aalborg University, Aalborg, Denmark) is freeware and it provides results fast (within a second) and transparently. EnergyPLAN is a deterministic simulation model that does partial optimization of the energy system using the energy system inputs and outputs entered by the user (Figure 4). When the user enters all the energy system data, i.e., energy demands and capacities and efficiencies of the conversion and storage technologies, the tool determines which energy supply technologies and which energy storages should be utilized in different energy grids in each hour during the year in order to achieve the lowest fuel consumption, or socio-economic cost, in the system. This helps to model, and identify, opportunities for flexibility in the different energy grids. This inter-grid connection and integration with energy storages is a key element of the Smart Energy System [7].
EnergyPLAN has been used in numerous energy system studies, including city energy system analyses [28]. Further details about EnergyPLAN are found here: [29].

2.4.2. Balancing the National Energy System with Power Plants

To balance the future renewable energy system, it is expected that power plants will be utilized in times of limited renewable electricity to balance the electricity system, producing around 5–10% of the total production during the year. Smaller regions do not usually have a local power plant and they import most of their electricity. Thus, it can be argued that these cities have virtual power plants. It is assumed that this will also be the case in 2050, and the city analysis for 2050 should include a virtual power plant in EnergyPLAN. The upstream resource input to produce the electricity in these power plants should be considered in the total resource input into the city. In 2050, the resources would be gasified biomass and biogas.

2.4.3. Using the Simulation Tool

The appropriate data from Steps 1–3 should be entered into EnergyPLAN. When running EnergyPLAN, the energy system is arranged to meet all electricity and heat demands locally to the extent possible, and imports electricity when necessary. It quantifies the additional energy demands for large-scale heat pumps and electric boilers. EnergyPLAN is a fast tool and via heuristic analysis with numerous iterations the sustainability factors for the Smart Energy System can be addressed, for example, resource consumption is limited, all energy demands are met, and the district heating system is balanced.

3. Applying the Methodology in Sønderborg

In this section, the results for Sønderborg from the first three steps are presented. The results from Step 4 are presented in Section 4.

3.1. Step One: City Energy System Diagnosis Today

The Sønderborg municipality as defined by the Danish Government defines the boundary of the energy system analysis, and this includes the main city of Sønderborg, a few villages, and some rural settlements (Figure 5). These are governed by a single municipal authority. Sønderborg has a population of around 75,000 inhabitants, with around one third living in Sønderborg city.
The first step of the method was gathering regional energy data from a recent year. In Sønderborg, data were collected for the year 2016. Data sources included numerous local and national databases. Data were collected for data types 1, 2, 3, 4, and 7 (from Table 2). End-use data were collected for end uses such as lighting in households. Heat and electricity production data were collected from industry. The region has three main district heating systems and data were collected for each system. The distribution losses for electricity and district heating were estimated. Data types 1 and 6 were aggregated based on all other data inputs (Figure 6). All the data collected for Sønderborg were presented in an energy balance in a Microsoft Excel file, similar to [25]. The structure of the data in this file is similar to Table 2.
The total energy sector demands are the energy required to achieve the end-use, excluding the conversion and distribution losses. The efficiency of the energy system was determined based on resource inputs and total energy sector demands. The embedded energy of imported electricity was 922 GWh (assuming a power plant efficiency of 40%). The efficiency of the energy system was 50%, based on a total resource input of 3079 GWh and total energy sector demand of 1542 GWh.
Local energy conversion technologies in 2016 included electricity production units, private and district heating units, industrial boilers, and vehicles. For each conversion technology, the production of energy, and their efficiency, are presented in Table 3.

3.2. Step Two: National Long-Term Energy Study and Per Capita Data

The second step of the method was identifying a national 100% renewable study (or similar) which has data for the current national energy system and for the future energy system. This study provided data to make a per capita comparison, as described in Section 3.2.2. The latest study carried out for Denmark becoming 100% renewable was used in this study: IDA Energy Vision 2050 [30]. IDA Energy Vision 2050 was completed in 2015. This study provided sufficient data required for Table 3, providing data for final energy demands and conversion and storage technologies for 2015 and 2050 (Table 4).

3.2.1. Danish Changes to 2050

IDA Energy Vision 2050 integrates numerous energy supply technologies and storages, such as wind power, heat pumps, thermal storage, and electrolyzers. The report provided the capacities and efficiencies of these technologies. Regarding the change in energy demands from 2015 to 2050, the main assumptions of the study included:
  • Heat demand in buildings was reduced by 40%, which was based on the cost of renovations against the cost of supplying heat.
  • Household electricity savings were reduced by 25%, which was based on three factors:
    The future increase of equipment of 10%;
    Technical savings of 15%;
    Behavioral savings of 20%.
  • Industry and service sectors, including agriculture and construction, assumed business as the usual growth of 40%. This energy demand was reduced via savings for fuel and electricity and a coordinated implementation of district heating and cooling, electric heat pumps, and replacement of fossil fuels with electricity, biomass, and upgraded hydrogen (methanated biogas).
All these changes in energy demands were assumed for Sønderborg.

3.2.2. Comparing the Per Capita Energy Data of Denmark and Sønderborg

In this step, the Danish per capita energy data was compared to the Sønderborg per capita energy data. Note that in the study these comparative results were only informative. To make the comparison easier, the per capita data were scaled up to represent the population of Sønderborg instead of being per capita. Firstly, the per capita data for Denmark and Sønderborg were calculated using Formula 1. Secondly, the per capita data in Denmark in 2015 were multiplied by the population of Sønderborg, and these results were compared to actual data collected in Sønderborg in 2016 (Table 5). In 2015, the population of Denmark was 5,669,081 and the population of Sønderborg was 75,000—around 1.3% of the Danish population.

3.3. Step Three: Per Capita Energy Data for the City in the Future

The third step of the method was quantifying the city energy system data for 2050 based on the national study. By using formula 2—multiplying the future population of Sønderborg by the Danish per capita energy system data in 2050—the final energy demands for Sønderborg in 2050 were calculated (Figure 7). The final energy demand data provided numerous key values for EnergyPLAN. All capacities and efficiencies for conversion technologies and storages were also provided by the IDA Energy Vision 2050 and these data were entered into the energy system analysis tool in Step 4. Step 4 was carried out to ensure the technologies were at the appropriate level, considering the sustainability factors. In 2050, the population of Denmark is expected to be 6,229,193 [31] and it is assumed Sønderborg would still account for 1.3% of this, therefore having a population of 80,979.

4. Results: Step Four—Analyze and Balance the City Energy System

The fourth step was analyzing and balancing the energy system in EnergyPLAN and ensuring the sustainability factors were met. In this section, the final results from this step are presented for a selection of the data types.

4.1. Data Type 1—Resource Inputs

The final resource inputs for Sønderborg in 2016 and 2050 are presented in Figure 8. Resource inputs include local and imported resources. Figure 8 shows the connection of the Sønderborg energy system with the national electricity grid via the import and export of electricity. Electricity import is minimized in 2050 due to the energy sector coupling and an increase in the efficient use of energy, a key sustainability factor, and in this study the imported electricity was 89 GWh (5% of the total energy supply). Electricity export is limited to minimize the risk of not being able to integrate electricity into neighbouring regions and due to limited synergy effects between the regions [23,32].
In Sønderborg in 2016, the total energy supply was 3079 GWh, and was mostly from imported fossil fuels and electricity supplemented with biomass and waste. Electricity import was also high, which added 922 GWh of embedded energy (based on assumed 40% power plant efficiency), mostly sourced from coal and biomass. In 2050, the total energy supply could be decreased to 1907 GWh and largely be composed of wind electricity, biomass, and waste, sourced locally. Imported electricity from power plants would be fueled by biomass and biogas. The total energy sector demand would equal 1405 GWh. The results show a loss in the energy system in 2050 of 26% compared to 50% in 2016.
Sustainable biomass in Sønderborg, based on a proportion of the Danish potential for livestock manure, biofuel, and energy crops, straw, firewood, and wood chips, should be approximately 600 GWh. In 2050, although locally sourced biomass demand is 489 GWh and local biogenic waste is 94 GWh, which is within the sustainable range, the embedded biomass in imported electricity from power plants is 162 GWh. These values indicate that to have a sustainable biomass consumption nationwide there would need to be coordination between the regions around biomass production, distribution, and consumption.

4.2. Data Types 2 and 3—Conversion Technologies (Production) and Storages and Exchange

Conversion technology capacities and efficiencies were determined for all energy system components, including electricity, district heating, private heating, electric vehicles, electrofuel production, and energy storages. Data can be presented for all these units. However, for brevity, in this section only electricity, heating, and transport production results are presented—the associated energy storage capacities and efficiencies are not presented.

4.2.1. Electricity Production

Electricity is produced locally, and a large production is from offshore and onshore wind (Figure 9). There is less imported electricity than in 2016 and a minimal amount is exported.

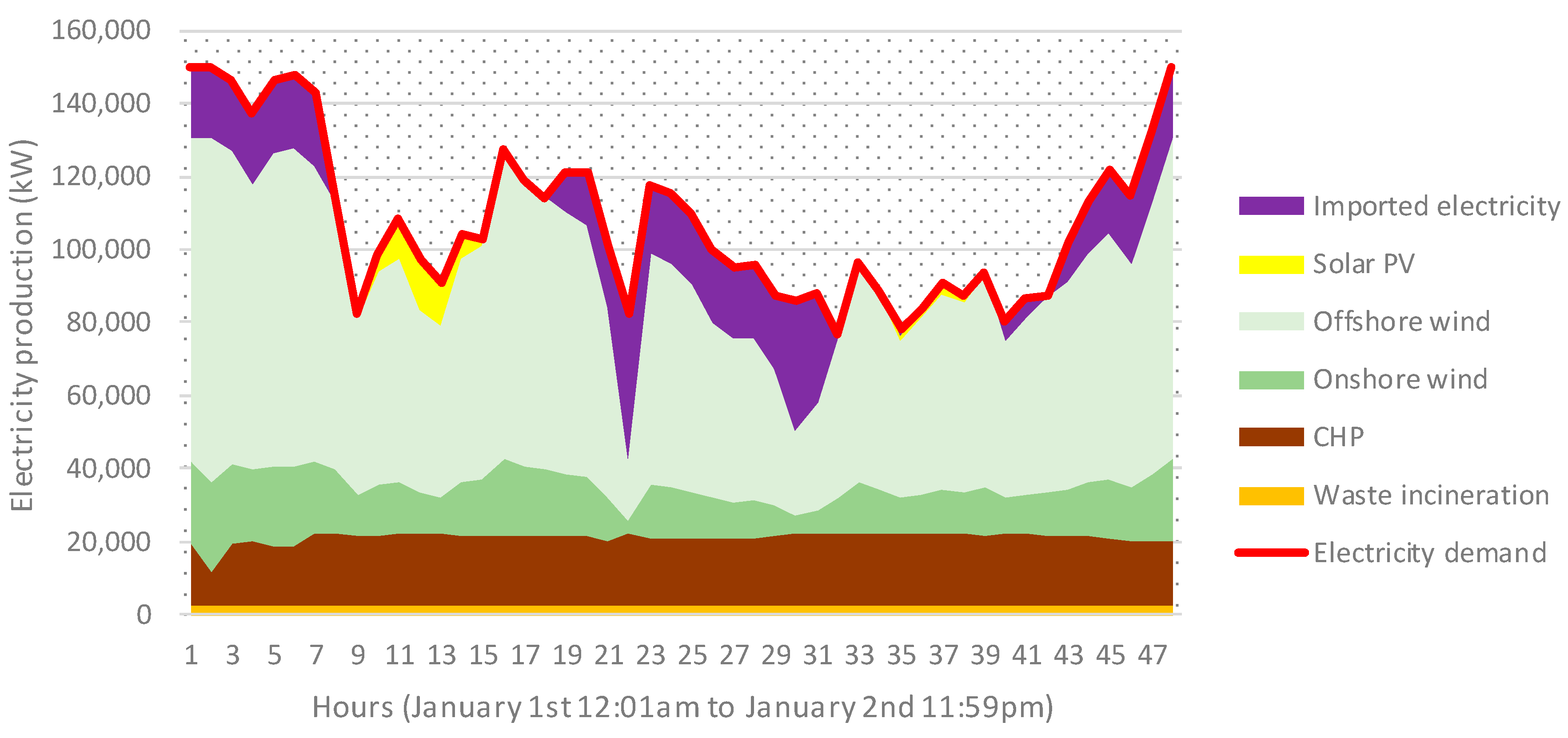

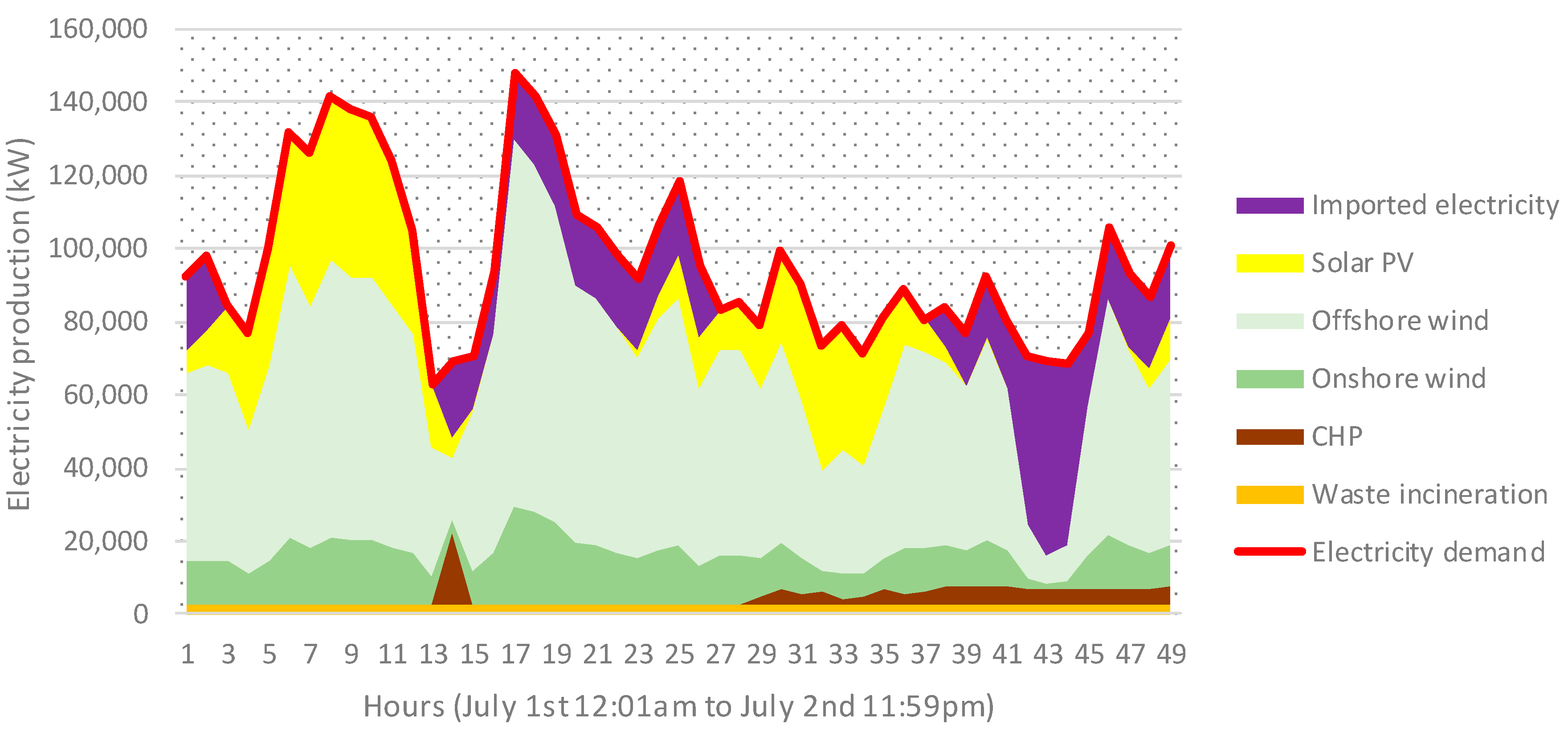

To understand the technical feasibility of the energy system, hour by hour electricity production data was analyzed. A small sample of the quantified results for the 8760 hours during the year is presented (Figure 10 and Figure 11). Electricity demand was met mostly by internally produced electricity and supplemented by the imported electricity. In the first two days of January, offshore wind and imported electricity accounted for the majority of electricity supply, whereas in the first two days of July, offshore wind and solar photovoltaic provided most of the electricity.

4.2.2. District Heating and Private Heating

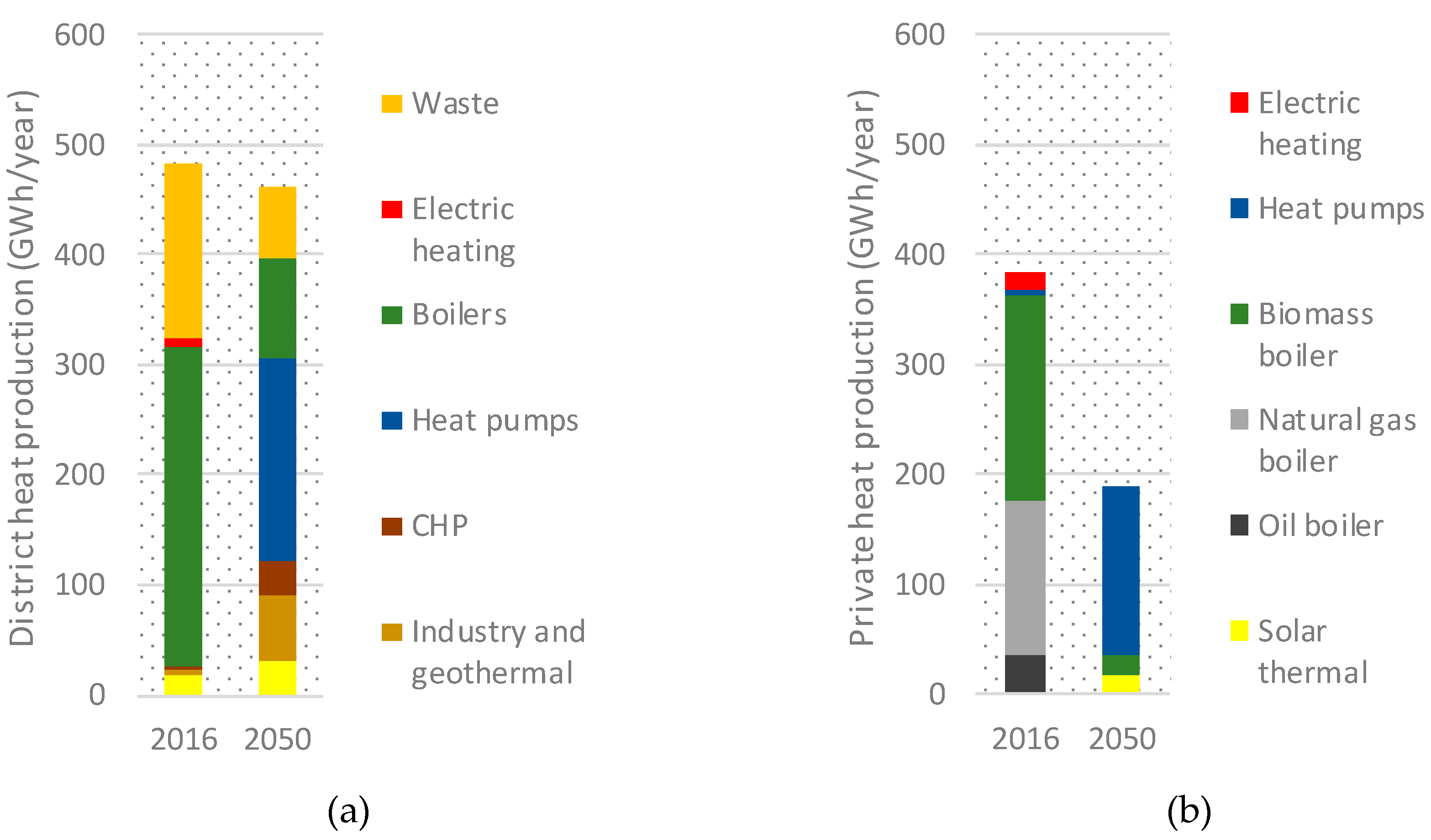

District heating in Sønderborg consists of the three district heating grids, but since Sønderborg city accounts for most of the consumption (85%), all the grids have been aggregated in these results (Figure 12). From 2016 to 2050 district heating is expanded to cover 66% of the heat demand, but total heat demand is reduced. Total heat demand in 2016 is 743 GWh and in 2050 is 559 GWh. This is due to private heating, which reduces from 384 GWh to 190 GWh. In 2050, private heating is produced mostly with heat pumps. All heating demands are met sufficiently and all three district heating grids are in balance throughout the year, with minimal heat surplus or deficit, and this is a key indication of better resource use. A large share of district heating is supplied by large-scale heat pumps.

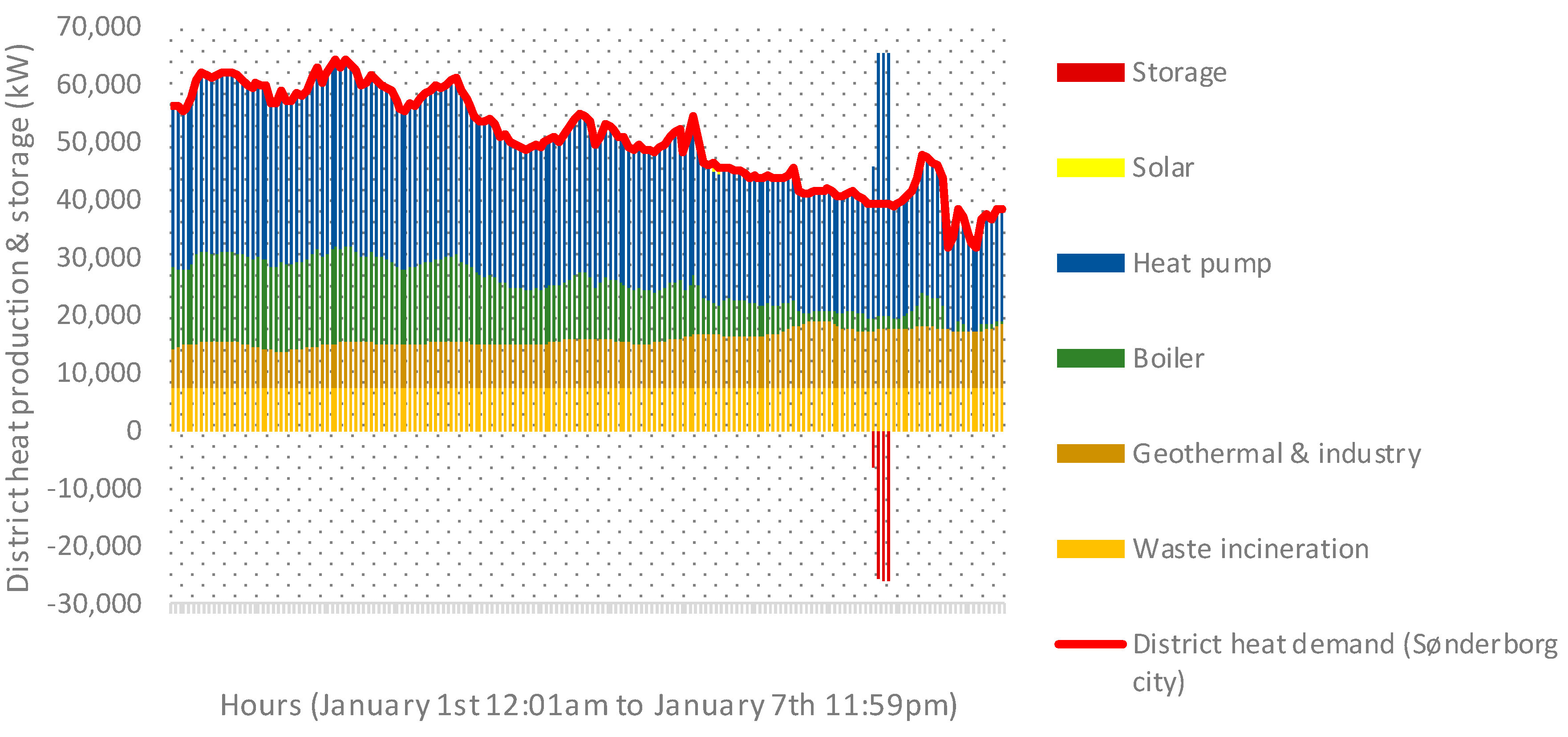

Hour by hour district heating data is presented for a sample of the 8760 hours (Figure 13). In the first week in of January, in Sønderborg city, large scale heat pumps provided the most district heat, with a few hours of oversupply being stored. This stored heat was utilized later in the year. The remaining district heat was produced by boilers, geothermal, industry, and waste incineration.

4.3. Data types 4, 5, and 6—Final Energy Demands, End-Use Demands and Total Energy Sector Demands

A mixture of final electricity demands (conventional demand) and end-use electricity demands (household heat pumps) are presented in Figure 14 and Figure 15. Total electricity demand is the sum of all individual demands. Conventional electricity demand is an aggregation of lighting and appliances for residential and office buildings, and industry. From 2016 to 2050, conventional electricity demand remains largely the same. However, new end-use demands add to the total electricity demand, for instance electrified transport and electrolyzers.

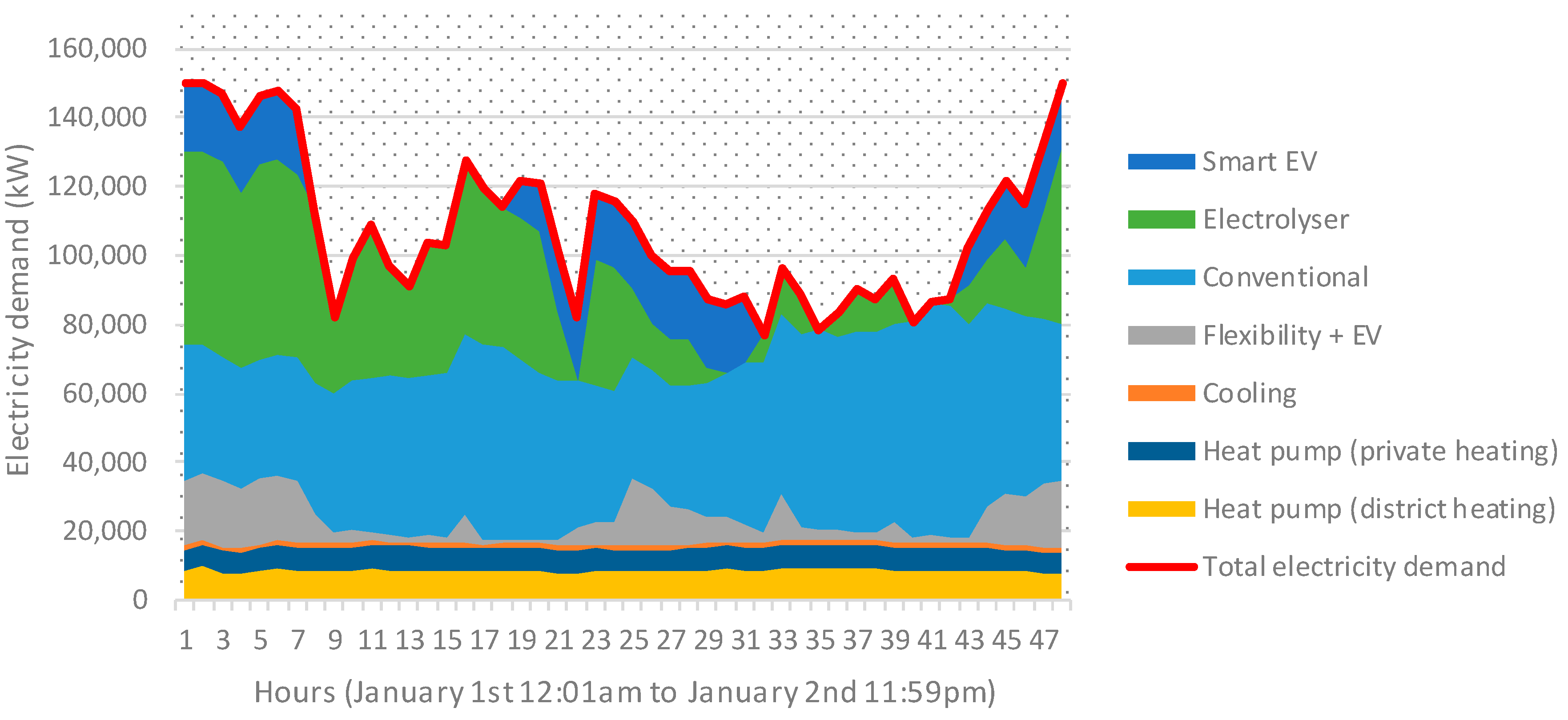

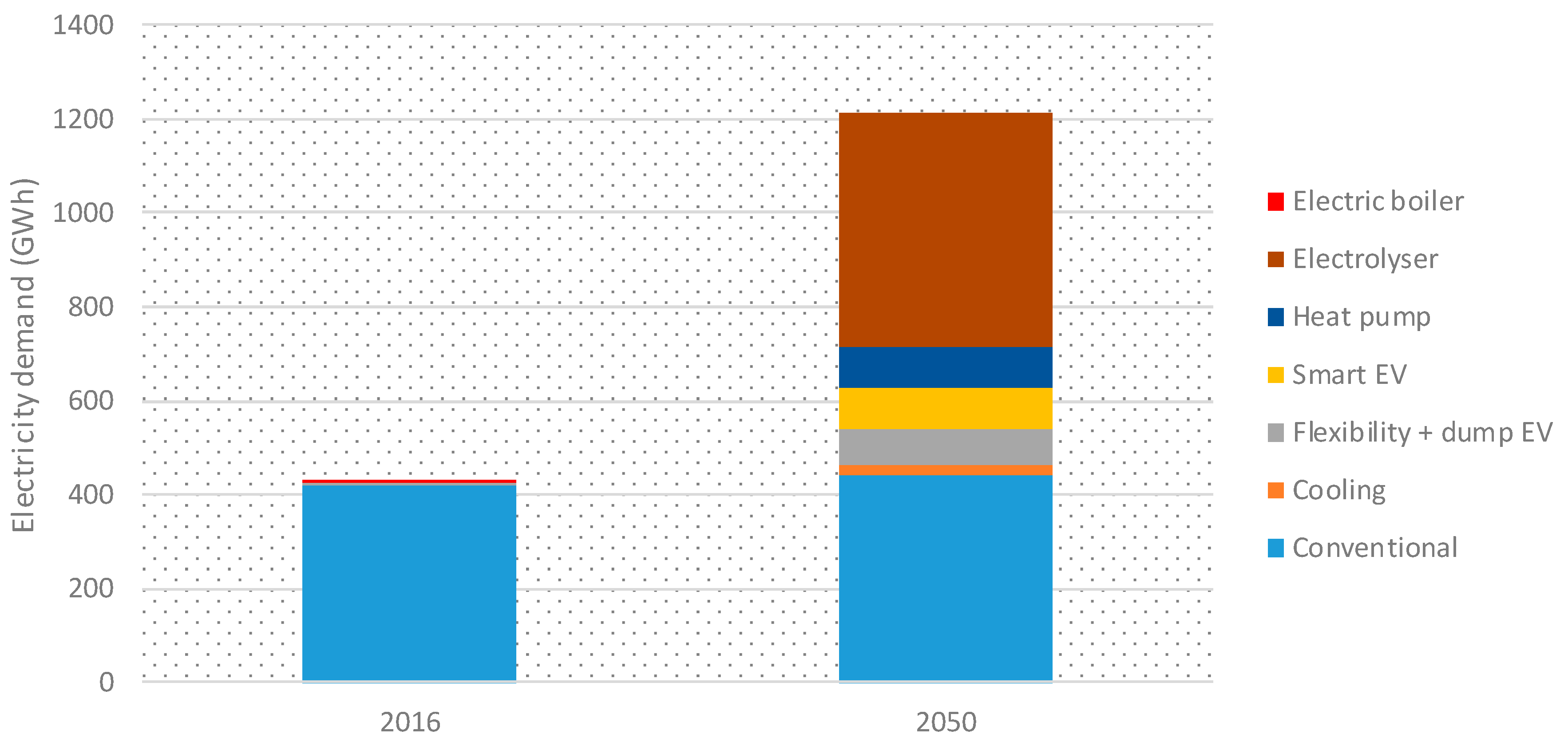

The consumption of electricity by different types of electricity demands is shown for a selection of hours in the first two days of January (Figure 15). The electricity demand of heat pumps in the district heating system is constant, which provides the heat shown in Figure 13. Smart charging vehicles charge during the night, as seen in hours 1–7. Electrolyzers operate when there is cheaper electricity, for instance when wind power is high (see Figure 7 and Figure 15). Conventional electricity demand fluctuates between day and night.

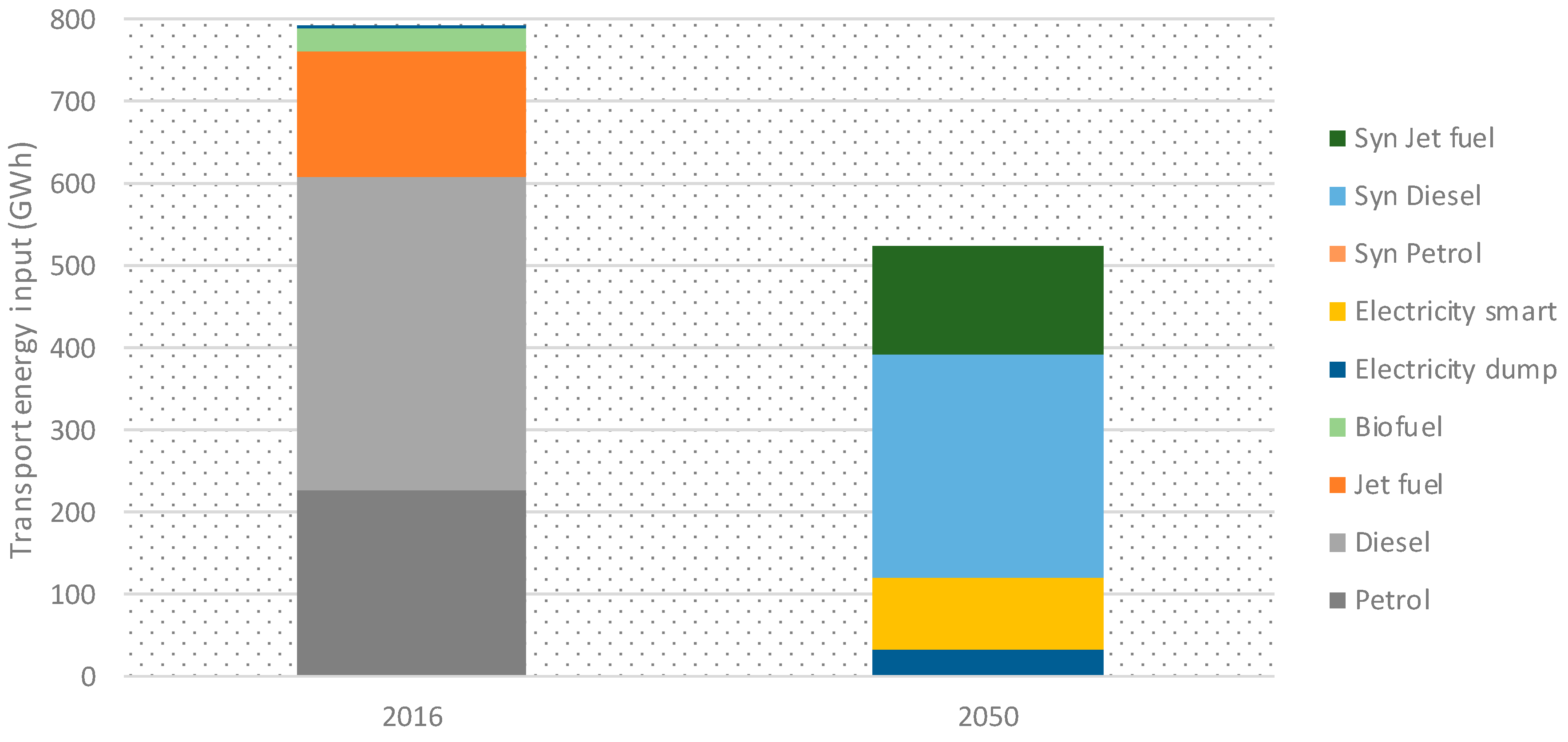

The total transport energy demand is reduced from 720 GWh to 510 GWh. Transport fuels shift from being sourced from fossil fuels to being sourced from electrofuels and electricity (Figure 16).

4.4. Potential Investments Towards 2050

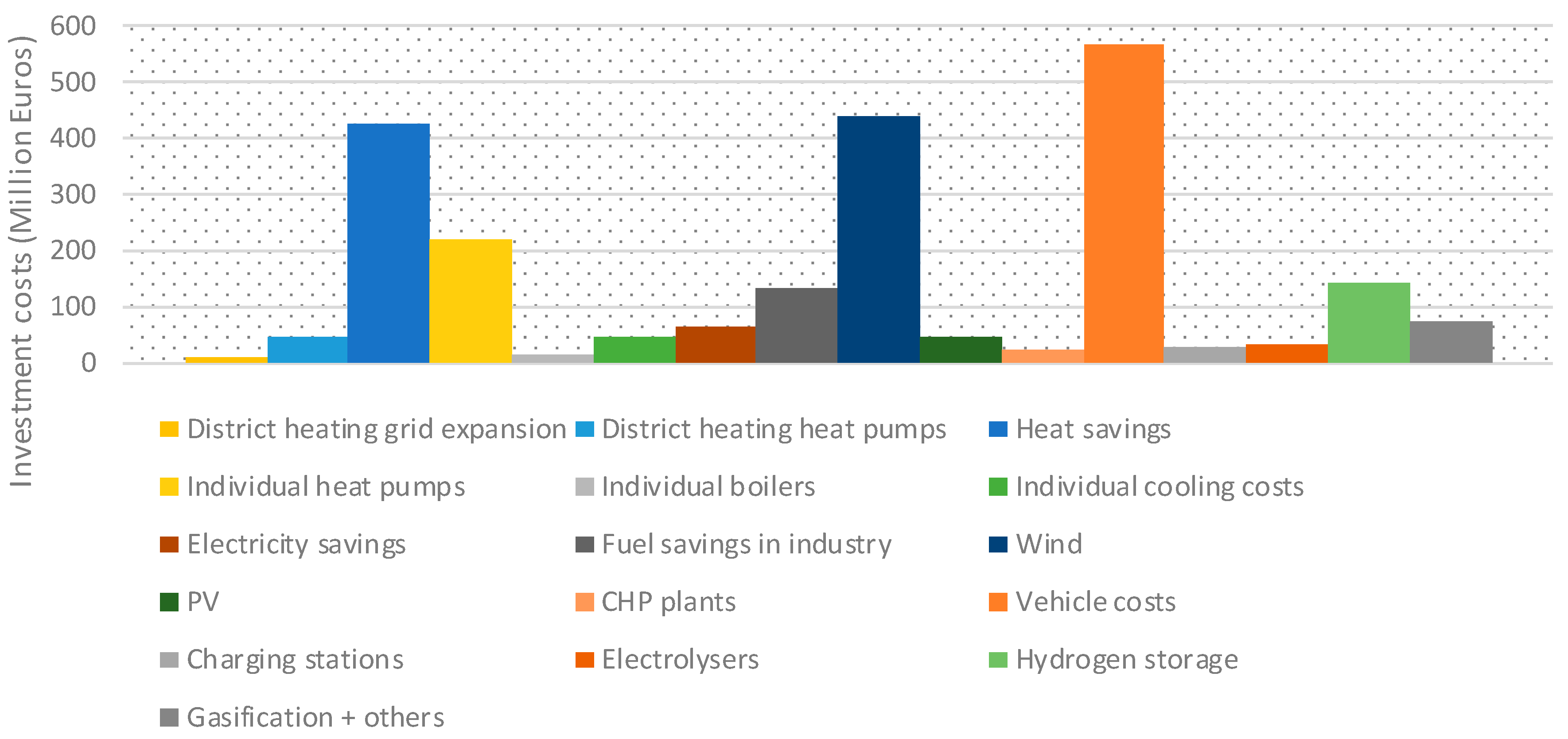

Investment cost data for technologies and energy efficiency initiatives could be entered into EnergyPLAN, and based on this the tool calculated the total potential investments. Potential investment costs for the technologies, or efficiency improvements, such as building retrofitting or district heating expansion, in the Sønderborg energy system were an important factor in determining their sustainability and for project implementation (Figure 17). The total investment costs were based on predicted unit costs in the future and the present value of money, and not total cost of ownership. Annualized costs based on lifetimes can be calculated but it is uncertain when these energy system changes will be implemented, which influences the annualized cost calculations. With more local knowledge, a roadmap can be combined with these investment costs to create annual expenditures.

5. Discussion and Conclusions

The aim of this article was to present a methodology to determine the renewable energy system of a city derived from the national 100% renewable energy system. This was tested with the case study of Sønderborg. It was a two-staged approach of: (1) data collection and (2) sustainability assessment. The four-step methodology was able to analyze the complex renewable energy system locally. The method included all potential components of the future energy system and analyzed this on an hour-by-hour basis to understand the energy system dynamics from a Smart Energy System perspective. This showed how the technologies operate and interact.
This study advances the research field by focusing on the sustainability of the Smart Energy System rather than on improving energy data collection, which is often the focus [13,33]. Furthermore, the approach advances from focusing on silo measures in individual energy sectors, for instance, electricity measures in the electricity sector, which use particular models. Furthermore, to understand the dynamic energy system and the real need for energy storages, the method depends on higher resolution hourly data during the year rather than annualized data, as used in other methods and models, such as SEAPs.
The method was not simply focused on the modeling tool. EnergyPLAN was used as the tool in this study, but other tools can be utilized. However, other tools should be able to measure the sustainability factors. The method was focused on how the tool is used to understand how the city can go to 100% renewable energy in a sustainable way, i.e., in the scenario design. The article applies key sustainability factors for Smart Energy Systems to ensure the energy system is sustainable—utilizing energy locally and maximizing energy own-use (feasible energy security), maximizing technology synergies (better efficiency), and reducing biomass consumption (better resource use).

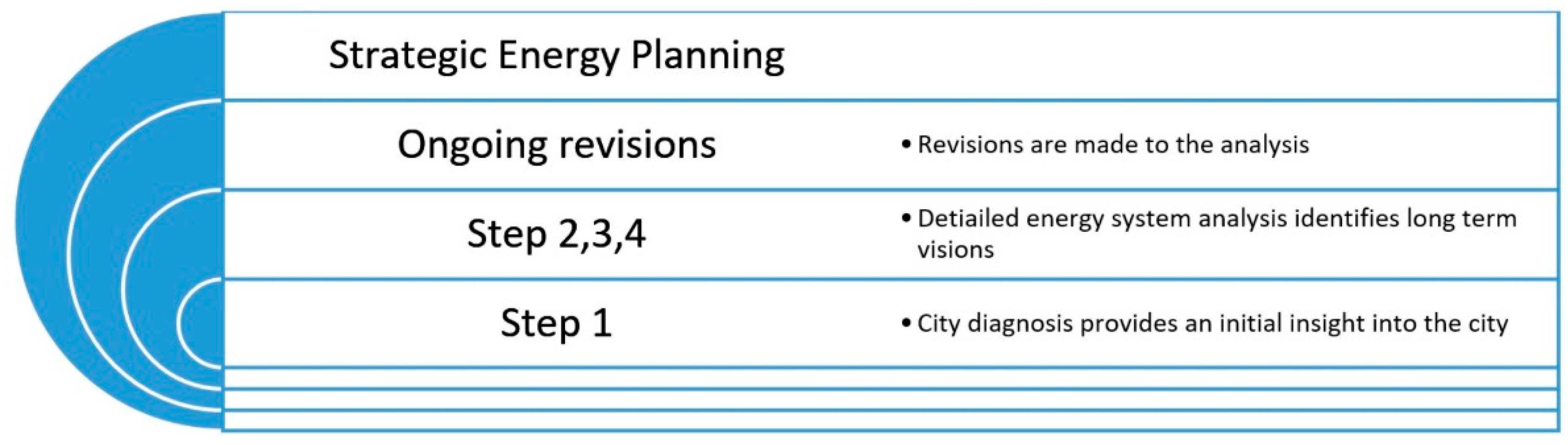

The methodology is not unique to Sønderborg and can be replicated in other countries and cities. By leveraging the national study, the method allows one to do rapid analysis, providing insights into the synergies and resource use in the energy system and potential technologies in the future. This can lead to long term goals and to understanding the potential of the energy system. The methodology avoids time consuming local energy system data collection, i.e., trend analysis and forecasting. In cities today, as part of SEAPs, the first step in the method of this article is usually undertaken, but to determine long term visions and goals within strategic energy planning, steps 2–4 can be undertaken (Figure 18). The methodology can be applied by one or two energy planners, and results can be visualized, communicated, discussed, and updated later by stakeholders, as is done in strategic energy planning [34]. The methodology, analysis, and results should be seen as an initial framework for future iterations—to analyze different actions, the detailed analyses can be continually adjusted in ongoing revisions. New iterations should consider if the planned energy system is “smart” by analyzing it in terms of the sustainability factors, as described in this article.
This study does not consider the implementation of specific projects in the city, which will require a more detailed understanding of certain aspects of the energy system, and further analysis using other methodologies or tools. Furthermore, the study does not include analyses on the need to change concrete policies and taxes, or the changes that will occur for the re-distribution of costs and power between stakeholders. The overall economic consequences were assessed and prove to be level with the current costs, but the transactions between individuals, the government, and other stakeholders need to change in order to implement such changes. Furthermore, it is unknown what the energy system will look like in the future, some technologies may not be located in Sønderborg, however the purpose of this approach is to present an initial analysis and results for one sustainable scenario from which to make new iterations.

Author Contributions

D.D. wrote the original draft of the article. B.V.M. and H.L. contributed with methodology input, review, comments and validation of the paper.

Funding

The work was funded by the SmartEnCity project (grant number: 691883), which received funding from the H2020 programme of the European Commission.

Acknowledgments

The work presented in this paper was done as part of the Sønderborg Strategic Energy Planning work done in 2018. During this work, substantial data was collected by PlanEnergi and ProjectZero. The data was an important part of the analysis and the authors are very grateful for their support.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. The European Commission. 2030 Climate & Energy Framework. Available online: https://ec.europa.eu/clima/policies/strategies/2030_en (accessed on 15 April 2019).
  2. Covenant of Mayors for Climate & Energy. Plans & Actions. Available online: https://www.covenantofmayors.eu/plans-and-actions/action-plans.html. (accessed on 15 April 2019).
  3. Covenant of Mayors for Climate Energy. Reporting Guidelines on Sustainable Energy Action Plan. and Monitoring. 2014. Available online: https://www.covenantofmayors.eu/IMG/pdf/Reporting_Guidelines_SEAP_and_Monitoring_v2-0-2.pdf (accessed on 17 June 2019).
  4. Coelho, S.; Russo, M.; Oliveira, R.; Monteiro, A.; Lopes, M.; Borrego, C. Sustainable energy action plans at city level: A Portuguese experience and perception. J. Clean. Prod. 2018, 176, 1223–1230. [Google Scholar] [CrossRef]
  5. Delponte, I.; Pittaluga, I.; Schenone, C. Monitoring and evaluation of Sustainable Energy Action Plan: Practice and perspective. Energy Policy 2017, 100, 9–17. [Google Scholar] [CrossRef]
  6. Sperling, K.; Hvelplund, F.; Mathiesen, B.V. Centralisation and decentralisation in strategic municipal energy planning in Denmark. Energy Policy 2011, 39, 1338–1351. [Google Scholar] [CrossRef]
  7. Paardekooper, S.; Lund, R.; Lund, H. Smart Energy Systems. In Energy Storage Options and Their Environmental Impact; Hester, R.E., Harrison, R.M., Eds.; Royal Society of Chemistry, 2019; pp. 228–260. [Google Scholar] [CrossRef]
  8. Mancarella, P. MES (multi-energy systems): An overview of concepts and evaluation models. Energy 2014, 65, 1–17. [Google Scholar] [CrossRef]
  9. Lund, H.; Østergaard, P.A.; Connolly, D.; Ridjan, I.; Mathiesen, B.V.; Hvelplund, F.; Thellufsen, J.Z.; Sorknæs, P. Energy Storage and Smart Energy Systems. Int. J. Sustain. Energy Plan. Manag. 2016, 11, 3–14. [Google Scholar]
  10. Dincer, I.; Acar, C. Smart energy systems for a sustainable future. Appl. Energy 2017, 194, 225–235. [Google Scholar] [CrossRef]
  11. Lund, H.; Østergaard, P.A.; Connolly, D.; Mathiesen, B.V. Smart energy and smart energy systems. Energy 2017, 137, 556–565. [Google Scholar] [CrossRef]
  12. Lund, H.; Andersen, A.N.; Østergaard, P.A.; Mathiesen, B.V.; Connolly, D. From electricity smart grids to smart energy systems-A market operation based approach and understanding. Energy 2012, 42, 96–102. [Google Scholar] [CrossRef]
  13. Keirstead, J.; Jennings, M.; Sivakumar, A. A review of urban energy system models: Approaches, challenges and opportunities. Renew. Sustain. Energy Rev. 2012, 16, 3847–3866. [Google Scholar] [CrossRef]
  14. Allegrini, J.; Orehounig, K.; Mavromatidis, G.; Ruesch, F.; Dorer, V.; Evins, R. A review of modeling approaches and tools for the simulation of district-scale energy systems. Renew. Sustain. Energy Rev. 2015, 52, 1391–1404. [Google Scholar] [CrossRef]
  15. Mirakyan, A.; De Guio, R. Integrated energy planning in cities and territories: A review of methods and tools. Renew. Sustain. Energy Rev. 2013, 22, 289–297. [Google Scholar] [CrossRef]
  16. Østergaard, P.A.; Mathiesen, B.V.; Möller, B.; Lund, H. A renewable energy scenario for Aalborg Municipality based on low-temperature geothermal heat, wind power and biomass. Energy 2010, 35, 4892–4901. [Google Scholar] [CrossRef]
  17. Østergaard, P.A. Reviewing optimisation criteria for energy systems analyses of renewable energy integration. Energy 2009, 34, 1236–1245. [Google Scholar] [CrossRef]
  18. Østergaard, P.A.; Lund, H. A renewable energy system in Frederikshavn using low-temperature geothermal energy for district heating. Appl. Energy 2011, 88, 479–487. [Google Scholar] [CrossRef]
  19. Bačeković, I.; Østergaard, P.A. A smart energy system approach vs a non-integrated renewable energy system approach to designing a future energy system in Zagreb. Energy 2018, 155, 824–837. [Google Scholar]
  20. Prina, M.G. Smart energy systems applied at urban level: The case of the municipality of Bressanone-Brixen Introduction. Int. J. Sustain. Energy Plan. Manag. 2015, 10, 25–26. [Google Scholar]
  21. De Luca, G.; Fabozzi, S.; Massarotti, N.; Vanoli, L. A renewable energy system for a nearly zero greenhouse city: Case study of a small city in southern Italy. Energy 2018, 143, 347–362. [Google Scholar] [CrossRef]
  22. Bačeković, I.; Østergaard, P.A. Local smart energy systems and cross-system integration. Energy 2018, 151, 812–825. [Google Scholar] [CrossRef]
  23. Thellufsen, J.Z.; Lund, H. Contextual Aspects of Smart City Energy Systems Analysis. Appl. Energy 2016, 183, 419–429. [Google Scholar] [CrossRef]
  24. Hansen, K.; Breyer, C.; Lund, H. Status and Perspectives on 100% Renewable Energy Systems. Energy 2019, 175, 471–480. [Google Scholar] [CrossRef]
  25. PlanEnergi. In Energy Balance Tool; 2019; Available online: https://smartencity.eu/outcomes/tools/ (accessed on 17 June 2019).
  26. Connolly, D.; Lund, H.; Mathiesen, B.V.; Leahy, M. A review of computer tools for analysing the integration of renewable energy into various energy systems. Appl. Energy 2010, 87, 1059–1082. [Google Scholar] [CrossRef]
  27. Lund, H. Renewable Energy Systems-A Smart Energy Systems Approach to the Choice and Modeling of 100% renewable Solutions; Academic Press: New York, NY, USA, 2014. [Google Scholar]
  28. Østergaard, P.A. Reviewing EnergyPLAN simulations and performance indicator applications in EnergyPLAN simulations. Appl. Energy 2015, 154, 921–933. [Google Scholar] [CrossRef]
  29. Lund, H. EnergyPLAN: Advanced Energy Systems Analysis Computer Model; Aalborg Universit: Aalborg, Denmark, 2015. [Google Scholar]
  30. Mathiesen, B.V.; Lund, H.; Hansen, K.; Ridjan, I.; Djørup, S.R.; Nielsen, S.; Sorknæs, P.; Thellufsen, J.Z.; Grundahl, L.; Lund, R.; et al. IDA’s Energy Vision 2050-Technical Data and Methods; The Danish Society of Engineers, IDA: Aalborg, Denmark, 2015. [Google Scholar]
  31. PopulationPyramid.net. Denmark 2050. Available online: http://PopulationPyramid.net (accessed on 17 June 2019).
  32. Østergaard, P.A. Geographic aggregation and wind power output variance in Denmark. Energy 2008, 33, 1453–1460. [Google Scholar] [CrossRef]
  33. Huang, Z.; Yu, H.; Peng, Z.; Zhao, M. Methods and tools for community energy planning: A review. Renew. Sustain. Energy Rev. 2015, 42, 1335–1348. [Google Scholar] [CrossRef]
  34. Krog, L.; Sperling, K. A comprehensive framework for strategic energy planning based on Danish and international insights. Energy Strateg. Rev. 2019, 24, 83–93. [Google Scholar] [CrossRef]

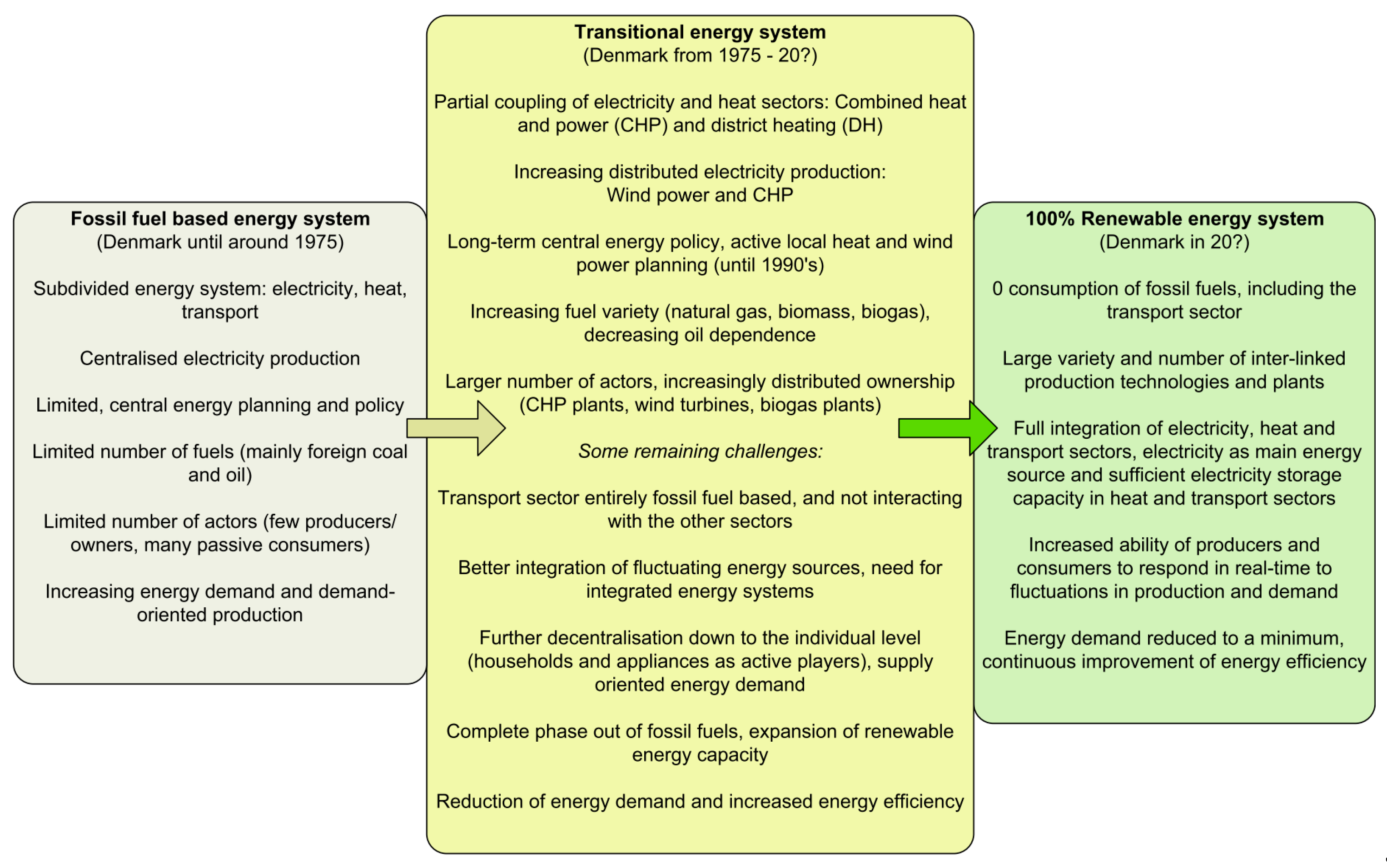

Figure 1. Transition steps from the fossil fuel-based energy system to a 100% renewable energy system in Denmark (Reproduced with permission from Karl Sperling, Frede Hvelplund, Brian Vad Mathiesen, Energy Policy; Elsevier Ltd, 2010. [6]).
Figure 1. Transition steps from the fossil fuel-based energy system to a 100% renewable energy system in Denmark (Reproduced with permission from Karl Sperling, Frede Hvelplund, Brian Vad Mathiesen, Energy Policy; Elsevier Ltd, 2010. [6]).
Energies 12 02307 g001
Figure 2. Example of technologies and energy flows in a future smart energy system of a city (Adapted with permission from Henrik Lund, International Journal of Sustainable Energy Planning and Management; Aalborg University Press, 2016. [9]).
Figure 2. Example of technologies and energy flows in a future smart energy system of a city (Adapted with permission from Henrik Lund, International Journal of Sustainable Energy Planning and Management; Aalborg University Press, 2016. [9]).
Energies 12 02307 g002

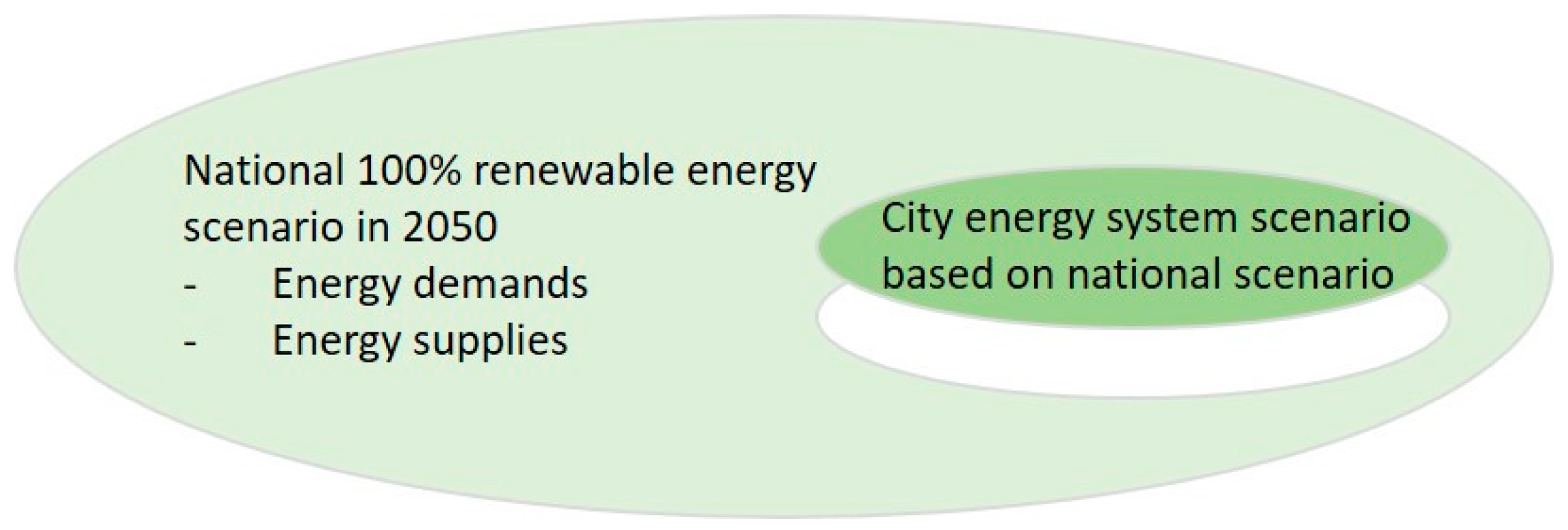

Figure 3. Illustration of the concept of this study, where the city energy system is derived from the national 100% renewable scenario for 2050.
Figure 3. Illustration of the concept of this study, where the city energy system is derived from the national 100% renewable scenario for 2050.
Energies 12 02307 g003
Figure 4. Illustration of the EnergyPLAN inputs and outputs and regulation strategies (Reproduced with permission from Henrik Lund, Renewable energy systems - A smart energy systems approach to the choice and modeling of 100% renewable solutions; Elsevier Inc., 2010, 2014. [27].
Figure 4. Illustration of the EnergyPLAN inputs and outputs and regulation strategies (Reproduced with permission from Henrik Lund, Renewable energy systems - A smart energy systems approach to the choice and modeling of 100% renewable solutions; Elsevier Inc., 2010, 2014. [27].
Energies 12 02307 g004
Figure 5. The location of Sønderborg in Denmark and the residential locations of inhabitants in Sønderborg, including the three main district heating areas: (a) Sønderborg Municipality location in Denmark (in red), and (b) location of residential locations in Sønderborg based on heat demands (indicated by orange areas) and three main district heating areas (circled).
Figure 5. The location of Sønderborg in Denmark and the residential locations of inhabitants in Sønderborg, including the three main district heating areas: (a) Sønderborg Municipality location in Denmark (in red), and (b) location of residential locations in Sønderborg based on heat demands (indicated by orange areas) and three main district heating areas (circled).
Energies 12 02307 g005
Figure 6. Resource inputs, electricity exchange, and total energy sector demands in Sønderborg in 2016.
Figure 6. Resource inputs, electricity exchange, and total energy sector demands in Sønderborg in 2016.
Energies 12 02307 g006
Figure 7. Final energy demands in Sønderborg in 2016 and 2050 and conversion and storage technologies.
Figure 7. Final energy demands in Sønderborg in 2016 and 2050 and conversion and storage technologies.
Energies 12 02307 g007
Figure 8. Energy resource demands and electricity export, in Sønderborg in 2016 and 2050.
Figure 8. Energy resource demands and electricity export, in Sønderborg in 2016 and 2050.
Energies 12 02307 g008
Figure 9. Electricity production, import, and export, in Sønderborg in 2016 and 2050.
Figure 9. Electricity production, import, and export, in Sønderborg in 2016 and 2050.
Energies 12 02307 g009
Figure 10. Electricity demand and supply in Sønderborg in 2050: first two days of January.
Figure 10. Electricity demand and supply in Sønderborg in 2050: first two days of January.
Energies 12 02307 g010
Figure 11. Electricity demand and supply in Sønderborg in 2050: first two days of July.
Figure 11. Electricity demand and supply in Sønderborg in 2050: first two days of July.
Energies 12 02307 g011
Figure 12. Heat production from: (a) district heating units and (b) private heating units in Sønderborg in 2016 and 2050.
Figure 12. Heat production from: (a) district heating units and (b) private heating units in Sønderborg in 2016 and 2050.
Energies 12 02307 g012
Figure 13. District heating demand and supply (and storage) in Sønderborg city in 2050: first two days of January.
Figure 13. District heating demand and supply (and storage) in Sønderborg city in 2050: first two days of January.
Energies 12 02307 g013
Figure 14. Electricity demand by different end-uses in Sønderborg in 2050.
Figure 14. Electricity demand by different end-uses in Sønderborg in 2050.
Energies 12 02307 g014
Figure 15. Electricity demand by different end-uses in Sønderborg in 2050: first two days of January.
Figure 15. Electricity demand by different end-uses in Sønderborg in 2050: first two days of January.
Energies 12 02307 g015
Figure 16. Transport fuel consumption in Sønderborg in 2016 and 2050.
Figure 16. Transport fuel consumption in Sønderborg in 2016 and 2050.
Energies 12 02307 g016
Figure 17. Potential total investment costs between 2016 and 2050 for a selection of technologies and energy efficiency initiatives in Sønderborg. These costs are indicative based on the Danish 2050 energy scenario and further analysis at the local level should be undertaken.
Figure 17. Potential total investment costs between 2016 and 2050 for a selection of technologies and energy efficiency initiatives in Sønderborg. These costs are indicative based on the Danish 2050 energy scenario and further analysis at the local level should be undertaken.
Energies 12 02307 g017
Figure 18. Energy System Analysis within strategic energy planning.
Figure 18. Energy System Analysis within strategic energy planning.
Energies 12 02307 g018
Table 1. Smart Energy System sustainability factors to be considered in energy system analyses.
Table 1. Smart Energy System sustainability factors to be considered in energy system analyses.
Smart Energy System Sustainability Factors [10]Explanation [11]
Includes all energy sectors Decarbonize all energy sectors. Synergies are maximized and resource consumption is minimized
Technically feasible design and analysis Energy imbalances are minimized and unit capacity factors are sufficient
Feasible socio-economic costs Equal to today, sufficient balance of payments, macro-economic fiscal effects
Feasible energy security Energy demands are supplied throughout the year
Better efficiency Resource consumption is minimized
Better resource use Ecosystem services are maintained
Better environment Reduction in climate change, health improvements, jobs created
Table 2. Data types for a city energy system analysis.
Table 2. Data types for a city energy system analysis.
Resource Inputs (1)Conversion Technologies, Capacities and Efficiencies (2)Exchange and Storage, Capacities and Efficiencies (3)End-User Demands (4)Final Energy Demands (5)Total Energy Sector Demands (6)Temporal Demands and Energy Inputs (7)
Fossil fuels;
Renewable fuels;
Imported electricity; Renewable energy.
Boilers;
Combined heat and power plant (CHP);
Power plant;
Wind;
Solar;
Motors;
Engines;
Luminaires.
Thermal storage;
Fuel storage;
Energy storage;
Electricity exchange and distribution (+ losses);
District heating distribution (+ losses).
Lighting;
Heating;
Cooking;
Cooling;
Driving.
Residential;
Industry;
Commercial;
Light duty vehicles;
Heavy duty vehicles.
Electrical energy demand;
Thermal energy demand;
Cooling energy demand;
Transport energy demand.
Hour by hour
Table 3. Energy production and conversion efficiencies (in brackets) of conversion technologies in 2016.
Table 3. Energy production and conversion efficiencies (in brackets) of conversion technologies in 2016.
Conversion Technologies (2)Electricity Production (GWh)Thermal Production (GWh)Final Energy Demands (5)
Wind (onshore)33 (100%)-Electrical & thermal energy
Wind (offshore)0-
Solar PV16 (100%)-
CHP (decentralized)5 (37%)6 (49%)
CHP (waste)28 (13%)159 (75%)
CHP (industry)16 (38%)19 (46%)
Imported electricity369-
DH boilers-271 (~102%)Thermal energy demand
DH boiler (electric)-8 (96%)
DH solar thermal-20 (96%)
DH geothermal-5 (100%)
Industry boilers-253 (90%)
Private boilers-324 (~75%)
Solar thermal (private)-2 (100%)
Heat pumps (private)-7 (300%)
Electric heating (private)-15 (~100%)
Private coolingNo dataNo dataCooling energy demand
Motors/engines1.9 (85%)211 (~25%)Transport energy demand
Table 4. Key Danish energy system data in 2015 and 2050 (data sourced from [30]).
Table 4. Key Danish energy system data in 2015 and 2050 (data sourced from [30]).
TWh/YearEnergy Component20152050
Resource inputs (1)Biomass + waste4065
Wind1180
Solar + geothermal116
Fossil fuels1550
Conversion technologies (2)Data available but not presented
Storages and exchange (3) Electricity import00.8
Electricity export−2.2−14.6
Electrofuel storage031
Final energy demands (5)Data available but not presented
Total energy sector demand (6) (excluding conversion and distribution losses)Electricity3167
Heating4242
Cooling55
Transport (Total energy sector demands excluding conversion and distribution losses were not provided for transport so they were estimated based on efficiencies of vehicles today. Efficiencies were 25% light vehicles, 33% for heavy vehicles, 33% for aviation and shipping, and 85% for electric vehicles.) 1613
Table 5. Final energy demands in Sønderborg in 2016 and calculated final energy demands based on Danish per capita values from 2015.
Table 5. Final energy demands in Sønderborg in 2016 and calculated final energy demands based on Danish per capita values from 2015.
Final Energy Demands (5)Sønderborg 2016 (GWh) Sønderborg Based on IDA2015 (GWh) Sønderborg Difference
Electrical energyResidential79115−46%
Industry146129+12%
Commercial104112−7%
Thermal energyResidential5785564%
Commercial148316+40%
Industry294
Cooling energyResidentialunknown59n/a
Industryunknown26n/a
Commercialunknownn/a
Transport energyLight vehicles109 112−7%
Heavy vehicles (including rail)2635−19%
Aviation5045+11%
Shipping880%

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
