Inverse-System Decoupling Control of DC/DC Converters

1
College of Electrical Engineering, Guangxi University, Nanning 530004, China
2
College of Civil Engineering and Architecture, Guangxi University, Nanning 530004, China
3
Department of Mechanical Engineering WEMPEC, University of Wisconsin-Madison, Madison, WI 53706, USA
*
Author to whom correspondence should be addressed.
Received: 18 November 2018 / Revised: 21 December 2018 / Accepted: 30 December 2018 / Published: 7 January 2019
(This article belongs to the Section Electrical Power and Energy System)
Full-Text   |   PDF [5054 KB, uploaded 11 January 2019]   |

Abstract

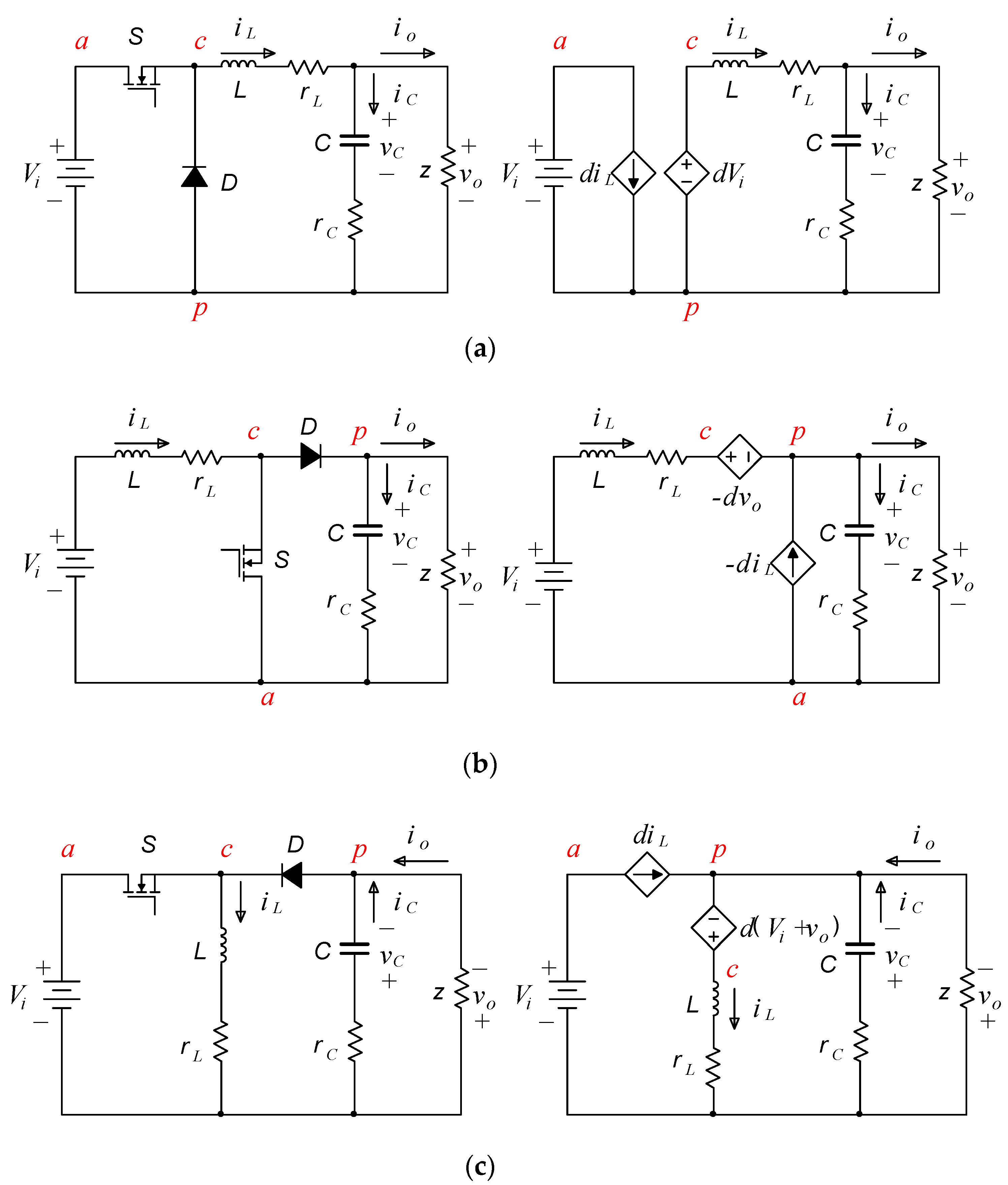

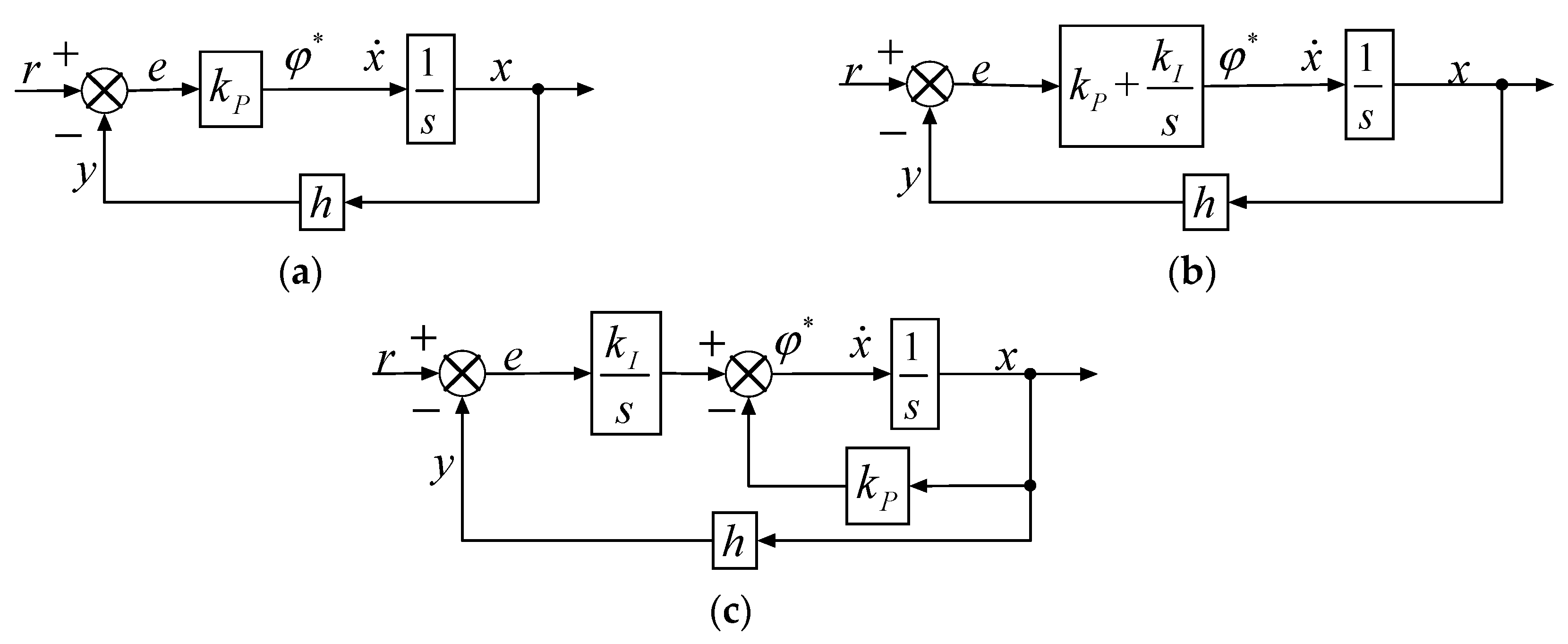

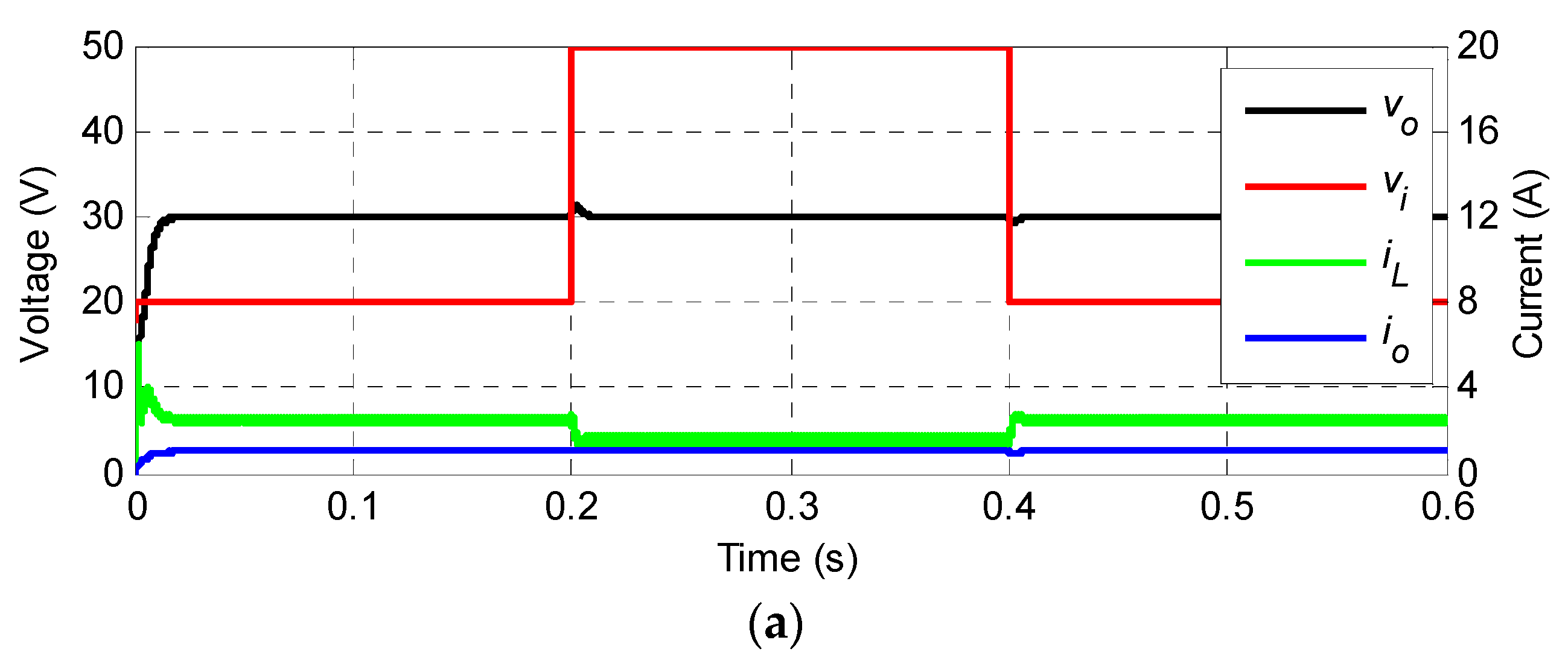

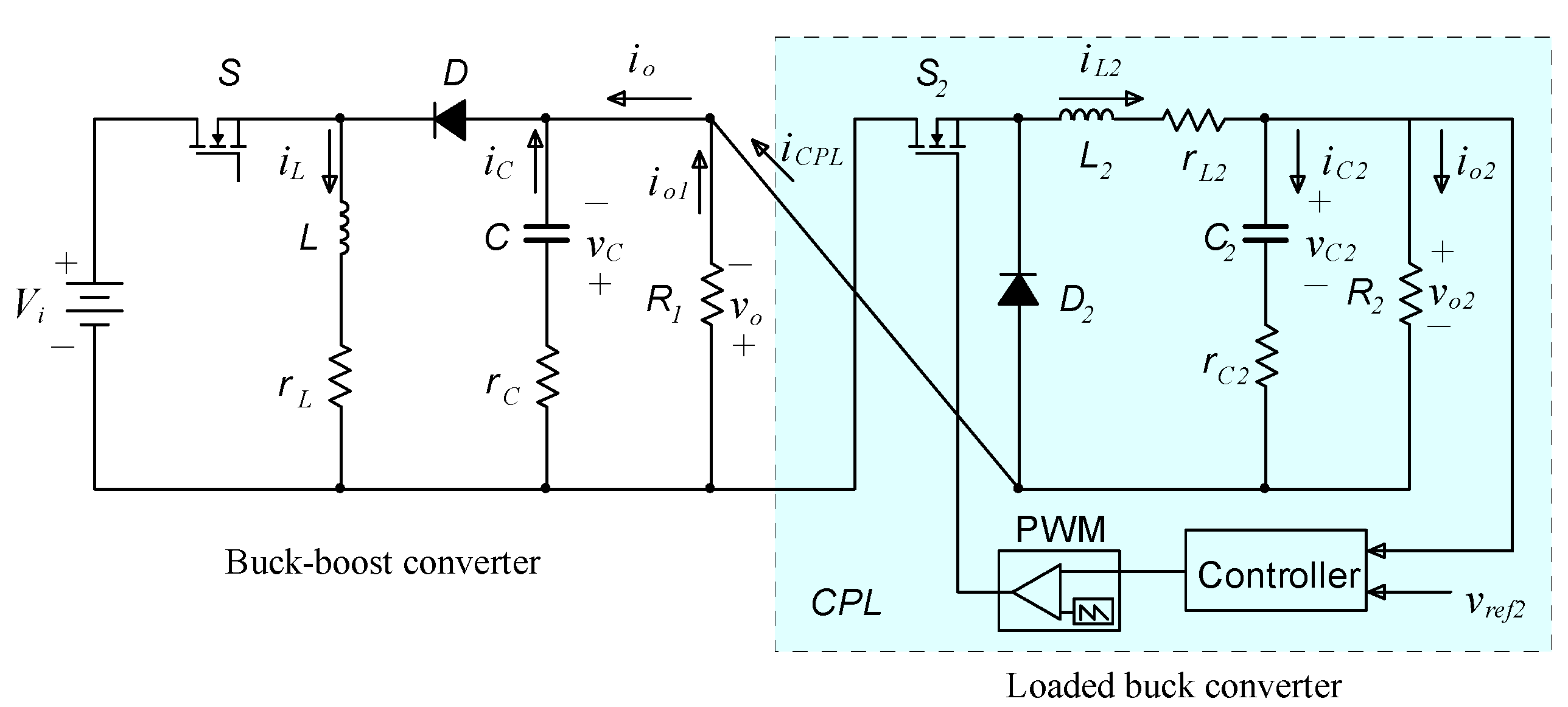

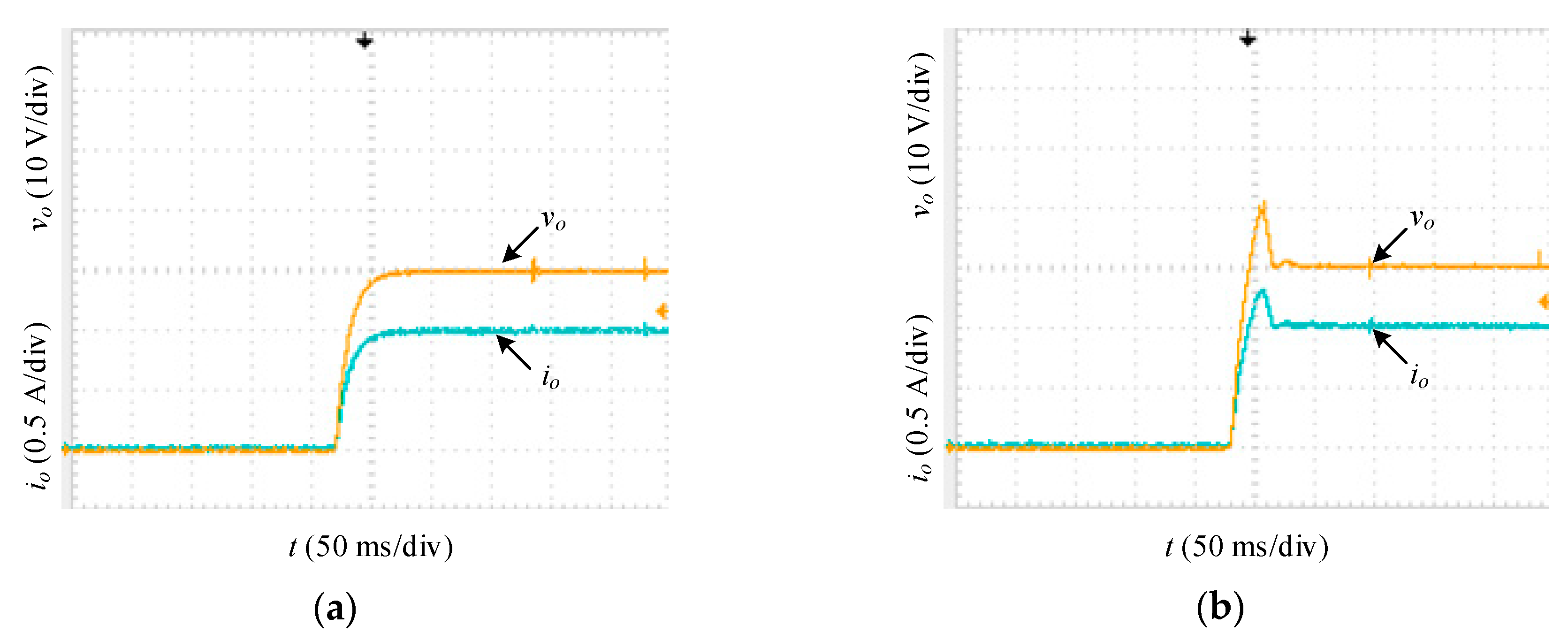

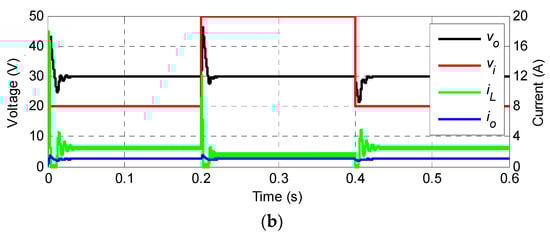

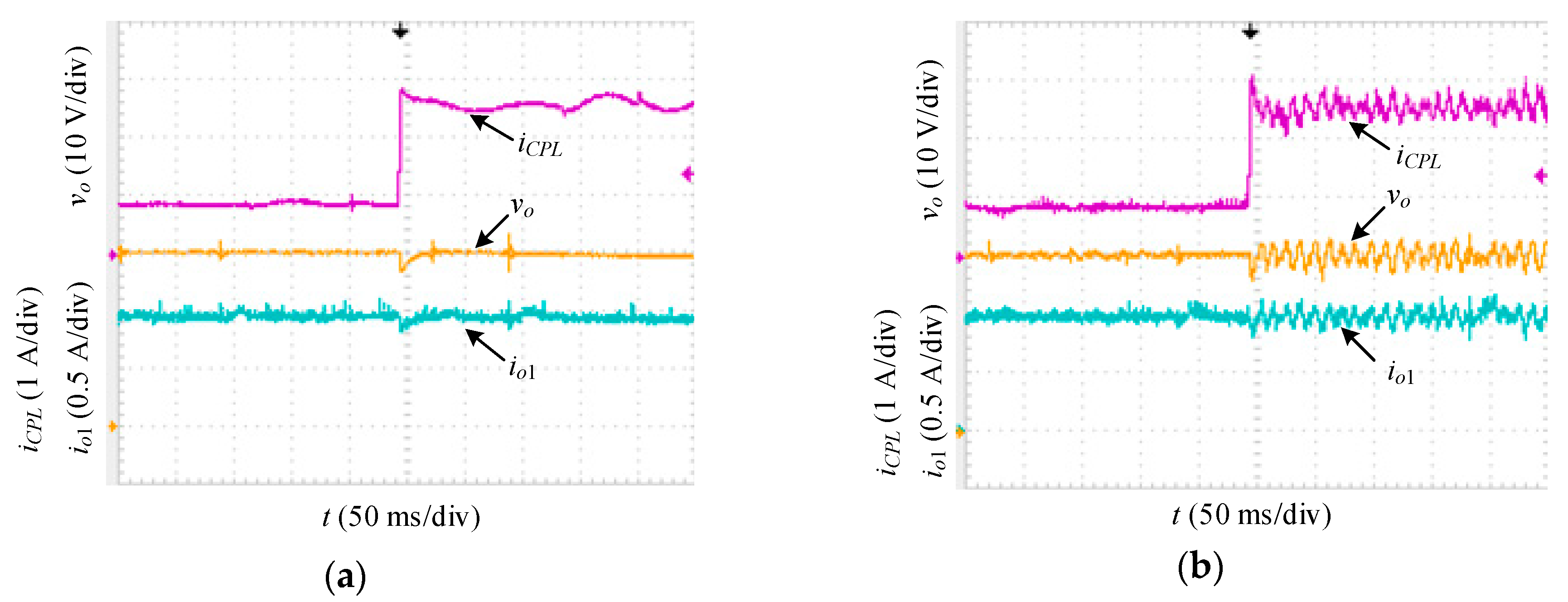

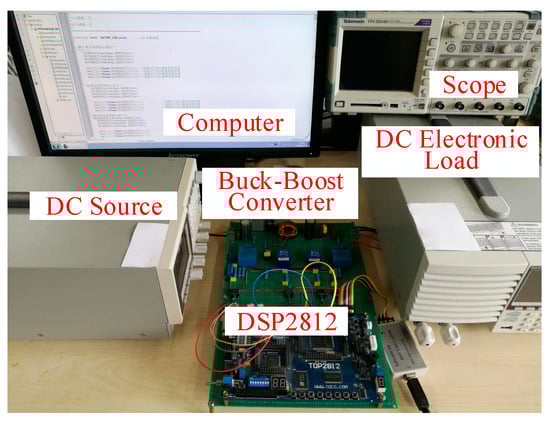

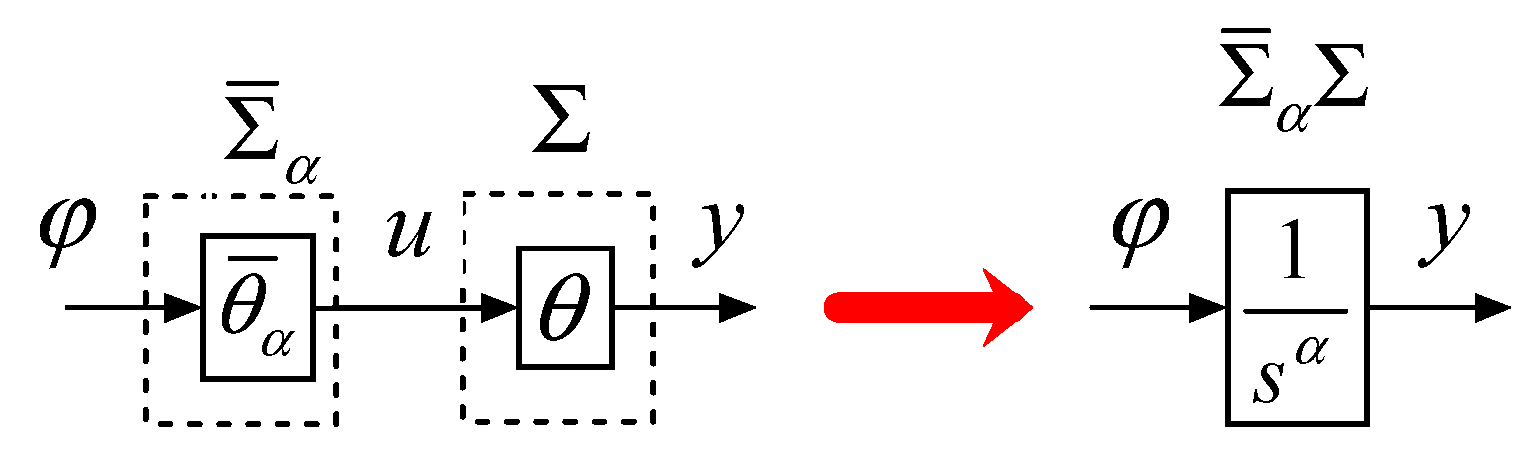

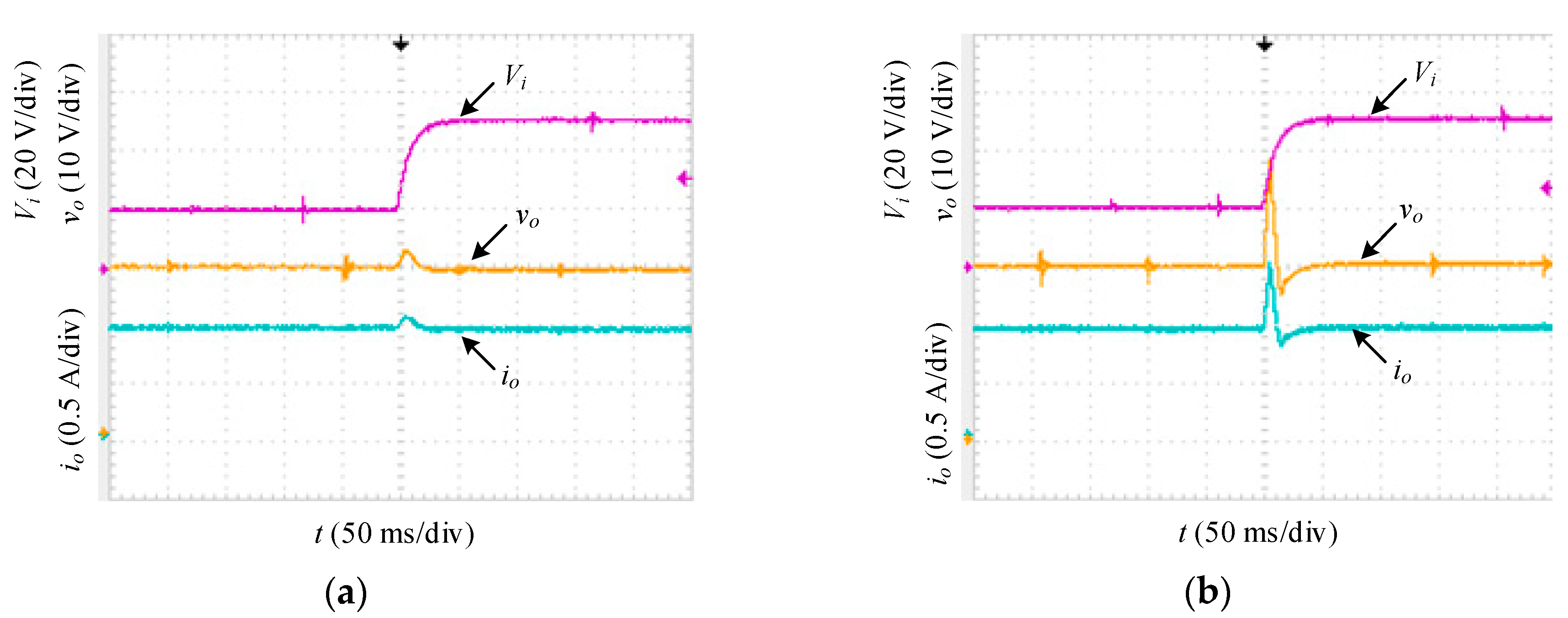

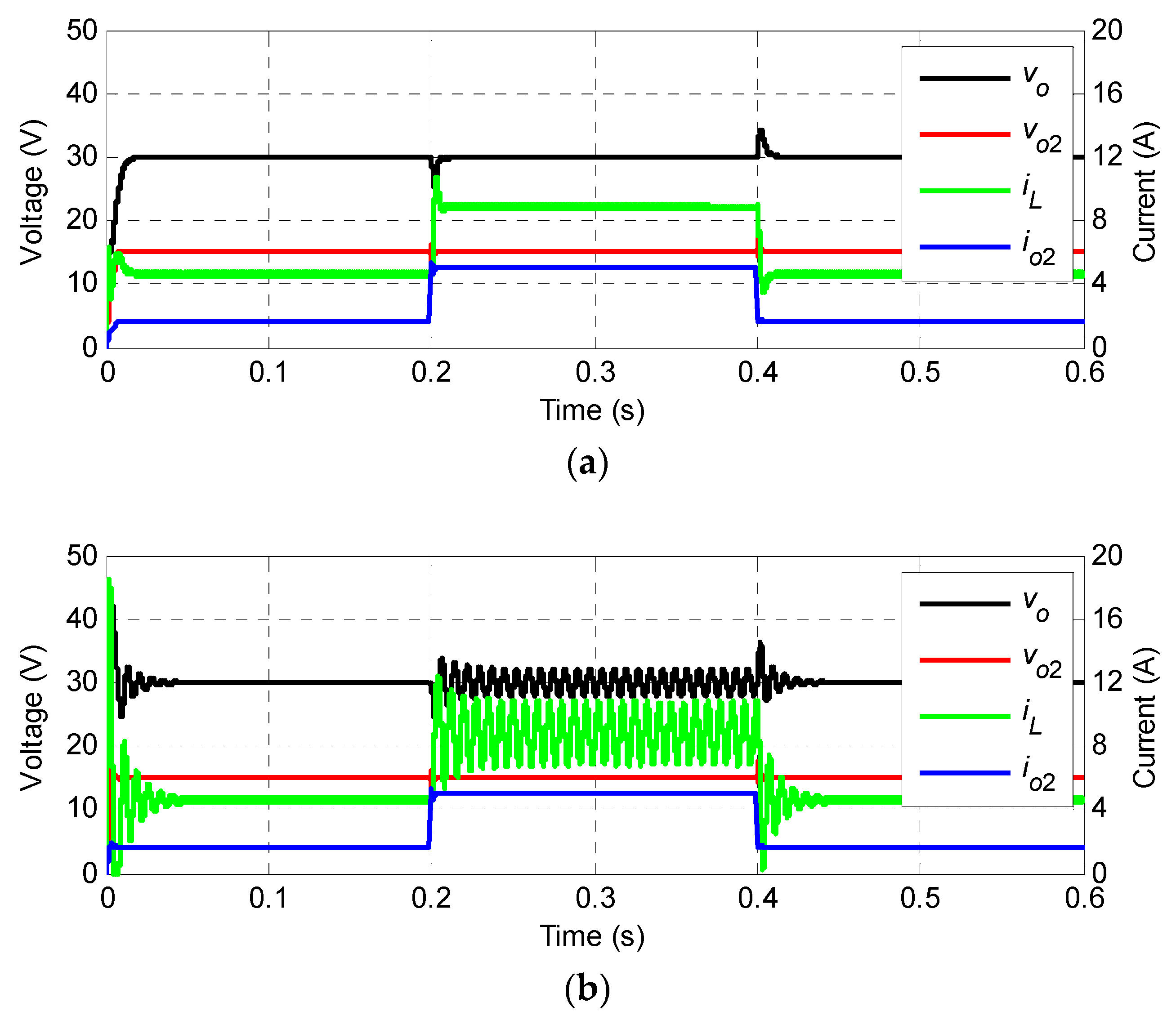

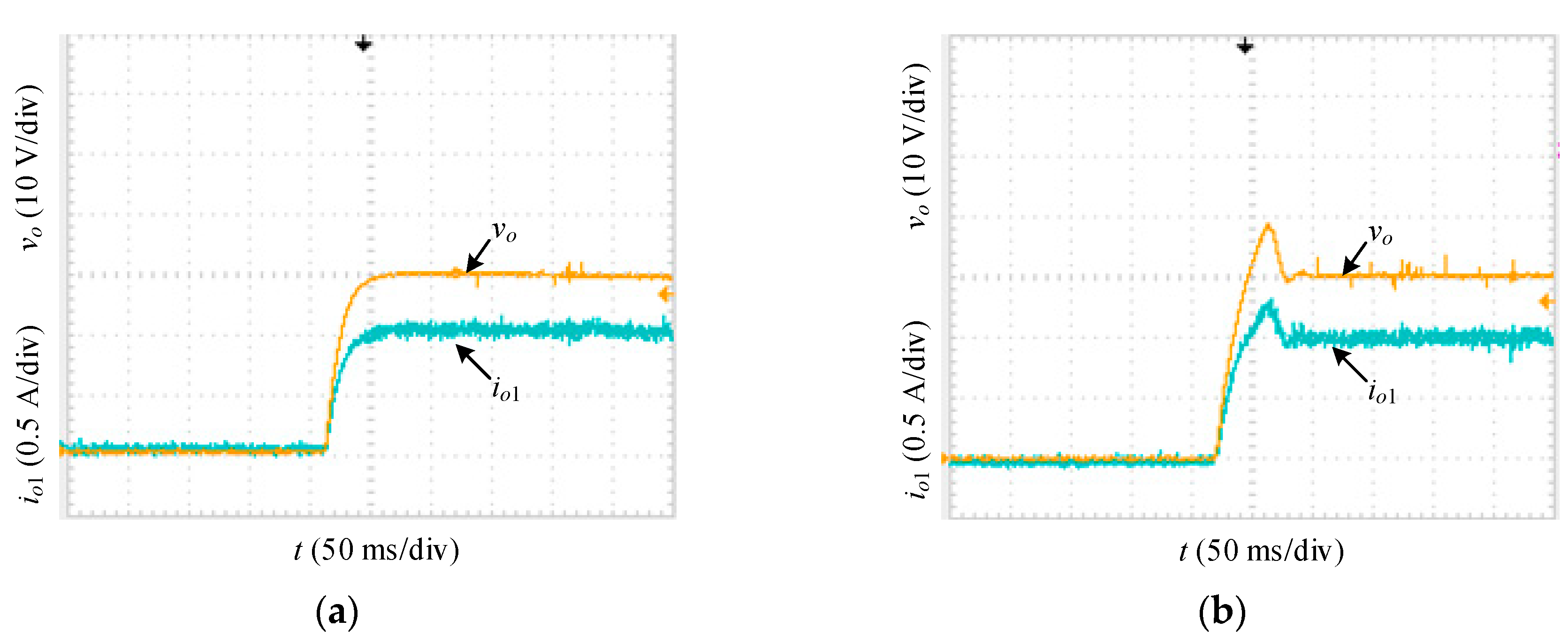

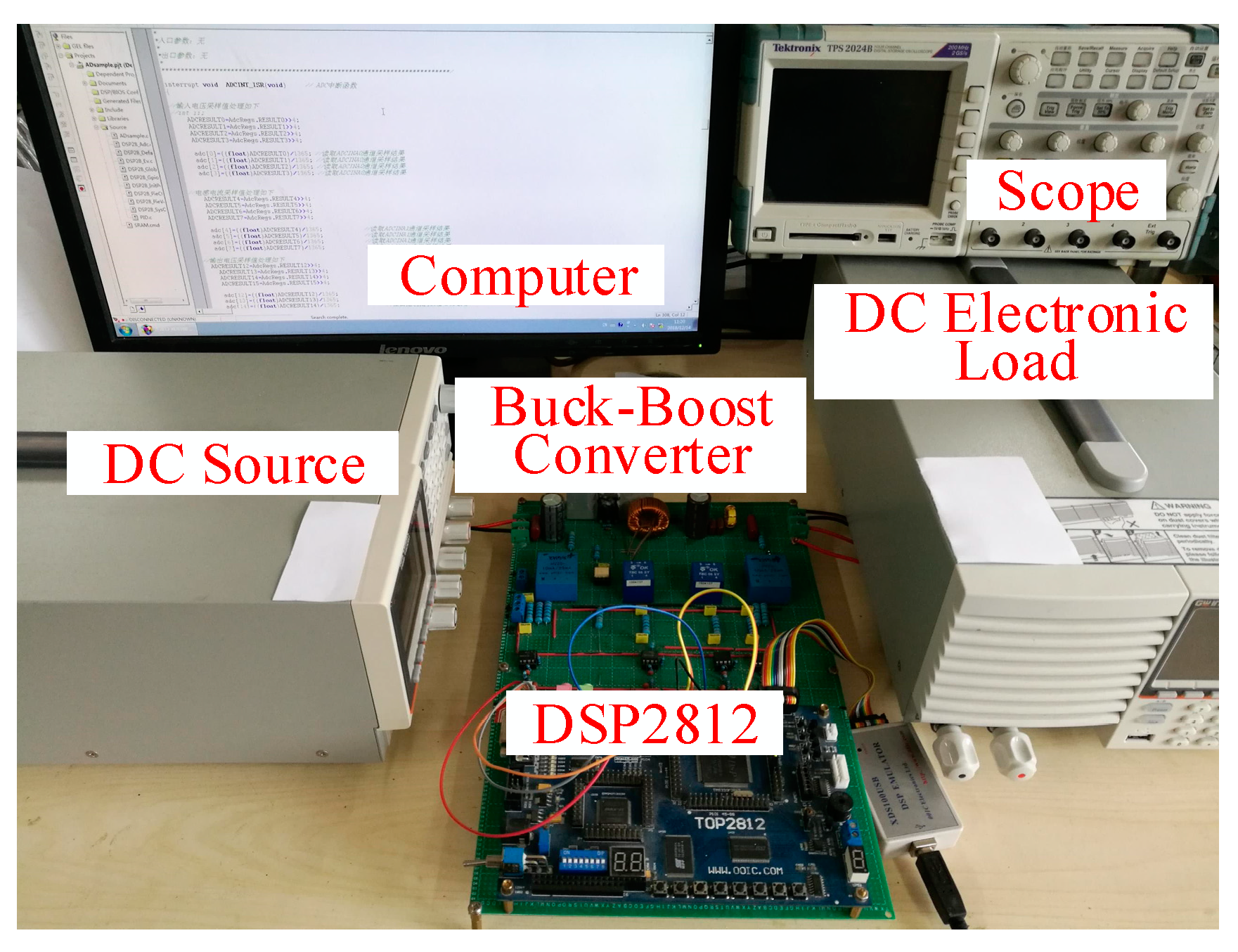

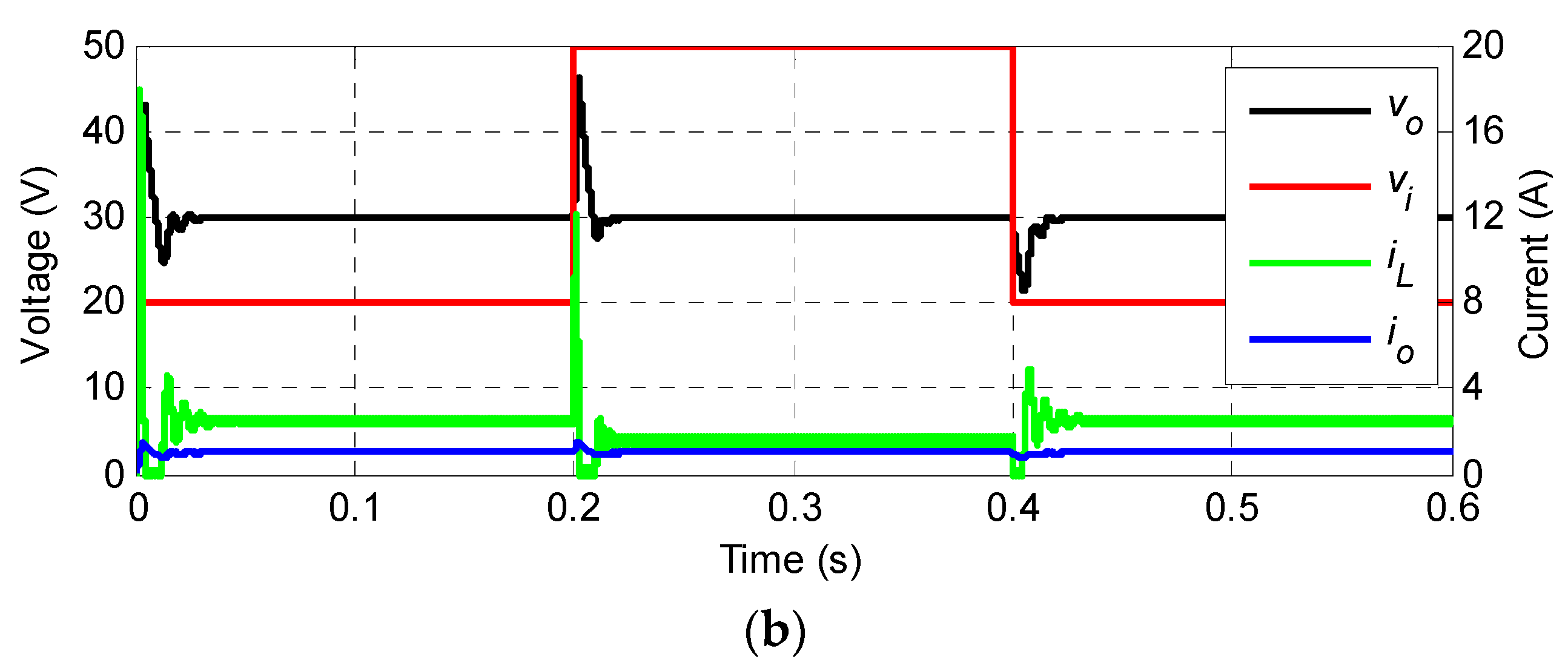

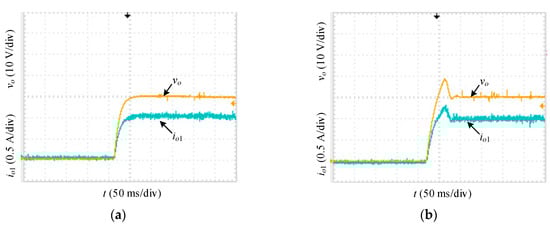

Existing large-signal control schemes for DC/DC converters formulate control strategies based primarily on nonlinear control theory, and the associated design and implementation are relatively complex. In this work, a decomposition modeling and inverse-system decoupling control method is proposed for DC/DC converters that operate under large-signal disturbances. First, a large-signal circuit-averaged model for DC/DC converters is established. The proposed control system has a double closed-loop control structure composed of a voltage loop and a current loop. Then, the voltage-loop and current-loop controlled subsystems are decoupled and compensated to first-order integral elements using the inverse system method. Several linear feedback controllers are designed for first-order integral systems under various optimization criteria using the optimal control theory. Simulation and experiment were performed on buck–boost converters with resistive and constant power loads. The results show that under the control of the proposed controller, all systems exhibited excellent dynamic and steady-state performance. The proposed method allows the disturbance control of the DC/DC converter, the dynamic behavior control of the voltage loop, and the current loop to become independent processes. The local controller design follows the classical linear control design method and is a simple and effective large-signal control strategy. View Full-Text
Keywords: DC/DC power conversion; modeling; decoupling of systems; control systems; constant power load DC/DC power conversion; modeling; decoupling of systems; control systems; constant power load
