Energies 2018, 11(9), 2408; https://doi.org/10.3390/en11092408

A Study on the Open Circuit Voltage and State of Charge Characterization of High Capacity Lithium-Ion Battery Under Different Temperature

1
Graduate School at Shenzhen, Tsinghua University, Shenzhen 518055, China
2
College of Mechanical and Vehicle Engineering, Hunan University, Changsha 410082, China
3
Sunwoda Electronic Co. Ltd., Shenzhen 518108, China
*
Author to whom correspondence should be addressed.
Received: 16 August 2018 / Revised: 6 September 2018 / Accepted: 10 September 2018 / Published: 12 September 2018
Full-Text   |   PDF [3829 KB, uploaded 12 September 2018]   |

Abstract

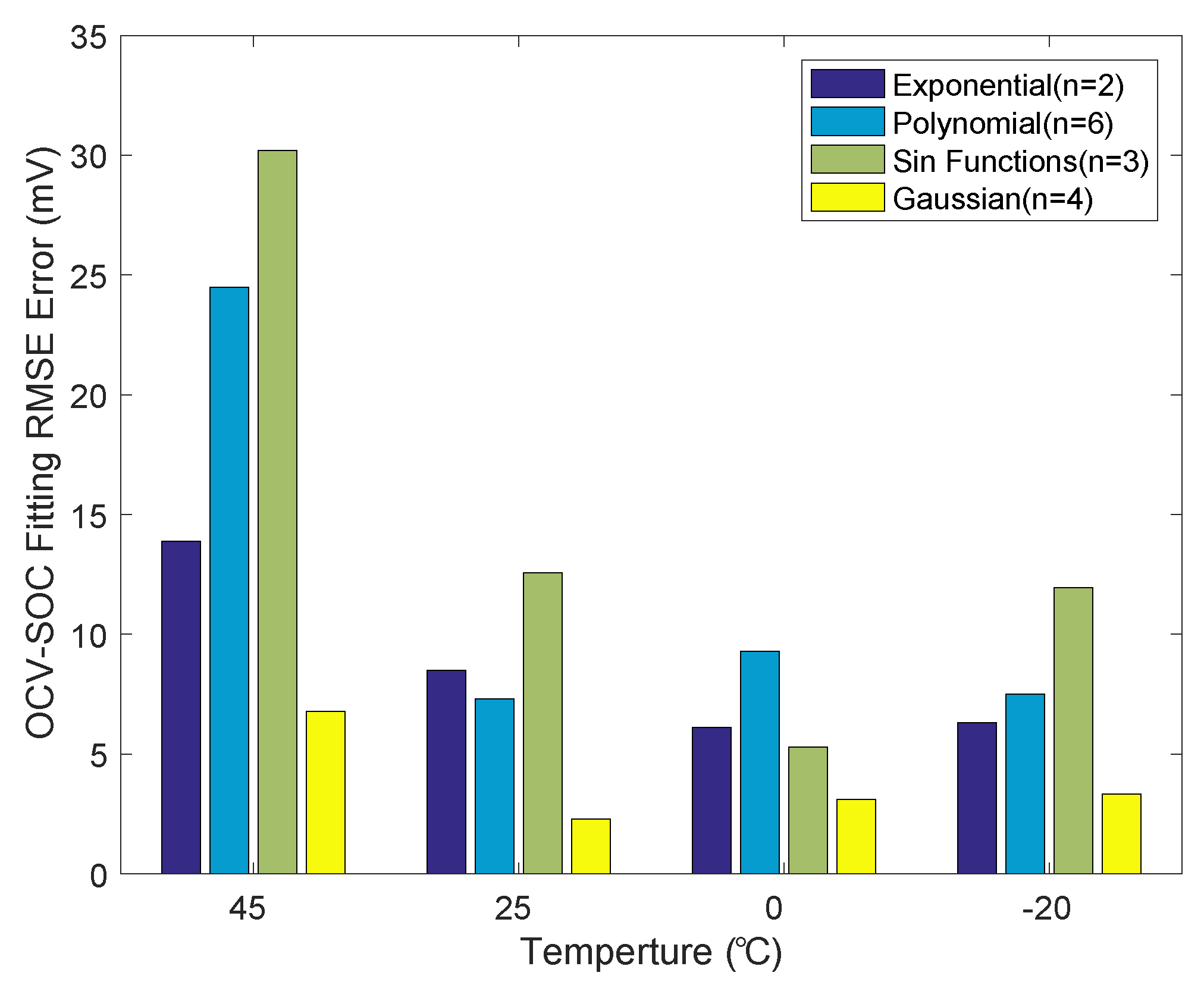

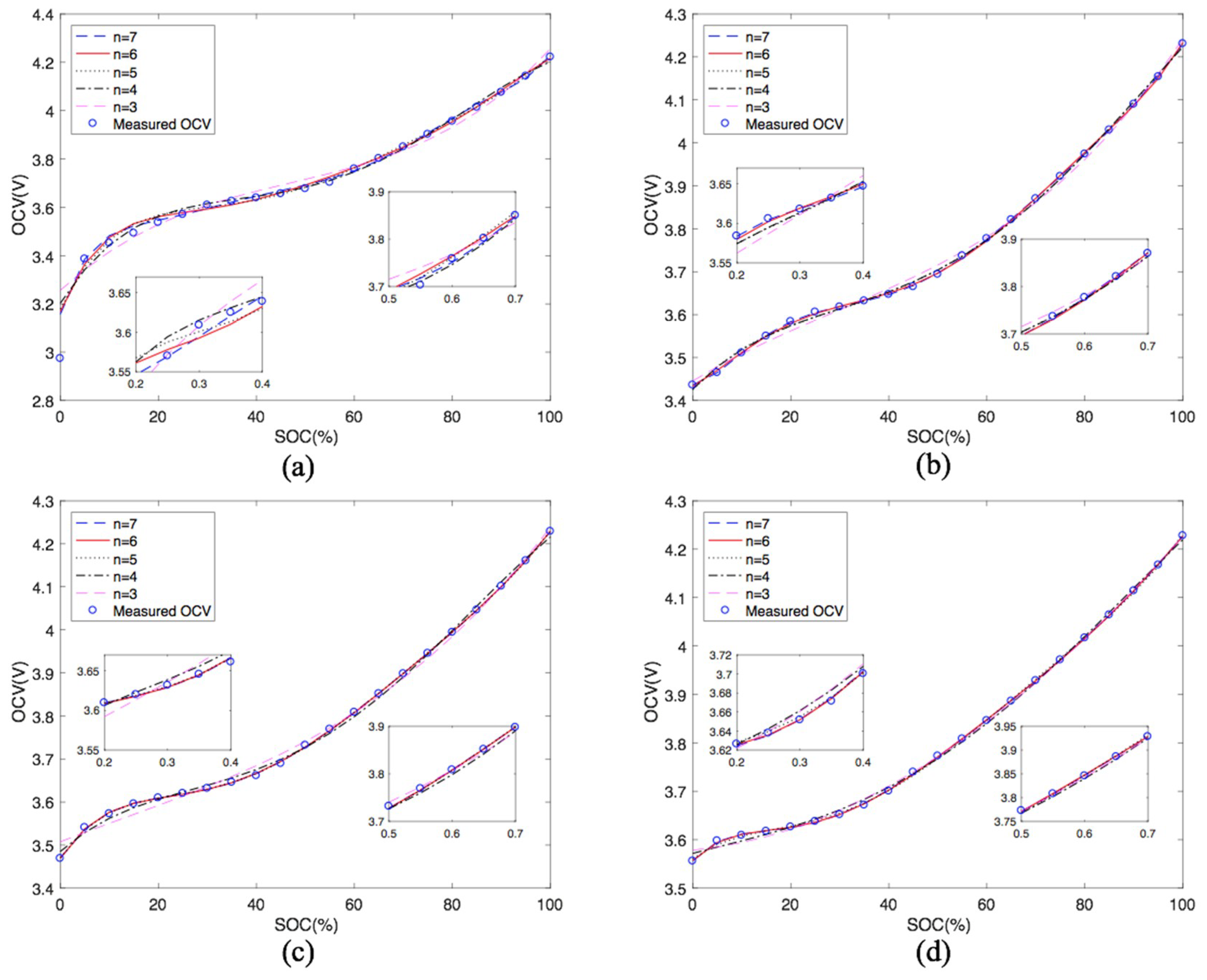

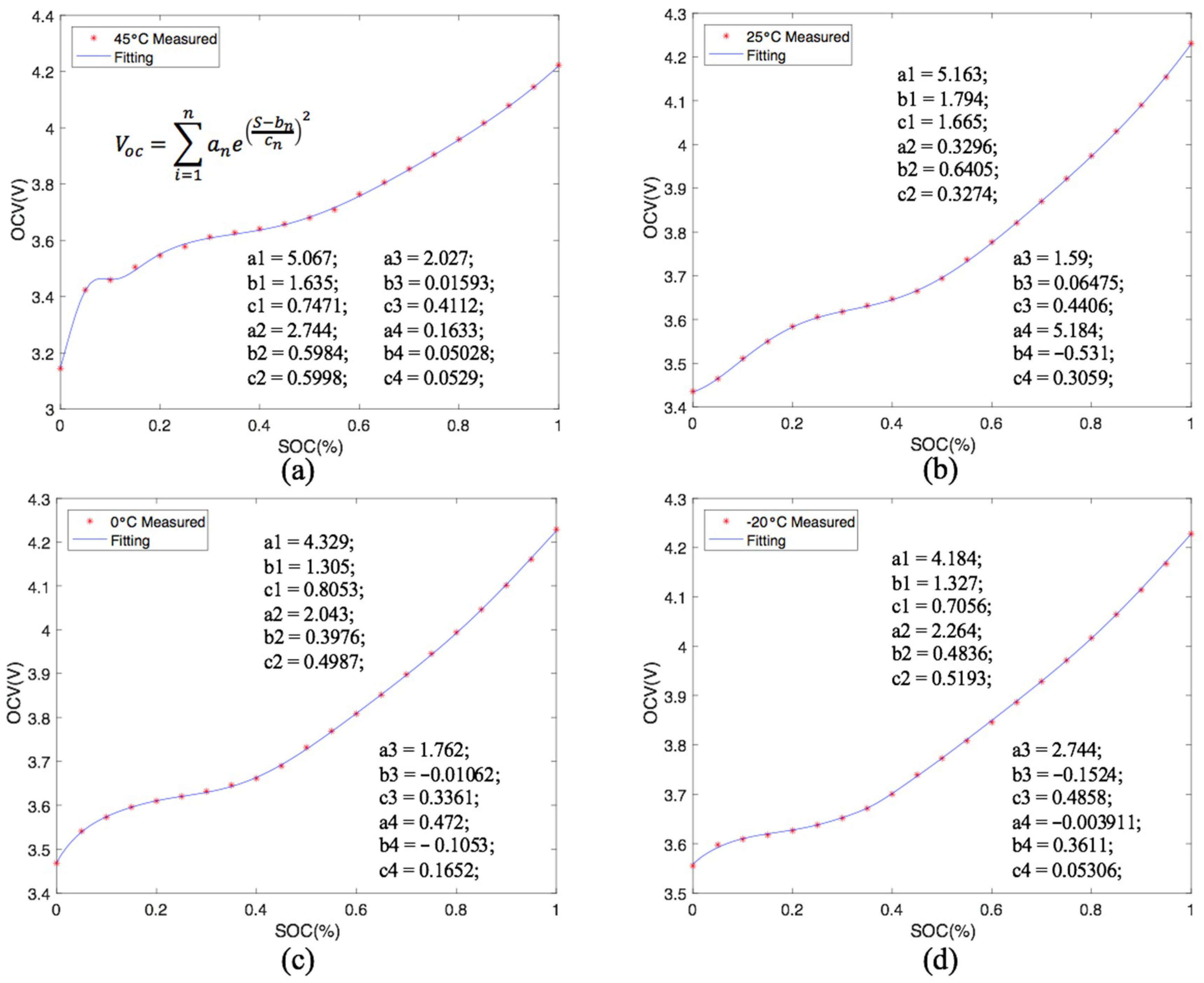

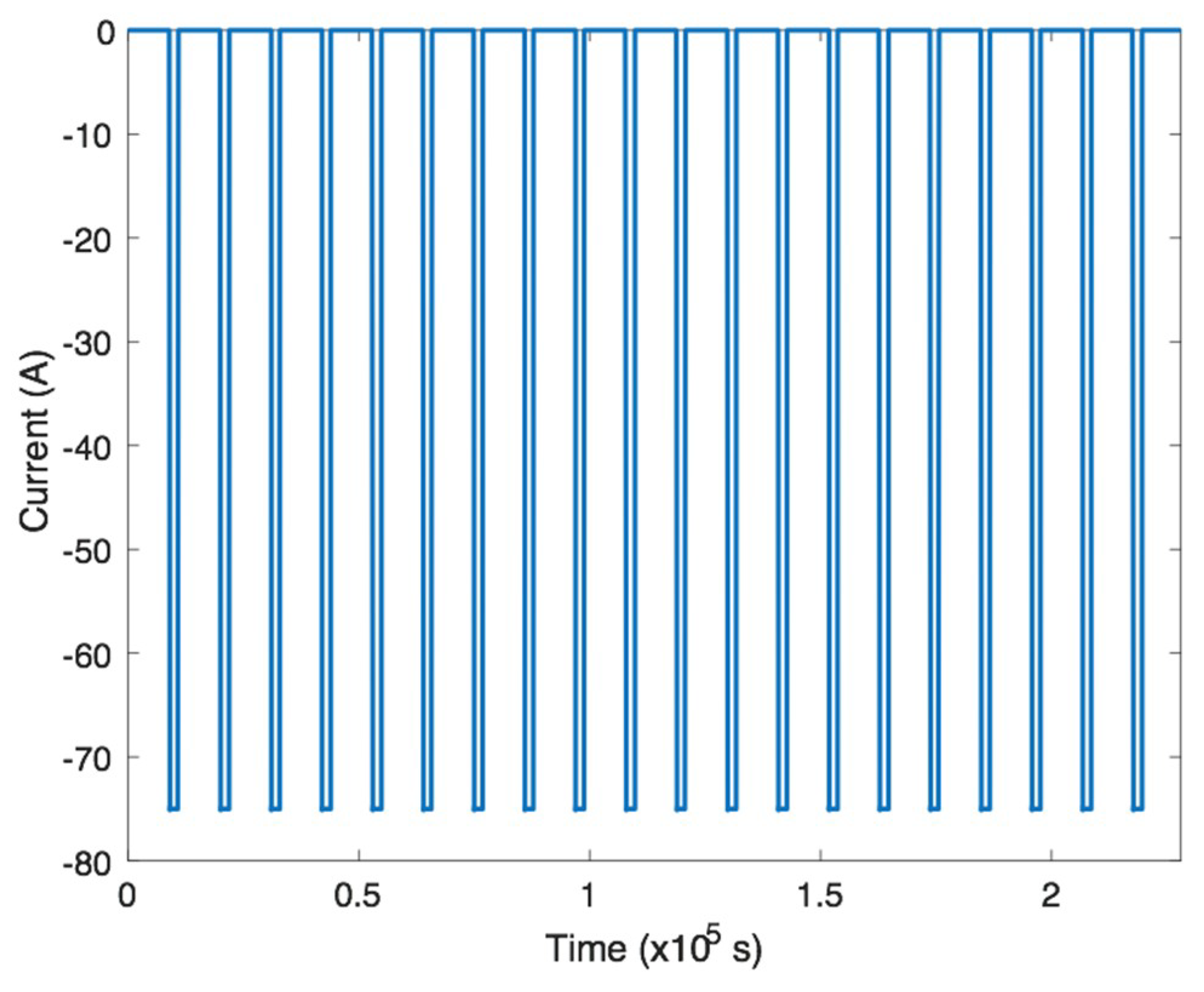

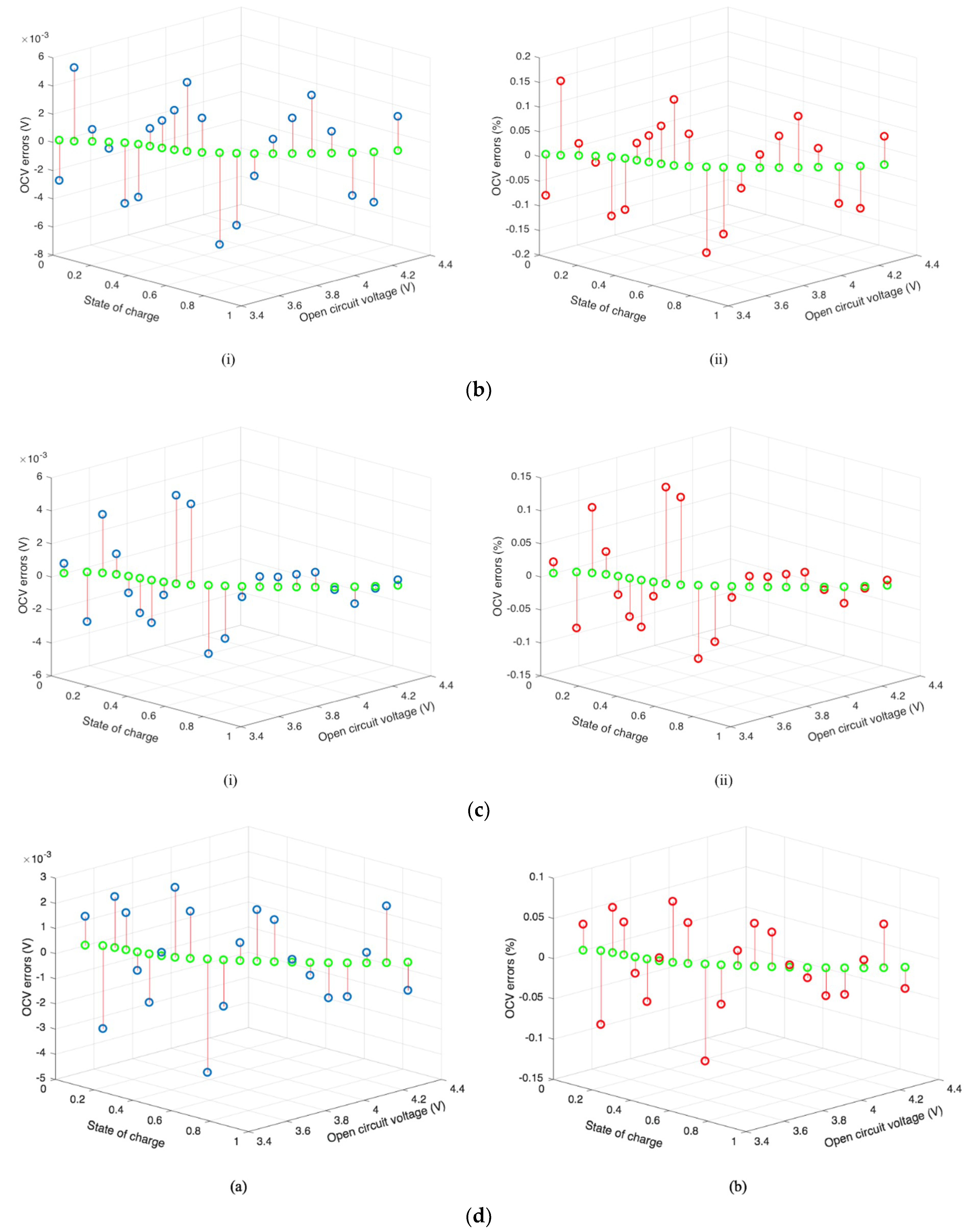

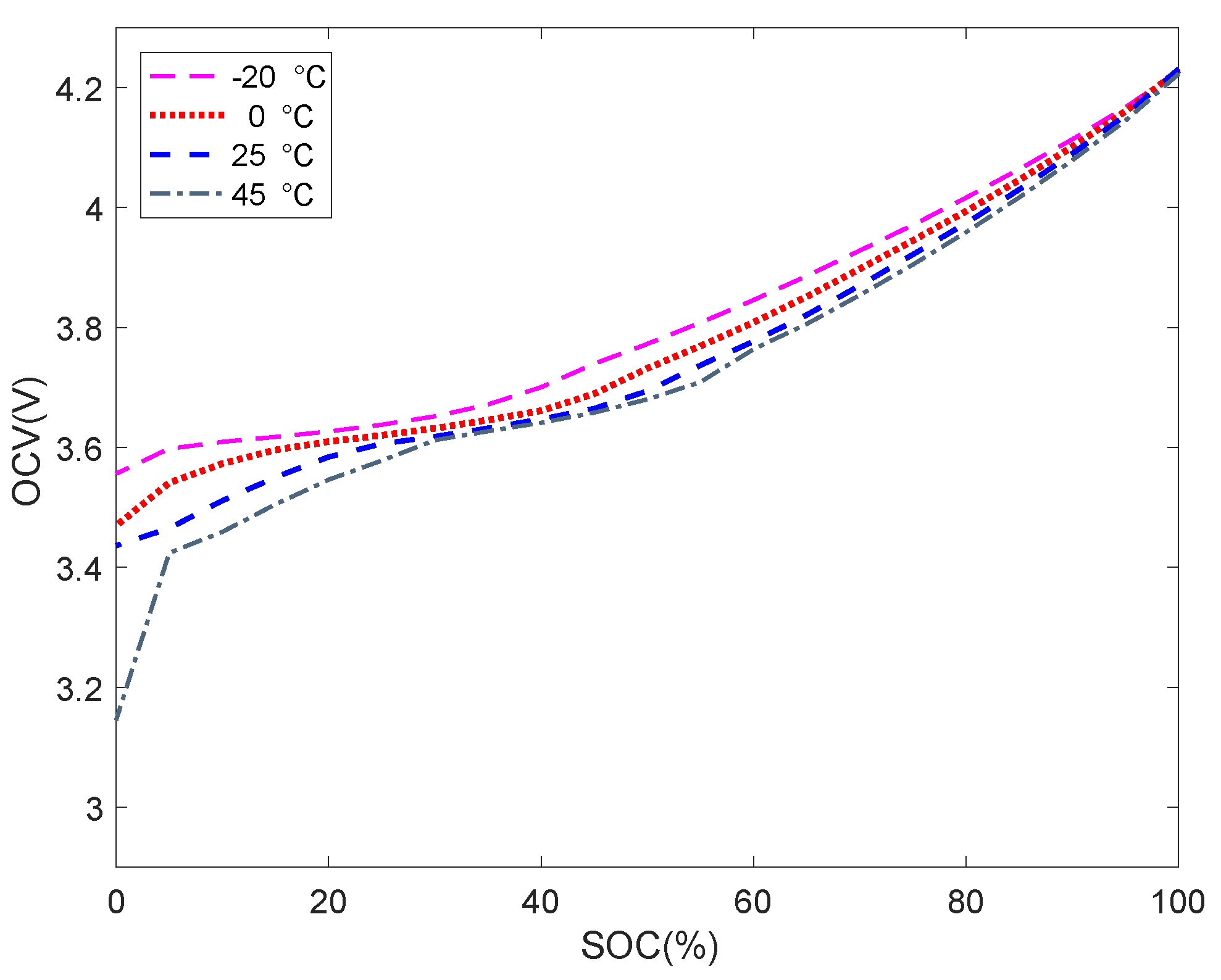

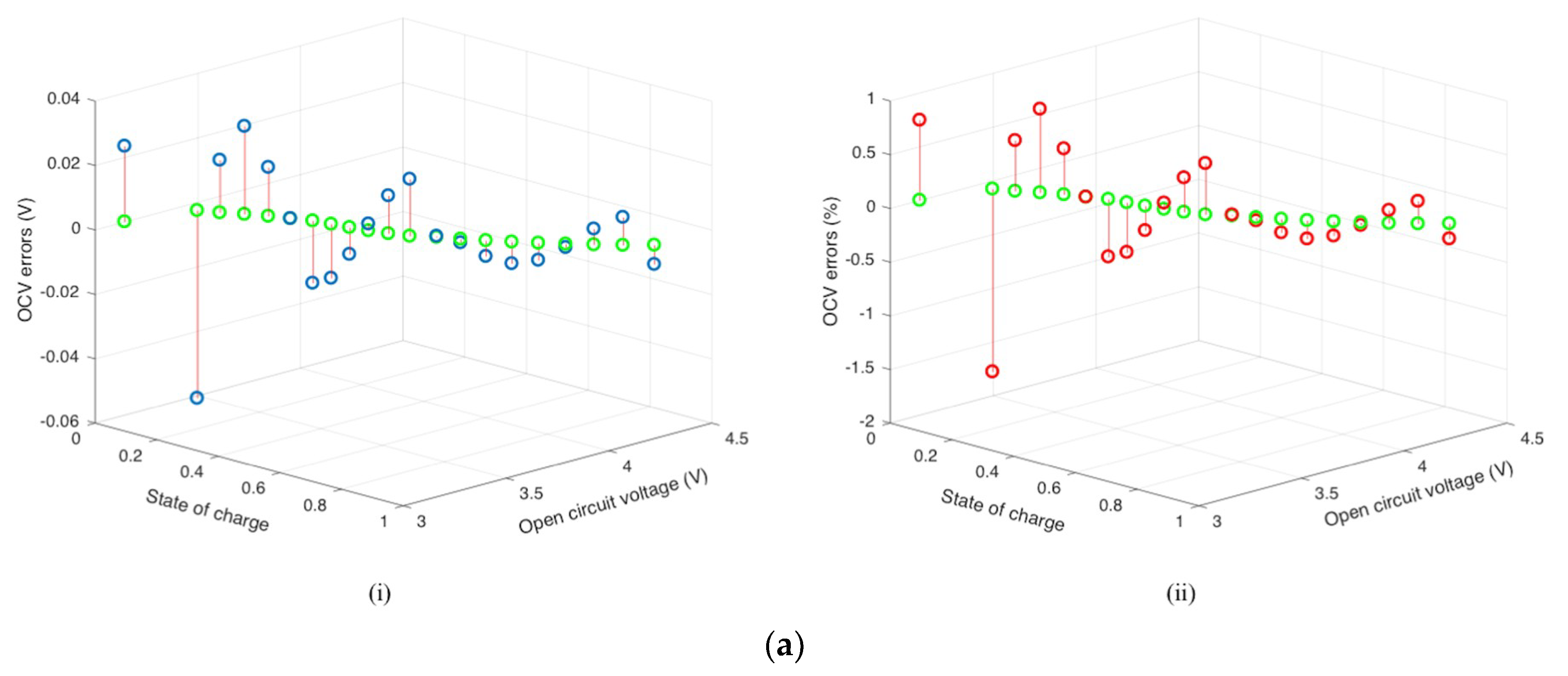

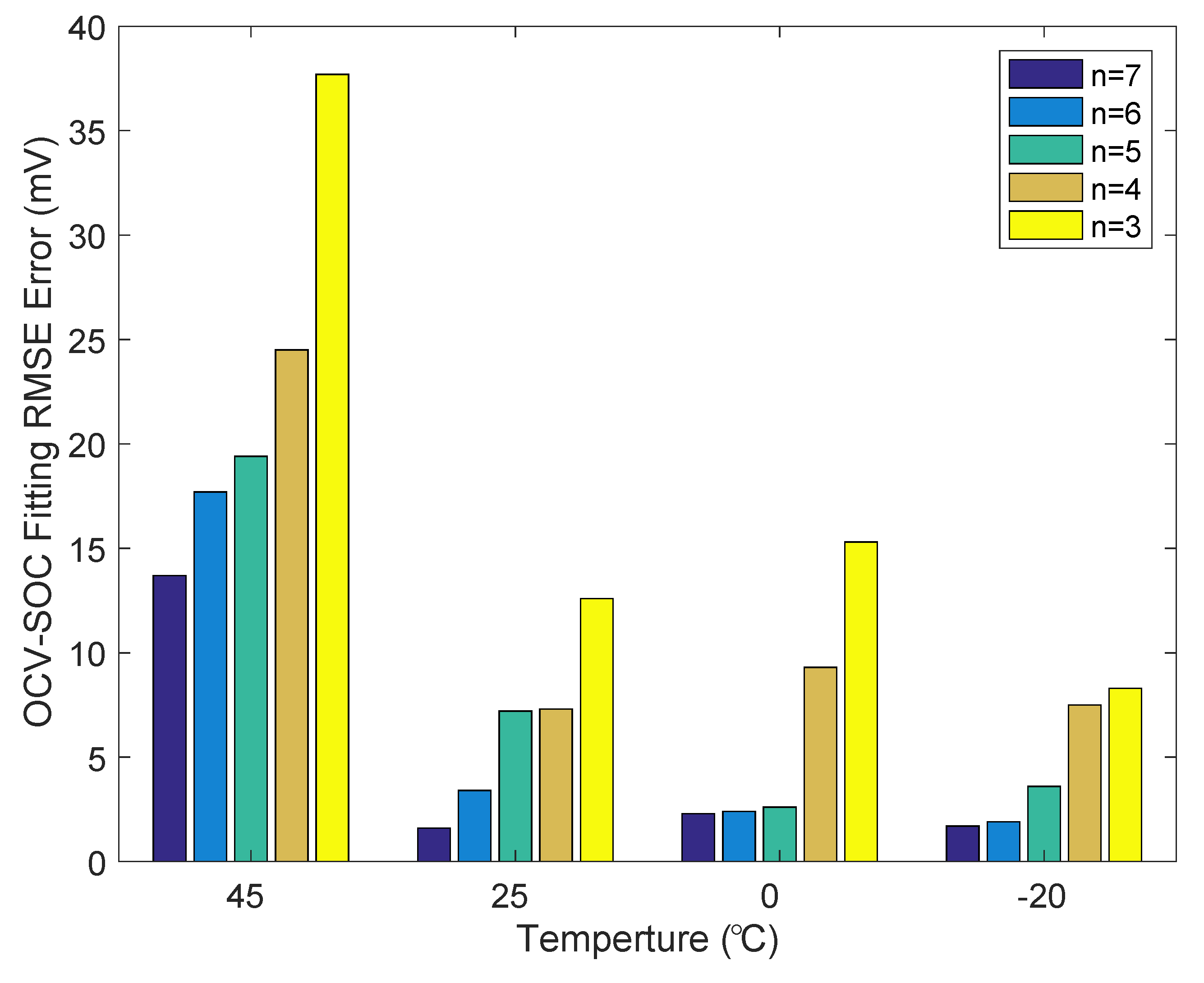

Open circuit voltage (OCV) is an important characteristic parameter of lithium-ion batteries, which is used to analyze the changes of electronic energy in electrode materials, and to estimate battery state of charge (SOC) and manage the battery pack. Therefore, accurate OCV modeling is a great significance for lithium-ion battery management. In this paper, the characteristics of high-capacity lithium-ion batteries at different temperatures were considered, and the OCV-SOC characteristic curves at different temperatures were studied by modeling, exponential, polynomial, sum of sin functions, and Gaussian model fitting method with pulse test data. The parameters of fitting OCV-SOC curves by exponential model (n = 2), polynomial model (n = 3~7), sum of sin functions model (n = 3), and Gaussian model (n = 4) at temperatures of 45 °C, 25 °C, 0 °C, and −20°C are obtained, and the errors are analyzed. The experimental results show that the operating temperature of the battery influences the OCV-SOC characteristic significantly. Therefore, these factors need to be considered in order to increase the accuracy of the model and improve the accuracy of battery state estimation. View Full-Text
Keywords: lithium-ion battery; high capacity; polynomial fitting; OCV-SOC characteristics; sate of charge estimation lithium-ion battery; high capacity; polynomial fitting; OCV-SOC characteristics; sate of charge estimation
Figures

Figure 1
