*Energies*
**2018**,
*11*(9),
2184;
https://doi.org/10.3390/en11092184

Review

CO

_{2}Pipeline Design: A Review^{1}

Department of Chemical Engineering, Faculty of Engineering and Informatics, University of Bradford, Bradford BD7 1DP, UK

^{2}

Chemical and Petroleum Engineering, Faculty of Engineering, Niger Delta University, Wilberforce Island, Bayelsa State 560103, Nigeria

^{*}

Author to whom correspondence should be addressed.

Received: 25 June 2018 / Accepted: 17 August 2018 / Published: 21 August 2018

## Abstract

**:**

There is a need to accurately design pipelines to meet the expected increase in the construction of carbon dioxide (CO

_{2}) pipelines after the signing of the Paris Climate Agreement. CO_{2}pipelines are usually designed with the assumption of a pure CO_{2}fluid, even though it usually contains impurities, which affect the critical pressure, critical temperature, phase behaviour, and pressure and temperature changes in the pipeline. The design of CO_{2}pipelines and the calculation of process parameters and fluid properties is not quite accurate with the assumption of pure CO_{2}fluids. This paper reviews the design of rich CO_{2}pipelines including pipeline route selection, length and right of way, fluid flow rates and velocities, need for single point-to-point or trunk pipelines, pipeline operating pressures and temperatures, pipeline wall thickness, fluid stream composition, fluid phases, and pipeline diameter and pressure drop calculations. The performance of a hypothetical pipeline was simulated using gPROMS (ver. 4.2.0) and Aspen HYSYS (ver.10.1) and the results of both software were compared to validate equations. Pressure loss due to fluid acceleration was ignored in the development of the diameter/pressure drop equations. Work is ongoing to incorporate fluid acceleration effect and the effects of impurities to improve the current models.Keywords:

carbon dioxide capture and storage (CCS); CO_{2}pipeline design; pressure drop; pipeline diameter equations; CO

_{2}transportation

## 1. Introduction

Greenhouse gases are mainly responsible for the gradual rise in atmospheric temperatures. One of the chief components of greenhouse gases is carbon dioxide (CO

_{2}). CO_{2}is released from many natural and anthropogenic processes including power generation, gas-flaring, breathing, automobiles, volcanic eruptions, etc. Of these, the anthropogenic release of CO_{2}is of concern and the need to reduce the percentage of CO_{2}in the atmosphere becomes pertinent due to the adverse effects on the environment. According to the Intergovernmental Panel on Climate Change (IPCC) [1], global warming for the past 50 years is mostly due to the burning of fossil fuels. In 2010, CO_{2}emissions amounted to about 37 Gt representing about 72% out of 51 Gt of greenhouse gas emissions [2]. About three-fourths of atmospheric CO_{2}rise is because of burning fossil fuels [3], which releases CO_{2}into the atmosphere. If this unchecked release of CO_{2}into the atmosphere continues, temperatures are expected to increase by about 6.4 °C by year 2100 [4] with attendant rises in sea level.CO

_{2}capture and storage (CCS) seeks to capture CO_{2}from large emission sources and safely store it in underground reservoirs or use it for Enhanced Oil Recovery (EOR) operations [5]. CCS is a relatively advanced technology seeking to capture anthropogenic CO_{2}and reduce emissions to attain less than 2 °C increase (as proposed in the Paris agreement) of pre-industrial Earth temperatures [6,7]. Mazzoccoli et al. [8] and IPCC [9] reported that CO_{2}releases into the atmosphere must be less than 85% by 2050 compared to year 2000 levels to achieve not more than 2.4 °C increase in atmospheric temperature. This seems like an ambitious target considering the level of implementation of CCS across the globe.More CO

_{2}is expected to be generated as more places become industrialised. The demand for CO_{2}is only a small fraction of the quantity generated in industrial processes. The highest demand for CO_{2}is in EOR with pipelines transporting it, mainly in the USA and Canada. For example, the Alberta Carbon Trunk Line (ACTL) is designed to transport about 5000 tonnes of CO_{2}per day from industrial sources to an EOR field where it will be used to unlock light oil reserves from reservoirs depleted from primary production [10]. The demand for CO_{2}for increased EOR operations would peak about the year 2025, requiring the transportation of about 150 million tons of CO_{2}[11]. This is a small fraction of the over 6870 million metric tons of greenhouse gas emissions in the USA alone in 2014 [12].Transportation is the link between CO

_{2}capture and storage. CCTS, which stands for CO_{2}capture, transportation and storage [13], is occasionally used interchangeably with CCS. Although transportation may be the lowest cost intensive part of the CCS process, it may be the most demanding when it comes to planning and guidance [14]. Pipelines, railcars and tanker trucks can transport CO_{2}on land while offshore transportation involves ships and pipelines [15]. The efficient transportation of CO_{2}from source to sink requires the adequate design of pipelines for CO_{2}transportation [16].Before CO

_{2}is transported, it is captured from the flue gas of industrial processes or natural sources and purified. Capture is the most cost intensive component of the CCS chain, accounting for about 50% [17] and with compression cost, up to 90% [18] of total CCS cost. After transporting the CO_{2}to the storage site, it is stored in depleted oil and gas fields or saline aquifers [19]. There seems to be enough storage locations in the world. The UK alone has CO_{2}storage capacity of about 78 Gt in saline aquifers [20]. This means that there is enough storage capacity to store all the CO_{2}captured, but because the capture sites may not be close to the storage sites, it needs to be transportated.In designing a CO

_{2}pipeline, consideration is given to pipeline integrity, flow assurance, operation and health/safety issues [21]. CO_{2}pipeline design relies heavily on the thermo-physical properties of the flowing fluid. Though the behaviour of CO_{2}in various phases have been studied, the high pressure and varying temperature of CO_{2}fluids and the impurities in the fluid make them difficult to predict [21,22]. Therefore, the need to study specific pipelines and design them for low cost, good performance and safe operation is important [22]. Three stages of pipeline operations were identified including: design, construction and operations [23]. This review focusses on the first part; design of CO_{2}pipelines. There are existing regulations and standards, which guide the design of pipelines. These include, wall thickness, over-pressure protection systems, corrosion protection, protection from damage, monitoring and safety, access routes, etc. [23]. What is considered in CO_{2}pipeline design also depends on different operating conditions including operating pressures (maximum and minimum), temperature, fluid composition, pipeline corrosion rate, ambient temperatures, CO_{2}dehydration, topography of the pipeline route (changes in elevation and pipeline bends), compressor requirements, joint seals, transient flow minimisation, impact of CO_{2}release on human health, etc. [24]. A minimum consideration for CO_{2}pipeline design should include determining physical properties of the flowing fluid, optimal pipeline sizes, specification of operating pressures of the pipeline, adequate knowledge of the topography of the pipeline route, geotechnical considerations and the local environment [21].This literature review focuses mainly on available models of pipeline pressure drop and pipeline diameter calculations. These two interdependent parameters and the fluid flow rate are the most important parameters in the process design of CO

_{2}pipelines. This review concentrates on pipeline diameter estimation and/or pressure drop prediction. First, some existing CO_{2}pipelines in the world are listed followed by a review of the important factors affecting pipeline design. These include: pipeline route, length and right of way (ROW), CO_{2}flow rates and velocity, point-to-point (PTP) and trunk/oversized pipelines (TP/OS), CO_{2}pipeline operating pressures and temperatures, pipeline wall thickness, CO_{2}composition, possible phases of CO_{2}in pipelines and finally models for determining pipeline diameter and pressure drop. Finally, it discusses the performance of the available diameter determination models.## 2. Existing CO_{2} Pipelines

Presently, there is a combined total of over 8000 km of CO

_{2}pipelines around the world. This is up from over 6500 km of CO_{2}pipelines in 2014 [25], and from 2400 km in 2007 [26]. According to Chandel et al. [27], the US had over 3900 km of pipelines in 2010 transporting 30 million tonnes (Mt) of CO_{2}annually [28]. The total length of CO_{2}pipelines in the US increased to over 6500 km in 2014 [29]. By 2015, there were 50 individual CO_{2}pipelines in the US with a total length of 7200 km [30]. Europe had only about 500 km of CO_{2}pipelines in 2013 [31]. Over 200,000 km of pipelines would be required to transport about 10 billion tonnes (Gt) yearly from the year 2050. If the Paris Agreement is taken seriously, the implementation of CCS in many countries shall increase. Table 1 shows some existing and planned CO_{2}pipelines in the world. The Peterhead and White Rose projects were reported as planned but both projects have now been cancelled. The £1 billion CCS Competition was cancelled by the UK government on 25th of November 2015, prior to awarding the contracts for both the Peterhead and the White Rose CCS projects [32].## 3. Pipeline Route, Length and Right of Way (RoW)

Determining the pipeline route and length is the first thing to consider in the design of pipelines. Siting a pipeline involves determining, assessing and evaluating alternative routes and acquiring the Right of Way (ROW) of a selected route [36]. This route is the optimum path, which may not necessarily be the shortest path that connects the source of CO

_{2}to the sink. This route ultimately determines the length of the pipeline. Many factors are considered while planning the route of a CO_{2}pipeline including safety and running the pipeline across uninhabited areas [37]. The aim of designing an optimum route is to reduce the pipeline length, reduce cost by using existing infrastructure, avoid roads, rails, hills, lakes, rivers, orchards, water crossings and inhabited areas, minimise ecological damage, and have easy access to the pipeline [38].A straight path for pipelines from source to sink is rarely achieved as obstacles such as cities, railways, roads, archaeological sites or sensitive natural resources or reserves may be in the way, which have to be avoided [25]. In most cases, avoiding these obstacles increase the length of the pipeline resulting to increased capital and operational costs. While planning for the route, sometimes as many as twenty possible routes may be developed in the planning stage, e.g., as in the Peterhead CCS project in the UK [25] and the optimum route selected.

The pipeline route will determine the total length of the pipeline and the bends on it. The pipeline route thus controls the cost of pipeline transport as it affects the length, material, number and degree of bends and the number of booster stations to be installed [39,40]. Even the pipeline pressure drop is dependent among other factors on the length of the pipeline [41]. The pressure drop along a pipeline would be greater for longer pipelines than for shorter ones with similar characteristics. Gao et al. [40] concluded that longer pipelines also require larger pipeline diameters thereby increasing the capital and levelised costs. It is therefore desirable to reduce the length of the pipeline as much as possible but this is constrained by the requirements for an optimum route. The route selection is an economic decision and the optimum route is the cheapest path in terms of capital, operational and maintenance costs.

After identifying the path or route of the pipeline and before doing any work, the route is acquired. The document detailing the route for the pipeline, referred to as right of way (ROW) has to be secured with negotiations with the legal owners which might include federal, state, county, other governmental agencies or private owners [38]. It is necessary to have several routes in order of preference because inability to secure a ROW can cause the route to be changed. In order to avoid delays in the execution of the project, it is necessary to investigate and determine the right authorities and people to apply to and obtain all local permits to enable free access to work on the route of the pipeline [42]. Some of the items to be identified and permit sought include; roadways, railroads, canals, ditches, overhead power lines, underground pipelines and underground cables [42]. These obstacles inevitably increase the cost of constructing a CO

_{2}pipeline. Work can only commence after the ROW document is acquired legally. The ROW document is not always easy to acquire and it could account for 5% [31], between 4% and 9% [43] or between 10% and 25% [44] of the total pipeline construction cost. Pipeline ROW is generally easier to obtain in rural areas than in urban areas [45], because in rural areas, the pipeline crosses less developed land with fewer infrastructure.## 4. Pipeline CO_{2} Flow Rates and Velocity

Flow rate indicates the volume of fluid transported from source to sink and it determines the minimum pipeline diameter that would be adequate for transportation. A pipeline diameter that is too small for the flow rate would cause high velocity of the fluid with attendant high losses in pressure and erosion of the pipe wall. Flow rate is measured in either mass or volume units. Equation (1) shows a simple relationship between the two units of measurement:
where Q = flow rate (kg/s), Q

$$Q={Q}_{v}\times \rho $$

_{v}= flow rate (m^{3}/s) and ρ is density (kg/m^{3}).Flow rate if unchanged, determines the optimal diameter of the pipeline [46]. Pipeline diameter must not be too large to avoid excessive pipeline cost yet not too small to cause high velocities and pressure losses. Even pipelines with very small diameter can be used to transport high flow rates. However, these pipelines would have very high velocities, high pressure losses, noise and erosion of the internal pipeline wall. Very large pipeline diameters would reduce pressure losses, have low velocities and low or non-existent noise and erosion, but these are very expensive. The optimum diameter should therefore be large enough to avoid high pressure losses, high erosion and noise but not too expensive. There may be a need to construct an oversized pipeline where two sources of CO

_{2}occur in close proximity but are not available for transportation at the same time but can be considered for future expansion projects. The cost of constructing a new pipeline when the second source comes on stream is avoided but the initial pipeline cost is increased. The diameter of the oversized pipeline may not be optimum for either the initial flow rate or the final flow rate. Operational and economic factors determine the appropriate oversized diameter size. Wang et al. [46] stated that the relationship between diameter ratio and flow rate ratio was linear and that for a tripling of flow rate, the optimal diameter was about 4.2 times larger. Diameter values in Bock et al. [47] and Equation 20 (described in Section 10), used to simulate pipeline diameter while holding pressure drop and length of pipeline constant gave similar values. Figure 1 shows the linear relationship between diameter ratio and flow rate ratio but a threefold increase in flow rate only resulted to an increase in the diameter size by about 1.6 times.Gao et al. [40] concluded that a higher mass flow rate increases the pipeline diameter, which in turn increases the pipeline capital cost. Some cost models based the investment cost equation only on CO
where v = velocity (m/s), D = pipeline internal diameter (m), A = cross-sectional area of pipeline (m

_{2}flow rate and length of pipeline [48,49]. The flow velocity in the pipeline is calculated using Equation (2) [27,50]:
$$v=\frac{{Q}_{v}}{A}=\frac{4Q}{\rho \pi {D}^{2}}$$

^{2}).It is impossible to have a conceptual design of CO
where v
where v

_{2}pipelines without adequate knowledge of expected fluid flow rate. The flow rate of the CO_{2}fluid is therefore the most important parameter in the design of CO_{2}pipelines. It is important to establish the maximum velocity or erosional velocity in the pipeline to avoid rapid erosion of the inner pipeline wall and/or high pressure losses [51]. American Petroleum Institute (API) [52] presented an empirical formula to calculate erosional velocity for two-phase flow (Equation (3)). Pipeline diameter is selected to limit the velocity of CO_{2}fluid to below the erosional velocity and avoid excessive pressure losses. Vandeginste and Piessens [39] applied the API-RP-14E formula (Equation (3)) to calculate erosional velocity and arrive at an erosional velocity of 4.3 m/s, which is higher than 2.0 m/s widely used. A similar equation used to specify the maximum velocity to avoid noise and erosion according to API standard [53], is given in Equation (4). Velocity values computed with Equation (4) are higher than values computed with Equation (3). The expected CO_{2}flow rate is ascertained and an erosional velocity is calculated for the pipeline. With an assumed velocity less than the erosional velocity and considering pressure losses, an adequate internal pipeline diameter is determined. An additional pipeline is considered where the flow rate is too high for a single pipeline:
$${v}_{e}=0.82\frac{c}{\sqrt{\rho}}$$

_{e}= erosional velocity (m/s) and c = empirical constant (100 for continuous flow and 125 for intermittent flow):
$${v}_{max}=\frac{122}{\sqrt{\rho}}$$

_{max}= maximum velocity (m/s).## 5. Consideration for Point-to-Point (PTP) or Trunk/Oversized Pipelines (TP/OS)

After ascertaining the flow rate of CO

_{2}, it may be necessary to decide whether to design a trunk line or “point-to-point” pipelines where more than one CO_{2}source exist in close proximity. A trunk pipeline also called a backbone or oversized pipeline connects two or more pipelines from CO_{2}sources to a single sink or multiple sinks while point-to-point (PTP) direct pipelines connect single CO_{2}sources to single sink(s). The decision to construct a trunk pipeline or single PTP pipelines is purely economic. Knoope et al. [54] and the Intergovernmental Energy Agency for Greenhouse Gas Research and Development Programme IEA GHG [55] concluded that a point-to-point connection is more cost effective if two sources are 100 km from a sink and the angle made by imaginary straight lines joining the two sources to the single sink is greater than 60°. Three scenarios (“point-to-point”, “tree and branches” and “hub and spoke”) of two sources and one sink, with varying angles made by straight lines joining the two sources to the sink from 0° to 120°. The cost of the pipeline was modelled at $50,000 per km per inch and the annual OPEX was assumed at 5% of CAPEX. It was concluded from the analysis that for angles greater than 90°, no cost saving was achieved by the use of a trunk pipeline. For angles between 30° and 60°, the “radial hub and spoke” scenario appeared to be the optimum option and below 15°, the “tree and branches” scenario gave the lowest cost. Table 2 shows the lengths of the three pipelines when varying the angles that straight lines from the two sources make at the single sink between 10° and 120°. The distance of each of the two sources from the sink is held constant at 100 km. The length of the trunk pipeline decreases for the “tree and branch” arrangement but increases for the hub and spoke arrangement as the angle made by straight lines drawn from the two sources to the sink increases. A single trunk pipeline is considered only where the two sources occur at close proximity with negligible distance between them, assumed to form 0 degrees at the sink. Figure 2 shows the capital cost profile of the three pipeline scenarios (two single pipelines, (A and B), and one trunk pipeline), assuming $50,000 per km per inch. The “hub and spoke” arrangement becomes a “tree and branch” arrange for angles greater than 90° because the three pipelines can no longer have equal lengths. Between 24° and 90°, the “hub and spoke” arrangement is more cost effective than the “tree and branch” arrangement. Greater than 47° for the “tree and branch” and greater than 67° for the “hub and spoke” arrangements, the single pipelines are cheaper, respectively. Below 24° the “tree and branch” arrangement is cheaper than the “hub and spoke” arrangement.Wang et al. [56] presented Equation (5) to calculate the trade-off point between the use of a trunk pipeline and single point-to-point separate pipelines that transport CO

_{2}from two sources starting production at different times. The trade-off point does not depend on the length of the pipeline if the pipeline length is less than or equal to 150 km (Equation (5a)). Where the pipeline length is more than 150 km, the trade of point depends also on the length of the pipeline (Equation (5b)). It is however, unclear if this is irrespective of the pipeline diameter. The authors also stated that if the trade-off point and actual time lapse between the two projects are the same (N = N*), then the relationship between the diameter ratio, ${D}_{t}/{D}_{1}$ and the flow rate ratio ${Q}_{t}/{Q}_{1}$ is linear (Equation (6)):
$${N}_{base\text{}}^{*}=\{\begin{array}{c}14.3-0.57{Q}_{1}-0.89({Q}_{t}/{Q}_{1}),\le 150\mathrm{km}\left(\mathrm{a}\right)\\ \left(15.1-0.605{Q}_{1}\right){e}^{-0.00036L}-0.91({Q}_{t}/{Q}_{1}),150\mathrm{km}\left(\mathrm{b}\right)\end{array}$$

$${D}_{t}/{D}_{1}=0.22\text{}({Q}_{t}/{Q}_{1})+0.7\text{}$$

N*

_{base}= trade-off point (years) or number of years after which duplicate pipelines become more cost effective (base emphasizing assumptions used in the calculations). ${D}_{t}$ = oversized pipeline diameter (mm), ${D}_{1}$ = diameter of initial duplicate pipeline (mm) Q_{1}and ${Q}_{t}$ = initial and total flow rate respectively (Mt/y).If both flows, Q
where N = actual time difference between the two CO

_{1}and Q_{2}start at the same time, the actual pipeline diameter can be calculated using Equation (7), assuming a hypothetical initial flow rate, i.e., of one pipeline. Equation (7) is in line with results obtained with Bock et al. [47], i.e., Equations (17) and (20) plotted in Figure 1. For a fixed total flow rate (Q_{t}), the optimum diameter, D_{t}should be the same irrespective of the initial flow rate but Equation (7) gives increasing values of D_{t}with increasing Q_{1}. Equation (8) calculates the optimum oversized pipeline diameter, taking into account the time lapse between the two sources coming on stream and the length of the pipeline:
$${D}_{t}={D}_{1}{\left({Q}_{t}/{Q}_{1}\text{}\right)}^{0.39}$$

$$\frac{{D}_{t}\text{}}{{D}_{1}}=\left[1-0.78\left(\frac{N}{{N}^{*}}\right)\right]{\left({Q}_{t}/{Q}_{1}\right)}^{0.39+0.61{\left(\raisebox{1ex}{$N$}\!\left/ \!\raisebox{-1ex}{${N}^{*}$}\right.\right)}^{2.1}}+0.7{\left(\raisebox{1ex}{$N$}\!\left/ \!\raisebox{-1ex}{${N}^{*}$}\right.\right)}^{0.53}$$

_{2}sources (years), ${D}_{1}$ = optimal diameter for Q_{1}(m) and ${D}_{t}$ = oversized pipeline diameter (m), Q_{1}and Q_{t}= initial and final flowrates (kg/s).## 6. CO_{2} Pipeline Operating Pressures and Temperatures

The maximum operating pressure of a CO

_{2}pipeline is determined by economic considerations. CO_{2}can be transported under low pressures (gas phase) or high pressures (dense phase). The minimum pressure is a function of differential pressure requirement for flow to occur and the need to avoid CO_{2}phase changes. The upper limit of pipeline pressure is set by economic concerns and ASME-ANSI 900# flange rating and the lower pressure limit is set by supercritical requirement and the phase behaviour of CO_{2}[36]. An input (or maximum) pressure and a minimum pressure are used to calculate pressure-boosting distances. Within this distance, the CO_{2}remains in the desired fluid phase. The phase behaviour of CO_{2}fluids also depend on the temperature of the fluid. There may be significant temperature and pressure changes along long distance pipelines due to frictional pressure loss, expansion work done by the fluid and heat exchange with surroundings [57]. Nimtz et al. [58] stated that pipe wall thickness and existing compressor power (assumed maximum is 20 MPa) restricts the maximum allowable pressure. Another limiting factor for maximum pressure is costs because thick walled pipes are more expensive than thinner walled pipes.The compressor discharge temperature sets the upper temperature and the ground/environmental temperature sets the lower temperature of pipelines [36]. Typical CO

_{2}pipeline operating pressures range from 10 to 15 MPa and temperatures from 15 to 30 °C [59] or 8.5 to 15 MPa and 13 to 44 °C [17]. Stipulating minimum pipeline pressure above 7.38 MPa, the critical pressure of CO_{2}, ensures that the CO_{2}fluid remains in the supercritical state [60]. Witkowski et al. [37] raised the pressure to a safe 8.6 MPa to avoid high compressibility variations and changes in specific heat along the pipeline due to changes in temperature. All common impurities studied in Peletiri et al. [61] were found to increase the critical pressure of CO_{2}streams above 7.38 MPa and except for H_{2}S and SO_{2}, reduce the critical temperature below 30.95 °C. There are slight differences in the pressure ranges reported in the literature, but all pressures are above the critical value of 7.38 MPa. CO_{2}pipeline temperatures in Patchigolla and Oakey [59] is below the critical temperature of CO_{2}. This means that the CO_{2}fluid is in the dense (liquid) state and not the supercritical state. The upper temperature reported by Kang et al. [17] is above the critical temperature but the lower temperature is less than the critical value. In this case, the CO_{2}fluid may change phase from supercritical state to liquid state along the pipeline.Pressures are non-linear along a CO
where P

_{2}pipeline, therefore simple averaging of inlet and outlet pressures may not yield accurate average pressure values. Due to this non-linearity of pressures along a CO_{2}pipeline, McCoy and Rubin [62] used Equation (9) to calculate average pressure along a pipeline. This equation gives a higher average pressure than the simple average by $\left({P}_{1}+{P}_{2}\right)/2$. As the pressure declines along the pipeline, the fluid velocity increases [63] resulting to higher-pressure losses towards the end of the pipeline section:
$${P}_{ave\text{}}=\frac{2}{3}\left({P}_{2}+{P}_{1}-\frac{{P}_{2}{P}_{1}}{{P}_{2}+{P}_{1}}\right)$$

_{ave}= average pressure along pipeline (MPa), P_{1}= inlet pressure (Mpa), P_{2}= outlet pressure (MPa).It is not usual to heat or cool CO

_{2}pipelines, but there may be need to insulate some pipelines to reduce temperature increases or decreases. There is no need to set a temperature limit for CO_{2}pipelines if pressures are maintained above critical values because gas phase will not form [39]. However, a maximum temperature of 50 °C to avoid destruction of pipeline anti-corrosion agents may be necessary [58]. It may be more economical to transport CO_{2}fluids at temperatures lower than critical because CO_{2}density increases and pressure losses reduce at lower temperatures. Burying pipelines below the surface minimizes the temperature variations. Many models assumed a constant value of temperature e.g., Chandel et al. [27] assumed 27 °C, when pipelines are buried. It should however be noted that the compressors, where they are used increases the temperature of the stream [36,58] and the CO_{2}may vary in temperature along the pipeline. The minimum and maximum temperatures of the CO_{2}stream occur immediately before and immediately after the pressure boosting stations, respectively, if ambient temperatures are lower than the temperature of the flowing stream.Both the inlet temperature and the surrounding temperature have an effect on the pressure drop and the distance where recompression is required. Lower input and ambient temperatures result in lower pressure losses and are more favourable to CO

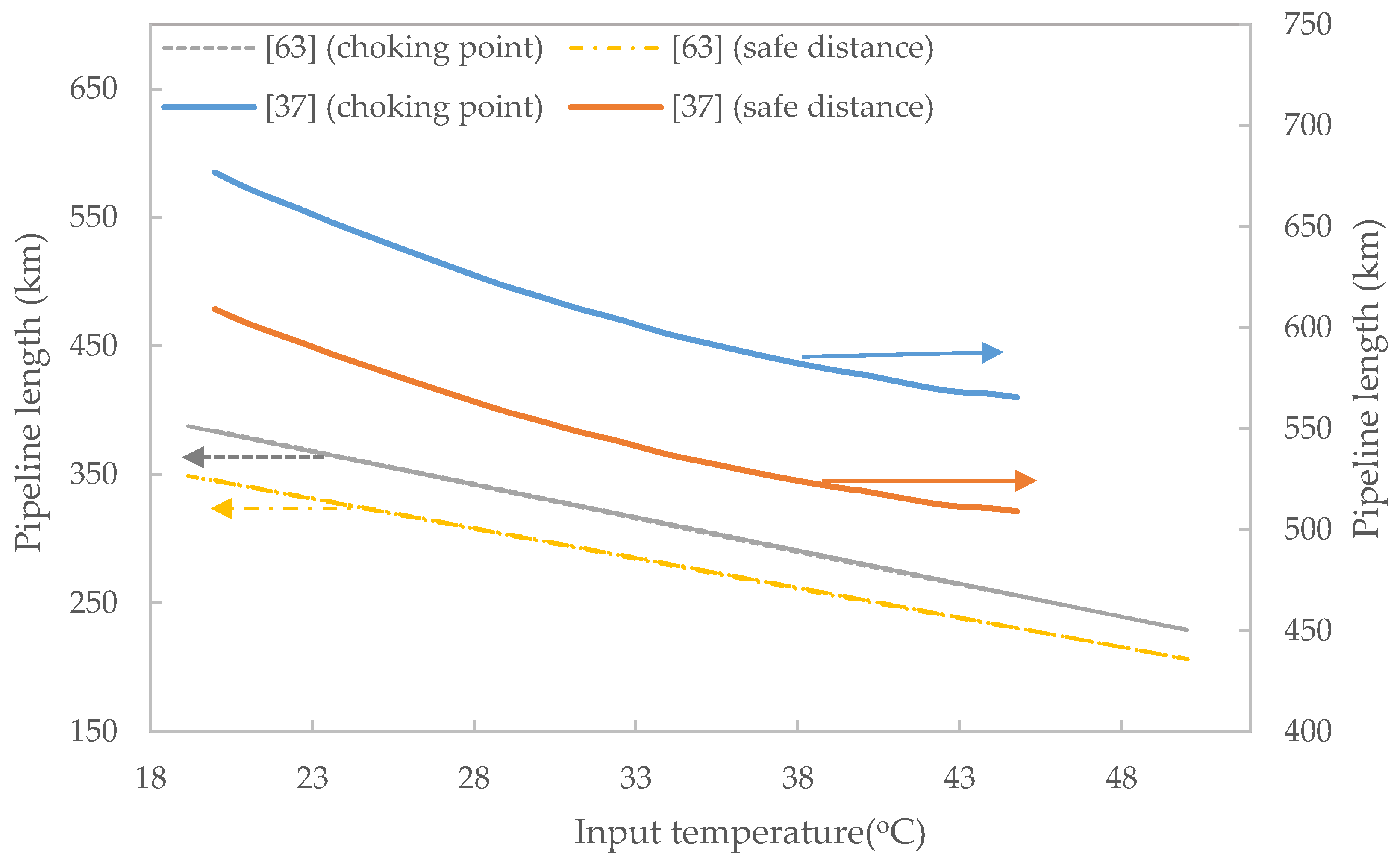

_{2}pipeline transportation [37]. Figure 3 shows inlet temperature effect on the point of no-flow (or choking point) and safe distance of fluid flow before recompression. The safe distance is taken as 90% of the choking point. The plots from data obtained from Witkowski et al. [37] and Zhang et al. [63] are unrelated. Since temperature varies along a pipeline and has effects on the properties of CO_{2}stream, it is necessary to take the temperature variations of the CO_{2}stream into consideration while designing a pipeline. However, not many models consider this factor.## 7. Pipeline Wall Thickness

Pipelines must have enough wall thickness to withstand the flowing and surrounding pressures. Pipes with inadequate thickness and strength can burst when exposed to high internal pressures or collapse when exposed to high external pressures. The maximum operating pressure dictates the pipe strength vis-à-vis the pipe wall thickness. Pipes having a higher wall thickness will withstand higher pressures without failing. Liquid CO
where t = pipeline thickness (m), D

_{2}requires thinner pipes compared to supercritical CO_{2}when transported under the same conditions in a pipeline [64]. Pipelines with wall thickness of 11.9 mm or more are resistant to damage and failure rate is low with reduced individual risk levels around these pipelines [65]. The expected burst and collapse pressures must therefore be calculated and used to select pipes with adequate wall thickness and strength. However, pipes with thicker walls are more expensive than thinner walled pipes. Pipe wall thickness is half the difference between the outer and inner diameters of a circular pipe. Witkowski et al. [37], and McCoy and Rubin [62] presented Equation (10) to calculate the pipeline wall thickness:
$$t=\frac{{P}_{max\text{}}{D}_{o}}{2SEF}$$

_{o}= outer diameter of pipeline (m) P_{max}= maximum operating pressure (MPa), S = specific yield stress of pipe material (MPa), E = longitudinal joint factor (1.0) and F = design factor (0.72).The thickness equation presented by Chandel et al. [27] and Lazic et al. [21] was slightly different. They used the internal diameter instead of the outer diameter and subtracted P
where D = internal diameter of pipeline (m).

_{max}from the product of S, E and F before multiplying by 2. Equations (10) and (11) both give exactly the same pipe wall thickness:
$$t=\frac{{P}_{max\text{}}D}{2\left(S\xb7F\xb7E-{P}_{max}\right)}$$

The Knoope et al. [54] equation introduced a corrosion factor, CA. This factor increases the calculated value of the wall thickness by the assumed value of CA, see Equation (12):
where CA = corrosion allowance (0.001 m).

$$t=\frac{{D}_{o}+{P}_{max\text{}}}{2\xb7S\xb7F\xb7E}+CA$$

The equation presented in Kang et al. [66] includes location factor, L
where, F = 0.8, L

_{f}and temperature factor, T. Equation (13) gives pipe thickness values between those obtained with Equations (11) and (12):
$$t=\frac{{P}_{max\text{}}{D}_{o}}{2SF{L}_{f}ET}$$

_{f}= 0.9 and T = 1.0.The fluid flow rate determines the pipeline internal diameter to transport the volume. The choice of the design parameters would affect the values calculated for the pipeline wall thickness. Pipes are designated with external diameter values or nominal pipe size (NPS). Two pipes can have the same NPS but different internal diameters if the pipe wall thickness is different. A pipe with a thicker wall will have a smaller internal diameter and more expensive than a pipe with a thinner wall.

## 8. CO_{2} Stream Composition

CO

_{2}streams are usually not pure and may contain several impurities. The impurities in the stream affect the physical and thermodynamic properties of the flowing fluid. CO_{2}stream composition depends on the source of CO_{2}, naturally occurring or captured from industrial processes. Percentages of impurities in captured CO_{2}fluids vary according to the type of capture (pre-combustion, oxy-fuel or post-combustion); see Table 3. Table 4 shows compositions of some existing CO_{2}pipelines for EOR. The Jackson Dome and Bravo Dome pipelines have the purest CO_{2}streams with greater than 98.5% CO_{2}while the Canyon Reef pipeline has the highest percentage of impurities with as low as 85% CO_{2}concentration. The given range of concentration of fluid composition in Table 4 is an indication that the composition of some CO_{2}streams may change. To design an effective CO_{2}pipeline, a good knowledge of fluid phase, pressure, temperature, composition and mass flow rate is required [57,67].When two or more streams mix during pipeline transportation of CO

_{2}, the fluid composition after mixing has a major impact on phase behaviour and must be known. Brown et al. [57] looked at four different CO_{2}capture scenarios for two pipelines that merged into one along the transport route and stated that it is essential to accurately model the pressure drop, fluid phase and stream composition. It is necessary to model continually the amount and composition of CO_{2}streams produced even from the same source because it can change over time [57]. Since the density, phase behaviour and viscosity of rich CO_{2}fluids are required to accurately model CO_{2}pipelines [37,62], the actual composition of CO_{2}streams must be known. Depending on the capture process and the purity of the feed fuel, the concentration and range of the impurities can be very large, see Table 5.Most models assumed pure CO

_{2}streams but no CO_{2}stream is 100% pure and therefore they are not quite accurate. All common impurities created a two phase region in a phase envelope and raised the critical pressure above 7.37 MPa [61] The effect of impurities on the properties of CO_{2}is profound and modelling to represent practical situations is necessary.## 9. CO_{2} Phases in Pipeline Transportation

CO

_{2}flows in pipelines as a gas, supercritical fluid and subcooled liquid [63]. Transporting CO_{2}in any particular state has its advantages and disadvantages. All three states (gas, supercritical and liquid) of CO_{2}exhibit different thermodynamic behaviour and the determination of the properties of the fluid is necessary for an effective design of CO_{2}pipelines. Veritas [67] considered the Peng-Robinson equation of state (EOS) adequate for predicting mass density of CO_{2}in gaseous, liquid and supercritical states but stated that there was need to verify the EOS for CO_{2}mixtures with impurities, especially around the critical point. The phase diagram of pure CO_{2}shown in Figure 4 is different from that of CO_{2}with impurities, shown in Figure 5. Different percentages of impurities result to different critical points and shapes of the phase diagram. Impurities create two-phase region where vapour and liquid coexist and pipelines are designed to operate outside this region to avoid flow assurance problems.Generally, transporting gaseous CO

_{2}in pipelines is not economical due to the high volume of the gas, low density and high-pressure losses [62]. It may however, still be more cost effective to transport CO_{2}in the gaseous state than in the liquid or supercritical states under certain circumstances. The Knoope et al. [75] model is capable of evaluating the more cost effective method between gaseous and liquid CO_{2}transport. They stated that at CO_{2}mass flow rate of up to 16.5 Mt/y with a distance of 100 km over agricultural terrain and 15.5 Mt/y with a distance of 100 km for offshore pipeline, transporting CO_{2}in the gaseous state was more cost effective than in the liquid state. One advantage of transporting gaseous CO_{2}in pipelines is the use of pipes with lower thickness (1% of outer diameter) resulting to lower material cost for pipelines [75].Transporting CO

_{2}as a subcooled liquid and supercritical fluid is however preferred over gaseous CO_{2}[41,76]. Subcooled CO_{2}transport has some advantages over supercritical phase transport due to higher densities, lower compressibility and lower pressure losses. Some advantages of subcooled liquid CO_{2}transportation over supercritical transportation according to Zhang et al. [63] include, use of smaller pipe diameter, transport of more volume due to the higher density and lower pressure losses. Teh et al. [64] concluded that transporting CO_{2}in the subcooled liquid state is better than transporting it in the supercritical phase because thinner and smaller diameter pipes are adequate to transport liquid CO_{2}but not supercritical CO_{2}and that pumps consume less energy than compressors, resulting in 50% less energy requirement for liquid transport than for supercritical transport. Transporting CO_{2}in liquid phase at low temperature (−40 °C to −20 °C) and 6.5 MPa results in lower compressibility and higher density than CO_{2}in supercritical state [60]. This means that lower pressure losses occur and smaller pipe diameters are adequate for liquid CO_{2}transportation with the requirement for fewer booster stations and thinner pipes thereby reducing capital cost. Subcooled liquid CO_{2}transportation is however employed mainly in ship transportation at densities of about 1162 kg/m^{3}at 0.65 MPa and −52 °C [40]. One disadvantage of liquid CO_{2}in comparison to supercritical CO_{2}is the need to insulate pipelines in warmer climates.CO

_{2}liquid pipeline transportation has some advantages over supercritical transportation, yet transportation in the supercritical phase has become a standard practice. The Office of Pipeline Safety in the US Department of Transportation defined pipeline CO_{2}as a compressed fluid in supercritical state consisting of more than 90% CO_{2}molecules [36]. Pipeline CO_{2}fluid is mostly modelled as a single phase supercritical fluid.## 10. Pipeline Diameter and Pressure Drop

Pipeline diameter and pressure drop are used to optimise the design of CO

_{2}pipelines. Available pipes with very large diameter could have been chosen but for the high costs. An optimum pipeline diameter is the smallest pipe diameter that is large enough for the volume of fluid transported without resulting to excessive velocities. An adequate pipeline diameter avoids excessive pressure losses and reduce number of boosting stations to optimise the cost of CO_{2}transportation. An initial diameter is chosen with knowledge of fluid volumes and pressure losses, pressure boosting requirements and costs determined. It may be necessary to repeat this process with different diameter sizes before selecting an optimum pipeline diameter. More than one pipeline may be required if the largest available pipeline diameter is smaller than the calculated (optimised) diameter. Vandeginste and Piessens [39] stated that flow rate, pressure drop, density, viscosity, pipe roughness, topographic differences, and bends, all affect the determination of pipe diameter. Some researchers have proposed equations to calculate pipeline diameter and pipeline pressure drop. Below is a chronological presentation of some publications.The IEA GHG [23] report gave equations for liquid pressure drop (Equation (14)), a form of Darcy′s formula and an equation for gas flow rate (Equation (15)), used for sizing of pipelines. Design criteria of outlet pressure greater than 0.6 MPa for liquid lines and a maximum velocity less than 20 m/s for gas pipelines were used. A velocity of 5 m/s for liquids and 15 m/s for gases used in equations to select initial diameter for the pipeline and pressure drop calculated and compared to the design criteria. If the criteria are met, the pipeline size is accepted otherwise, the diameter is increased to the next available normal pipeline size. The initial guess formed the basis for the pipeline sizing routine and there was no method to optimize the initial guess, which may result to oversizing of the pipeline. The pressure drop is usually specified from the maximum and minimum allowable pressures in CO
where ΔP = pressure drop (MPa), Q
where Q

_{2}pipeline design. Equation (14) is used to calculate the distance of pipeline at which the pressure drops to the minimum value. This equation considered flow rate, length of pipeline, fluid density and pipeline diameter in the determination of pipeline pressure drop. The equation for gas flow has gas specific gravity in place of fluid density:
$$\Delta P=2.252\frac{fL\rho {Q}_{v}^{2}\text{}}{{D}^{5}}$$

_{v}= flow rate (m^{3}/s), f = friction factor, $\rho $ = density (kg/m^{3}), and L = length of pipeline (m).
$${Q}_{v}=15485\text{}\sqrt{\left[\frac{{P}_{1}^{2}-{P}_{2}^{2}}{fLSG}\right]{D}^{5}}$$

_{v}= Gas flow rate (m^{3}/s) and SG = specific gravity of gas relative to air.Ogden et al. [77] presented a formula for supercritical flow rate as a function of pipeline inlet and outlet pressures, diameter of pipeline, average fluid temperature, length of pipeline, specific gravity, gas deviation factor and gas composition (Equation (16)). The calculated diameter depends also on the pipeline length and increases with increasing length. The fluid velocity therefore changes with different values of pipeline length even though the flow rate remains the same. This equation is not suitable for specifying optimum diameter size but can be rearranged to compute pipeline distances for the installation of boosting stations:
where Q

$${D}^{-2.5\text{}}=\frac{1}{{Q}_{v}}{C}_{1}\sqrt{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$f$}\right.}E{\left[\frac{\left({P}_{1}-{P}_{2}-{C}_{2}\left\{G\Delta h\frac{{P}_{ave}^{2}}{{Z}_{ave}{T}_{ave}}\right\}\right)}{G{T}_{ave}{Z}_{ave}L}\right]}^{0.5}$$

_{v}= gas flow rate (Nm^{3}/s), C_{1}, C_{2}= 18.921 and 0.06836 (constants), E = pipeline efficiency, G = specific gravity of gas (1.519), T_{ave}= average temperature along the pipeline (°K) and Z_{ave}= average gas deviation factor.As CO
where D

_{2}travels along the pipeline, pressure drops and the fluid expands resulting to increased velocity, which further increases the pressure loss with the possibility of two-phase flow. Zhang et al. [63] specified safe distances to prevent two-phase flow or choking point at 10% less than the calculated choking distance. Boosting stations for recompression are installed at these safe distances. Adiabatic flow results to longer CO_{2}transport distances than isothermal flow before recompression and subcooled flow covers 46% more distance than supercritical flow before boosting is required [63]. Pipeline distance, terrain, maximum elevation and insulation were some of the factors, included in their report for design considerations in long distance pipelines. Equation (17), the optimized hydraulic diameter equation, is a cost optimization equation. This equation is independent of pipeline length and may be suitable for specifying adequate pipeline diameter for specific fluid volumes:
$${D}_{opt\text{}}=0.363{Q}_{v}^{0.45}{\rho}^{0.13}{\mu}^{0.025}$$

_{opt}= optimum inner diameter (m), µ = gas viscosity (Pa·s).Zhang et al. [63] used ASPEN PLUS (v1.01) to simulate the pipeline transportation of CO

_{2}. Pressure drop calculations were made to specify maximum pipeline distances to prevent phase changes and pressure booster stations designed to be installed at 10% less than the distance of the computed value for potential phase change i.e., choking point.Vandeginste and Piessens [39] derived Equation (18) after assuming that the velocity does not change along the pipeline and neglecting local losses. The velocity however, changes whenever there is a pressure change as the fluid expands or contracts. This assumption reduces the accuracy of their equation for the calculation of pipeline diameter. Equation (19) considers local losses with four solutions. The positive value that is higher than the value obtained without considering local losses (i.e., using Equation (18)) is the correct value:
where:

$$D={\left(\frac{{4}^{10/3\text{}}\times {n}^{2}\times Q\times L}{{\pi}^{2}{\rho}^{2}\left(\left({z}_{1}-{z}_{2}\right)+\left(\left({P}_{1}-{P}_{2}\right)/\rho g\right)\right)}\right)}^{\raisebox{1ex}{$3$}\!\left/ \!\raisebox{-1ex}{$16$}\right.}$$

$$D={\left(\frac{1}{2}\sqrt{{t}_{1}+{t}_{2}\text{}}+\frac{1}{2}\sqrt{-{t}_{1}-{t}_{2}-\frac{2b}{\sqrt{{t}_{1}+{t}_{2}}}}\right)}^{3/4}$$

$${t}_{1}=\frac{\sqrt[3]{2/3a}}{\sqrt[3]{9{b}^{2}+\sqrt{81{b}^{4}-768{a}^{3}}}}$$

$${t}_{2}=\frac{\sqrt[3]{9{b}^{2}+\sqrt{81{b}^{4}-768{a}^{3}}}}{{3}^{2/3}\sqrt[3]{2}}$$

$$a=\frac{{4}^{10/3}{n}^{2}L{Q}^{2}}{{\pi}^{2}\left({z}_{1}-{z}_{2}+\left(\left({P}_{1}-{P}_{2}\right)/\rho g\right)\right)}$$

$$b=\frac{8{Q}_{m}^{2}{{\displaystyle \sum}}_{i}{\xi}_{i}\text{}}{g{\pi}^{2}\left({z}_{1}-{z}_{2}+\left(\left({P}_{1}-{P}_{2}\right)/\rho g\right)\right)}$$

The Vandeginste and Piessens [39] model included the effects of bends along the pipeline, though the effect was found to be minimal. The model considered flow rate, pressure changes, fluid density, gravitational effect and elevation. They presented the Darcy–Weisbach formula for diameter calculation after incorporating the elevation difference (Equation (20)). This diameter equation, the hydraulic equation, is also a function of the length of pipeline. Computing diameter values with varying pipeline length would result in varying diameter values for the same volume of fluid flowing in the pipeline:

$$D={\left[\frac{8f{Q}^{2}L\text{}}{\rho {\pi}^{2}\left[\rho g\left({z}_{1}-{z}_{2}\right)+\left({P}_{1}-{P}_{2}\right)\right]}\right]}^{\frac{1}{5}}$$

The diameter of some pipelines were calculated and compared to the values to the actual diameters of the pipelines [39]. Their results show that the computed diameter values were consistently smaller than the actual diameters of the pipelines. One reason for this is that actual pipeline diameters are available nominal pipe sizes (NPS) with internal diameter equal to or greater than the computed values.

McCoy and Rubin [62] calculated pipeline diameter by holding upstream and downstream pressures constant. With the assumption that kinetic energy changes are negligible (constant velocity) and compressibility averaged over the pipeline length, the pipeline internal diameter, Equation (21), as derived by Mohitpour et al. [78] is:
where T

$$D={\left\{\frac{-64{Z}_{ave\text{}}^{2}{R}^{2}{T}_{ave}^{2}{f}_{F}{Q}^{2}L}{{\pi}^{2}\left[M{Z}_{ave}R{T}_{ave}\left({P}_{2}^{2}-{P}_{1}^{2}\right)+2g{P}_{ave}^{2}{M}^{2}\left({z}_{2}-{z}_{1}\right)\right]}\right\}}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$5$}\right.}$$

_{ave}= average fluid temperature (K), M = molecular weight of flowing stream.Since the fanning friction factor depends on pipe diameter, Equation (22) by Zigrang and Sylvester was used to approximate f
where ε = pipe roughness factor (m), f

_{F}:
$$\frac{1}{2\sqrt{{f}_{F}\text{}}}=-2.0lo{g}_{10}\left\{\frac{\epsilon /D}{3.7}-\frac{5.02}{{R}_{e}}log\left[\frac{\epsilon /D}{3.7}-\frac{5.02}{{R}_{e}}log\left(\frac{\u03f5/D}{3.7}+\frac{13}{{R}_{e}}\right)\right]\right\}$$

_{F}= fanning friction factorThis model considered temperature, pressure drop, pipeline friction factor, elevation change, fluid compressibility, molecular weight, flow rate with an assumed constant temperature at an average value equal to ground temperature. The assumption of constant velocity and constant temperature reduces the accuracy.

Chandel et al. [27] based the determination of CO
where N
where ${D}_{o{N}_{pipe}^{th}}$ = outer diameter of the nth pipe (m).

_{2}pipeline diameter on inlet and outlet pressures and length of pipeline. Pipelines were assumed to be buried 1 m below the surface with a constant density and constant temperature of 27 °C. The input pressure of all CO_{2}sources was kept constant at 13 MPa and CO_{2}flow rate and velocity were the only variable inputs into diameter estimation equation. A fixed density of CO_{2}(827 kg/m^{3}) was used, assuming temperature was at a constant 27 °C with a constant average pressure of 11.5 MPa. Equation (2) was used to calculate the pipe inner diameter and the pipeline wall thickness with Equation (11). Where the calculated diameter is larger than the largest available standard diameter, a single pipeline would not be sufficient to transport the flow rate and Equation (23) is used to calculate the minimum number of pipelines needed.
$${N}_{pipe\text{}}=\lfloor \frac{{Q}_{v}}{{Q}_{v,max}}\rfloor +1$$

_{pipe}= number of pipes, $\lfloor \frac{{Q}_{v}}{{Q}_{v,max}}\rfloor $ = the integer value of $\frac{Q}{{Q}_{max}}$ less than or equal to the enclosed ratio (magnitude), and Q_{v,max}= maximum flow rate in the pipe with the largest diameter (m^{3}/s). Where more than one pipeline is required, there is need for an economic analysis to optimise the sizes of the pipelines. If ${N}_{pipe}-1$ pipes have diameter ${{D}_{i}}_{max},$ then ${N}_{pipe}^{th}$ pipe diameter is calculated using Equation (24):
$$\text{}{D}_{o}{\text{}}_{{N}_{pipe}^{th}}=\sqrt{\frac{4\left[Q-\left(N-1\right){Q}_{v,max}\right]}{\pi V}}$$

Pressure drop is calculated with Bernoulli′s equation (Equation (25)) with the inherent assumption of constant velocity, which neglects acceleration losses:
where ρ = density of supercritical CO

$$\text{}{P}_{1}-{P}_{2}={10\text{}}^{-6}\rho g\left({h}_{L}+\Delta z\right)$$

_{2}(827 kg/m^{3}), h_{L}= head loss (m), and z = gas deviation factor.Friction is the dominant cause of head loss and is calculated using Equation (26), the Darcy-Weisbach equation:
where h

$$\text{}{h}_{f}=f\times \frac{l{v}^{2}\text{}}{2Dg}$$

_{f}= frictional head loss (m), l = length between booster stations. Where the pipeline is transporting less than full capacity, the actual velocity of fluid flow is calculated with Equation (2). This is applicable in oversized pipelines before the second stream comes online. Rearranging after combining Equations (25) and (26) and neglecting a change in elevation gave Equation (27), the equation for calculating length of pipeline that would require a booster station assuming a horizontal pipeline. Equation (27) is the same as Equation (20):
$$\text{}l=\frac{\Delta P\text{}}{\rho f}\times \frac{2{D}_{i}}{{v}^{2}}$$

Friction factor which depends on the pipe roughness, internal diameter and flow turbulence is calculated with Equation (28), the Haaland equation:
where ε = roughness factor, (4.5 × 10

$$\text{}\frac{1}{\sqrt{f}\text{}}=-1.8{\mathrm{log}}_{10}\left[{\left(\frac{\epsilon /{D}_{i}}{3.7}\right)}^{1.11}+\frac{6.9}{Re}\right]$$

^{−5}m for new pipes but 1.0 × 10^{−5}m was assumed).They showed that the number of booster pump stations is equal to the total pipeline length L divided by the distance of pump stations l
where ${N}_{pump}$ = number of pump stations, and l

_{i}using Equation (29):
$$\text{}{N}_{pump\text{}}=\frac{L}{{l}_{i}}$$

_{i}= number of pipeline sections.At the end of the pipeline, an additional pump station is used to raise pressures to 13 MPa for delivery. The equation for electric power required to increase the fluid pressure back to 13 MPa is Equation (30) [79]:
where ${\eta}_{p}$ = pump efficiency assumed to be 0.75, and W

$$\text{}{W}_{pump\text{}}=\frac{Q\left|{P}_{{l}_{i}-}{P}_{initial}\right|}{{\eta}_{p}}$$

_{pump}= pump power requirement (W).The Chandel et al. [27] model presented separate equations to calculate pipeline pressure drop and/or pipeline diameter, pipeline thickness, number of pipelines required to transport any particular CO

_{2}flow rate, velocity of fluid flow, number of booster stations required and frictional head losses. However, constant temperature, density, compressibility and average pressure was assumed. These many assumptions affect the accuracy of the model. The assumption of constant soil temperature is not practical because there is heat exchange between the pipeline and the surrounding (soil). The temperature either increases in warm climate or decreases in cold climate along the direction of flow even with insulated pipelines. There may also be seasonal changes of surrounding temperatures between low temperatures in winter and high temperatures in summer. The input pressure of 13 MPa for all CO_{2}inlets may cause a “no-flow” because pressure difference (ΔP) between any two CO_{2}input points along the pipeline would be zero. The CO_{2}stream pressure at any additional input point should be calculated and input pressures specified accordingly. Alternatively, a booster station may be installed just before input points to raise the pressure to 13 MPa equal to that of the incoming stream.IEA GHG [55] report recasting the velocity equation (Equation (2)) as Equation (31) by moving the constant 4 to the denominator as 0.25 and making the diameter the subject of the formula:

$$\text{}D={\left(\frac{{Q}_{m}\text{}}{v\times \pi \times 0.25\times \rho}\right)}^{0.5}$$

Pressure drop per length ($\raisebox{1ex}{$\Delta P$}\!\left/ \!\raisebox{-1ex}{$L$}\right.$) is calculated in three steps. First, the Reynolds number is calculated, then the friction factor and finally the pressure drop per unit length (Equations (32)–(34)). Equation (34) is the same as Equation (20) but without the elevation component of pressure drop. The maximum pipeline length, l

_{max}between two booster stations is given by Equation (35). This report considered only pressure losses due to friction:
$$\text{}Re=\raisebox{1ex}{$\rho vD\text{}$}\!\left/ \!\raisebox{-1ex}{$\mu $}\right.$$

$$\text{}f=\raisebox{1ex}{$1.325\text{}$}\!\left/ \!\raisebox{-1ex}{${\left[ln\left(\left(\epsilon /3.7D\right)+\left(5.74/R{e}^{0.9}\right)\right)\right]}^{2}$}\right.$$

$$\text{}\raisebox{1ex}{$\Delta P\text{}$}\!\left/ \!\raisebox{-1ex}{$L$}\right.=\frac{8f{Q}^{2}}{\rho {\pi}^{2}{D}^{5}}$$

$$\text{}{l}_{max\text{}}\text{}=\frac{{P}_{1}-{P}_{2}}{\Delta P/L}$$

Knoope et al. [75] analysed both gaseous and liquid CO

_{2}pipeline transportation with inlet pressures of 16 to 3 MPa for gaseous transport and 90 to 24 MPa for liquid transport. A high erosional velocity of 6 m/s was set for liquid lines with a minimum velocity of 0.5 m/s to ensure flow. Equation (36), a cost optimisation equation, is used to calculate the specific pressure drop, which is then used to calculate the diameter of the pipeline. Calculating the pressure drop before the diameter would require equations that are functions of pipeline length:
$$\text{}\Delta {P}_{design\text{}}=\frac{\left({P}_{1}-{P}_{2}\right)\times \left({\eta}_{booster}+1\right)}{L}+\frac{g\times \rho \times \Delta z}{L}$$

Knoope et al. [48] presented five diameter equations; velocity based (Equation (2)), hydraulic (Equation (34)), extensive hydraulic model (Equation (18)), the McCoy and Rubin [62] (Equation (21)) and Ogden et al. [77] model (Equation (37)). They computed pressure drop for a specified pipeline length before calculating pipeline diameter. Elevation, inlet and outlet pressures, number of booster stations and length of the pipeline were considered in the determination of pipeline diameter:
where R = Gas constant (8.31 Pa·m

$$\text{}D={\left\{\frac{G\times {Z}_{ave\text{}}\times {T}_{ave}\times {Q}^{2}\times f\times L\times {\eta}_{pipe}^{2}}{{a}_{1}\left[{\left(\frac{{P}_{1}}{1000}\right)}^{2}-{\left(\frac{{P}_{2}}{1000}\right)}^{2}-\left({a}_{2}\times G\times \frac{{P}_{ave}}{1000}\times {Z}_{ave}\times {T}_{ave}\times \Delta h\right)\right]}\right\}}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$5$}\right.}$$

^{3}/mol K), G = specific gravity (1.519), η_{pipe}= efficiency of pipeline (assumed = 1.0), a_{1}and a_{2}= constants equal to 73.06 and 0.006836 respectively.Lazic et al. [21] separated the diameter equations into turbulent flow- (Equation (34)) and velocity-based (Equation (2)). The equations for cost optimization (Equation (17)) and liquid pressure drop (Equation (27)) were also given. They stated that pressure drop for both liquid and dense phases can be calculated with Equation (34).

Kang et al. [66] added pressure changes due to changes in elevation into Equation (34) to derive Equation (38), which is the same as Equation (20):

$$\text{}\Delta P=\frac{8f{Q}_{m}^{2}L\text{}}{\rho {\pi}^{2}{D}^{5}}+\rho g\Delta Z$$

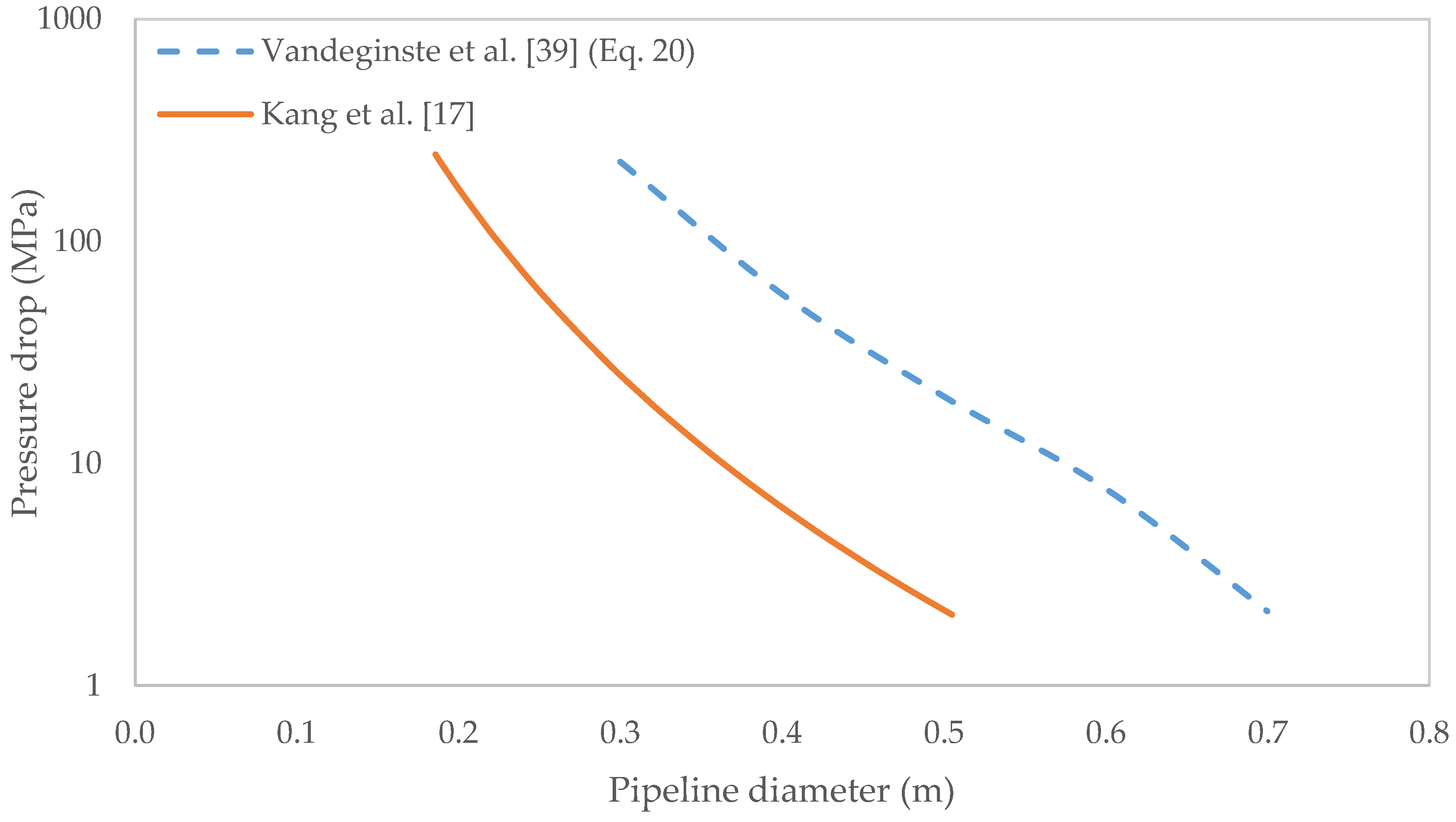

In an earlier publication, Kang et al. [17] gave an analysis of pipeline diameter, number of booster stations and total cost of CO

_{2}pipeline. They made 2-inch increments of NPS from 6 inches to 20 inches and found out that the smallest diameter gave an unreasonable high number of booster stations thereby increasing the cost of the project. The 14-inch pipe gave the minimum total cost of the pipeline. Figure 6 shows the pressure drop as a function of pipeline diameter. The lines in Figure 6 are plotted with different parameters but both lines show that a doubling of pipeline diameter reduced the pressure drop to about 4% of the initial value. To design booster installation along a pipeline, a minimum pressure is specified. The distance for the flowing fluid pressure to reduce to the minimum value is calculated and a booster station installed. The distances between booster stations may not be equally spaced along the same pipeline due to variations in elevation.Brown et al. [57] reviewed four different CO
where $\alpha $ = overall heat transfer coefficient (W·m

_{2}capture and transportation scenarios for two pipelines that merged into one along the transport route. The scenarios were post combustion capture for both pipelines, oxy-fuel for both pipelines and post combustion for one pipeline and oxy-fuel for the other. It was concluded that it is essential to accurately model the pressure profile, changes in fluid phases and composition of the fluid stream while designing CO_{2}pipelines. Temperature and pressure may change along the pipeline as a result of frictional pressure losses, expansion work done by the flowing fluid and heat exchange between fluid and the surrounding. The Darcy friction factor (for turbulent flow) was calculated from Equation (33). The overall heat transfer coefficient is given in Equation (39):
$$\text{}\alpha ={\left[\frac{1}{{\alpha}_{f}\text{}}+\frac{D}{2{\lambda}_{w}}ln\left(\frac{{D}_{o}}{D}\right)+\frac{D}{2{\lambda}_{ins}}ln\left(\frac{{D}_{o}+{\delta}_{ins}}{D}\right)+\frac{D}{2{\lambda}_{soil}}ln\left(\frac{{d}_{soil}}{D}\right)+\frac{1}{{\alpha}_{amb}}\frac{D}{2{d}_{soil}}\right]}^{-1}$$

^{−2}·K^{−1}), ${\lambda}_{w}$ = thermal conductivity of pipe wall (W·m^{−1}·K^{−1}), ${\lambda}_{ins}$ = thermal conductivity of insulation (W·m^{−1}·K^{−1}), ${\lambda}_{soil}$ = thermal conductivity of surrounding soil (W·m^{−1}·K^{−1}), ${\alpha}_{f}$ = heat transfer coefficient of internal pipe wall (W·m^{−2}·K^{−1}) and ${\alpha}_{o}$heat transfer coefficient of external pipe wall (W·m^{−2}·K^{−1}). The Brown et al. [57] model accounted for the effect of friction, heat flux or heat transfer between fluid and surrounding, temperature and thermal conductivity of the soil.Skaugen et al. [80] stated that soil thermal conductivity and ambient temperature affect the pressure drop of the pipeline and should be known for accurate modelling. A combination of higher soil conductivity and lower ambient temperatures reduce the temperature of the flowing fluid and result to lower specific energy consumptions. It was also stated that small pipeline diameters might not be sufficient to conduct the heat generated from compression out of the pipeline during transportation, bringing the fluid to a more gaseous state. However, the assumed minimum pressure of 9 MPa would keep the fluid in the supercritical state. The pressure loss equation (Equation (40)) is just Equation (34) presented with different parameters:
where $\dot{\dot{M}}$ = mass flux (kg/m

$$\text{}\frac{\Delta P\text{}}{\Delta L}=-f\frac{{\dot{\dot{M}}}^{2}}{2\rho D}$$

^{2}s).Tian et al. [50] modified Equation (17) by using density and viscosity values calculated at average pressure and temperature along the pipeline, (see Equation (41)). Diameter values calculated with this equation are too low so the equation is not considered any further:

$$\text{}D=0.363{Q}^{0.45\text{}}{\left[\rho \left({P}_{ave},{T}_{ave}\right)\right]}^{-0.32}{\left[\mu \left({P}_{ave},{T}_{ave}\right)\right]}^{0.025}$$

## 11. Discussion

The diameter and pressure loss equations have essentially remained the same over the years without significant changes. The pipeline diameter equations can be group into two broad categories. The first category is independent of pipeline length (Equations (2) and (17)) and the second category depends on pipeline length (Equations (16), (18), (20) and (21)). Equations that are functions of pipeline length are not suitable for the determination of optimum pipeline diameter. This is because the diameter value increases with increasing length of pipeline. A pipeline diameter can be calculated with these equations only after specifying pipeline length or pipeline section and pressure drop. This diameter, however, would not be optimal. The optimum pipe diameter is a product of economic considerations for least cost (capital and operational costs) [81]. Pipeline diameter should be a function of flow rate, density and maximum velocity [39] but independent of pipeline length. Equations that are independent of pipeline length (Equations (2) and (17)) are suitable for the selection of the size of optimum pipeline diameter. A simulation in a general Purpose Programing Software (gPROMS) by varying the flow rate from 200 to 370 kg/s while holding every other parameter constant changed the resultant velocity by 0.61% with Equation (17) and 39.9% with Equation (2). Equation (17) is therefore seen to be more accurate and is recommended over Equation (2).

After specifying the optimum diameter, the distance at which the pressure drops to the predetermined minimum is computed with the equations that are functions of pipeline length for the installation of booster stations. It should be noted that the calculated optimum diameter is the minimum internal pipeline diameter, adequate for the volume of fluid transported. This value may not correspond to available NPS (internal diameter plus pipe wall thickness). The selected pipe size is the smallest NPS with an internal diameter that is larger than or equal to the calculated optimum value and this is the value used in further computations. The values obtained with Equations (14) and (21) are too low resulting to high flow velocities. The units of Equation (14) seem to be incorrect. Equation (27) (the same as Equations (14), (34), (38) and (41)) could be rearranged to calculate the diameter. The optimal diameter of a CO

_{2}pipeline is a diameter that gives the lowest overall cost of CO_{2}pipeline transportation. Analysis of the net present value of the pipeline cost is a good indication of the optimum cost of a CO_{2}pipeline [82]. It may be necessary to analyse several pipeline diameter sizes, starting with the calculated value to arrive at the optimum value for any particular pipeline. The optimum pipeline diameter could be defined as the diameter of a pipeline that gives the minimum overall cost discounted to present value.A 200 km pipeline with inlet and outlet pressures of 15 and 10 MPa respectively (pressure drop of 5 MPa) was assumed and diameter values simulated in gPROMS. Table 6 shows the diameter values obtained with the equations and the resulting velocity of the fluid stream. The velocity values shown in Table 6 are the minimum values calculated at the inlet of the pipeline. The fluid velocity increases along the direction of flow as the fluid expands due to reduced pressures.

Aspen HYSYS (a widely used commercially available software) simulation of pure CO

_{2}fluid with the same parameters used in gPROMS, using different thermodynamic equations of state gave diameter values of 0.554 m (SRK), 0.545 m (PR), 0.545 m (PR-TWU), 0.549 m (PRSV), and 0.554 m (SRK-TWU). Comparing these values to the diameter dependent equations shows that the hydraulic equation, Equation (20), performed better than the other equations with a minimum diameter difference of 0.117 m. This equation also gave a minimum resultant velocity value of 1.22 m/s and is seen as the most accurate.## 12. Conclusions

Many aspects of CO

_{2}pipeline design have been reviewed with emphasis on available models for the determination of pipeline diameter in the literature. Two broad categories of equations for the determination of pipeline diameter were identified. Category one equations do not consider length of pipeline for the calculation of diameter while category two equations are dependent on pipeline length. Diameter equations that are functions of pipeline length should not be used for the initial specification of optimum pipeline diameter because the diameter value changes with varying pipeline length. Diameter equations that are independent of pipeline length should be used to select adequate pipeline diameter for the volume of fluid before using length dependent equations to specify pipeline distances for the installation of booster stations. The following were identified in this review.- Impurities affect the density, pressure and temperature changes, critical pressure and temperature and viscosity but most models ignored the effects of impurities. Pressure loss values calculated with the assumption of pure CO
_{2}will therefore be inaccurate. - No model considered pressure loss due to acceleration of the fluid, which is present whenever there is a change of velocity in the flowing fluid.
- The accurate determination of density and viscosity of the CO
_{2}fluid with impurities will improve the accuracy of the pipeline diameter and pressure drop models. - Fluid velocity in the pipeline is calculated at the inlet is the minimum value in the pipeline. Maximum velocity occurs at the end of the pipeline section and should be incorporated into equations to avoid flow velocities above the erosional value.
- Diameter equations that are dependent of pipeline length are unsuitable for the estimation of optimum pipeline diameter. These equations estimate diameter sizes increasing with increasing pipeline length.

Further work is ongoing by the authors to model the effect of impurities and the contribution of losses due to acceleration in the pipeline for the specification of optimum diameter.

## Author Contributions

Conceptualization: N.R. and I.M.M. Methodology: S.P.P. and N.R. Software: S.P.P. Validation: N.R., I.M.M. and S.P.P. Formal Analysis: S.P.P. Investigation: S.P.P. Resources: S.P.P., N.R. and I.M.M. Original Draft: S.P.P. Writing-Review & Editing: S.P.P., N.R. and I.M.M. Supervision: N.R. and I.M.M.

## Funding

This research received no external funding.

## Acknowledgments

The authors would like to express their gratitude to the Niger Delta University, Wilberforce Island, Bayelsa State, Nigeria for sponsoring the first author for a PhD at the University of Bradford with funds provided by the Tertiary Education Trust Fund (TETFund) Nigeria.

## Conflicts of Interest

The authors declare no conflict of interest.

## References

- Parry, M.L.; Canziani, O.F.; Palutikof, J.P.; van der Linden, P.J.; Hanson, C.E. Climate Change 2007—Impacts, Adaptation and Vulnerability; Cambridge University Press: Cambridge, UK, 2007. [Google Scholar]
- Gambhir, A.; Napp, T.; Hawkes, A.; Höglund-Isaksson, L.; Winiwarter, W.; Purohit, P.; Wagner, F.; Bernie, D.; Lowe, J. The contribution of non-CO
_{2}greenhouse gas mitigation to achieving long-term temperature goals. Energies**2017**, 10, 602. [Google Scholar] [CrossRef] - Olajire, A.A. CO
_{2}capture and separation technologies for end-of-pipe applications—A review. Energy**2010**, 35, 2610–2628. [Google Scholar] [CrossRef] - Kianpour, M.; Sobati, M.A.; Shahhosseini, S. Experimental and modeling of CO
_{2}capture by dry sodium hydroxide carbonation. Chem. Eng. Res. Des.**2012**, 90, 2041–2050. [Google Scholar] [CrossRef] - Decarre, S.; Berthiaud, J.; Butin, N.; Guillaume-Combecave, J.-L. CO
_{2}maritime transportation. Int. J. Greenh. Gas Control**2010**, 4, 857–864. [Google Scholar] [CrossRef] - Todorovic, J.; Torsæter, M.; Opedal, N.; Wiese, B.; Martens, S. Characterization of CO
_{2}pipeline material from the Ketzin Pilot Site. Energy Procedia**2014**, 63, 2610–2621. [Google Scholar] [CrossRef] - Munkejord, S.T.; Hammer, M.; Løvseth, S.W. CO
_{2}transport: Data and models—A review. Appl. Energy**2016**, 169, 499–523. [Google Scholar] [CrossRef] - Mazzoccolia, M.; De Guido, G.; Bosio, B.; Arato, E.; Pellegrini, L.A. CO
_{2}-mixture properties for pipeline transportation in the CCS process. Chem. Eng. Trans.**2013**, 32, 1861–1866. [Google Scholar] - Edenhofer, O.; Pichs-Madruga, R.; Sokona, Y.; Seyboth, K.; Matschoss, P.; Kadner, S.; Zwickel, T.; Eickemeier, P.; Hansen, G.; Schlömer, S.; et al. Special Report on Renewable Energy Sources and Climate Change Mitigation; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2011. [Google Scholar]
- Cole, S.; Itani, S. The alberta carbon trunk line and the benefits of CO
_{2}. Energy Procedia**2013**, 37, 6133–6139. [Google Scholar] [CrossRef] - Projecting the Scale of Pipeline Network for CO
_{2}–EOR and Implications for CCS Infrastructure Development. Available online: www.eia.gov/workingpapers/pdf/co2pipeline.pdf (accessed on 12 July 2017). - Climate Change Indicators in the Unitd States: U.S. Greenhouse Gas Emissions. Available online: https://www.epa.gov/sites/production/files/2016-08/documents/print_us-ghg-emissions-2016.pdf (accessed on 12 July 2017).
- Brunsvold, A.; Jakobsen, J.P.; Husebye, J.; Kalinin, A. Case studies on CO
_{2}transport infrastructure: Optimization of pipeline network, effect of ownership, and political incentives. Energy Procedia**2011**, 4, 3024–3031. [Google Scholar] [CrossRef] - Neele, F.; Koenen, M.; van Deurzen, J.; Seebregts, A.; Groenenberg, H.; Thielemann, T. Large-scale CCS transport and storage networks in north-west and central Europe. Energy Procedia
**2011**, 4, 2740–2747. [Google Scholar] [CrossRef] - Parfomak, P.W.; Folger, P. Carbon Dioxide (CO
_{2}) Pipelines for Carbon Sequestration: Emerging Policy Issues; CRS Report for Congress; Library of Congress, Congressional Research Service: Washington, DC, USA, 2008. [Google Scholar] - Mazzoldi, A.; Hill, T.; Colls, J. CO
_{2}transportation for carbon capture and storage: Sublimation of carbon dioxide from a dry ice bank. Int. J. Greenh. Gas Control**2008**, 2, 210–218. [Google Scholar] [CrossRef] - Kang, K.; Huh, C.; Kang, S.-G.; Baek, J.-H.; Jeong Noh, H. Estimation of CO
_{2}pipeline transport cost in South Korea based on the scenarios. Energy Procedia**2014**, 63, 2475–2480. [Google Scholar] [CrossRef] - Middleton, R.S.; Bielicki, J.M. A scalable infrastructure model for carbon capture and storage: SimCCS. Energy Policy
**2009**, 37, 1052–1060. [Google Scholar] [CrossRef] - Rennie, A.; Ackhurst, M.C.; Gomersal, S.D.; Pershad, H.; Todd, A.C.; Forshaw, S.; Murray, S.; Kemp, A.; Haszeldine, R.S.; Bellingham, R. Opportunities for CO
_{2}Storage Around Scotland—An Integrated Strategic Research Study; University of Edinburgh: Edinburgh, UK, 2009. [Google Scholar] - Bentham, M.; Mallows, T.; Lowndes, J.; Green, A. CO
_{2}storage evaluation database (CO_{2}Stored). The UK’s online storage atlas. Energy Procedia**2014**, 63, 5103–5113. [Google Scholar] [CrossRef] - Lazic, T.; Oko, E.; Wang, M. Case study on CO
_{2}transport pipeline network design for Humber region in the UK. Proc. Inst. Mech. Eng. Part E J. Process Mech. Eng.**2014**, 228, 210–225. [Google Scholar] [CrossRef] - Zahid, U.; Lee, U.; An, J.; Lim, Y.; Han, C. Economic analysis for the transport and storage of captured carbon dioxide in South Korea. Environ. Prog. Sustain. Energy
**2014**, 33, 978–992. [Google Scholar] [CrossRef] - IEA GHG. Transmission of CO
_{2}and Energy; PH4/6; IEA Environmental Projects Ltd: Cheltenham, UK, 2002. [Google Scholar] - Barrie, J.; Brown, K.; Hatcher, P.R.; Schellhase, H.U. Carbon dioxide pipelines: A preliminary review of design and risks. Greenh. Gas Control Technol.
**2005**, 1, 315–320. [Google Scholar] - IEA GHG. CO
_{2}Pipeline Infrastructure; IEA Environmental Projects Ltd: Cheltenham, UK, 2014. [Google Scholar] - Towler, B.F.; Agarwal, D.; Mokhatab, S. Modeling Wyoming′s carbon dioxide pipeline network. Energy Sour. Part A Recover. Utilization Environ. Eff.
**2007**, 30, 259–270. [Google Scholar] [CrossRef] - Chandel, M.K.; Pratson, L.F.; Williams, E. Potential economies of scale in CO
_{2}transport through use of a trunk pipeline. Energy Convers. Manag.**2010**, 51, 2825–2834. [Google Scholar] [CrossRef] - Morbee, J.; Serpa, J.; Tzimas, E. The Evolution of the Extent and the Investment Requirements of a Trans-European CO
_{2}Transport Network; Publications Office of the European Union: Luxembourg City, Luxembourg, 2010. [Google Scholar] - Noothout, P.; Wiersma, F.; Hurtado, O.; Macdonald, D. CO
_{2}pipeline infrastructure—Lessons learnt. Energy Procedia**2014**, 63, 2481–2492. [Google Scholar] [CrossRef] - CO
_{2}Transportation and Storage Business Models. Available online: www.pale-blu.com (accessed on 4 May 2018). - Horánszky, B.; Forgács, P. CO
_{2}pipeline cost calculations, based on different cost models. J. Econ. Lit.**2013**, 9, 43–48. [Google Scholar] - Herzog, H. Financing CCS demonstration projects: Lessons learned from two decades of experience. Energy Procedia
**2017**, 114, 5691–5700. [Google Scholar] [CrossRef] - Aghajani, H.; Race, J.M.; Wetenhall, B.; Sanchez Fernandez, E.; Lucquiaud, M.; Chalmers, H. On the potential for interim storage in dense phase CO
_{2}pipelines. Int. J. Greenh. Gas Control**2017**, 66, 276–287. [Google Scholar] [CrossRef] - Oosterkamp, A.; Ramsen, J. State-of-the-Art Overview of CO
_{2}Pipeline Transport with Relevance to Offshore Pipelines; POL-O-2007-138-A; POLYTEC: Haugesund, Norway, 2008. [Google Scholar] - Race, J.M.; Wetenhall, B.; Seevam, P.N.; Downie, M.J. Towards a CO
_{2}pipeline specification: Defining tolerance limits for impurities. J. Pipeline Eng.**2012**, 11, 173–190. [Google Scholar] - Forbes, S.M.; Verma, P.; Curry, T.E.; Friedmann, S.J.; Wade, S.M. CCS Guidelines: Guidelines for Carbon Dioxide Capture, Transport, and Storage; World Resources Institute: Washington, DC, USA, 2008. [Google Scholar]
- Witkowski, A.; Rusin, A.; Majkut, M.; Stolecka, K. The analysis of pipeline transportation process for CO
_{2}captured from reference coal-fired 900 MW power plant to sequestration region. Chem. Process Eng.**2014**, 35, 497–514. [Google Scholar] [CrossRef] - Ozanne, H.S. Route selection. In Pipeline Planning and Construction Field Manual, 1st ed.; Menon, E.S., Ed.; Gulf Professional Publishing: Boston, MA, USA, 2011; pp. 43–56. [Google Scholar]
- Vandeginste, V.; Piessens, K. Pipeline design for a least-cost router application for CO
_{2}transport in the CO_{2}sequestration cycle. Int. J. Greenh. Gas Control**2008**, 2, 571–581. [Google Scholar] [CrossRef] - Gao, L.; Fang, M.; Li, H.; Hetland, J. Cost analysis of CO
_{2}transportation: case study in China. Energy Procedia**2011**, 4, 5974–5981. [Google Scholar] [CrossRef] - Witkowski, A.; Rusin, A.; Majkut, M.; Rulik, S.; Stolecka, K. Comprehensive analysis of pipeline transportation systems for CO
_{2}sequestration. Thermodynamics and safety problems. Energy Convers. Manag.**2013**, 76, 665–673. [Google Scholar] [CrossRef] - Bauer, W.E. Right-of-way. In Pipeline Planning and Construction Field Manual, 1st ed.; Menon, E.S., Ed.; Gulf Professional Publishing: Boston, MA, USA, 2011; pp. 67–79. [Google Scholar]
- Oei, P.-Y.; Herold, J.; Mendelevitch, R. Modeling a carbon capture, transport, and storage infrastructure for Europe. Environ. Model. Assess.
**2014**, 19, 515–531. [Google Scholar] [CrossRef] - Bauer, W.E. Pipeline regulatory and environmental permits. In Pipeline Planning and Construction Field Manual, 1st ed.; Menon, E.S., Ed.; Gulf Professional Publishing: Boston, MA, USA, 2011; pp. 57–65. [Google Scholar]
- Parker, N. Using Natural Gas Transmission Pipeline Costs to Estimate Hydrogen Pipeline Costs; UCD-ITS-RR-04-35; UC Davis: Davis, CA, USA, 2014. [Google Scholar]
- Wang, Z.; Cardenas, G.I.; Weihs, G.A.F.; Wiley, D.E. Optimal pipeline design with increasing CO
_{2}flow rates. Energy Procedia**2013**, 37, 3089–3096. [Google Scholar] [CrossRef] - Bock, B.; Rhudy, R.; Herzog, H.; Klett, M.; Davison, J.; De La Torre Ugarte, D.G.; Simbeck, D. Economic Evaluation of CO
_{2}Storage and Sink Enhancement Options; Tennessee Valley Authority: Knoxville, TN, USA, 2003. [Google Scholar] - Knoope, M.M.J.; Ramirez, C.A.; Faaij, A.P.C. A state-of-the-art review of techno-economic models predicting the costs of CO
_{2}pipeline transport. Int. J. Greenh. Gas Control**2013**, 16, 241–270. [Google Scholar] [CrossRef] - Dooley, J.J.; Dahowski, R.T.; Davidson, C.L. Comparing existing pipeline networks with the potential scale of future U.S. CO
_{2}pipeline networks. Energy Procedia**2009**, 1, 1595–1602. [Google Scholar] [CrossRef] - Tian, Q.; Zhao, D.; Li, Z.; Zhu, Q. Robust and stepwise optimization design for CO
_{2}pipeline transportation. Int. J. Greenh. Gas Control**2017**, 58, 10–18. [Google Scholar] [CrossRef] - Barton, N.A. Erosion in Elbows in Hydrocarbon Production Systems: Review Document; TUV NEL Limited: Glasgow, UK, 2003. [Google Scholar]
- API. America Petroleum Institute, Recommended Practice for Design and Installation of Offshore Production Platform Piping Systems, 5th ed.; American Petroleum Institute (API): Washington, DC, USA, 1991. [Google Scholar]
- Nazeri, M.; Maroto-Valer, M.M.; Jukes, E. Performance of Coriolis flowmeters in CO
_{2}pipelines with pre-combustion, post-combustion and oxyfuel gas mixtures in carbon capture and storage. Int. J. Greenh. Gas Control**2016**, 54, 297–308. [Google Scholar] [CrossRef] - Knoope, M.M.J.; Guijt, W.; Ramírez, A.; Faaij, A.P.C. Improved cost models for optimizing CO
_{2}pipeline configuration for point-to-point pipelines and simple networks. Int. J. Greenh. Gas Control**2014**, 22, 25–46. [Google Scholar] [CrossRef] - IEA GHG. CO
_{2}Pipeline Infrastructure: An Analysis of Global Challenges and Opportunities; IEA Environmental Projects Ltd.: Cheltenham, UK, 2010. [Google Scholar] - Wang, Z.; Weihs, G.A.F.; Cardenas, G.I.; Wiley, D.E. Optimal pipeline design for CCS projects with anticipated increasing CO
_{2}flow rates. Int. J. Greenh. Gas Control**2014**, 31, 165–174. [Google Scholar] [CrossRef] - Brown, S.; Mahgerefteh, H.; Martynov, S.; Sundara, V.; Dowell, N.M. A multi-source flow model for CCS pipeline transportation networks. Int. J. Greenh. Gas Control
**2015**, 43, 108–114. [Google Scholar] [CrossRef][Green Version] - Nimtz, M.; Klatt, M.; Wiese, B.; Kühn, M.; Krautz, H.J. Modelling of the CO
_{2}process-and transport chain in CCS systems—Examination of transport and storage processes. Chem. Erde Geochem.**2010**, 70, 185–192. [Google Scholar] [CrossRef] - Patchigolla, K.; Oakey, J.E. Design overview of high pressure dense phase CO
_{2}pipeline transport in flow mode. Energy Procedia**2013**, 37, 3123–3130. [Google Scholar] [CrossRef][Green Version] - Han, C.; Zahid, U.; An, J.; Kim, K.; Kim, C. CO
_{2}transport: design considerations and project outlook. Curr. Opin. Chem. Eng.**2015**, 10, 42–48. [Google Scholar] [CrossRef] - Peletiri, S.P.; Rahmanian, N.; Mujtaba, I.M. Effects of impurities on CO
_{2}pipeline performance. Chem. Eng. Trans.**2017**, 57, 355–360. [Google Scholar] - McCoy, S.; Rubin, E. An engineering-economic model of pipeline transport of CO
_{2}with application to carbon capture and storage. Int. J. Greenh. Gas Control**2008**, 2, 219–229. [Google Scholar] [CrossRef] - Zhang, Z.X.; Wang, G.X.; Massarotto, P.; Rudolph, V. Optimization of pipeline transport for CO
_{2}sequestration. Energy Convers. Manag.**2006**, 47, 702–715. [Google Scholar] [CrossRef] - Teh, C.; Barifcani, A.; Pack, D.; Tade, M.O. The importance of ground temperature to a liquid carbon dioxide pipeline. Int. J. Greenh. Gas Control
**2015**, 39, 463–469. [Google Scholar] [CrossRef] - Cooper, R.; Barnett, J. Pipelines for transporting CO
_{2}in the UK. Energy Procedia**2014**, 63, 2412–2431. [Google Scholar] [CrossRef] - Kang, K.; Seo, Y.; Chang, D.; Kang, S.G.; Huh, C. Estimation of CO
_{2}transport costs in South Korea using a techno-economic model. Energies**2015**, 8, 2176–2196. [Google Scholar] [CrossRef] - Veritas, D.N. Design and Operation of CO
_{2}Pipelines; DNV RP-J202; Det Norske Veritas: Bærum, Norway, 2010. [Google Scholar] - Rütters, H.; Stadler, S.; Bäßler, R.; Bettge, D.; Jeschke, S.; Kather, A.; Lempp, C.; Lubenau, U.; Ostertag-Henning, C.; Schmitz, S.; et al. Towards an optimization of the CO
_{2}stream composition—A whole-chain approach. Int. J. Greenh. Gas Control**2016**, 54, 682–701. [Google Scholar] [CrossRef] - Li, H.; Wilhelmsen, Ø.; Lv, Y.; Wang, W.; Yan, J. Viscosities, thermal conductivities and diffusion coefficients of CO
_{2}mixtures: Review of experimental data and theoretical models. Int. J. Greenh. Gas Control**2011**, 5, 1119–1139. [Google Scholar] [CrossRef] - Porter, R.T.J.; Fairweather, M.; Pourkashanian, M.; Woolley, R.M. The range and level of impurities in CO
_{2}streams from different carbon capture sources. Int. J. Greenh. Gas Control**2015**, 36, 161–174. [Google Scholar] [CrossRef] - Kather, A.; Kownatzki, S. Assessment of the different parameters affecting the CO
_{2}purity from coal fired oxyfuel process. Int. J. Greenh. Gas Control**2011**, 5, S204–S209. [Google Scholar] [CrossRef] - Last, G.V.; Schmick, M.T. Identification and Selection of Major Carbon Dioxide Stream Compositions; Pacific Northwest National Laboratory (PNNL): Richland, WA, USA, 2011. [Google Scholar]
- Zhao, Q.; Li, Y.X. The influence of impurities on the transportation safety of an anthropogenic CO
_{2}pipeline. Process Saf. Environ. Prot.**2014**, 92, 80–92. [Google Scholar] [CrossRef] - Martynov, S.B.; Daud, N.K.; Mahgerefteh, H.; Brown, S.; Porter, R.T.J. Impact of stream impurities on compressor power requirements for CO
_{2}pipeline transportation. Int. J. Greenh. Gas Control**2016**, 54, 652–661. [Google Scholar] [CrossRef] - Knoope, M.M.J.; Ramírez, A.; Faaij, A.P.C. Economic optimization of CO
_{2}pipeline configurations. Energy Procedia**2013**, 37, 3105–3112. [Google Scholar] [CrossRef] - Eldevik, F.; Graver, B.; Torbergsen, L.E.; Saugerud, O.T. Development of a guideline for safe, reliable and cost efficient transmission of CO
_{2}in pipelines. Energy Procedia**2009**, 1, 1579–1585. [Google Scholar] [CrossRef] - Ogden, J.M. Conceptual Design of Optimized Fossil Energy Systems with Capture and Sequestration of Carbon Dioxide; Princeton University: Princeton, NJ, USA, 2004. [Google Scholar]
- Mohitpour, M.; Golshan, H.; Murray, A. Pipeline Design & Construction, 1st ed.; ASME Press: New York, NY, USA, 2003. [Google Scholar]
- McCollum, D.L.; Ogden, J.M. Techno-Economic Models for Carbon Dioxide Compression, Transport, and Storage & Correlations for Estimating Carbon Dioxide Density and Viscosity; University of California, Davis: Davis, CA, USA, 2006. [Google Scholar]
- Skaugen, G.; Roussanaly, S.; Jakobsen, J.; Brunsvold, A. Techno-economic evaluation of the effects of impurities on conditioning and transport of CO
_{2}by pipeline. Int. J. Greenh. Gas Control**2016**, 54, 627–639. [Google Scholar] [CrossRef] - Peters, M.S.; Timmerhaus, K.D.; West, R.E. Plant Design and Economics for Chemical Engineers, 3rd ed.; McGraw-Hill Europe: New York, NY, USA, 2003. [Google Scholar]
- Elahi, N.; Shah, N.; Korre, A.; Durucan, S. Multi-period least cost optimisation model of an integrated carbon dioxide capture transportation and storage infrastructure in the UK. Energy Procedia
**2014**, 63, 2655–2662. [Google Scholar] [CrossRef]

Pipeline Name | Length (km) | Capacity (Mt/y) | Diameter (mm) | Status | Country |
---|---|---|---|---|---|

Quest | 84 | 1.2 | 324 | Planned | Canada |

Alberta Trunkline | 240 | 15 | 406 | Planned | Canada |

Weyburn | 330 | 2.0 | 305–356 | Operational | Canada |

Saskpower Boundary Dam | 66 | 1.2 | Planned | Canada | |

Beaver Creek | 76 | 457 | Operational | USA | |

Monell | 52.6 | 1.6 | 203 | Operational | USA |

Bairoil | 258 | 23 | Operational | USA | |

West Texas | 204 | 1.9 | 203–305 | Operational | USA |

Transpetco | 193 | 7.3 | 324 | Operational | USA |

Salt Creek | 201 | 4.3 | Operational | USA | |

Sheep Mountain | 656 | 11 | 610 | Operational | USA |

Val verde | 130 | 2.5 | Operational | USA | |

Slaughter | 56 | 2.6 | 305 | Operational | USA |

Cortez | 808 | 24 | 762 | Operational | USA |

Central Basin | 231.75 | 27 | 406 | Operational | USA |

Canyon Reef Carriers | 225 | 324–420 | Operational | USA | |

Chowtaw (NEJD) | 294 | 7 | 508 | Operational | USA |

Decatur | 1.9 | 1.1 | Operational | USA | |

Snohvit | 153 | 0.7 | Operational | Norway | |

Peterhead ^{a} | 116 | 10 | Cancelled | UK | |

White Rose ^{a} | 165 | 20 | Cancelled | UK | |

ROAD ^{a} | 25 | 5 | 450 | Cancelled | The Netherlands |

OCAP | 97 | 0.4 | Operational | The Netherlands | |

Lacq | 27 | 0.06 | 203–305 | Operational | France |

Rhourde Nouss-Quartzites | 30 | 0.5 | Planned | Algeria | |

Qinshui | 116 | 0.5 | 152 | Planned | China |

Gorgon | 8.4 | 4 | 269–319 | Planned | Australia |

Bravo | 350 | 7.3 | 510 | Operational | USA |

Bati Raman | 90 | 1.1 | Operational | Turkey | |

SACROC | 354 | 4.2 | 406 | operational | USA |

Este | 191 | 4.8 | 305–356 | Operational | USA |

^{a}Reported as planned but now cancelled.

Angles (degrees) | Tree and Branch (km) | Hub and Spoke (km) | ||
---|---|---|---|---|

A/B | Trunk | A/B | Trunk | |

10 | 8.72 | 99.62 | 50.19 | 50.19 |

20 | 17.36 | 98.48 | 50.77 | 50.77 |

30 | 25.88 | 96.59 | 51.76 | 51.76 |

45 | 38.27 | 92.39 | 54.12 | 54.12 |

60 | 50.00 | 86.60 | 57.74 | 57.74 |

90 | 70.71 | 70.71 | 70.71 | 70.71 |

120 | 86.60 | 50.00 | 86.60 | 50.00 |

Component | Post Combustion | Pre-Combustion | Oxy-fuel |
---|---|---|---|

CO_{2} | >99 | >95.6 | >85 |

CH_{4} | <0.01 | <0.035 | -- |

N_{2} | <0.17 | <0.6 | <7 |

H_{2}S | Trace | <3.4 | trace |

C_{2+} | <0.01 | <0.01 | -- |

CO | <0.001 | <0.4 | 0.075 |

O_{2} | <0.01 | Trace | <3 |

NO_{x} | <0.005 | -- | <0.25 |

SO_{x} | <0.001 | 0.07 | <2.5 |

H_{2} | Trace | <3 | Trace |

Ar | Trace | <0.05 | <5 |

H_{2}O | 0.01 | 0.06 | 0.01 |

Cortez Pipeline | Canyon Reef Carriers | Sheep Mountain | Central Basin Pipeline | Bravo Dome | Weyburn | Jackson Dome | |
---|---|---|---|---|---|---|---|

CO_{2} | 95 | 85–98 | 96.8–97.4 | 98.5 | 99.7 | 96 | 98.7–99.4 |

CH_{4} | 1–5 | 2–15 | 1.7 | 0.2 | 0.7 | Trace | |

N_{2} | 4 | <0.5 | 0.6–0.9 | 1.3 | 0.3 | <0.03 | Trace |

H_{2}S | 0.002 | <0.02 | <0.002 wt | 0.9 | Trace | ||

C_{2+} | Trace | 0.3–0.6 | 2.3 | ||||

CO | 0.1 | ||||||

O_{2} | <0.001 wt | <0.005 wt | |||||

H_{2} | Trace | ||||||

H_{2}O | 0.0257 wt | 0.005 wt | 0.0129 wt | 0.0257 wt | 0.002 v |

CO_{2} | N_{2} | O_{2} | Ar | SO_{2} | H_{2}S | NO_{x} | CO | H_{2} | CH_{4} | H_{2}O | NH_{3} | |
---|---|---|---|---|---|---|---|---|---|---|---|---|

Min.% | 75 | 0.02 | 0.04 | 0.005 | <10^{−3} | 0.01 | <0.002 | <10^{−3} | 0.06 | 0.7 | 0.005 | <10^{−3} |

Max.% | 99.95 | 10 | 5 | 3.5 | 1.5 | 1.5 | 0.3 | 0.2 | 4 | 4 | 6.5 | 3 |

Equation No. | Ref. | Formula for Diameter (D_{i}) | Diam. (m) | Min. Fluid Velocity (m/s) |
---|---|---|---|---|

(2) | [27,50] | ${\left(\frac{4{Q}_{v}}{\pi v}\right)}^{0.5}$ | 0.372 | 3.93 |

(14) | [23] | ${\left[2.252\frac{f\xb7L\xb7\rho \xb7{Q}_{v}^{2}}{\Delta P}\right]}^{1/5}$ | 0.165 | 6.629 |

(16) | [77] | $\frac{1}{{Q}_{v}}{C}_{1}\sqrt{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$f$}\right.}E{\left[\frac{\left({P}_{1}-{P}_{2}-{C}_{2}\left\{G\Delta h\frac{{P}_{ave}^{2}}{{Z}_{ave}{T}_{ave}}\right\}\right)}{G{T}_{ave}{Z}_{ave}L}\right]}^{0.5}$ | 0.742 | 0.987 |

(17) | [63] | $0.363{Q}_{v}^{0.45}{\rho}^{0.13}{\mu}_{c}^{0.025}$ | 0.460 | 2.562 |

(18) | [39] | ${\left[\frac{{4}^{10/3}{n}^{2}{Q}_{m}^{2}L}{{\pi}^{2}{\rho}^{2}\left[\left({z}_{1}-{z}_{2}\right)+\raisebox{1ex}{$\left({P}_{1}-{P}_{2}\right)$}\!\left/ \!\raisebox{-1ex}{$\rho g$}\right.\right]}\right]}^{3/16}$ | 0.859 | 0.735 |

(20) | [39] | ${\left[\frac{8f{Q}_{m}^{2}L}{\rho {\pi}^{2}\left[\rho g\left({z}_{1}-{z}_{2}\right)+\left({P}_{1}-{P}_{2}\right)\right]}\right]}^{\frac{1}{5}}$ | 0.667 | 1.222 |

(21) | [62,78] | ${\left\{\frac{-64{Z}_{ave}^{2}{R}^{2}{T}_{ave}^{2}{f}_{F}{Q}^{2}L}{{\pi}^{2}\left[M{Z}_{ave}R{T}_{ave}\left({P}_{2}^{2}-{P}_{1}^{2}\right)+2g{P}_{ave}^{2}{M}^{2}\left({z}_{2}-{z}_{1}\right)\right]}\right\}}^{\raisebox{1ex}{$1$}\!\left/ \!\raisebox{-1ex}{$5$}\right.}$ | 0.256 | 8.250 |

(27) | [27] | $\frac{\rho f{v}^{2}L}{2\Delta P}$ | 0.667 | 1.222 |

(35) | [55] | ${\left(\frac{8fL{Q}_{m}^{2}}{\rho {\pi}^{2}\Delta P}\right)}^{1/5}$ | 0.667 | 1.222 |

(41) | [50] | $\frac{\Delta P}{\Delta L}=-f\frac{{\dot{\dot{M}}}^{2}}{2\rho {D}_{i}}$ | 0.667 | 1.222 |

© 2018 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
