Feasibility of a 100 MW Installed Capacity Wind Farm for Different Climatic Conditions

Abstract

Wind power is the world’s fastest-growing energy source. More power can be generated from wind energy through the use of new wind machine designs and techniques. The objective of the present work is to encourage people and governments to develop wind energy-based power plants to achieve sustainable energy infrastructures, especially in developing countries. In this paper, a feasibility study of a 100 MW grid-connected wind farm is conducted for five different cities of Saudi Arabia (KSA). The results indicate that the proposed power plant is feasible both technically and economically. All sites are found to be within the profitable range with Dhahran being the most feasible site among the others for the installation of the wind farm. A sensitivity analysis has also been carried out to find out the effects of different incentives on the payback period of the project.

1. Introduction

Due to the growing environmental concerns, fast depletion of primary energy resources, escalating energy costs, and adverse climatic changes, the focus on the utilization of renewable and clean sources of energy has increased significantly. The renewable sources of energy mainly include wind, solar photovoltaic, solar thermal, large and small hydro, geothermal, biomass, and wave power. Among these sources of clean energy, wind and solar are commercially accepted and economically at par with conventional means. They are both being currently used worldwide. Wind energy is proved to be an economically acceptable and reliable source of energy [1]. The generation of wind power has an edge over other renewable energy technologies because of its simple infrastructure, technological maturity, and low-cost energy generation. Furthermore, the ease of installation and maintenance, long life of wind turbines, minimum time required for the installation and operation after site assessment have led to the fast growth of regional and global wind power. The use of wind energy to meet load demands is expected to play important role in the future worldwide energy scenarios [2].

Additionally, switching from fossil fuels to renewable energy (e.g., wind power resources) promotes energy security, while likewise addressing issues such as global warming and economic growth of a country [3]. Renewable energy contributes to energy resilience through its decentralized structure that can help to lessen the burden on economy of a developing country. According to Fang [4], an increase of renewable energy consumption by 1% drives a growth of real gross domestic products (GDP) by 0.120%, GDP per capita by 0.162%, per capita annual income of rural households by 0.444%, and per capita annual income of urban households by 0.368%. The integration of renewable energy technologies will not only eliminate the power shortage issues but also create new job opportunities. According to IRENA, about 8.1 million jobs were generated though implementation and development of renewable technologies across the world in year 2015. In this way development of wind energy farms as a replacement of fossil fuel operated power plants will have a positive effect on the economic growth of a country like Saudi Arabia.

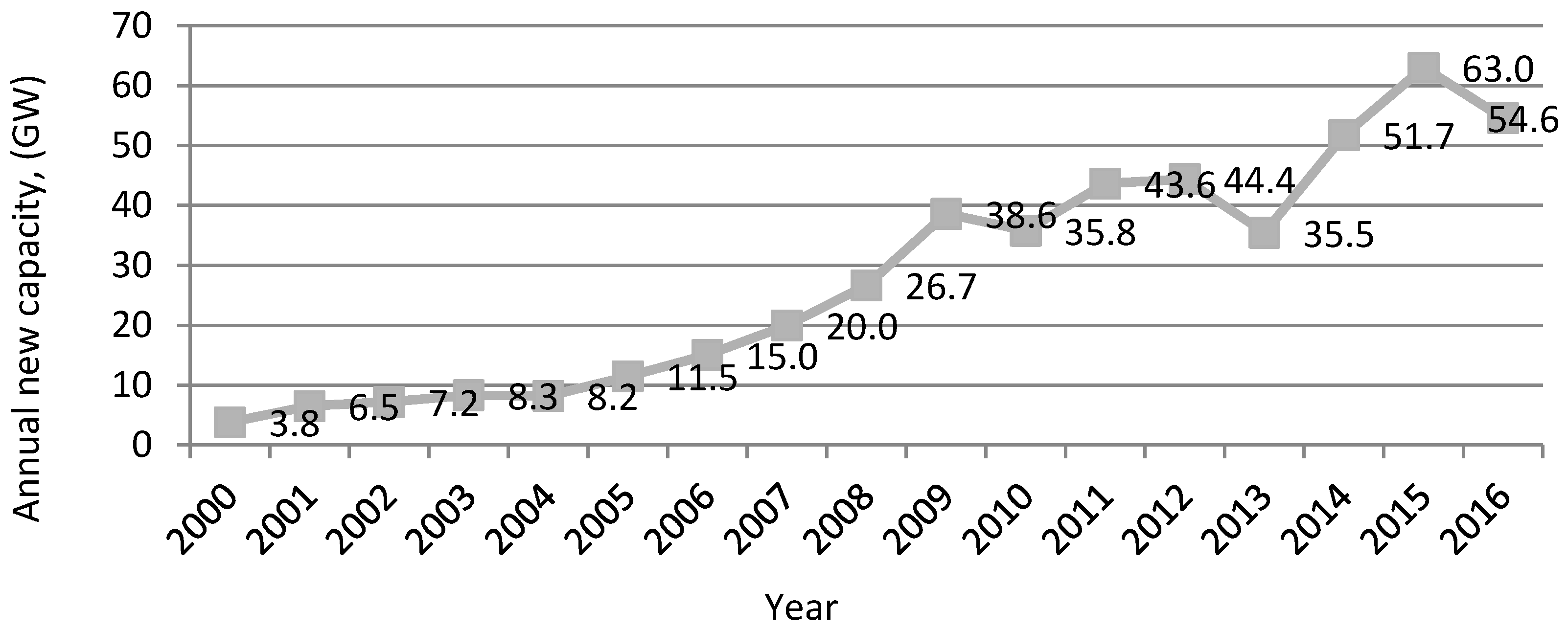

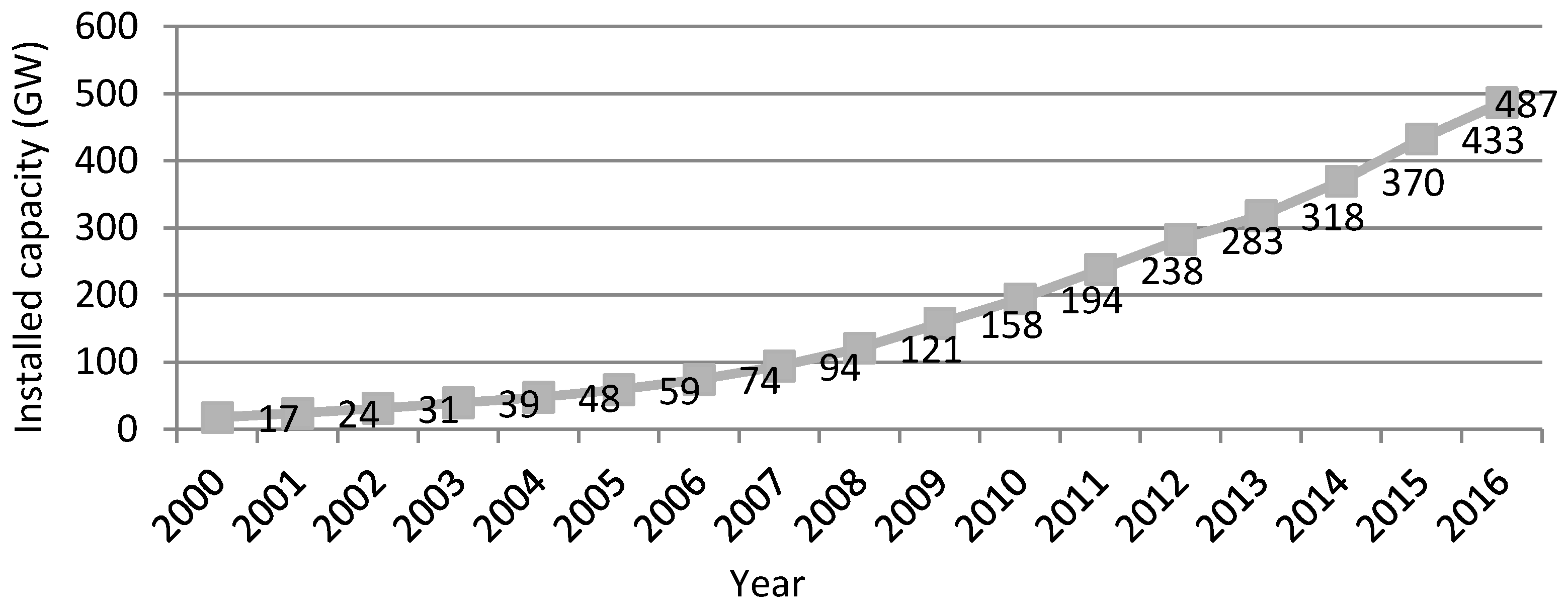

Modern technological developments have led to much advancement in wind power. The wind energy technology is the world’s fastest-growing energy option [5]. More power can be generated from wind energy by adopting new design and techniques of wind energy machines [6]. In the last two decades, the global wind power installed capacity has rapidly increased which is a clear indicative of an increasing role of wind power in fulfilling the future energy demands. An average annual growth of 104% in wind power comes into being over the last 10-year period as can be observed from Figure 1, [7]. In 2016 the global wind power installed capacity rose by 12.5% compared to that in 2015 (Figure 2). China added a total of 23.328 GW wind power in 2016 which is the largest compared with those by any other countries, followed by 8.203 GW by USA.

The initial cost associated with the renewable energy technologies is a major hurdle and disadvantage for promotion and development of these technologies in developing countries. These technologies are beneficial and advantageous when assessed on a long term basis. Site-specific studies are required for the promotion and deployment of wind power technology in the country. Accordingly, the main aim of this paper is to provide a long run scenario of developing wind farms in developing countries like Saudi Arabia. In this paper, a feasibility of a 100-MW grid-tied wind power plant for five different cities in Saudi Arabia has been conducted. The study also aims to partially offset the fossil-fuel based power generation with wind operated power systems. The enviro-economic analysis of installing a wind farm has been investigated by RETScreen software using different performance indicators. The effect of increasing the government incentives and support on the viability of the proposed power system has also been evaluated. The obtained results are important not only for decision makers in the country but also for the continuous development of renewable energy sources in other developing countries.

The paper has been divided into different sections: Section 1 introduces the topic and highlights the major objectives and motivation of this study. The background of wind energy technology with respect to KSA is presented in Section 2; different studies and energy consumption pattern in the country along with environmental concerns are described in detail. The methodology and description of performance indices used are described in Section 3, followed by description and design of wind power system. The obtained results are presented and discussed in Section 4 whereas a summary of achieved results is presented in Section 5.

2. Background

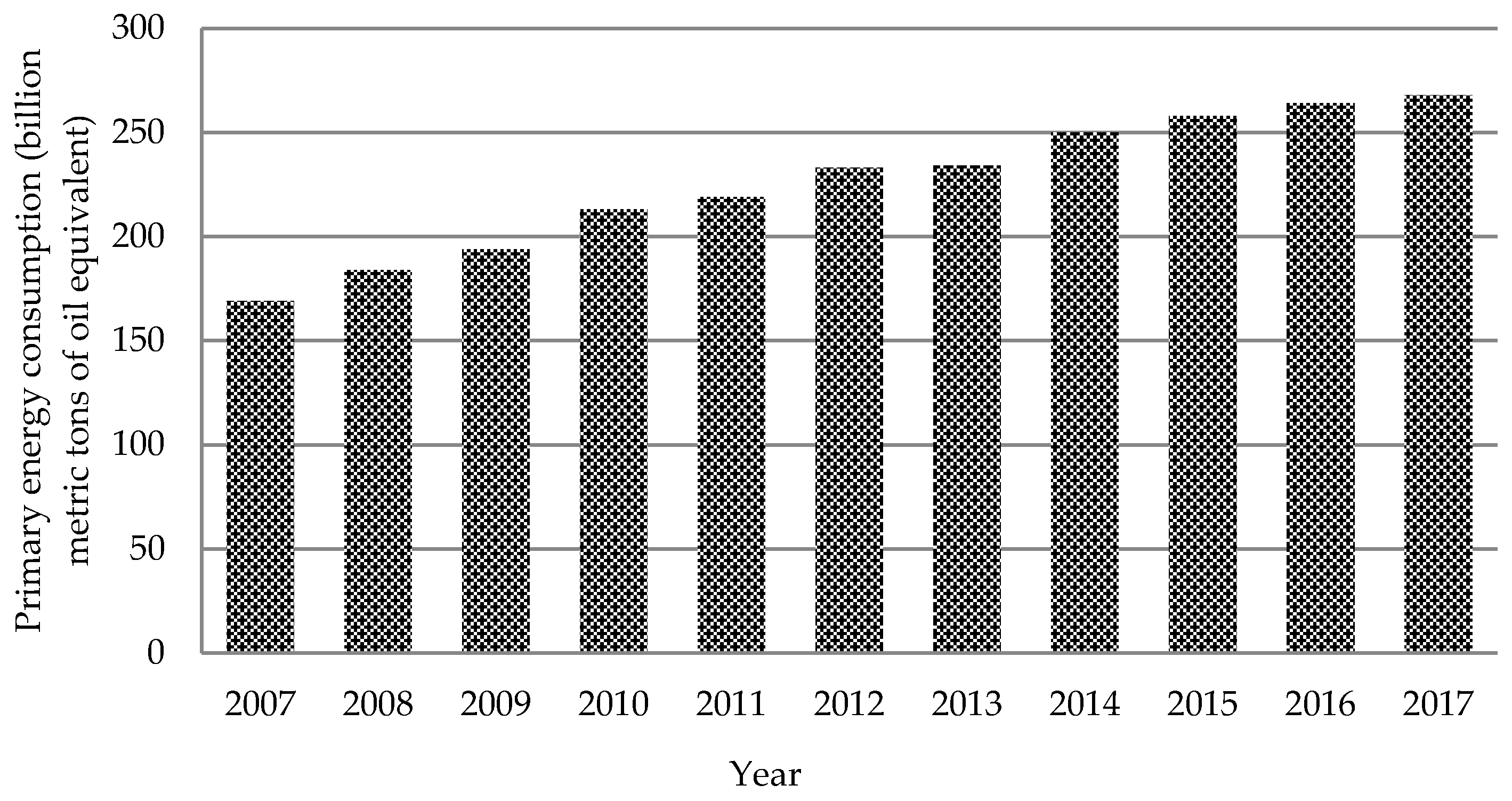

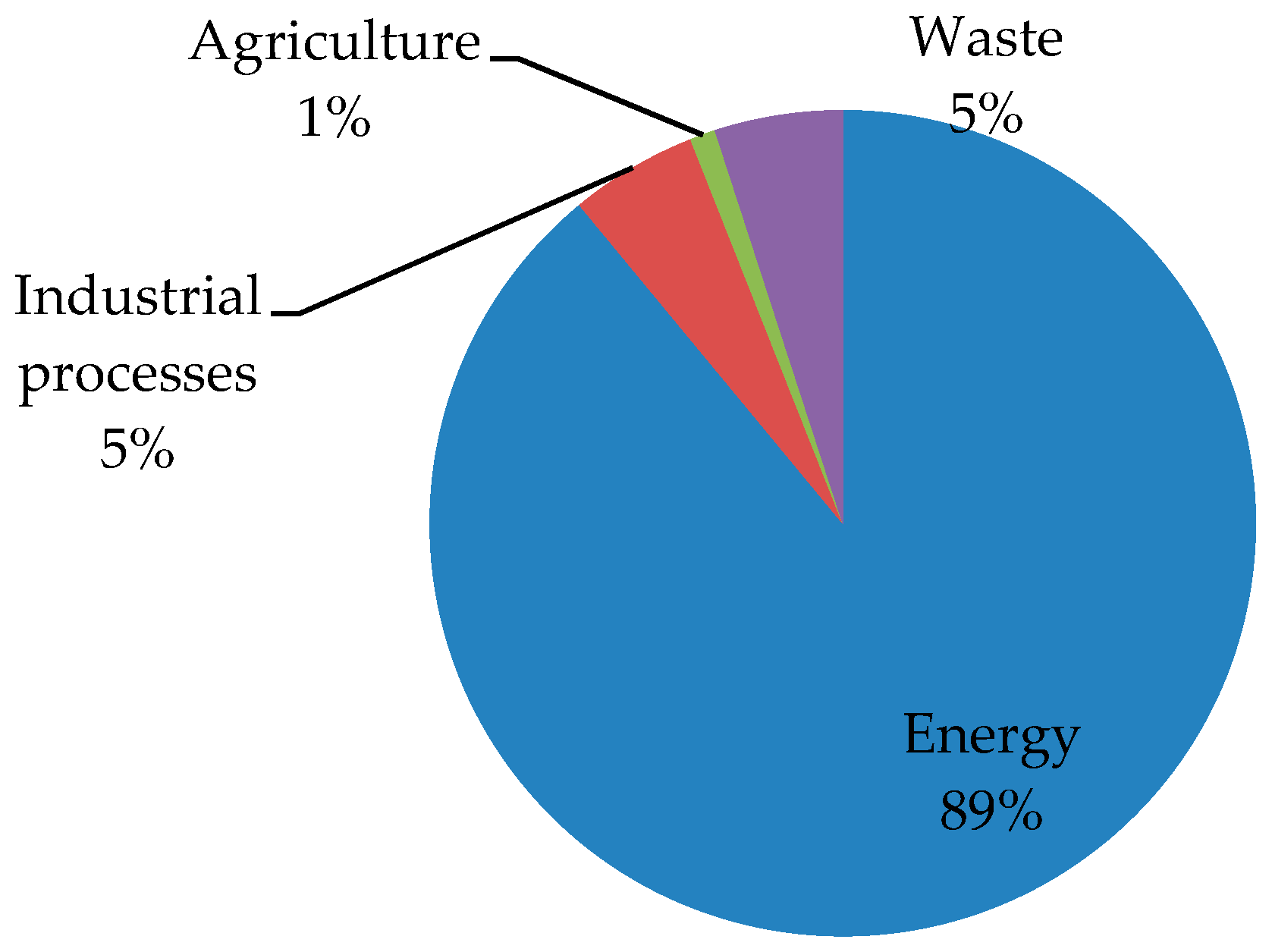

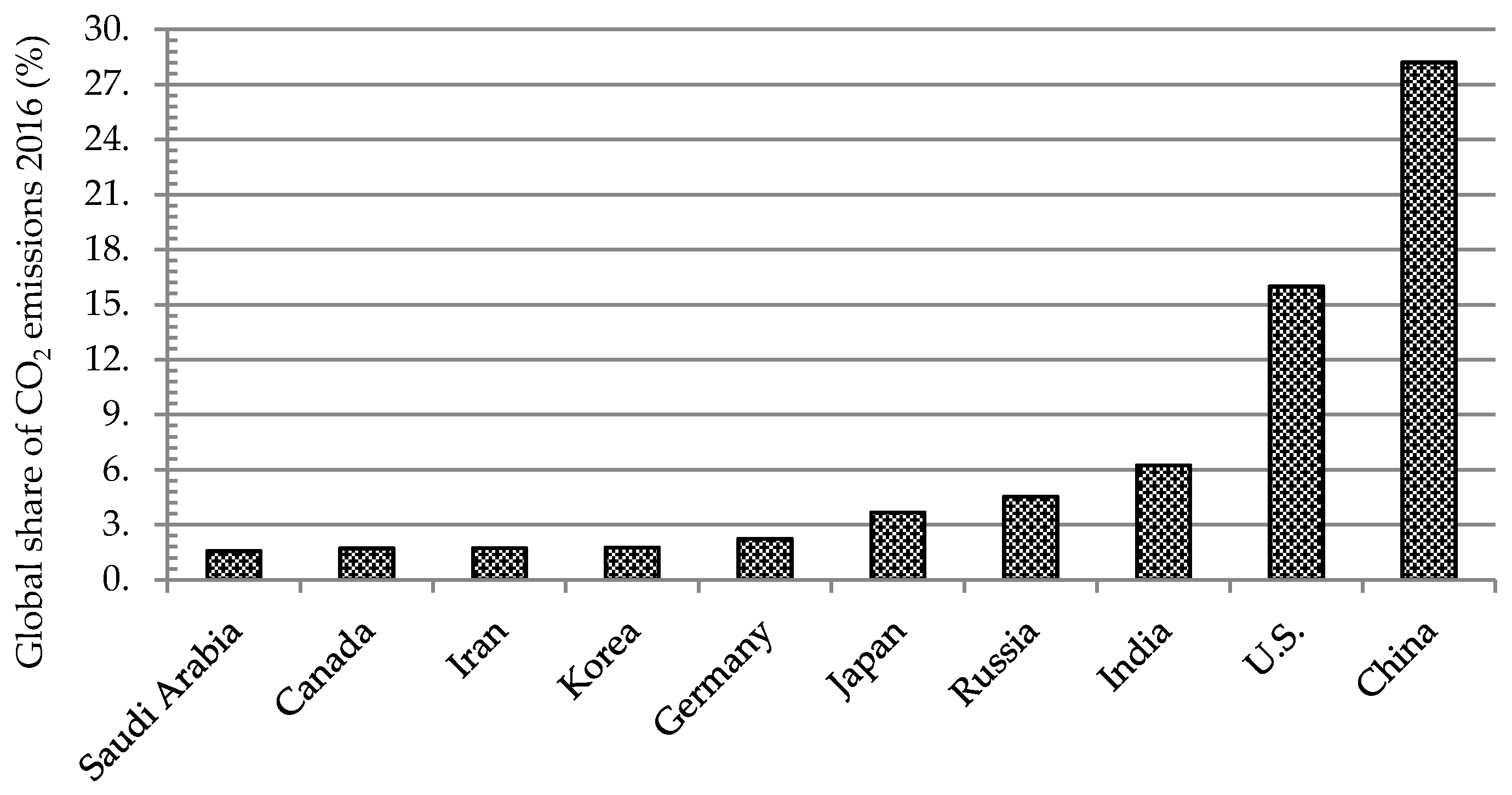

The specific case of Saudi Arabia, where a rapid increase in electricity consumption is leading to technical and economical stress on the utility and the Ministry of Energy, is not an exception. The increasing demand for primary energy in the Kingdom of Saudi Arabia (KSA) is illustrated in Figure 3 [8]. The annual energy consumption was around 169 billion metric ton of oil equivalents in 2007, and reached 268 billion metric ton of oil equivalents in 2017 [8,9]. The comparative greenhouse gas (GHG) emissions for different countries are shown in Figure 4, which indicates the highest emission by China. Saudi Arabia is also among the top ten countries of the world in terms of GHG emissions. The annual growth of GHG emissions in Saudi Arabia is depicted in Figure 5 and shows an increasing trend right from 1970 to 2015 and beyond. The energy sector is also the largest contributor of greenhouse gases (GHG) emissions (~89%) in the country as illustrated in Figure 6 [10].

In order to overcome this rising demands of energy in the country wind energy technology could be beneficial and advantageous, but it is well known that wind power output is not fully dispatchable. This means that it has an uncertainty and randomness problem, which may affect the normal operation of the power system. Thus, quite a lot of research has been done to deal with the uncertainty. At first, the idea of probabilistic forecasting [11,12] has been proposed to quantify the uncertainty of wind power generation. Then, this uncertainty information is also integrated to power system operation and electricity market through stochastic programming [13,14].

In the context of KSA, different studies related to wind energy are available in the literature. These studies include the estimation of wind energy trends using different techniques [15], wind farm layout design optimization [16], analysis of wind power distribution and estimation across different regions [17]. Other studies include the time-dependent estimation of wind speed [18]. Some collaborative work has also been done by different local researchers in collaboration with Greek scientists [19] and Algerian researchers [20] in order to assess wind power potential and its utilization aspects.

Further to overcome the problems associated with wind power technology, site specific studies are required to assess the feasibility of wind power technology. In this regard, different studies have been carried out for implementation of wind energy system and their progress for climatic conditions of KSA [21,22,23]. Ramli et al. [21] assessed the potential of solar and wind energy based power generation with the motivation to maximize the use of renewable energy technologies in KSA. The results of this study showed a combined solar and wind energy potential of 50 GW in the country. Eltamaly [22] and Rehman and Aftab [23] in two different studies presented the wind data analysis for five coastal locations of KSA. The data analysis was carried out using hourly mean values of wind speed and wind direction covering a period of almost 14 years between 1970 and 1983. Furthermore, Bassyouni et al. [24] used a Weibull distribution approach to analyze the wind power potential for Jeddah, the commercial capital of Saudi Arabia. The study concluded that under the present scenario, the wind power potential can be exploited for off-grid applications for power generation. Baseer et al. [25] studied the wind power characteristics for Jubail using hourly mean wind speed measured at 10, 50, and 90 meters above ground level over a period of 5 years from 2008 to 2012. The study reported that 6825 MWh of energy could be generated annually at a plant capacity factor of 25% using a wind turbine of 3 MW rated capacity.

Apart from that, the economics of wind power technology have also been studied [26,27]. Different models for the prediction of wind energy potential have also been investigated in the literature [28,29]. These economics related studies suggested that government should provide incentives to the private and local investor in order to lower the initial associated costs of wind power technology. Furthermore, it has been suggested in these studies are must to generate wind duration curves and to calculate the cost per kWh of electricity generated from the chosen wind-machines. Other studies include the understanding of wind speed trends and inherent properties over a long period using modern techniques such as wavelets and power spectrum [30,31,32] and wind farm layout design optimization and wind turbine selection using multi-criteria algorithms [33]. Furthermore, the wind speed characteristics such as wind turbulence, wind frequency distribution, wind shear exponent, diurnal and seasonal wind speed trends, energy yield, and the capacity factors have been studied in details for different regions of Saudi Arabia [34,35,36,37,38,39,40].

3. Materials and Methods

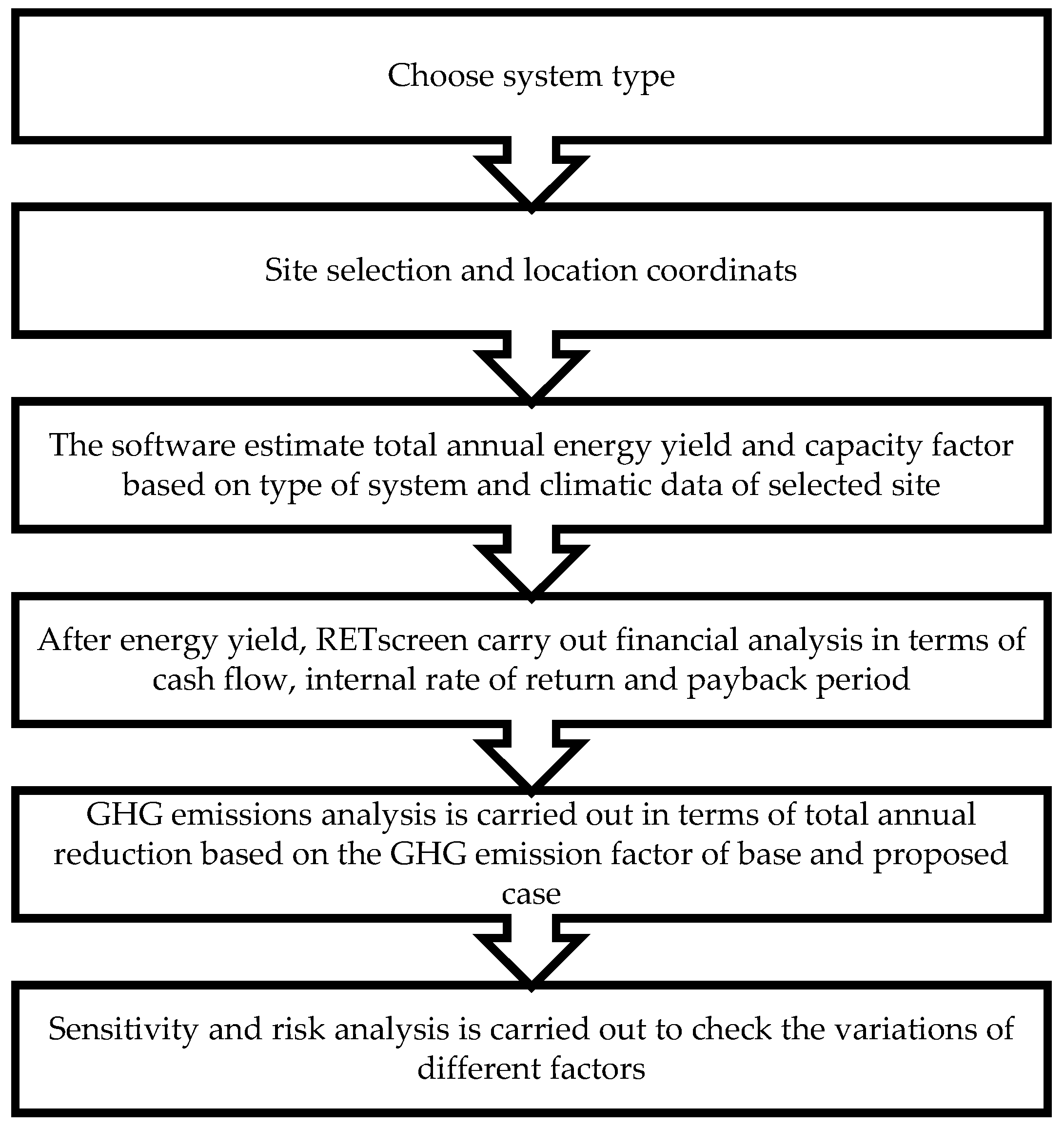

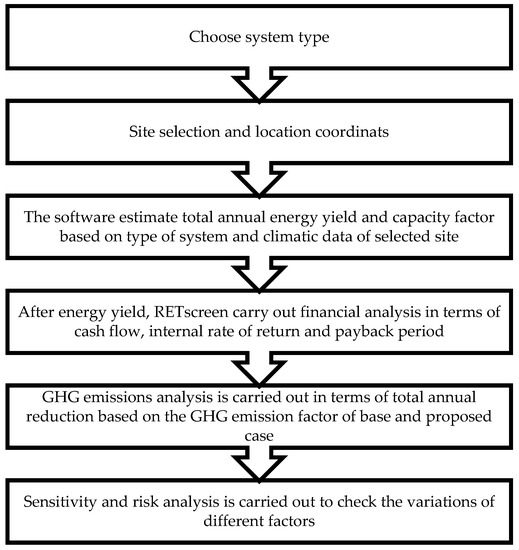

Different technologies and analyses have been utilized by researchers, engineers, and scientists for the development of different wind turbine configurations by determining the optimum working conditions. RETScreen is a clean energy simulation tool which is used worldwide to evaluate the energy production and savings, costs, emission reductions, financial viability and risk for various types of renewable and clean energy technologies. The fundamental of RETScreen software is a comparison between a “base case”, typically the conventional technology, and a “proposed case” that is the clean energy technology which is wind energy in this case. Based on the input data, RETScreen software is capable of estimating annual and monthly energy productions and capacity factor of an installed wind turbine. Furthermore, it can evaluate the financial viability of the project in terms of cash flow, payback period, and internal rate of return.

The profitability, quality, and efficiency of a project are estimated from capacity factor (CF) internal rate of return (IRR) whereas net present value (NPV) indicates the net present value or magnitude added by making an investment. IRR is a discount rate that makes the NPV of all cash flows from a particular project equal to zero. The built-in mathematical expression used for evaluation of all indicators using RETScreen tool are as follows:

$$CF=\frac{Pout }{CP \times \tau }$$

(1)

$$NPV=\sum _{t=1}^T\frac{N{C}_i}{{\left(1+d\right)}^t}-N{C}_t$$

(2)

$$IRR=NPV\to 0$$

(3)

$$PBP=\frac{I}{N{C}_p}$$

(4)

$$GHG \mathrm{reduction}=\left(GH{G}_{base}-GH{G}_{proposed}\right)\times E$$

(5)

The investors interested in the project set their target for the required return rate depending upon the capital cost of the project and then compare it with the project IRR. The IRR value equal or greater than the organization’s required rate of return means that the project is financially profitable and the investment is justified. On the other hand, a negative value of IRR concludes the project to be rejected. The equity-payback period is used to calculate the time required to return the initial investments of the organization involved in the project. The cash flow of the project and the level of debt are considered for equity-payback. A schematic diagram for optimization analysis of the proposed system is presented in Figure 7.

3.1. Site Data Description

Figure 8 shows the regional map of Saudi Arabia. The locations chosen for the present study are spread across the country. Dhahran and Jeddah are the coastal sites on the Arabian Gulf and the red sea while Riyadh (central), Guriat (extreme north), and Nejran (south-west) are the inland locations. The geographical data for all sites are presented in

Table 1. Geographic data for all sites.

Parameter	Dhahran	Riyadh	Jeddah	Guriat	Nejran
Latitude (°N)	26.3	24.7	21.7	31.4	17.6
Longitude (°E)	50.2	46.7	39.2	37.3	44.4
Elevation (m)	17.0	620.0	17.0	504.0	1212.0

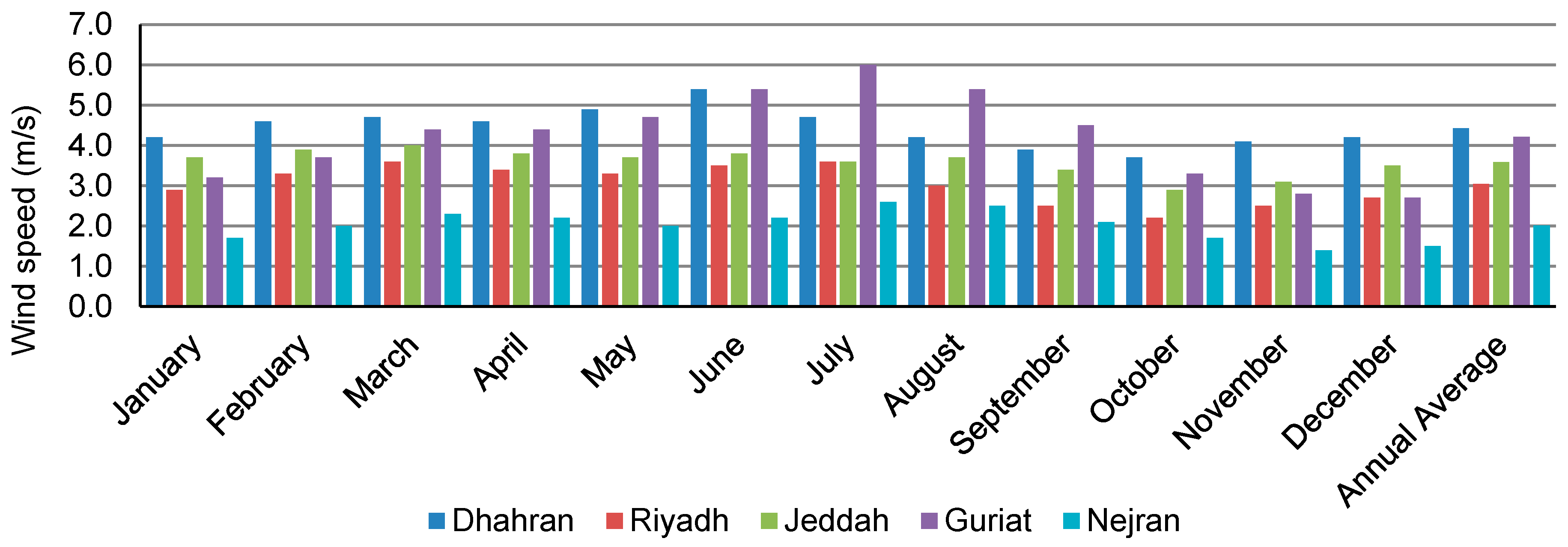

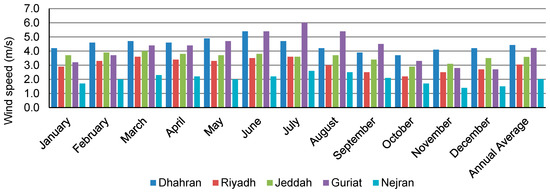

whereas the monthly average wind speed data for different cities are illustrated in Figure 9. The average wind speed is maximum for Dhahran and minimum for Nejran. The average annual wind speed values for Dhahran, Riyadh, Jeddah, Guriat, and Nejran are 4.3, 3.1, 3.6, 4.1, and 2.0 m/s, respectively. In general, higher wind speed values are observed in the summer time while lower in winter time; this coincides with the peak power demand in summer.

3.2. Description and Design of the Wind Power System

The power produced by a wind turbine depends on air flux through the area of interest. The establishment and development of the equation for power output from a wind turbine is explained in this section. The power P_w in the wind is given by the rate of change of energy E, i.e.:

$$P_w=\frac{dE}{dT}=0.5\times V^2\times \frac{dm}{dT}$$

(6)

where, T is the time, V is the wind velocity, and m is the mass flow.

The mass flow rate is given by:

$$\frac{dm}{dT}=\rho \times A_f\times \frac{dx}{dT}=\rho \times A_f\times V$$

(7)

where, ρ is the density of air, A_f is the swept area, and x is the distance.

The power from the wind turbine for a given wind speed can be calculated by combining Equations (6) and (7):

$$P_w=0.5\times \rho \times A_f\times V^3$$

(8)

As a wind turbine cannot convert 100% of wind energy to the output power, the power coefficient C_max should be introduced in Equation (7) and the value of this coefficient varies according to the turbine used, viz.:

$$P_w=0.5\times C_{max}\times \rho \times A_f\times V^3$$

(9)

The following vital information can be deduced from Equation (8):

• The power output of a wind generator is proportional to the area swept by the rotor; that is, doubling the swept area makes the power output double.
• The power output of a wind generator is proportional to the cube of the wind speed.

Different models of wind turbines were tested based on the number of turbines required and annual output for all sites using RETscreen input parameter. The configuration that provides maximum output power was then selected as the best configuration. The specifications of the selected wind turbines (AN BONUS 1.3 MW-60) are shown in

Table 2. Specifications of wind turbine.

Parameter	Unit	Value
Power capacity per turbine	kW	1300
Manufacturer	Siemens	-
Model	AN BONUS 1.3 MW-60 m	-
Number of turbines	-	77
Hub height	m	60
Rotor diameter per turbine	m	62
Swept area per turbine	m²	3019.07
Shape factor	-	2
Power coefficient	%	45
Array losses	%	3
Airfoil losses	%	2
Miscellaneous losses	%	3
Availability	%	98

. The rated power of the selected turbine models is 1.30 MW and they start working at a wind speed of 3.0 m/s. The cut-out wind speed is selected as 25 m/s. The rotor diameter of the AN BONUS 1.3 MW-60 is 60 m. The wind turbine is equipped with three rotor blades. The AN Bonus 1.3 MW-60 is fitted with a 3 stage spur/planetary gearbox.

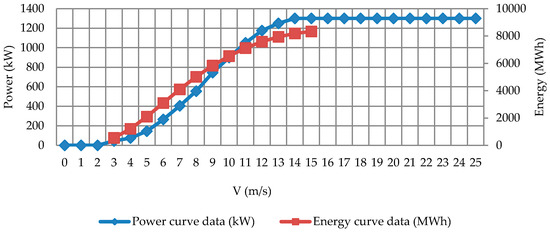

The rated power capacity of a single turbine is 1300 kW and a total of 77 turbines are proposed to be used for a total installed capacity of 100 MW sized wind farm. The power curve of a selected wind turbine used is shown in Figure 10. The graph shows the power available from a wind turbine across a range of wind speeds. Based on the wind speed data, it can be estimated how much power will be possible to generate using the chosen wind turbine.

4. Results and Discussion

Wind turbine power greatly depends on the wind speed and volume of air passing through the rotors, and its value differs from site to site and month to month. The total annual energy production from the proposed system, exported to the grid for all sites, is shown in Figure 11 whereas

Table 3. Monthly power exported to grid for all sites (MWh).

Months	Dhahran	Riyadh	Jeddah	Guriat	Nejran
January	21,842	20,452	20,258	20,635	18,981
February	19,591	18,271	18,275	18,475	16,936
March	21,368	19,884	20,067	20,155	18,515
April	20,234	18,840	19,196	19,110	17,730
May	20,420	19,029	19,655	19,407	18,107
June	19,449	18,182	18,913	18,559	17,385
July	19,963	18,668	19,429	19,031	17,840
August	20,040	18,705	19,437	19,049	17,883
September	19,690	18,386	18,918	18,661	17,552
October	20,746	19,429	19,736	19,665	18,525
November	20,562	19,295	19,300	19,538	18,195
December	21,679	20,335	20,143	20,568	18,957
Annual Average	20,465	19,123	19,444	19,405	18,051

presents the detailed monthly results for electricity generation from the installed wind farm.

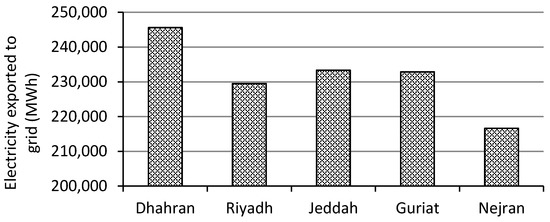

These values are obtained from the RETScreen simulation software for the turbine configurations listed in Table 2 and location-specific data. The annual minimum and maximum energy of 245,000 and 216,000 MWh are exported to the grid for Dhahran and Nejran, respectively. The annual electricity exported for Riyadh, Jeddah, and Guriat is 230,000, 234,000, and 233,500 MWh, respectively. Figure 12 presents the archived values of capacity factor for installed wind turbines for all the sites. A maximum capacity factor of 28% is observed for climatic conditions of Dhahran whereas; for Riyadh, Jeddah, Guriat, and Nejran, capacity factors of 26.1, 26.6, 26.6, and 25.4% are observed, respectively.

The discount rate for feasibility of renewable based power technologies in KSA is normally taken as 0% [41] which is the case in this paper as well. The interest rates, project life time, and other related financial parameters are illustrated in

Table 4. Financial parameters.

Factor	Unit	Value
Inflation rate	%	3
Discount rate	%	0
Project life	year	25
Debt ratio	%	25
Debt interest rate	%	0
Debt term	year	20

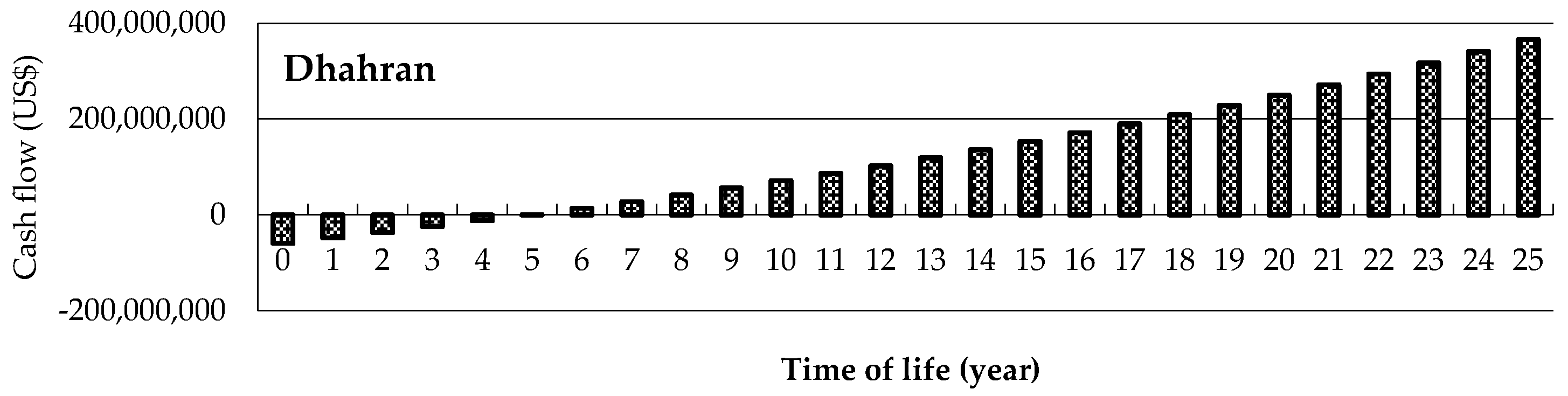

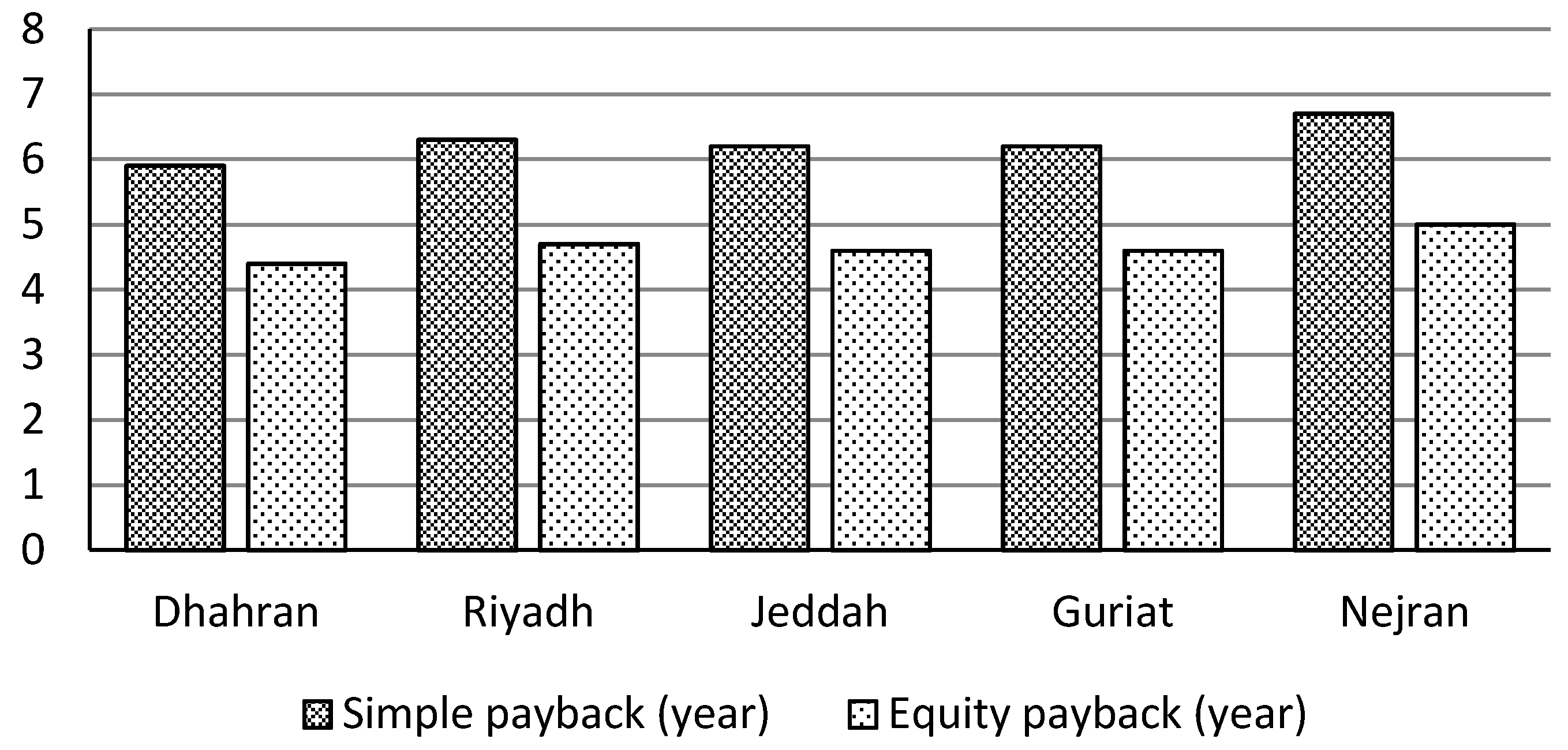

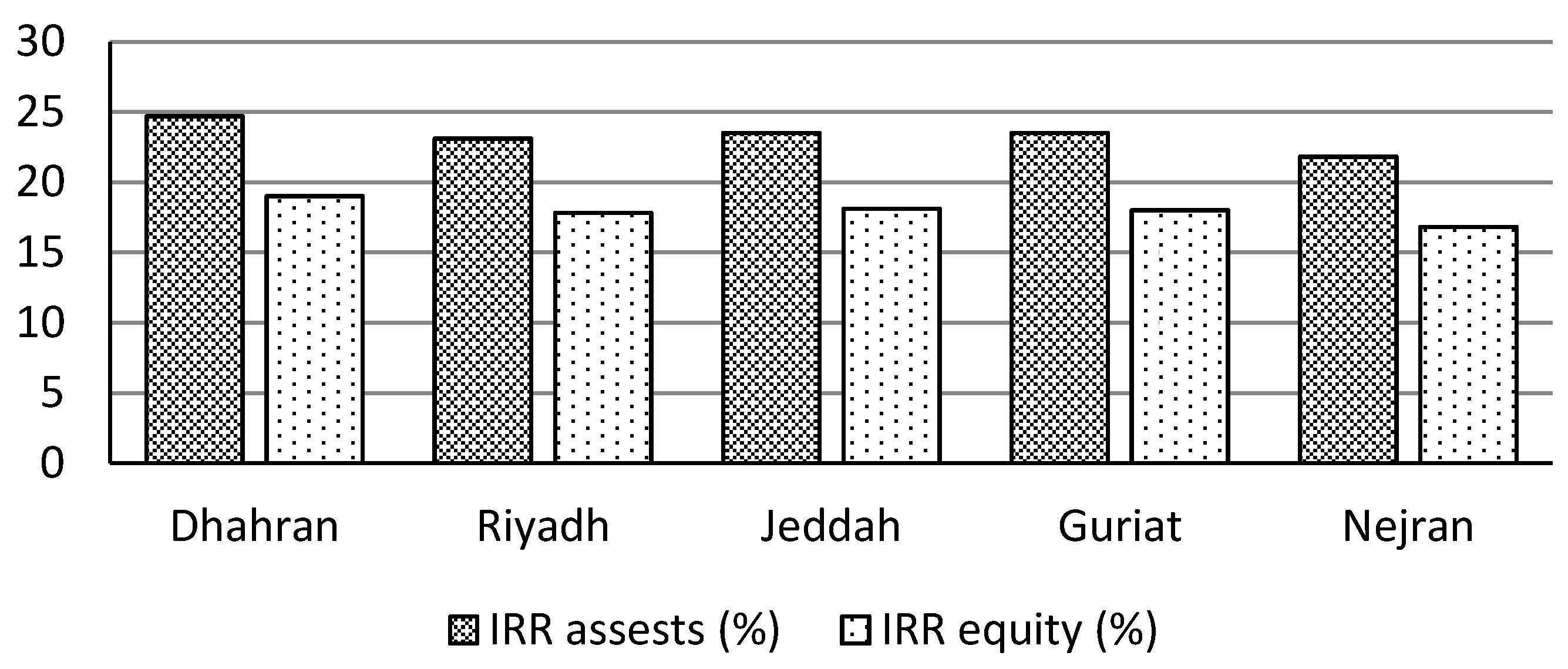

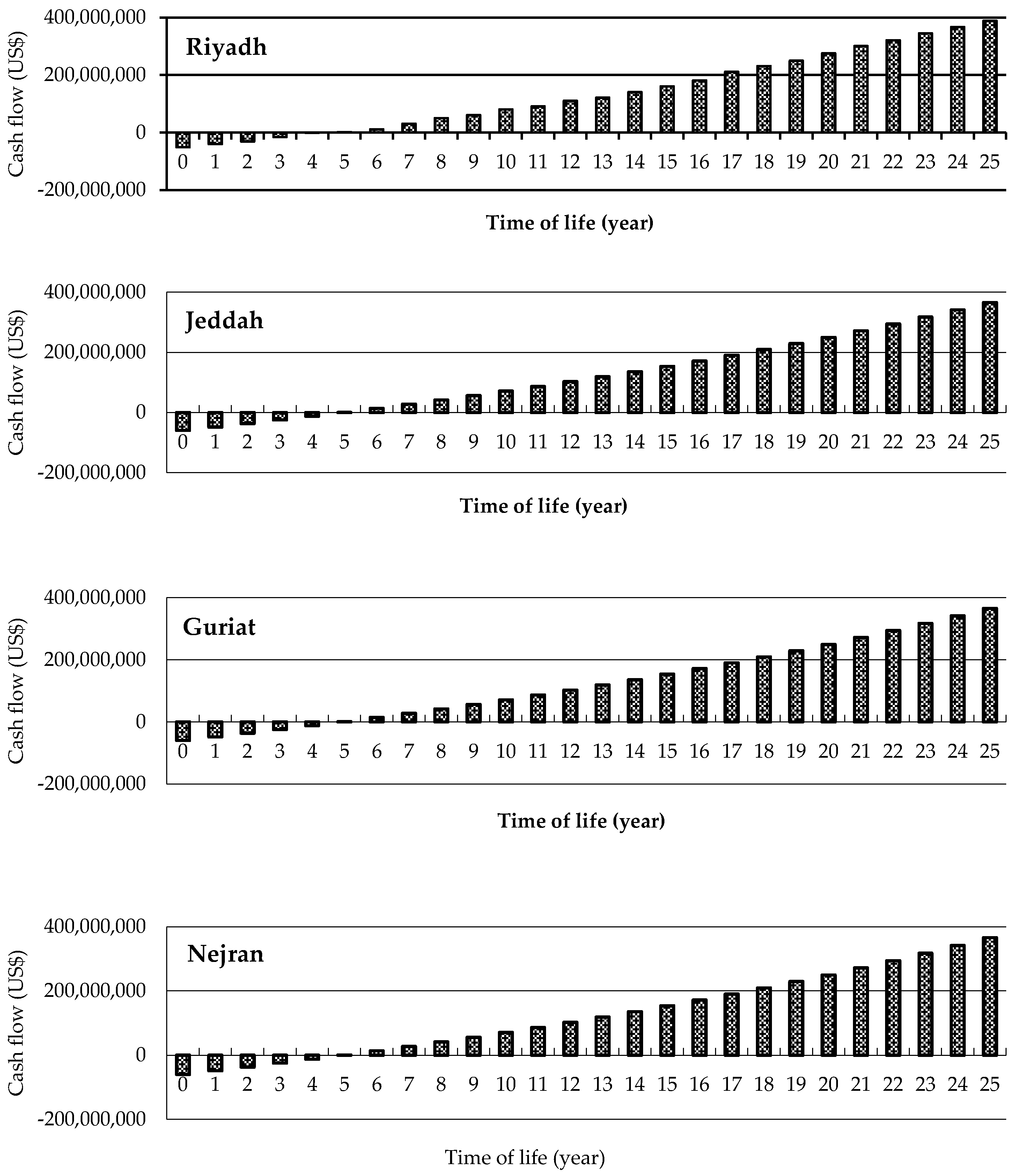

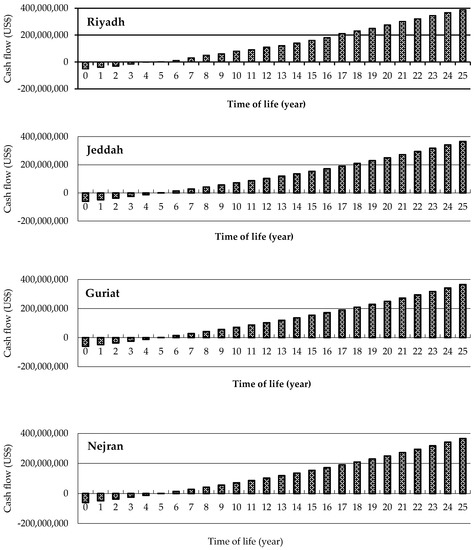

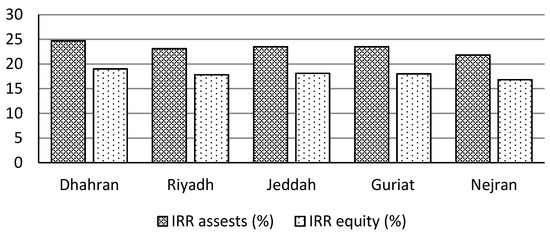

. Figure 13 provides an overview of the cash flow over the project life time for all sites. The cash flow indicates that the investor is expected to get a positive cash flow from the 5th year onwards for all sites. Based on this cash flow, simple payback periods of 5.9, 6.3, 6.2, 6.2, and 6.7 years are expected for Dhahran, Riyadh, Jeddah, Guriat, and Nejran, respectively (Figure 14). A minimum equity payback of 4.4 years is observed for Dhahran. Similarly, Figure 15 illustrates the results obtained for IRR assets and equity. Average values of 23 and 18% are observed for IRR assets and equity, respectively, for all sites. All the financial indicators show that the proposed systems seem to be economically feasible.

The utilization of wind energy as a partial replacement of traditional power production units in the country significantly reduces the emission of GHG, as can be observed from

Table 5. Net annual reduction of GHG emissions for all sites.

Cities	Net Annual Reduction of GHG Emissions (tCO2)	Cars and Light Trucks Not Used	Hectres of Forest Absorbing Carbon	Peoples Reducing Energy Use by 20%
Dhahran	180,947	33,140	41,124	180,947
Riyadh	169,077	30,967	15,551	169,077
Jeddah	171,914	31,486	15,812	171,915
Guriat	171,567	31,423	15,780	171,568
Nejran	159,596	29,230	36,272	159,596

. The results are presented in term of GHG reduction when the current energy mix of Saudi Arabia is partially replaced by wind power. The net annual reductions of GHG for Dhahran, Riyadh, Jeddah, Guriat, and Nejran are found to be 180,947, 169,077, 171,914, 171,567, and 159,596 tCO₂, respectively. The average GHG reductions for Dhahran, Riyadh, Jeddah, Guriat, and Nejran are equivalent to 33,140, 30,967, 31,486, 31,423, and 29,230 cars and light trucks not used, respectively. This significant decrease of harmful emissions can help to achieve sustainable development in the country. Furthermore, a sensitivity analysis indicated that government incentives in terms of investment loans without any interest can play an important role for development and promotion of this renewable technology as can be observed from Figure 16. A debit ratio of 30–40% can help to achieve a payback period of about 4 years which makes the technology more attractive for the investors.

Risk Analysis

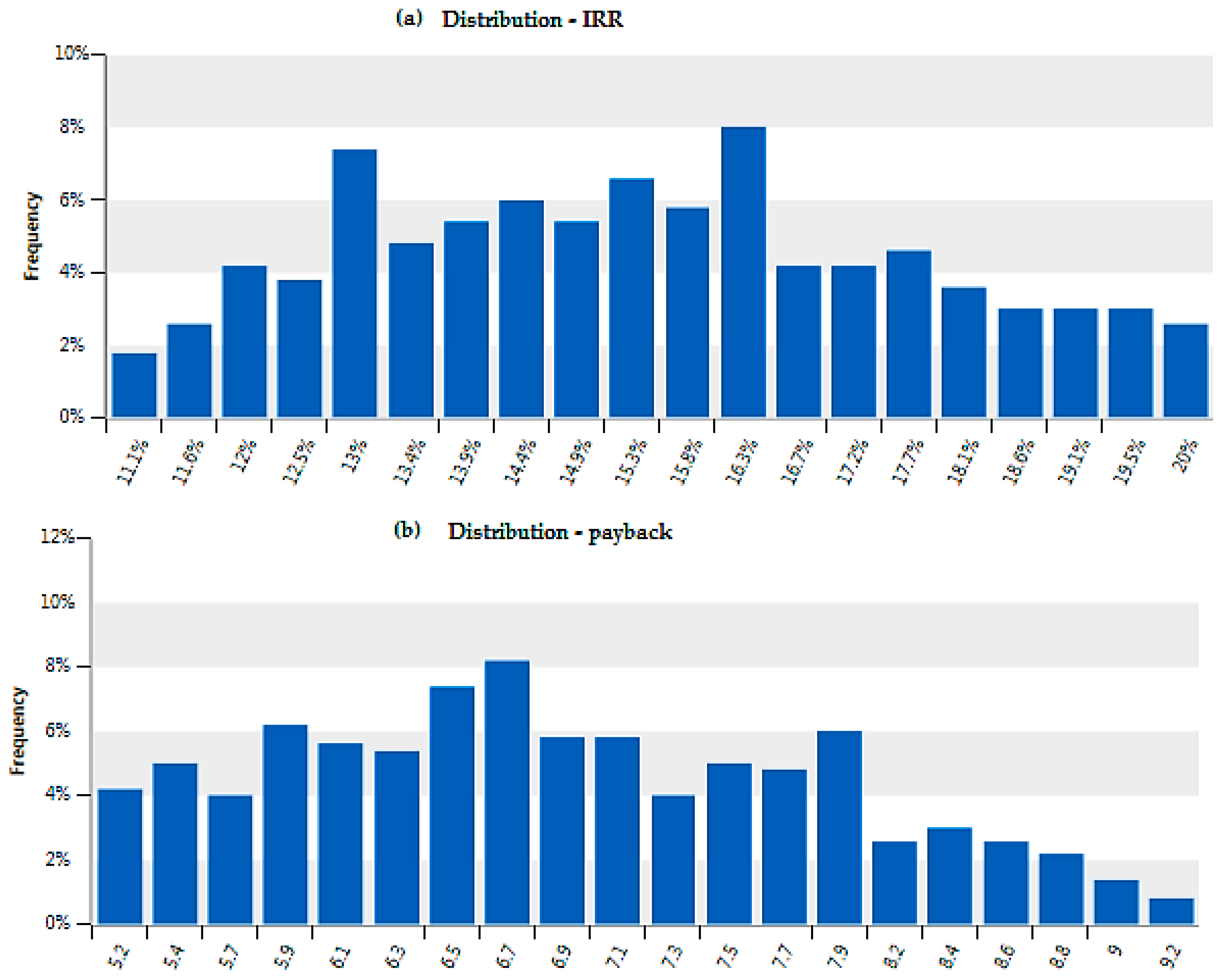

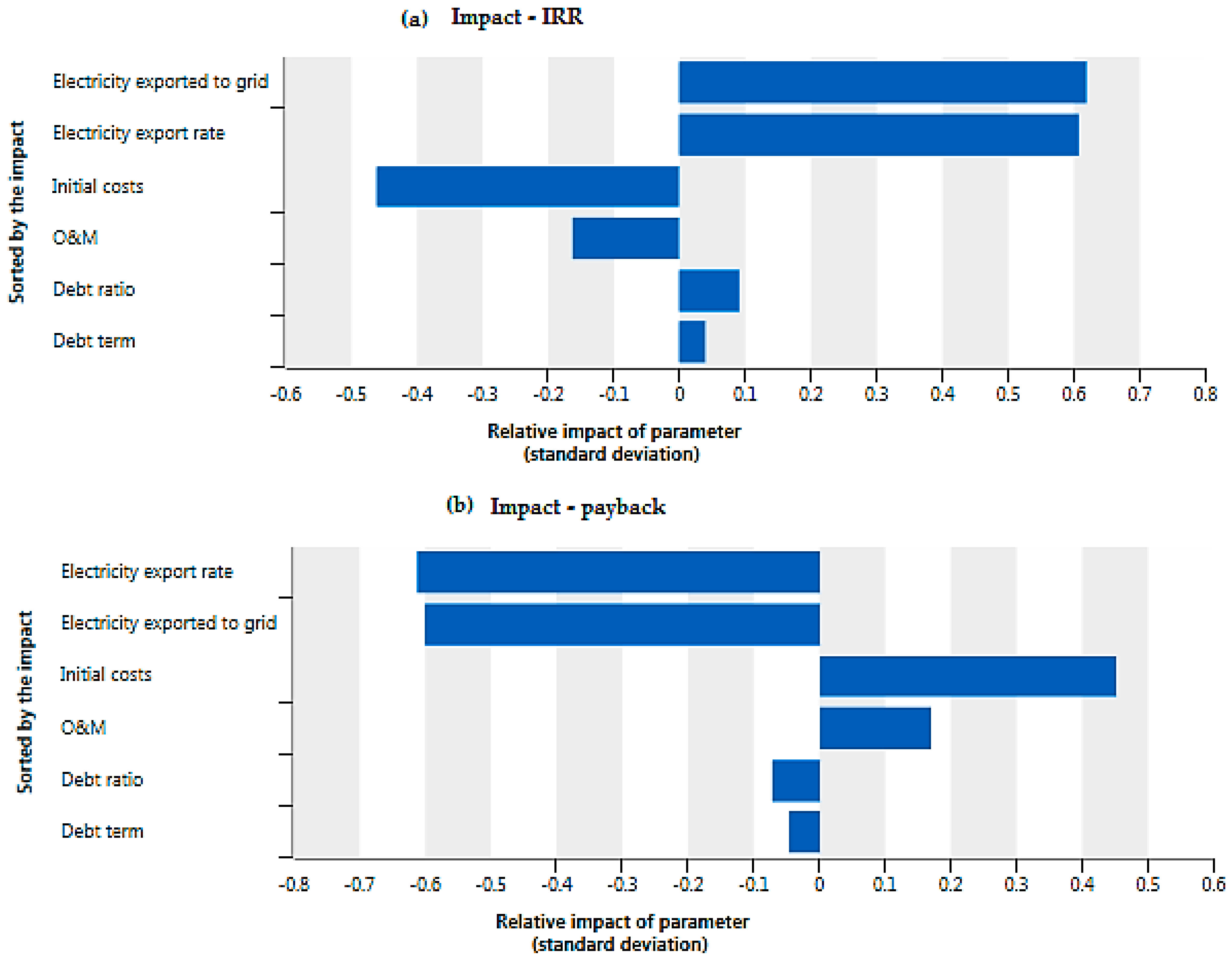

Risk analysis is an analytical framework for dealing with uncertainties of a project. The objective is to reduce the likelihood of carrying projects with loss while not failing to accept good projects as costs and benefits are subjected to uncertainties and may vary from the base case. The risk analysis provides a probability distribution of the project outcome and a level of risk associated with the project. The risk analysis has been done using RETScreen with a risk level of 10%. The obtained results of the risk analysis for the studied wind farm in this paper are illustrated in Figure 17. Different factors such as initial cost, operating and management cost, and debt have different impacts on the thermo-economic feasibility of the proposed project as can be observed in Figure 17. Initial cost is the largest, followed by operating and management costs (O&M). Furthermore, the results obtained for the IRR distribution and payback period are shown in Figure 18. The probability distributions of IRR and payback period show the feasibility of the studied project as the risk of the loss is much lower compared with the profit. The IRR is large between 13% and 16.5%, with two predominant peaks at 13% and 16.3%. On the other hand, the payback largely occurs for years less than 8, with a peak in the 6th year. It declines rapidly after the 8th year.

5. Conclusions

In this study, the RETScreen model is used to investigate the feasibility of a 100 MW wind farm for the climatic conditions of Dhahran, Riyadh, Jeddah, Guriat, and Nejran. The specific case of Saudi Arabia is considered because of a rapid increase in electricity consumption in the country which is posing technical and as well as economical stress on the utility and Ministry of Energy. The current shares of natural gas and oil used for power generation are 37% and 63%, respectively. Furthermore, comparative greenhouse gas (GHG) emissions for different countries indicate that Saudi Arabia is among the top ten countries in terms of GHG emissions. The implementation of the proposed renewable energy power system will help in boosting the deployment of such technologies and at the same time will address the problem GHG emissions.

The proposed wind farms can produce 245, 230, 234, 233.5, and 216 GWh of electricity annually for climatic the conditions of Dhahran, Riyadh, Jeddah, Guriat, and Nejran, respectively. Based on this cash flow simple payback periods of 5.9, 6.3, 6.2, 6.2, and 6.7 years are expected for Dhahran, Riyadh, Jeddah, Guriat, and Nejran, respectively. The average values of 23 and 18% are observed for IRR assets and equity, respectively, for all sites. All the financial indicators show that the proposed system seems to be economically feasible. Furthermore, it has been observed that a partial replacement of the current energy mix with the proposed wind power system can make net annual GHG reductions of 180,947; 169,077; 171,914; 171,567; and 159,596 tCO₂ equivalent of GHG for Dhahran, Riyadh, Jeddah, Guriat, and Nejran, respectively. This significant decrease of harmful emissions can help to achieve sustainable development in the country. Furthermore, a sensitivity analysis indicated that government incentive of interest-free loans can play an important role in the development and promotion of wind power technology in this part of the world.

In this paper only wind power technology has been studied, showing a good prospect of electricity generation in KSA. On the other hand, in order to make renewable-based technologies more feasible, using wind power technology alone may not be enough. In that case, hybrid technologies should be considered which could be a combination of two or more different technologies such as wind and photovoltaic (PV). That is why; in future similar studies are required for climatic conditions of KSA which should include combinations of different renewable technologies. In this way, the effective utilization of wind and other renewable energy sources can be enhanced.

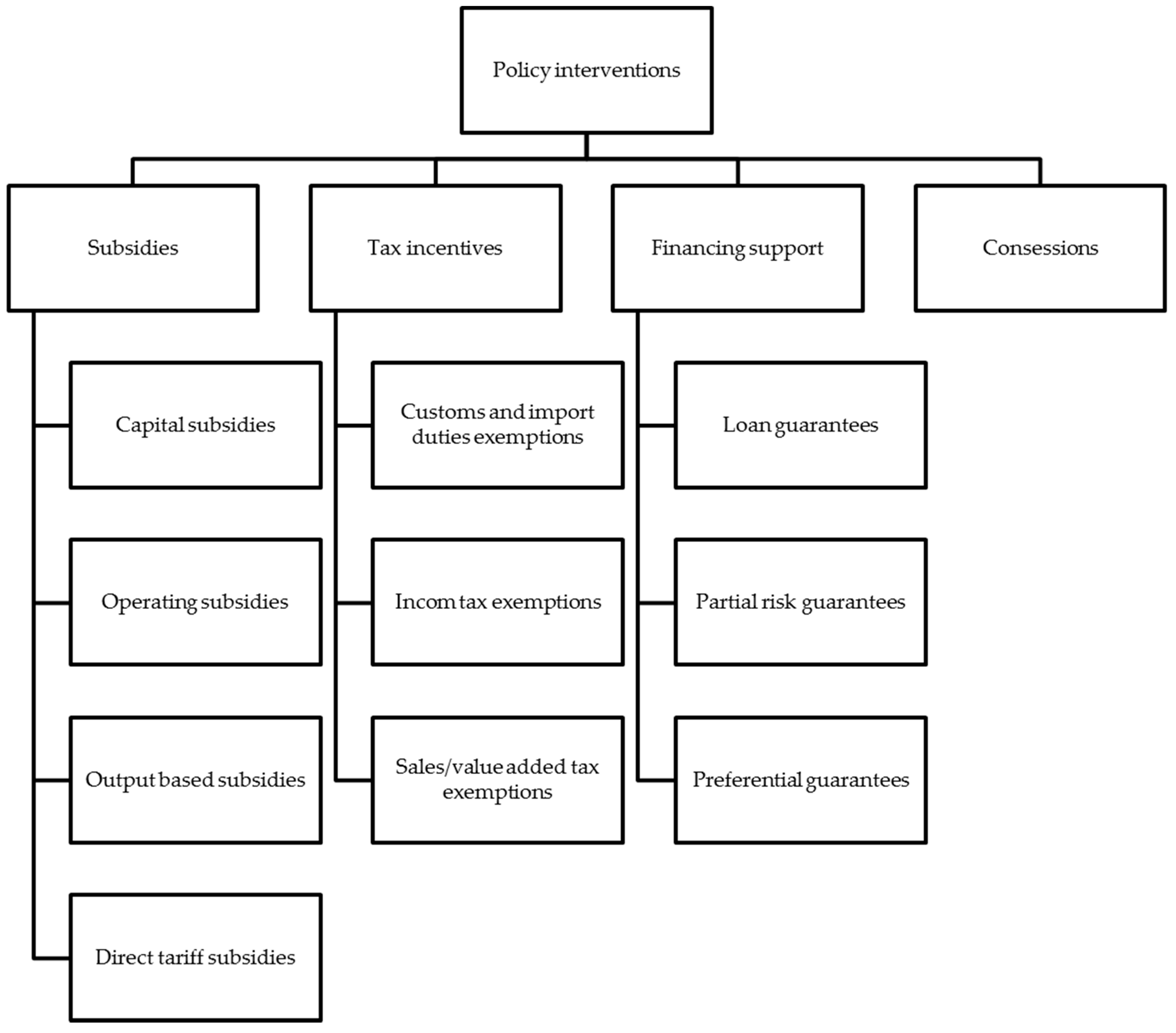

A public-private relationship should be built on a long-term basis for new investments and promotion of these technologies. The companies should be motivated for investment into wind energy projects by providing support and encouragements through different incentives. Different policy implications and interventions are required in order to overcome different barriers to the development and promotion of renewable technologies in the country. An overview of public policy interventions required is presented in Figure 19.
