Investigation and Analysis of Attack Angle and Rear Flow Condition of Contra-Rotating Small Hydro-Turbine

1
School of Mechanical Engineering, Xi’an Jiaotong University, Xi’an 710049, China
2
Institute of Science and Technology, Tokushima University, Tokushima 770-8506, Japan
3
Graduate School of Advanced Technology and Science, Tokushima University, Tokushima 770-8506, Japan
*
Author to whom correspondence should be addressed.
Received: 10 June 2018 / Revised: 27 June 2018 / Accepted: 3 July 2018 / Published: 10 July 2018
(This article belongs to the Special Issue The Nexus of Renewable Energy, Water, and Food Systems)
Full-Text   |   PDF [7571 KB, uploaded 10 July 2018]   |

Abstract

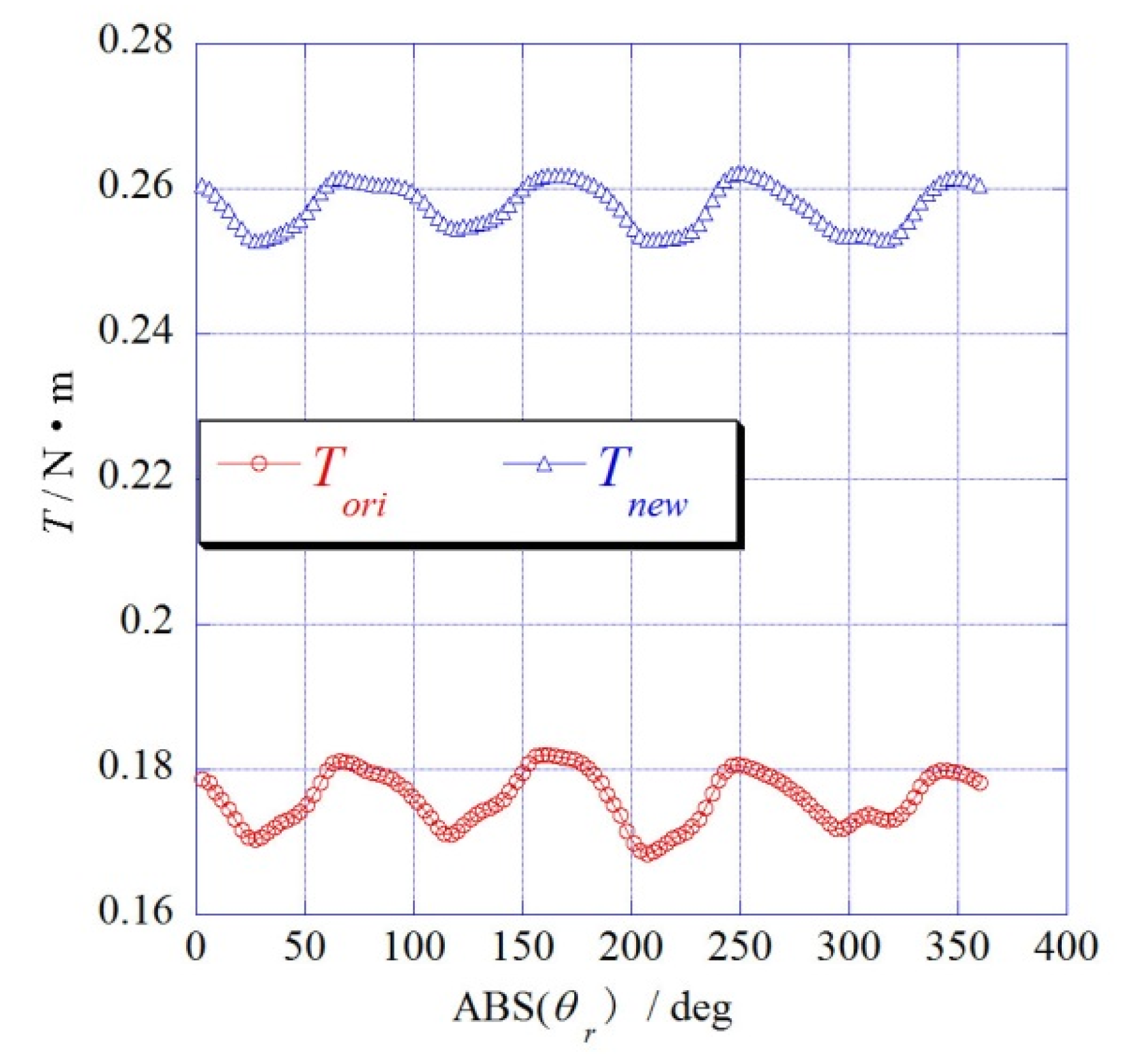

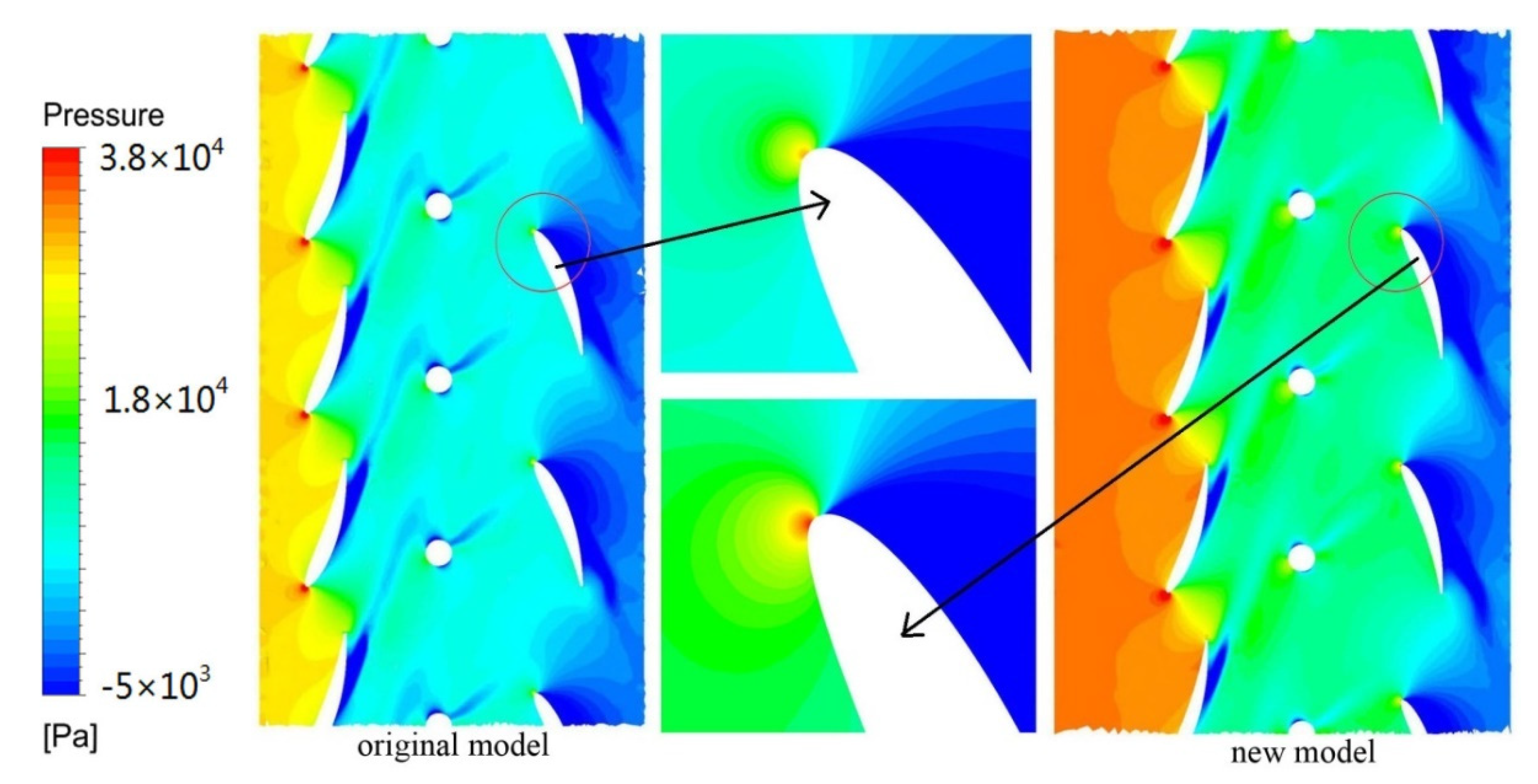

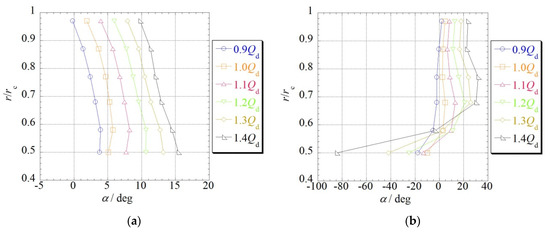

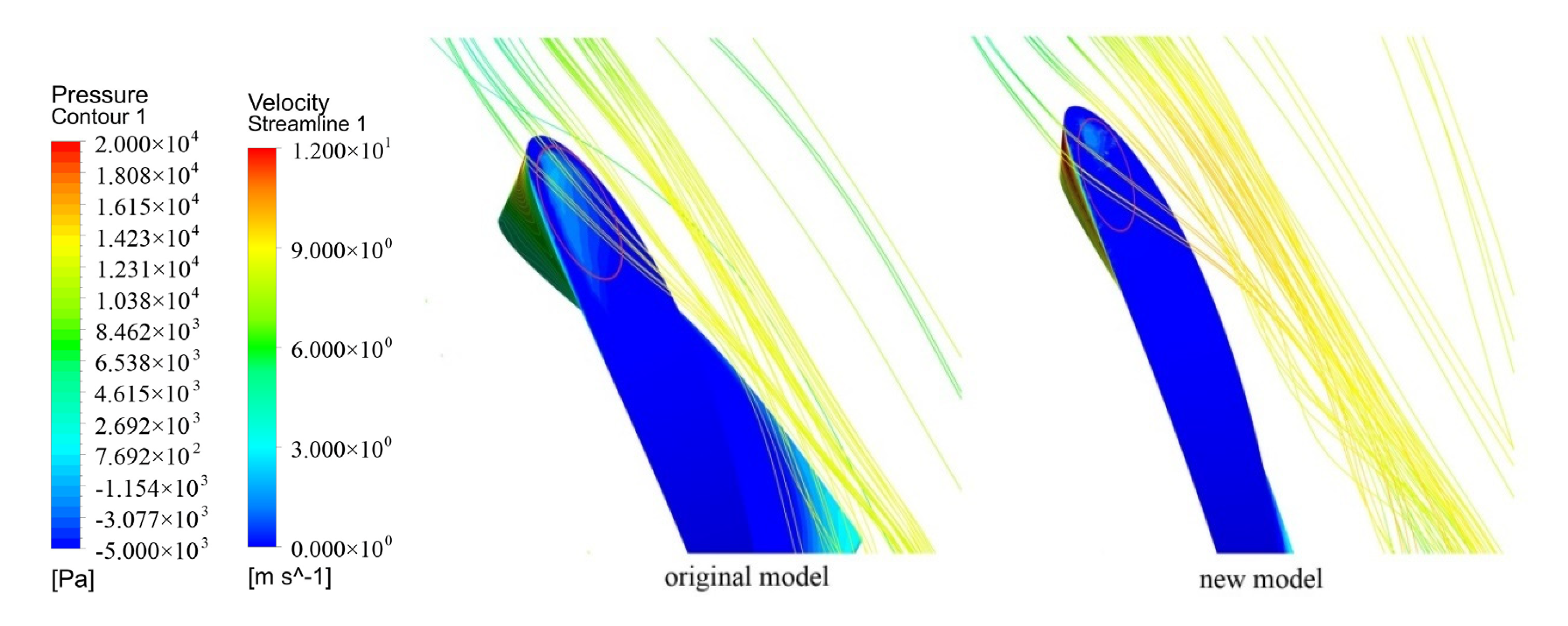

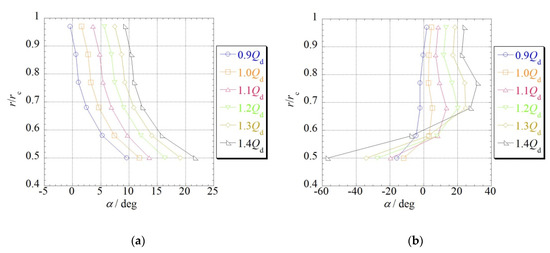

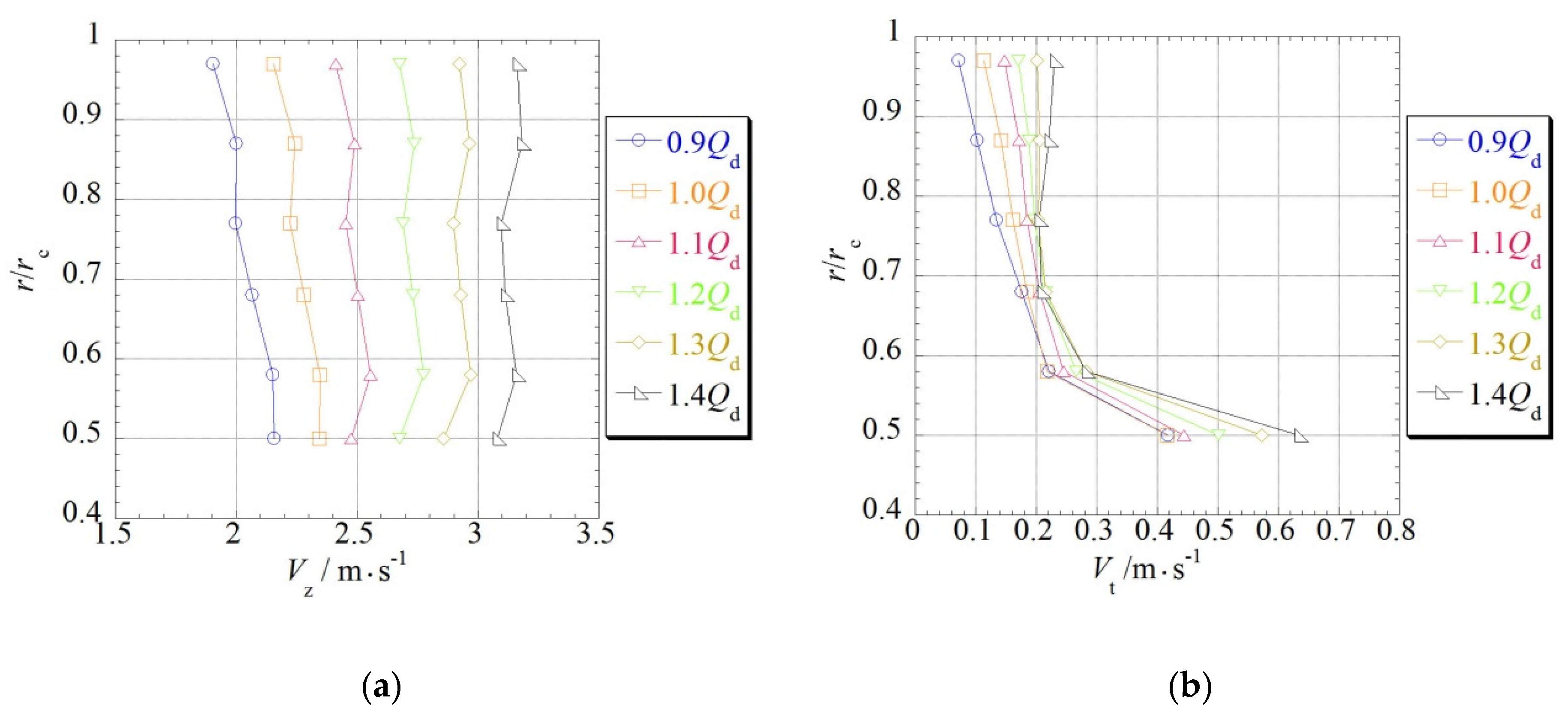

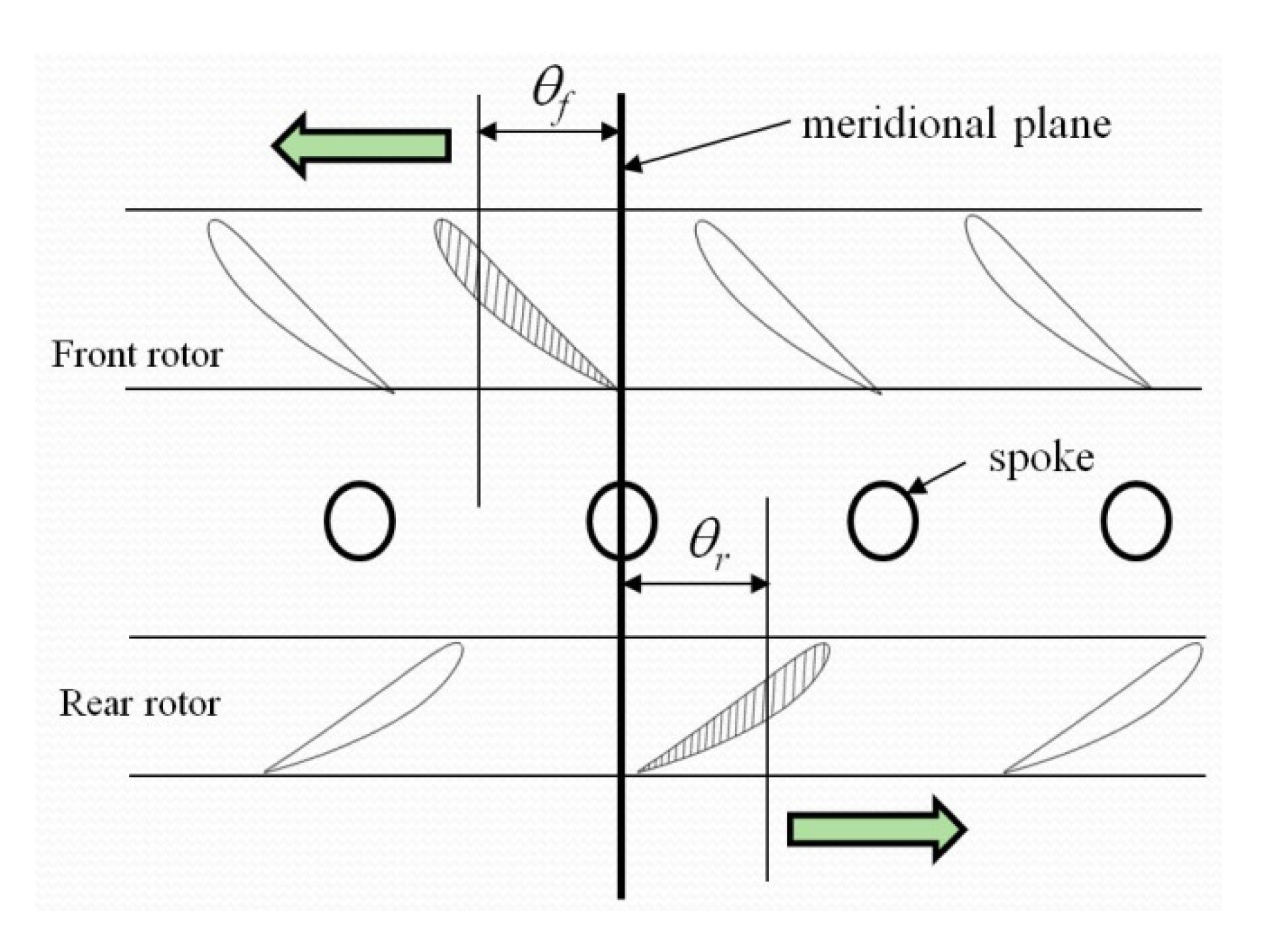

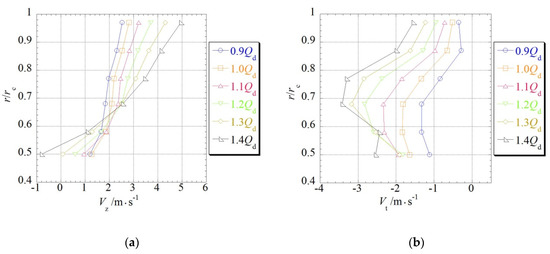

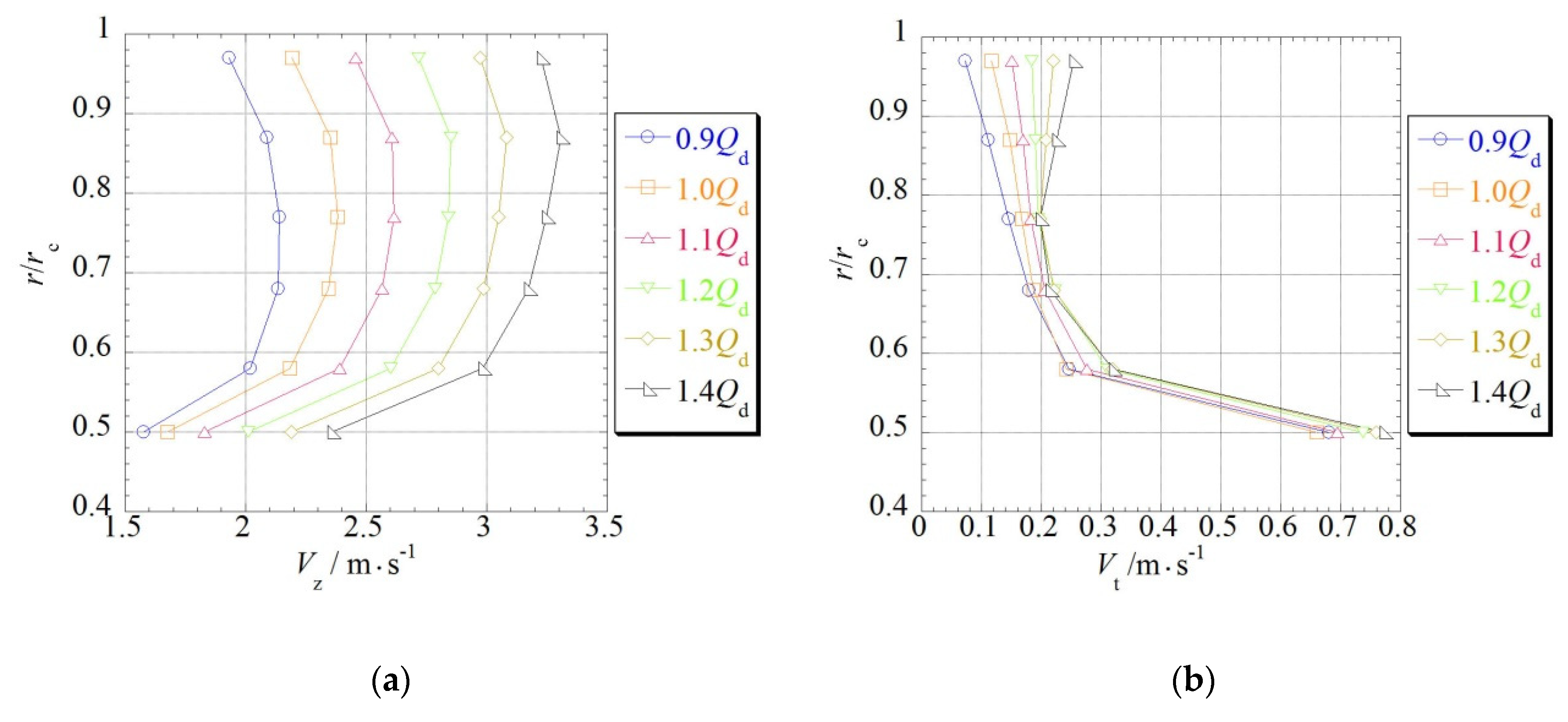

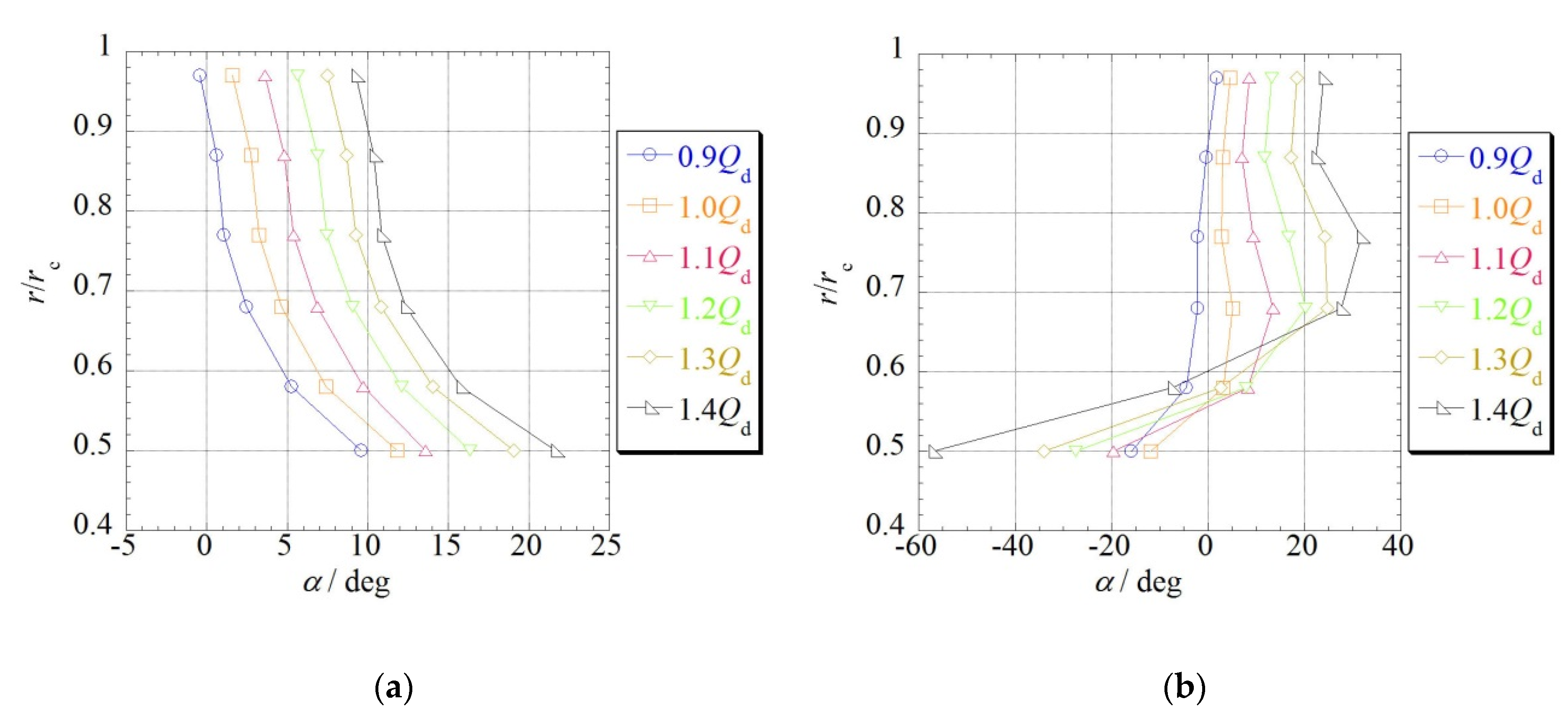

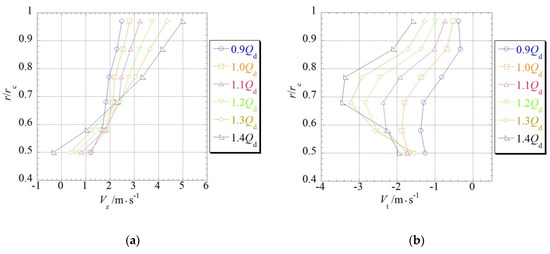

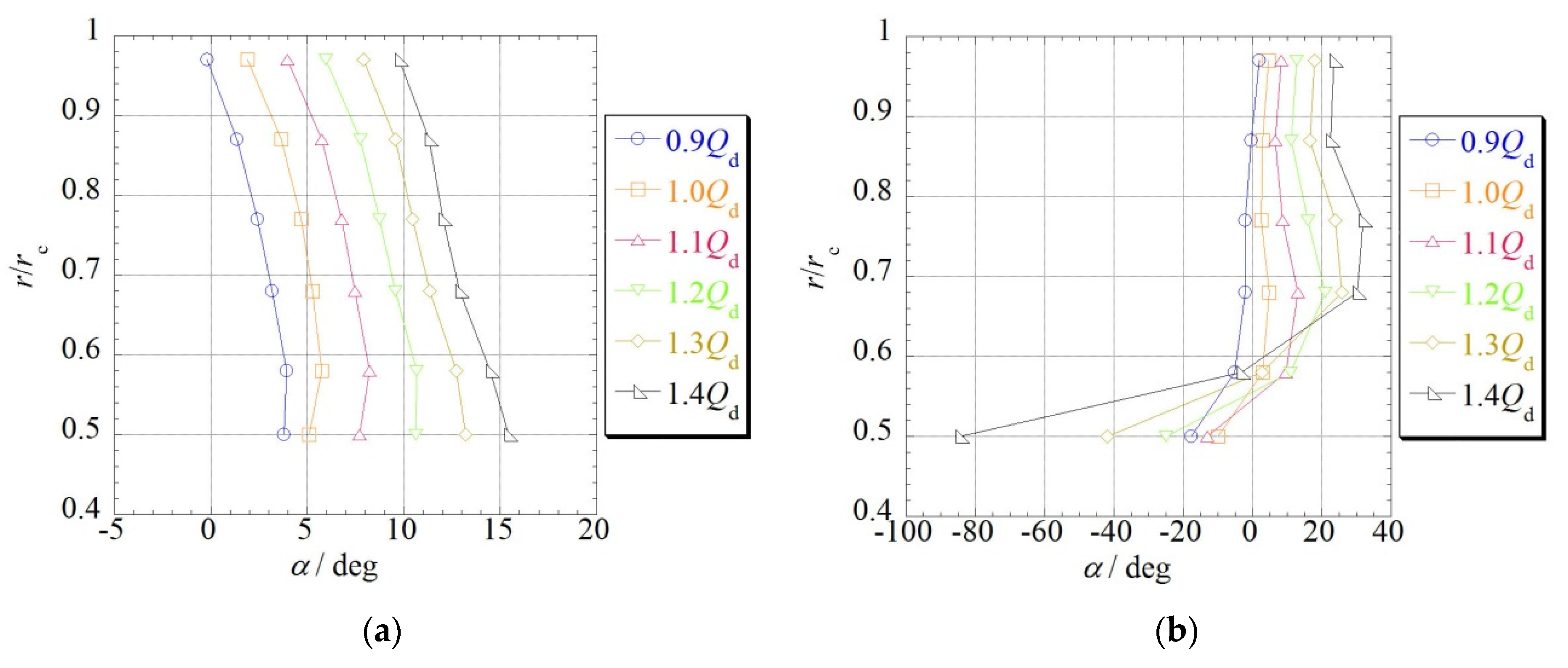

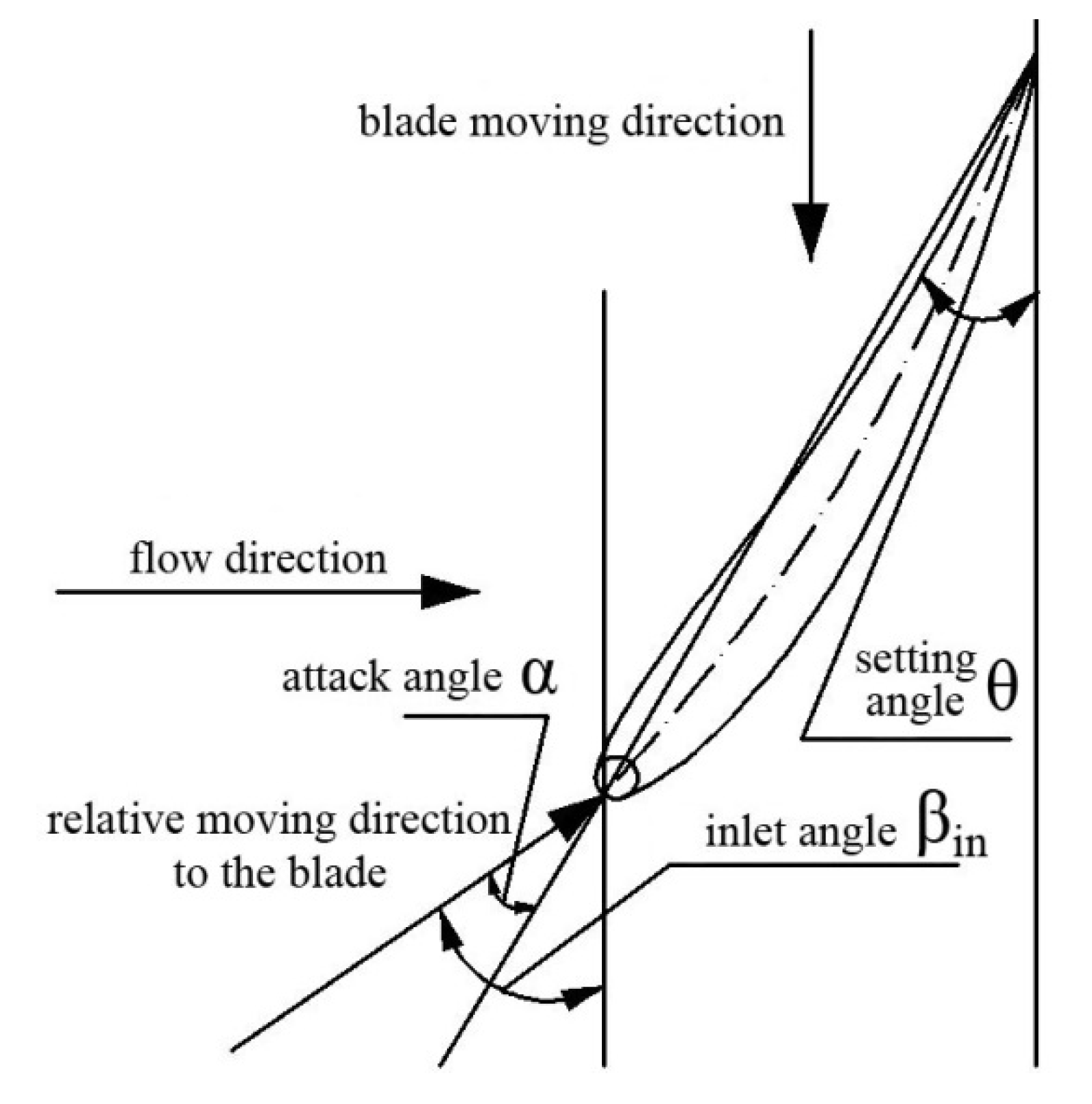

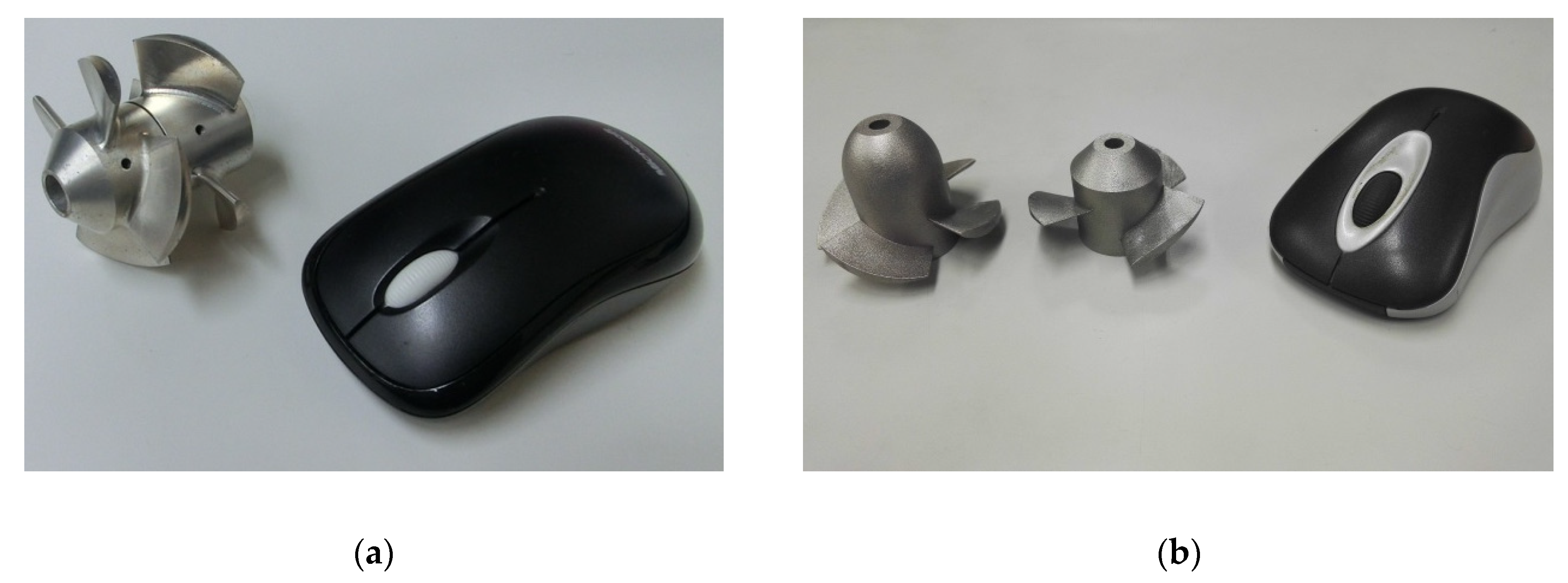

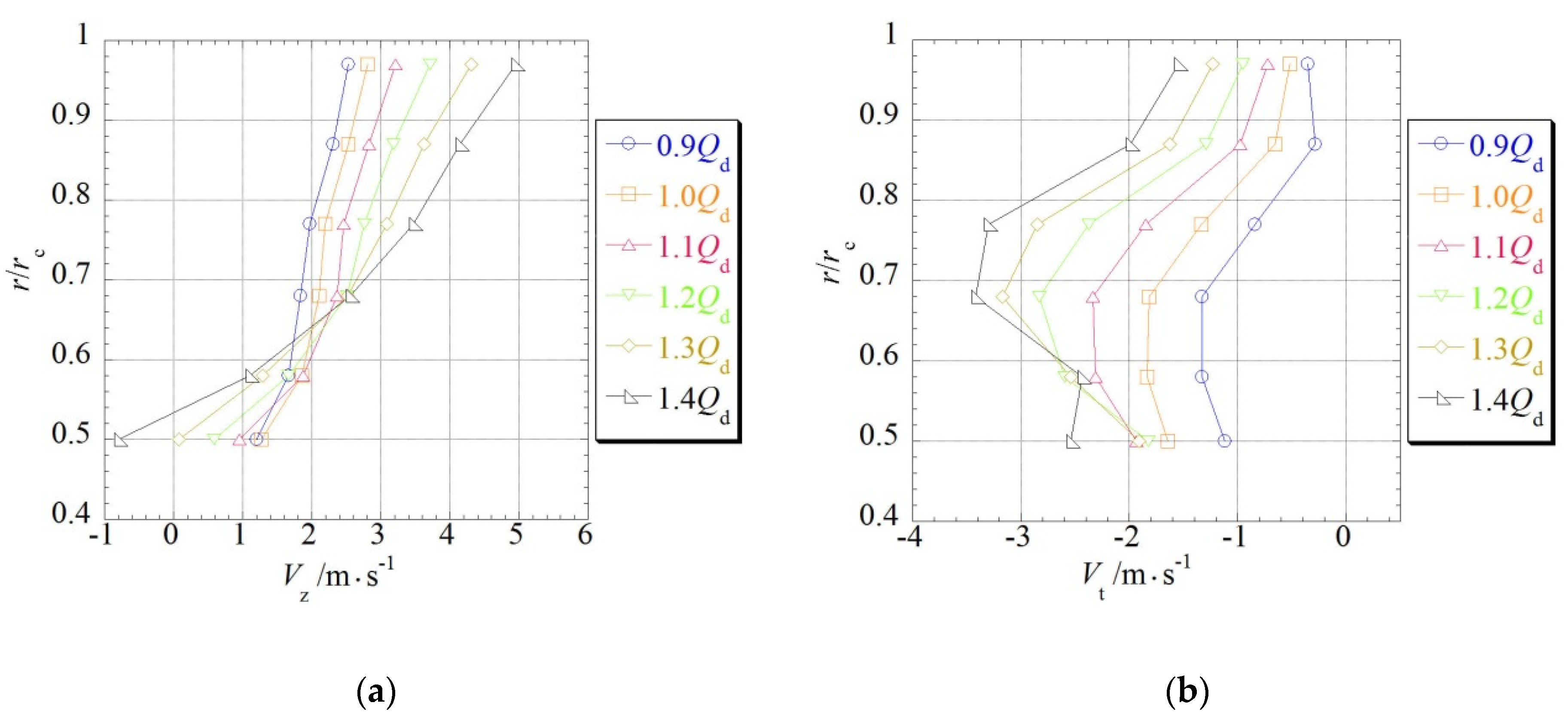

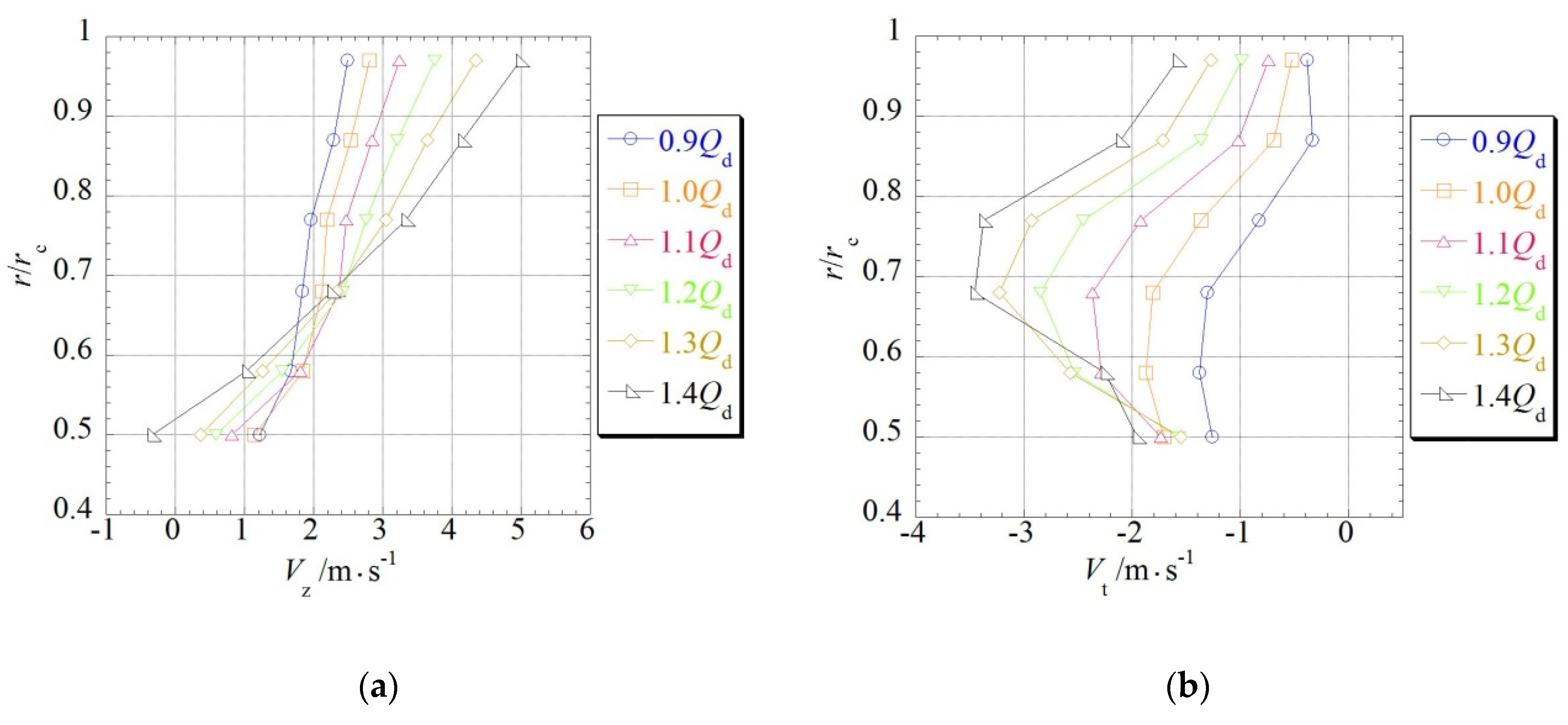

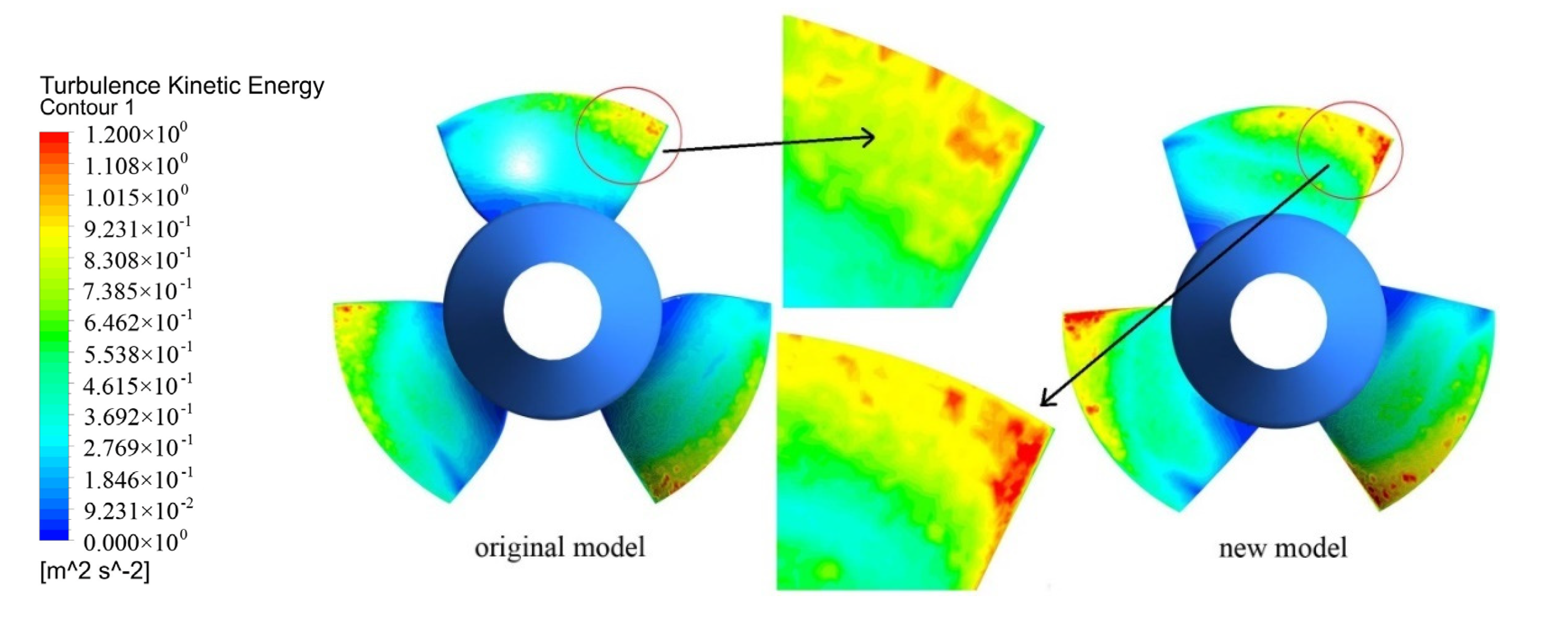

At present, there is strong impetus for renewable energy to replace the traditional energy sources because of the environmental pollution. Small hydropower is a promising renewable energy source; however, small hydro-turbines easily become blocked and impacted, and the efficiency of such devices is lower. Therefore, we examined contra-rotating rotors to overcome these disadvantages. We have made modifications to the blade thickness and to the front hub of the original model. In this paper, we focus on the attack angle and rear flow condition of the original model and the modified one. The axial and circumferential velocities are given as outputs, from which the attack angle is then calculated. The results show that the attack angle of new model is smaller at the hub area. The stagnation point of the rear rotor was moved slightly to the pressure surface of the rear blade, and the separation at leading edge area was suppressed. The crowed flow at the tip clearance area is also reduced. The high turbulent kinetic energy area is moved forward to the middle of the blade. The rear rotor’s torque is bigger and changes more smoothly. Therefore, the rear flow conditions of the new model are improved. View Full-Text
Keywords: renewable energy; small hydro-turbine; contra-rotating rotors; attack angle; flow condition renewable energy; small hydro-turbine; contra-rotating rotors; attack angle; flow condition
