1. Introduction
Electricity and natural gas transmission networks in the United States (U.S.) are interconnected energy infrastructures whose operation and reliability depend on one another to a large extent. The most significant interconnections between both energy systems exists at natural gas fired power plants (GFPPs) and electric driven compressors (EDCs) in gas compressor stations. GFPPs represent generation entities in the power system, while at the same time they represent large consumers in the natural gas network. Gas generators require a minimum delivery pressure for operation, which, if violated, can lead to curtailment of gas offtakes, and in the worse case to a complete shut down of the GFPP [
1,
2]. EDCs, in contrast, represent electric loads in the power system, which are utilized by electric drivers to propel compressors in gas compressor stations in order to increase the gas pressure for pipeline transportation. In this paper, we focus mainly on the impact of GFPPs on the operation of the combined energy system.
The interconnection and interdependency between power and natural gas networks has become stronger in the past decades with the increase in the total installed capacity of GFPPs. U.S. natural gas deliveries to electric power consumers has increased by 60% between 2006 and 2016 [
3]. This trend is partly due to the increase in electricity consumption, unconventional gas extractions, greenhouse gas (GHG) emission concerns, and, lately, lower natural gas prices. It is expected that this trend will continue along with the future increase of renewable energy sources (RES). The need for flexibility in power systems increases with higher penetrations of variable RES, such as wind and solar power, due to their variable and uncertain nature. This flexibility can be partially mitigated, among other options, by fast-reacting gas-fired power plants. These power plants are operated differently under high RES penetrations by ramping upward and downward more frequently and to a larger extent, and by starting up and shutting down more often.
The times during which, and the extent to which GFPPs extract natural gas from the gas network, and the extent to which they do so, depend strongly on their generation schedule. In other words, higher RES penetrations in the power system will not only impact how GFPPs interact within the power system, but they will also impact how they interact with the natural gas network. For instance, a large wind or solar power forecast error could be the cause of a large change in gas demand to be handled within the natural gas network operational and flexibility boundaries.
Traditionally, gas and power transmission systems have been planned and operated independently, due to the relatively weak coupling between both systems in the past. However, the growing interdependency between the energy vectors suggests the need for models and tools to study how this trend may impact the operation of both systems, and how to improve the coordination between gas and power transmission system operators (TSOs) to increase operational efficiency and system reliability.
The research area of gas and power system interdependency is relatively new. Recently, a number of studies in this area addressing the operational coordination between both energy carriers have been published. In [
4], the authors review the research works carried in the optimization of natural gas transportation systems, specifically in the areas of short-term basis storage, pipeline resistance and gas quality satisfaction, as well as the challenges faced considering the steady state and transient models. In [
5,
6], the authors introduce an optimization model for the combined simulation of gas and electric power systems, where both systems are interconnected through GFPPs. The model consists of a DC-OPF model for the power system and a transient hydraulic optimization model for the gas system. However, the authors do not consider important generator constraints such as the ramp rate and start-up and shut-down times and costs that are essential for making day-ahead and real-time unit commitment decisions. Nevertheless, the results presented by the authors indicate that increased coordination between gas and power system networks is required to ensure security of supply and economic efficiency, particularly, under highly stressed conditions.
In [
7], a security constrained economic dispatch model for integrated natural gas and electricity systems was presented considering both wind power and power-to-gas processes. The authors use a transport model to represent gas flow in pipelines, which does not properly account for changes in linepack and pressure. In [
8], a bi-level optimization model for day-ahead coordinated operation of an electricity network and a natural gas system is developed. The coordination of both systems is carried out under steady state conditions, and, as such, cannot resolve the gas system impacts from dynamic behavior such as wind ramping. In [
9], the authors developed a framework for modeling and evaluating integrated gas and electric network flexibility, taking into consideration changes in the heating sector. The constraints imposed by the gas network’s local flexibility limits are particularly considered. The authors use a DC-OPF approach to model the electric power system and both steady-state and transient models for the gas system. Chaudry et al. [
10] present a multi-time period combined gas and electricity optimization model that highlights the consequences of failure of important facilities in a combined network. Whilst a transient approach was used for the gas network, a direct current power flow (DC-PF) approach was used for the electric network. In [
11], the authors proposed a bi-level mathematical model for the security-constrained unit commitment problem using fuzzy logic to model the uncertainty of the gas system. A steady-state approach was used for the gas network and a DC-PF was used for the electric network. Bai et al. [
12] present an interval optimization model based on an operating strategy, which considers demand response and wind power uncertainty. A steady-state mathematical model was applied for the gas system, while a DC-PF model was used for the power system. In [
13], a short-term stochastic model was developed to coordinate natural gas and wind energy units in power systems considering the constraints of the natural gas networks, such as emission limits and wind energy variability. The authors use a DC-PF approach to model the electric power system, while a steady state model was used to describe the operation of the natural gas system.
The majority of the models addressing the coordination between gas and power systems in the literature use steady state models to describe the operation of the gas system, which is inadequate for operational analysis since the changes in linepack and the time evolution of pressures are not captured appropriately in steady state models. These phenomena are important considerations to account for in order to account for the pressure limits in the gas system when operating a large number of gas fired generators. Moreover, most studies do not distinguish between the day-ahead scheduling and real-time operation in the gas and power systems, which can lead to an underestimation of the flexibility needed in the operation of both systems. In addition, most studies do not use a complete model for the gas system. For instance, the inertia and gravitational term in the pipe flow equation (momentum equation), as well as key gas system facilities such as underground gas storage and liquefied natural gas (LNG) regasification terminals are usually neglected. The latter are particularly important when studying the operation of gas generators, since they provide additional flexibility to react to fluctuations in supply and demand.
In this paper, we close some of the gaps identified in the literature by developing a co-simulation platform to study how the coordination between gas and power system TSOs may improve the operational efficiency and reliability of interconnected gas and electric power transmission networks. The co-simulation platform consists of a steady-state direct current (DC) unit commitment and economic dispatch model to simulate bulk power system operations and a transient hydraulic model to simulate the operation of bulk natural gas pipeline networks. Here, a steady-state electricity model combined with a transient natural gas model is appropriate because the dynamics of the electricity system are orders of magnitude faster than the dynamics of natural gas system, and our focus is on natural gas system dynamics. The system models are implemented in two separate simulation environments, namely, PLEXOS [
14], a production cost modeling tool for electric power systems and SAInt-Scenario Analysis Interface for Energy Systems [
15,
16,
17,
18,
19,
20]—an energy systems integration tool that includes a standalone steady-state and transient hydraulic gas simulator. The data exchange between the simulations is conducted by an interface that maps the power generation of gas generators in the power system with the corresponding fuel offtake points in the gas system. The information exchanged between both simulation environments is:
the day-ahead (DA) and real-time (RT) fuel offtakes of gas fired generators in the electric power system and
the fuel offtake constraints imposed by the gas network system on the power system, due to pressure restrictions in the gas system.
The goals of this paper are:
to develop a combined power–gas test system that can be used to test and benchmark different methods for addressing the simulation of interdependent gas and electricity systems,
to show the importance of considering the restrictions imposed by gas transmission networks when operating a large number of gas fired generators in the electric power system, and
to demonstrate the importance of coordination between gas and power TSOs to improve the efficiency and reliability of the combined energy system.
To achieve these goals, the paper is structured as follows. In
Section 2, we give a brief introduction to the gas and power system models used in this study and present the structure of the co-simulation platform that coordinates between the two simulation environments. In
Section 3, we apply the co-simulation platform to study three scenarios with different wind and solar penetration levels and compare how the day-ahead coordination between the gas and power systems may impact the operation of both energy systems. Finally, in
Section 4, we discuss the results and give and provide a look at future studies that can be developed from the models and results presented in this paper.
2. Methodology
Electric transmission networks in the U.S. are managed by vertically integrated utilities and Independent System Operators/Regional Transmission Organizations (RTOs) depending on the region. These entities are responsible for clearing the regional electricity market and for scheduling the operation of power system generators to balance power system loads. In most U.S. electricity markets, the commitment and dispatch of generators are scheduled in two steps, namely, the day-ahead scheduling (DA) and the real-time balancing (RT). The first step involves clearing the day-ahead market 24 h prior to the operating day, using a unit commitment (UC) model to determine when and which generation units will be operated during the operating day and the scheduled generation of these committed units. This is done considering their operational costs and constraints, the projected power system loads and reserve requirements. The RT, on the other hand, involves clearing the real-time intra-day market by solving a real-time UC and ED model typically every 5–15 min.
Gas transport systems, in contrast, are managed by gas transmission companies, which are responsible for ensuring reliable and economic operation of the gas transmission system. In a gas market, day-ahead and intra-day bi-lateral agreements based on steady rated nominations exist between gas traders (shippers) and transmission system operators. The day-ahead nominations are used by gas transmission companies to develop a day-ahead operational schedule before the actual operating day, which involves determining the cost-optimal settings of controlled facilities, such as compressor stations, regulator stations, valves and gas storage facilities and at the same time ensuring that pressure limits and linepack requirements are fulfilled during the operating day. In real-time operation, the control of the gas system is adjusted in response to changes in demand and supply based on practical experience and the evaluation of a large set of look-ahead-scenarios using transient hydraulic simulation models. In the past, these changes were relatively small and could be managed quite well, since the majority of gas customers were local distribution companies (LDC) with firm contracts and nearly constant hourly gas offtakes throughout the operating day. Presently, power generation companies account for more than half of total gas offtakes in some market regions in the U.S. These customers usually purchase interruptible contracts and may ramp-up and ramp-down more frequently and unexpectedly during the operations. This operating mode creates challenges for gas TSOs since gas generators may start-up and withdraw gas with short notice, leaving the gas TSO a limited amount of time to react to these changes. If this situation occurs in a moment where the gas system is in a stressed state, the gas TSO will typically curtail the gas offtakes of customers with non-firm contracts (e.g., GFPPs) to maintain reliable system operations and to ensure the delivery of gas to customers with firm contracts (e.g., LDC). Such undesired situations could be reduced and/or avoided if changes in power and natural gas systems are communicated and coordinated well in advance.
In this section, we present a co-simulation platform to examine how the coordination between gas and power TSOs may improve the reliability and efficiency of interdependent gas and electric power system operation. In
Section 2.1, we provide an overview of the power system simulation model and the power system network used for the case studies.
Section 2.2 explains the model used for simulating the gas system and the properties of the gas network model developed for the case study. Finally,
Section 2.3 is dedicated to detailing the co-simulation platform and the different simulation runs conducted for the case studies.
2.1. Power System Model
Bulk power system operations are simulated by running a production cost model in PLEXOS (6.4, Energy Exemplar, North Adelaide, Australia), a commercial power system modelling tool. The model solves a mixed integer linear optimization problem to optimize unit commitment and economic dispatch decisions subject to energy balance, reserve requirements, generation, transmission, and demand constraints. The model simulates bulk power system operations by modelling DA commitment decisions and the resulting RT generation re-commitment and dispatch decisions. This is done by performing two simulations, one for day-ahead and one for real-time. Day-ahead commitment decisions of electricity generators that cannot be recommitted in real time are passed and enforced from the day-ahead simulation to the real-time simulation. Day-ahead commitments are simulated considering day-ahead load, wind power, and solar power forecasts. These can lead to sub-optimal commitment decisions, especially in situations when net load (load minus wind and solar power) forecast errors are large. When net load is under forecasted, generators that were not committed in the day-ahead stage, and that have fast startup times (e.g., natural gas combustion turbines), will be recommitted and started in real-time to meet the electricity load not accounted for.

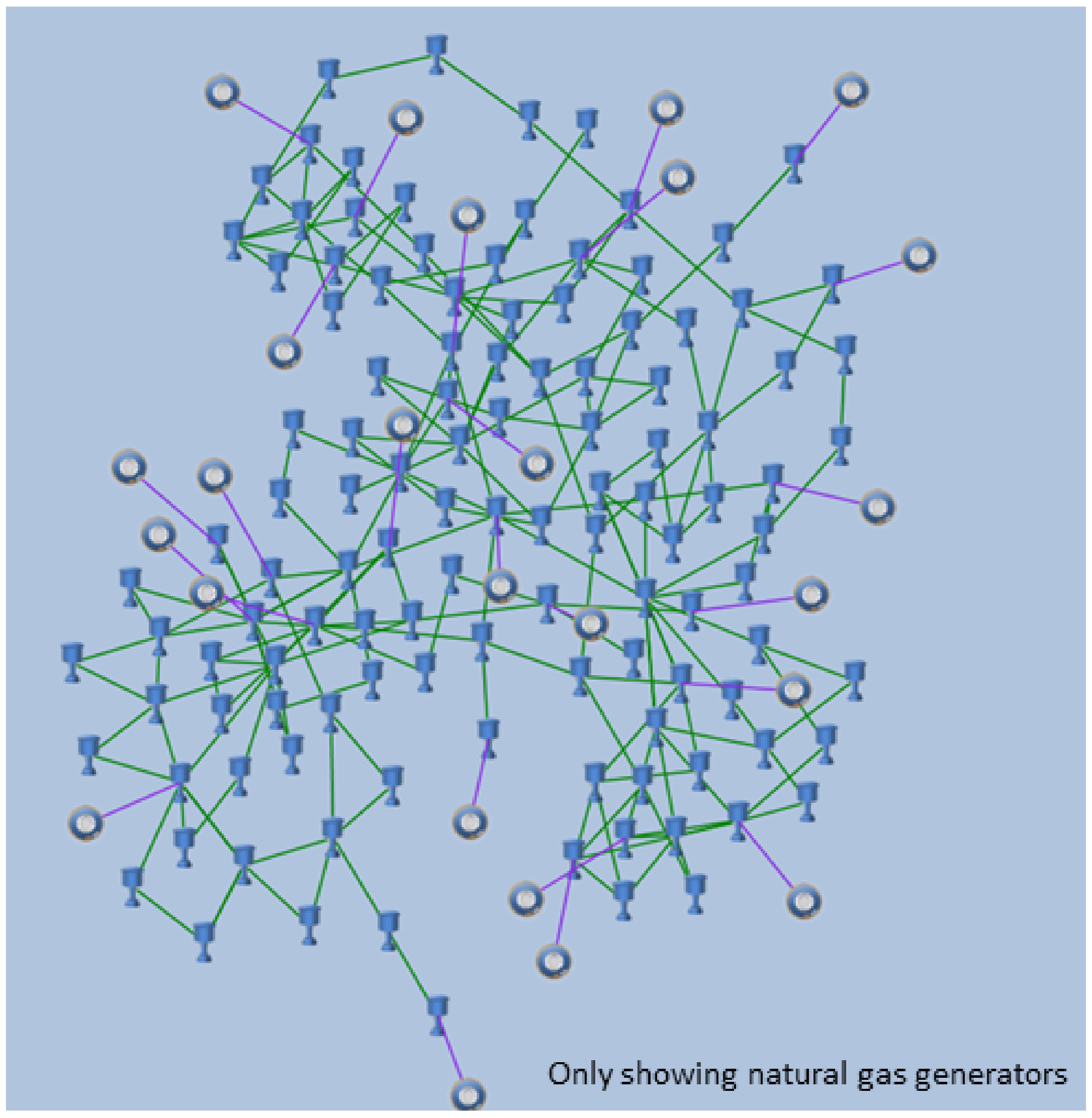

In this paper, we model a test power system defined in
Figure 1.
The test system is based on the IEEE 118-bus test system. The hourly load profile utilized is the historical load from the San Diego Gas and Electric balancing authority area for the year 2002 [
21]. Time-synchronous wind data and forecasts were utilized from areas near San Diego from the Wind Integration National Dataset Toolkit [
22]. Time-synchronous solar power data and forecasts were based on data available from the National Solar Radiation Data Base [
23] and created in [
24]. The test system is designed with an electricity generation mix that resembles the current California generation mixture with high shares of gas-driven electricity generation capacity. Moreover, the test system can be modeled under three different scenarios in terms of wind and solar power penetration: 20%, 30%, and 40% in annual energy terms.
Table 1 shows the number of conventional generators included in the modeled test power system, as well as their combined installed generation capacity. The model also includes 10 wind power plants and 10 solar photovoltaic power plants that have different installed generation capacity depending on the penetration scenario.
The 25 gas power plants included in the model are of four types: steam turbine, combined cycle, combustion turbine, and internal combustion engine. The first two types are committed in the day-ahead simulation due to their longer startup times, while the two latter types can be recommitted in the real-time simulation. They can all be redispatched in RT, as long as ramping, minimum and maximum generation constraints are respected. In this paper, we examine the value of considering natural gas network constraints on the day-ahead power plants commitment decisions.
2.2. Gas System Model
The operation of gas networks is inherently dynamic. Demand and supply are constantly changing and the imbalance between these two quantities is buffered by the quantity of gas stored in pipelines, also referred to as linepack. The linepack is proportional to the average gas pressure and gives the gas system additional flexibility to react to short-term fluctuations in supply and demand. Thus, knowing the level of linepack and the pressures in the gas transport system is crucial for managing the operation of gas network. According to the law of mass conservation the linepack in a gas pipeline can only change in time if there is an imbalance between total supply and total demand, also referred to as the flow balance. This, in turn, implies that, in order to reflect the changes in linepack, and thus the changes in pipeline pressure, a steady state model, where the flow balance is always zero (i.e., total supply is equal total demand), is inadequate. Thus, for operational studies, where the time evolution of linepack and pressure are crucial, a dynamic model for the gas system is necessary.
In this paper, we reflect the behavior of the gas system by a transient hydraulic model, which is implemented in the simulation software SAInt (1.2, cleaNRGi
® Solutions GmbH, Essen, Germany). SAInt contains a model for the most important facilities in the gas system, such as pipelines, compressor stations, regulator stations, valve stations, underground gas storage facilities, LNG terminals and other entry and exit stations. The mathematical models implemented in SAInt have been published in [
16,
17,
18,
19,
20], where a detailed description and application of the simulation tool are given. Furthermore, the accuracy of the transient gas simulation model has been successfully benchmarked against a commercial gas simulation tool and other models in the scientific literature [
16,
17].
The topology of the gas network model (GNET90) used in this study is depicted in
Figure 2 and the basic properties of the network are listed in
Table 2.
The gas model has a total pipe length of 3734 km, which is subdivided into 90 pipe elements. The model includes six compressor stations for increasing the gas pressure for transportation and four valve stations for controlling the gas stream, and islanding sections of the network. The pipe and non-pipe elements are interconnected at 90 nodes, where gas can be injected or extracted from the network. The 90 nodes contain three supply nodes, which include one LNG Terminal with a working gas inventory of 80 Msm3, two underground gas storage facilities with a total working gas inventory of 1000 Msm3, 46 gas offtake stations, which include 25 GFPPs and 17 city gate stations (CGS). The minimum delivery pressure at each GFPP is set to 30 bar-g, while the minimum pressure at each CGS is set to 16 bar-g. Gas offtake stations with minimum delivery pressure limits are subject to gas curtailment if their corresponding nodal pressure cannot be maintained above the pressure limit for a given scheduled offtake. The difference between the scheduled offtake and the actual delivered quantity are integrated over the simulation time window to yield a quantity referred to as gas not supplied (GNS), or energy not supplied if multiplied with the gross calorific value (GCV).

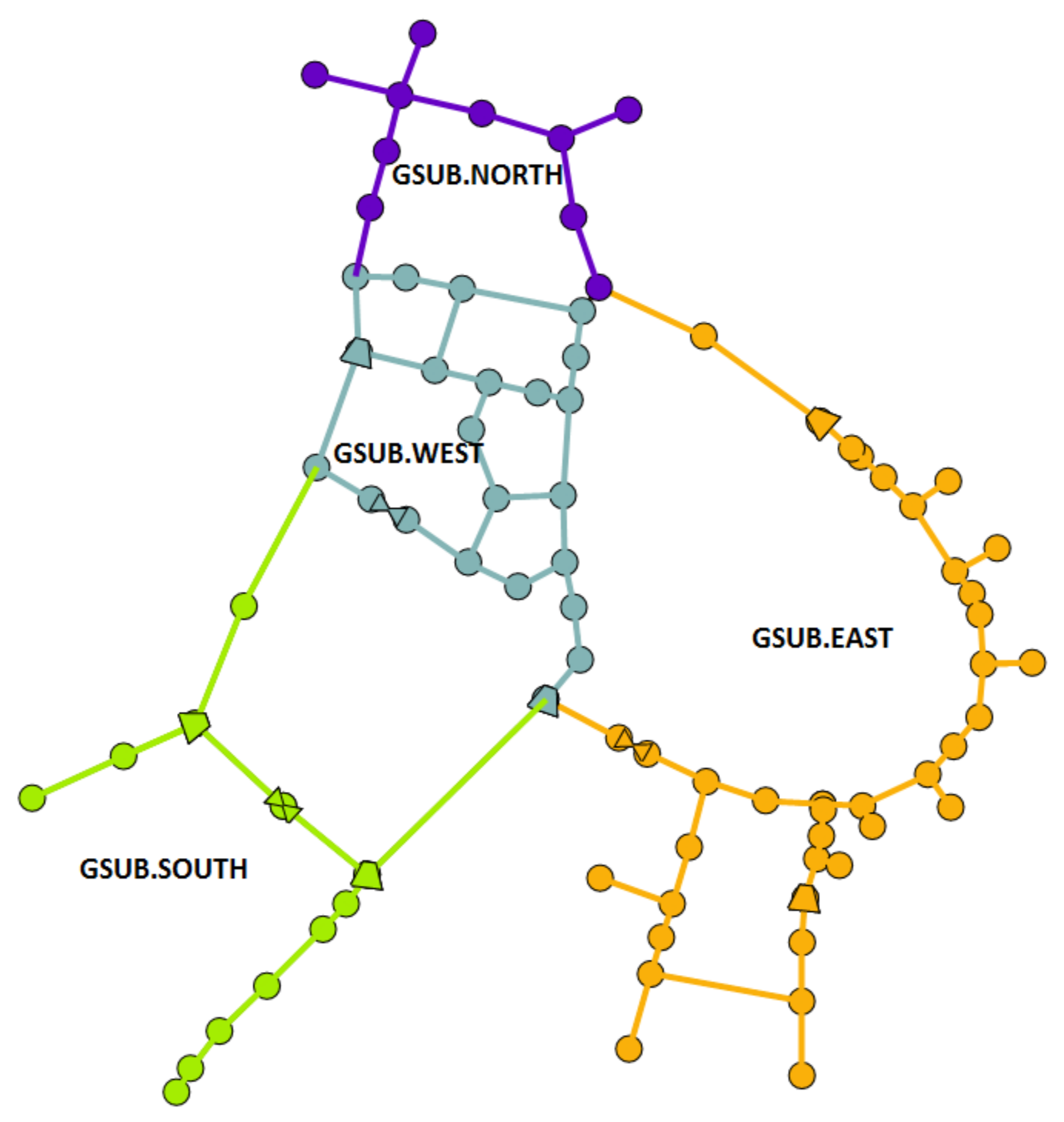

Furthermore, the gas system is divided into four subsystems, as shown in
Figure 3.
The parameters of the subsystems (e.g., linepack, minimum pressure, etc.) are used to monitor and control the pressure and linepack of specific regions in the network and to change the control modes and set points of controlled facilities (e.g., compressor stations, valves, etc.) to maintain system operating conditions, similar to actual gas network operations.
2.3. Co-Simulation Platform
The co-simulation platform is divided into two separate simulators that communicate and exchange data through a co-simulation interface implemented in SAInt, which is depicted in

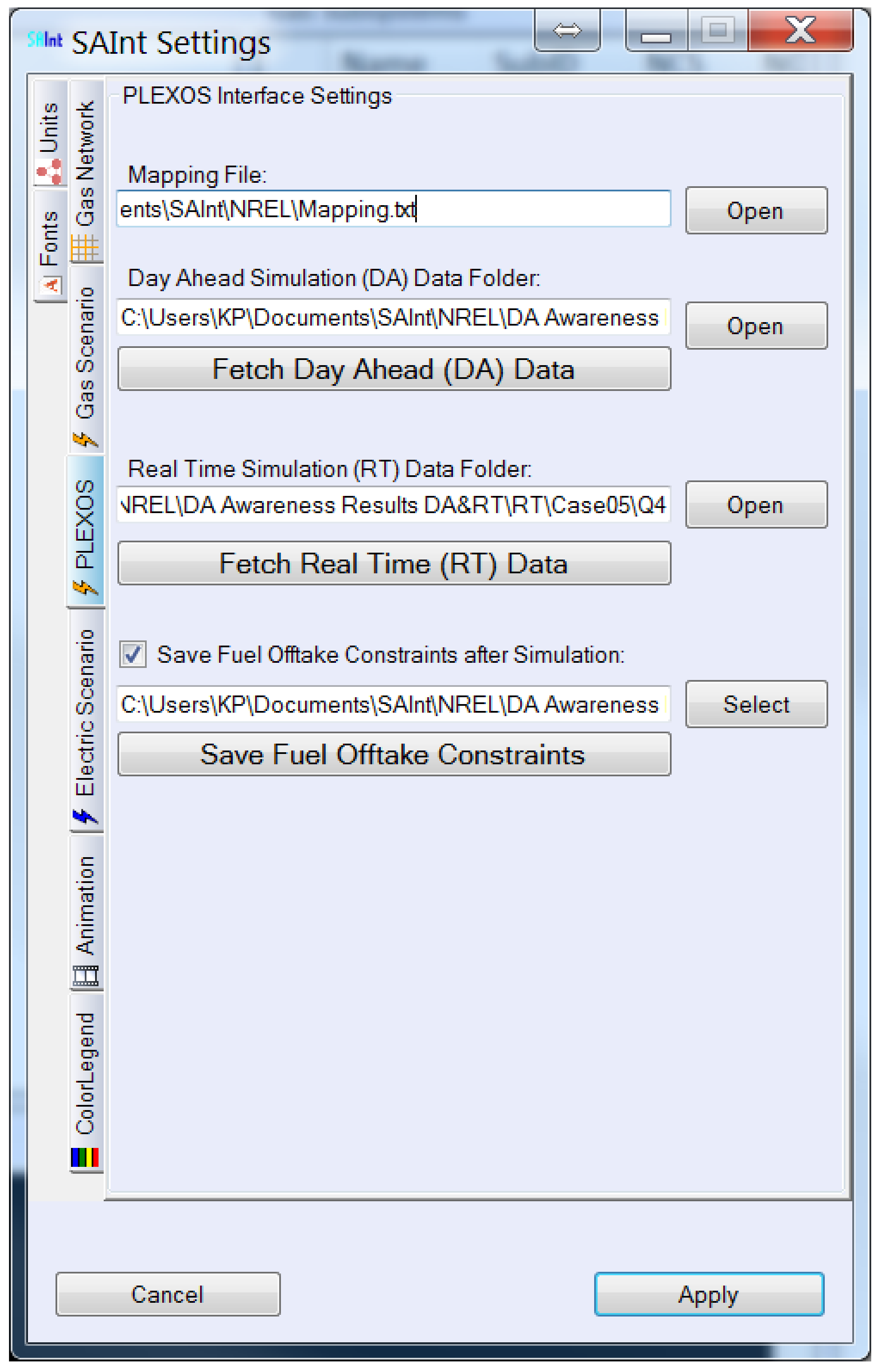

Figure 4.
The interface is responsible for mapping the hourly fuel offtakes of gas generators in the power system model to the corresponding fuel offtake points in the gas model and for transferring the hourly fuel offtake constraints computed by the gas simulator back to the corresponding gas generators in the power system model.
Table 3 shows how the different gas generator objects in the power system model are mapped with the fuel gas offtake nodes in the gas system.
The hourly fuel offtakes of gas generators computed by PLEXOS are given in the energy units of MMBTU, and correspond to the amount of thermal energy required to generate electric energy for the given hour. This energy requirement is converted to an equivalent gas flow rate in reference conditions by assuming a constant gross calorific value of 38.96 MJ/sm3 for natural gas.

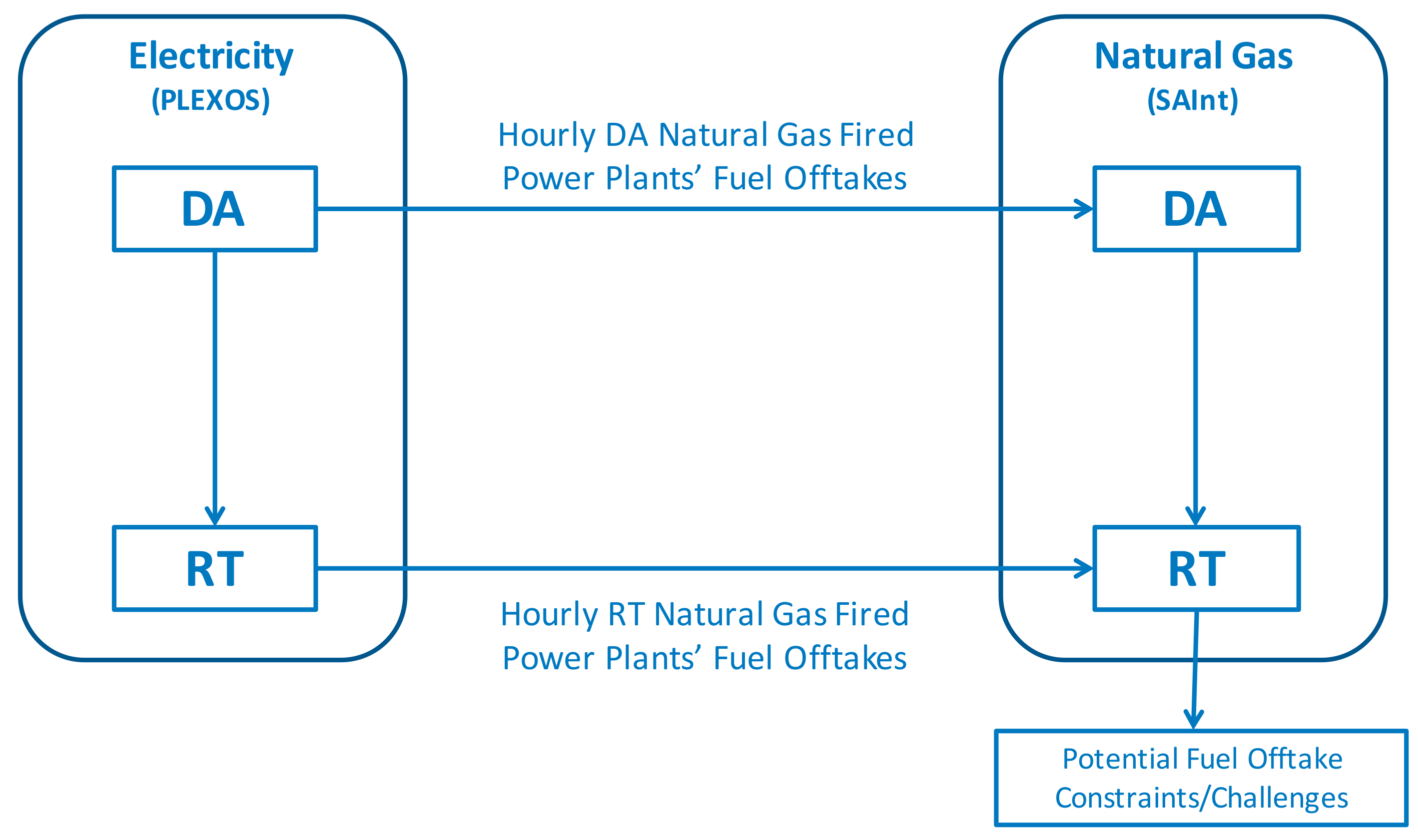

The simulation of the combined energy system is divided into DA and RT simulations as depicted in
Figure 5. The DA simulation is first run for the power system and the resulting hourly fuel offtake profiles of gas generators are exported from PLEXOS to SAInt via the co-simulation interface (see,
Figure 4) using the mapping information provided in
Table 3.
The fuel offtake profiles are then used together with the day-ahead load profiles of other gas customers and the settings of controlled facilities to run a dynamic simulation of the gas system for the day-ahead schedule. To run a dynamic simulation for the gas system, the initial state of the gas system has to be known. To obtain an initial state, we first run a steady state simulation and then use the solution of the steady state as an initial state to run an intermediate dynamic simulation with constant flow profiles, which eventually converges to a steady state condition. The reason for running the intermediate dynamic simulation is to ensure the right settings for all compressor stations and that constraints violated in the steady state are treated by the solver in the intermediate dynamic simulation. The solver does this by changing the control settings of affected facilities (e.g., curtailment of offtakes, if pressure violations are detected in the steady state simulation).
The results of the dynamic gas system simulation include the computed fuel offtake for gas generators, which may differ from the scheduled day-ahead fuel offtake profile computed for gas generators in the power system model if gas curtailments were necessary to respect pressure limits in the gas system. The fuel offtake constraints computed by SAInt can be reported back to PLEXOS to recompute the DA power system simulation, which would generate a new unit commitment schedule for running the real-time power system simulation.
We differentiate between two different cases which differ in terms of how the information about the fuel offtake constraints from the DA gas system simulation are utilized in the power system simulation. We label these situations Business As Usual and DA-Coordination, and they are illustrated in
Figure 5 and

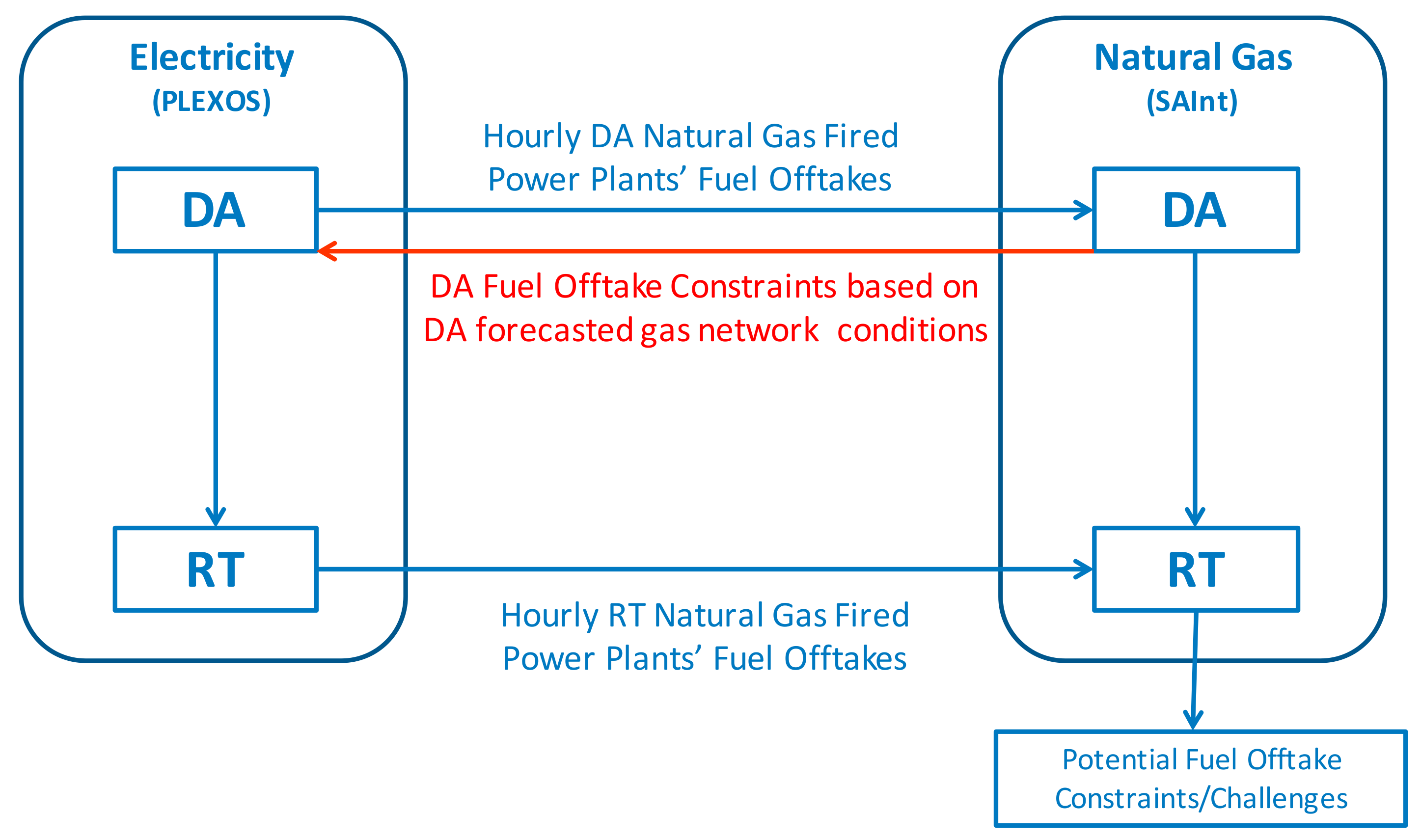

Figure 6. In the business as usual case depicted in
Figure 5, the fuel offtake constraints from the gas system are not utilized by the power system, while in the DA-Coordination case illustrated in
Figure 6, the fuel offtake constraints are used to recompute the DA power system simulation. This provides new unit commitment solution for the generators that is then applied in the RT power system simulation.
In both cases, the fuel offtake profiles from the RT power system simulation are provided to the gas system for running a RT gas system simulation using the same procedure as for the DA simulation. The fuel offtake constraints computed for the RT gas system simulation can be sent back to the power system to analyze how the coordination between both systems impacted the operation of the power system.
4. Conclusions
In this paper, we developed a co-simulation platform to assess the operation and interdependence between natural gas and power transmission networks. The platform consists of a steady state DC unit commitment and economic dispatch model to simulate bulk power system operations and a transient model to simulate the operation of bulk natural gas pipeline networks. The models are implemented in two separate simulation environments, namely, PLEXOS [
14], a production cost modeling tool for electric power systems and SAInt [
15], a transient hydraulic gas system simulator. The data exchange and communication between both simulation environments are established by an interface that maps the power generation of gas generators in the power system to the corresponding fuel offtake points in the gas system.

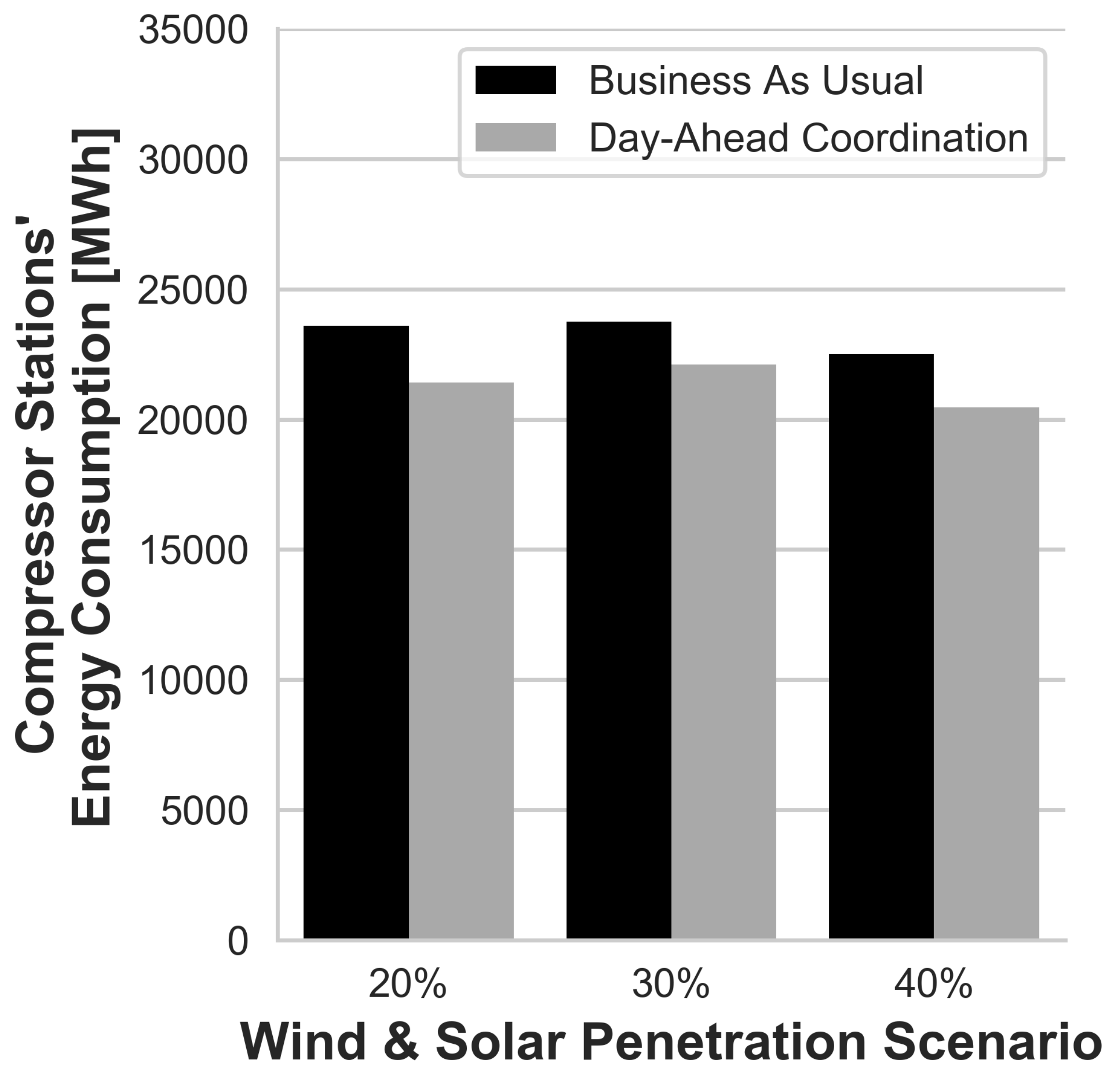

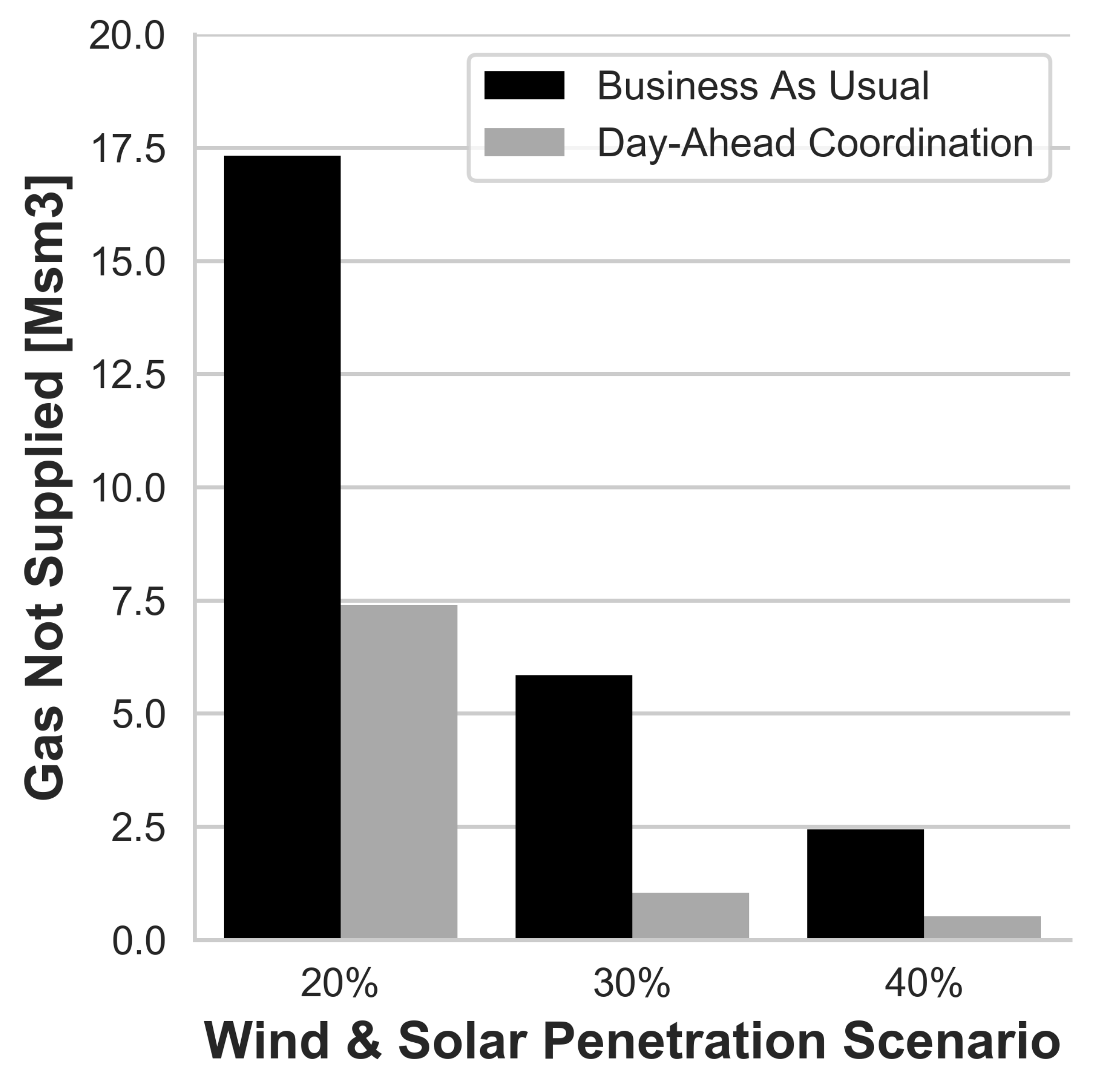

The co-simulation platform was applied on a case study on an interconnected gas and power transmission network test system with the objective to examine to what extent the day-ahead coordination between gas and power TSOs may impact the efficiency and reliability of the coupled energy systems. The two networks are interconnected at 25 gas fired power plants, which represent generation units in the power system and gas offtake points in the gas system. The case study was divided into three dimensions, namely, the level of renewable penetration, the the time period under consideration with the highest upward and downward ramp of gas generators, and, finally, the level of coordination between the gas and power system networks (day-ahead coordination and no coordination between both energy networks). The results from the case study indicate that day-ahead coordination between gas and power system networks contributes to a significant reduction in curtailed gas during high stress periods (e.g., large gas offtake ramps) and up to a 9% reduction in gas consumption at gas compressor stations, for the combined test system examined here. This has implications for real natural gas and power systems where such significant reductions in natural gas curtailment and natural gas compression energy consumption reductions would lead to significant economic and reliability benefits to the both the natural gas and power systems.
In the future, we intend to extend the co-simulation platform by a quasi-dynamic real-time simulation of gas and power systems operation, which will enable the assessment of the impact of real-time coordination and regulatory constraints on the efficiency and reliability of coupled gas and power system networks. We also intend to analyse scenarios with higher penetration of renewable generation.
