# Comparison of the Net Work Output between Stirling and Ericsson Cycles

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Theoretical Model

#### 2.1. Stirling Cycle

#### 2.2. Ericsson Cycle

## 3. Results and Discussion

#### 3.1. Comparison with Equivalent Mass and Temperature Limits

#### Fixed Pressure and Volume Limits

#### 3.2. Comparison with Equivalent Mass and Pressure or Volume Ratios

#### 3.2.1. Equivalent Pressure Ratios

#### 3.2.2. Equivalent Volume Ratios

#### 3.3. Comparison with Equivalent Temperature Limits and Pressure or Volume Ratios

#### 3.3.1. Equivalent Pressure Ratio and Fixed Maximum Volume

#### 3.3.2. Equivalent Volume Ratio and Fixed Maximum Pressure

## 4. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## Nomenclature

W | Work (kJ) |

P | Pressure (kPa) |

V | Volume (m${}^{3}$) |

T | Temperature (K) |

m | Mass of the working fluid (kg) |

R | Ideal gas constant (kJ/kg·K) |

## Subscripts

max | Maximum |

min | Minimum |

H | High |

L | Low |

S | Stirling |

E | Ericsson |

## References

- Scollo, L.; Valdez, P.; Santamarina, S.; Chini, M.; Barón, J. Twin cylinder alpha stirling engine combined model and prototype redesign. Int. J. Hydrogen Energy
**2013**, 38, 1988–1996. [Google Scholar] [CrossRef] - Campos, M.; Vargas, J.; Ordonez, J. Thermodynamic optimization of a Stirling engine. Energy
**2012**, 44, 902–910. [Google Scholar] [CrossRef] - Cinar, C.; Yucesu, S.; Topgul, T.; Okur, M. Beta-type Stirling engine operating at atmospheric pressure. Appl. Energy
**2005**, 81, 351–357. [Google Scholar] [CrossRef] - Sripakagorn, A.; Srikam, C. Design and performance of a moderate temperature difference Stirling engine. Renew. Energy
**2011**, 36, 1728–1733. [Google Scholar] [CrossRef] - Cheng, C.H.; Yang, H.S.; Keong, L. Theoretical and experimental study of a 300-W beta-type Stirling engine. Energy
**2013**, 59, 590–599. [Google Scholar] [CrossRef] - Paul, C.J.; Engeda, A. Modeling a complete Stirling engine. Energy
**2015**, 80, 85–97. [Google Scholar] [CrossRef] - Çinar, C.; Karabulut, H. Manufacturing and testing of a gamma type Stirling engine. Renew. Energy
**2005**, 30, 57–66. [Google Scholar] [CrossRef] - Parlak, N.; Wagner, A.; Elsner, M.; Soyhan, H.S. Thermodynamic analysis of a gamma type Stirling engine in non-ideal adiabatic conditions. Renew. Energy
**2009**, 34, 266–273. [Google Scholar] [CrossRef] - Bert, J.; Chrenko, D.; Sophy, T.; Moyne, L.L.; Sirot, F. Simulation, experimental validation and kinematic optimization of a Stirling engine using air and helium. Energy
**2014**, 78, 701–712. [Google Scholar] [CrossRef] - Kim, Y.; Chun, W.; Chen, K. Thermal-Flow Analysis of a Simple LTD (Low-Temperature-Differential) Heat Engine. Energies
**2017**, 10, 567. [Google Scholar] [CrossRef] - Kongtragool, B.; Wongwises, S. A review of solar-powered Stirling engines and low temperature differential Stirling engines. Renew. Sustain. Energy Rev.
**2003**, 7, 131–154. [Google Scholar] [CrossRef] - Thombare, D.; Verma, S. Technological development in the Stirling cycle engines. Renew. Sustain. Energy Rev.
**2008**, 12, 1–38. [Google Scholar] [CrossRef] - Wang, K.; Sanders, S.R.; Dubey, S.; Choo, F.H.; Duan, F. Stirling cycle engines for recovering low and moderate temperature heat: A review. Renew. Sustain. Energy Rev.
**2016**, 62, 89–108. [Google Scholar] [CrossRef] - Sisman, A.; Saygin, H. On the power cycles working with ideal quantum gases: I. The Ericsson cycle. J. Phys. D Appl. Phys.
**1999**, 32, 664. [Google Scholar] [CrossRef] - Bonnet, S.; Alaphilippe, M.; Stouffs, P. Energy, exergy and cost analysis of a micro-cogeneration system based on an Ericsson engine. Int. J. Therm. Sci.
**2005**, 44, 1161–1168. [Google Scholar] [CrossRef] - Touré, A.; Stouffs, P. Modeling of the Ericsson engine. Energy
**2014**, 76, 445–452. [Google Scholar] [CrossRef] - Creyx, M.; Delacourt, E.; Morin, C.; Desmet, B. Dynamic modelling of the expansion cylinder of an open Joule cycle Ericsson engine: A bond graph approach. Energy
**2016**, 102, 31–43. [Google Scholar] [CrossRef] - Kaushik, S.; Kumar, S. Finite time thermodynamic evaluation of irreversible Ericsson and Stirling heat engines. Energy Convers. Manag.
**2001**, 42, 295–312. [Google Scholar] [CrossRef] - Tyagi, S.K.; Kaushik, S.C.; Salhotra, R. Ecological optimization and performance study of irreversible Stirling and Ericsson heat engines. J. Phys. D Appl. Phys.
**2002**, 35, 2668. [Google Scholar] [CrossRef] - Bǎdescu, V. Optimum operation of a solar converter in combination with a Stirling or Ericsson heat engine. Energy
**1992**, 17, 601–607. [Google Scholar] [CrossRef] - Creyx, M.; Delacourt, E.; Morin, C.; Desmet, B.; Peultier, P. Energetic optimization of the performances of a hot air engine for micro-CHP systems working with a Joule or an Ericsson cycle. Energy
**2013**, 49, 229–239. [Google Scholar] [CrossRef] - Wojewoda, J.; Kazimierski, Z. Numerical model and investigations of the externally heated valve Joule engine. Energy
**2010**, 35, 2099–2108. [Google Scholar] [CrossRef] - Feidt, M.; Costea, M. Energy and Exergy Analysis and Optimization of Combined Heat and Power Systems. Comparison of Various Systems. Energies
**2012**, 5, 3701–3722. [Google Scholar] [CrossRef] - Hachem, H.; Creyx, M.; Gheith, R.; Delacourt, E.; Morin, C.; Aloui, F.; Nasrallah, S.B. Comparison Based on Exergetic Analyses of Two Hot Air Engines: A Gamma Type Stirling Engine and an Open Joule Cycle Ericsson Engine. Entropy
**2015**, 17, 7331–7348. [Google Scholar] [CrossRef] - Eames, I.W.; Evans, K.; Pickering, S. A Comparative Study of Open and Closed Heat-Engines for Small-Scale CHP Applications. Energies
**2016**, 9, 130. [Google Scholar] [CrossRef]

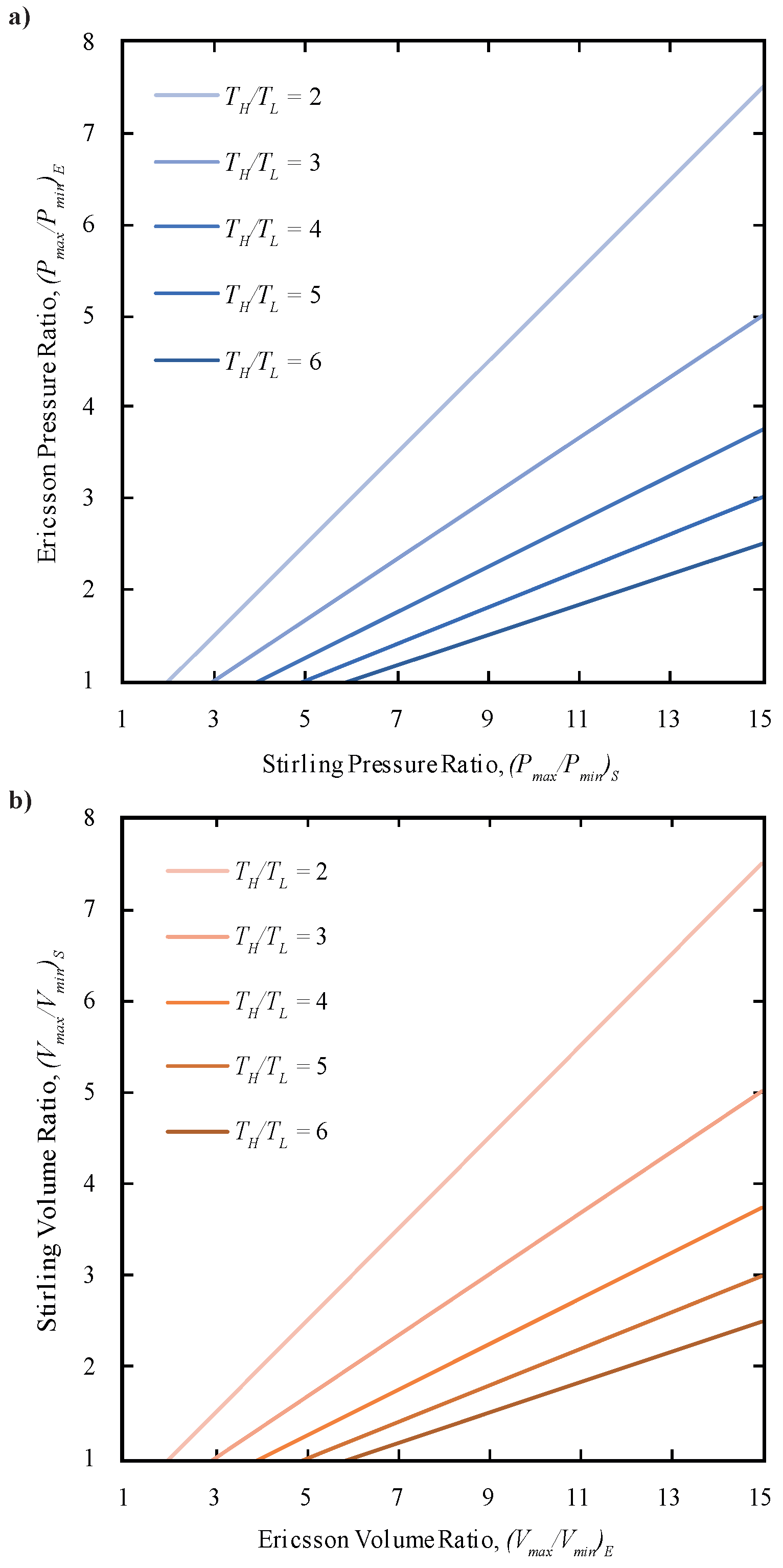

**Figure 3.**(

**a**) Pressure ratio relationship and (

**b**) volume ratio relationship between Stirling and Ericsson cycles, where the solid lines indicate equal net work output for equivalent mass and temperature limits.

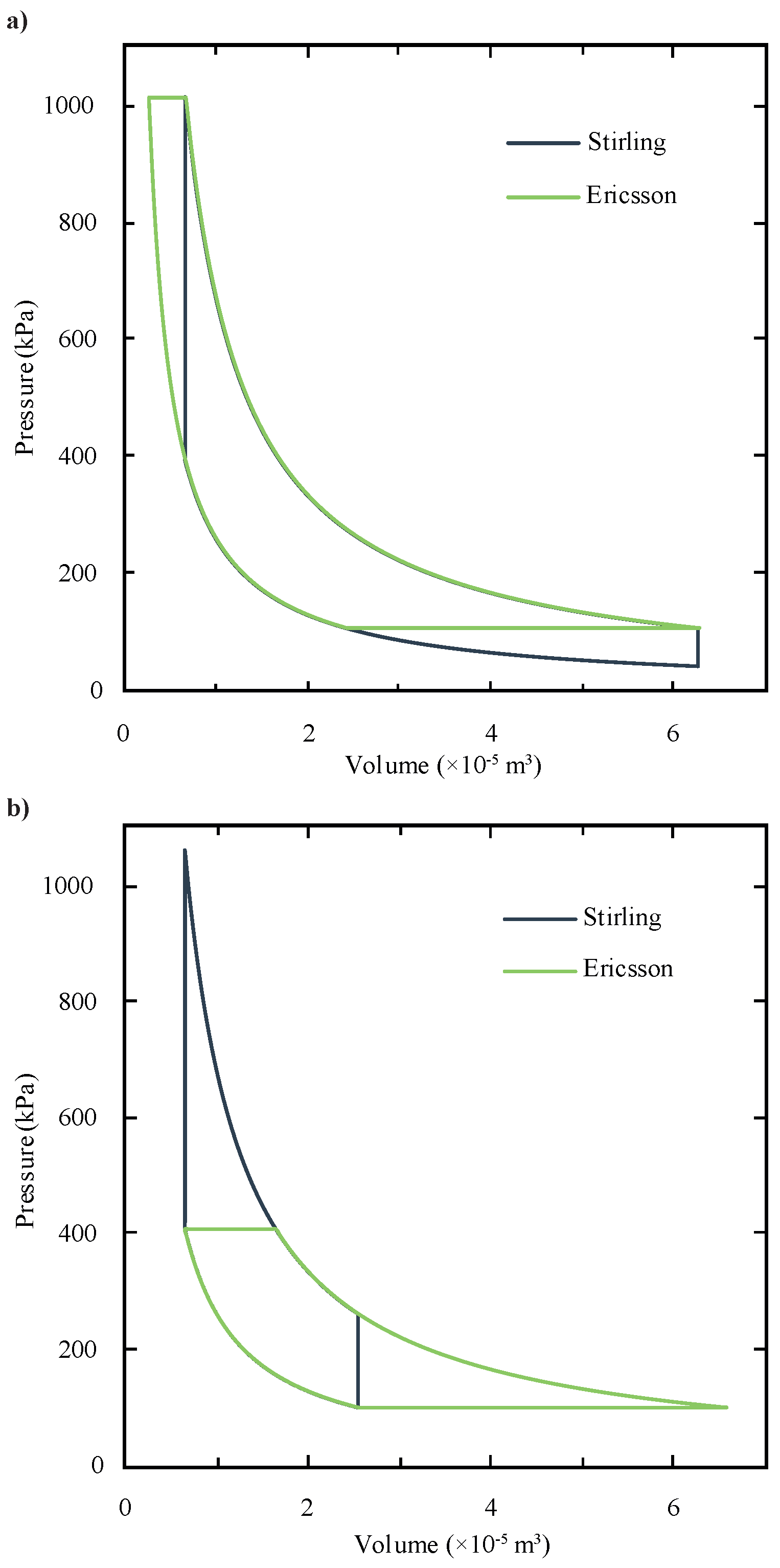

**Figure 4.**P-V diagrams of Stirling and Ericsson cycles for fixed mass and temperature limits with (

**a**) fixed maximum pressure and volume and (

**b**) fixed minimum pressure and volume.

**Figure 5.**(

**a**) High temperature relationship between Stirling and Ericsson cycles for fixed pressure ratios and ${T}_{L}=25{\phantom{\rule{0.166667em}{0ex}}}^{\circ}$C, with solid lines denoting equal net work output; and (

**b**) P-V diagrams of Stirling and Ericsson cycles for fixed mass, pressure limits and low temperature for equal net work output.

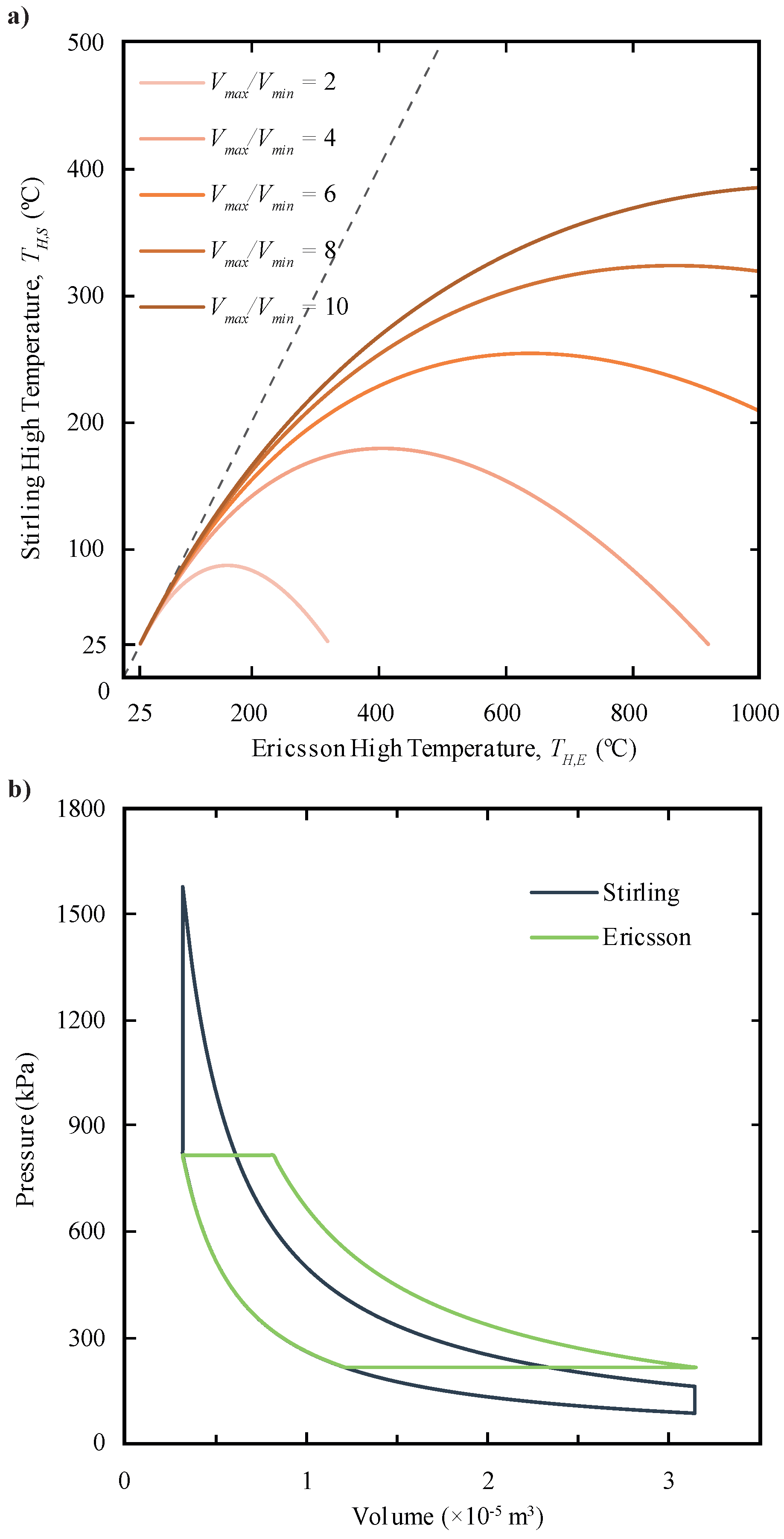

**Figure 6.**(
